The Works: John’s 300zx Twin Turbo

Filed under: Featured Cars and Projects,Maintenance,Performance
by Alvin G @ 4:45 pm on August 23, 2014

ZCG 3314 Cam2 003


John P is a new Z car owner and found this Z32TT in the Pacific NW.  When we first met John his Z had 110k miles on the clock and he decided it was time to modify…so we gave him the works! Before the go-fast goodies were installed we addressed all of the car’s issues John discussed with us and ended up with a beautifully clean, well-rounded 300zx.  Our first order of business was in engine bay, correcting the PCV system which had been bypassed/cobbled together:

ZCG Cam 2 2814 049ZCG Cam 2 2814 067ZCG Cam 2 2814 055


Next, we found an injector problem and performed the common late-style conversion. The 1990-1994 Z32TT’s have fuel injector problems because Nissan used a wet coil design. This left the injector coil wire prone to oxidation over time and eventual shorting. The solution? Convert to later style injectors using the early fuel rail. There are several adaptor kits on the market to achieve this, making servicing/removal a breeze without the need for removing the manifolds. For John’s Z we wanted to run 740cc injectors which is only available in the new style:

ZCG Cam 2 2814 095ZCG Cam 2 2814 094


More engine work including full timing belt services along with valve cover removal/refinishing:

ZCG Cam 2 2814 034ZCG Cam 2 2814 03522414 zcg cam2 026


Driveline was upgraded with a JWT HD clutch and flywheel. Keen observers may note that the exhaust has changed too!

ZCG #2 21514 009ZCG #2 21514 043


Larger downpipes greatly improve flow over the stock manifolds. The best downpipes for your Z32TT (in our opinion) can be found at SpecialtyZ. These are 3″ units:

ZCG #2 21514 011ZCG #2 21514 041

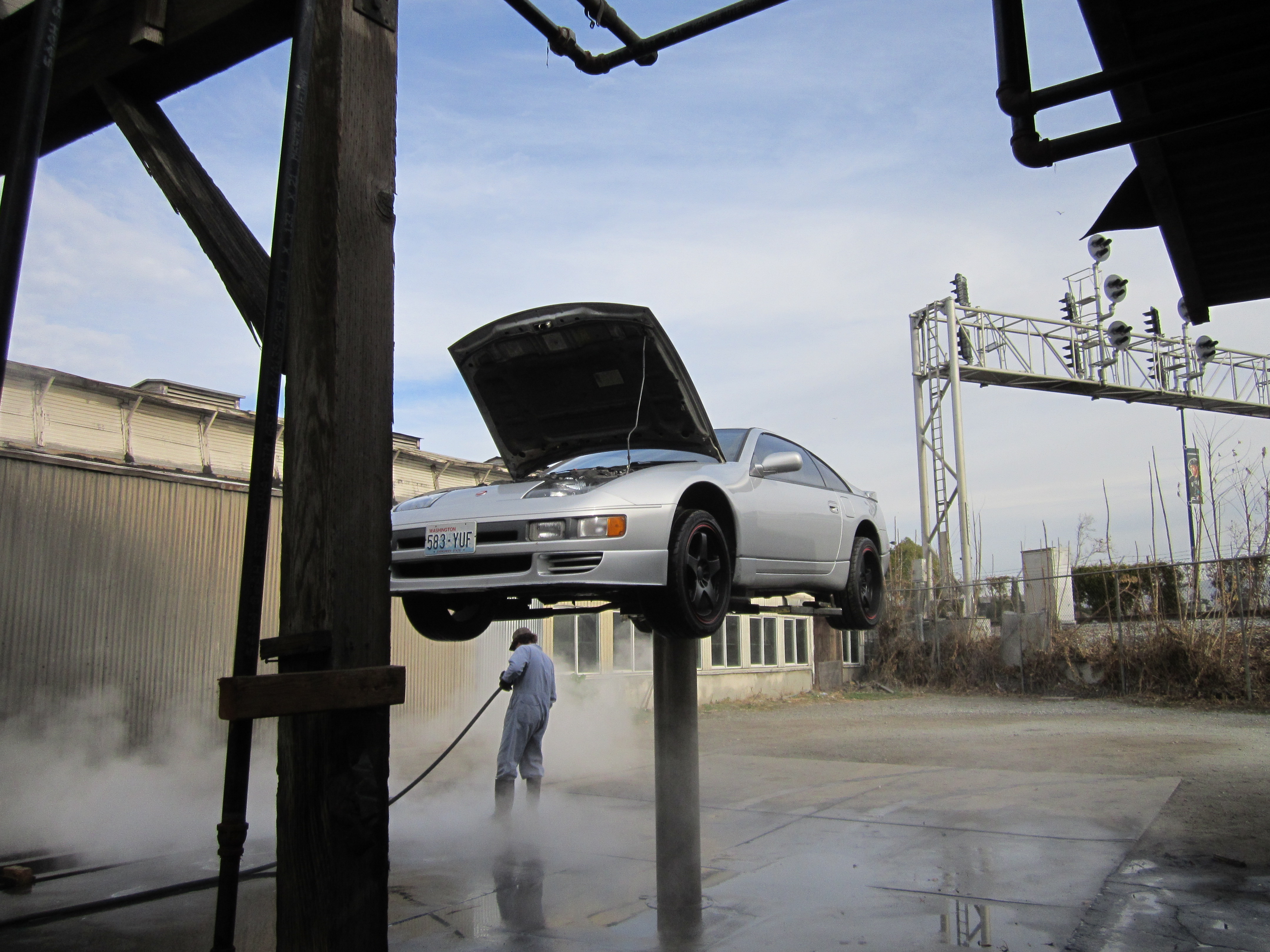

The Z was treated to a chassis steam clean, making a clean grime-free backdrop for the new exhaust system!  The downpipes were mated to 3-2.5″ midpipes:

CAM3 11314 011ZCG #2 21514 073ZCG 3314 Cam2 002

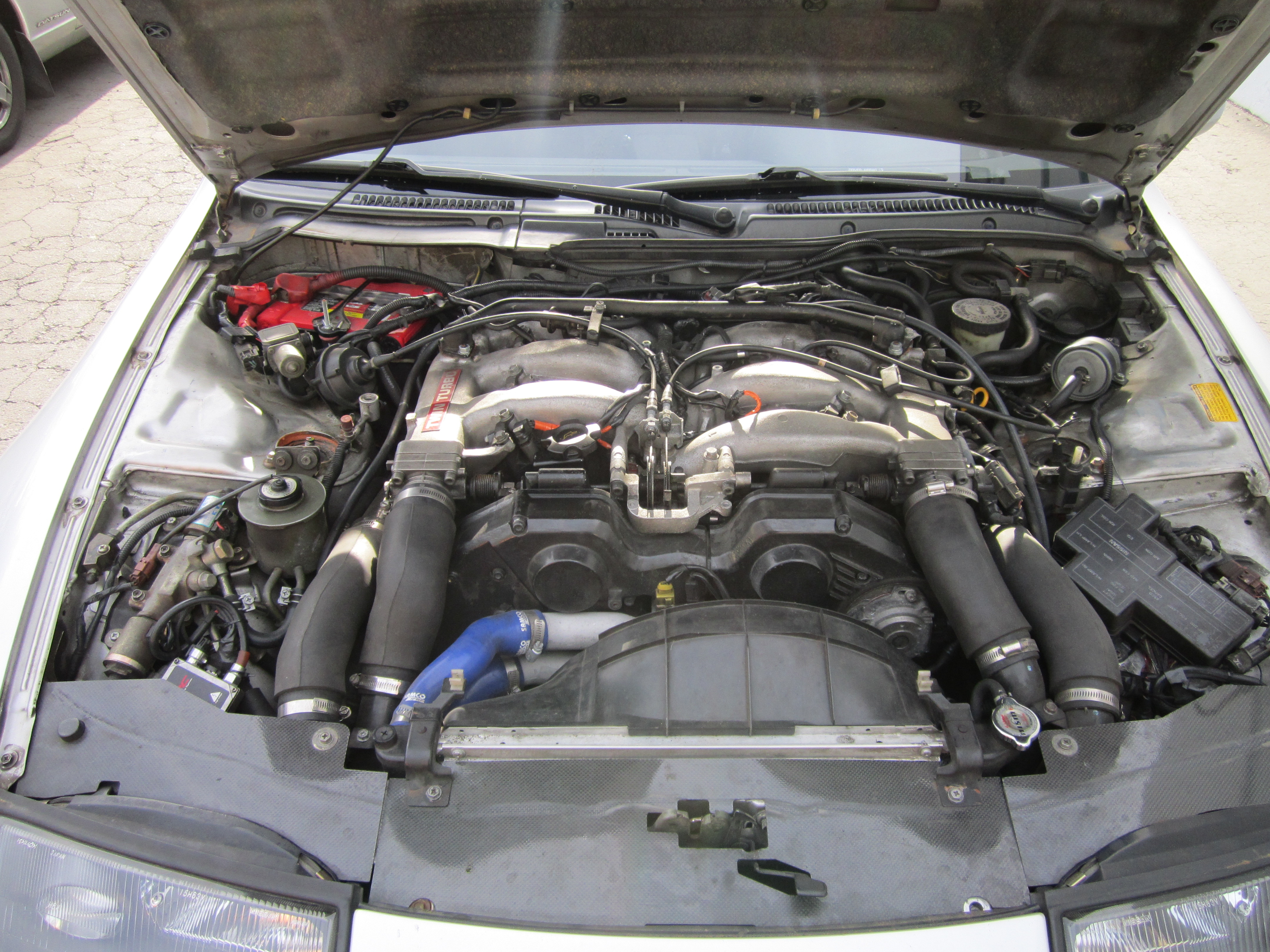

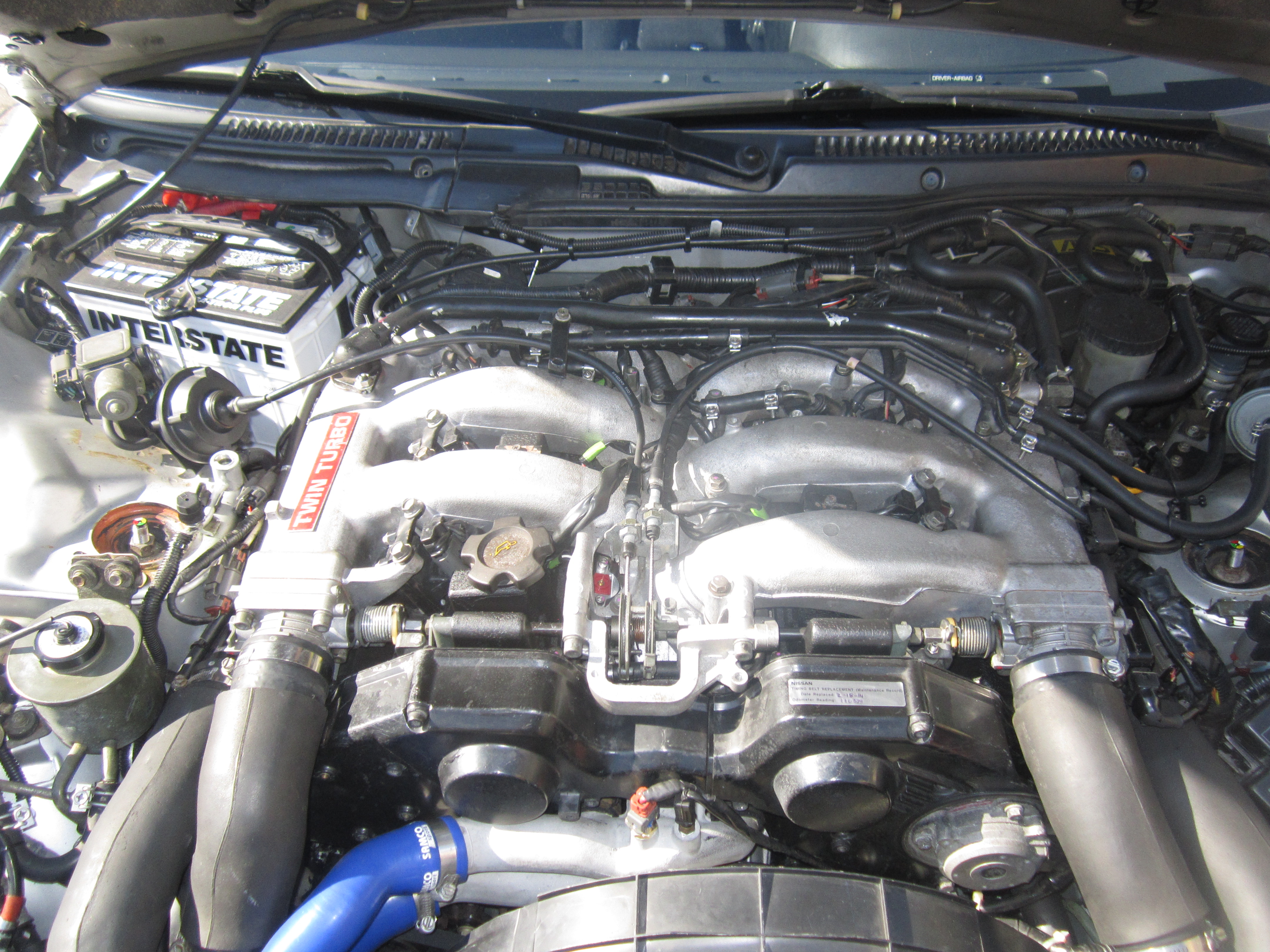

With wiring and general cleaning the engine bay looks much better!

CAM3 11314 007ZCG 3314 Cam2 009


A few chassis upgrades included SPL T/C rods and bushings as well fresh rear brakes:

22414 zcg cam2 05822414 zcg cam2 059


With the mechanicals sorted John added a few lighting improvements to the interior. The dim stock displays benefitted from new LED sources. Check out the difference:

22414 zcg cam2 068ZCG 3314 Cam2 018
Even the climate control display is improved:

22414 zcg cam2 070 - CopyZCG 3314 Cam2 021


More LED upgrades throughout the cabin:

ZCG 3314 Cam2 027ZCG 3314 Cam2 016ZCG 3314 Cam2 020


All of the work above was completed on John’s first visit. On the dyno the new exhaust clearly makes a noticeable improvement in power. We picked up 31hp/33tq to the wheels:

John Park Z32TT (1)


John visited ZCG for the second time for upgrades!  We installed more parts from our friends at SpecialtyZ  like their Selin dual MAF.  To improve breathing we also installed larger Stillen intercoolers and charge plumbing from Ash-spec:

ZCG 51714 019ZCG 51714 040


Finally, low-profile engine mounts from BDE offer more turbo inlet clearance:

ZCG 51714 020ZCG 51714 032

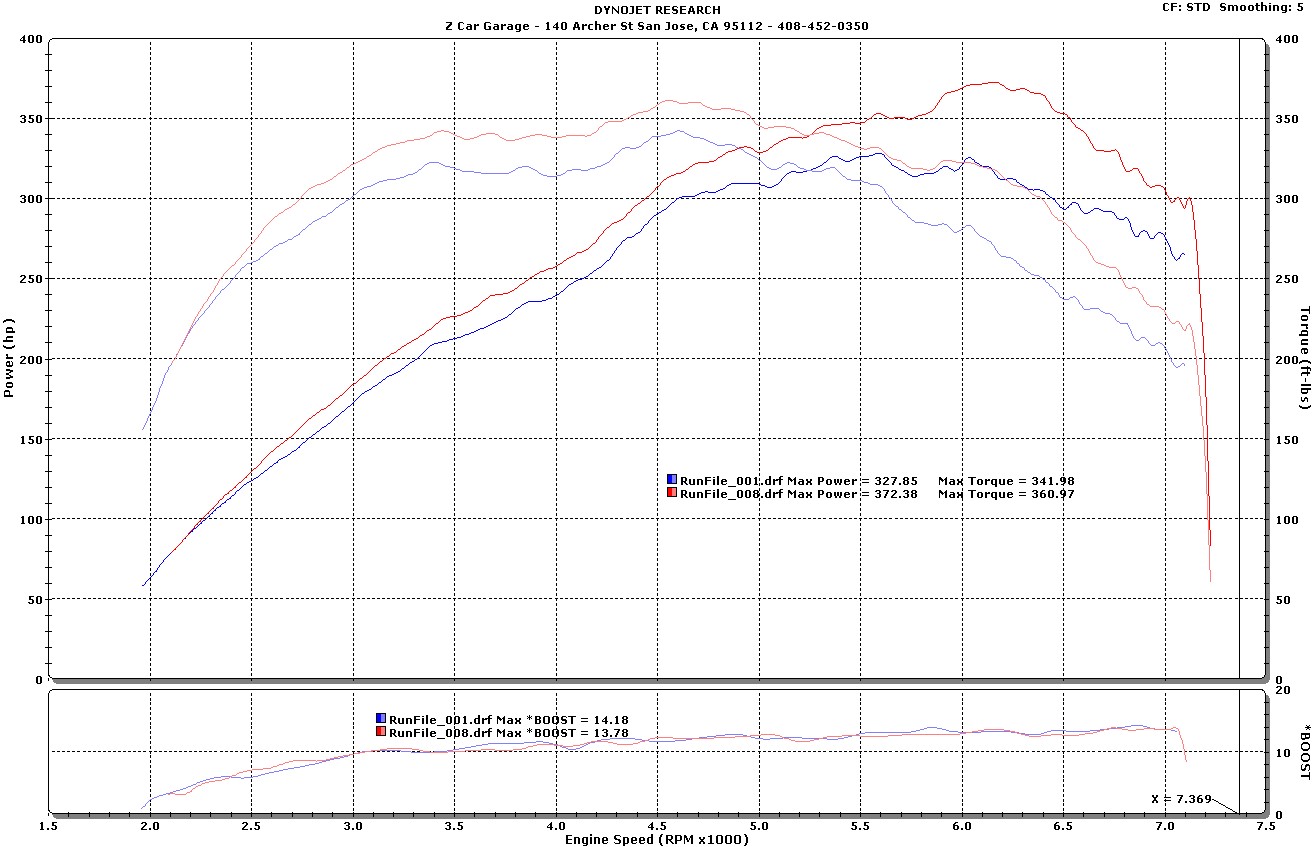

With larger ICs, plumbing and dual MAF’s we tuned John’s Z and it now makes 372hp/360tq to the wheels:

John P Mods to Tune (1)


Enjoy The Ride, John!

ZCG 3314 Cam2 004




Track Day Sept. 6-7: Sonoma Raceway with Speed SF

Filed under: Events
by Alvin G @ 11:29 pm on August 4, 2014

Screen Shot 2014-08-04 at 1.27.43 PM

Our friends at SpeedSF are running another great track day at Sonoma Raceway September 6-7. We love running our cars with these folks and they go above and beyond to make sure you get tons of track time!
Register now at SpeedSF.com!





Alex’s Supercharged 370z

Filed under: 370z,Featured Cars and Projects,Performance
by Alvin G @ 4:18 pm on August 2, 2014

ZCG 52714 409

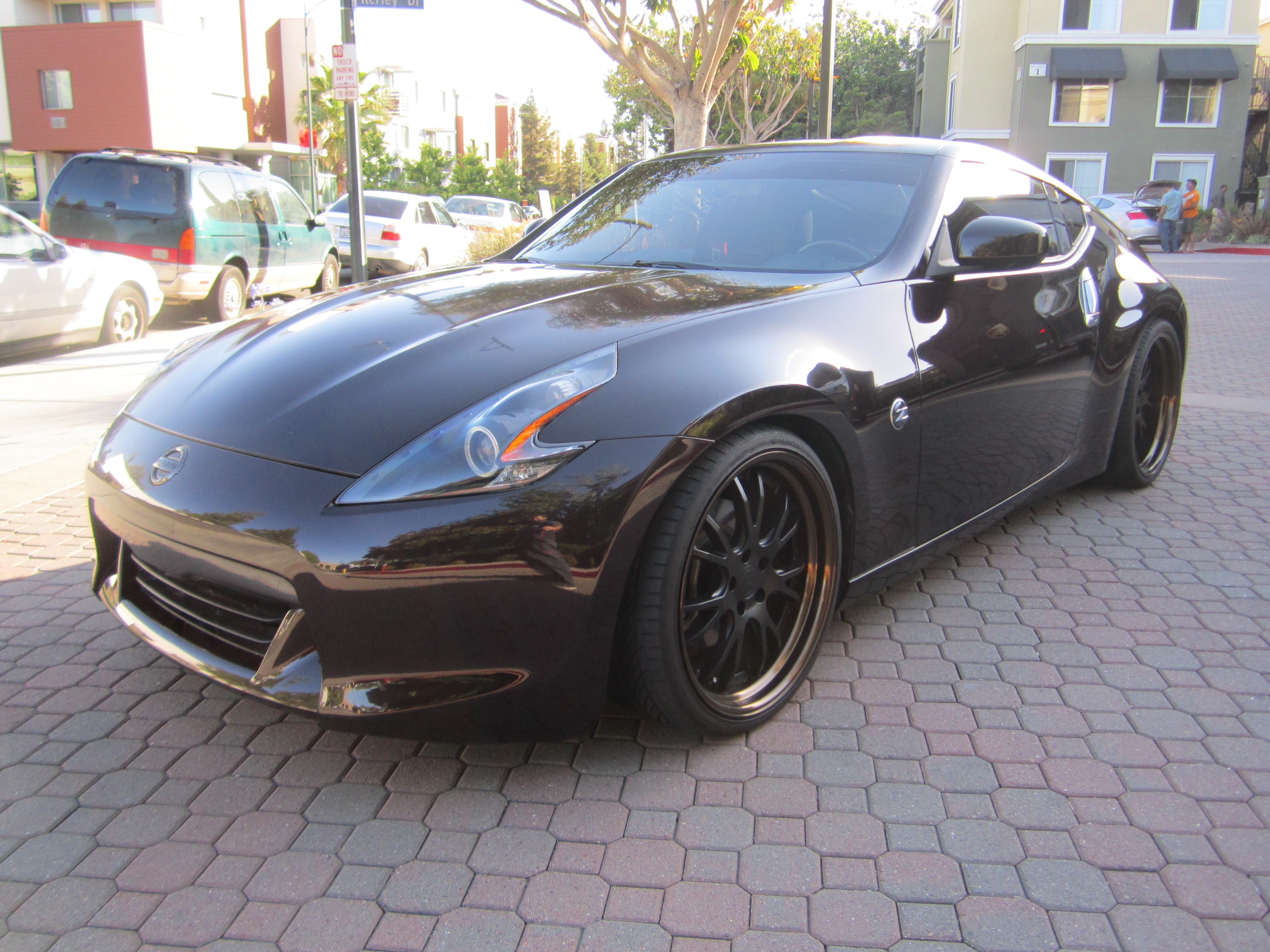

Alex T is the owner of this pretty Black Cherry Z34 and he visited Z Car Garage on referral from our boost junkie friend and customer Juan F.  To satisfy Alex’s desire for forced induction we installed a Stillen supercharger kit that was actually used on Grant K’s Nismo 370z.

JC12014 004JC11314 066JC12014 005


Out of the box, this older Stillen kit left plenty of room for improvement so we invested in several upgrades like 1000cc injectors, Aeromotive high-flow fuel pump, pulley and these engine oil/automatic transmission coolers:

JC11314 015JC11314 035

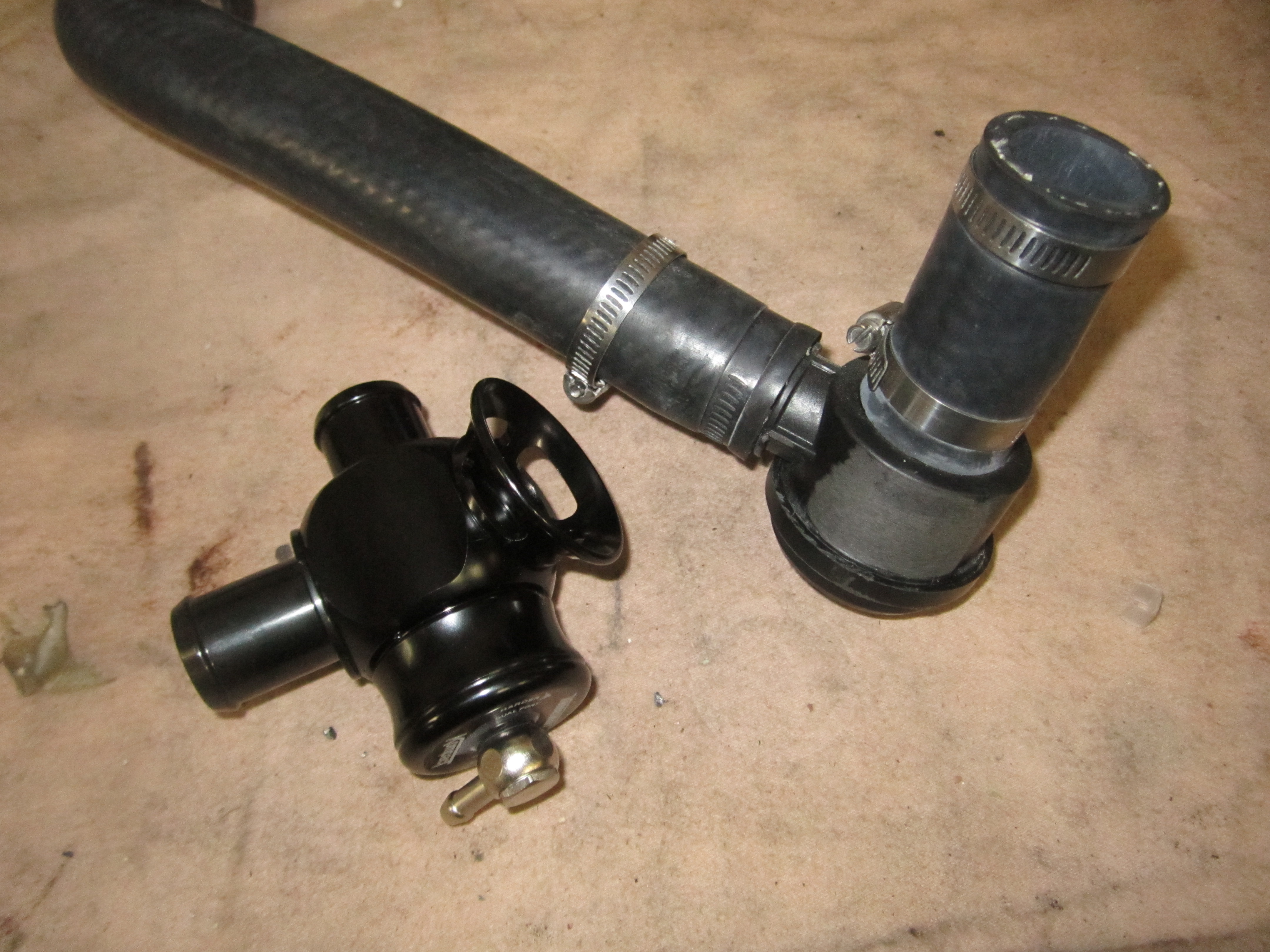

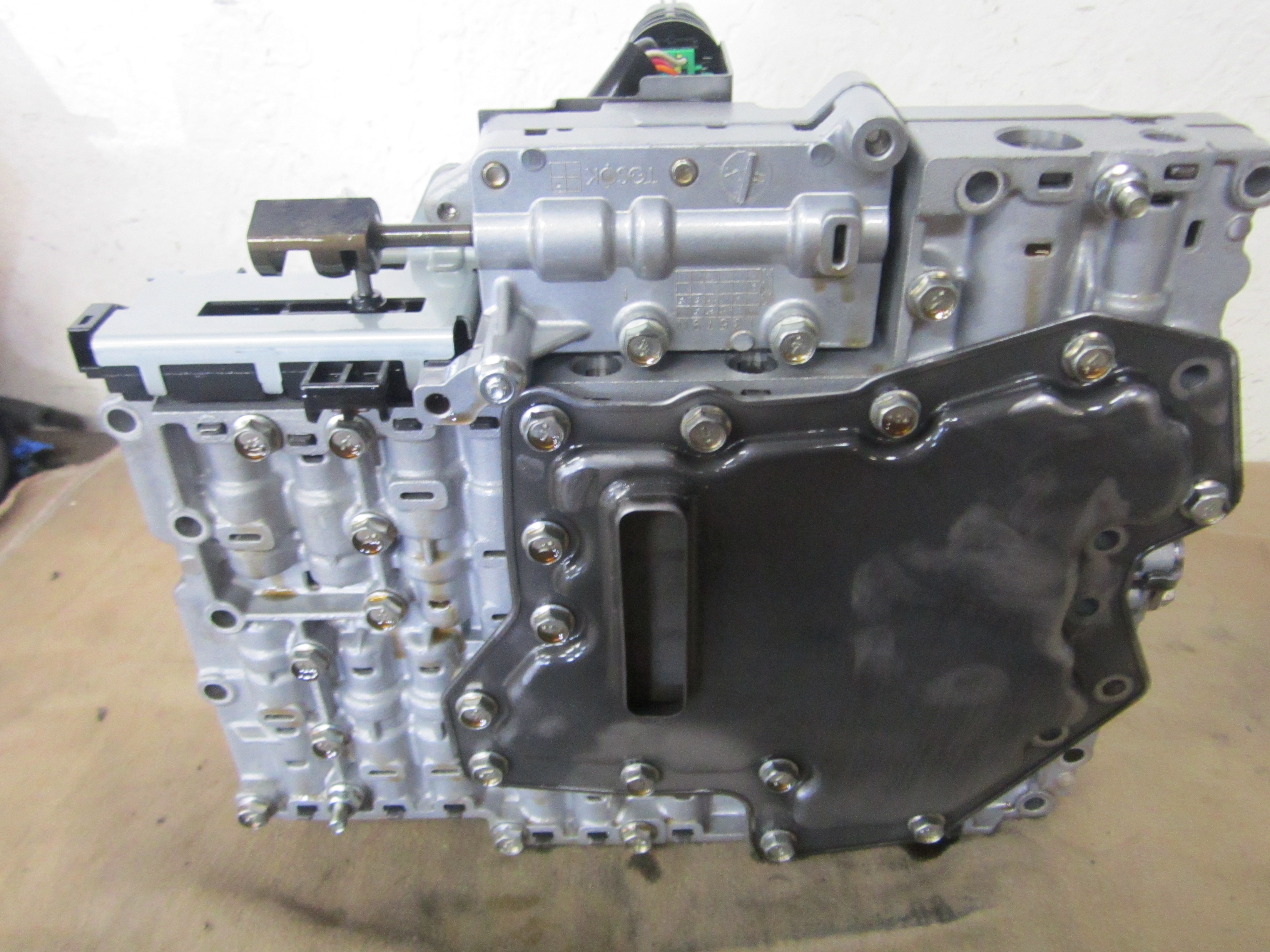

The transmission received a GTM valve-body upgrade and stock bypass valve was replaced with a blow-off valve:

JC11314 014JC1110213 017JC11314 027

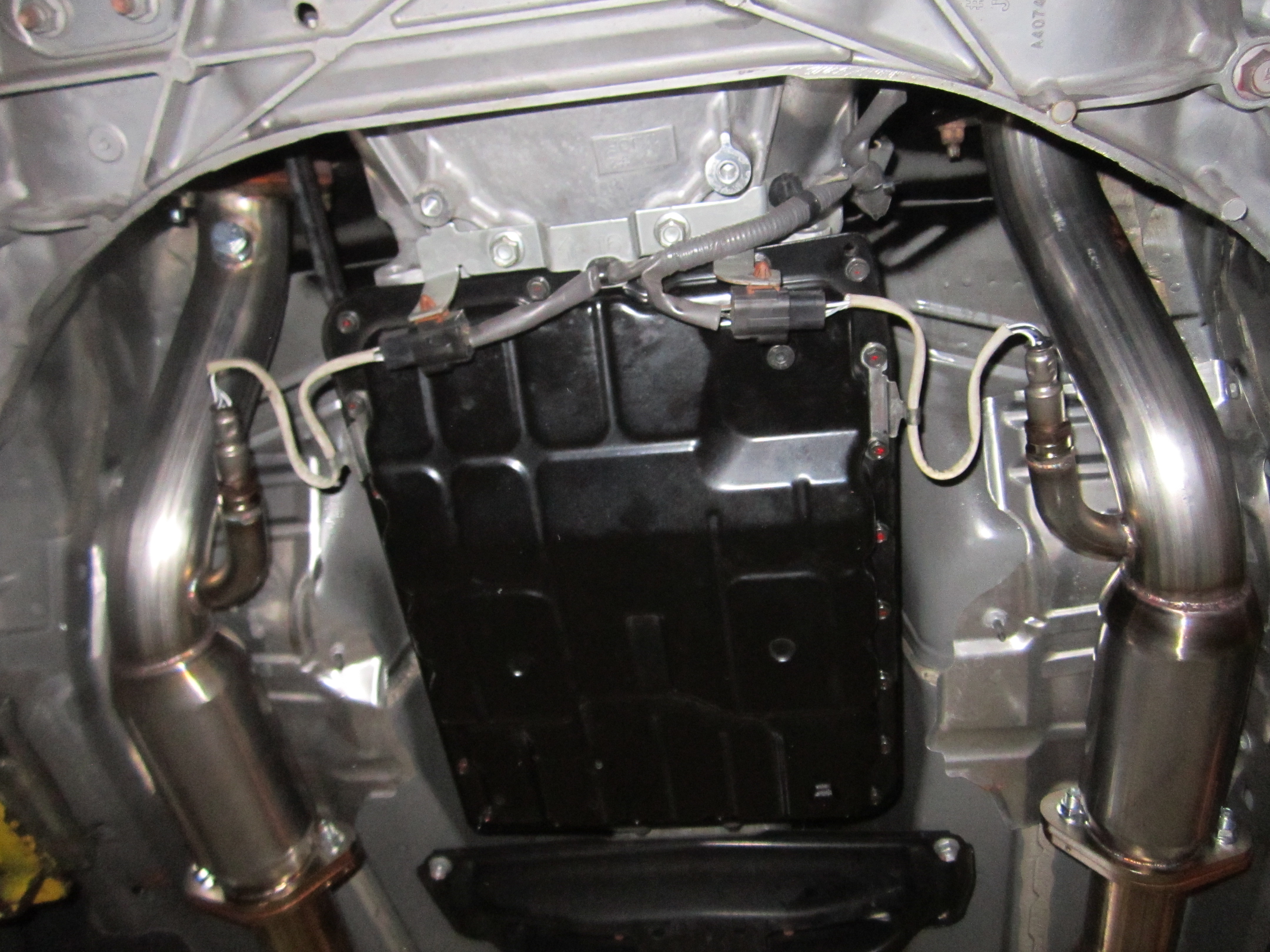

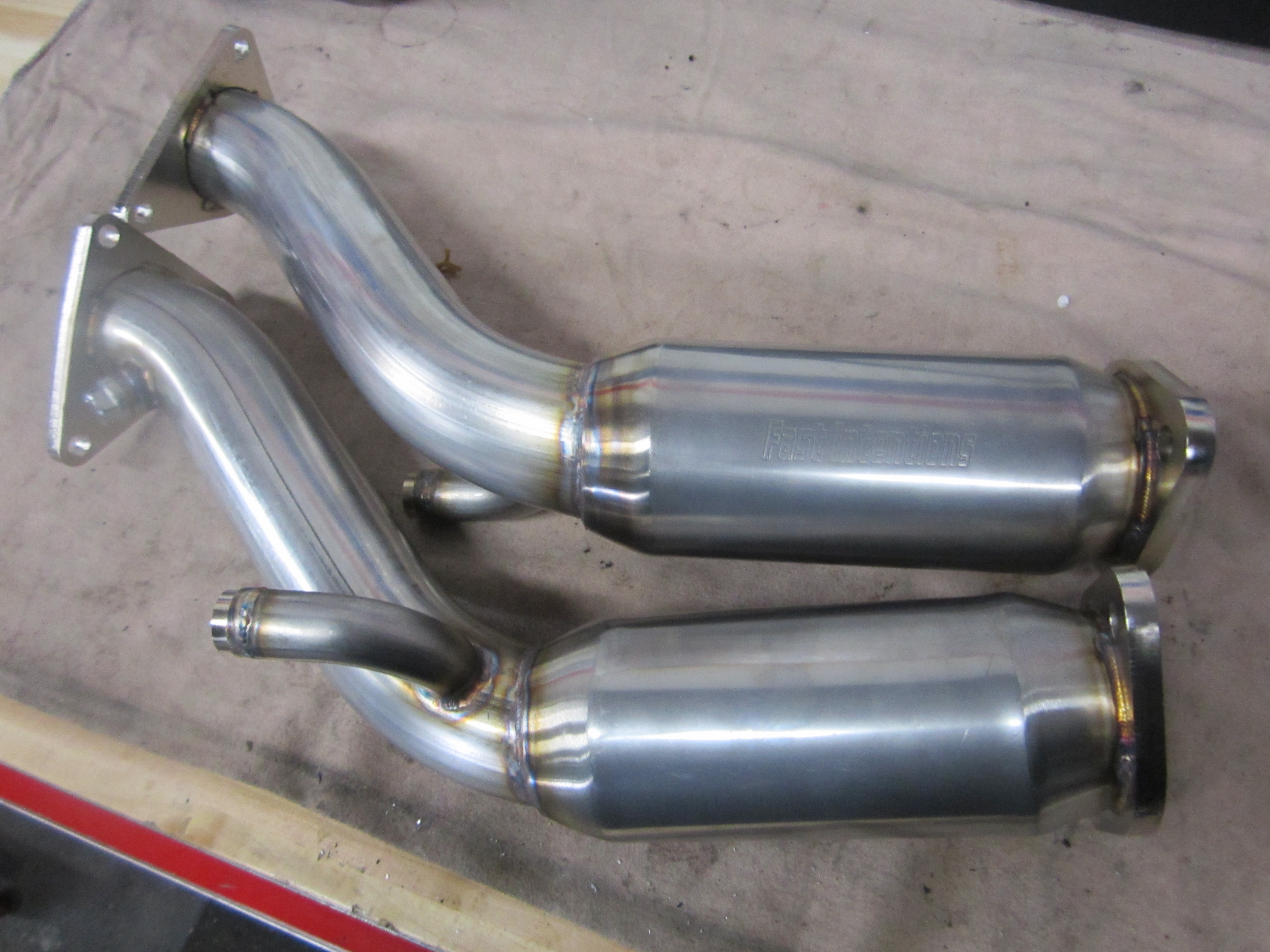

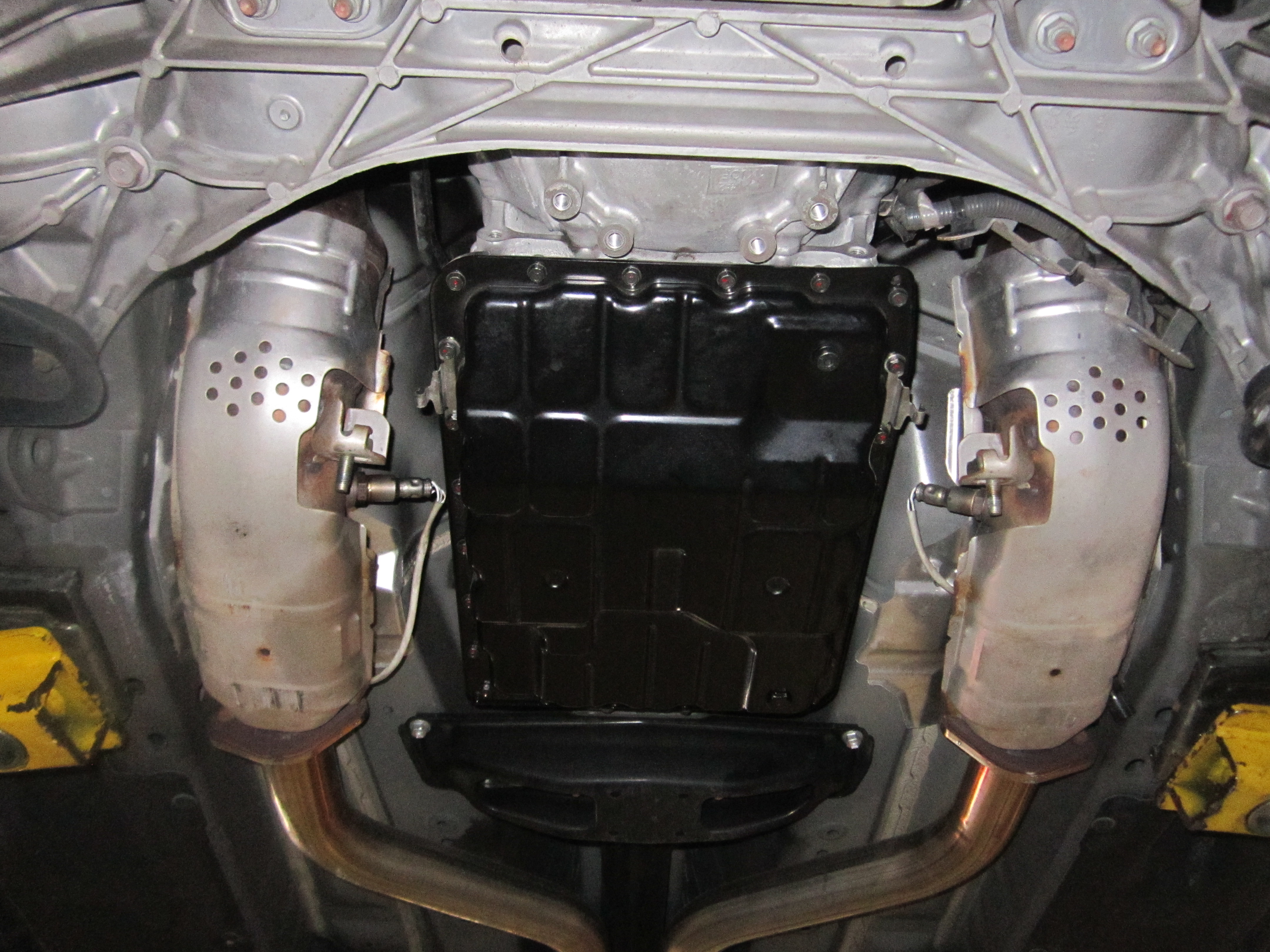

Fast Intentions test pipes replace factory cats:

JC11314 023 - CopyJC11314 020 - CopyJC11314 025

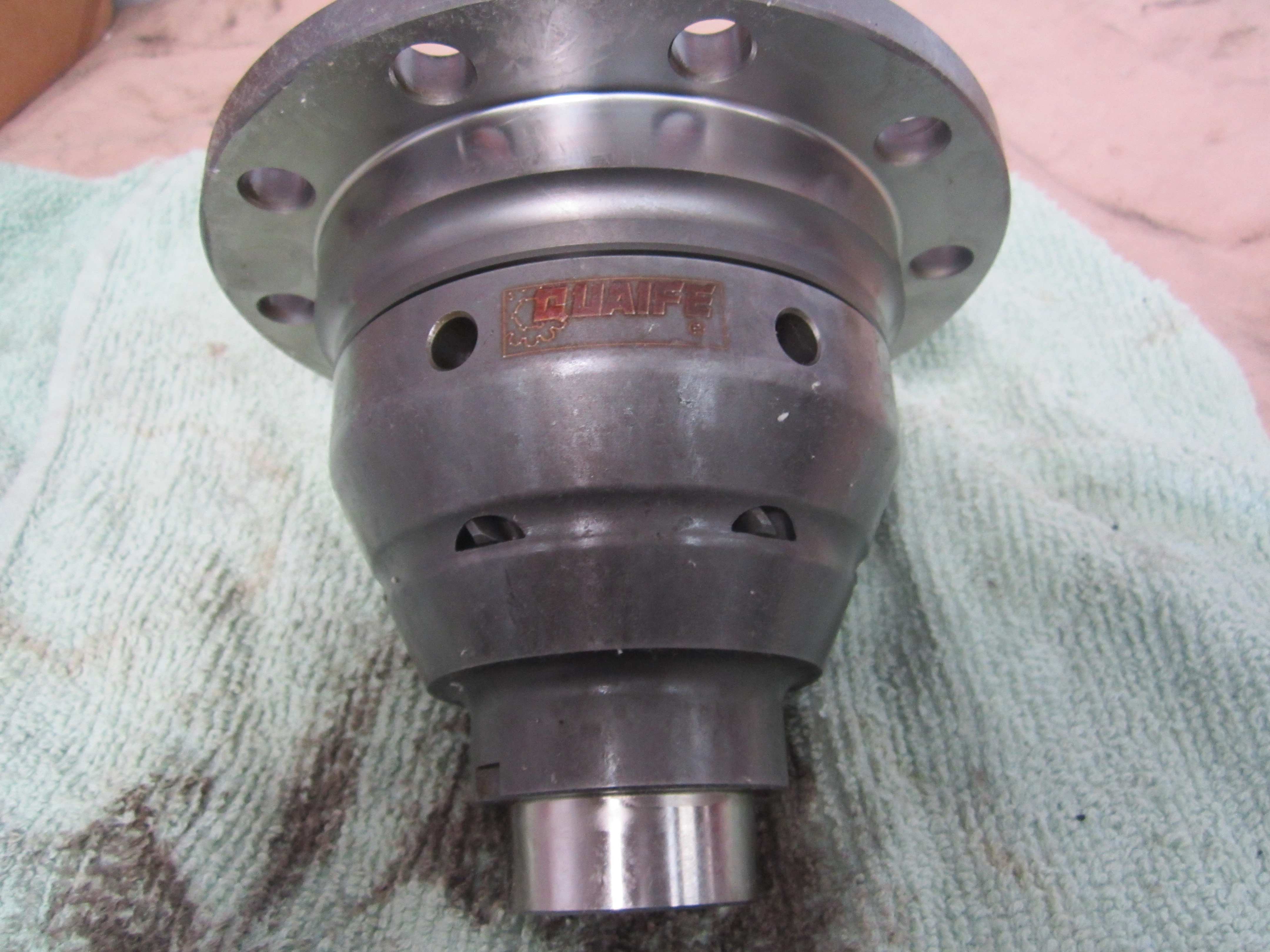

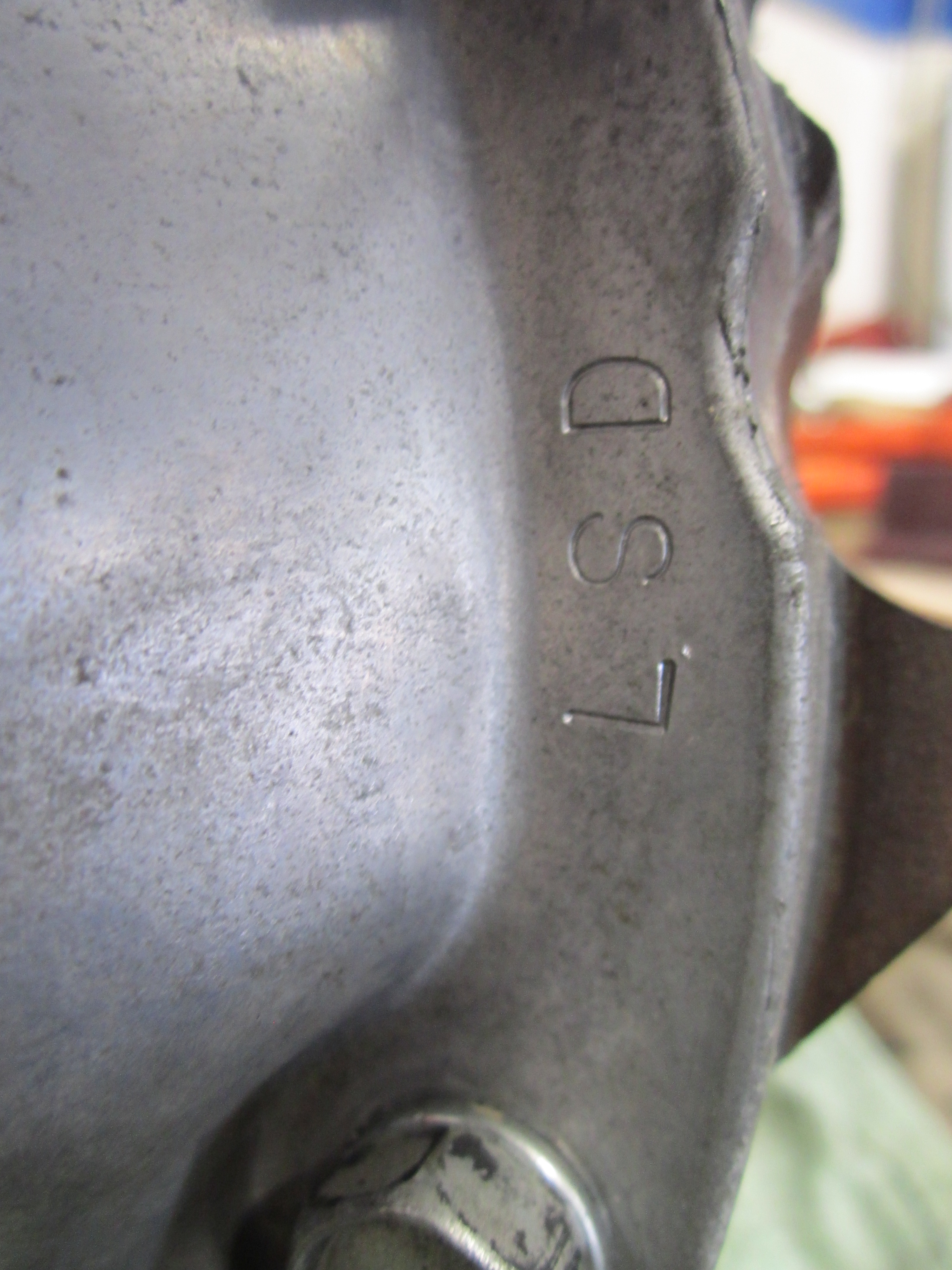

To put the power down more effectively we installed a Quaife limited-slip differential, using the stock 3.36 R&P:

ZCG 51714 050ZCG 51714 080ZCG 51714 067


With all of the modifications and UPREV tuning Rob extracted 435hp/343tq to the wheels. This is a 147hp/104tq gain over stock:

Alex Tat Z34 Stillen and baseline

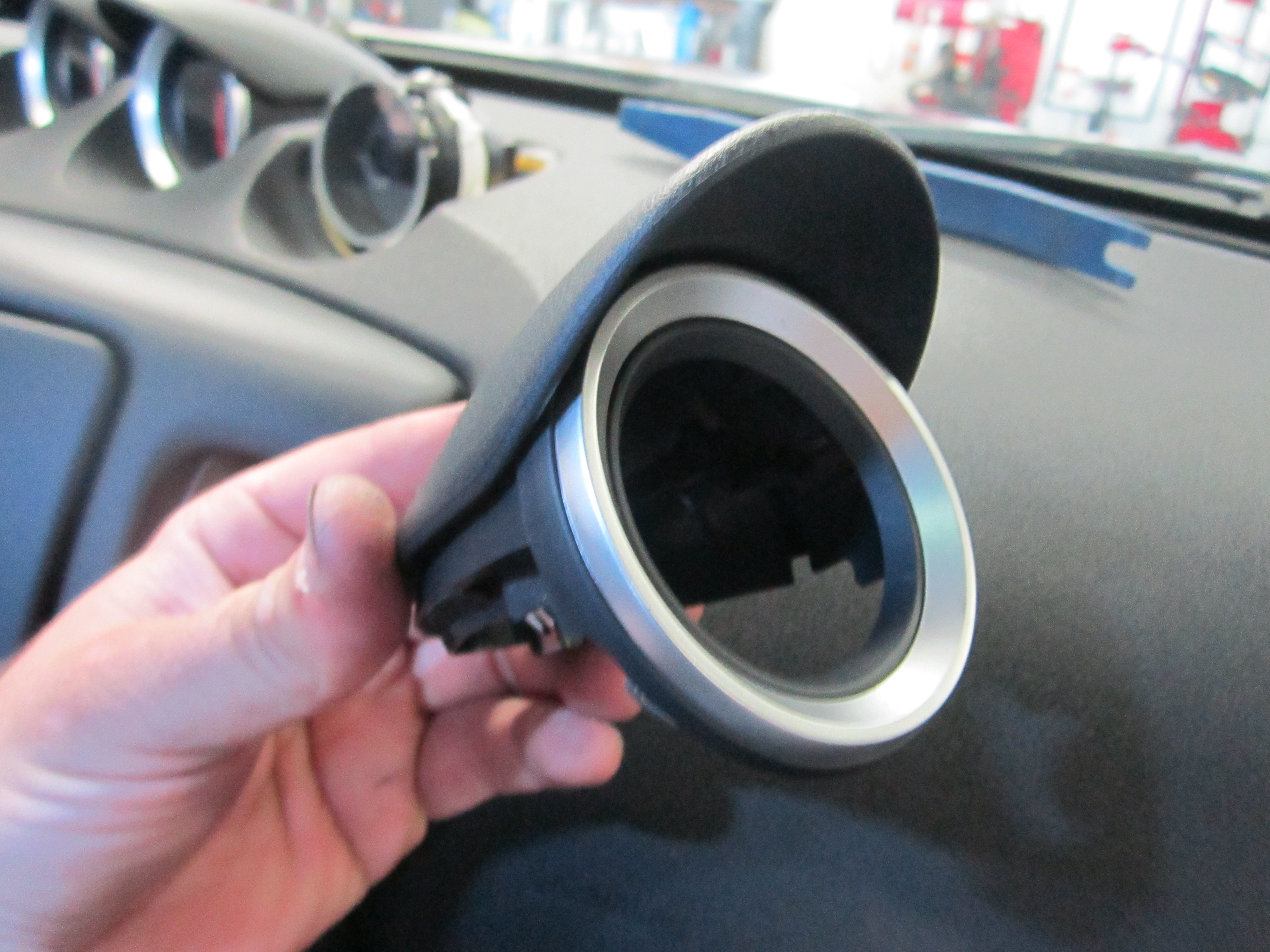

To monitor vitals Alex chose PLX Device’s OBD2 multi-gauge. We first installed this trick, wireless sensor/gauge package on Steve’s G35 with an iPhone interface.  For Alex’s Z34 the multi-gauge was seamlessly integrated into the OEM pod:

ZCG 52714 325ZCG 52714 327ZCG 52714 328

We love the brilliant display and wealth of data that can be accessed:

ZCG 52714 355ZCG 52714 385


Enjoy the Ride Alex!

ag1

Check out more pictures in the gallery:
