Enjoy the Track: Dirk’s 1973 Datsun 240Z

Filed under: 240z,510,Featured Cars and Projects,Parts
by Alvin G @ 2:40 pm on February 8, 2024


We have the pleasure of continually developing Dirk’s 1973 Datsun 240z to help achieve his vision of a Z car that is adept on the street and track. Improving the driving experience are Z Car Garage Big-BrakesZ Car Garage CV Axles, Silvia 6-speed transmission and a host of chassis and driveline upgrades. Dirk has been enjoying the Z at open-track days including Laguna Seca and most recently Sonoma Raceway.

Track Day Fun

Let’s hear from Dirk about his journey for optimal chassis settings enabling both spirited street and track driving…



DIRK: Shortly after I first got my Z, I broke the factory open diff on a windy road, and started working on the suspension. It was on stock struts and lowering springs, and the car bottomed out badly under braking while going downhill. So, it went to its first track day with an R180 diff from a Subaru WRX (3.54 Torsen), the factory 4-speed, stock L24, rebuilt stock brakes with high-temp brake fluid, and a set of T3 coilovers with 200# front and 250# rear springs (see that roll)”



“After that, I went to 300# and 350# springs to reduce roll and improve overall handling, note much less body roll below”



Chassis and Driveline Upgrades

First, there was work to upgrade the steering geometry and suspension. With the car being lowered quite a bit, despite having 1″ RCAs installed, it had a ton of bump steer. Rob installed DP racing adjustable tie rods, removed the front springs, and completely eliminated the bump steer on the alignment rack while moving the suspension through its full range of motion.

New DP Racing tie-rods and in-house alignment:





We also refurbished Dirk’s steering rack with fresh parts from our stash:




With the Z back in the shop for bodywork we took the opportunity to make more suspension changes. New Koni Race shocks from T3 were installed, which were a much better match for the 300# and 350# spring rates than the Koni Sport shocks they replaced (as Dirk initially ordered the coil overs with lower spring rates, he never replaced the shocks after adjusting the spring rates, and the car always felt underdamped, particularly on the not-adjustable compression stroke):




ZCG Big-Brakes and CV Axles


Dirk visited ZCG and drove “Mrs. Butters”, our 1970 Series 1 240z shop demo car and he was sold on our Z Car Garage Big-Brakes (for small wheels) and Z Car Garage CV Axles! Butters has a way of doing this to our customers 🙂 As fellow S30 owner/racer Glenn C mentioned in his review, on top of braking performance, pedal feel is extremely important and our Big-Brakes deliver. This is a direct result of working with Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. All fitting behind a 15″ Watanabe or Panasport wheel and retaining factory emergency brake lever! A few details below:

Calipers: Stoptech ST42 4-piston front & rear race calipers (Alum 6061 mil-spec Type III anodized)

Rotors: 280mm x 20.6 with Alum 7075 hats

Pads: Stoptech 309 sport street pads

Blog posts documenting all of our customers running the ZCG Big-Brakes can be found HERE.

A few closer detail shots of the calipers, rotors and hardware:




We removed Dirk’s stock brakes and installed our ZCG Big-Brake kit.


ZCG Big-brakes replacing stock setup up front:





At the rear, the factory drum brakes were replaced with our ZCG Big-Brakes. Factory handbrake functionality retained!



DIRK: While I liked the feel of the factory brakes (as long as the drums were perfectly adjusted), and they were quite adequate paired up with the original L24, I didn’t dare take the car on track on the tiny solid rotors once I started adding power, first with the Datsun Spirit STR-3 engine. Once ZCG installed the Rebello engine and 6-speed transmission, it was even more obvious that a brake upgrade would be wise…”



S15 6-speed transmission

After comparing the Z to his Subaru BRZ on the track, it was clear the Z was better at everything except for shifting gears. Since his engine made a healthy amount of torque, but not enough to warrant a CD009 (350z) transmission, Dirk kept looking for alternatives. He also wanted something with slightly closer gear ratios to better suit the engine’s power band. An S15 Silvia 6-speed seemed like the perfect fit and we installed it back in 2019.




The first S15 box had some weak synchros, so Dirk sourced another one that was installed with OE trans fluid, as well as a set of fresh OE motor and trans mounts to help with shifter feel and reduce vibrations in the car.




“The S15 transmission fit surprisingly well. ZCG built a custom crossmember to locate it, and the shifter lined up almost perfectly. No transmission tunnel mods were necessary. The modern shifter looked out of place, so ZCG built a custom unit that would look stock, and work with the Datsun competition shift knob. A small 6-speed shift pattern sticker modeled after the one used in the Silvia is the only clue there’s something different going on under this car. And of course the driving experience.”

Making the S15 shifter look factory, we are happy with the result and Dirk’s subtle shift pattern sticker:





Our Z Car Garage CV Axles help transmit power to the ground and ensure smoother operation compared to your standard half shafts. We have over 70 CV axle kits on customer cars and we are stoked with all of the positive feedback.




Also visible on Dirk’s Z are the excellent adjustable lower control arms from Techno Toy Tuning.




DIRK: “The Z has seen a few different tracks. Laguna Seca, Thunderhill in the dry, Sonoma in the dry and the wet. After quite a few street miles on the car with the ZCG big brakes, an 4.11 OS Giken diff, we sorted a few more things with the car. Most notably, we redid the front suspension, and installed a fresh set of Koni race shocks all around the car. These were a much better match for the 300/350 lb/in springs than the Koni sport shocks I originally bought with the coil overs.”

Finally, an opportunity to take the car to the track again came up, and Dirk with the S30, and his friend Joey with his E30 went to Sonoma Raceway:



DIRK:The car was obviously a lot more capable than the last time it visited a track. The driver, however, was a little rusty, so with each session lap times started to come down but there is plenty more left on the table. The brakes were extremely consistent throughout the day, with not a sign of fade. And the whole car performed admirably. The temp gauge was steady right below the middle of the range all day long. I got fuel starvation in turn 11 once, which is somewhat expected with an unmodified set of Mikuni 44 PHHs, but other than that the Z didn’t skip a beat.”



We were stoked to see Dirk happy with our Z Car Garage Big-Brakes! Enjoy the video below showing in-car action from Sonoma Raceway, dyno run and more, volume up!

After many more tweaks, different induction setups, spring rate changes, rebuilt stock brakes, and 24K miles of driving including a few track days, Dirk’s Z was inching closer and closer to his vision. The next step in making the car faster would be to put in a more supportive driver’s seat.

3 Liter L-Series Power

Unfortunately, the Datsun Spirit engine developed rod knock which was the impetus for a big drivetrain upgrade. Several other parts of the car where refined as well.

The L28 engine was pulled, sent to Rebello, and built into a 3L powerhouse. Dave bored out the 44PHH venturis to a custom 38.5mm, to hit the perfect compromise between peak power and drivability. We also installed a fresh water pump, alternator, new fan blade, OEM fan clutch and fresh air filters. The beautiful DP Racing oil pan remained. More photos in the gallery below:



A custom stainless 2.5″ mandrel-bent exhaust mates with a new set of coated Pacesetter headers and Z Story Street muffler (in a search for a reduction in volume while keeping a nice note). Dirk discusses the clutch/flywheel combo below:




“The STR-3 already was able to slip the Exedy clutch and we were never fans of the Chromoly steel flywheel. A Jim Wolf Technologies clutch and flywheel combo was installed after first trying a newly developed Kameari single plate street clutch kit, which we both found too loud and racy for this street car. While the JWT pressure plate yielded a different pedal feel that took some getting used too, it was not too heavy and perfectly comfortable to drive in traffic. More importantly, it never slipped under any kind of abuse.”

The clutch hydraulics were replaced to work with new alumimum flywheel/JWT HD clutch combo:




We installed a ZCG-built 4.11 OS Giken limited-slip differential in the R180 along with a custom aluminum driveshaft:





Dyno Tuning

The previous L28 made 202hp/194tq at the wheels with Rob’s tuning. Now with the fresh 3L it baselined at 245hp/226tq with more area under the curve:

Rob tuned the car further on the chassis dyno, setting it up with a very lean idle at Dirk’s request (to minimize gasoline fumes at idle). With A/F optimized and Nismo Mikuni carbs massaged, Rob unlocked another 20hp yielding a stout 265hp/232tq to the wheels:



With gains of 62hp/37tq at the wheels over the L28, Dirk is very happy with the new 3L:

“While the Datsun Spirit engine had a very peppy mid-range and made more delicious induction noises, there’s no argument that the more powerful Rebello engine elevated the car to the next level of performance and fun. The entire setup worked incredibly well together, and we hit an impressive 265hp at the rear wheels, or 60hp more than the engine made in its previous iteration, putting it in the 100hp/liter ballpark at the crank. Not bad for a dinosaur engine on California pump gas!”

Datsun 510, 620 and Z car love

Dirk bought his first Datsun in 2014, a 1970 510, to learn how to work on cars himself. After learning more about the history of Datsun, and the significance of both the 510 and the 240Z in establishing Japanese cars in the American market, he knew he had to own a Z as well.




A year later, the right Z showed up on eBay in Texas, a 1973 in silver gray. After pouring over the photos and talking to the seller, Dirk bought the car sight unseen. The idea was to have a nice Z to enjoy and drive, while continuing to work on the (sometimes not) rolling restoration of his 510. The car was lovingly restored by a dad and his children and in mostly stock condition. Dirk also has Datsun 620 work truck complete with dual-Mikuni’s:





Dirk shares his experience working with us:

“Collaborating closely with Rob and ZCG has elevated the optimization process. Rob will frequently talk me out of a bad idea, or into a good one (like the OS Giken LSD). Sometimes I talk him into a bad idea and it turns out to work really well, like the S15 gearbox. The most fun is when we brainstorm stuff together like turning the catch can setup into an improvised simple PCV system, eliminating all hints of oil fumes from the car while running.”



Enjoying the Ride

Dirk’s been driving his Z-car pretty much every day since the latest upgrades, and it’s been working phenomenally well:

“The drivetrain + brakes make it as happy to accelerate as it is to stop, and with the quick, closely spaced shifts and eager engine, it’s fun to do a casual grocery run, and to drive quickly. With the electrical systems and all fumes well under control, it’s truly a car you can do anything with, and probably more reliable than my BMW.”



We loved to see Dirk driving his Z on rallies and fun runs this year. Most recently we joined fellow Japanese vintage car owners on the Tokyo Calling event hosted by Breakfast Club Rally:




Dirk also joined us for a New Year’s Day drive through our favorite Bay Area Backroads:




We enjoyed working with you Dirk and it was rewarding to help improve your Z.

“Some say good is the enemy of great, but that’s true if you think you’re done. I don’t see my Z car less as a “build” that’s done. I’m always developing it, just like continually developing a race car (e.g. my Lemons car, http://instagram.com/bittersc243) to stay competitive. In this case the competition is merely for making the Z into the most fun driving experience I can imagine, and the journey of continuous refinement and improvement is a big part of the fun for me.”




Farewell, Dirk!



We helped Dirk prepare both the 510 and Z for overseas shipment to the Netherlands. Stay tuned for a feature on Dirk’s Datsun 510, it’s a really neat little Dime with a screaming L-Series. Thanks for your support Dirk and LONG LIVE THE Z!




TRACK DAY: February 20 at Laguna Seca

Filed under: Events
by Alvin G @ 8:23 pm on January 26, 2017

cover-1


Our friends at SpeedSF are running another great track day at Laguna Seca on February 20. We love running our cars with these folks and they go above and beyond to make sure you get tons of track time! They are offering a free transponder for all the Nissan drivers ($20 value) for this track day so sign up soon!  ZCG will be out there with a customer’s R32 Skyline GT-R and several new/old Z cars.

Full Track :

  • 90 db Only event.
  • Five 20mins Session , 4 Run Groups, (Advance, High Intermediate, Low Intermediate, Beginner)
  • All cars welcome with different level of experience groups.
  • Optional Time Trail Series: Speed SF Challenge, compare your lap time with other drivers in your class. Details: http://speedsf.com/speed-sf-challenge/
  • Single Driver $225 / driver ($250 Regular Price)



More details at SpeedSF.com!

Screen Shot 2014-10-25 at 11.17.51 PM




370z at Thunderhill!

Filed under: 370z,Featured Cars and Projects,Performance
by Alvin G @ 2:15 am on January 5, 2017

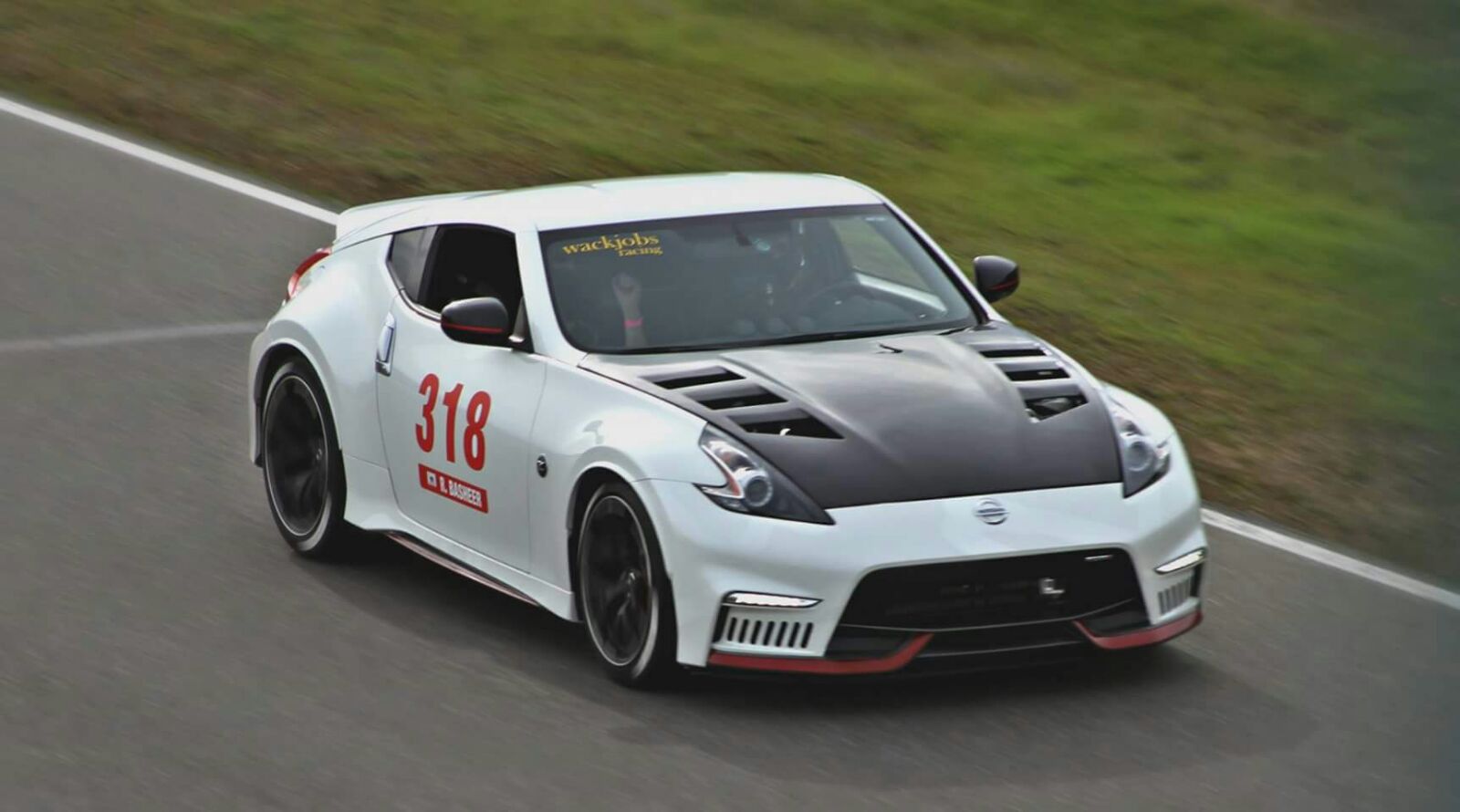

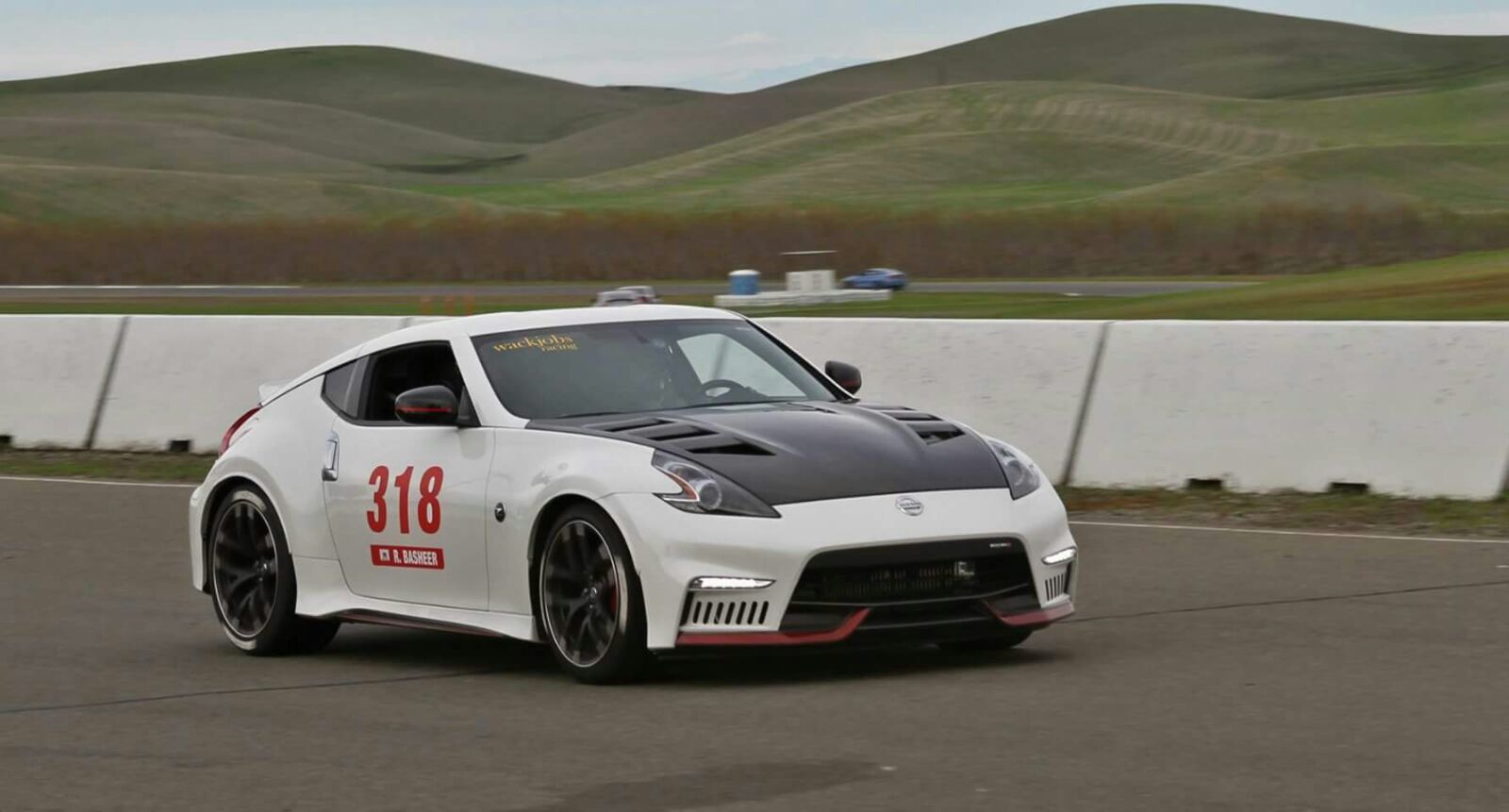

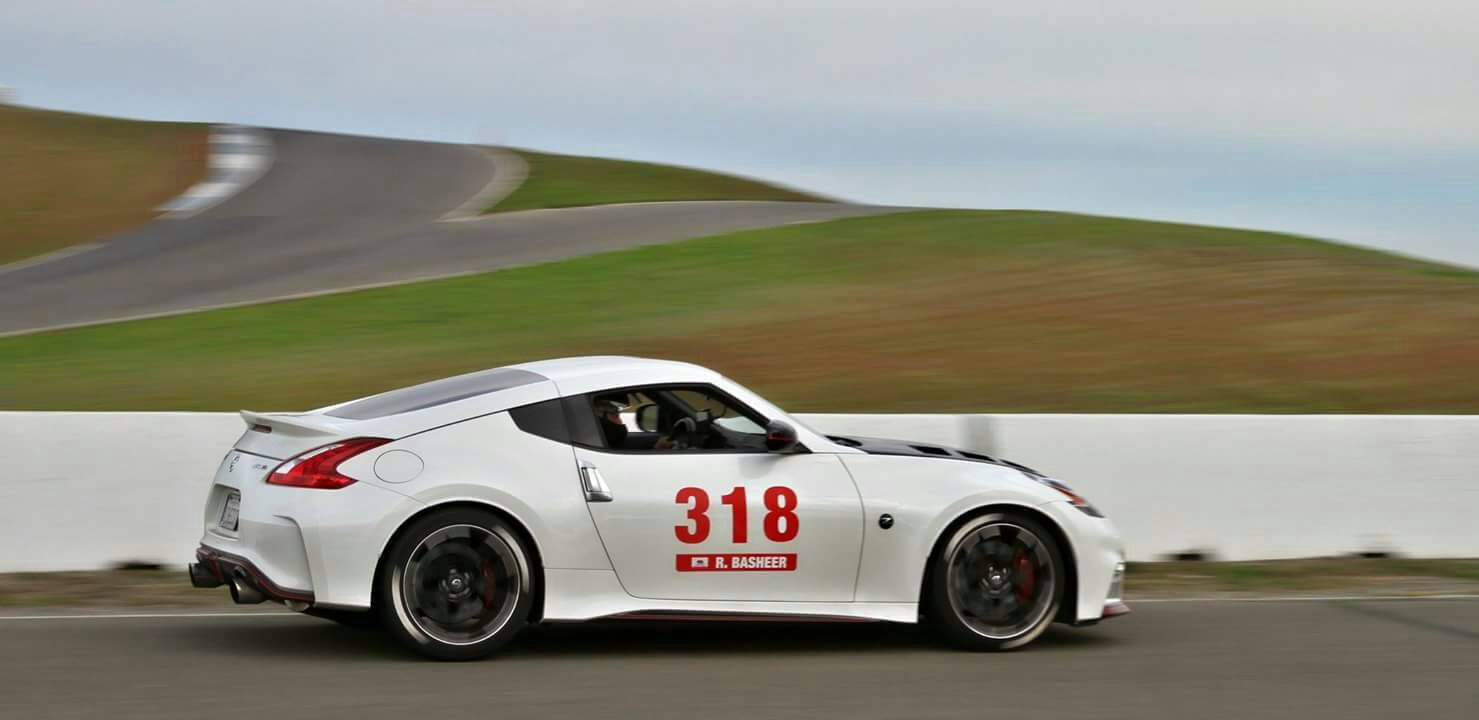

Rasheed B has been testing his 2015 NISMO 370z at the track since the addition of a twin-turbo kit (full report soon) and sent us a few pics from Thunderhill Raceway. We’ve been battling high engine bay temps and the vented hood dramatically lowered them. A summer testing session is next.

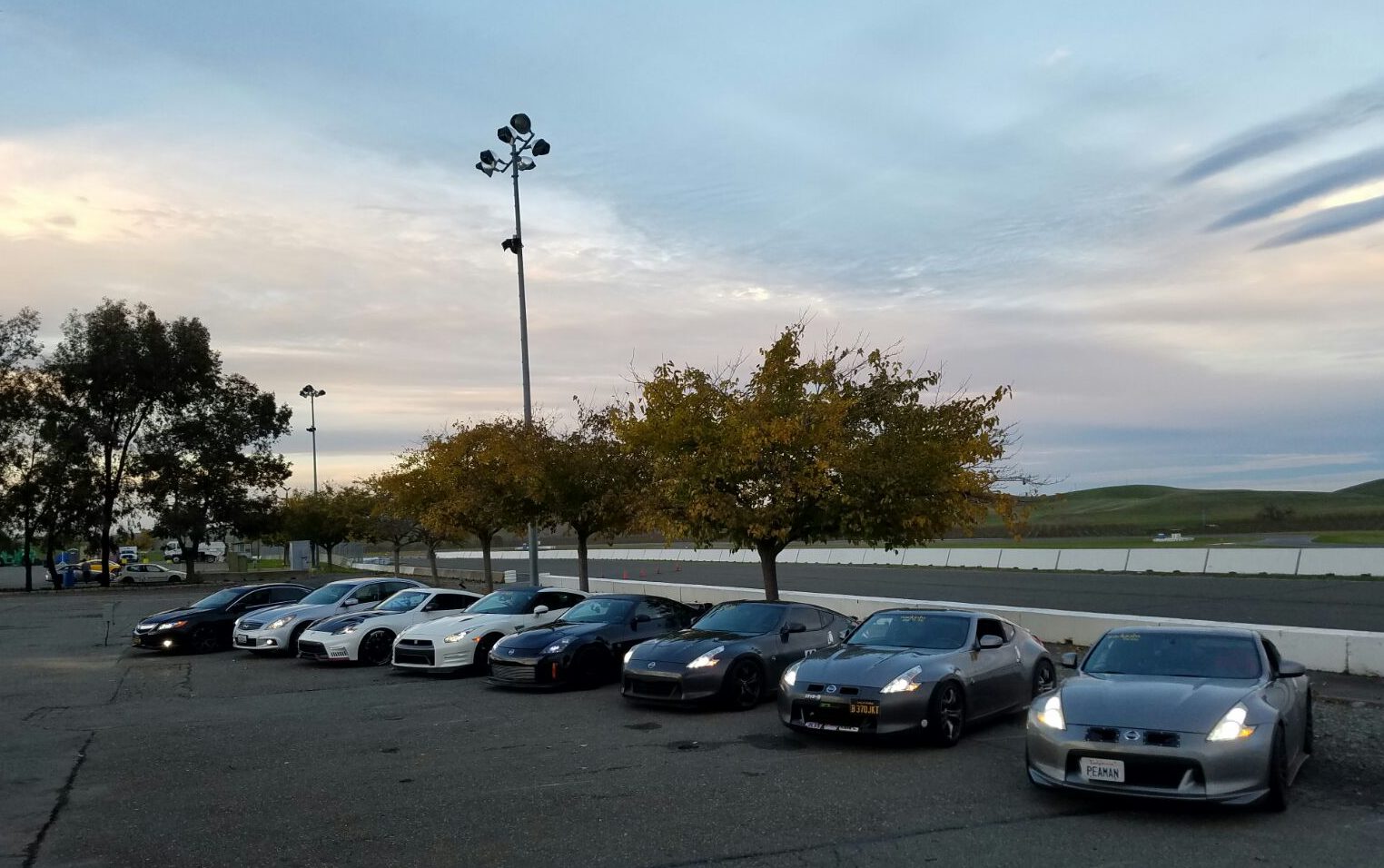

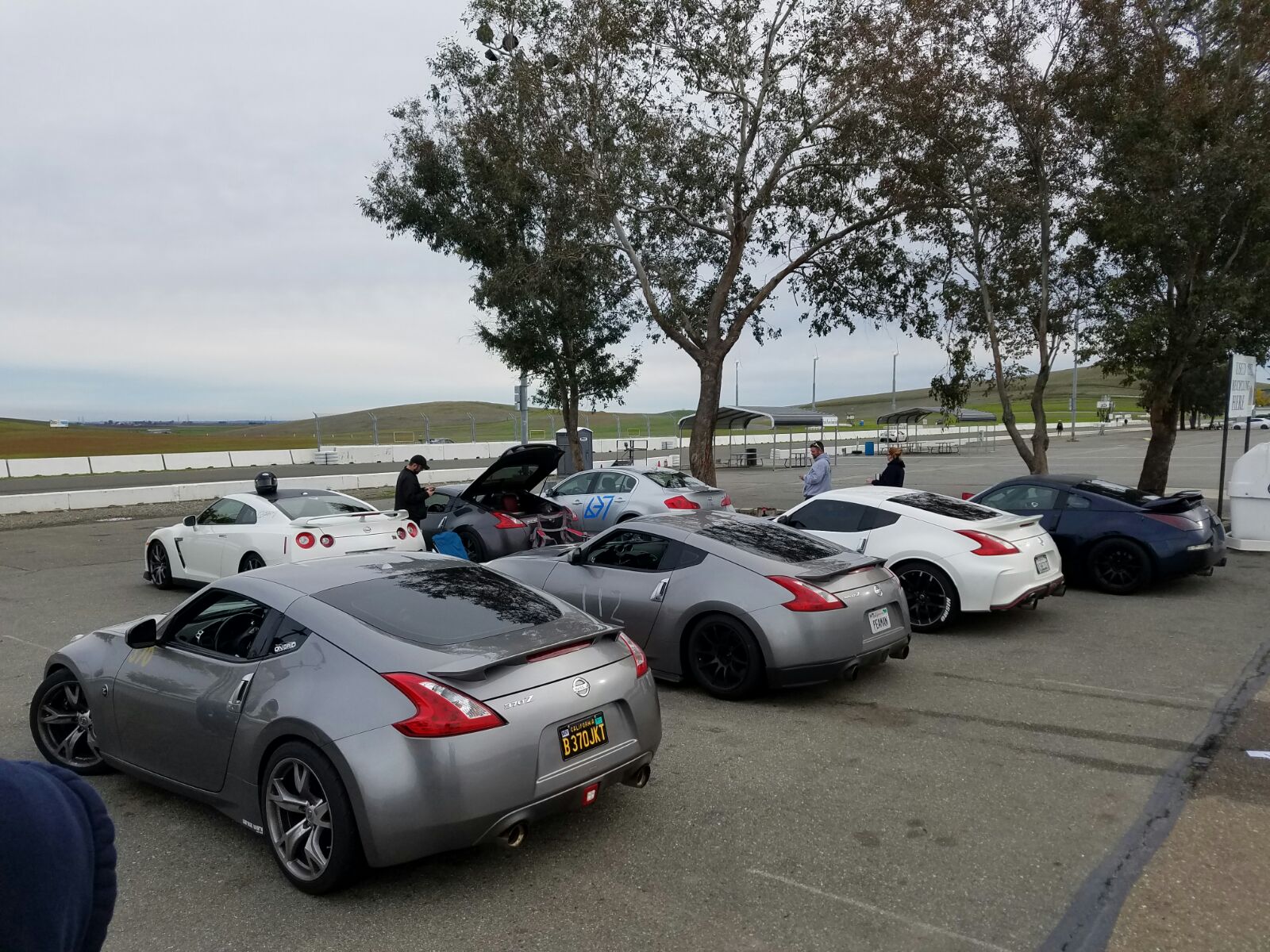

Several Sacramento Z/GT-R guys also attended the track day and it is really awesome to see a bunch of cars we worked on (Eric T and Ruben G) with their owners enjoying them!

Thanks Rasheed, Z You At The Track!






Track Day: Laguna Seca 1/25 with SpeedSF

Filed under: Events
by Alvin G @ 12:55 am on January 9, 2015

cover-1


Our friends at SpeedSF are running another great track day at Laguna Seca on Sunday,  January 25. We love running our cars with these folks and they go above and beyond to make sure you get tons of track time! In addition to the road course they are also hosting an all-day Auto-X in the paddock for only $50!

Full Track :

  • Five 20mins Session , 4 Run Groups, (Advance, High Intermediate, Low Intermediate, Beginner w/ Instructor)
  • All cars welcome with different level of experience groups.
  • Optional Time Trail Series (Sunday Only): Speed SF Challenge, compare your lap time with other drivers in your class.
  • Single Driver $200 /day

Auto-X :

  • ALL Day Auto-Cross at MRLS in the Paddock, unlimited runs, (50 entries Max!)
  • 9am-4:30pm
  • 20-30min sessions
  • 2 run groups
  • All cars welcome, no suvs
  • No timing, this is a practice only event
  • 90 db Only
  • Single Driver $50

More details at SpeedSF.com!

Screen Shot 2014-10-25 at 11.17.51 PM




Taking it to The Track!

Filed under: Featured Cars and Projects,Maintenance,Performance
by Alvin G @ 1:01 am on December 20, 2014

GBM56955


Here at Z Car Garage we LOVE to drive our cars on the racetrack. Open “Track Day” or High Performance Driving Events (HPDEs) are excellent venues to familiarize yourself with a car and its limits while having fun in a safe, controlled environment.  Two of our customers recently shared their first track-day experiences with us and they had a blast!

JC10513-043-e1381012341121JC10513-021


We supercharged Robert C’s G35 last year and he decided it was time to do his first track event at Laguna Seca Raceway. He’s added these gorgeous RAYS Gram Lights 57Xtreme wheels since his last visit:

IMG_2485IMG_2494


Rob!
Just want to tell you I had a incredible day at Laguna. David Ray is a great guy and awesome teacher. We spent the first three session working on line, smoothness and consistency with both until I had all 11 corners worked out. The 4th session we put it all together as he pushed me and it was phenomenal! When I IR’d the front rotors after the session I was over 500 degrees and they were smoking. Happy to report brakes are still great and no warpage on the rotors. Ironically David mentioned doing an ST40 upgrade which we already quoted earlier so know that is still on the radar for my next track day. Nice to have someone just back up a buying decision without asking. I did graduate to Solo and was told to register for Group B next time so pretty pleased about that. On the upside I have marked “Drive my car at Leguna and hit the corkscrew” off my bucket list. On the even bigger upside I’ve added “1) Go drive Laguna more. 2) Drive Infineon. 3) Drive Thunderhill and 4)Drive Buttonwillow.” to the list.

David had praise for the current work done on the car and I have to agree. The work you and team have done since October last year has made this car even more enjoyable and something to proudly run on a track. The car had zero issues and feels no worse from the day.

Robert C.



In October we added some bolt-ons and tuned Garth J’s 350z preparing him for a day at Thunderhill Raceway:

Hi Rob,

Thunderhill track day was awesome a few weeks back. Car felt great. The Bridgestone S04’s were a major upgrade. Thanks for preparing the car for a great experience. I’m thinking about auto-crossing next season.Will be needing some routine maintenance in the new year. Can we schedule something mid January? Happy Holidays.

Garth J.

image001 (1)



Ready to experience your Nissan/Infiniti on the track? We can help!
