Greg’s 1973 Datsun 240z

Filed under: 240z,Featured Cars and Projects,Performance
by Alvin G @ 7:20 pm on January 3, 2020



We met Greg in 2015 when he purchased a set of Panasport wheels for his S30. He returned later in 2019 for our Z Car Garage Big-Brakes and Z Car Garage CV Axles along with upgraded suspension and triple Mikuni carbs. Greg is a pilot residing in Reno, NV and when he is not flying passengers all over the US he is a 100% gearhead with an award-winning 1970 Dodge Charger. He has owned the ’73 Z for 42 years and we love the story behind it:

“I bought this Z from the original family (two owners, same family) just weeks after I graduated from high school in June of 1978. I had previously owned a 1970 Sublime Green Dodge Charger R/T, but I thought it just wouldn’t be cool to show up to college in a ‘lime green’ car, so I went on the hunt for something that had great looks, and great performance to match. I kept my pursuit of a 240Z a secret from my high school sweet-heart (now my wife of 40 years), who was two years behind me in high school, until I had actually purchased the car and had a chance to give it a good detailing. When I pulled up that first evening with the new Z, she was very surprised! See didn’t know what it was, but she thought it was just “So Cool!”

“We dated in the car for another two years until we married in 1980.  One of the best memories we have of the car is taking my now wife to her High School Senior Prom in the car. We both also really enjoyed cruising the back mountain roads of Arizona on the weekends during the year I spent in Air Force pilot training outside of Phoenix. The car was my daily driver until 1987, when it received a new paint job and then became more of a “nice day” car.”



As life went on Greg moved from Idaho to Reno and the car ended up getting stored for about 20 years.  When their re-acquired ’70 Charger did not make it back from a resto-mod in 2015, Valerie suggested getting the 240z running to enter in Hot August Nights in place of the Charger.

“After sitting for 20 years it needed some work – we called on Dave Rebello for a 3.0 stroker L-28 engine (SU carbs), and while the engine was being built my son and I got busy.  We pulled the fuel tank, dipped it, and refreshed it with a new sending unit, as well as all new hoses.”

In 2015 Greg purchased a set of 16×7 Panasport wheels from us and though the Z was really nice it was time to take the next step.



Taking the Z to the next level

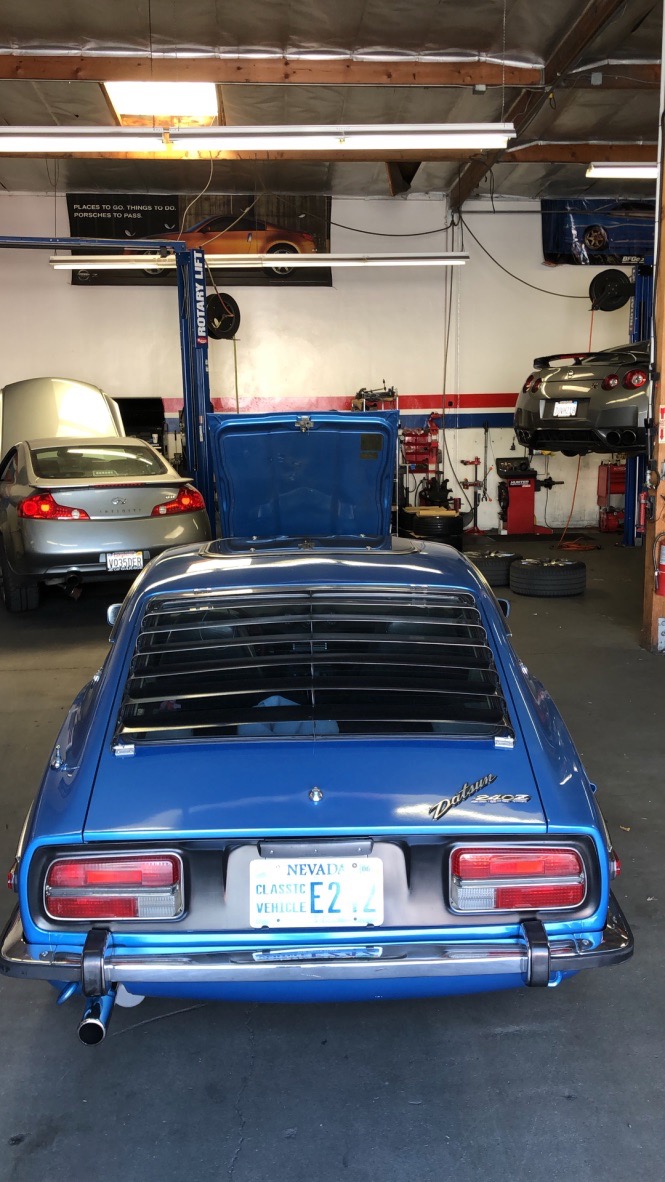

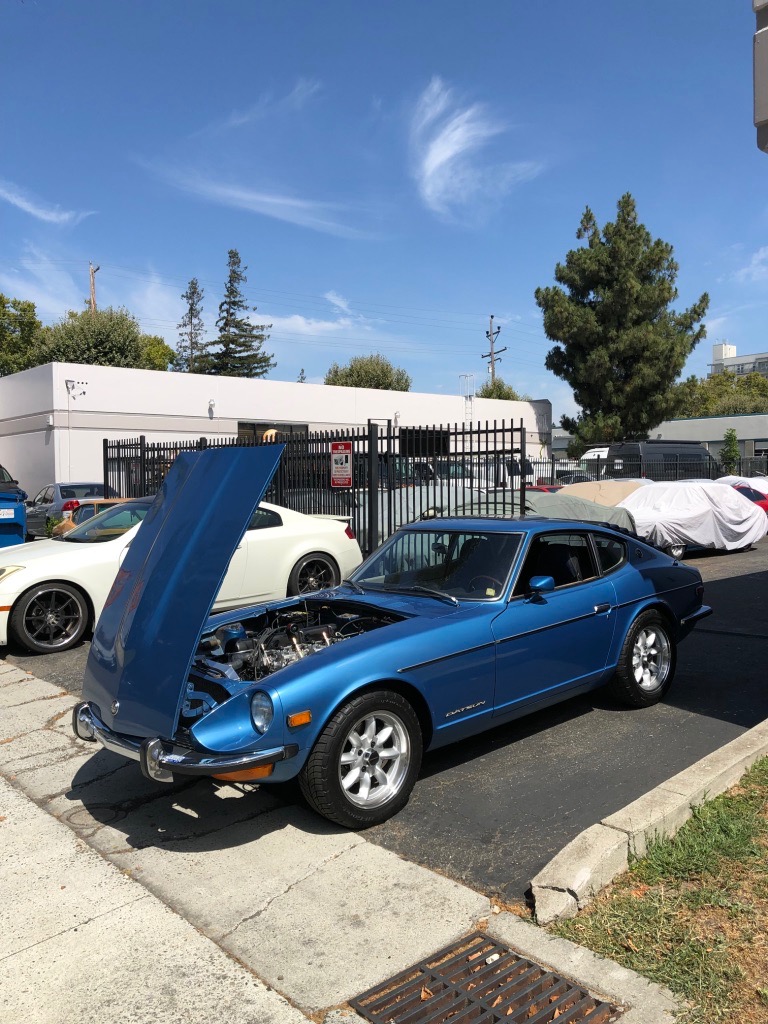

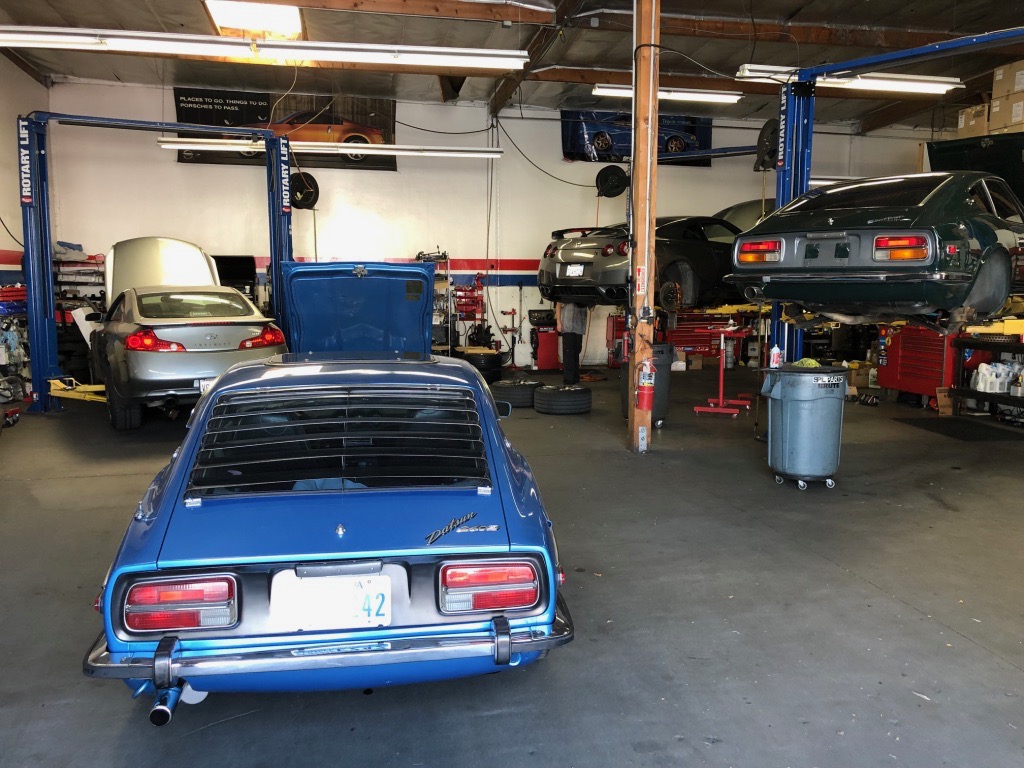

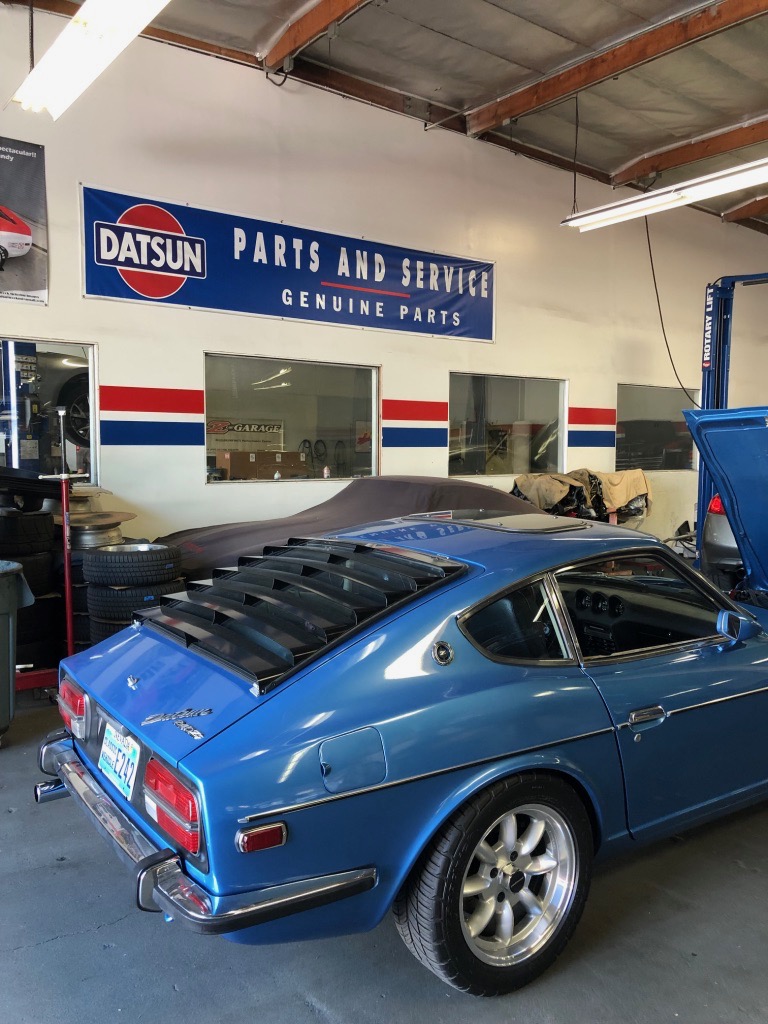

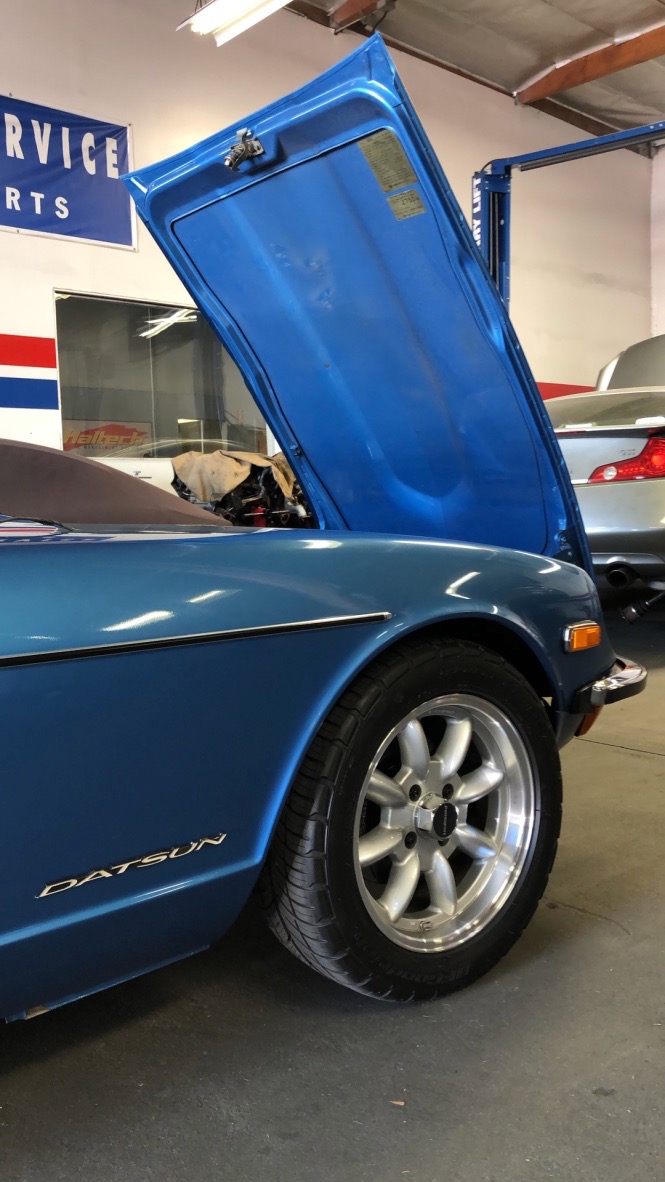

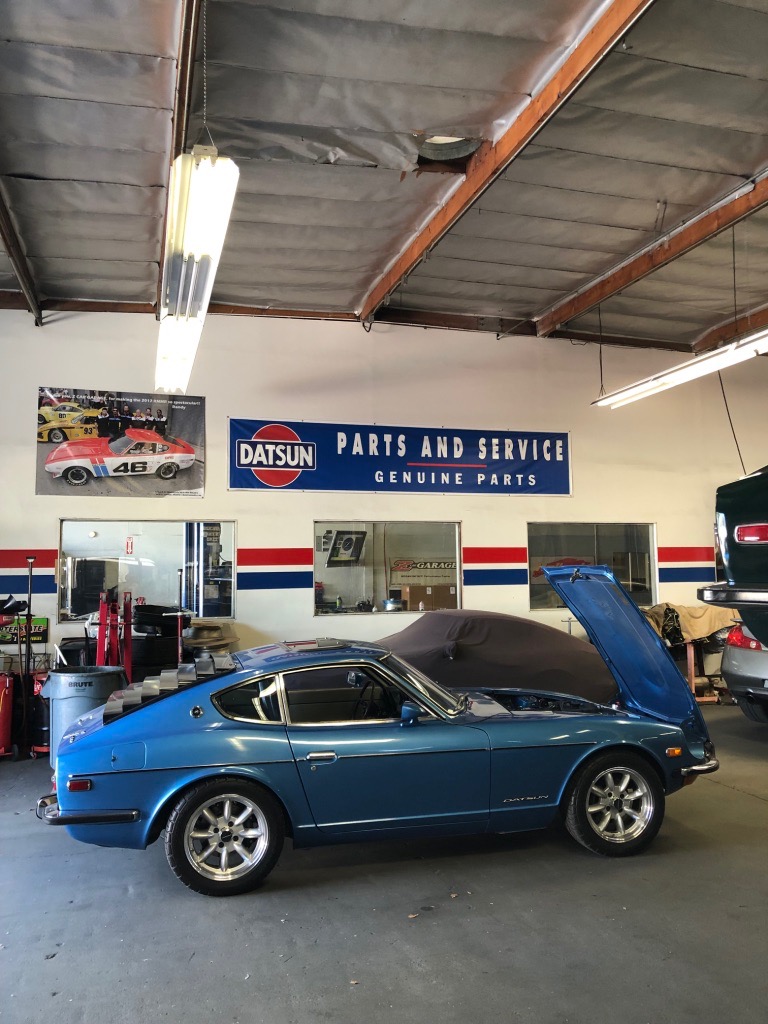

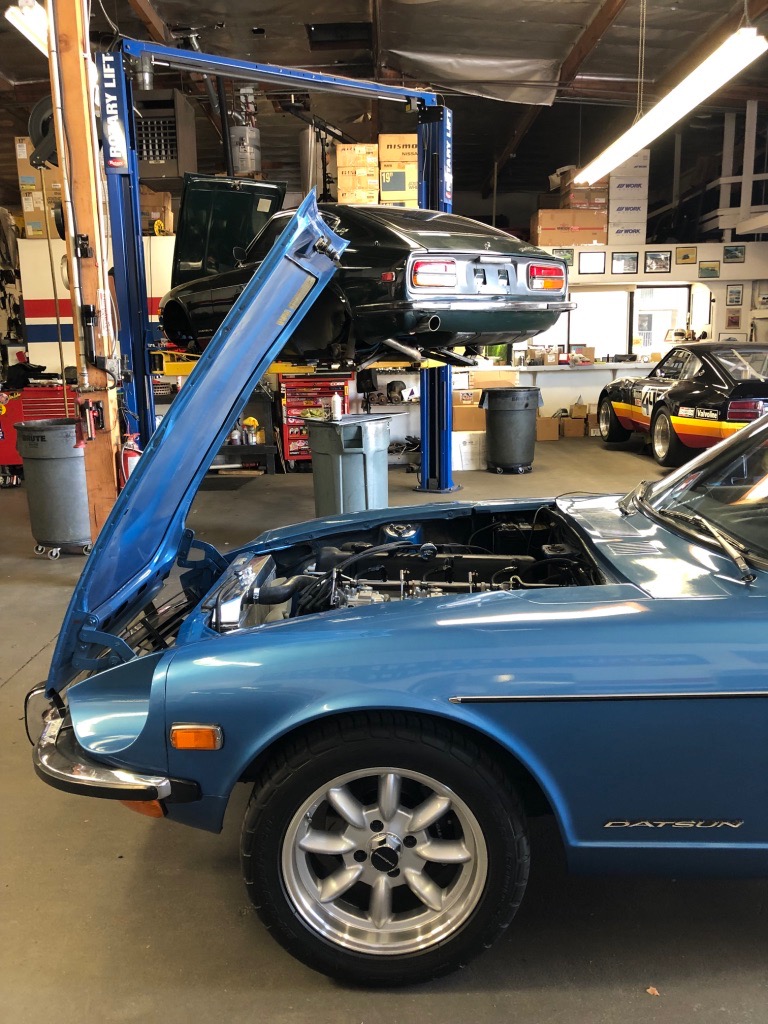

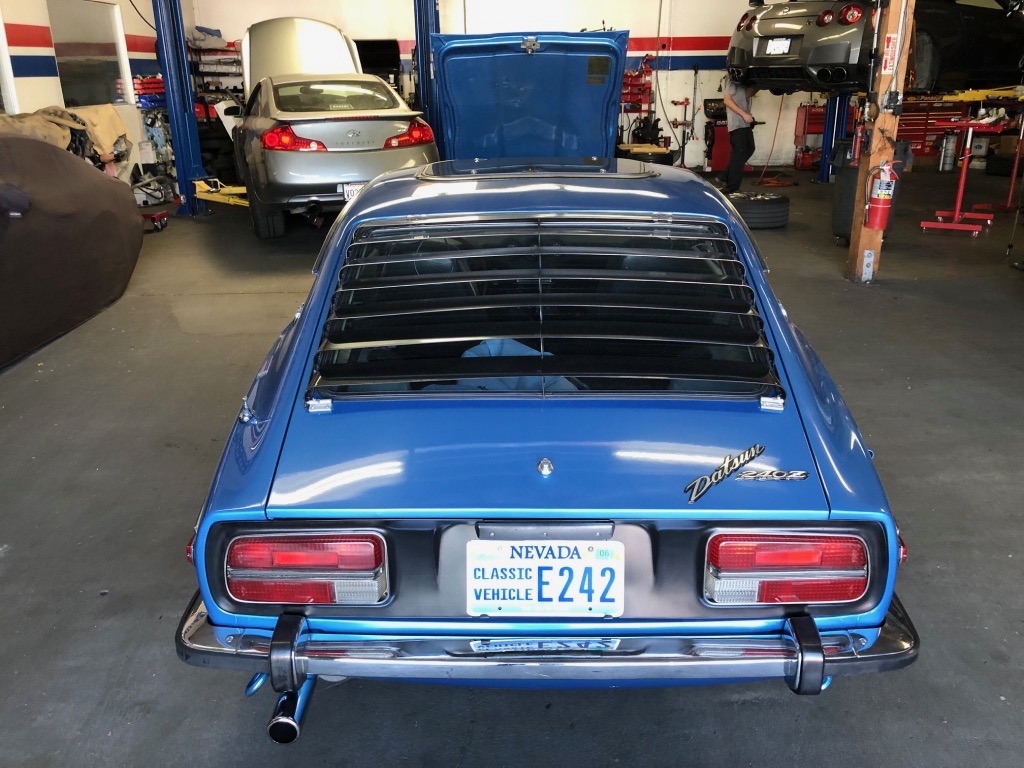

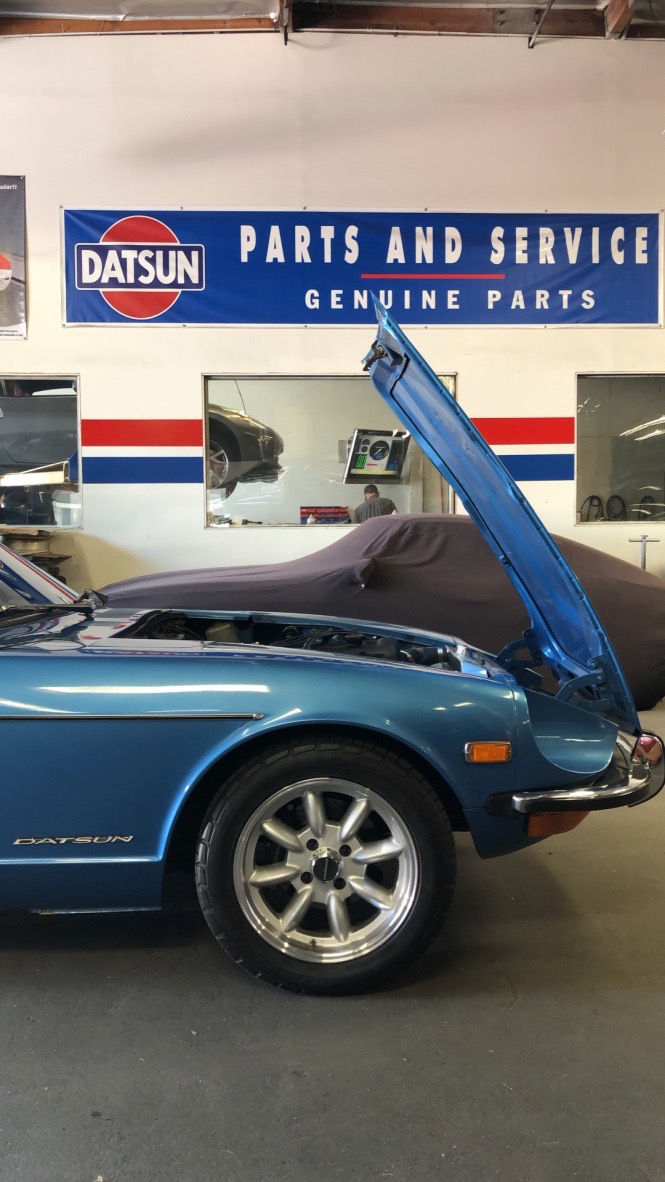

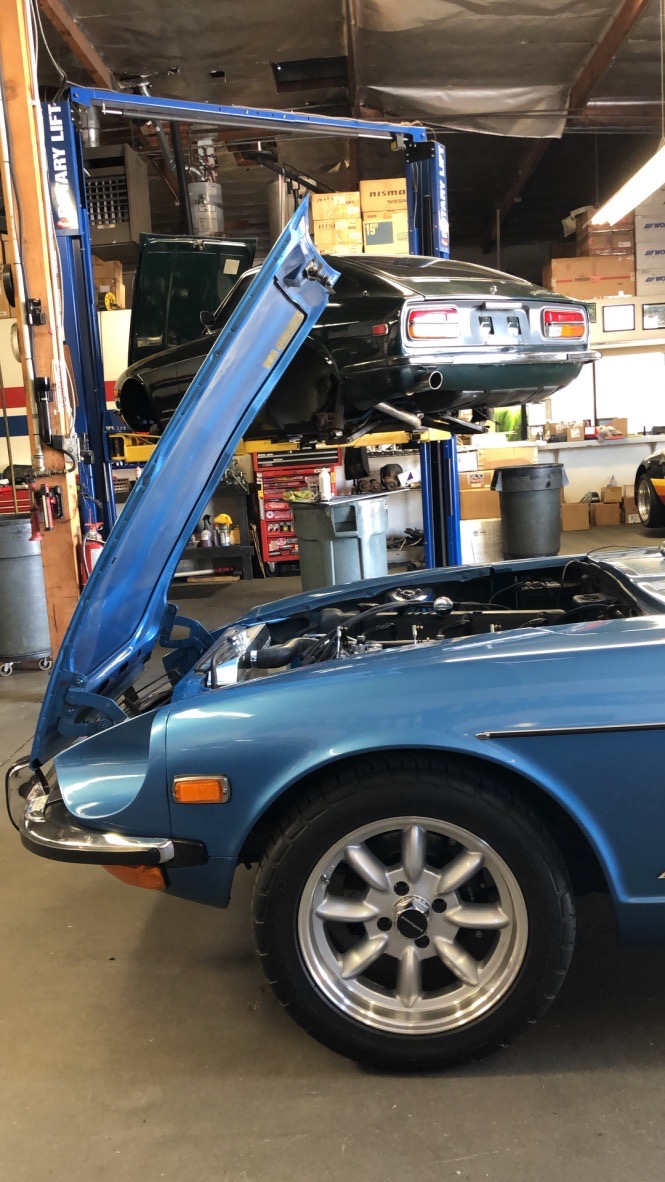

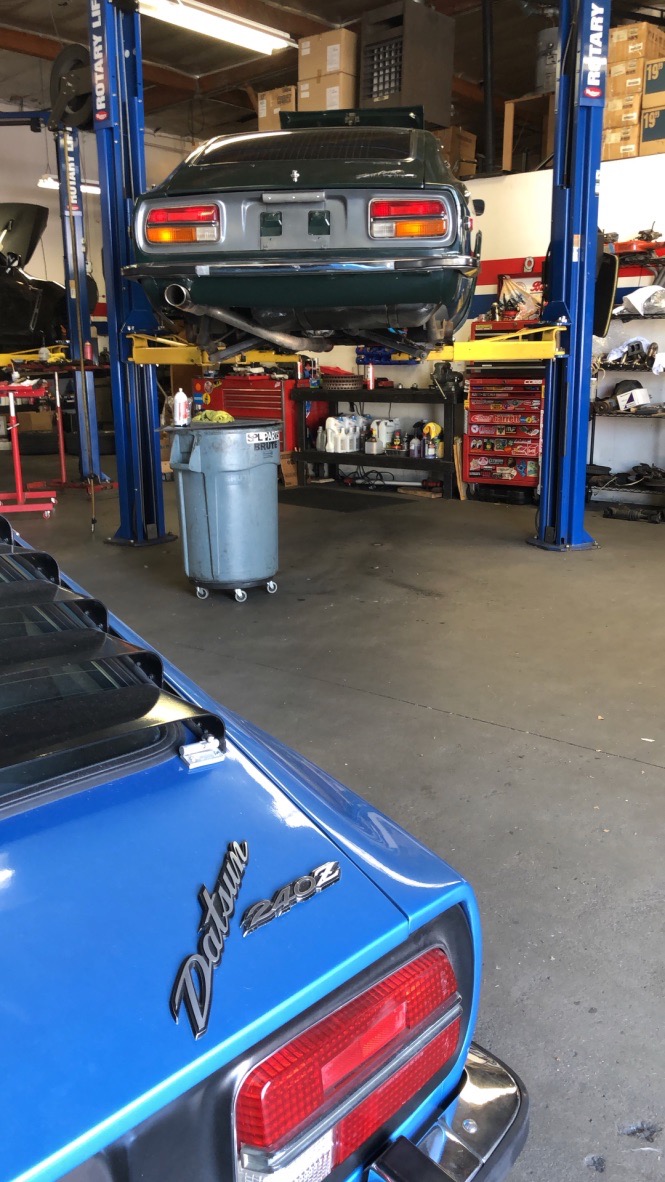

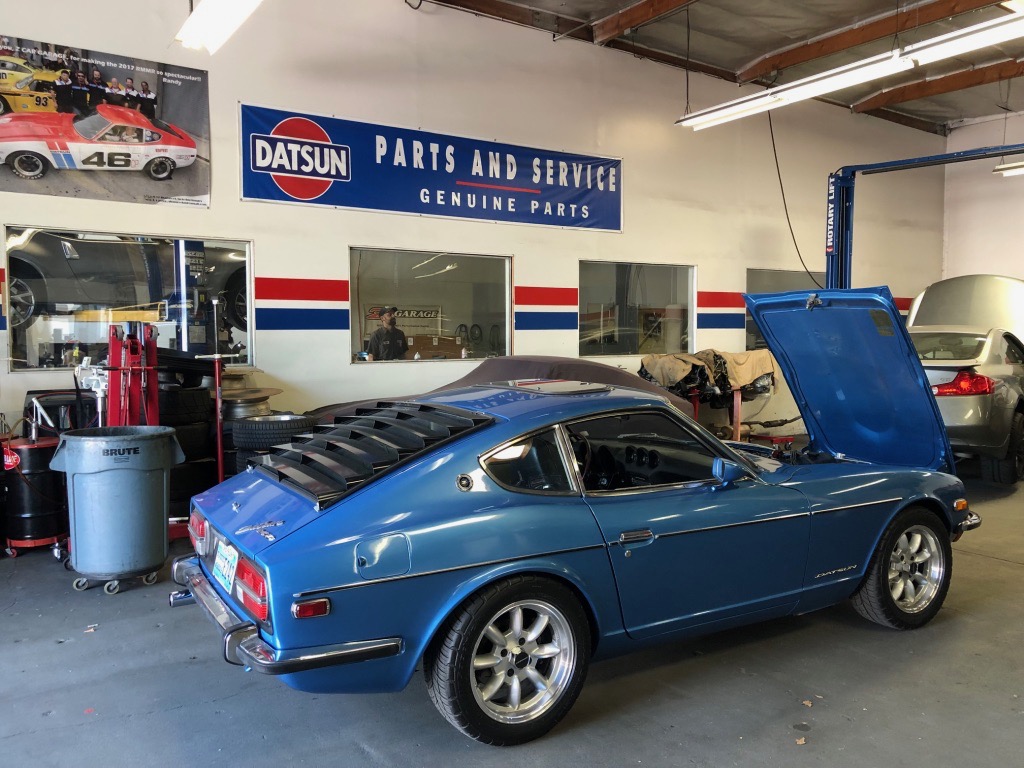

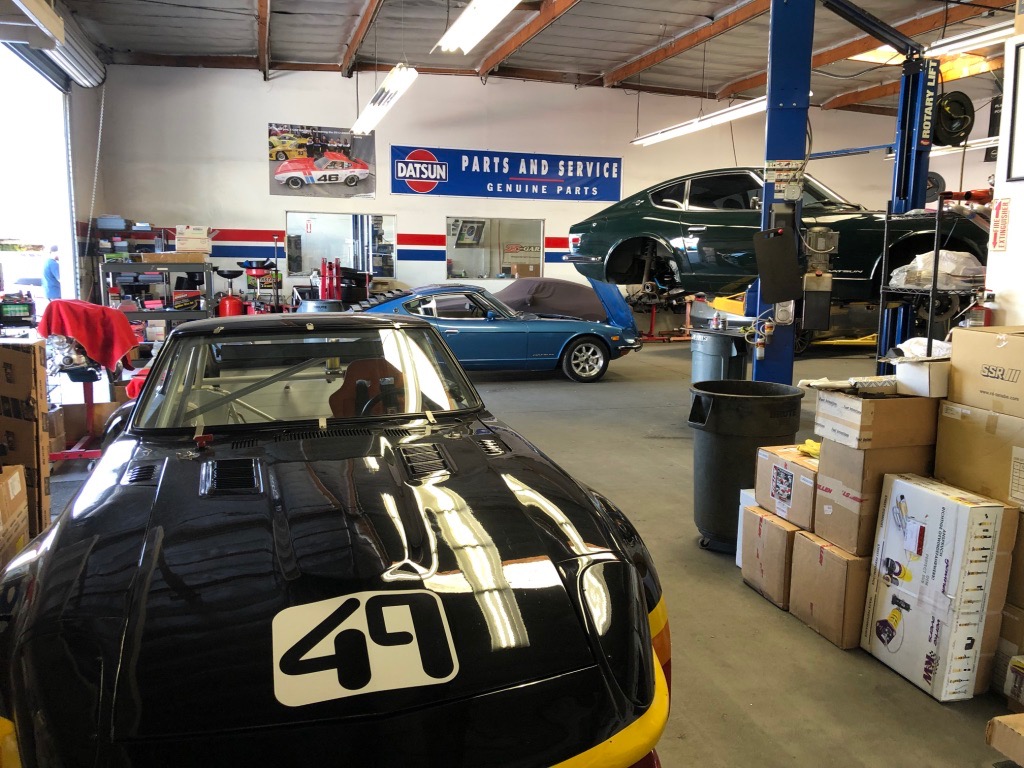

After months of planning, last July Greg and Valerie drove their Z down from Reno to Z Car Garage.  They spent the day with us while we installed new parts, made a few repairs and cleaned up the engine bay.

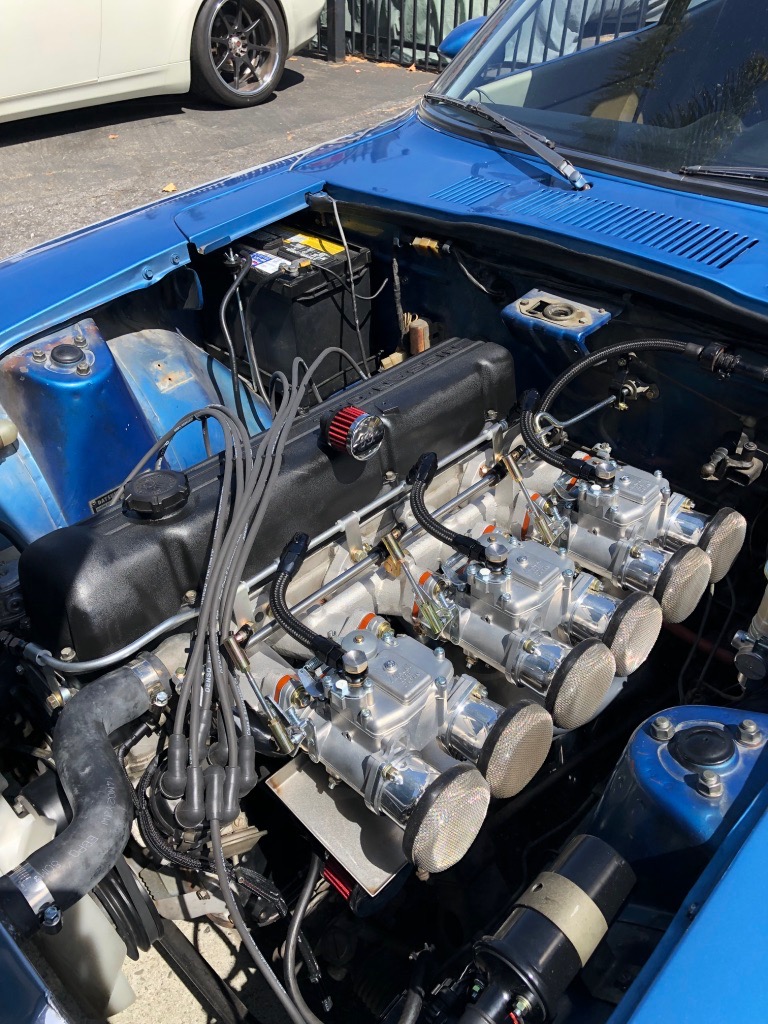

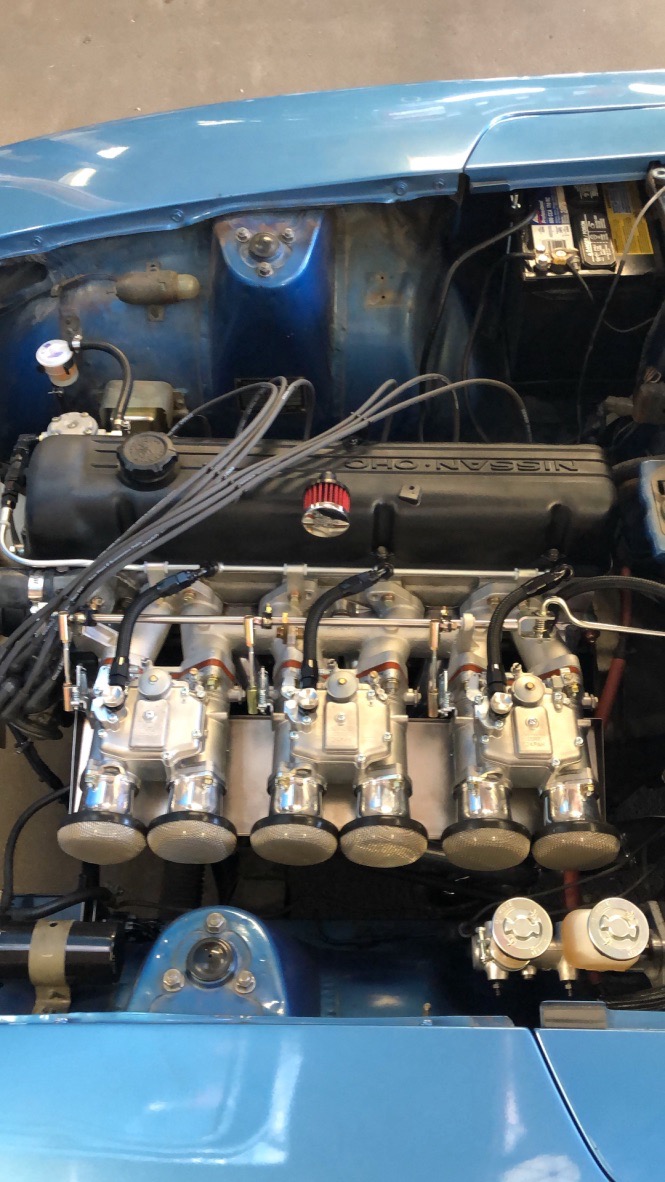

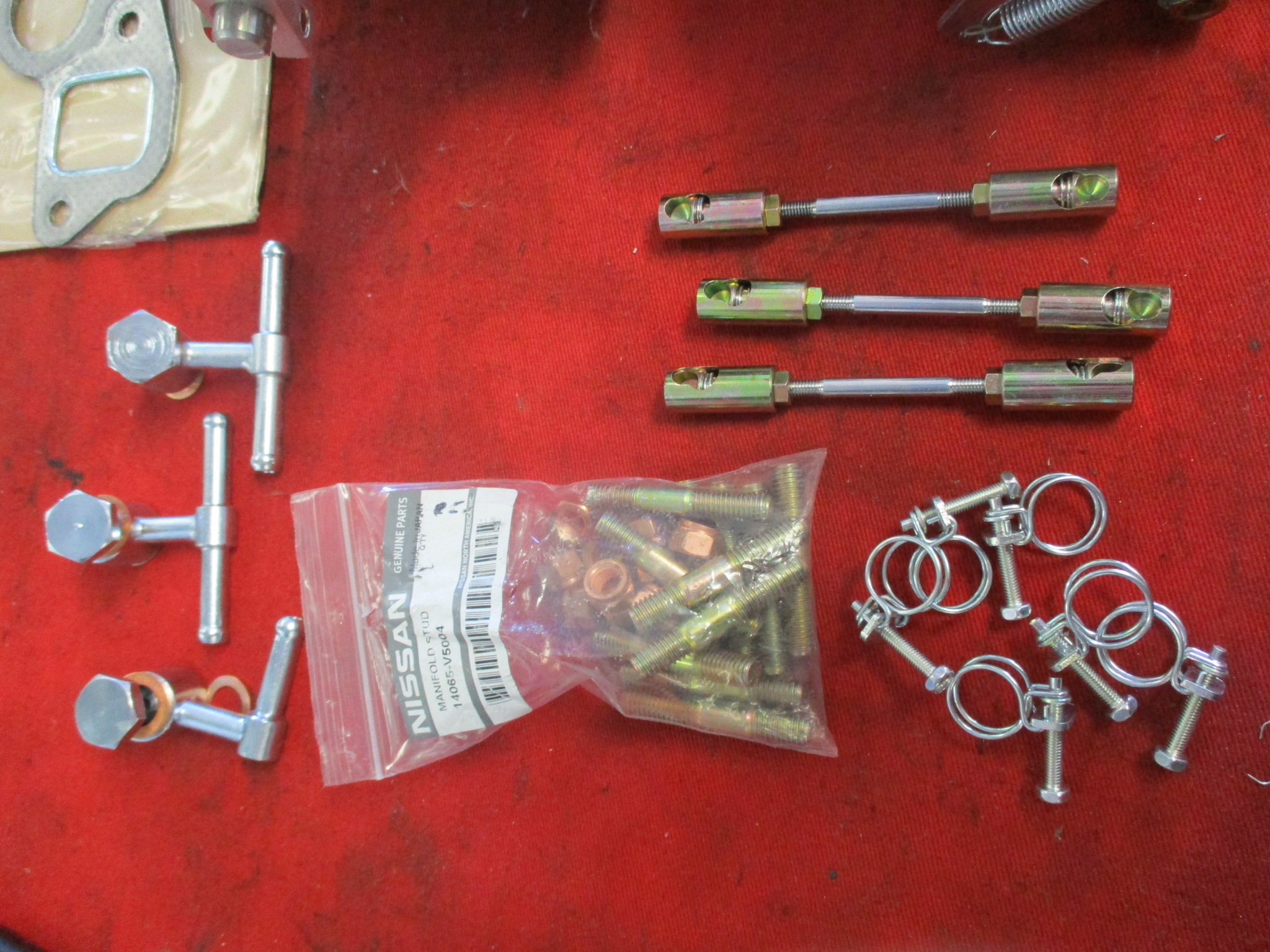

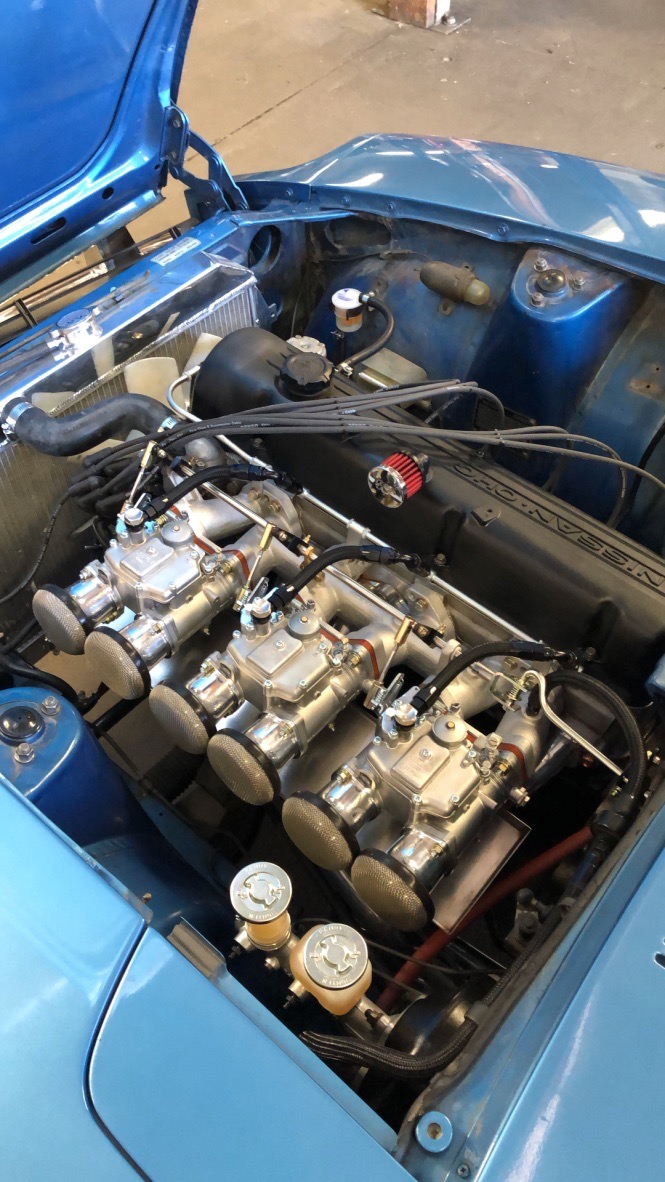

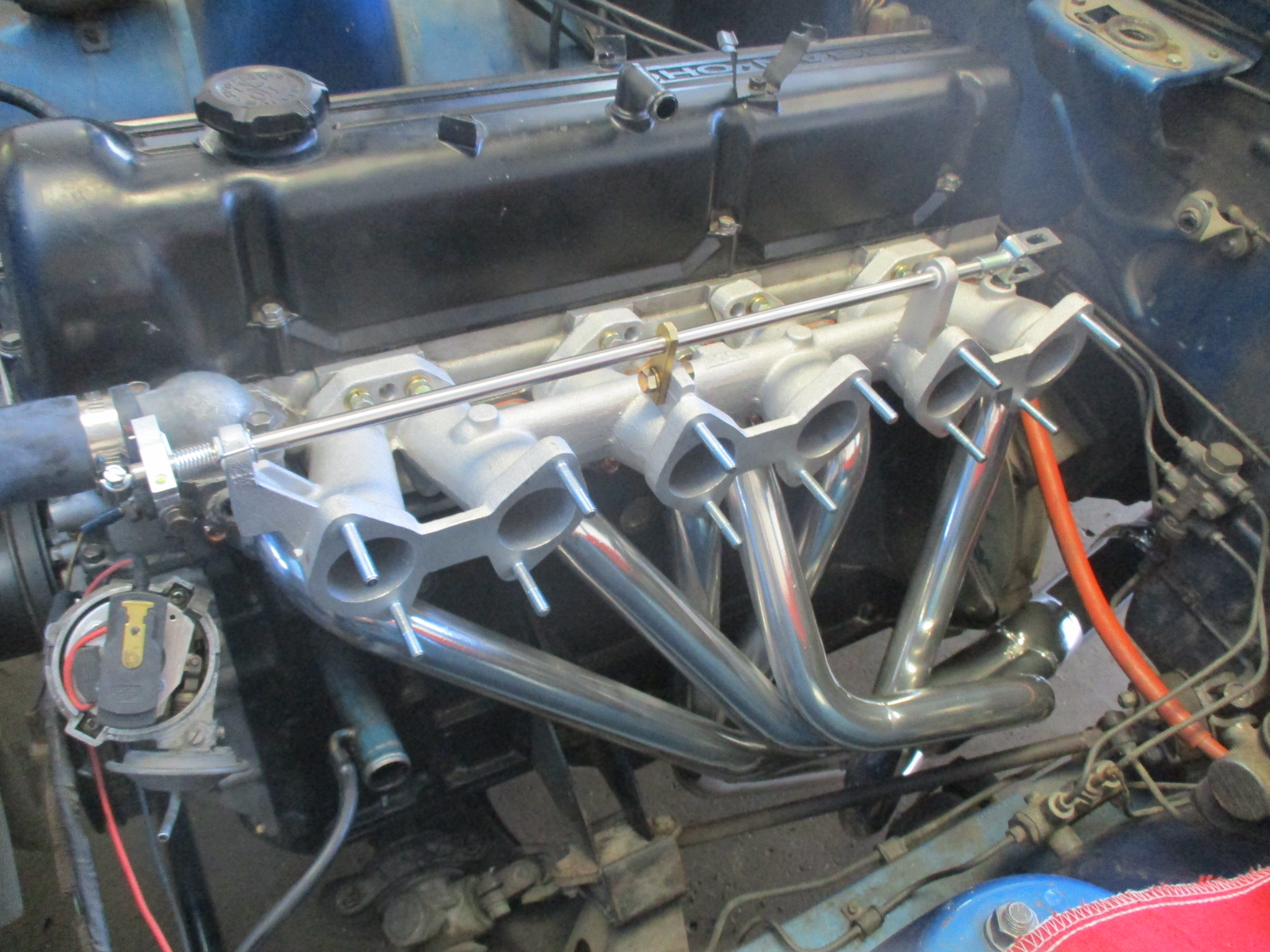

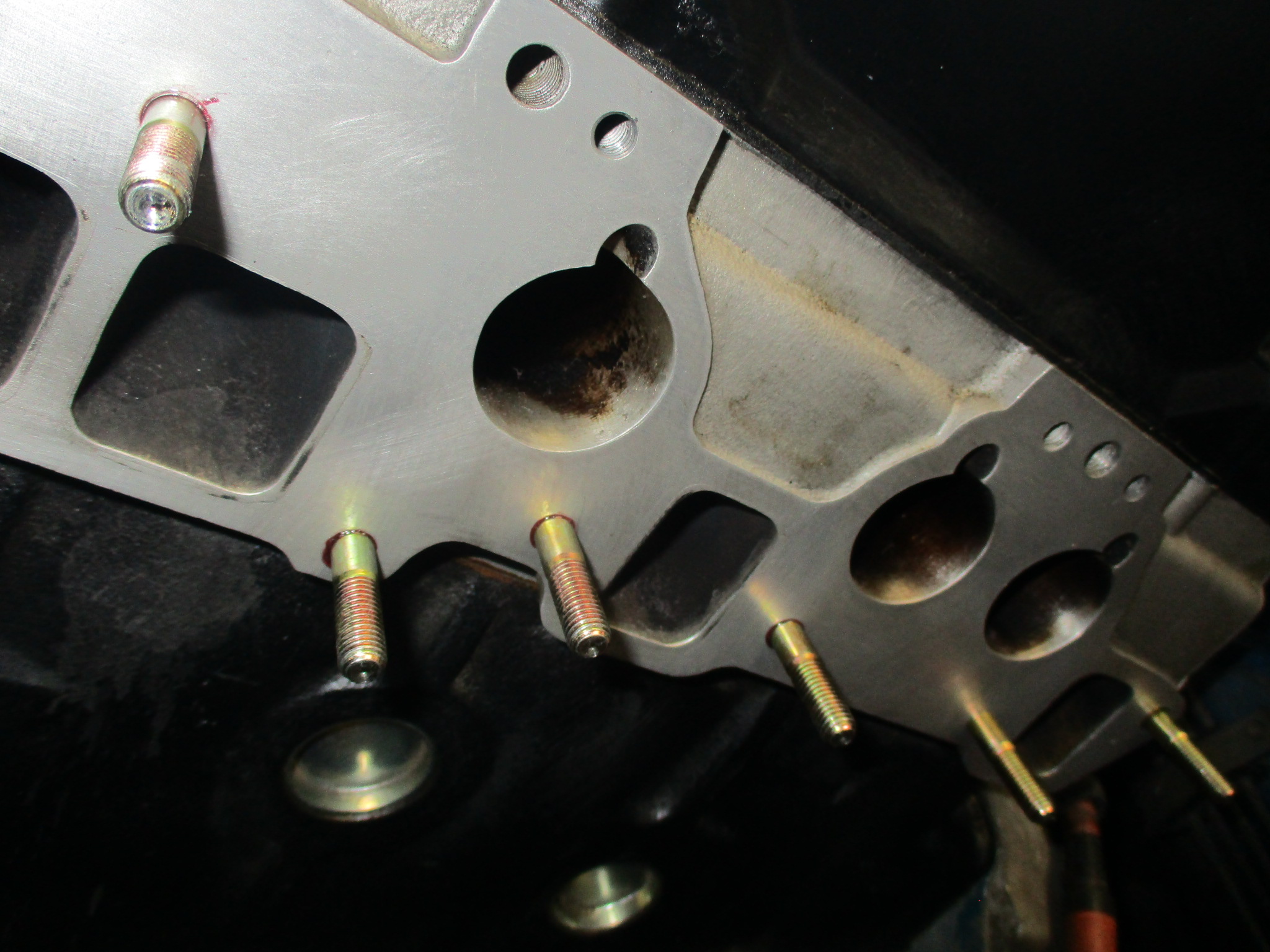

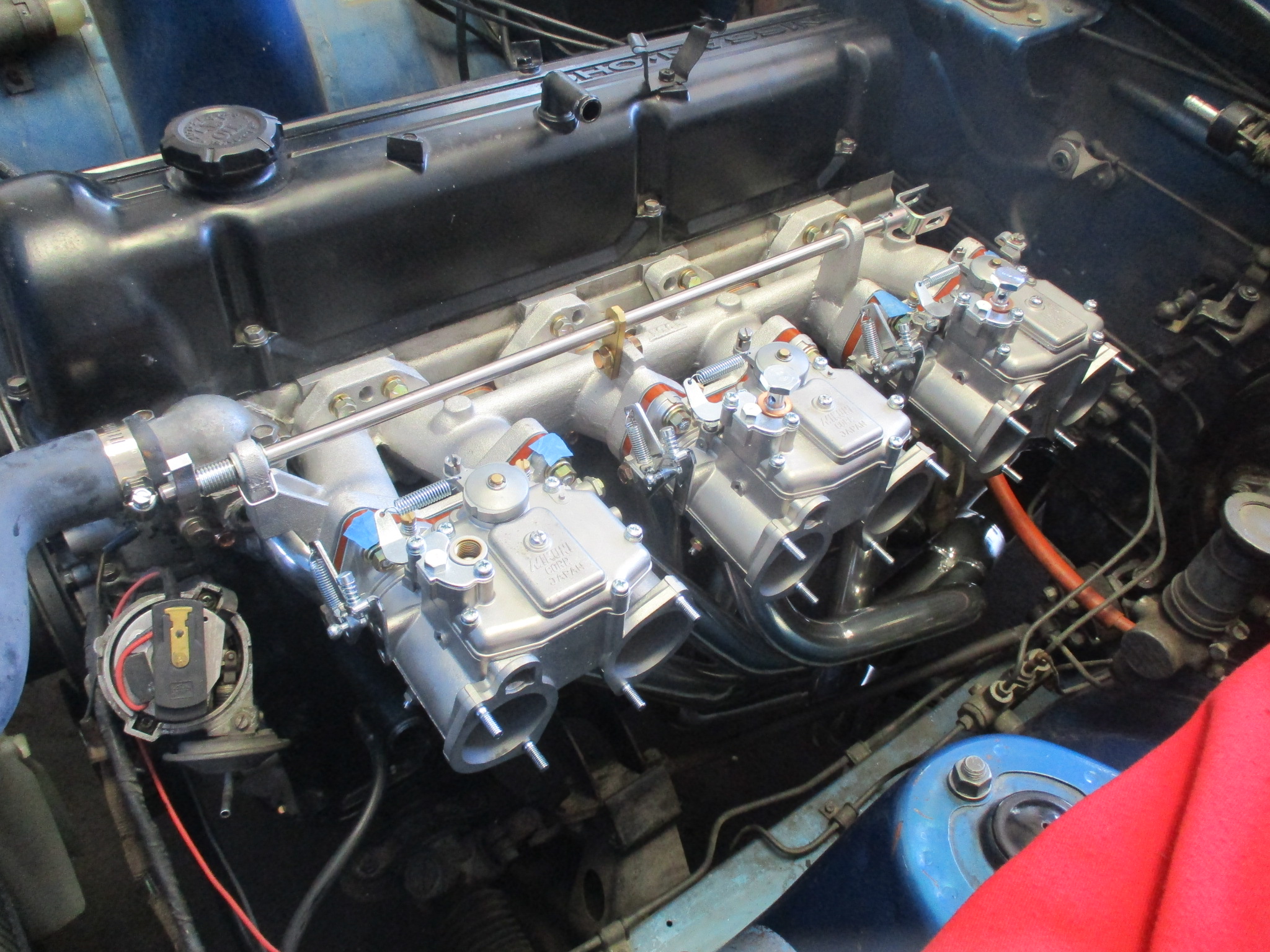

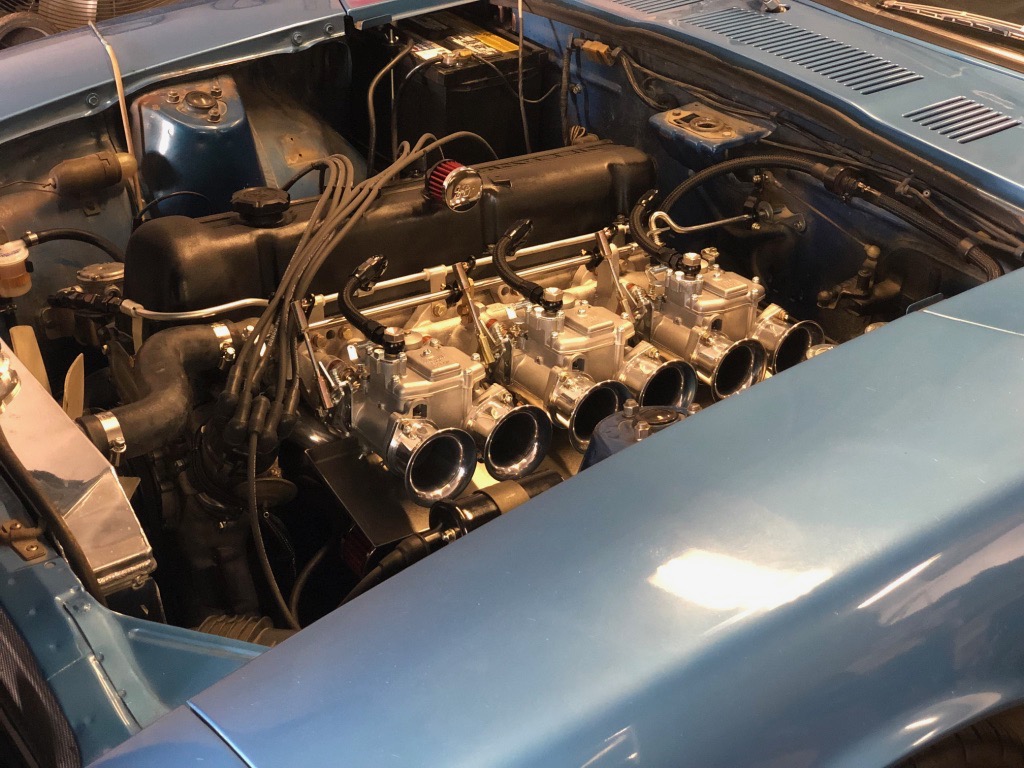

The Rebello 3L was treated to a fresh set of triple Mikuni PHH44 carbs on a Harada intake manifold (Rob’s favorite intake). We anodized the linkage from blue to black to suit Greg’s taste.

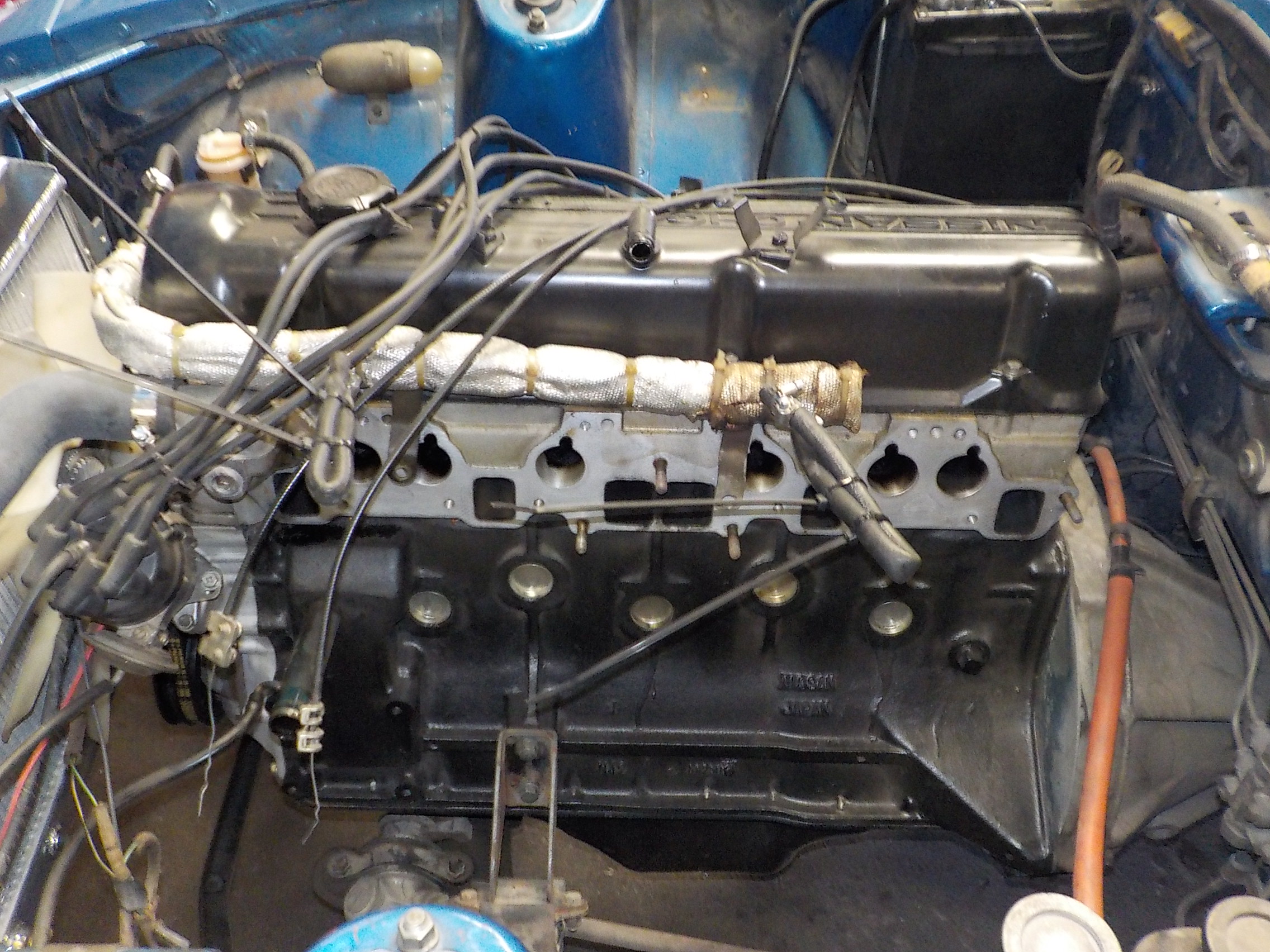

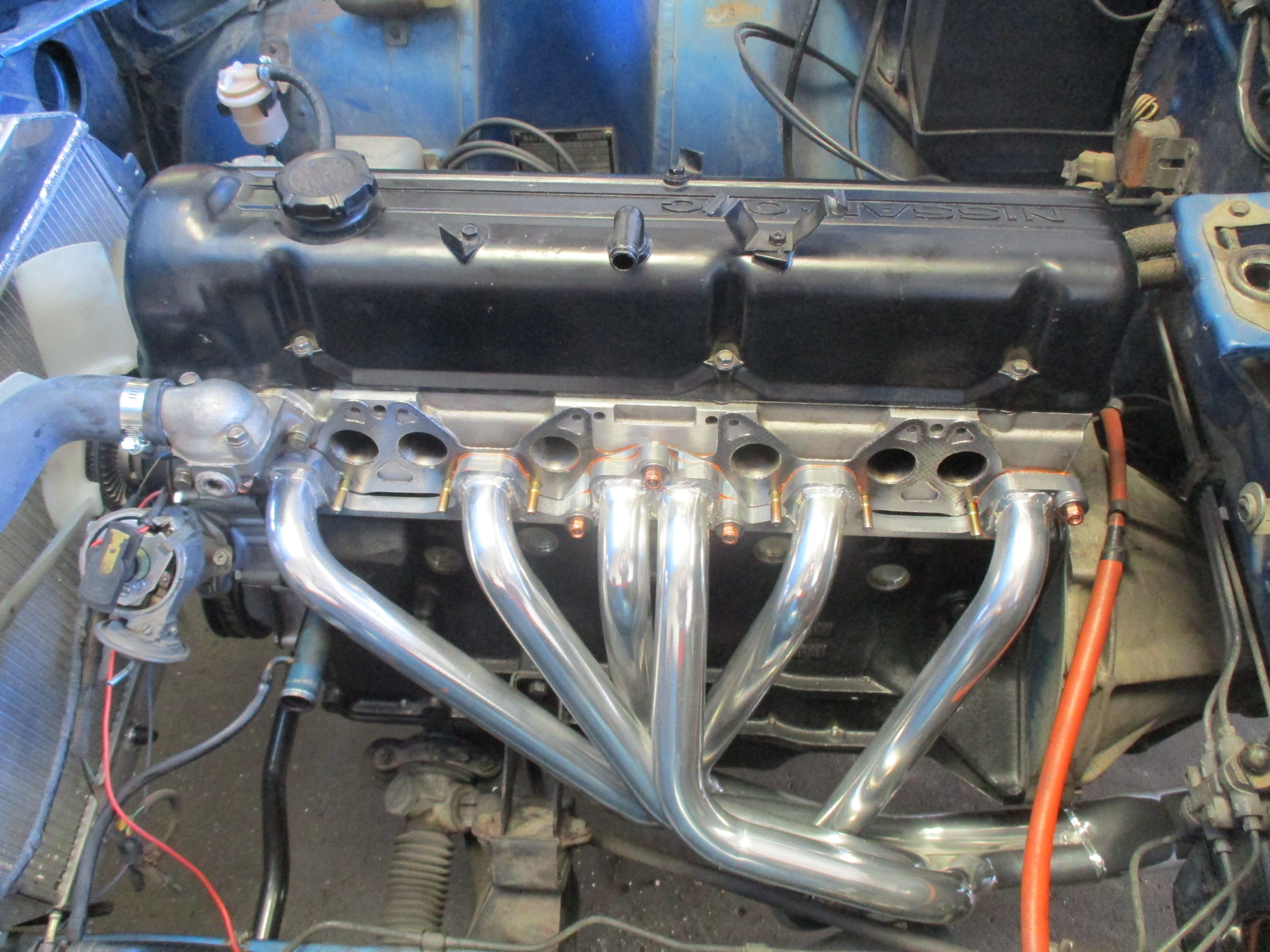

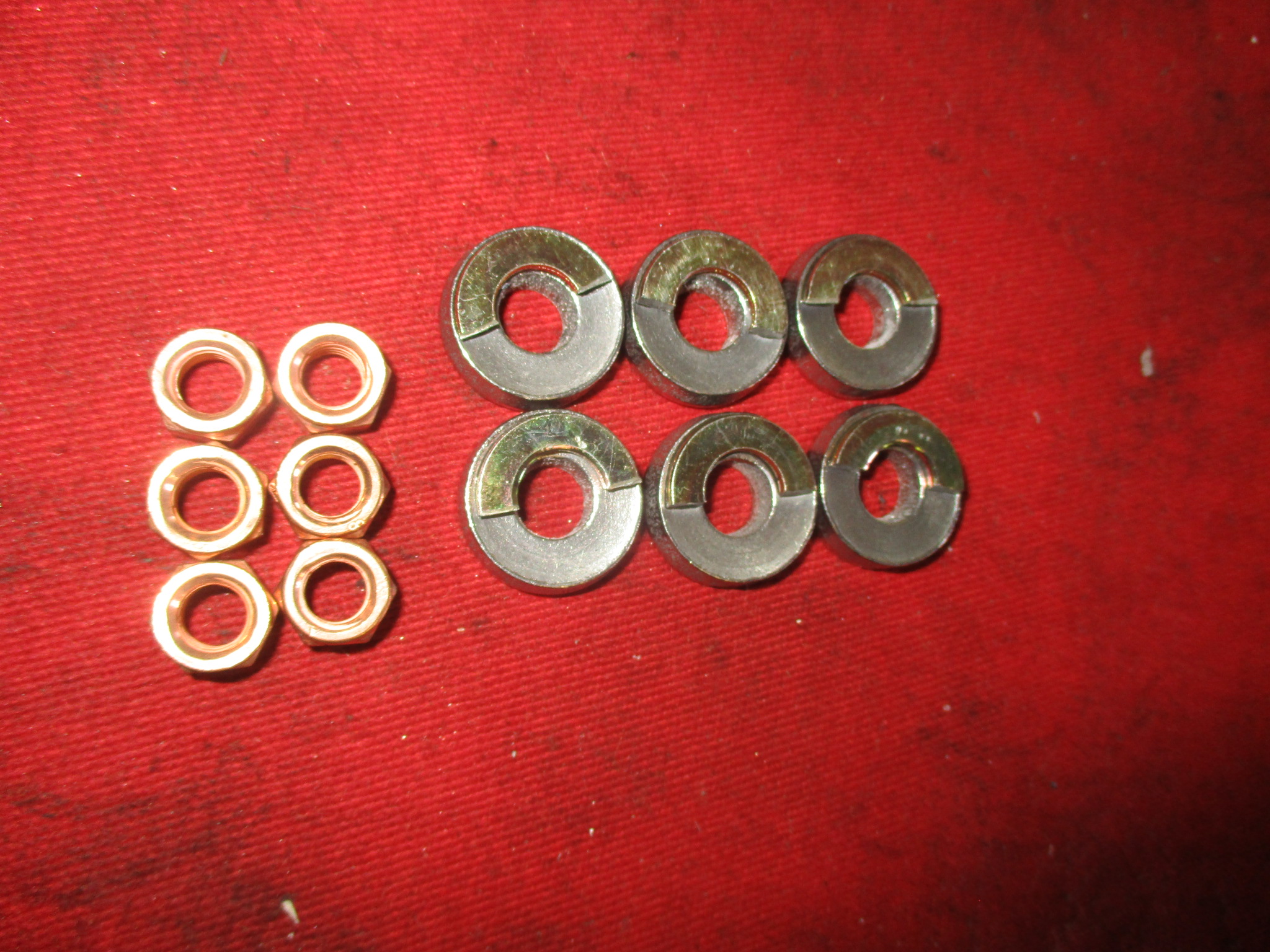

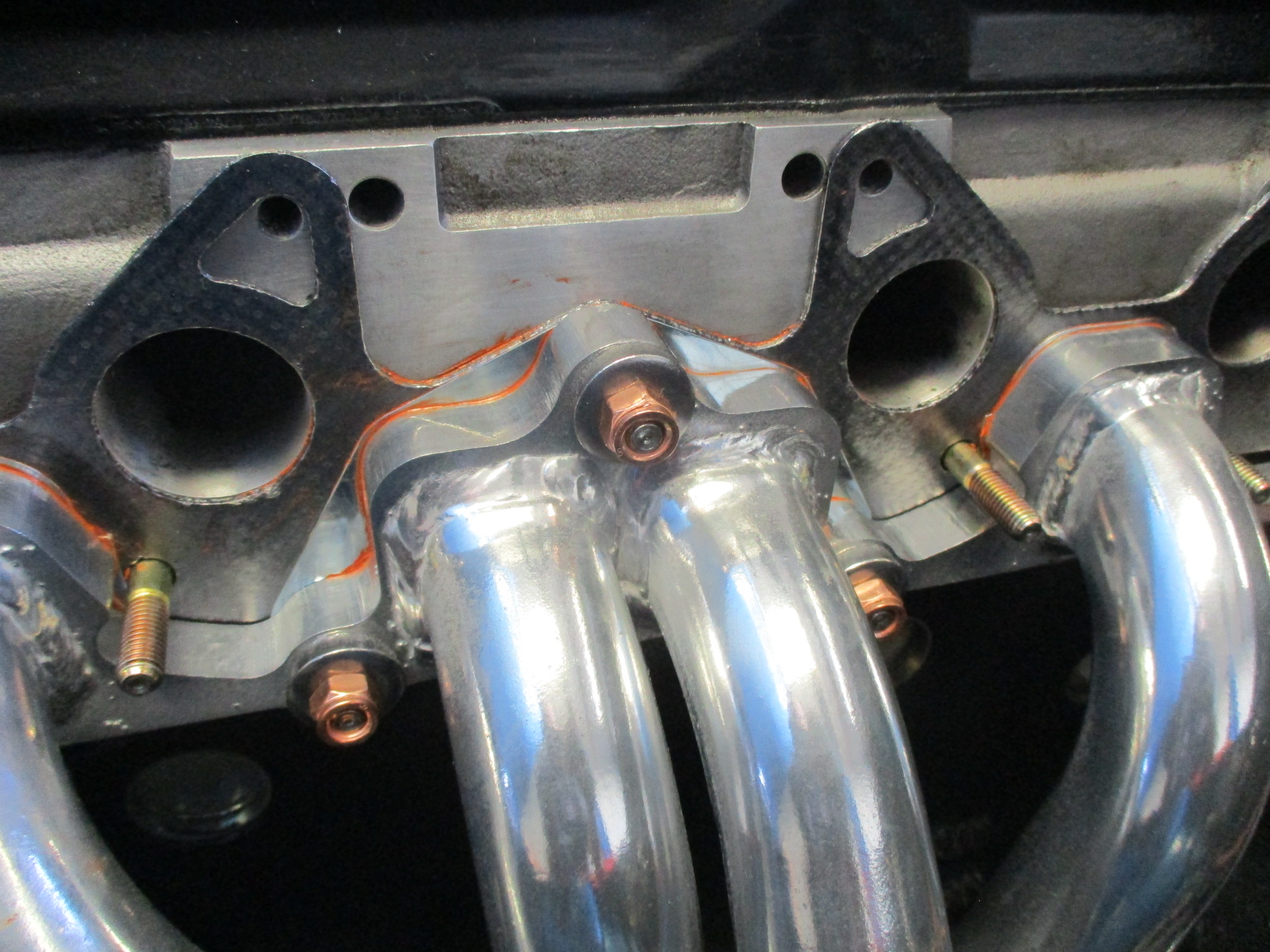

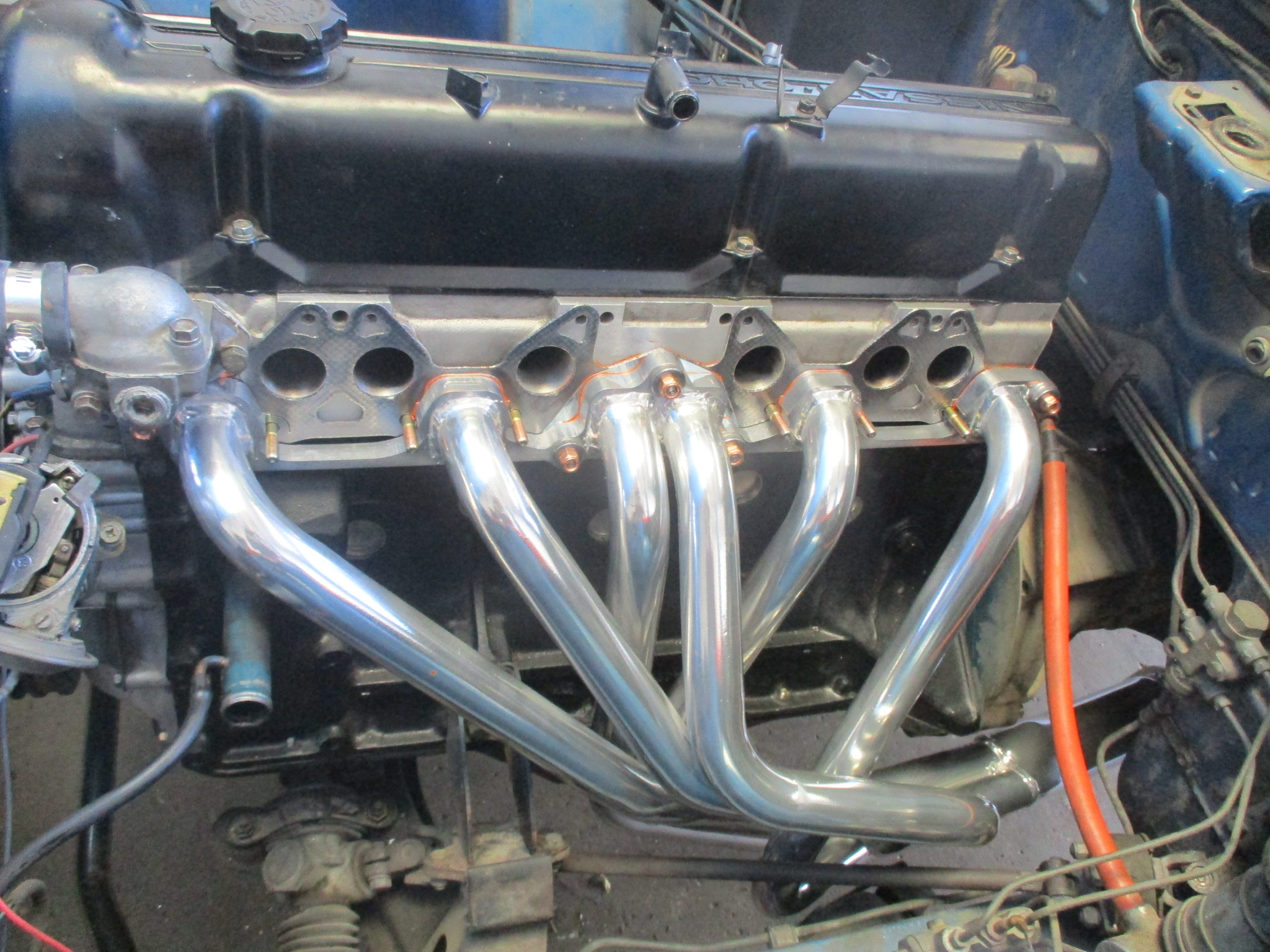

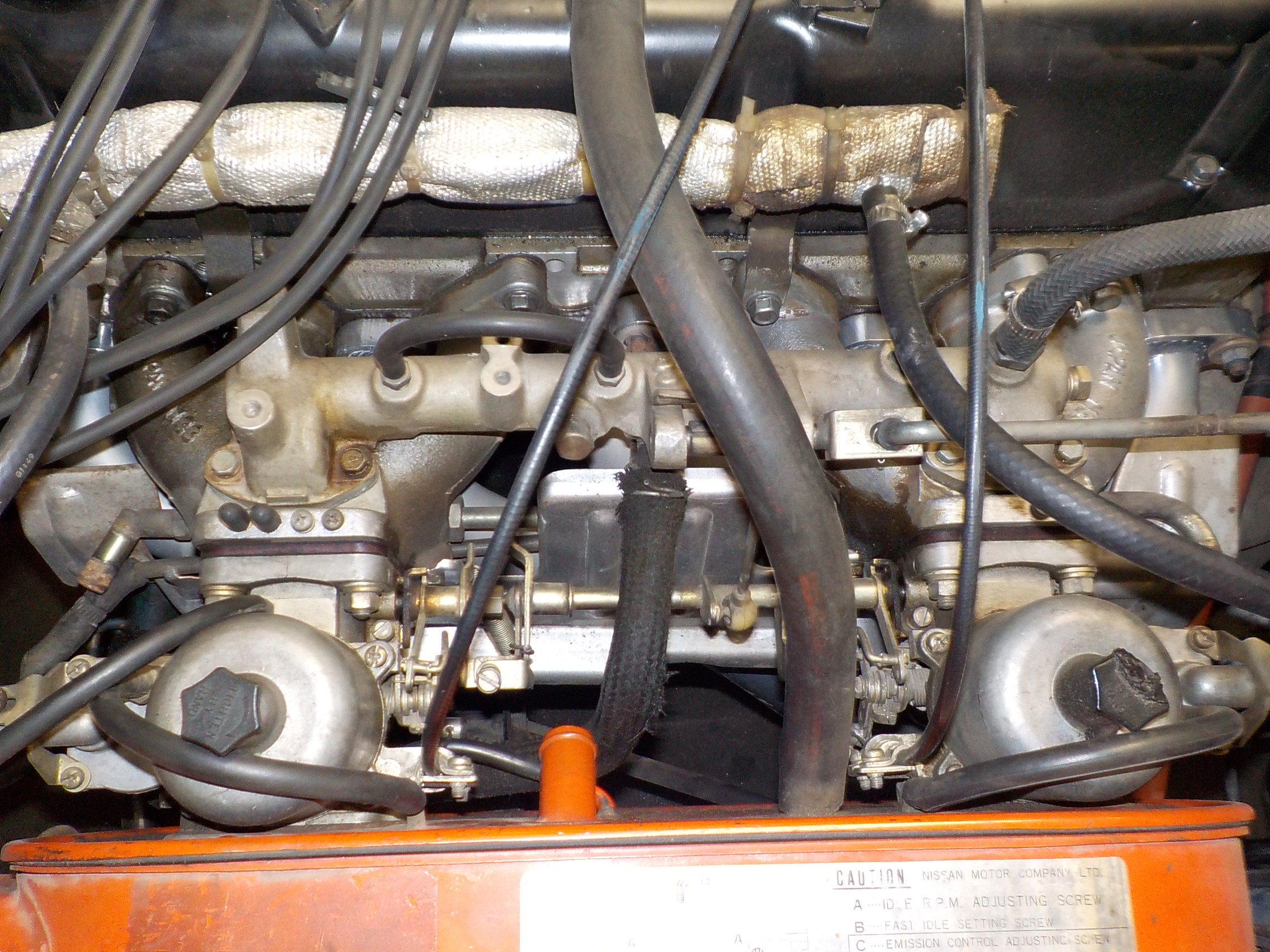

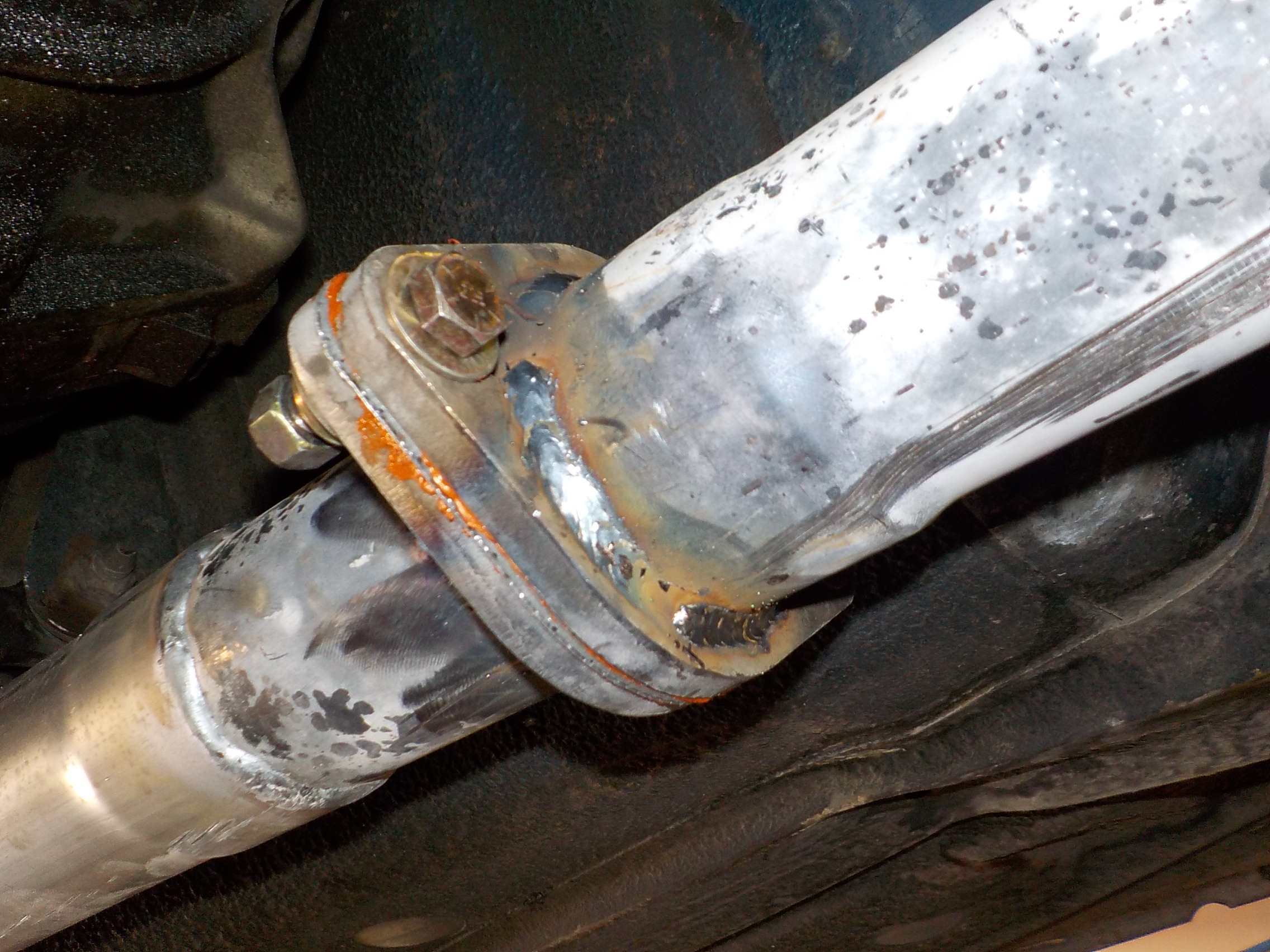

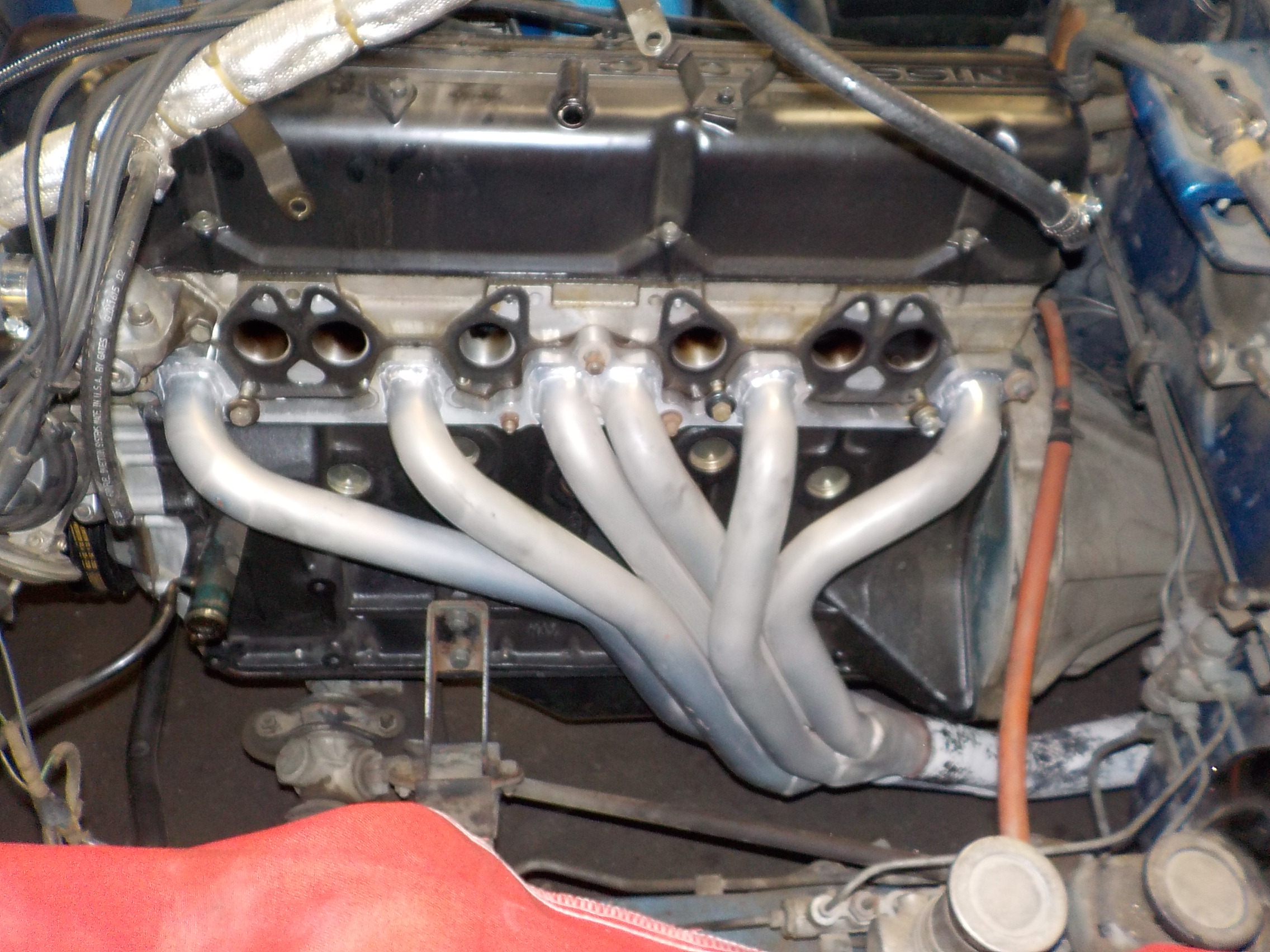

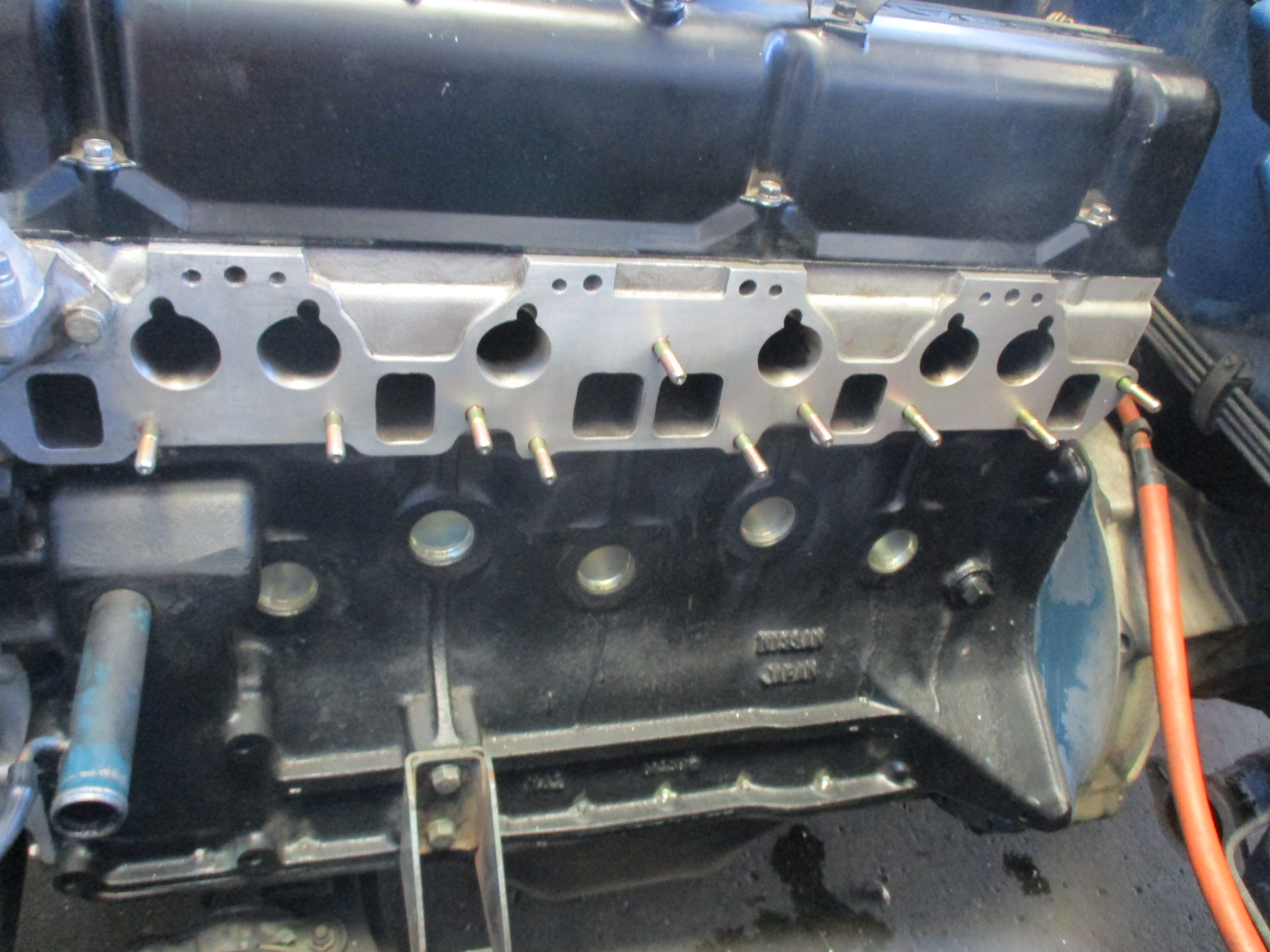

Out with the old SU carbs. A new 6-into-1 MSA coated exhaust header (merged to existing exhaust system) and ZCG heat shield were installed:




Greg also wanted the fuel hoses and AN fttings black which is becoming common from our vintage racing builds like the Rocketbunny Z. Finishing it off is our favorite fuel rail from Japan.

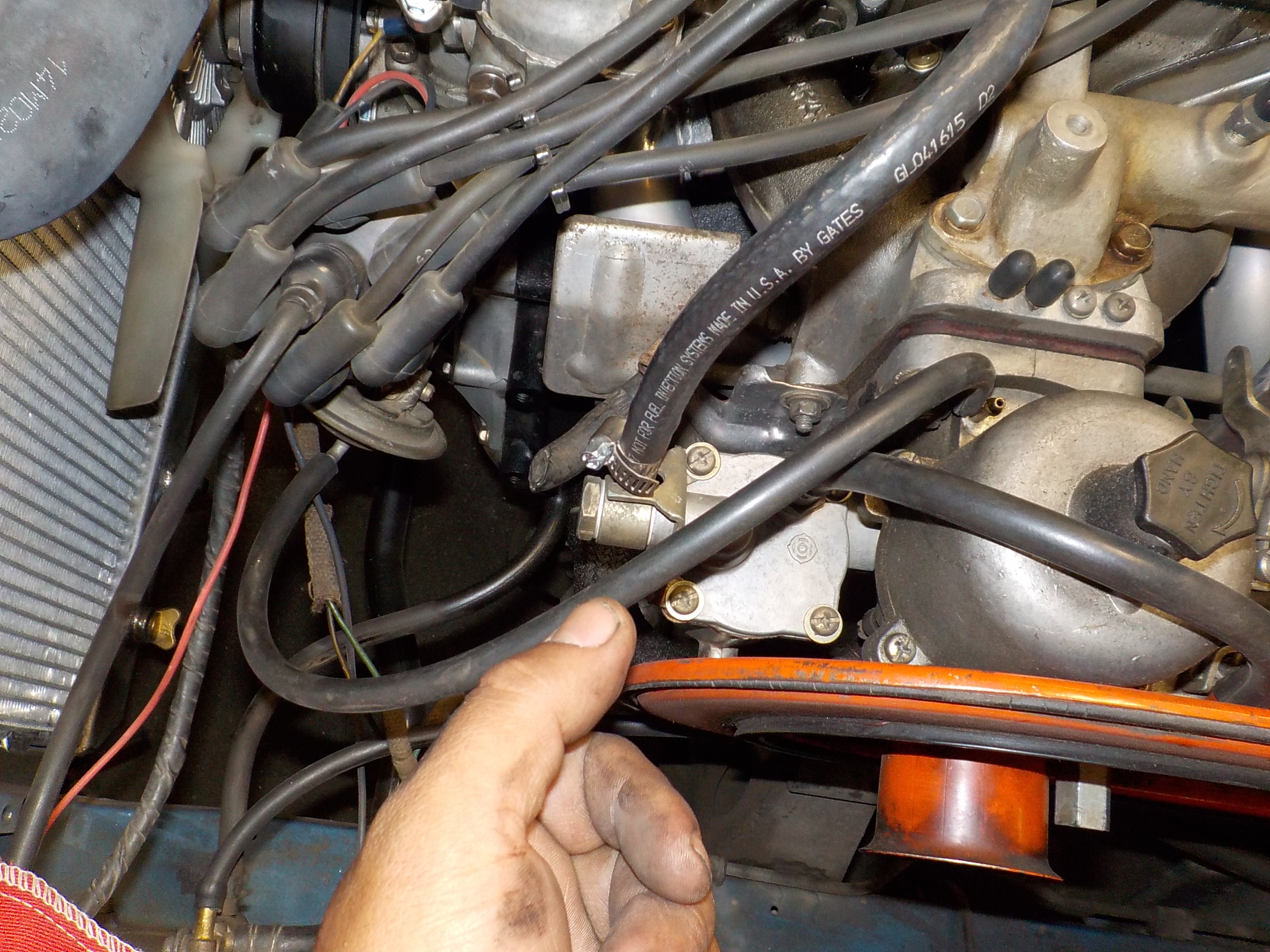

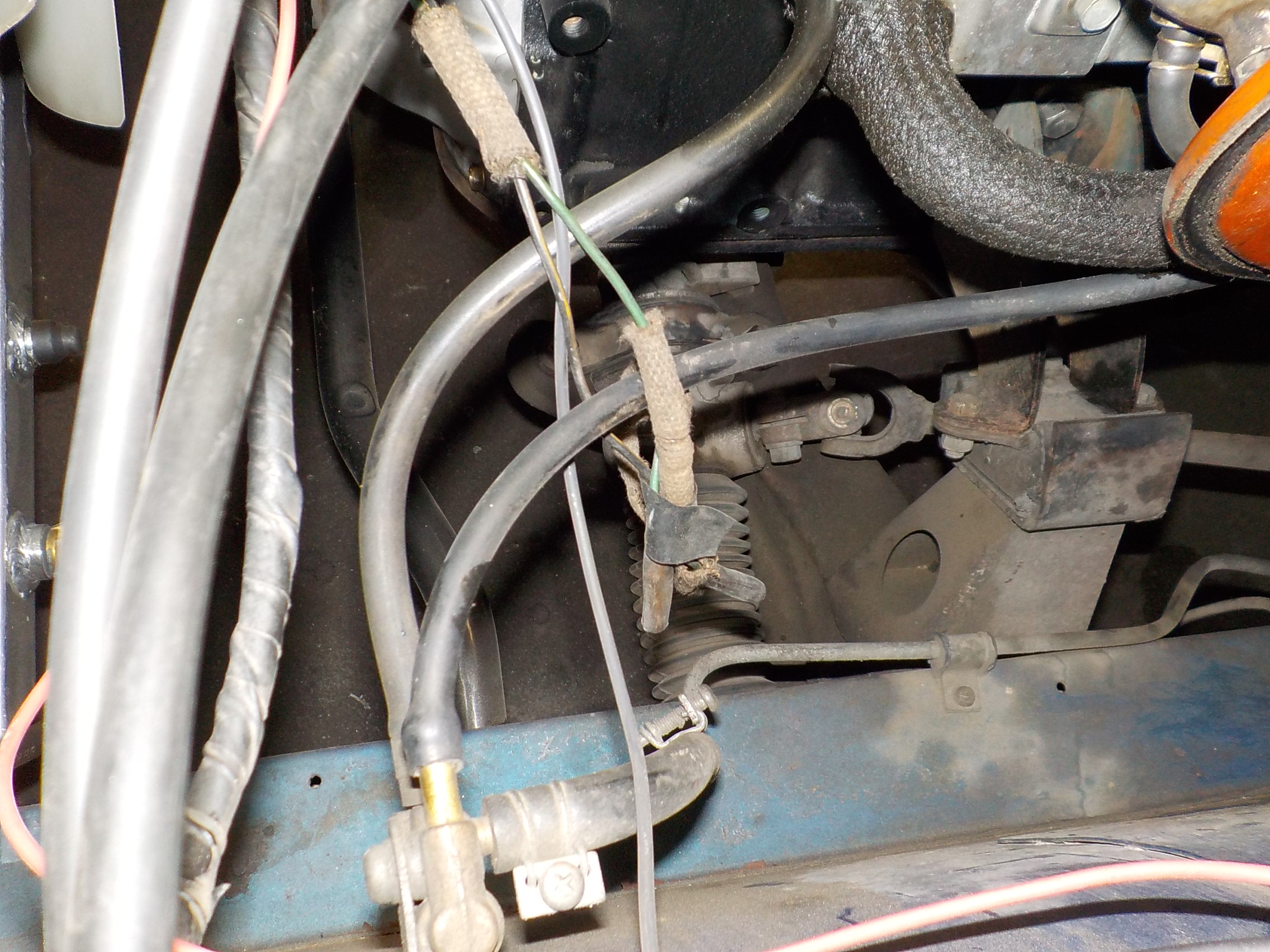

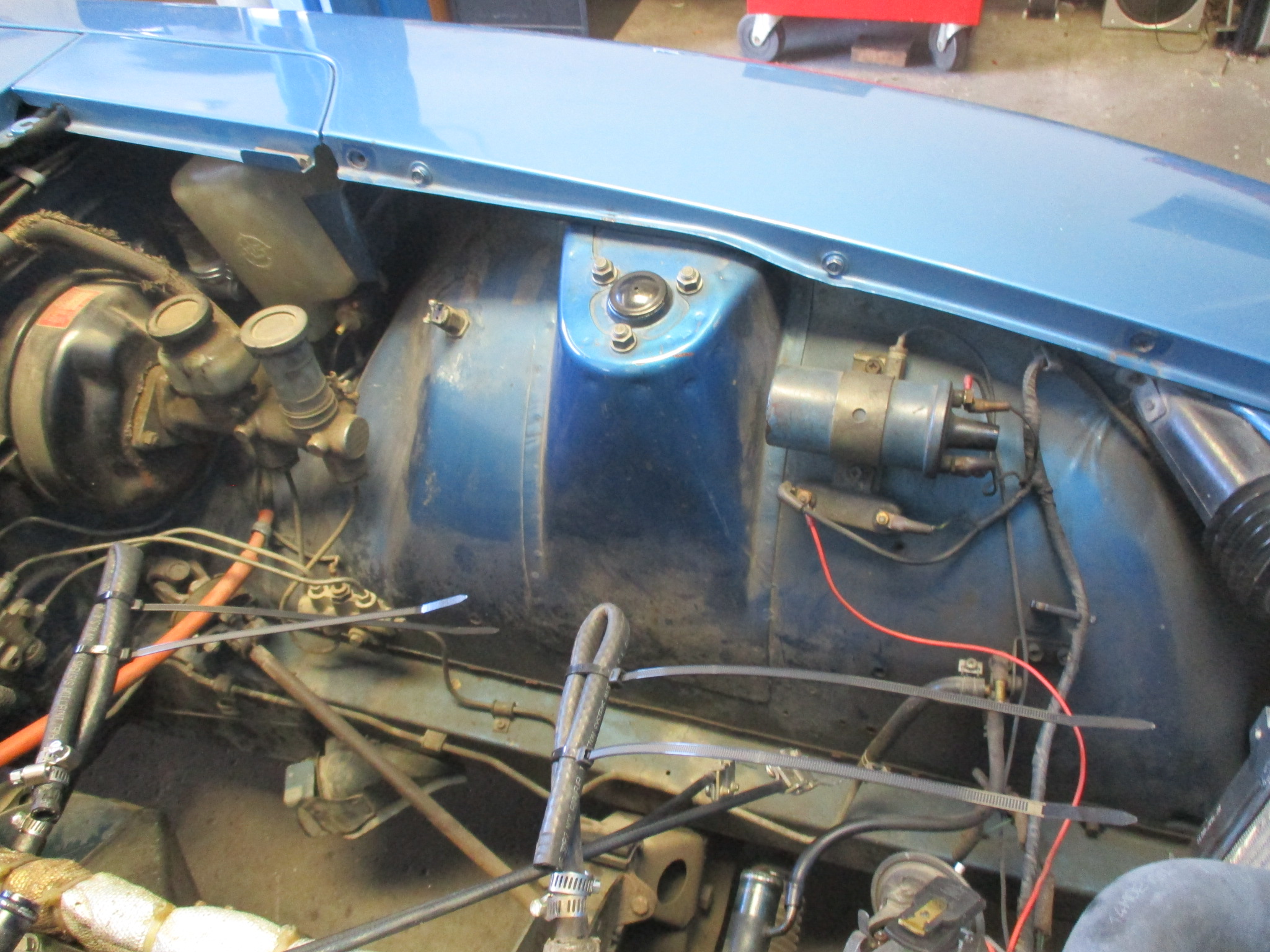

The engine bay received lots cleanup. We wanted Greg’s attention to detail to match his Mopar’s. Before/After, triples are hard to beat!



Dyno Tuning



After the addition of triple Mikuni carbs and an updated MSD ignition we went through the car to ensure it ran well. With Rob’s dyno tuning we greatly improved the way this Rebello 3L drives. Baseline was 186hp/189tq and after tuning it made 215hp/203tq to the wheels:



Listen to those triple Mikuni’s sing on the dyno. Also watch for a test drive with Rob running through the gears making sweet L-series music!

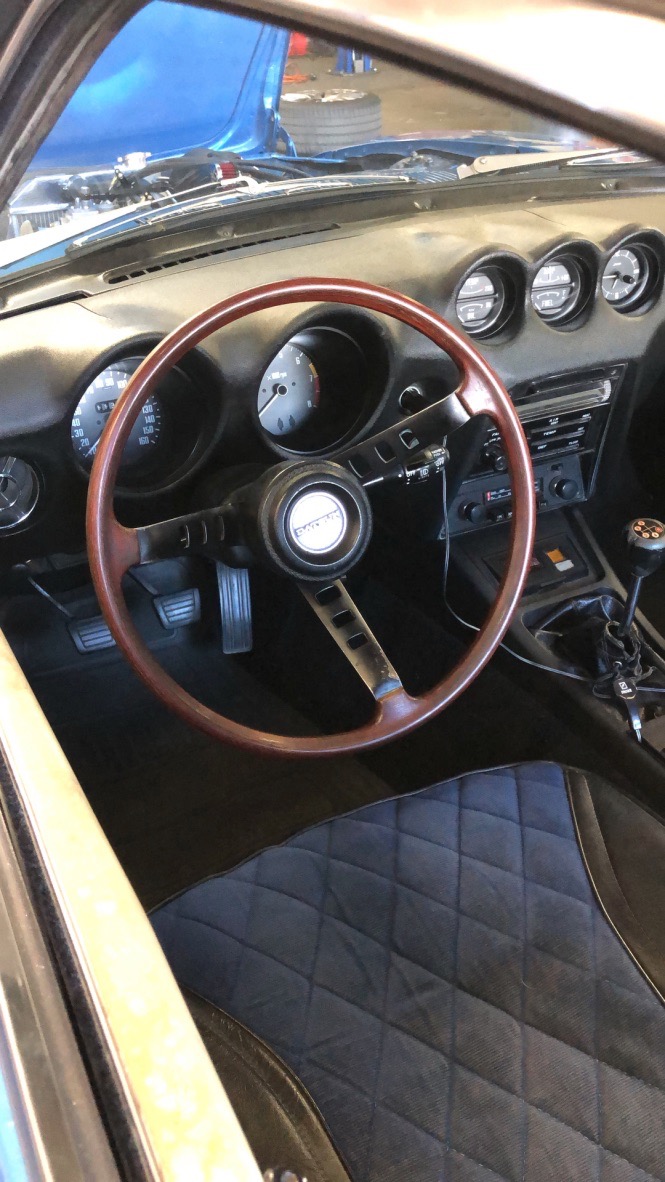

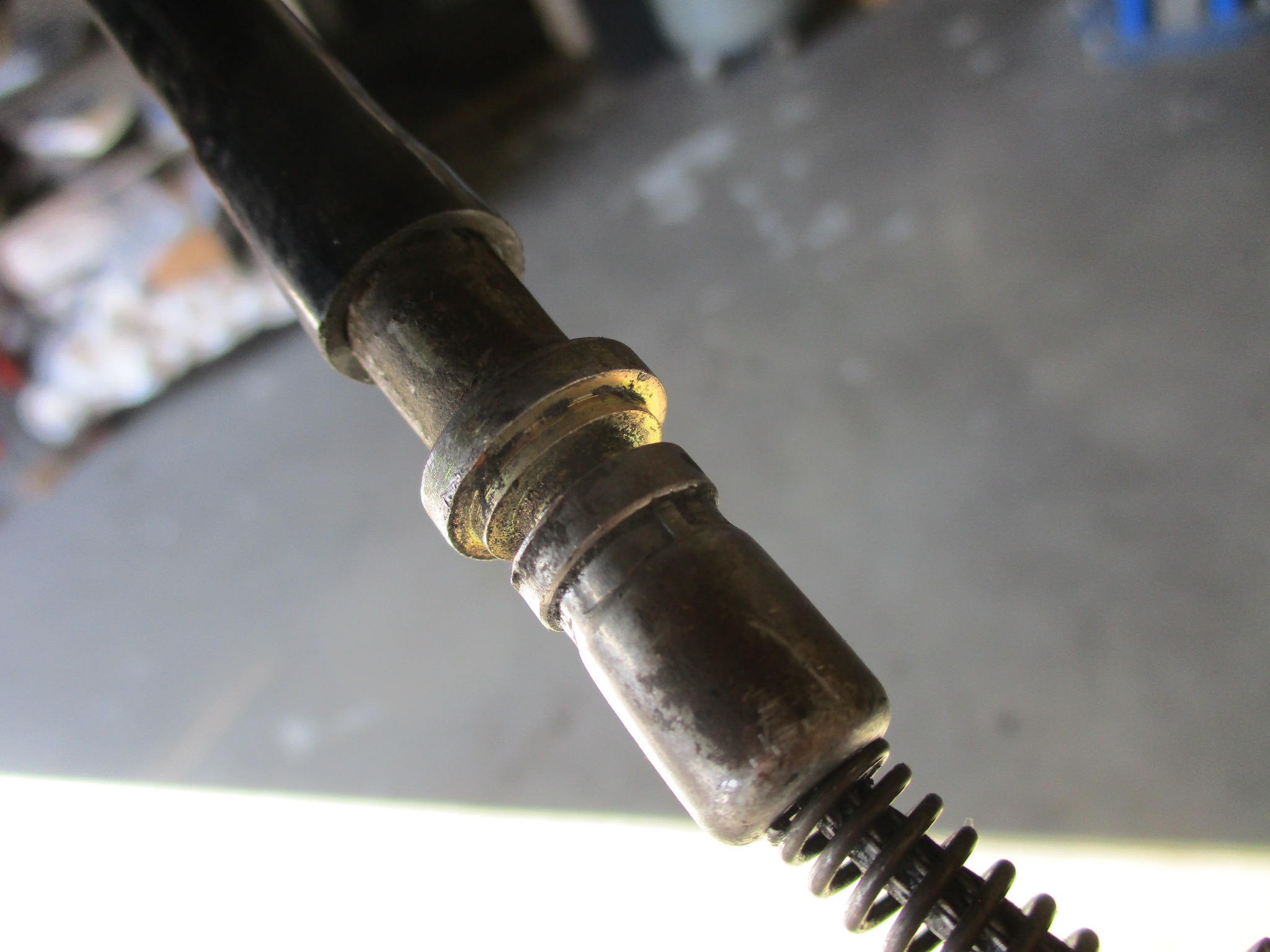

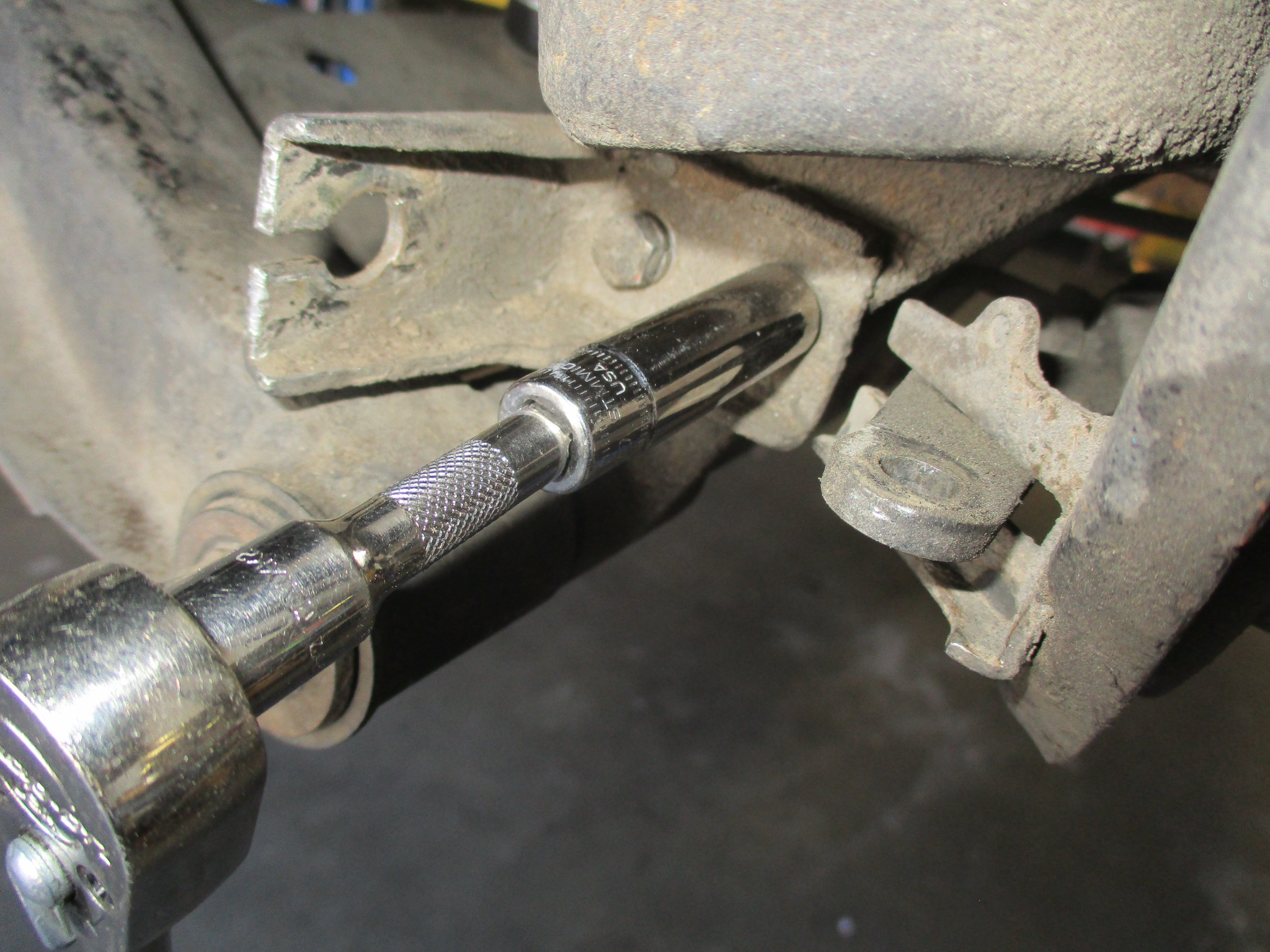

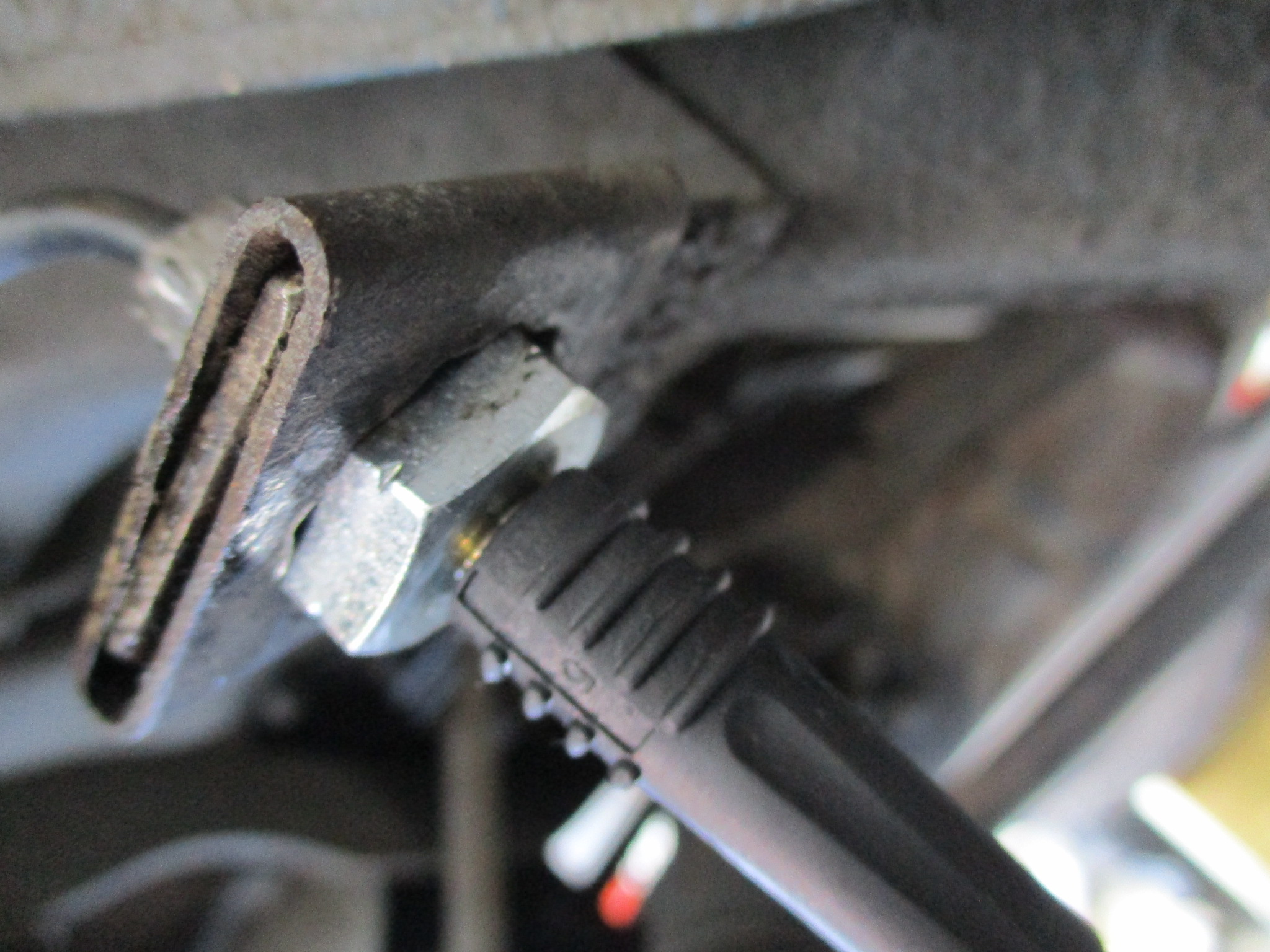

We sorted a few additional items like repairing the parking brake, replacing a lazy tachometer with a nice unit from Rob’s stash and fixing his shift boot.



Greg was pleased with modifications and repairs:

“One of the not-previously talked about items that I was most pleased with was the Tension Rod Bushings that Rob replaced. After I installed the new front-end parts a few years back, the car still had a tendency to follow slight grooves in the road. I had written this off as non-stock wider tires, but when Rob took the car he noticed it in his test drive and replaced those for us as well.  The car now literally drives and handles better than new, and the triple carbs with Rob’s tuning magic REALLY brought out the beast in the Rebello motor! The car’s performance now is quite simply stunning!!!”

ZCG Big-Brakes and CV Axles



With great power from the Rebello 3L Greg needed braking to match. We installed our Z Car Garage Big-Brakes (for small wheels) and also upgaded to Z Car Garage CV Axles!




As fellow S30 owner/racer Glenn C mentioned in his review, on top of braking performance, pedal feel is extremely important and our Big-Brakes deliver. This is a direct result of working with Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. All fitting behind a 15″ Watanabe or Panasport wheel and retaining factory emergency brake lever! A few details below:

Calipers: Stoptech ST42 4-piston front & rear race calipers (Alum 6061 mil-spec Type III anodized)

Rotors: 280mm x 20.6 with Alum 7075 hats

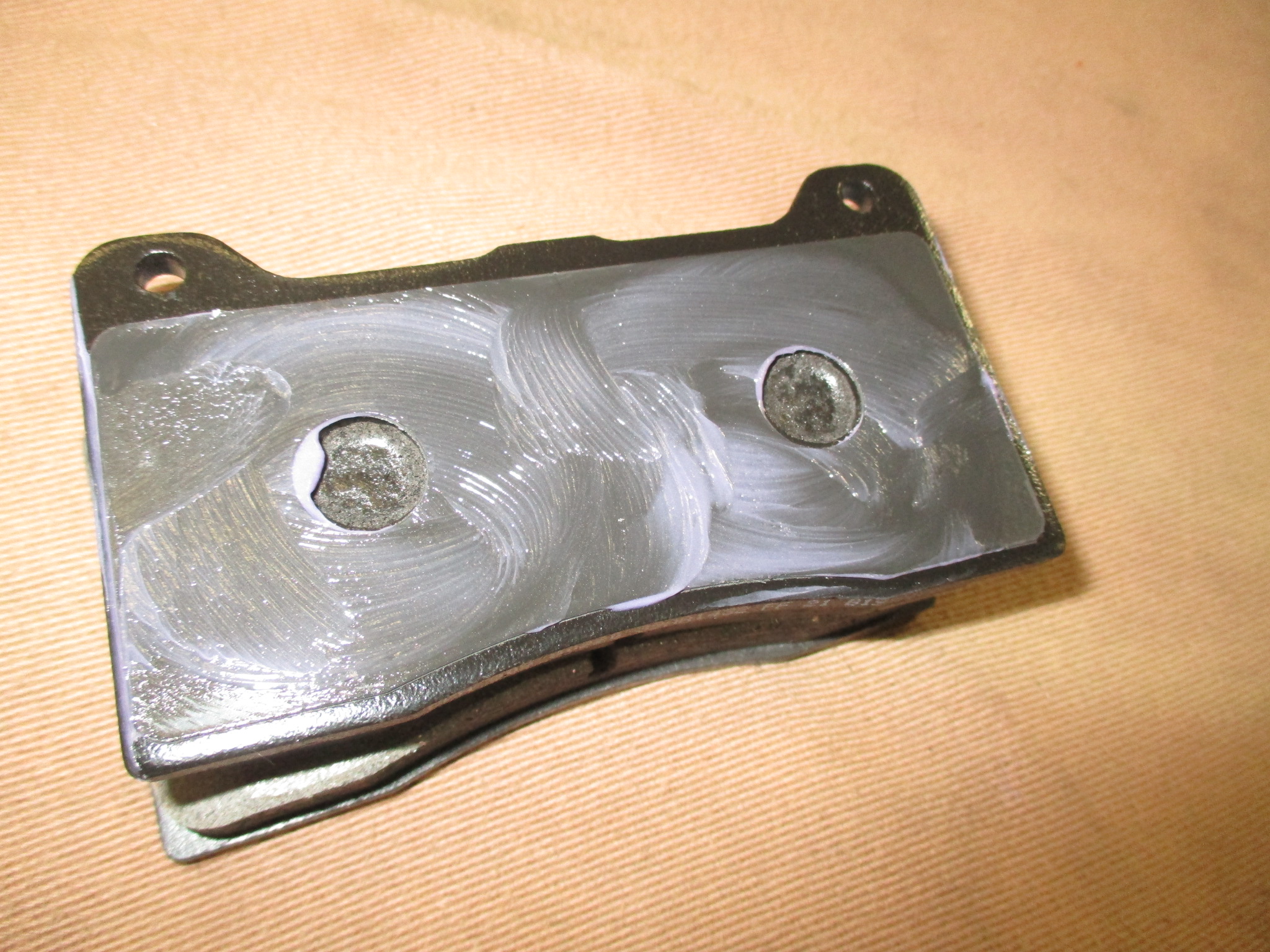

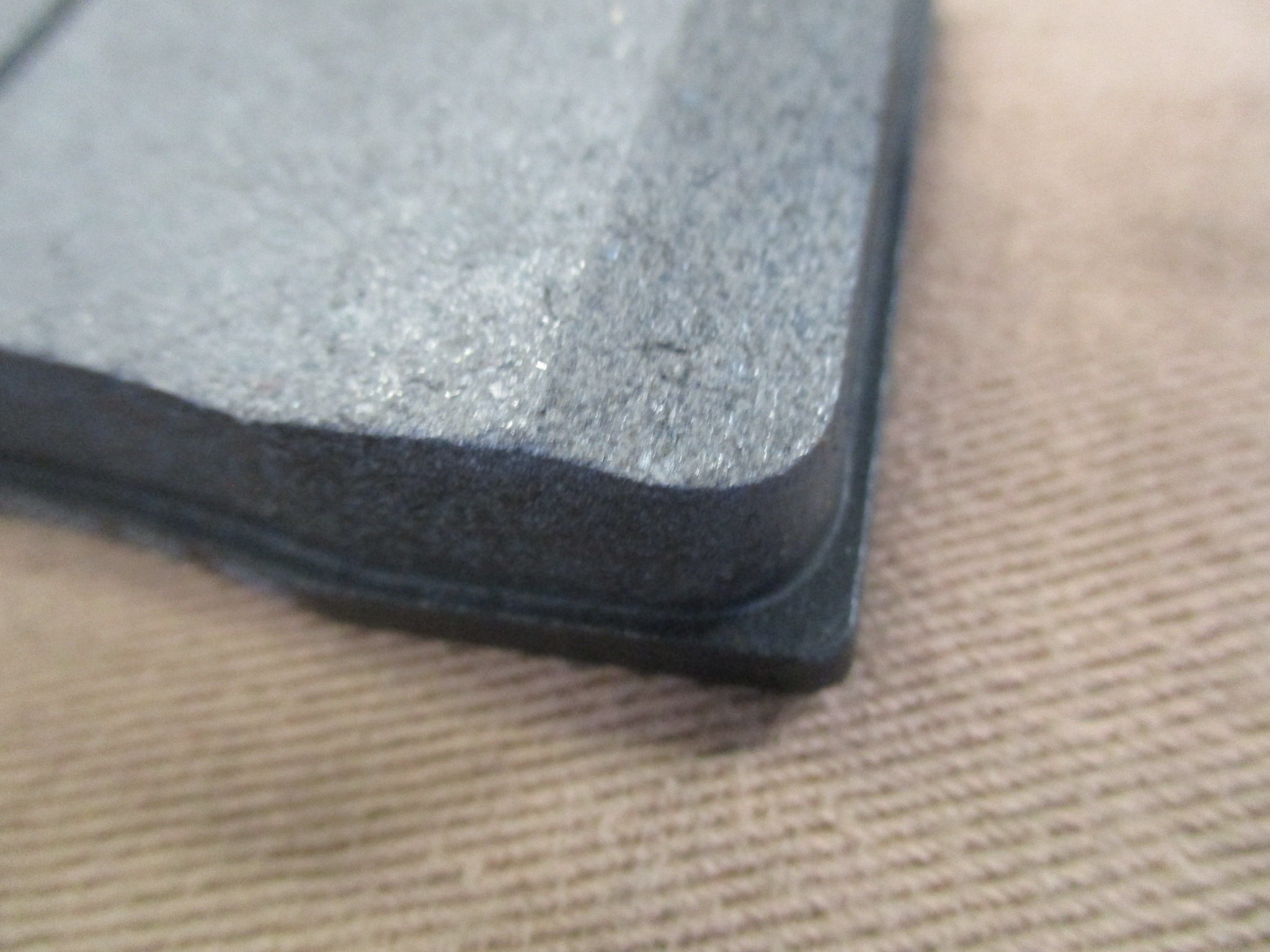

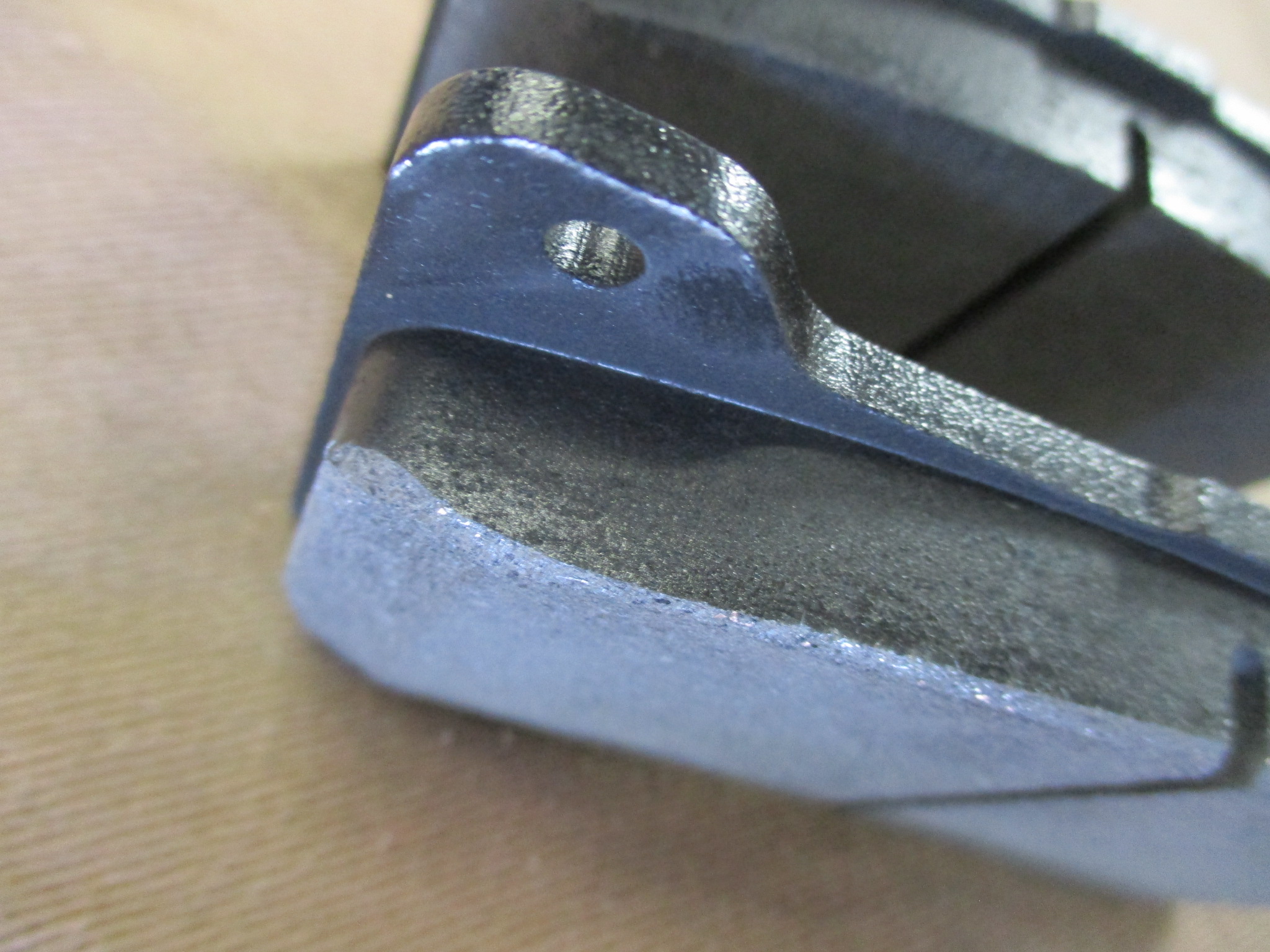

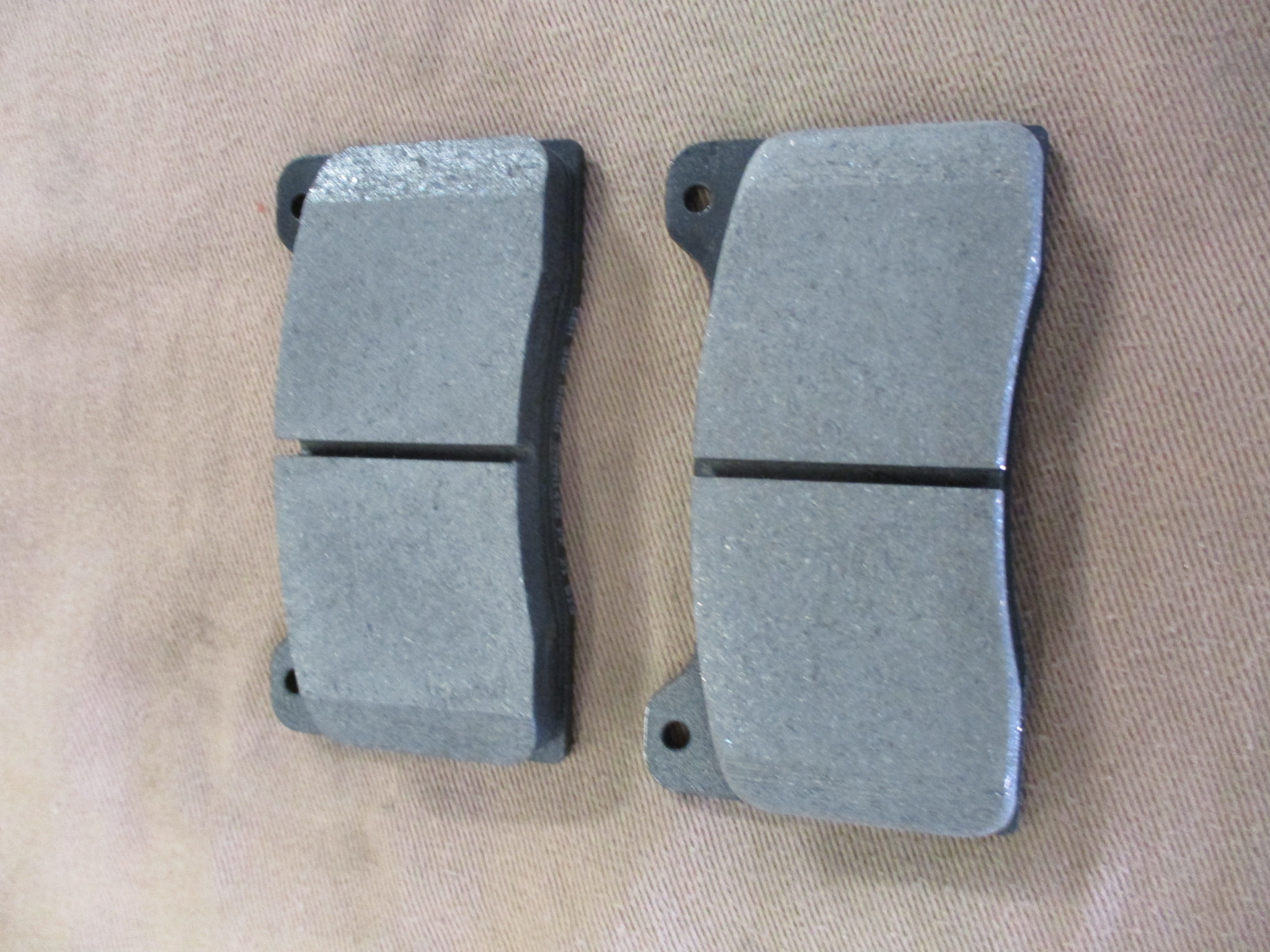

Pads: Stoptech 309 sport street pads

Blog posts documenting all of our customers running the ZCG Big-Brakes can be found HERE.

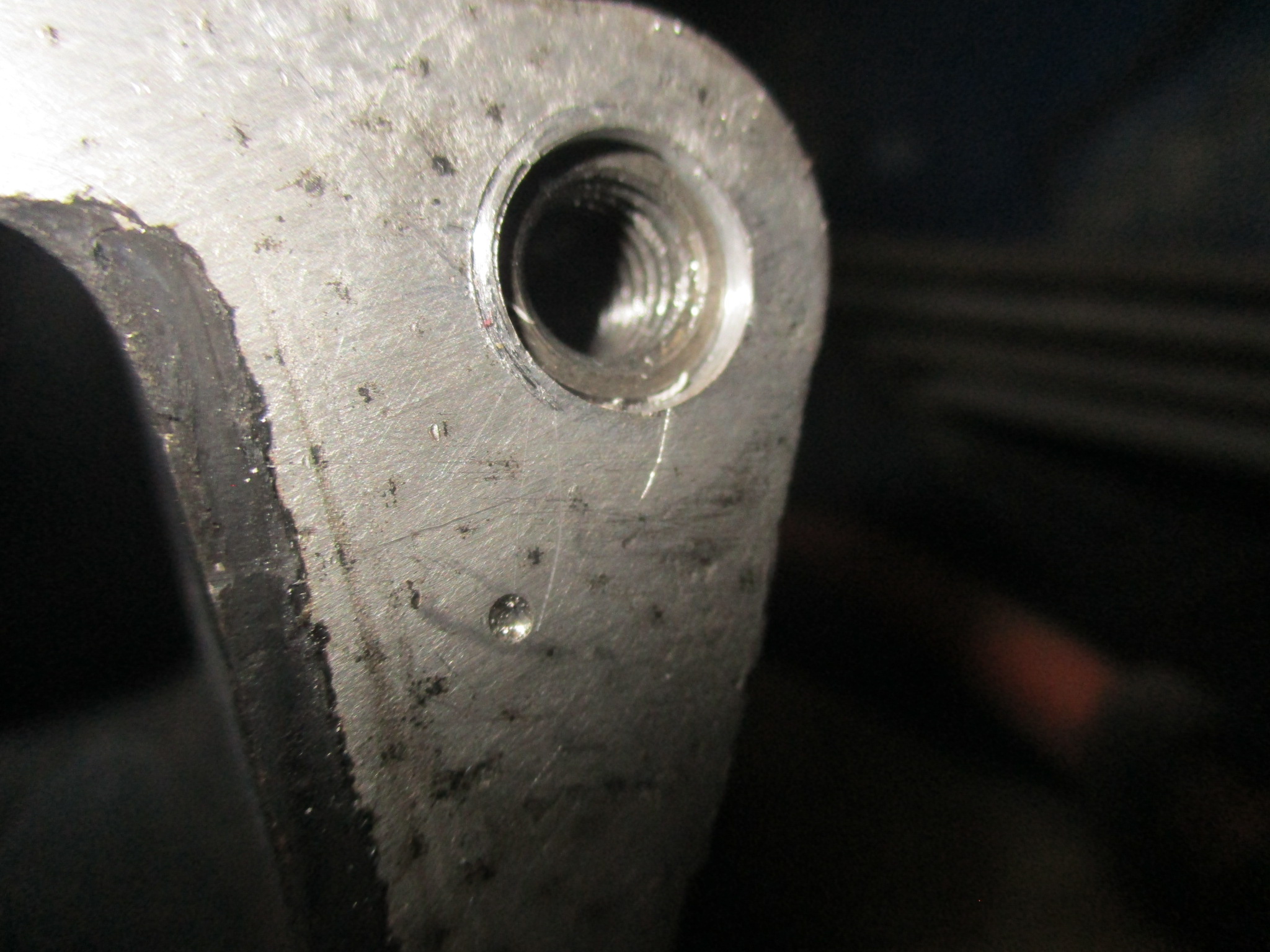

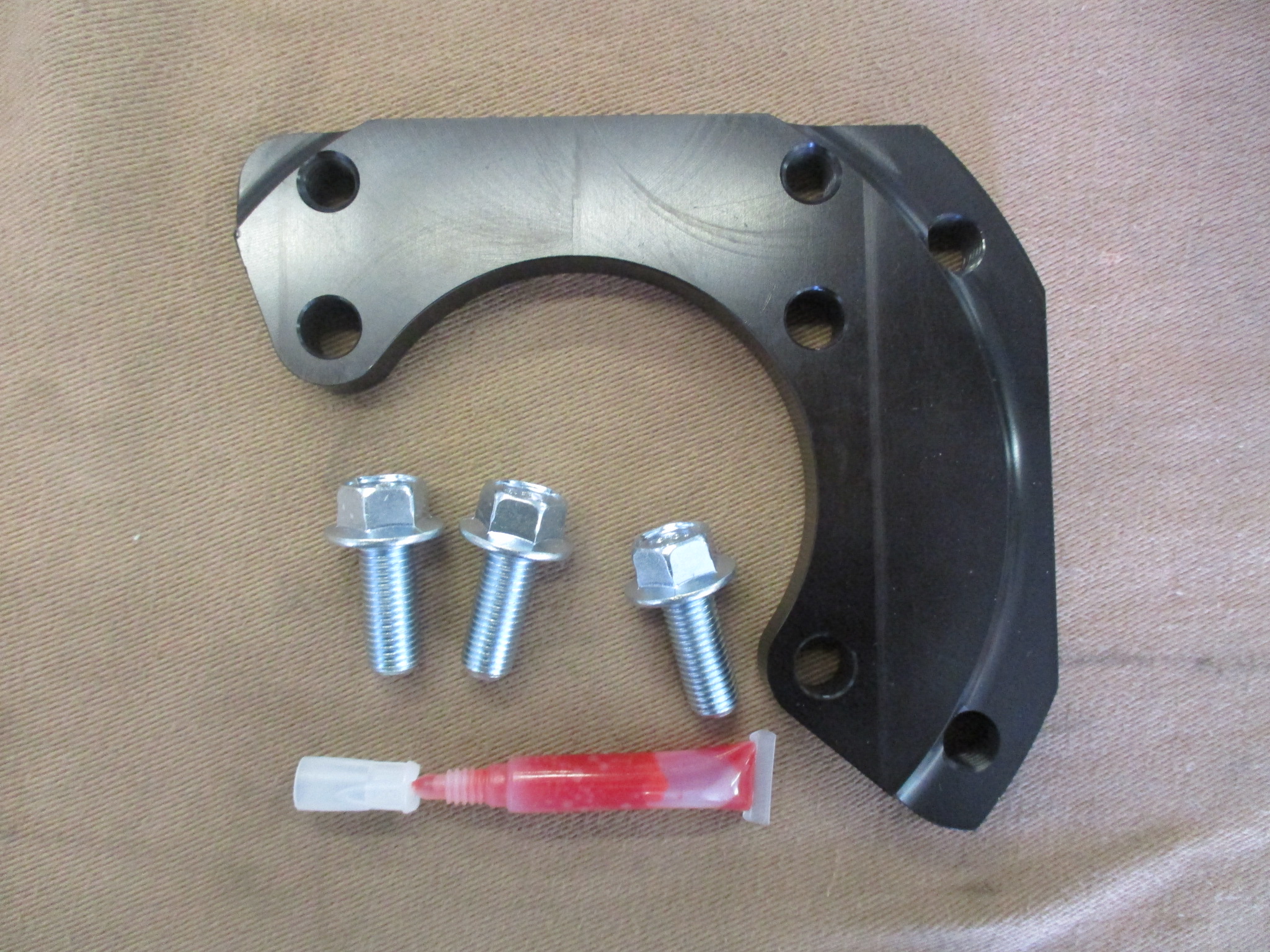

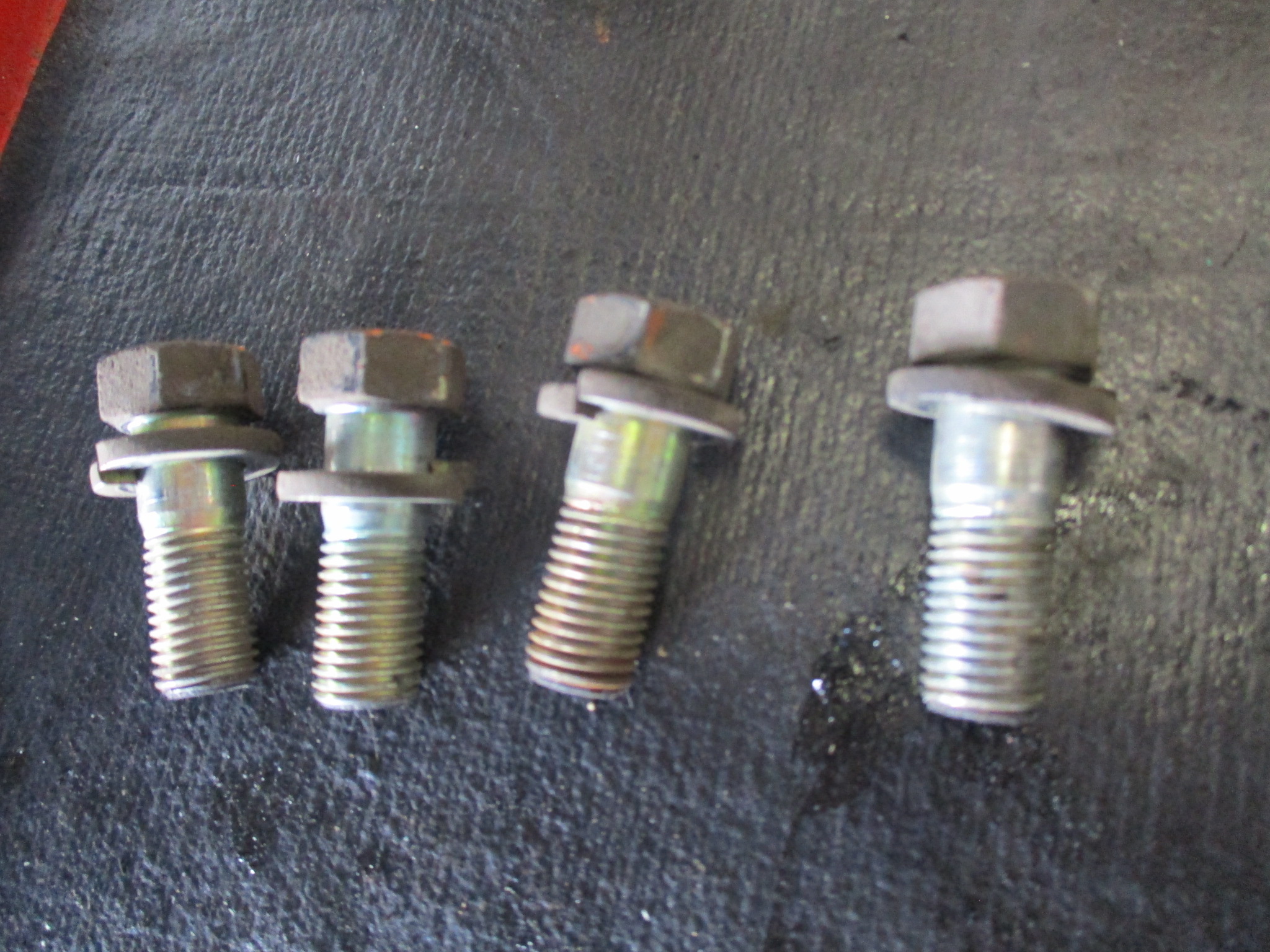

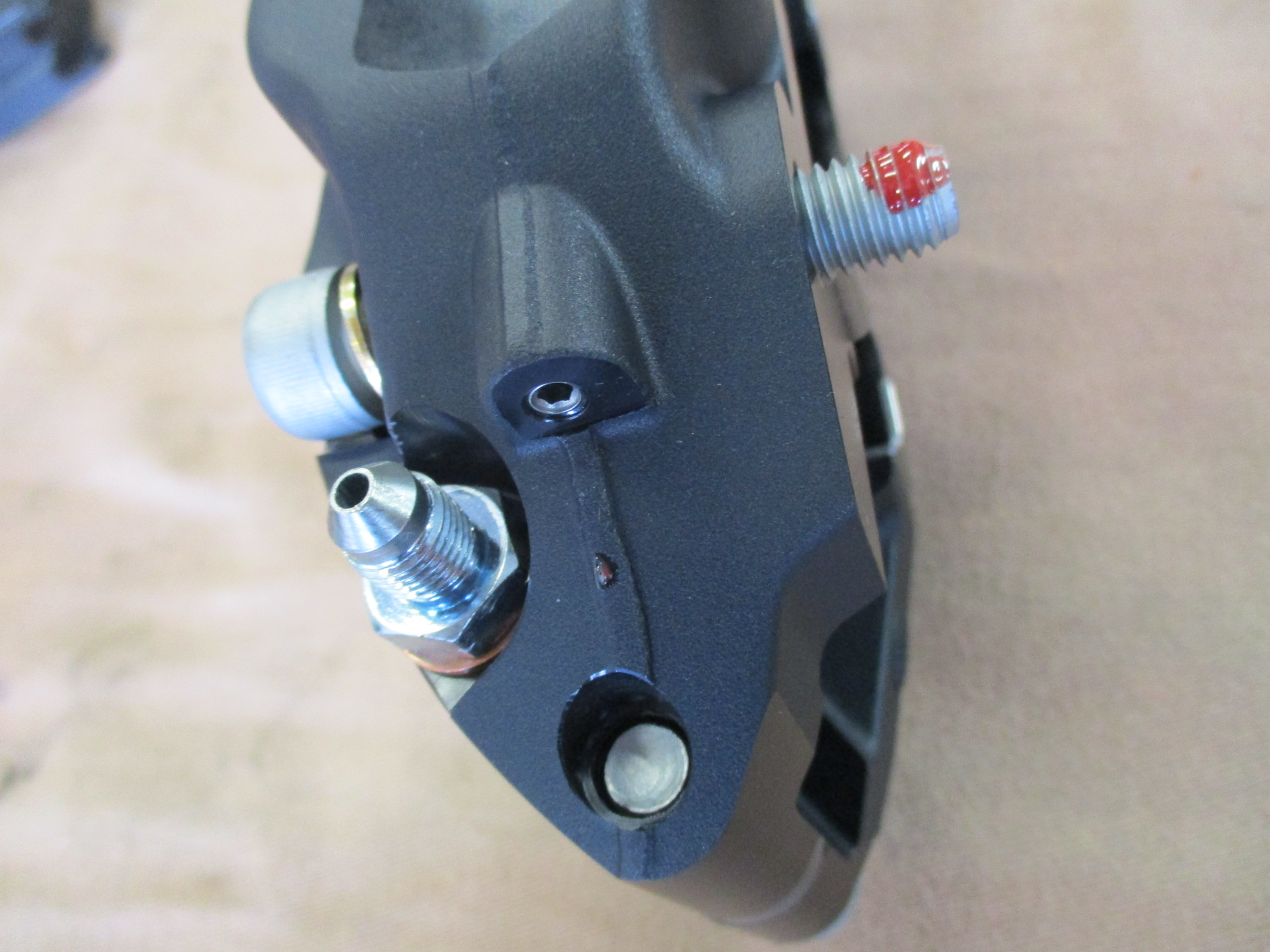

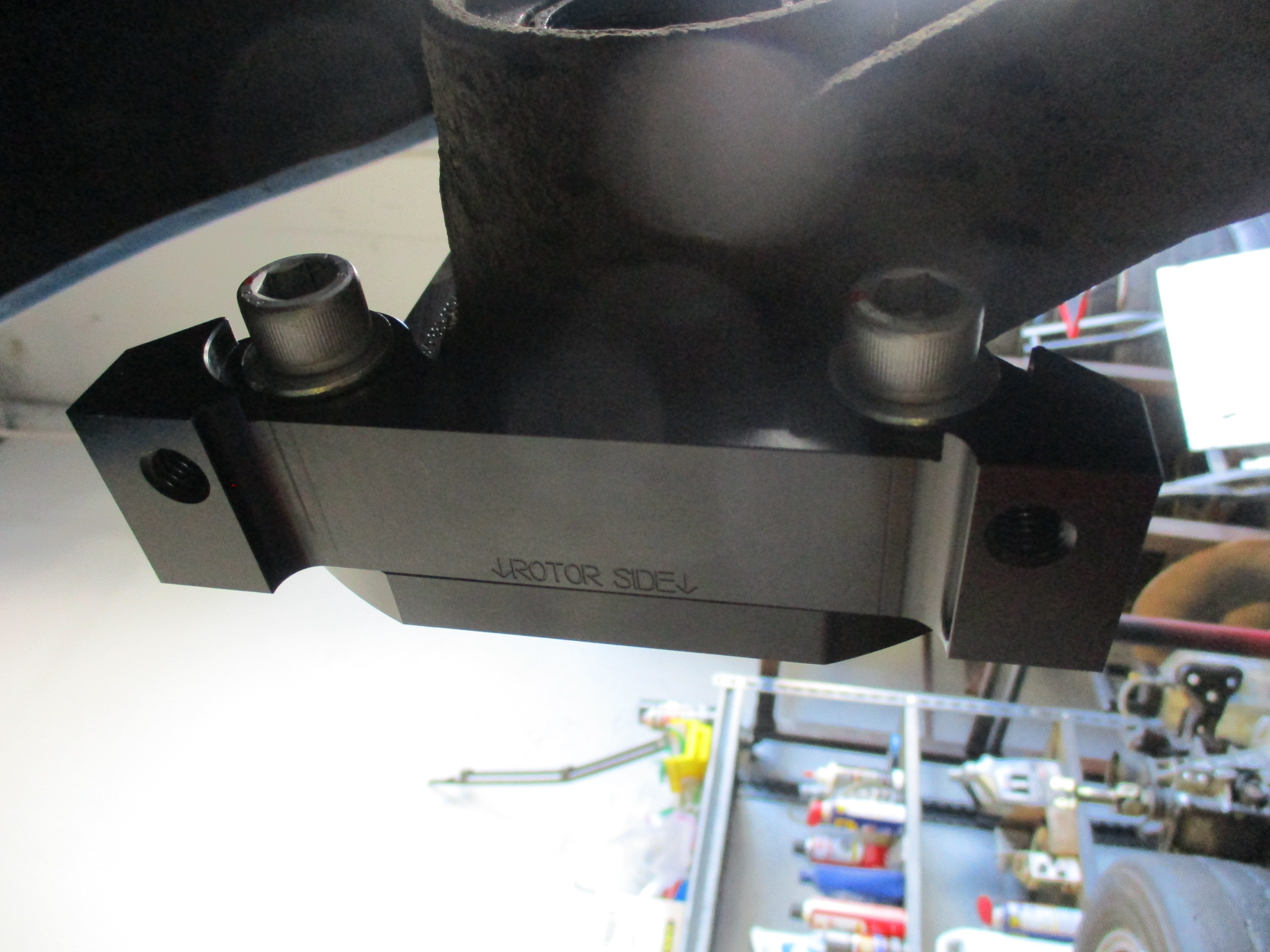

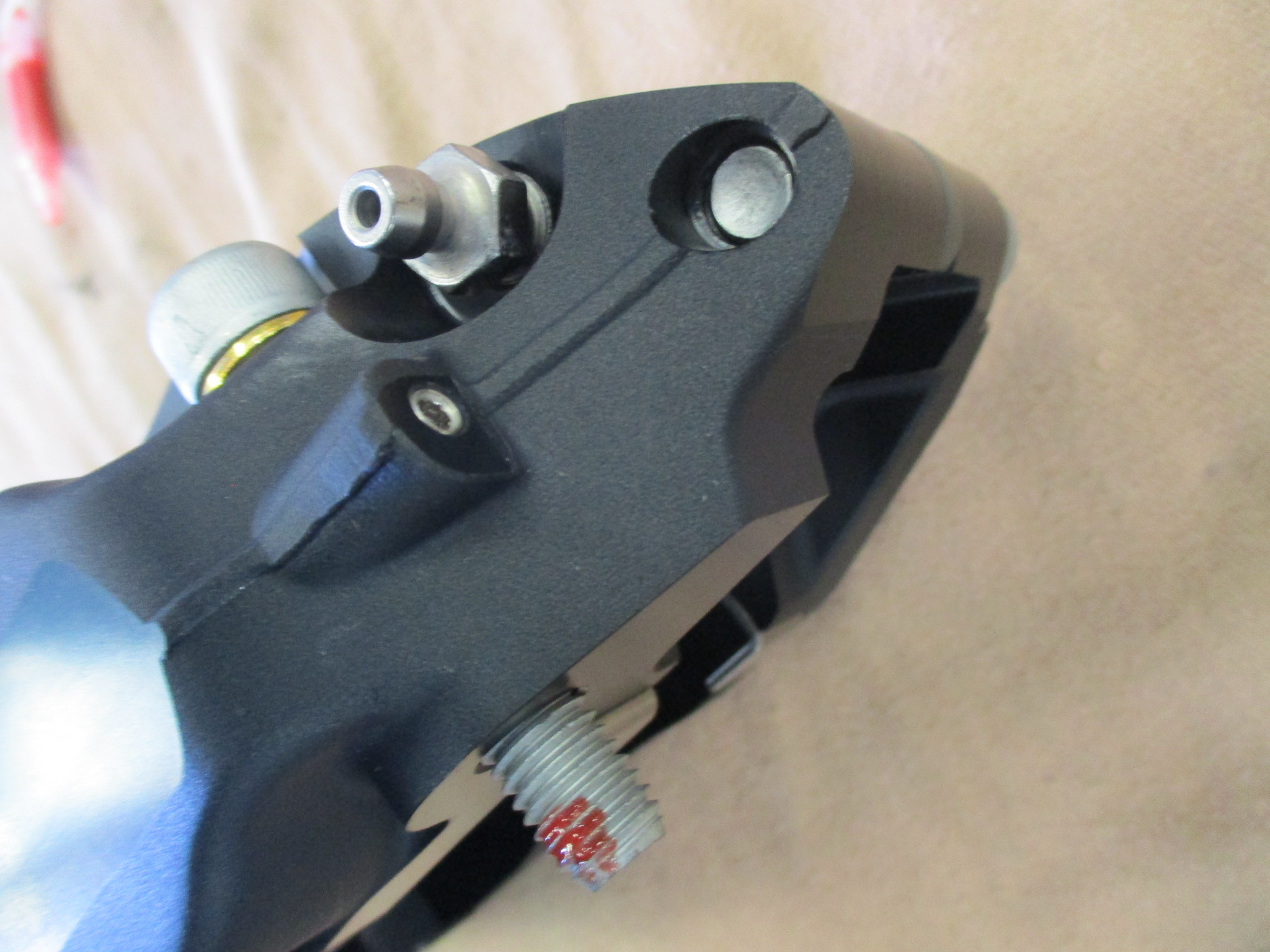

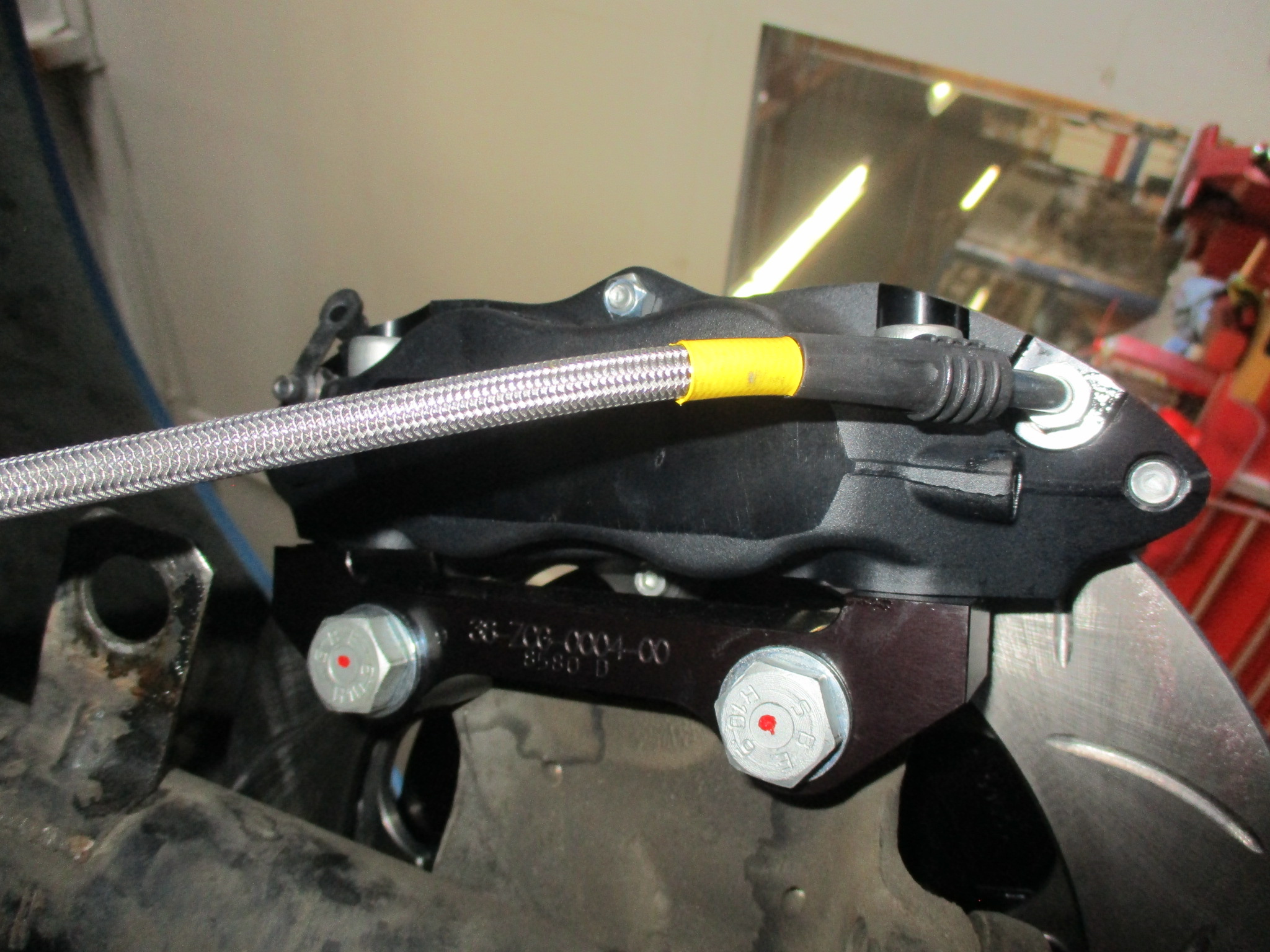

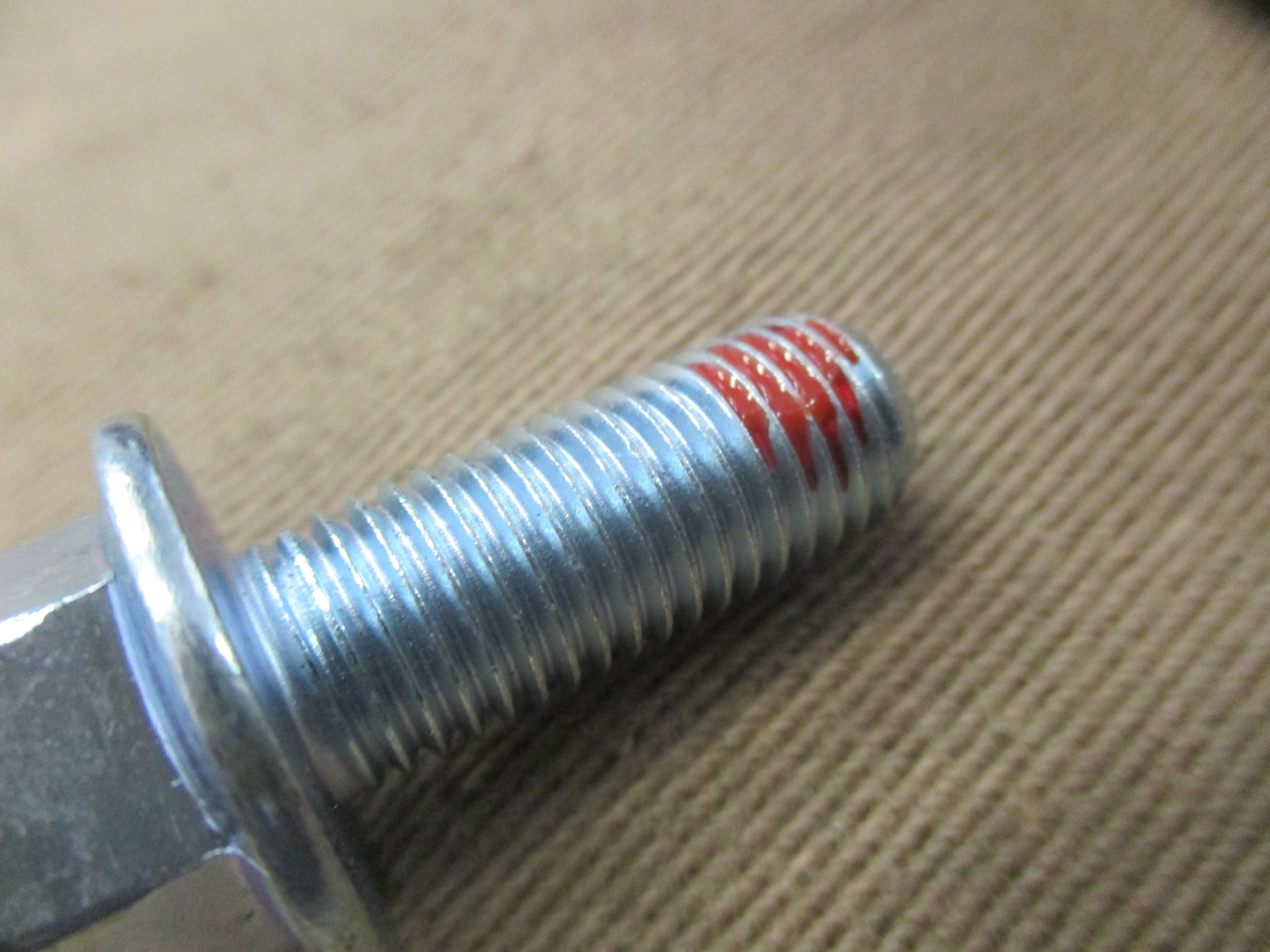

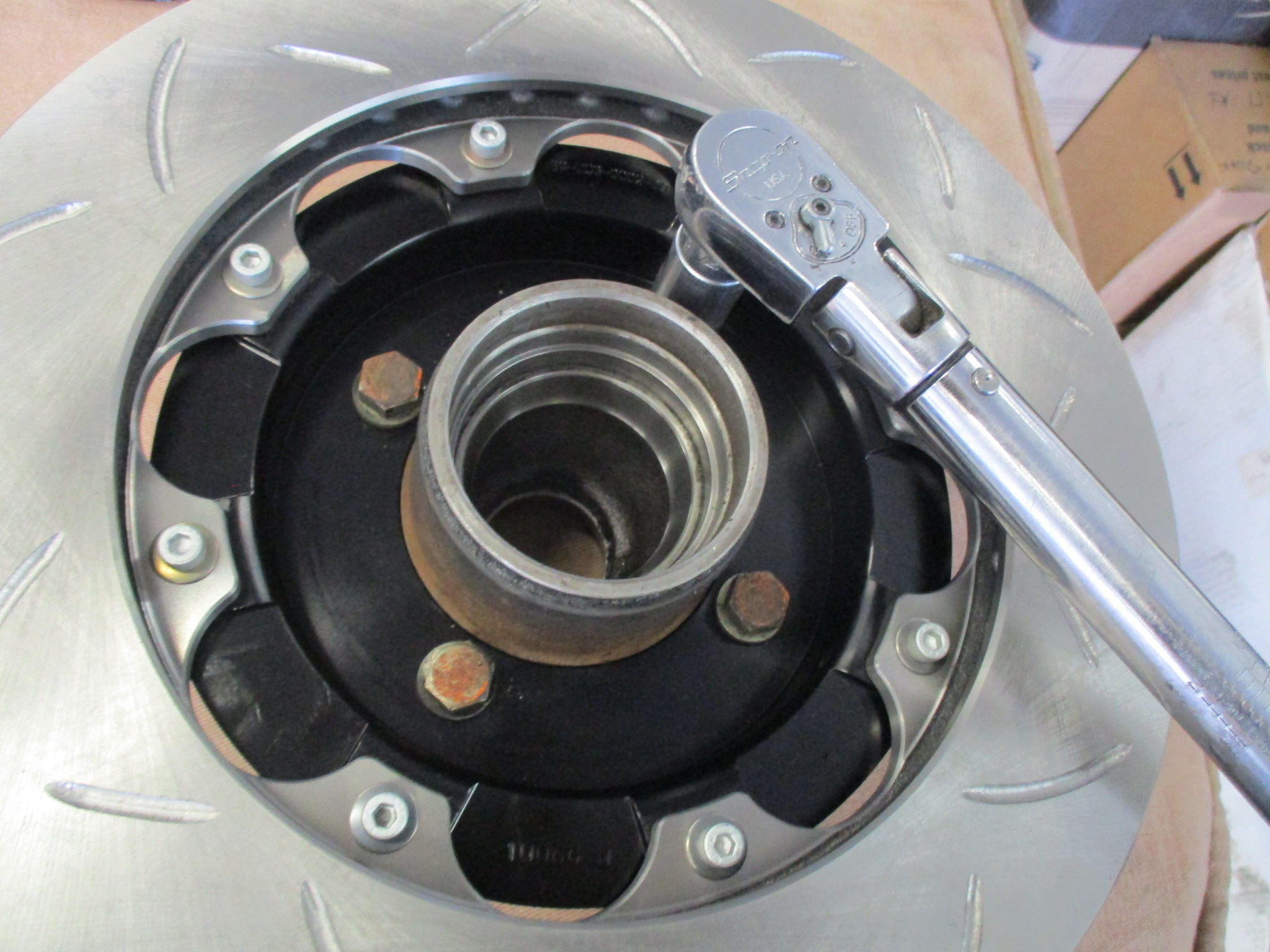

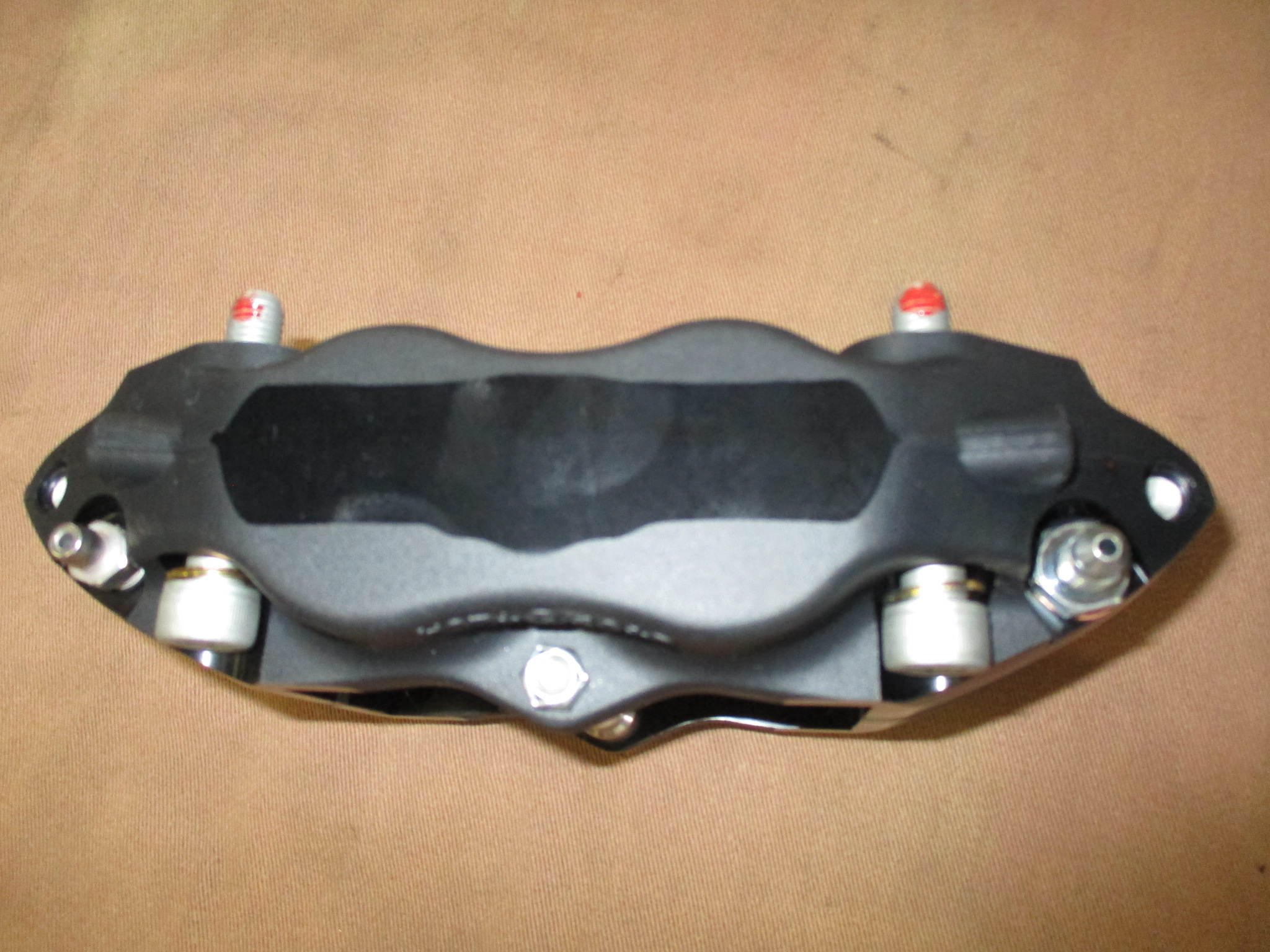

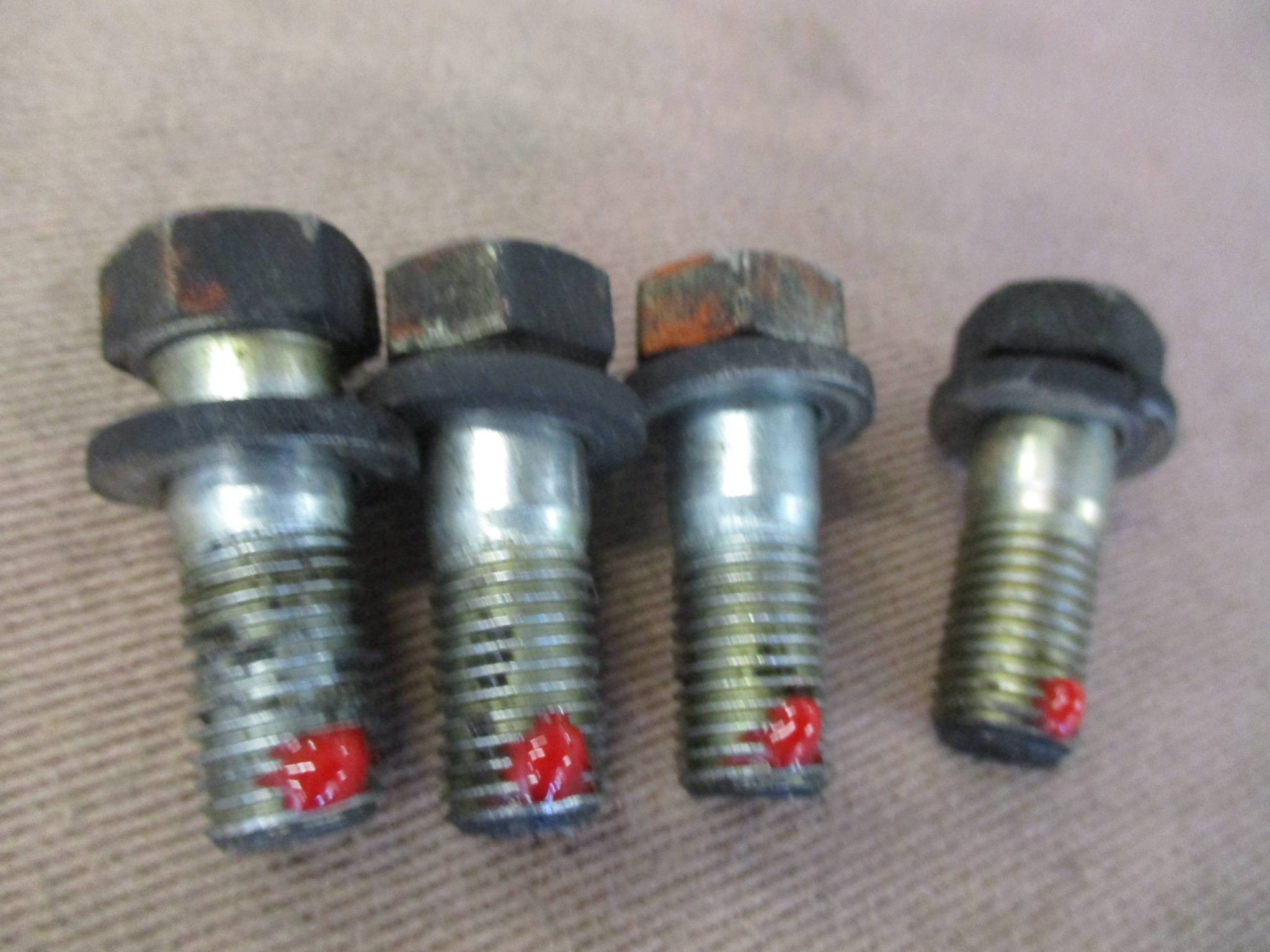

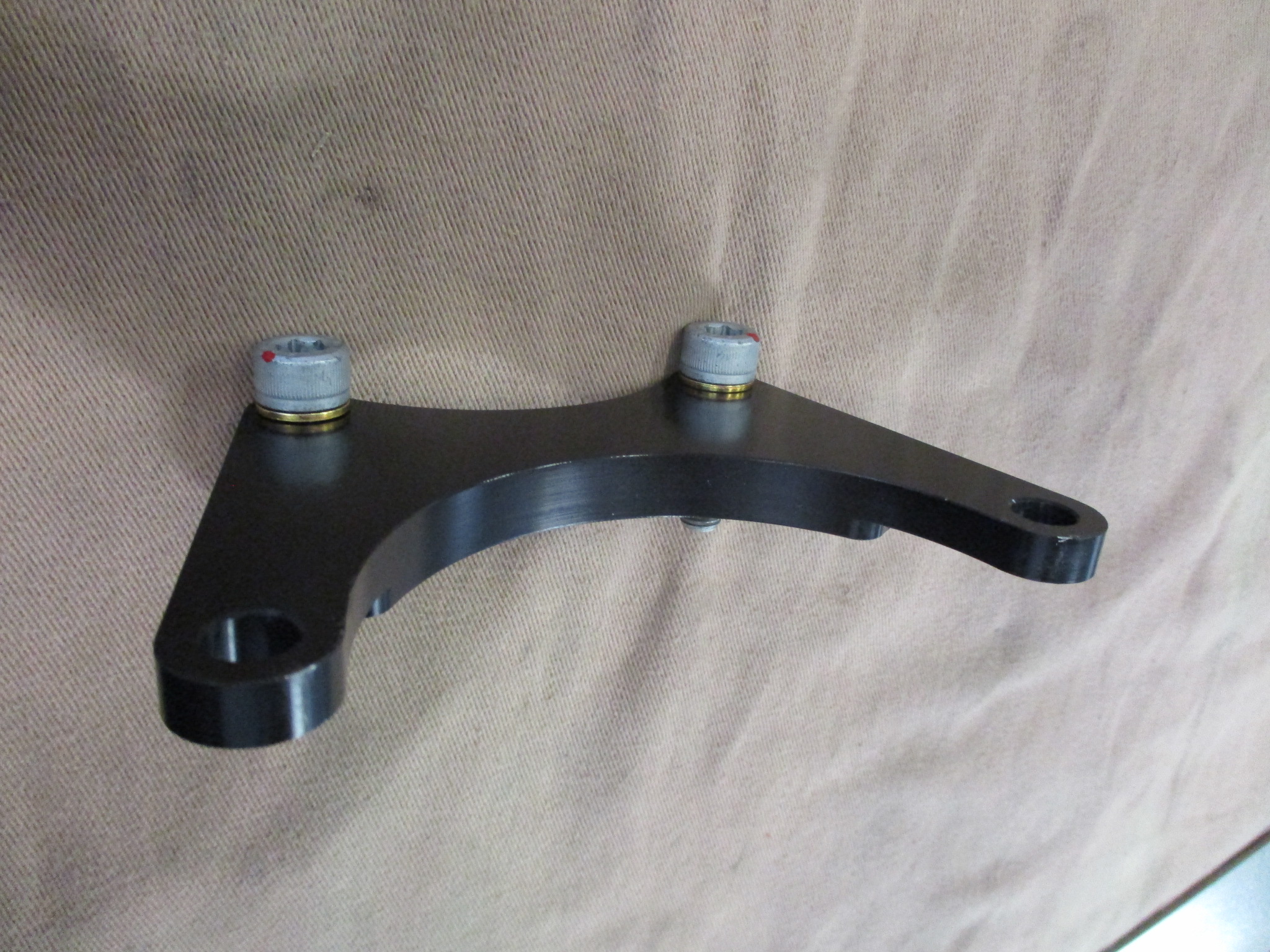

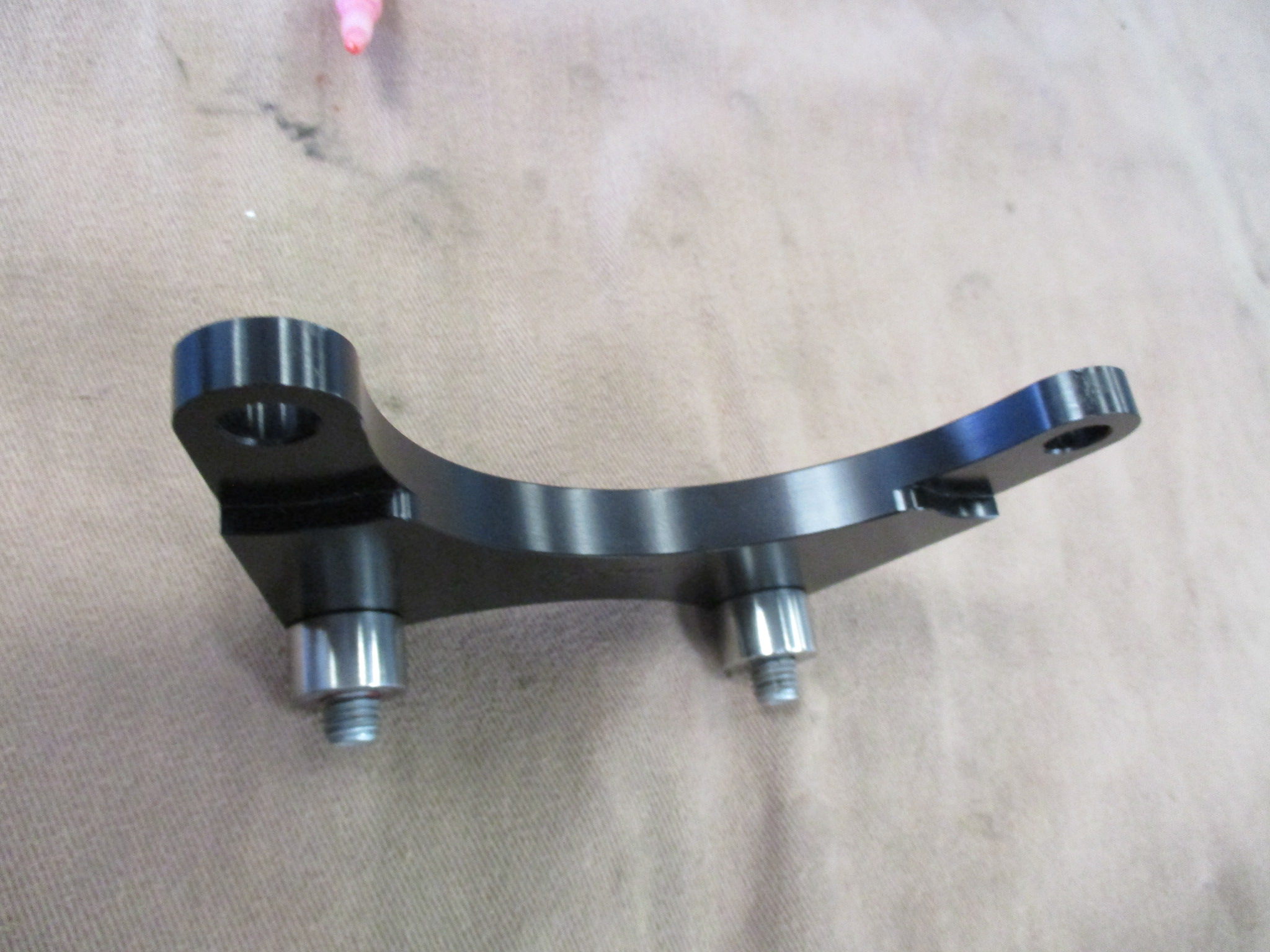

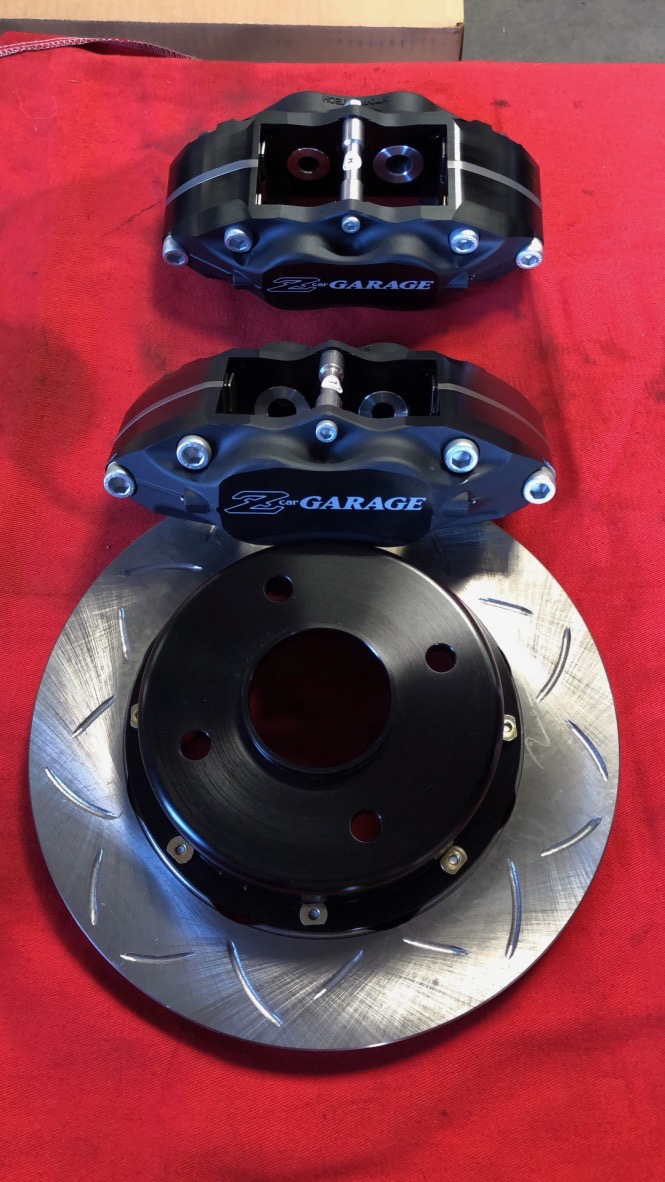

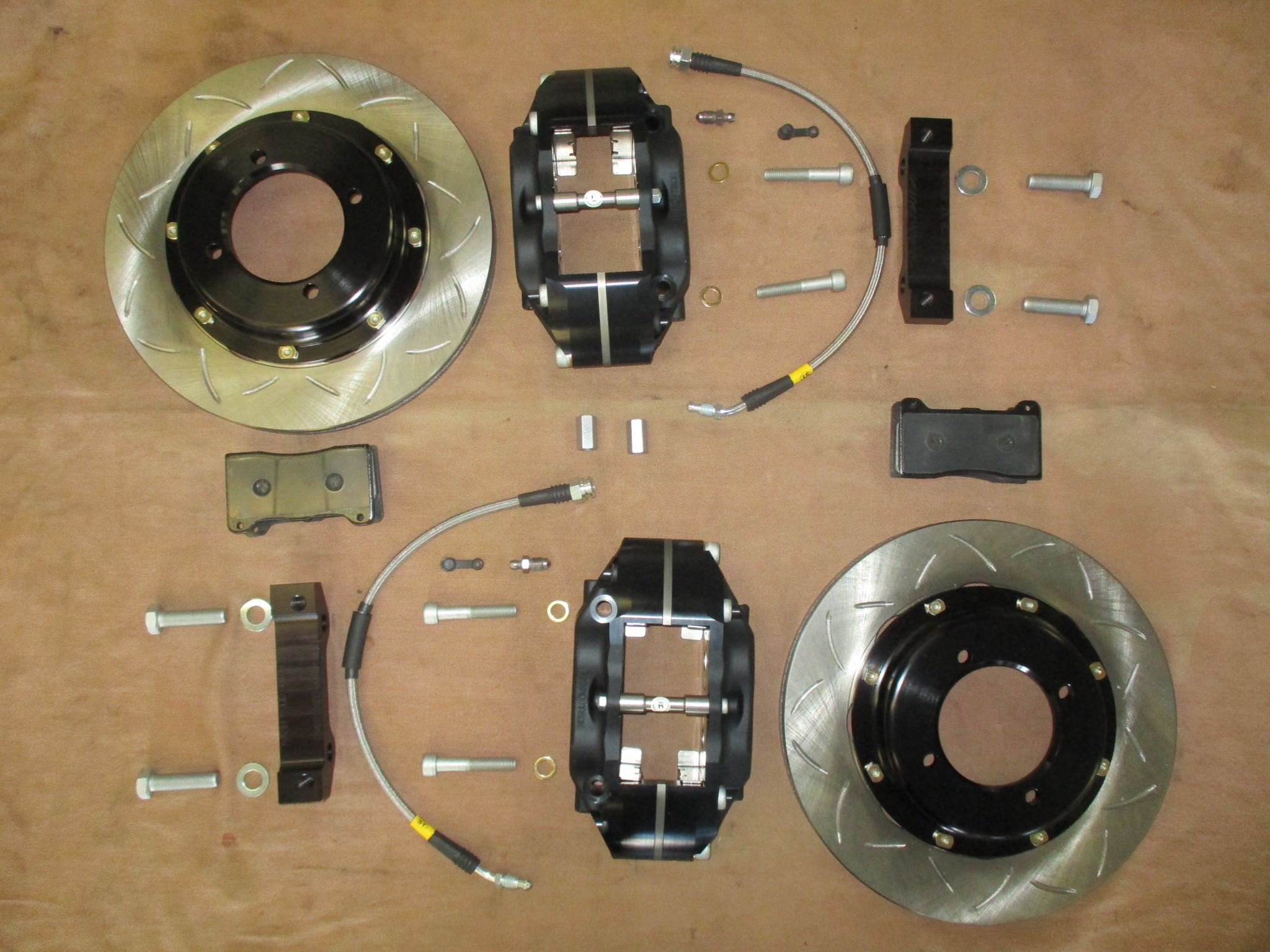

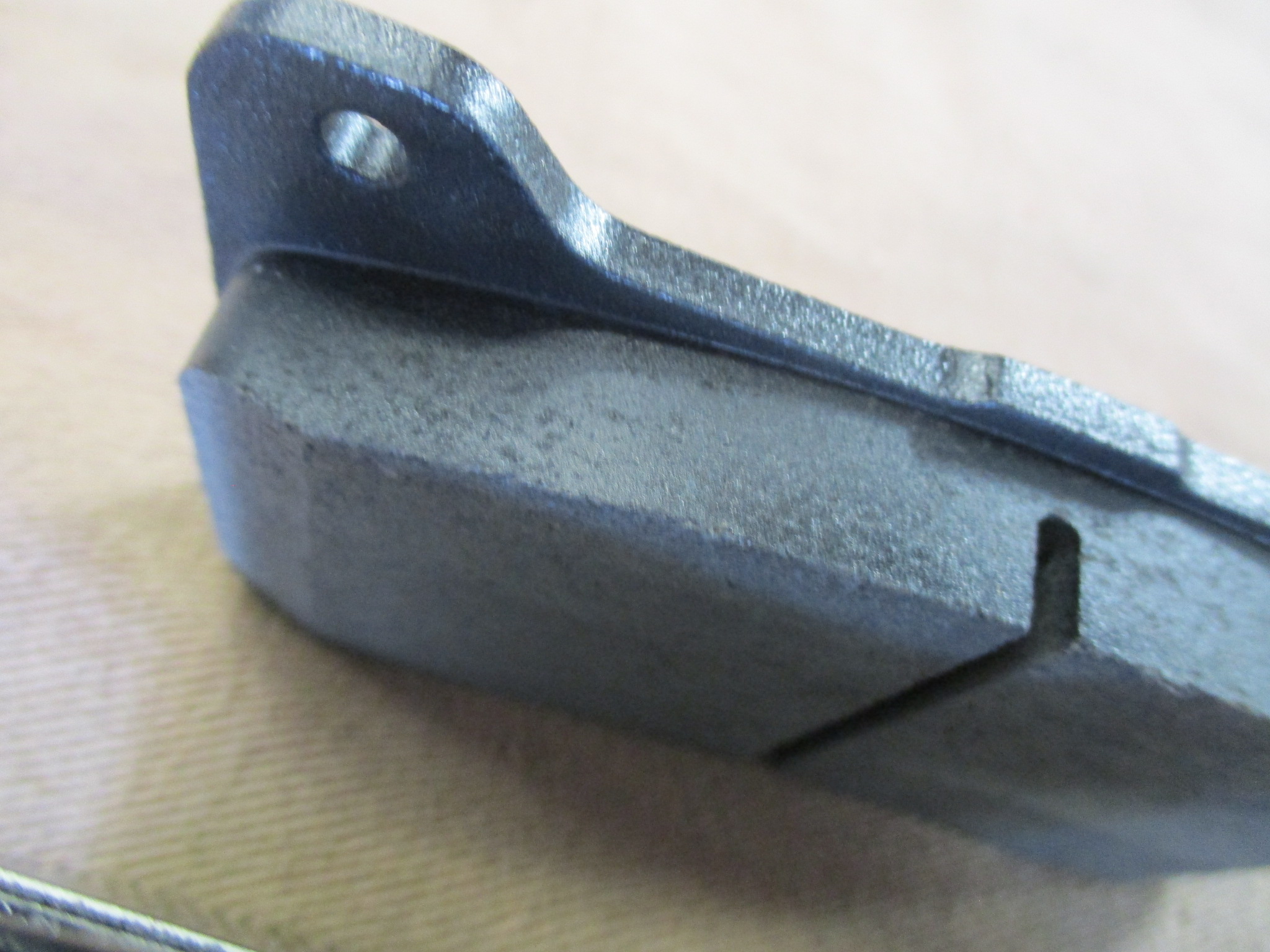

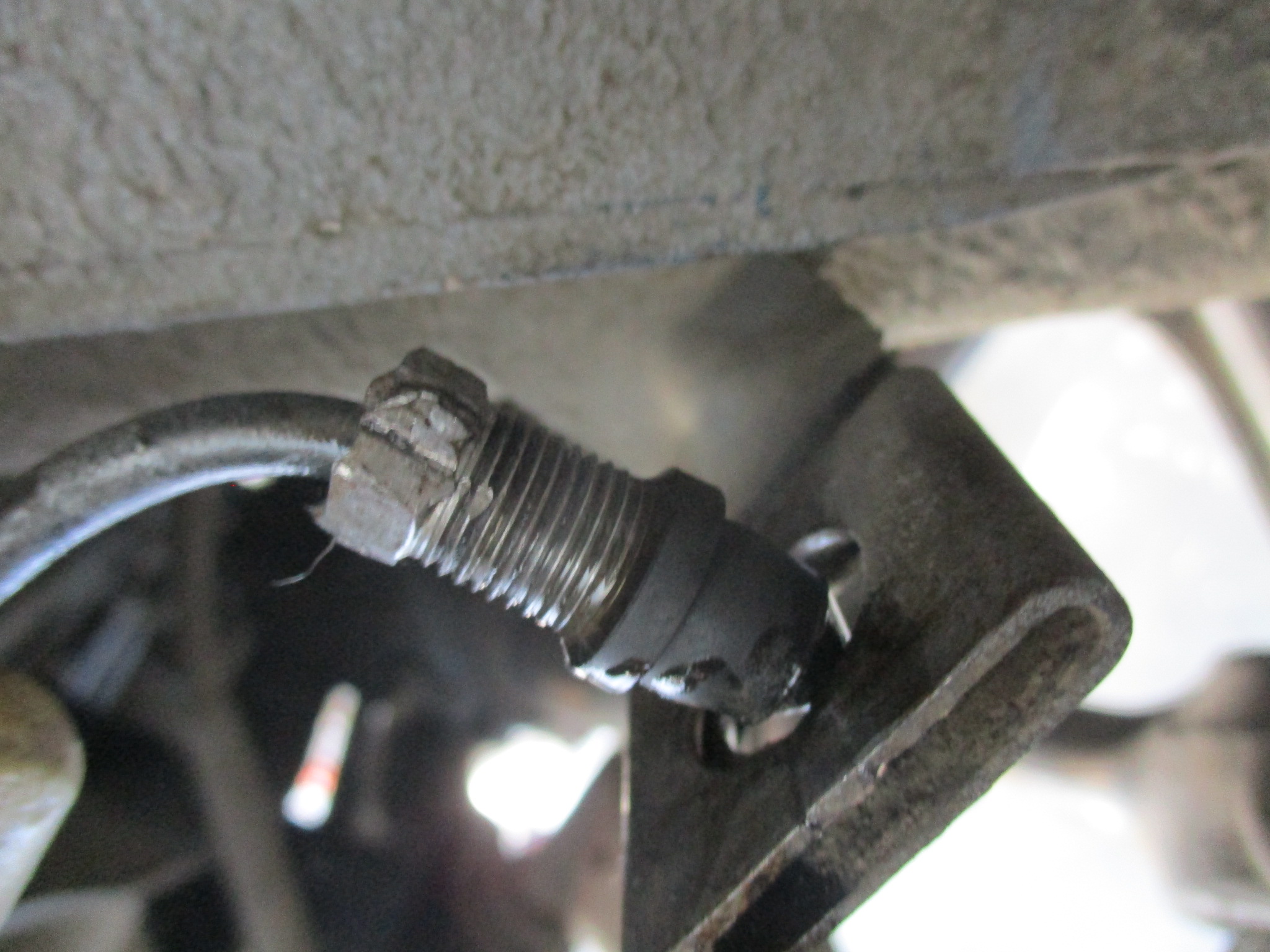

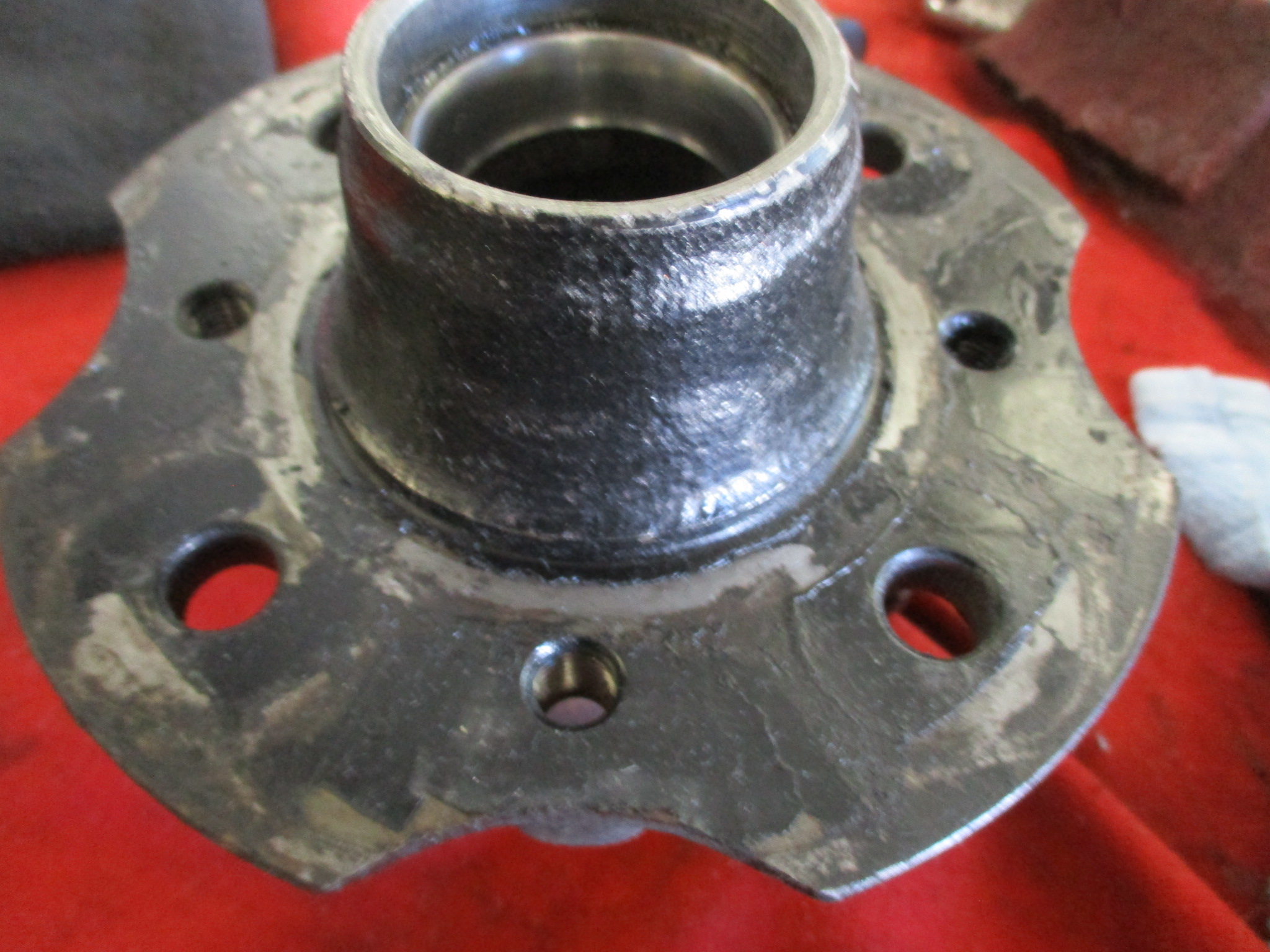

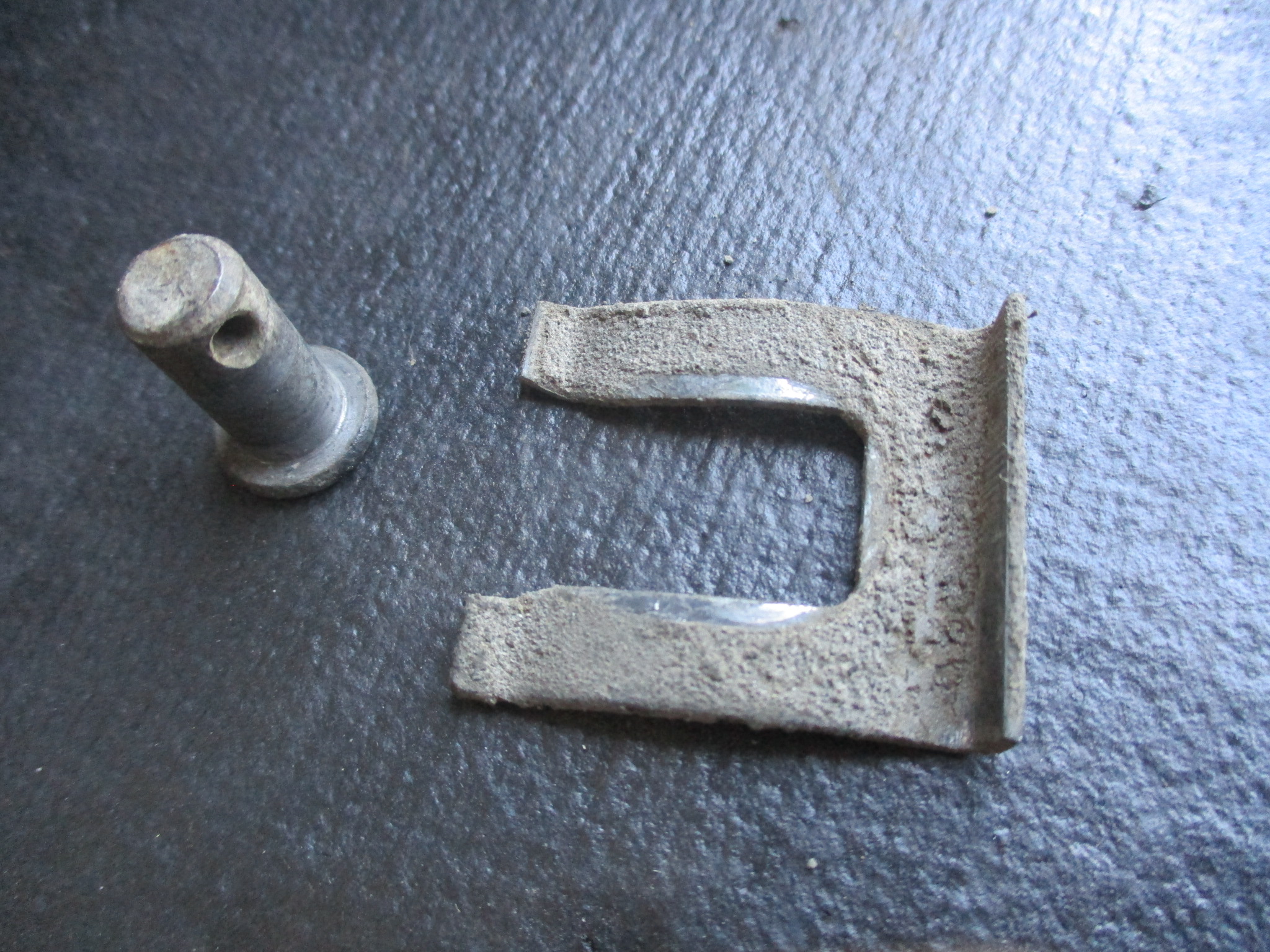

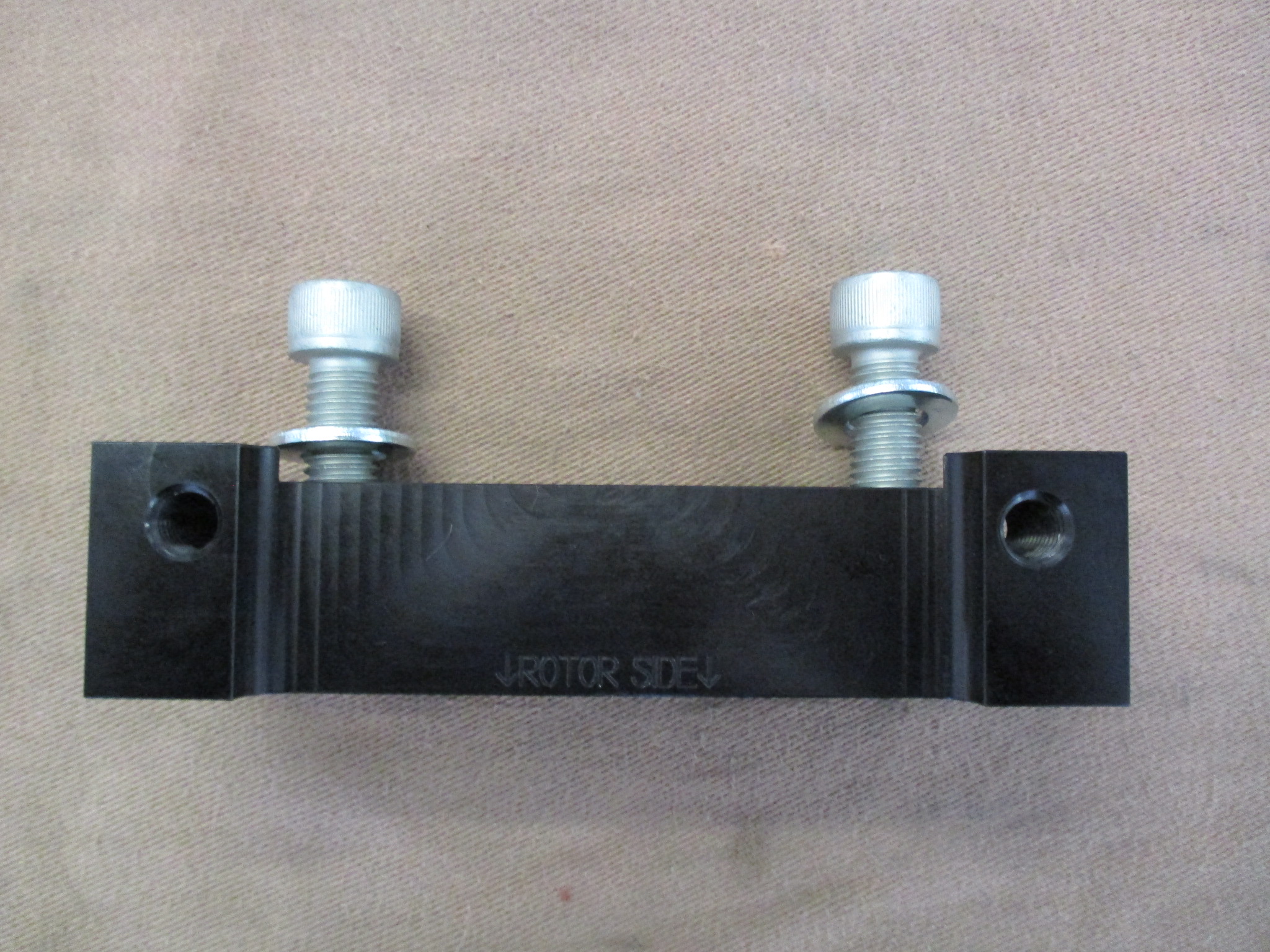

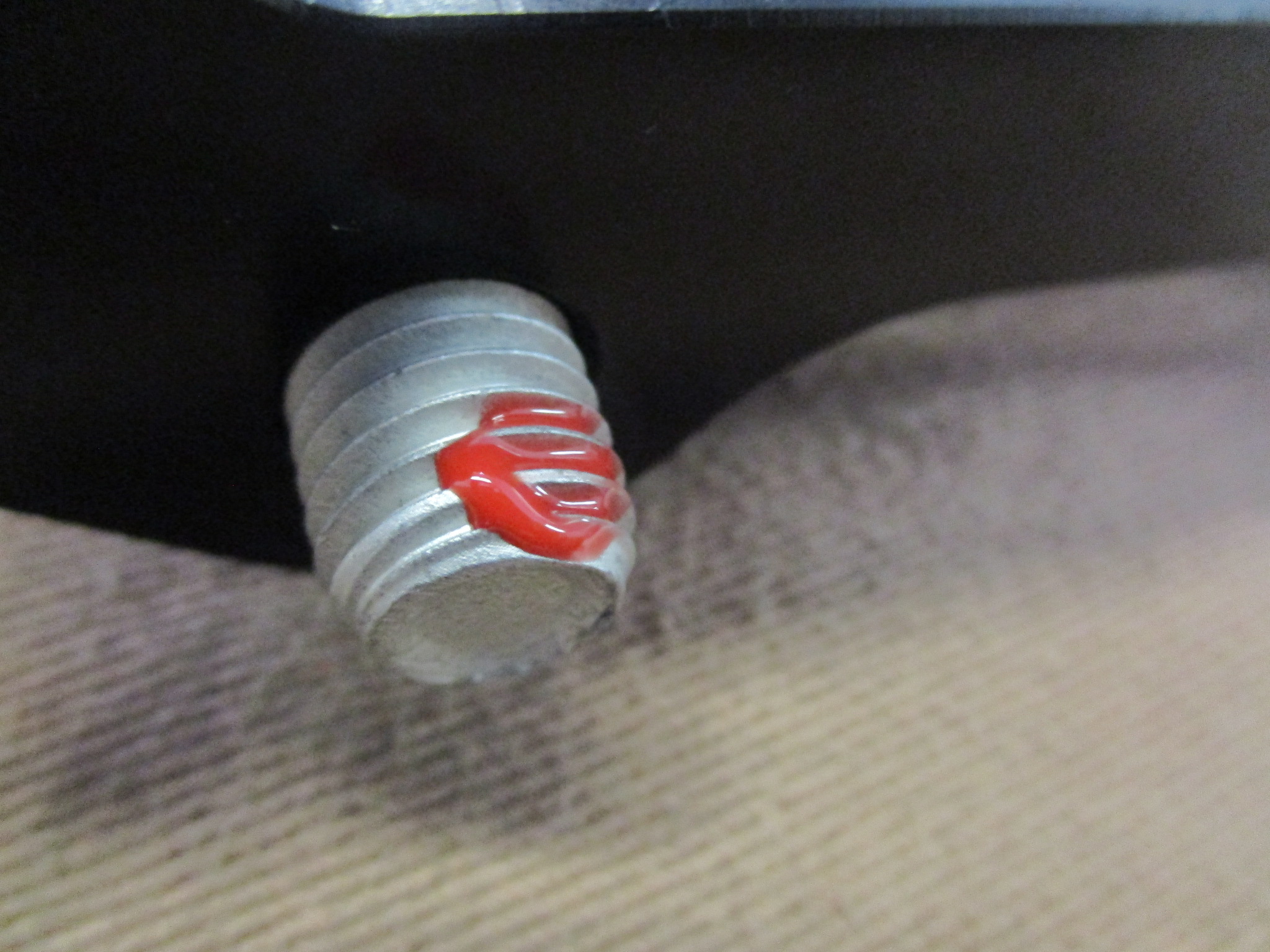

A few closer detail shots of the calipers, rotors and hardware:

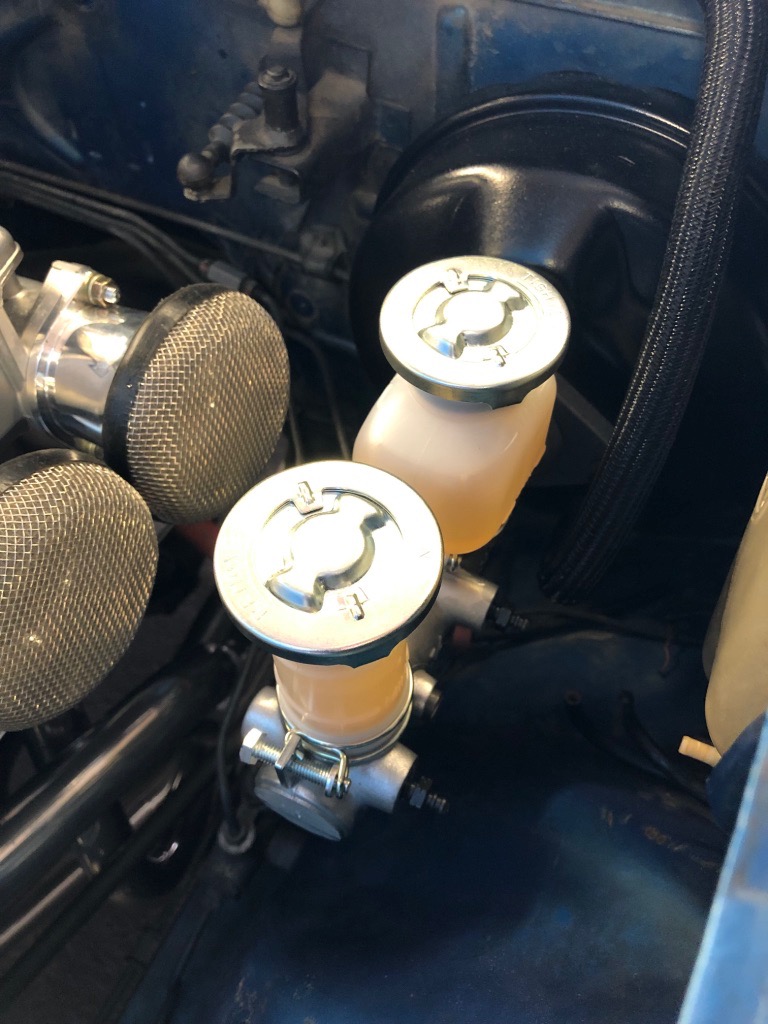

We went ahead got Greg dialed in with the ZCG big-brake kit for small wheels with parking brake and a new 240z brake booster/master cylinder. More pics in the gallery!

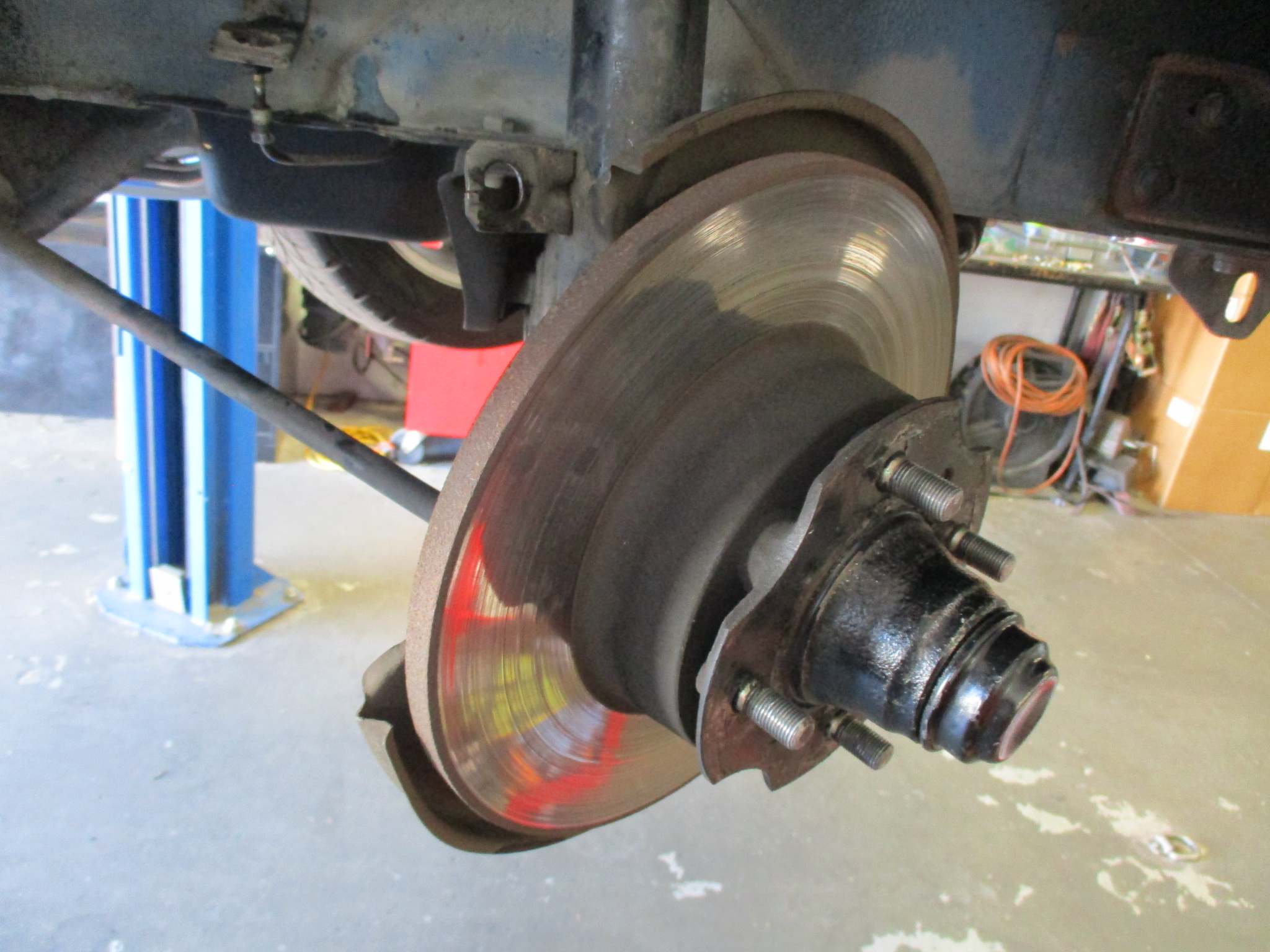

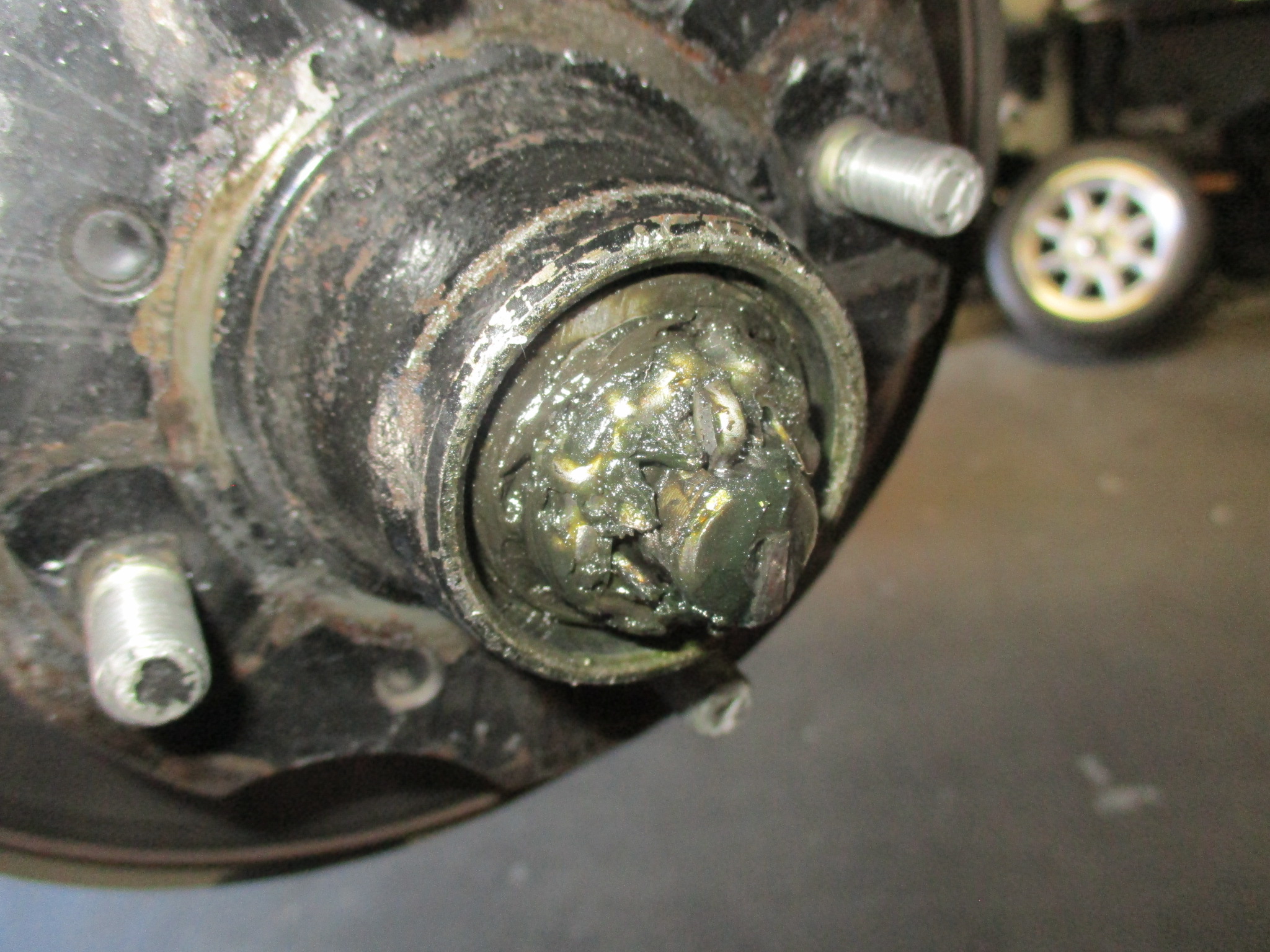

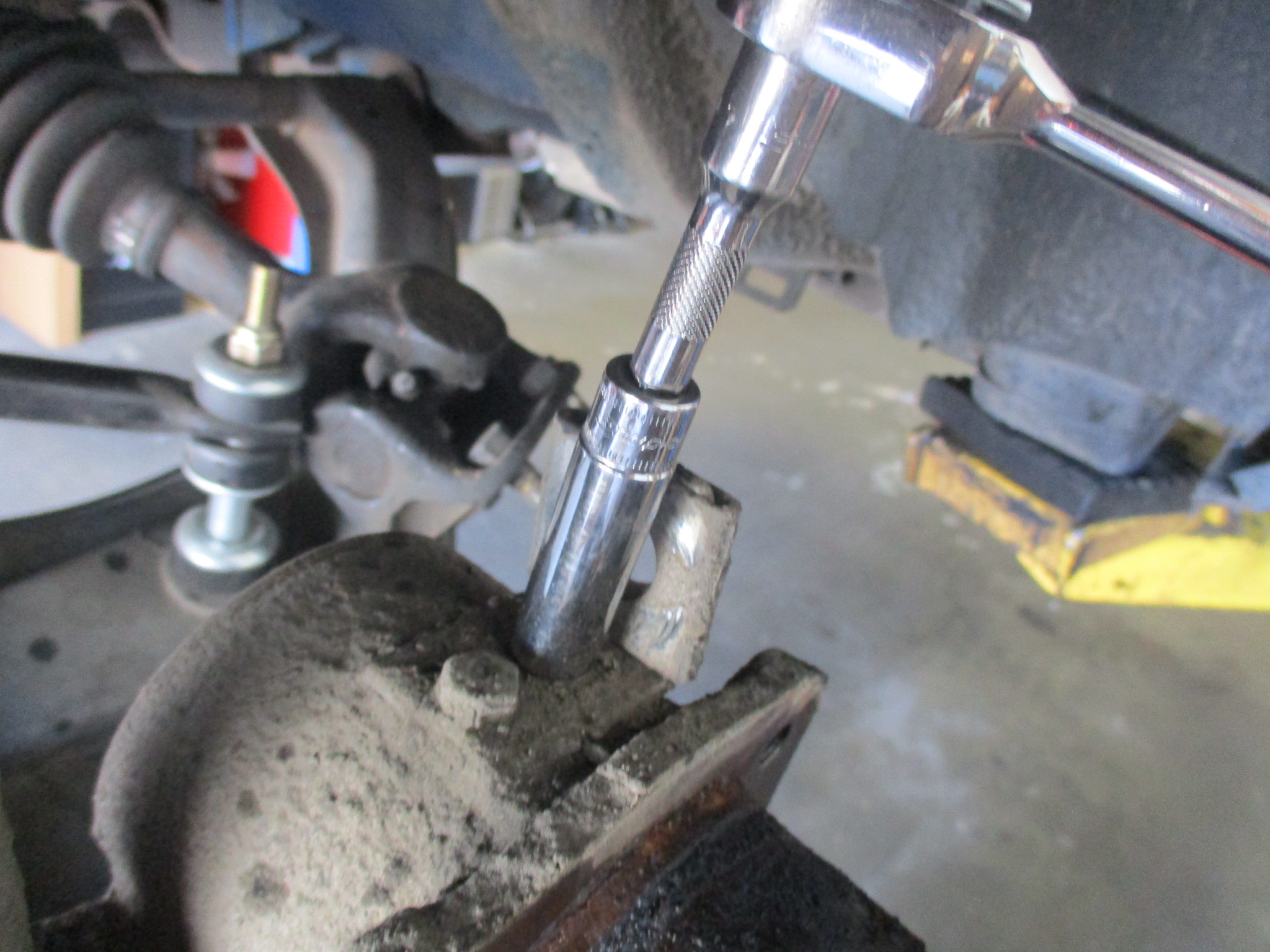

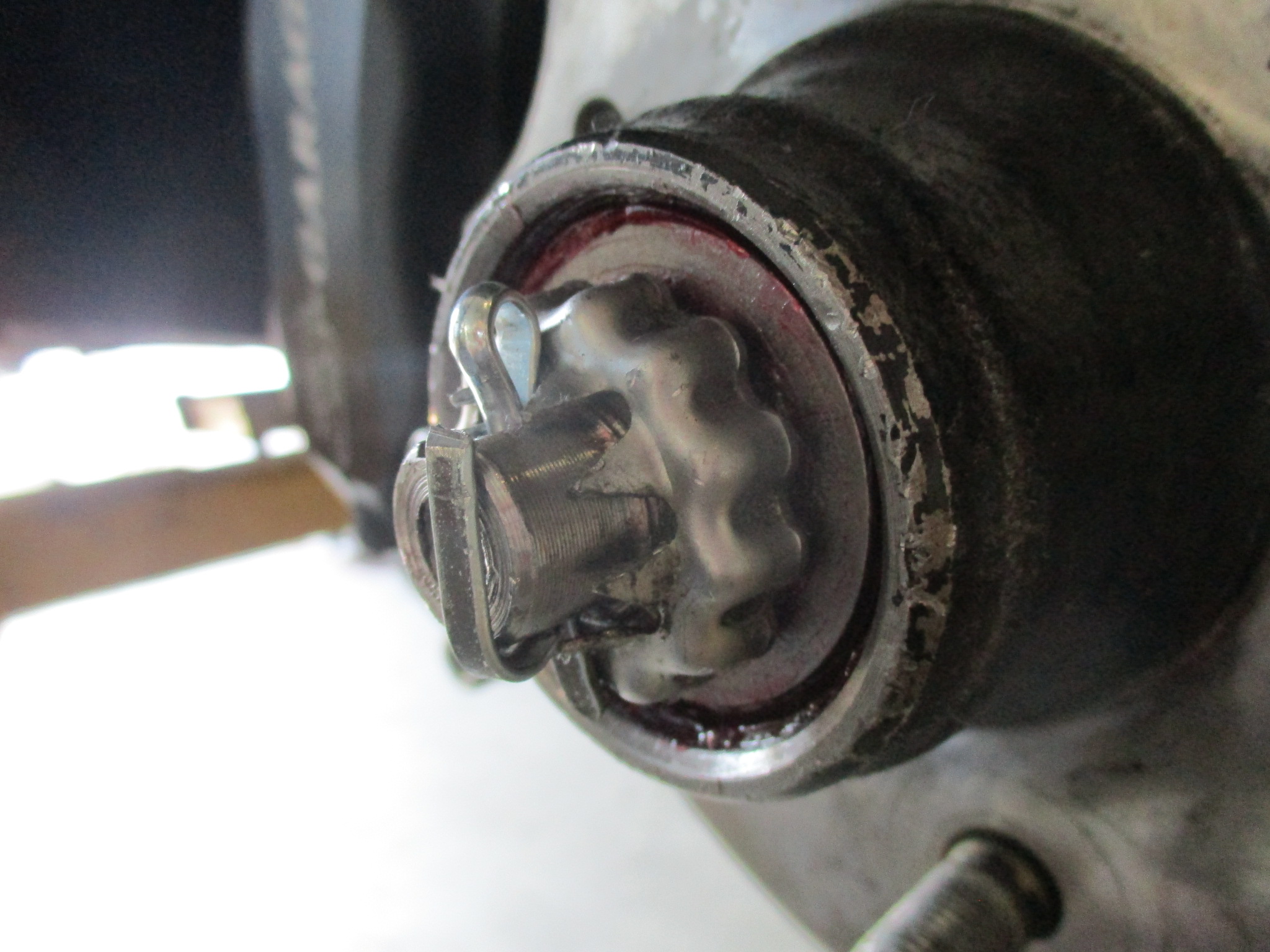

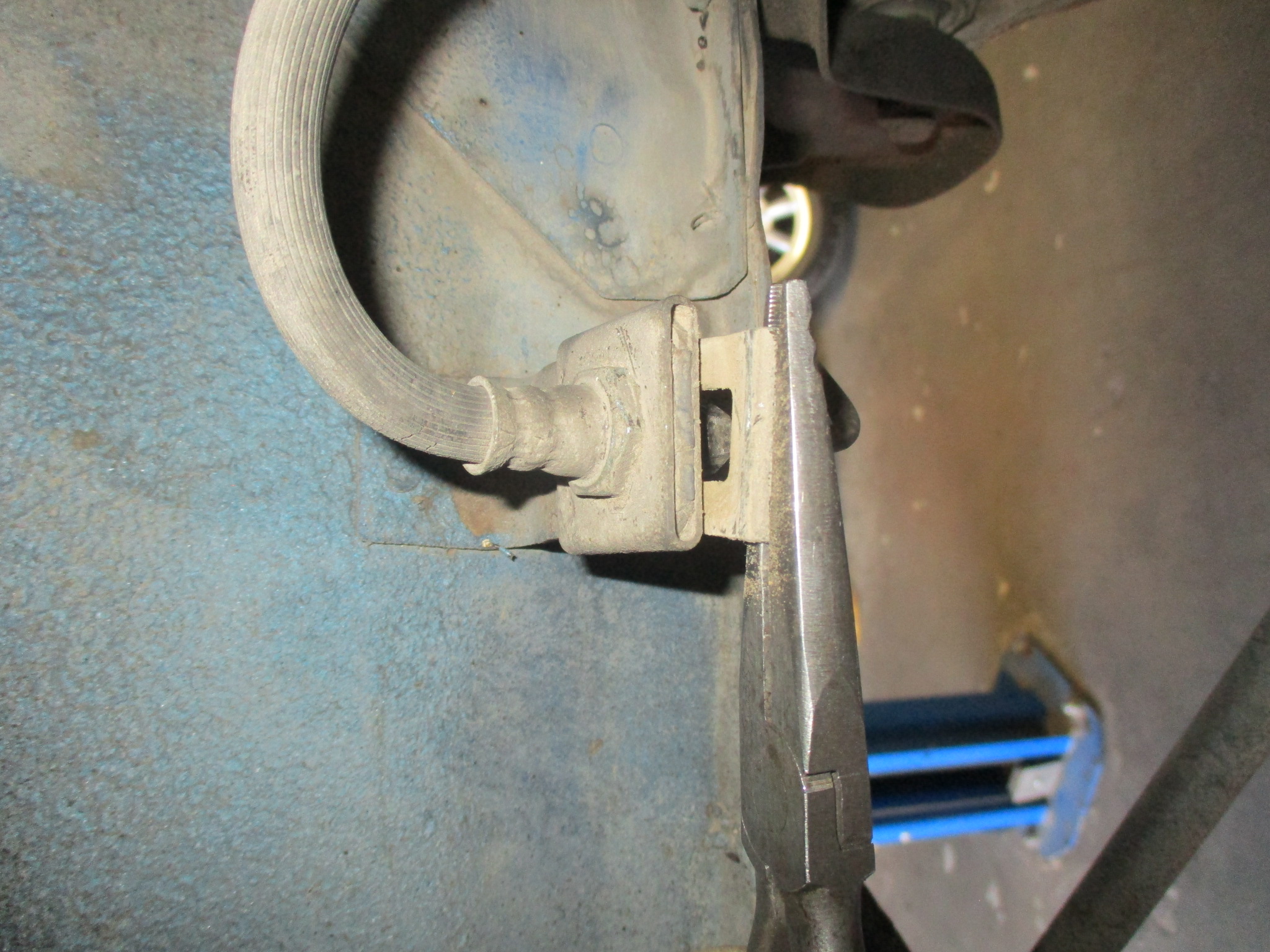

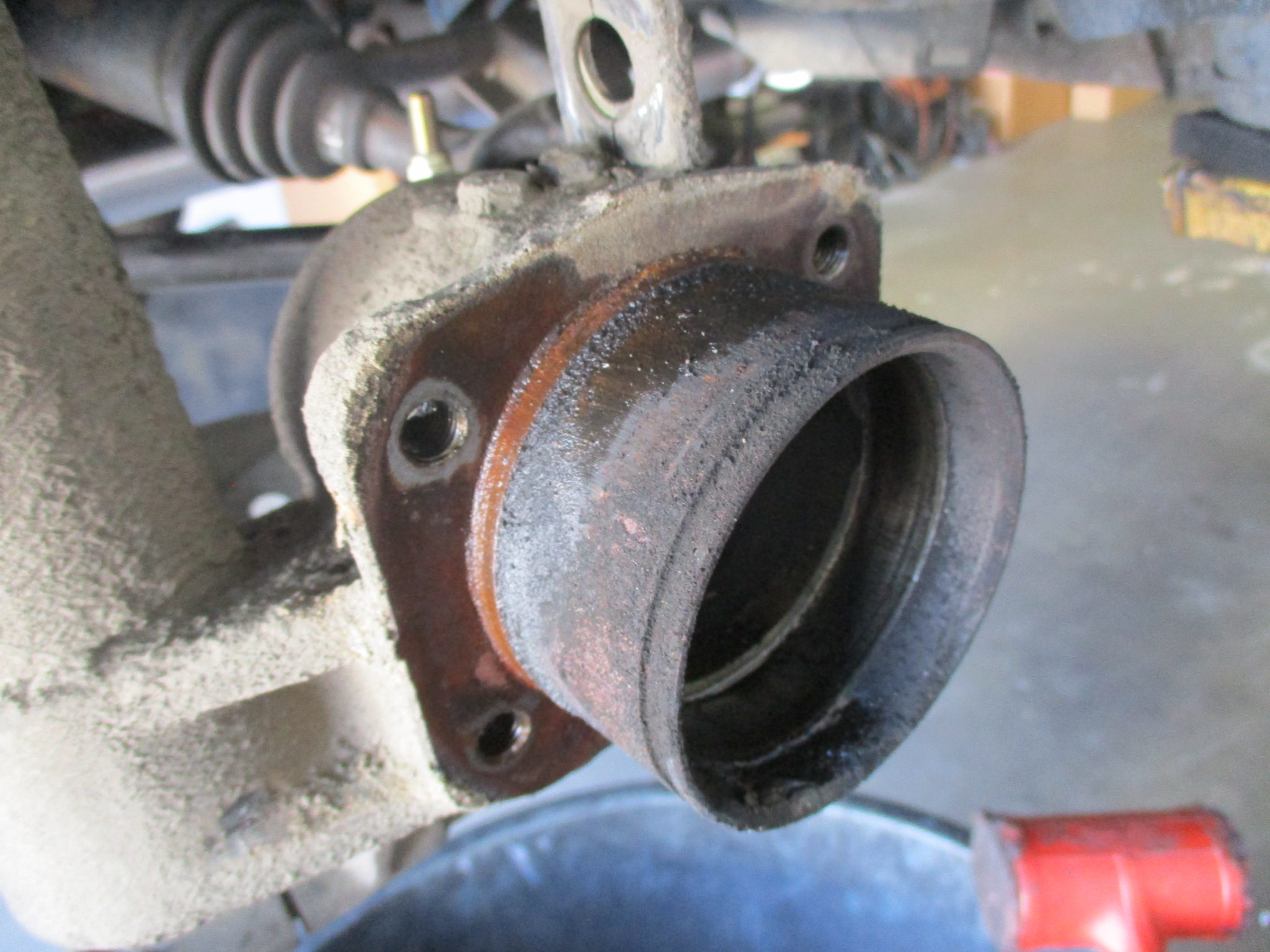

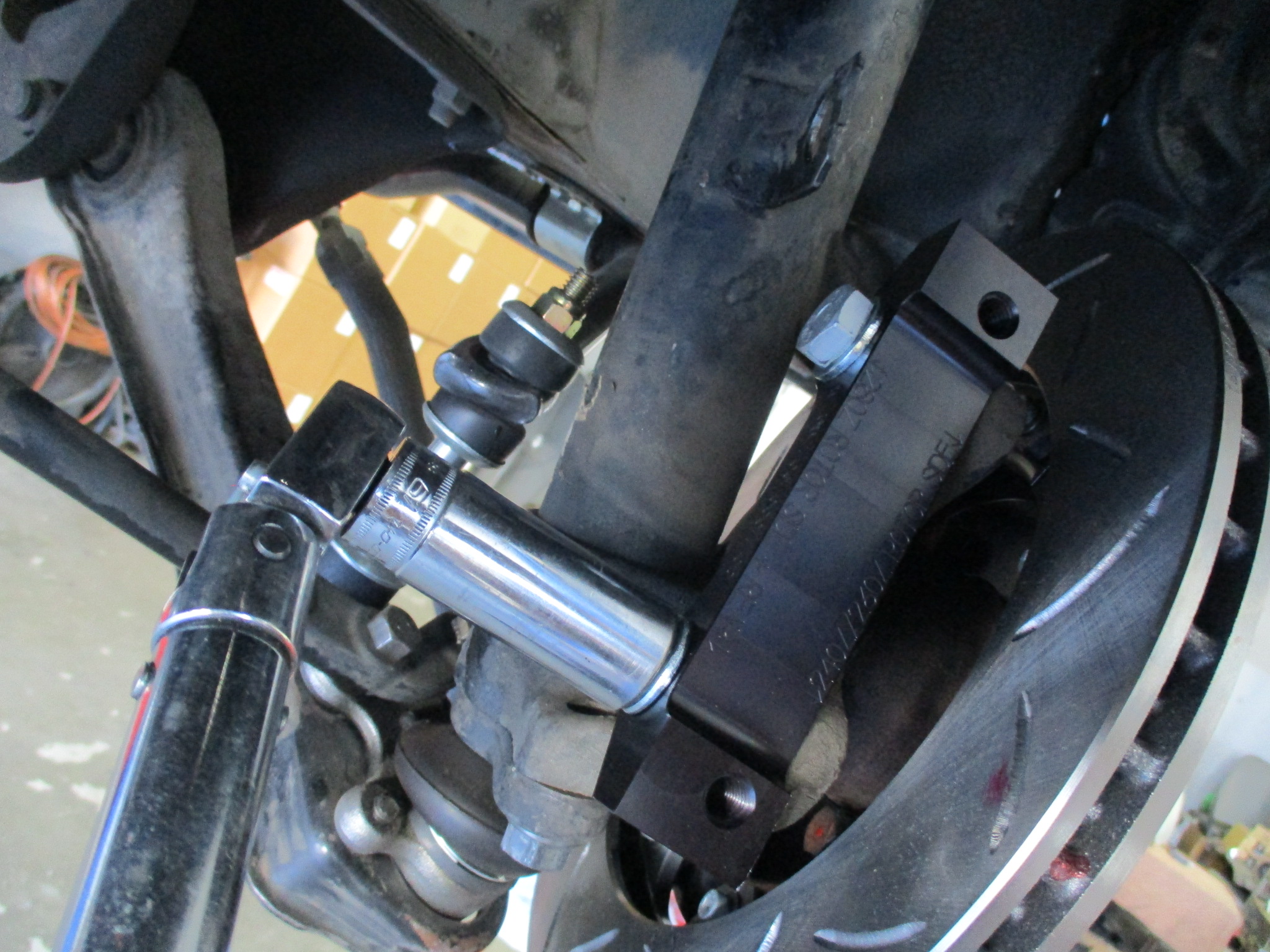

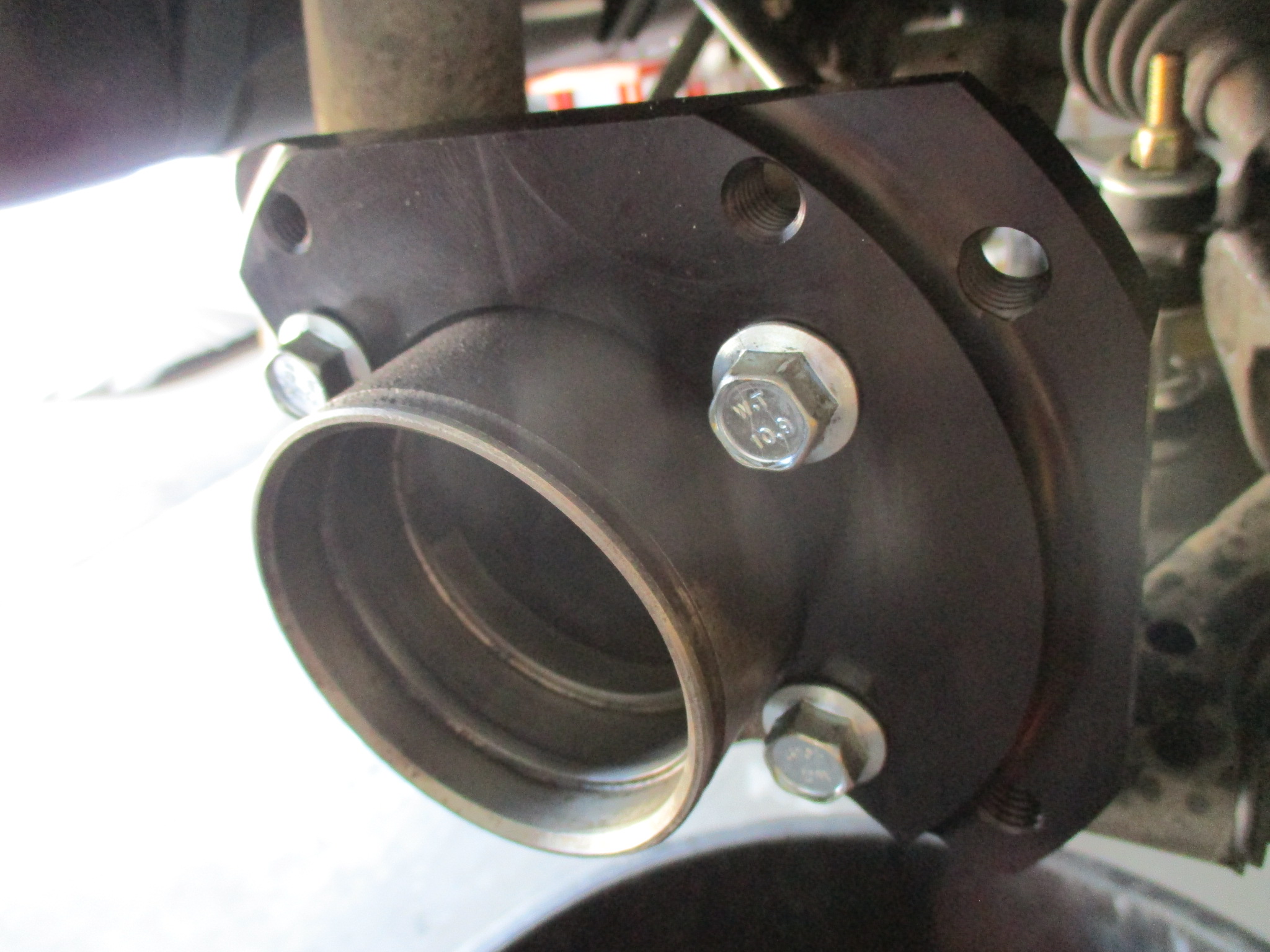

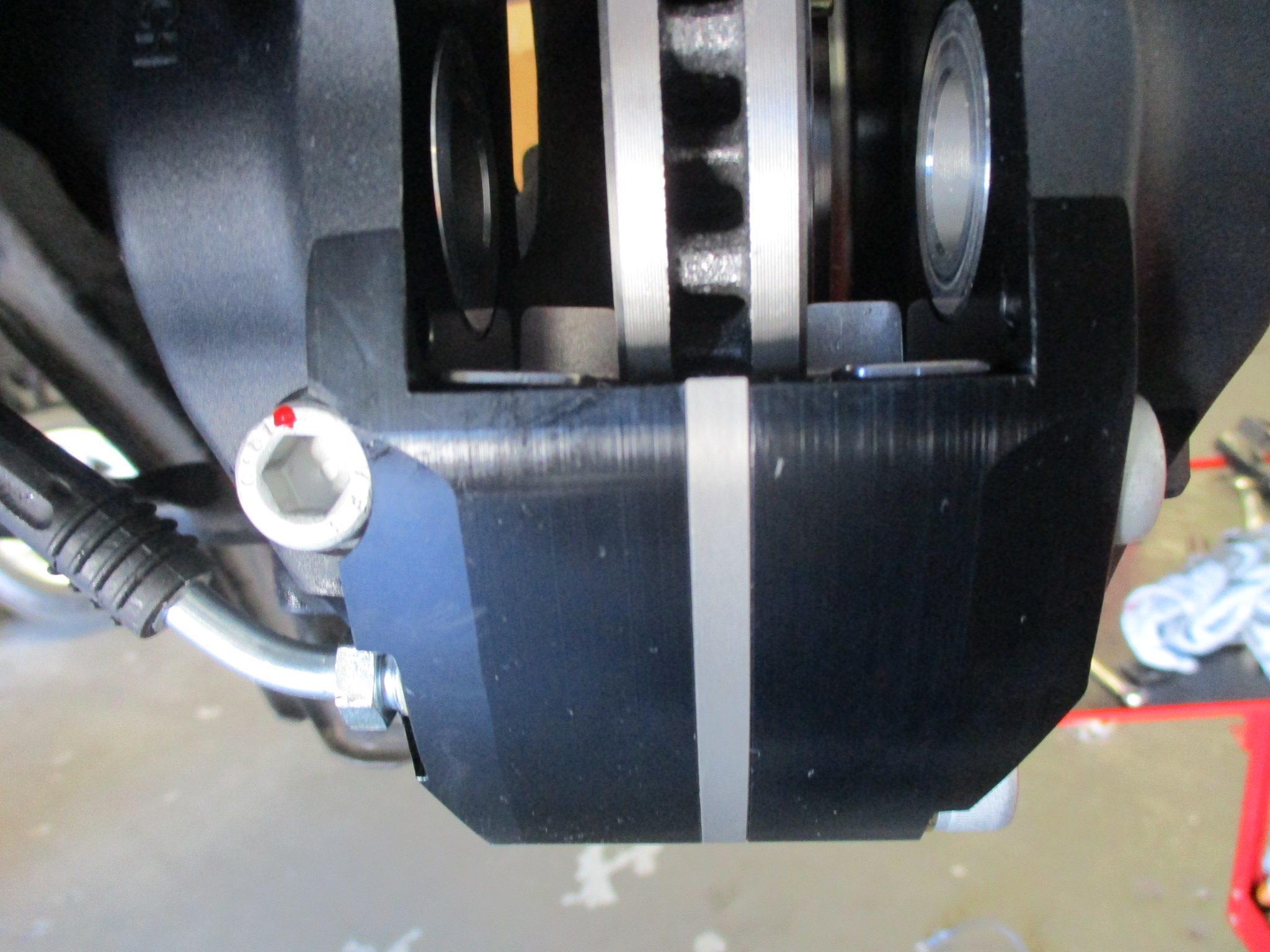

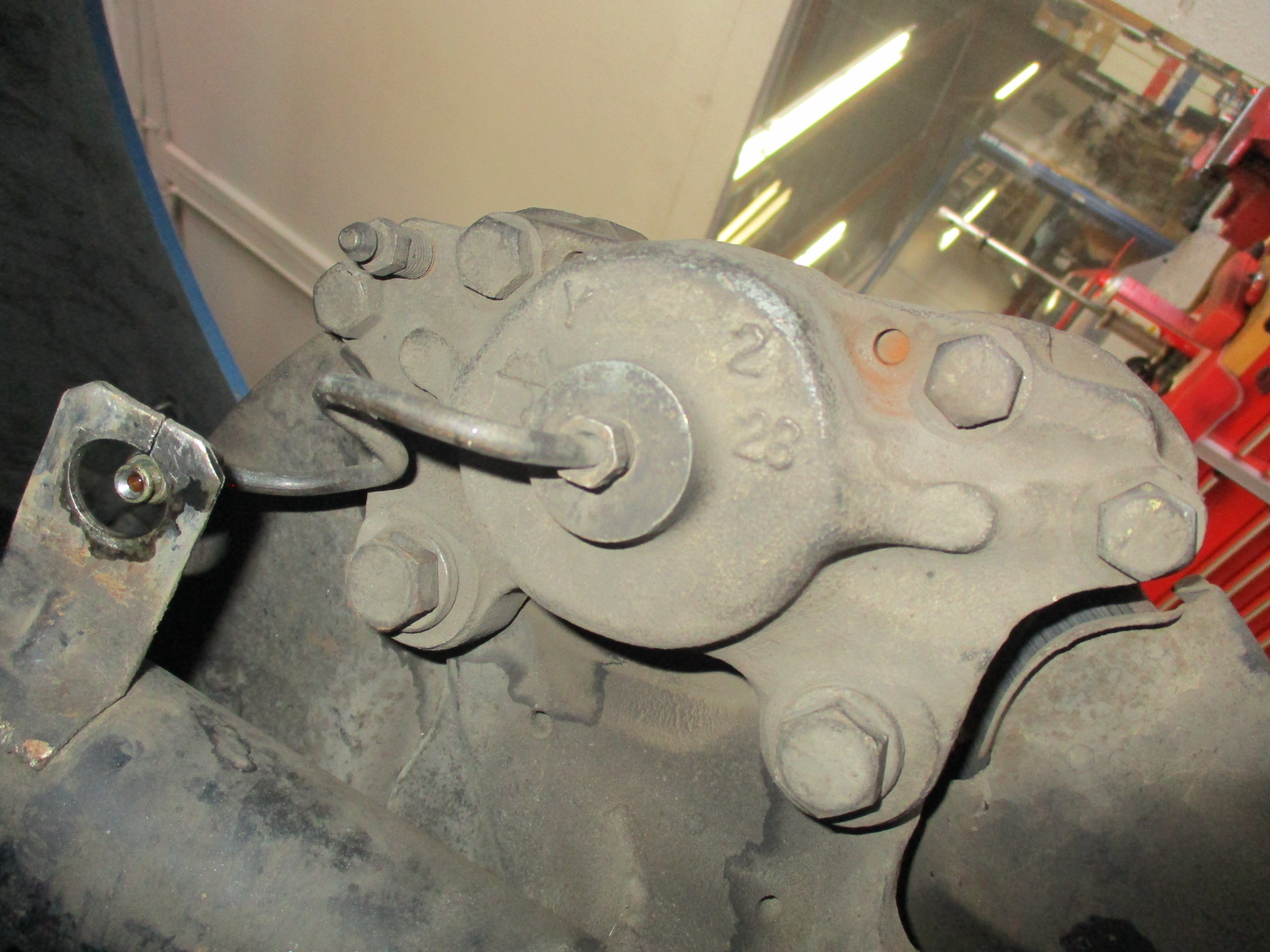

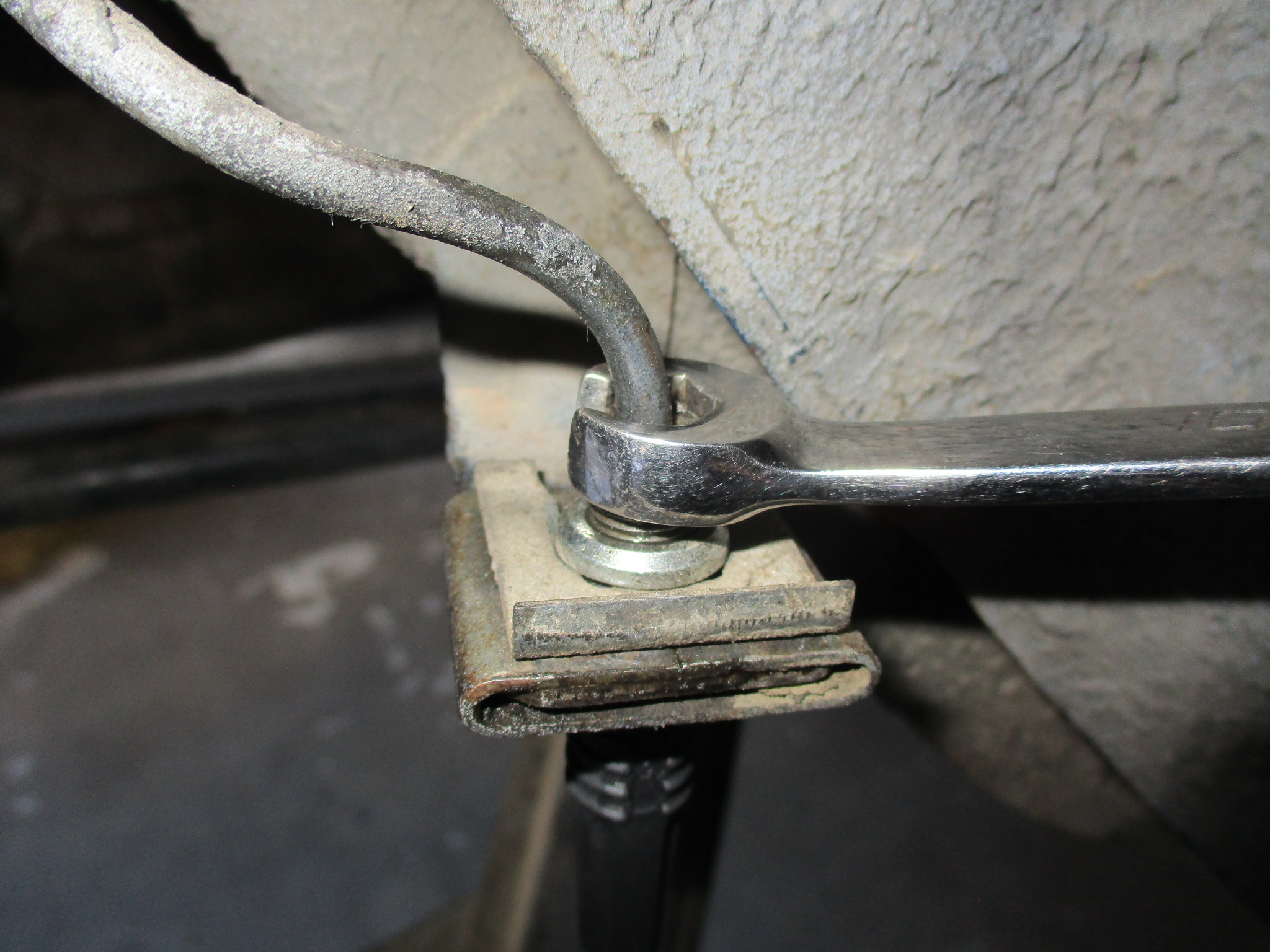

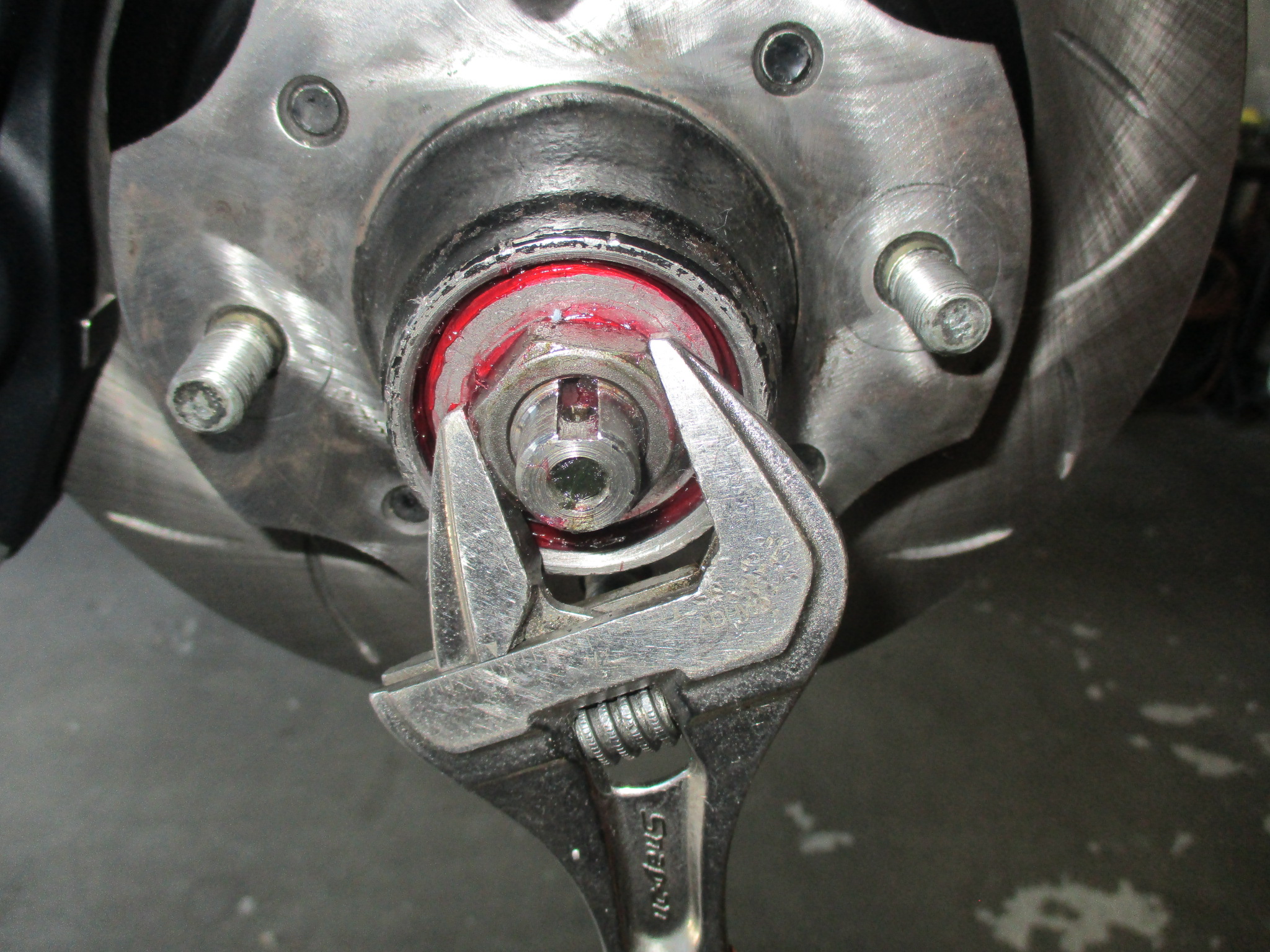

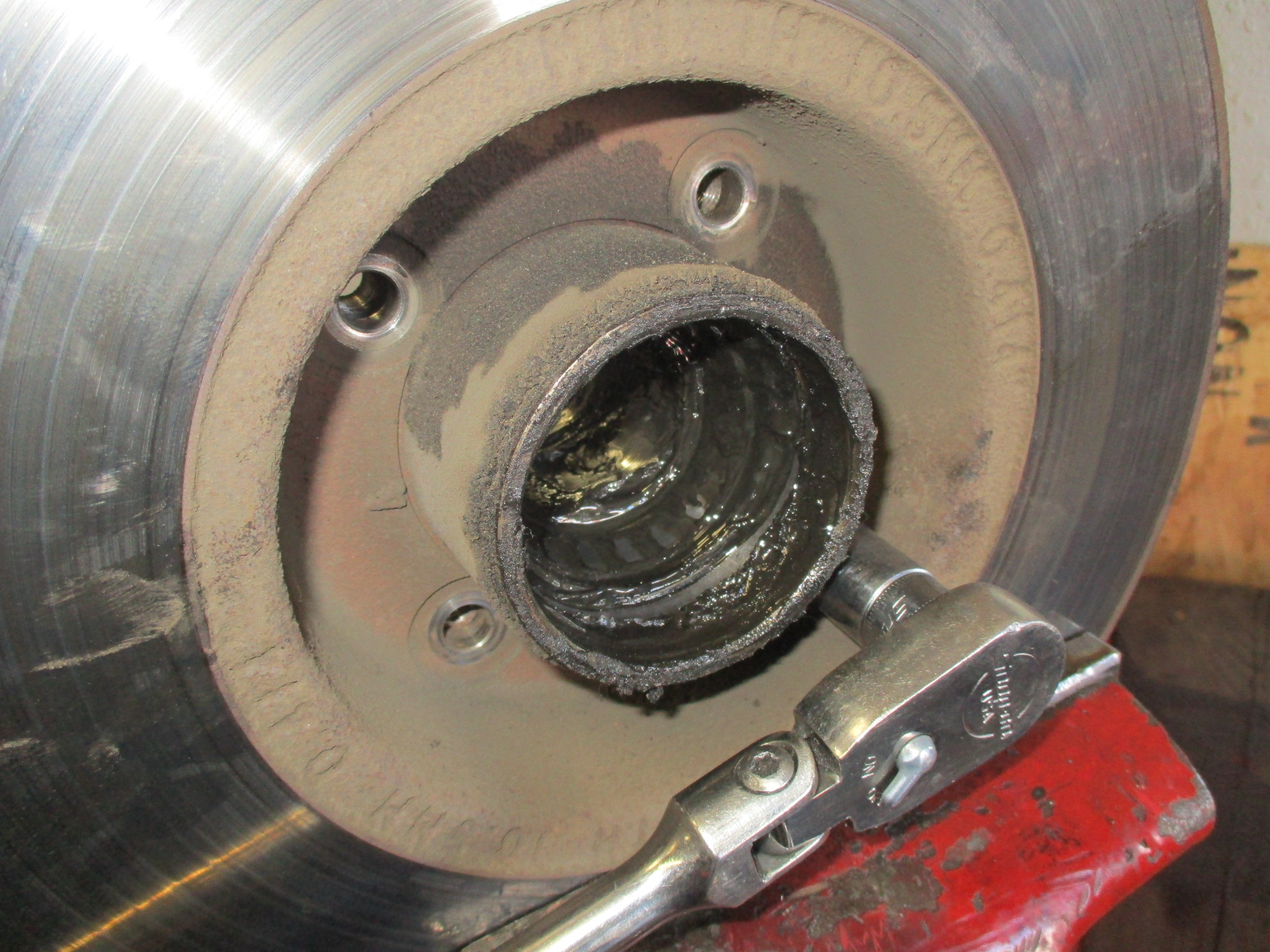

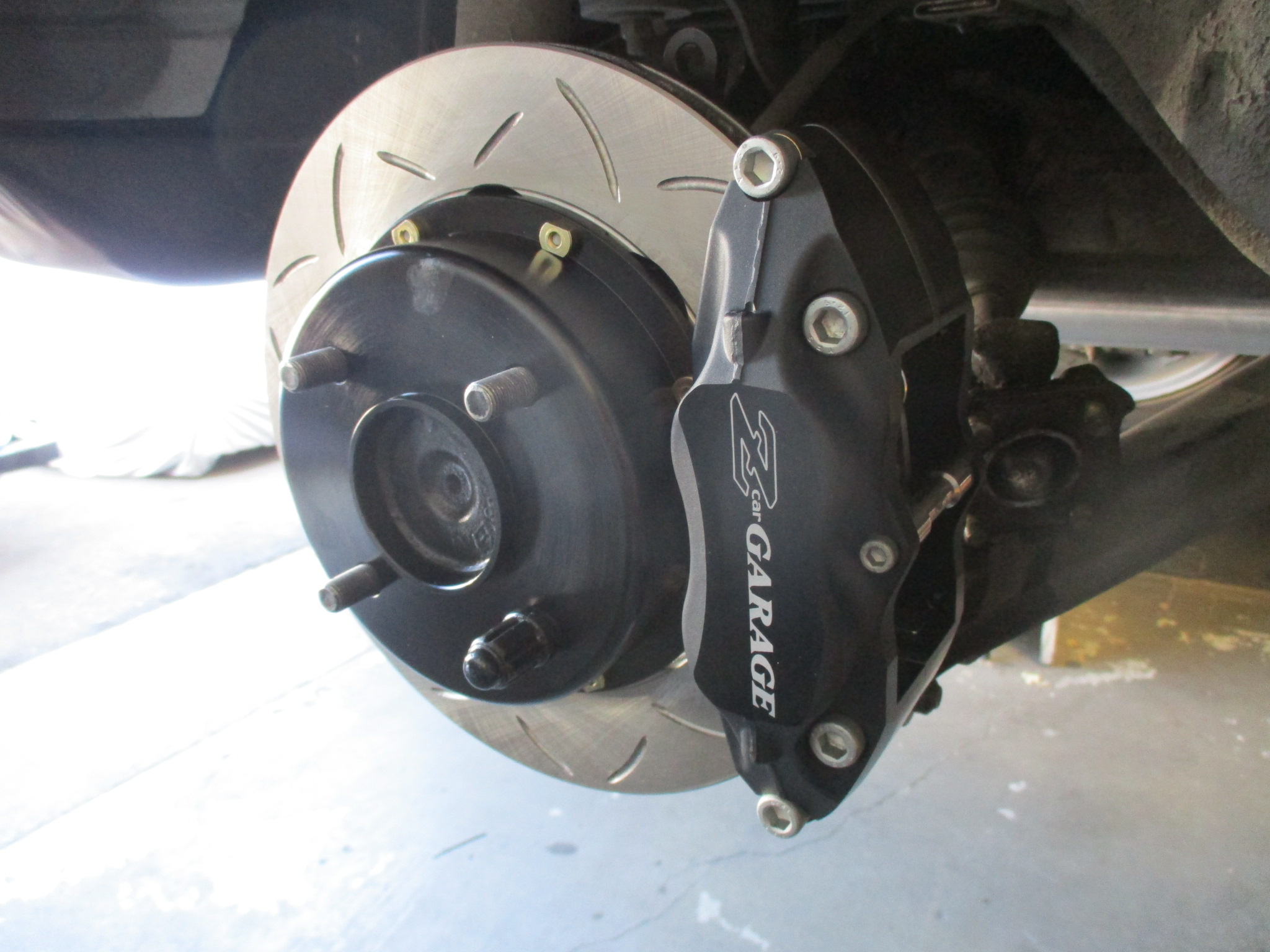

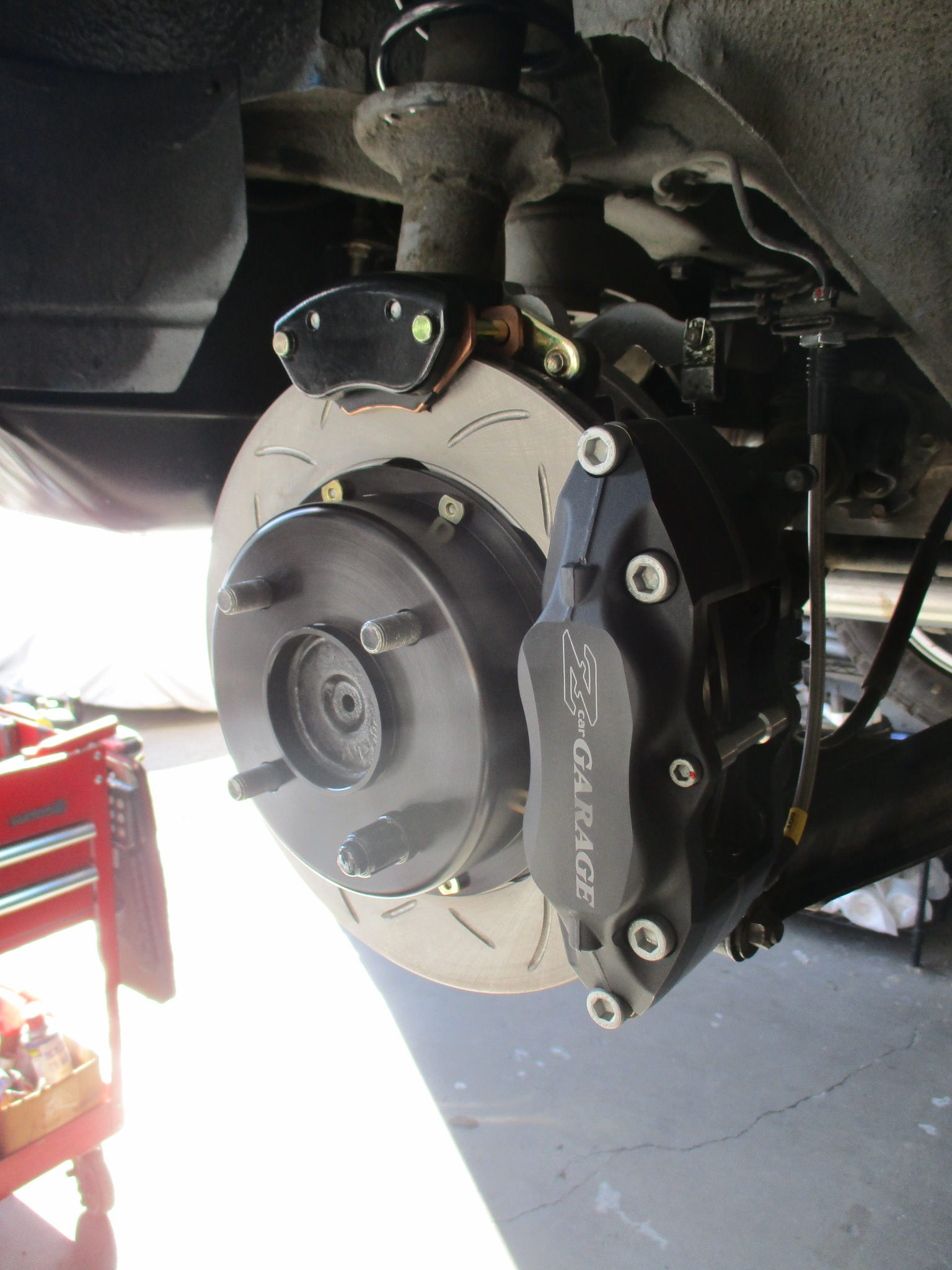

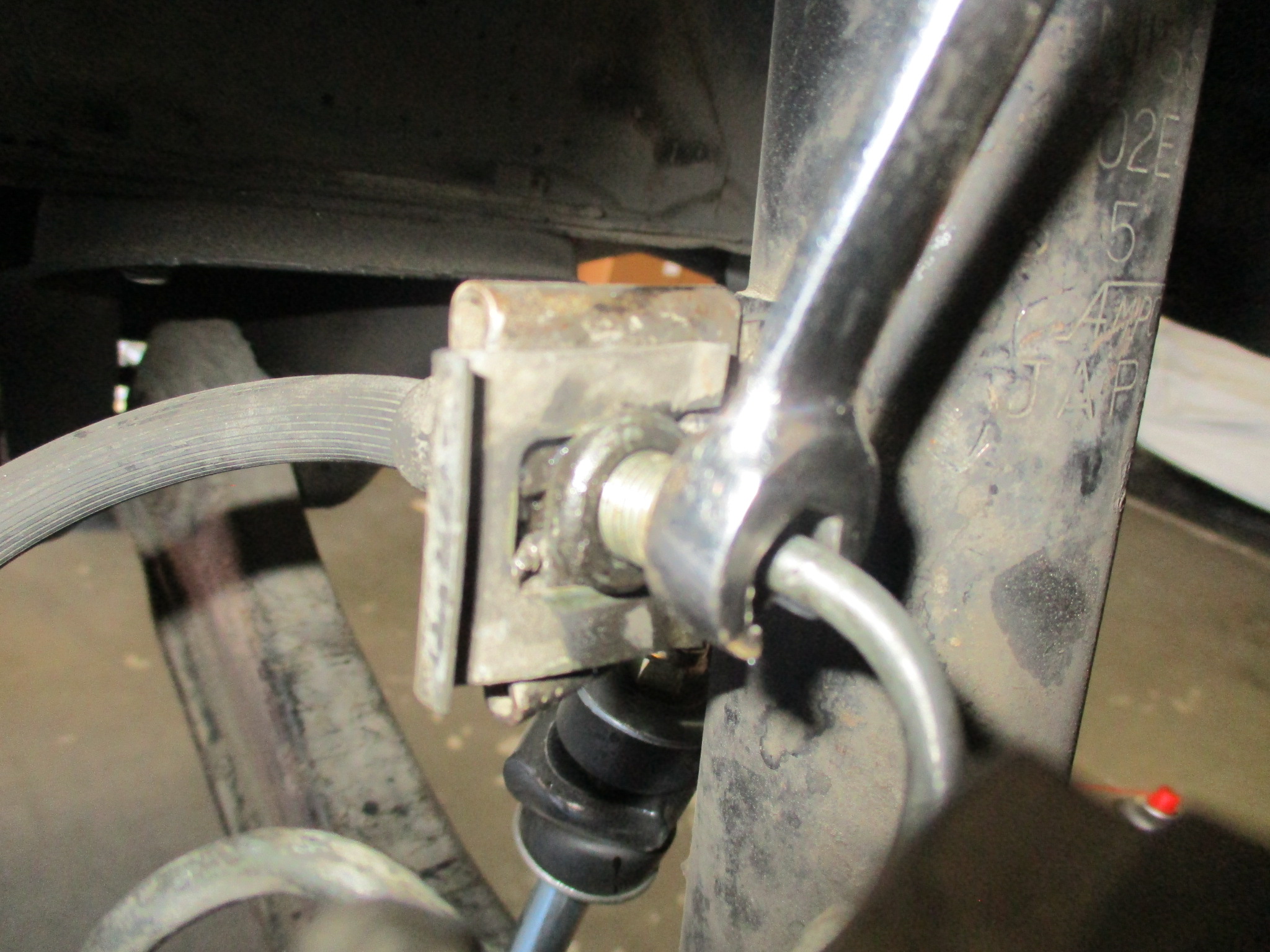

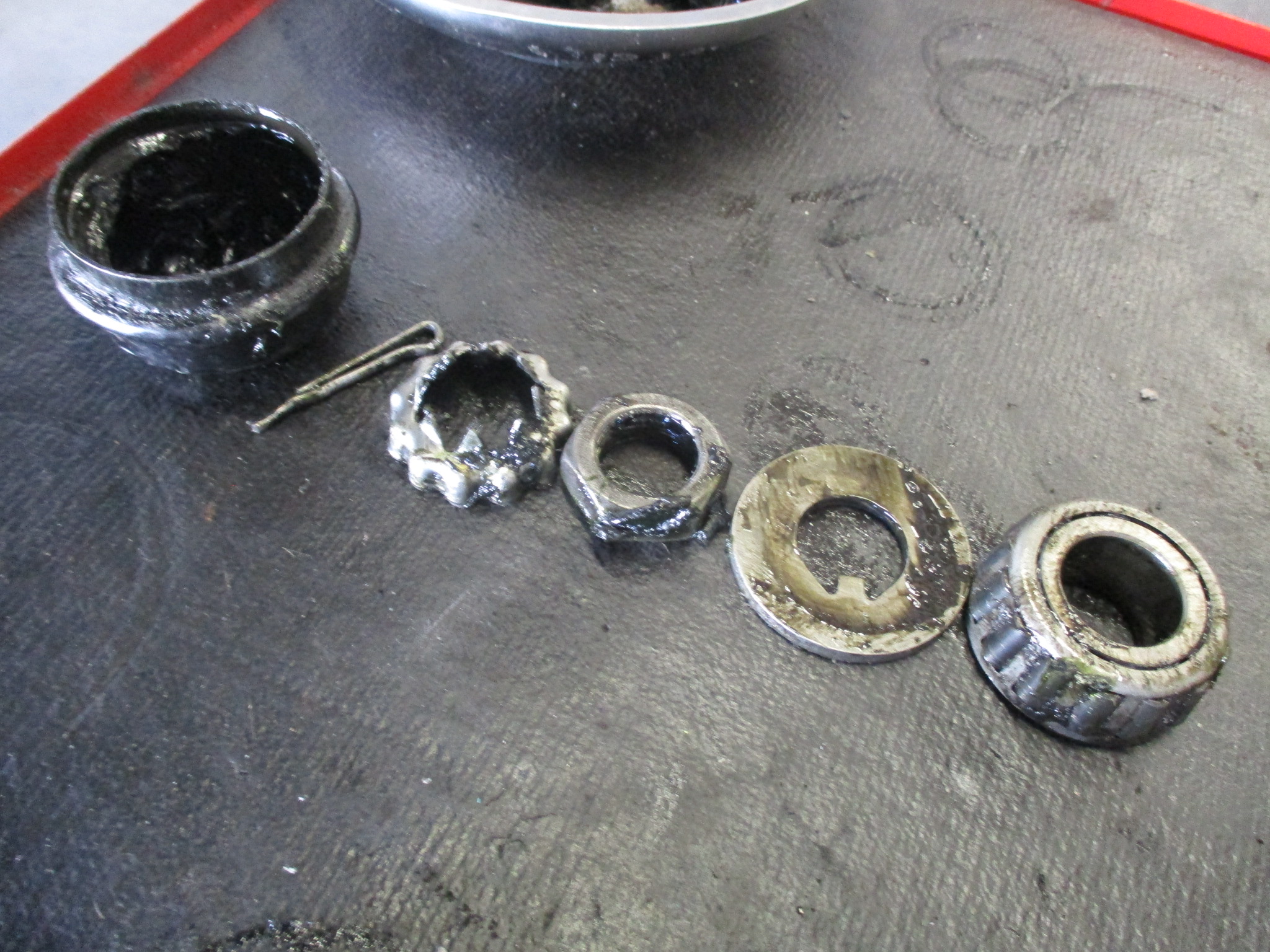

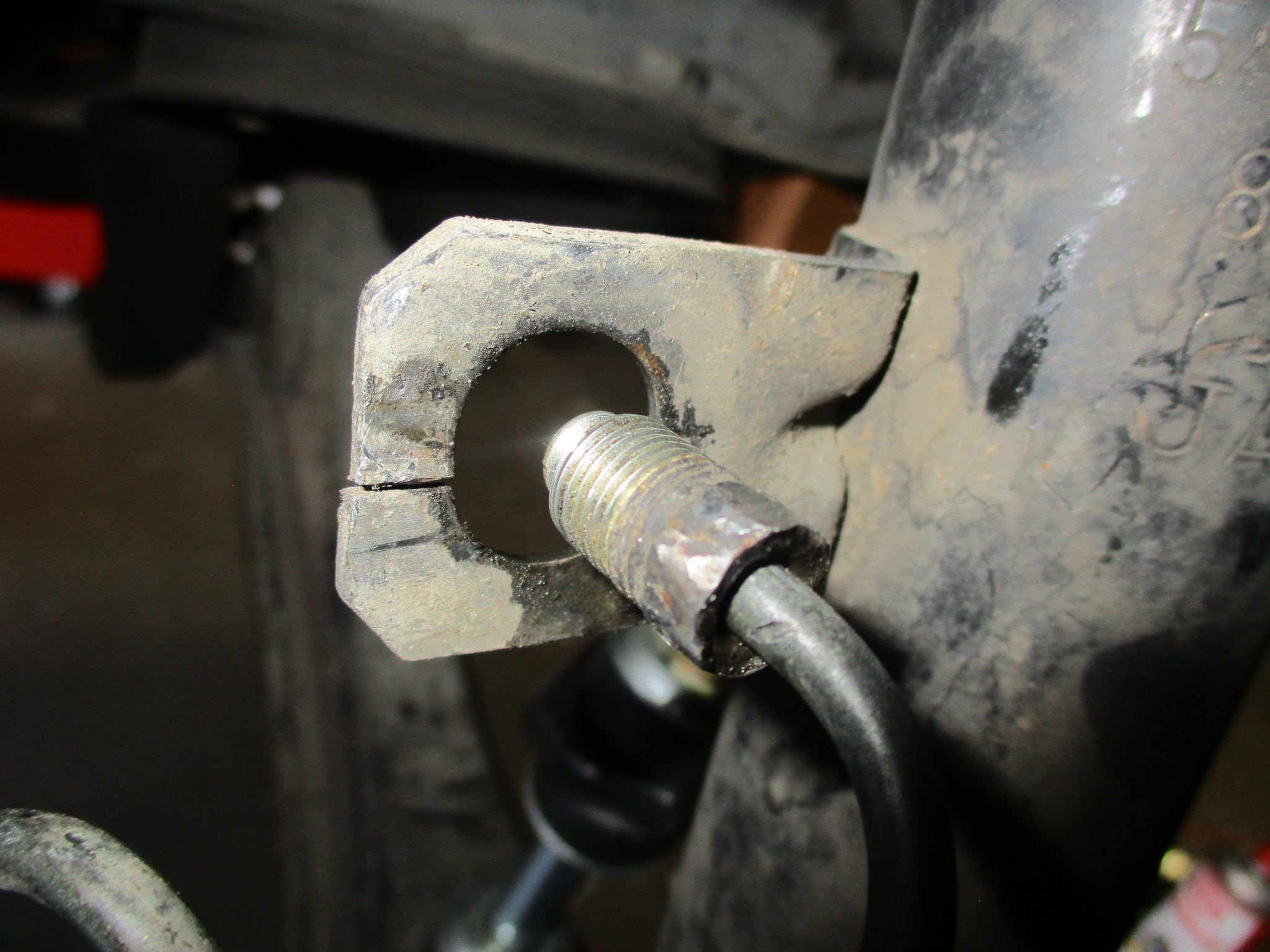

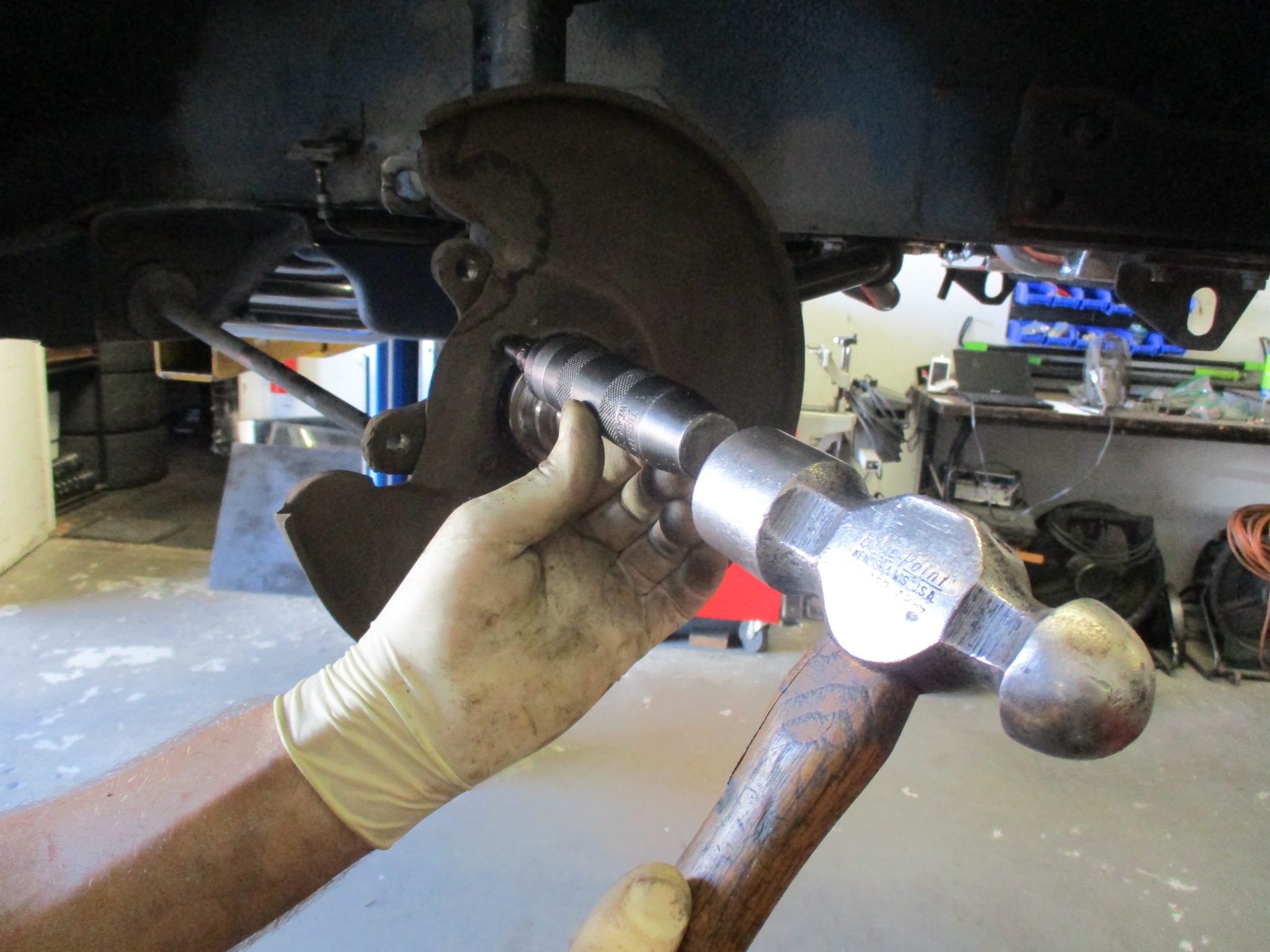

Front brake installation:

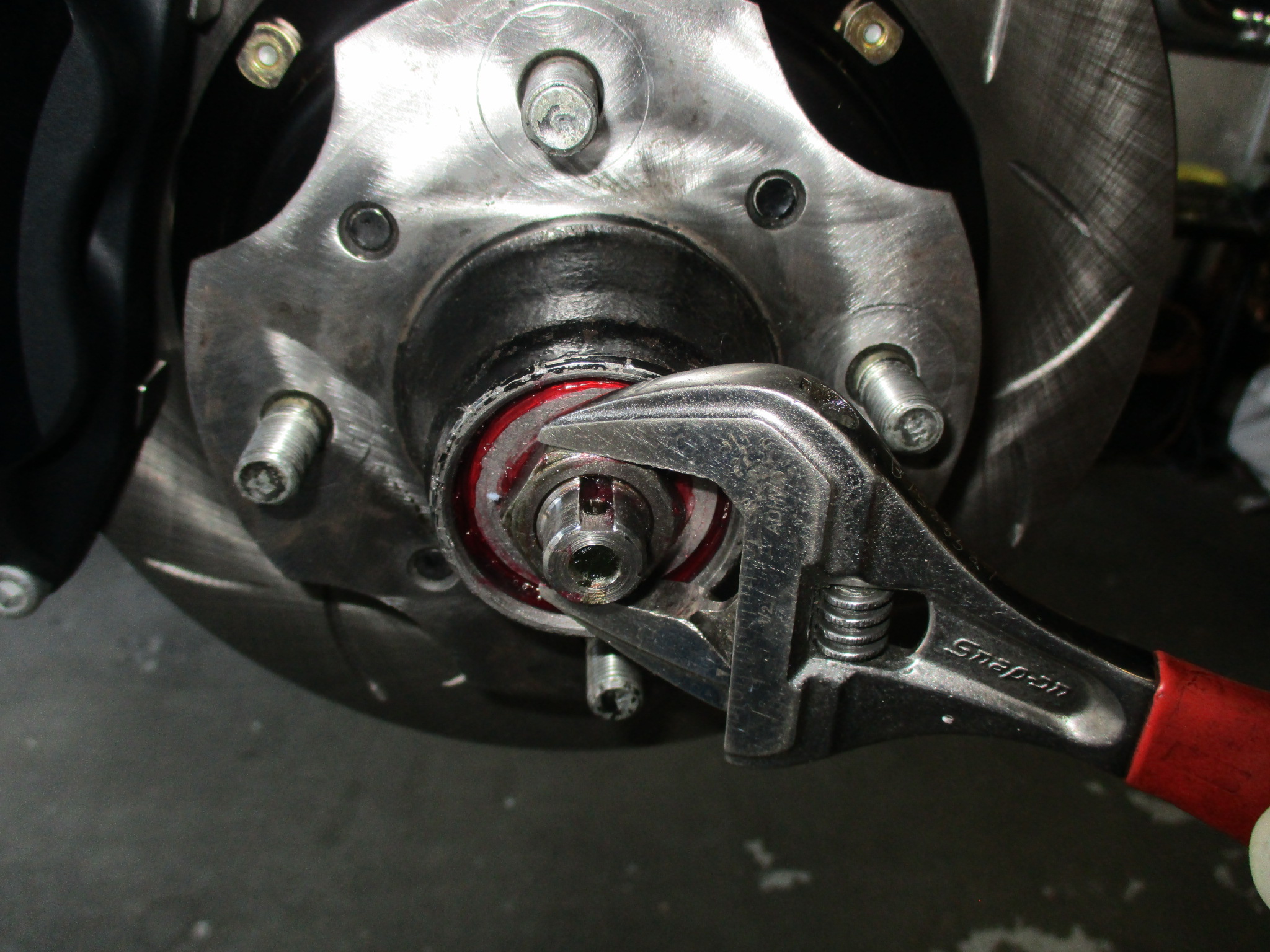

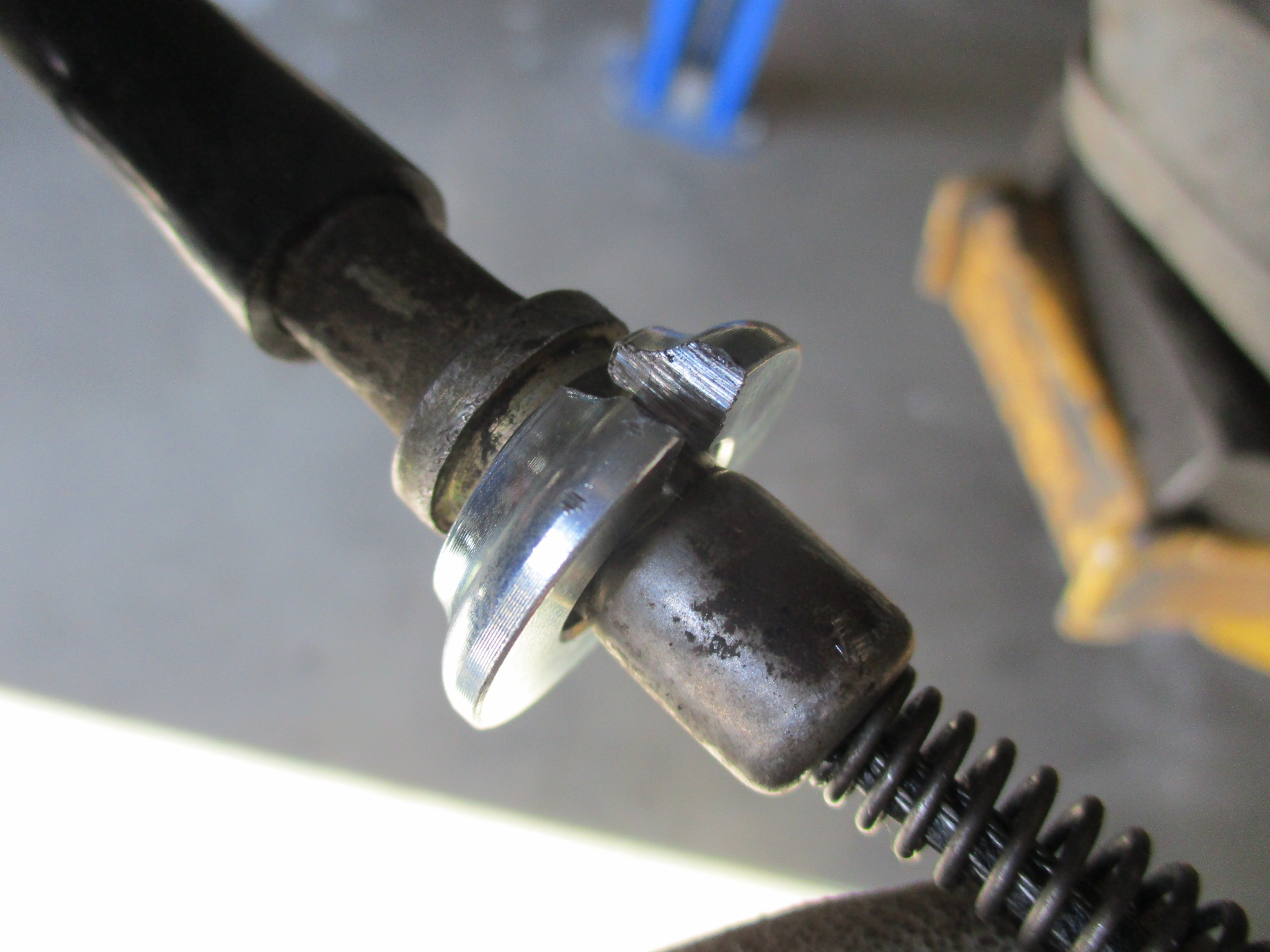

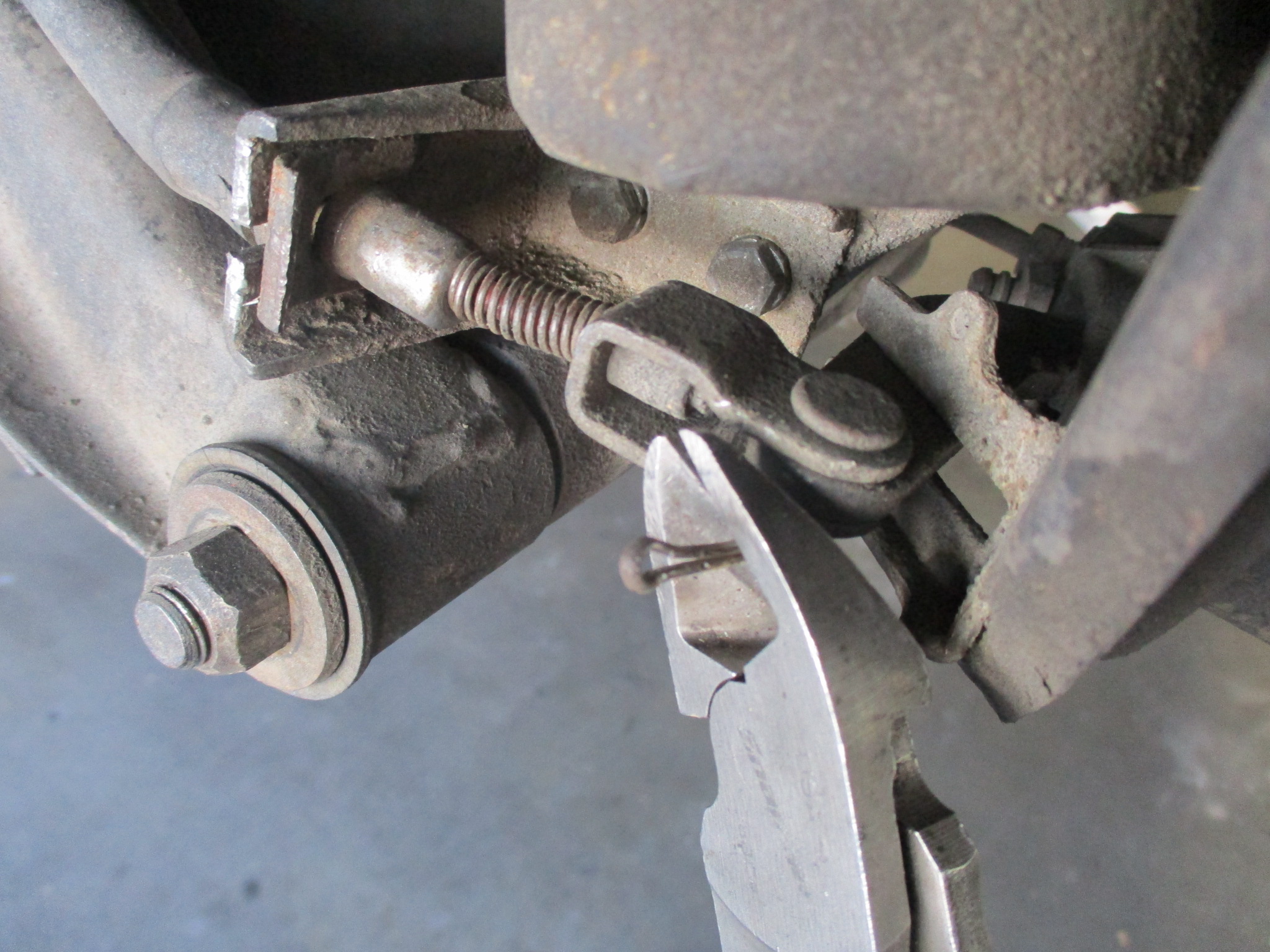

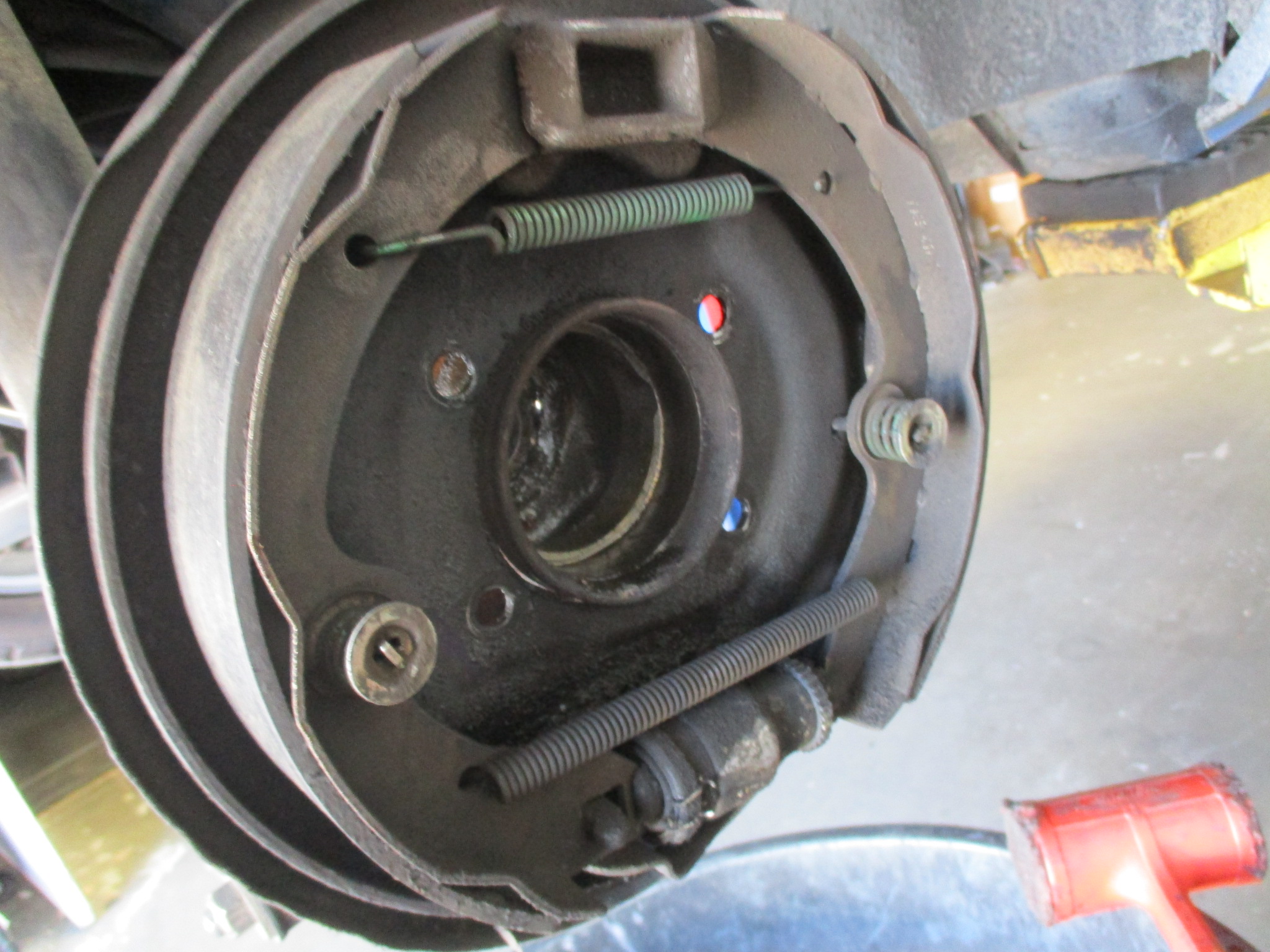

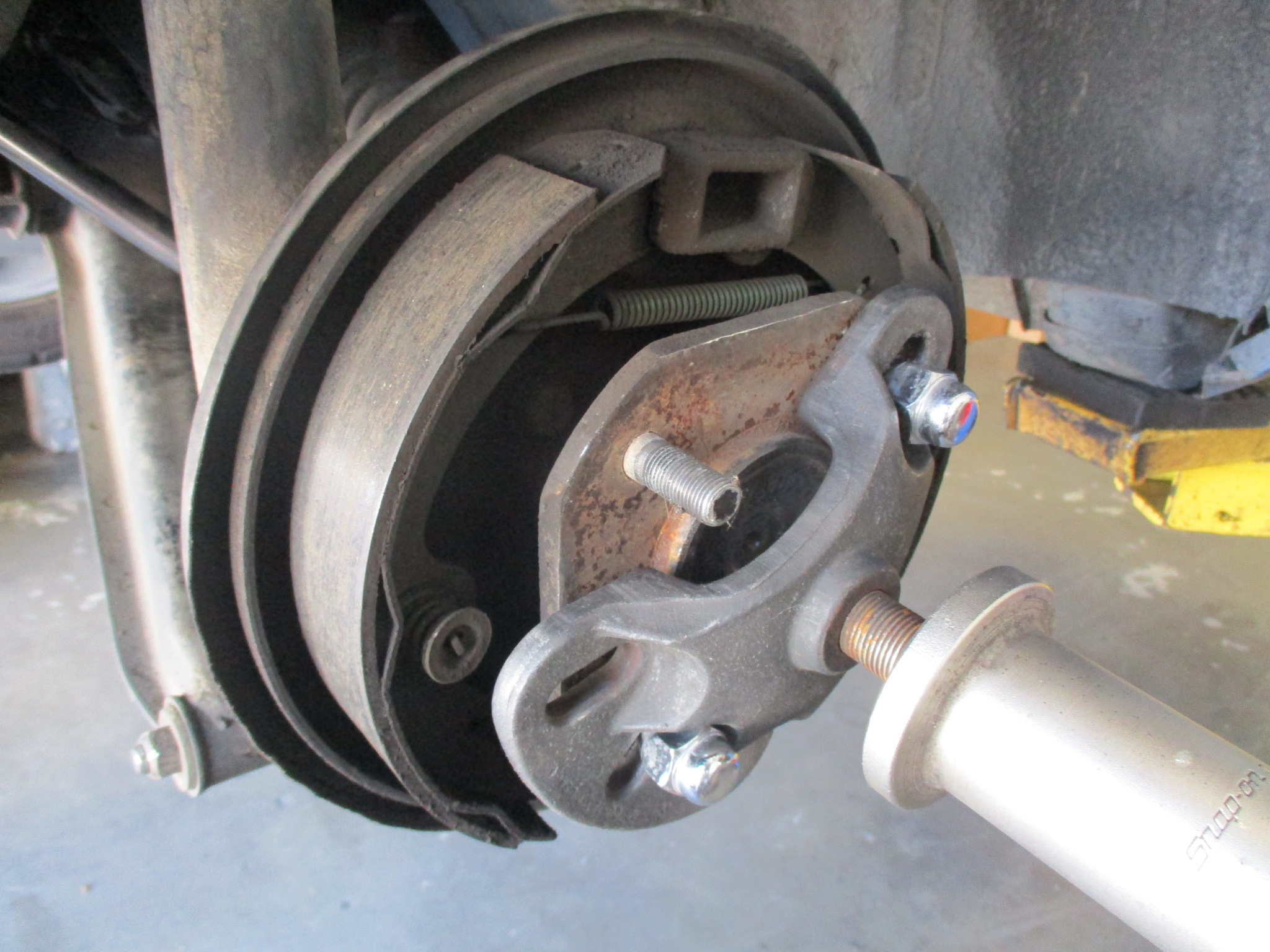

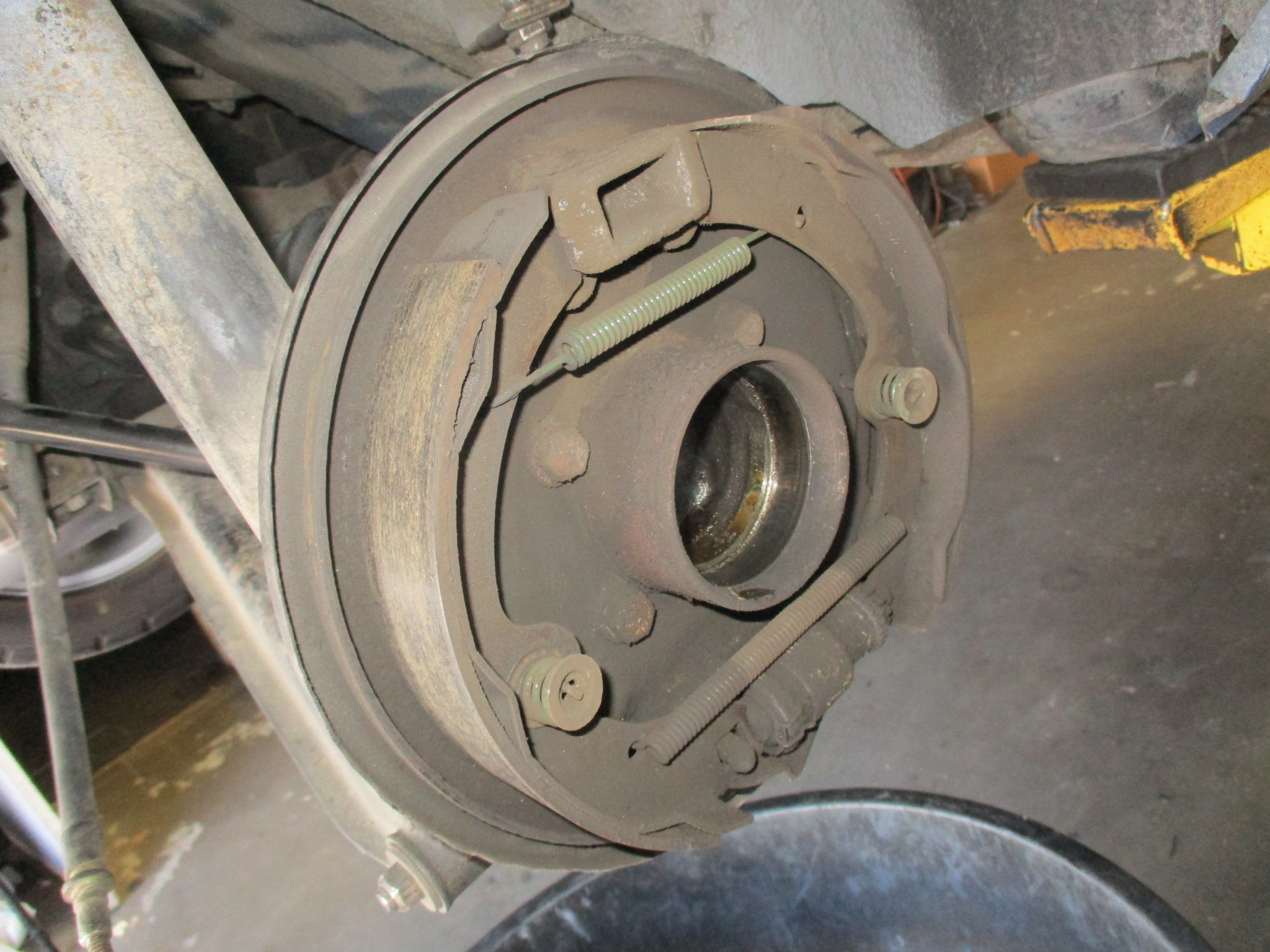

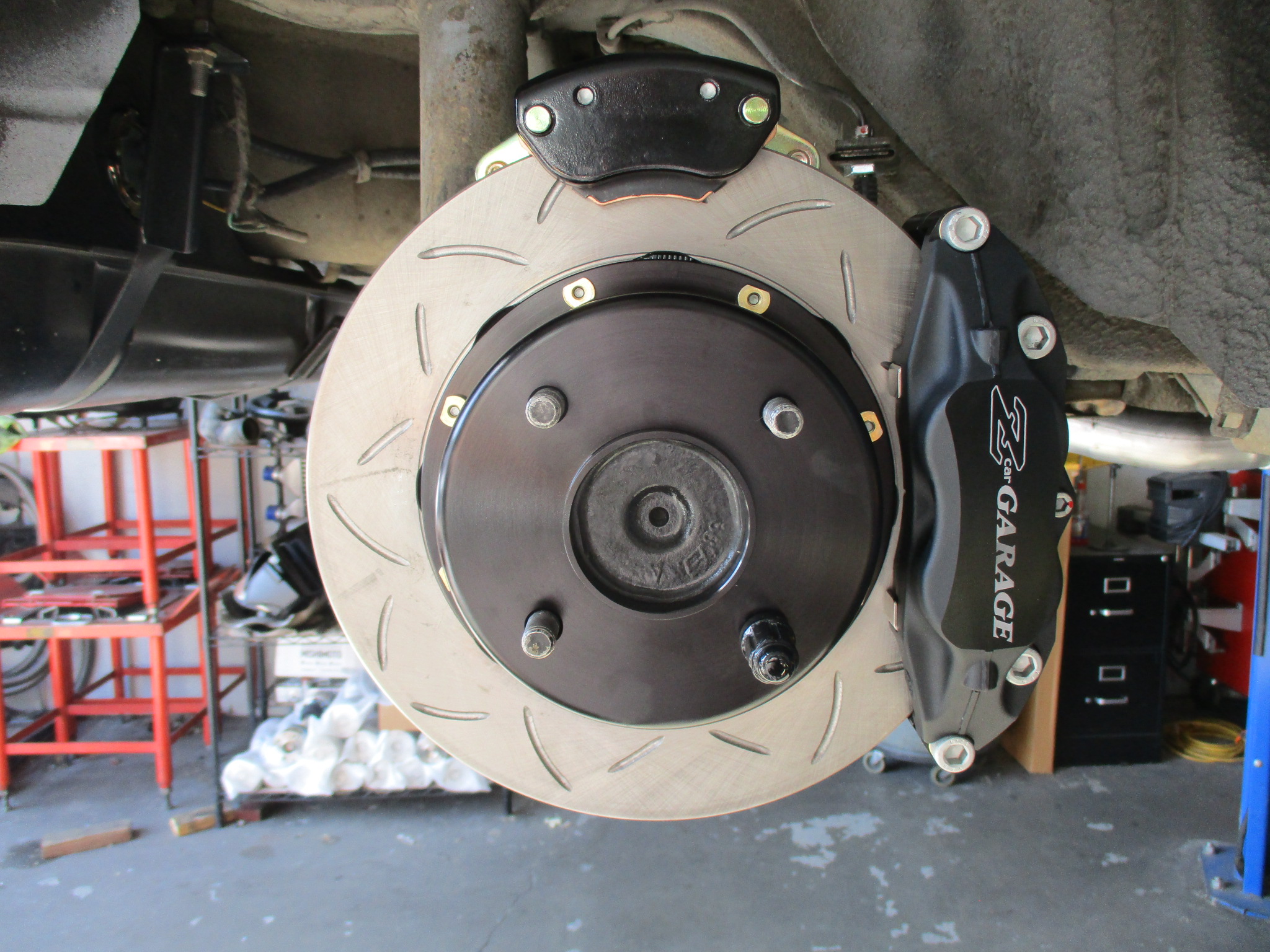

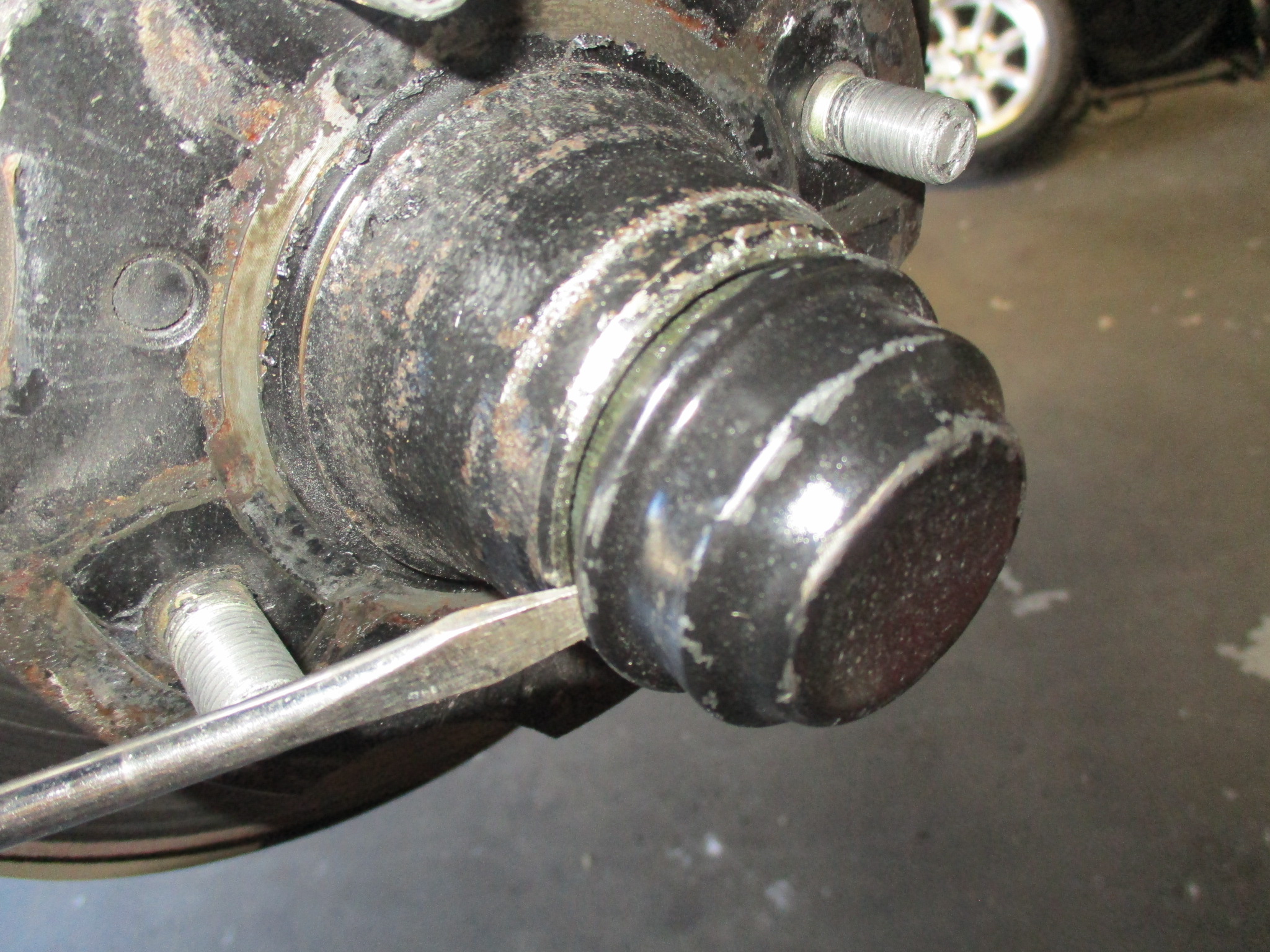

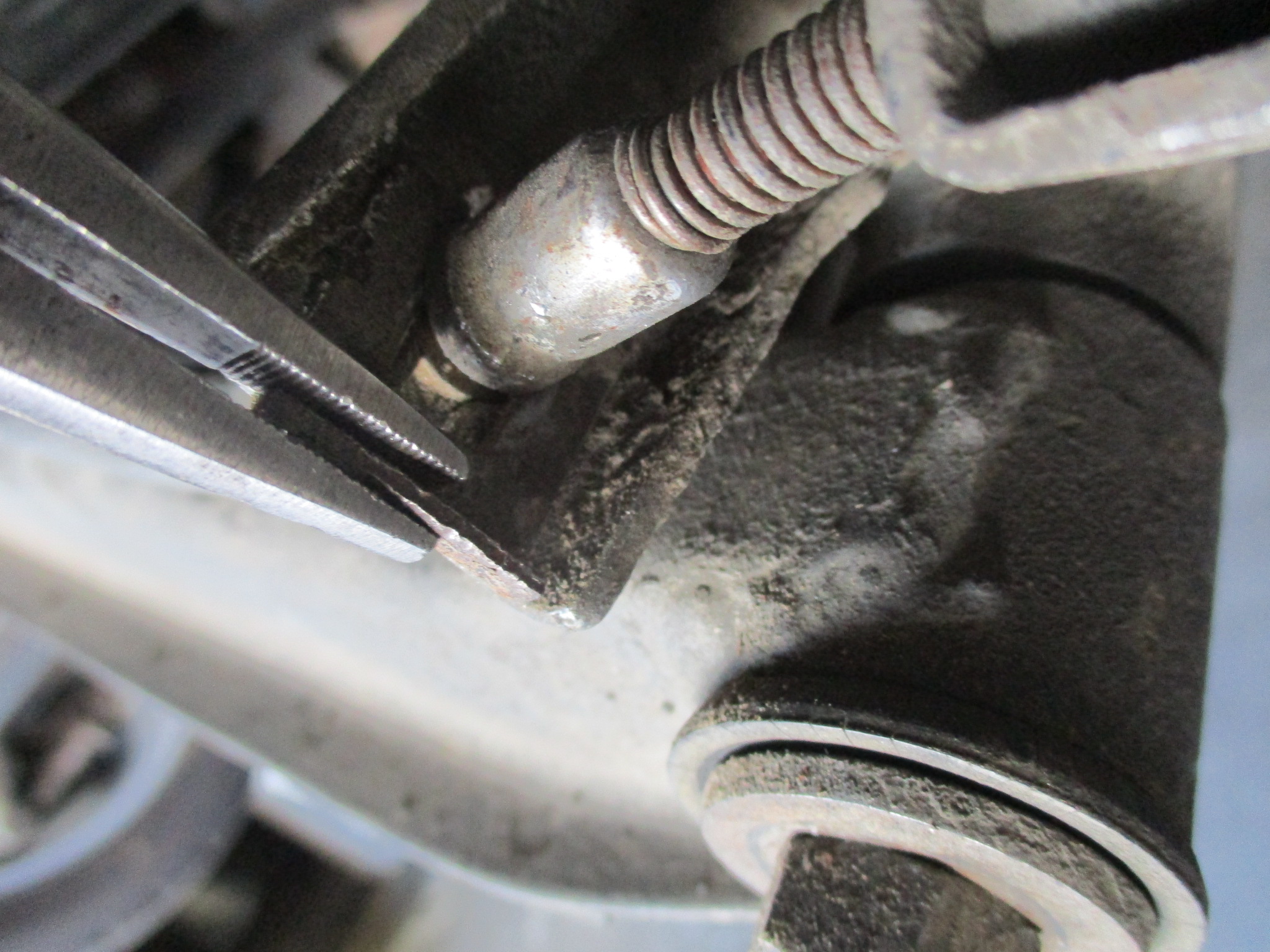

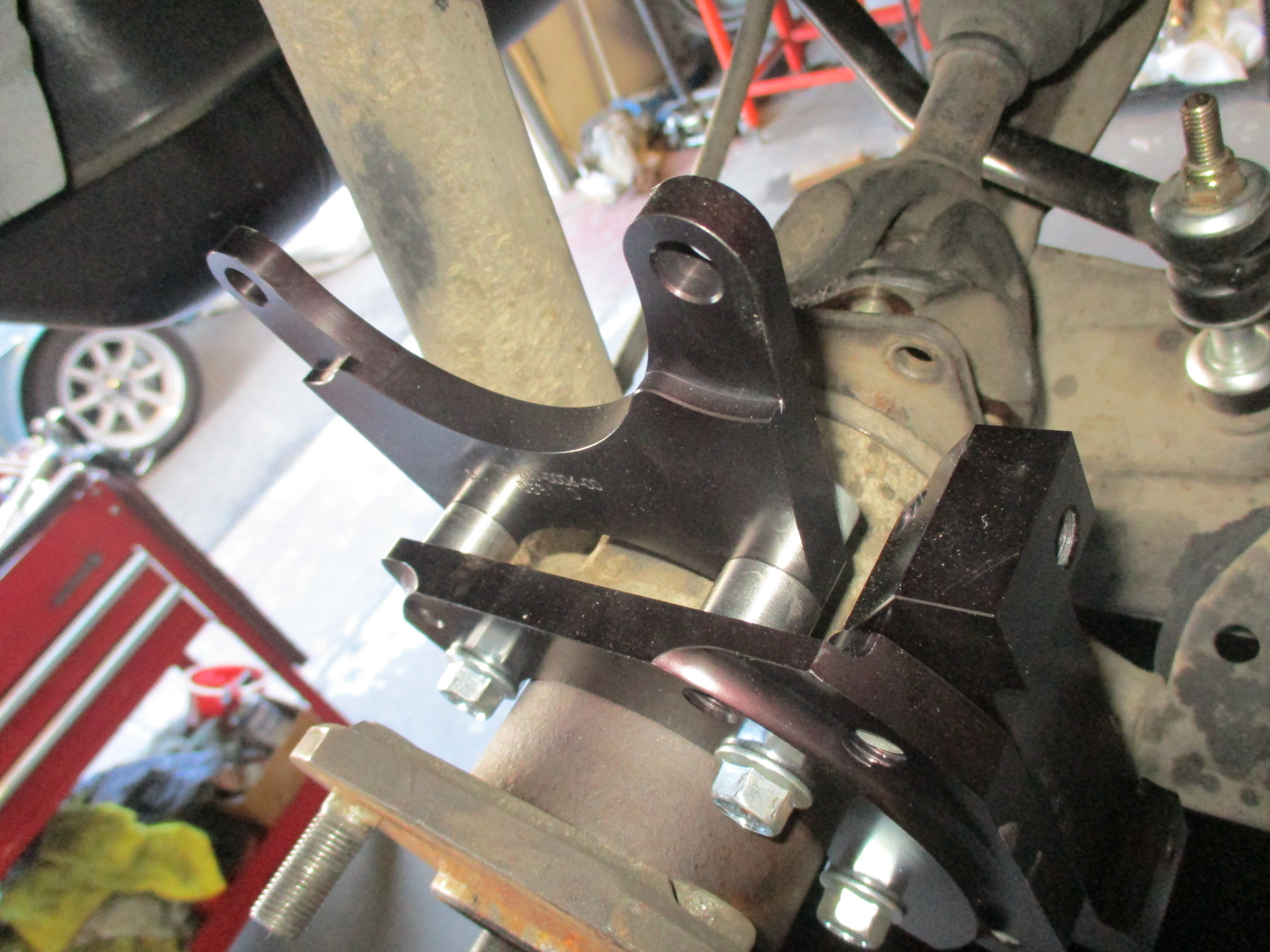

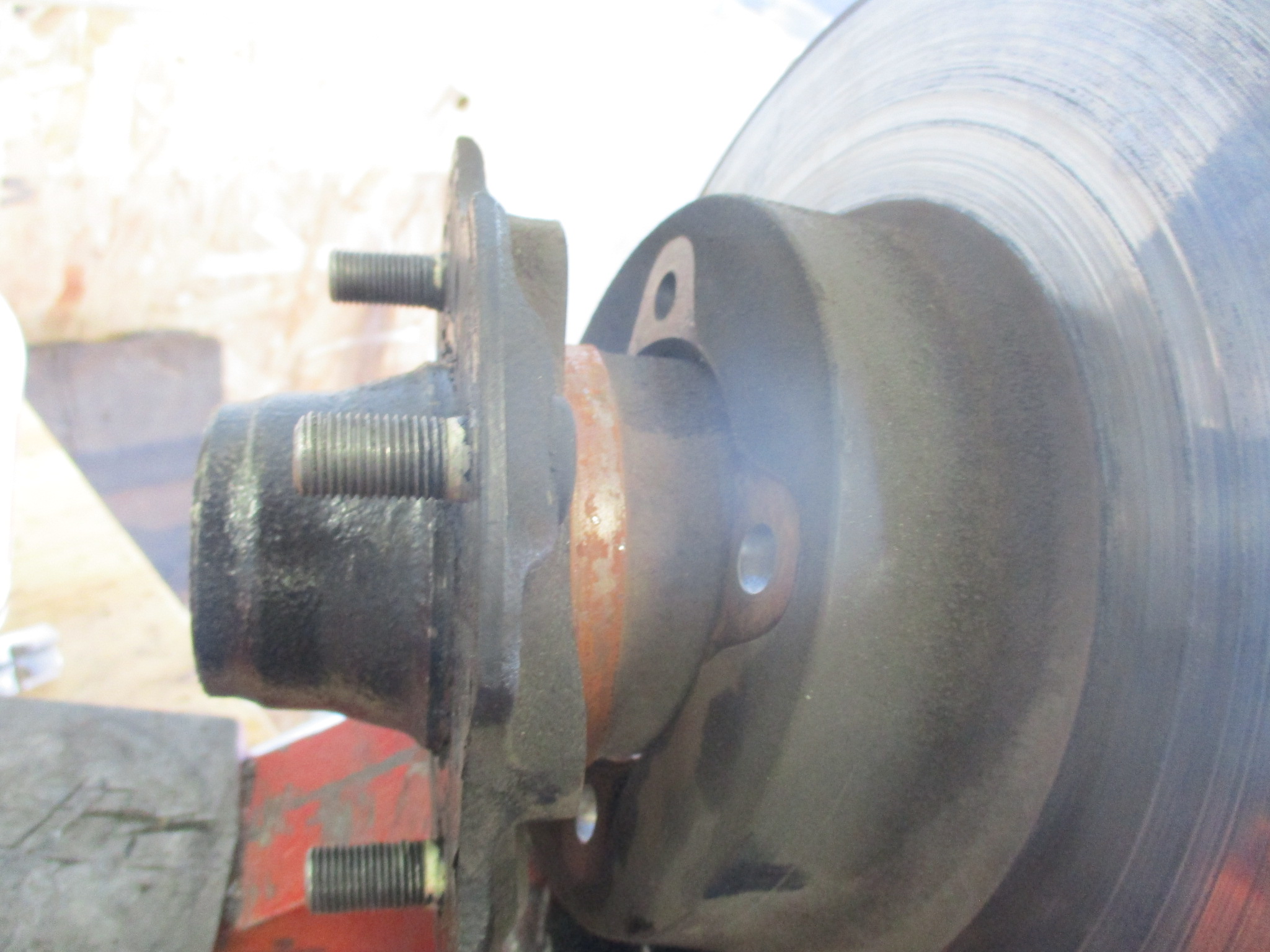

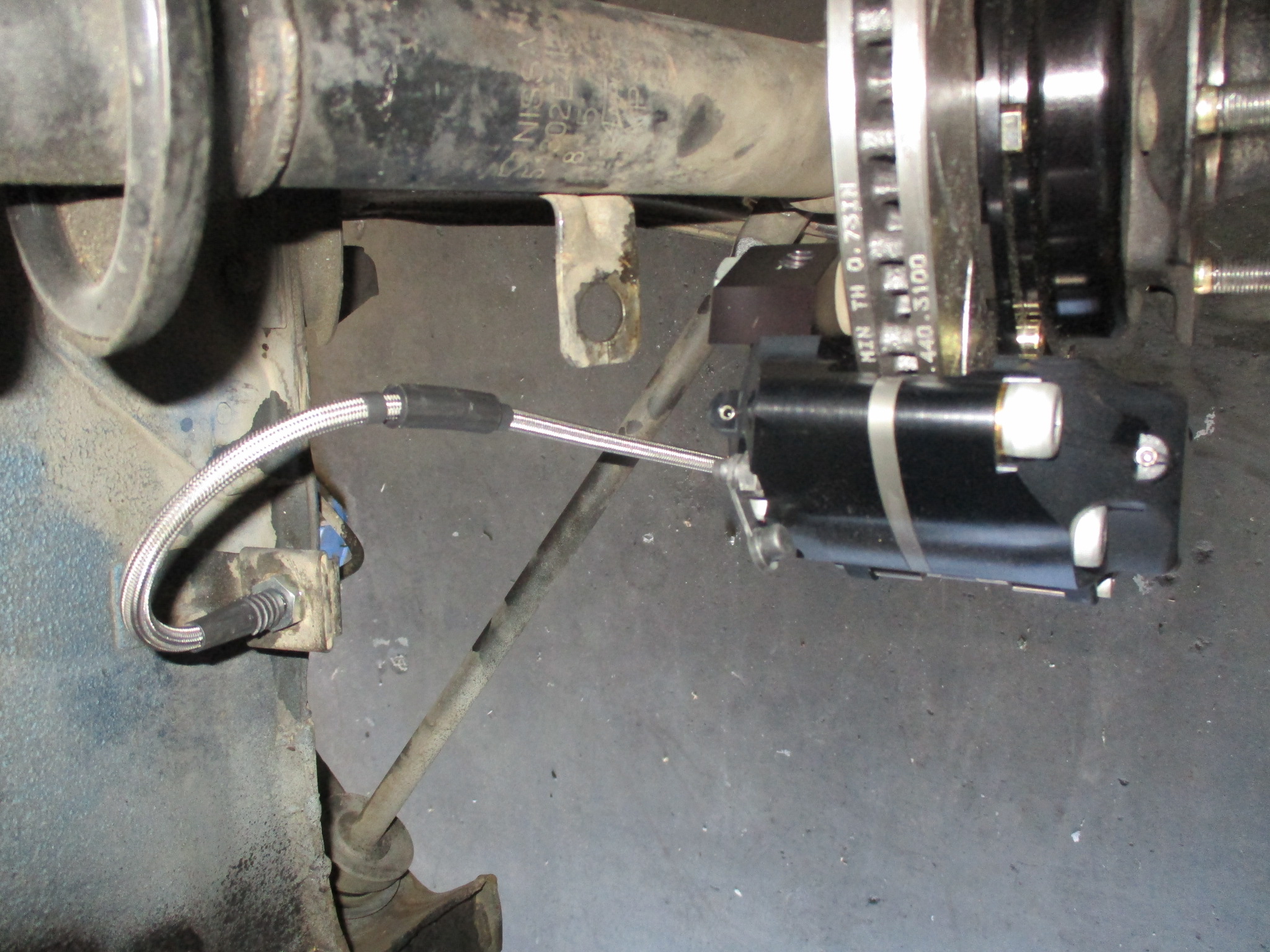

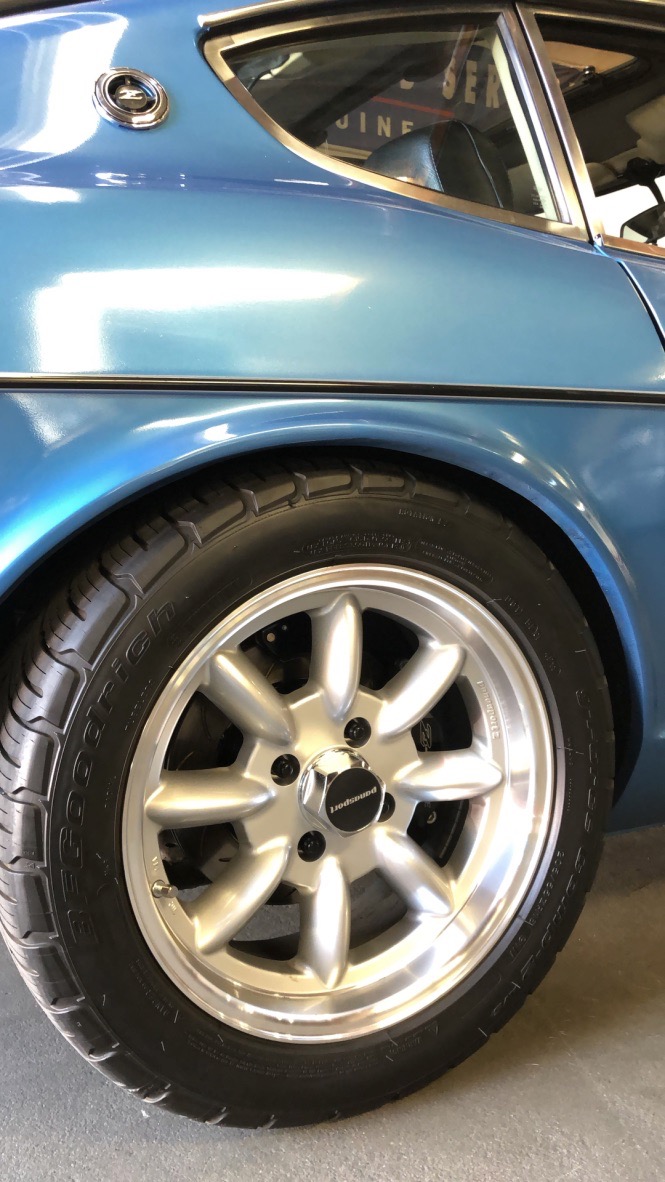

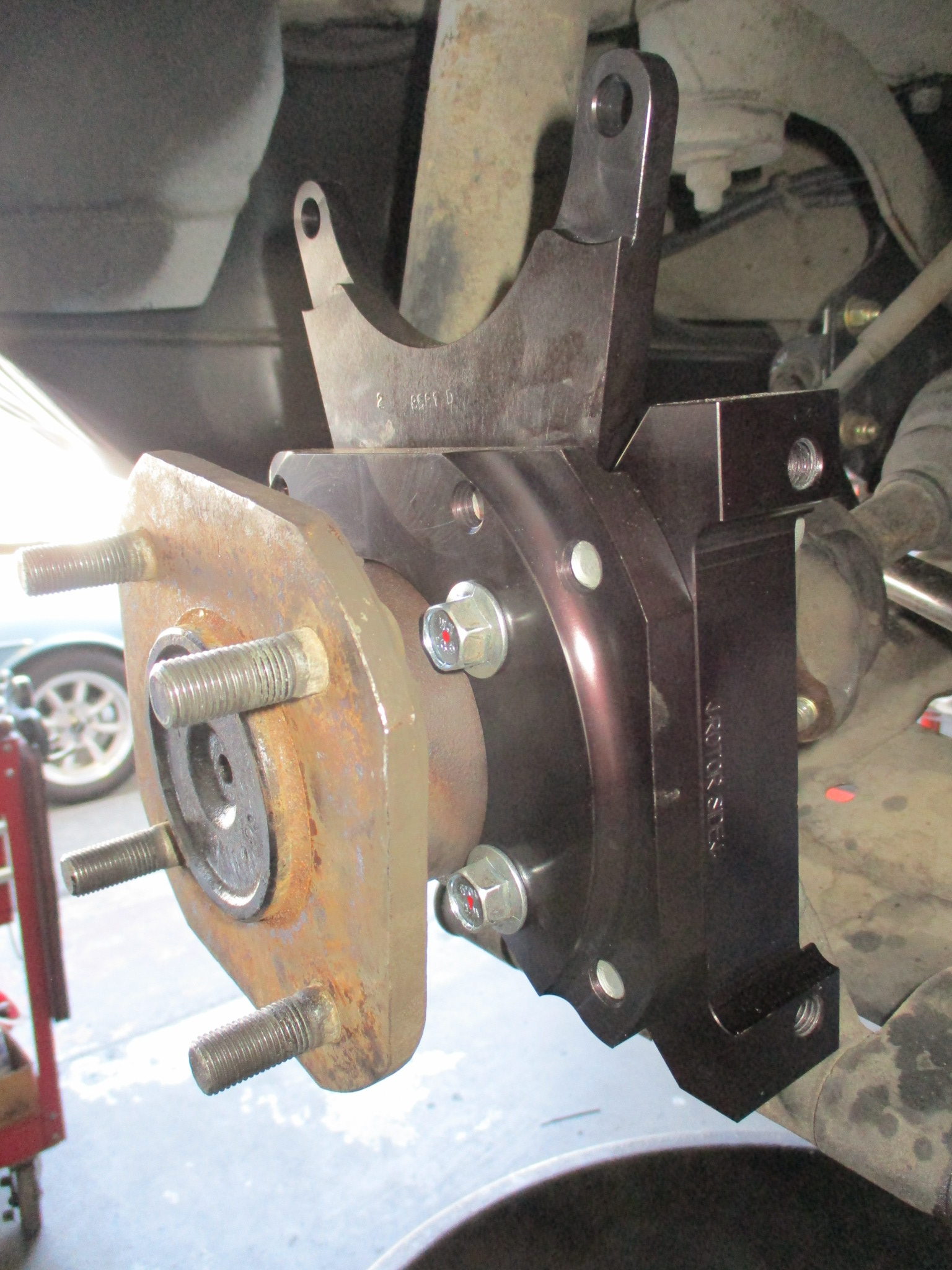

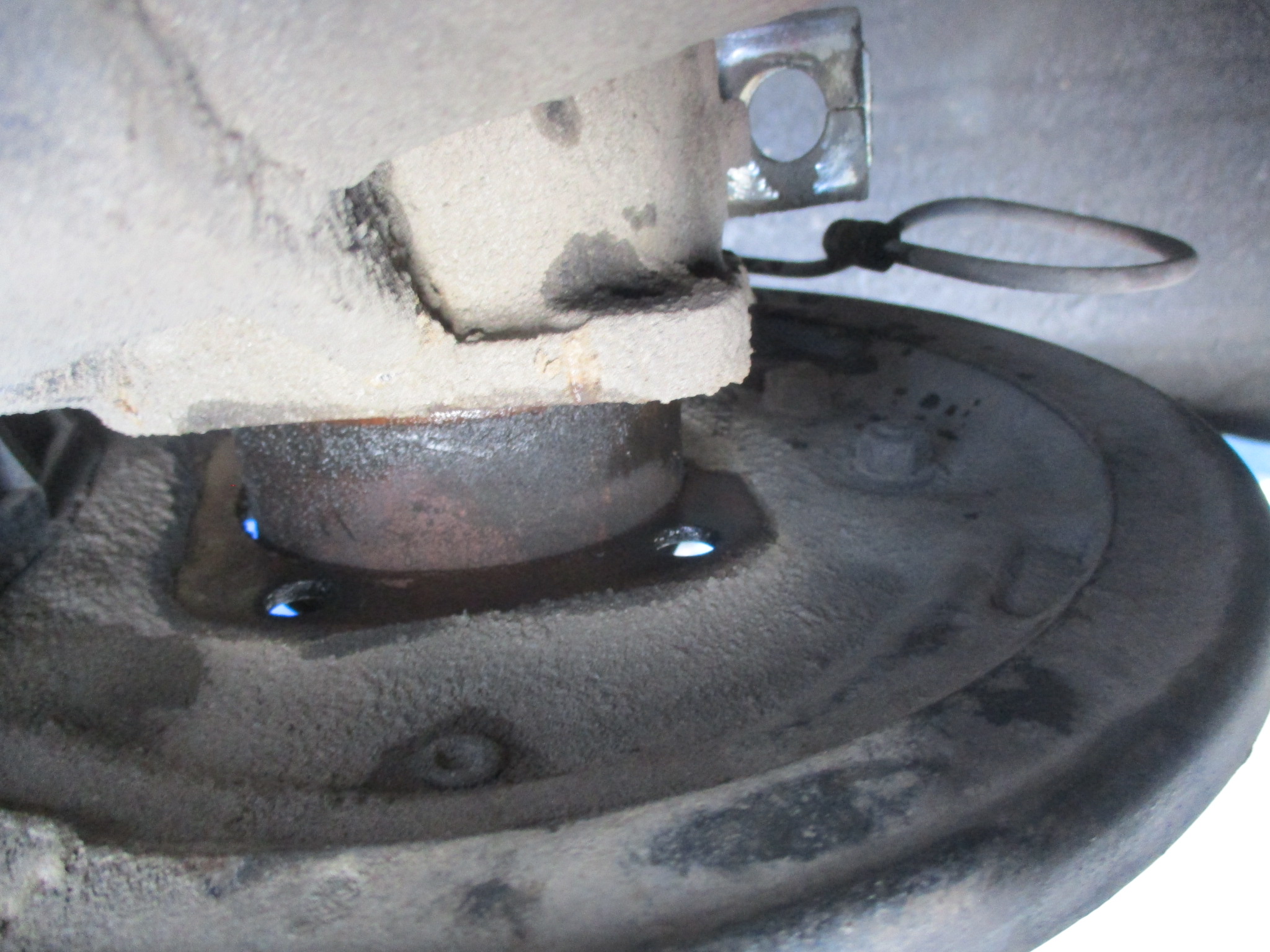

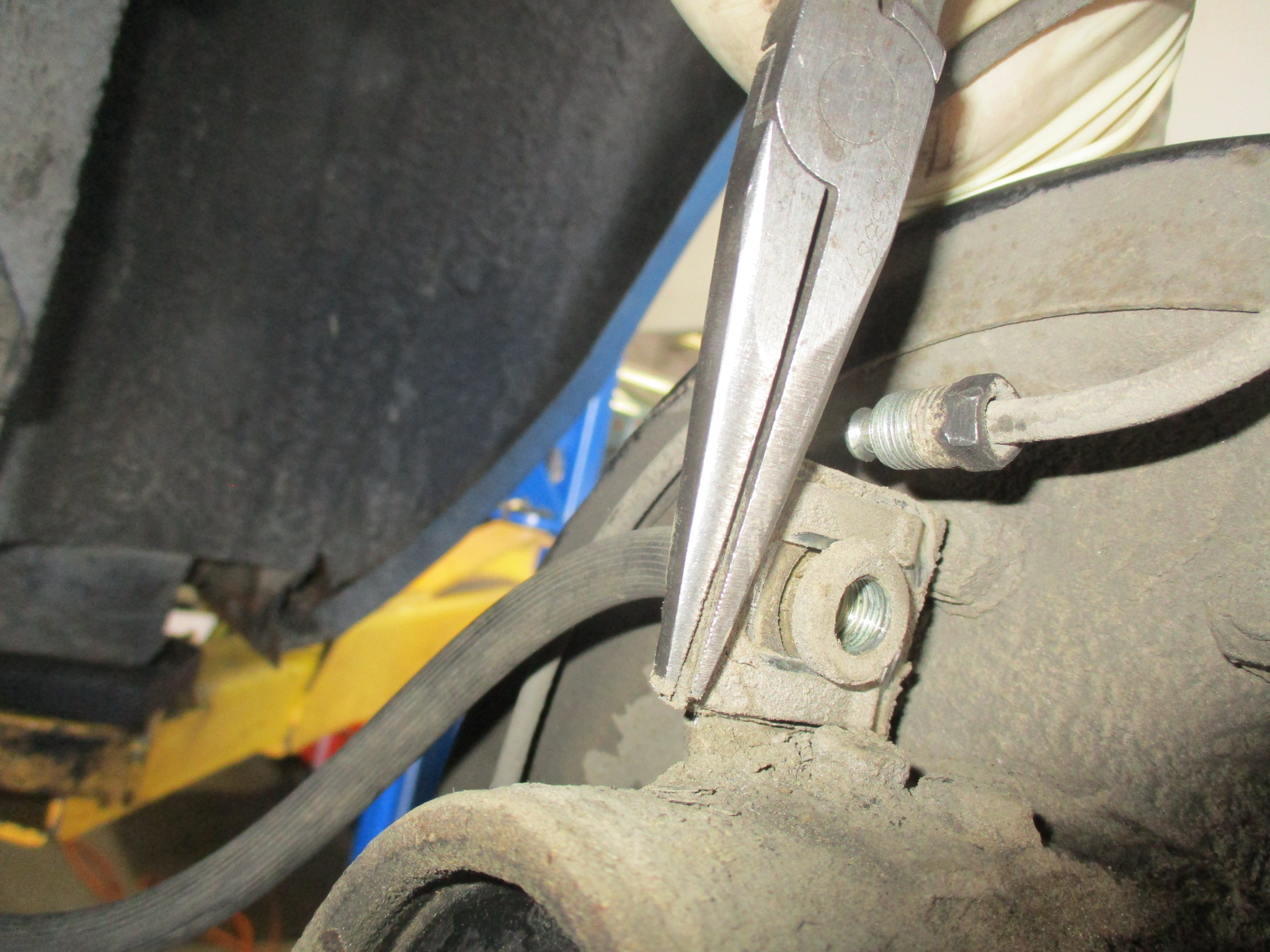

At the rear, the OEM drums brakes were replaced with our ZCG Big-Brakes. Factory handbrake functionality IS retained! They also look great behind the Panasport wheels:

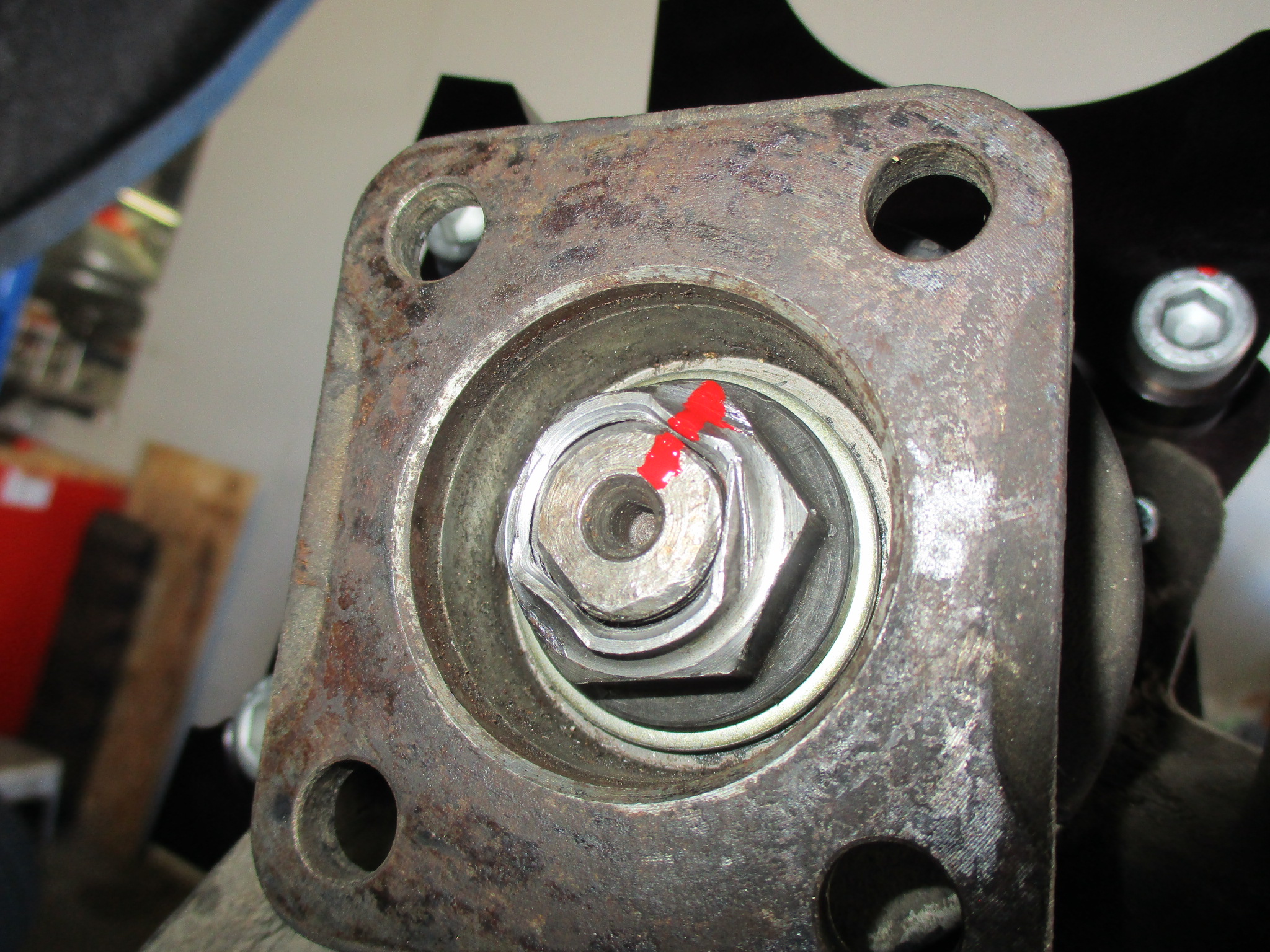

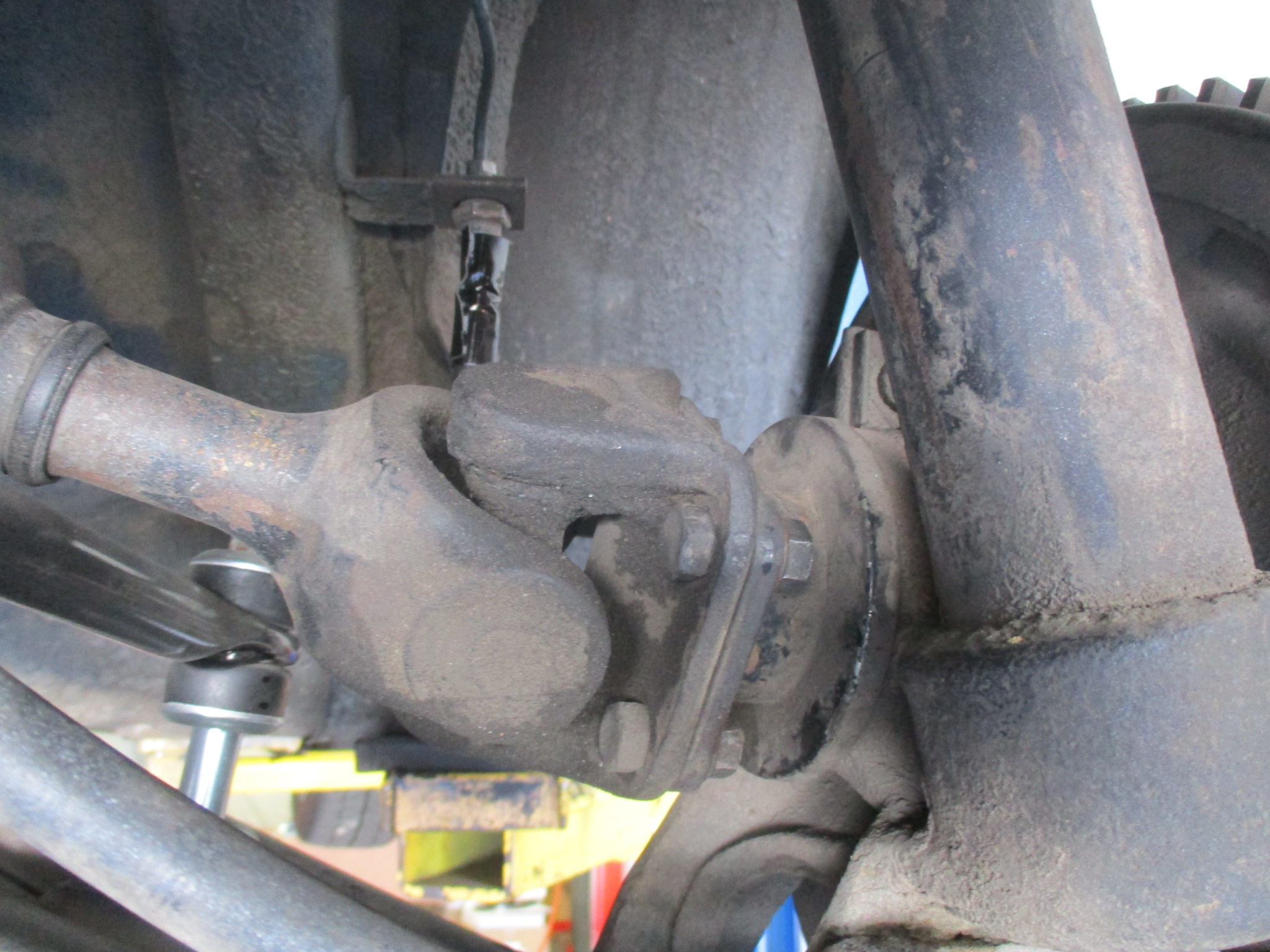

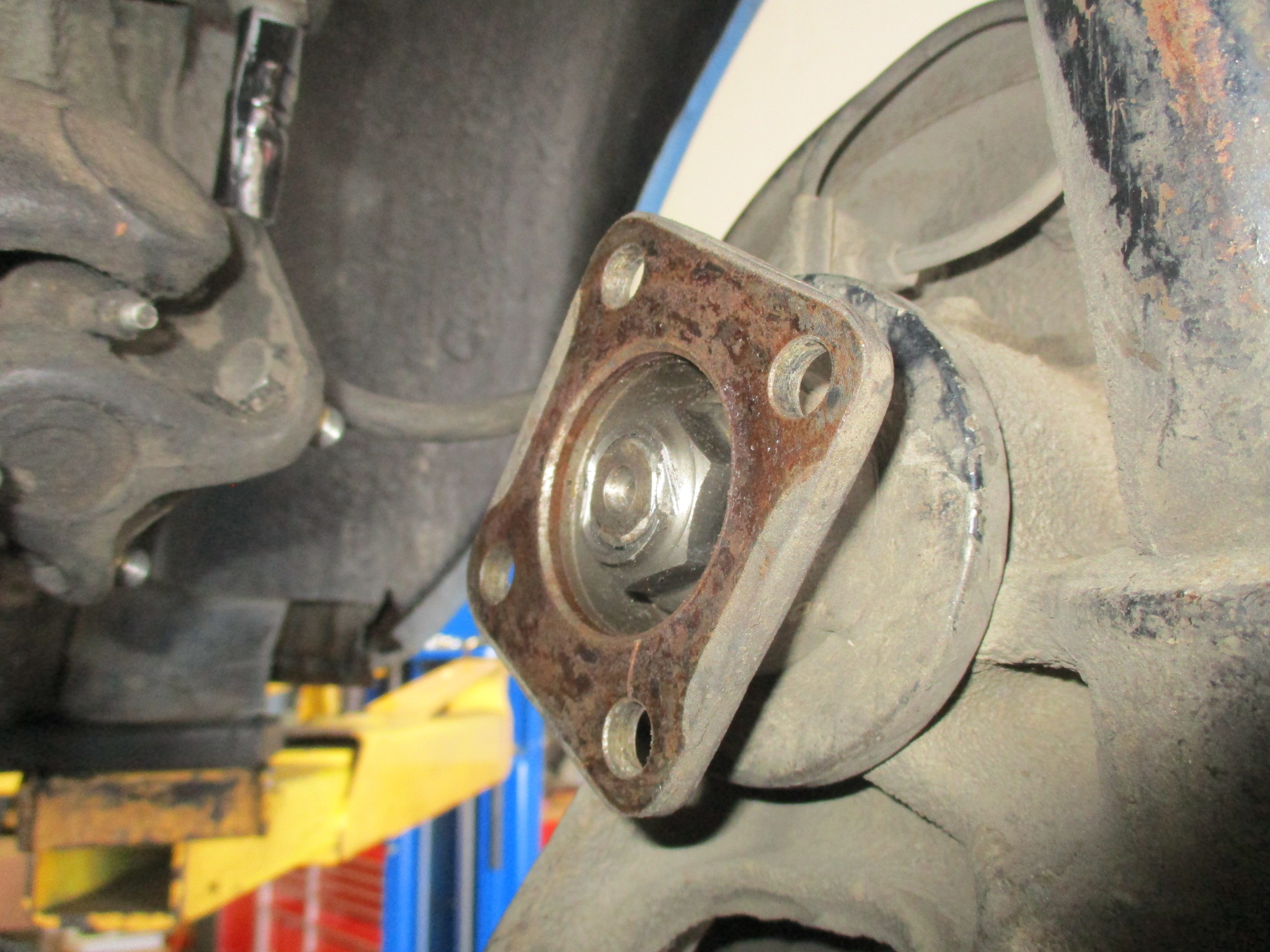

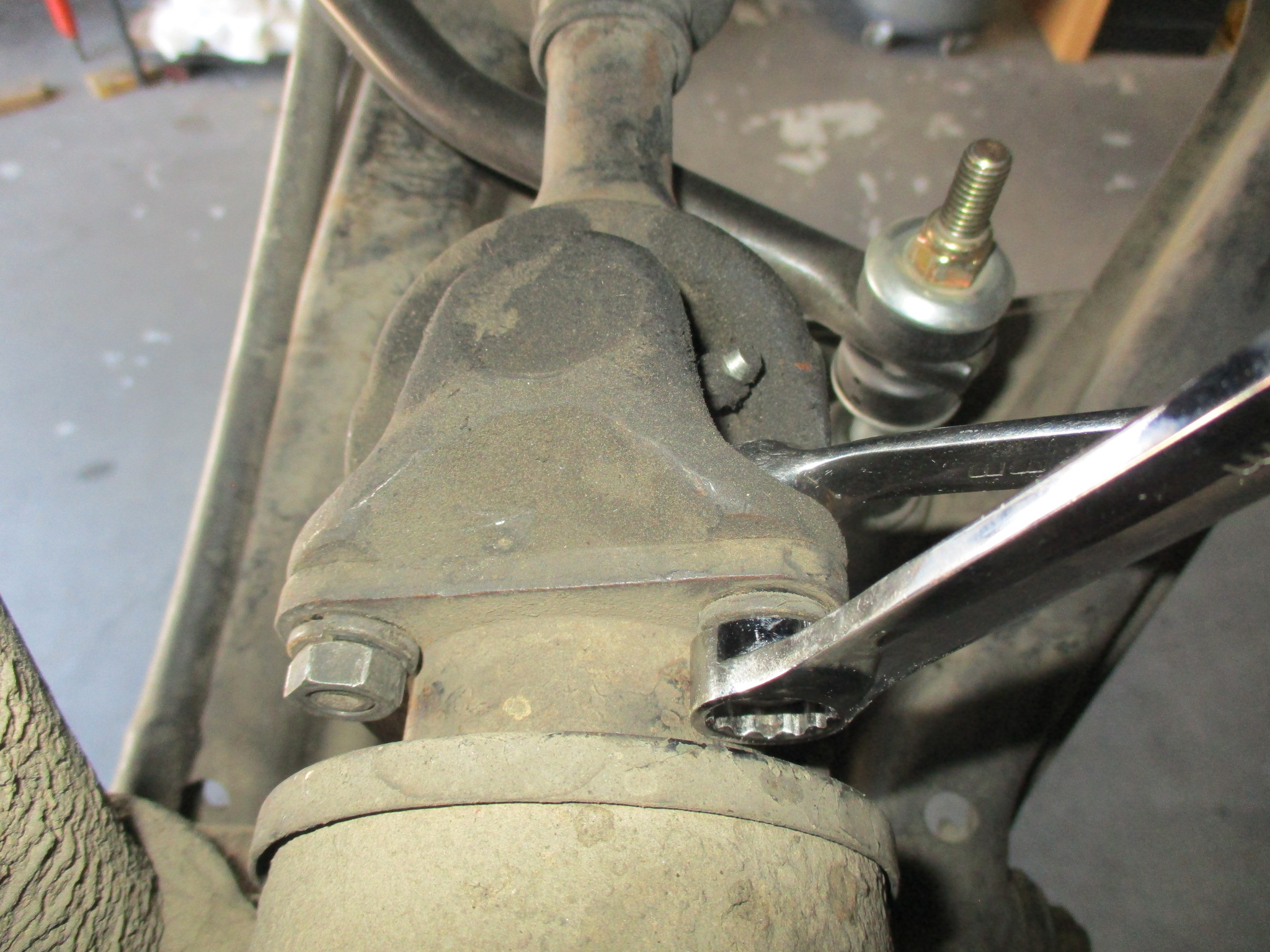

Our Z Car Garage CV Axles help transmit power to the ground and ensure smoother operation compared to your standard half shafts. We have over 70 CV axle kits on customer cars and we are stoked with all of the positive feedback.




Greg received ZCG CV Axle set #282.



Enjoying The Ride



After their visit to ZCG, both Greg and Valerie continued to enjoy the Z at several Hot August Nights shows. It appears they enjoy driving it more than the Charger 🙂

“The Hot August Night Virginia City meet this year.  We had intended to take the Z Friday, and the Charger on Saturday, but we had so much fun driving up and down Geiger Grade with the new ZCG triple Mikuni‘s and the ZCG Big brakes that we took the Z both days!!!”

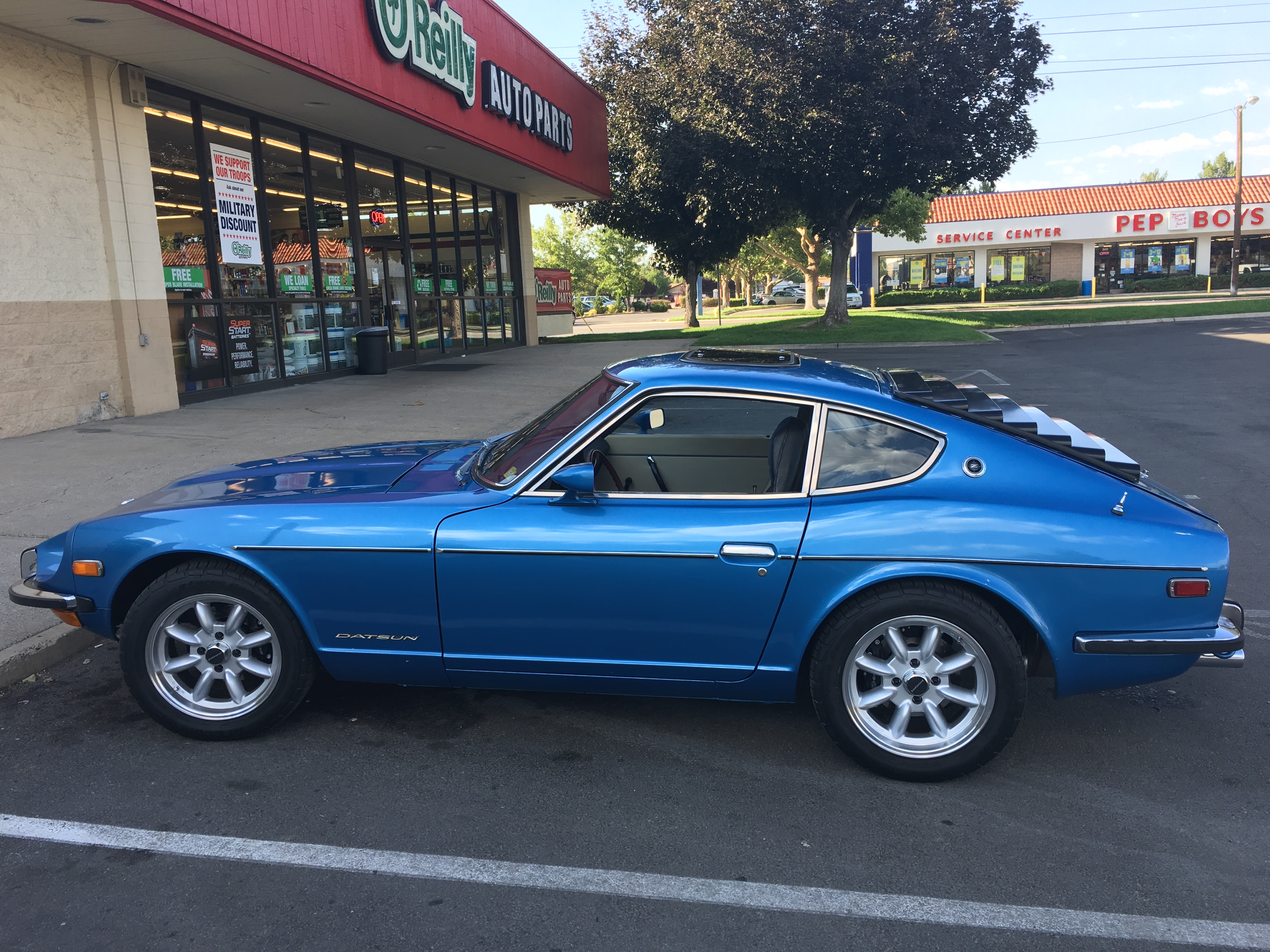

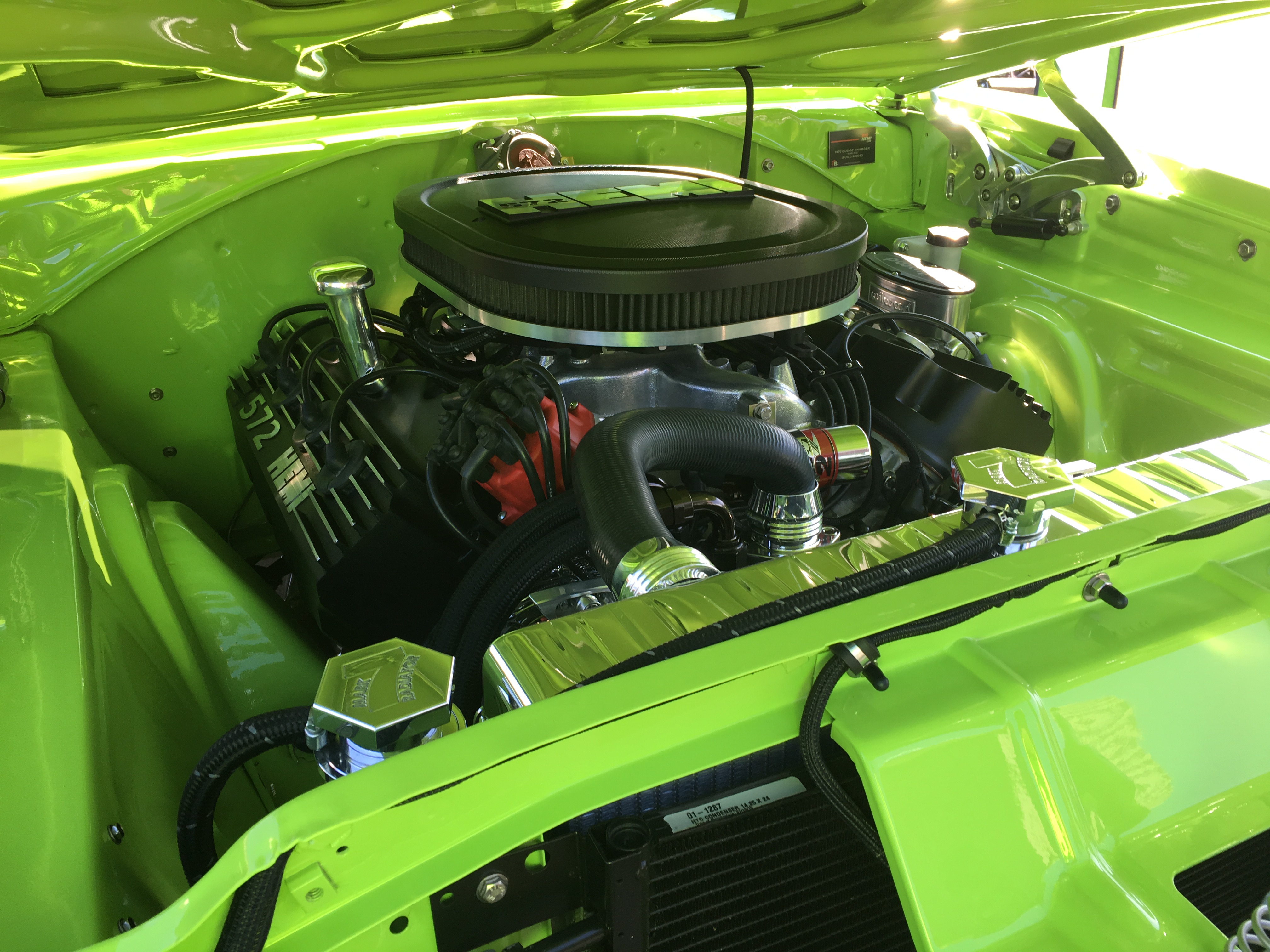

Valerie driving the Z to a local ‘Ladies only’ car show. We love her “all blue” theme! (Right) Their 1970 Dodge Charger:



“Valerie and I are very happy with the service and modifications ZCG has completed on our ’73 240Z.  I doubt anyone else has the experience, the knowledge base, and most importantly, the PASSION for working on Z Car’s that Rob Fuller and the staff at the Z-Car Garage have!”



We really had a great experience working Greg, thank you both for letting us make your Z car an enjoyable sports car! More pictures in the gallery below:





LONG LIVE THE Z!
