Stillen Supercharger Sunday

Filed under: 370z,Featured Cars and Projects,Performance
by Alvin G @ 12:49 pm on February 24, 2019




The Stillen supercharger kit for the Z34/G37  is an install we are intimately familiar with here at Z Car Garage. Here are two customer cars that got supercharged and tuned for nice power gains while maintaining CARB-legal status.

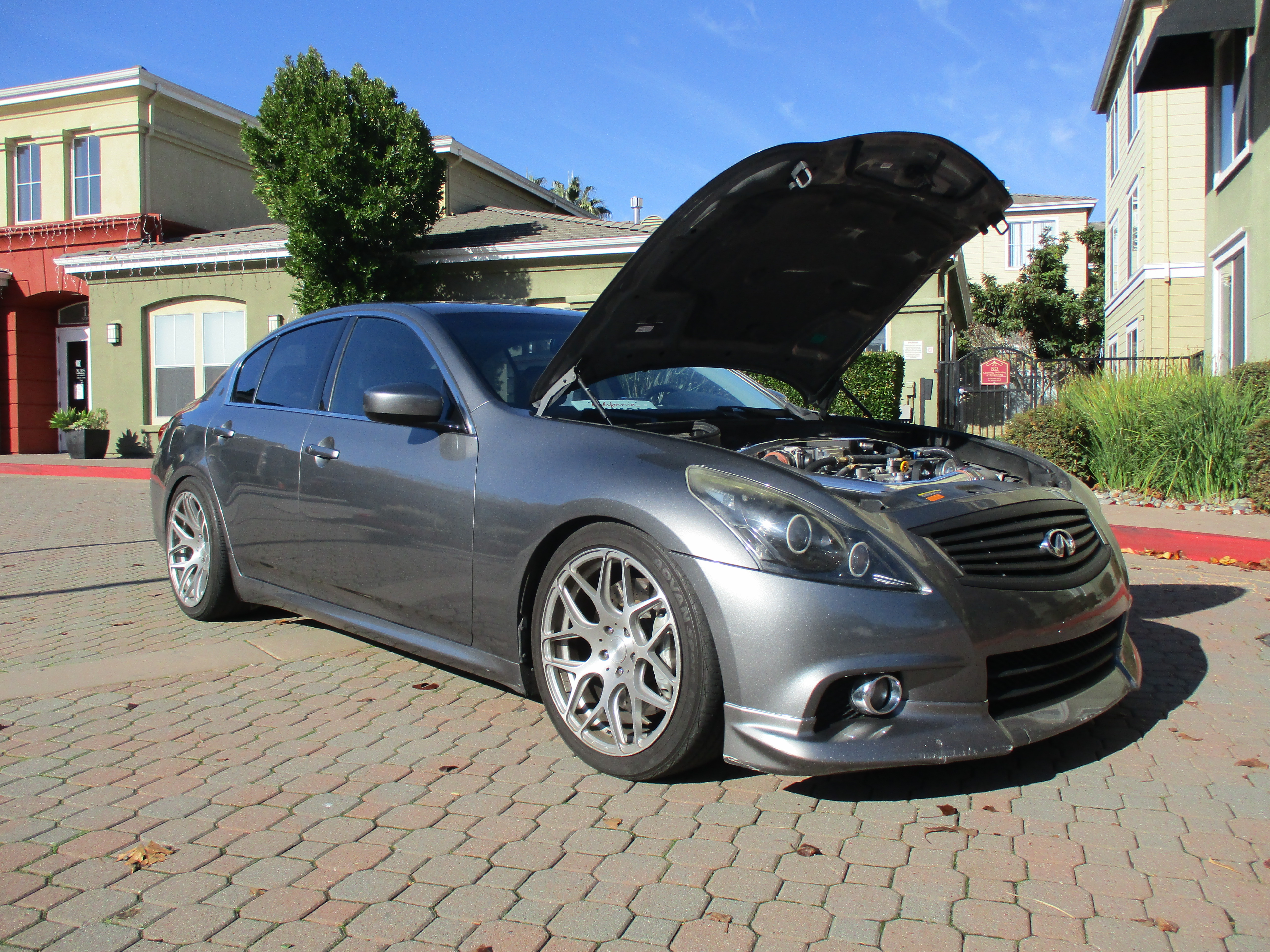

Vince’s 2012 G37



Vince hails from SSF and heard about us from friends with Z’s and G’s. He wanted us to install the Stillen supercharger kit and we added our favorite upgrades like the the Concept Z performance 25-row oil cooler.

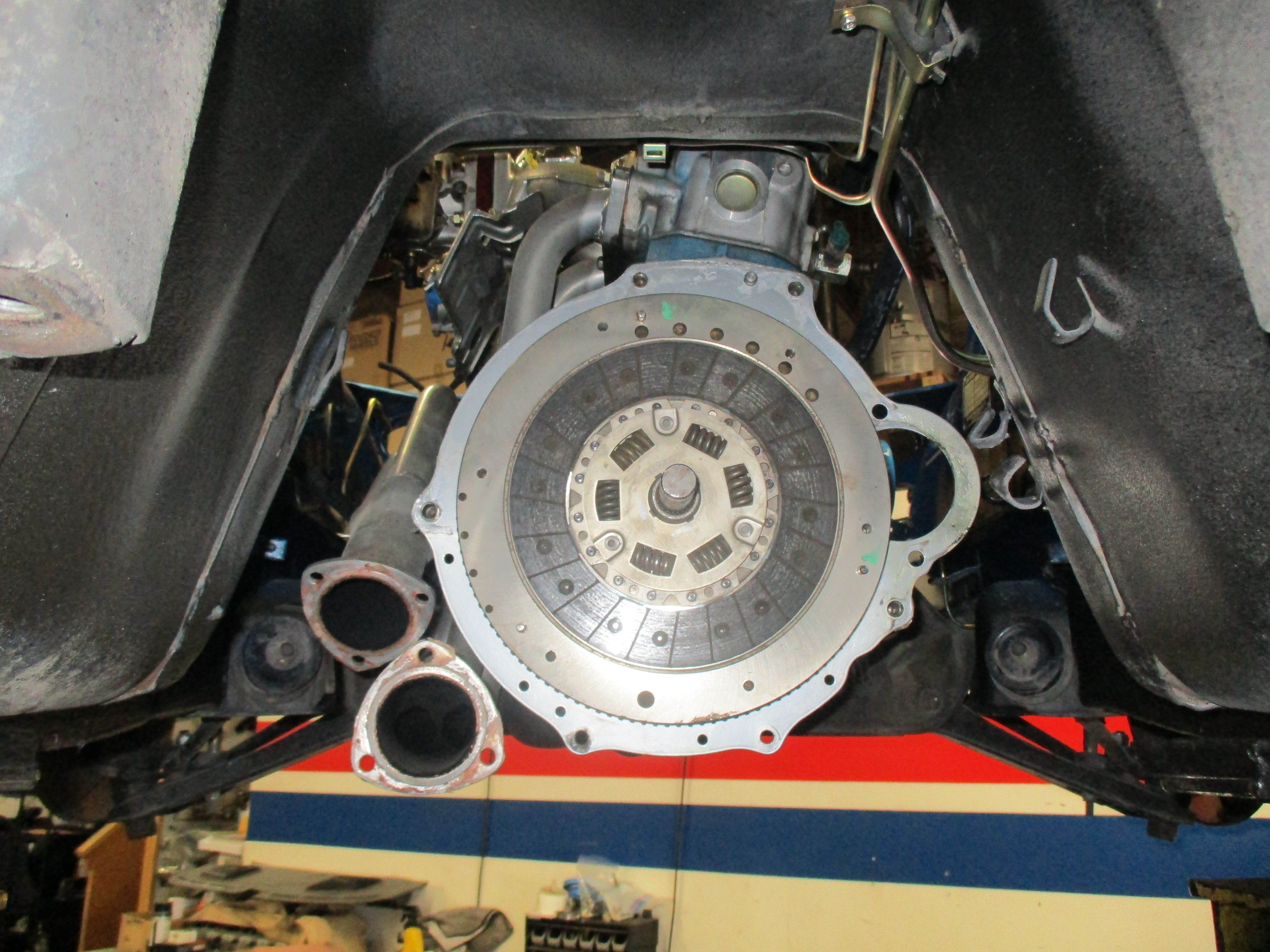

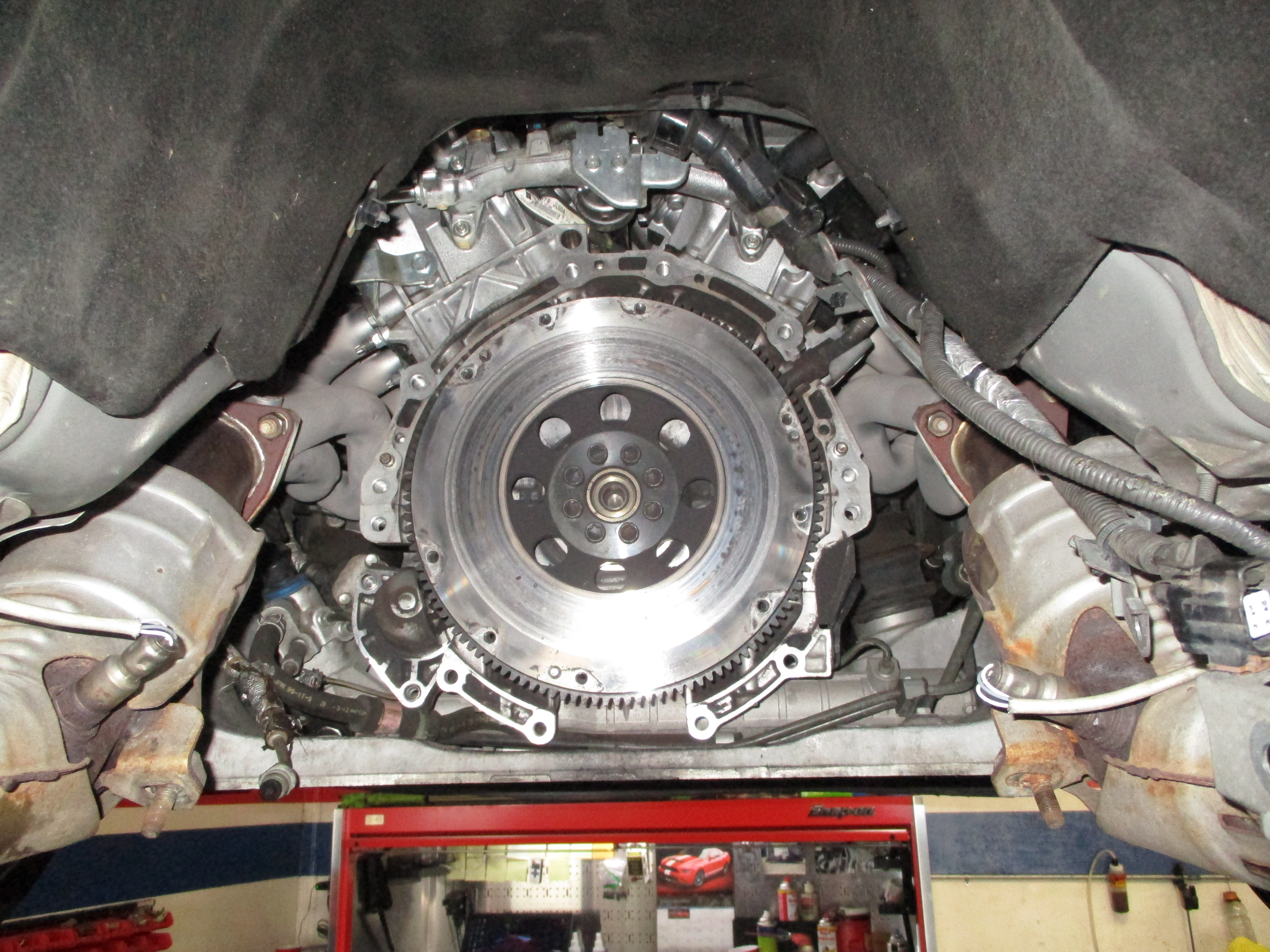

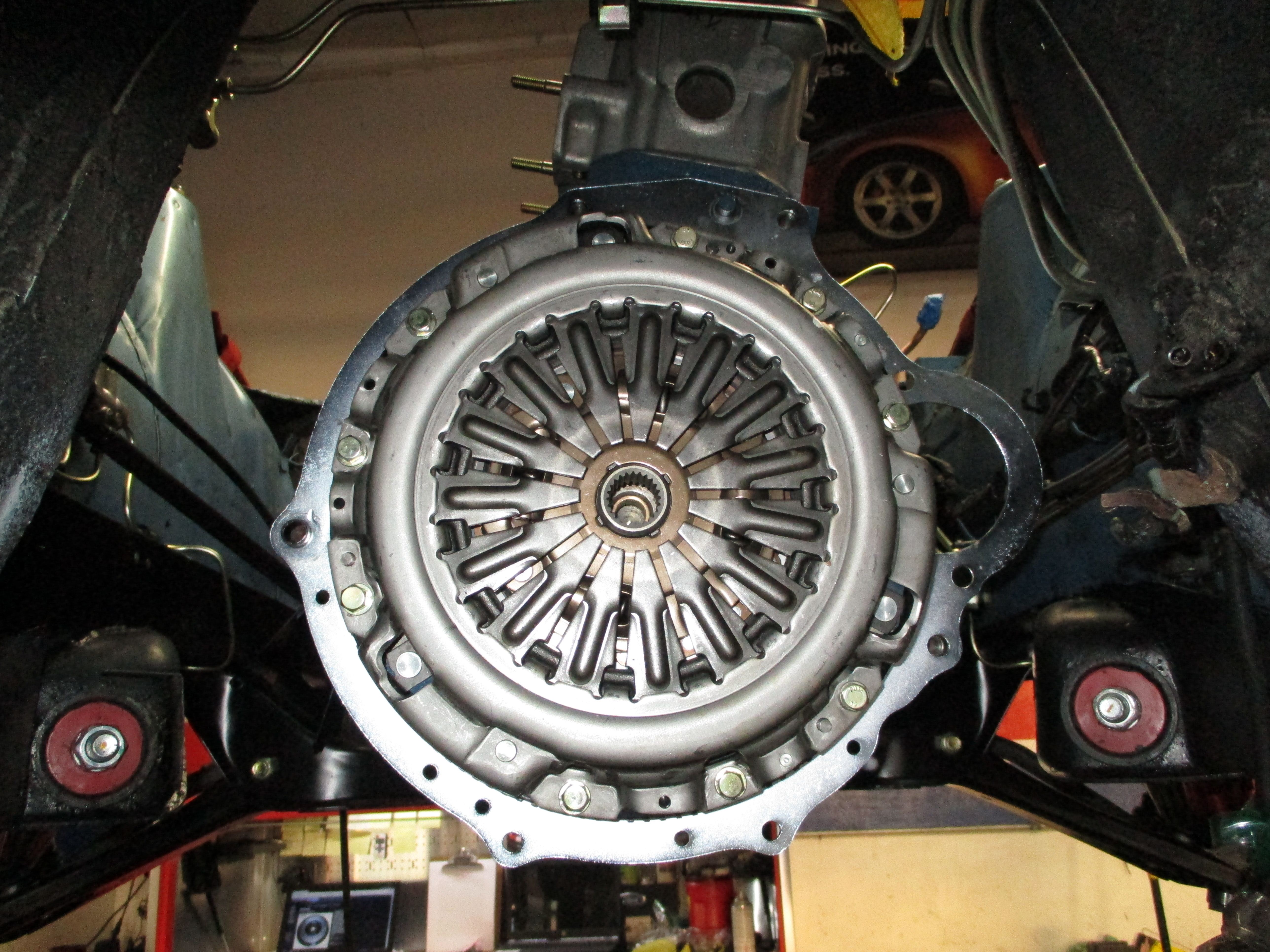

Vice had upgraded clutch/flywheel that was really hard to drive on the street. We fitted him with a JWT clutch/flywheel and the troublesome internal slave cylinder was switched to an external unit using the CMAK upgrade from Z-speed.




With the supercharger installed we started the tuning process.



A relatively new approach, we move away from the stock MAF system and use ECutek tuning with a MAP-based system. Final numbers were 407hp//321tq to the wheels:



Thanks Vince, Enjoy The Boost!

John’s 2011 370z



John has been a ZCG customer for 10 years and we used to work on his S30. He came in for a Stillen supercharger install on his 370z and added the Concept Z 25-row oil cooler and Automatic transmission cooler.



After Rob’s tuning session on the dyno John’s Z made 407hp/300tq to the wheels:



Being a base model, an LSD is next on John’s list. Enjoy the Boost!






PARTS: Z Car Garage CV Axles

Filed under: Featured Cars and Projects,Performance
by Alvin G @ 10:57 pm on February 18, 2019



Z Car Garage is proud to offer a CV axle conversion kit for your Datsun S30 and 510. We have sold over 100 sets of axles globally, with customers installing and enjoying them on everything from street cars to full-blown IMSA racers. These CV axles will help transmit power to the ground and ensure smoother operation compared to your standard half shafts. Full details below:



For years we have used aftermarket CV axles that utilize an aluminum adapter prone to loosening up over time. Despite efforts to keep things tight (Loctite, hardware changes) we had to keep an eye on them. We developed a better solution that eliminates the need for aluminum adapters and remains 100% bolt-in like a factory half-shaft.




Designed and manufactured locally with KAD Models, the ZCG CV axle kit works in both R180 and R200 configurations.






These are the beefiest CV axles on the market. They have been tested on the track by our vintage racing customers and also in high hp* street cars (powershifting, clutch dumps, etc.). Each axle has a serial # for peace of mind:



The CV axle kit is available now from ZCG for 1595.00 + freight and they come with everything you need to install on your car. Contact us at 408-452-0350 or send Rob an e-mail rob@zcargarage.com to purchase. Installation is just like doing a half-shaft: there is even a marking that shows you where to line up bolts and special hardware:



The ZCG CV Axles in action

The video below demonstrates the “looseness” associated with aftermarket CV axles that use adapters compared to the ZCG axles without adapters. Several customer race/street cars running our CV axles are also shown. Enjoy!



S30 and 510s running the ZCG CV axles



Randy Jaffe’s #46 BRE Datsun 240z received the very first set of ZCG CV axles: Serial # S30-000240!



The Bluebird SSS Coupe and Hakosuka Skyline are both running ZCG CV axles on the race track:





Race car driver and restoration specialist Jim Froula of Racecraft is running ZCG axles in several of his cars:

Set #246 – installed May 2018 on the “Harry Stewart #52” Datsun 510:




Set #247 – installed April 2018 on the 260z




Set #248 – will be installed on Adam Carolla’s “Greg Sorrentino #90” Datsun 510. We are pleased to report that Jim will also be installing a set on his “George Alderman #32” 300ZX! The ZCG CV axles are also perfect for high hp street cars. The following customer cars are all running our CV axles now:

Frank B’s fuel-injected, 6-speed stroker L-series:




Gary’s 430whp LS3-powered 280z:




Scott W’s EFI stroker L-series:




James S’ L28ET:




Brian’s 1972 240z:

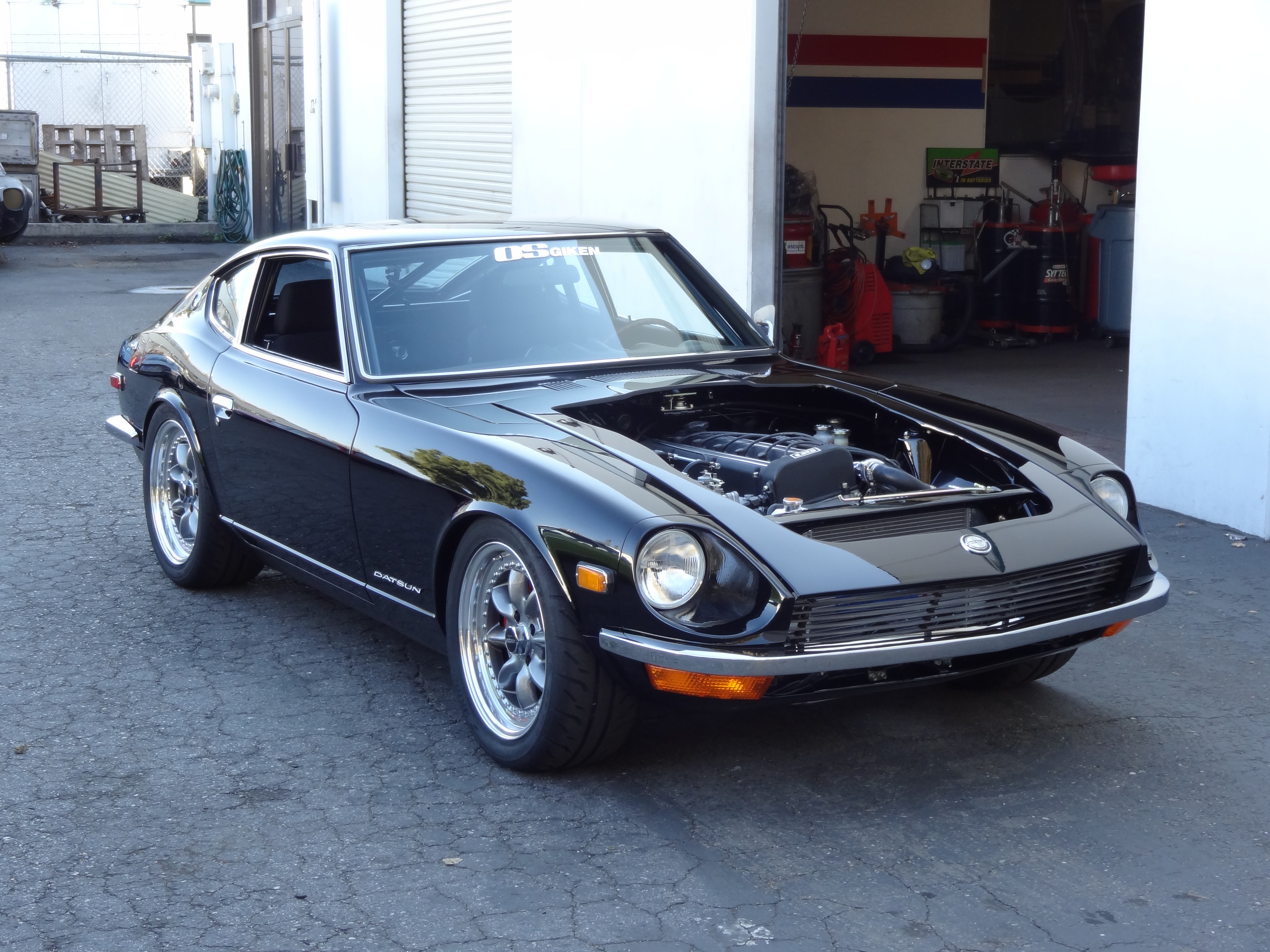

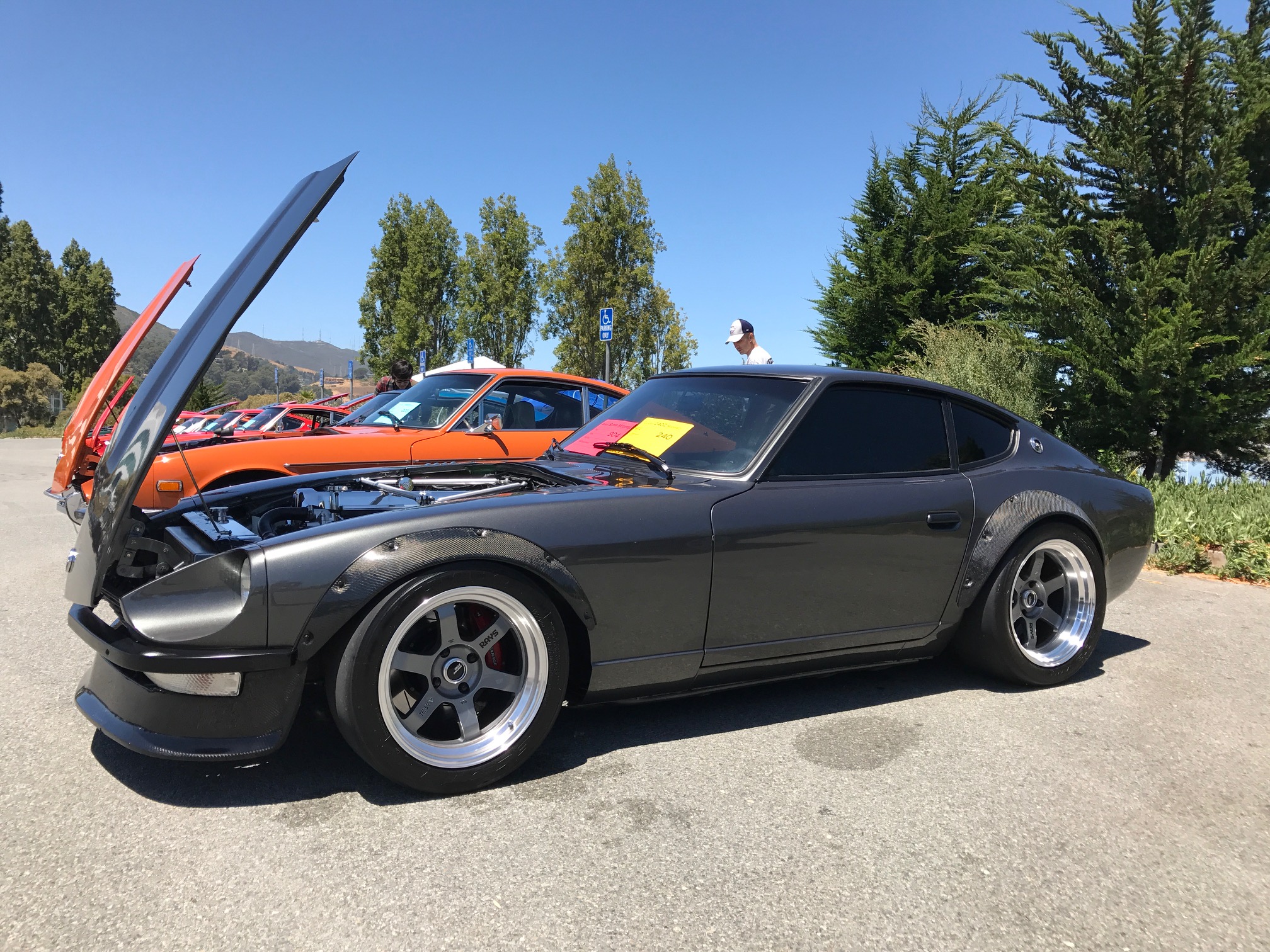

Finally, Gary’s “Behemoth”  OS Giken TC24B1Z powered S30:

Technical Information:

The Z Car Garage axles were designed to help remove much of the backlash aka clunk seen in many older vehicles. Modern technology has given us the ability to create a set of axles to exacting standards. We started with a high quality set of CV joints that were found to be the most consistent in both major and minor spline diameters. We then began to design the axle itself to share the same tight tolerances. We are holding a +/- .01mm diametric tolerance on both the inner and outer spline diameters. This gives us the feeling of direct connection between differential and wheel. The axle shaft major diameter was increased to 30MM to give owners a bit of added comfort in knowing the main shafts are stout. Once the axles are splined they are then heat treated to obtain the desired harness. After heat treat the axles are then nickel plated to add corrosion resistance. The inner and outer flanges are made from 316 stainless steel and mate to the CV joints with tapered alignment surfaces to ensure concentricity is maintained throughout the axle thus reducing vibration. The inner flange attaches to the stock R series differential utilizing the Nissan factory hardware. The outer flange attaches to the driven stub with bolts specifically designed and manufactured for the Z Car Garage axle installation kit. These bolts are manufactured to grade 12.9. All ZCG axles are manufactured locally which helps us maintain the fitment and quality we require.

Materials

Axles : Hardened AISI/SAE 4340 Alloy Steel, 4340 is a nickel-chromium-molybdenum alloy steel

Drive flanges: 316 stainless steel, Type 316 steel is an austenitic chromium-nickel stainless steel

Outer Flange Bolts: Hardened 4140 Alloy Steel , AISI or SAE 4130 grade is a low-alloy steel containing chromium and molybdenum as strengthening agents









At Z Car Garage we love keeping Z’s on the road. From concours-level restorations to light refurbishments, making a customer’s goals reality is our passion. Richard Y’s 1970 Datsun 240z is a great example of an S30 that has been maintained and restored by us for over a decade. We met him years ago when Rob was working at Scott Performance. In 2004, when we bumped into Richard at Tan’s car wash in Santa Clara he didn’t realize that Rob stayed local, opening ZCG. He brought his Z to us thereafter and we maintained it for the last 15 years.



In addition to being a great person and a working professional, Richard daily-drives this Series 1 240z. He is also a purist of sorts, not wanting large wheels and tires, a high-power engine or fancy brakes. His desire is to explore, drive, love and touch the Series 1 car as it was back in the day. In 2011 Richard decided it was time to give his Z some love, and the refurbishment was performed with his “vintage” preferences in mind. A few ZCG touches were added along the way.

Interior

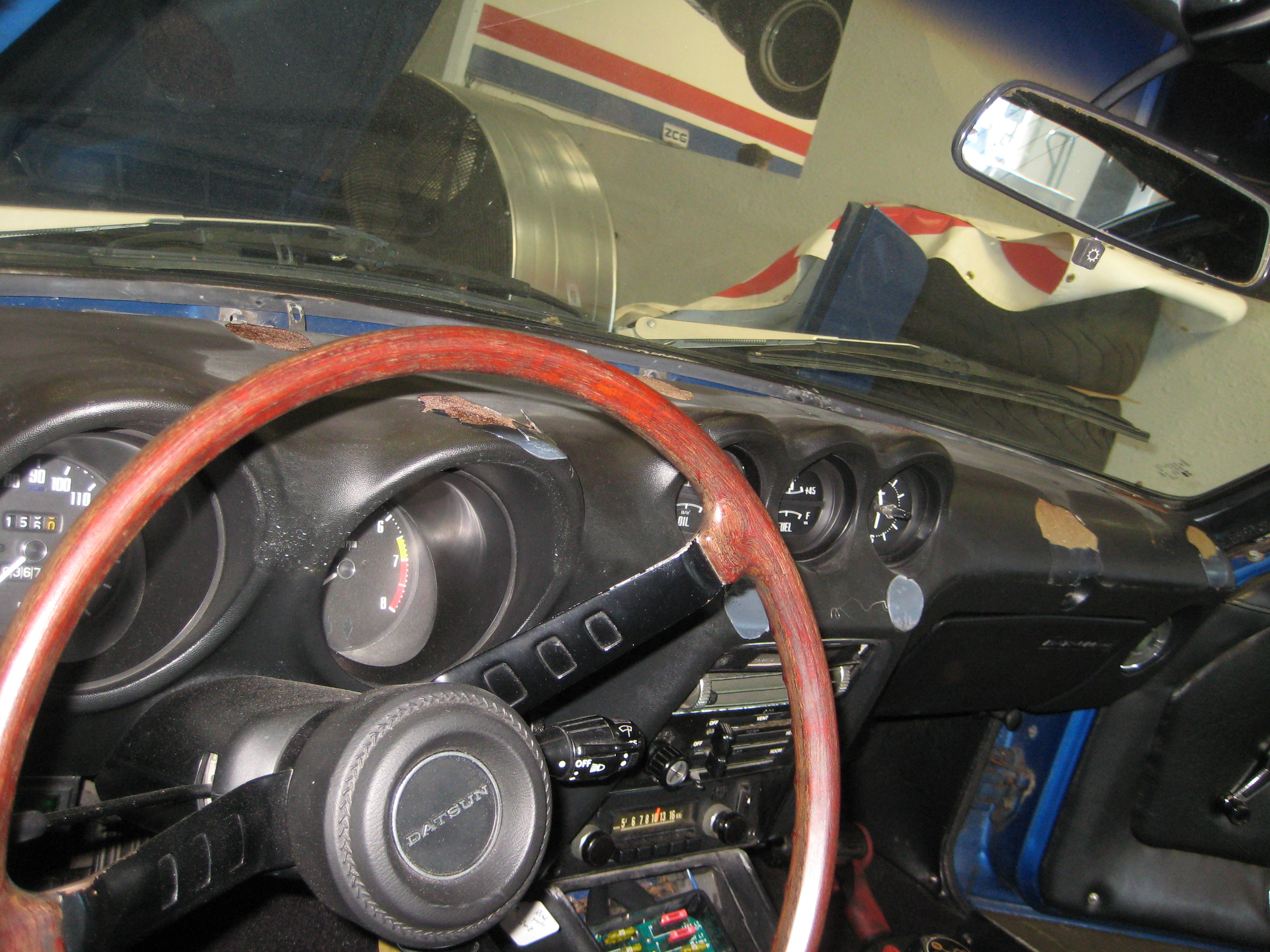

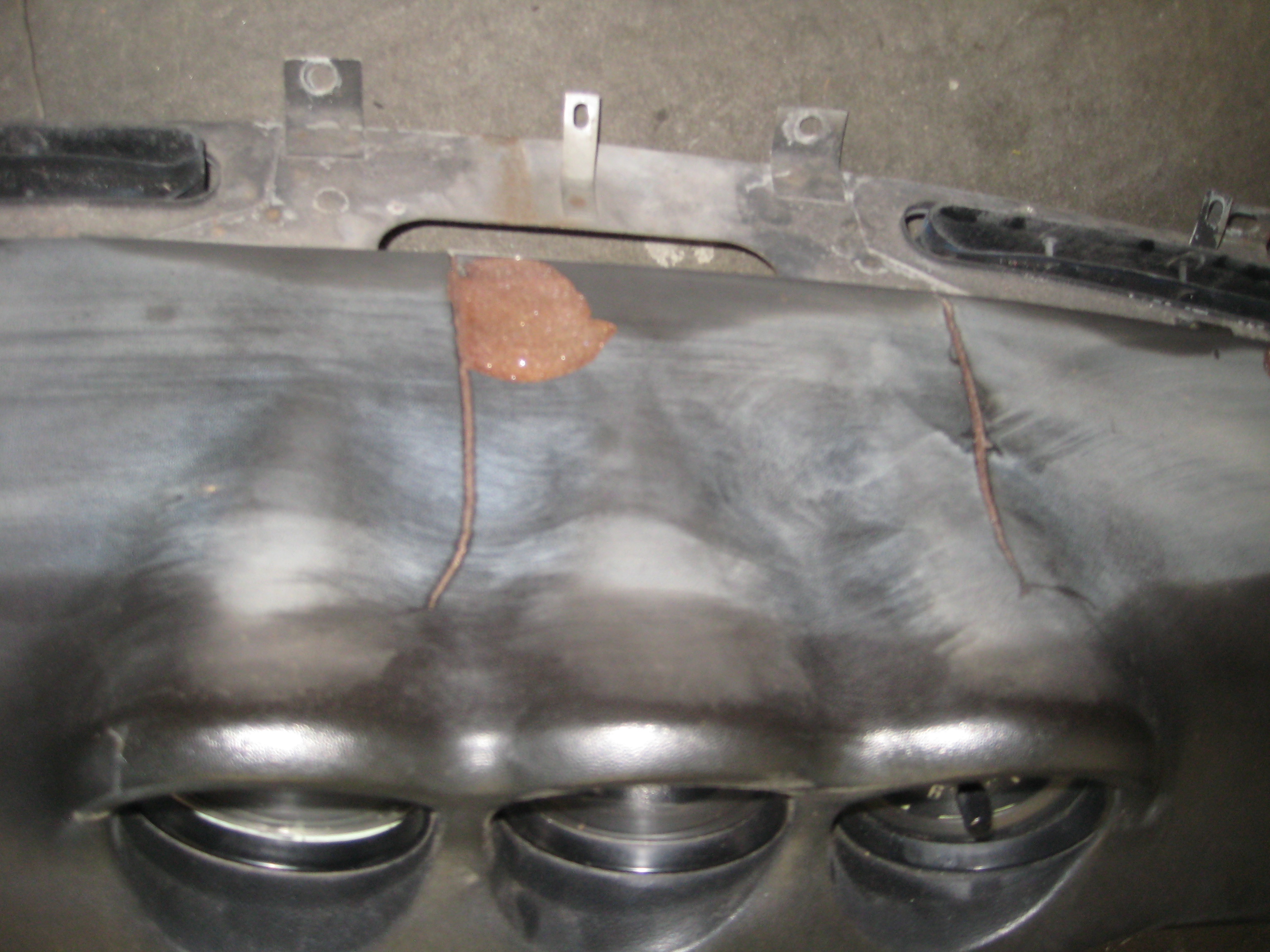

Part of enjoying the daily-driving experience comes from a functional, pleasant interior. The dash was previously covered with a cap, having multiple issues underneath. We removed the dash and had it re-conditioned by Dash Restoration:

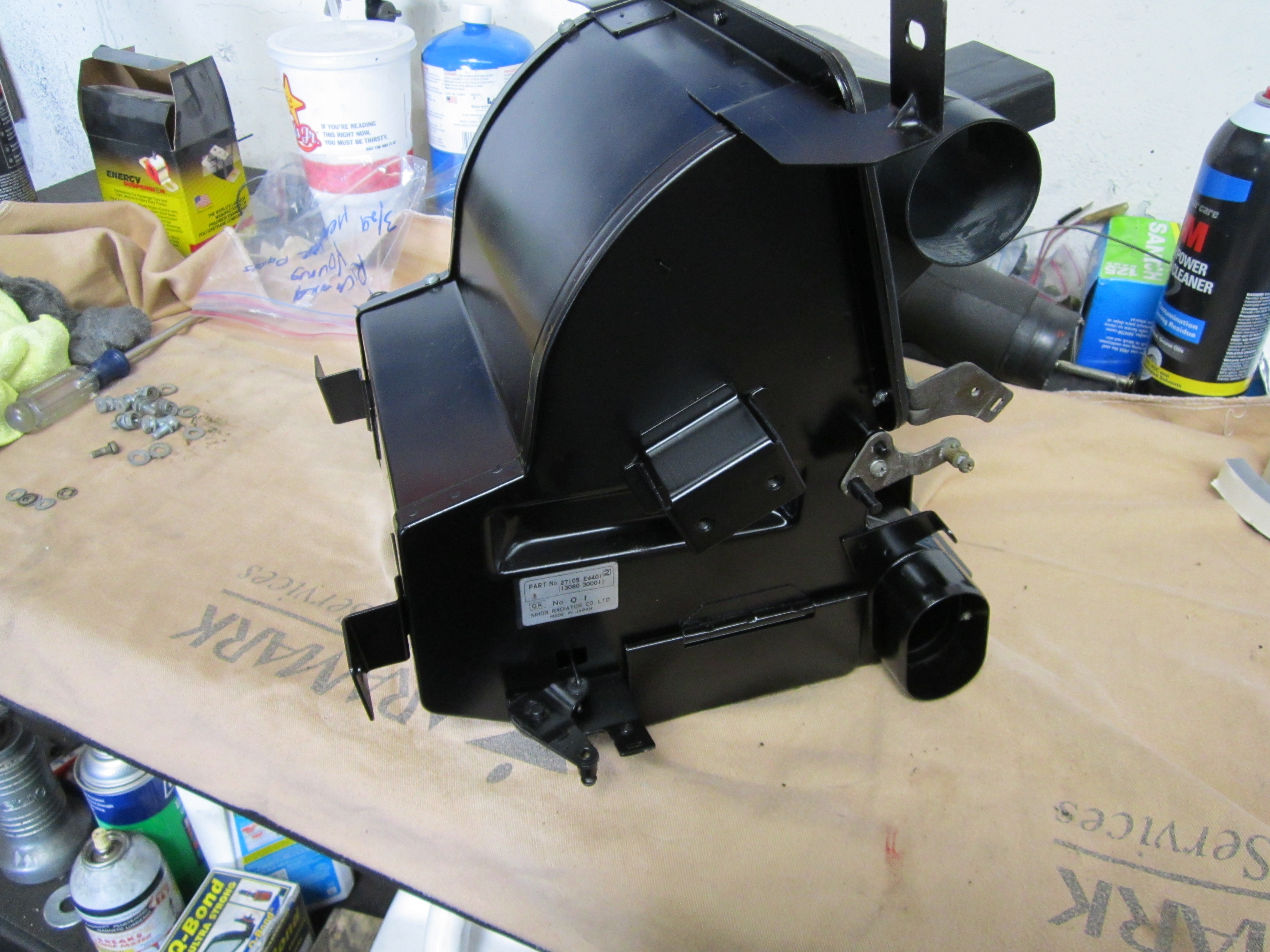

While the dash was out we refurbished the entire heater assembly. The heater core was cleaned and pressure tested.

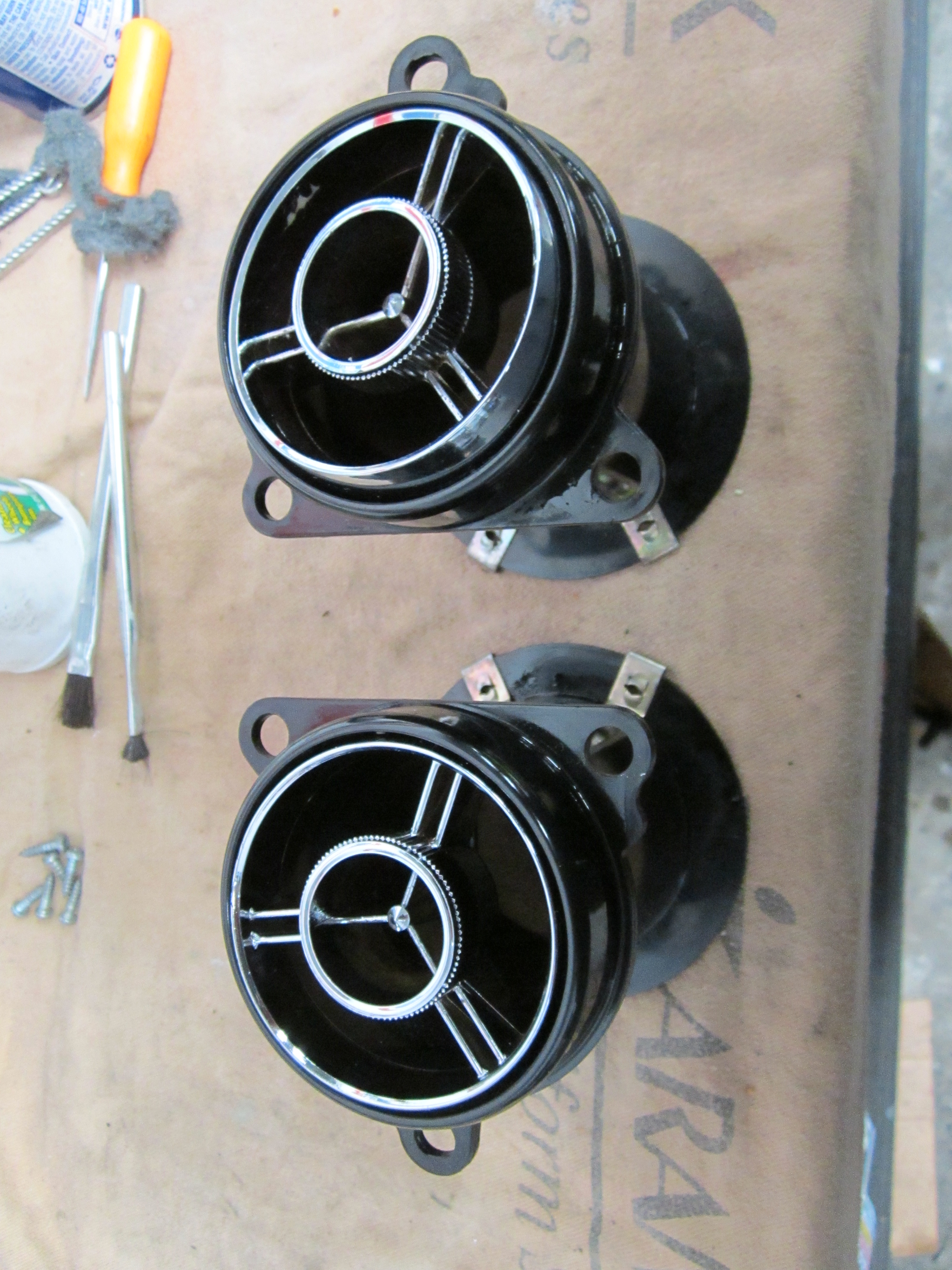

All duct-work was resealed to allow full HVAC function including defrost at max settings. A Honda fan upgrade allows faster air flow and all cable/actuator linkages were re-done:

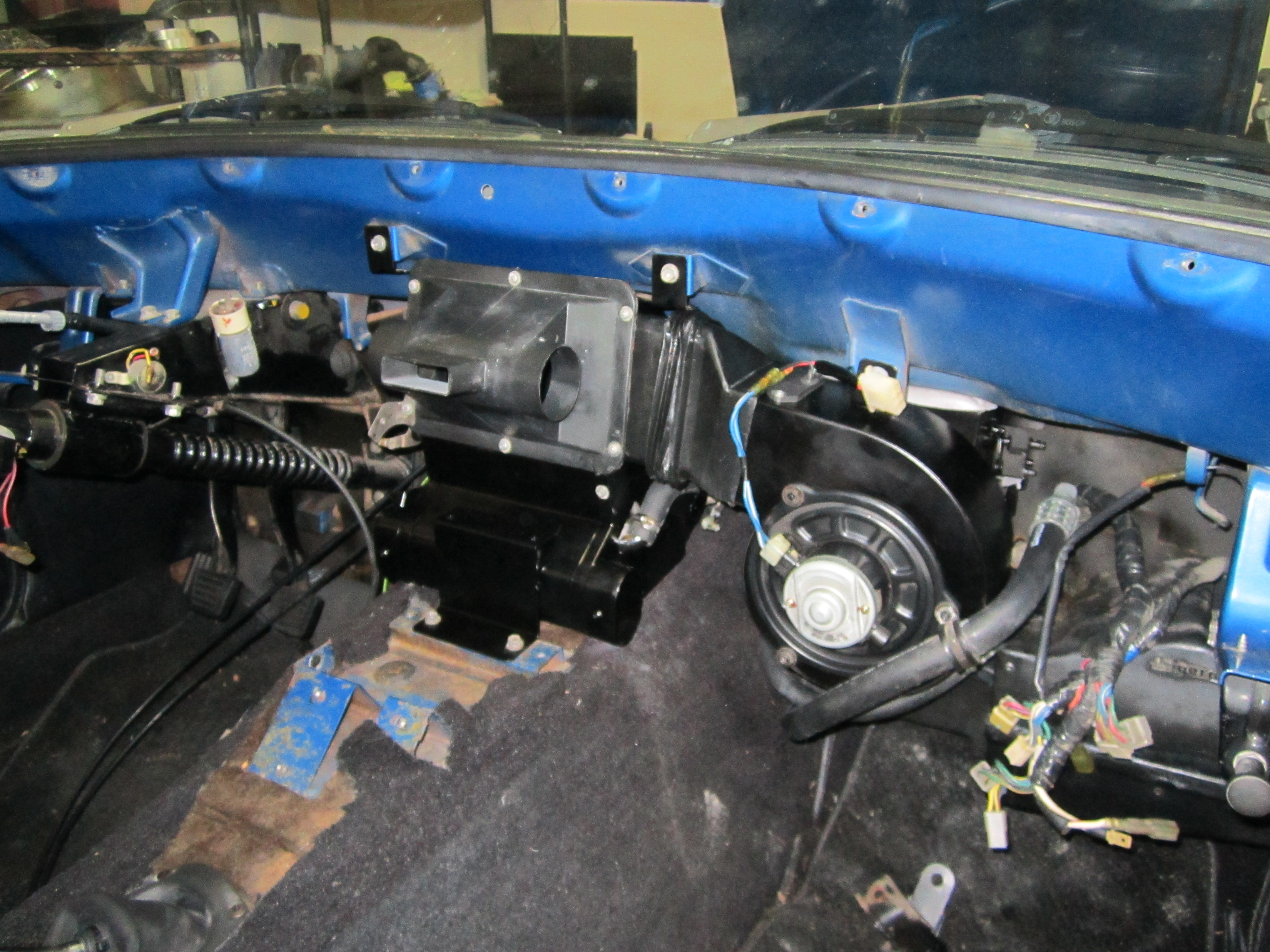

Heater /motor back in place:

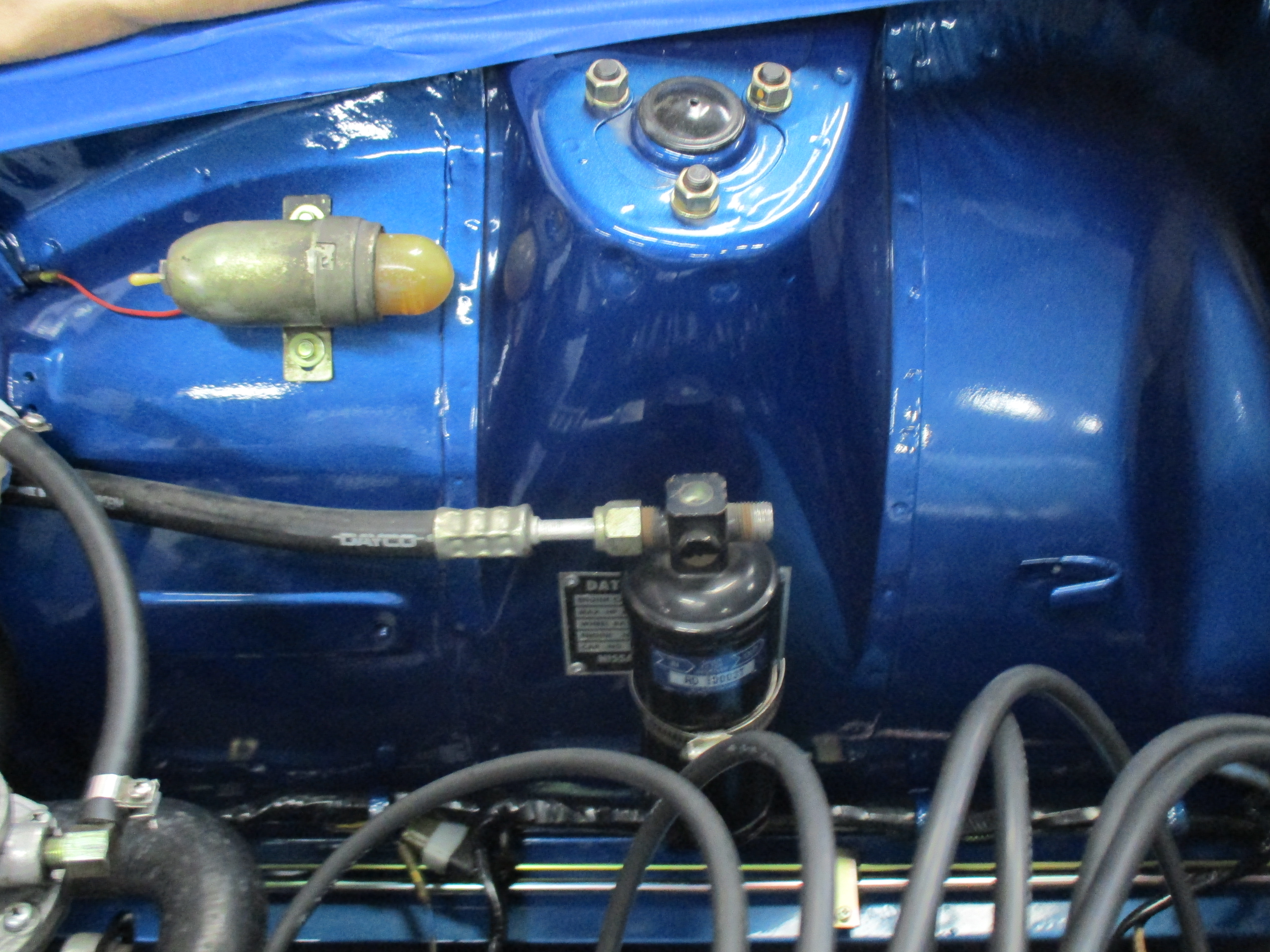

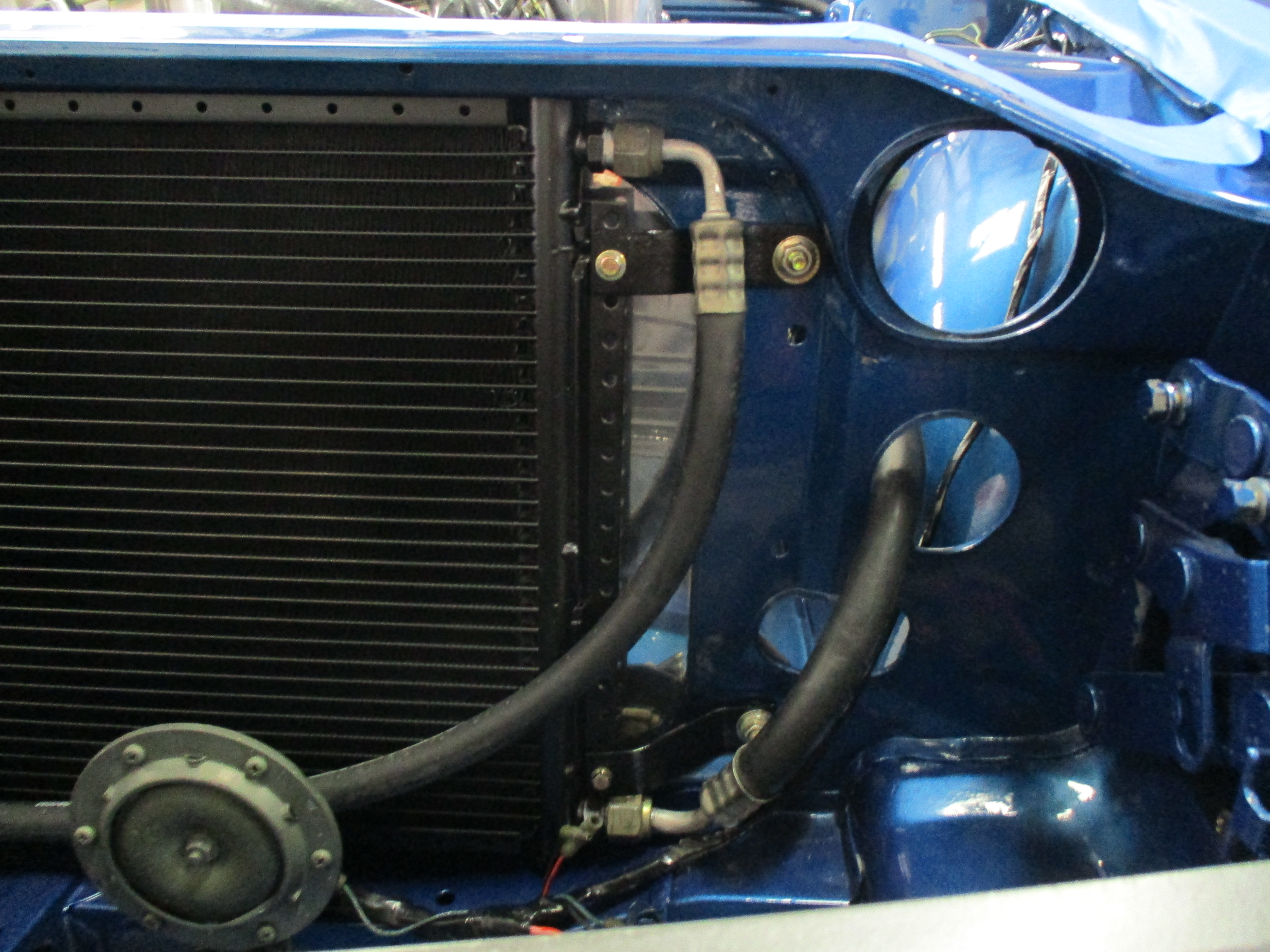

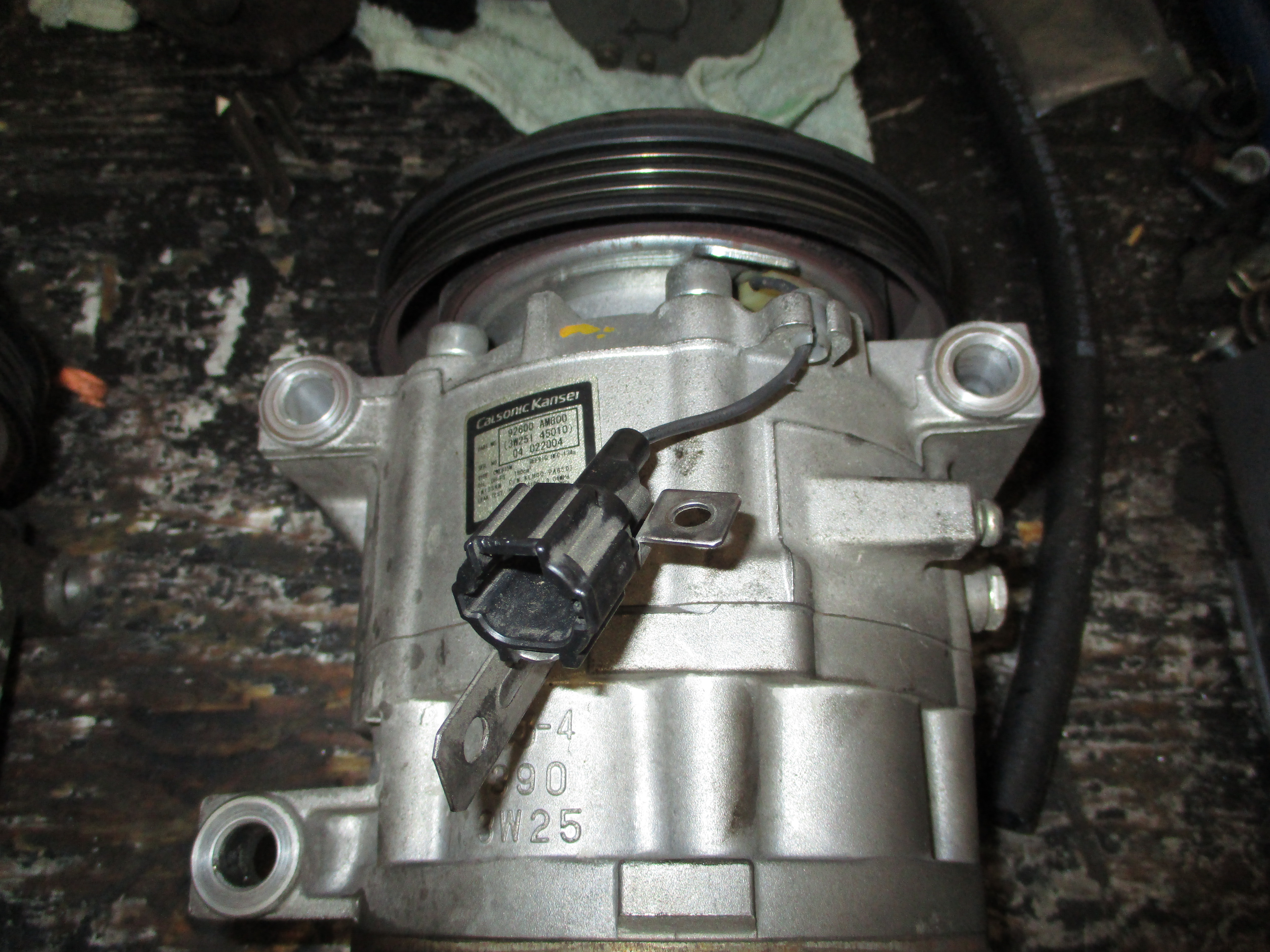

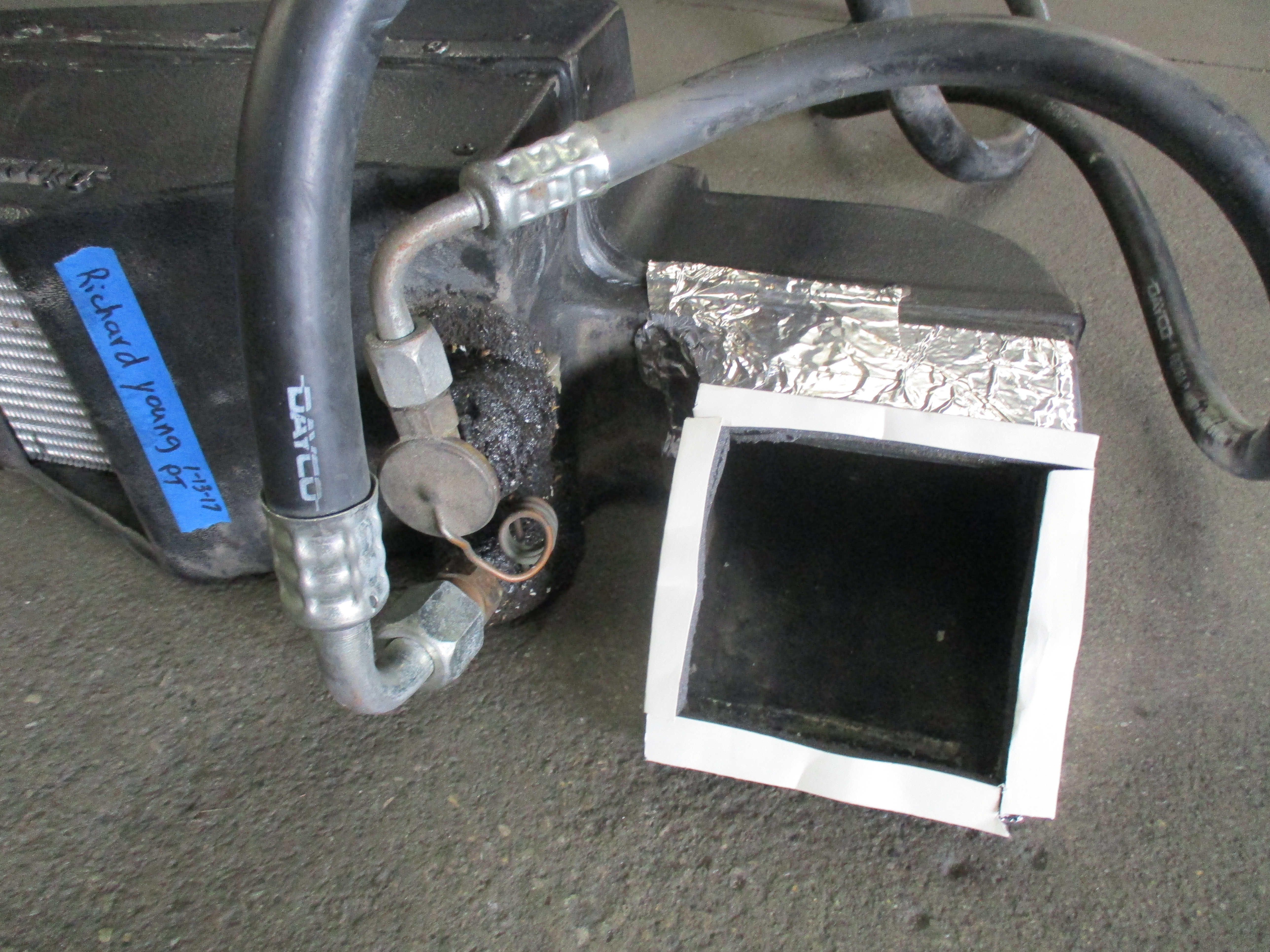

We finished restoring the HVAC by getting the vintage A/C unit functioning again. New condenser and lines:

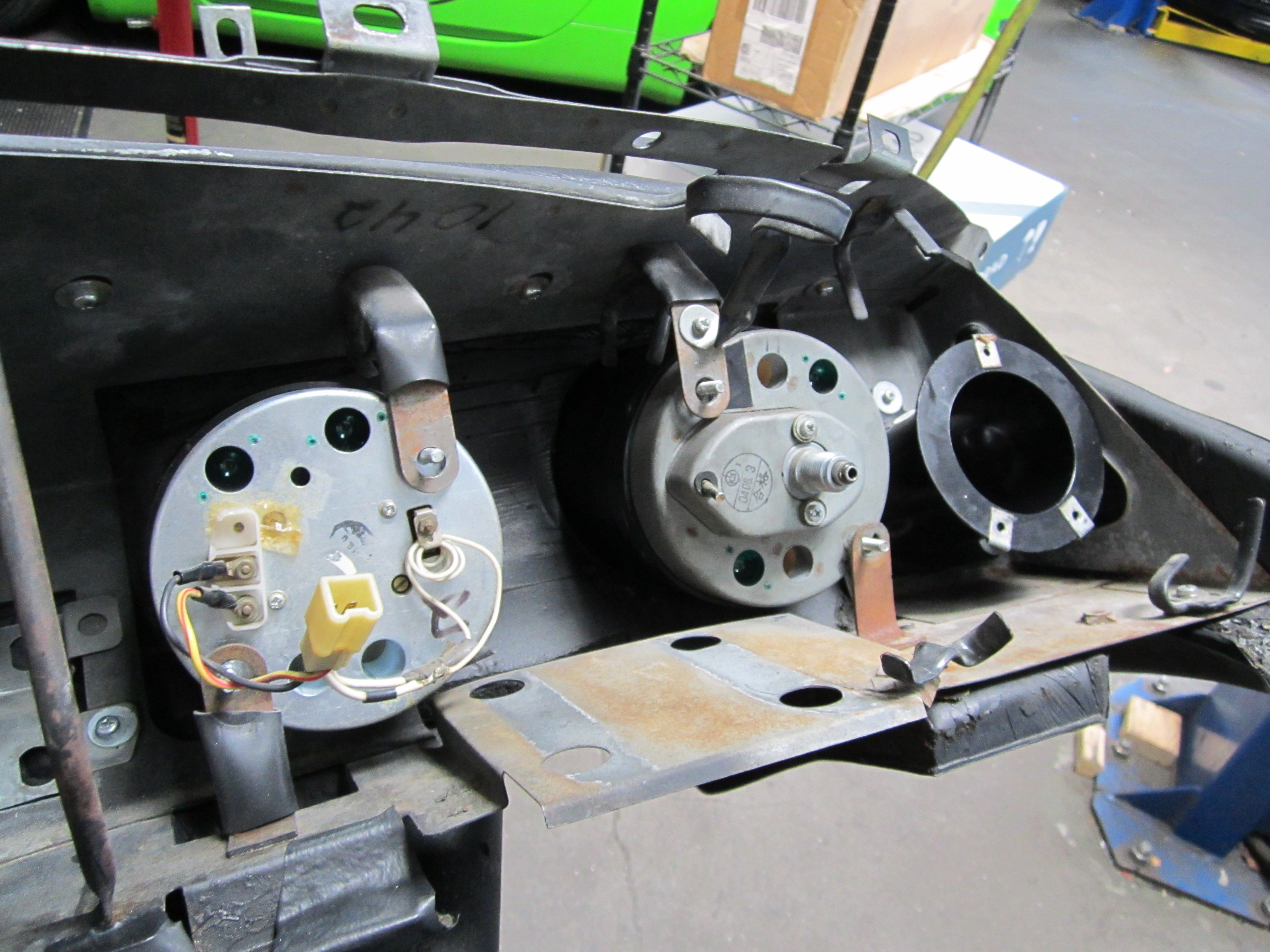

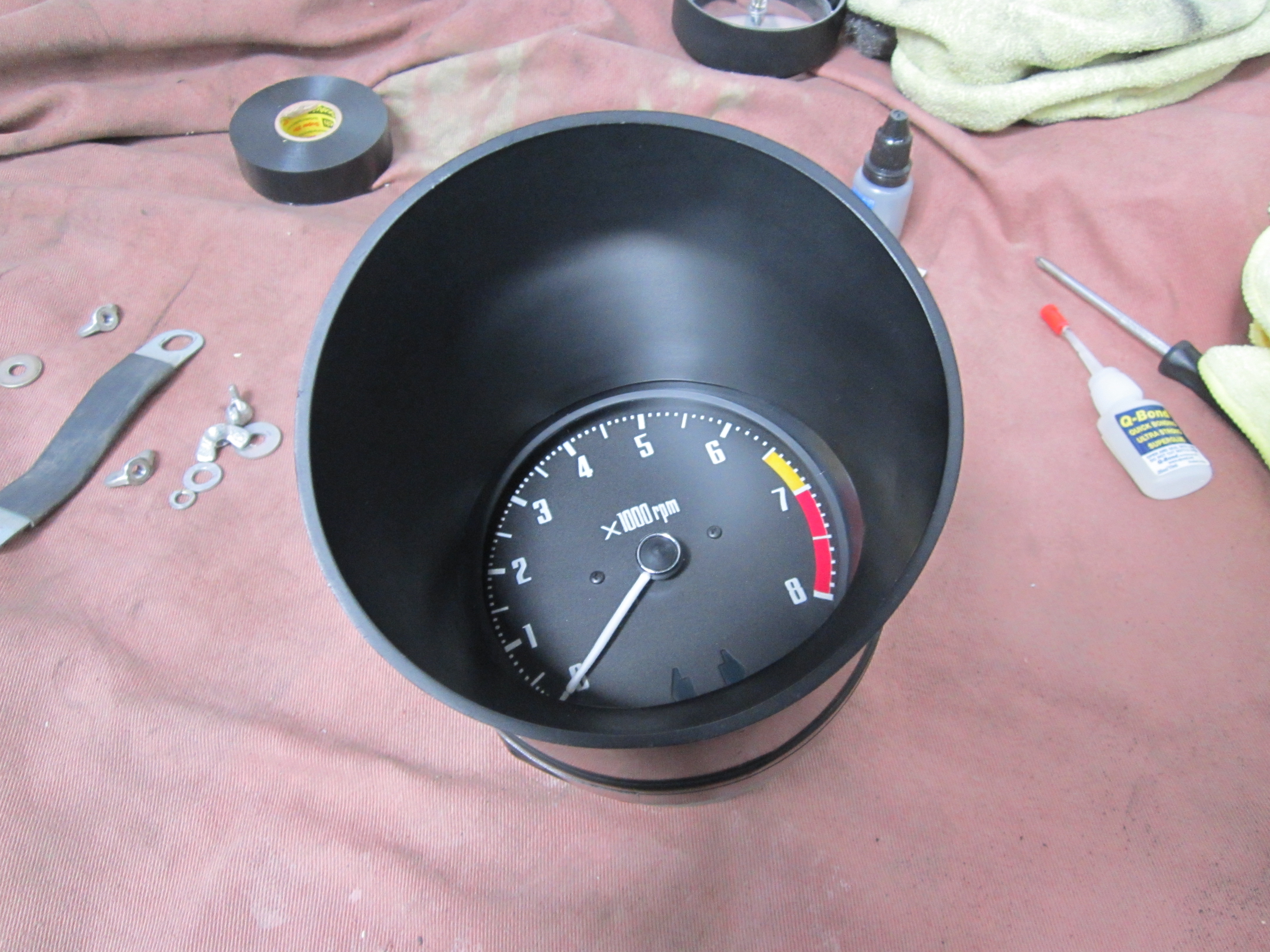

Once the new dash returned we started re-assembly. All hardware was replaced and gauges were tested for proper operation:





A host of rare, NOS factory parts from Rob’s stash helped complete the dash. Series 1-specific parts like the map light trim and coin-tray were broken:

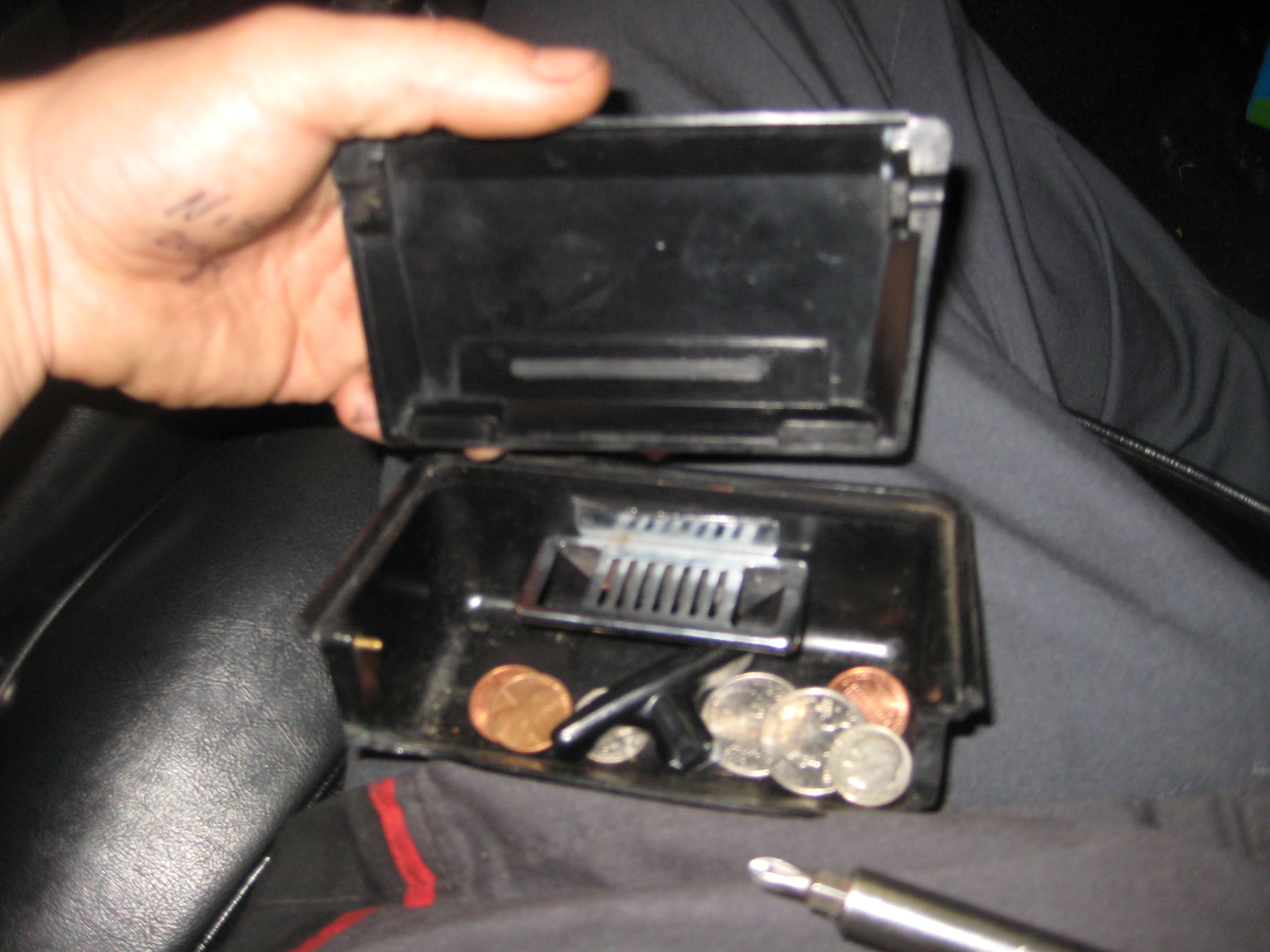

The NOS coin tray and map light trim installed:

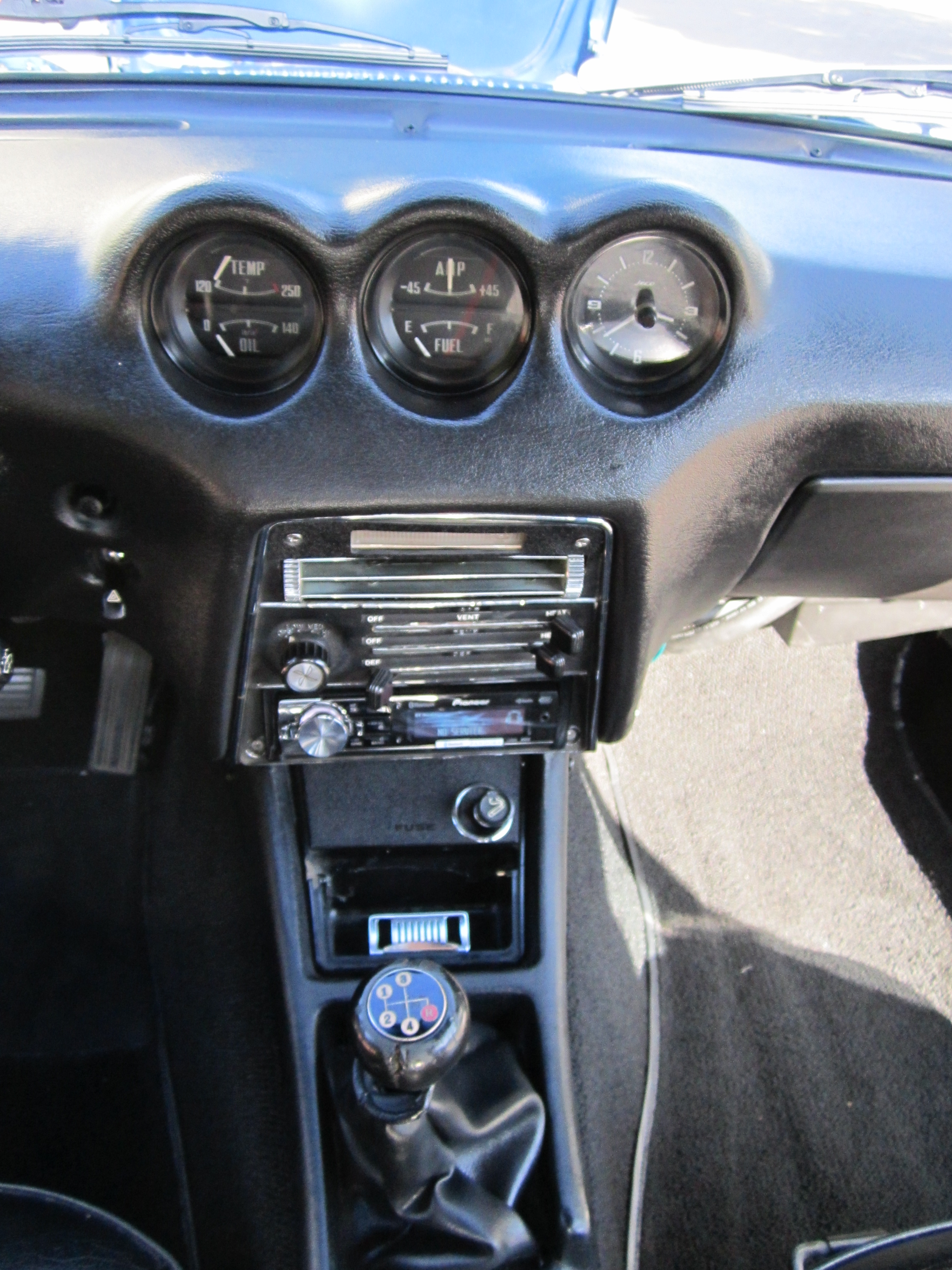

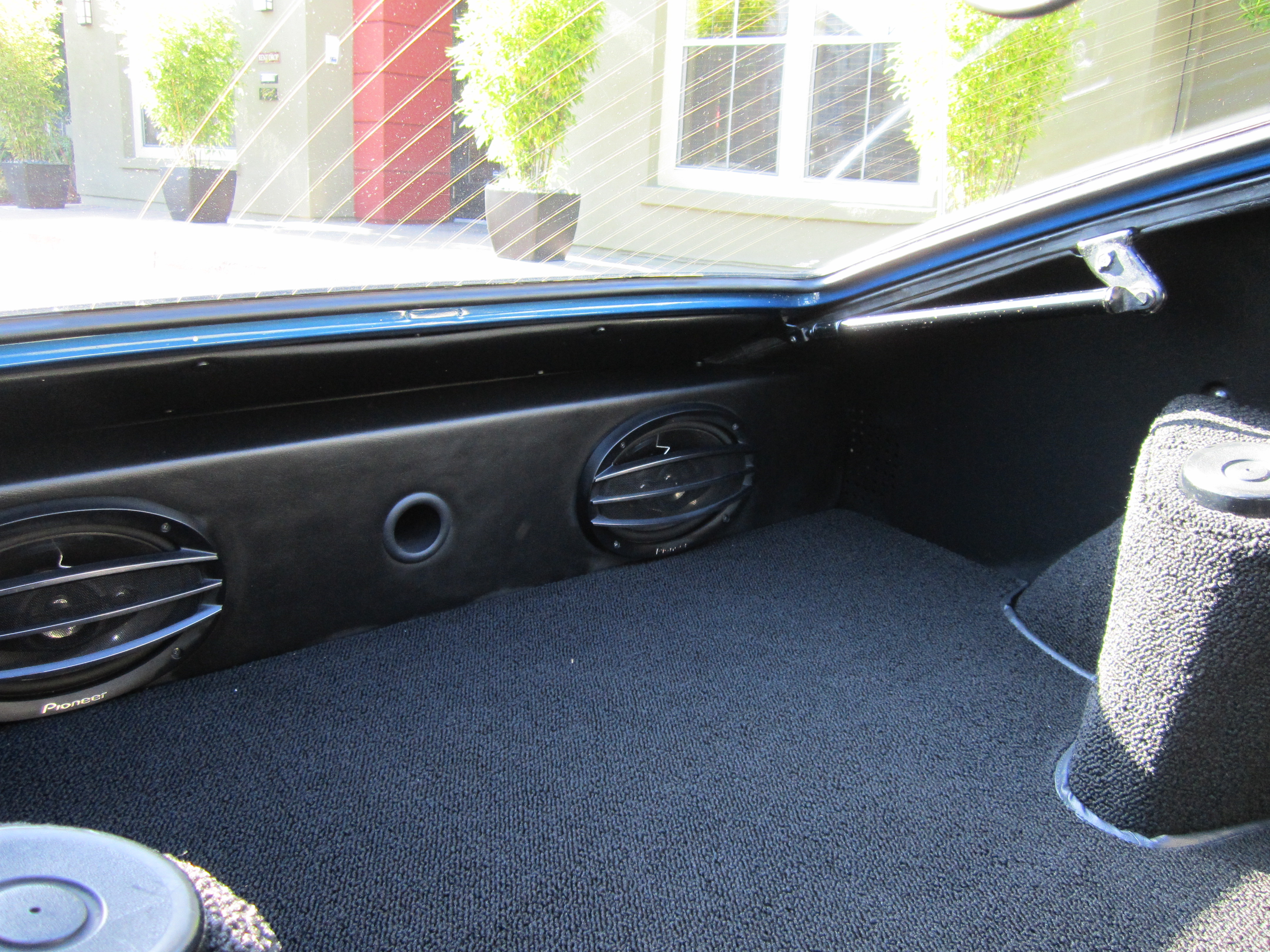

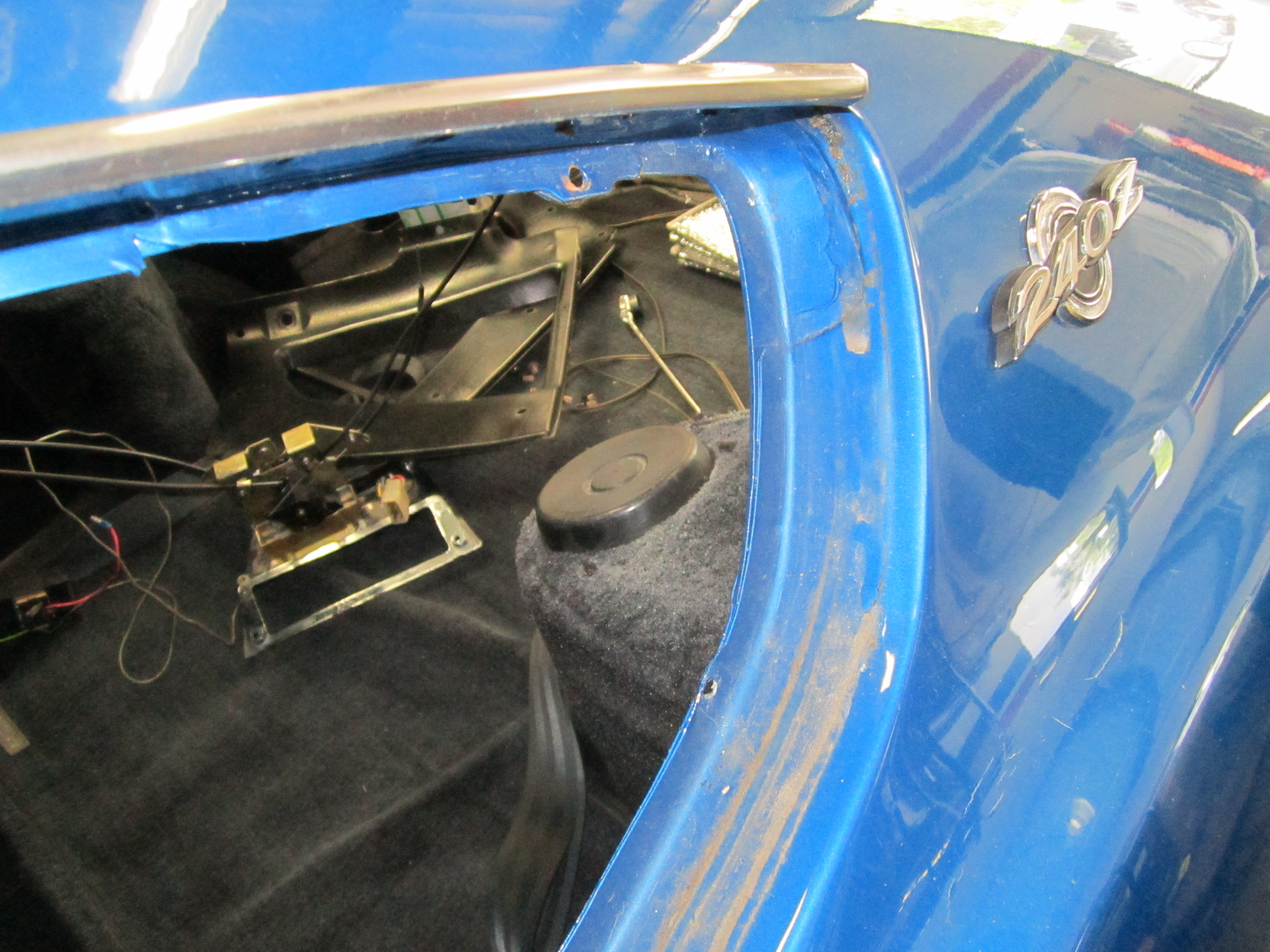

We updated the sound system with a modern head unit and hatch speakers:

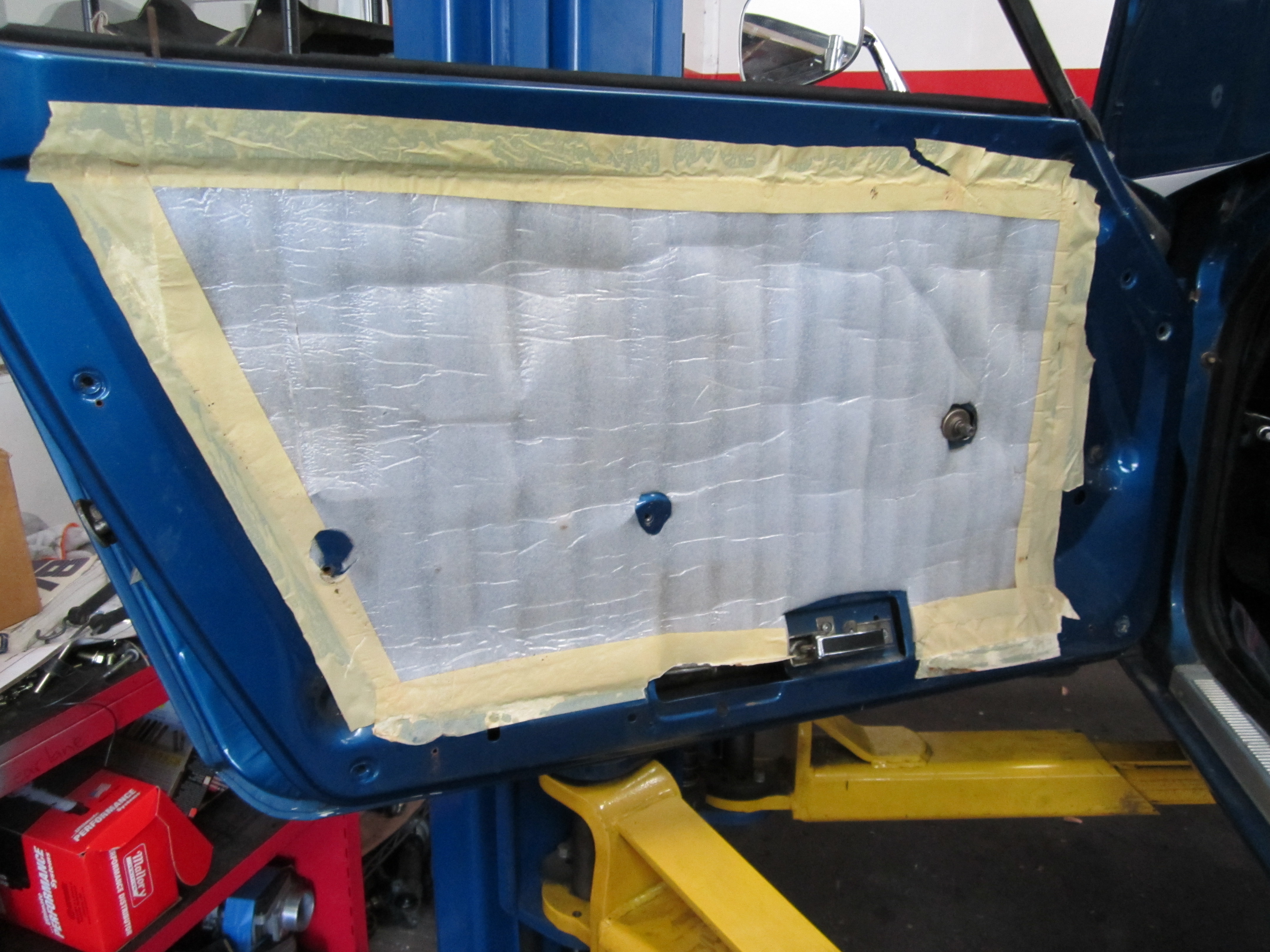

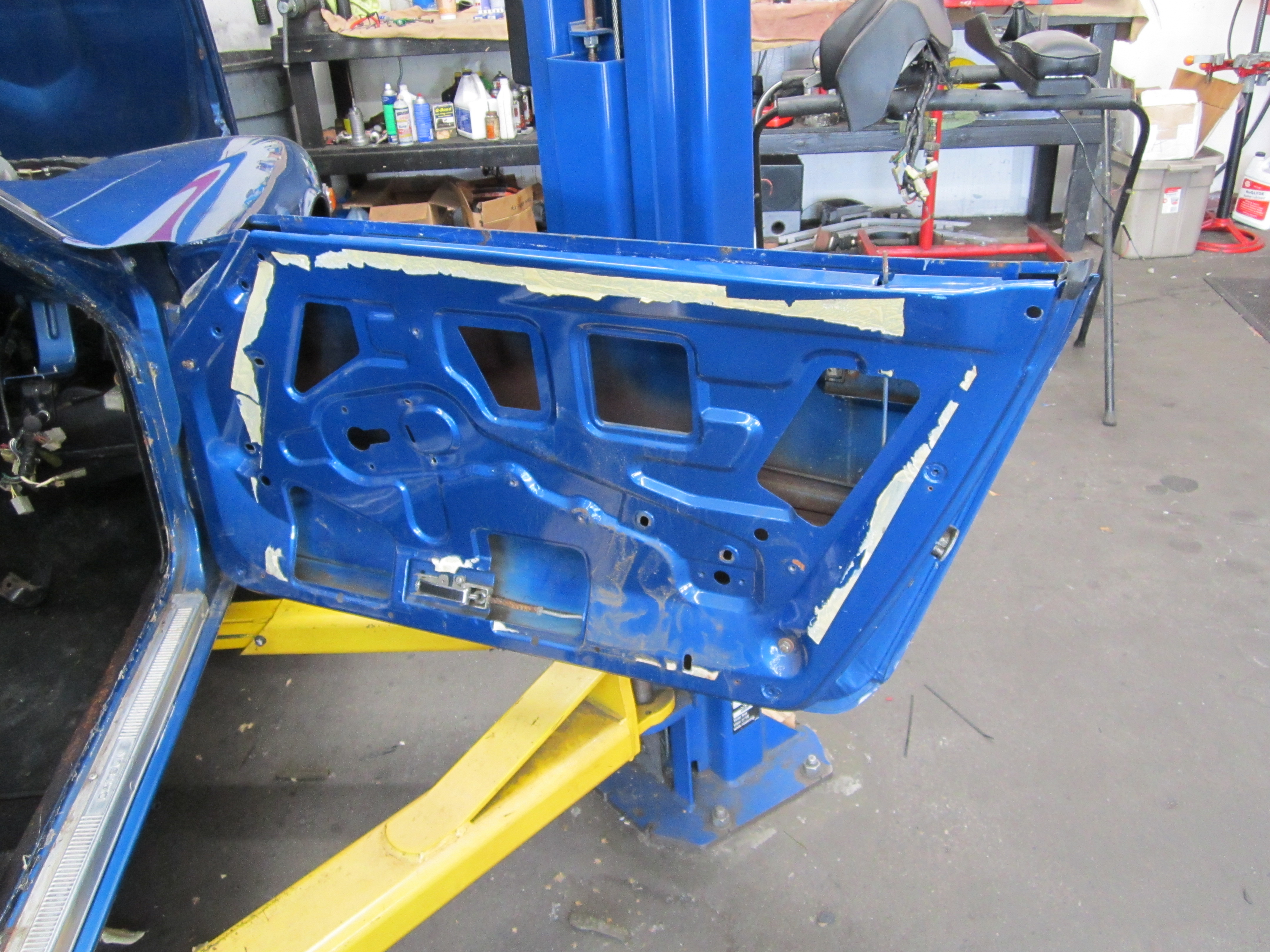

One of our favorite upgrades to the interior of an S30 is our ZCG sound deadening package. Usually found in our full-blown ZCG restorations, the result is a less tinny sound and almost Germanic-like “clunk” when you shut the doors.





Full weatherstrip replacement on the doors, hatch and windows. We also ensured that windows travel up/down smoothly:

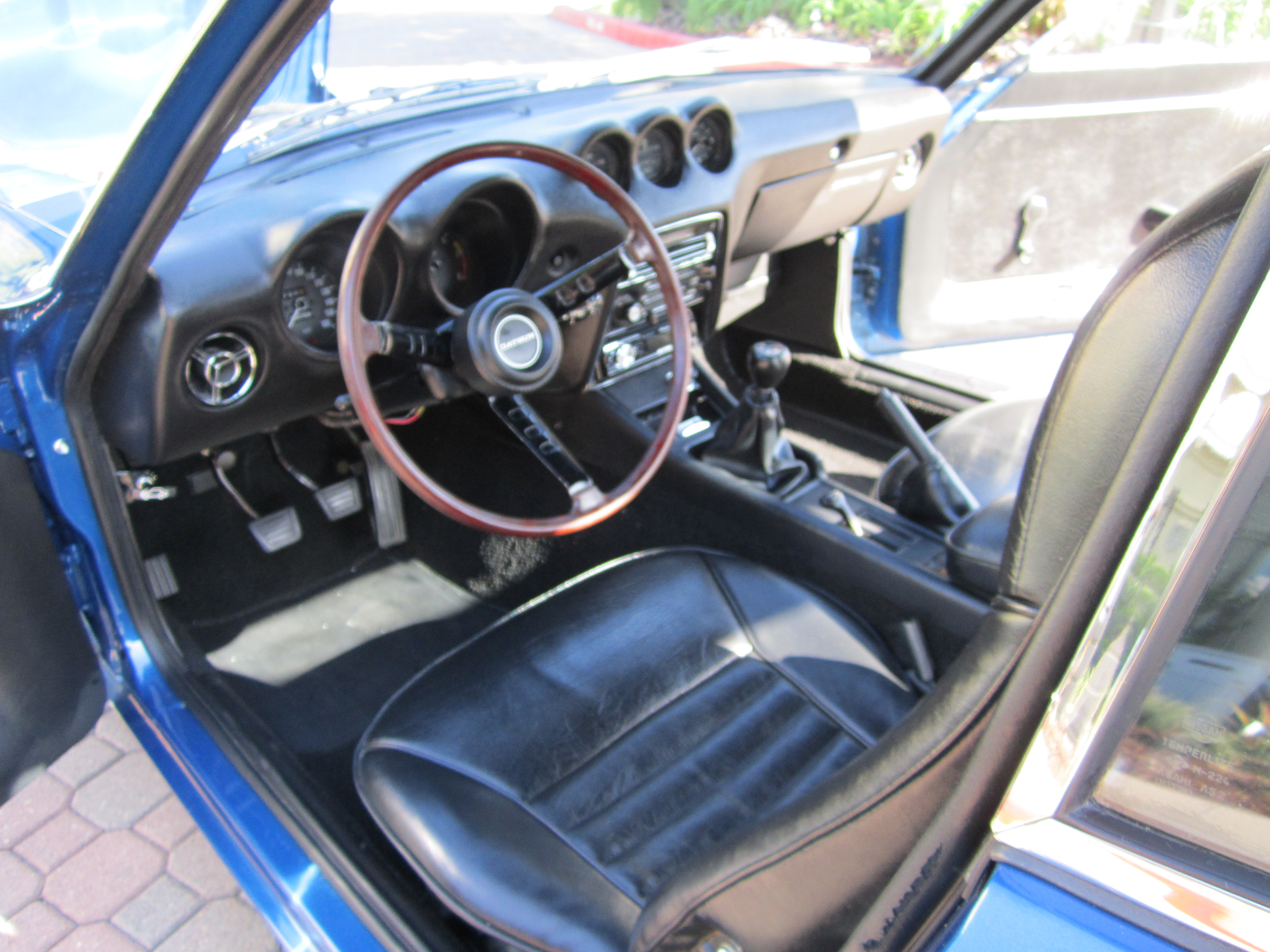

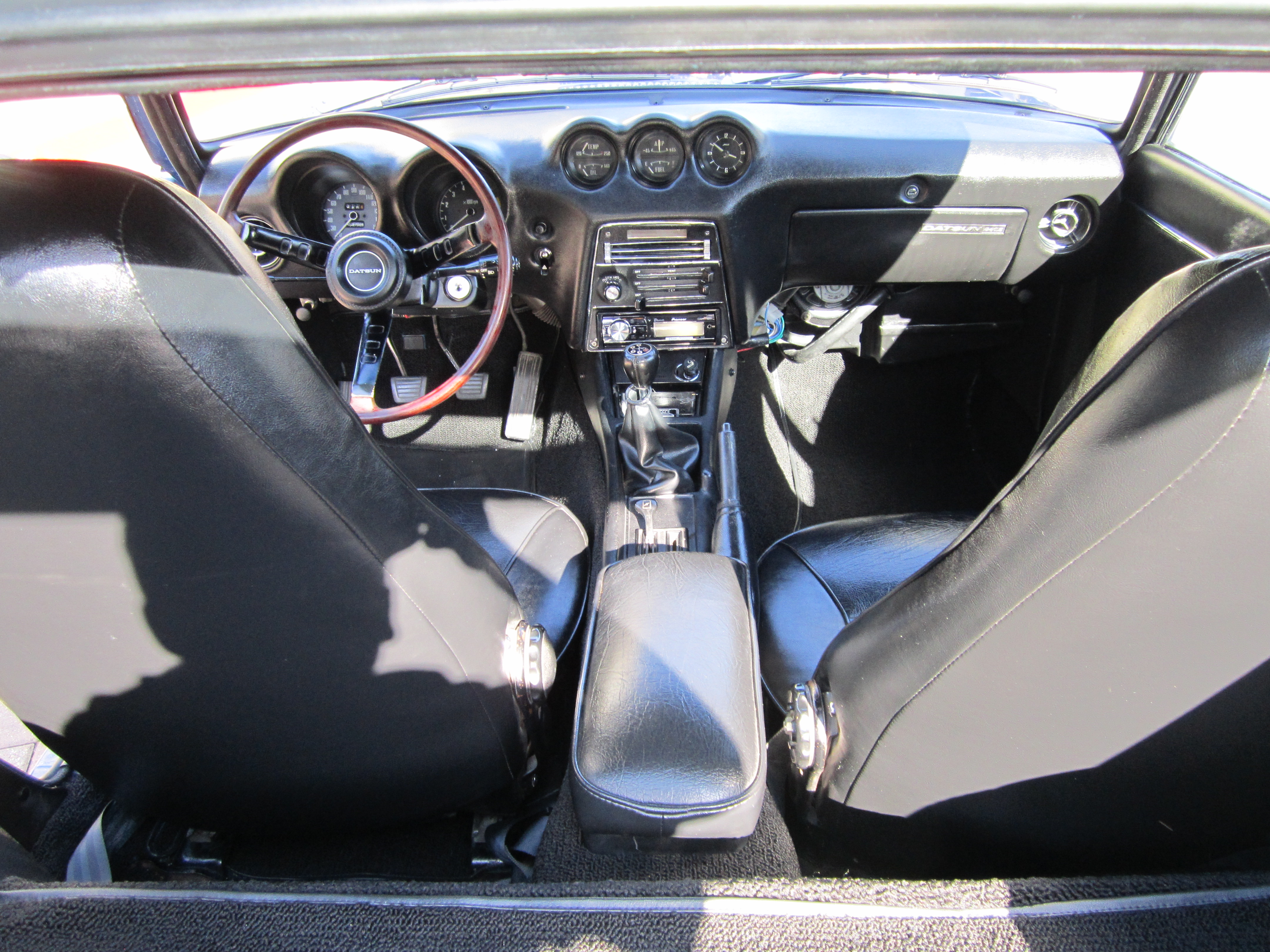

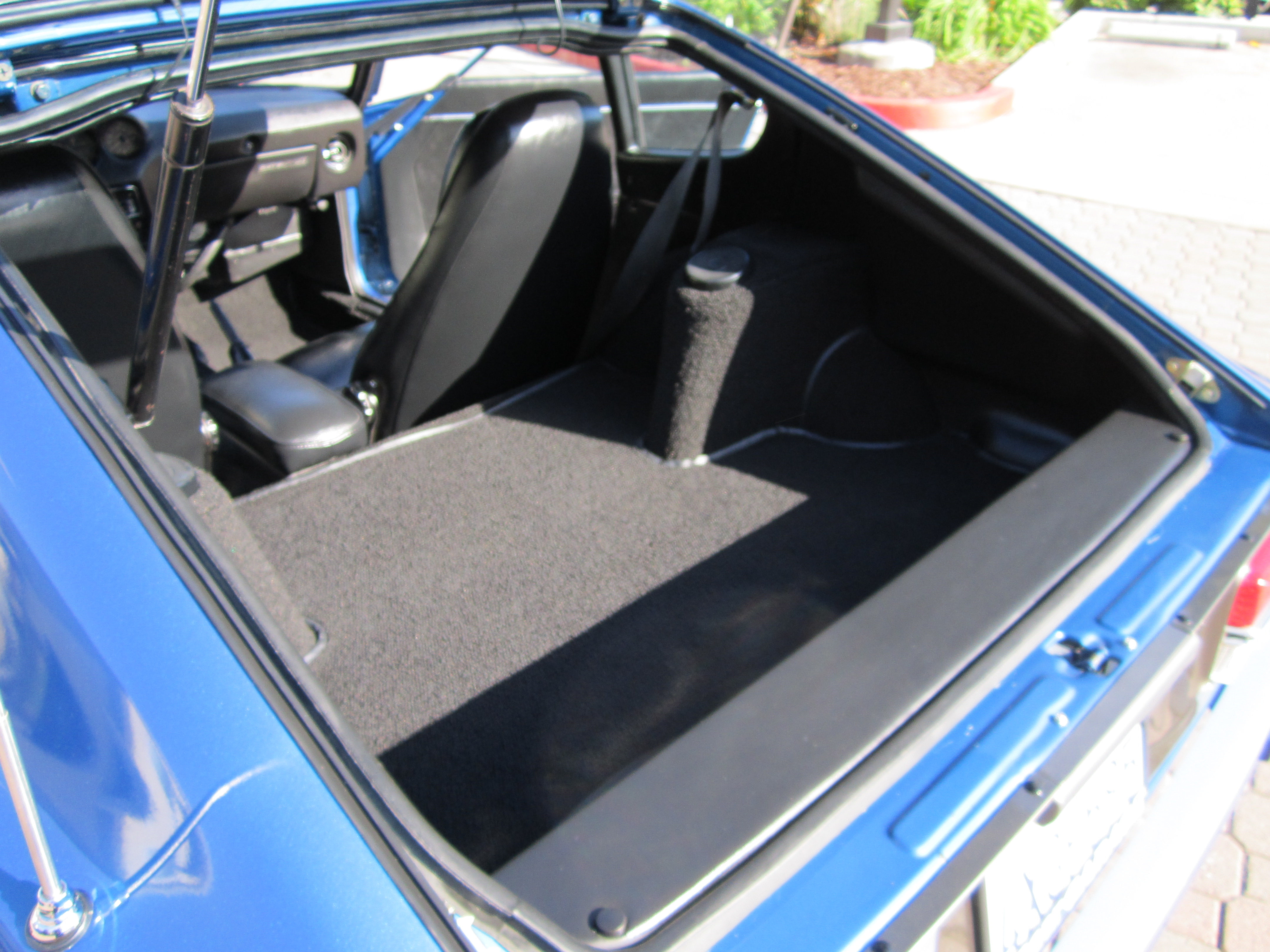

The finished interior. Ready for Richard to ready enjoy daily driving:

The Z Must Go On

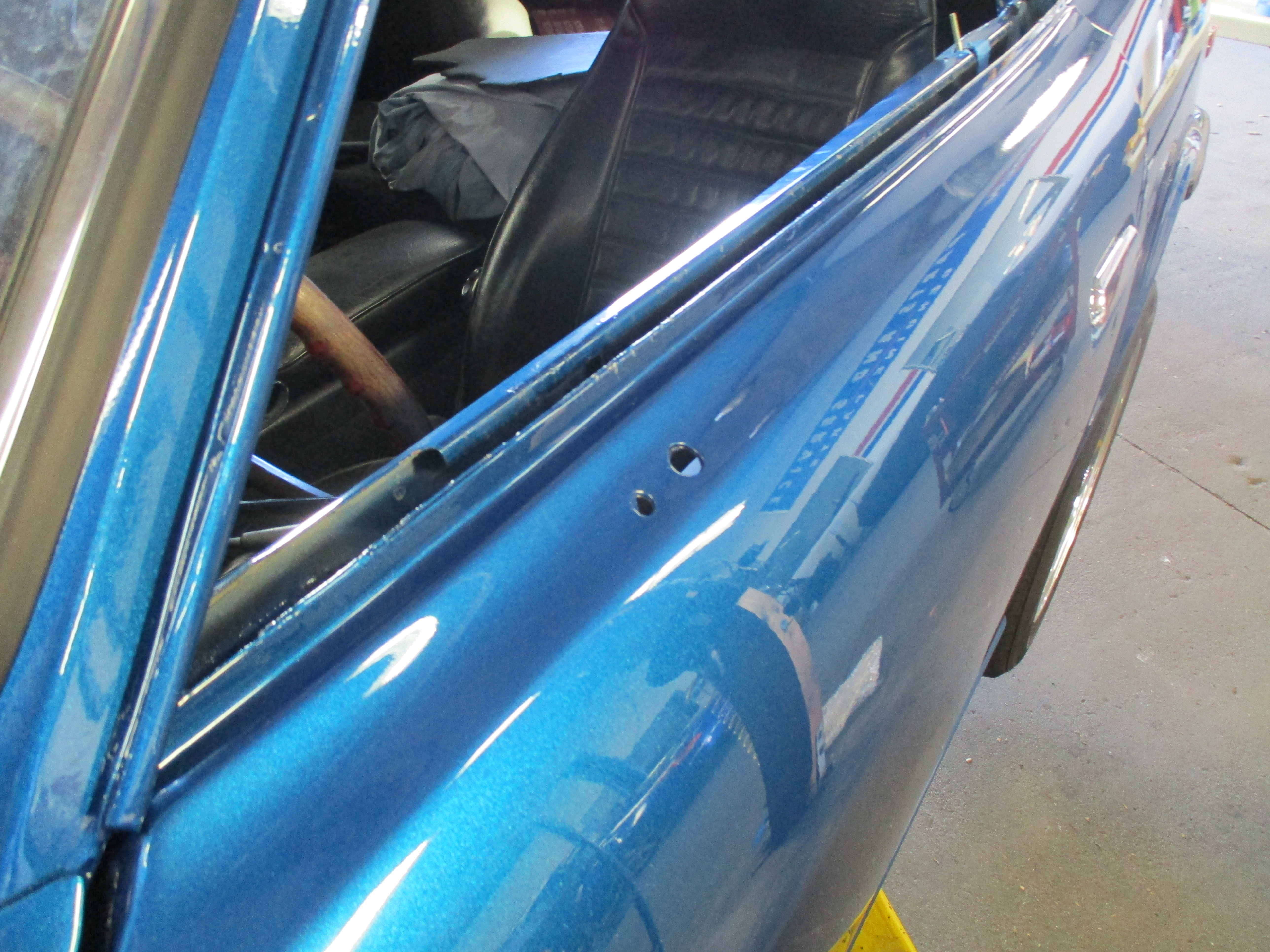

Our man William did some light paint work on car, as this was a “light” restoration and we didn’t want Richard missing his Z for an extended period.  Unfortunately in 2017 the Z suffered from a front end impact.

The car was hit bad enough that the appraisal house, Richard and all of us thought the car was totaled. Rob luckily had just acquired a Series 1 car as a donor. The front end was grafted on and William fabricated a new radiator support and front fenders to make car whole again.

Engine Bay

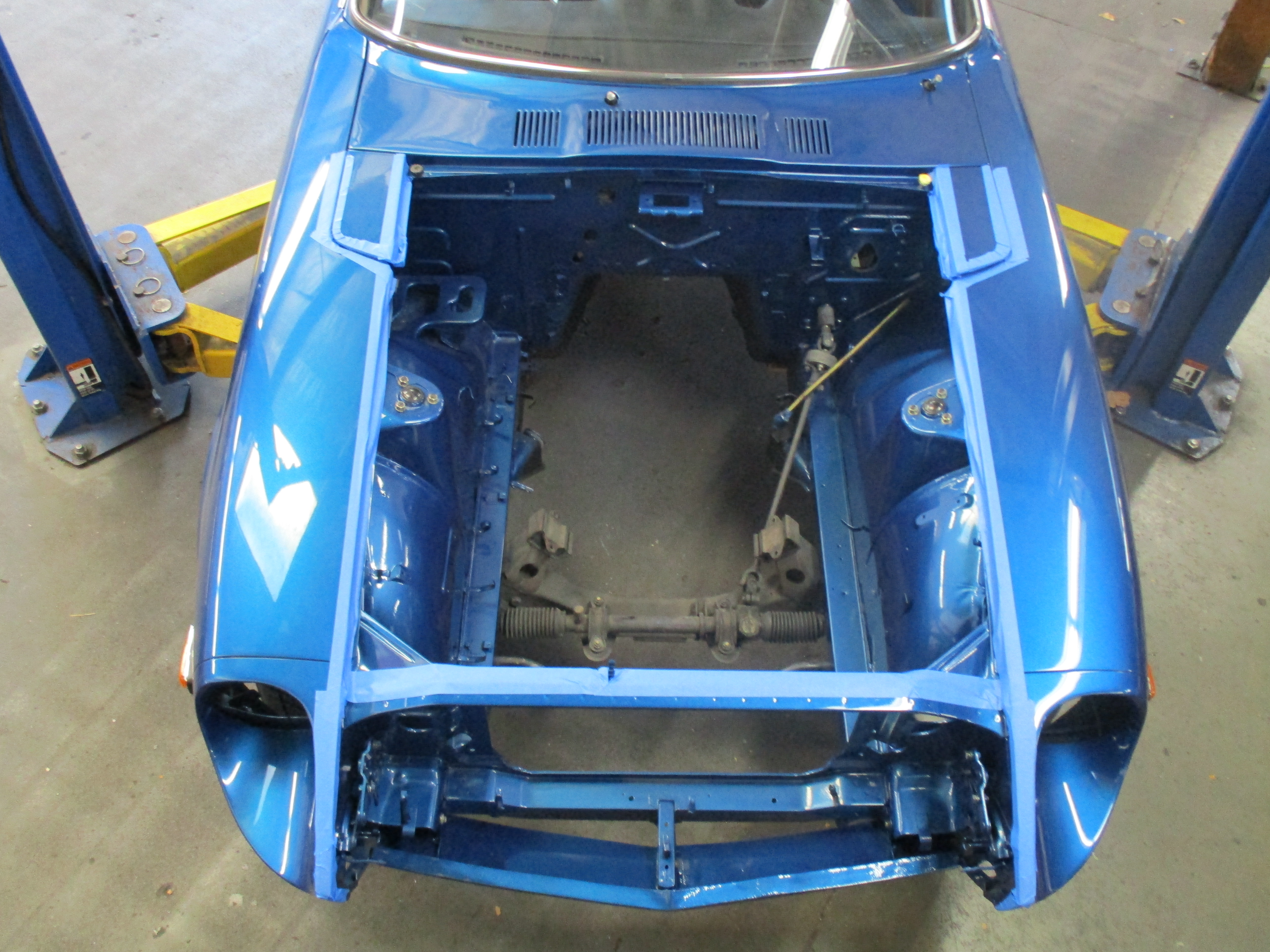

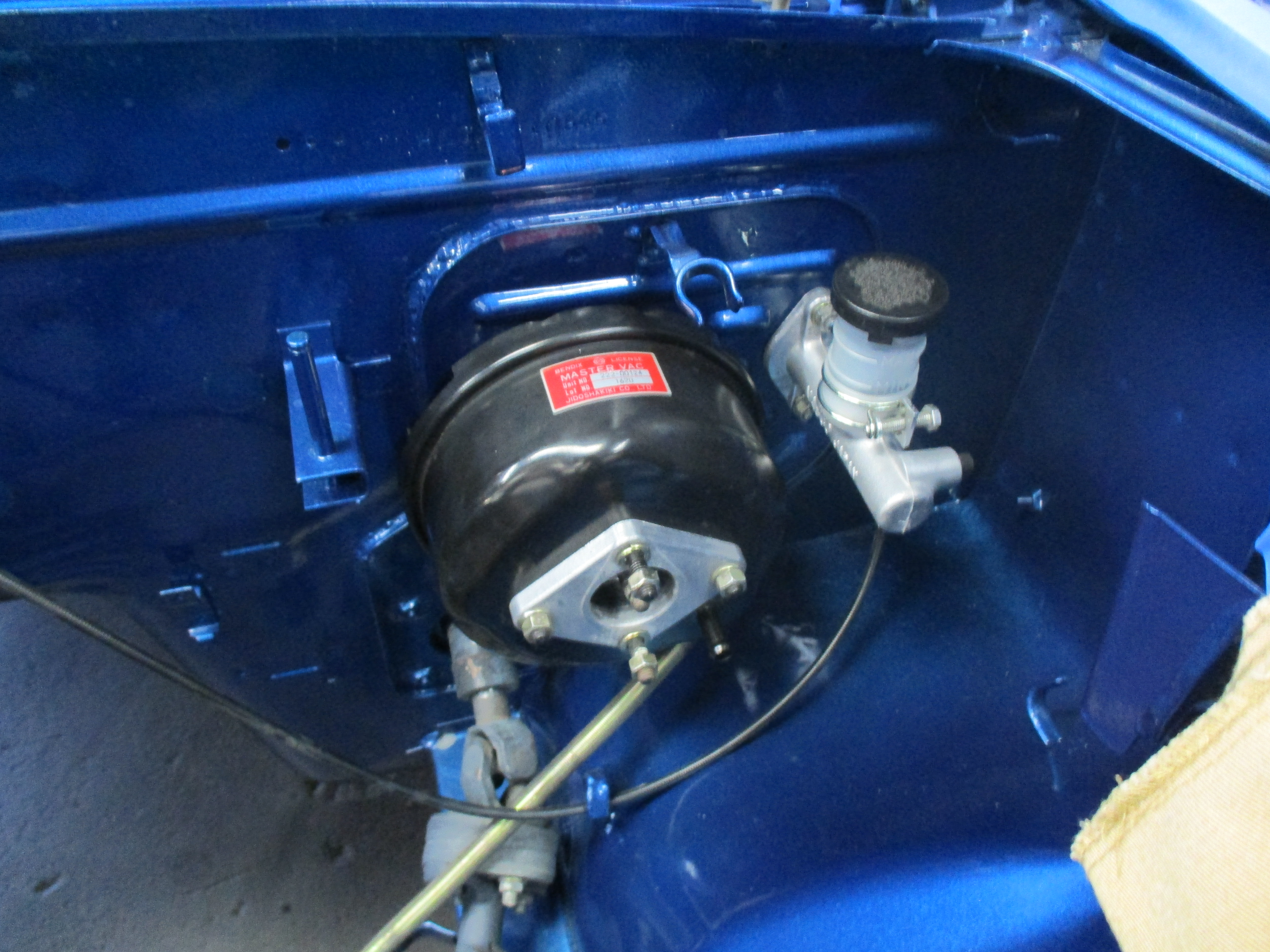

Fresh from paint and with the engine out we focused on making the bay look sharp. All hydraulic lines were plated with new NOS brake and clutch master cylinders, distribution block and booster:

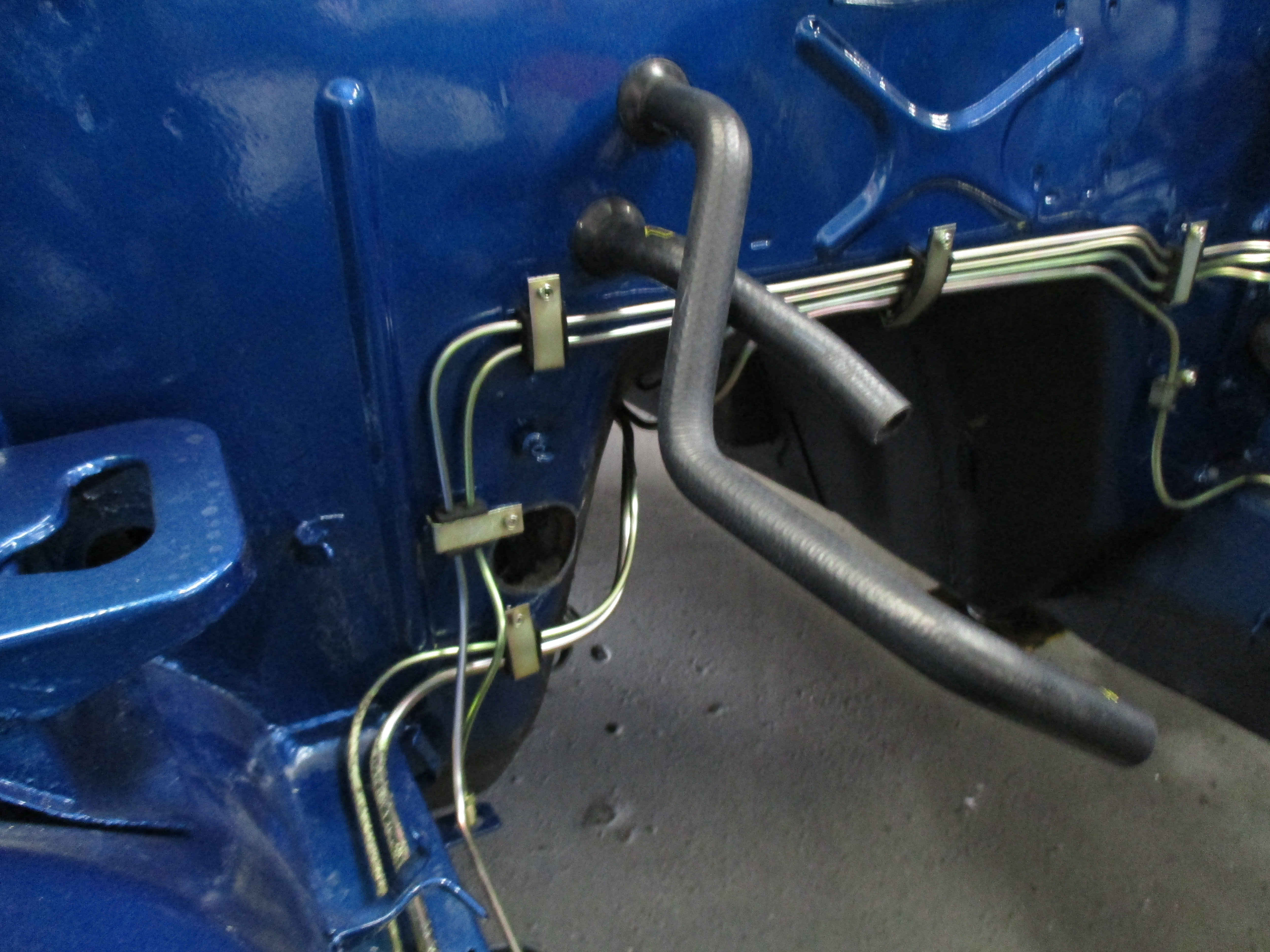

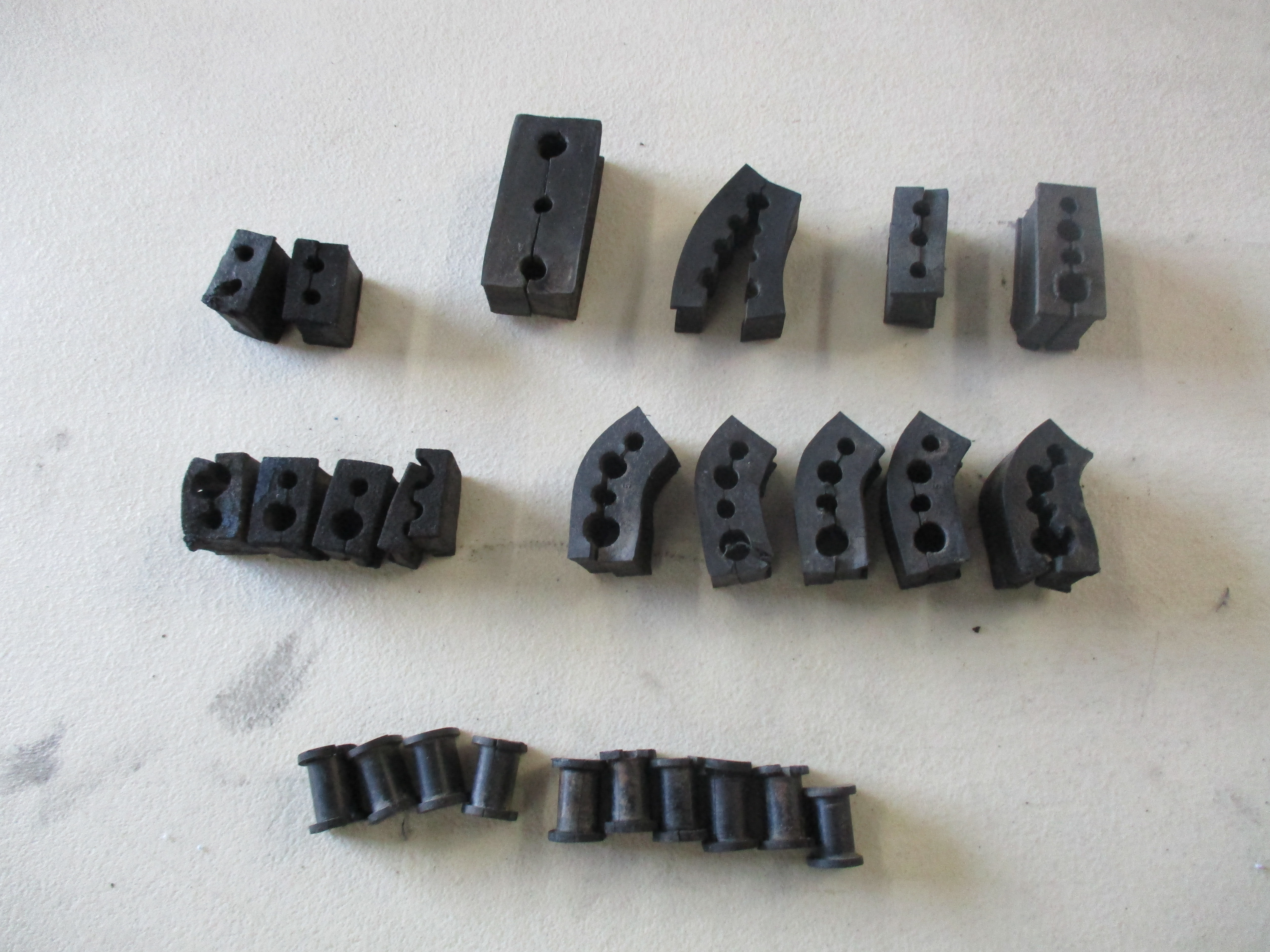

New heater hoses, plated fasteners and new rubber isolators:

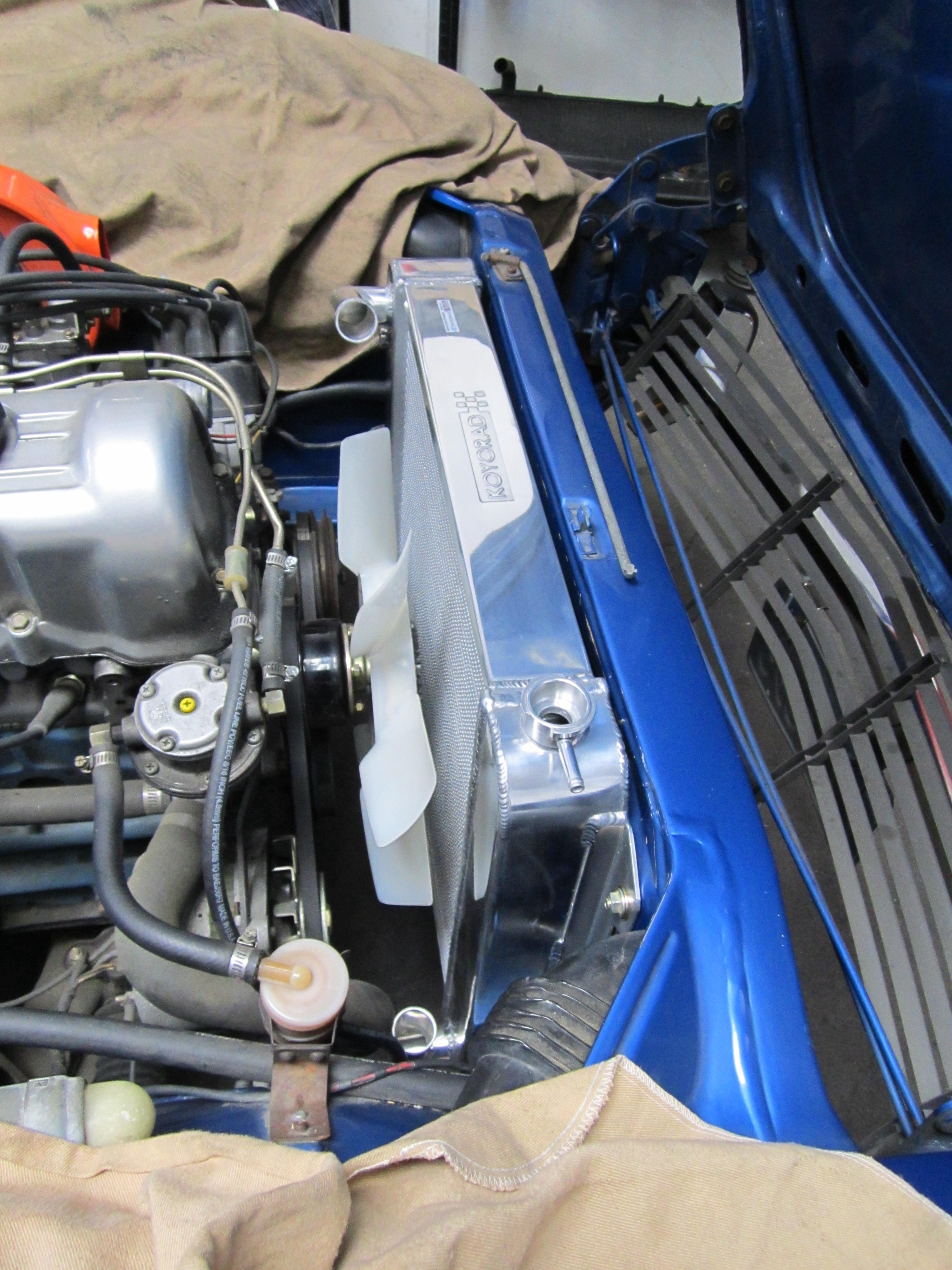

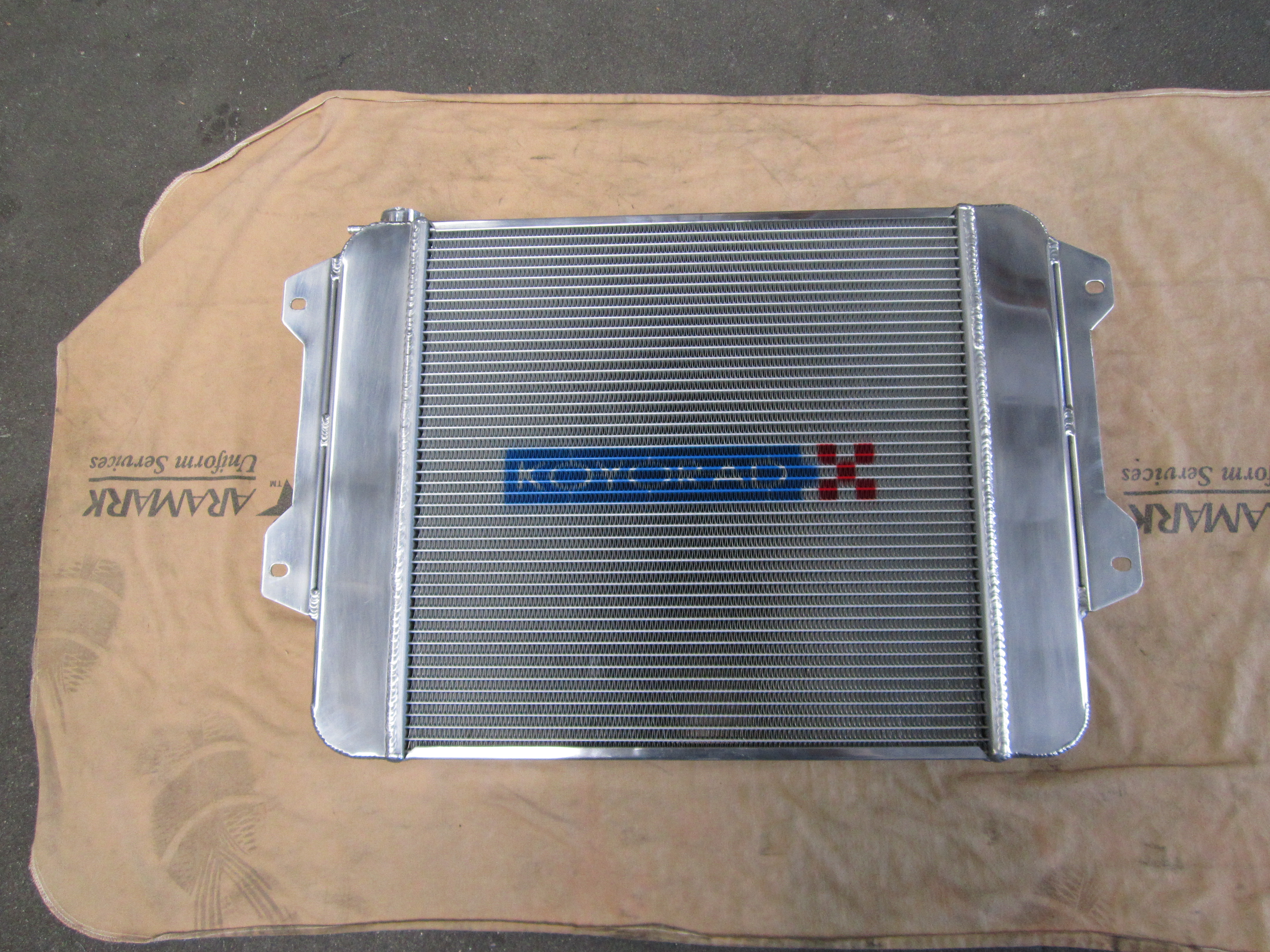

The radiator was upgraded to a Koyo Race unit:



The drivetrain itself received minor refreshing including new drive belts, overhauled and tuned SUs, and a new clutch/flywheel backing the factory 4-speed transmission:

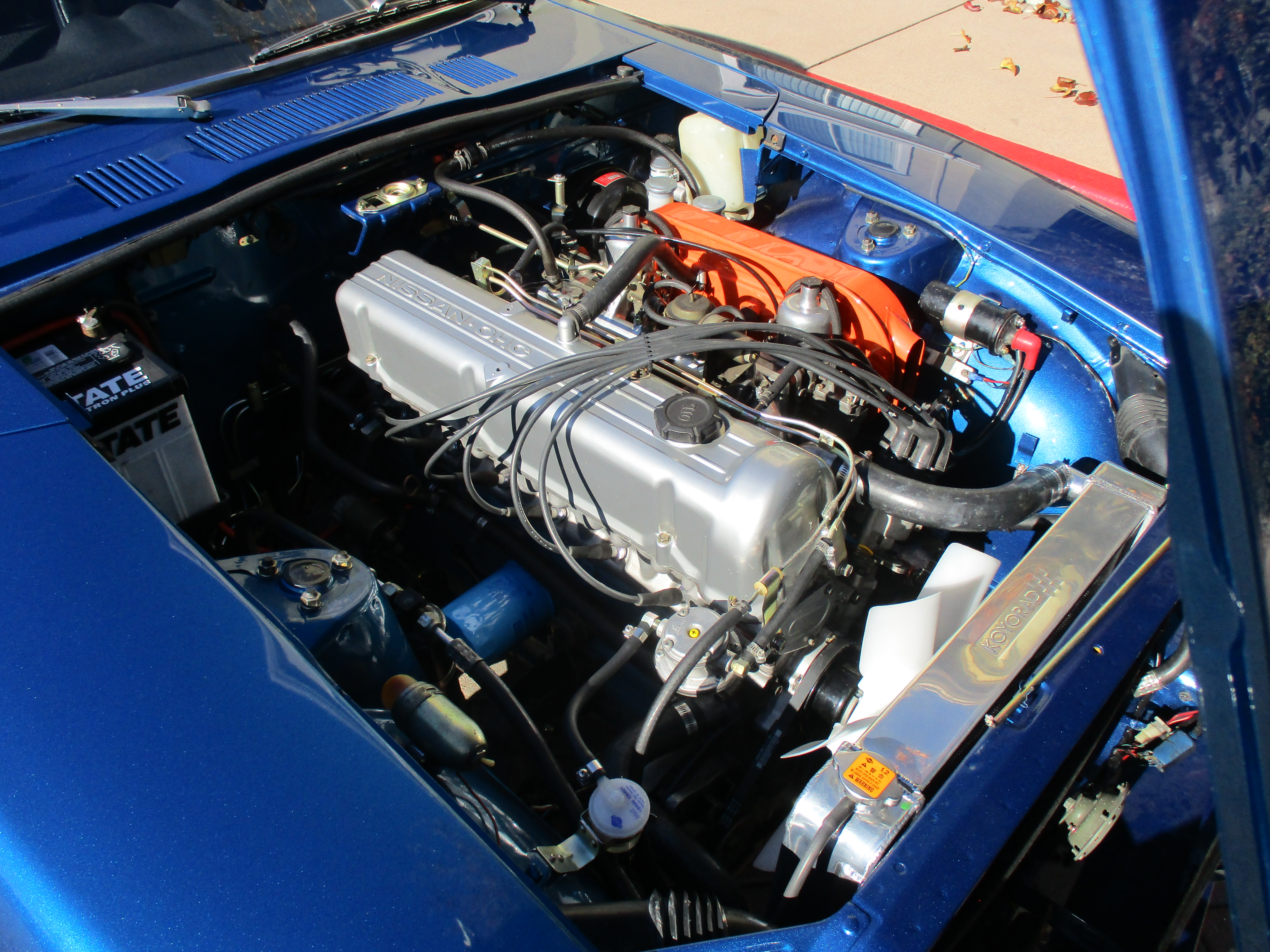

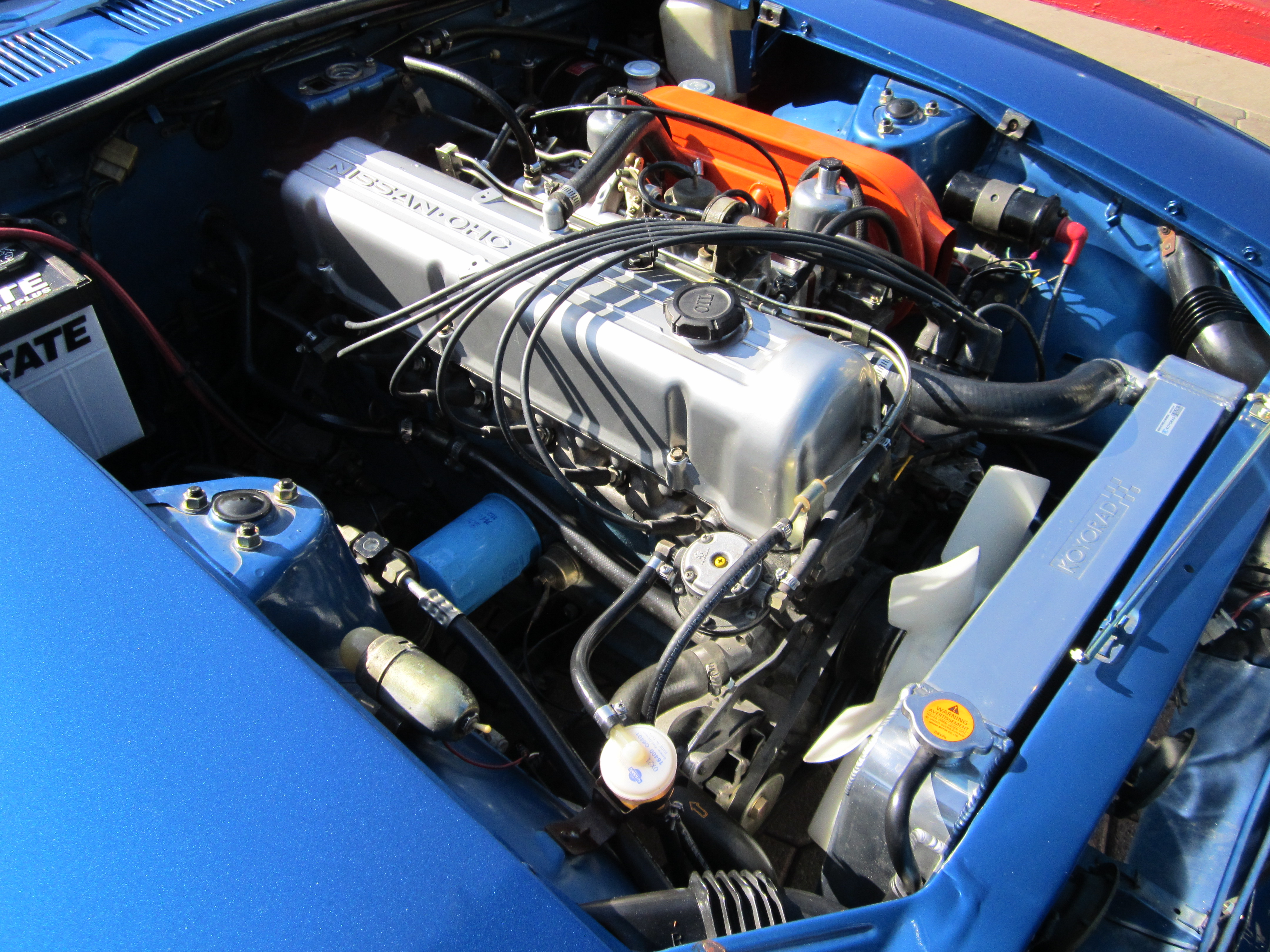

A few more details and the engine bay is complete.



Chassis/Suspension

Although we looked at every nook and cranny nook on this Z we always kept in mind that Richard did not want everything upgraded. He lives and breathes Vintage Z. The suspension was replaced front and rear with NOS parts like new factory ball joints, steering rack bushings, etc. More pictures in the gallery!




Eibach springs with Tokico Illumina struts:

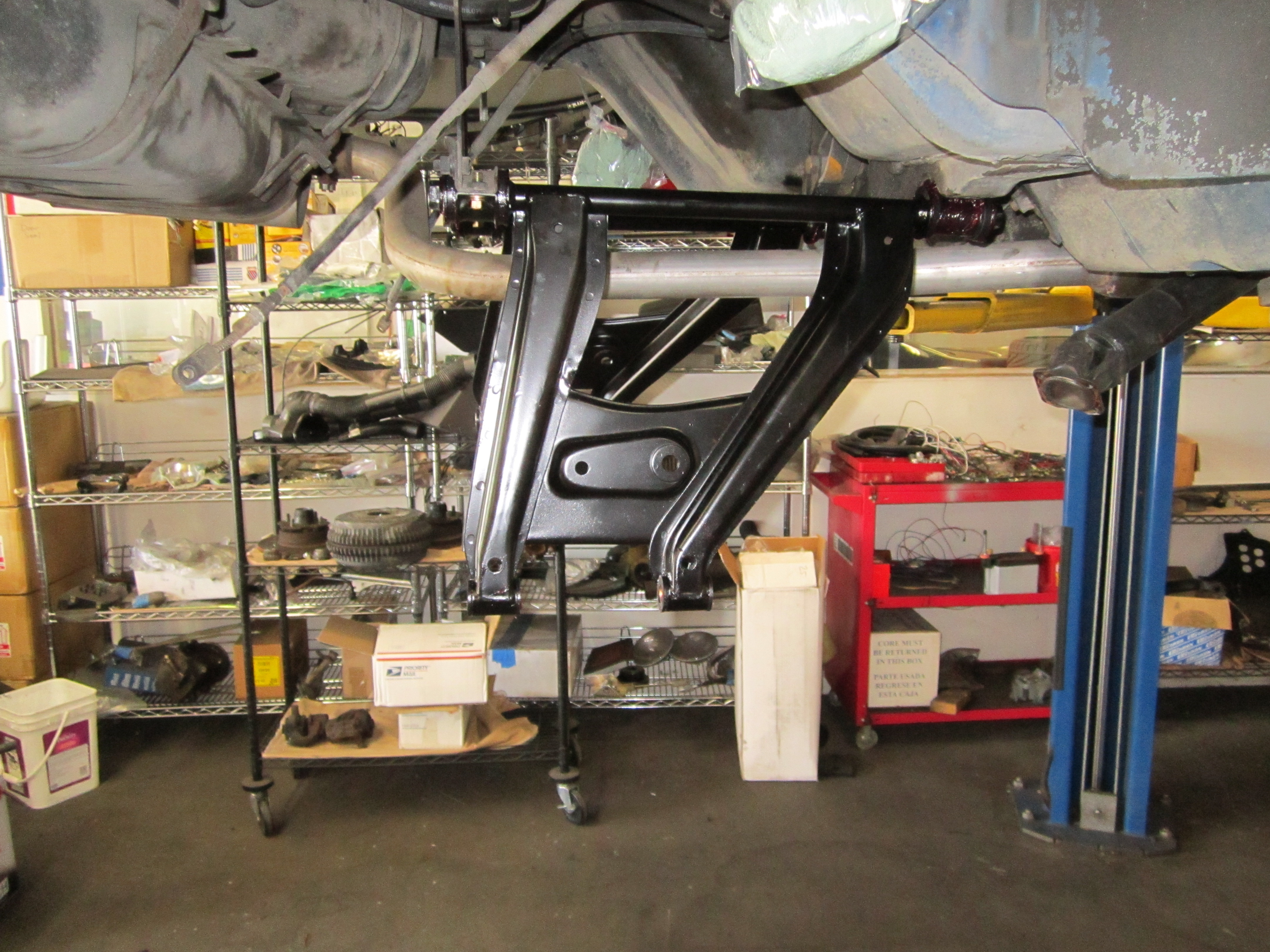

The rear diff was cleaned up:

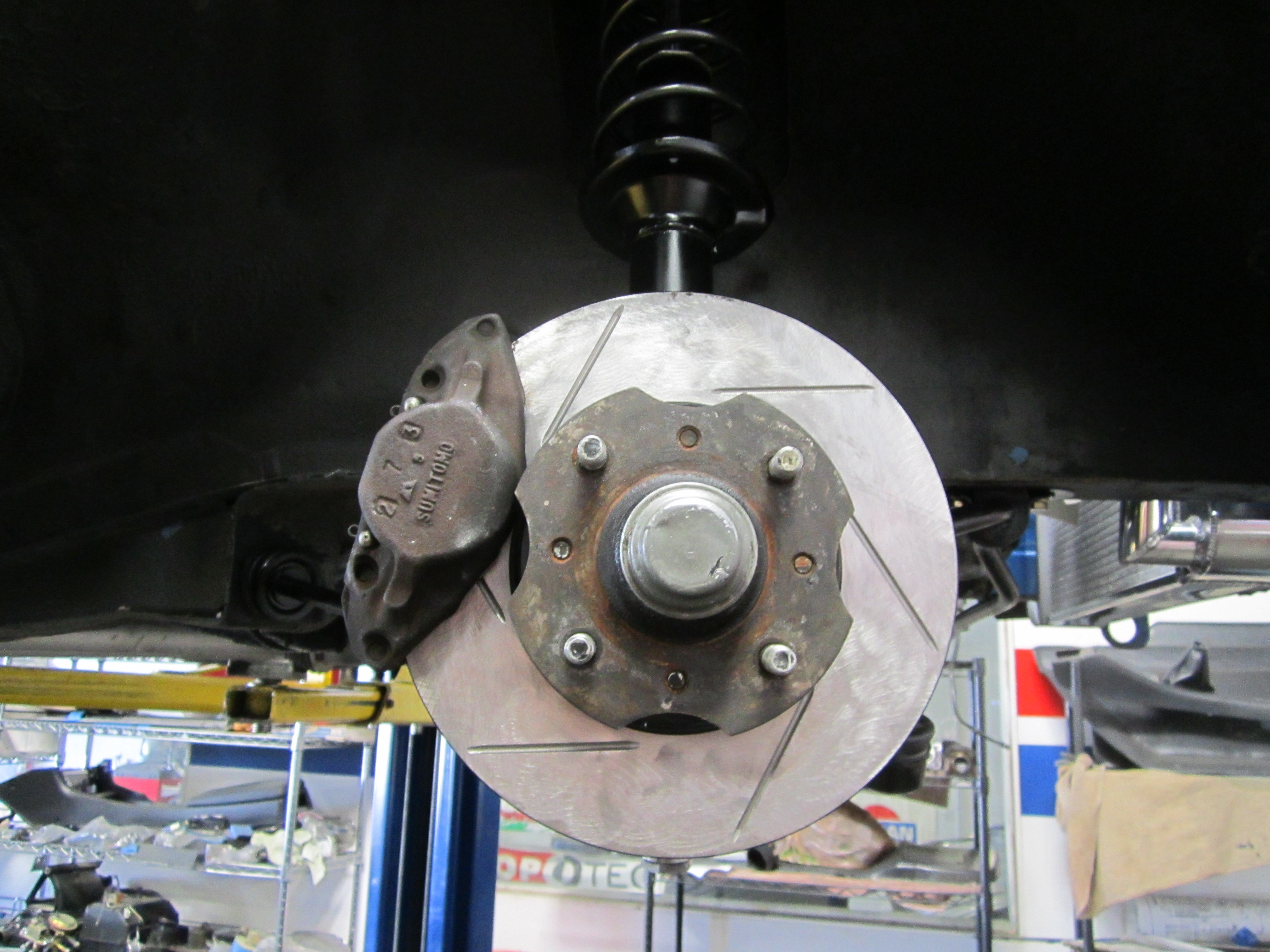

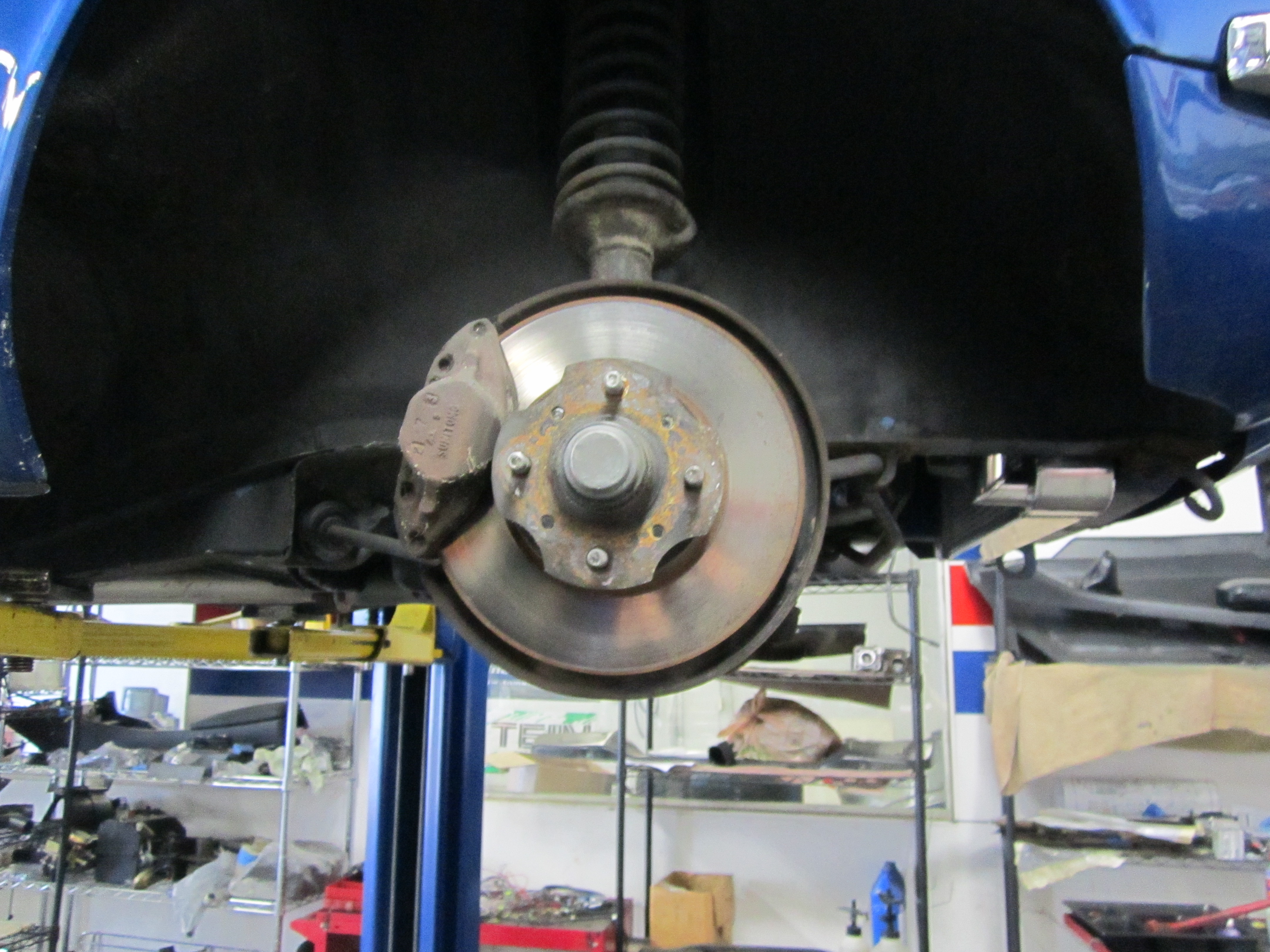

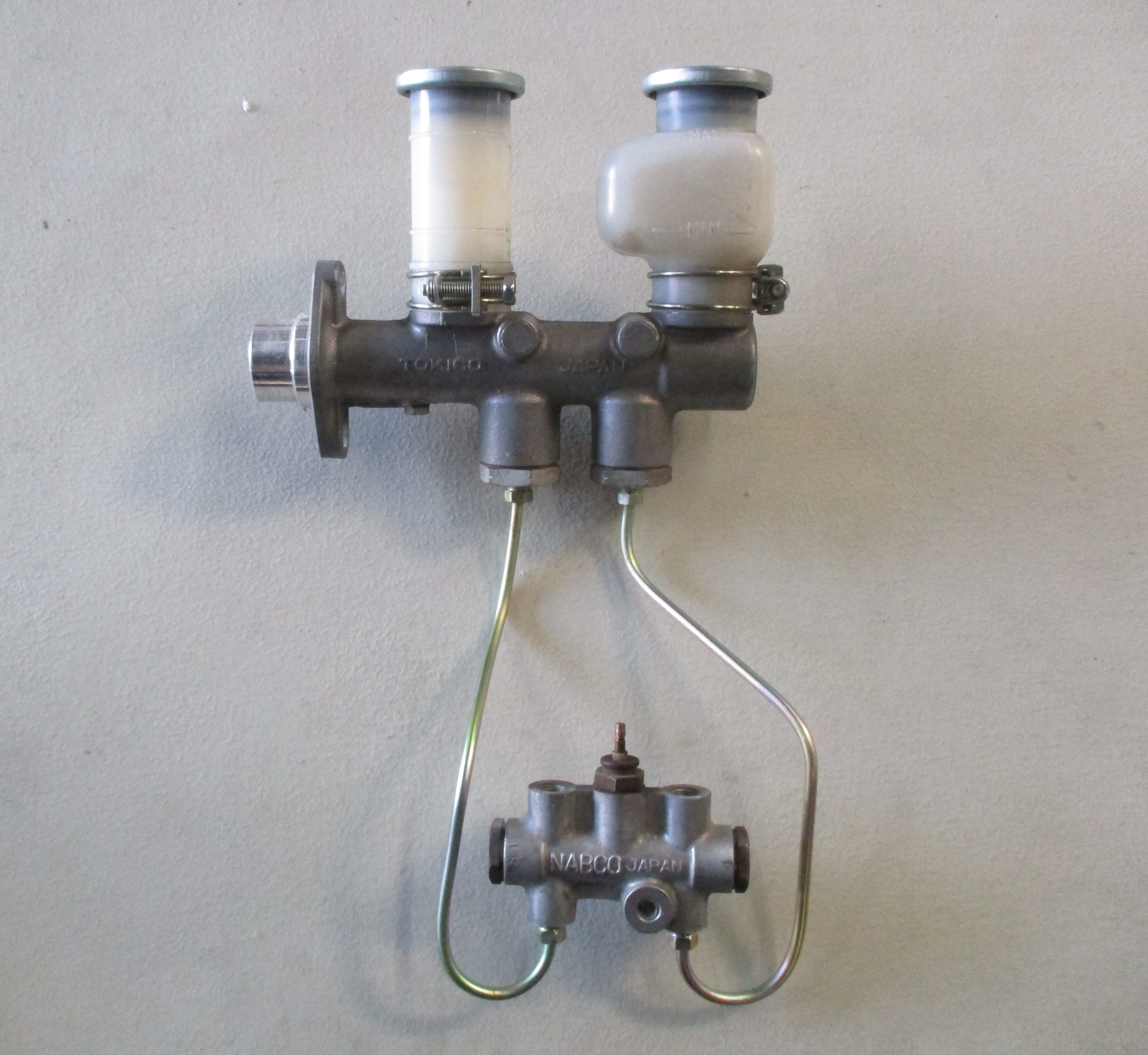

The brakes were restored to factory spec with upgraded Stoptech slotted rotors and our favorite 309 pads:




The rear drums received new wheel cylinders:

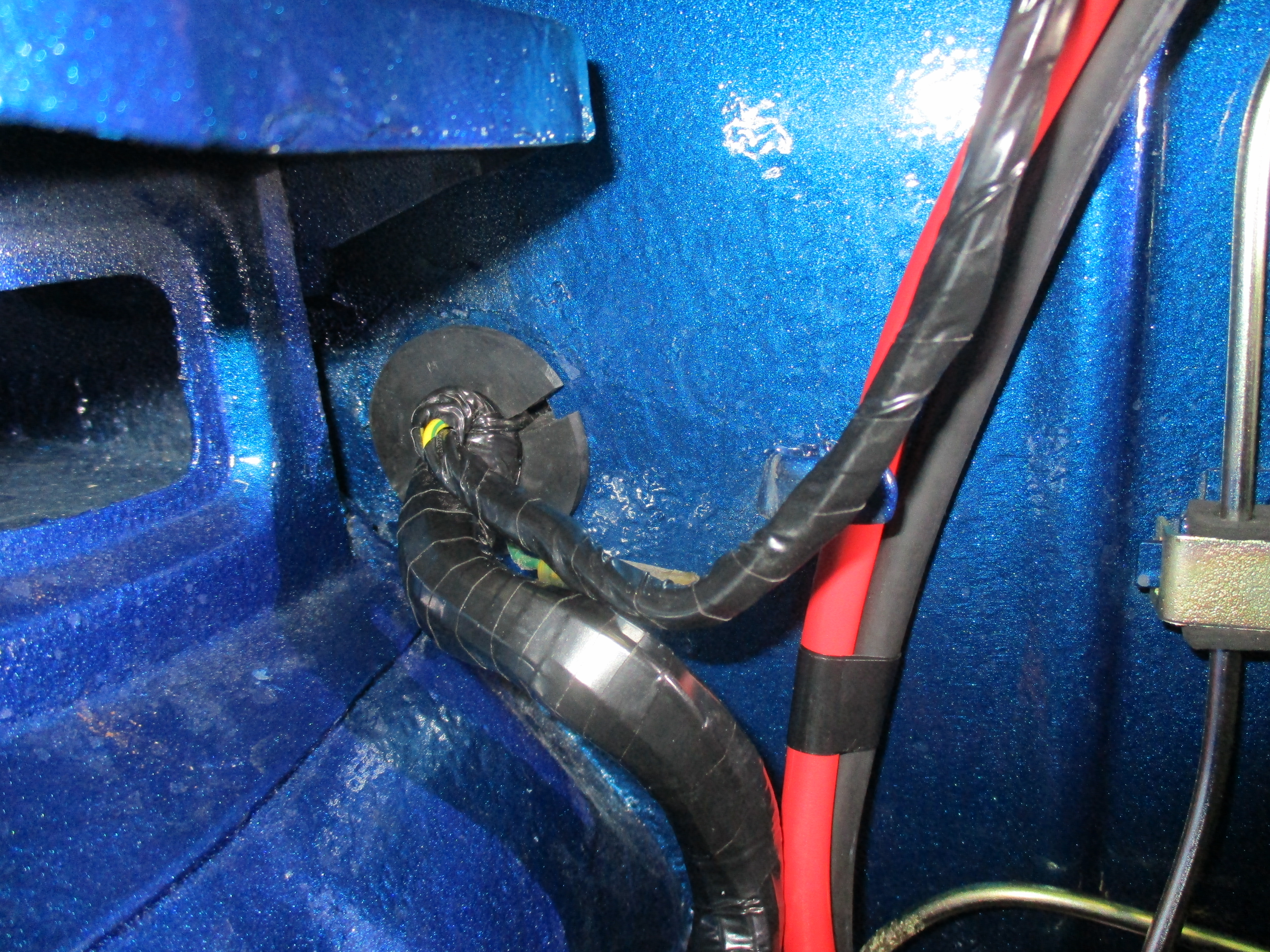

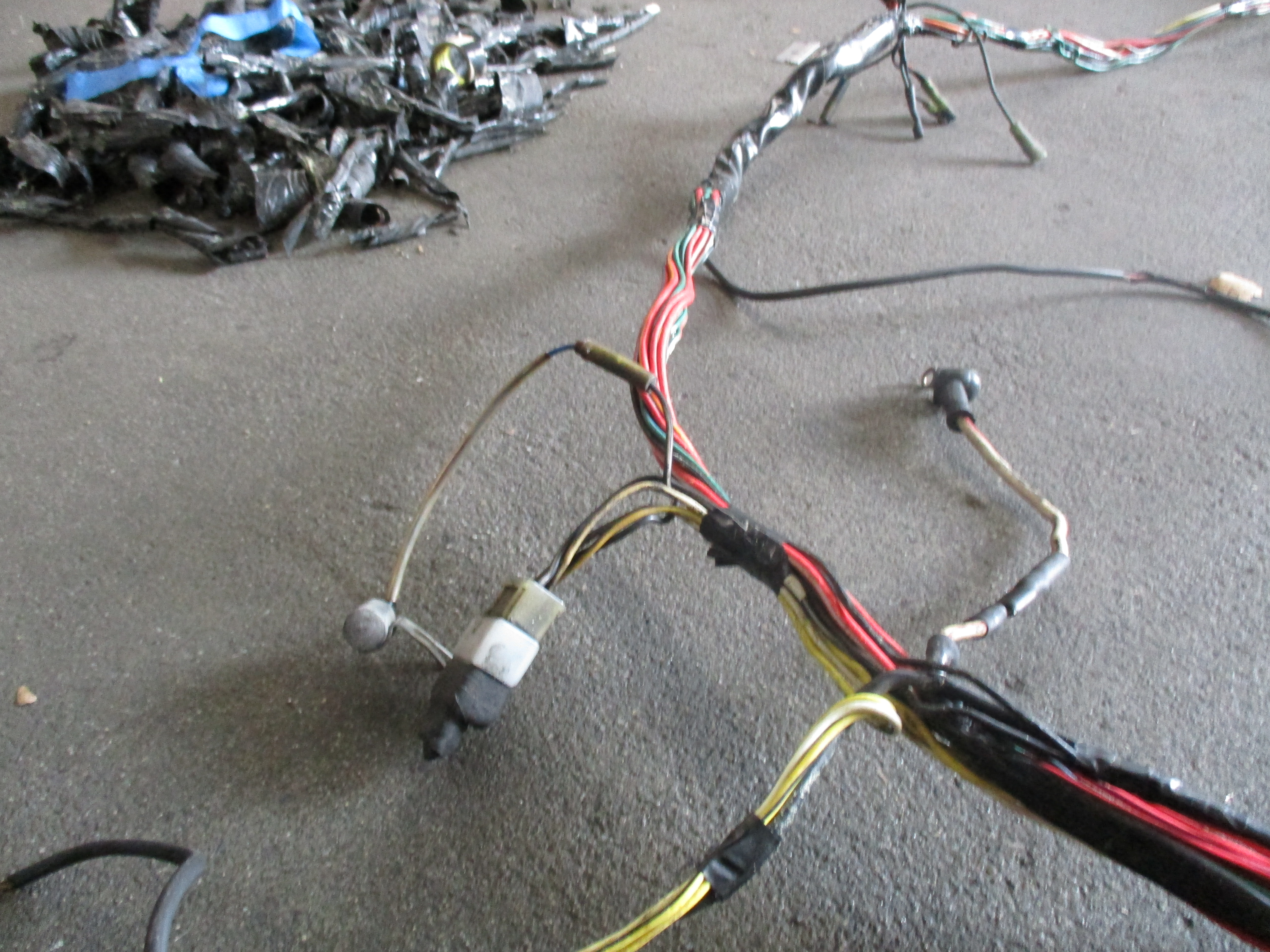

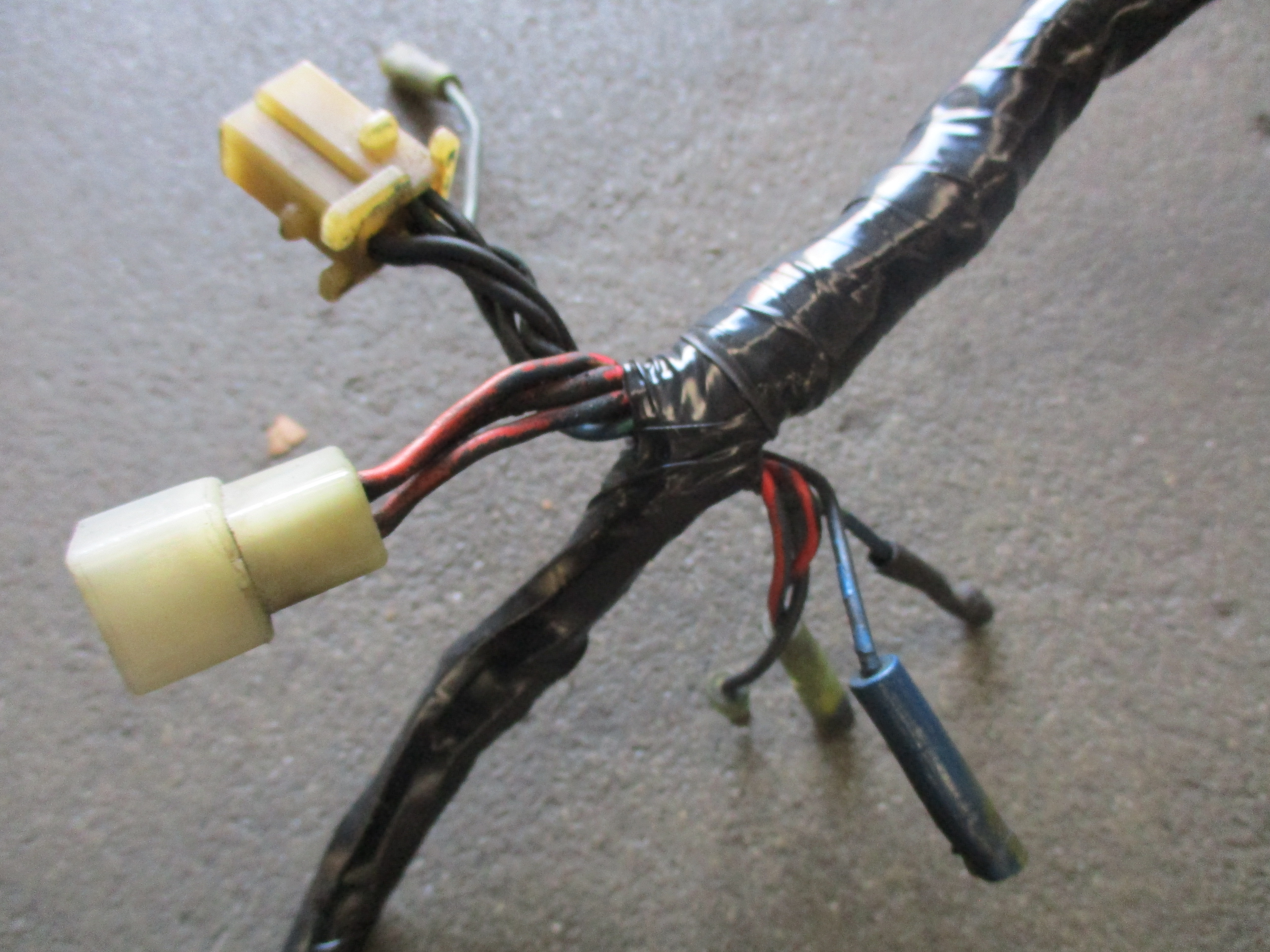

Since the harness was damaged in the accident we used one from the Series 1 parts car.  All connections were degreased and cleaned, resistance checked and finally 3M wrapped.

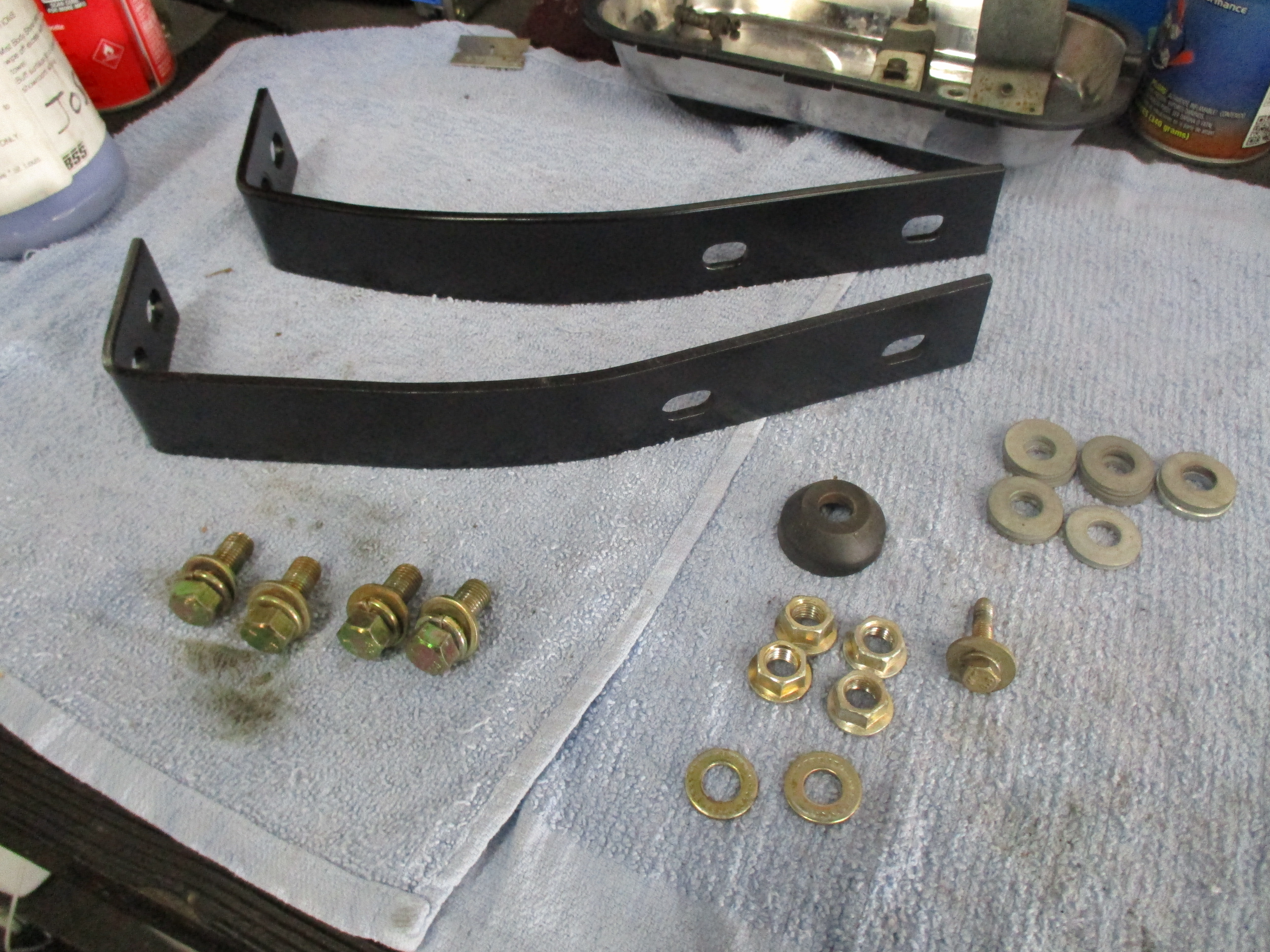

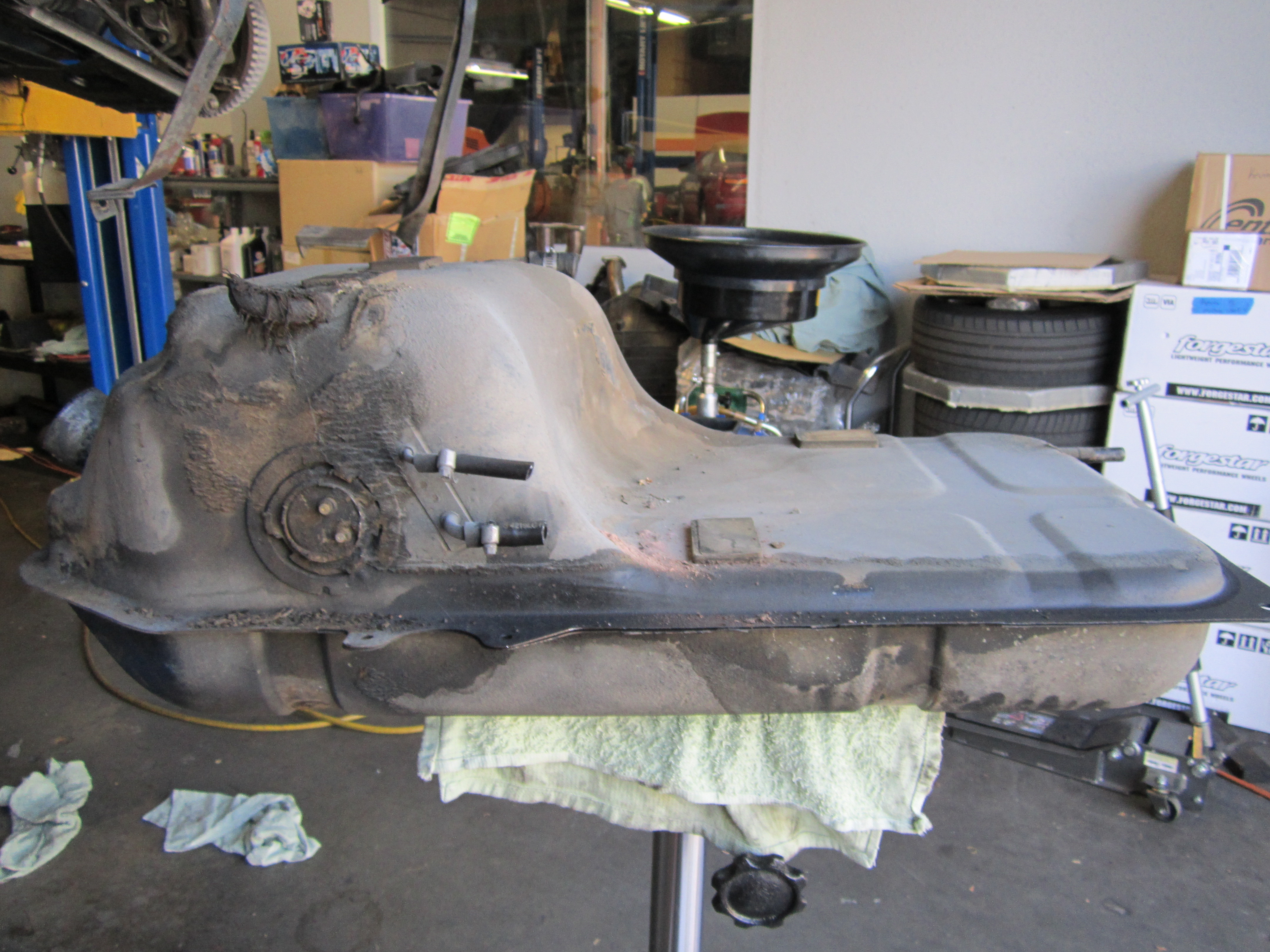

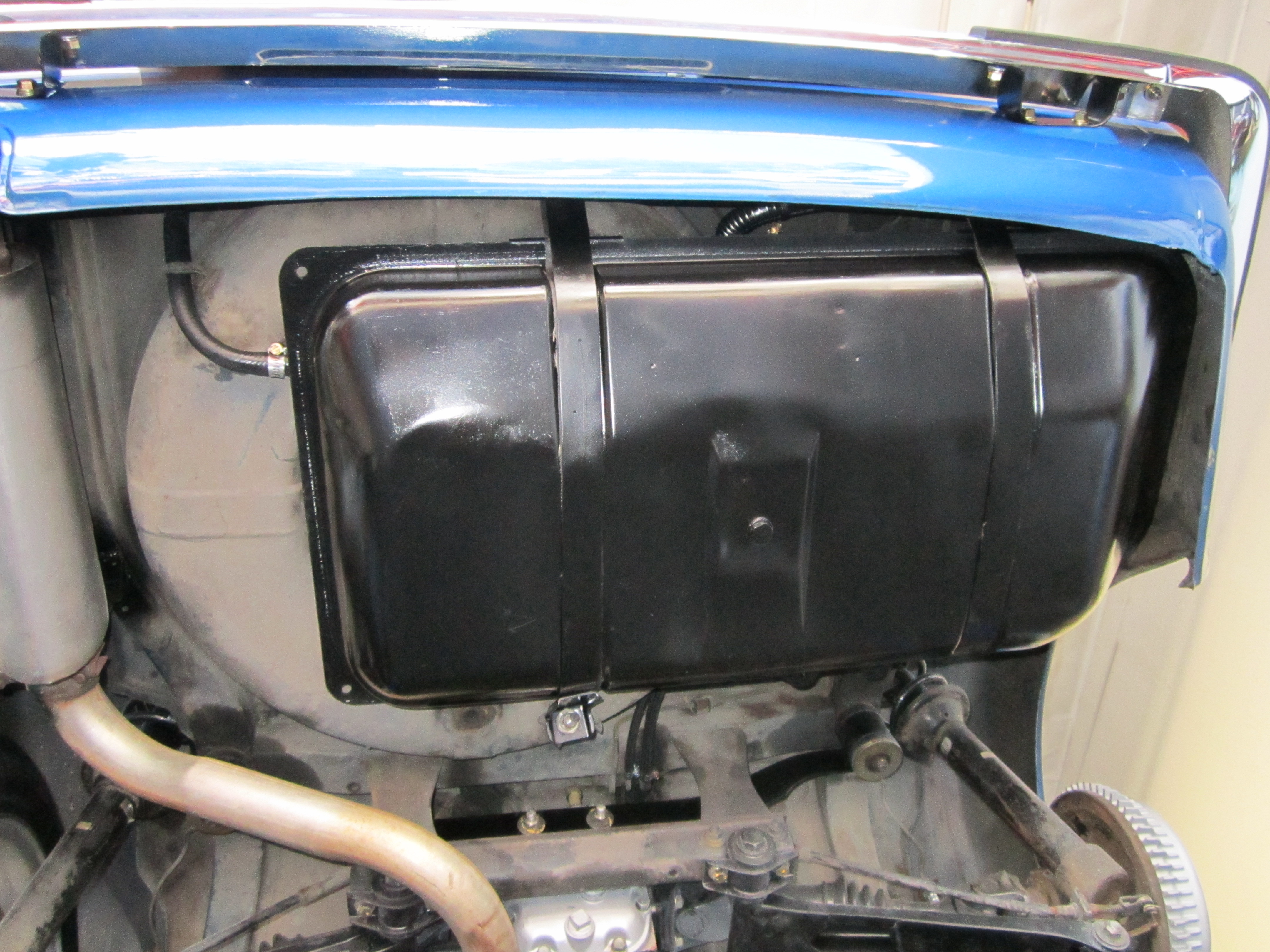

The entire fuel system was gone through. Here we drop the fuel tank, boil it out and replace all rubber lines. Also visible is the ZCG exhaust system:




Exterior

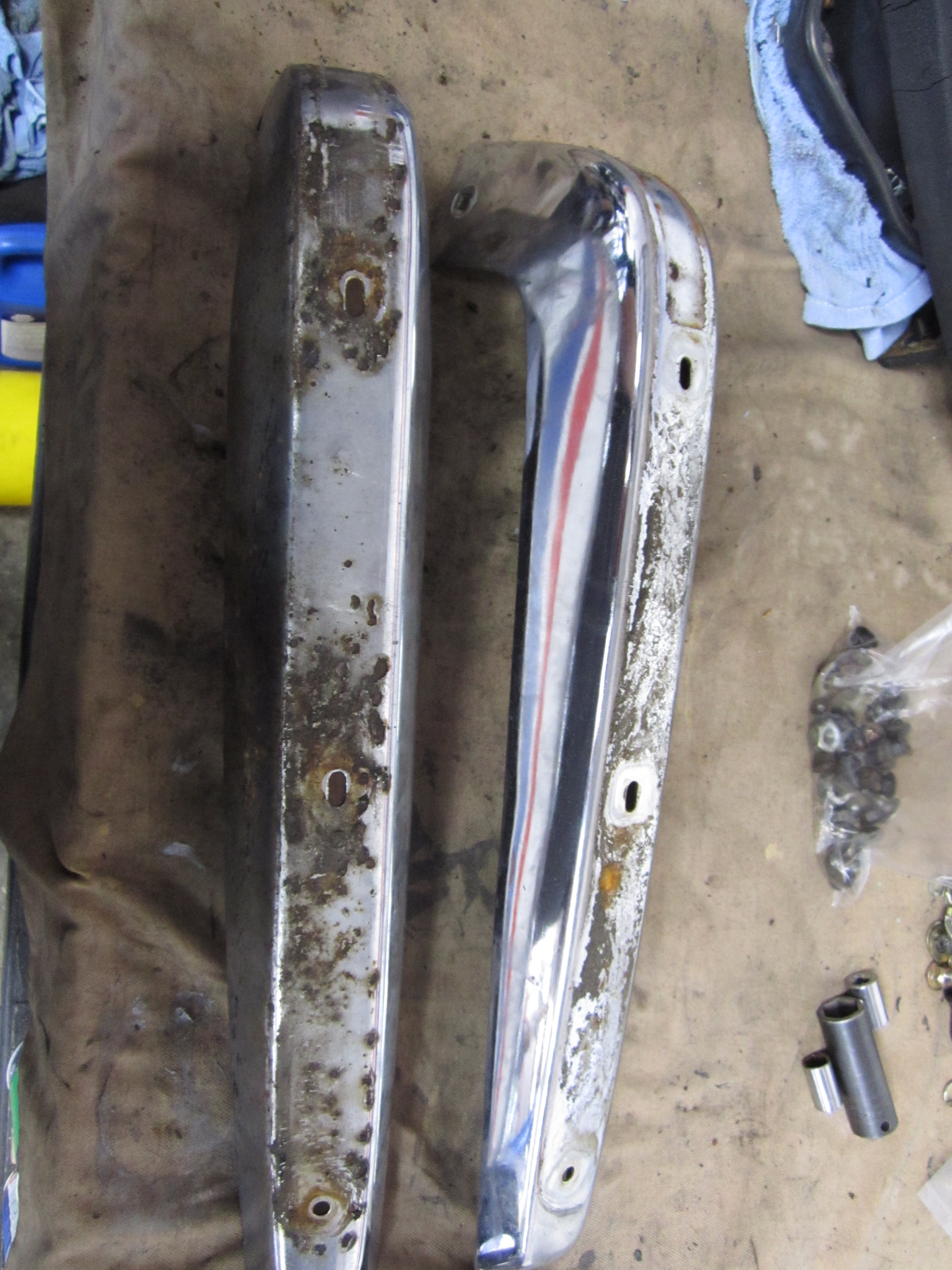

The exterior had to look as good as the engine bay and restored interior. All chrome pieces like front/rear bumpers and door handles for straightened and re-chromed.

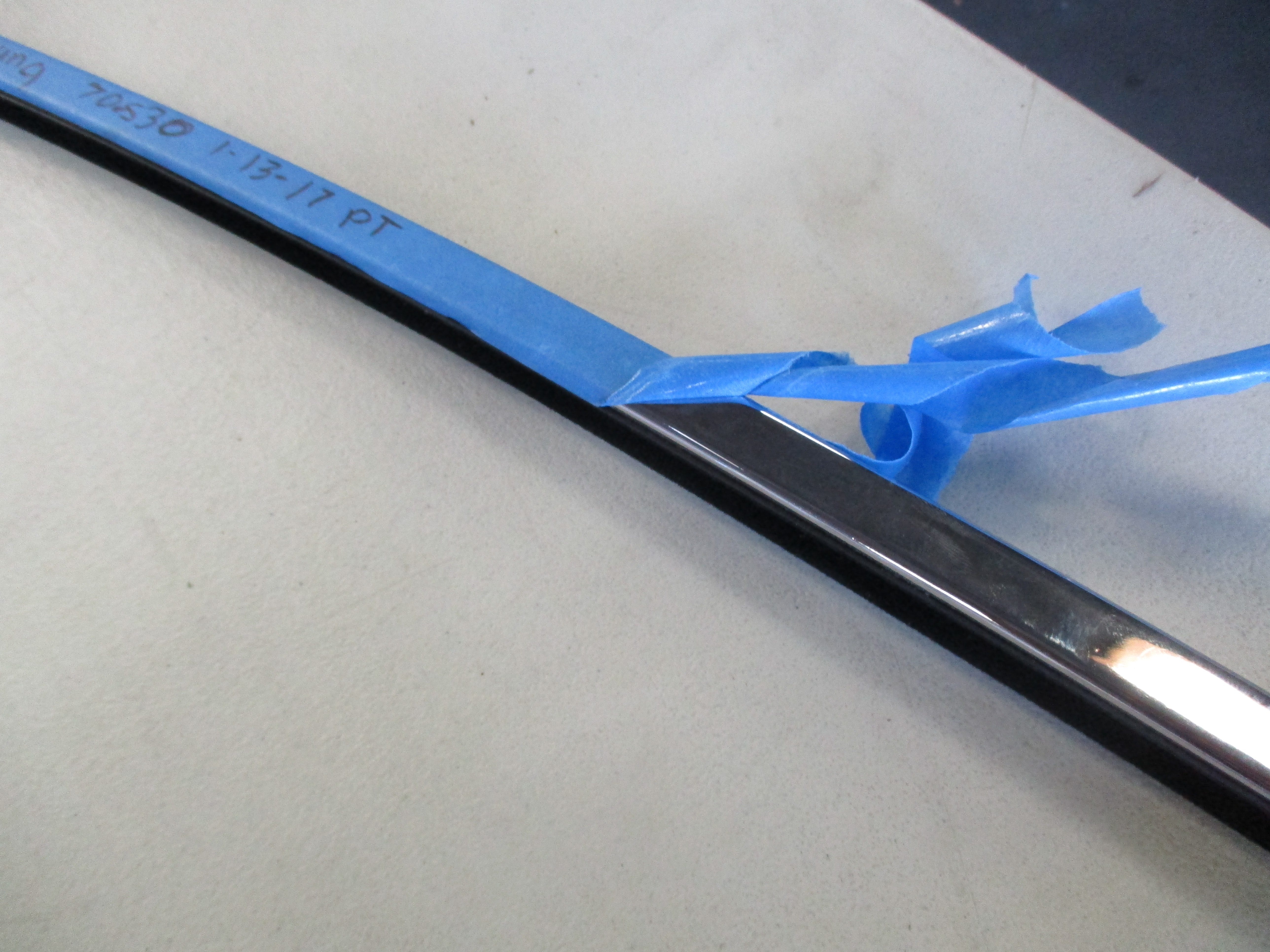

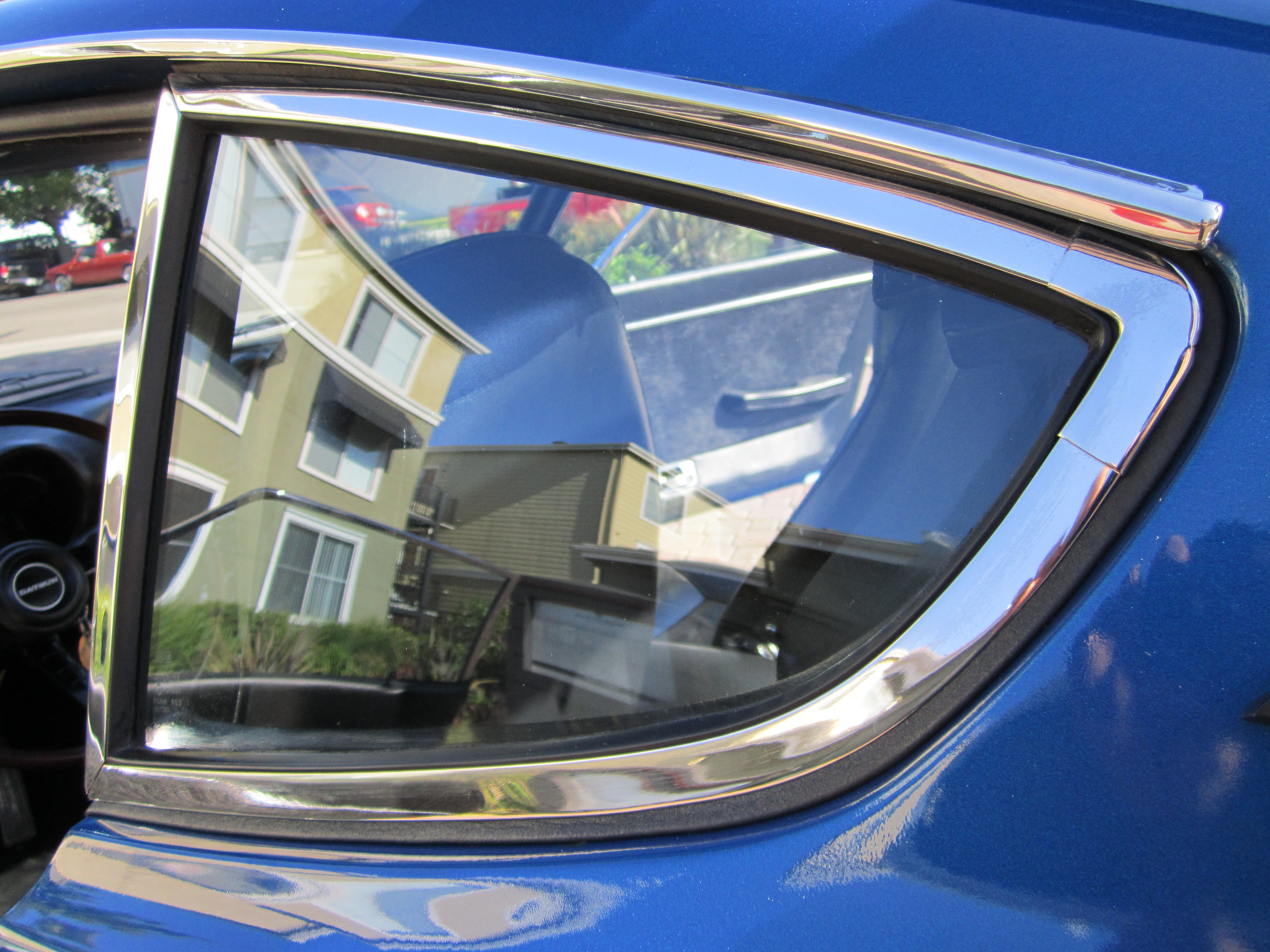

All of the stainless trim was straightened and polished. Shown are drip rails, all window frames, turn signal frames

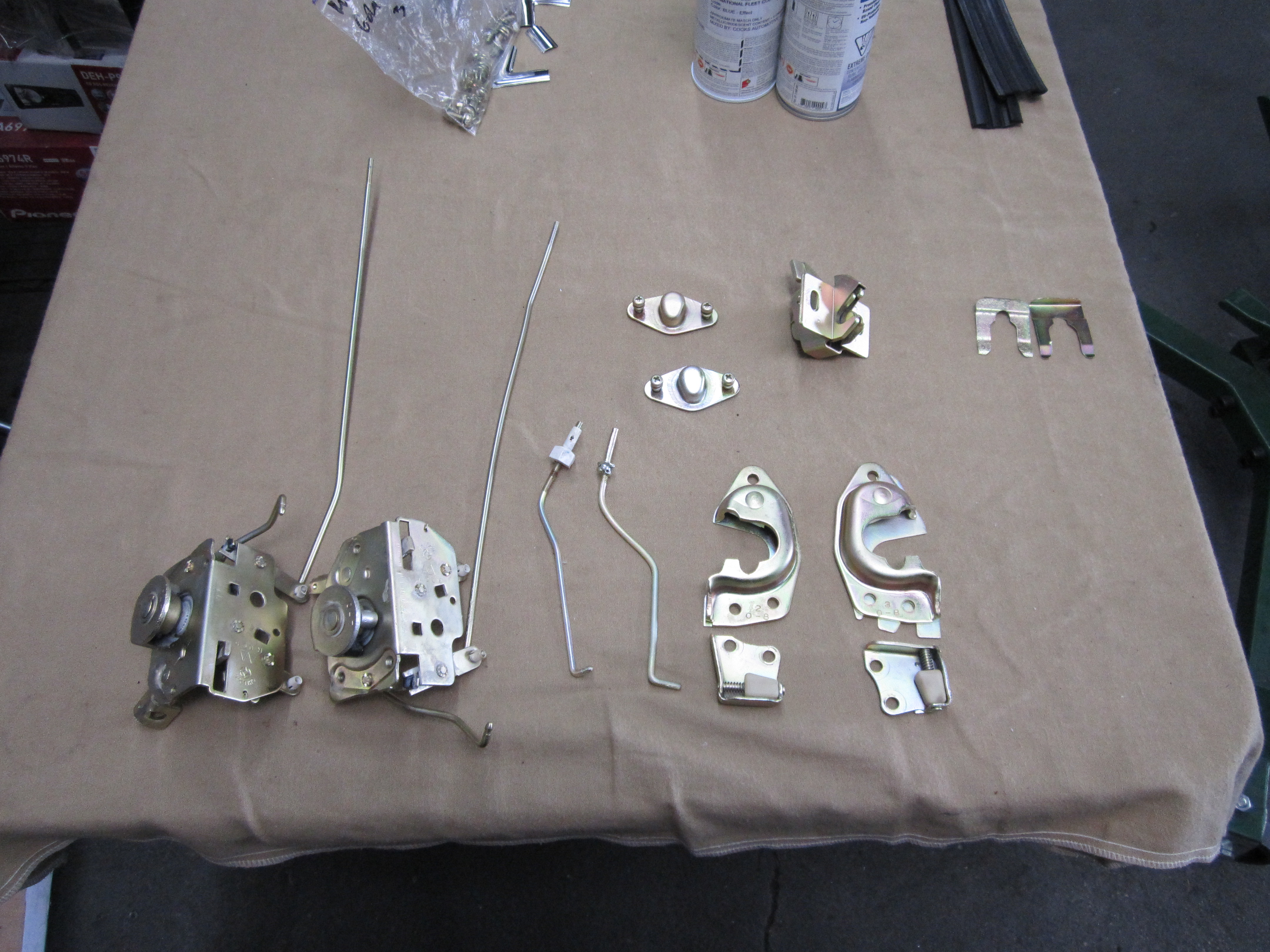

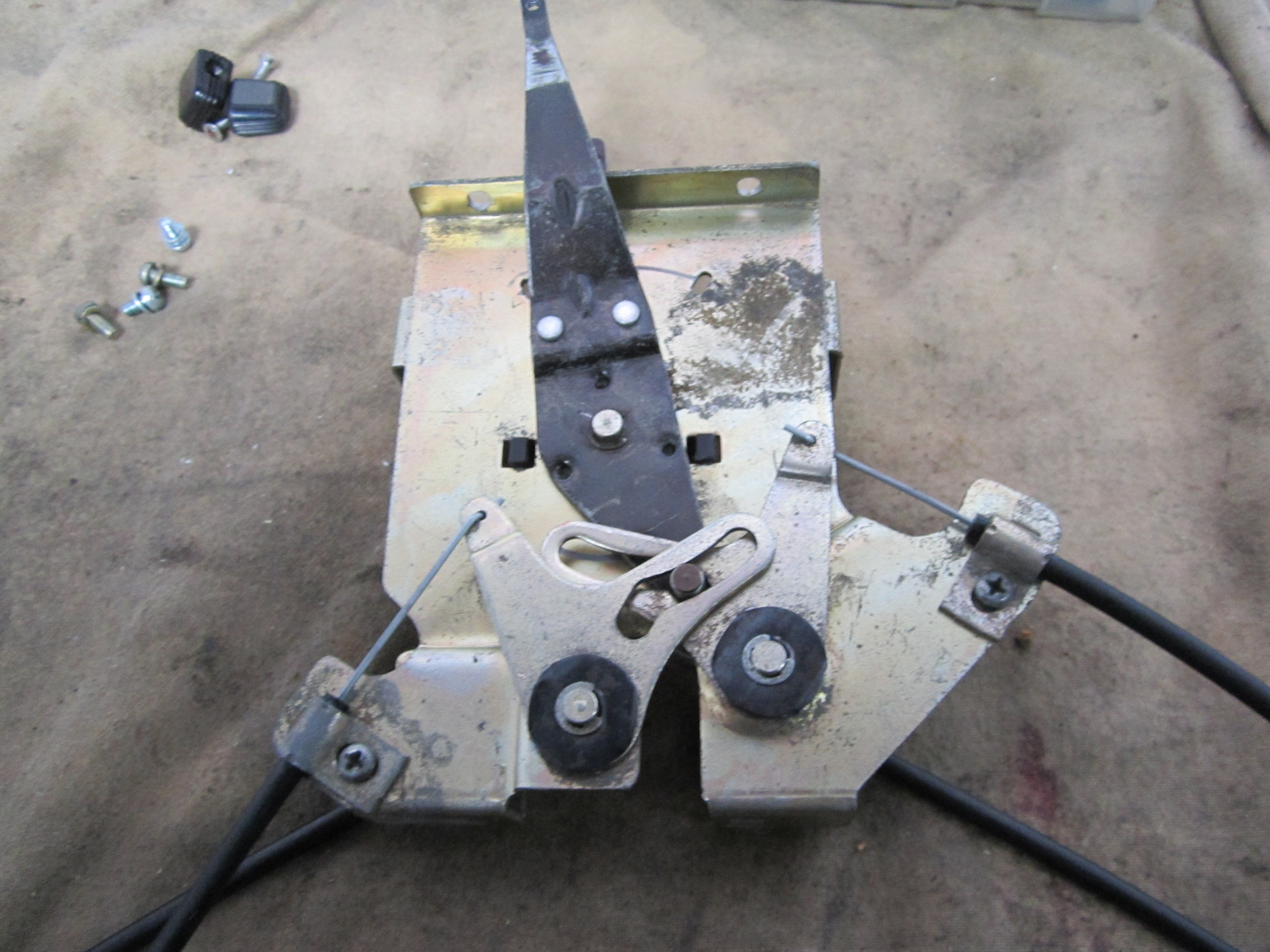

Window and door hardware plated including latches. Re-chromed handles:

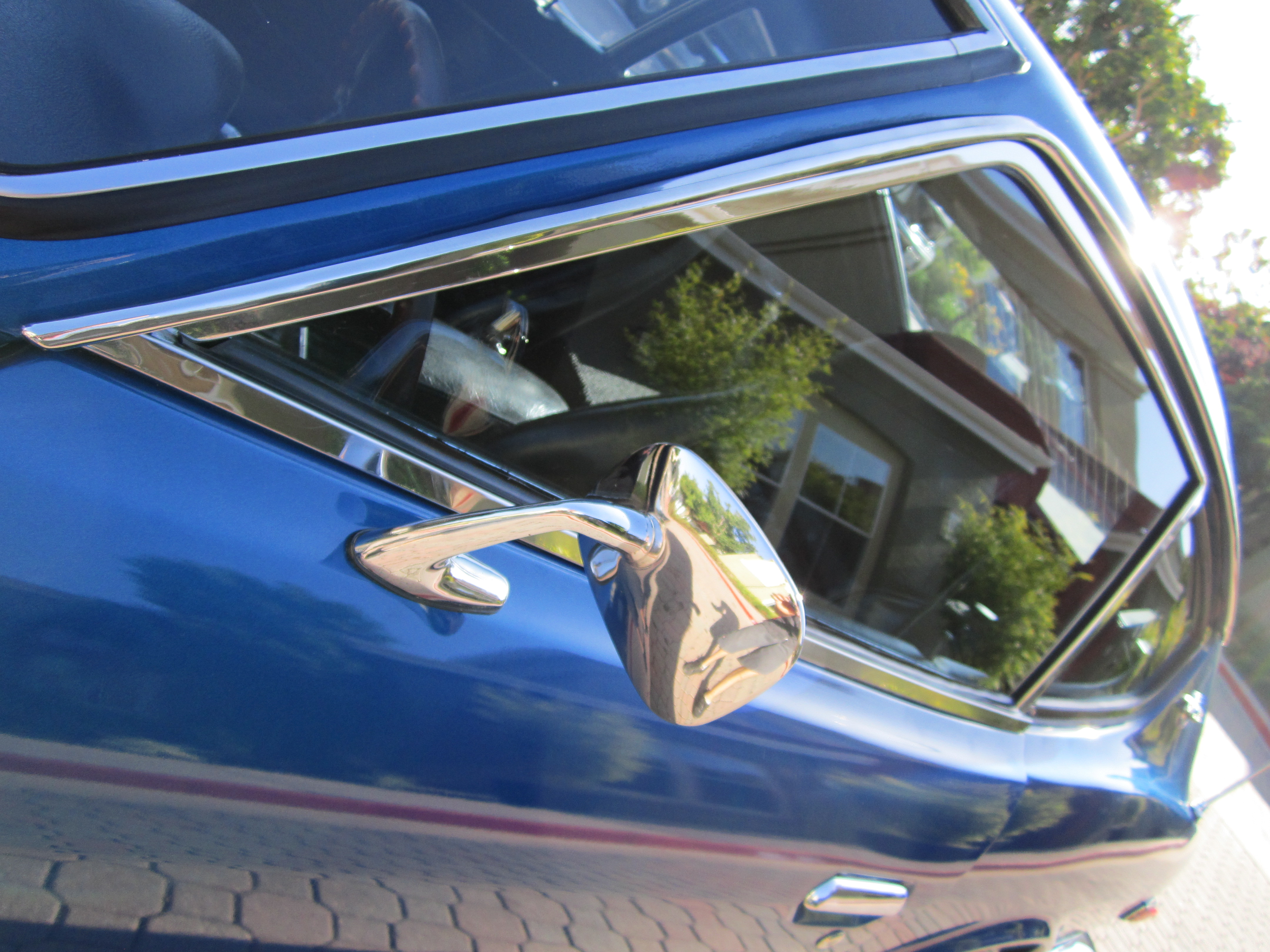

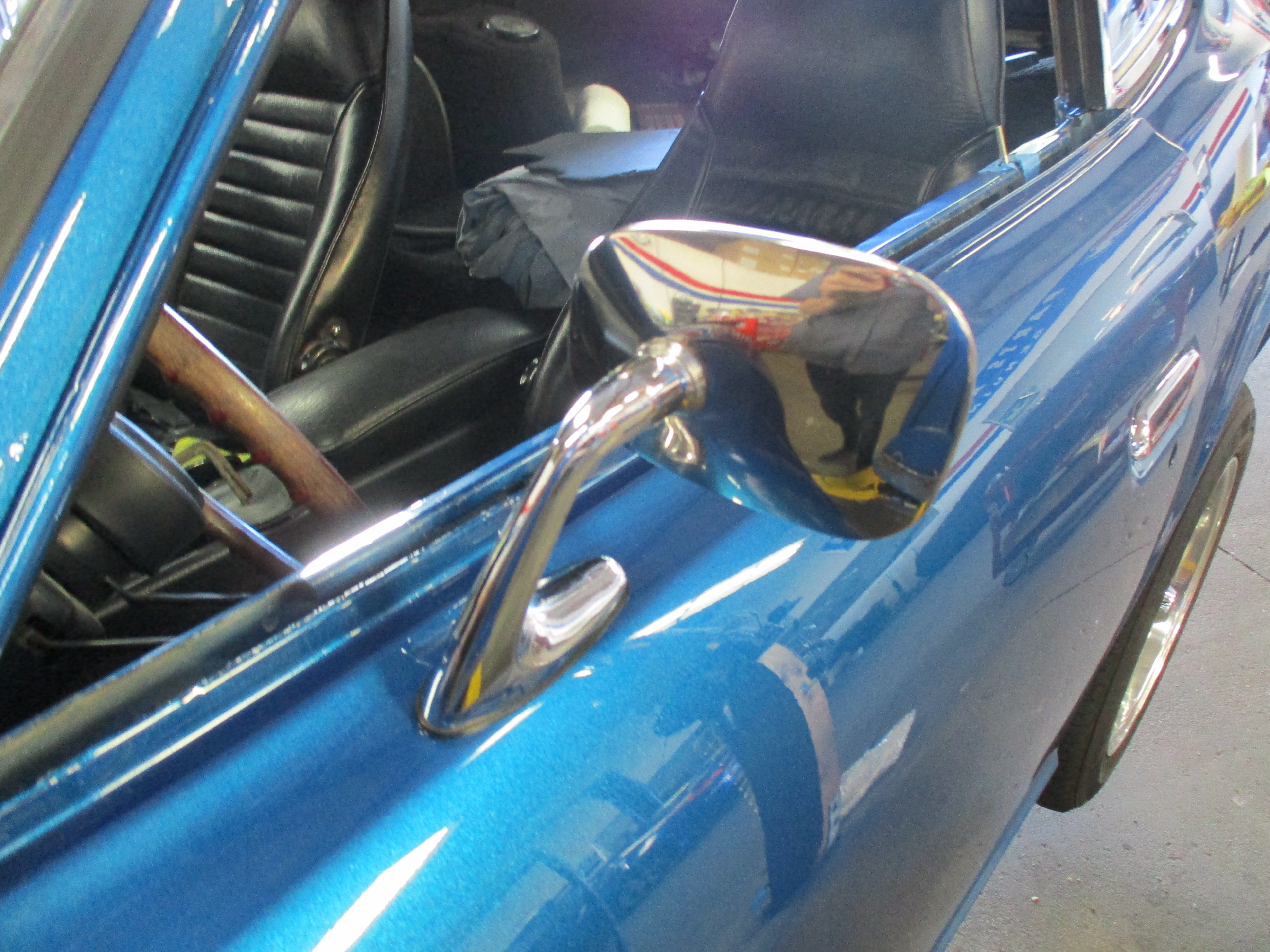

Little details like factory Nissan wiper blades and a NOS mirror finish the vintage “look” we all cherish:

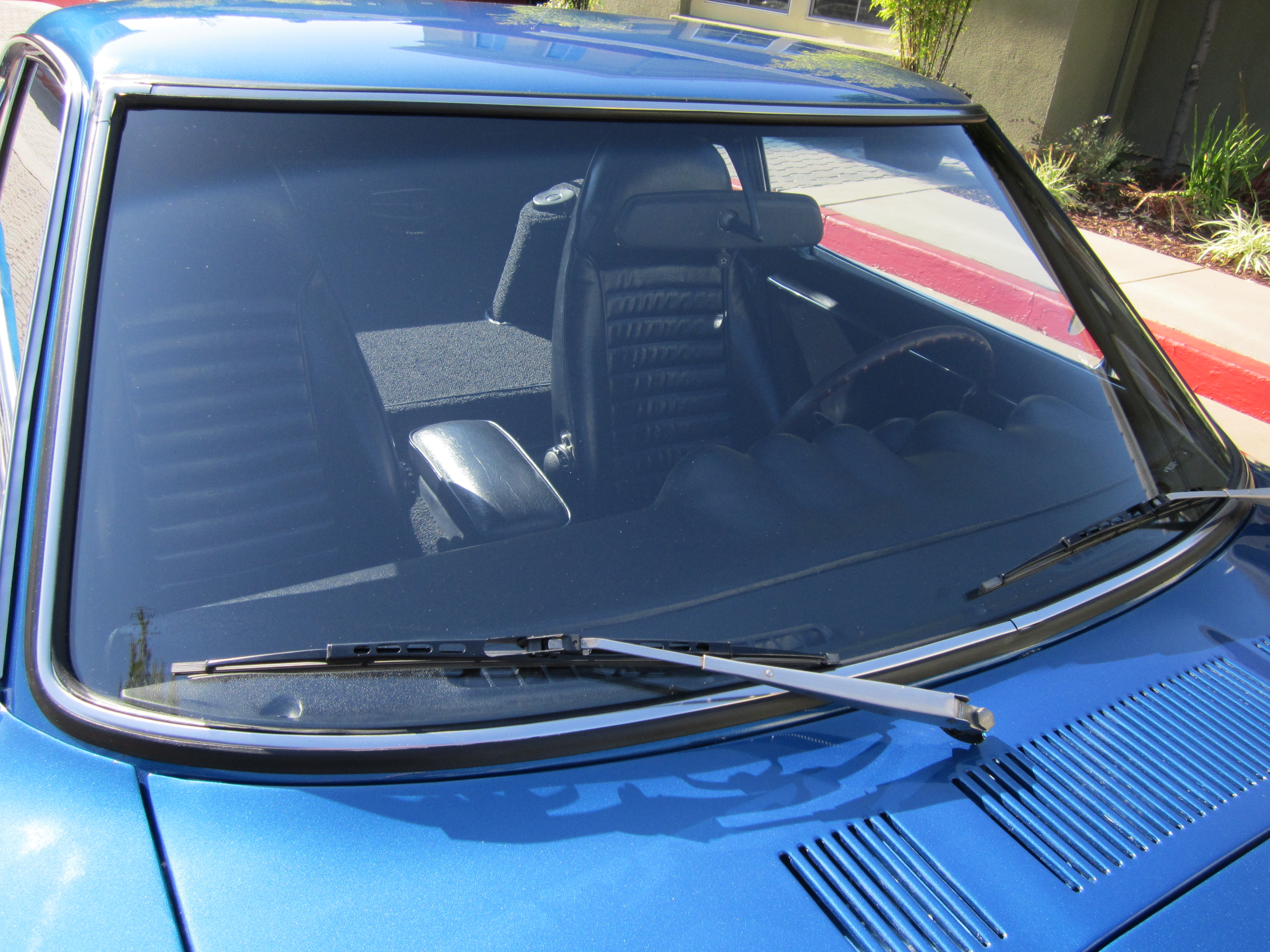

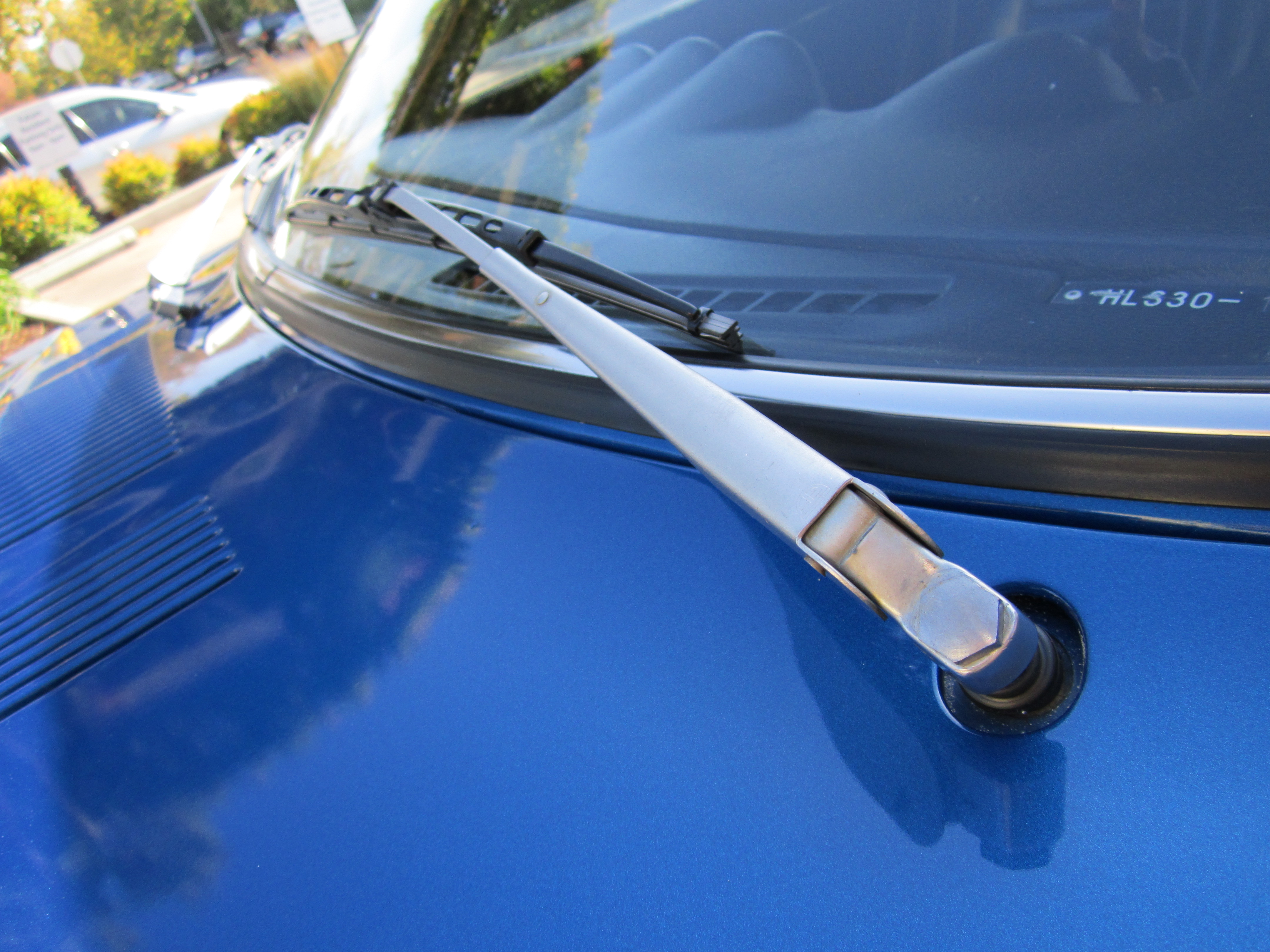

NOS wipers:

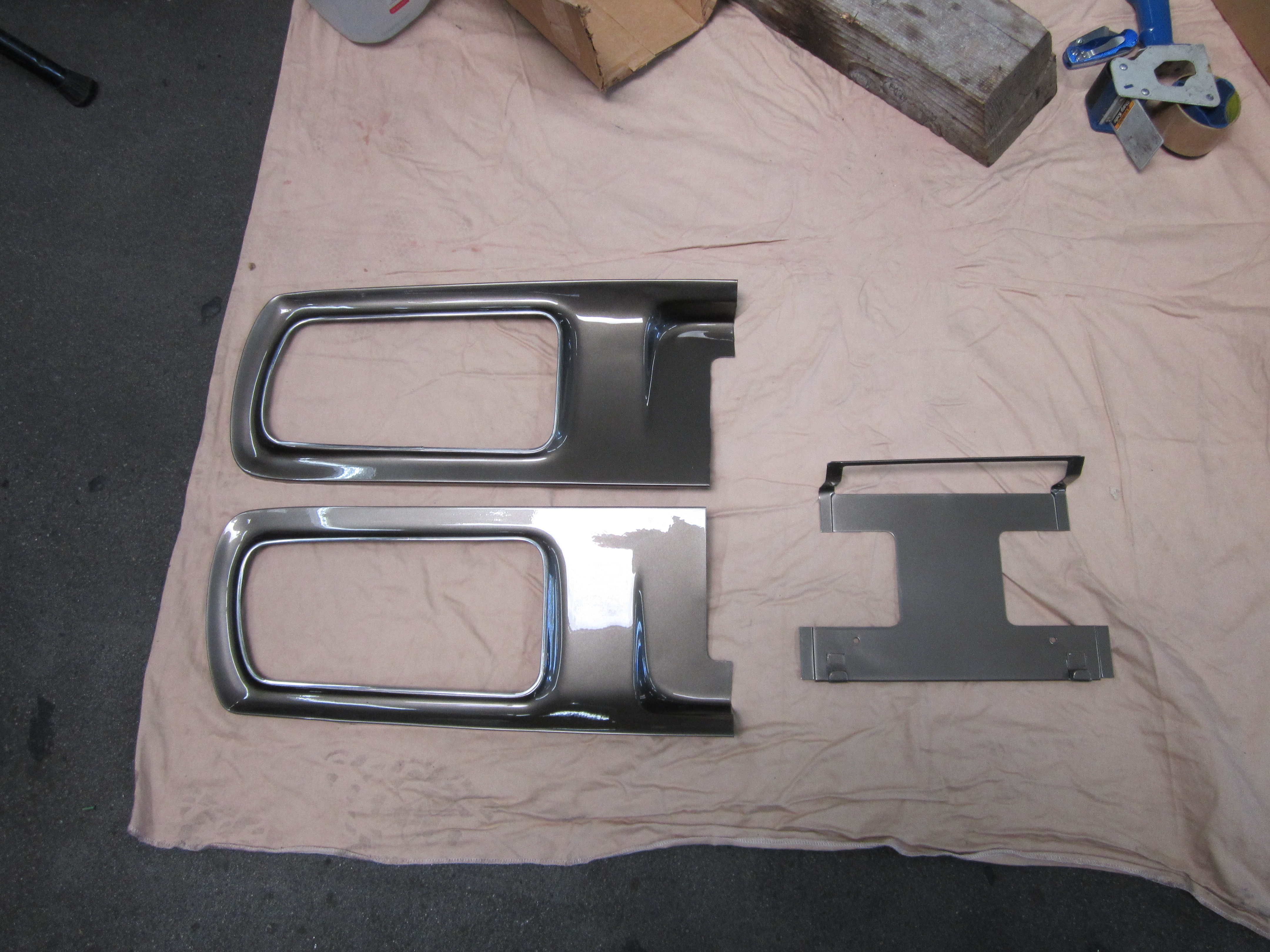

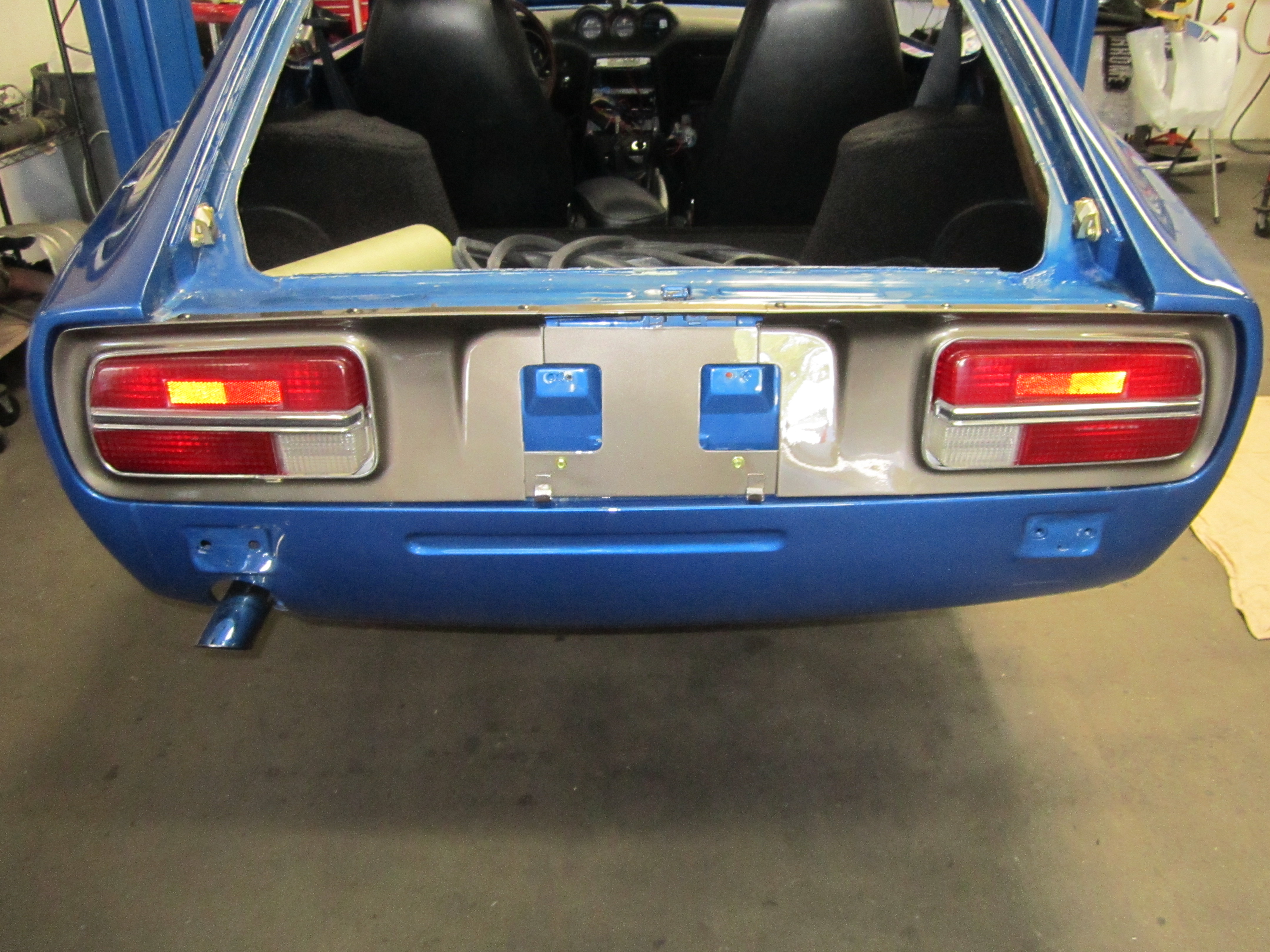

Tail panel assembly:

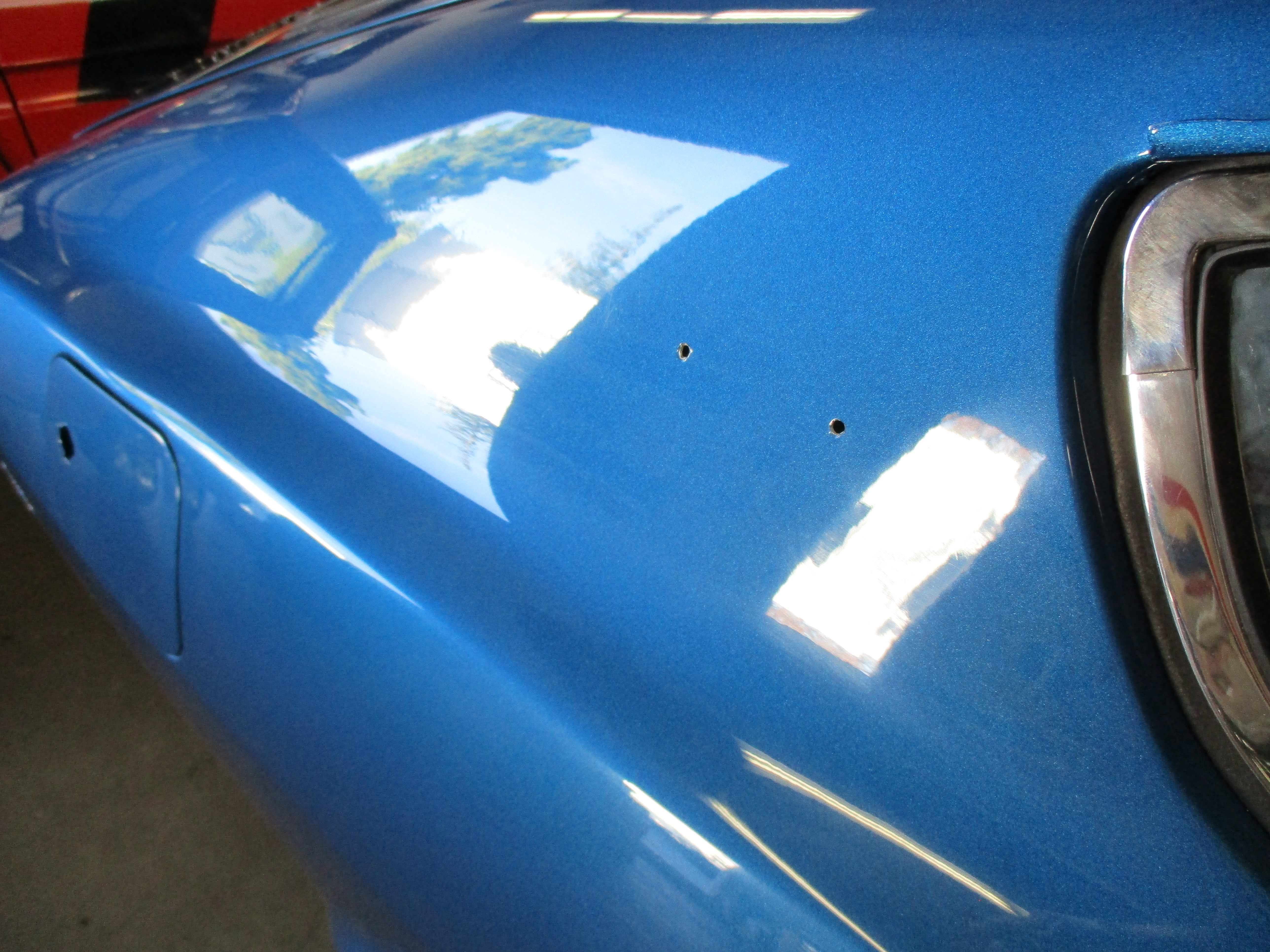

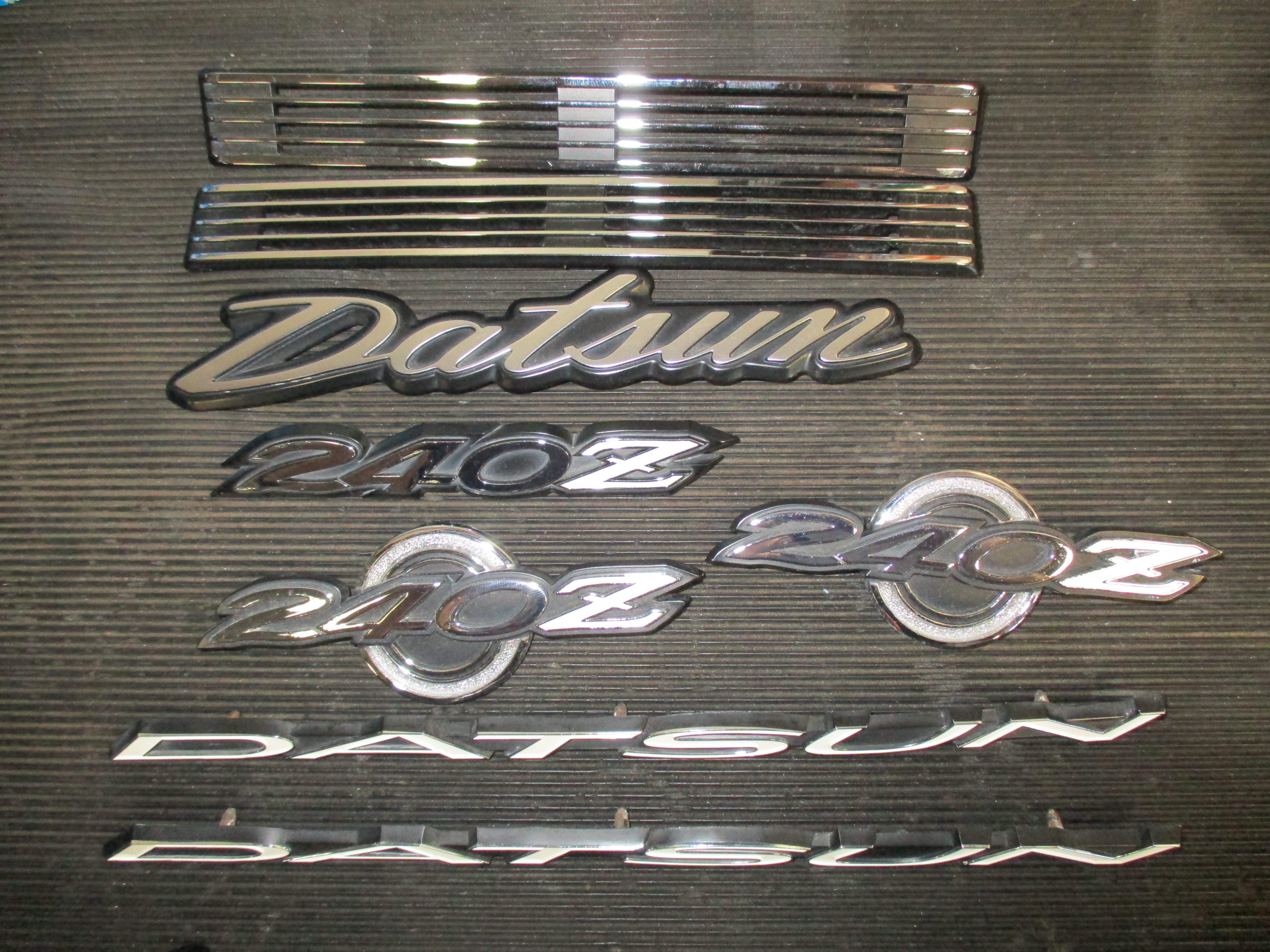

A variety of NOS parts like Euro front turn signals and a full set of emblems adorn the Z:

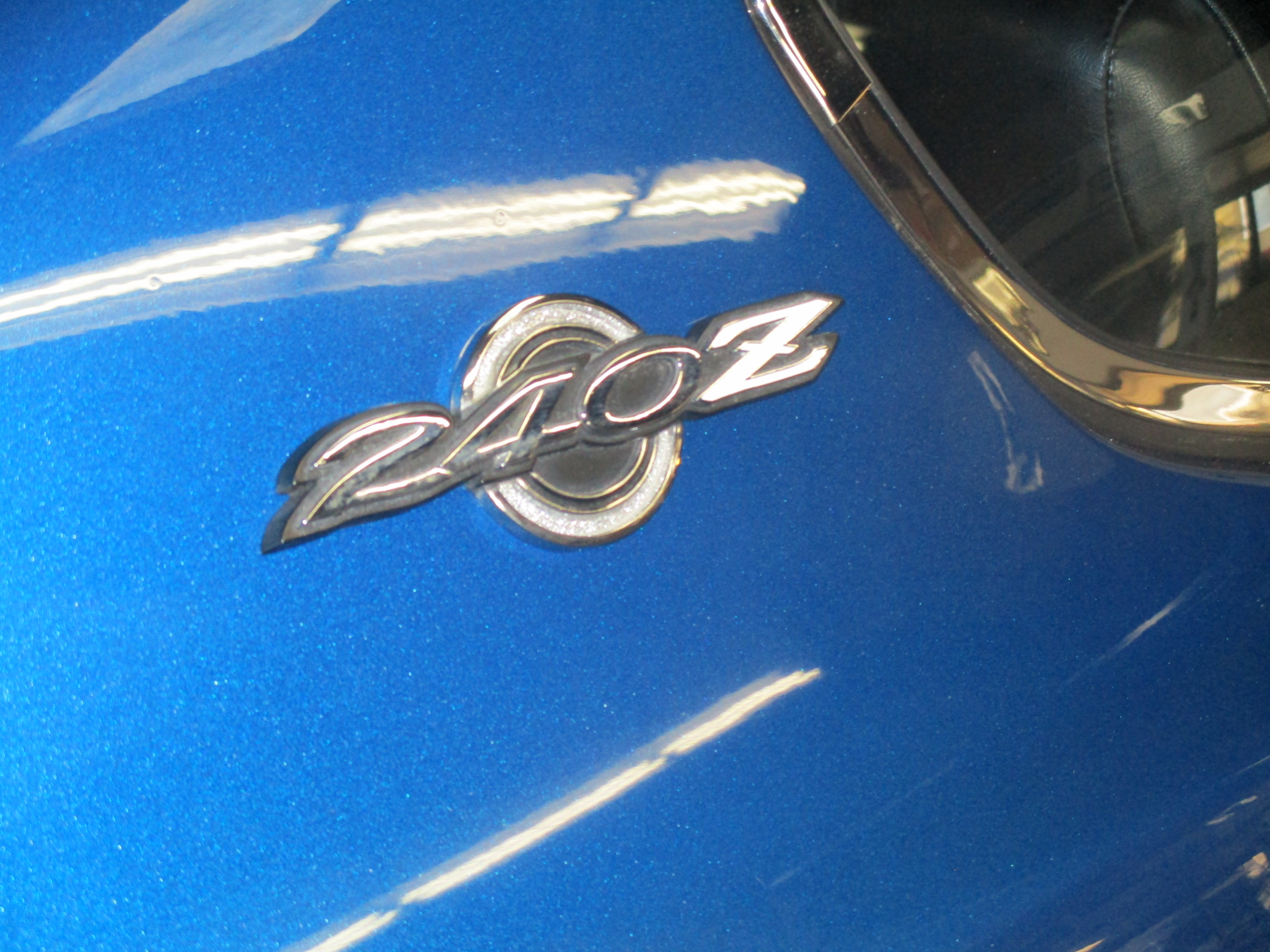

Series 1 pillar emblem:

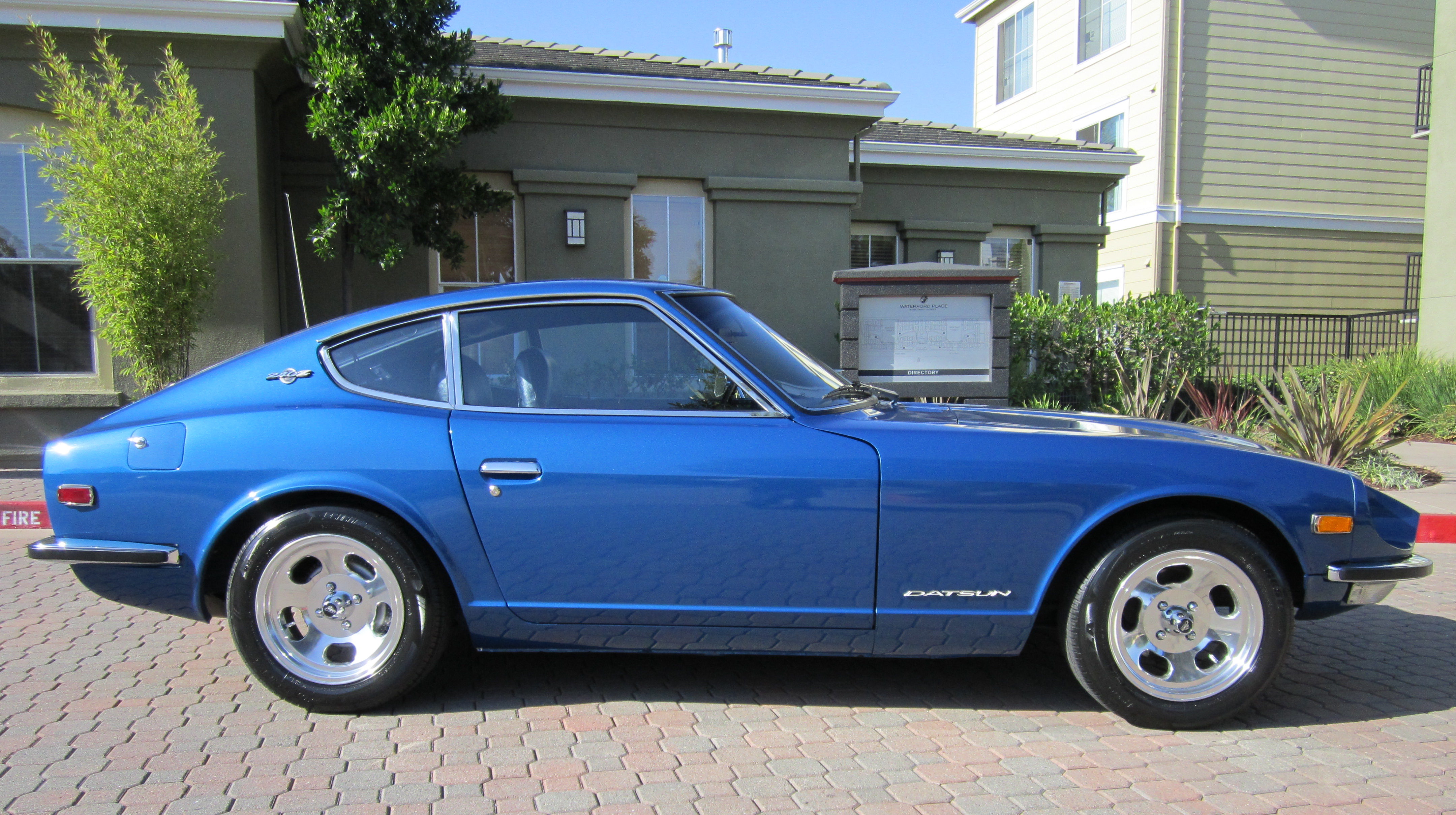

The final touch: 15″ 5-slot wheels offer more tire choices while resembling the classic 14″ size slots:

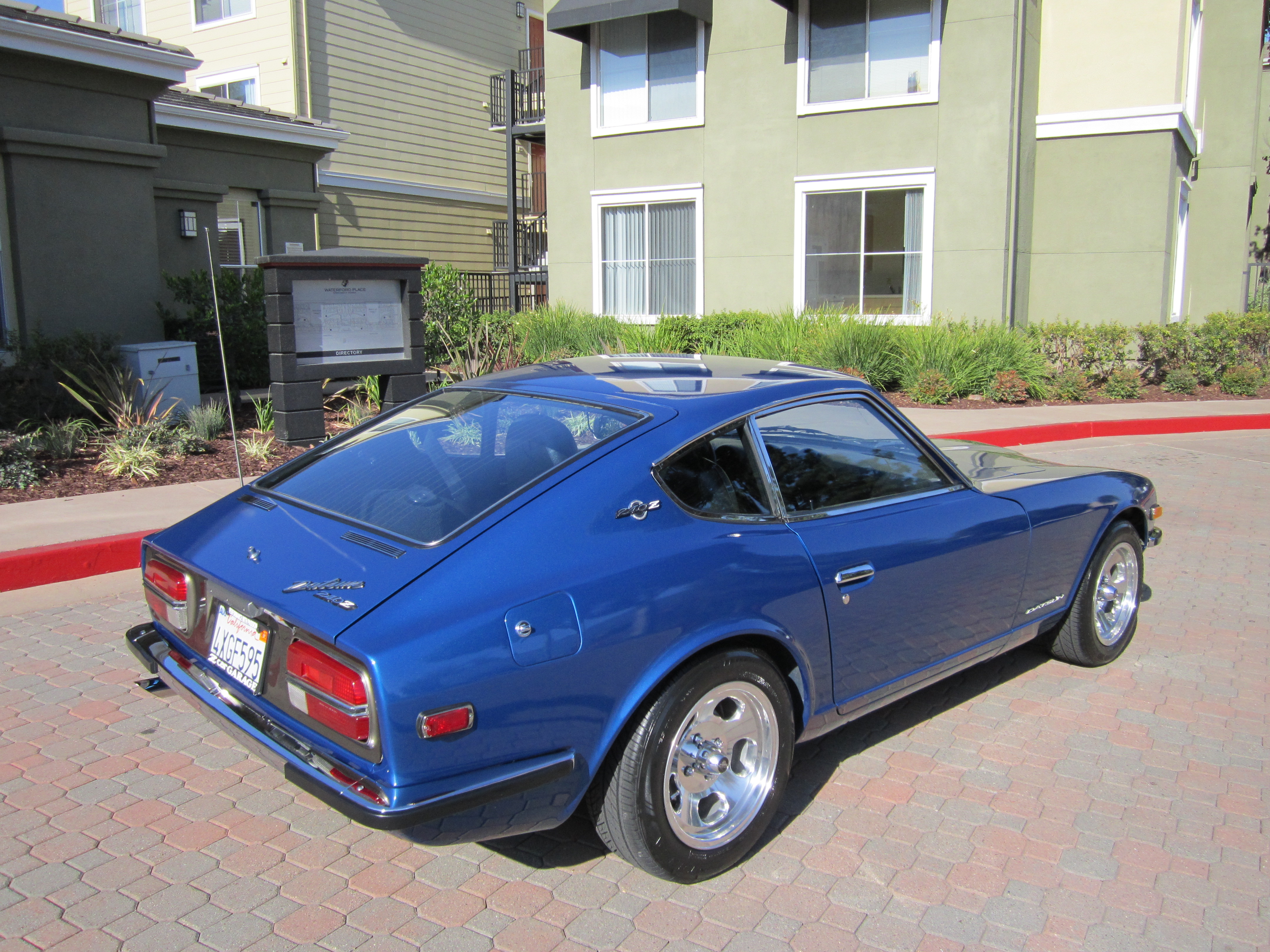

Ready to Enjoy The Ride

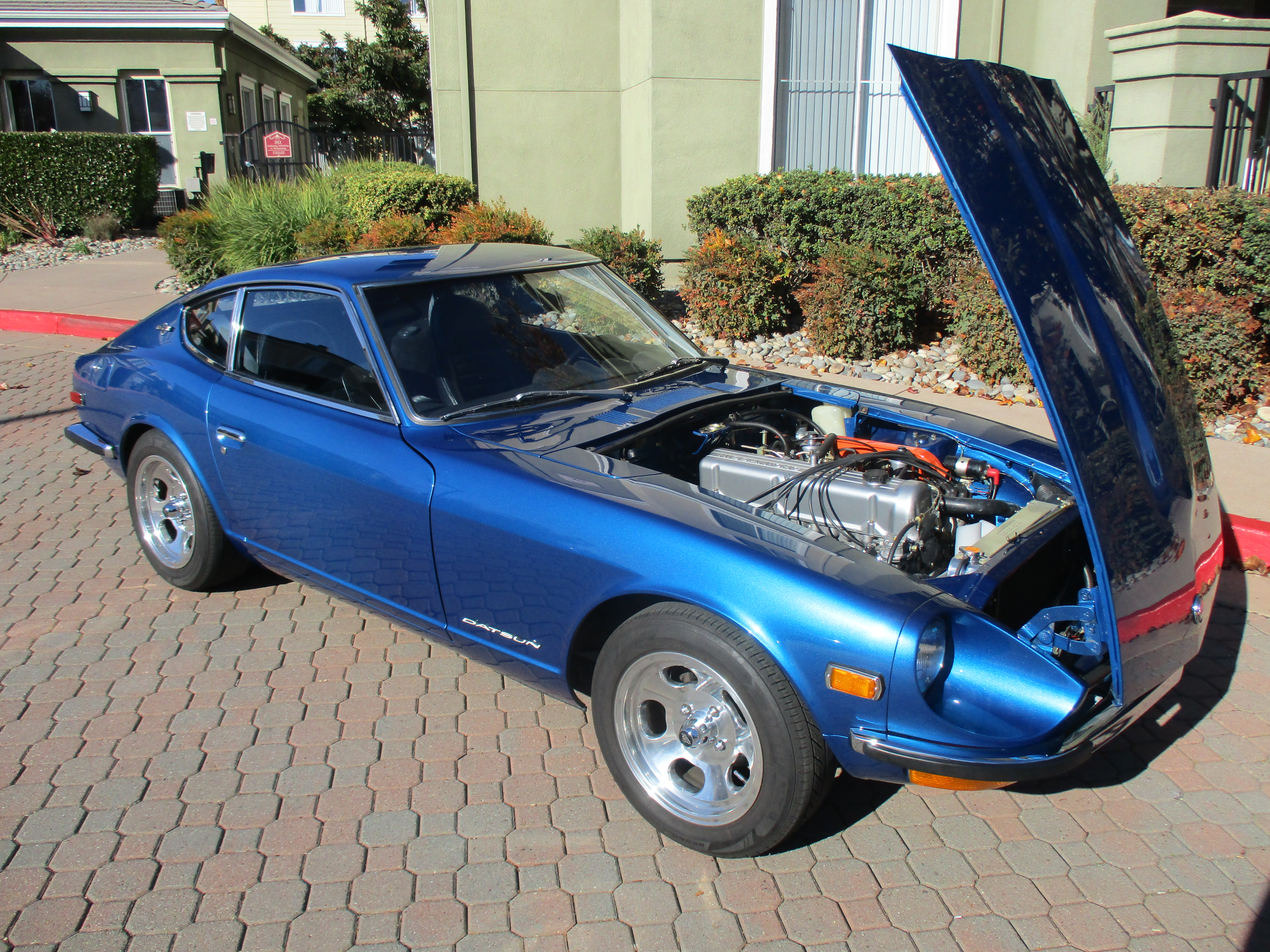

With a nice interior, paint and chassis work Richard’s Z is ready to be enjoyed on a daily basis. As long as you have the parts and the passion Z Car Garage will do all we can to keep Z cars on the road. Enjoy The Ride, Richard!






…[read more]




Back For Boost: Max’s Stillen Supercharged 370z

Filed under: 370z,Featured Cars and Projects,Performance
by Alvin G @ 3:32 pm on February 13, 2019



We tuned Maximus’ 2014 370z on his last visit to ZCG with gains of 30whp using bolt-on parts. Power can be addicting, and soon Max told us he was ready for boost. We chose the Stillen supercharger kit for its CARB-legal status and straightforward installation.



With only 28k miles on the odometer we installed the Black Edition Stillen kit and our standard ZCG supporting mods like a Concept Z performance 25-row oil cooler and automatic transmission cooler. A few pictures of the installation:

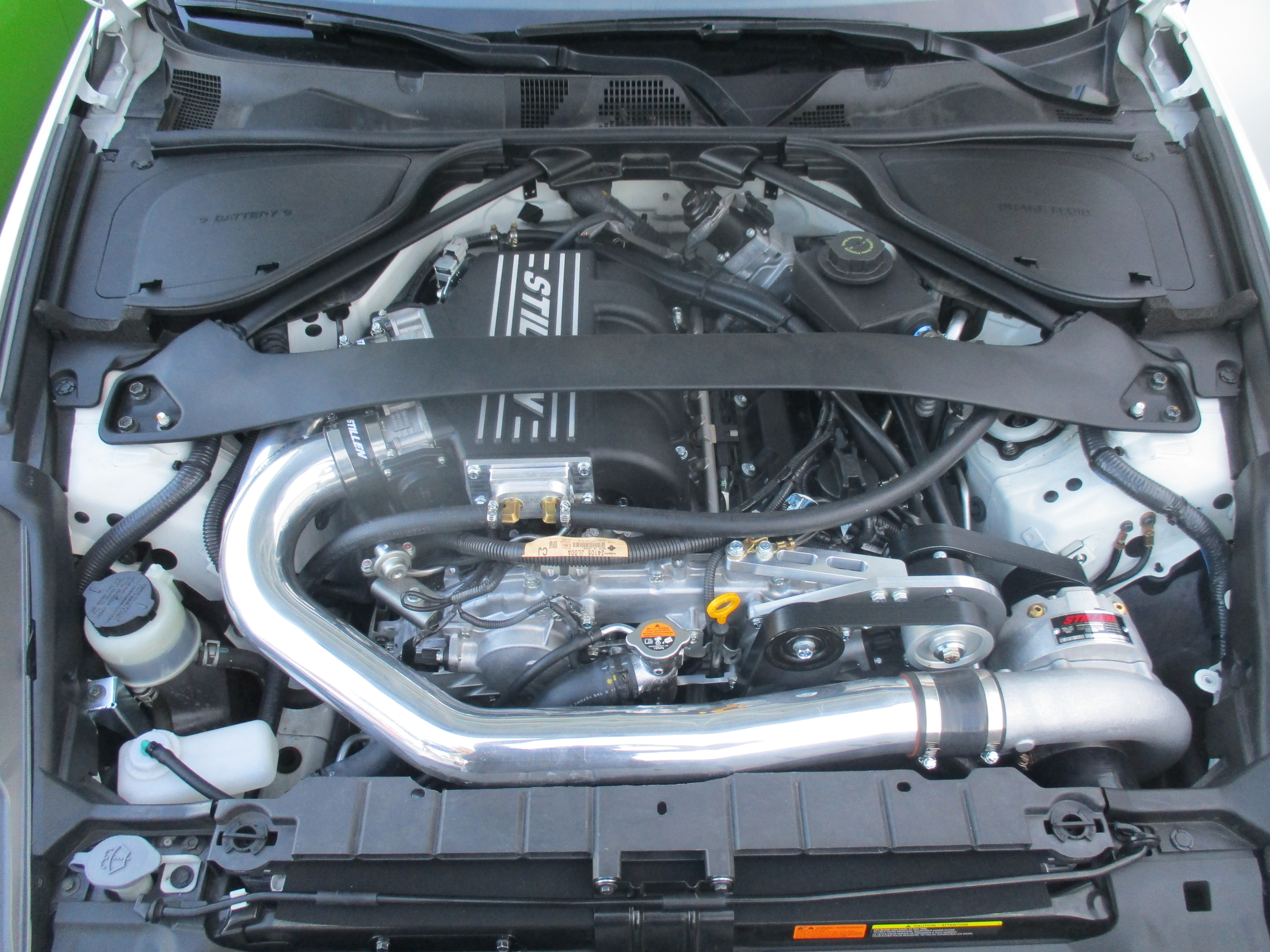

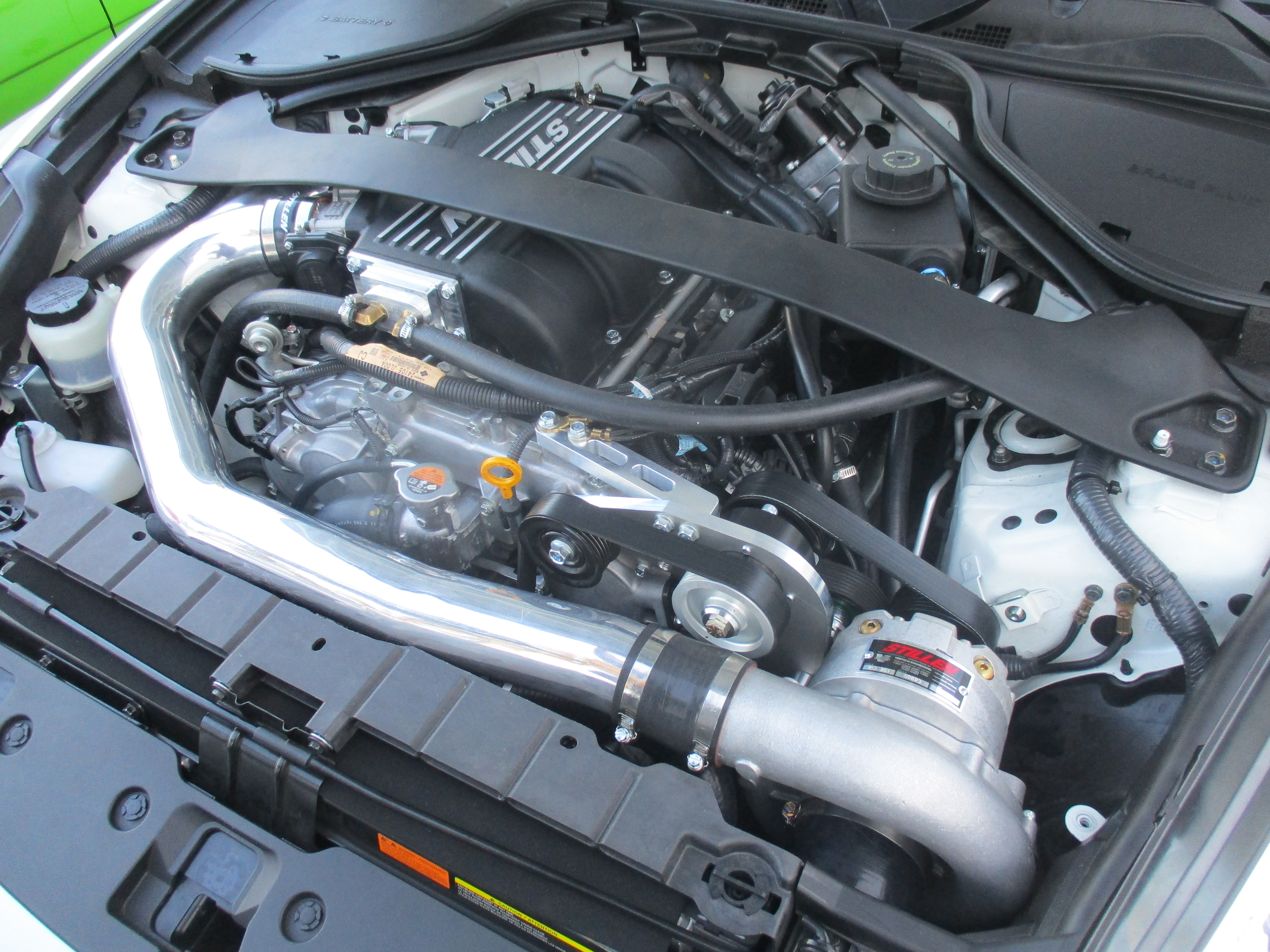

The completed supercharger install:



Max’s Z had an open diff so we did installed an OS Giken limited-slip diff and gearset from the 370z 6spd MT:

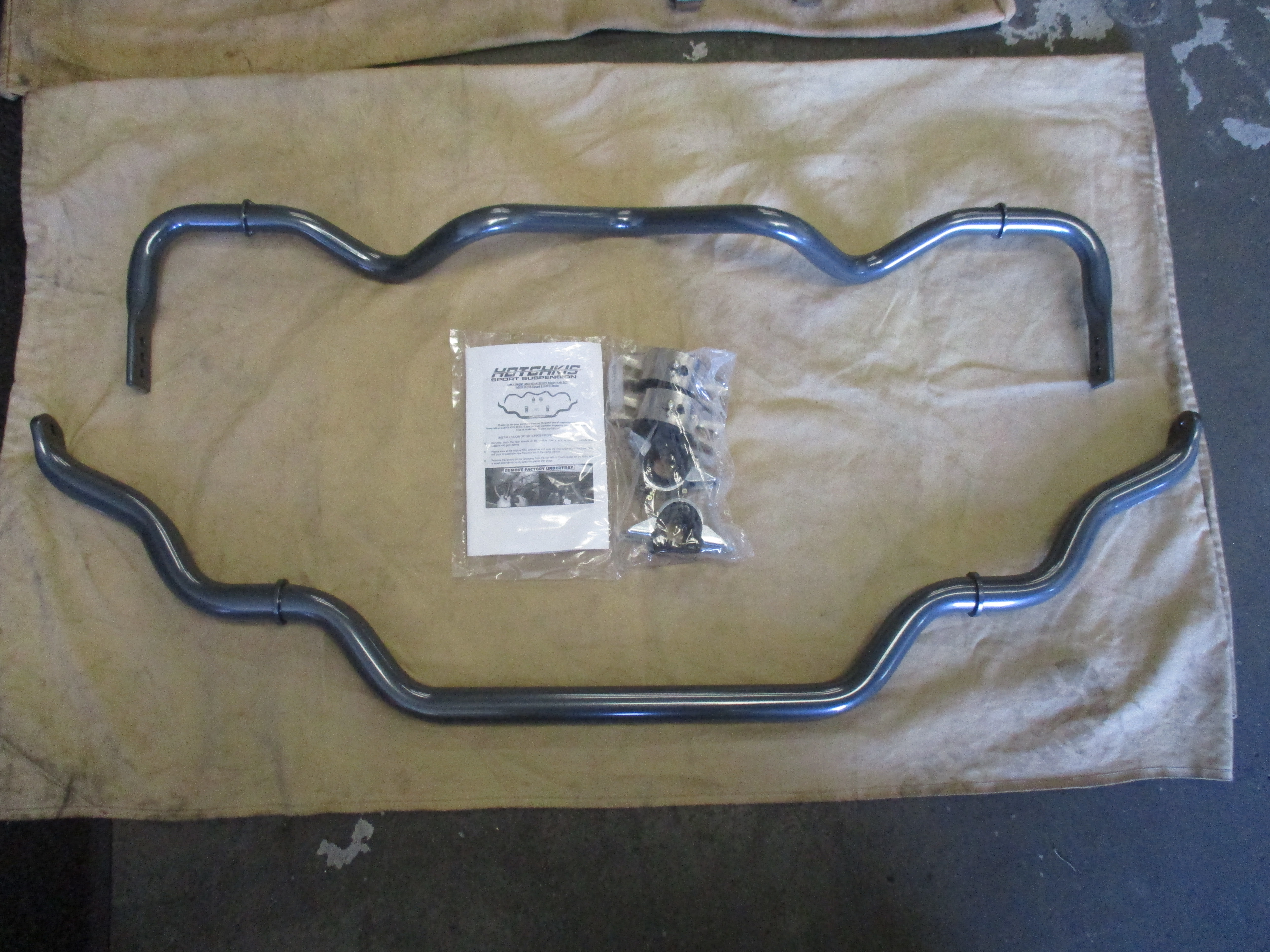

Hotchkis front/rear Sway bars:




On the dyno, Rob performed an ECutek tune yielding 383hp/304tq to the wheels:



Enjoy The Boost, Max!

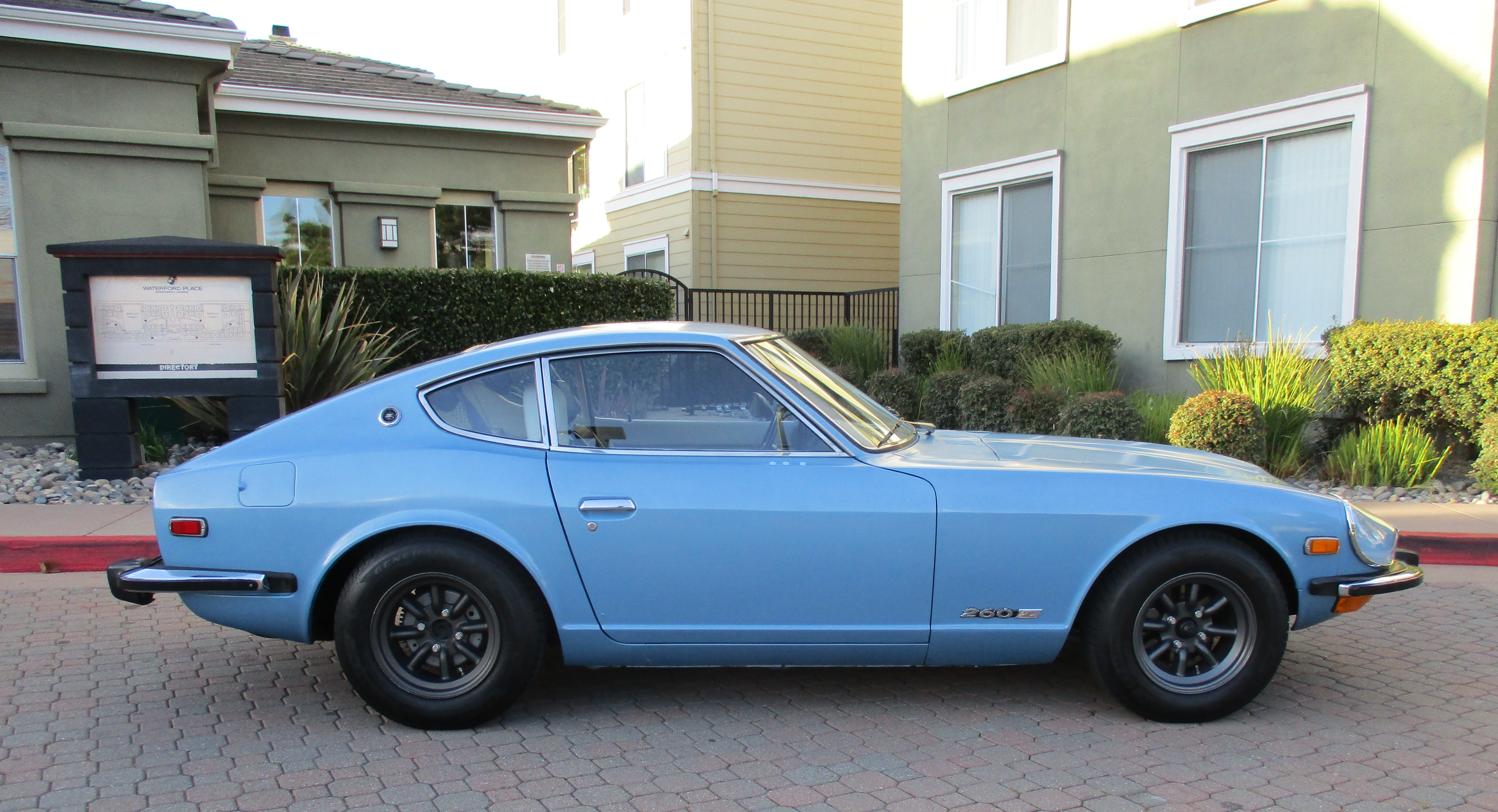

It’Z a Family Affair: Ben’s 1974 Datsun 260z

Filed under: Featured Cars and Projects,Performance
by Alvin G @ 10:31 am on February 8, 2019




“Love cars. Love people. Love life”…this motto was immortalized by Nissan legend Mr. K, and embodied perfectly by car enthusiast Ben Y with his 1974 Datsun 260z. We met Ben in Fall of 2016 when he visited Z Car Garage for a full mechanical restoration and it’s been a joy helping him realize his sportscar dream. Read on to learn about the Z’s history and how our restoration efforts culminate with a memorable father-son roadtrip.



A Family Affair

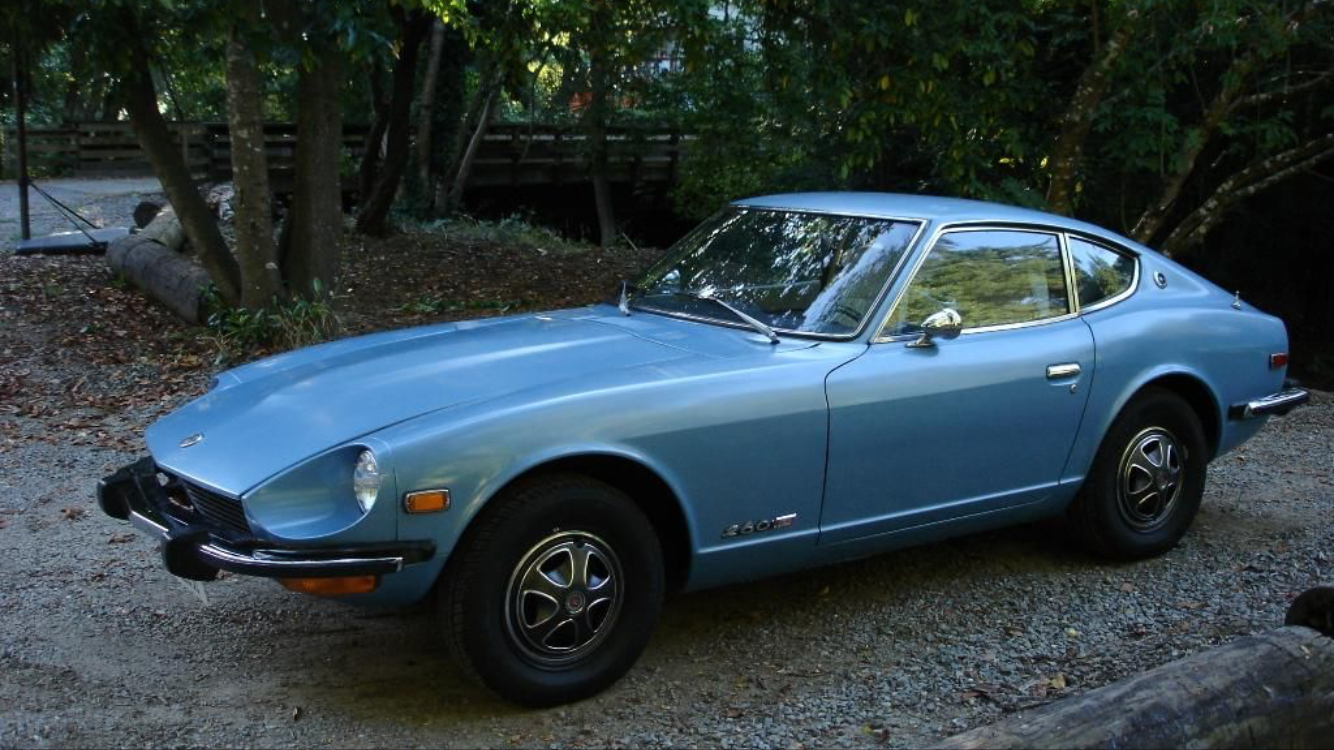

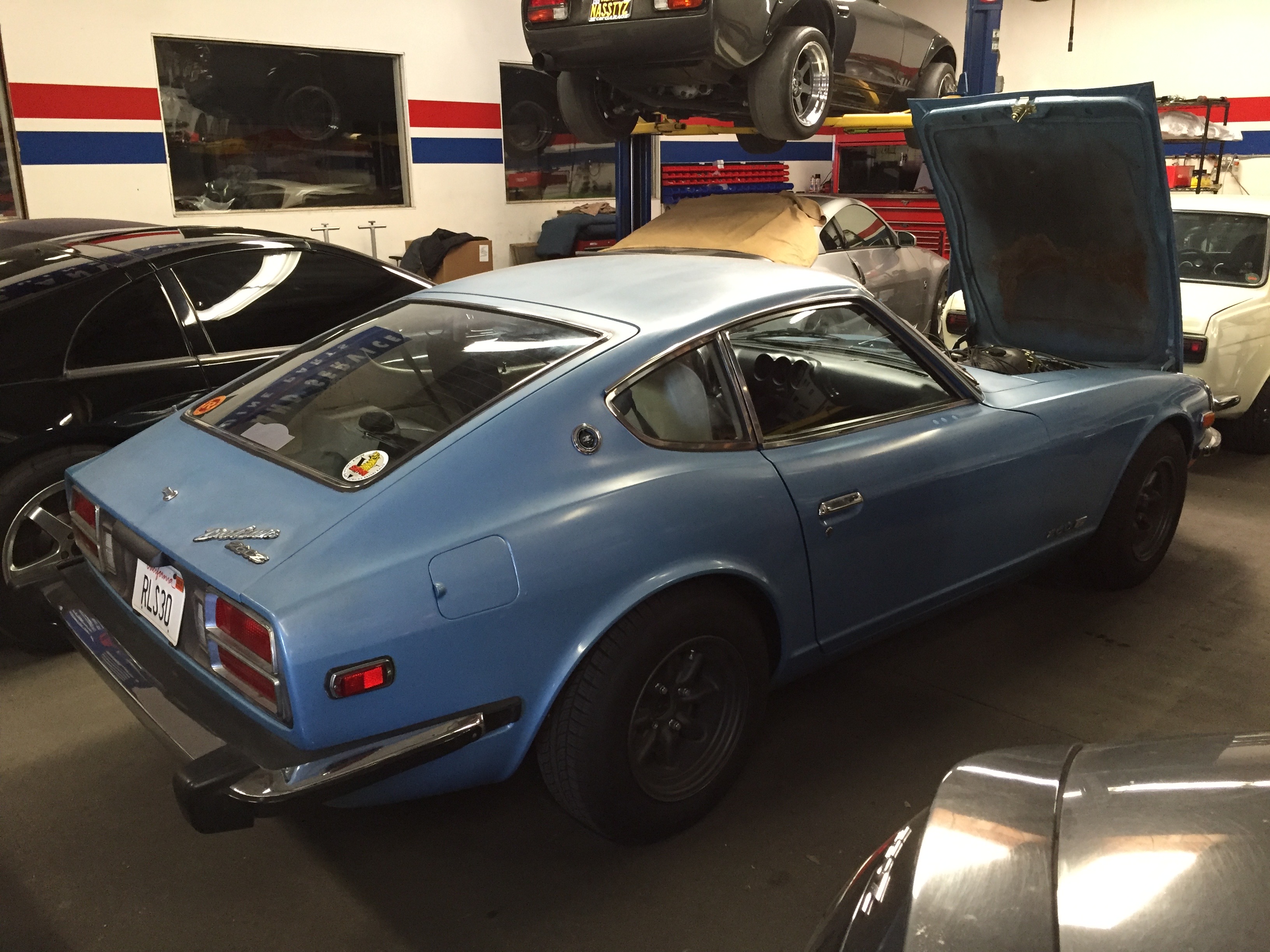

Ben has owned this S30 for nearly eighteen years. The car really is a family affair beginning with his father:

“It was my first car; the college car I inherited from my father and it was a bit of an oddity for a college student to have. The photo on the left is the Z all rusted and dented in Indiana, 2001.  Prior to my father and me owning the car it sat in a garage in Wisconsin for seventeen years. The photo on the right is after my dad resurrected the car respraying it in the original color, new bumpers, new vinyl seat covers, and a set of 72’ SU carburetors. I was a freshman in college at university of the pacific in Stockton and I needed a car so he trailered it to California in 2001. It was a longterm loan that would influence my life in many ways.”



“I was showing it a lot as a college student and won best stock 260Z at the MSA nationals in 2002. The picture below (left) of me and my dad with Matsui-San was a great time in my Z life. I was learning so much and he was and still is one of my hero’s. The car he is pictured in is Katsuaro-San’s (Kats) 1970 240z. On the right,  I mounted a free set of stock steelies/hubcaps because I thought the factory fresh look was what I was going for. I waited until I found the right set of Watanabe’s.”

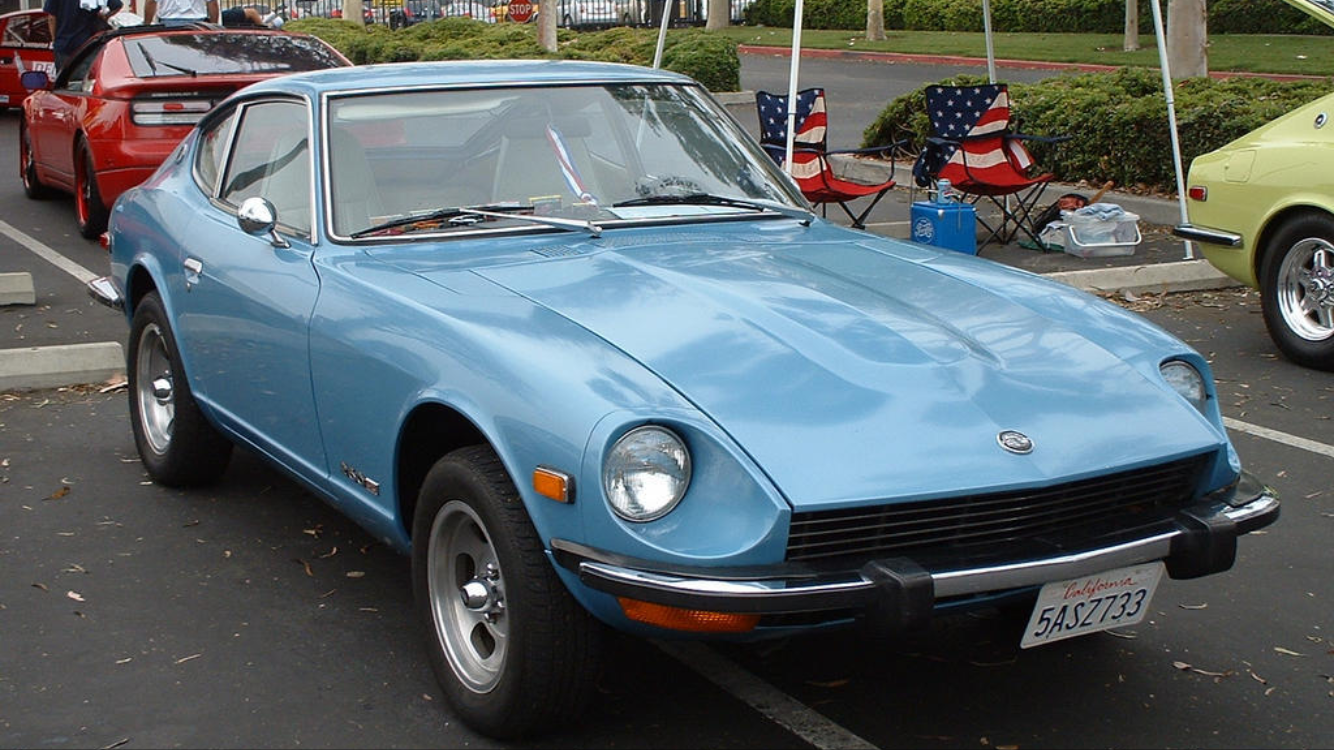

“In 2005 I took my 260Z to a show in Fremont at Ohlone college where I saw Rob with his green 240z complete with red Porsche brakes, RB25, and the photo of his “Z” tooth.  His car was unforgettable and with me pursuing a career in dentistry I would never forget his tooth.”
Little did they know that their paths would cross over a decade later…



Ben has written a blog dedicated to his Datsun addiction HERE. His ultimate goal with the 260z is to complete a coast-to-coast trek of the United States for the 50th anniversary of the Z car in 2020 with his family.

Let’s move on to the restoration…

Building the Dream




Ben’s vision of his perfect Z car comes from his admiration of period-style Japanese tuning:

“My concept is to create a 260Z as if it was owned in the 1970’s in Japan by someone who worked at the Datsun Sports Corner. When looking at the car’s engine-bay, interior, and exterior it is neither original nor modified.  I am open to making modifications to improve the car’s drivability, but outside of the Datsun Competition parts the changes will need to be internal.”

We performed a full inspection on the Z and it had a long list of needs. Ben reported the car lacked power and we found cylinders ‘3’ and ‘5’ in bad shape, necessitating a rebuild. The engine was removed while a 3.0L Rebello was built.



We wanted to build the car exactly to his specification and Ben decided to not leave a single rock unturned with engine, cooling system, exhaust, suspension and braking refurbishment. We would also install his prized Datsun Competition racing seat.

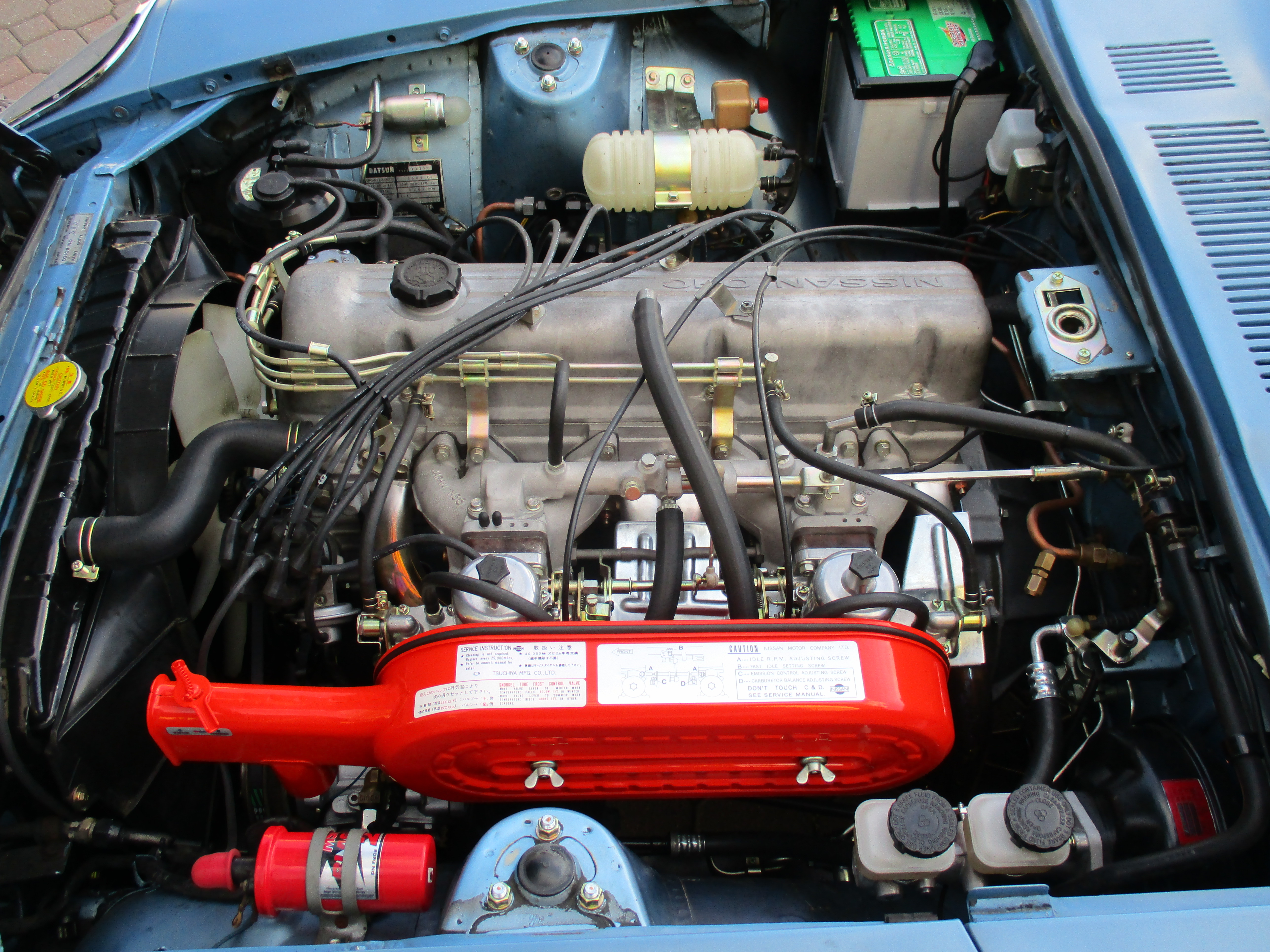

Engine Bay

With the tired engine removed we began the clean-up process.  Many more pictures of the teardown and assembly in the gallery:

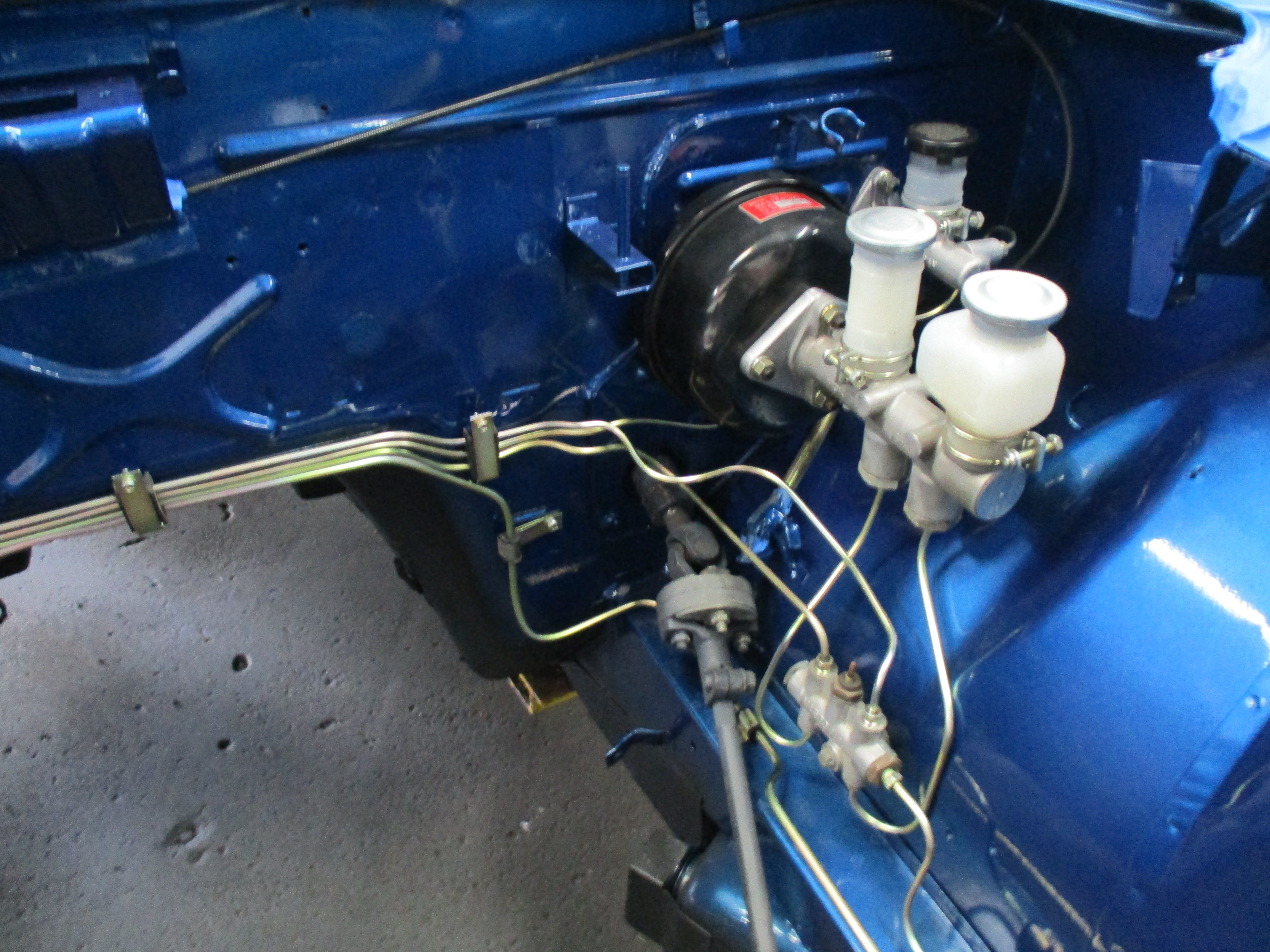

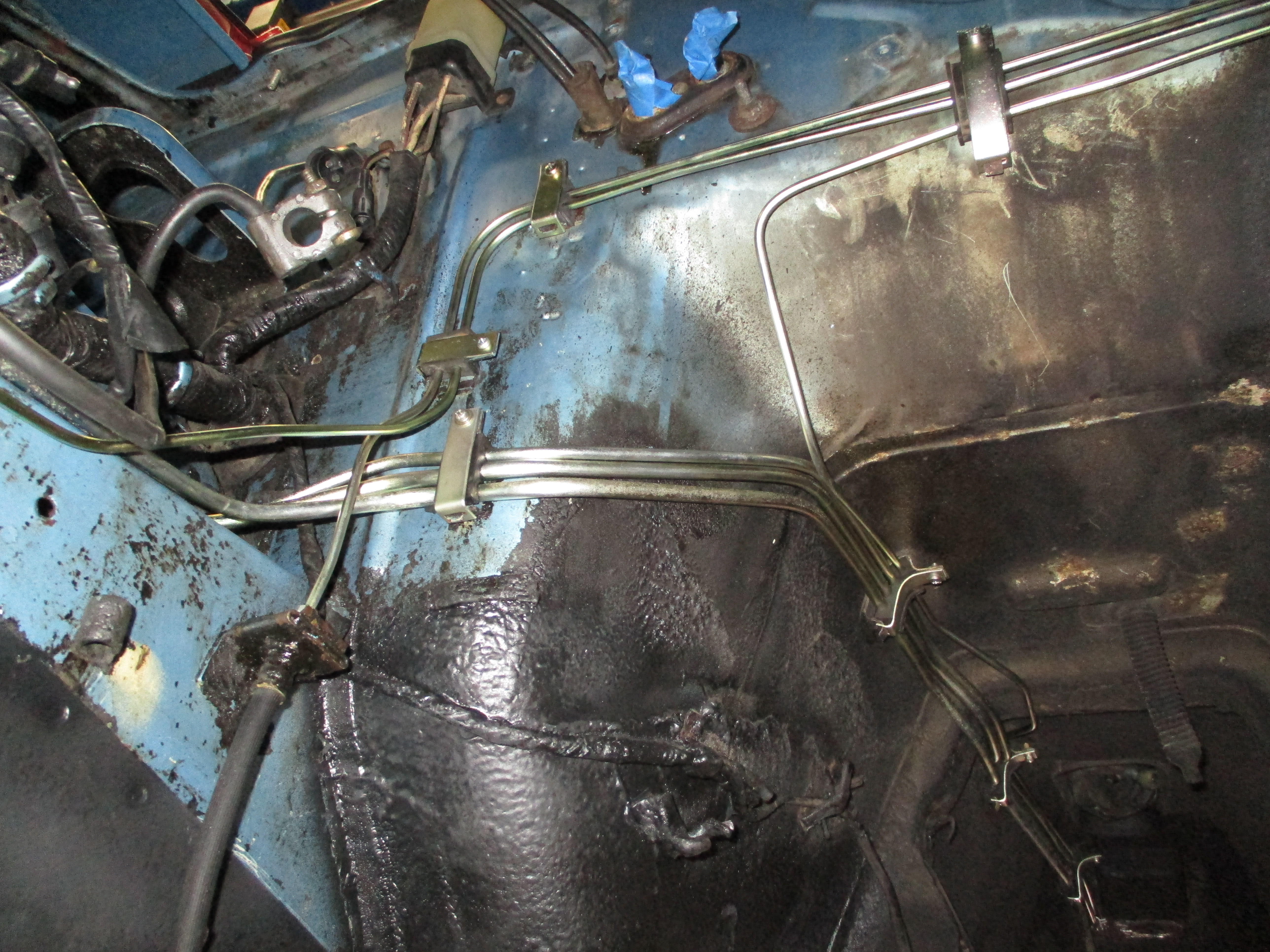

All new hydraulic lines replaced corroded parts:

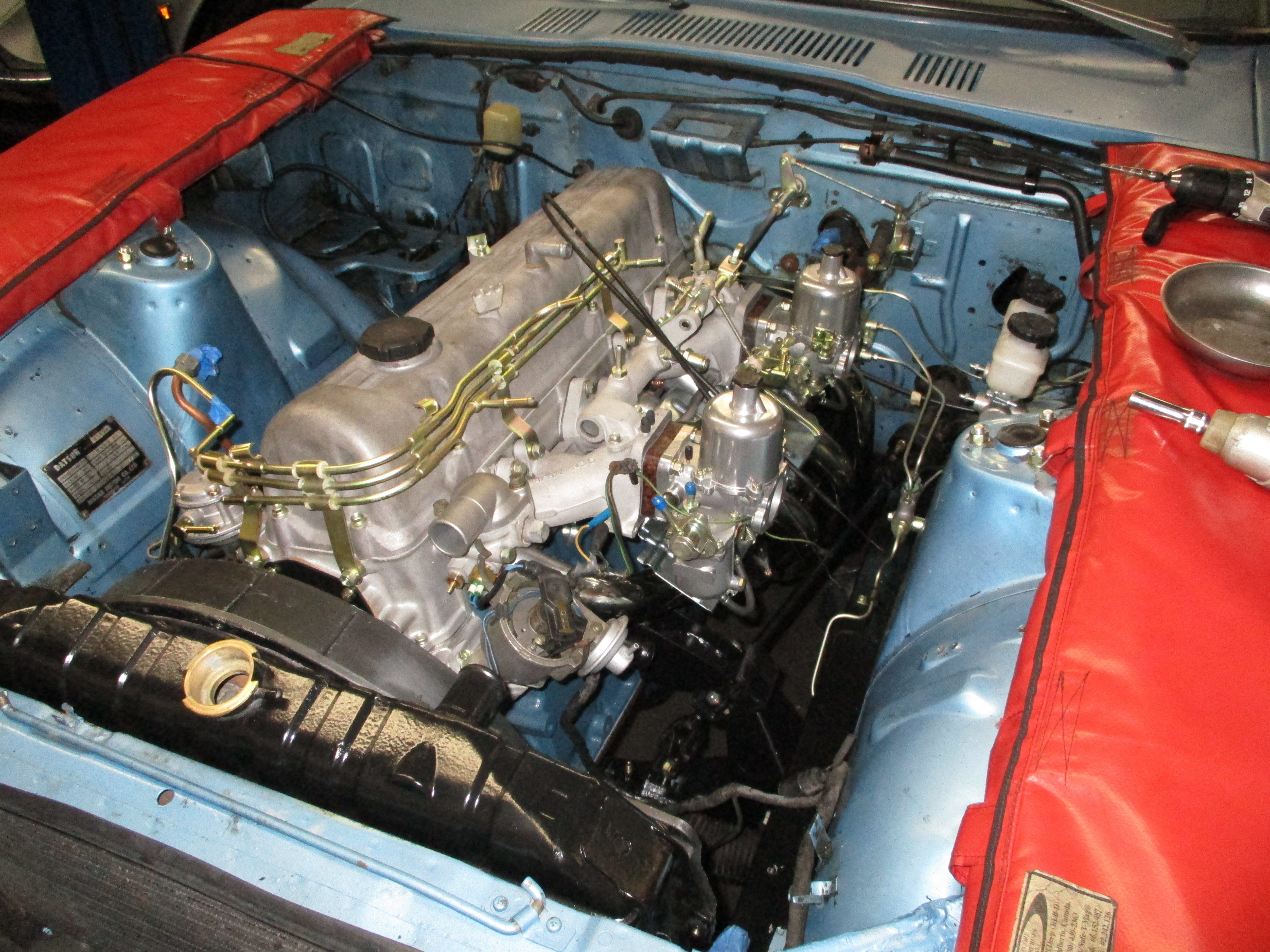

In keeping with Ben’s desire to have a factory-looking appearance, the new 3.0L engine retained SU carbs, built by Z Therapy. A JWT Aluminum flywheel and HD clutch back the powerplant:

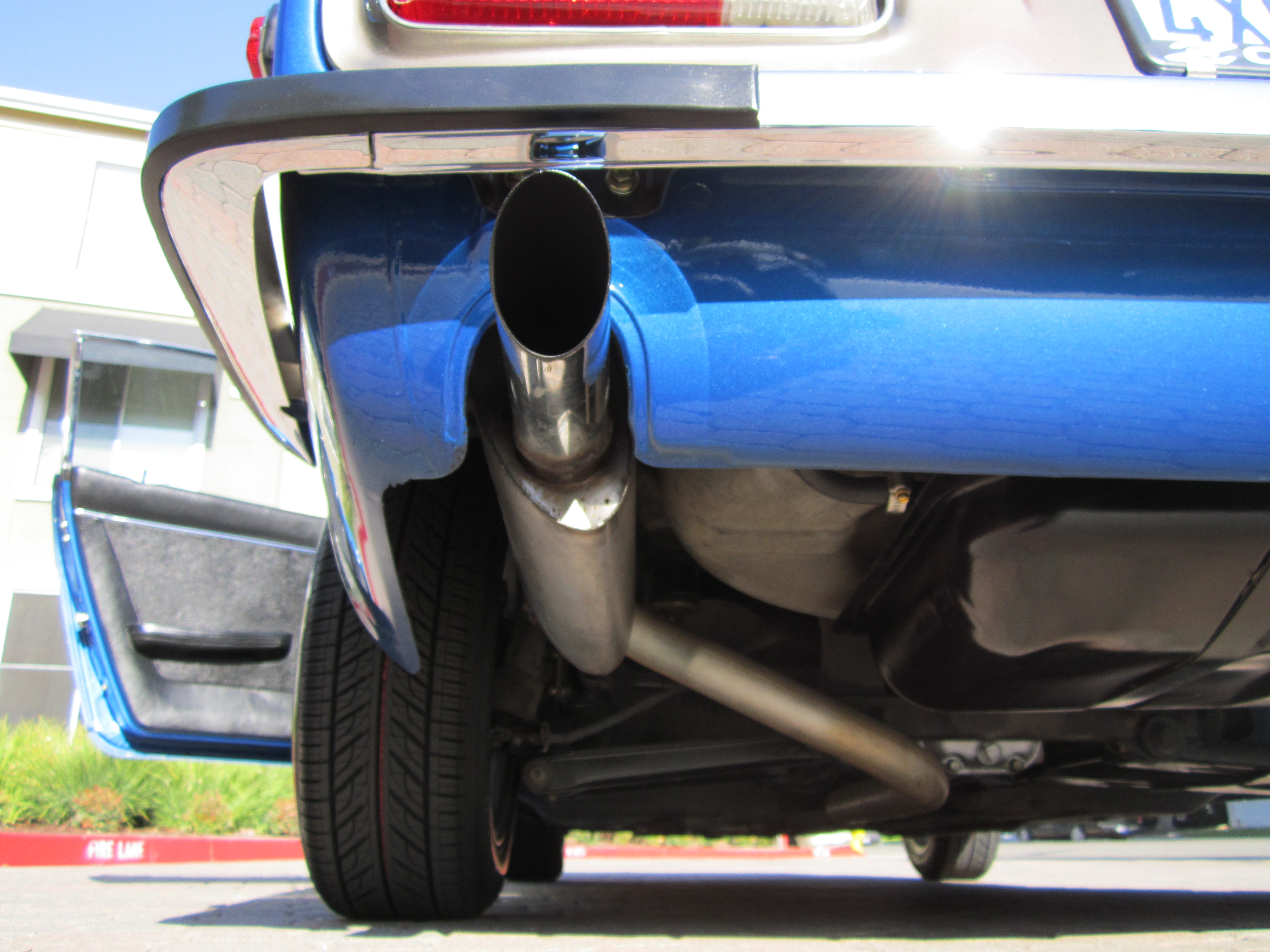

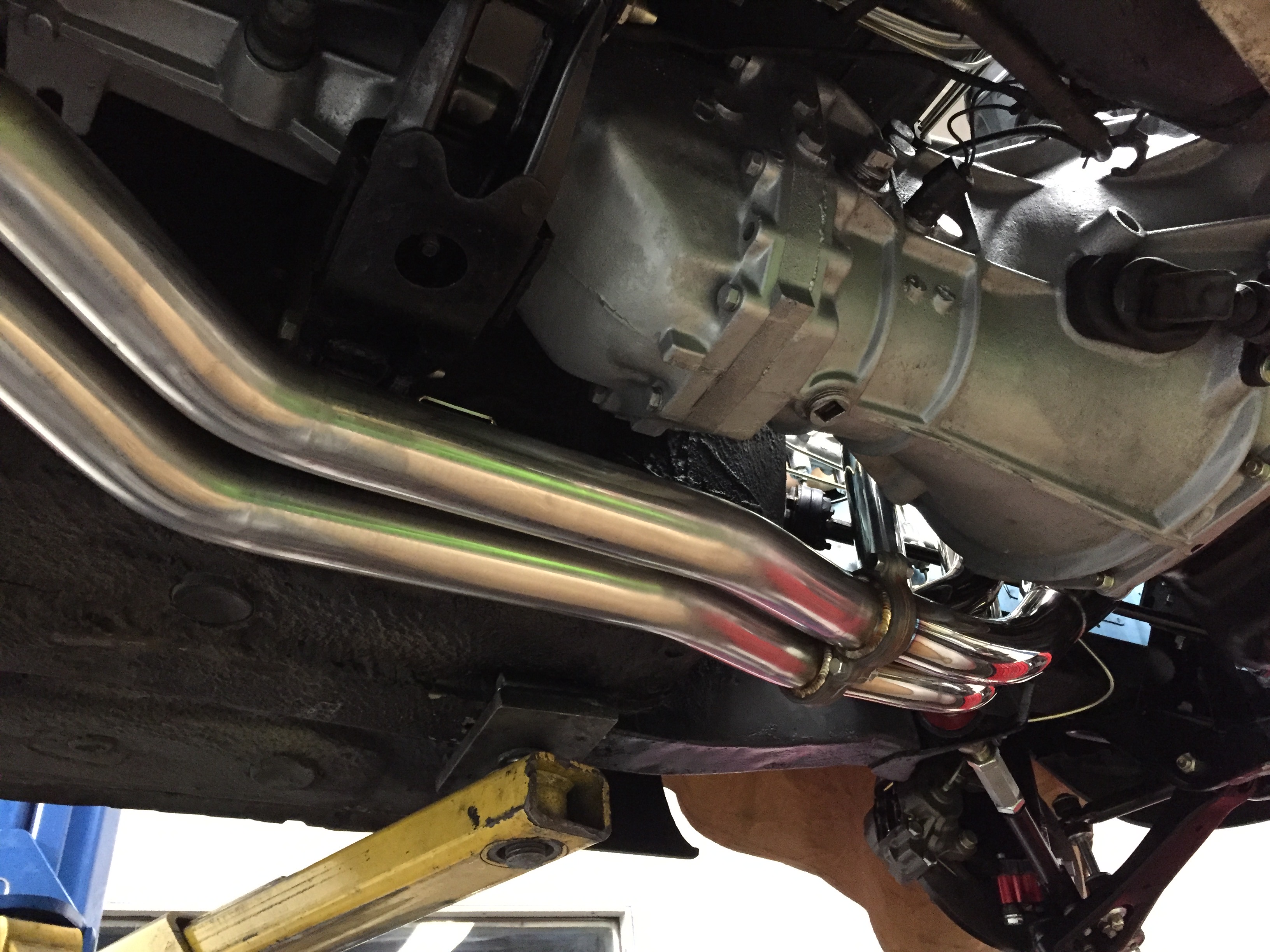

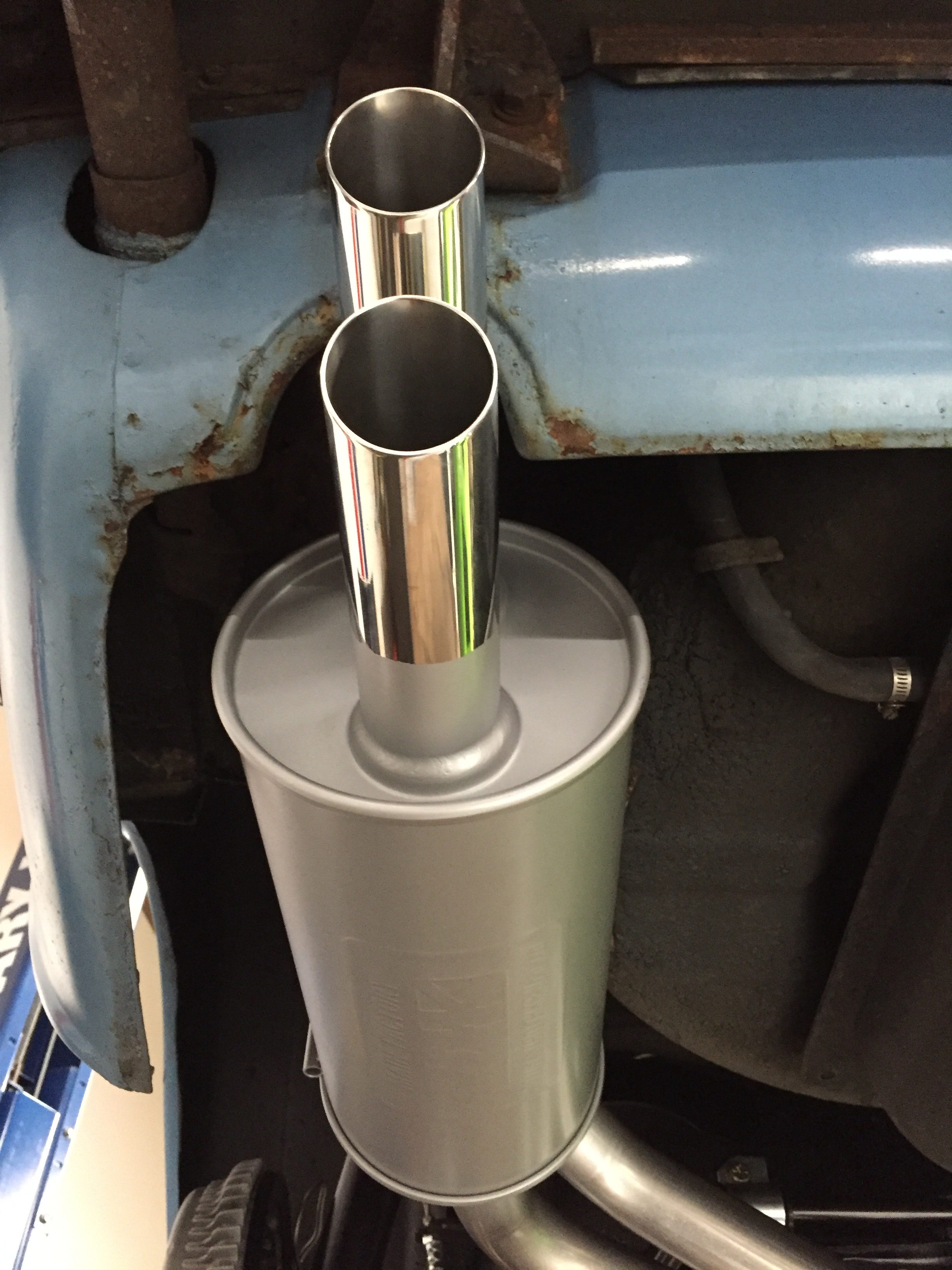

Ben’s excellent choice of exhaust: the Fujitsubo Legalis R twin-pipe system:

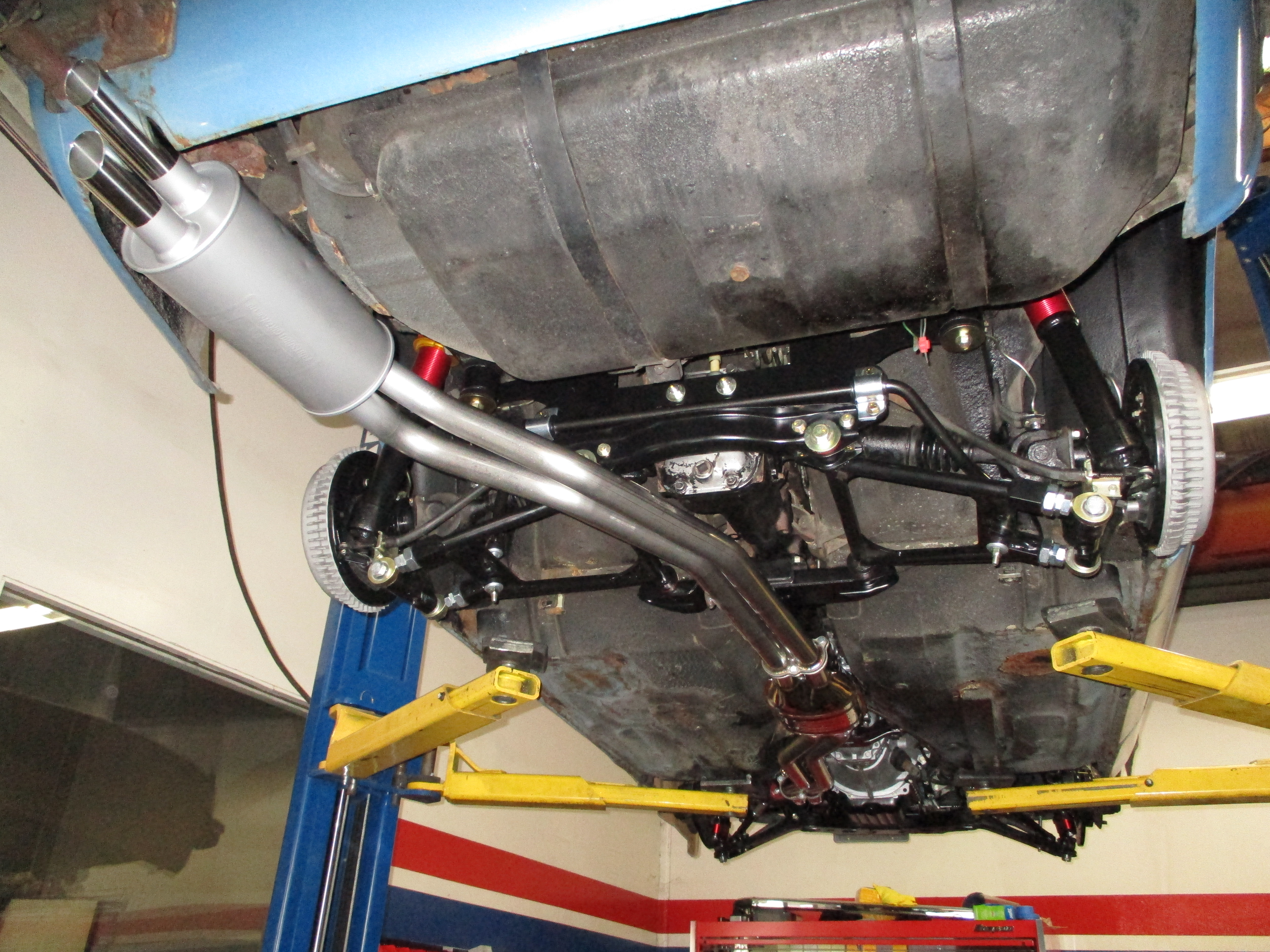

From header to twin tail-pipe we love the craftsmanship, finish, sound and performance this setup offers.




We added our own touches like a factory-like silver finish at the rear and O2 bungs for Wideband tuning in-house:

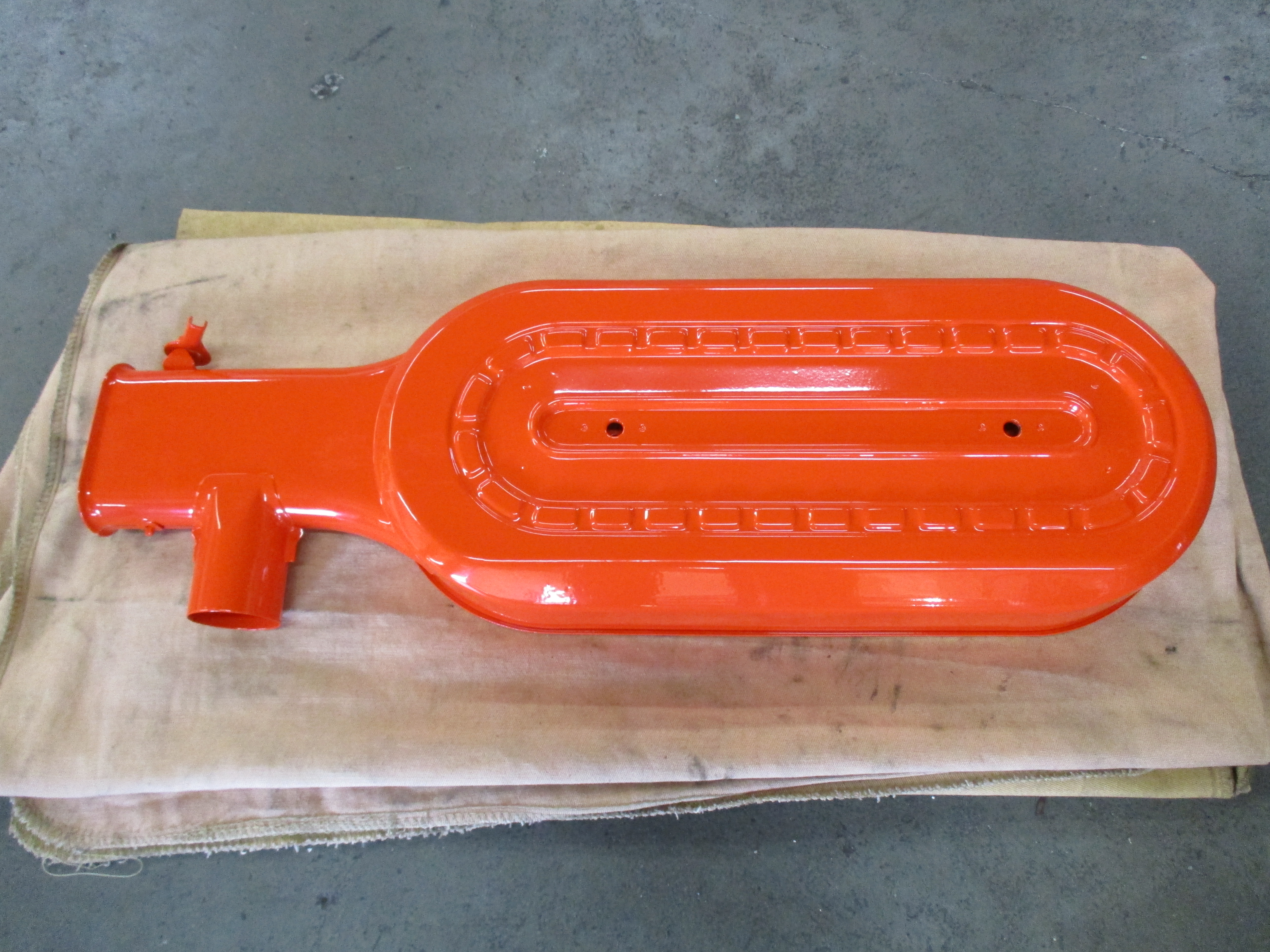

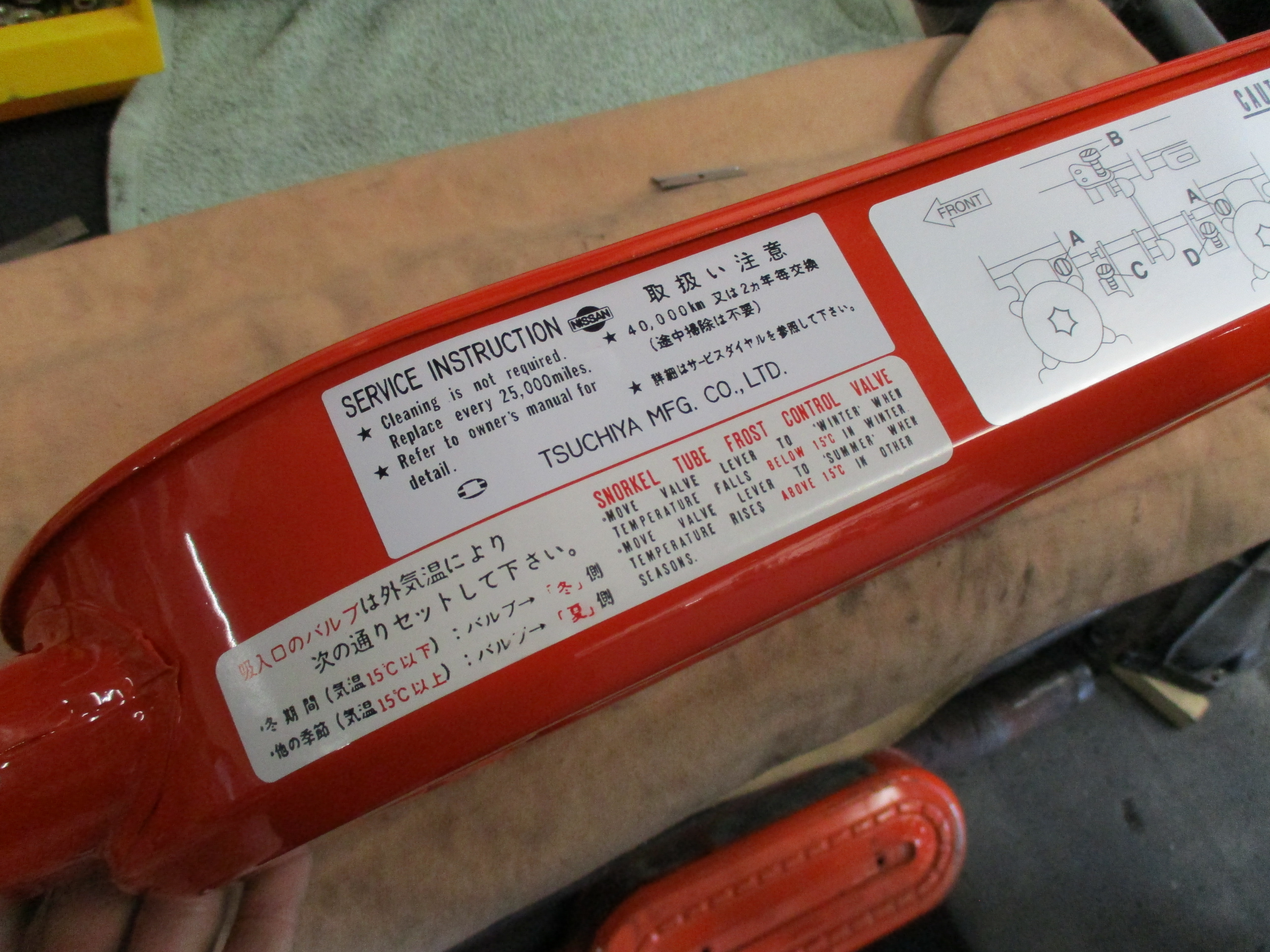

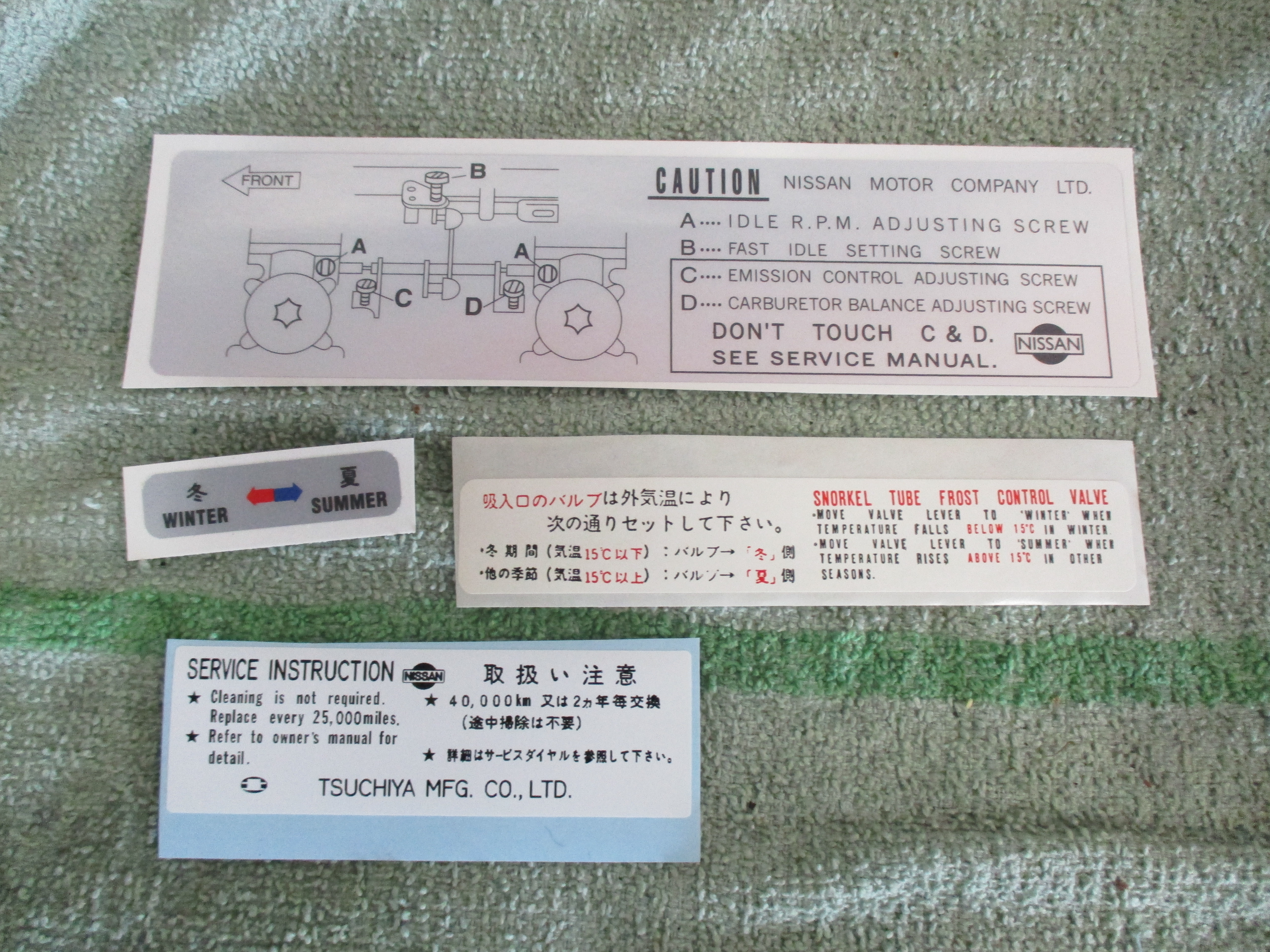

Small details in the engine bay make a huge difference:  powdercoated air filter assembly with reproduced OEM decals throughout,  proper plating, wire clips for hoses, ZCG mods to intake/exhaust manifolds and a stock radiator updated to 4-core:

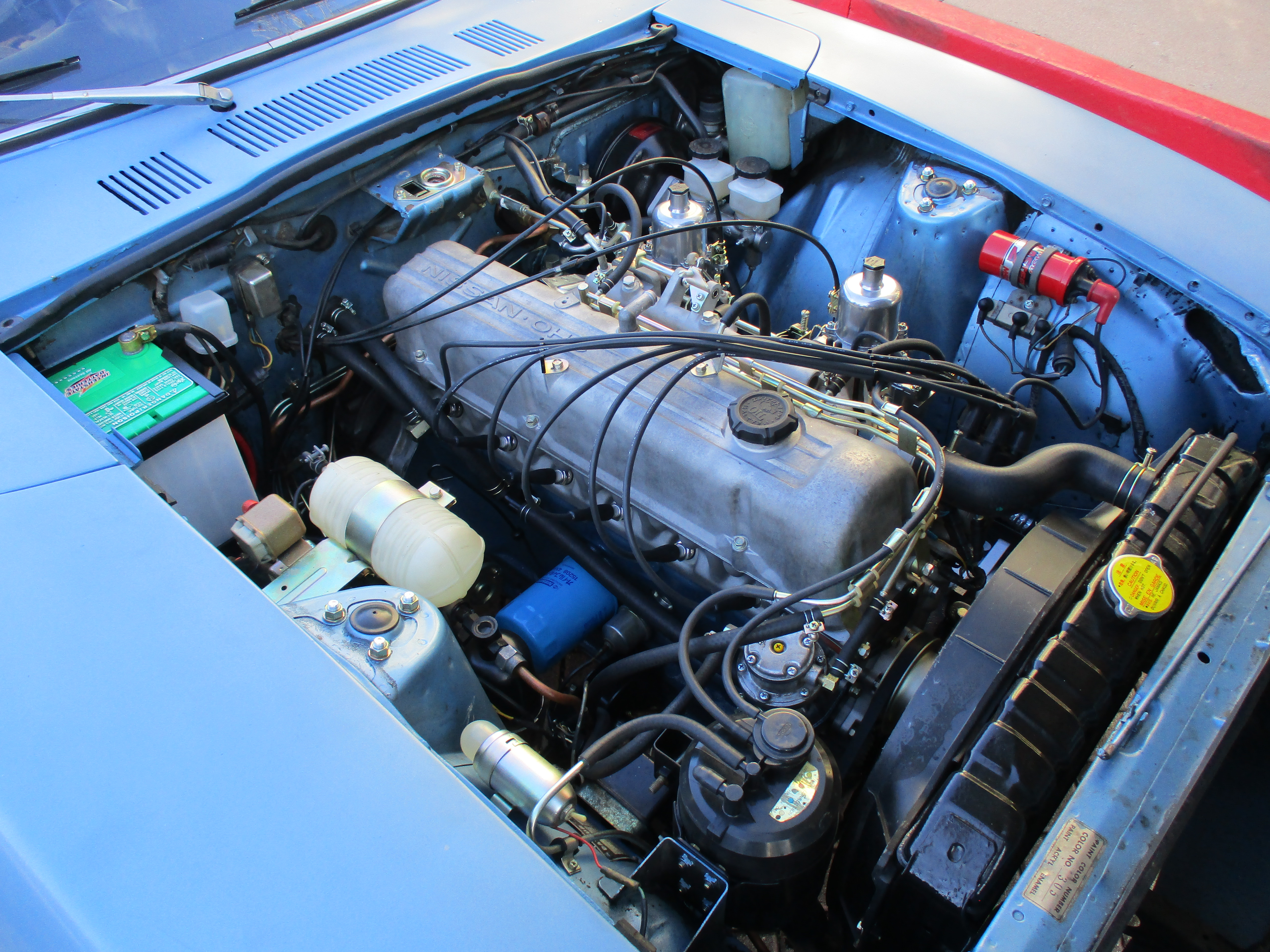

The completed engine bay:



Chassis

As the engine bay started to come together we realized the chassis needed to match the rest of the car. The drivers’s side inner fender had enough rust to compromise the sway bar mount. We cut it out, built a new brace for the sway bar mount and welded in a replacement panel.  All inner fenders were cleaned/undercoated.

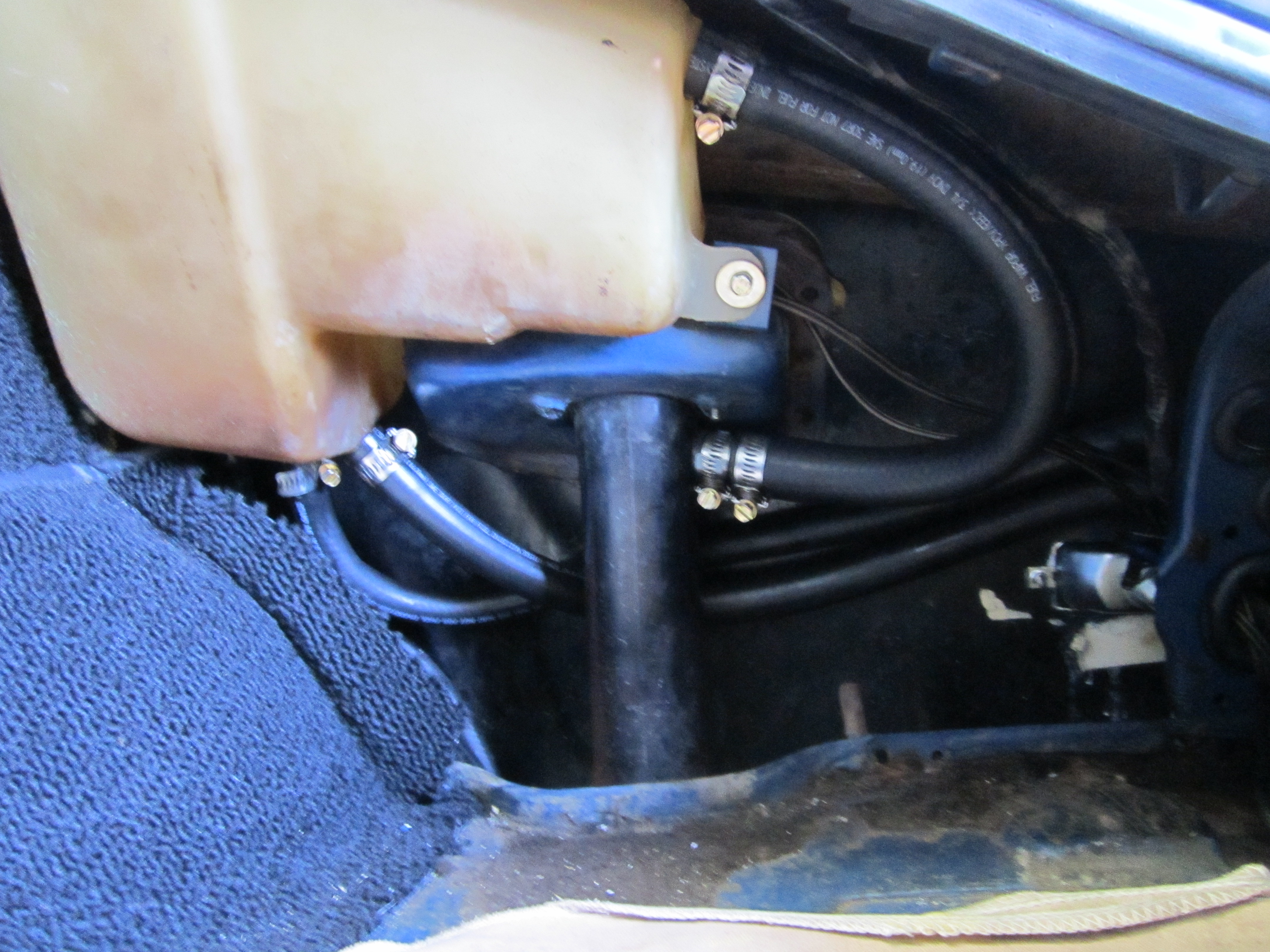

The entire fuel system was gone through including all recovery hoses/lines, fuel sender and boiling out the gas tank:

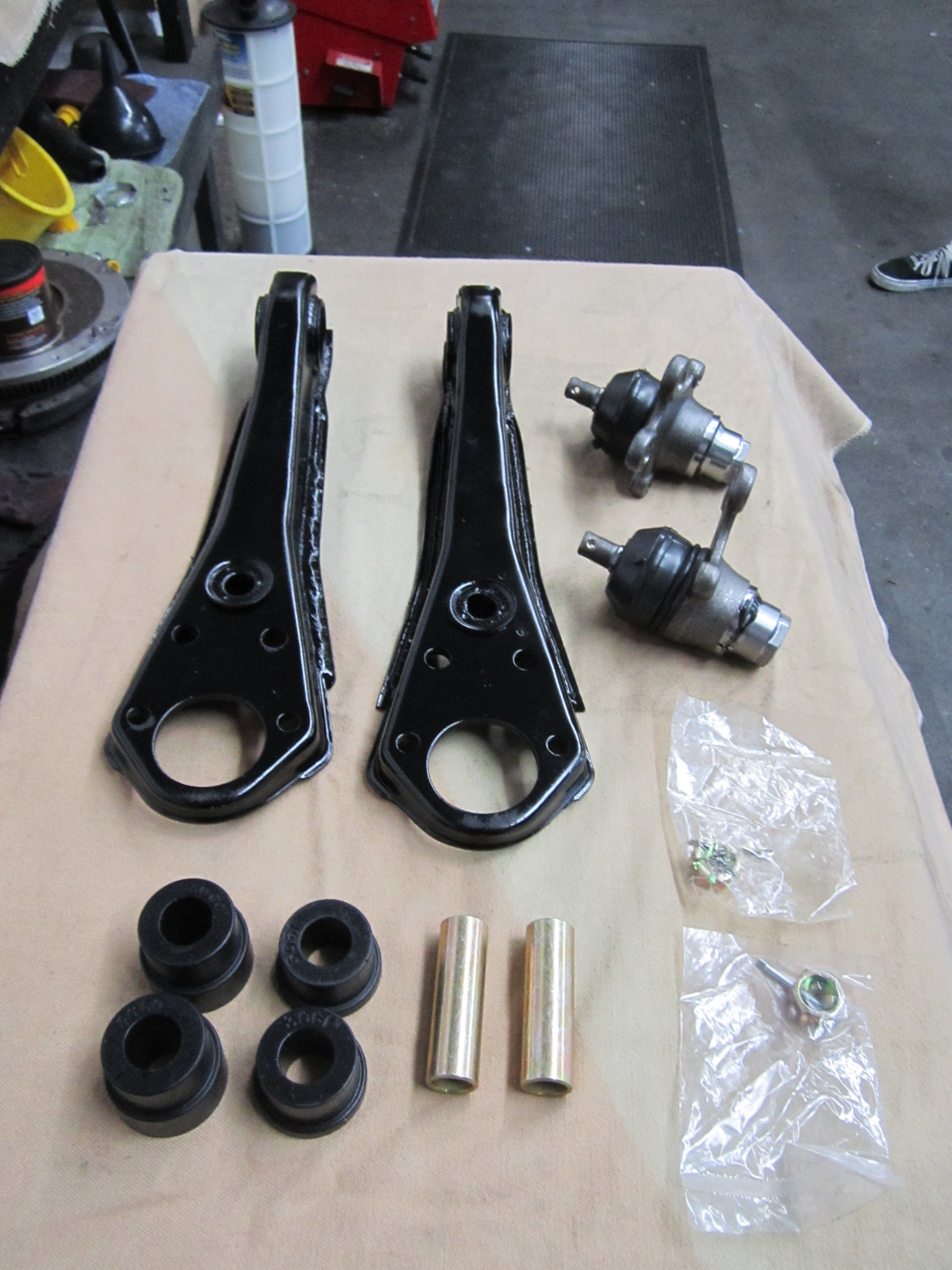

The Z received entire front and rear suspension refurbishment with full coil-over suspension from Techno Toy Tuning. New parts included adjustable T/C rods, rear control arms, new bushings, rack bushings, steering coupler, ball joints and more. All parts were powdercoated:

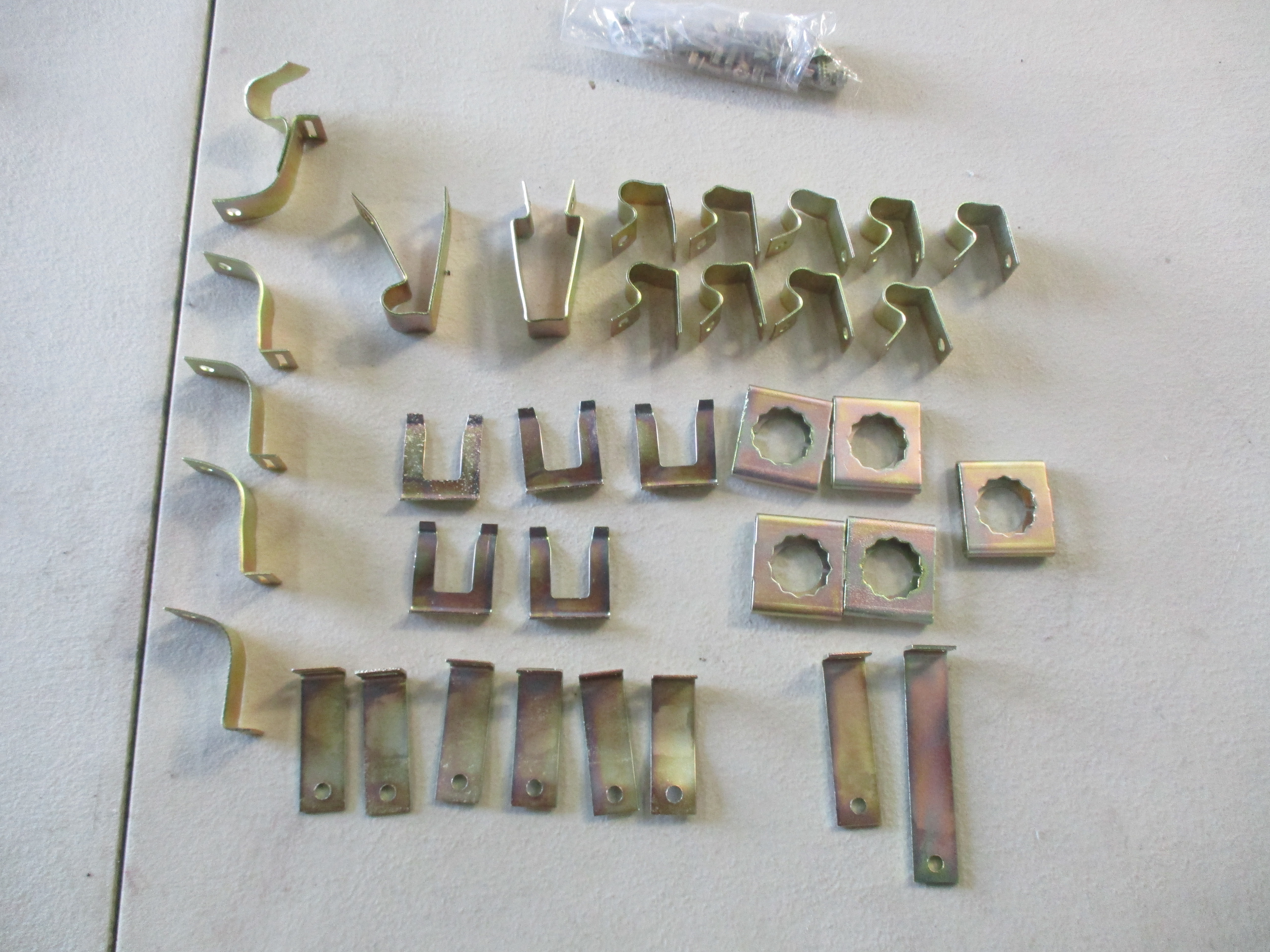

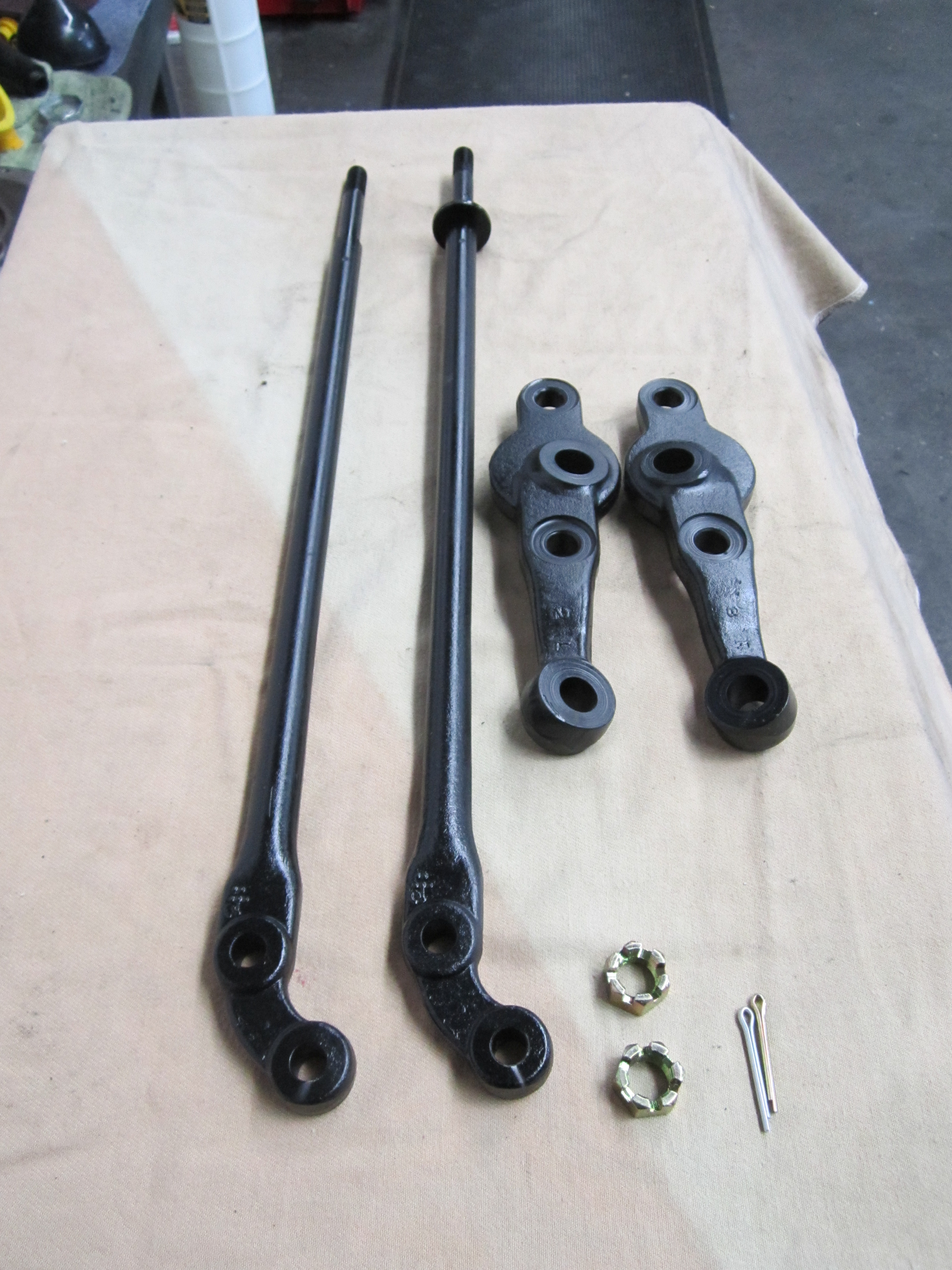

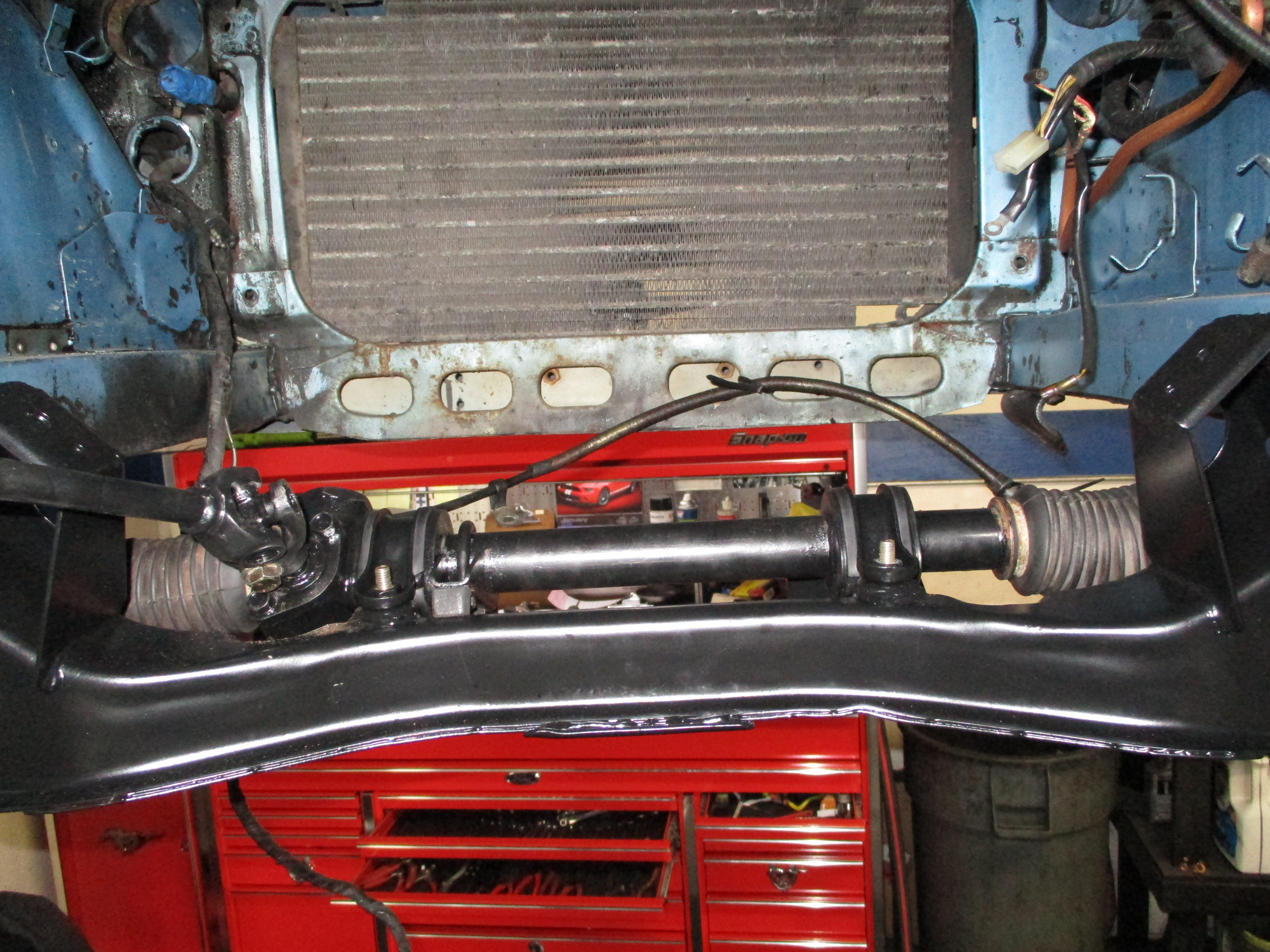

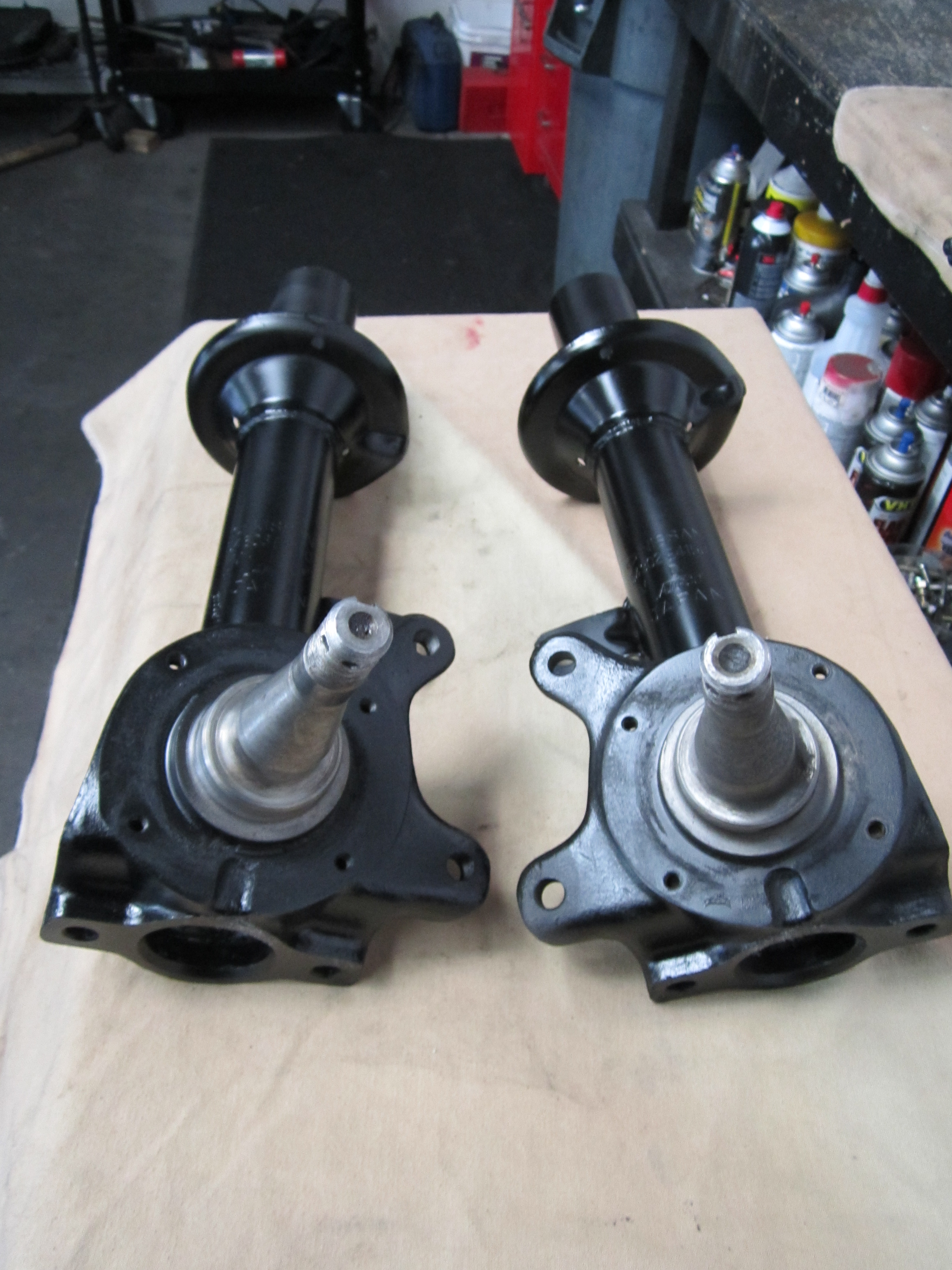

Steering rack before/after and the T3 suspension going in. All nuts/bolts were bagged for zinc plating:





T3 f/r coil-overs and Suspension Techniques f/r sway bars:

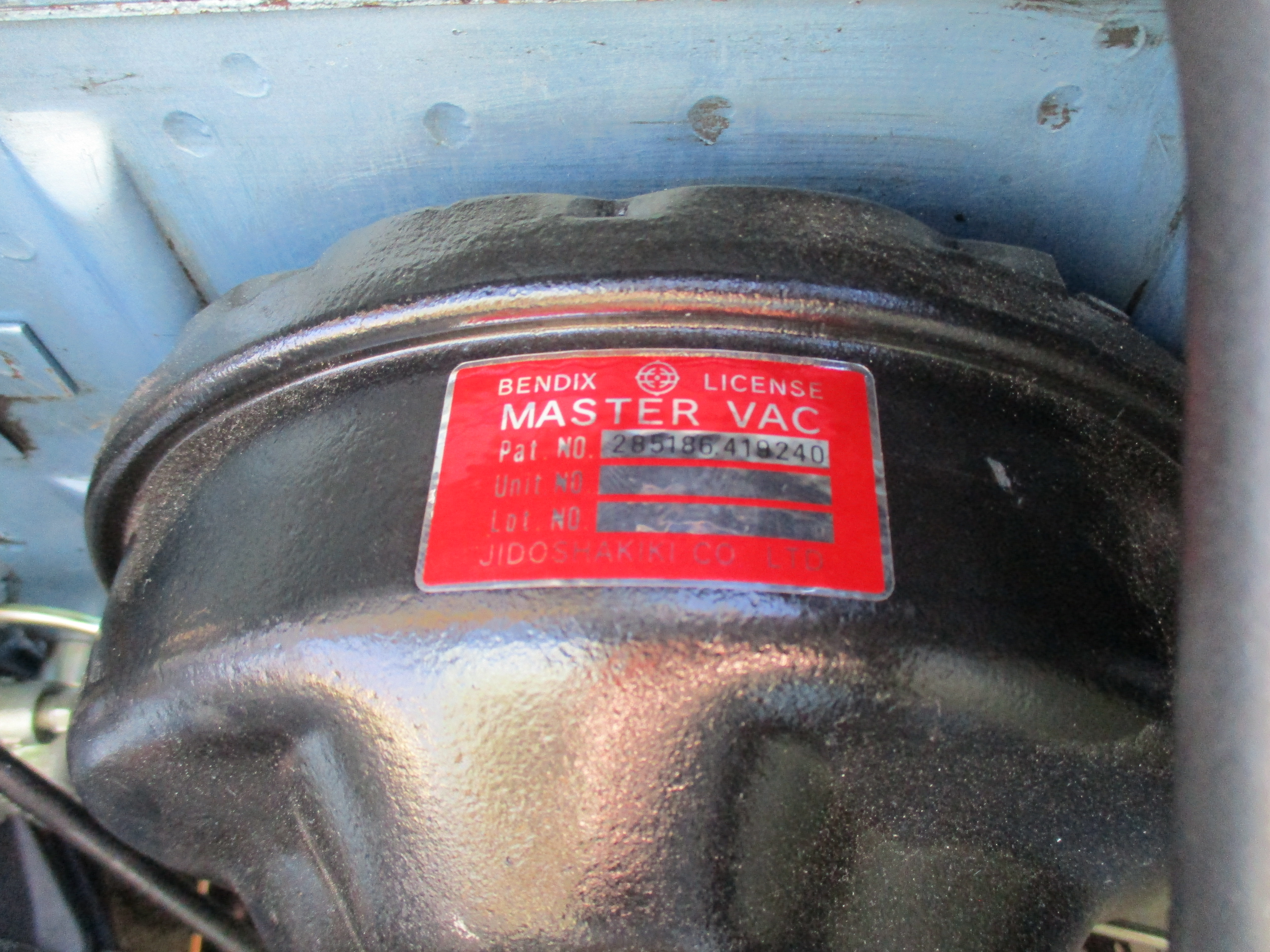

The braking system was restored to factory spec to keep it vintage. Mild performance upgrades included Stoptech 309 pads with slotted front rotors and stainless steel braided brake lines.  All wheel bearings were replaced. Up front we replaced the front calipers with NOS units:

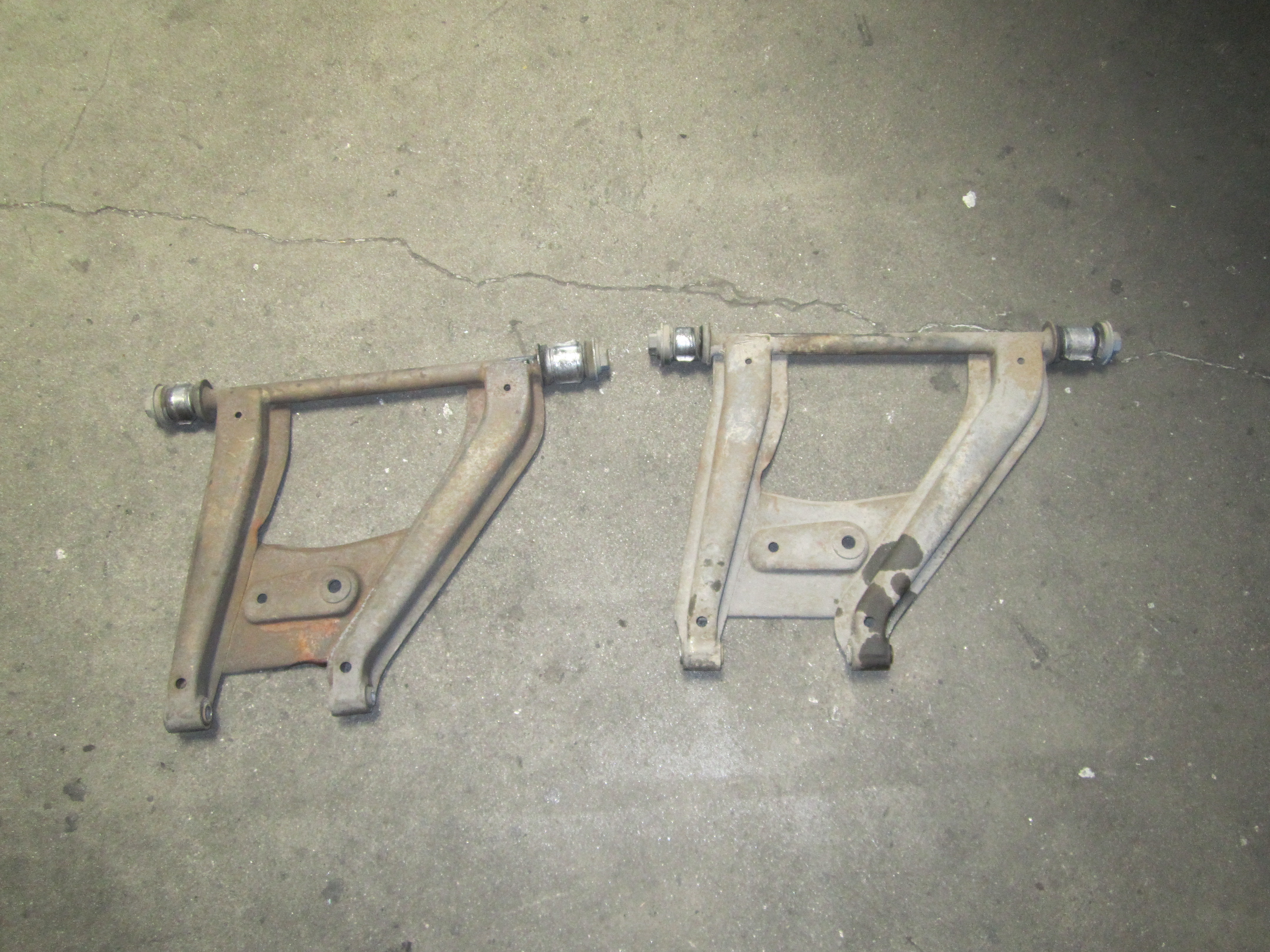

In the rear, stock suspension and old brakes vs new:

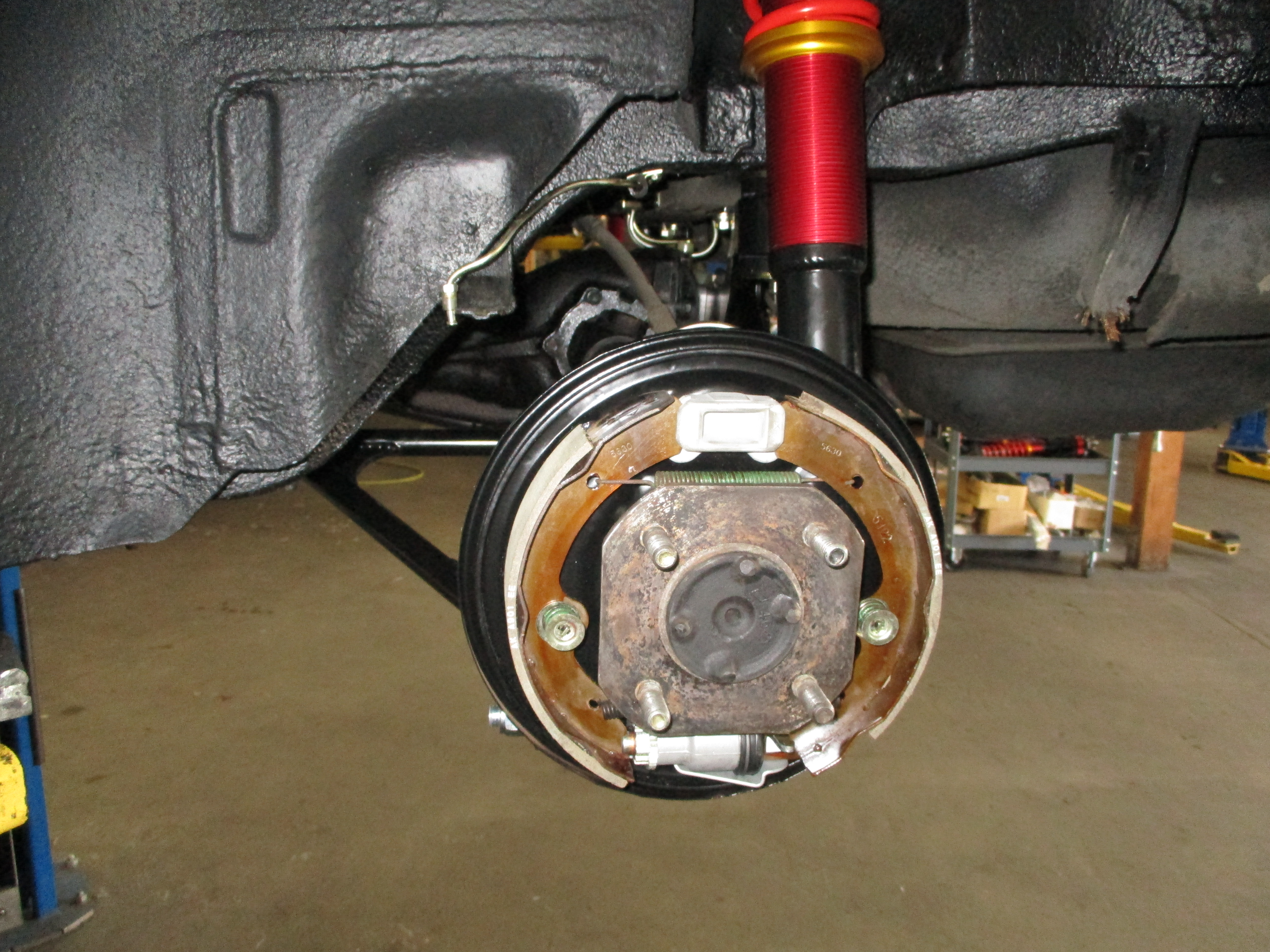

The drums were turned and new Nissan wheel cylinders/shoes installed:




The T3 coil-overs allow ride-height adjustment and Ben’s Z now sits much lower over those gorgeous Watanabe wheels with generous sidewalls:

“One of my hero’s had Watanabe’s on his car and that sealed the deal in terms of me eventually deciding on a wheelset.  My set’s dimensions are 14″ x 7.5jj (+1.5mm) for the rear and 14” x 7jj(+8mm) for the front, Type B. “

Stock suspension vs T3, more pics gallery!



We love it:



Datsun Competition

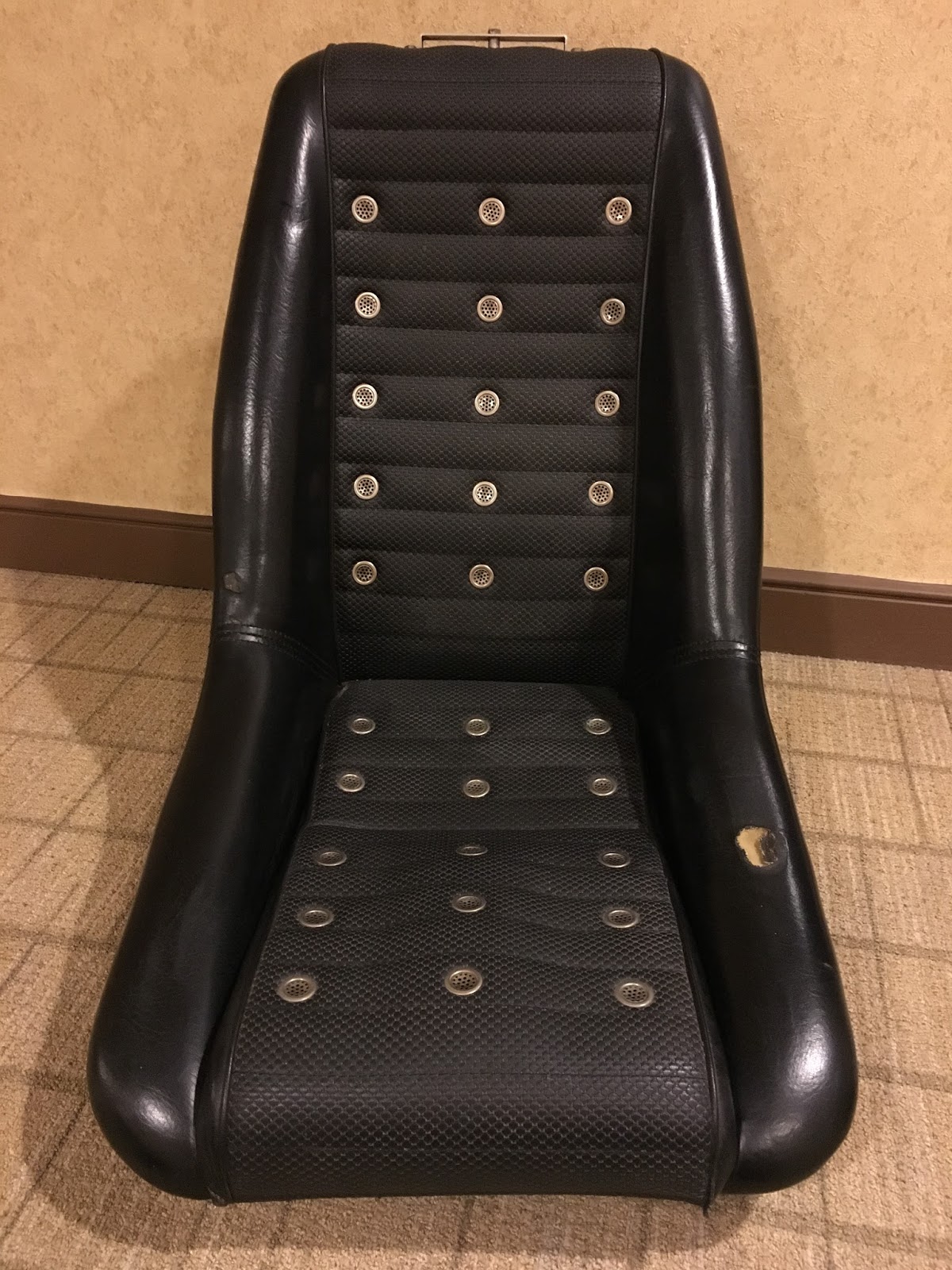

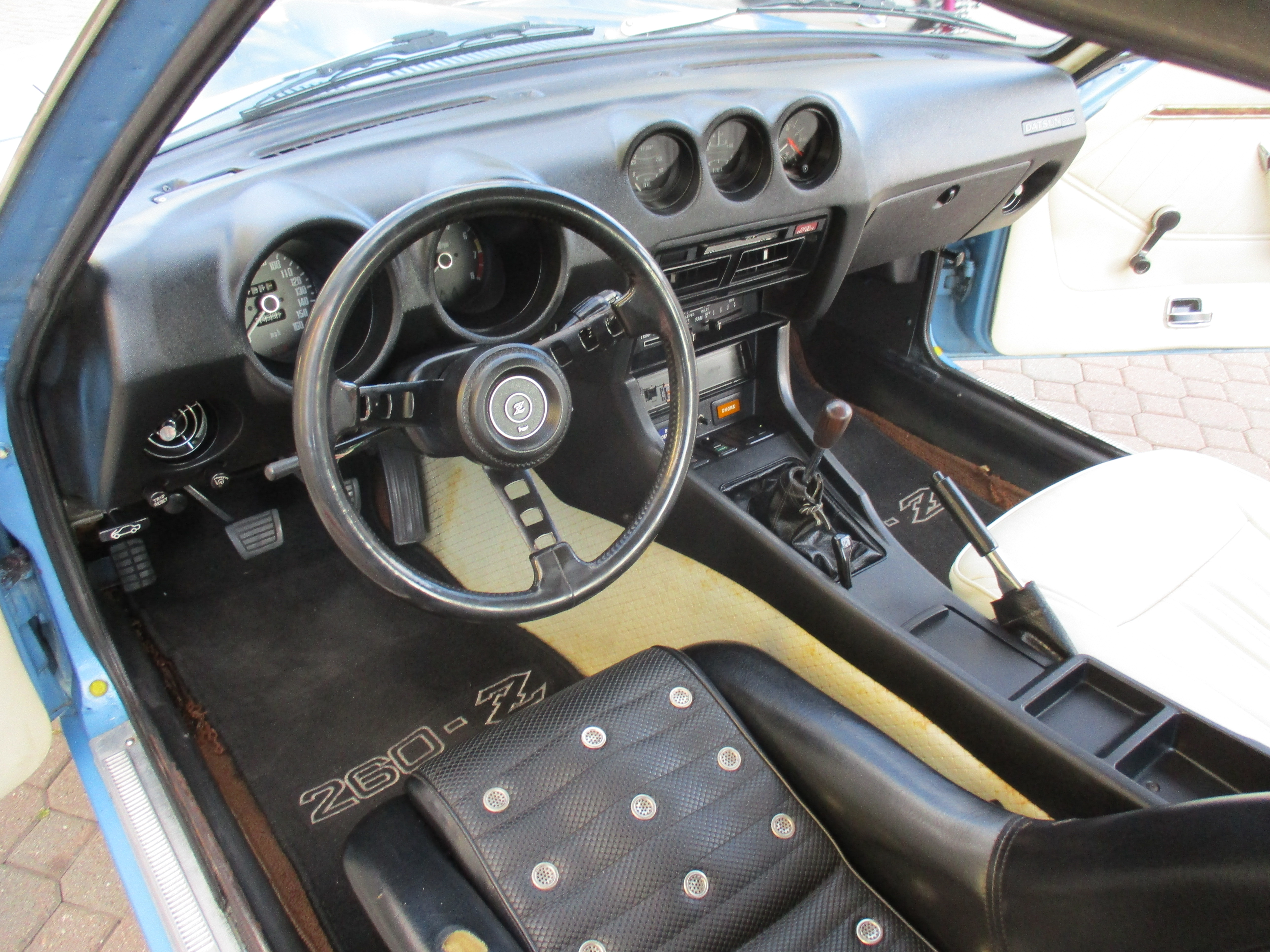

Ben’s appreciation for Datsun’s Competition-specific parts can be highlighted in the interior where he has an original rallye shift knob, steering wheel and for the tifecta: the competition seat. He even tracked down the matching headrest from a Bluebird.




He’s super passionate about the Comp seat, you can read more about it in his personal blog post HERE. We removed the factory seat, made a bracket to allow his comp seat to fit and installed it. It looks great with that un-cracked factory dash!

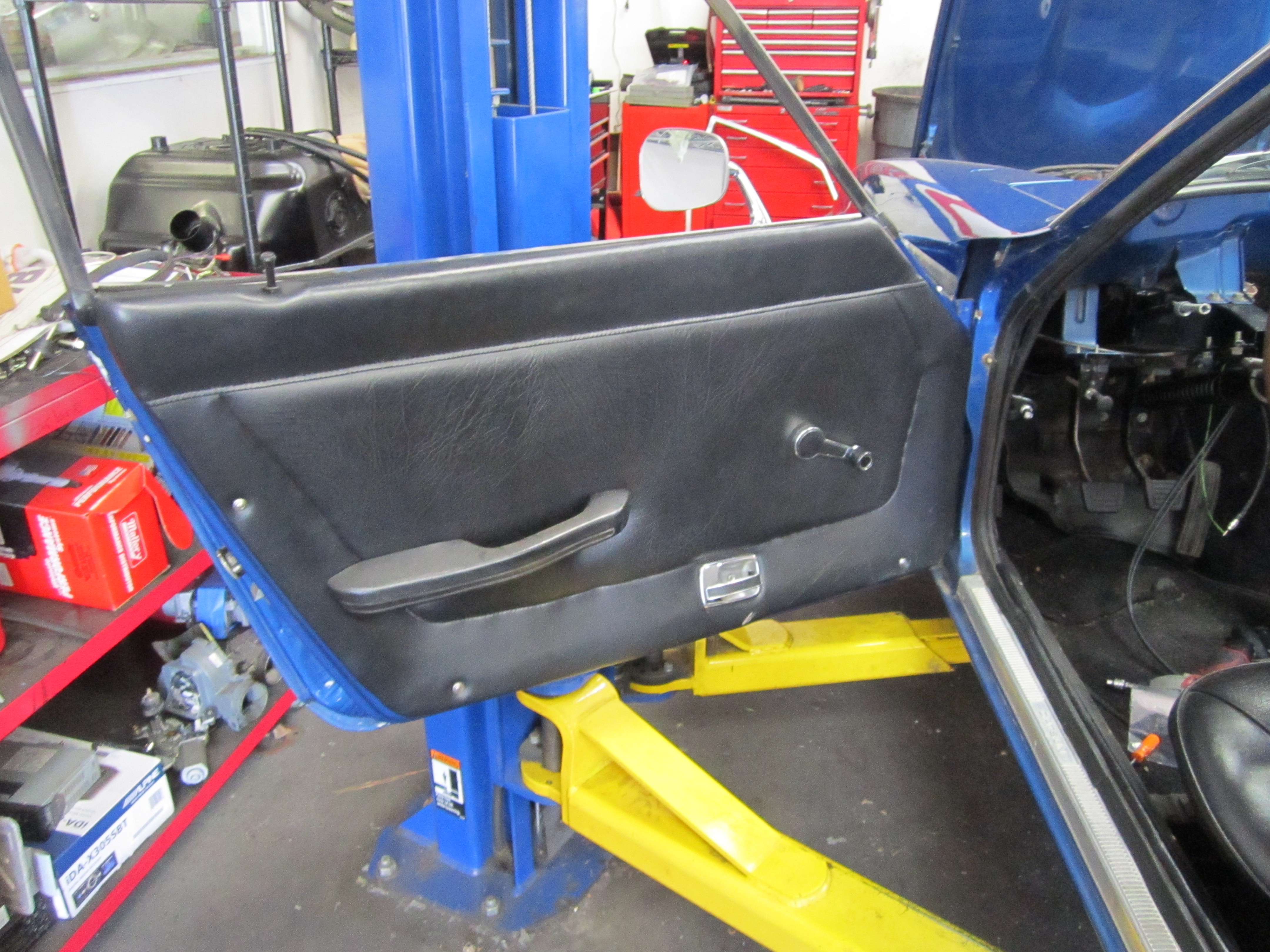

We paid attention to all of the little things that make a Z car fun to drive everyday. Finalizing door fitment and getting the vintage A/C unit working again was important:

“I want to drive it across the country. That is a big goal of mine, but really I just want to drive the car always.”

Since A/C had been on Ben’s mind, we fixed and made one of the lines, all mocked up to clear the Fujitsubo header. More details in the engine bay to satisfy’s Ben’s penchant for the vintage look: we passed along our rare factory spark plug wires and OEM choke cable set.






Enjoying The Ride

With the mechanical restoration completed, Ben embarked on his originally planned road trip with his father.

“I got back last night from my trip with my Dad. We went a bit north of 1000 miles in three days in my Z Car Garage 260Z! The car is perfect. I really want to thank you for building such a glorious machine. It does everything it should. Handles well, makes all the right sounds, is comfortable, and soaks up the miles. I took it up to an elevation of 7500′ without even a hiccup. My Dad drove a lot and he loved it too. He got it up to 100mph on the highway and I didn’t even know it the car was so smooth. He told me later.”





We were stoked for Ben. Seeing him drive the Z everywhere, including a visit to the epic 2018 RMMR where Datsun was the featured marque. Being on the road is really what he loves and the S30 is a scalpel.



Love for the Z, with Family

Ben’s family is an integral part of his Z passion. He even had these T-shirts made for his crew. Rob has one as well 🙂



“Very rarely do people get to have dreams come true and it was a lot of sacrifice to have Rob do this mega build, but I had read so much about people not finishing projects and I had Rob right there so I threw caution to the wind and went with the attitude of “lets do this.”  He made it happen and the shirt says it all as I am just one of the hundreds of people he has made dreams come true.”



Ben’s next big Z adventure will be attending the 2020 Z Convention in Tennessee,  driving it back with his son.




Thank you Ben for letting us build your dream Z car. Enjoy The Ride!

…[read more]
