KAMIKAZ: Randy’s 1970 Datsun 240z

Filed under: 240z,Featured Cars and Projects
by Alvin G @ 1:51 am on March 21, 2020


Randy Jaffe is an avid car guy and Datsun enthusiast. Beyond his fanatic attention to detail and love for Nissan racing he’s excessive–in the best way possible and we love him for it.  Several years ago we teamed up with Randy to turn his BRE Datsun 240z show car into a competitive vintage road-race car.



He was impressed with our work on the BRE Z and told us about another Z project that he was working on but stalled out in Atlanta.  We decided it was time to finish this ultimate track/street car with a healthy dose of his personality. The highlight of this Series 1 240z is a full Rocketbunny body kit with plenty of Z Car Garage touches. Let’s take a closer look at the build:



Origins

The creation of the Rocketbunny Z changed courses many times as the build evolved, as Randy recalls:

“I wanted to build a series 1 Radical fun Street car with a completely different look. We started off thinking we would do conventional flares and conventional displacement for a 240 Z. Then my painter Bryson was doing the bodywork and had just installed a Rocketbunny kit on a 350Z and asked me to take a look at that particular body kit. I knew of the first one completed by Sung Kang and I think it was the second or third kit to come to the country when we ordered it from Japan directly.”



“The paint color which originally was going to be Porsche’s lava orange evolved because of Michael Eberhardt to Porsche‘s late 60s color called Tangerine. Tangerine painted with a white sub-coat pops where Helen Keller could see the color! Since I am color blind, the brighter the color the better I can see it.  Bryson welded an amazing full roll cage as I decided to create the car as a street and track beast.”

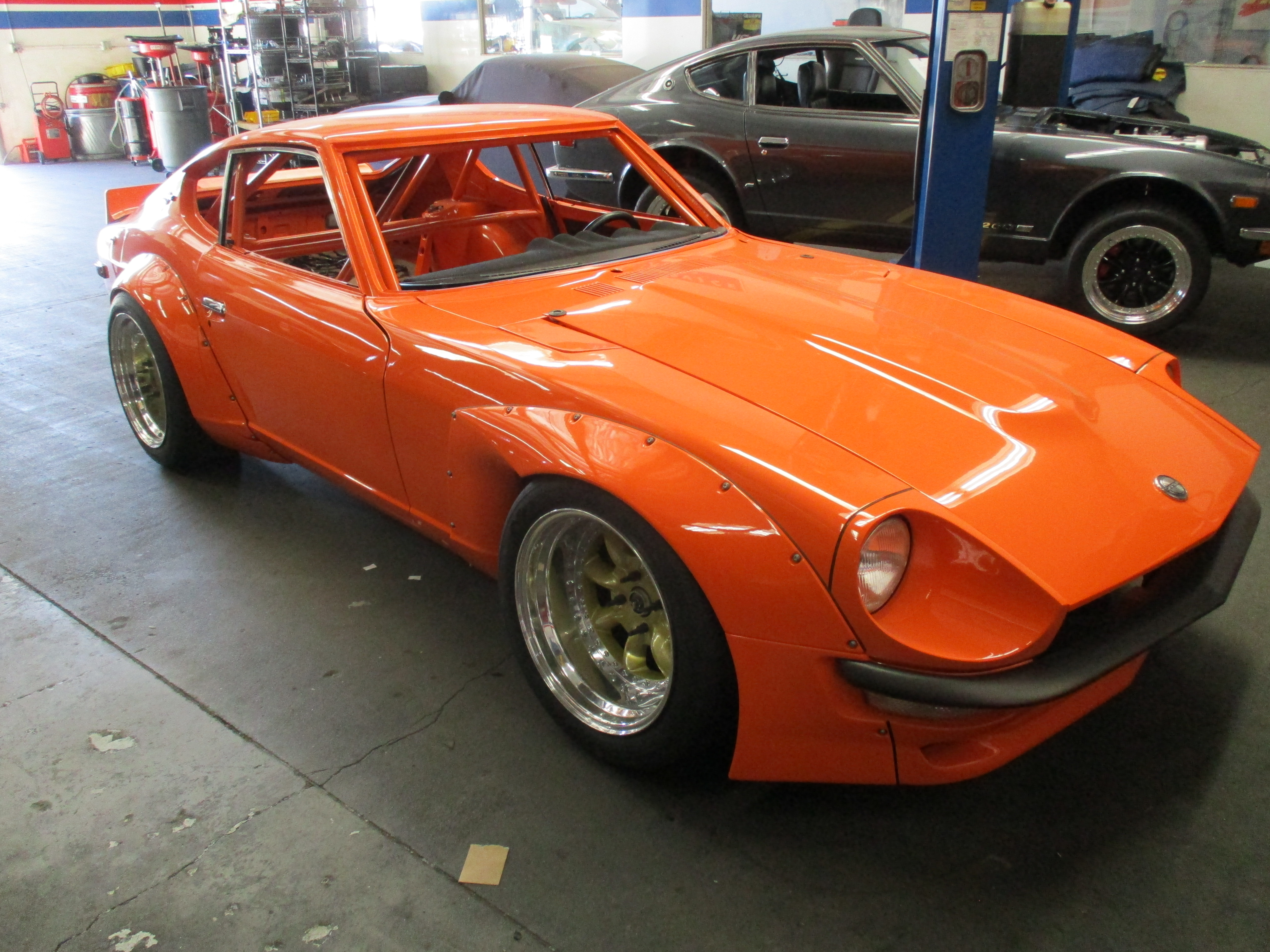

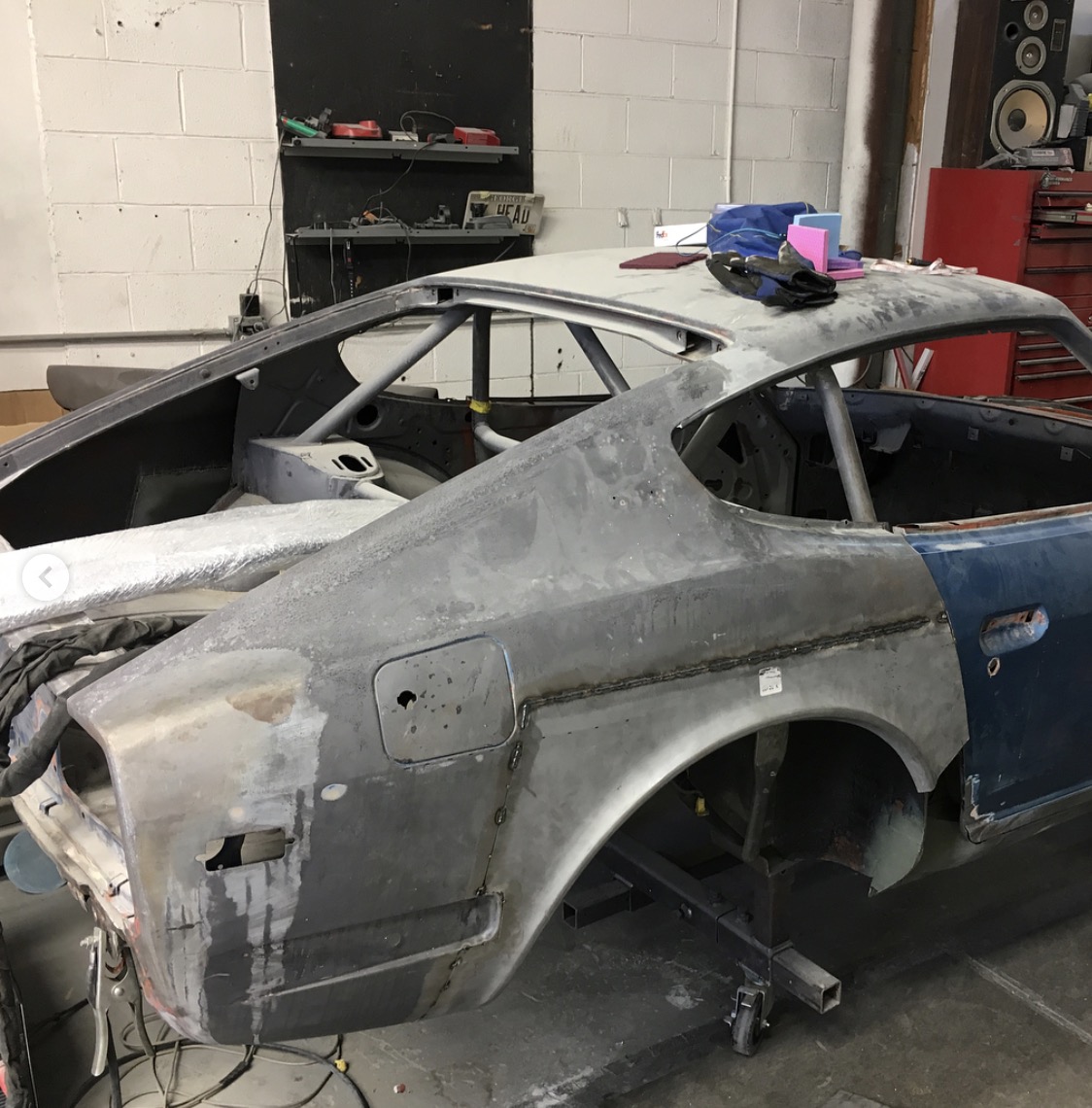

The body was amazingly painted and caged by Bryson of Classic Livery of Atlanta. They are known for many high-end commissions including several RWB Porsche’s for Akira Nakai. Randy’s transporter trekked from Atlanta to drop off this gorgeous chassis at ZCG and our work began.

Assembly Required: Race Chassis Prep

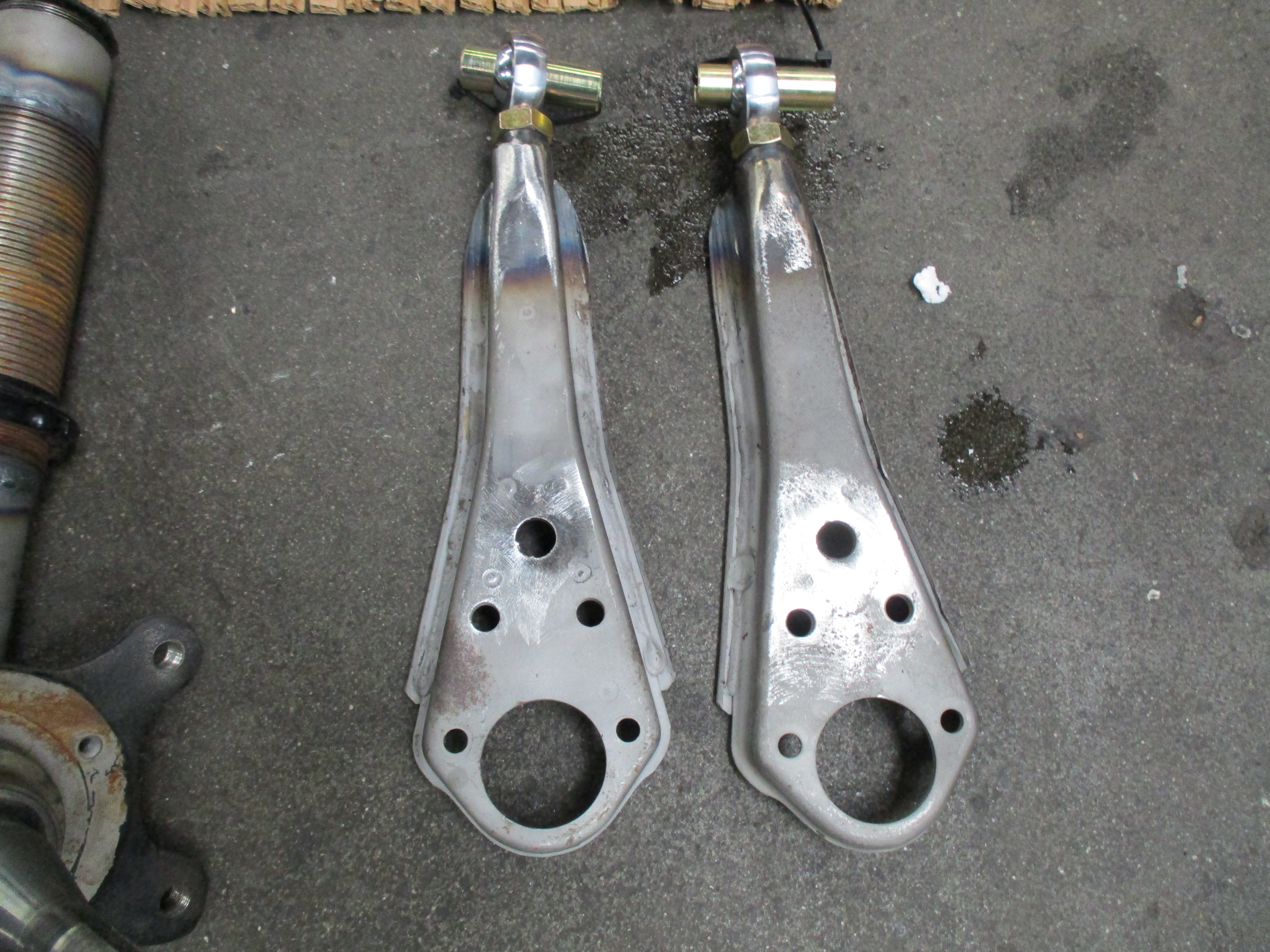

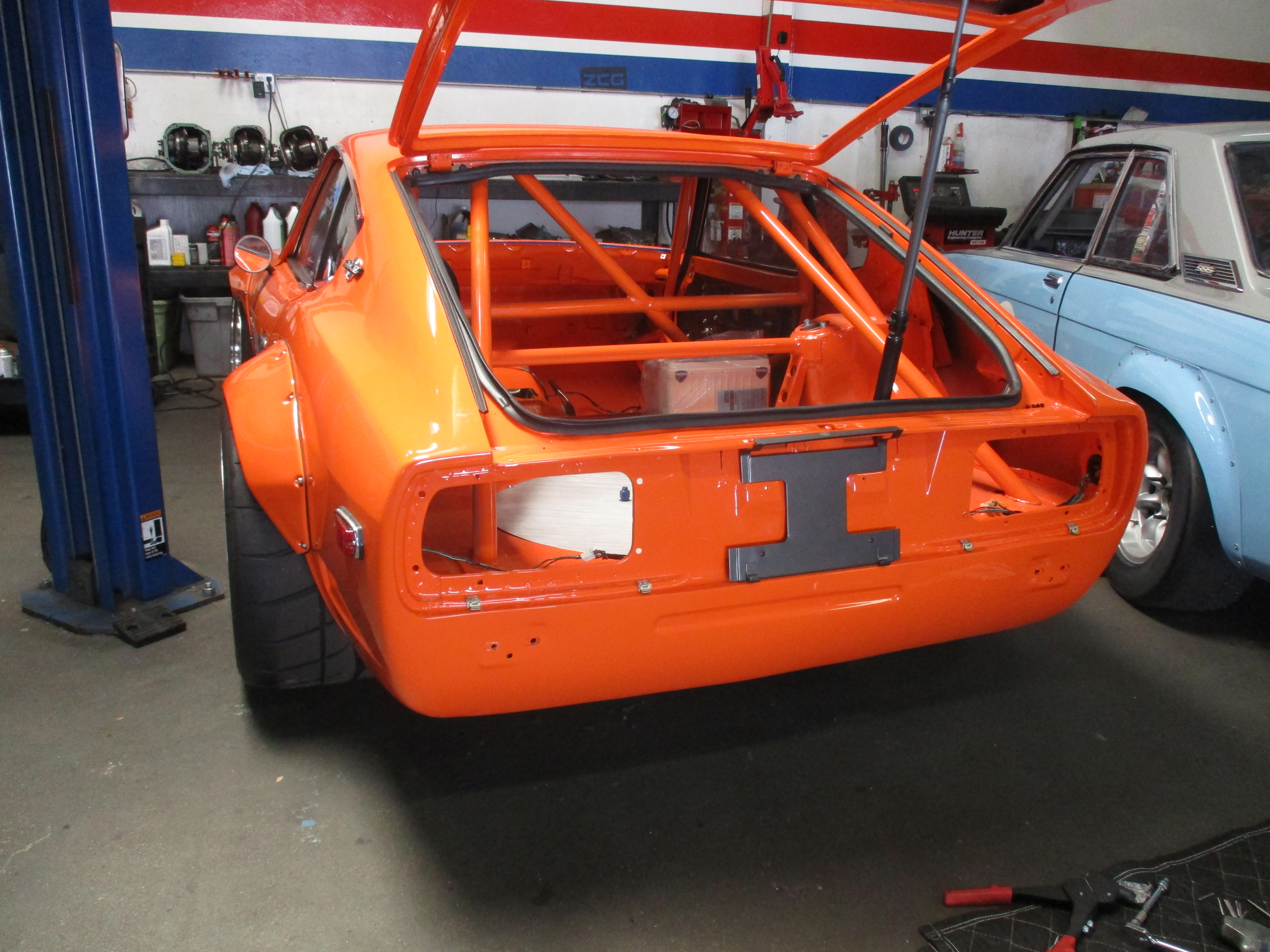

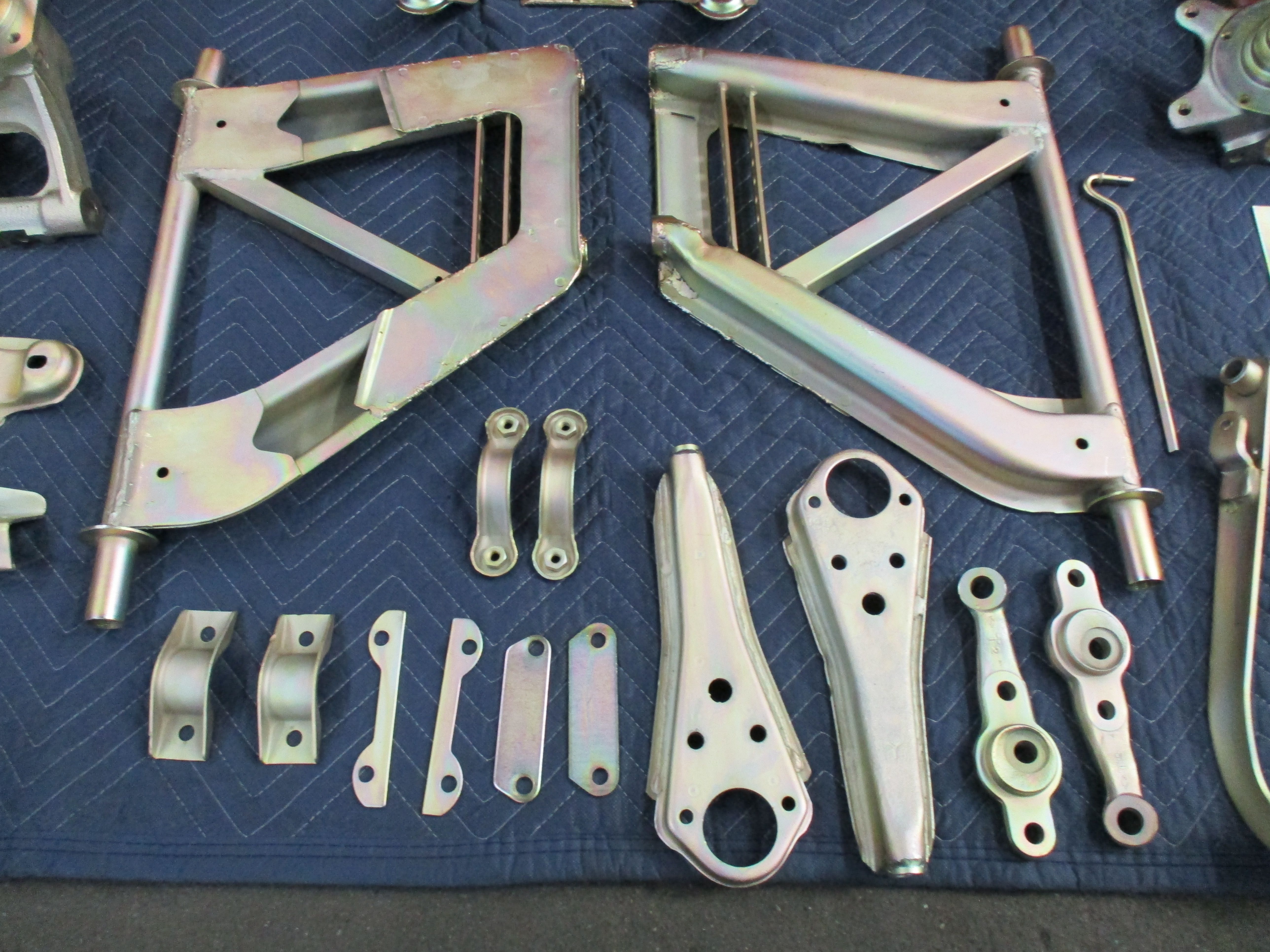

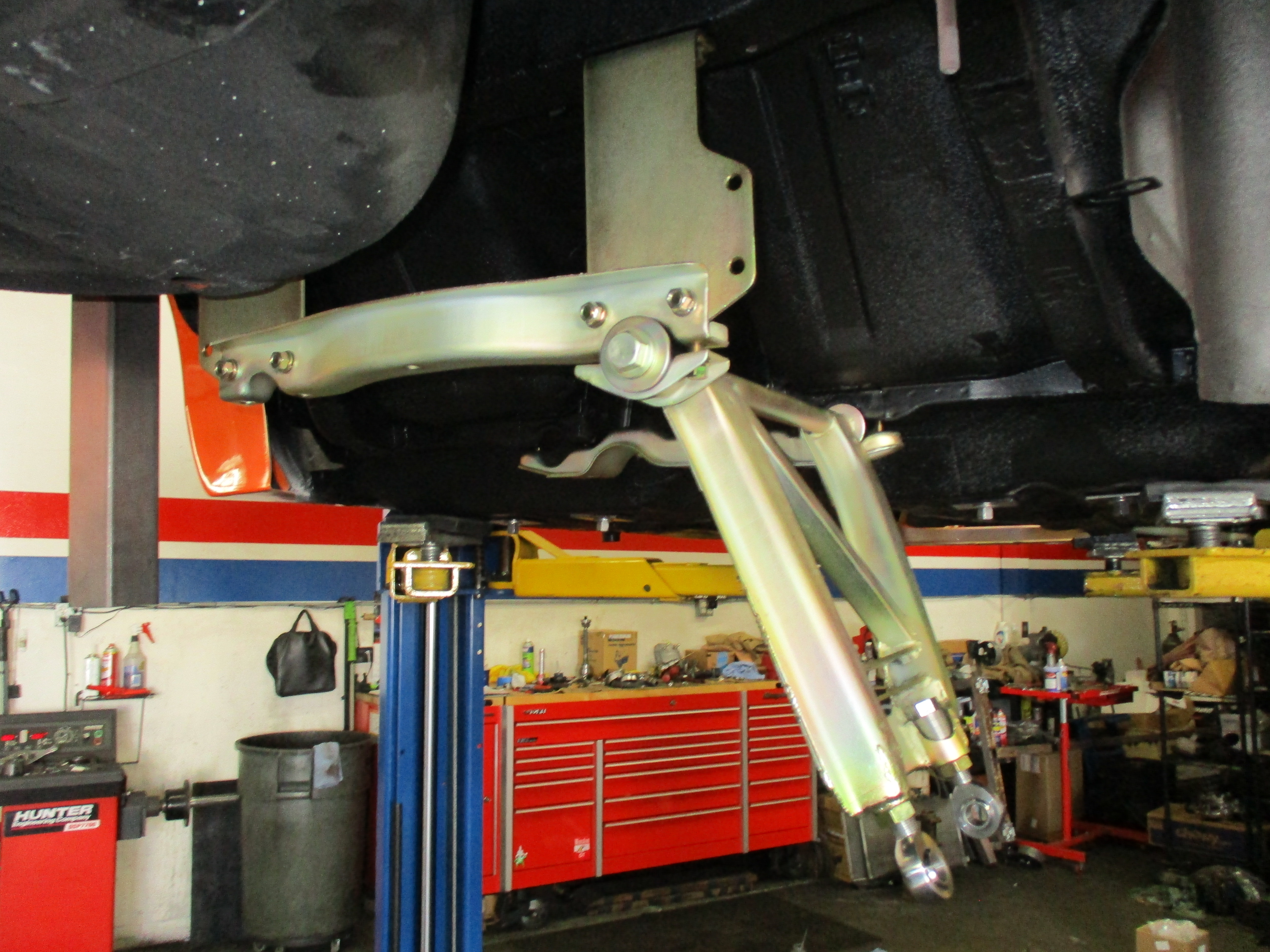

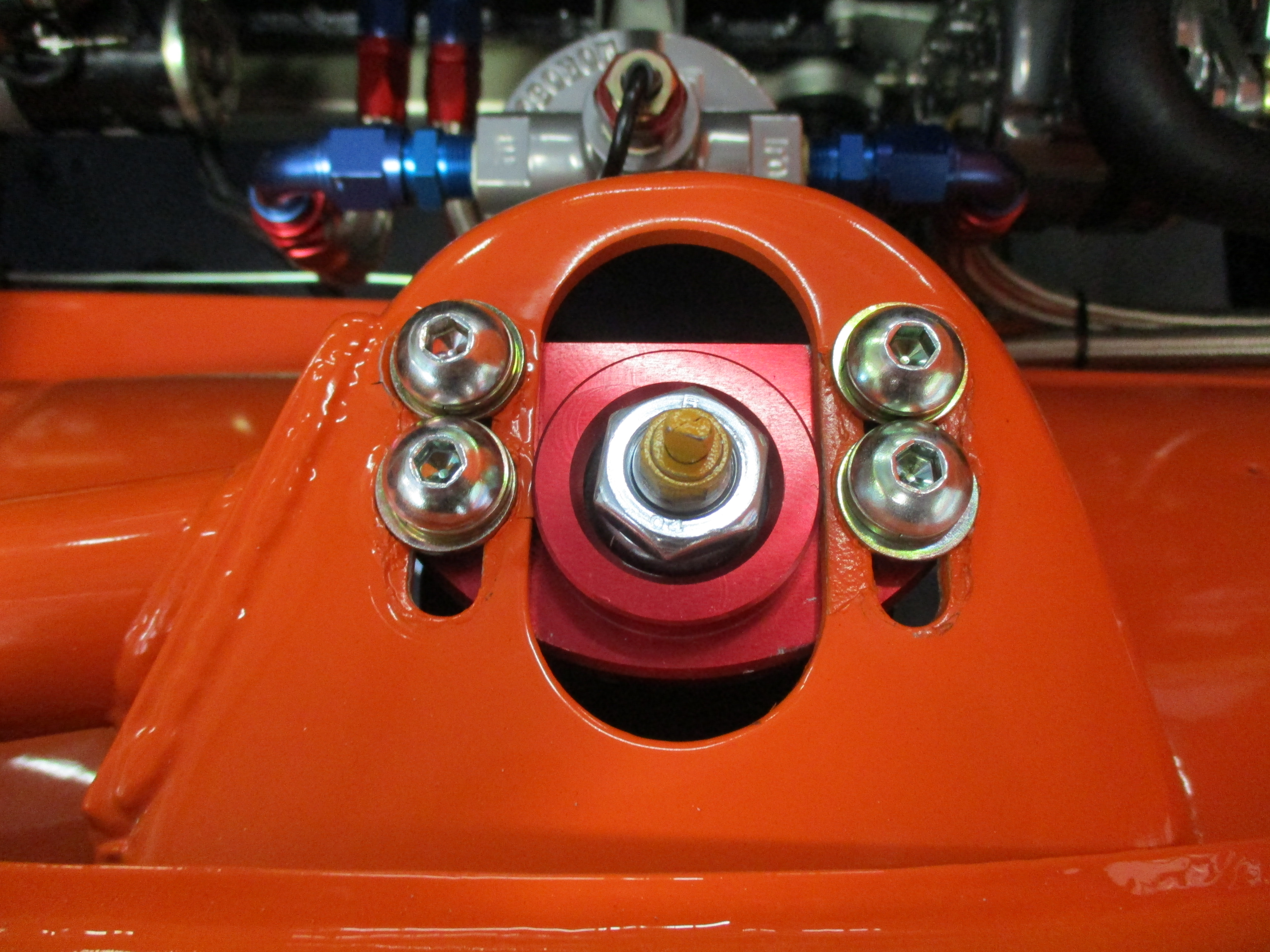

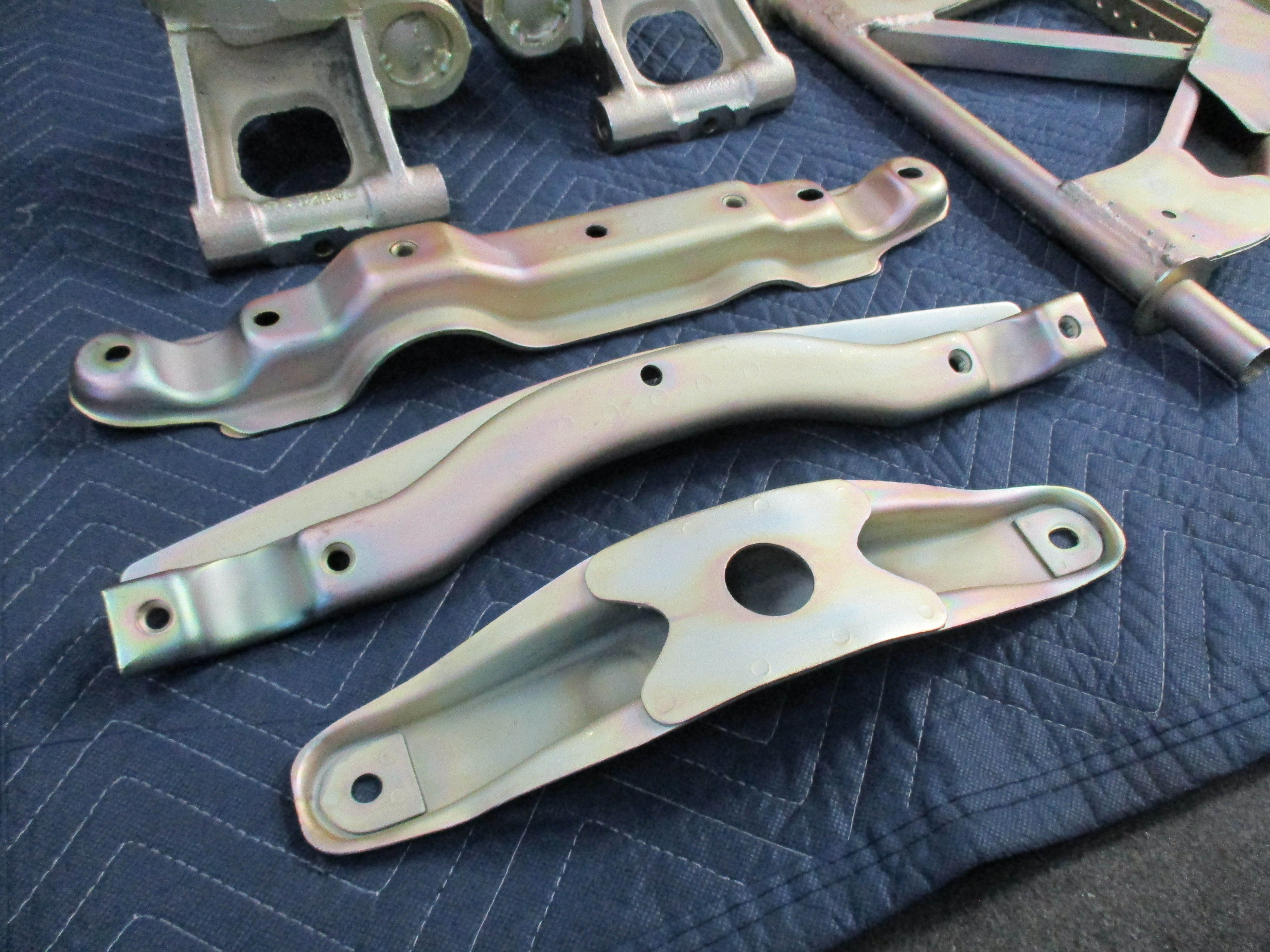

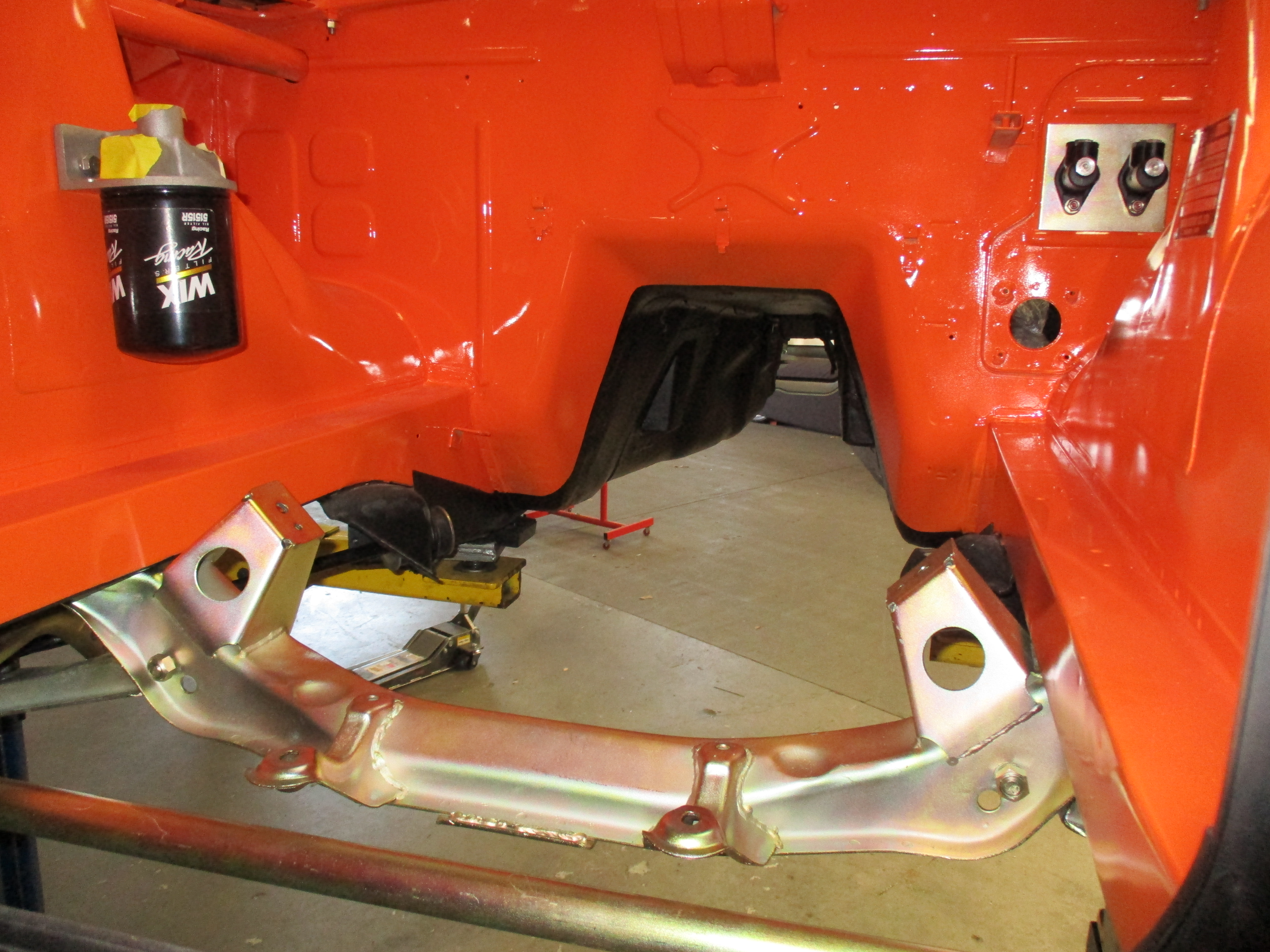

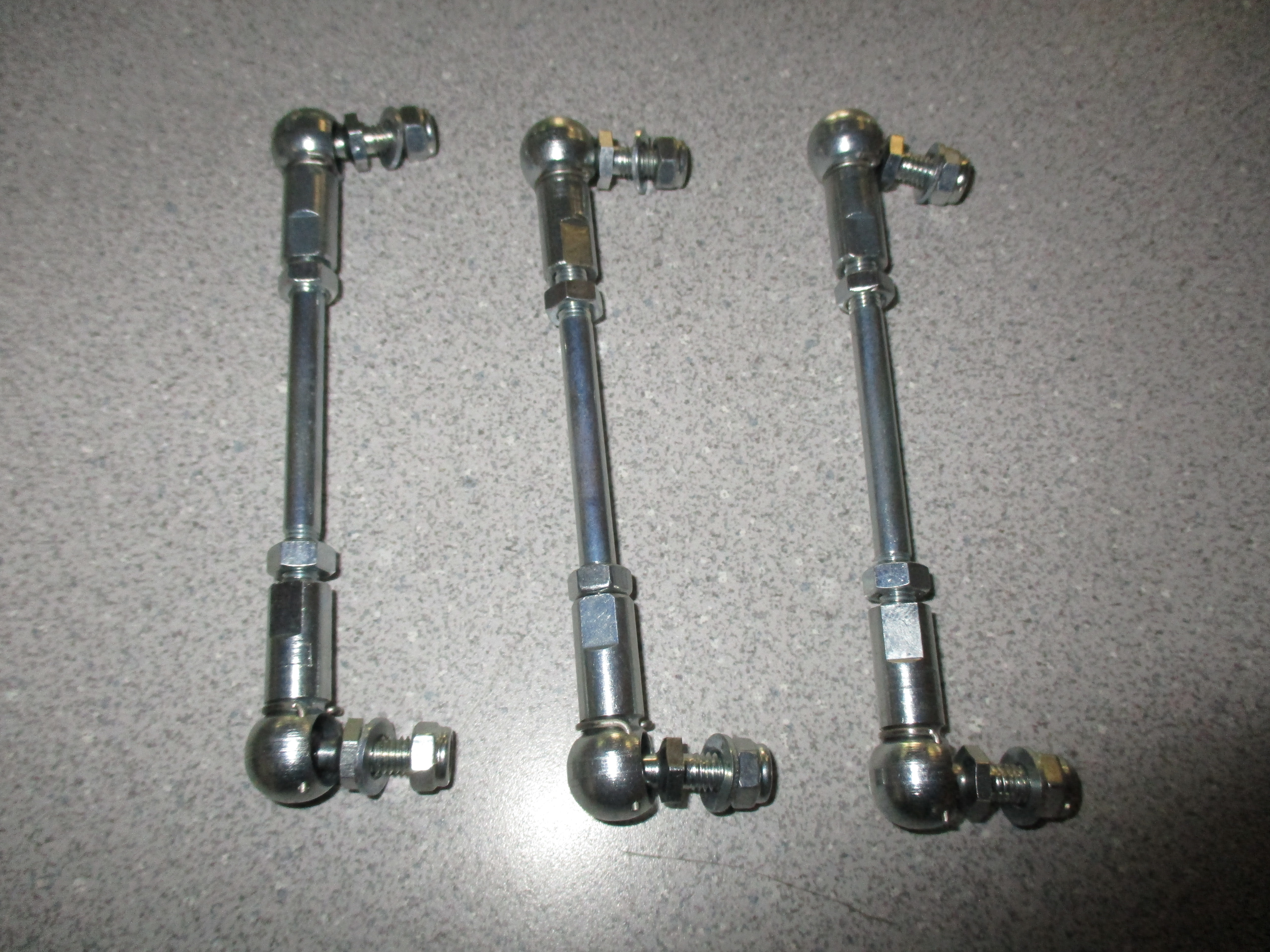

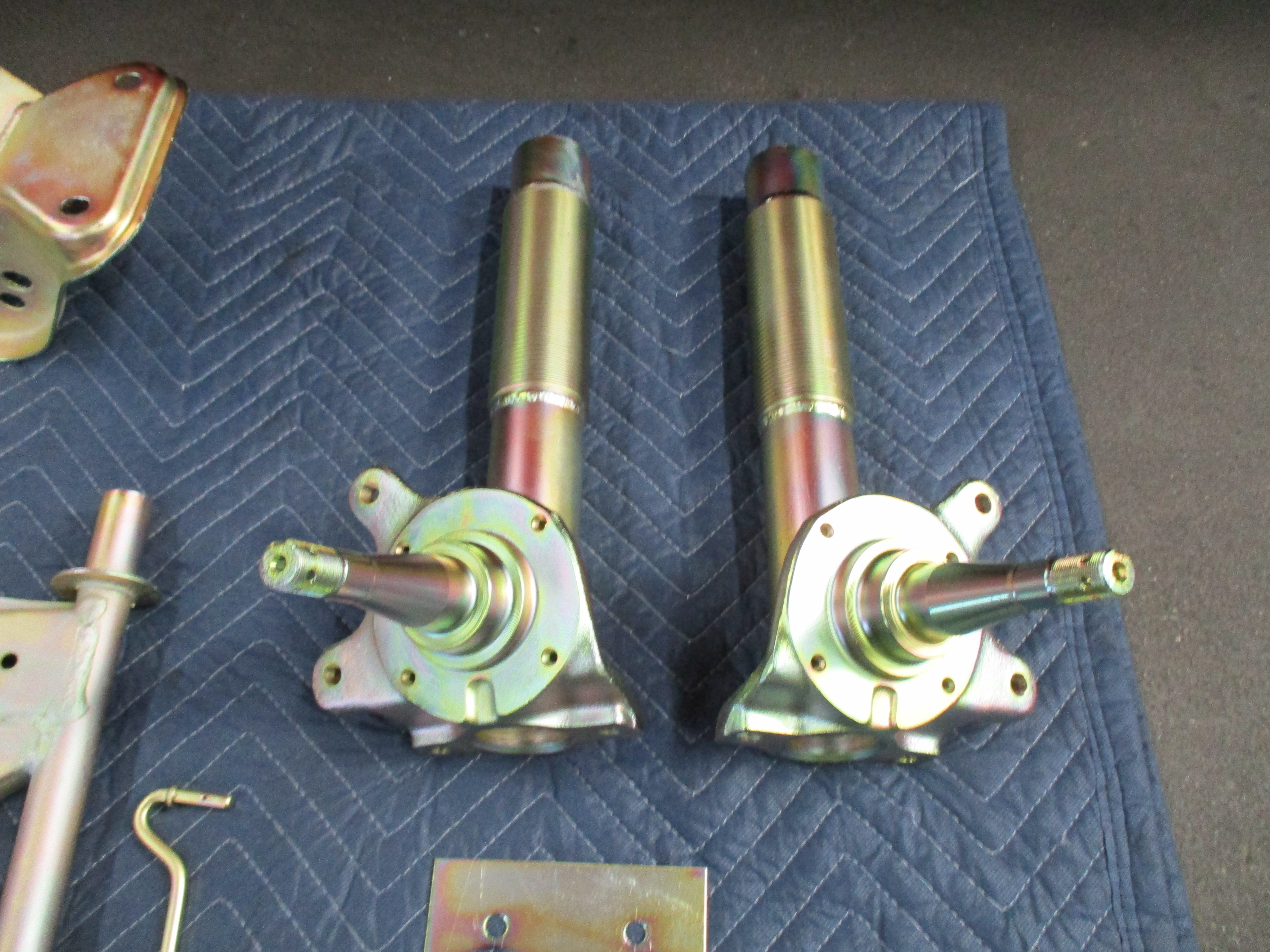

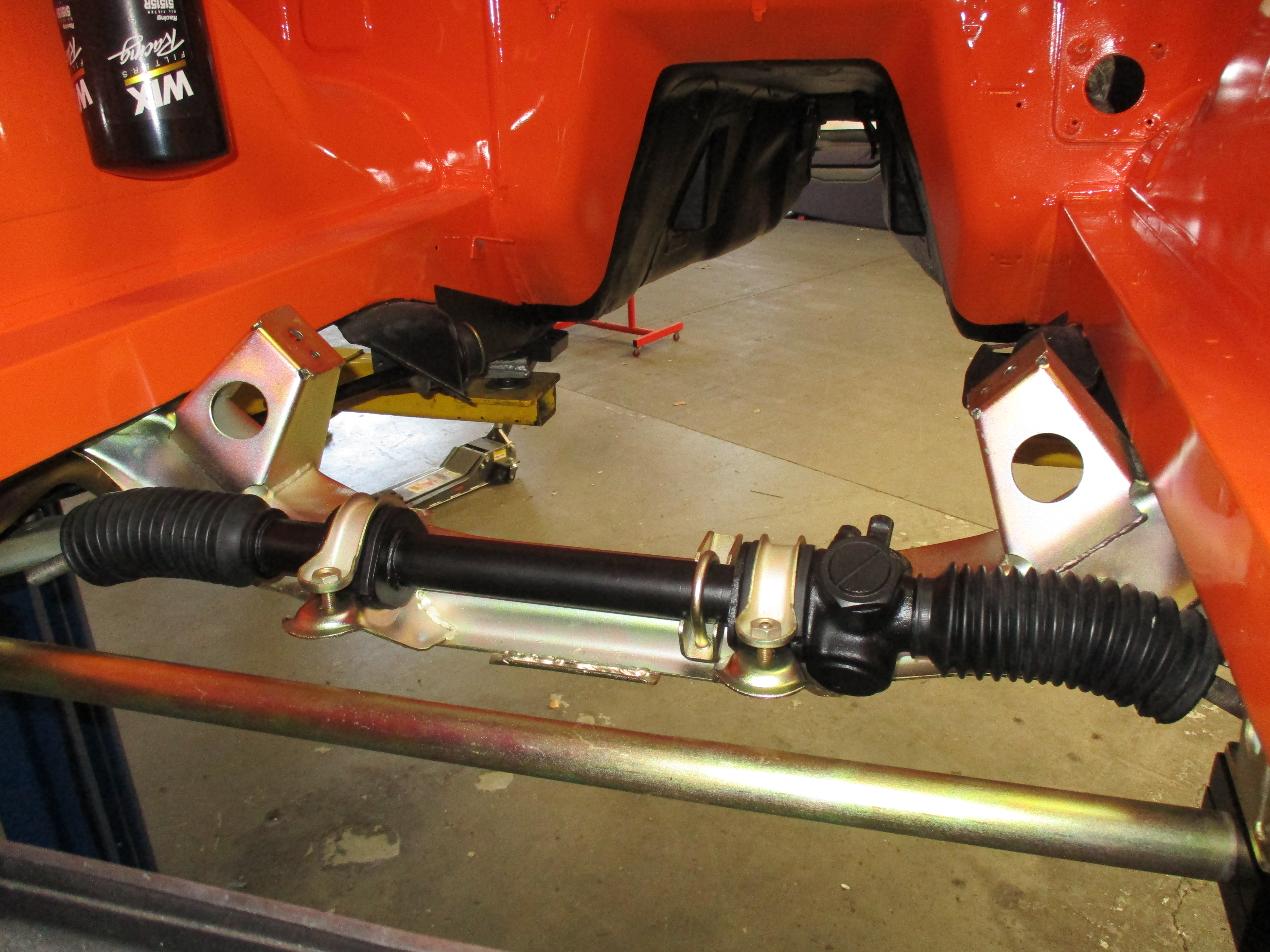

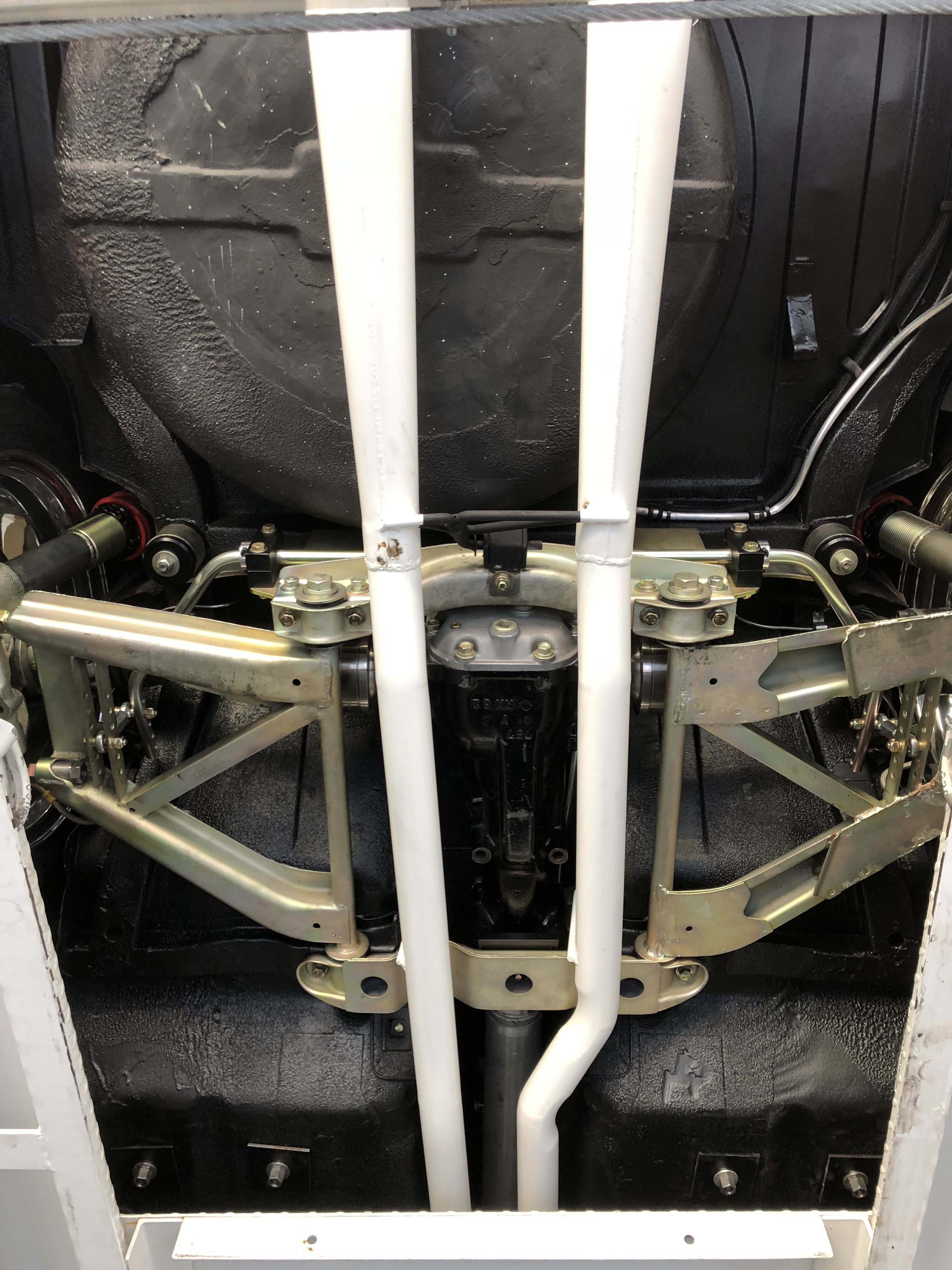

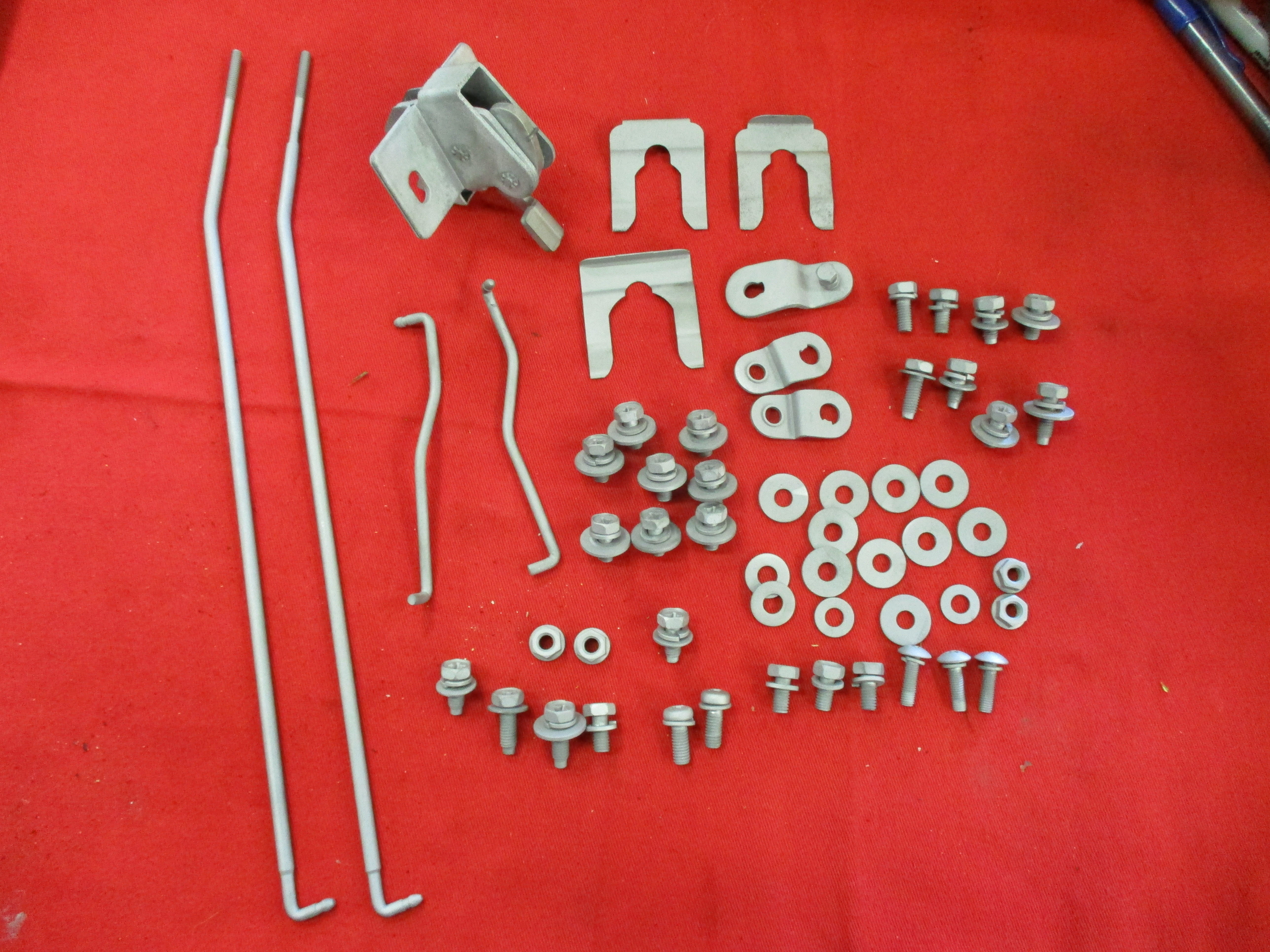

The chassis was temporarily mounted on rollers while we prepped suspension pieces. Following the “race-car for the street” theme, we re-created the entire front and rear BRE 240z suspension setup. Everything that the #46 race car has is on this street car from DP racing front/rear struts, koni shocks, identical spring rates, sway bar, adjustable end links, plated finish…all of it. More pictures in the gallery below!

Front and rear:

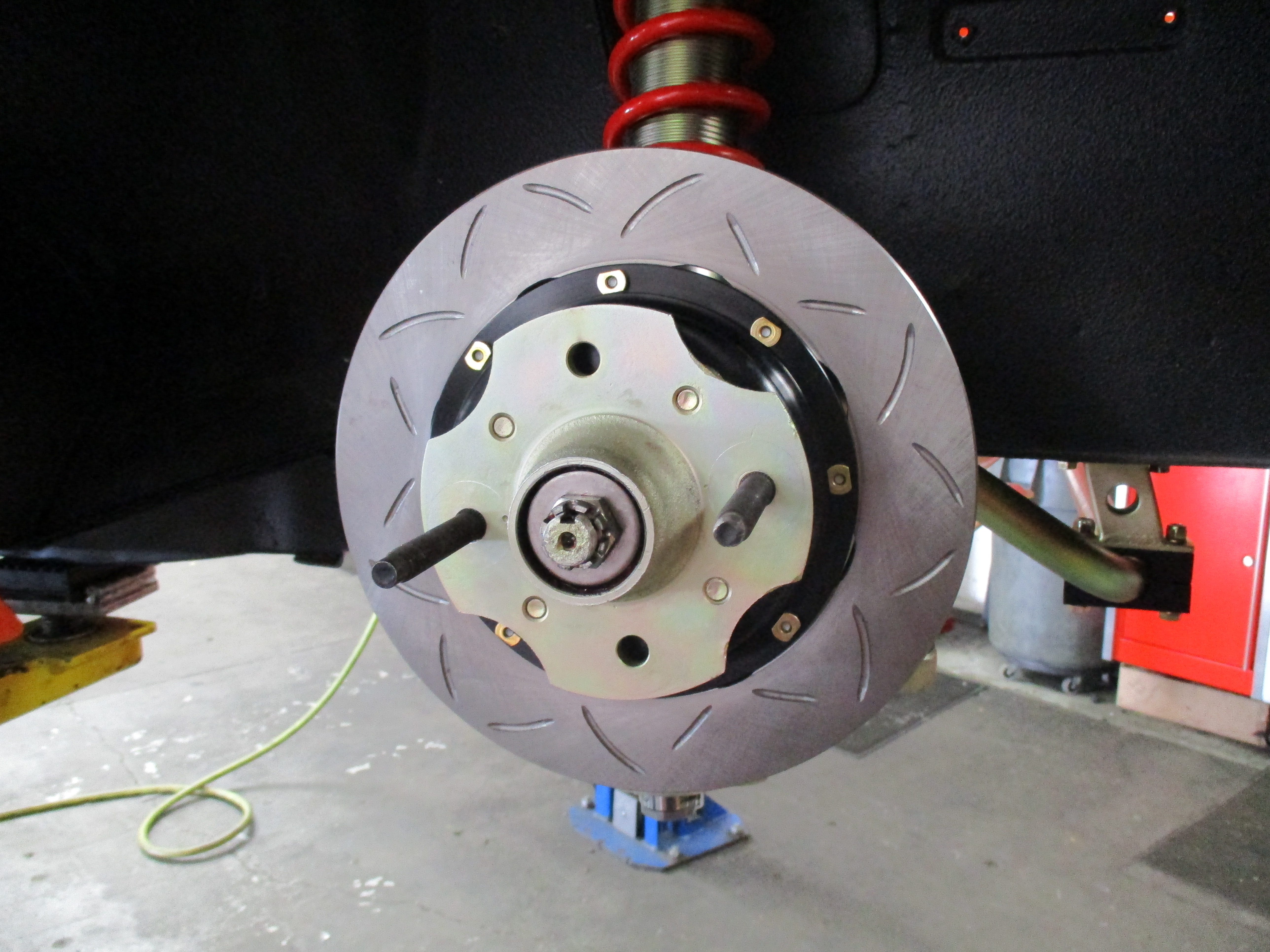

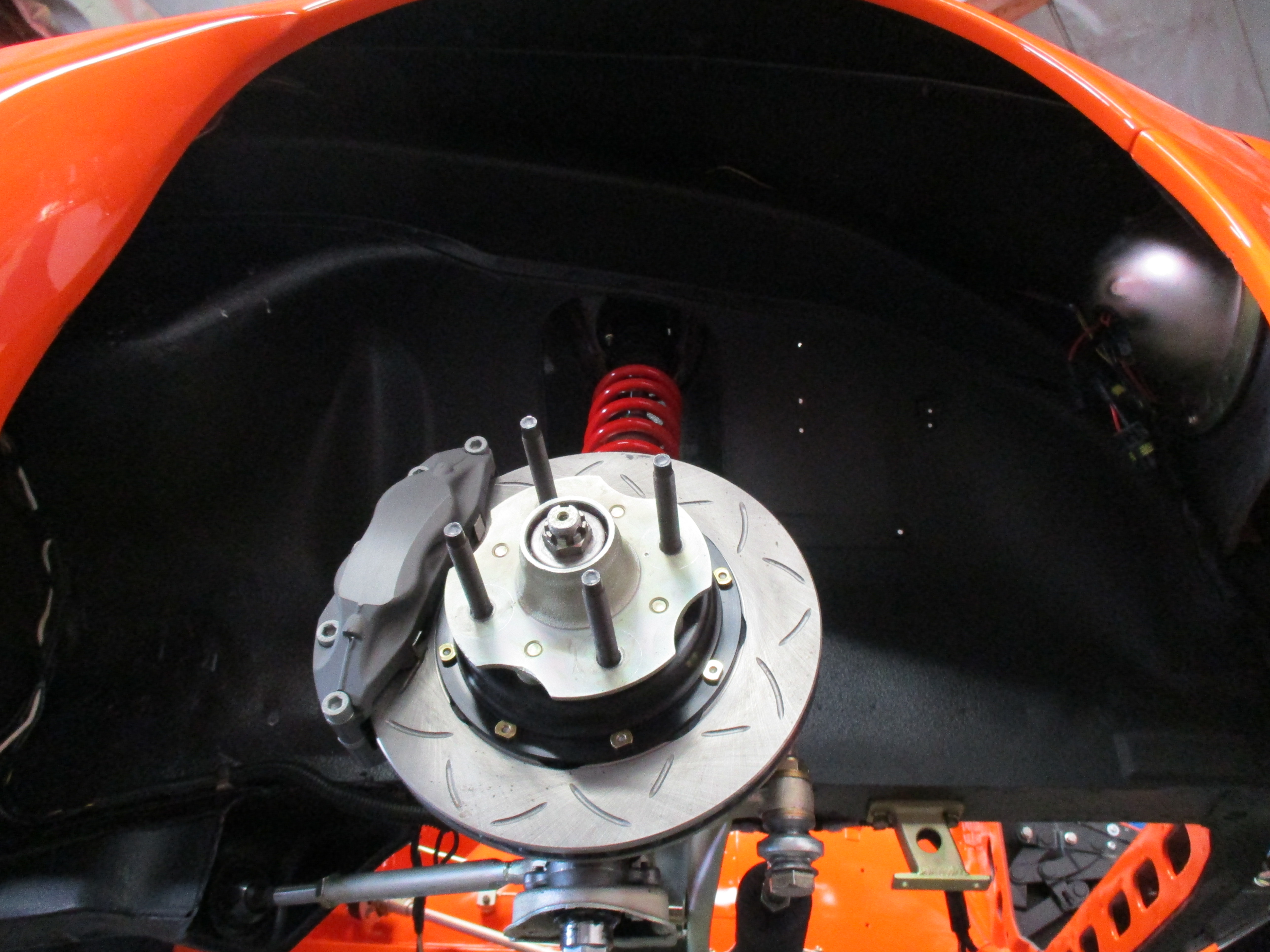

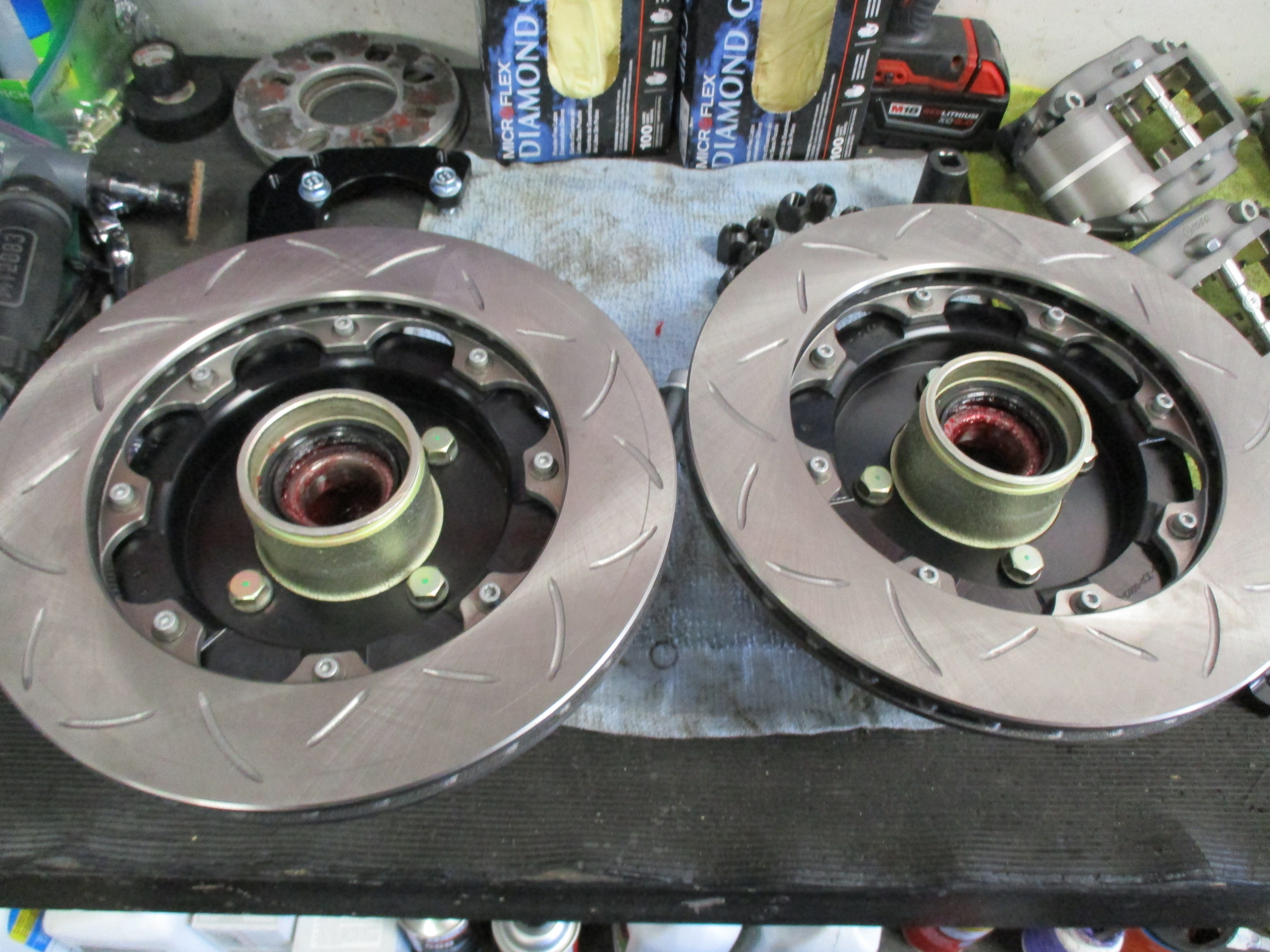

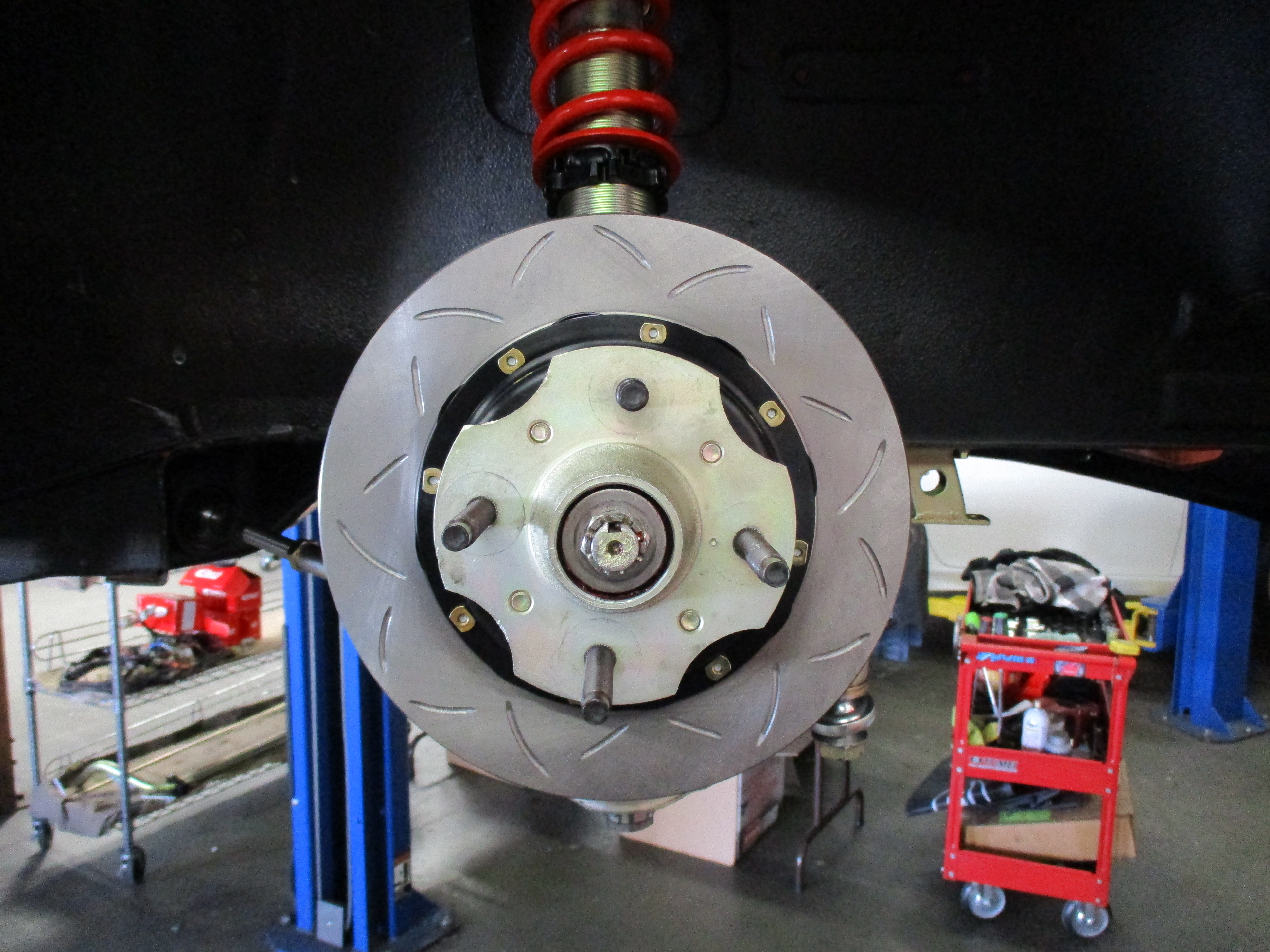

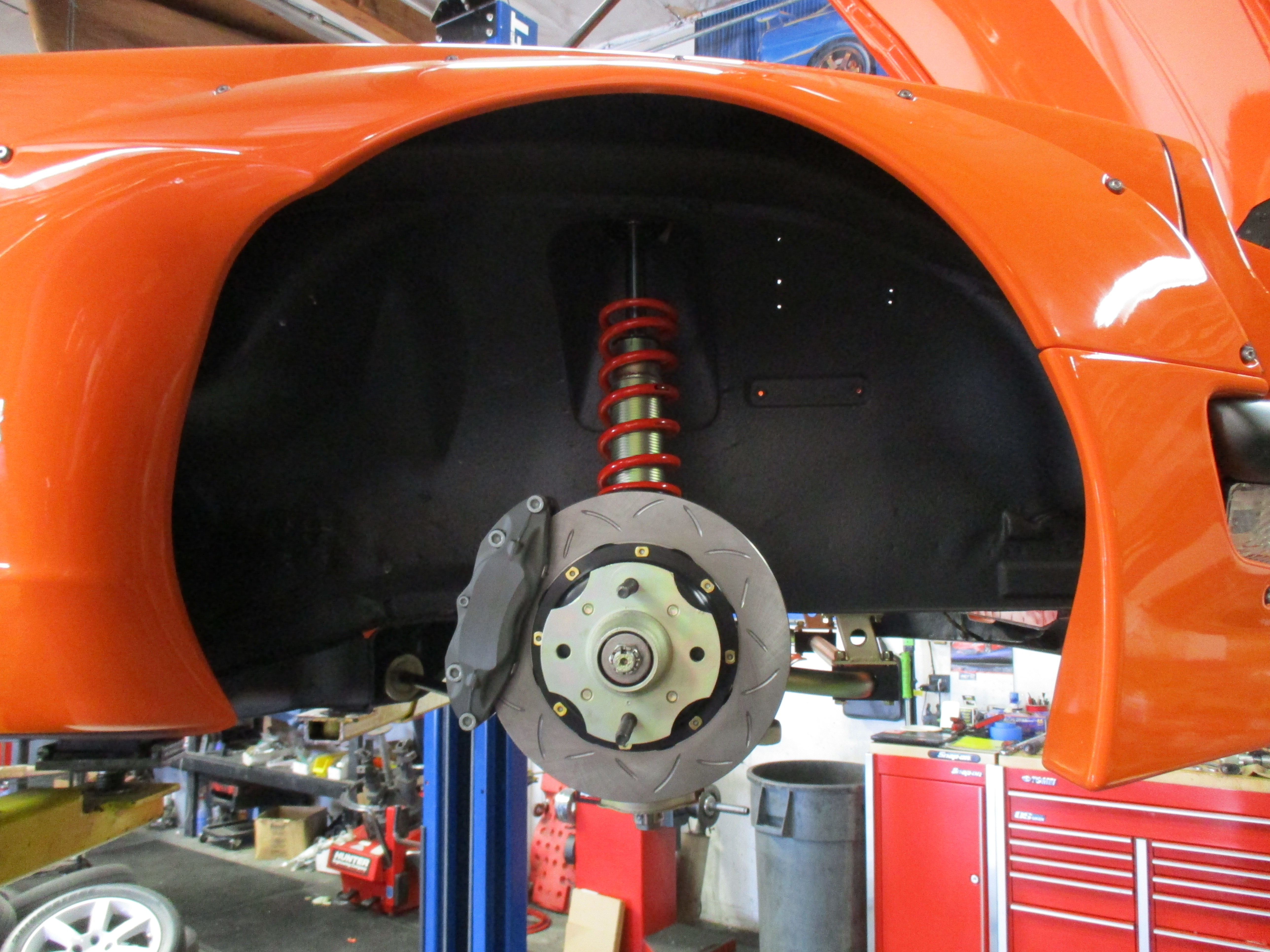

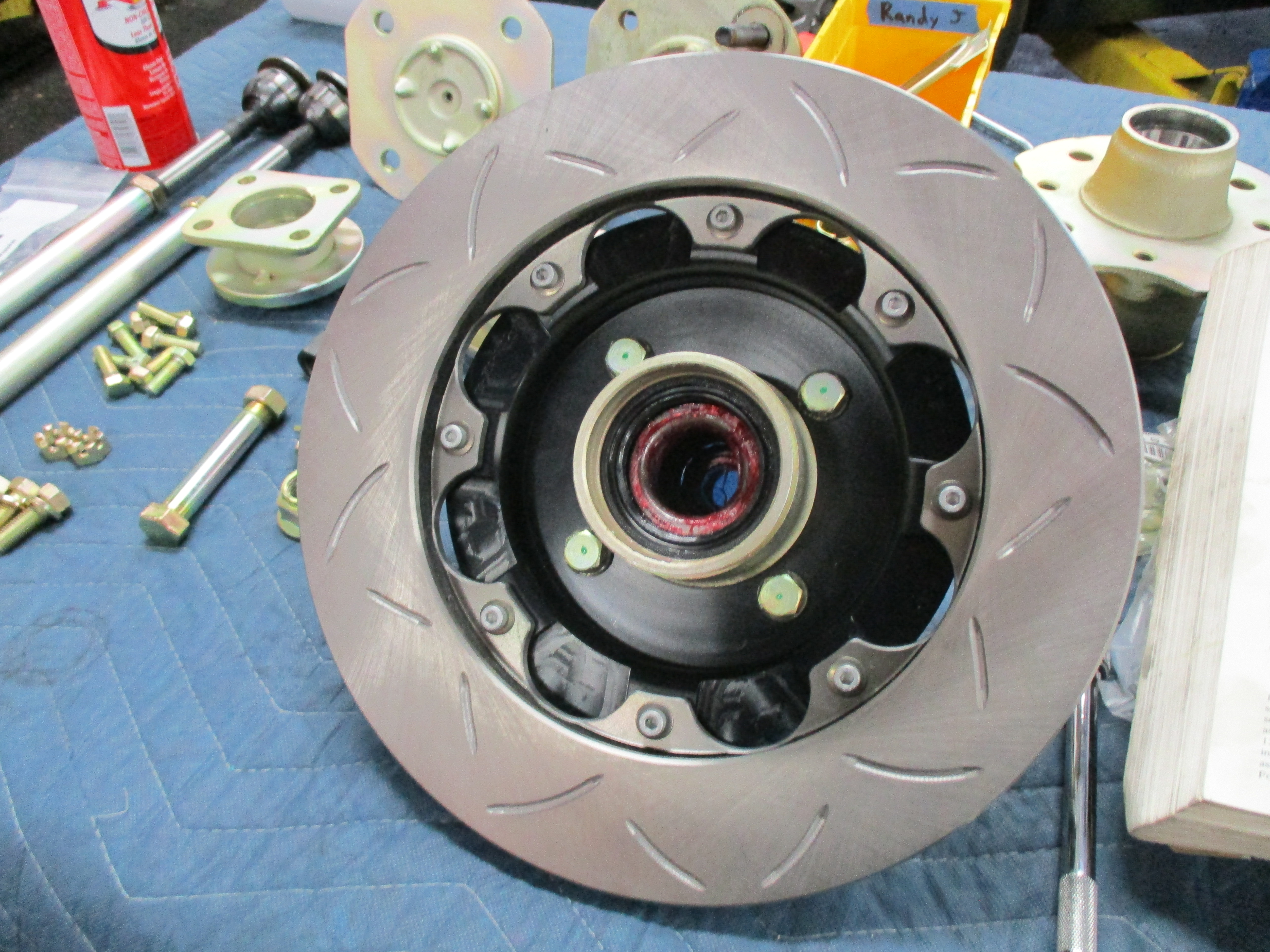

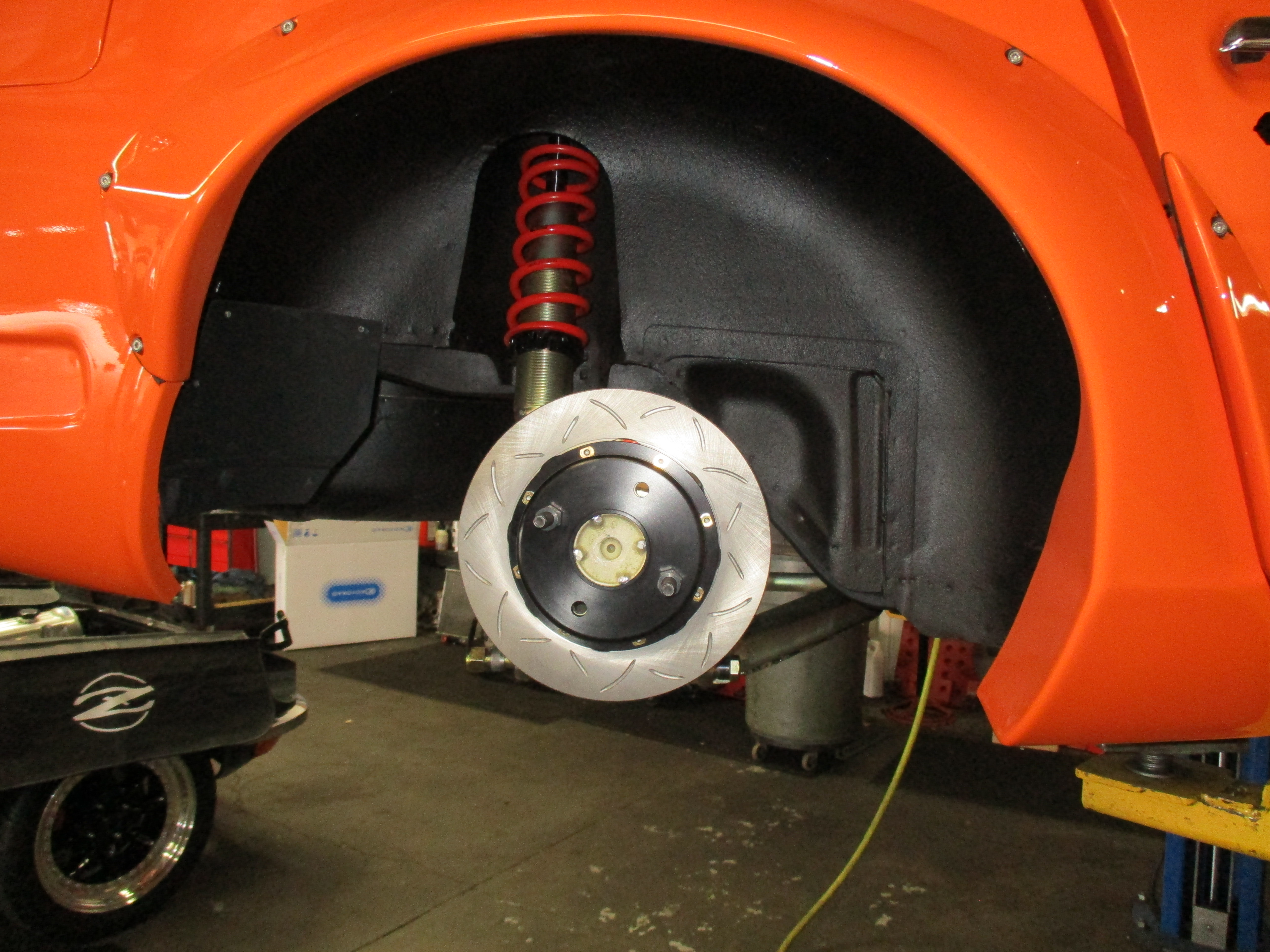

Z Car Garage Big-Brakes

There are two versions of our ZCG Big Brakes  and the only three “racing” setups on are on the BRE car, Alex’s Hako and the Rocketbunny Z:



Stay tuned for our latest big-brake upgrade from the minds of ZCG and Stoptech!

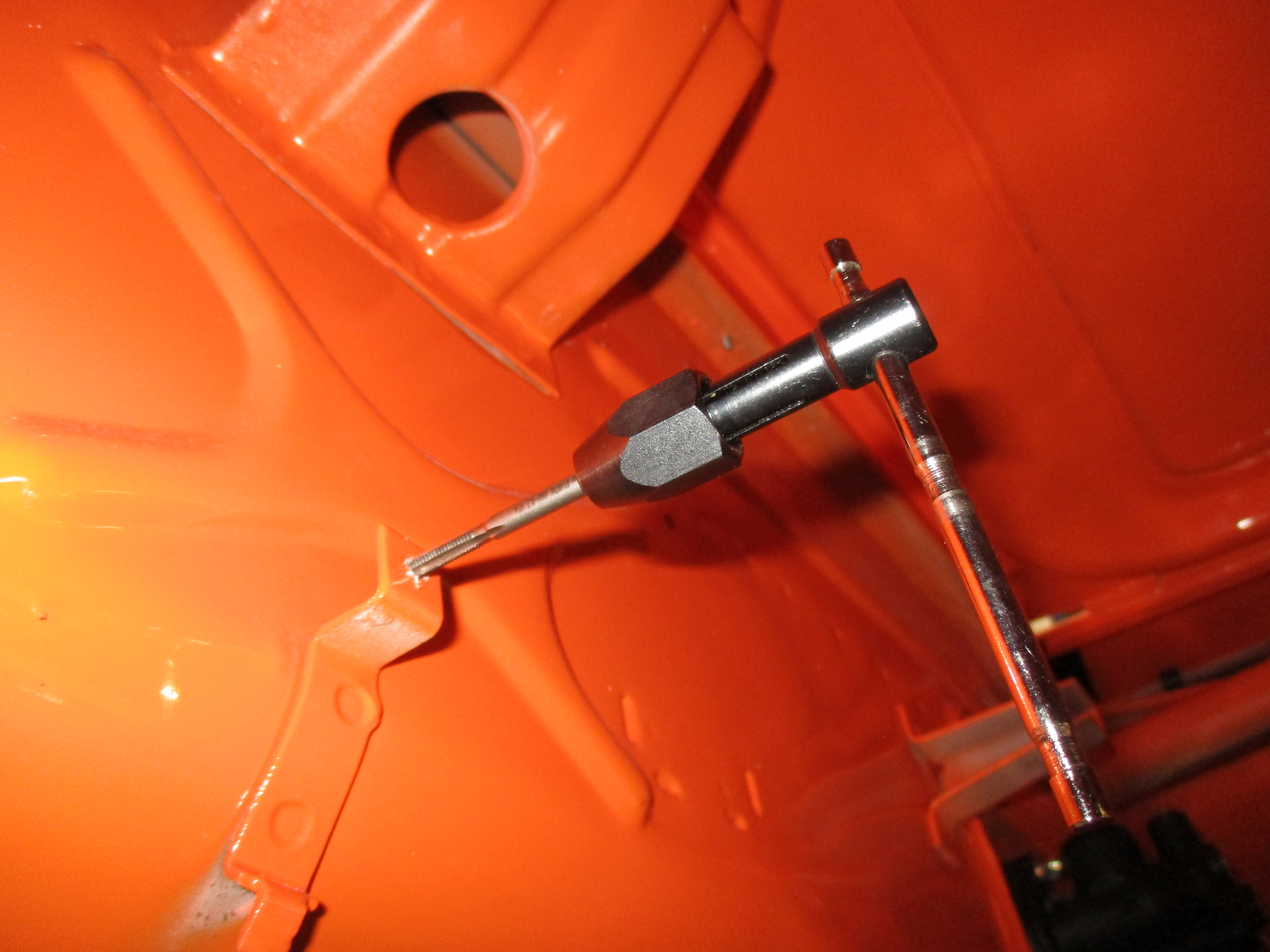

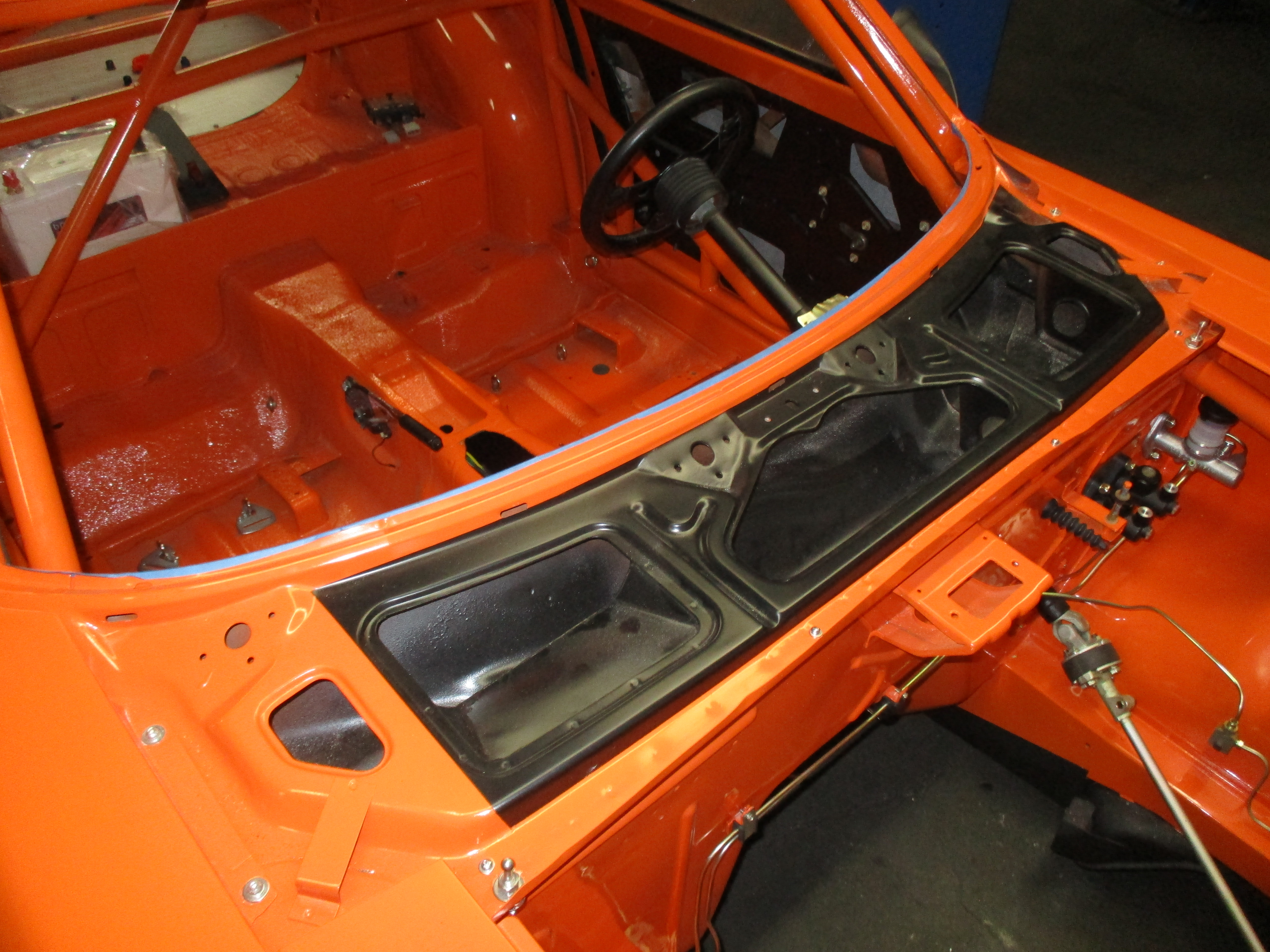

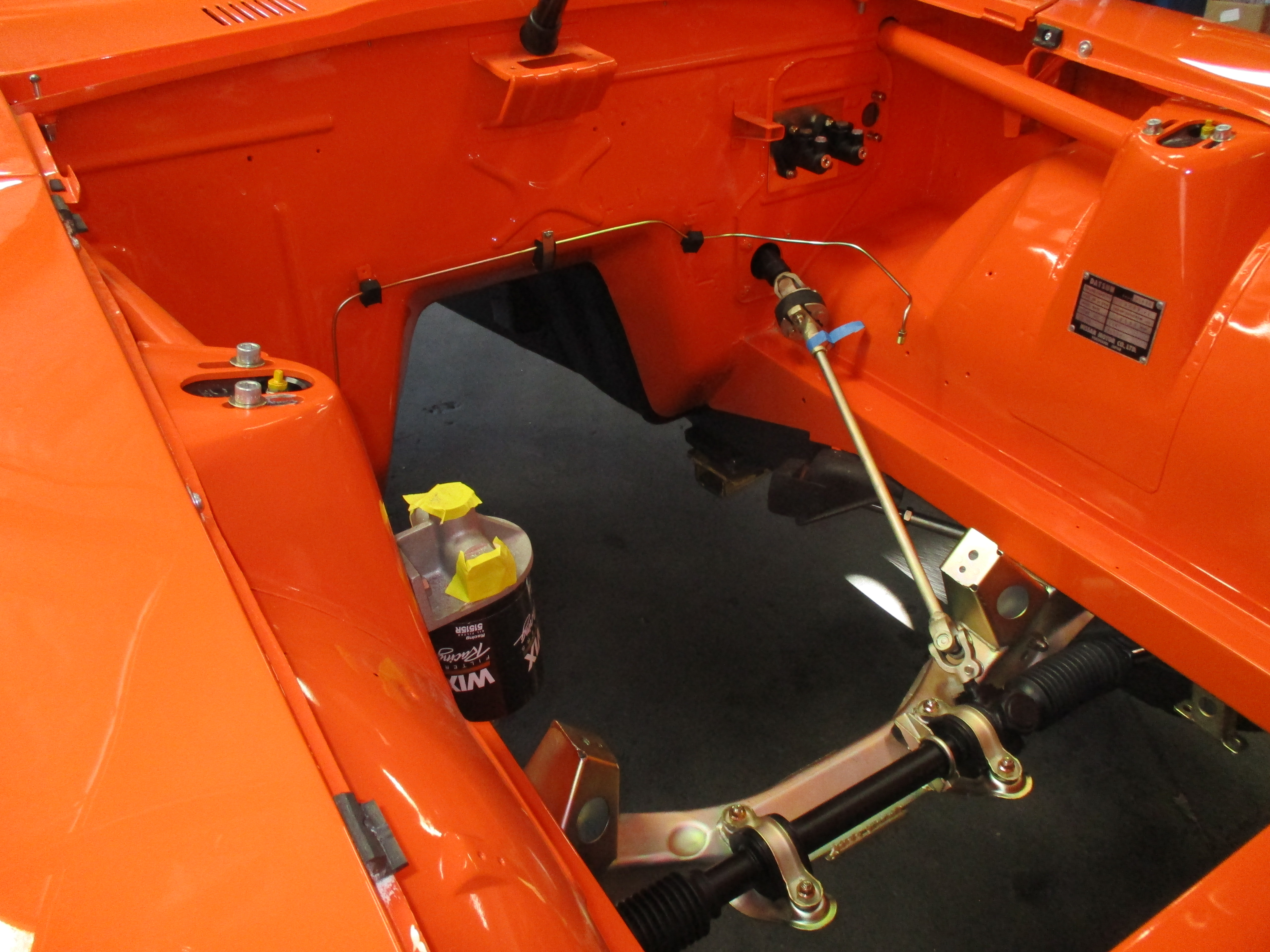

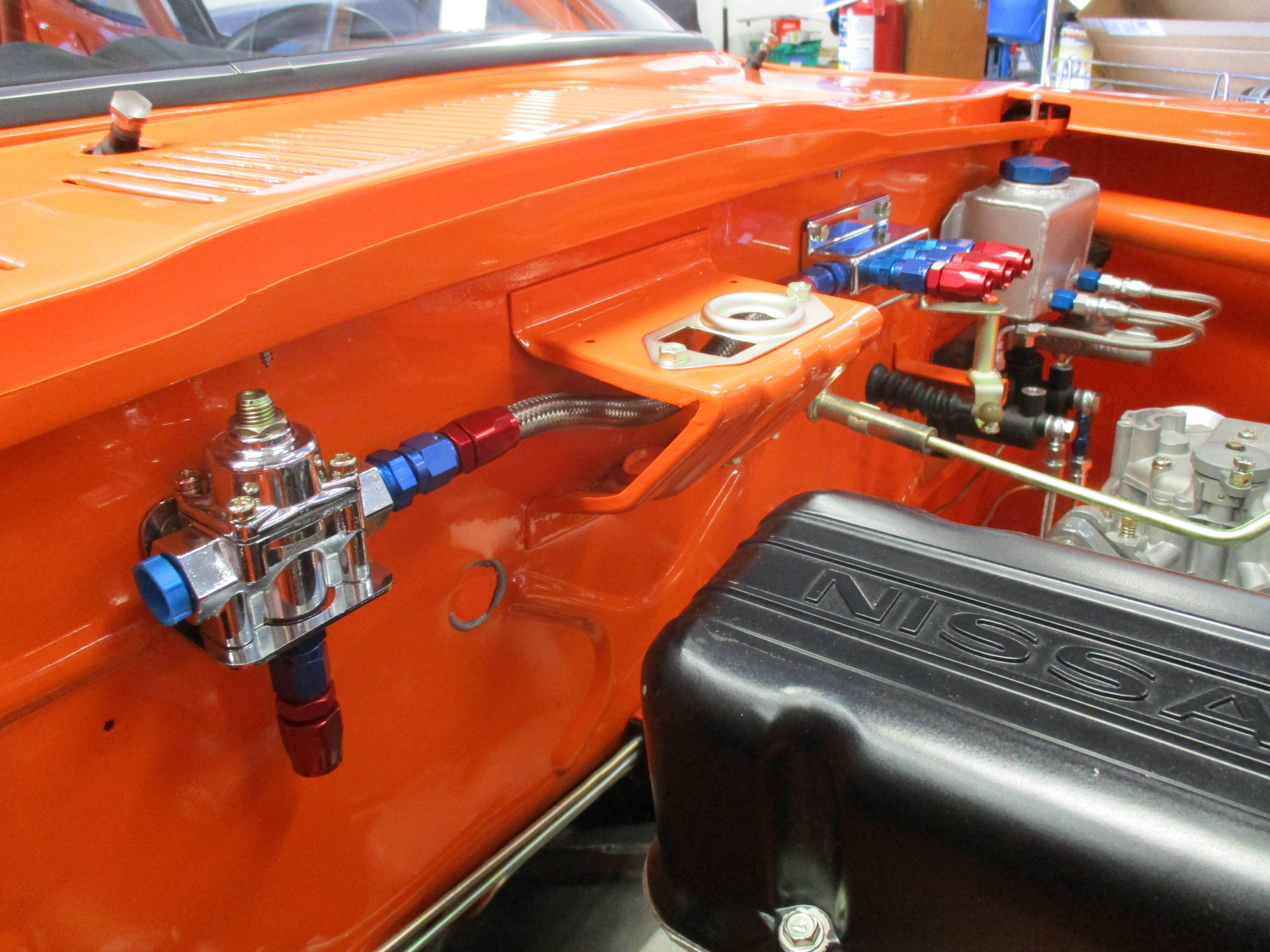

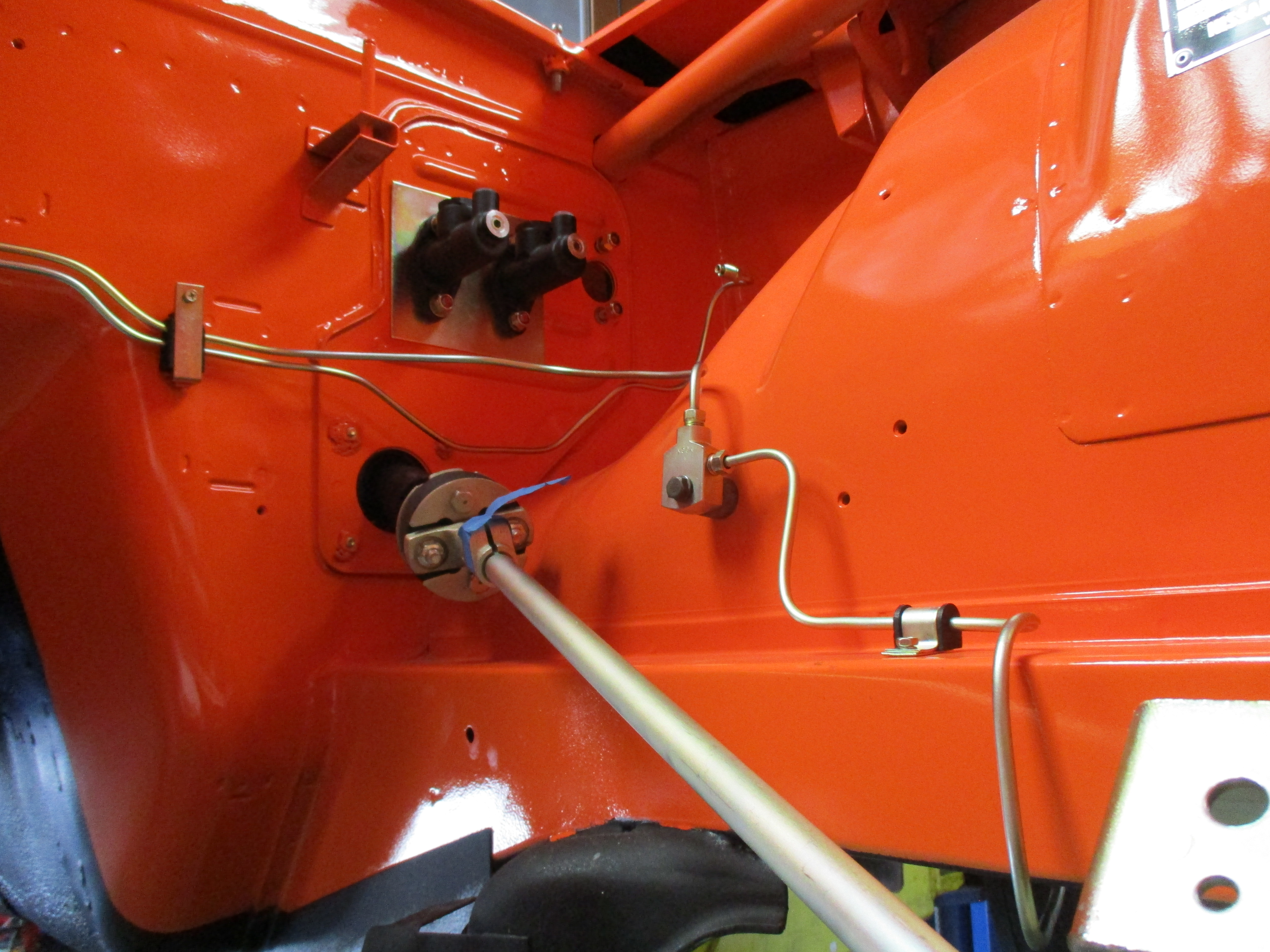

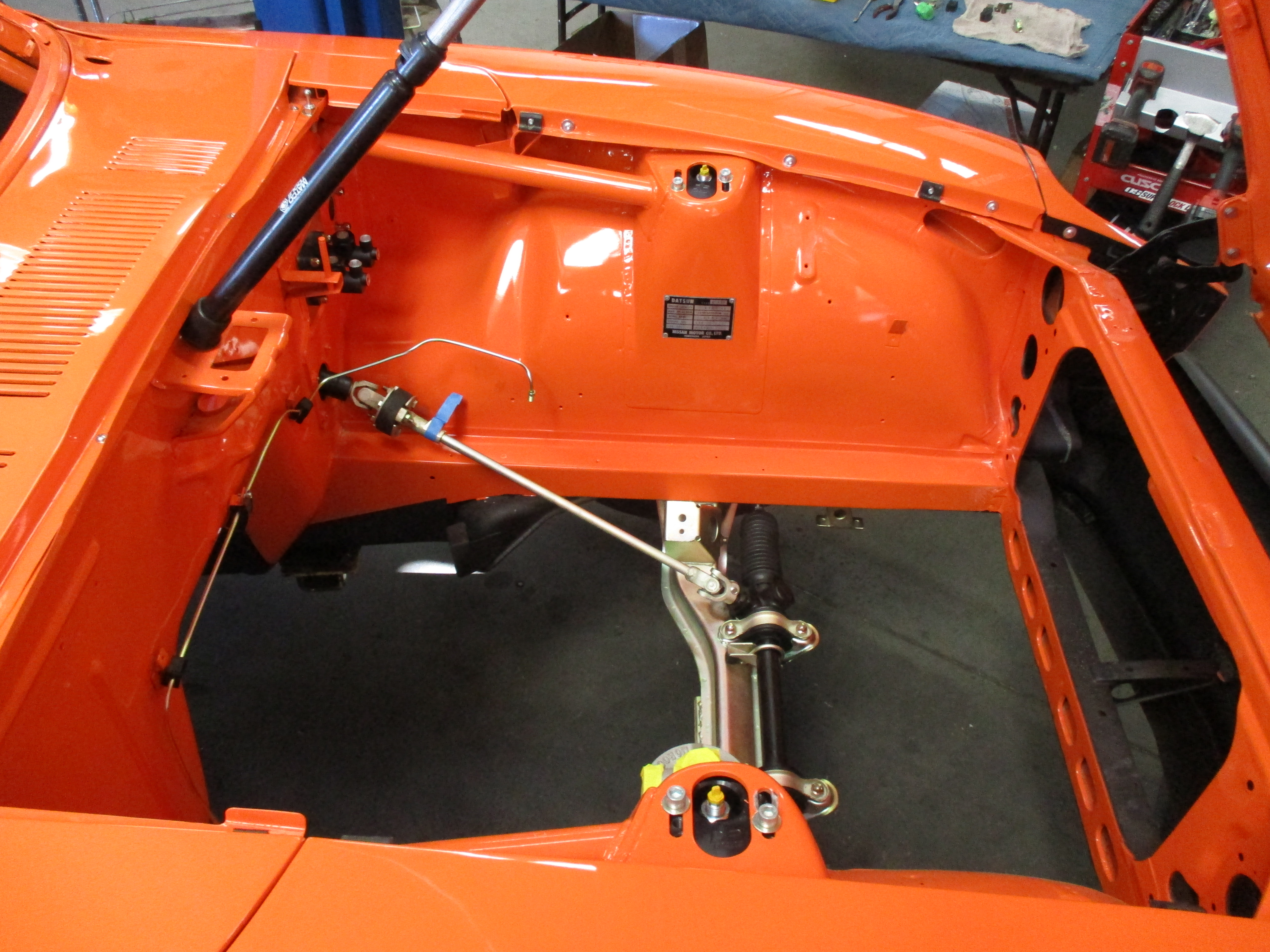

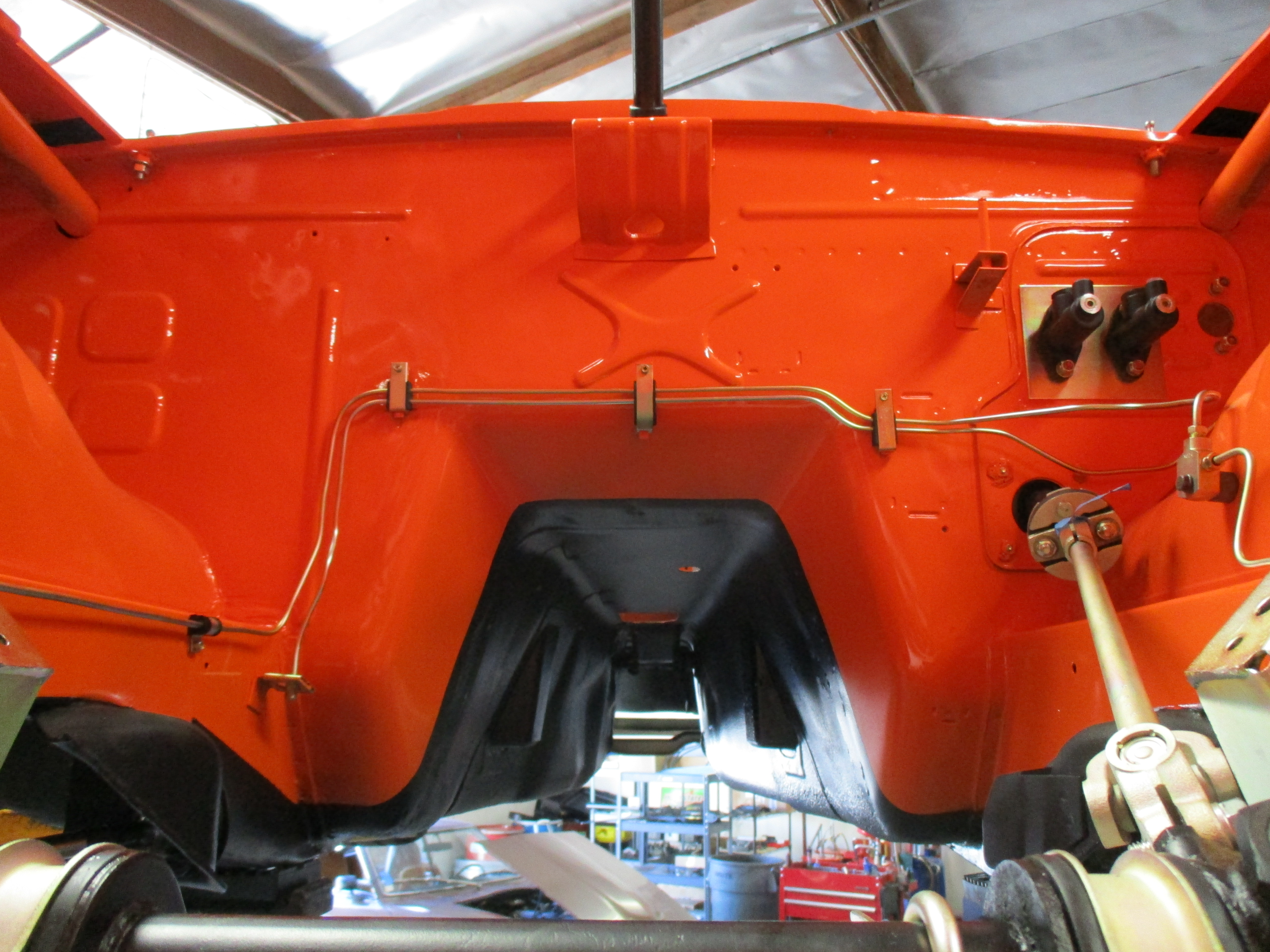

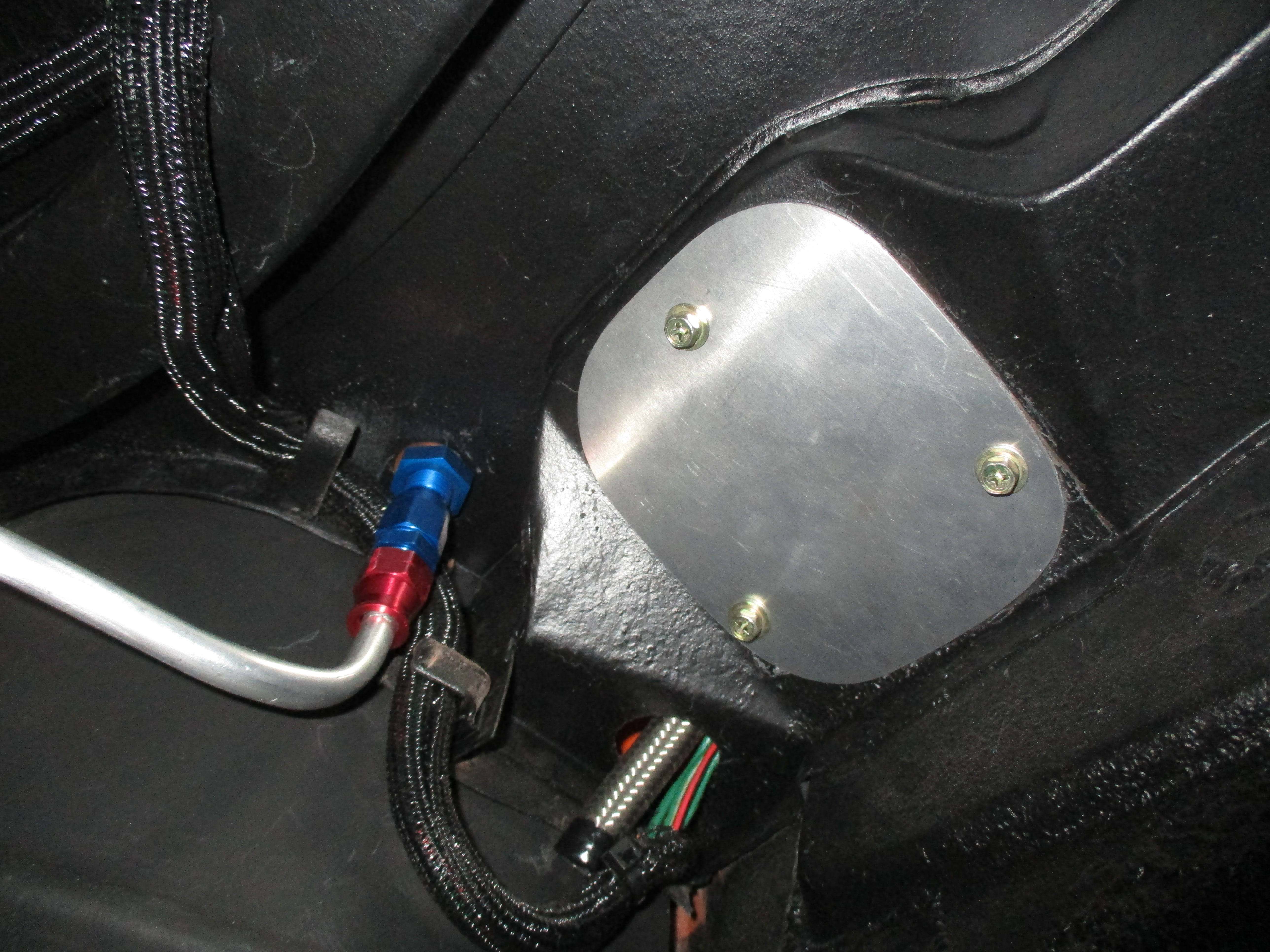

Back to the chassis, the entire hydraulic system was installed starting with freshly plated lines.

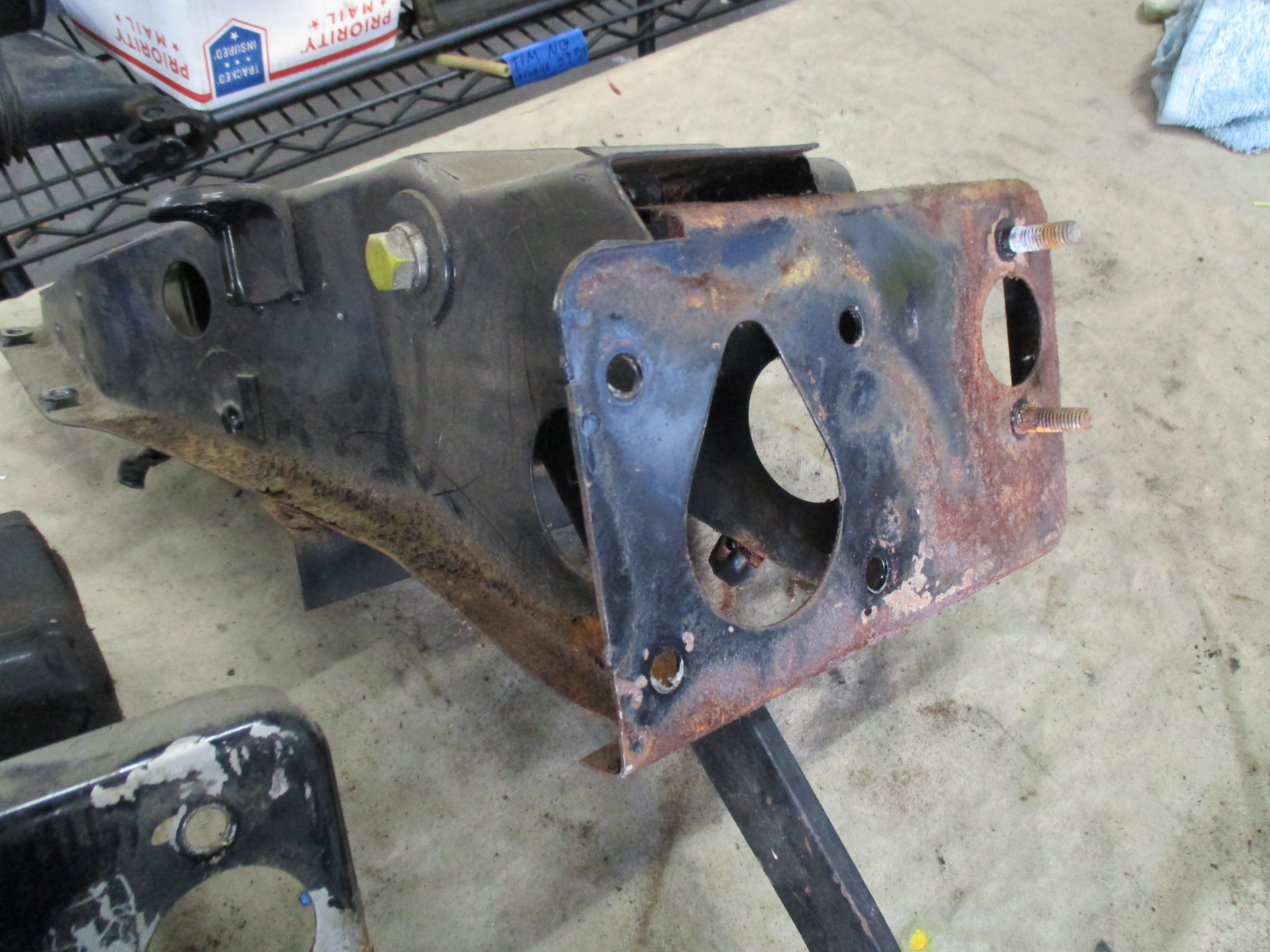

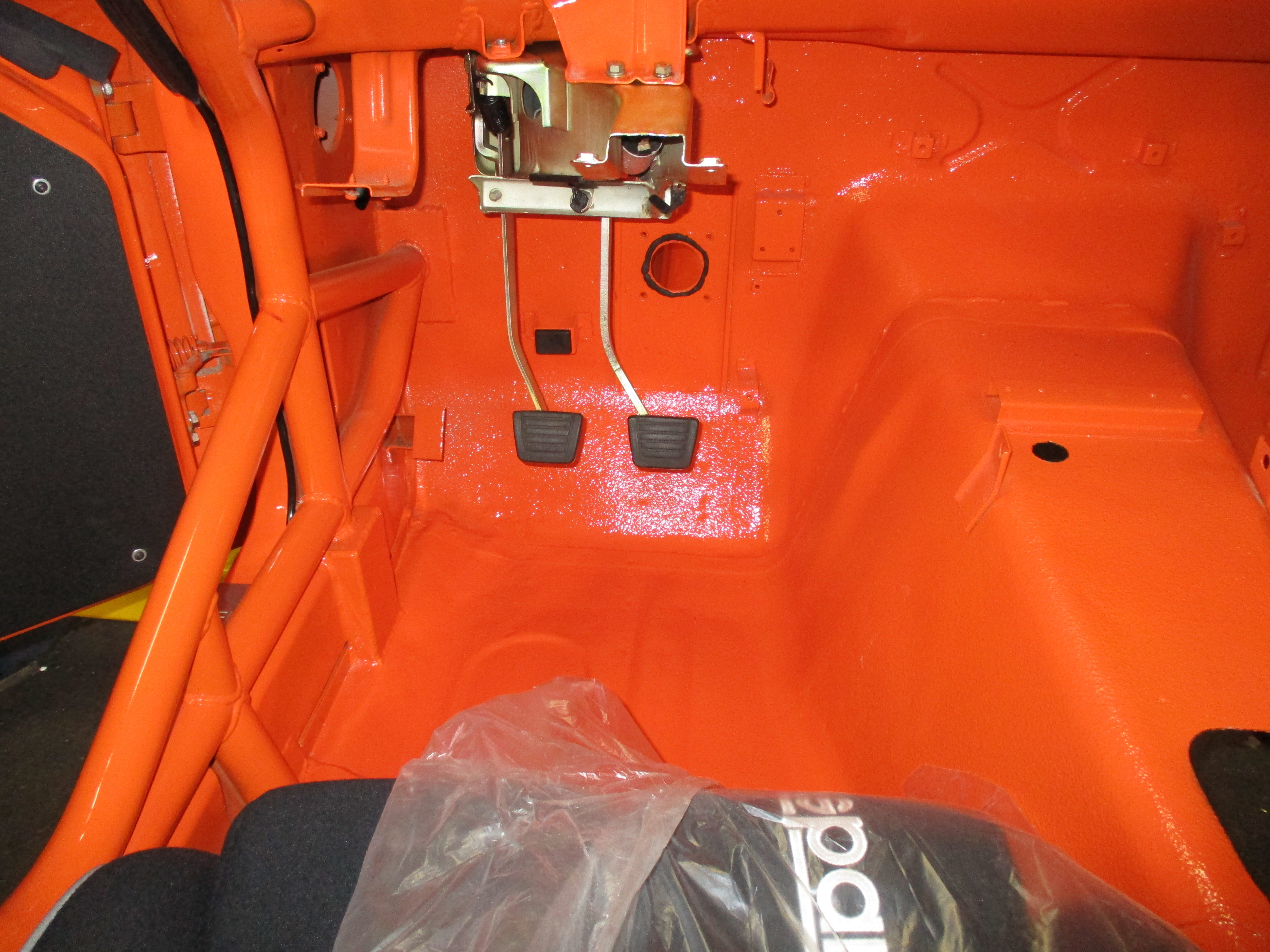

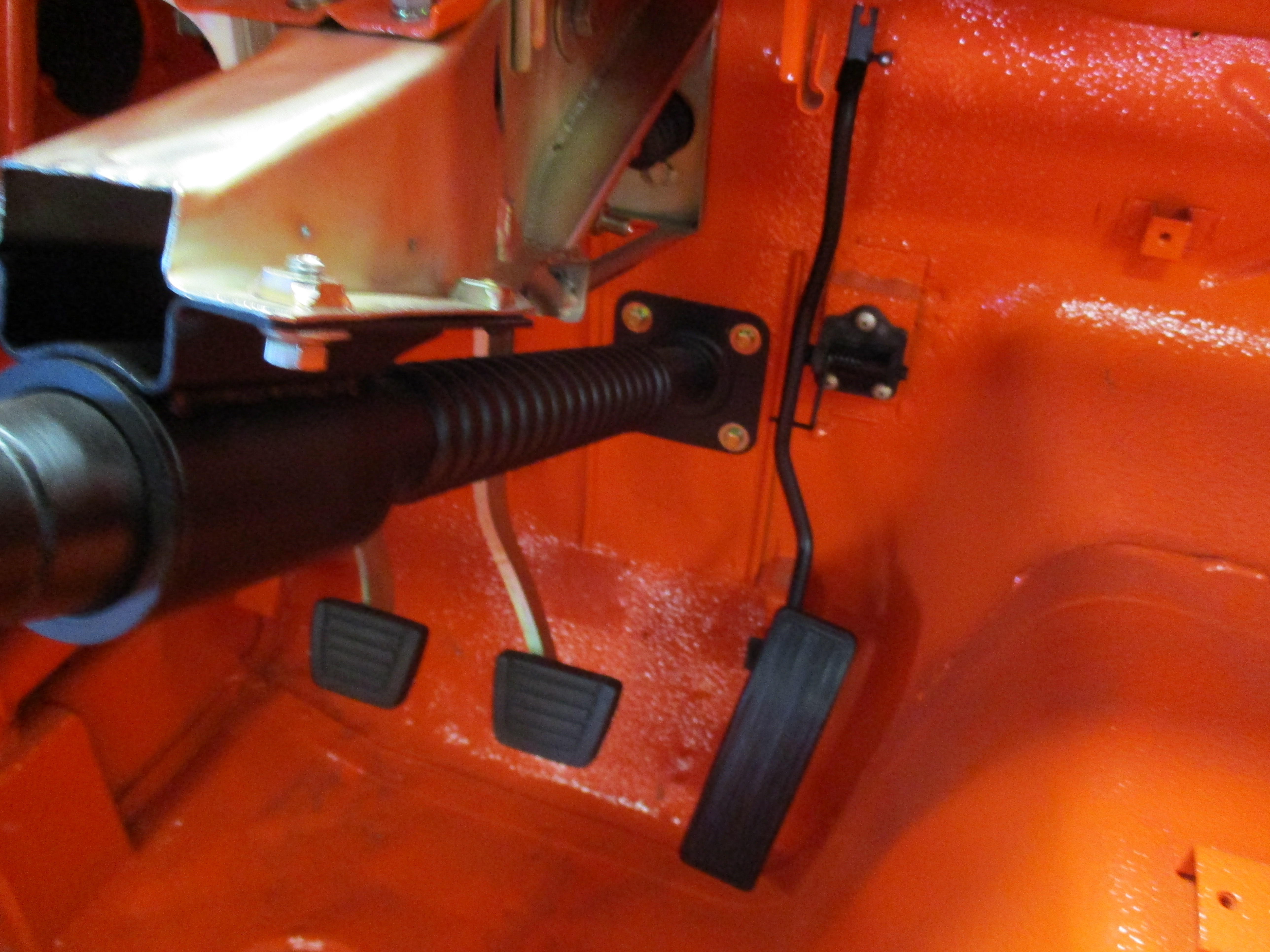

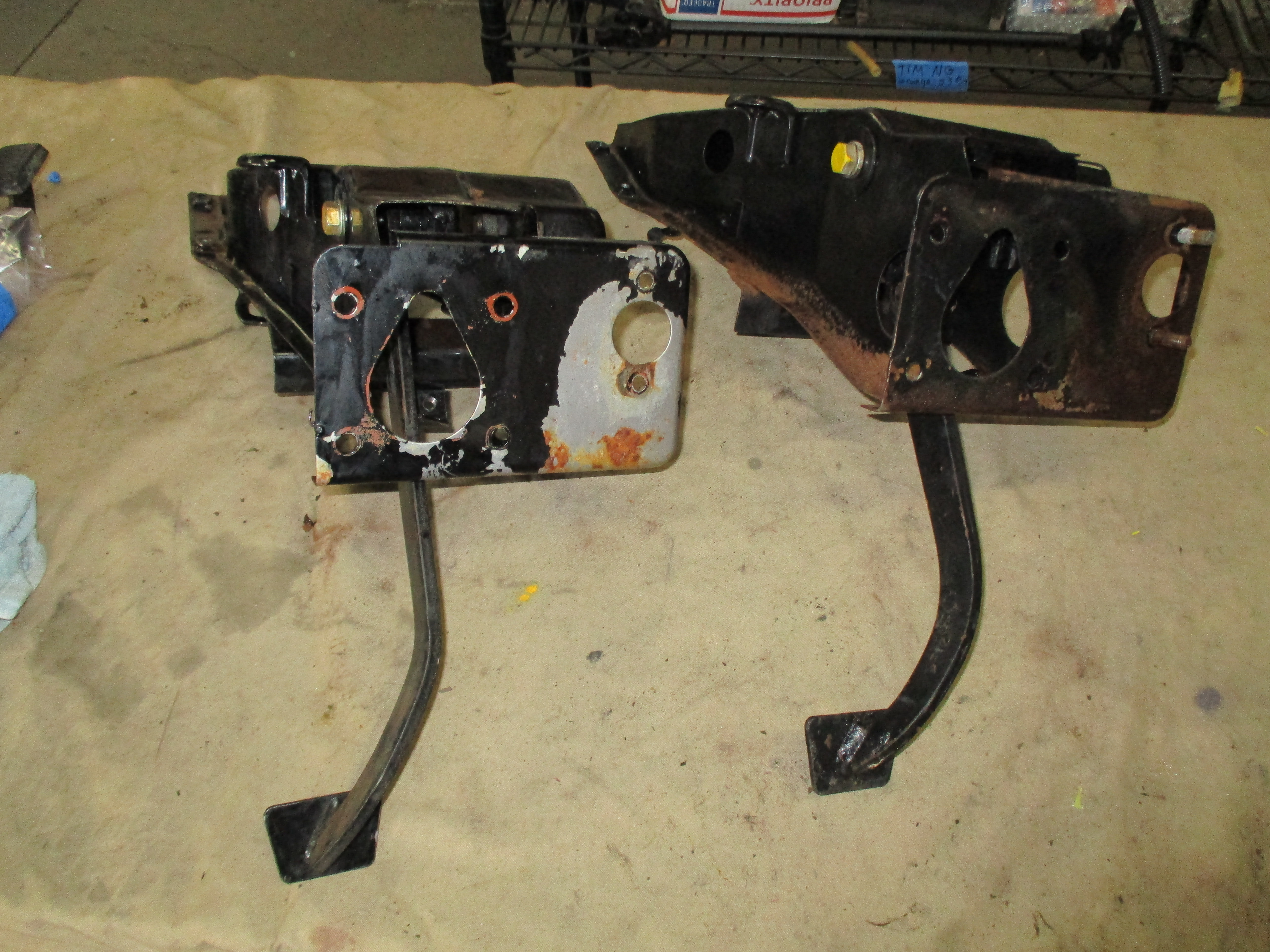

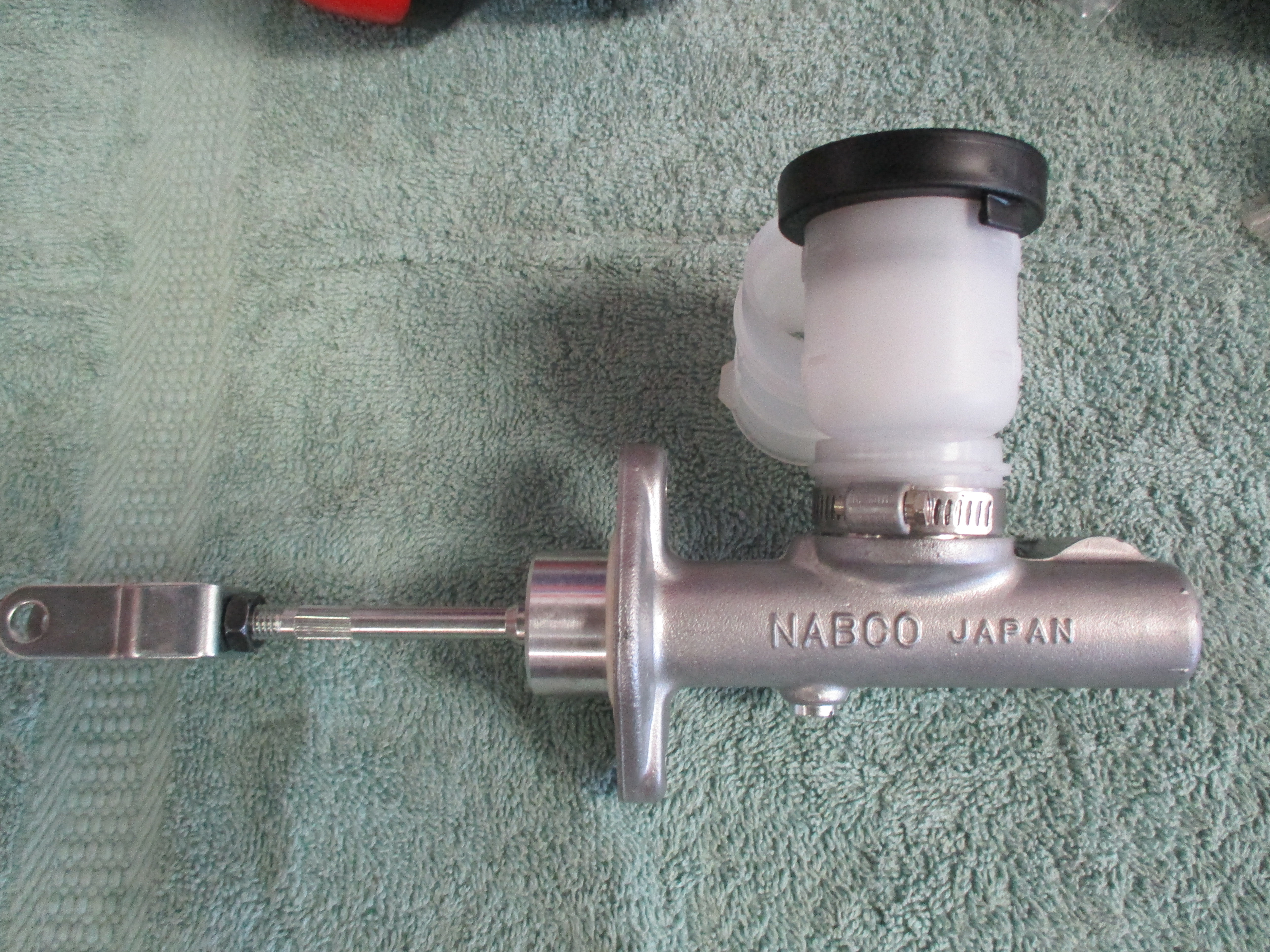

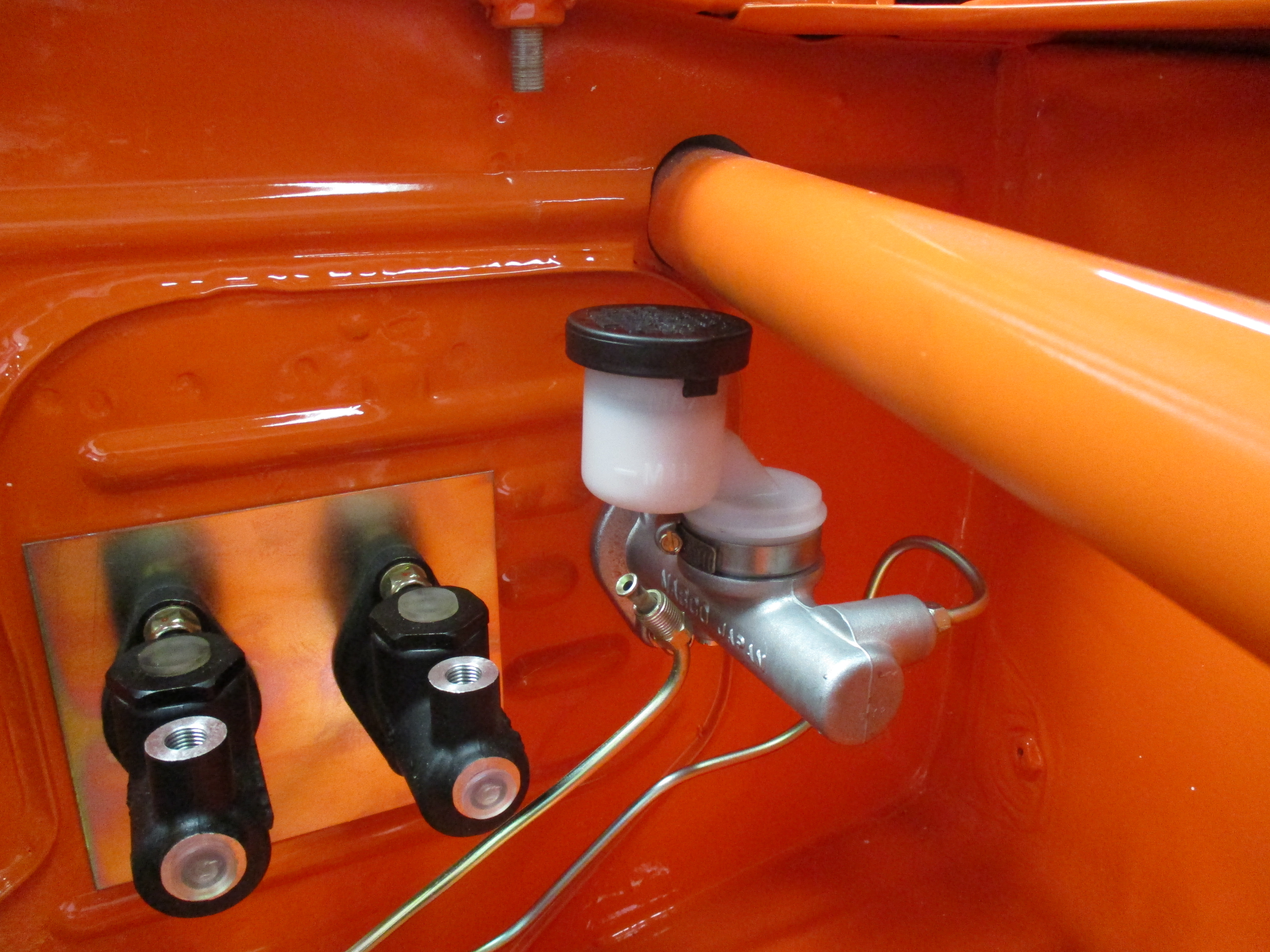

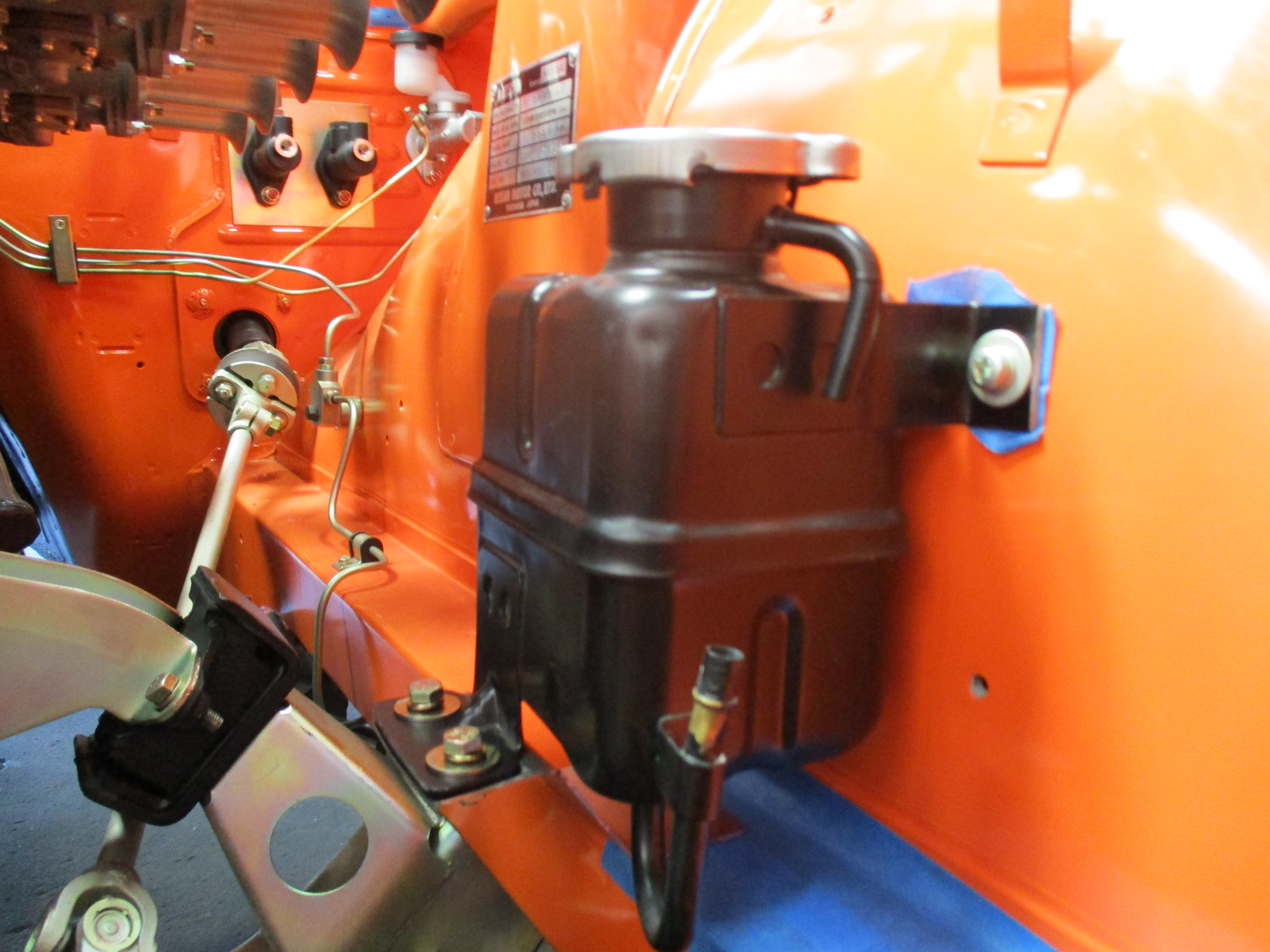

DP remote reservoir and plated pedal box:



Z Car Garage CV Axles

Z Car Garage is proud to offer a CV axle conversion kit for Datsun S30 and 510 cars. We run these on our race cars and the Rocketbunny Z also got a set.

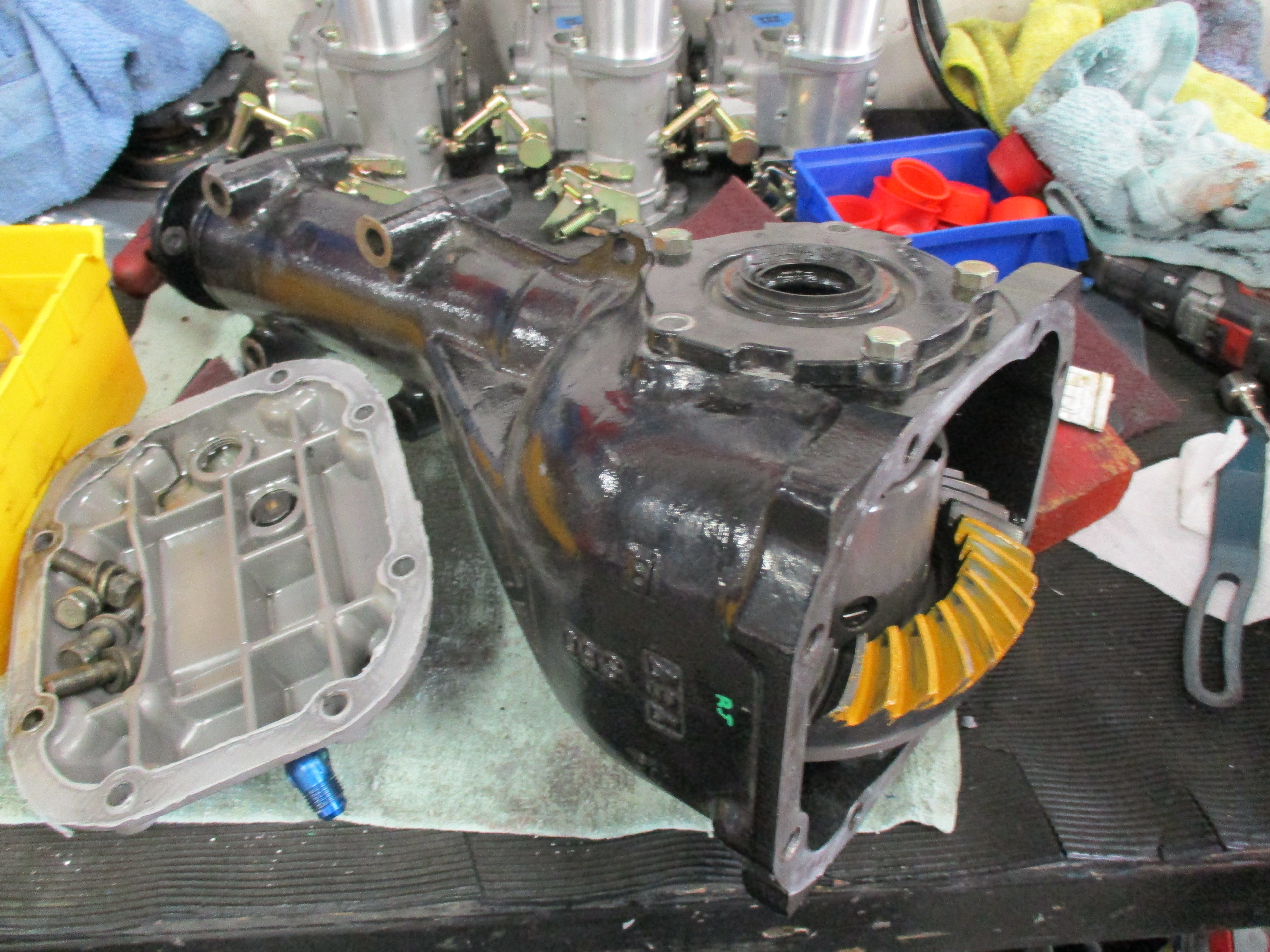

Helping put the power down effectively is an OS Giken limited-slip R180 diff properly set up in-house by Joshua Corwin.



Wheels Make The Car

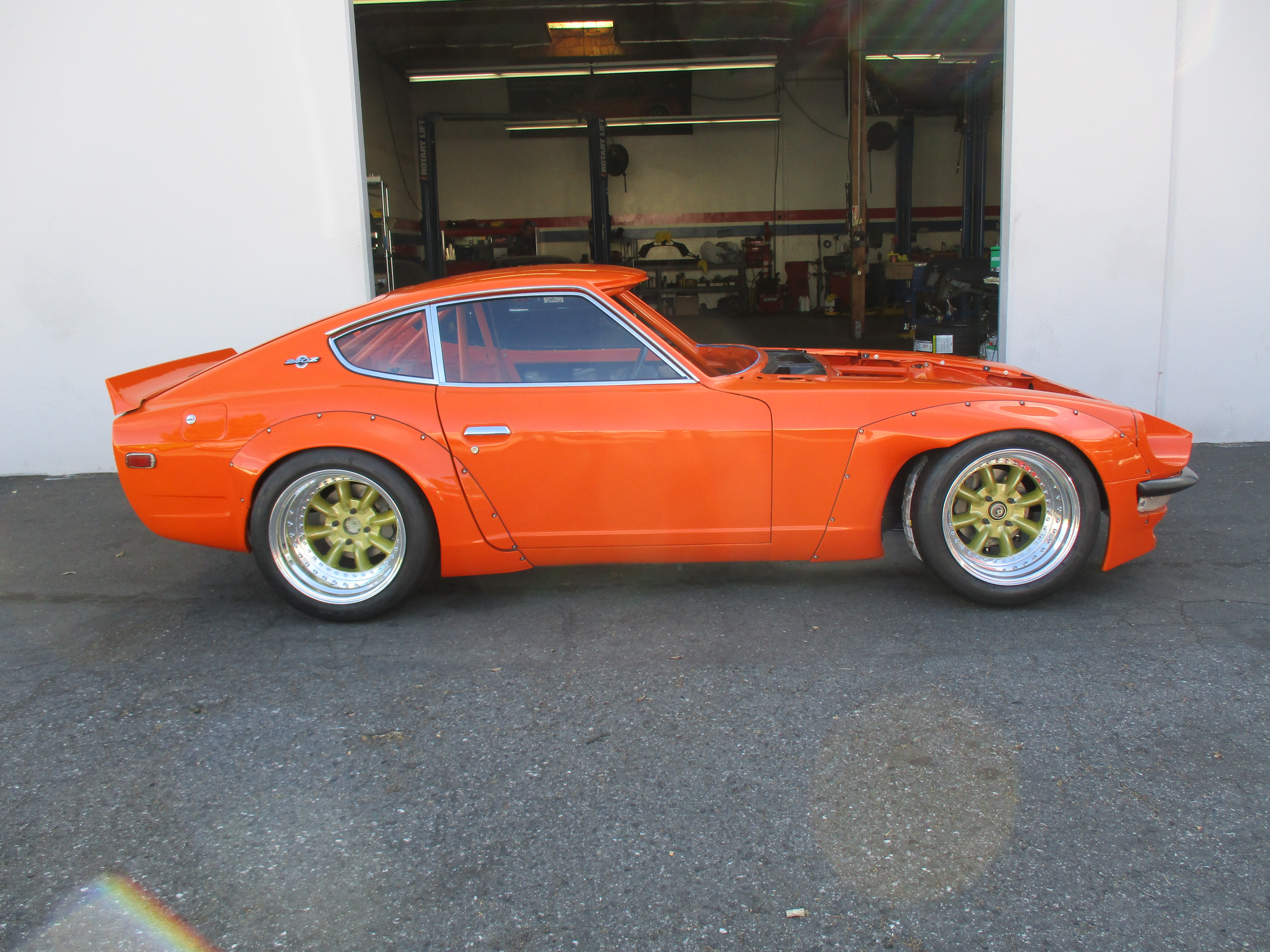

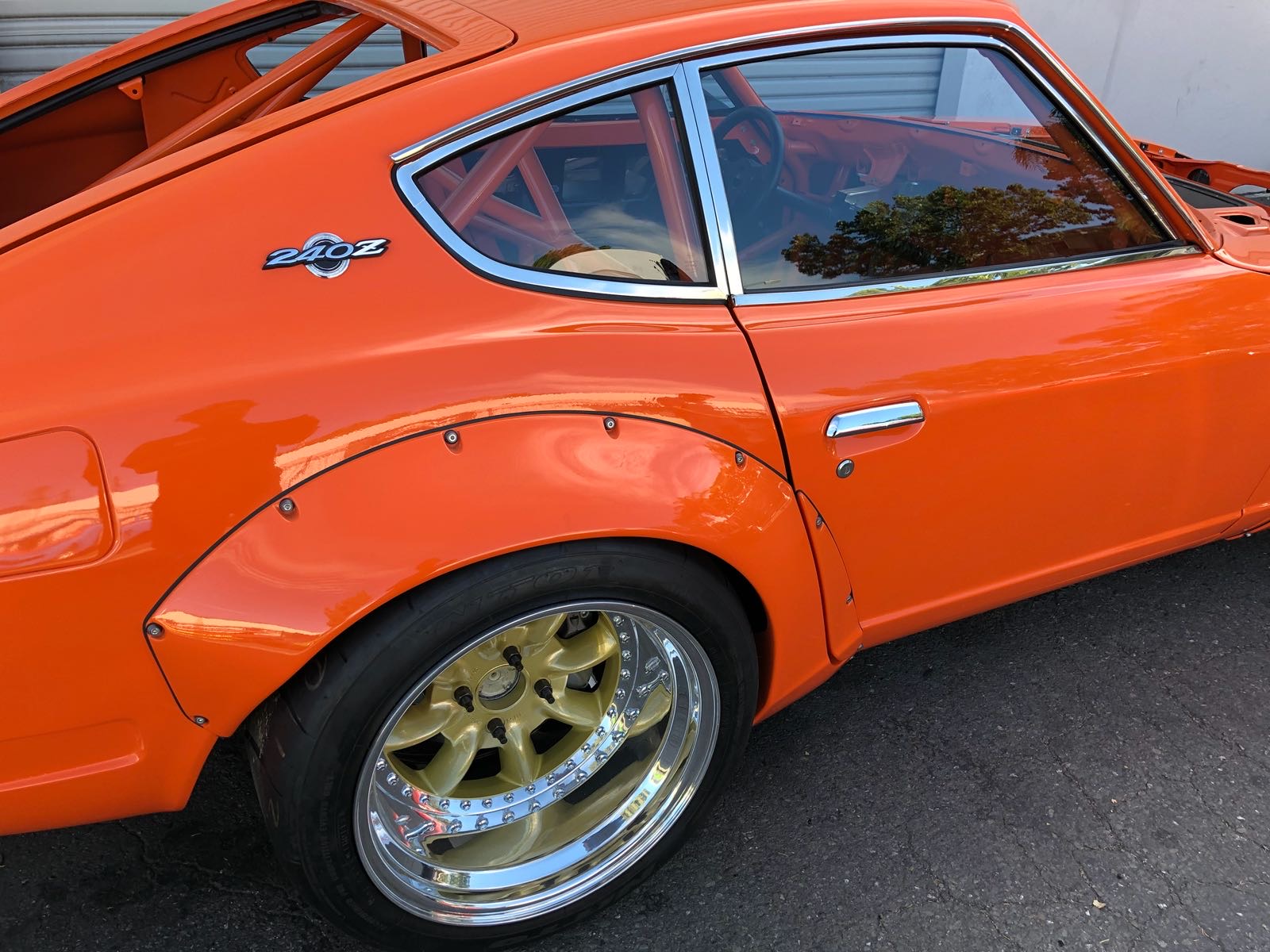

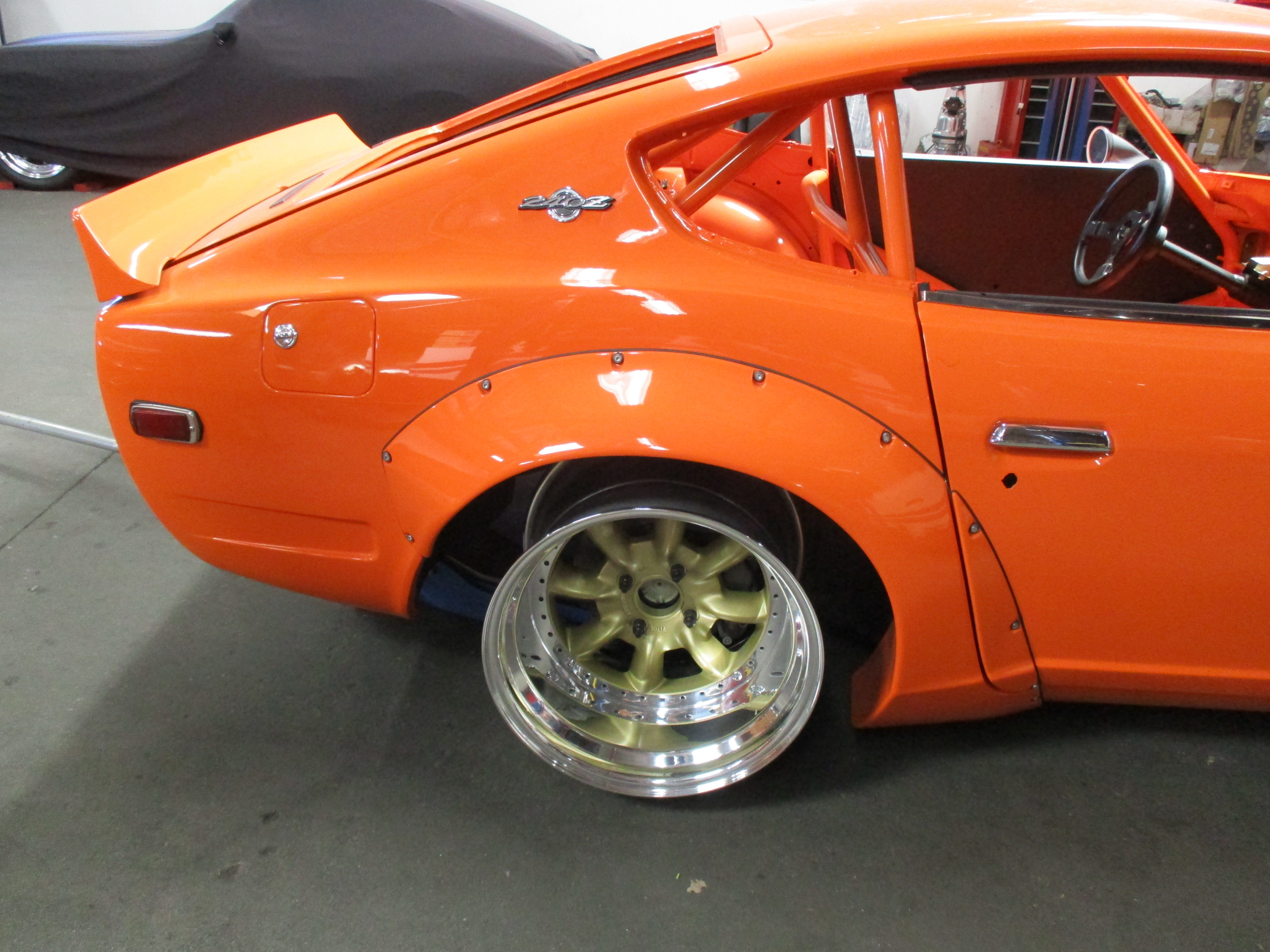

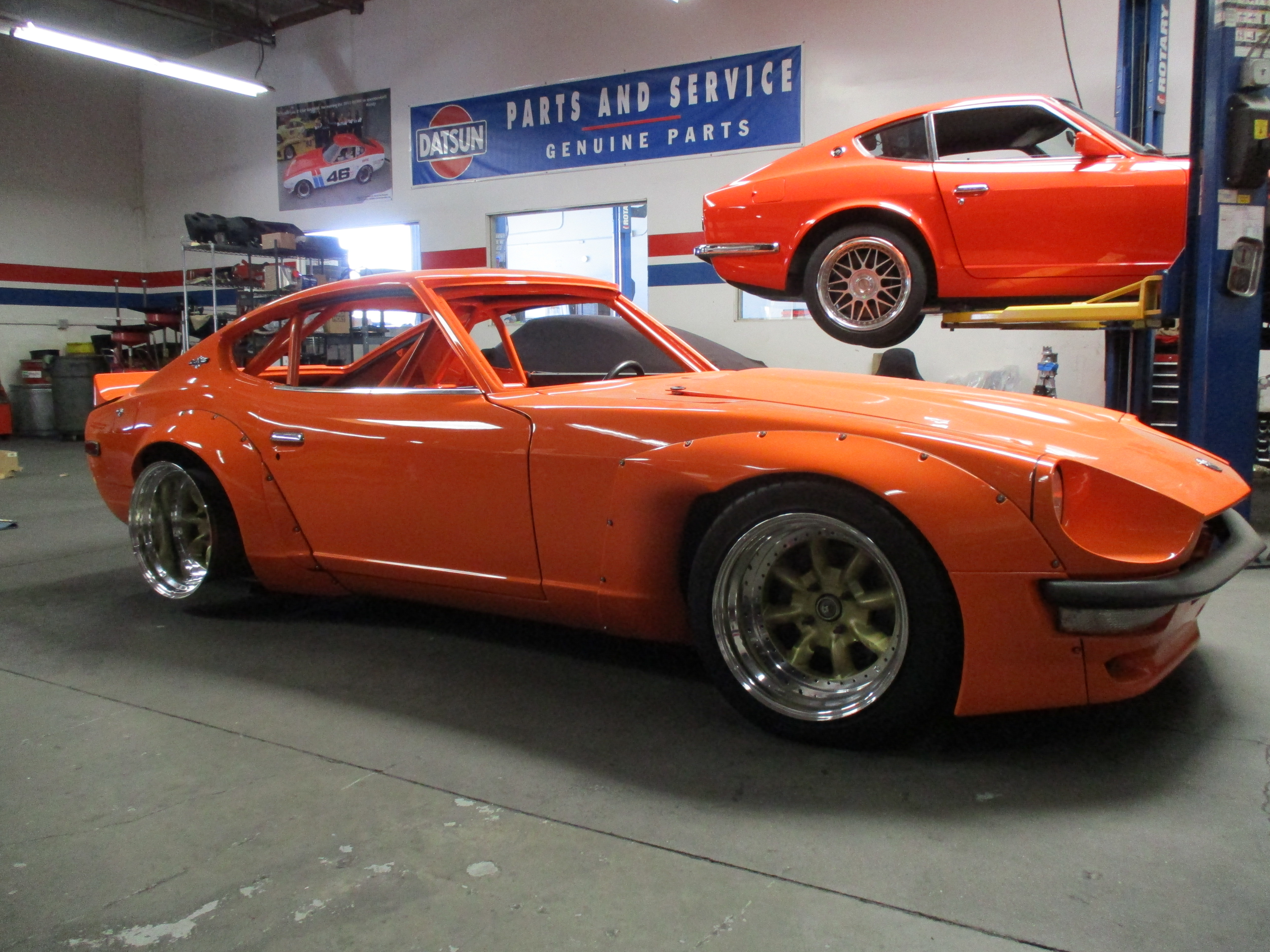

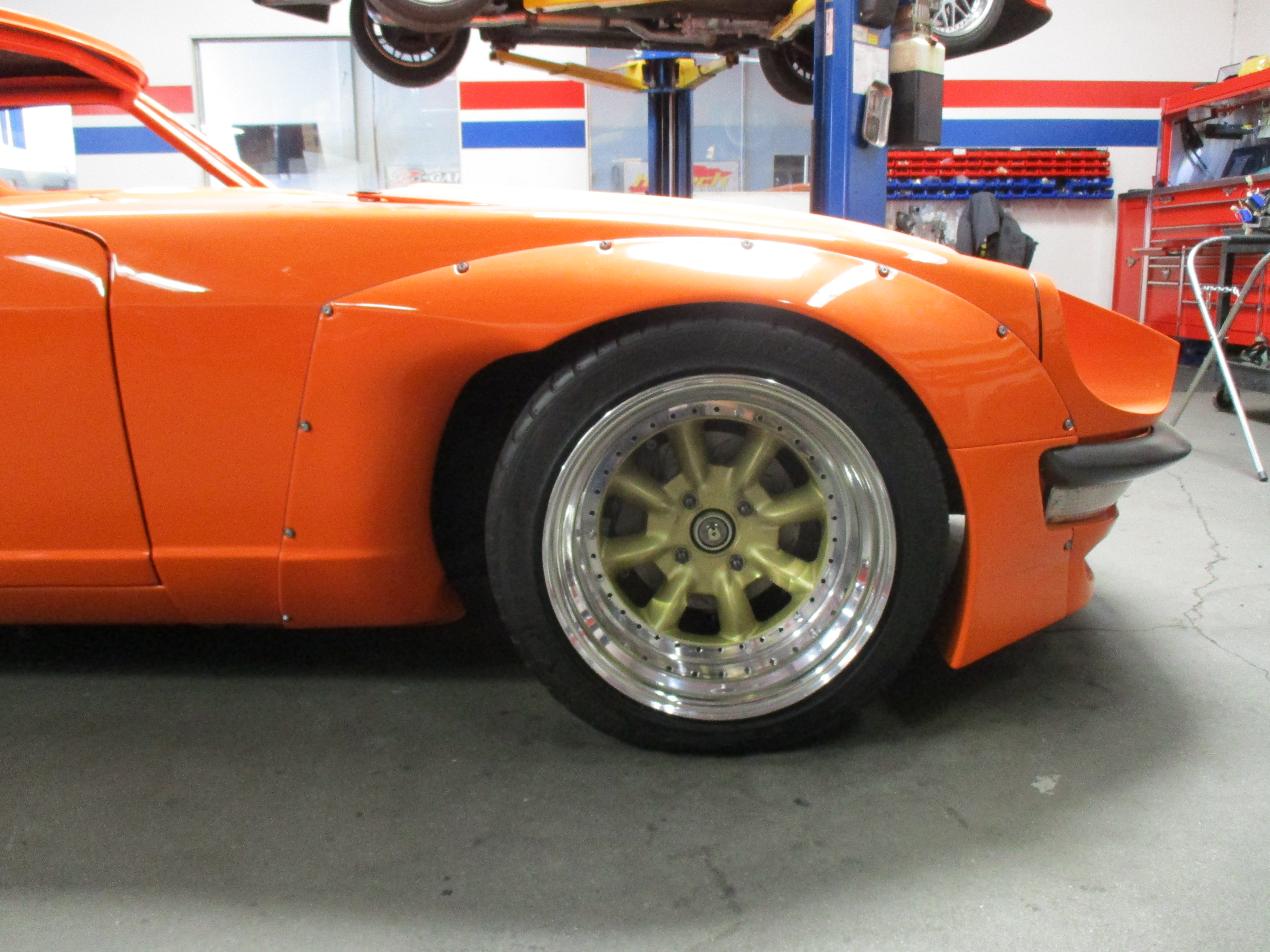

The biggest hurdle on this car was wheel choice.  Wheels can make or break the car and they had to befit the “KAMIKAZ” nickname.  There was no way we would have a car with massive flares and not use every single square inch of real estate available to fill with wheel and tire.

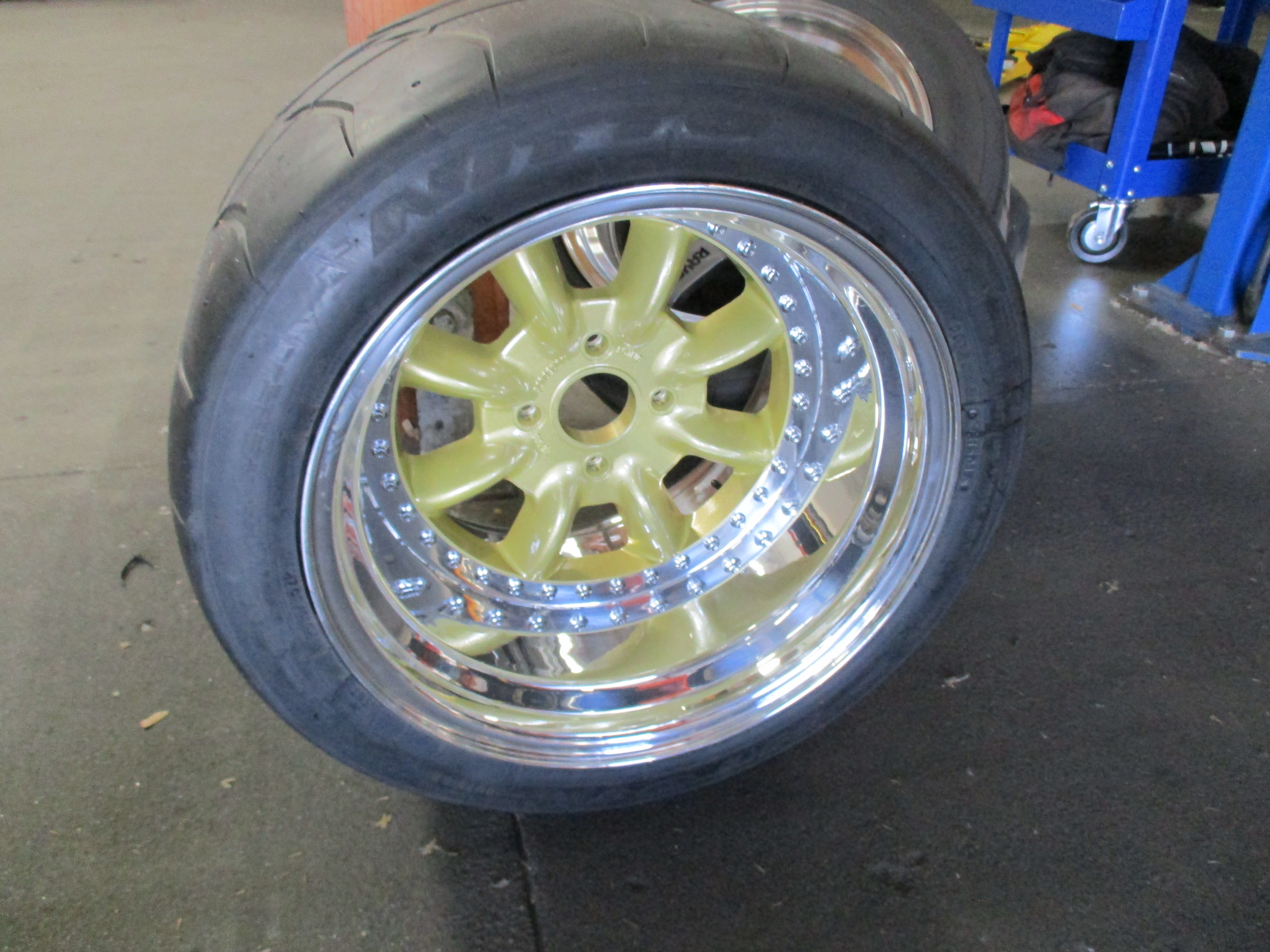

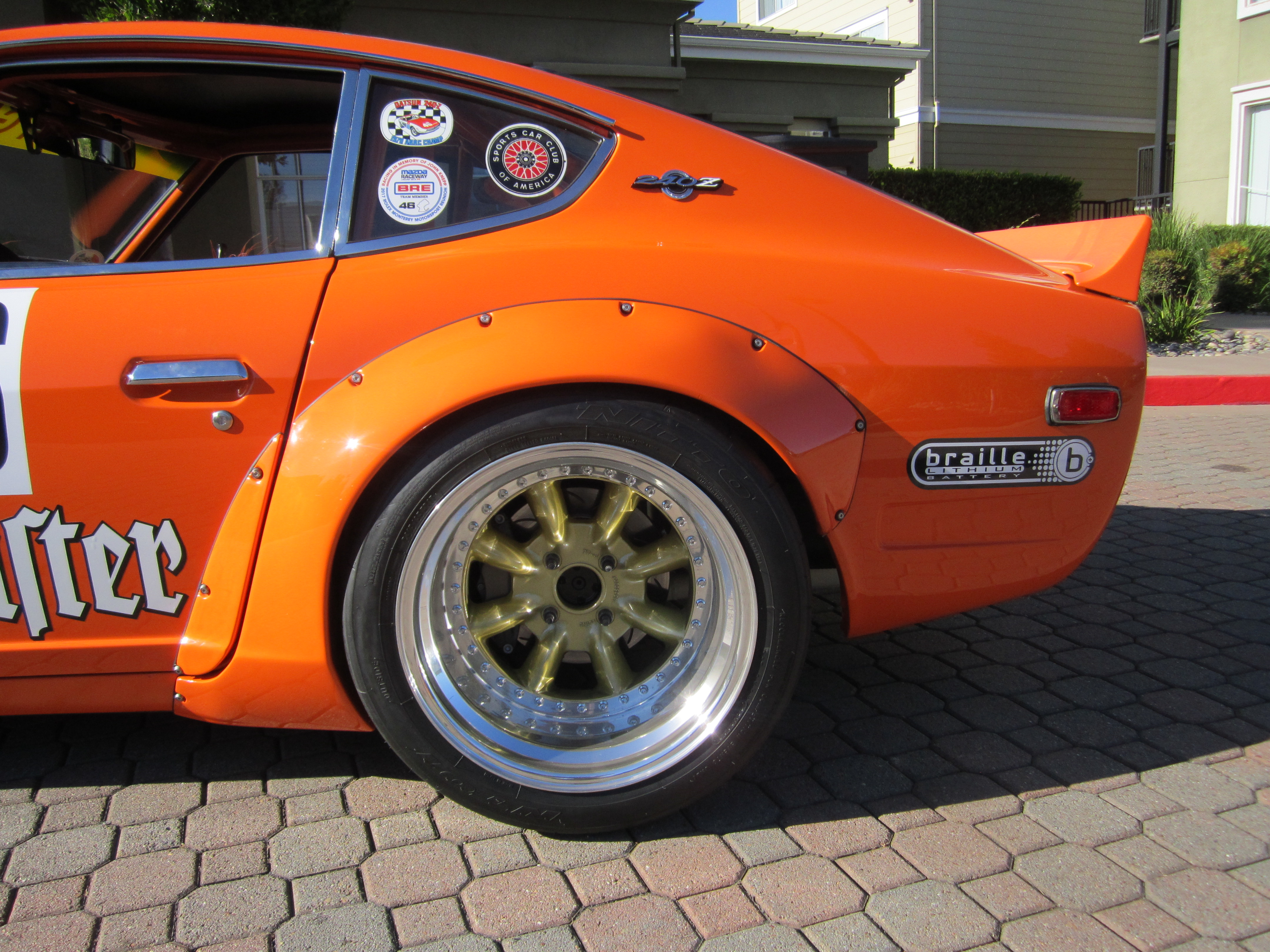

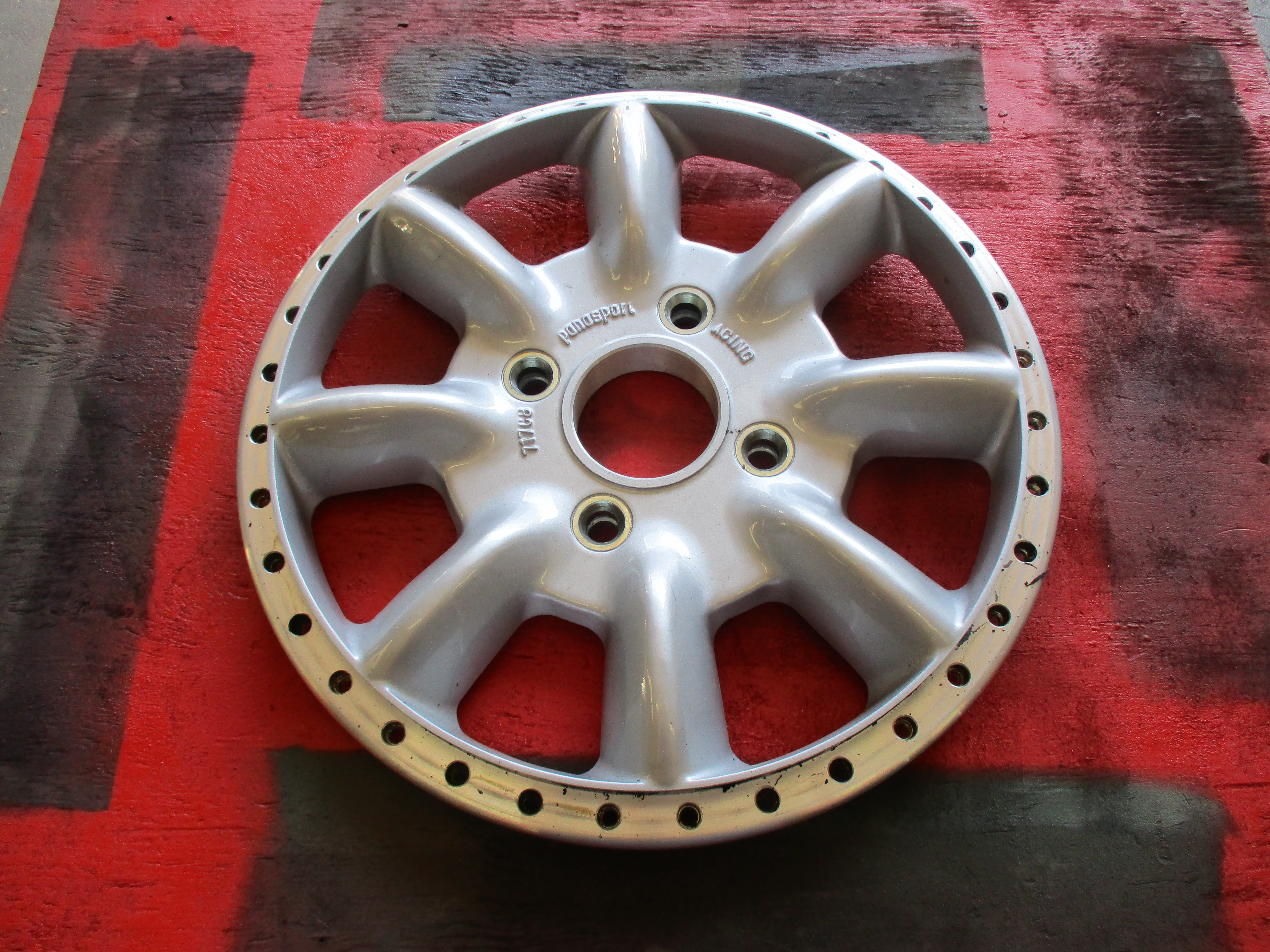

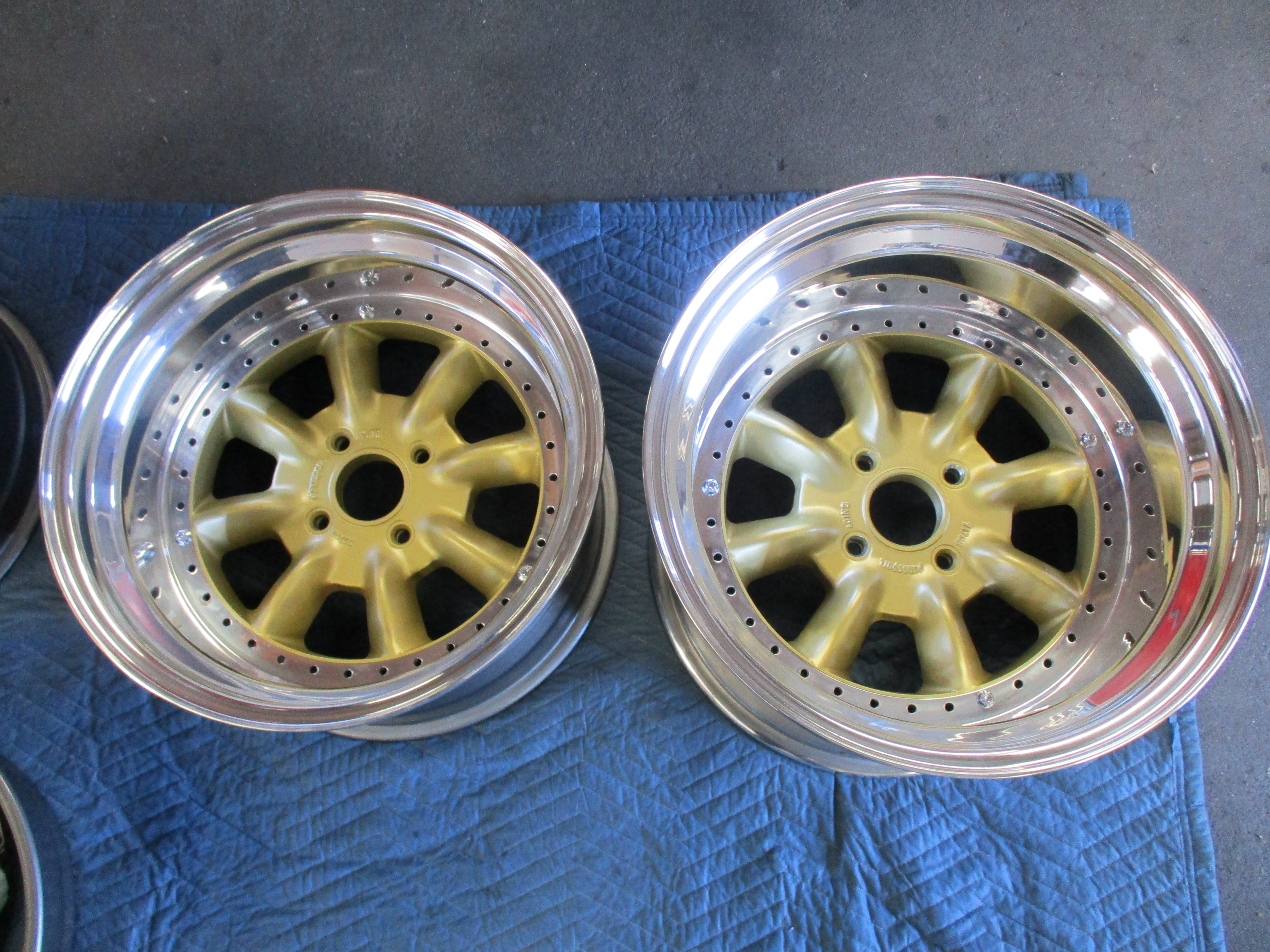

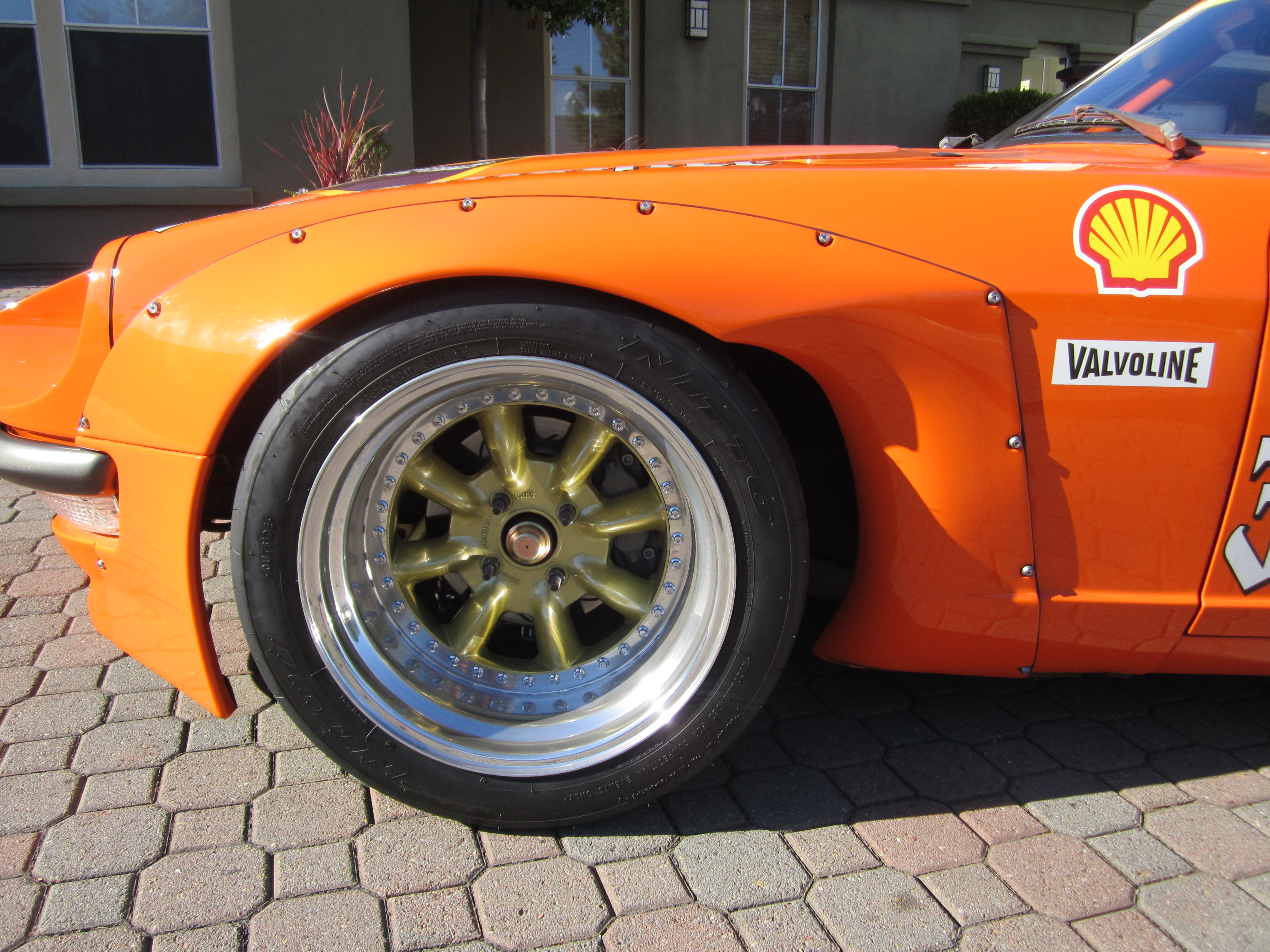

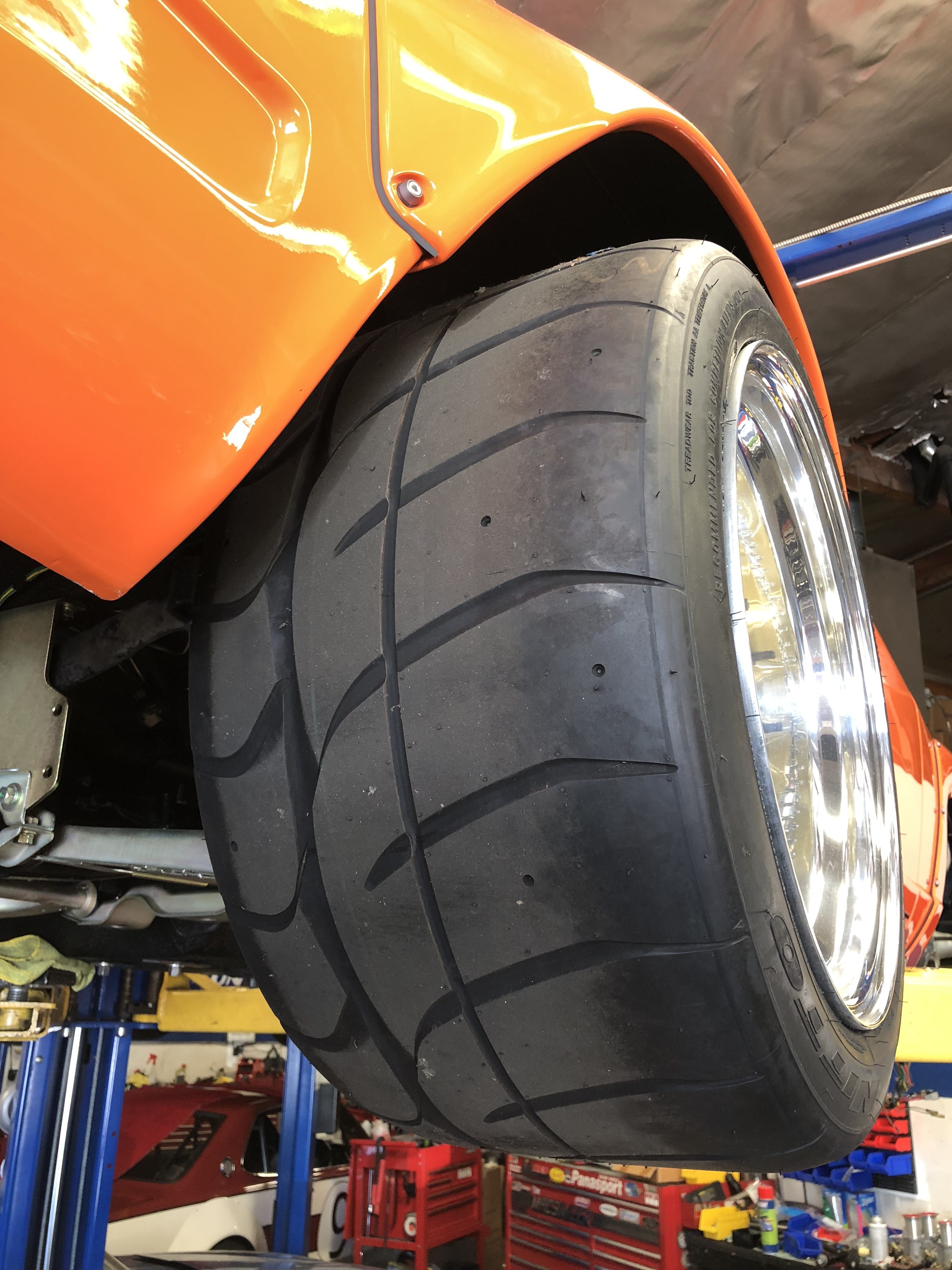

We sourced some Panasport C8 centers and began a custom build with MemoryFab who was instrumental in helping us with fitment/barrel sizing. Up front are 17×10 with a 275/35/17 tire and 17×12 rear with 335/35/17 tire (NT-01R). At the time there were no other RB cars running a 335 in back! .

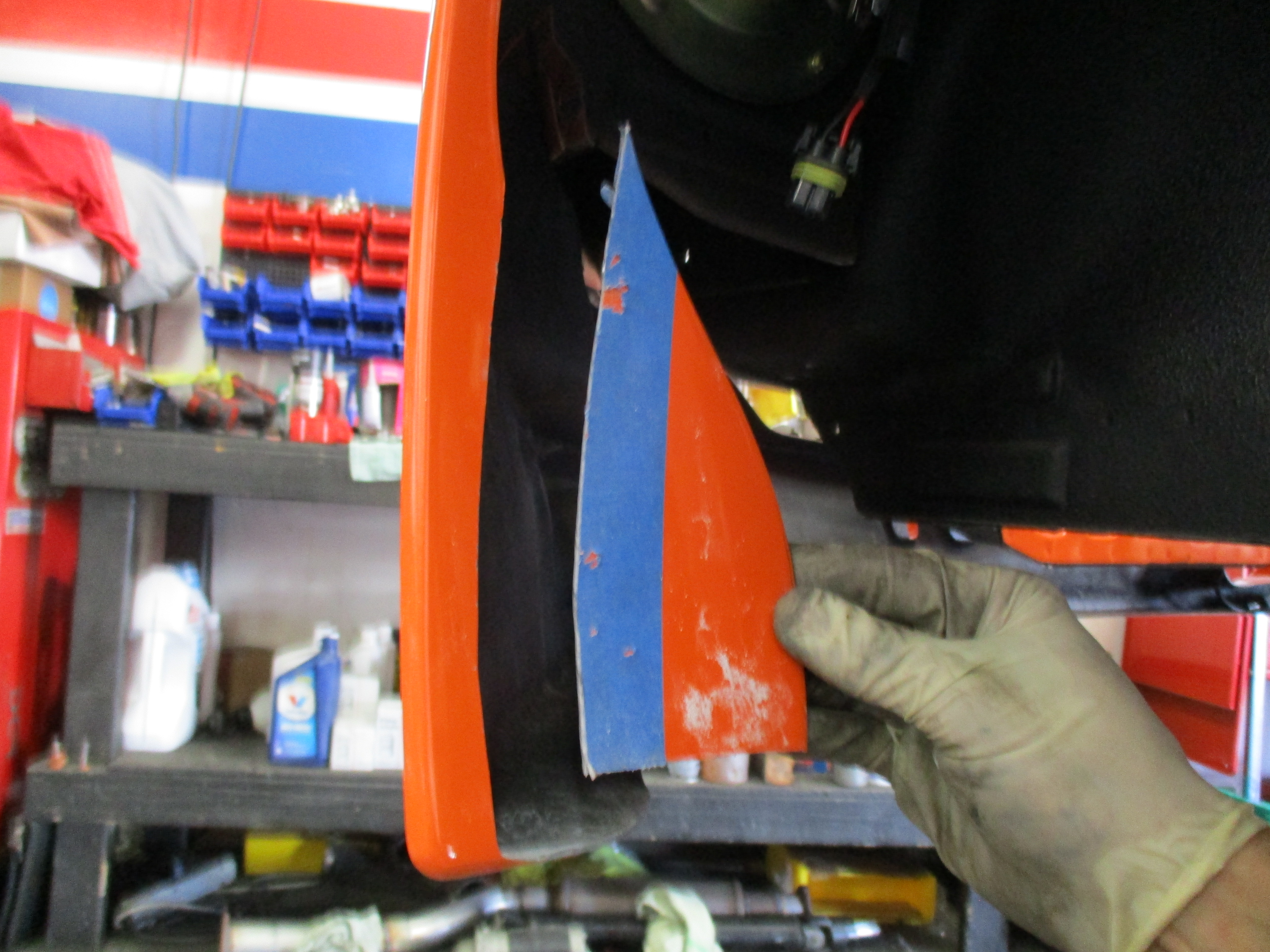

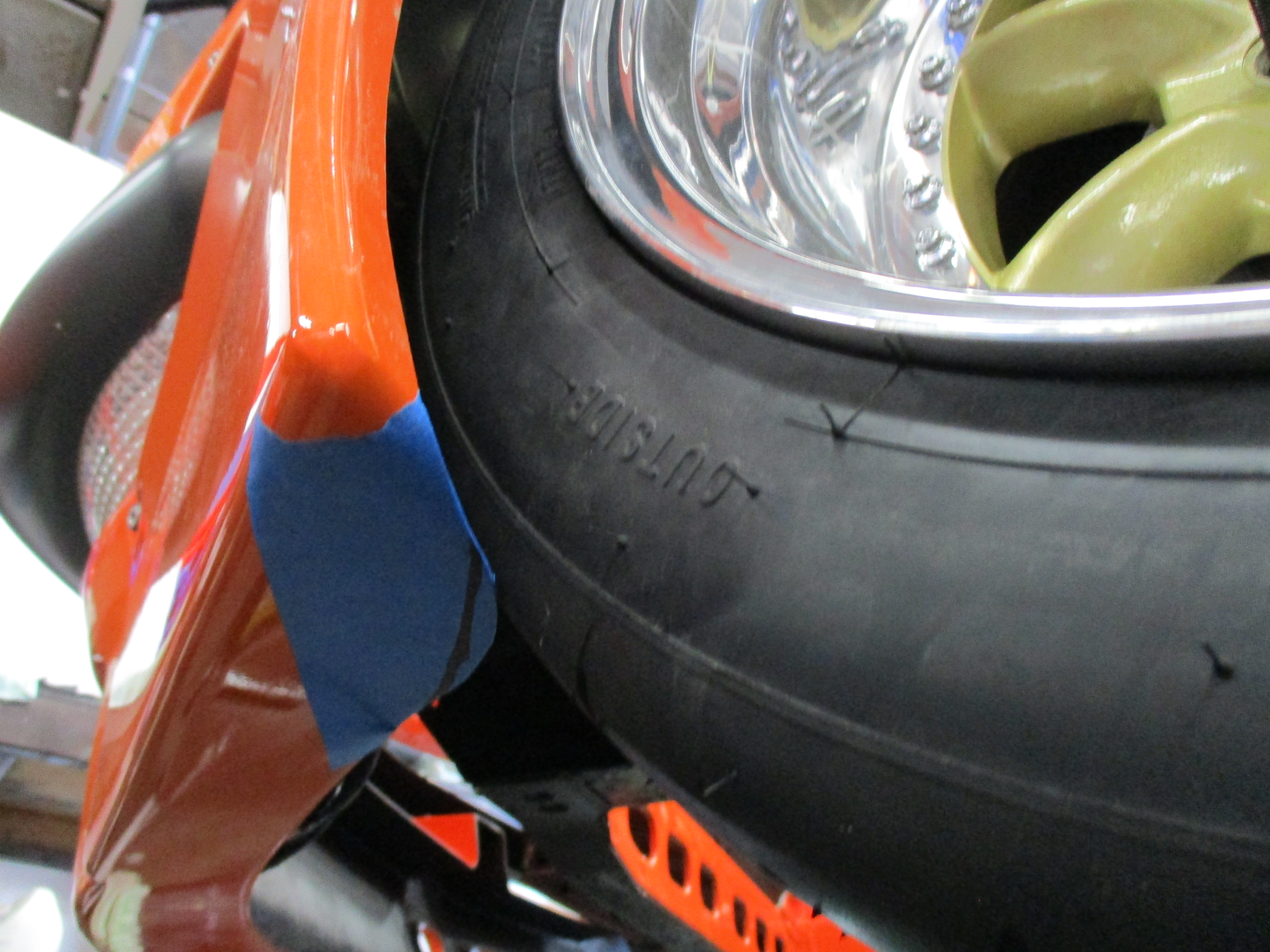

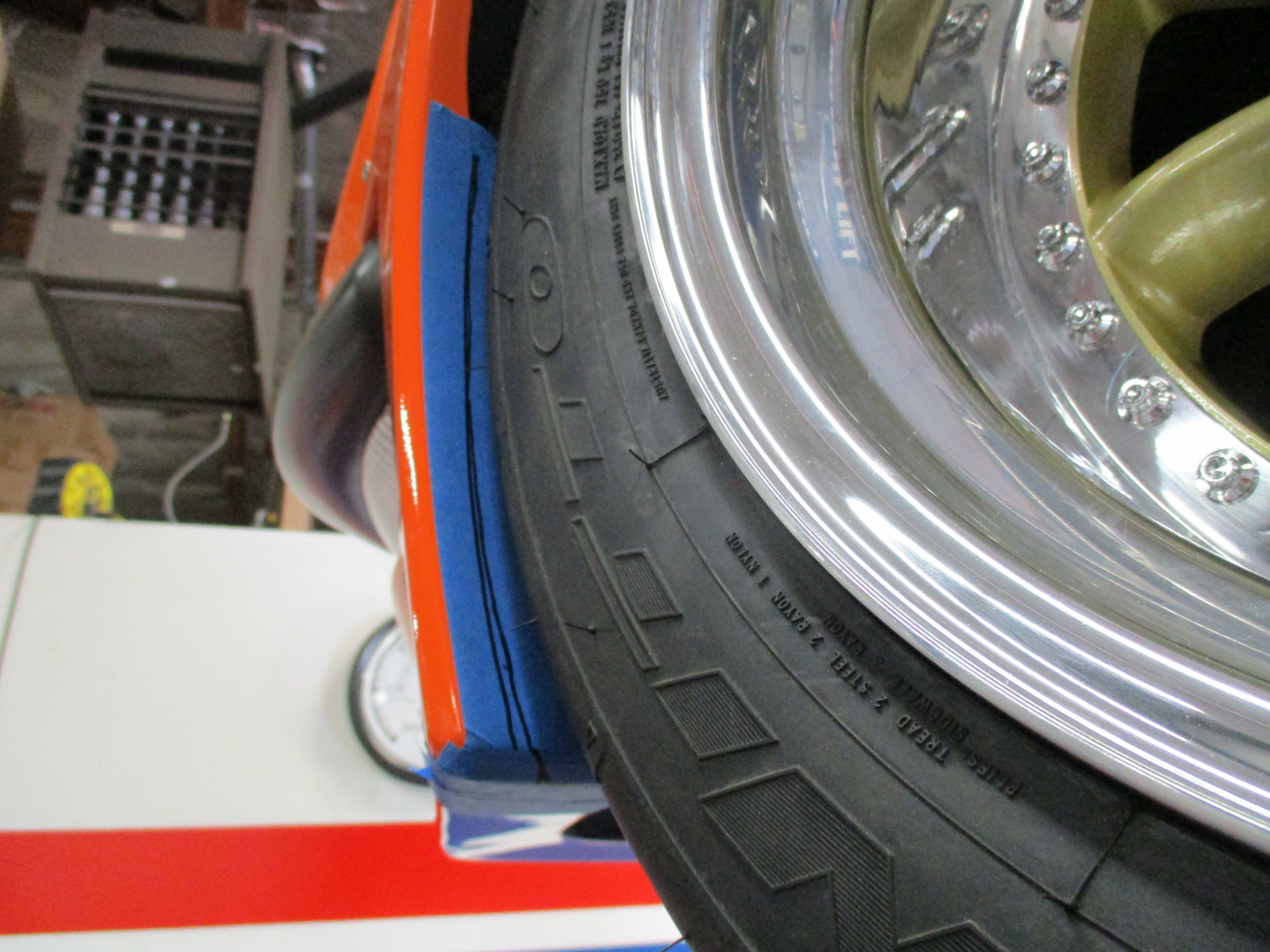

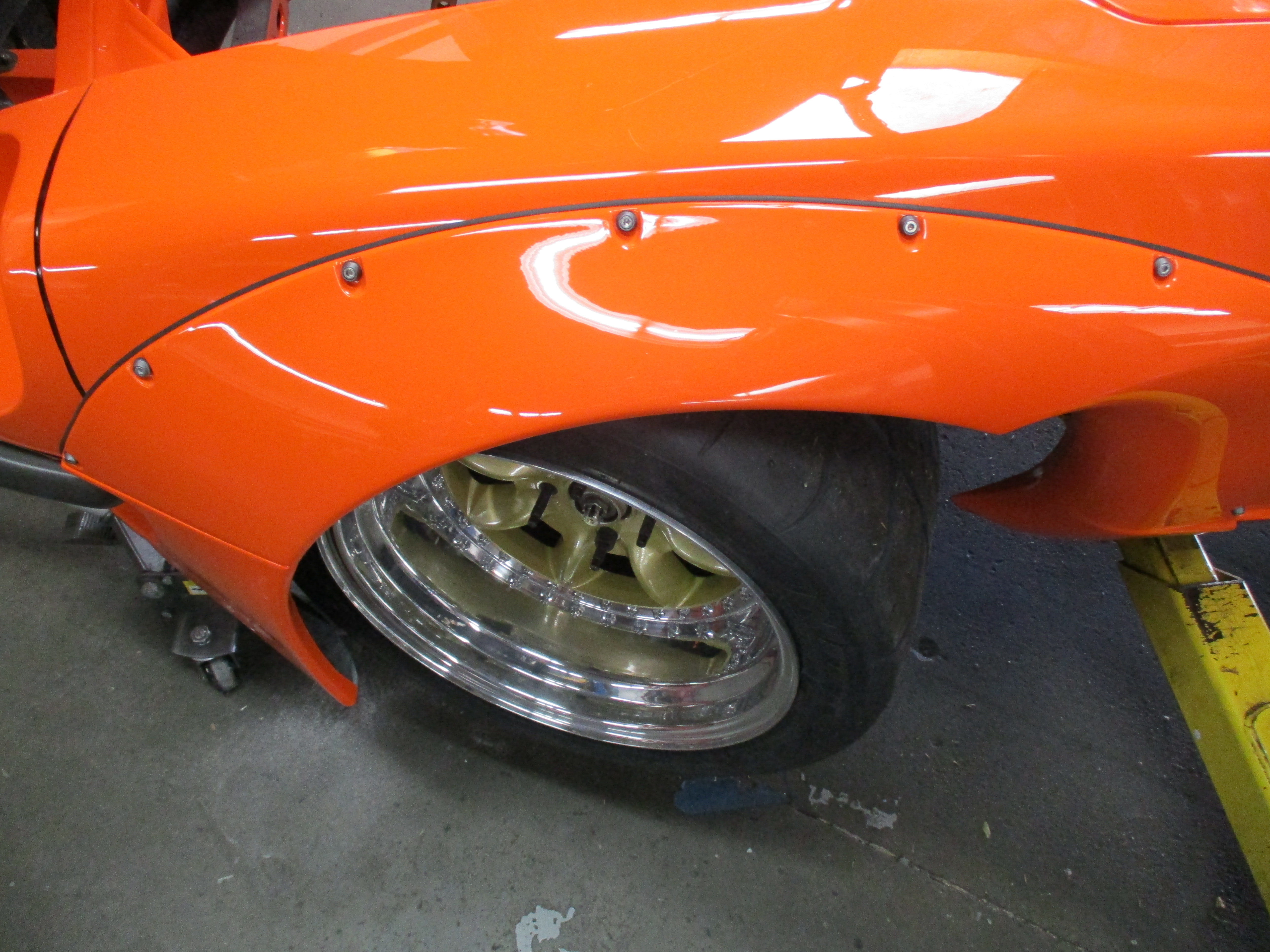

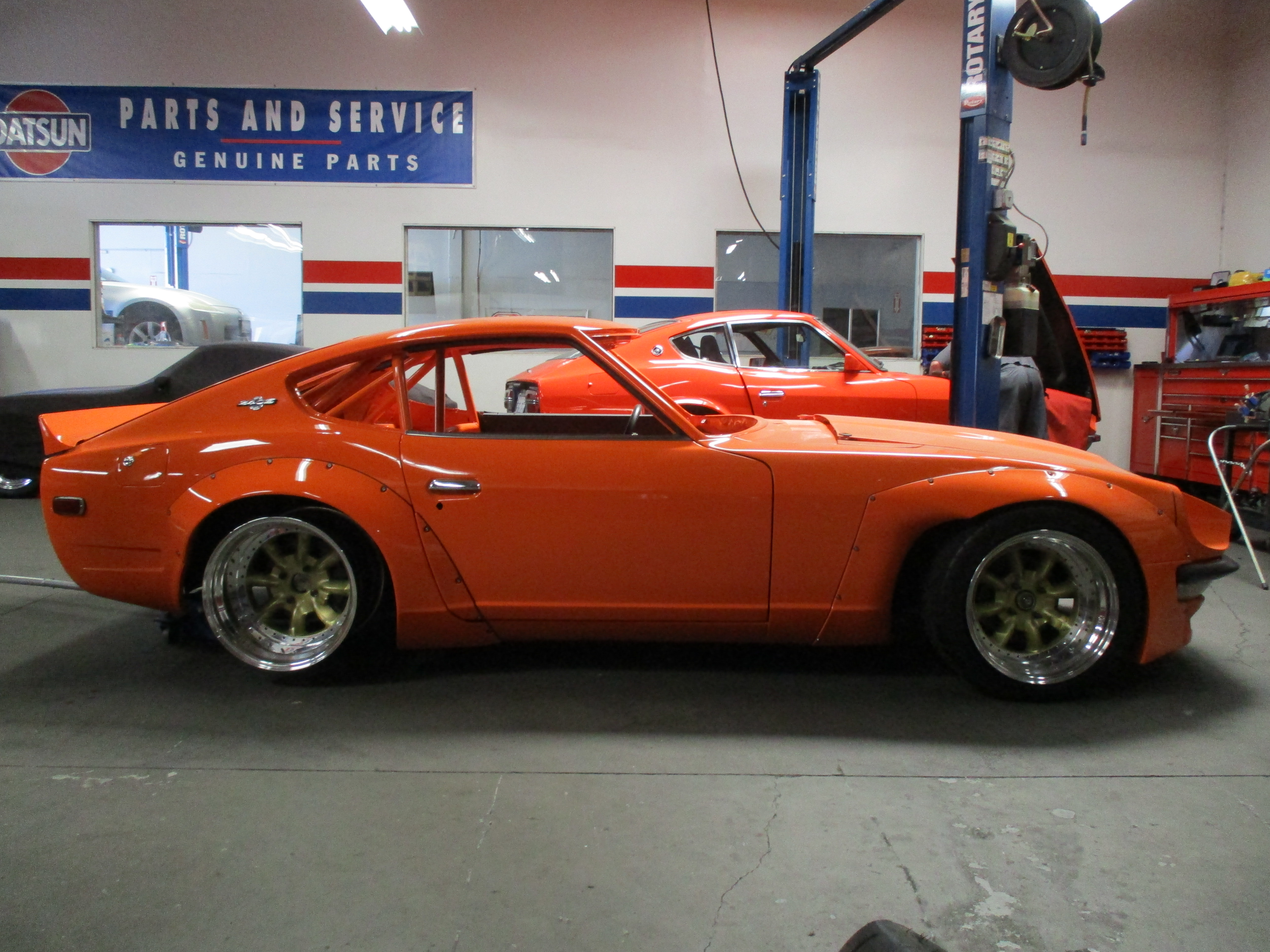

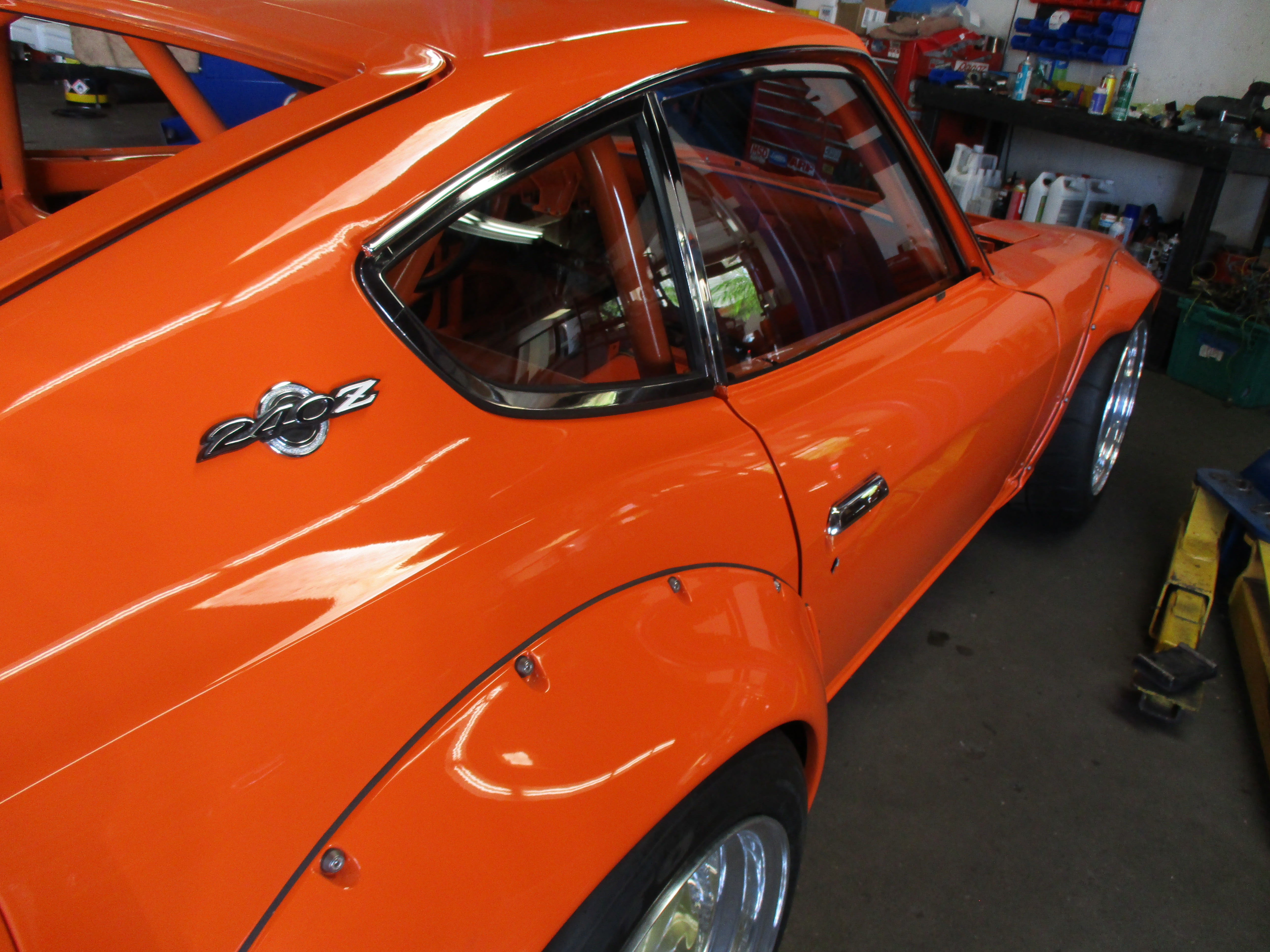

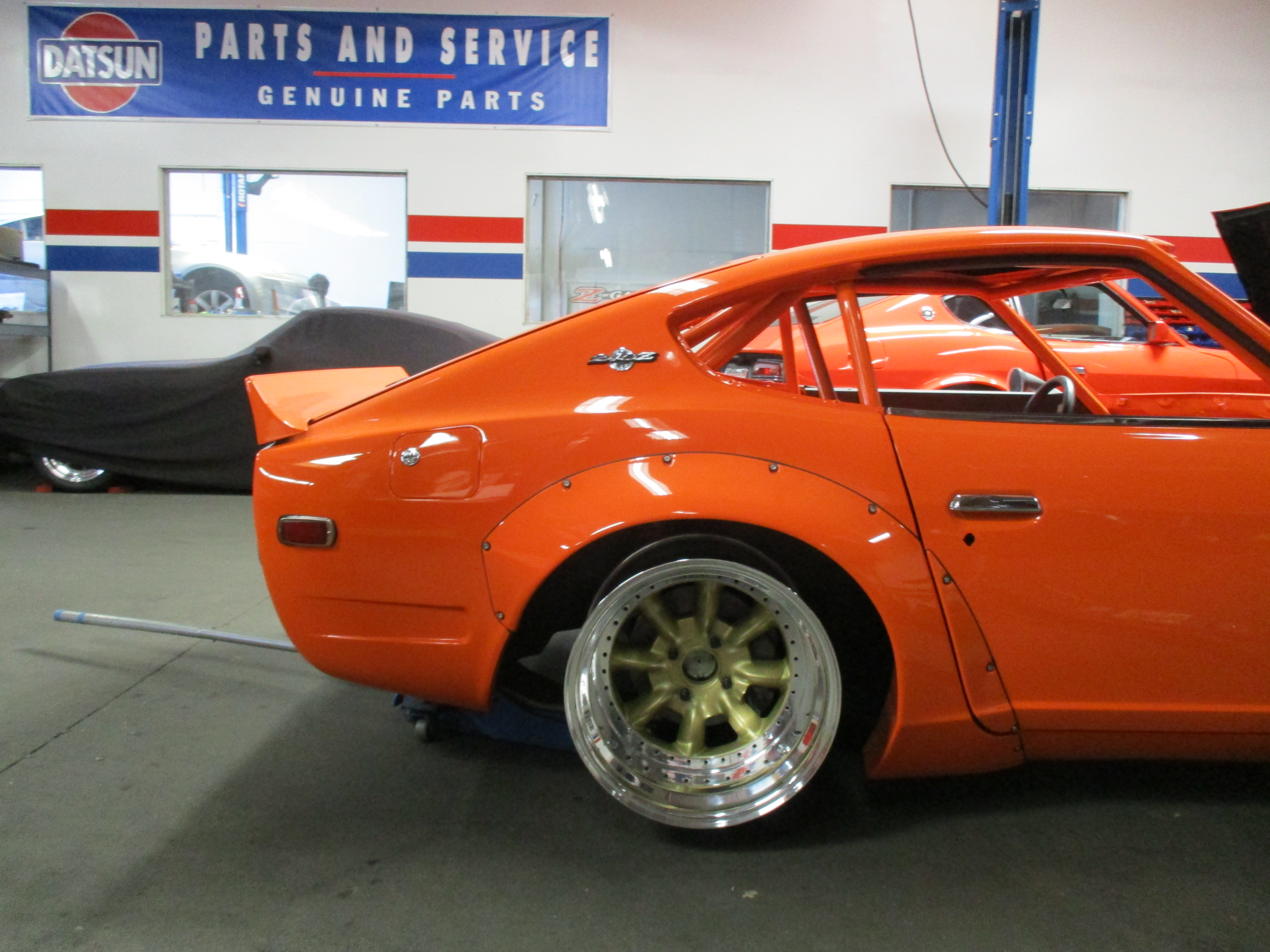

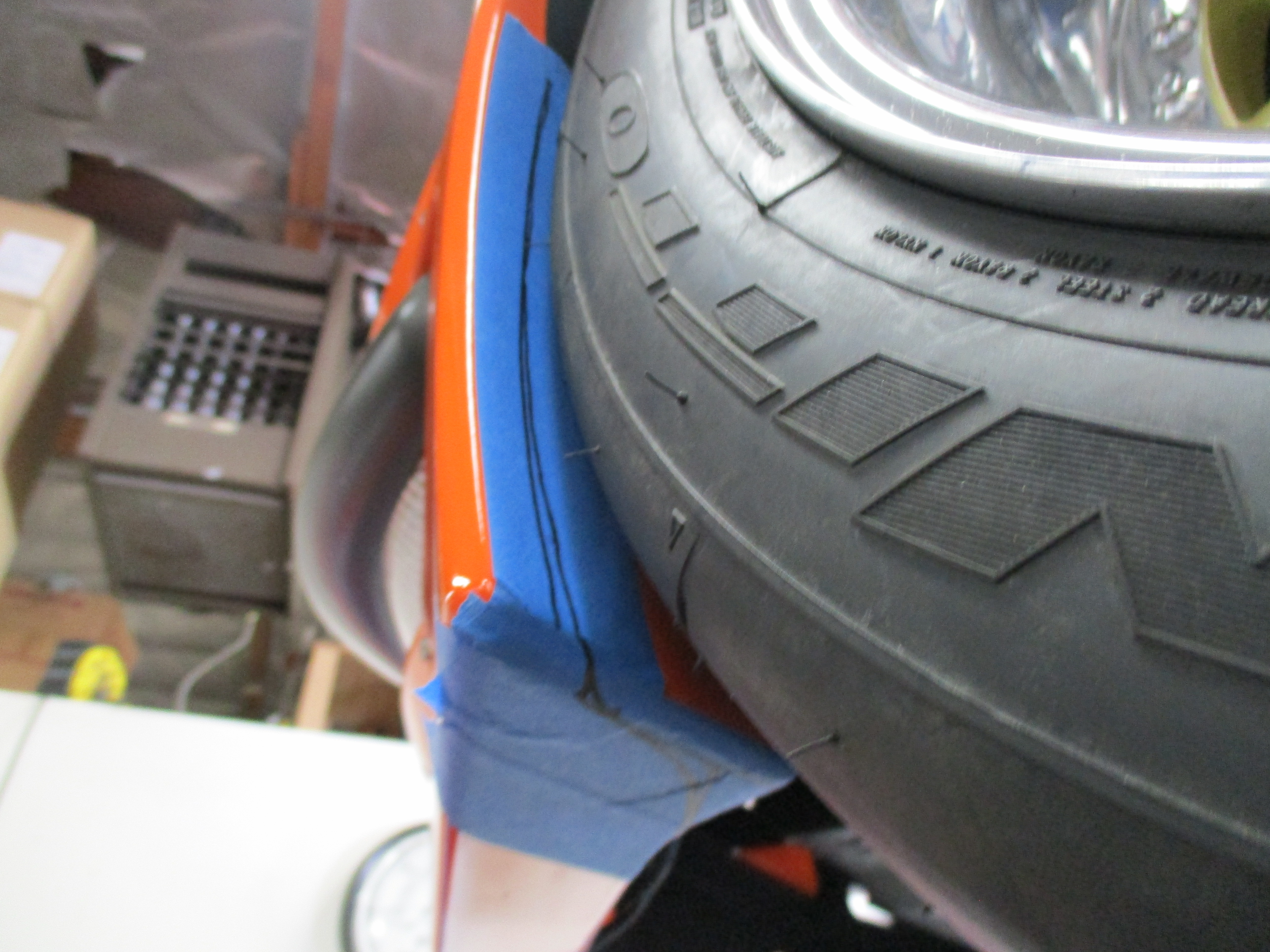

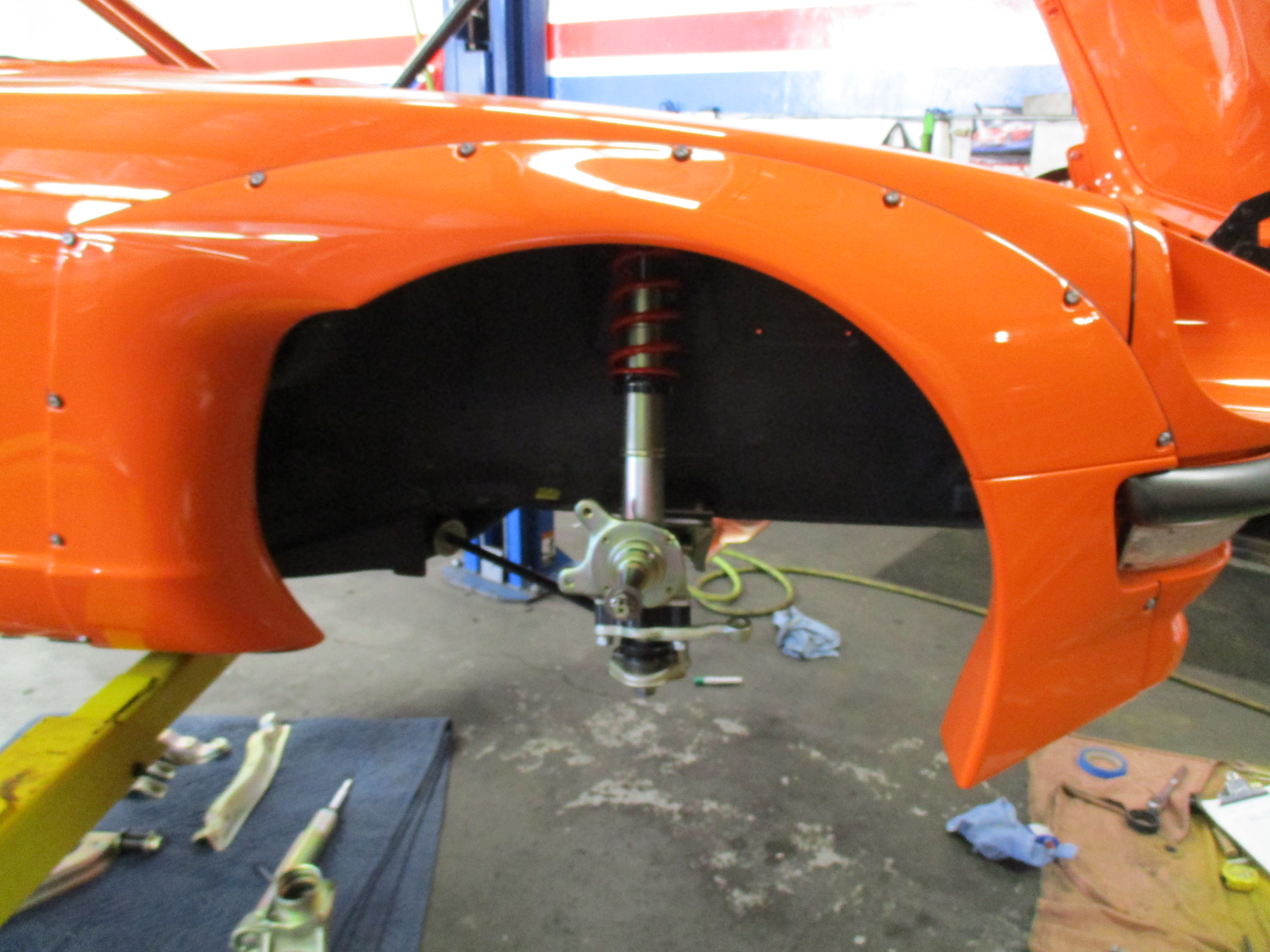

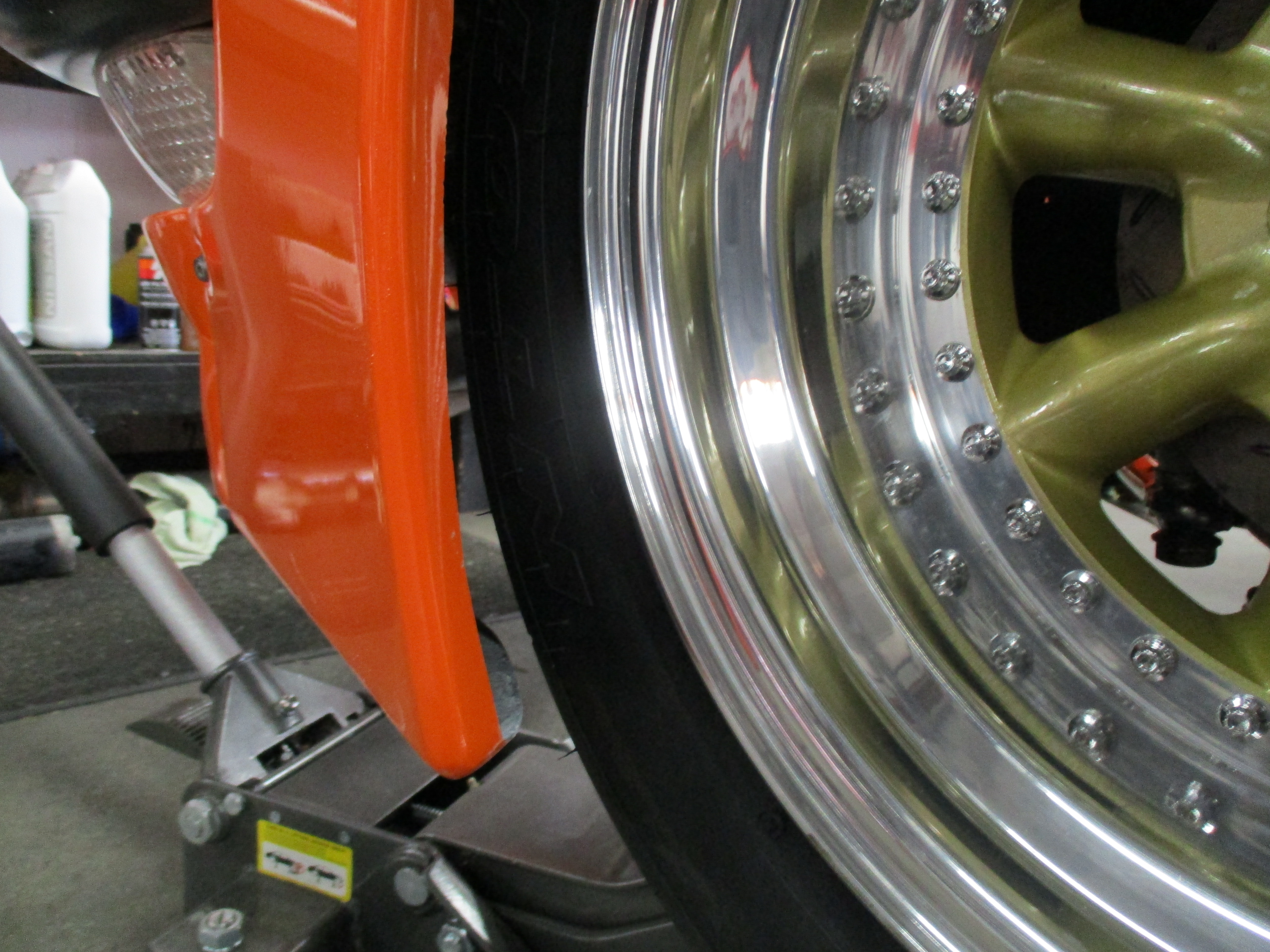

We spent many hours making the kit fit around these wheels/tires so there was no rubbing:

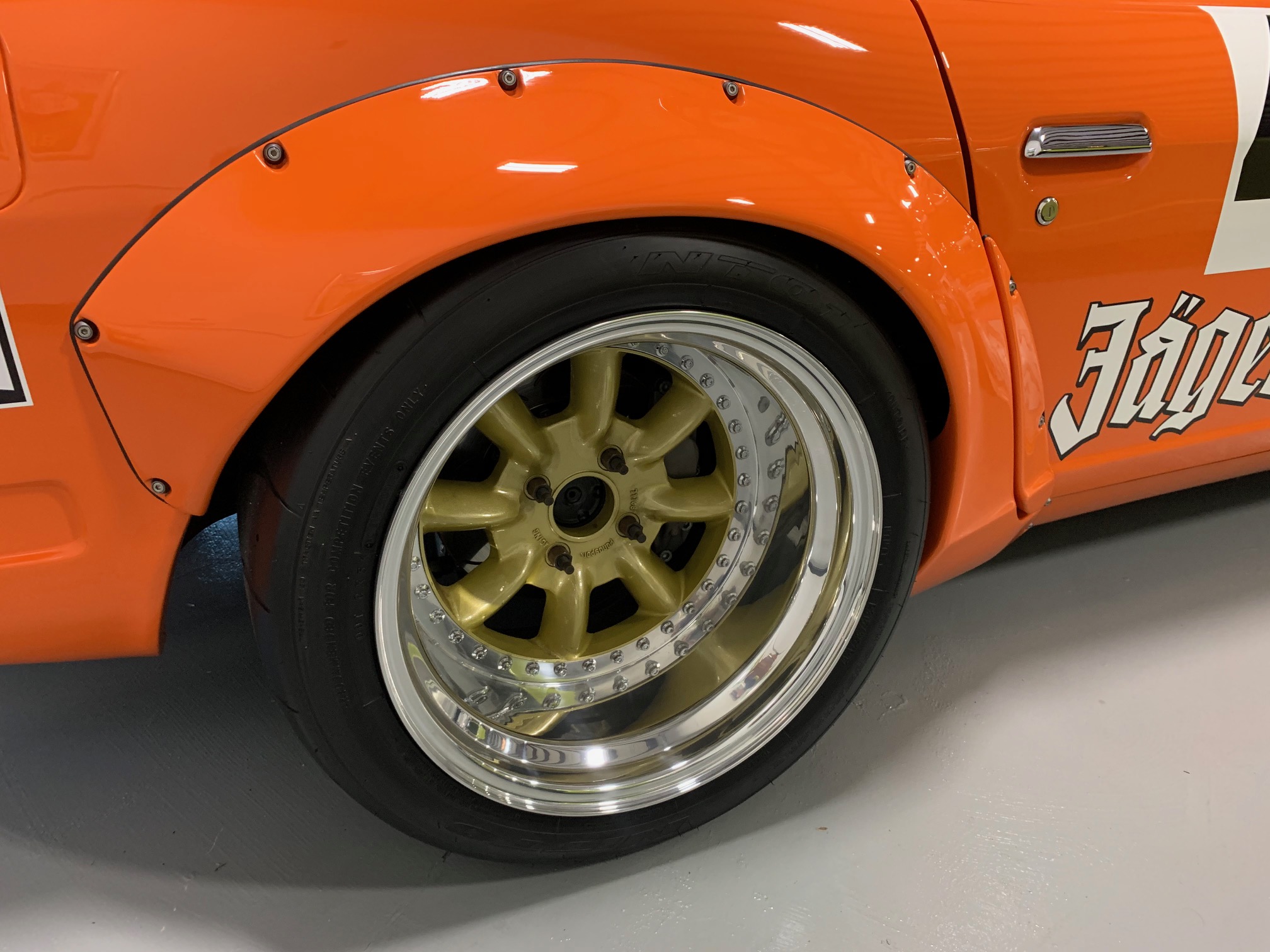

Everyone was pleased with wheel choice for KAMIKAZ, especially Randy:

“I had already ordered and received a set of Watanabe wheels from Japan however they would not work with the rocket bunny kit so when I sent the car to Rob Fuller at Z car garage he did his magic and created a set of custom wheels using a set of Panasport racing C8 NOS wheels. 10 inch wheels on the front 12 inch wheels on the back by 17s gives the car and unreal stance.”



Race Engine

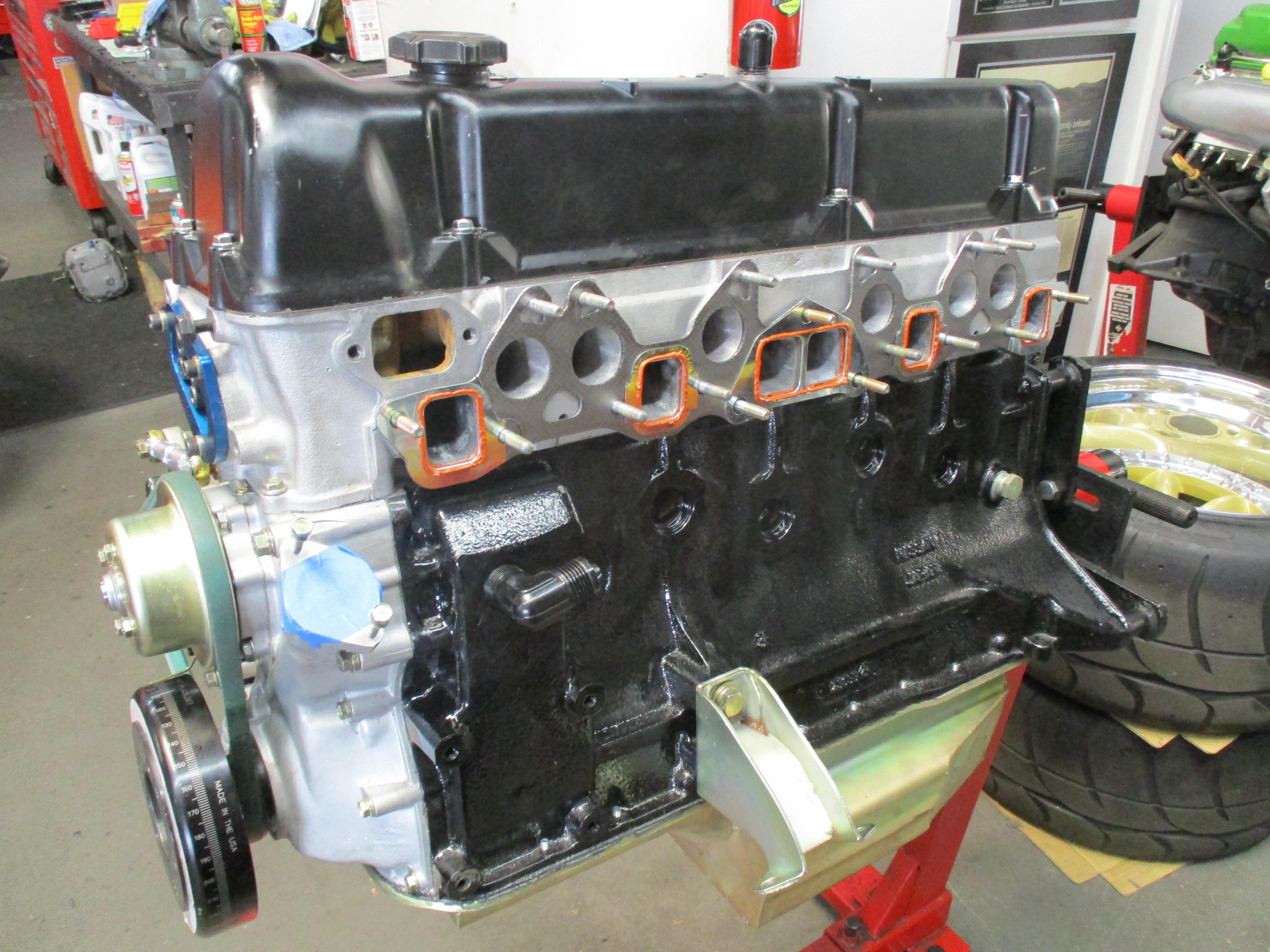

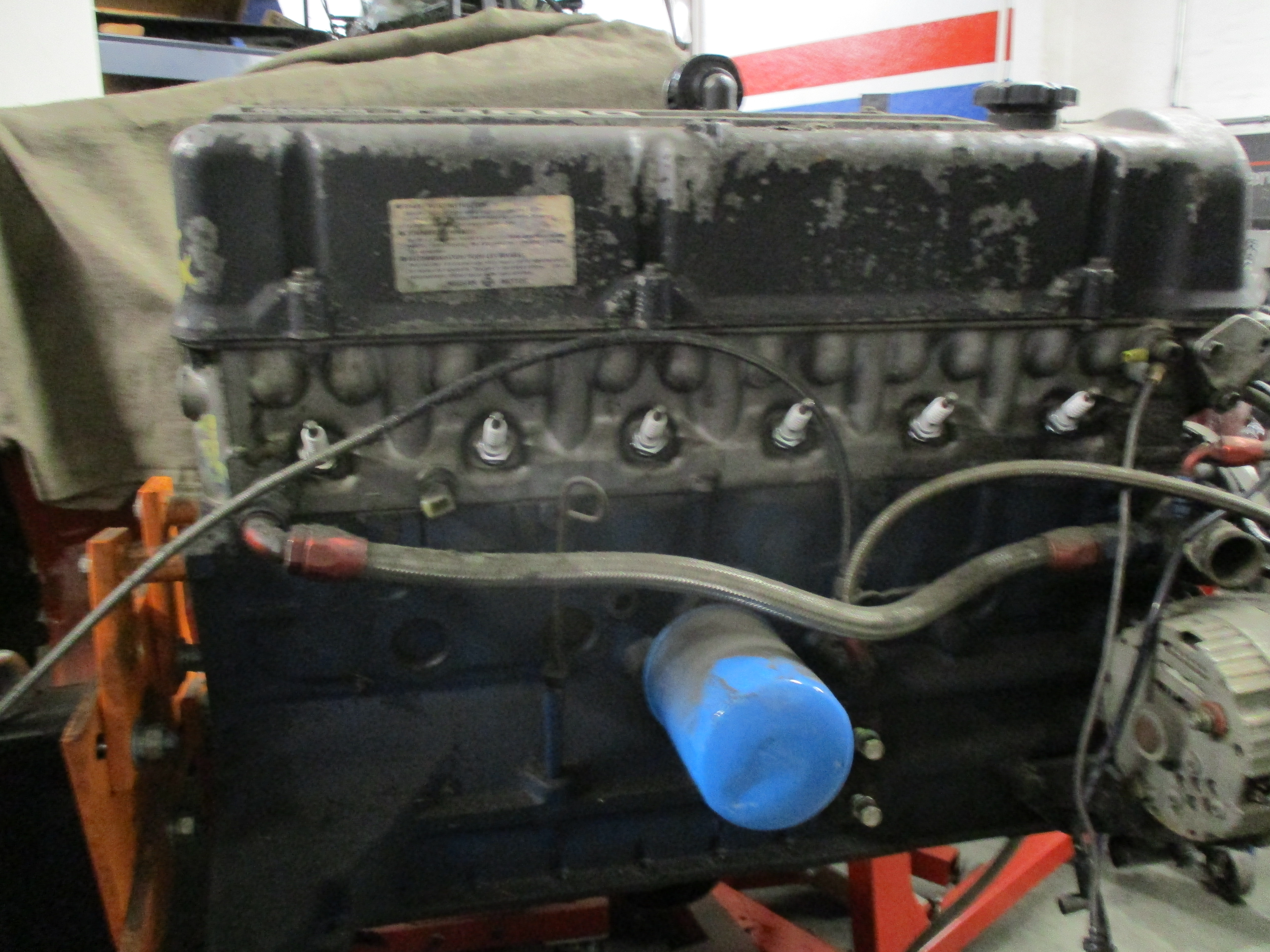

We had Rebello build a nasty 3.2L for the Z running triple-Mikuni’s, 12:5:1 compression (110 leaded fuel) backed by a 280zx 5-speed. Randy gave us a blank canvas to assemble the entire car but ZCG touches really shine in the engine bay.

“I basically wanted my 46Z race car for the street and asked Rob Fuller to further tap into his magic box so we built a 3.2 race motor full race suspension and the whole 9 yards! Rob and his guys built an amazing car using special finishes on some of the metal work under the hood and the car is just insane to drive.”

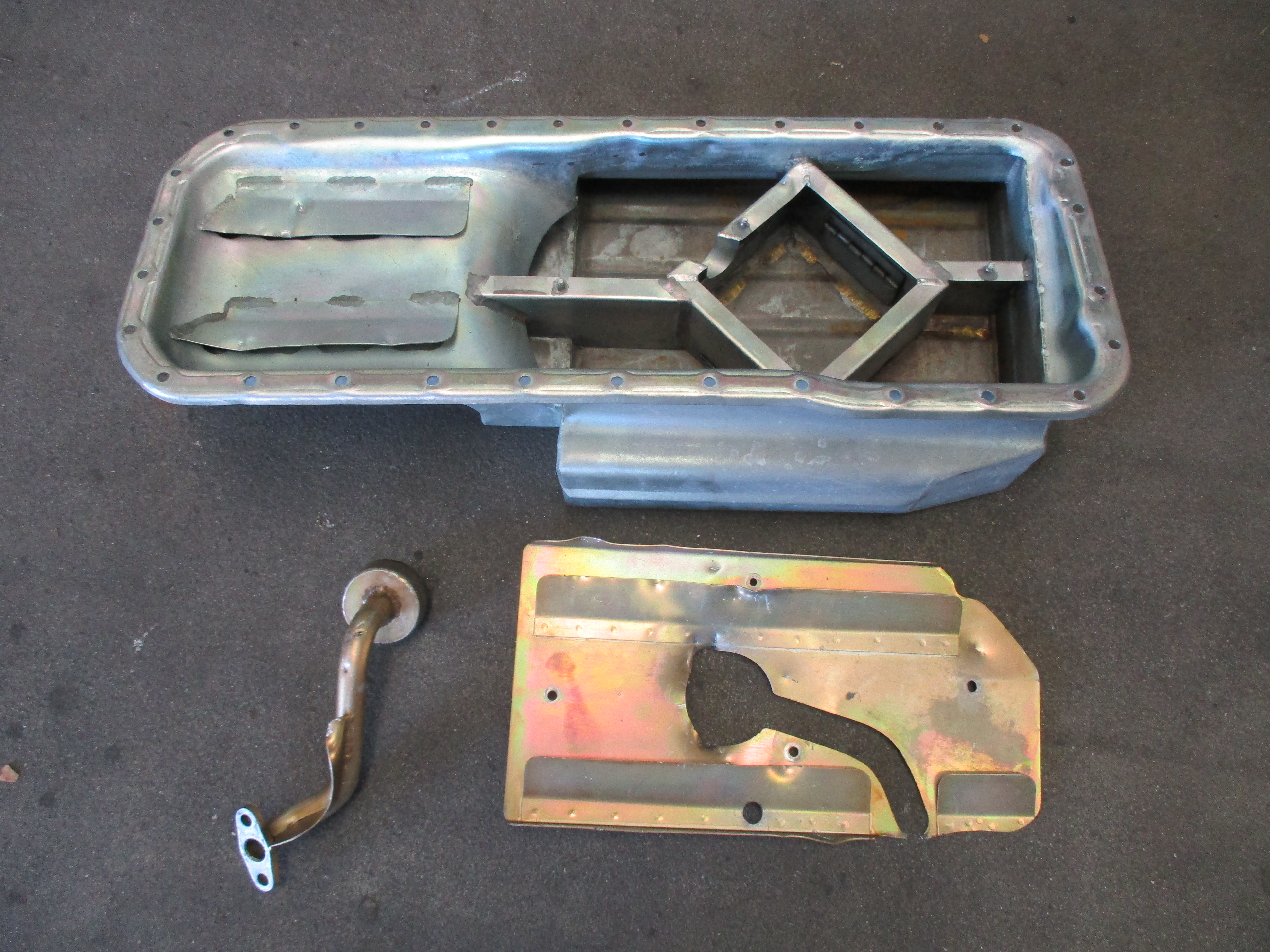

Here are a few pictures of the assembly with many more in the gallery. Aluminum flywheel with twin-plate setup and comp oil pan just like BRE car:

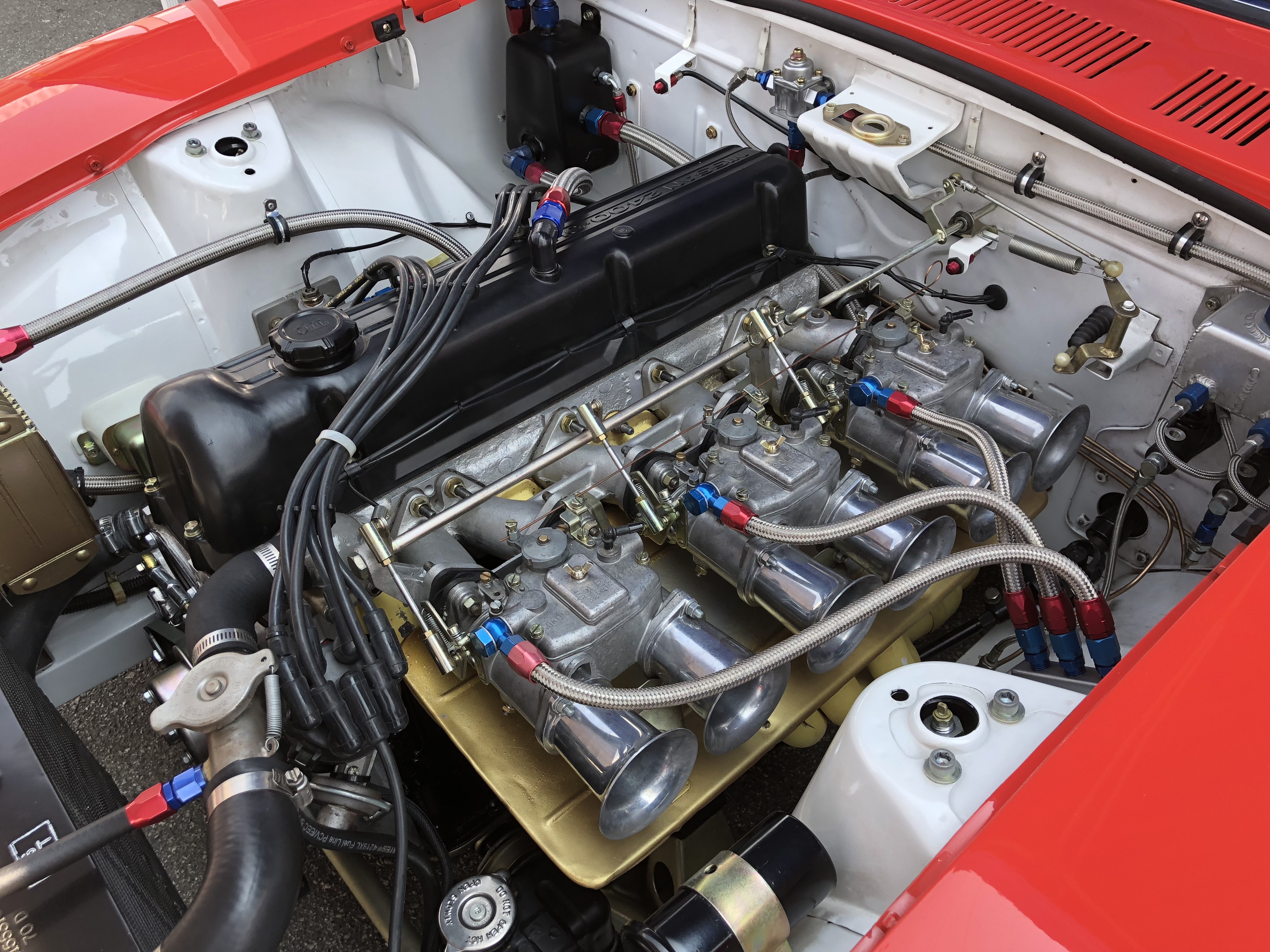

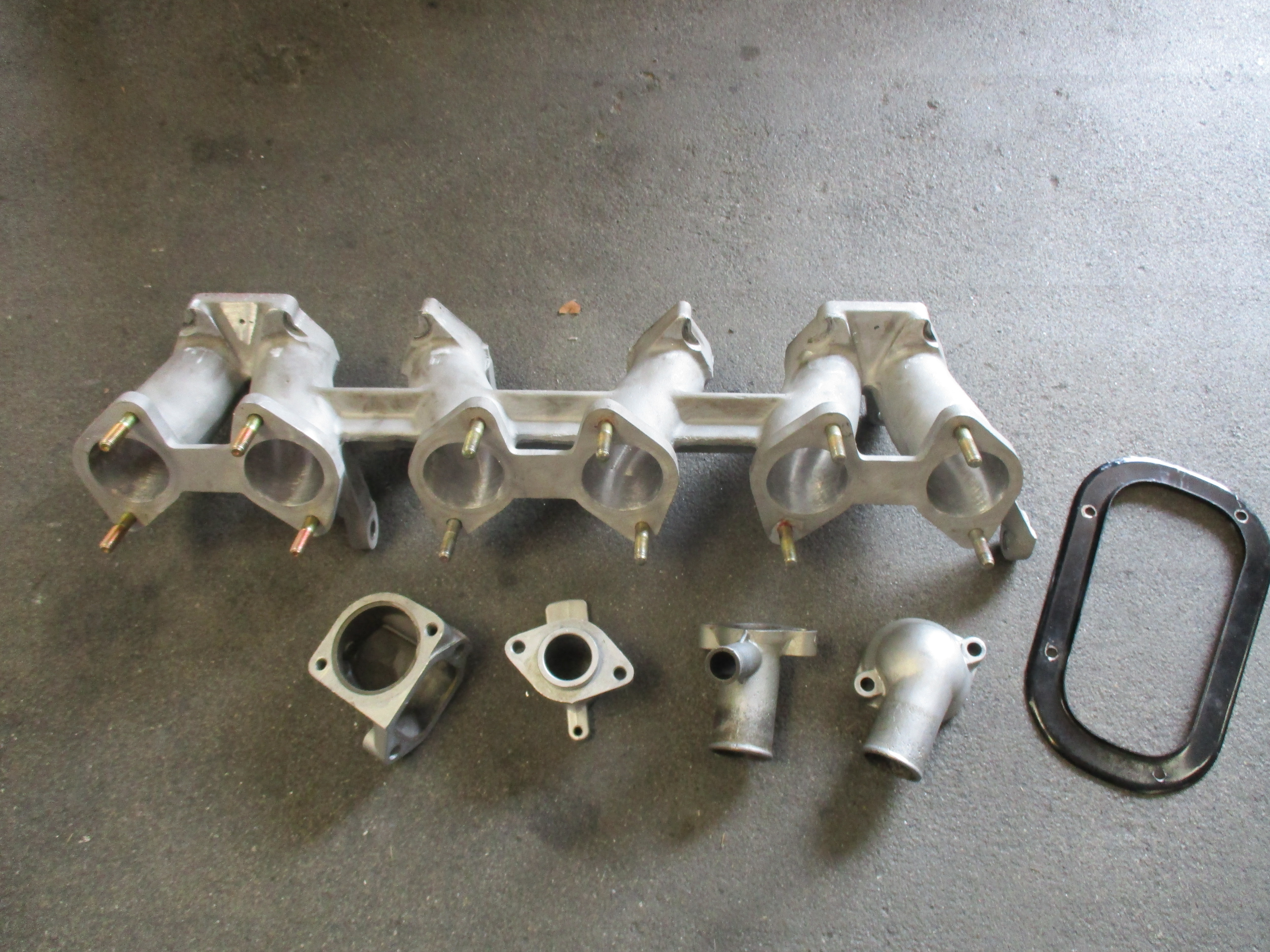

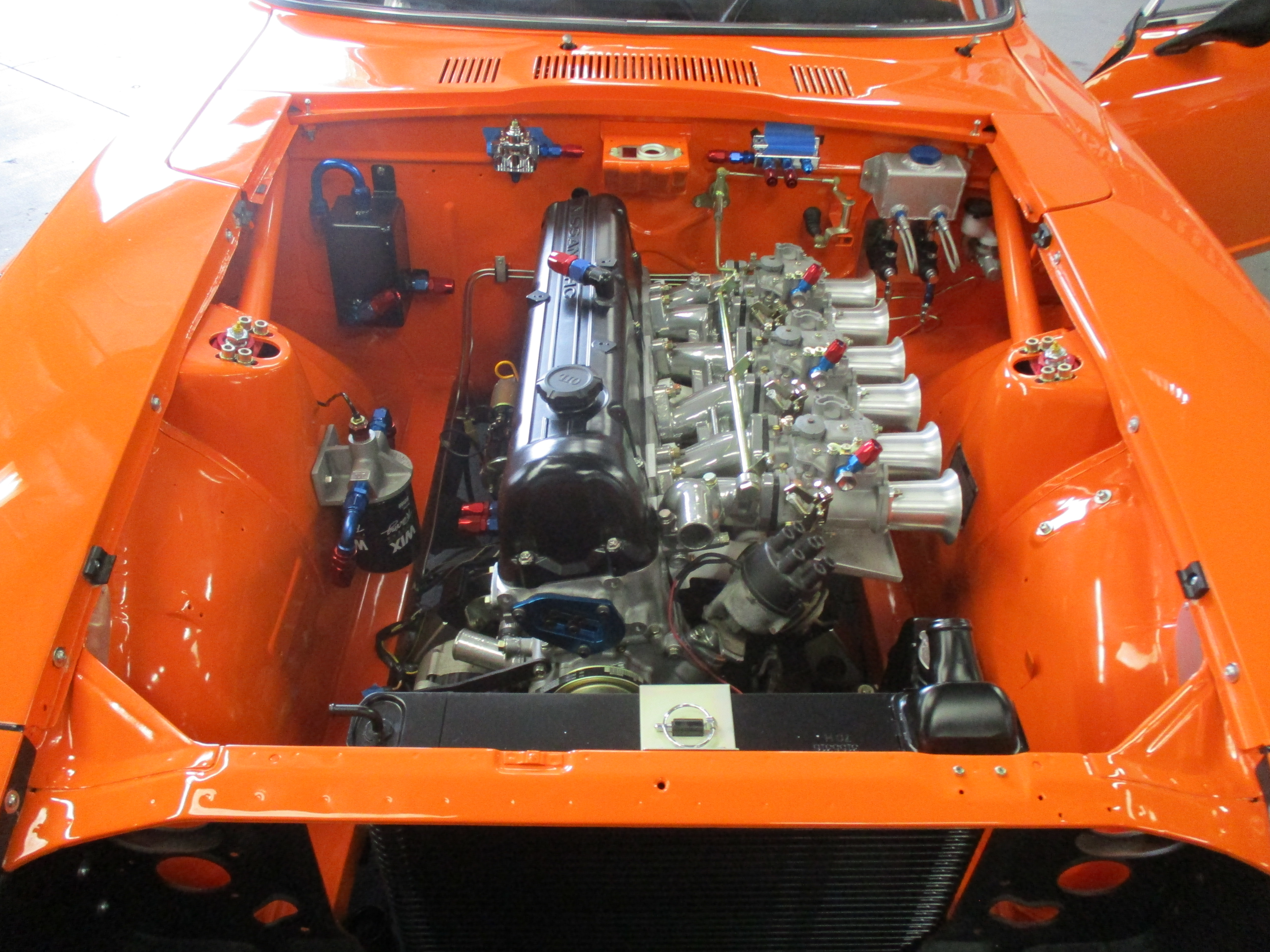

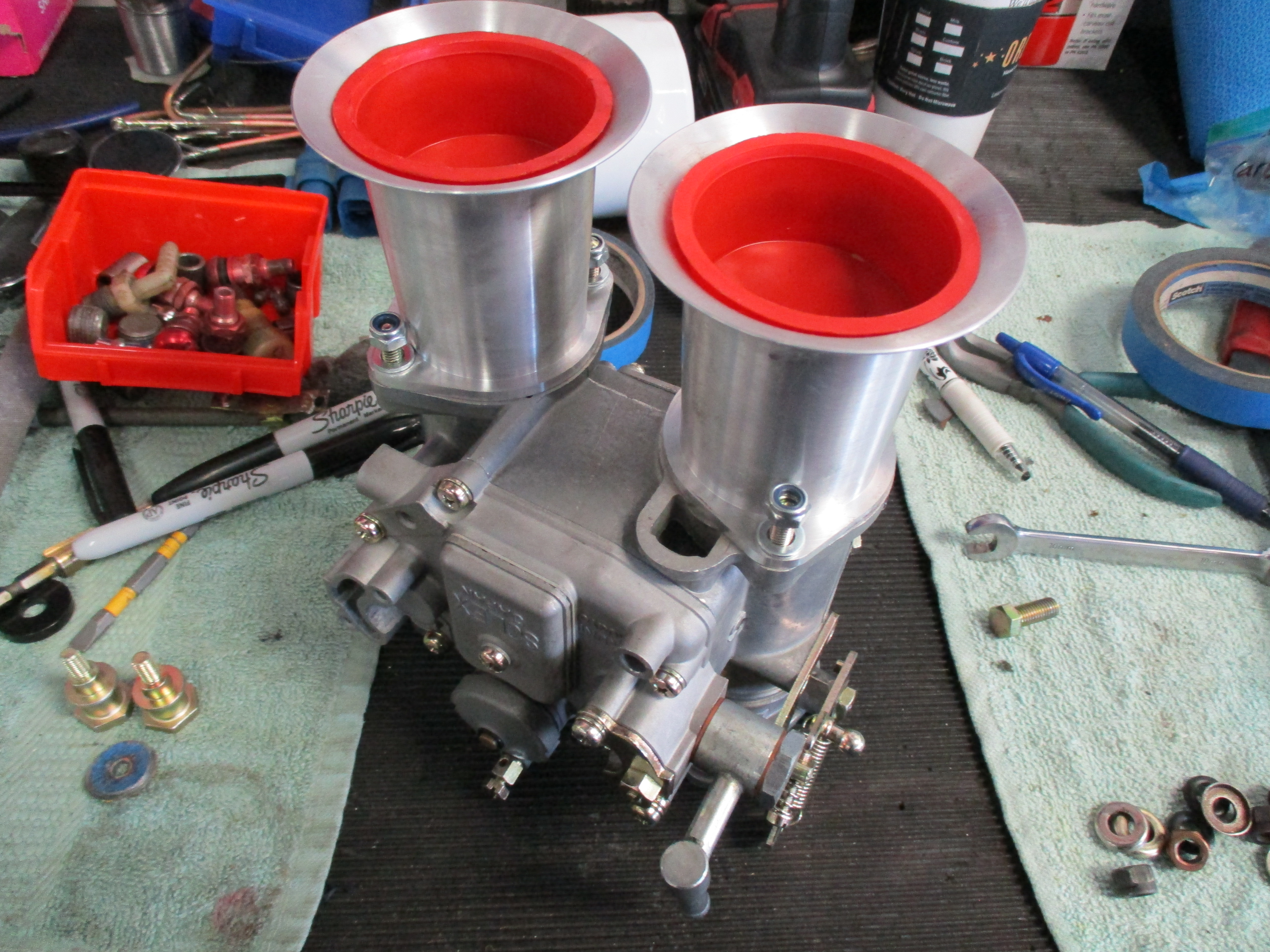

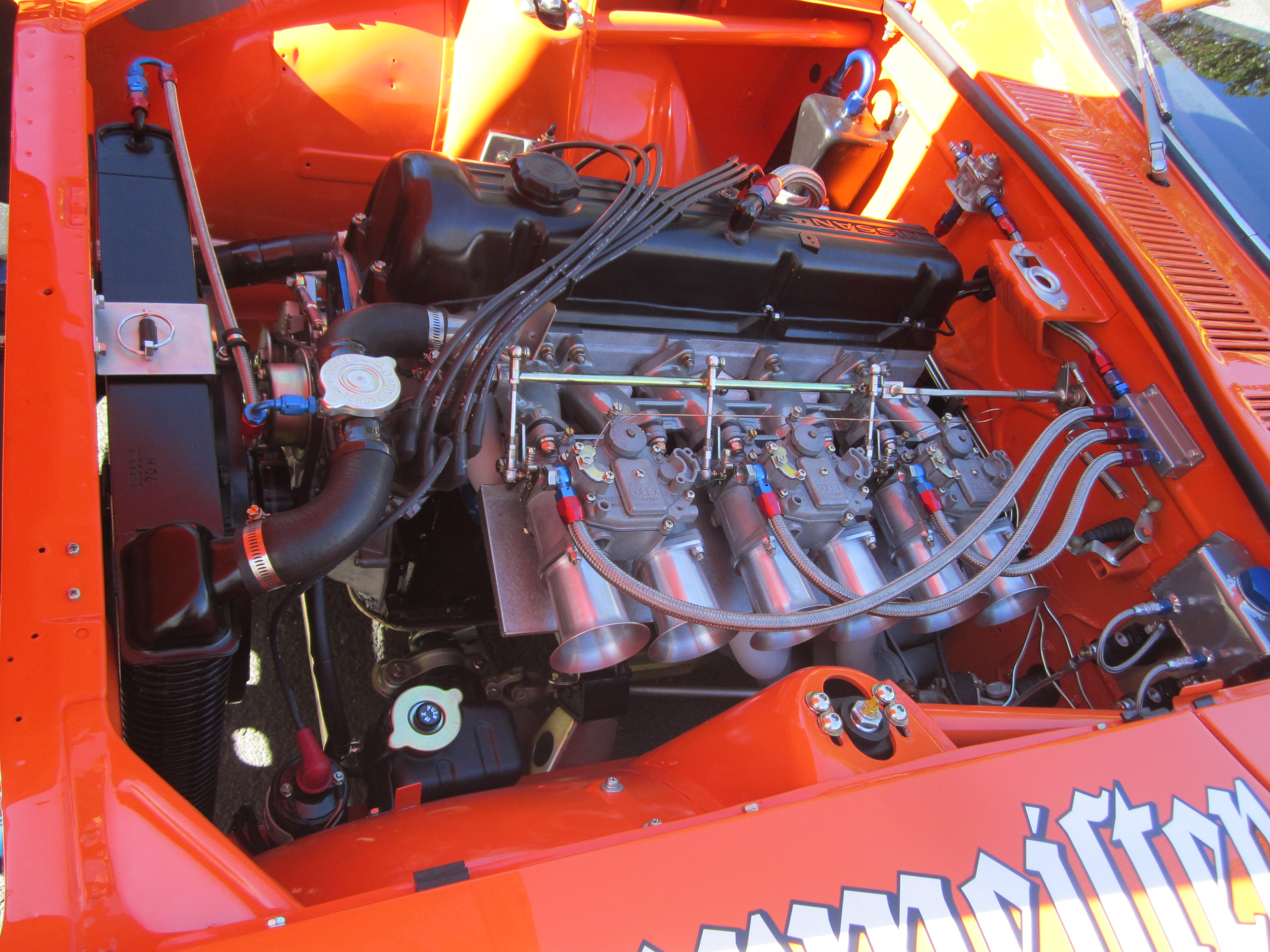

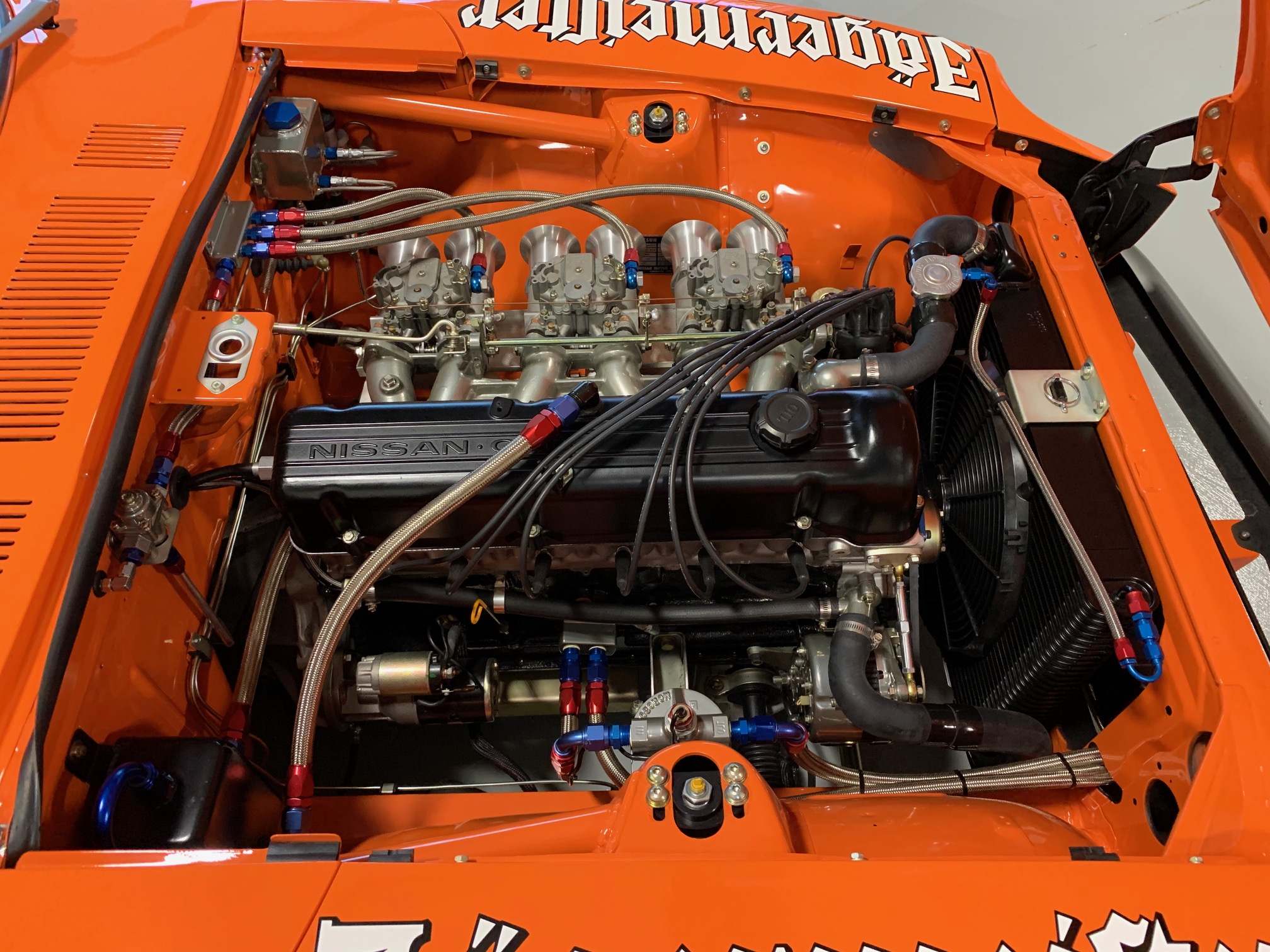

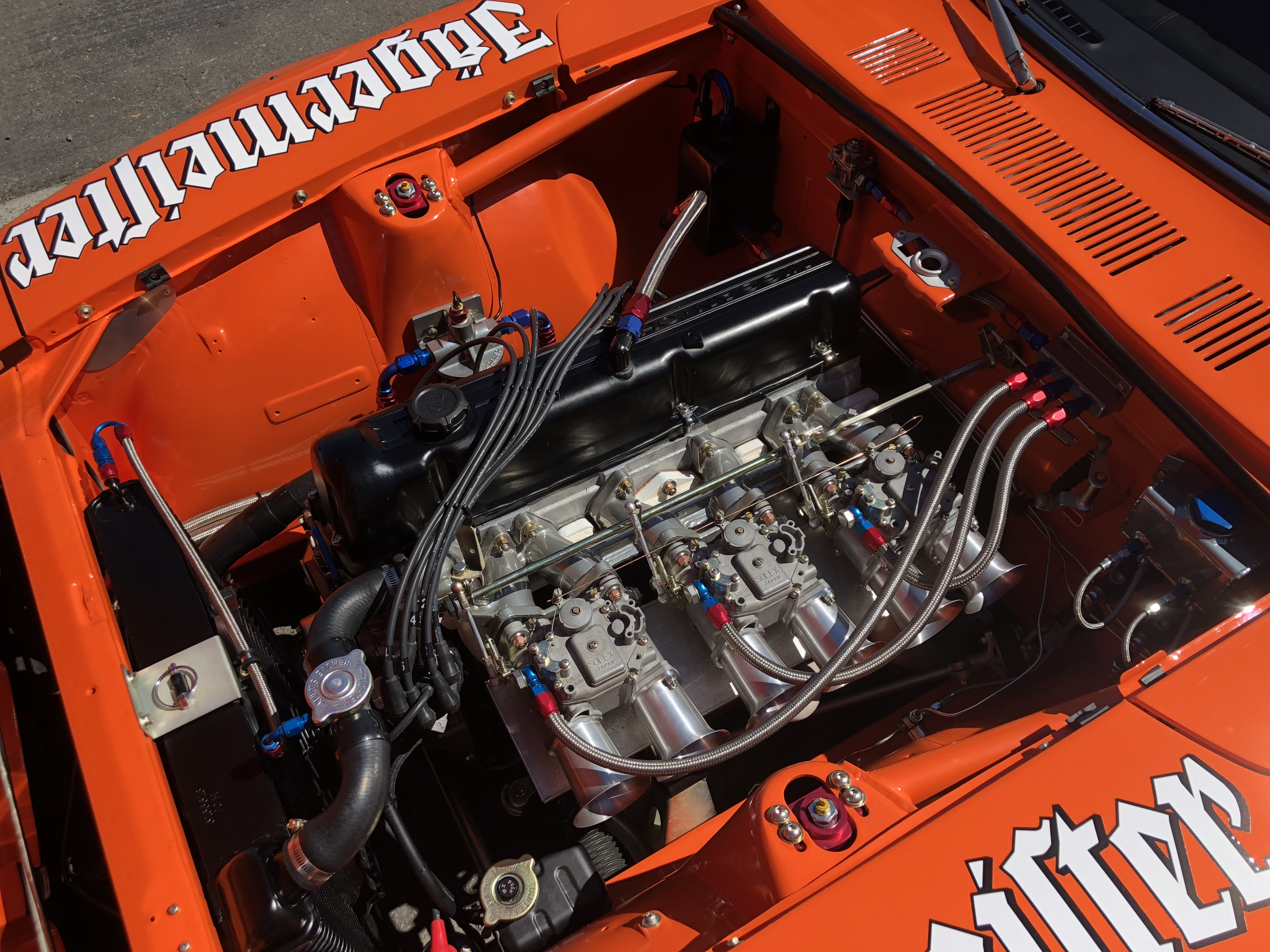

Triple Mikuni induction:

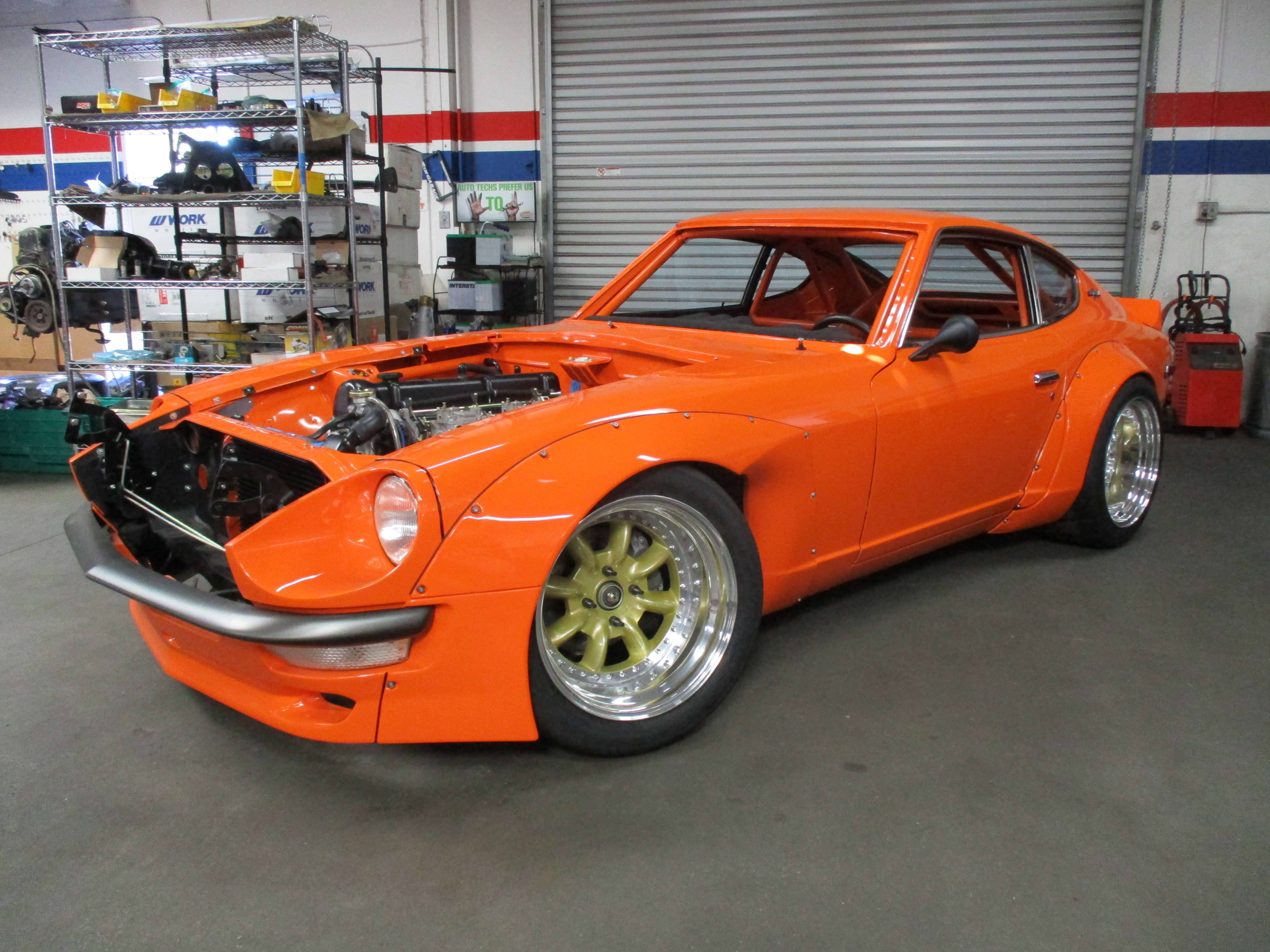

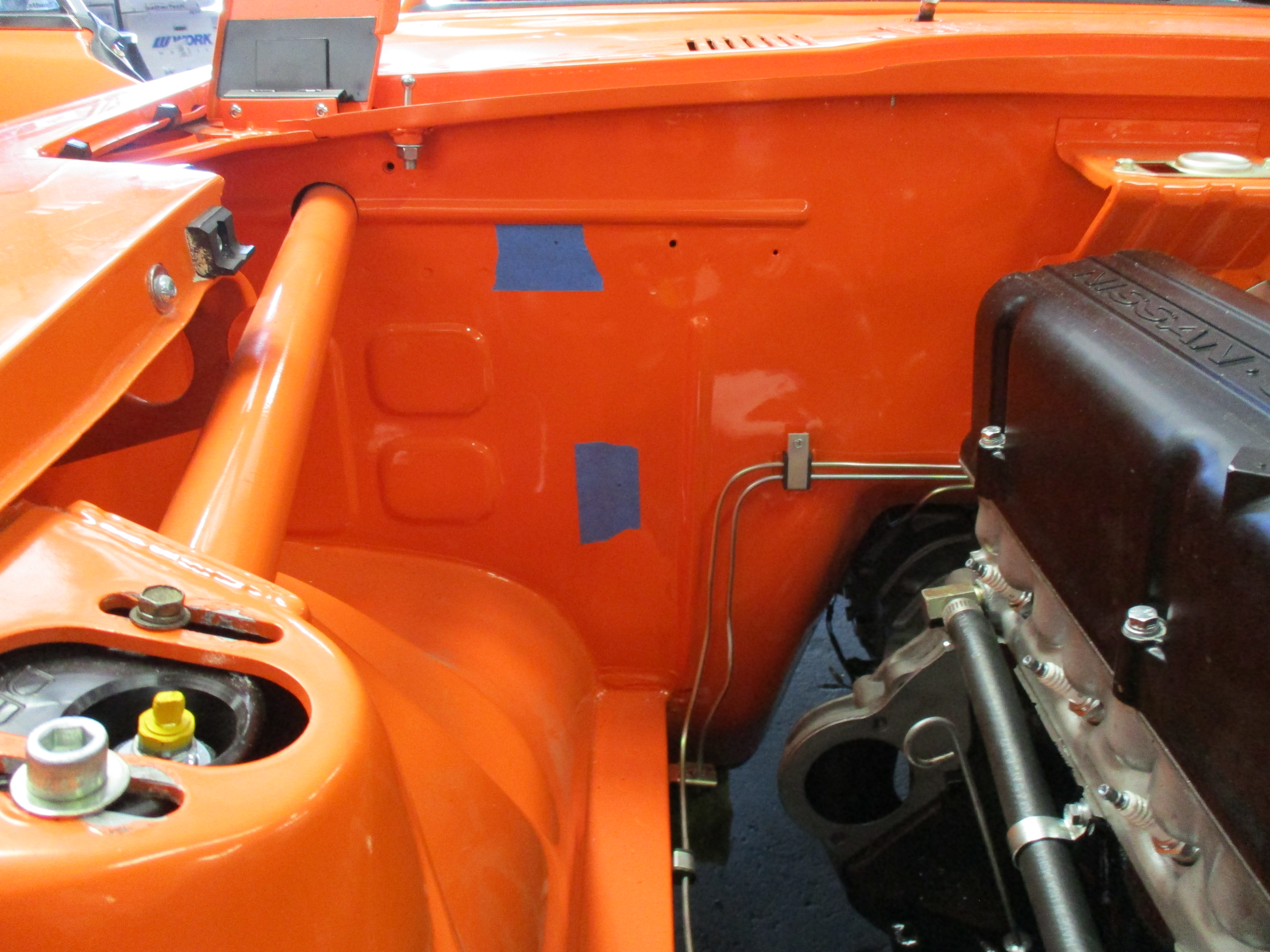

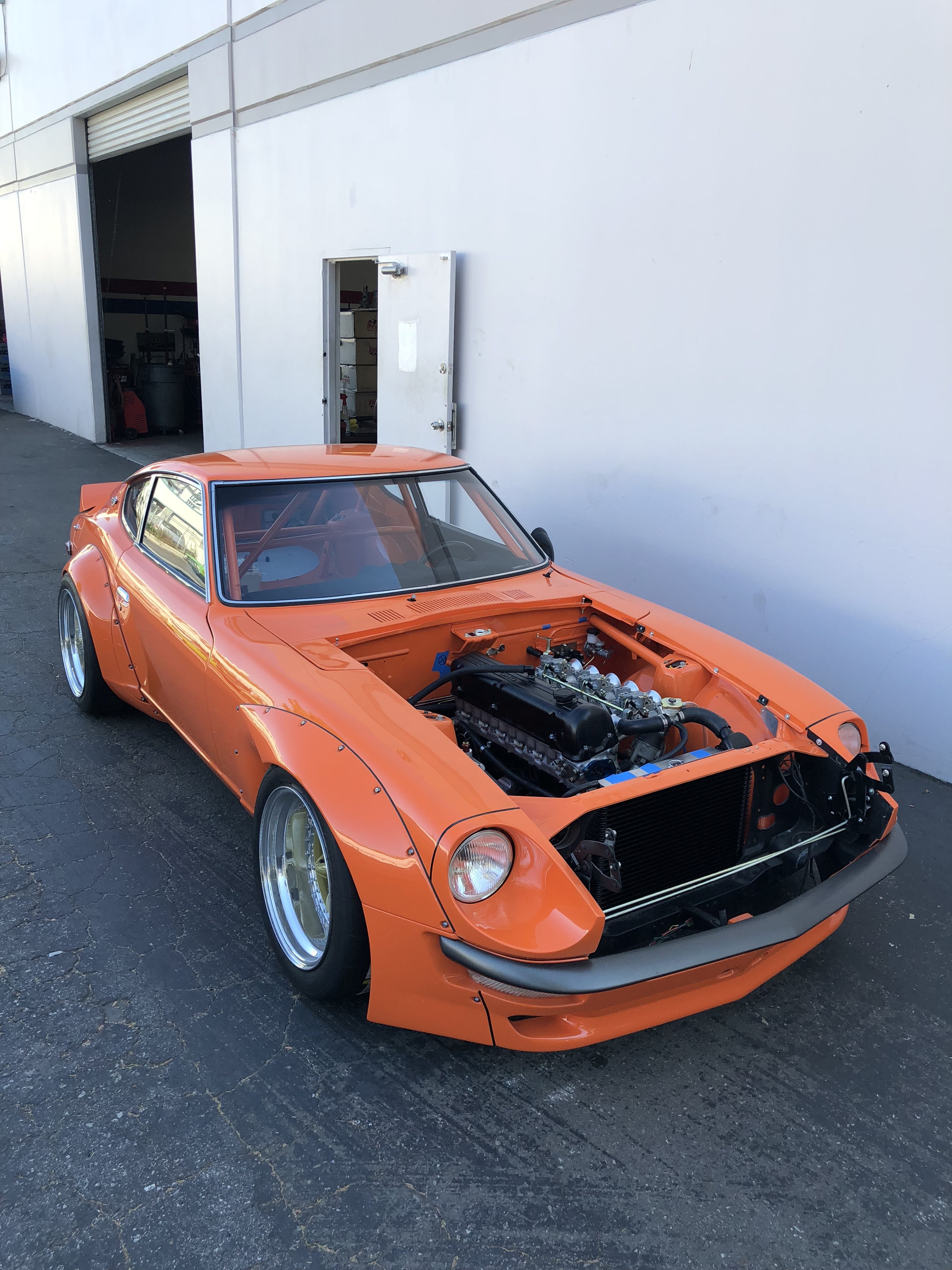

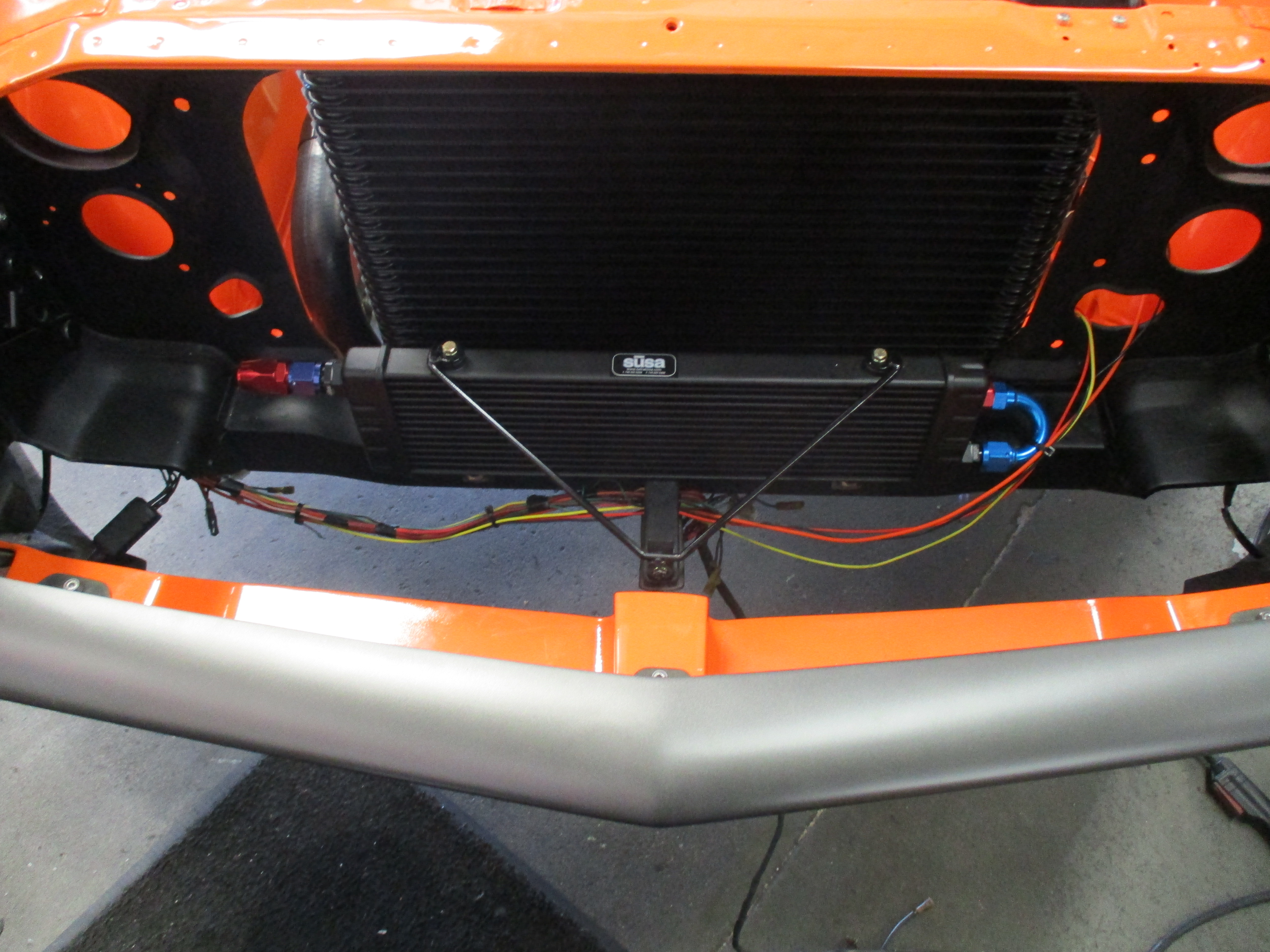

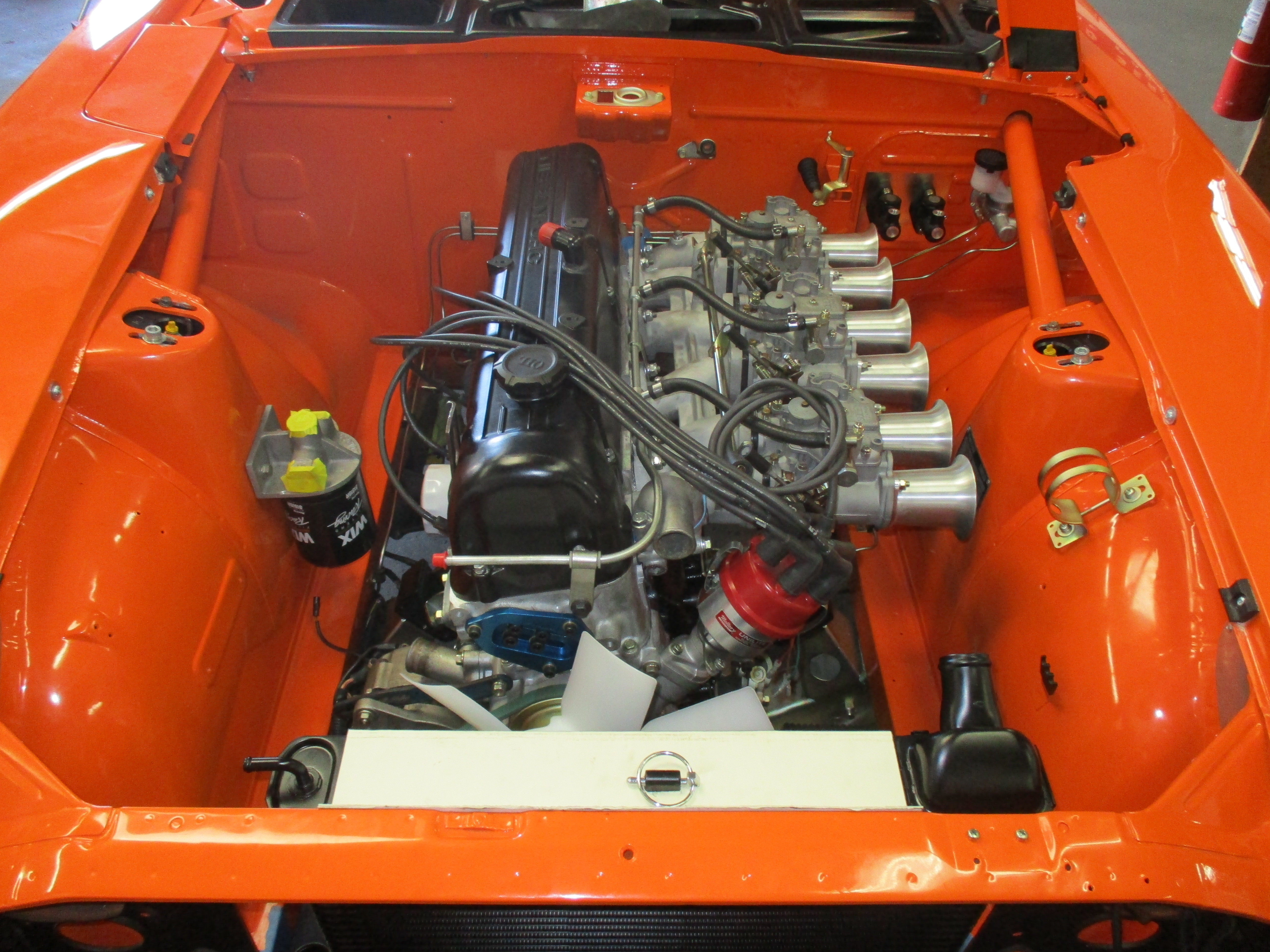

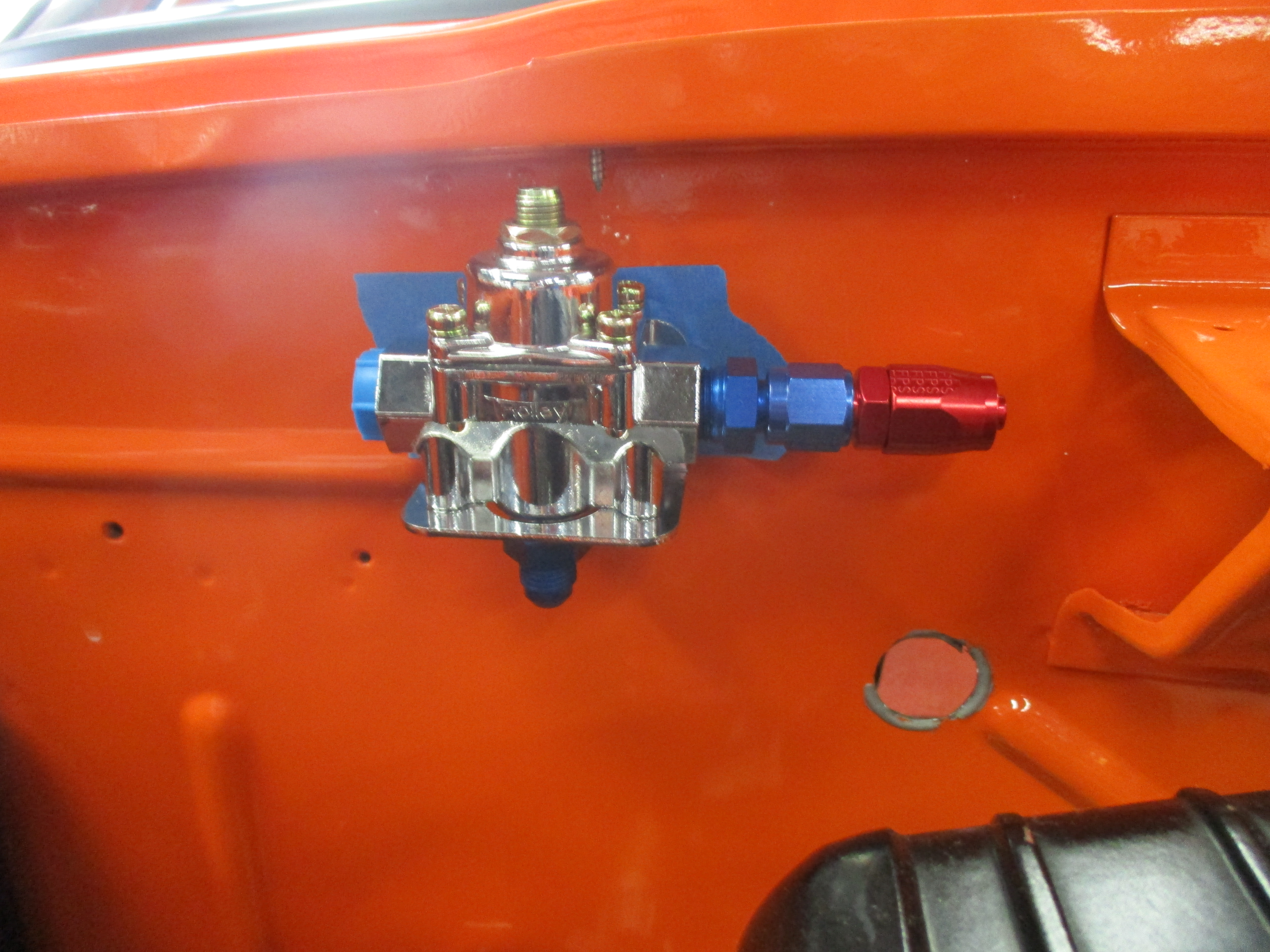

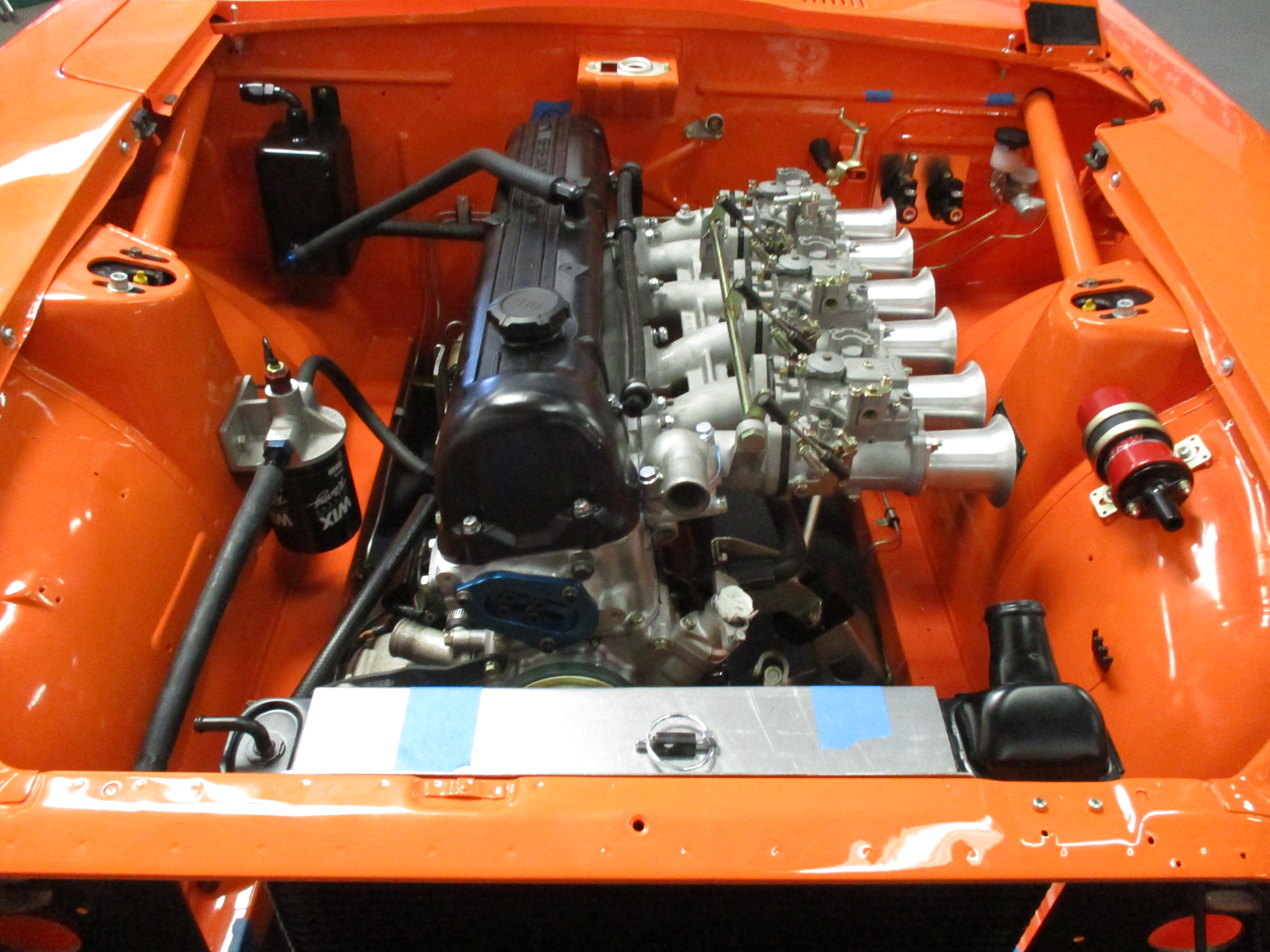

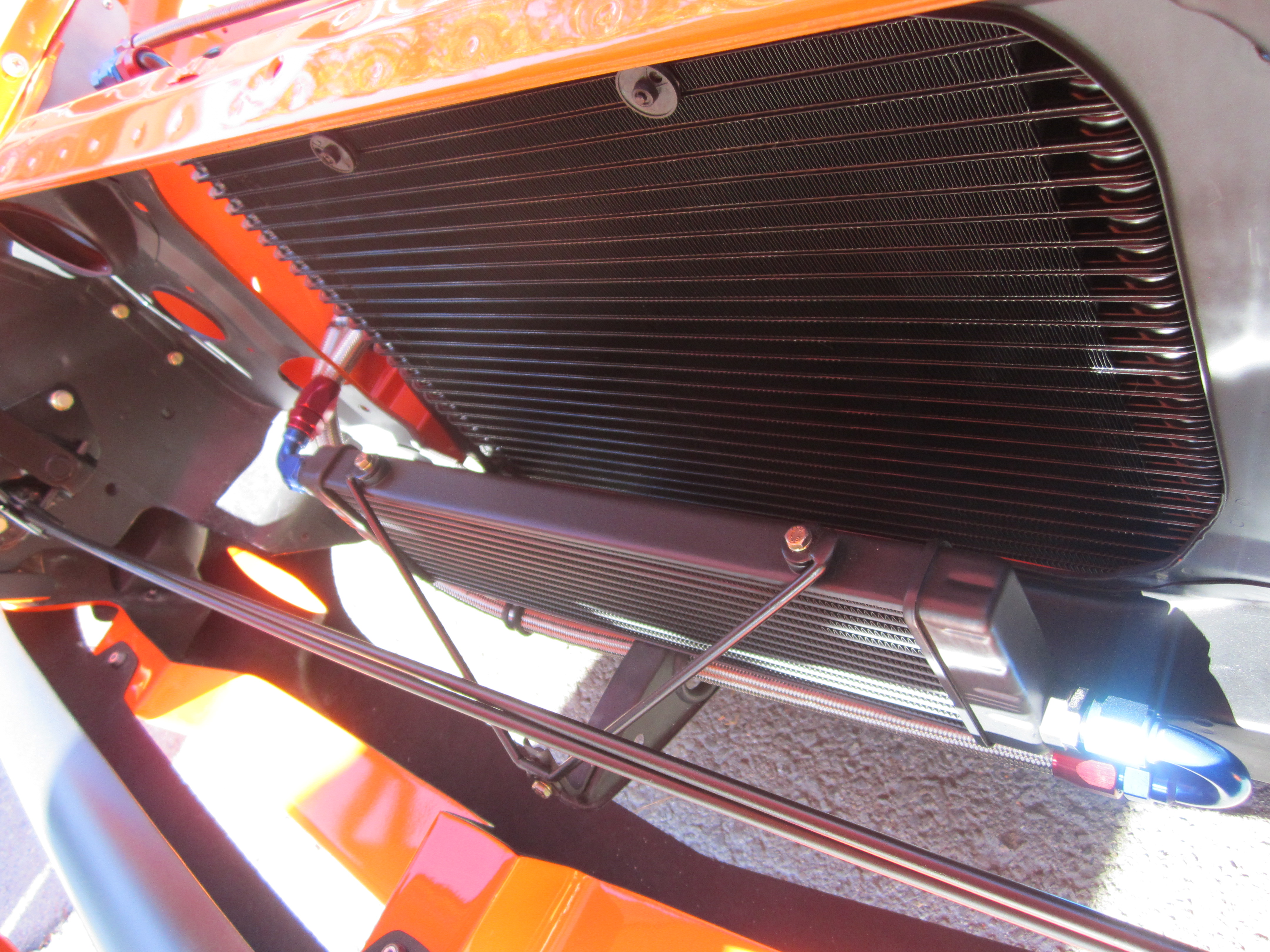

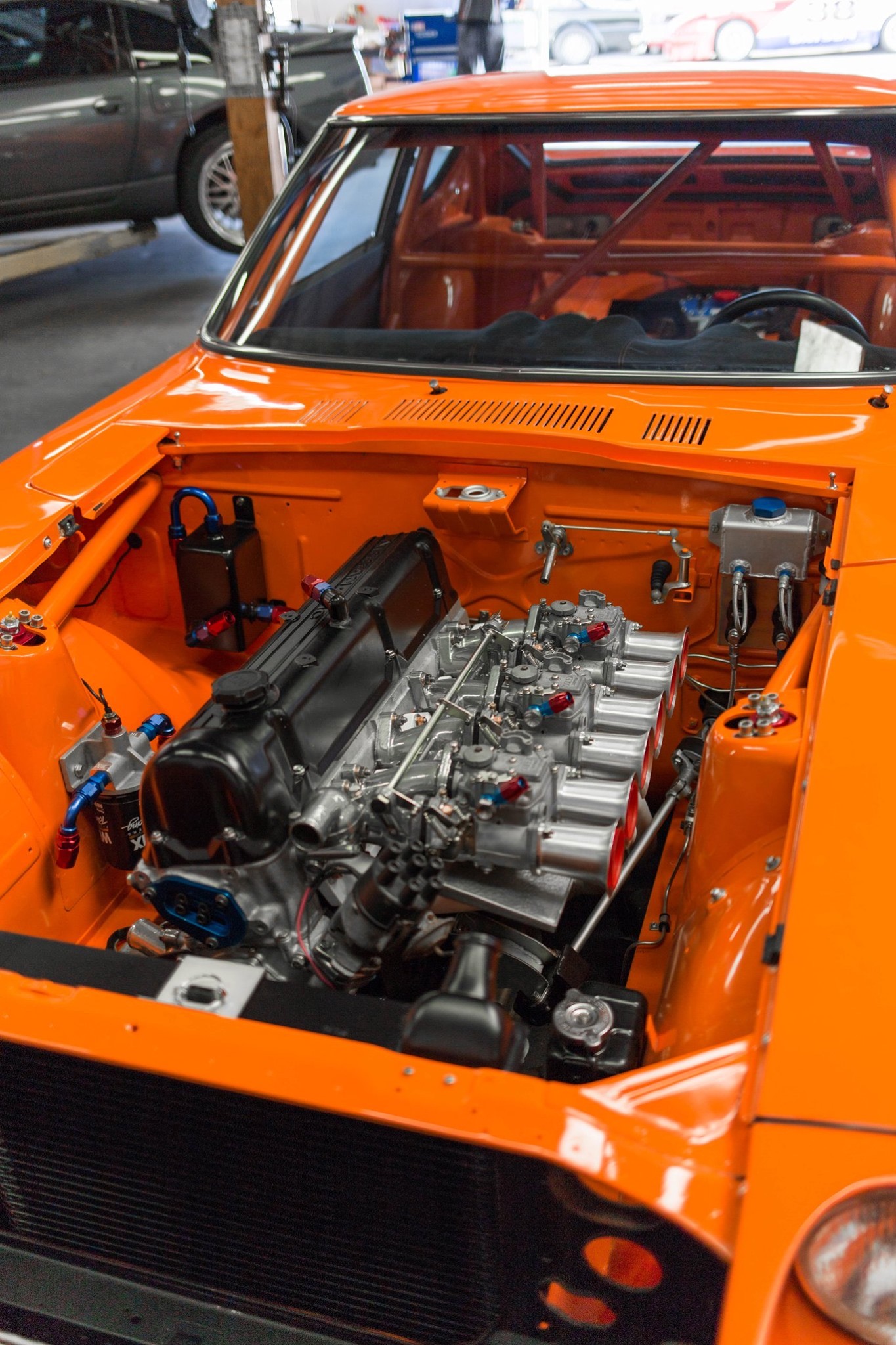

Engine going in and detail work beginning. We re-created the cooling system from the BRE car and ran all of the chassis wiring.



The catch can, radiator and Datsun roadster overflow are all period parts that BRE used and duplicated for the Rocketbunny:





Interior

With drivetrain and chassis sorted we moved to the interior. Continuing the race car theme is a stripped (but pretty) body-color interior with that beautiful roll cage from Bryson.

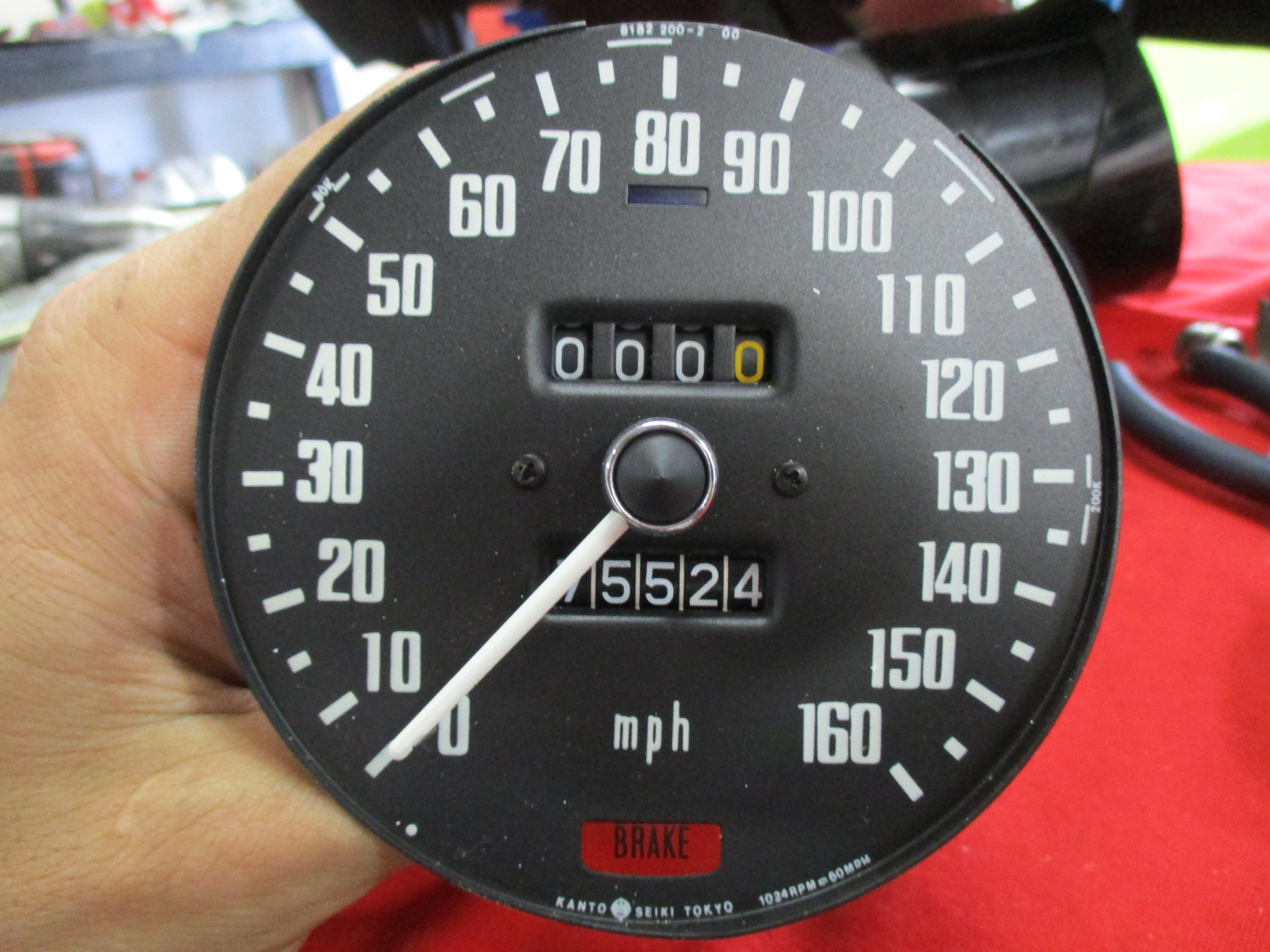

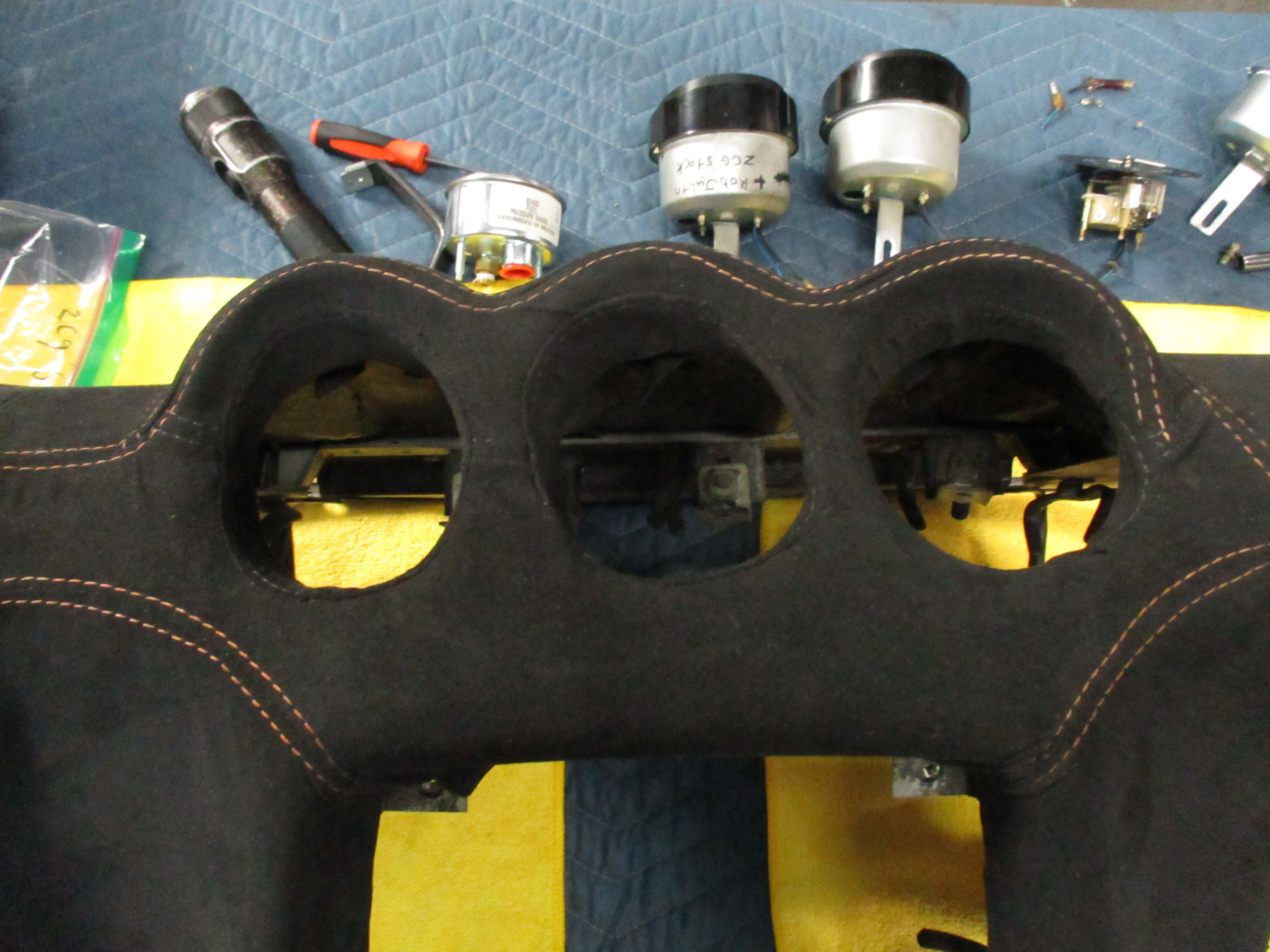

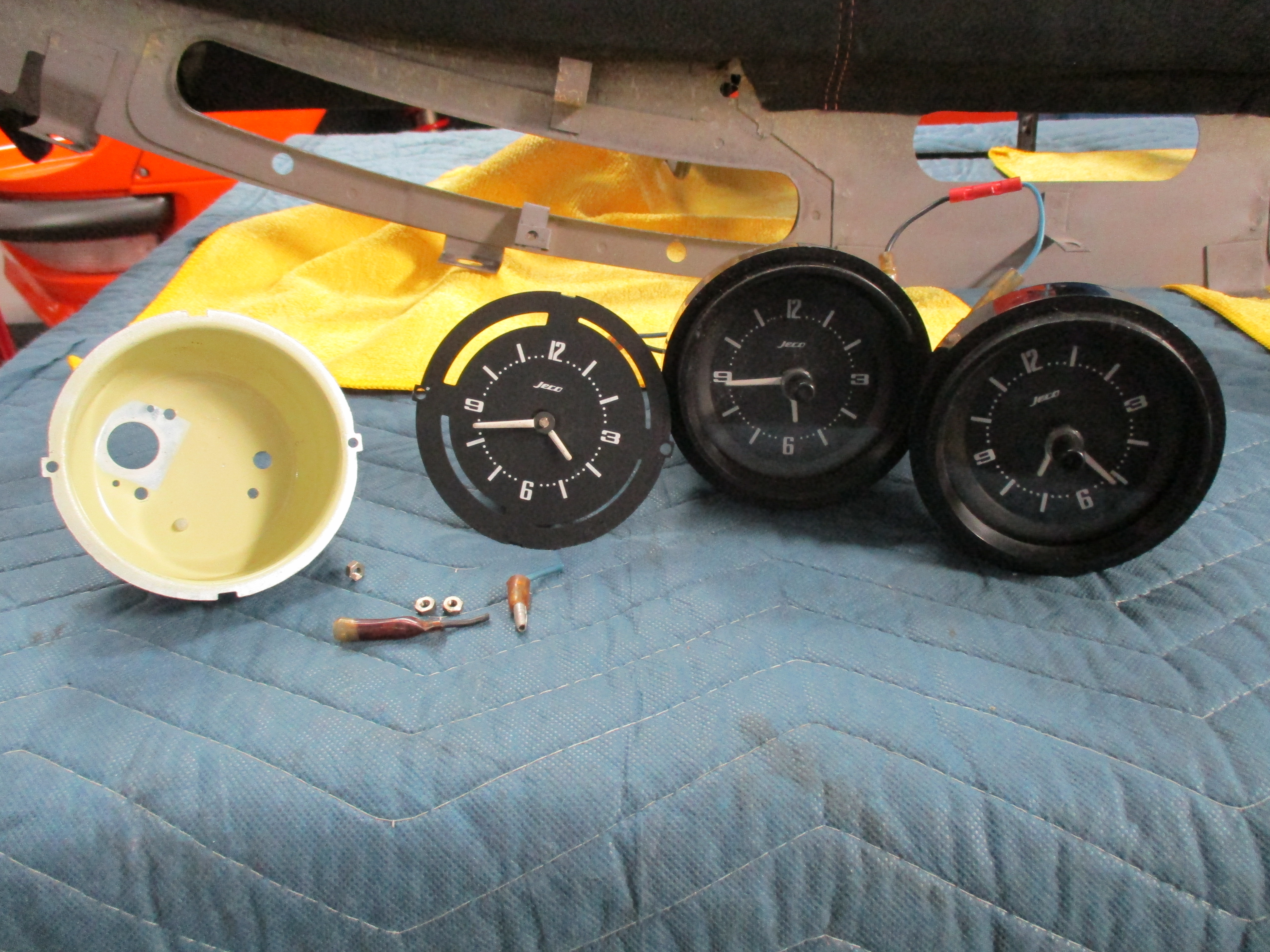

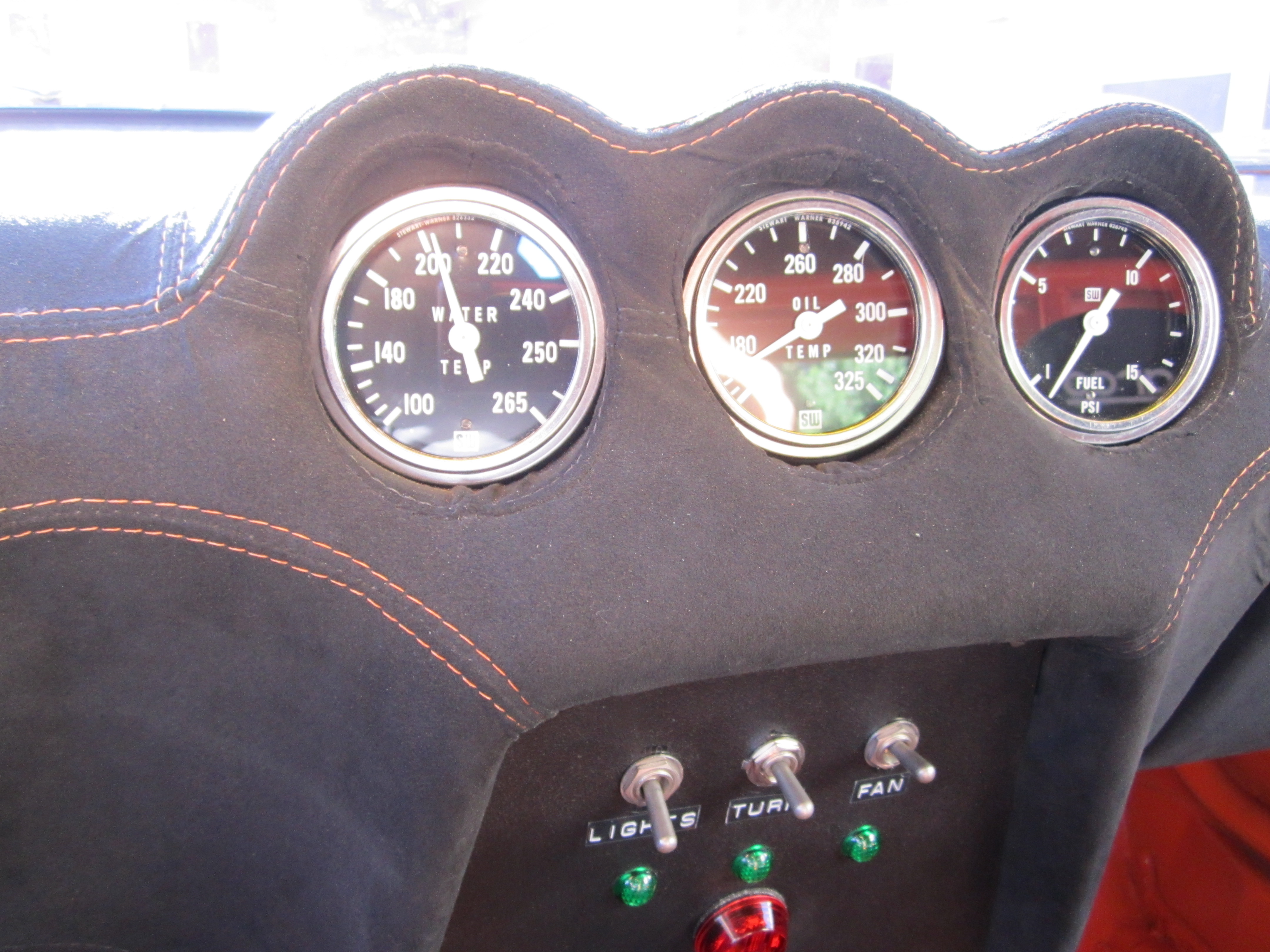

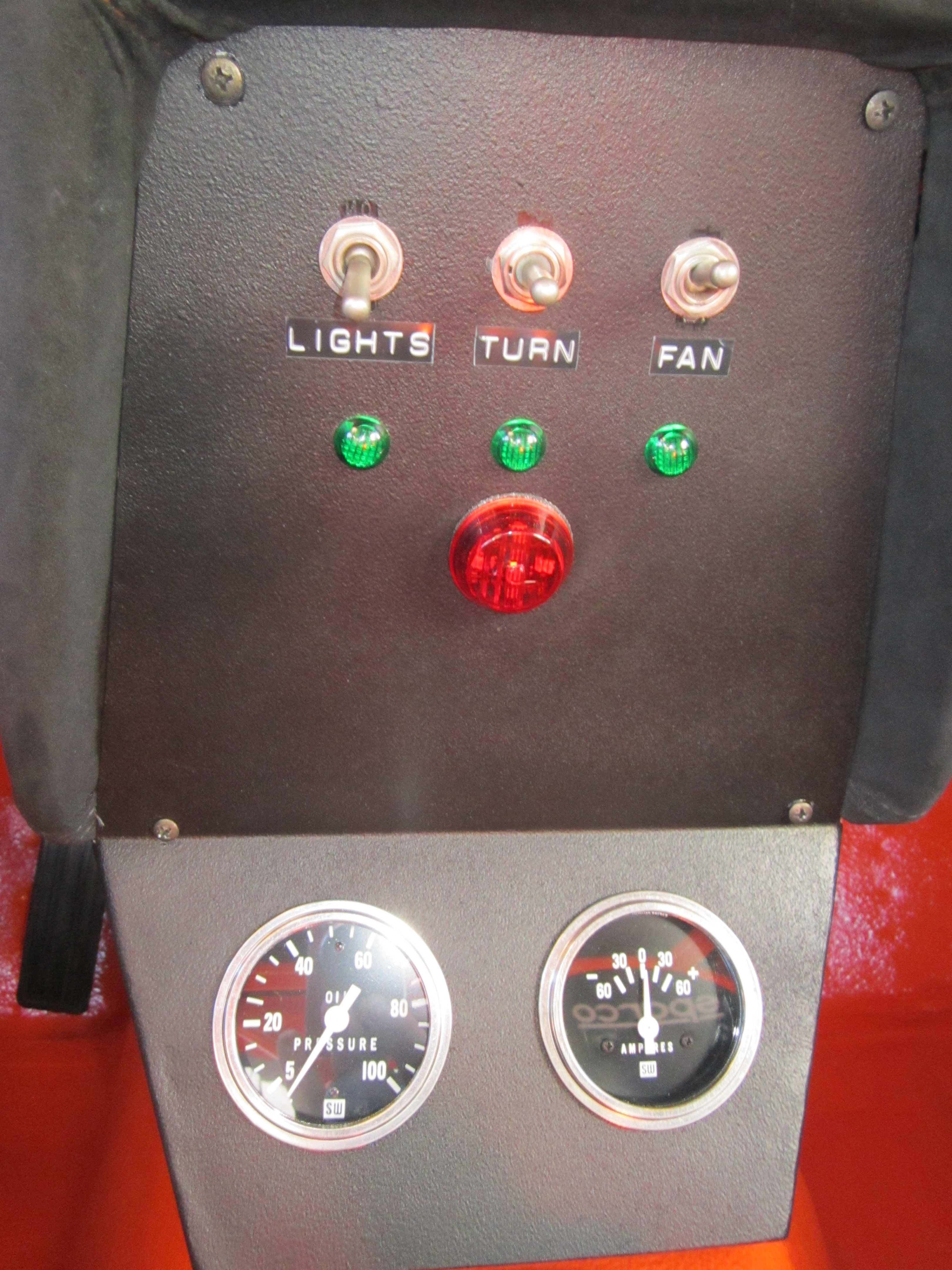

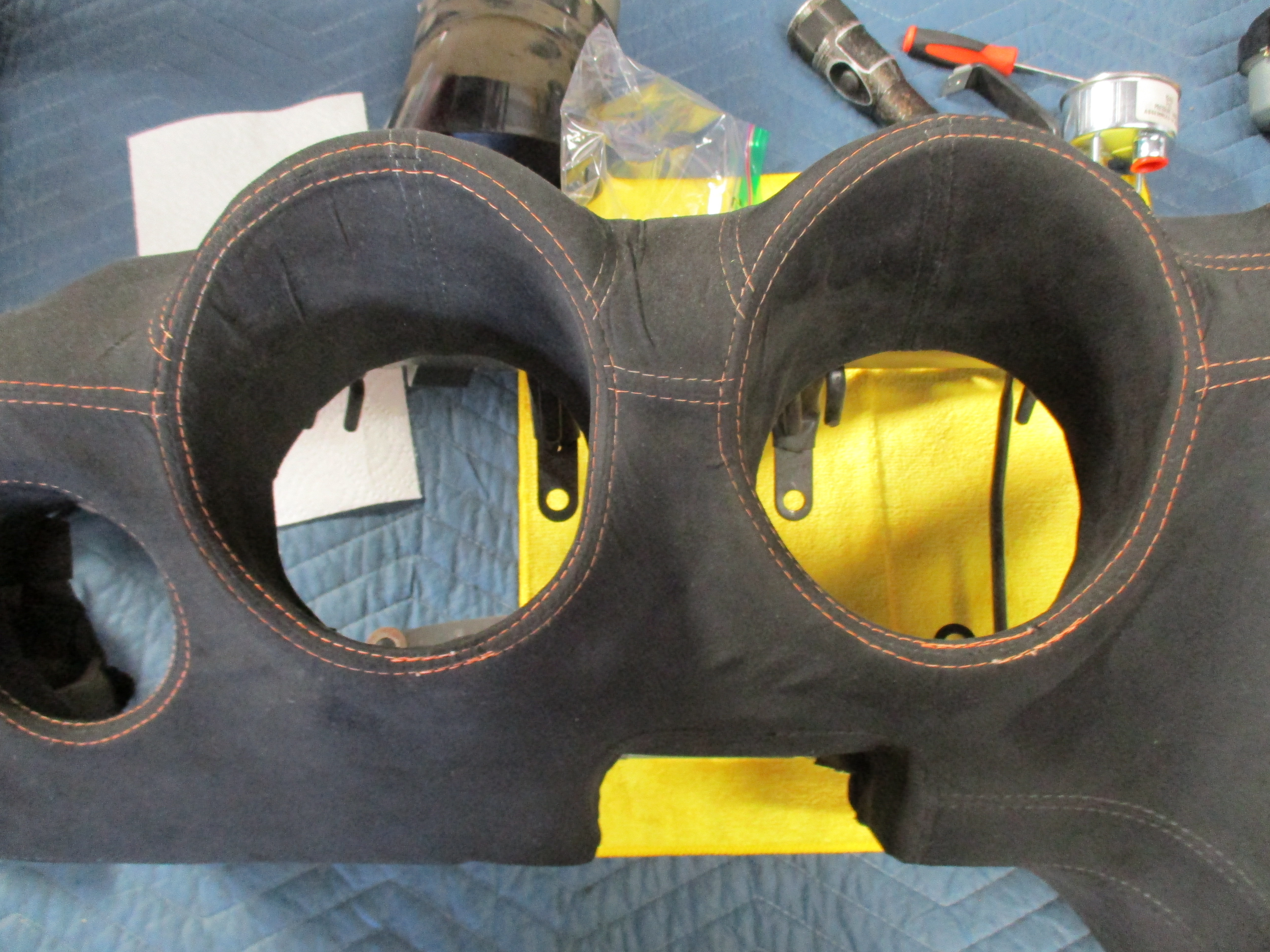

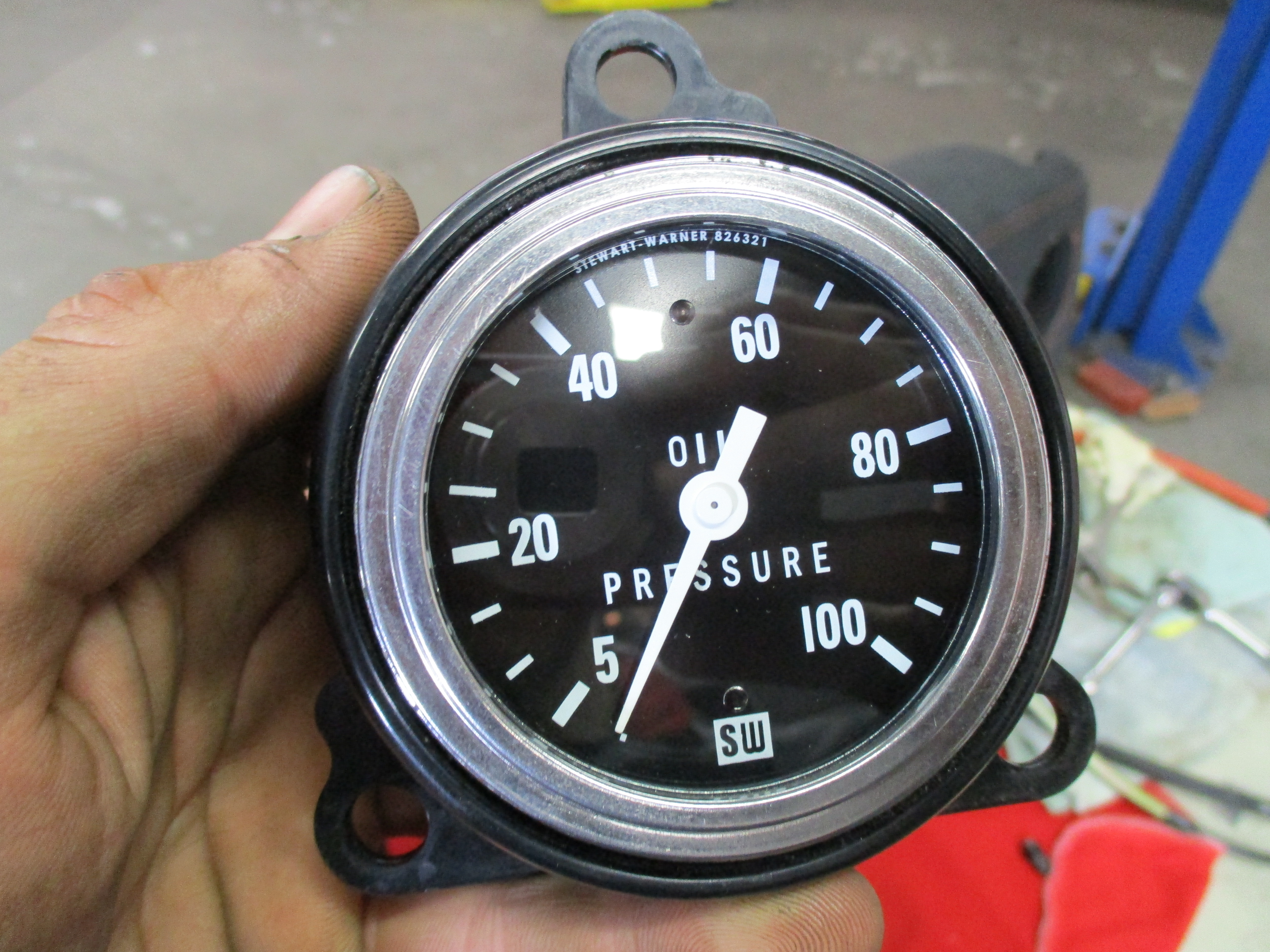

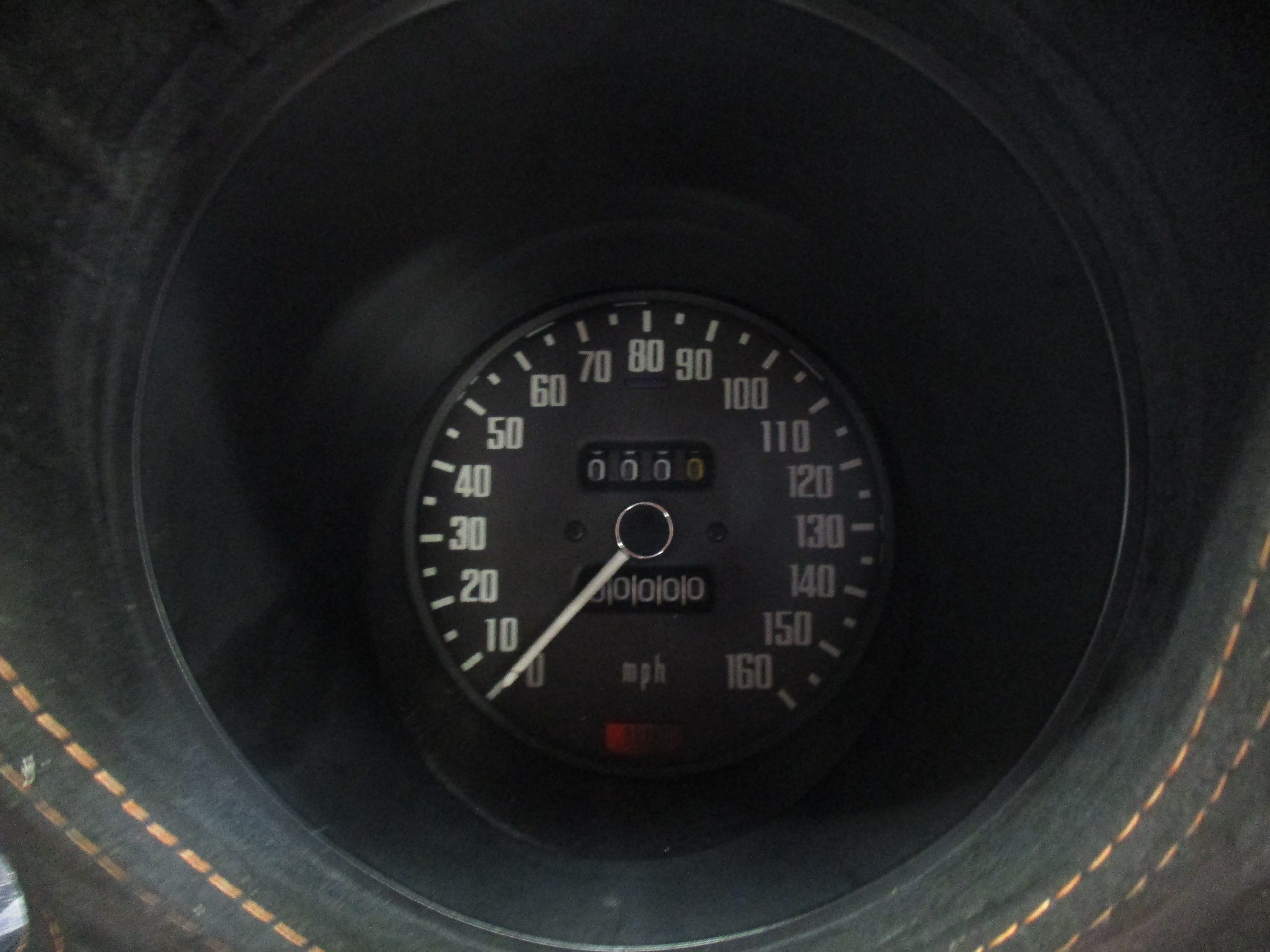

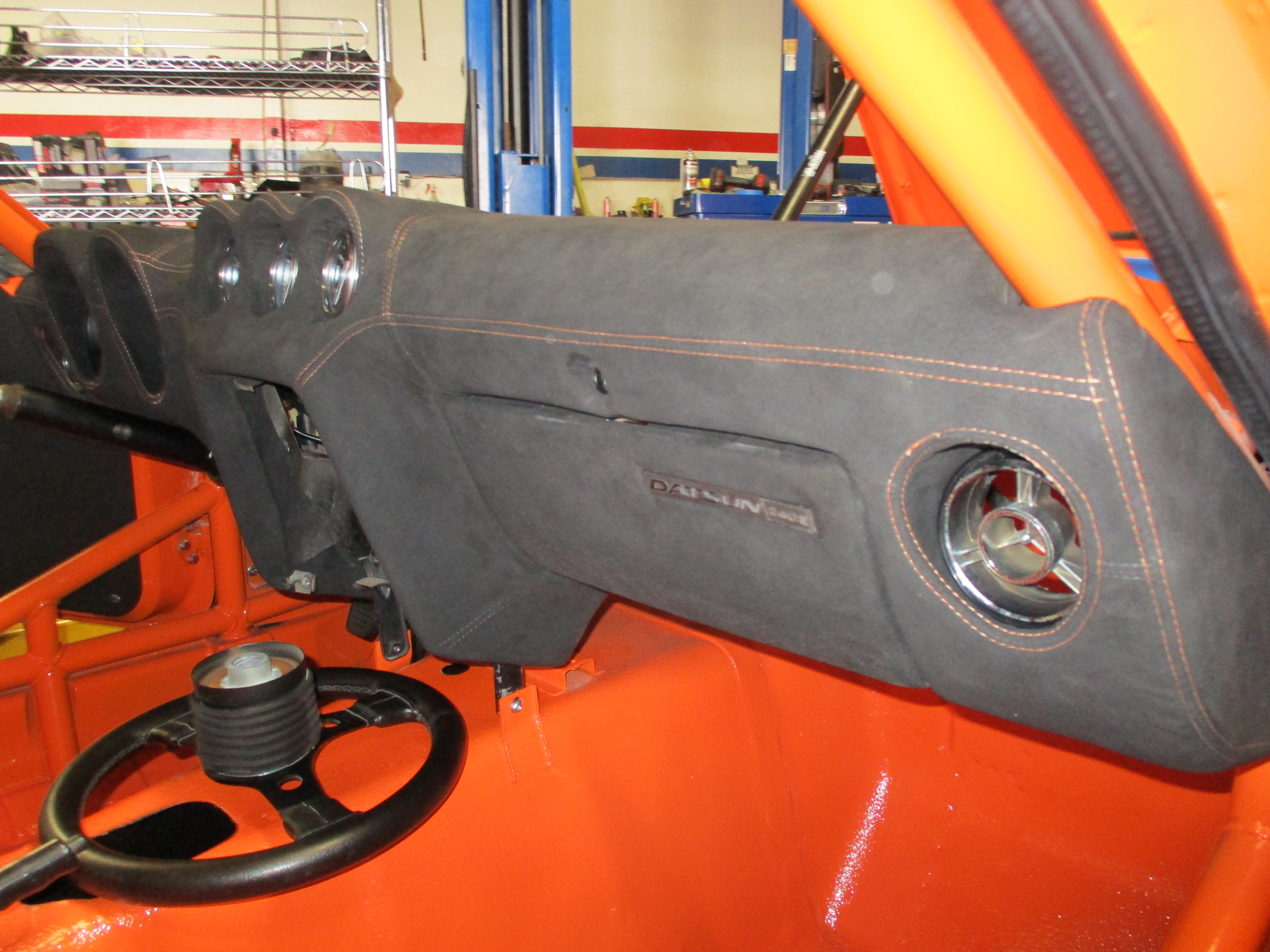

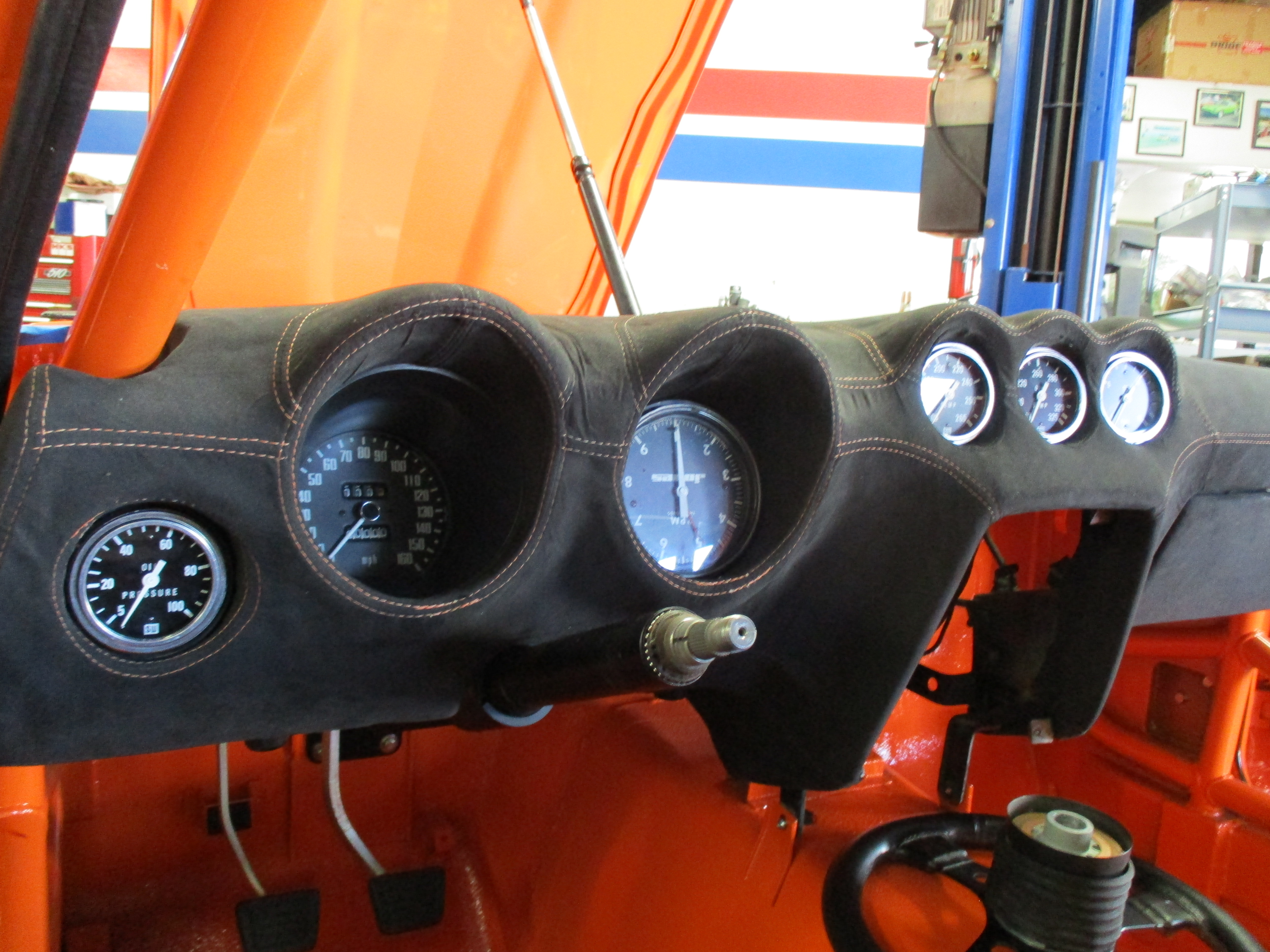

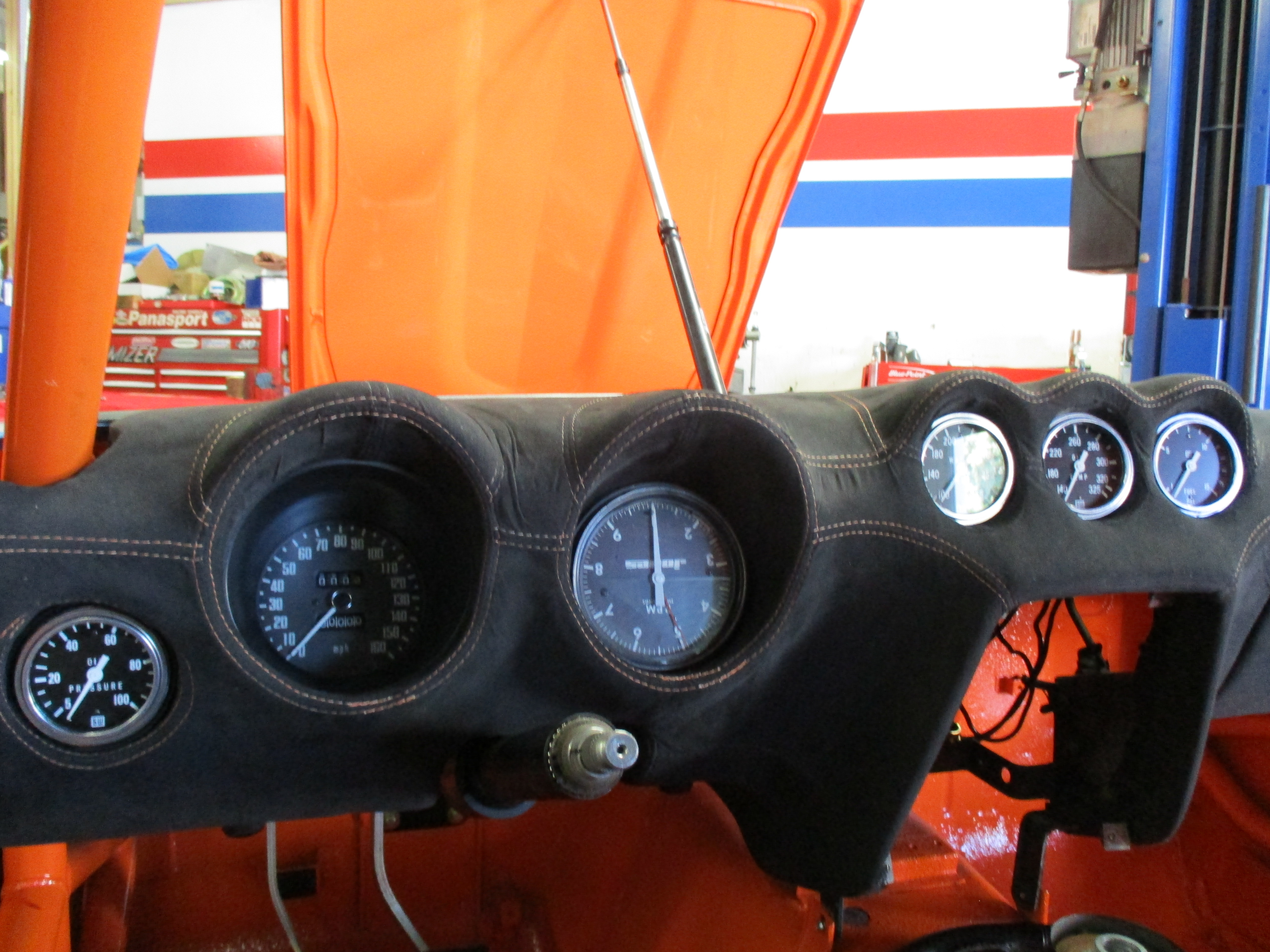

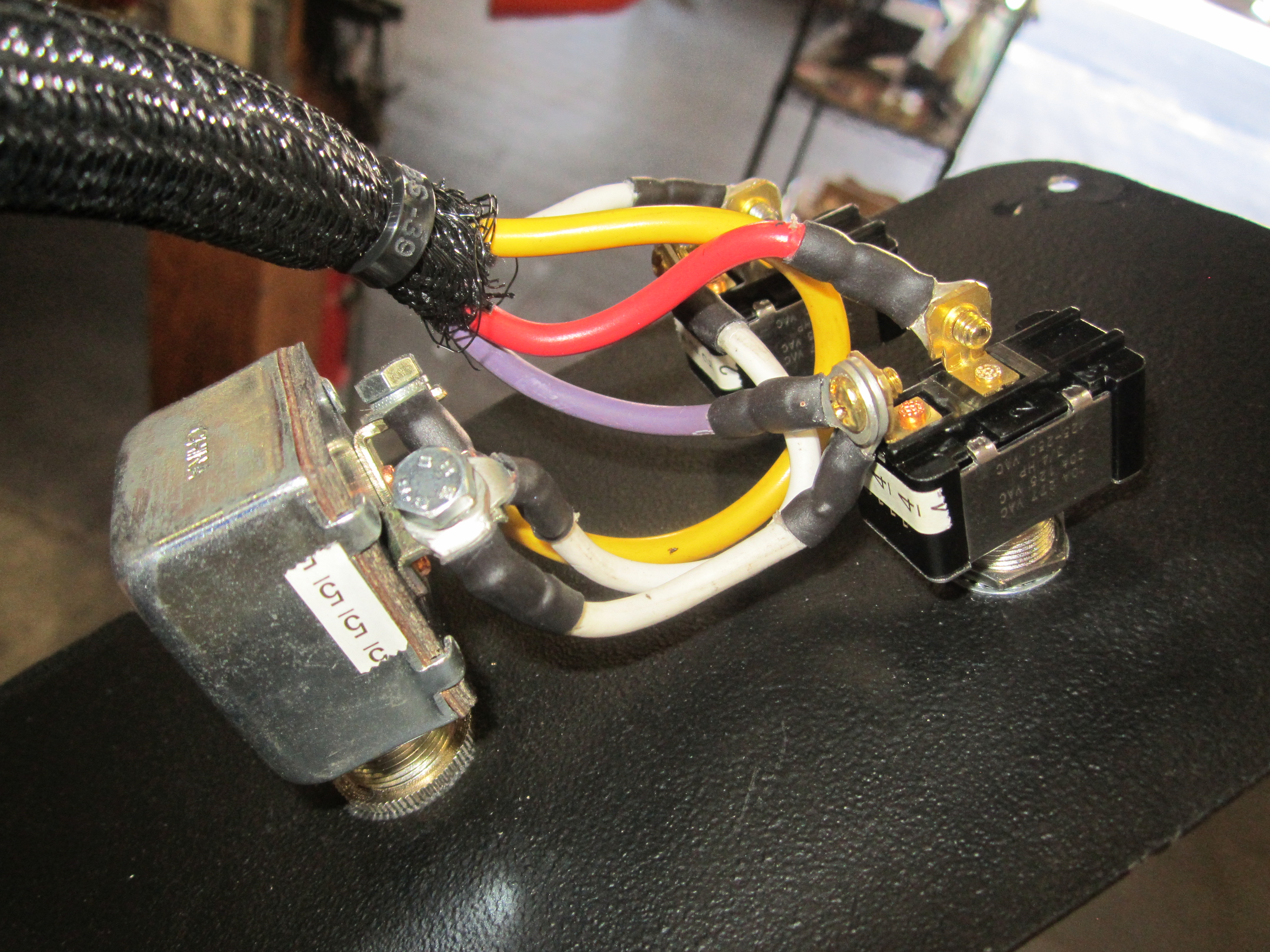

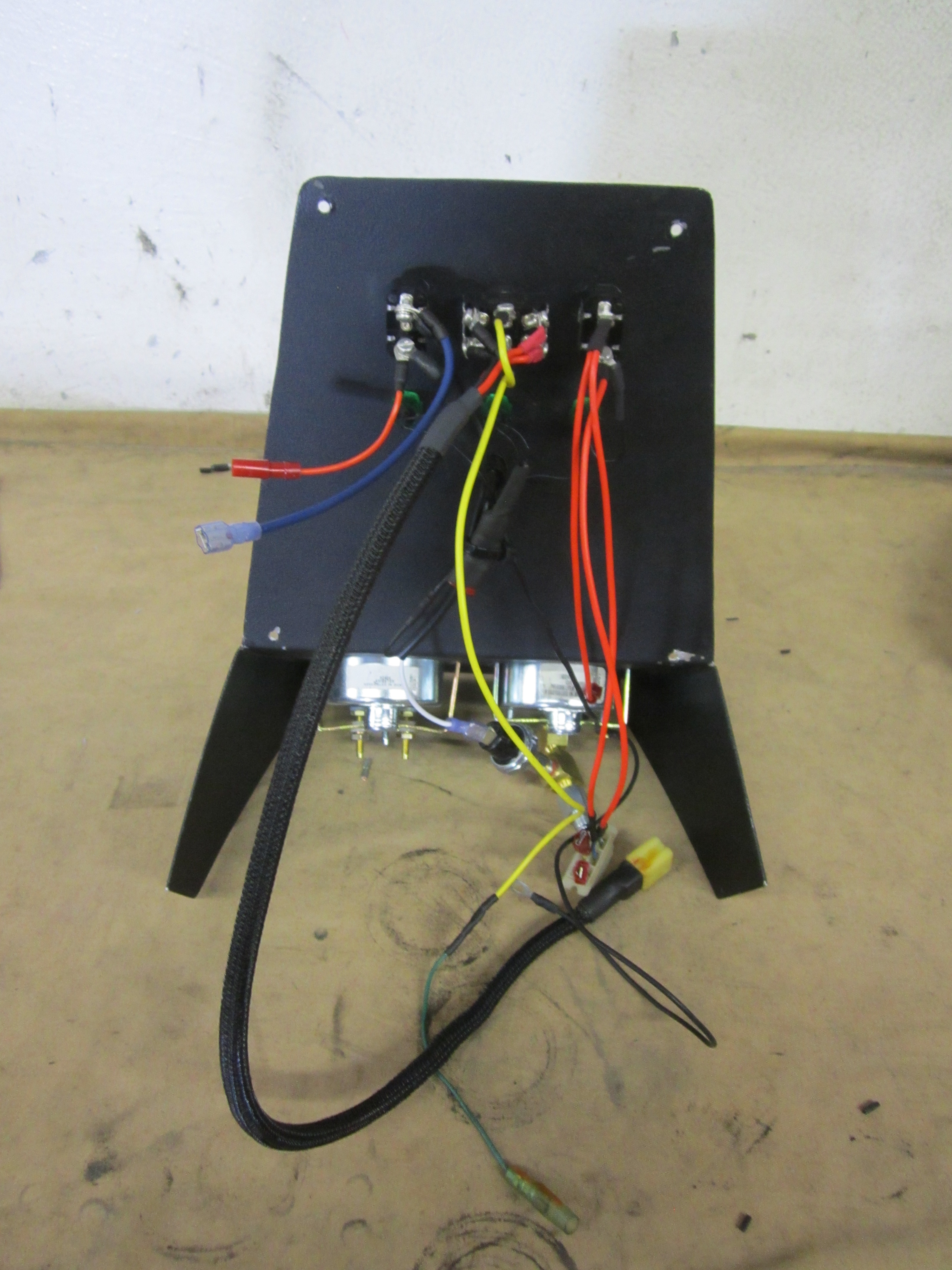

The dash was covered in Alcantara. We installed and wired it up with period gauges. All switch gear similar to the BRE car:

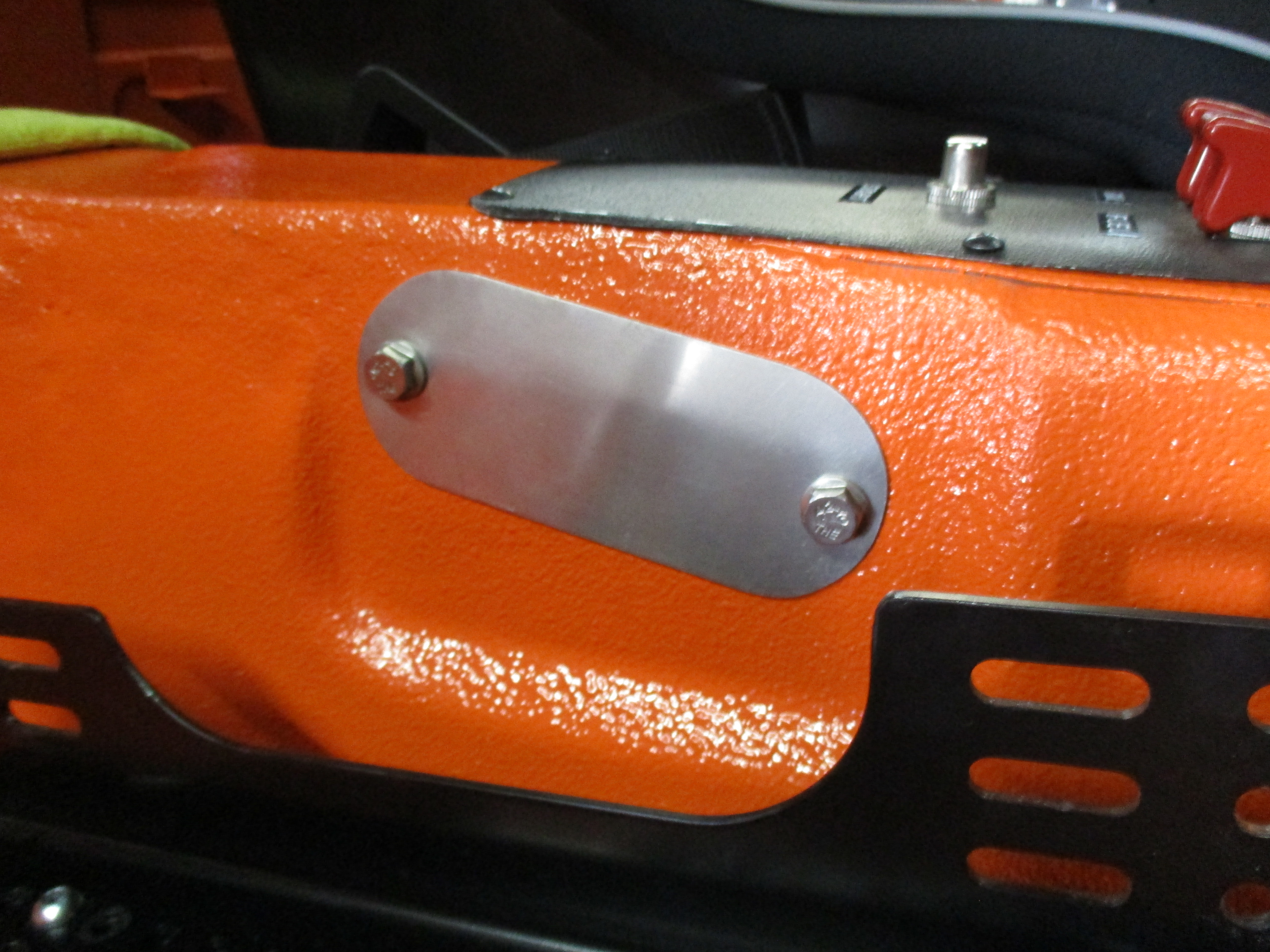

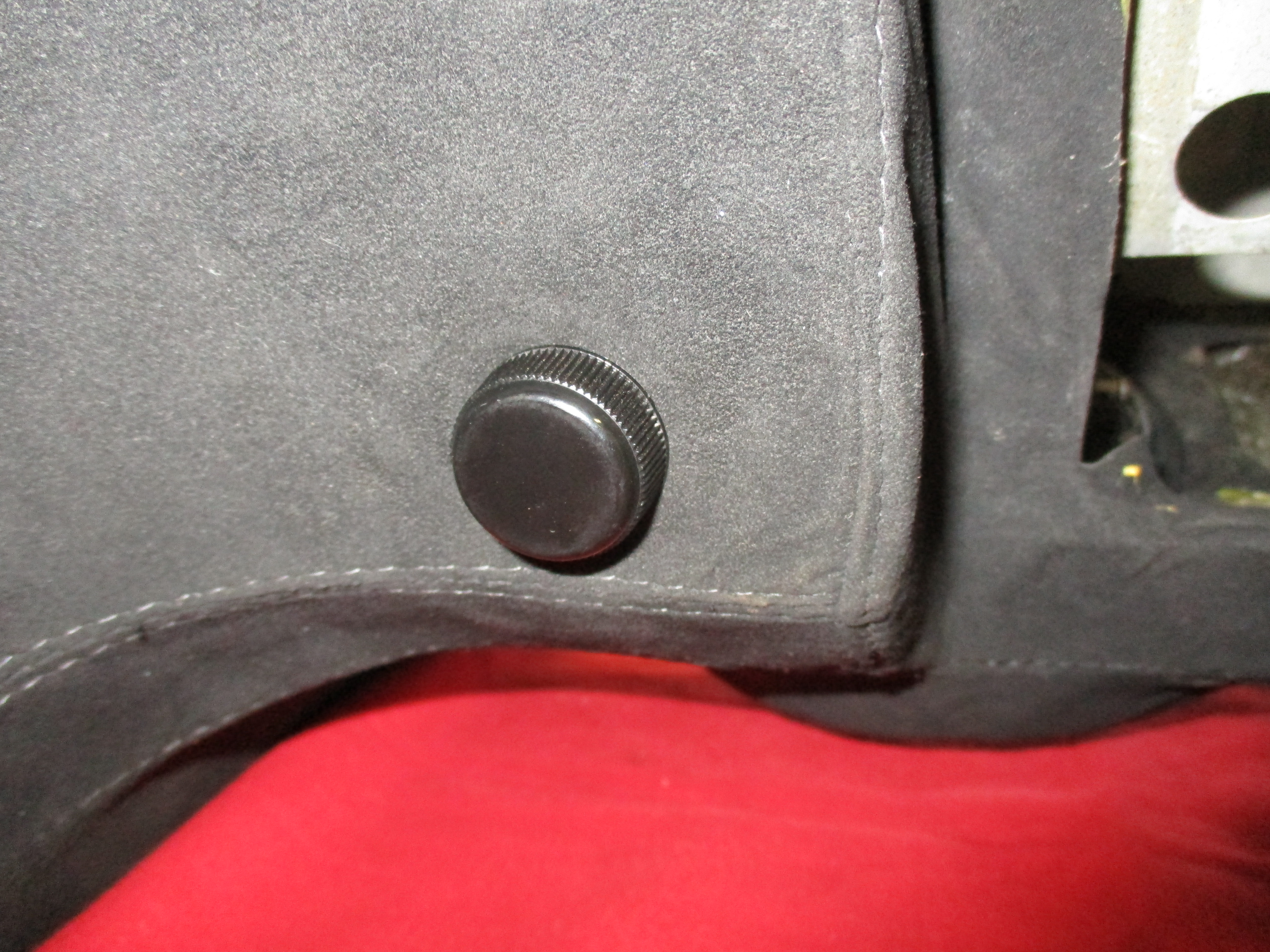

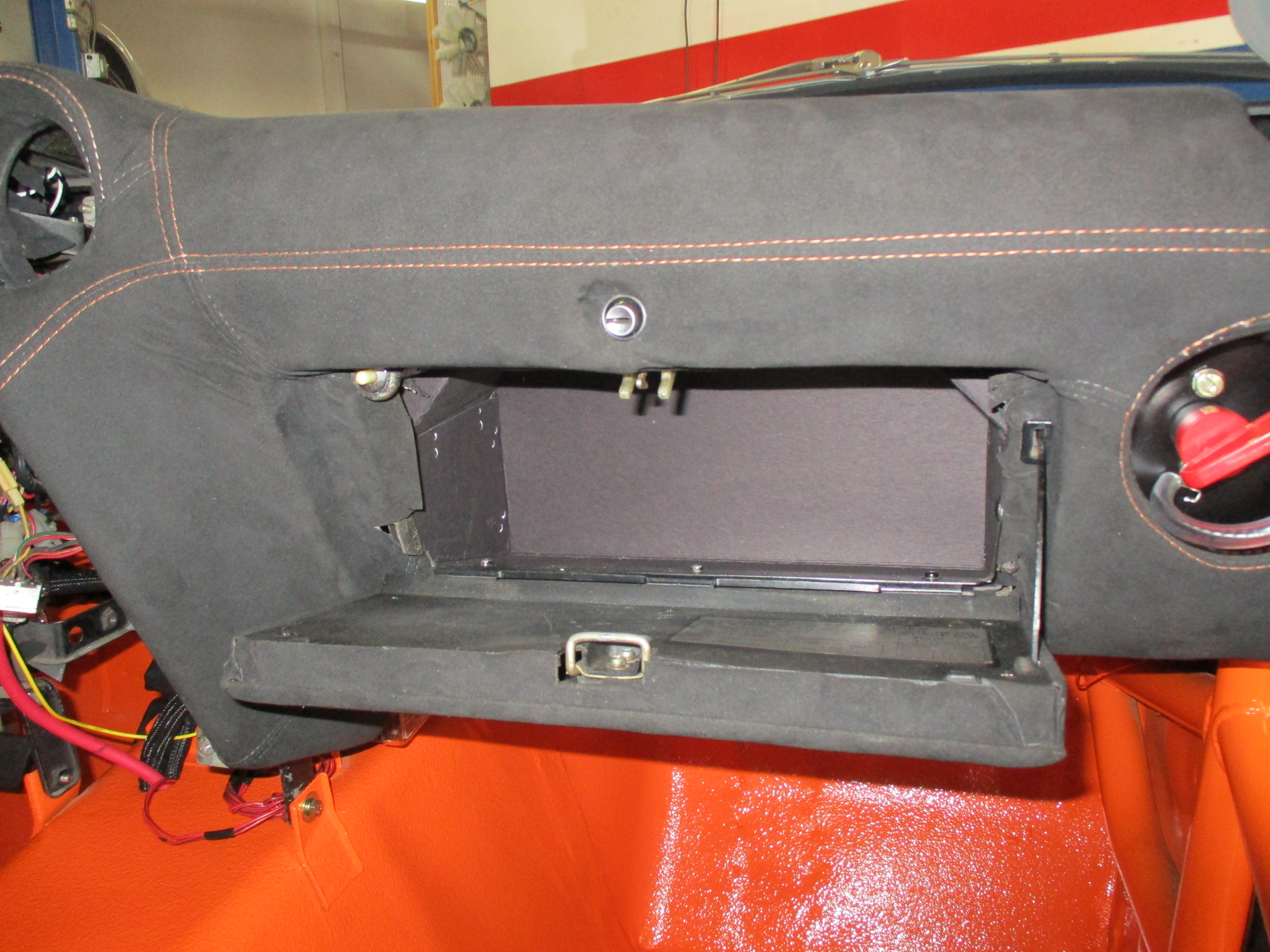

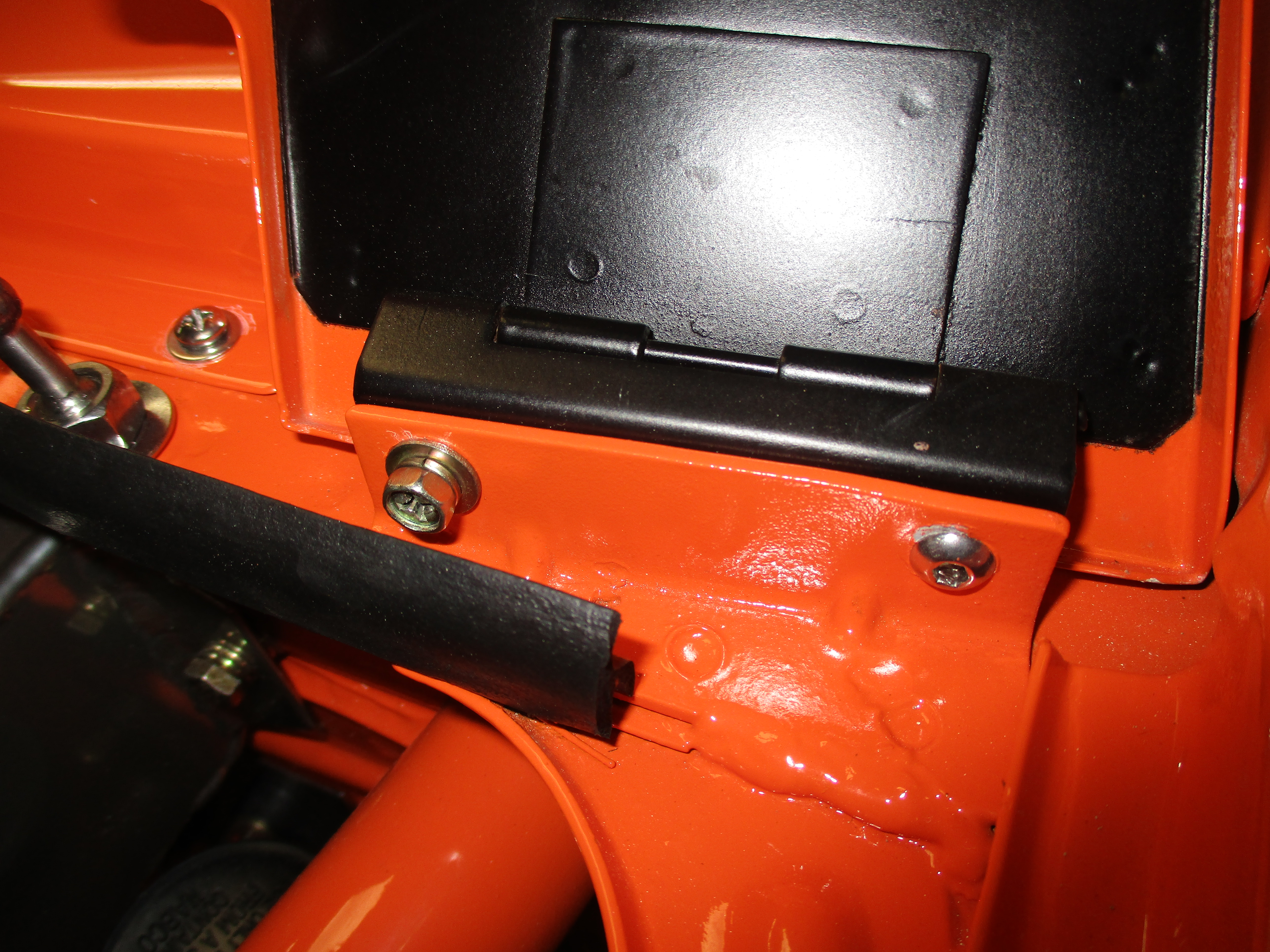

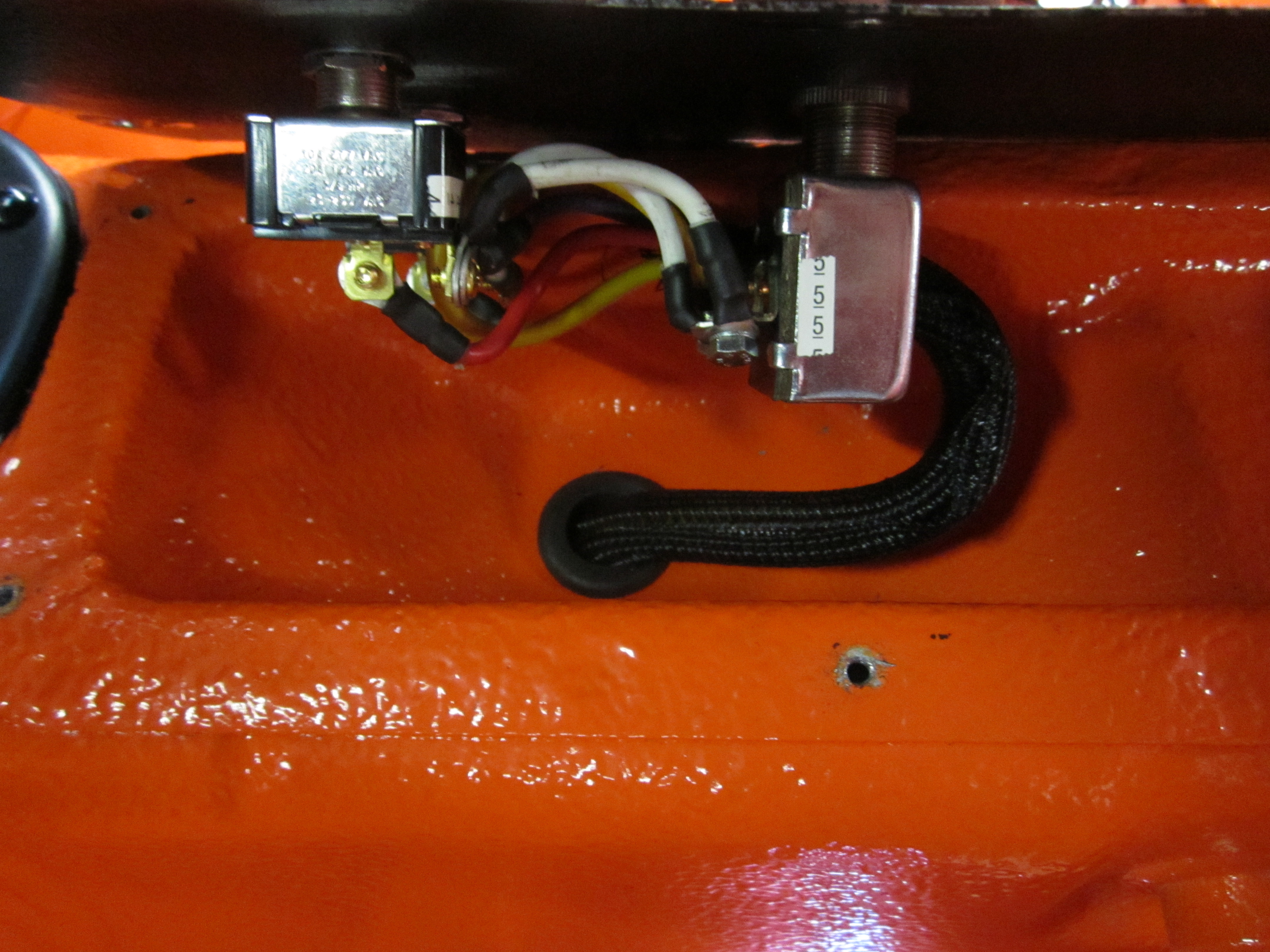

A few more detail shots:

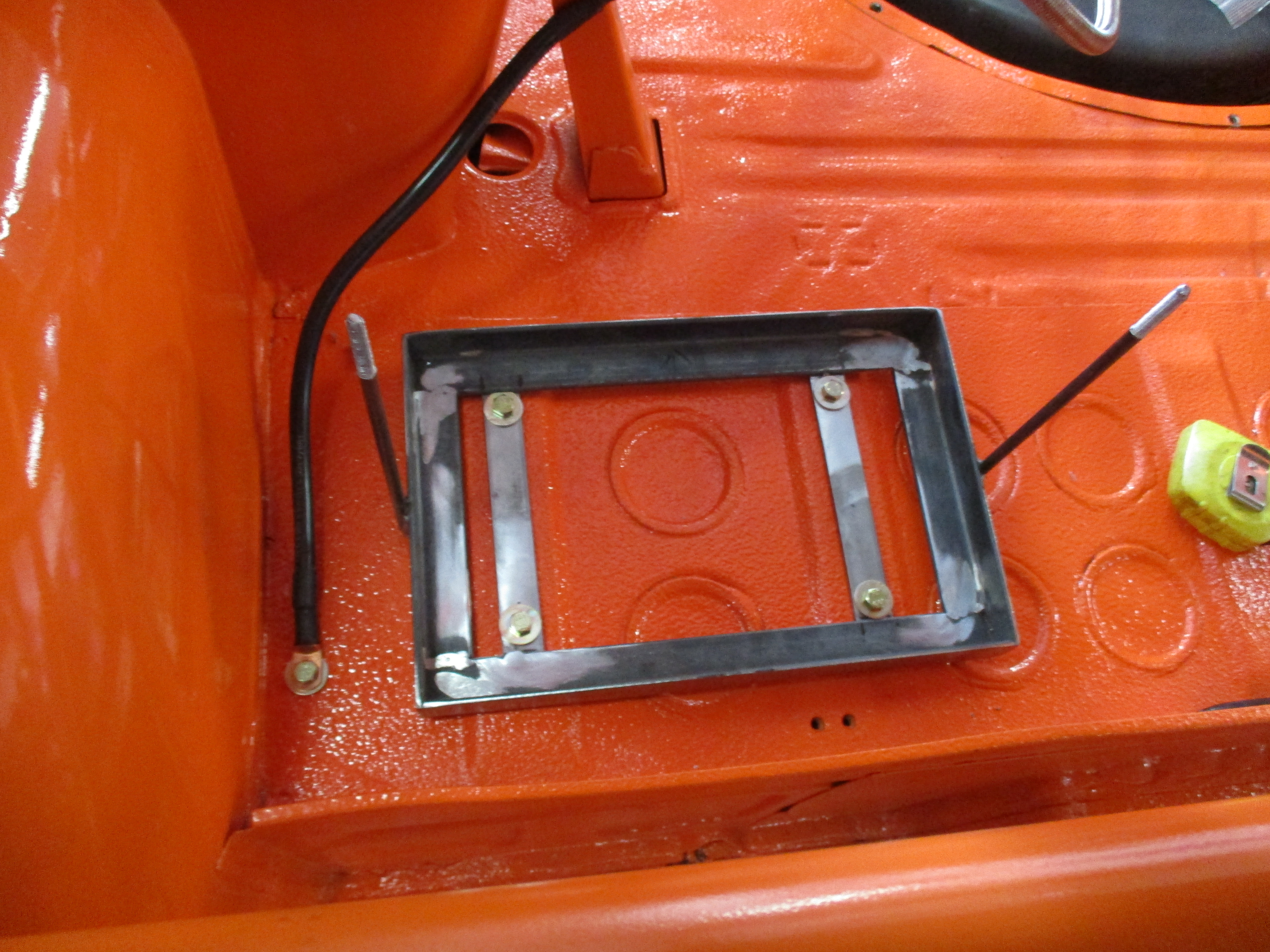

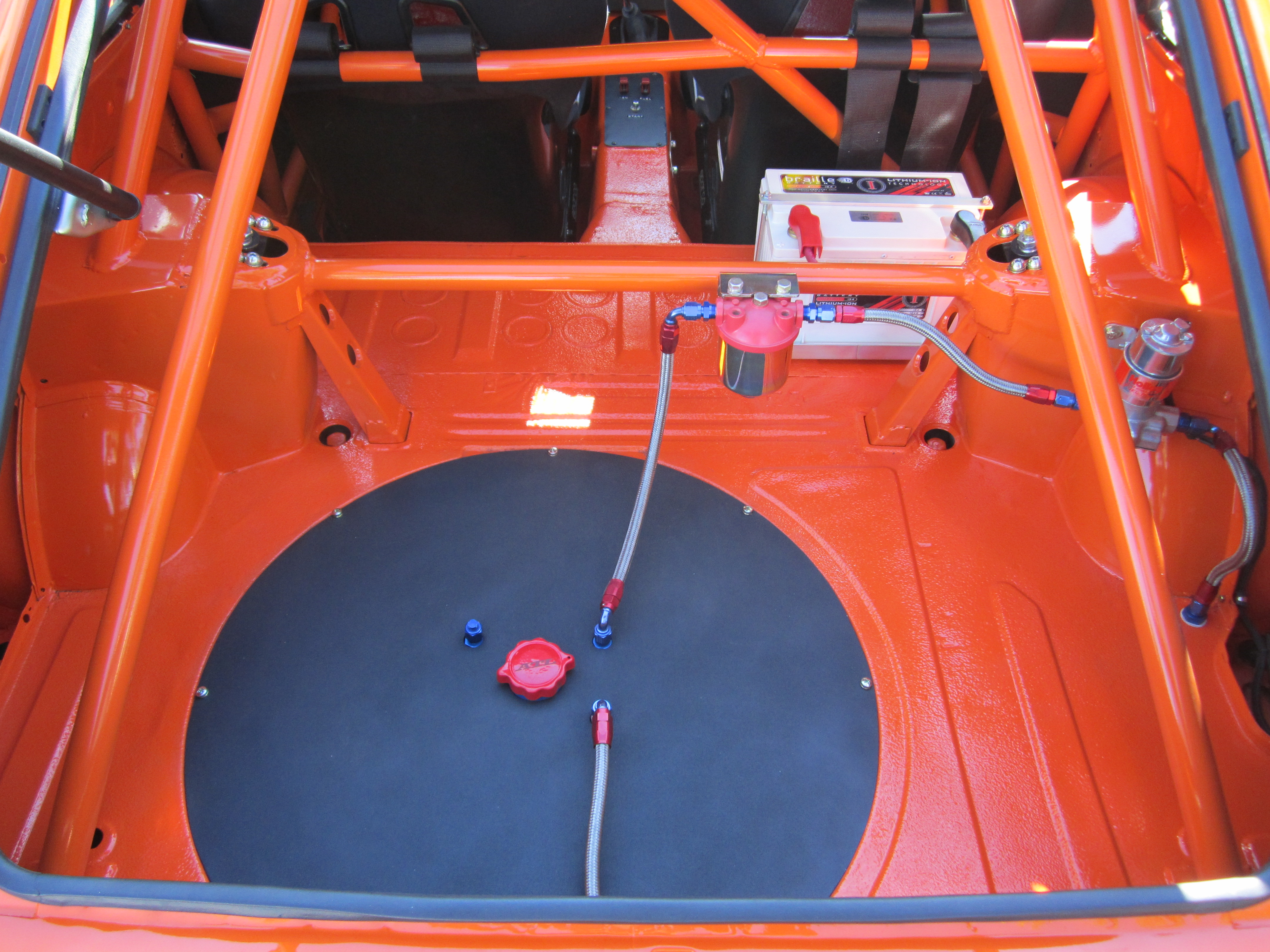

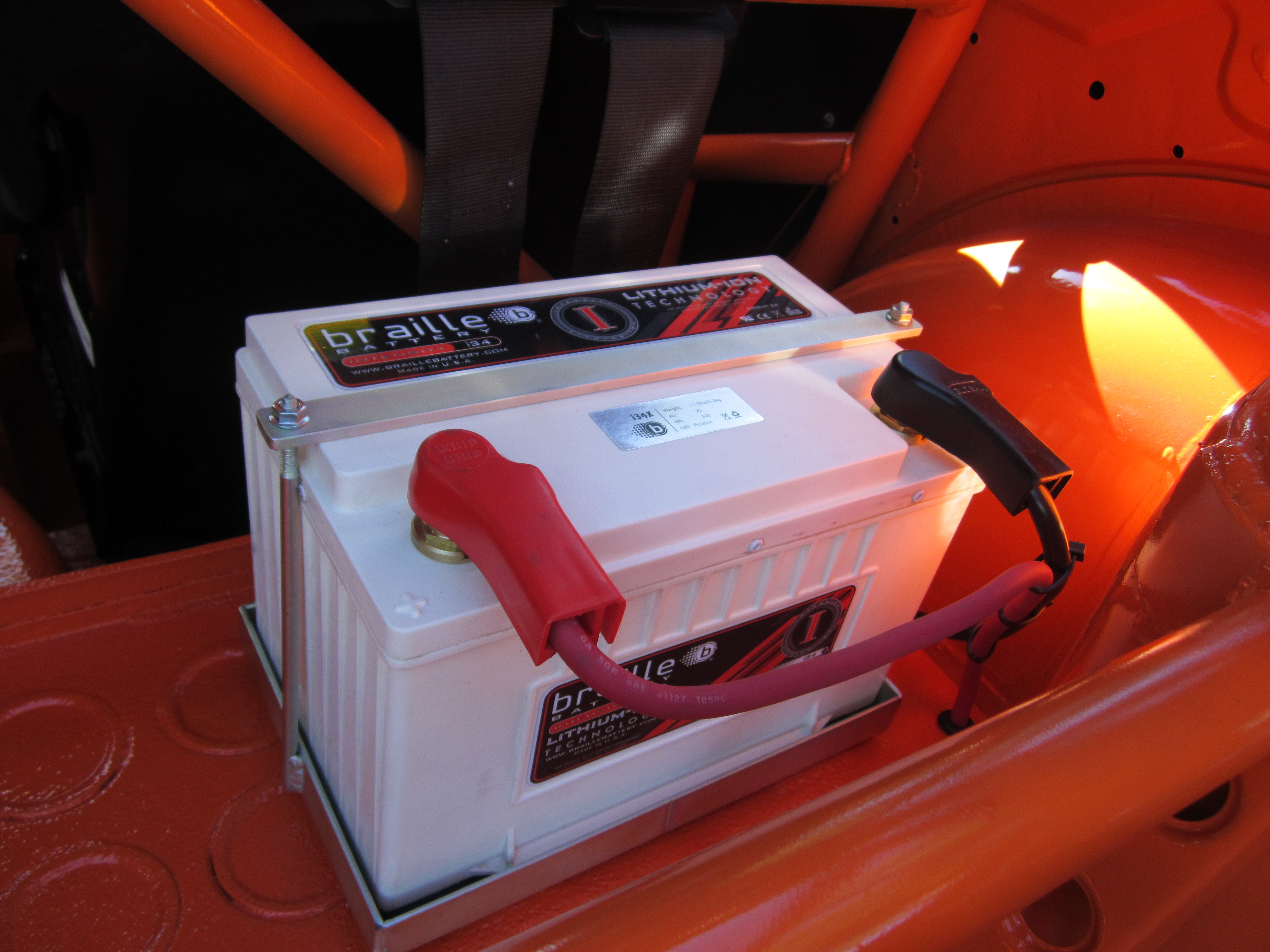

A Braille battery from our friend Gary Savage sits behind the passenger seat:

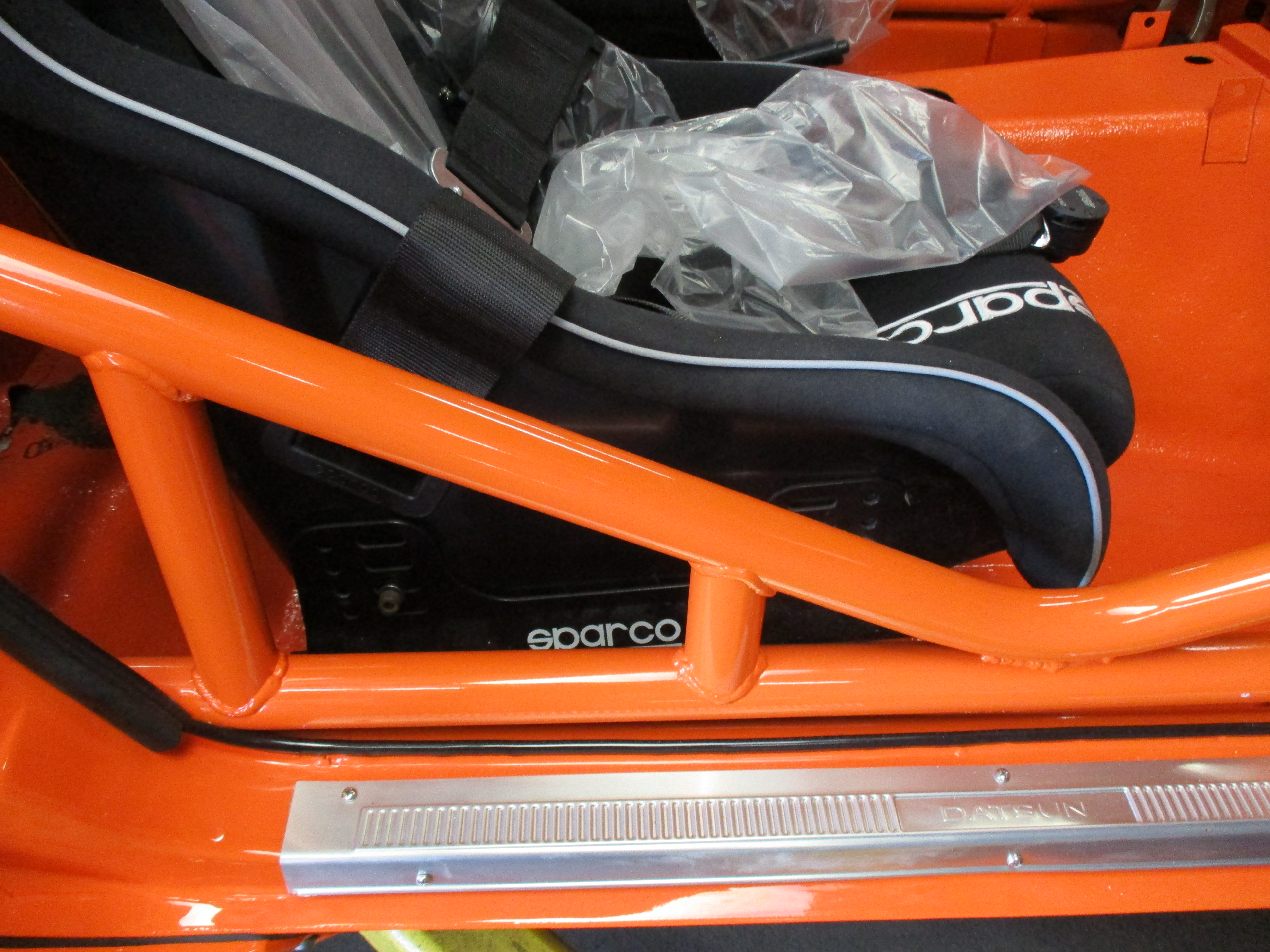

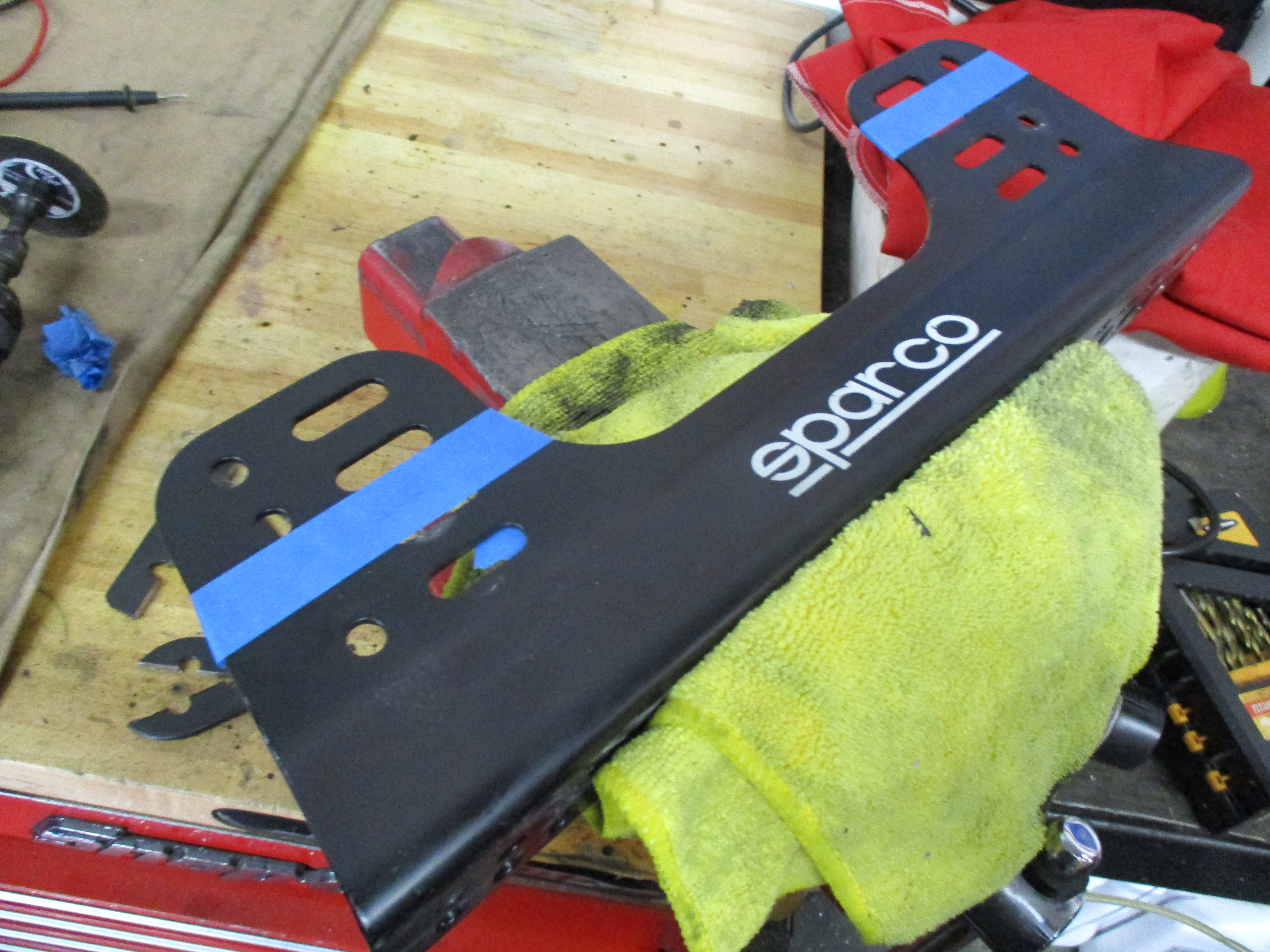

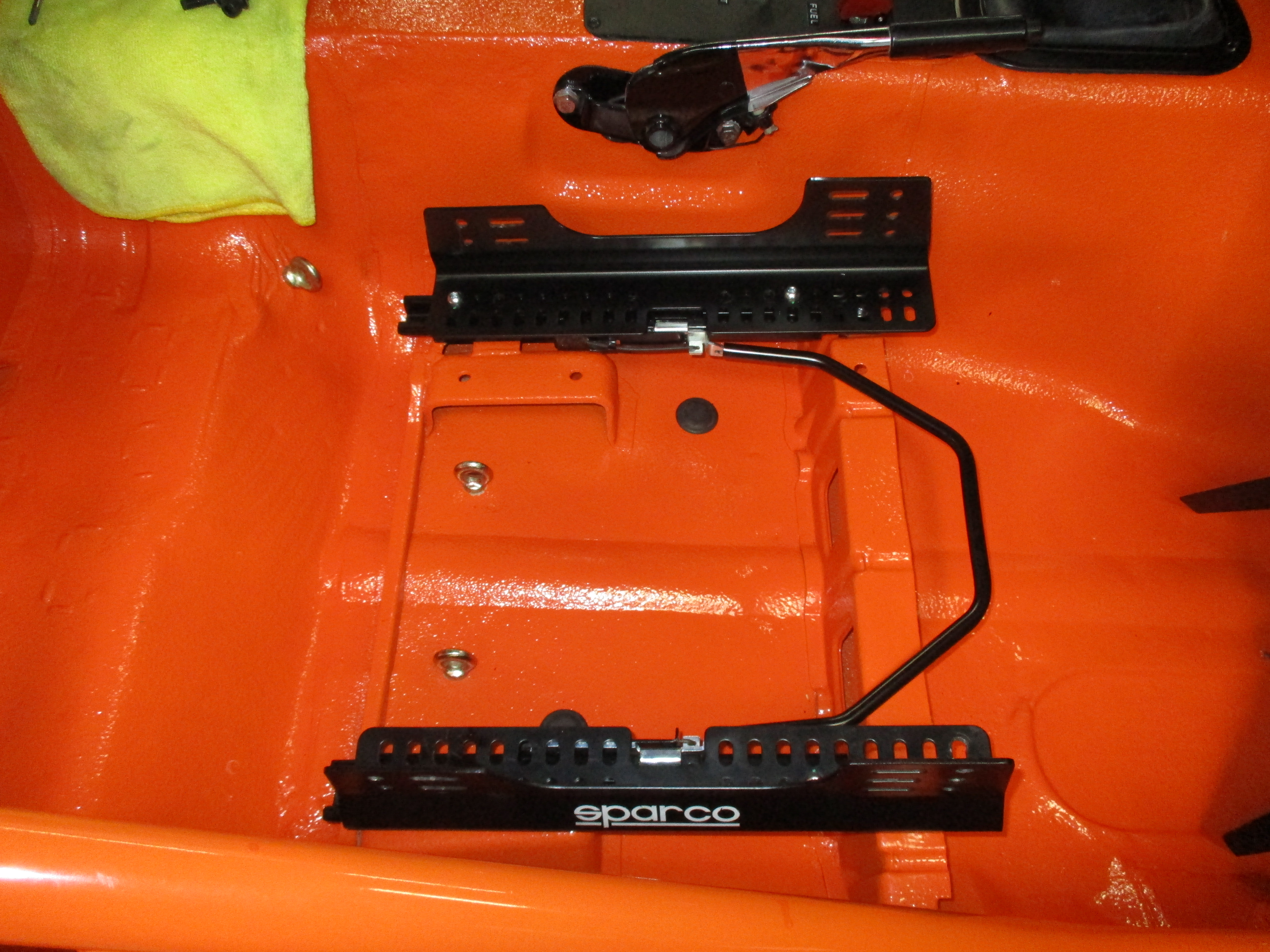

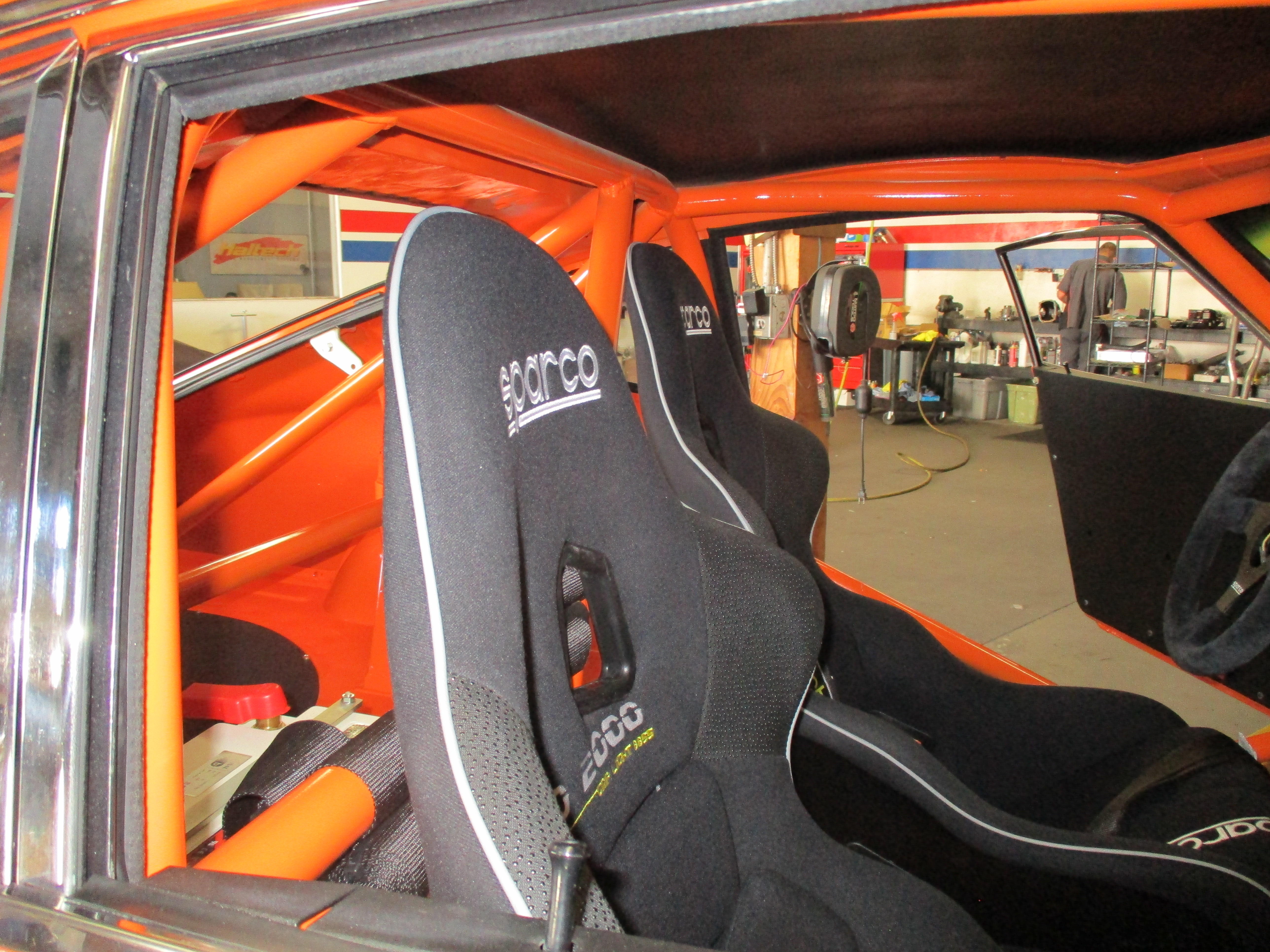

Sparco Pro 2000 seats:

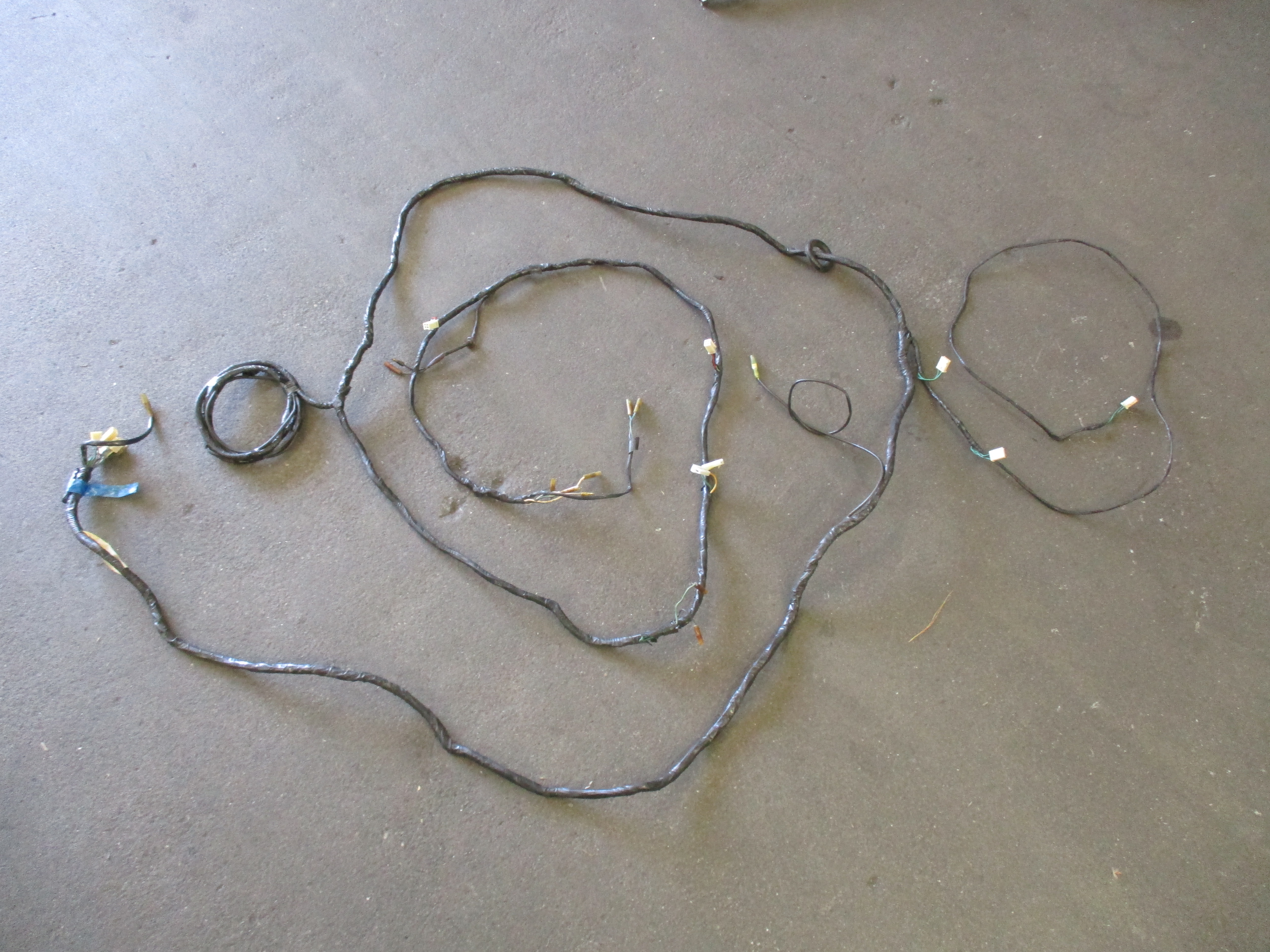

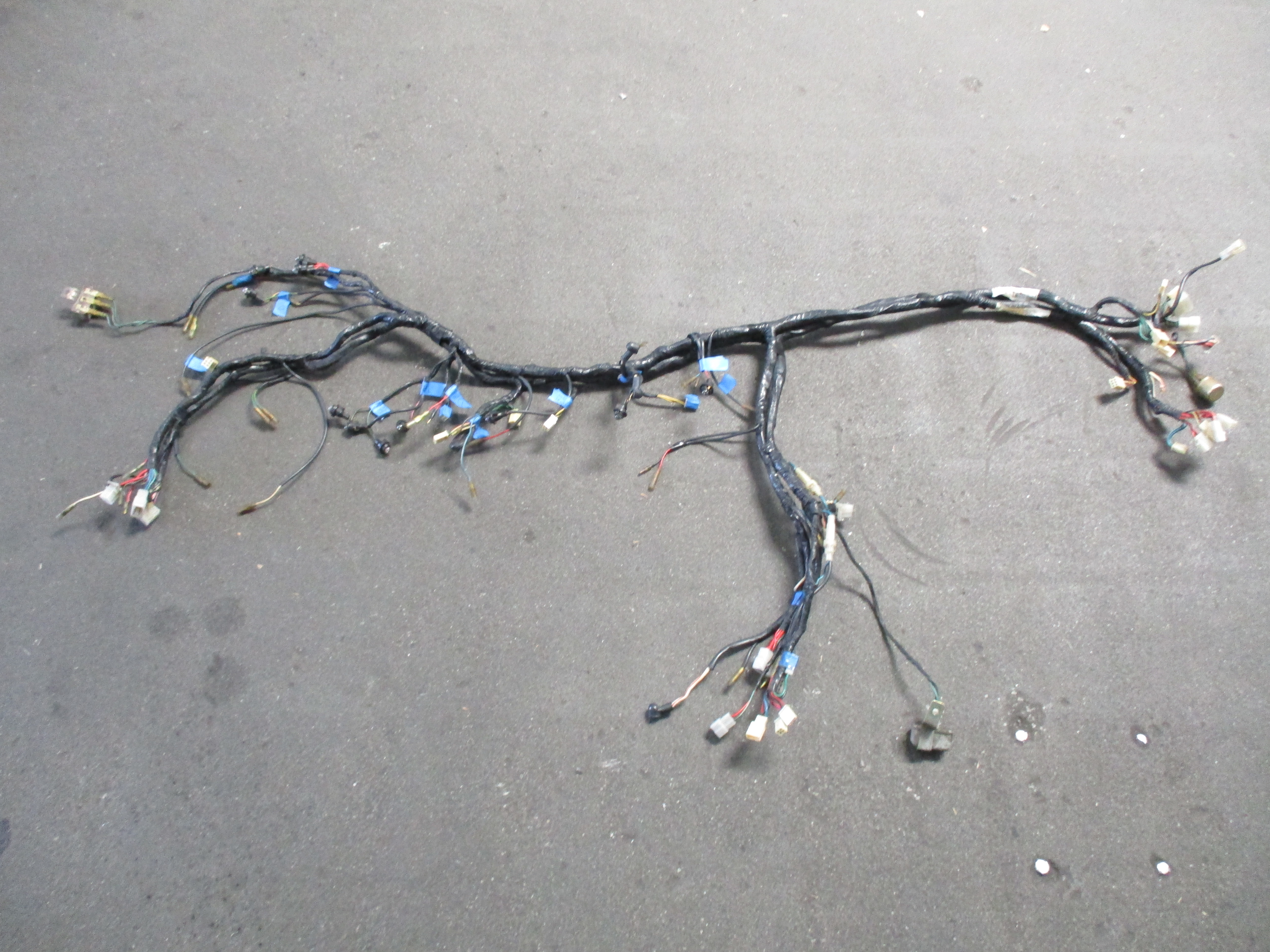

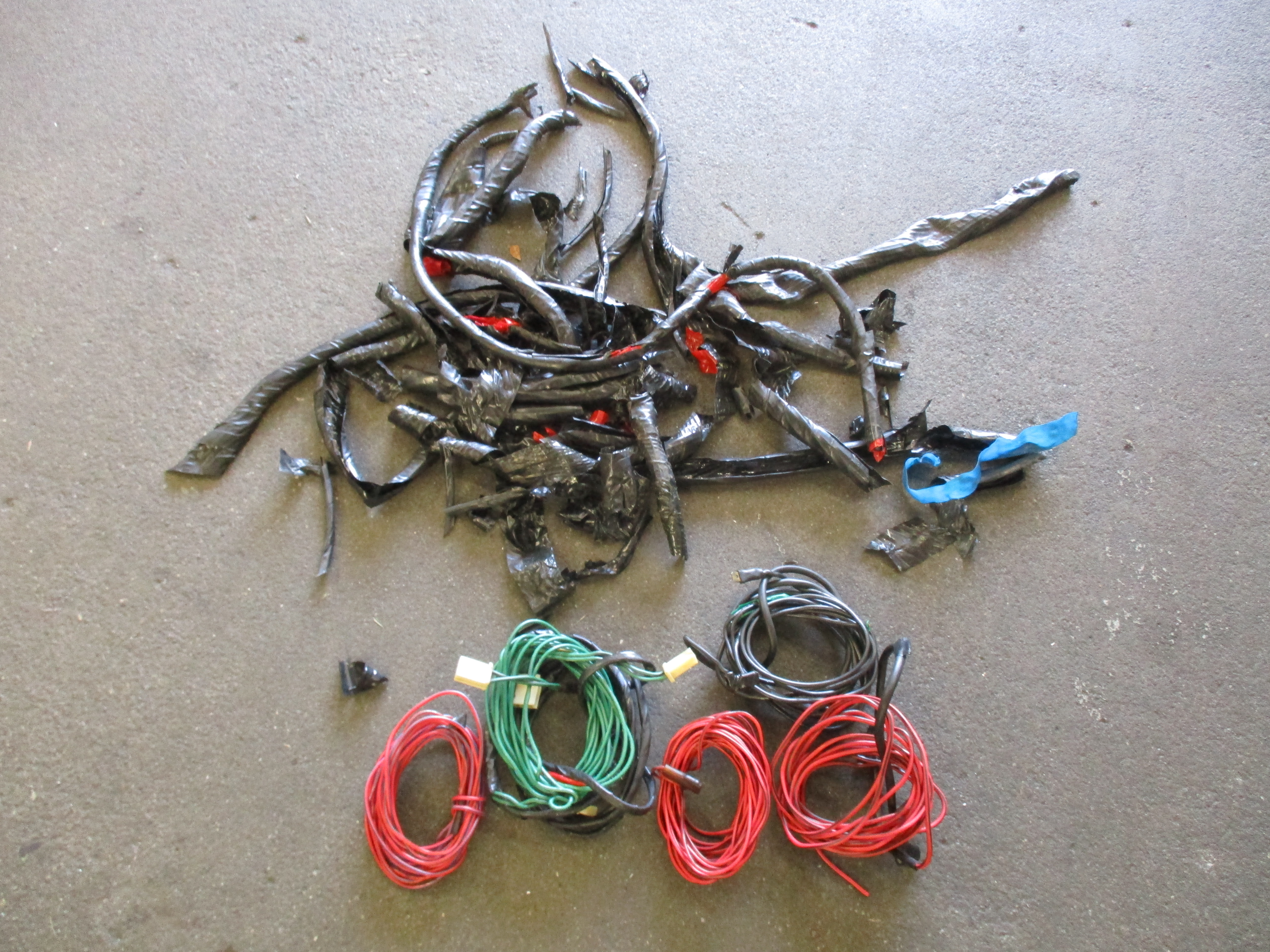

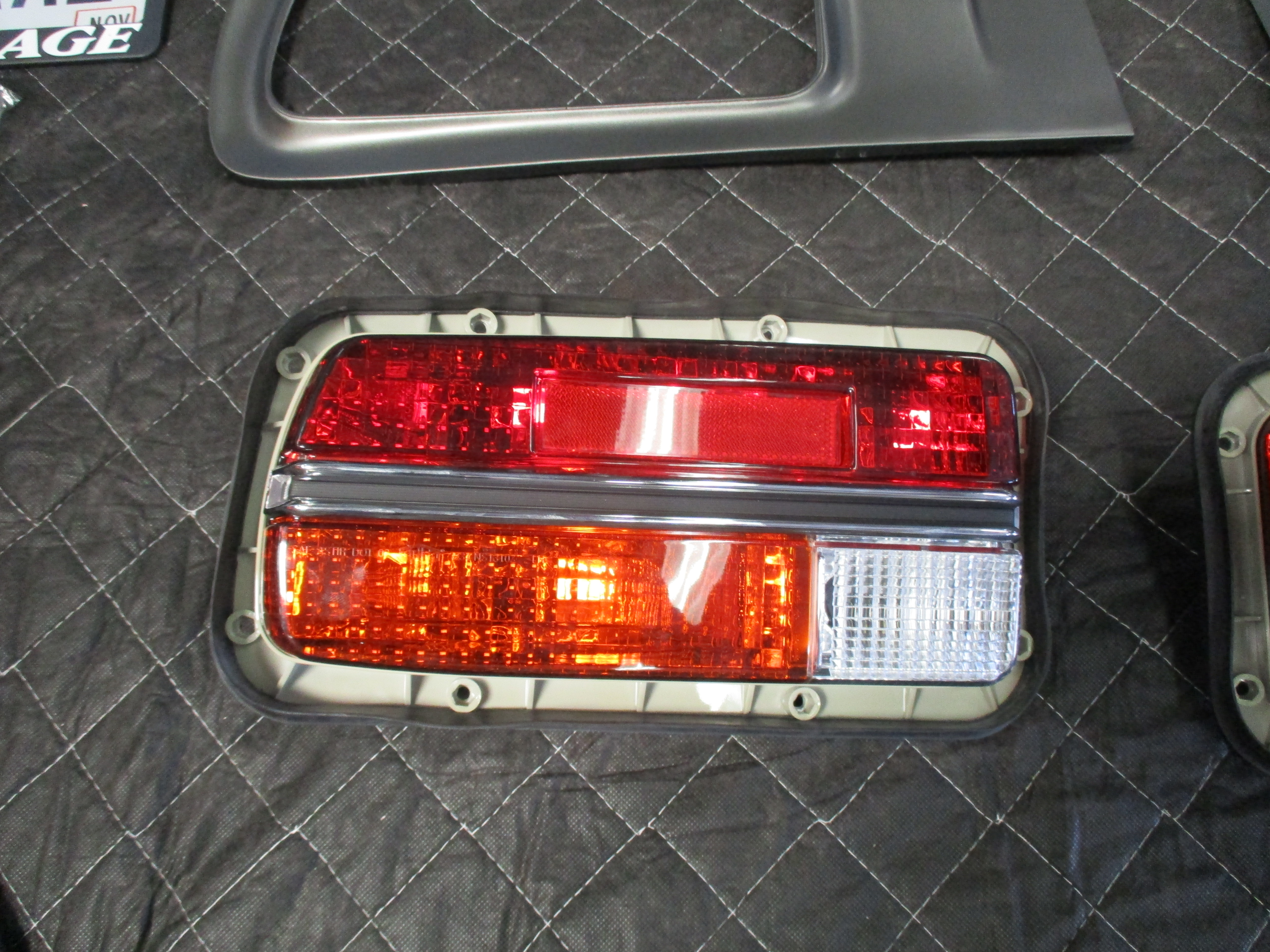

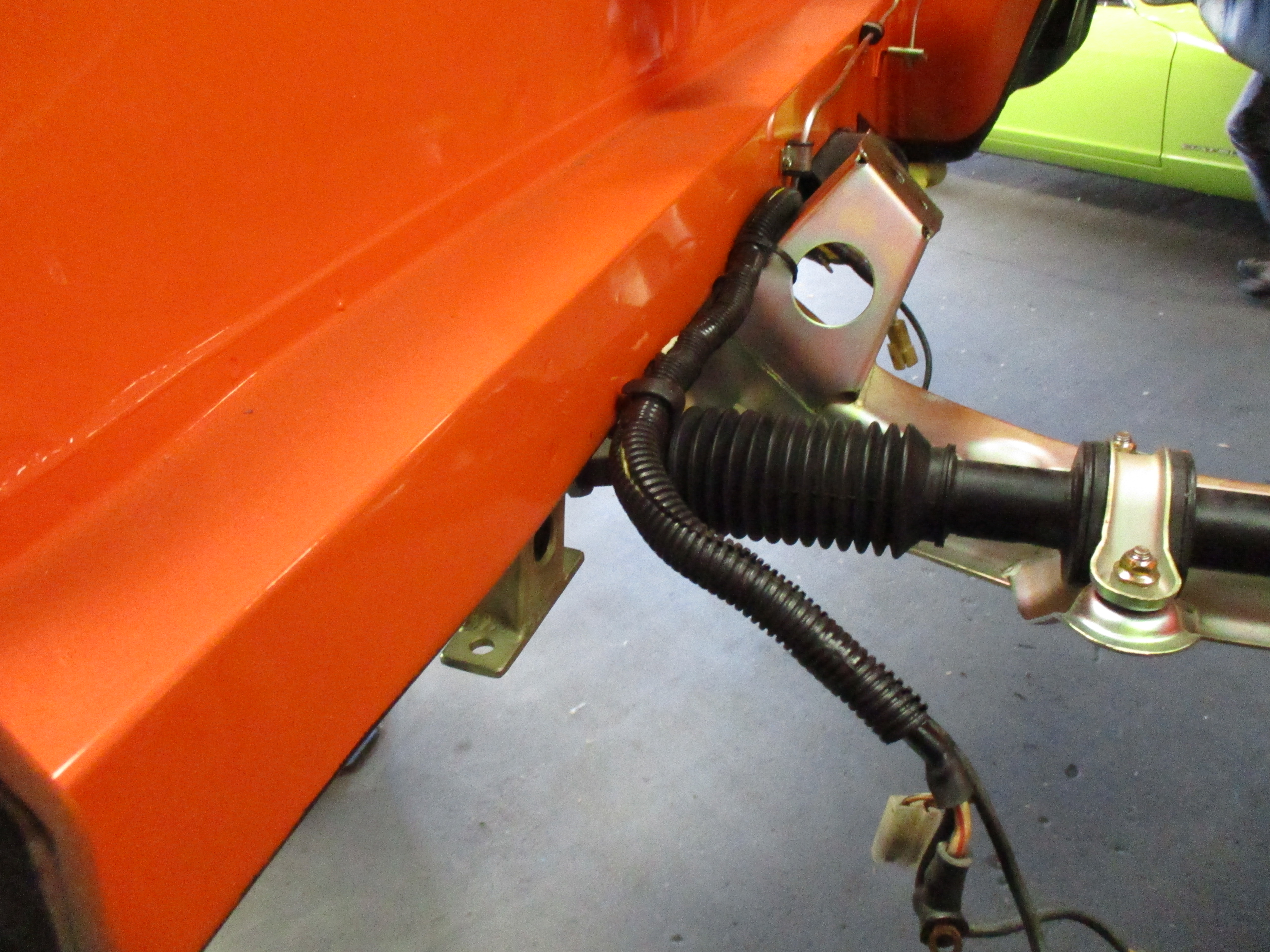

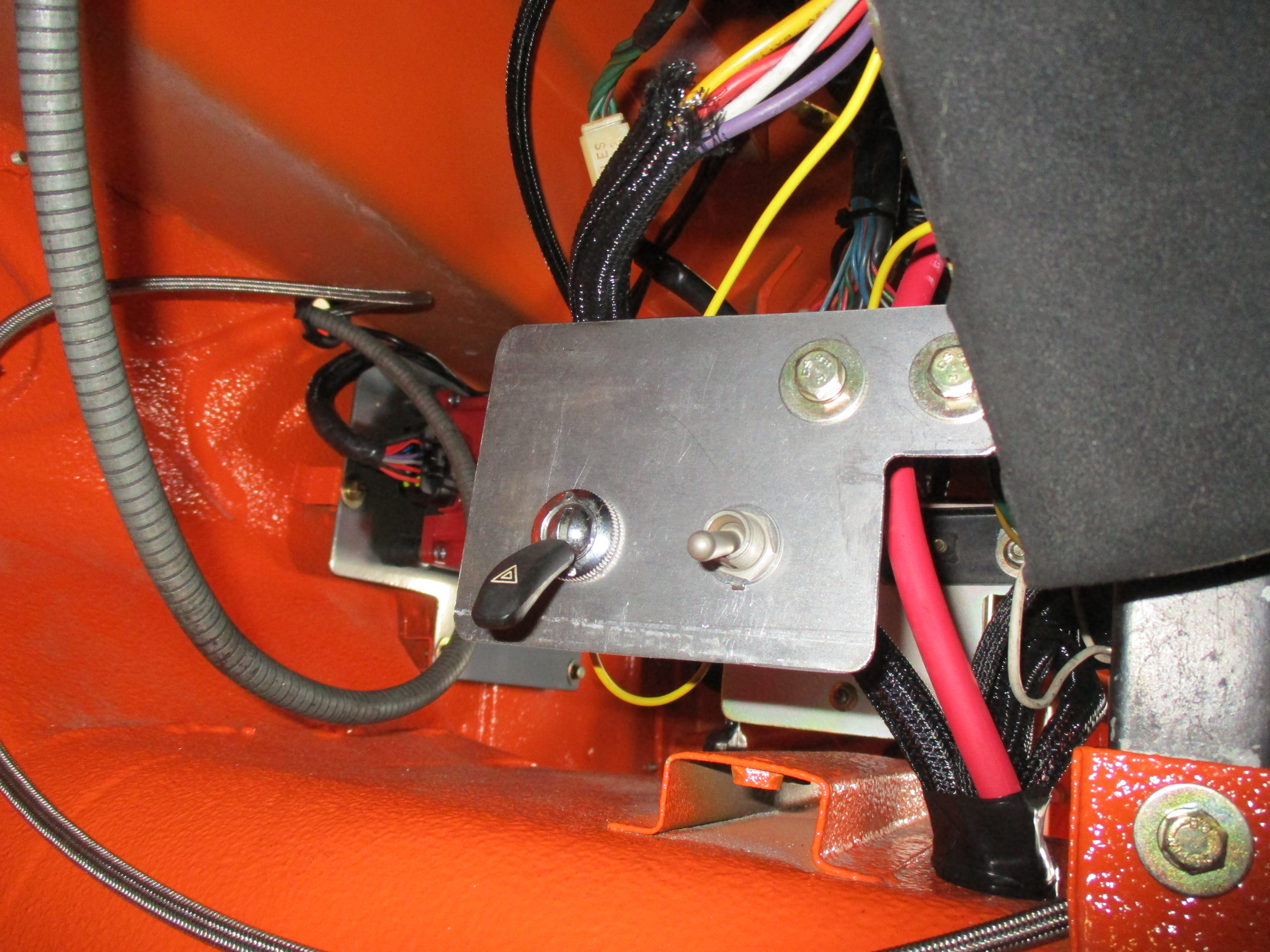

Chassis wiring for Euro-spec lights:

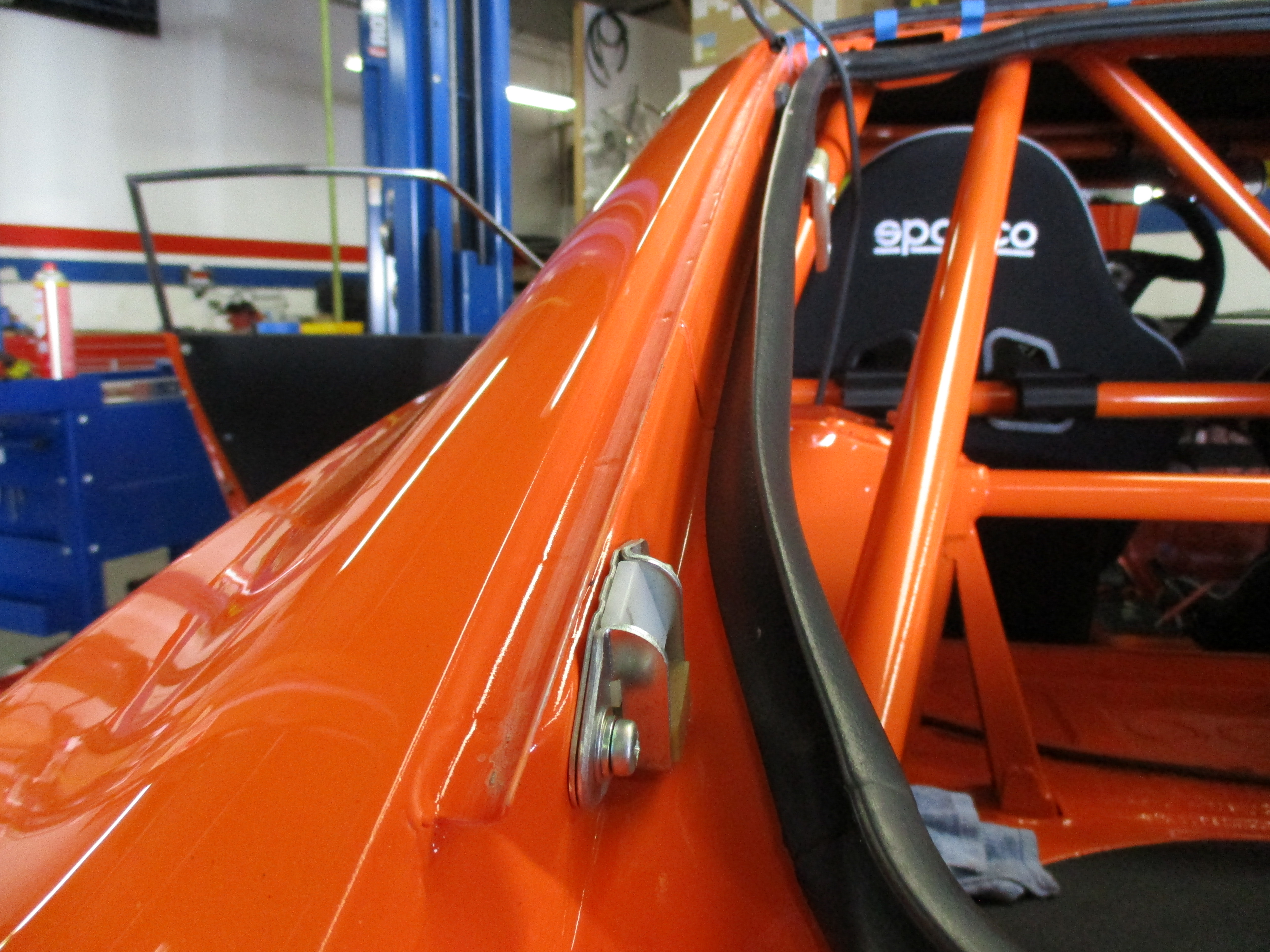

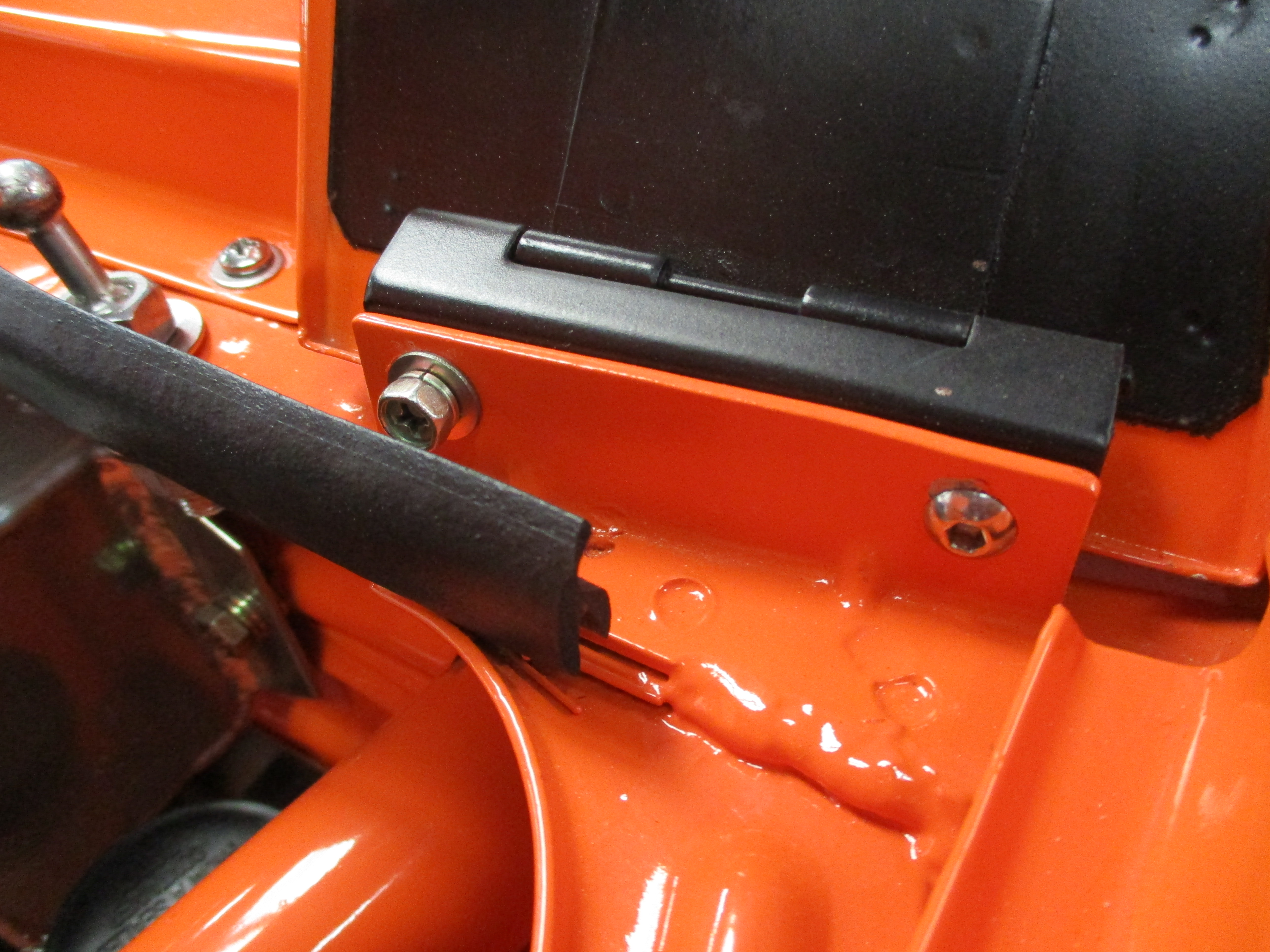

ZCG door seal upgrade with sound deadening panels. The Z was nearing completion.

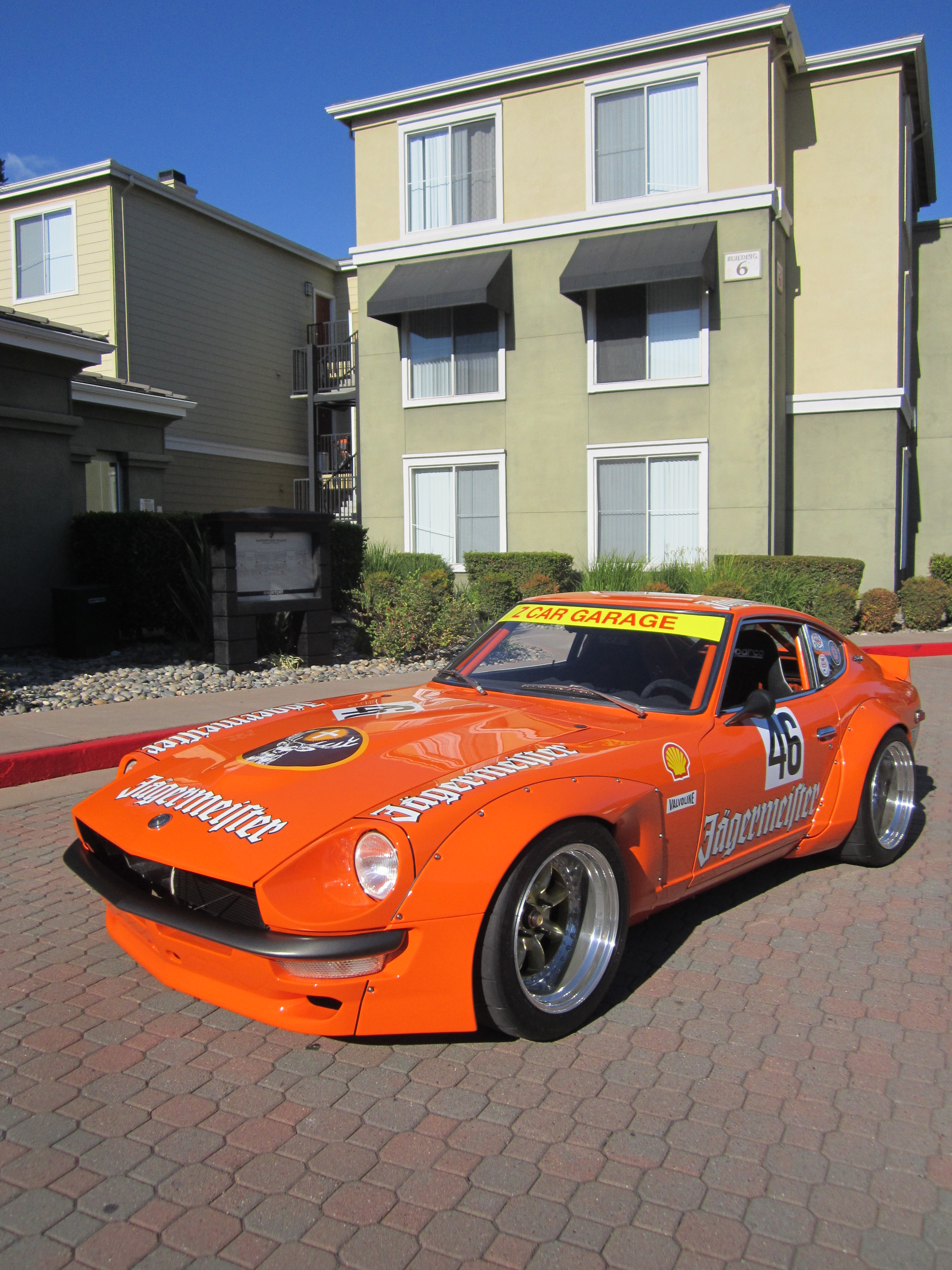

Enter the JGRBOMB

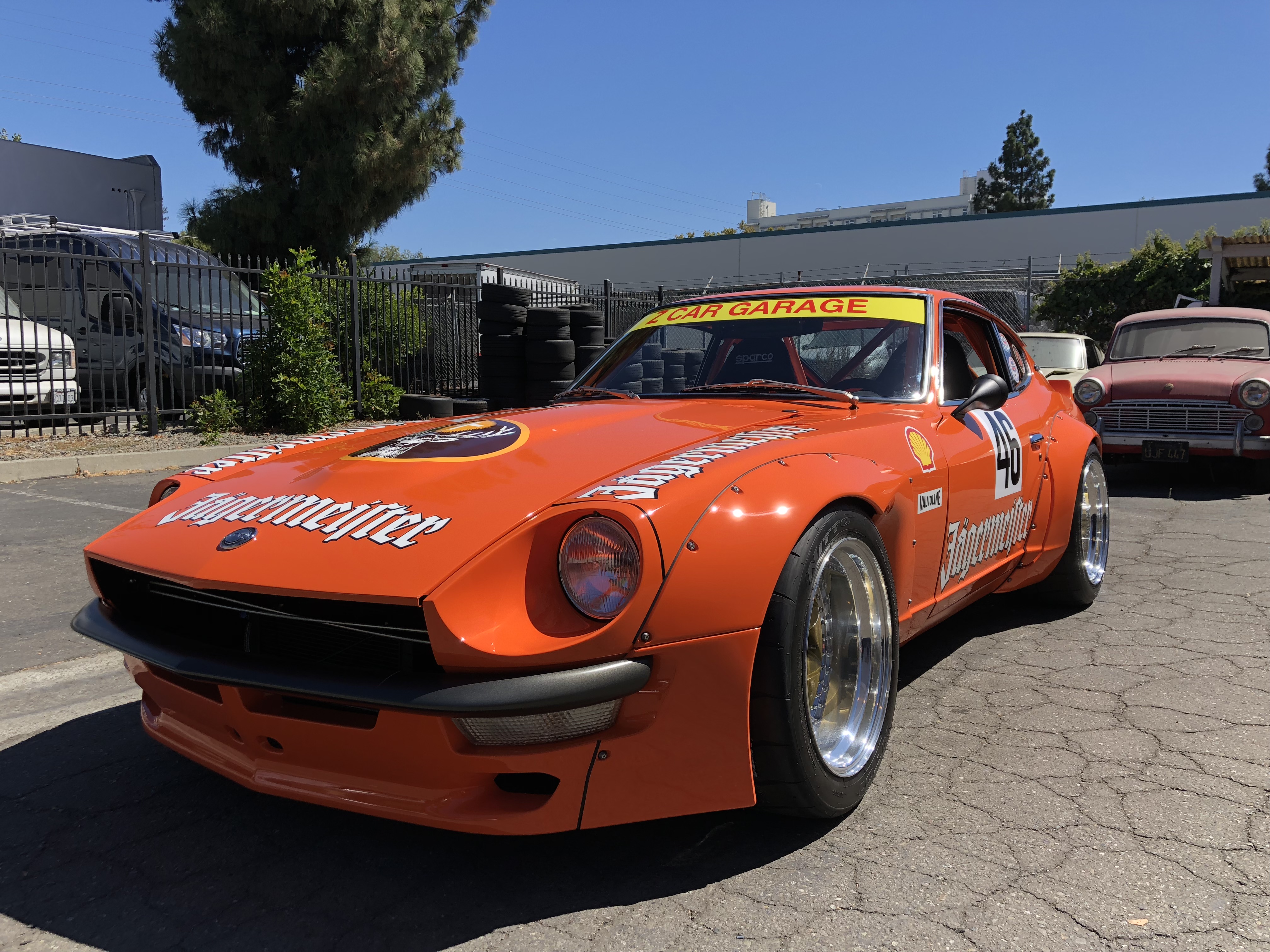

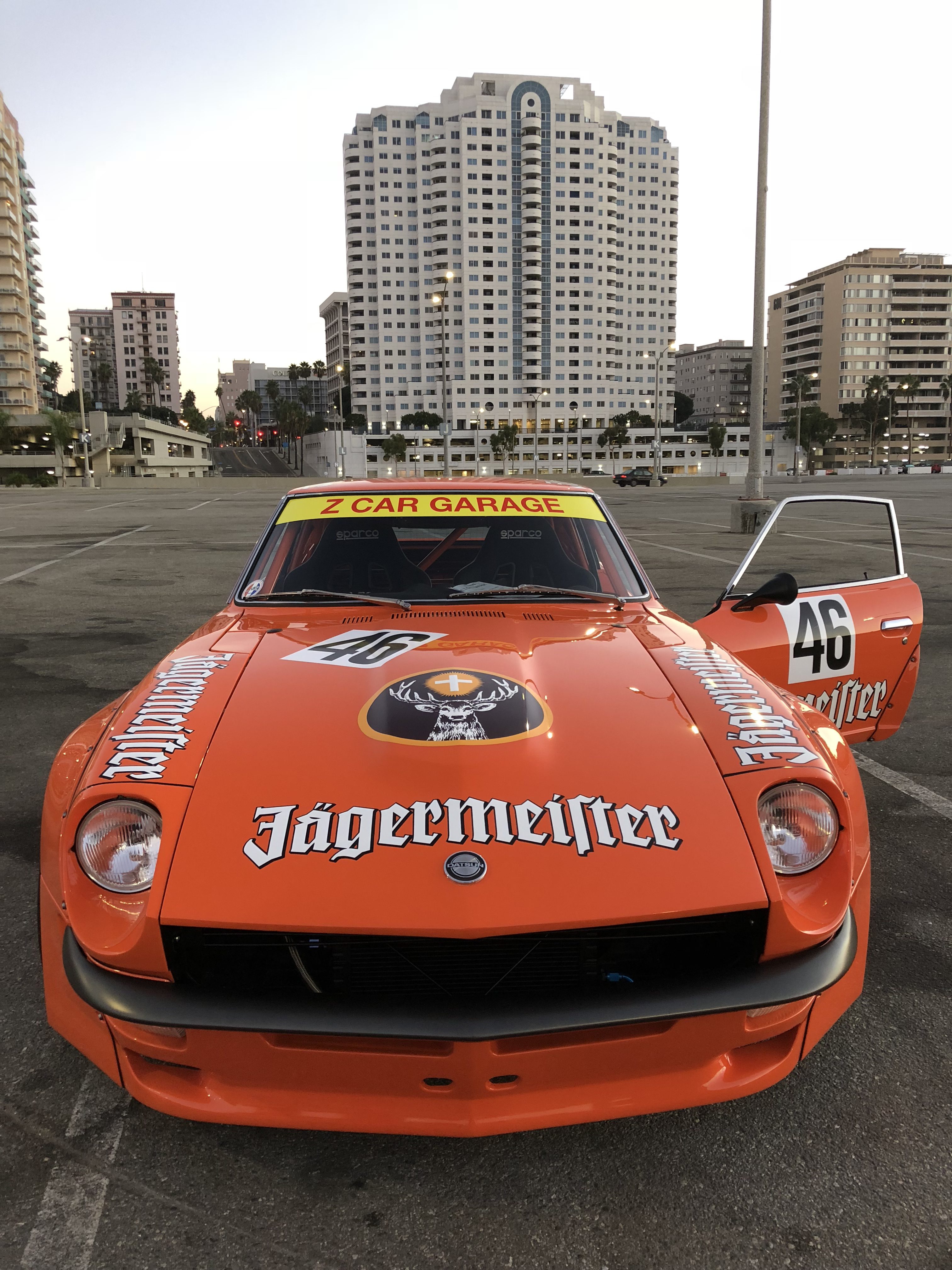

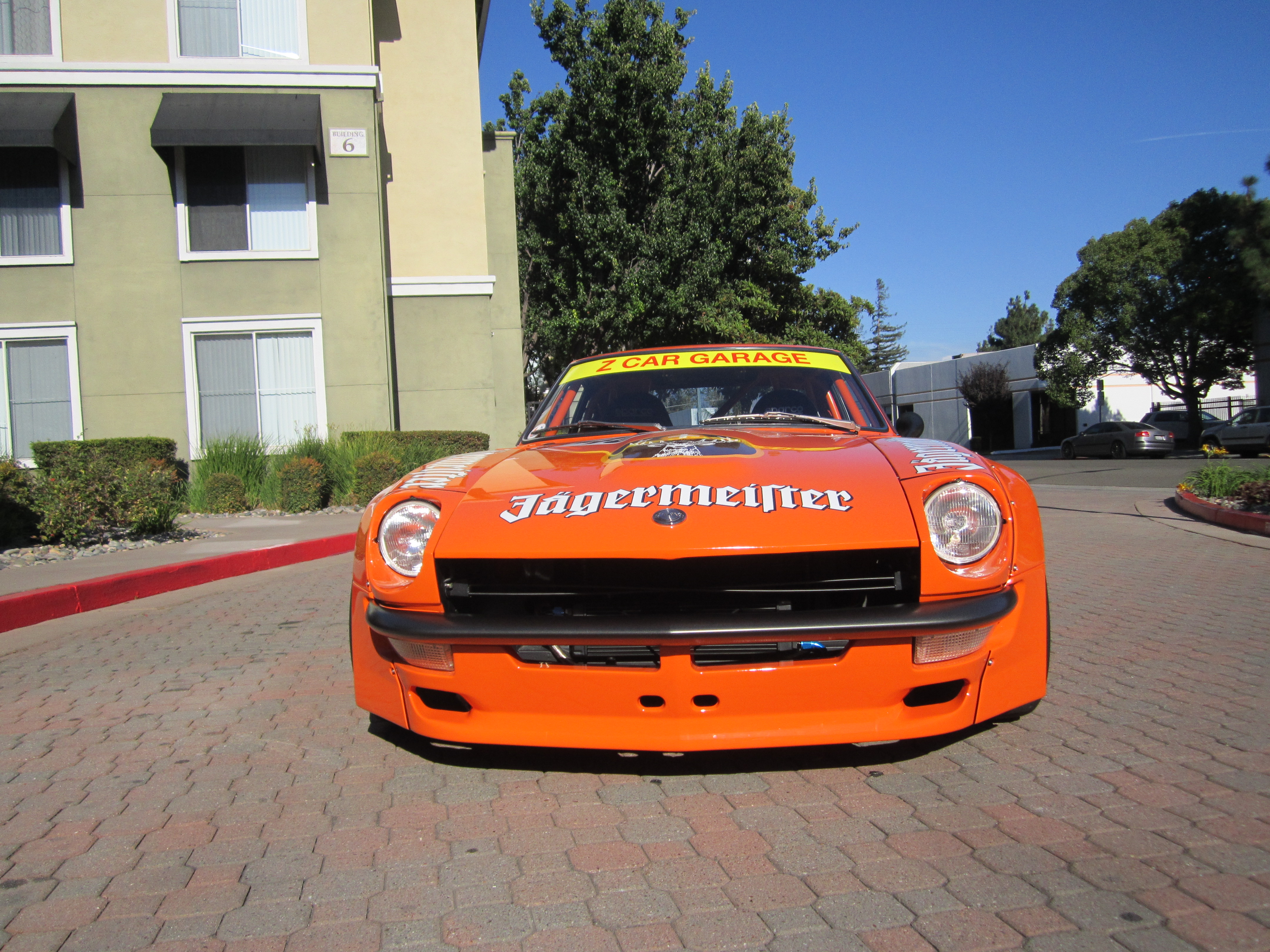

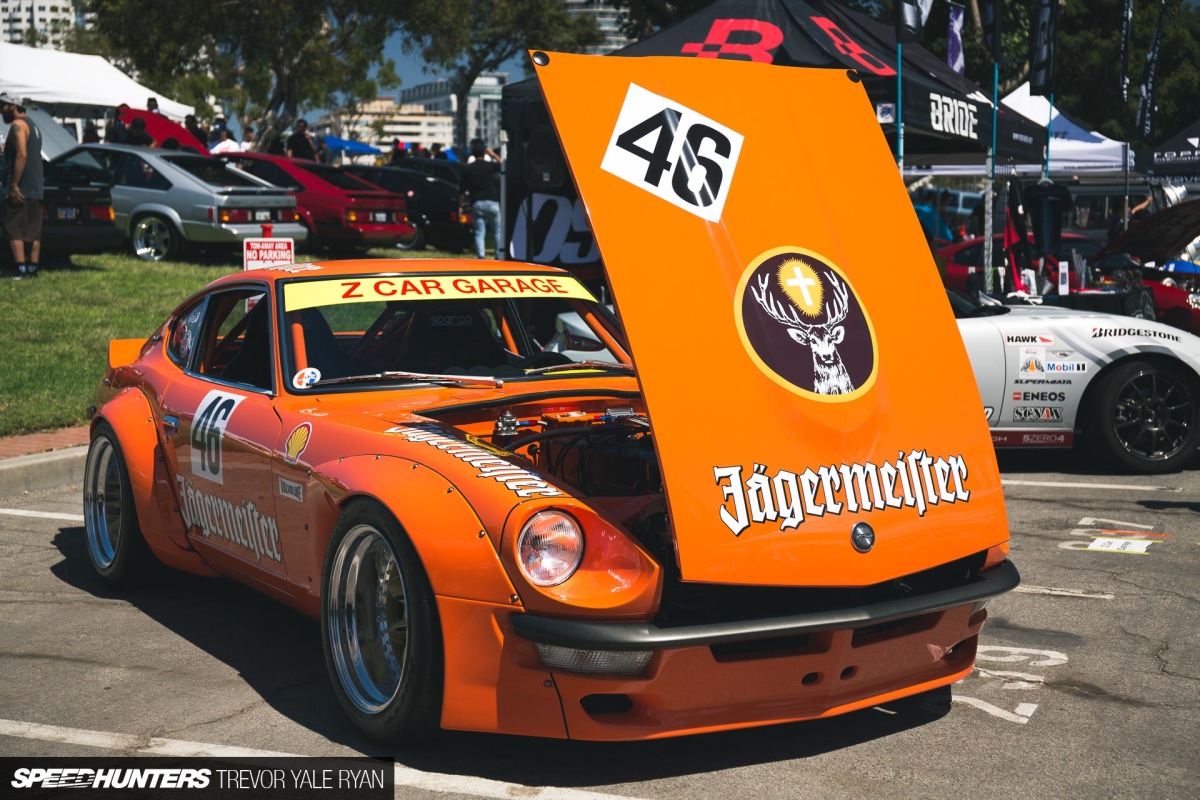

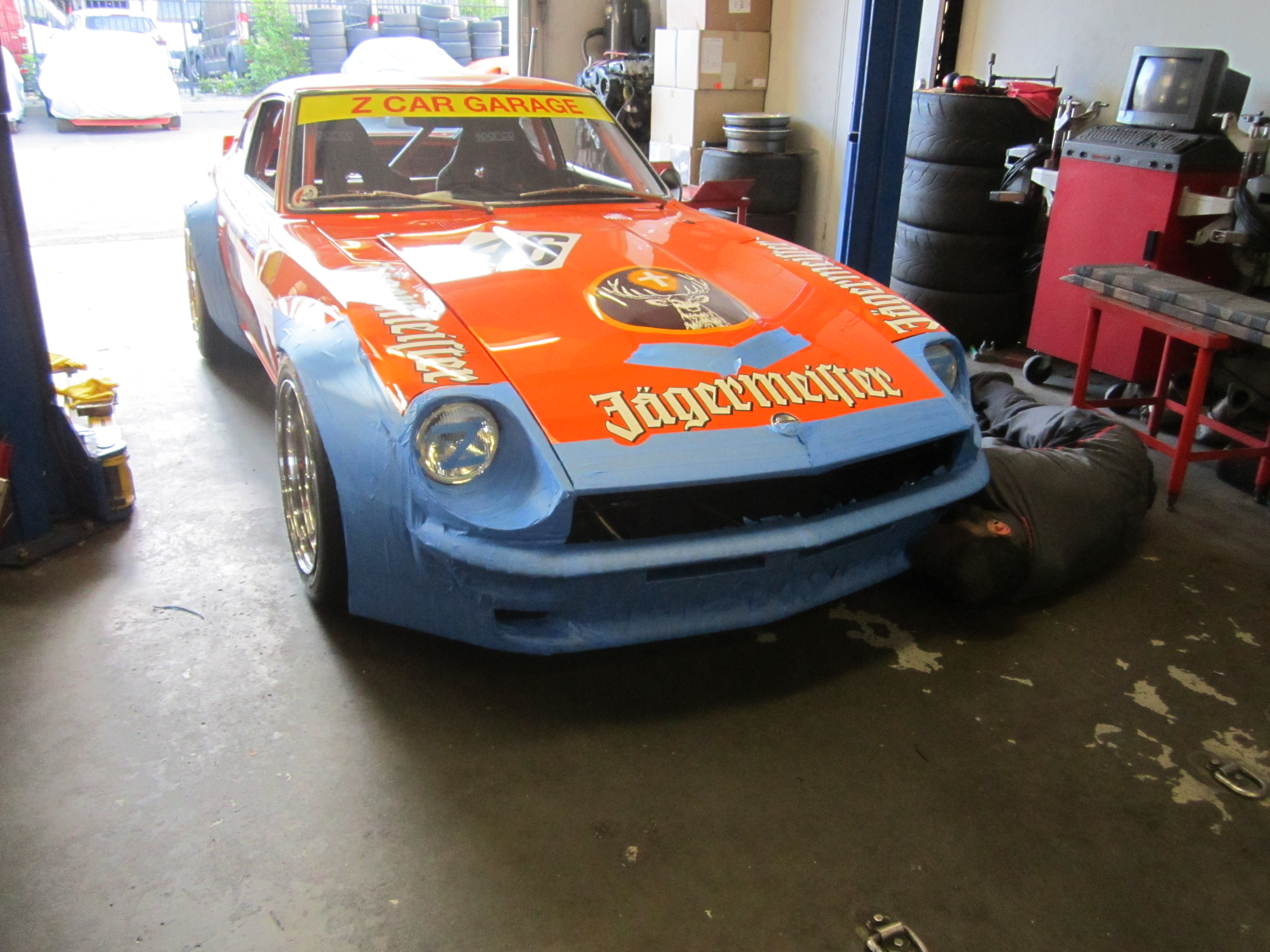

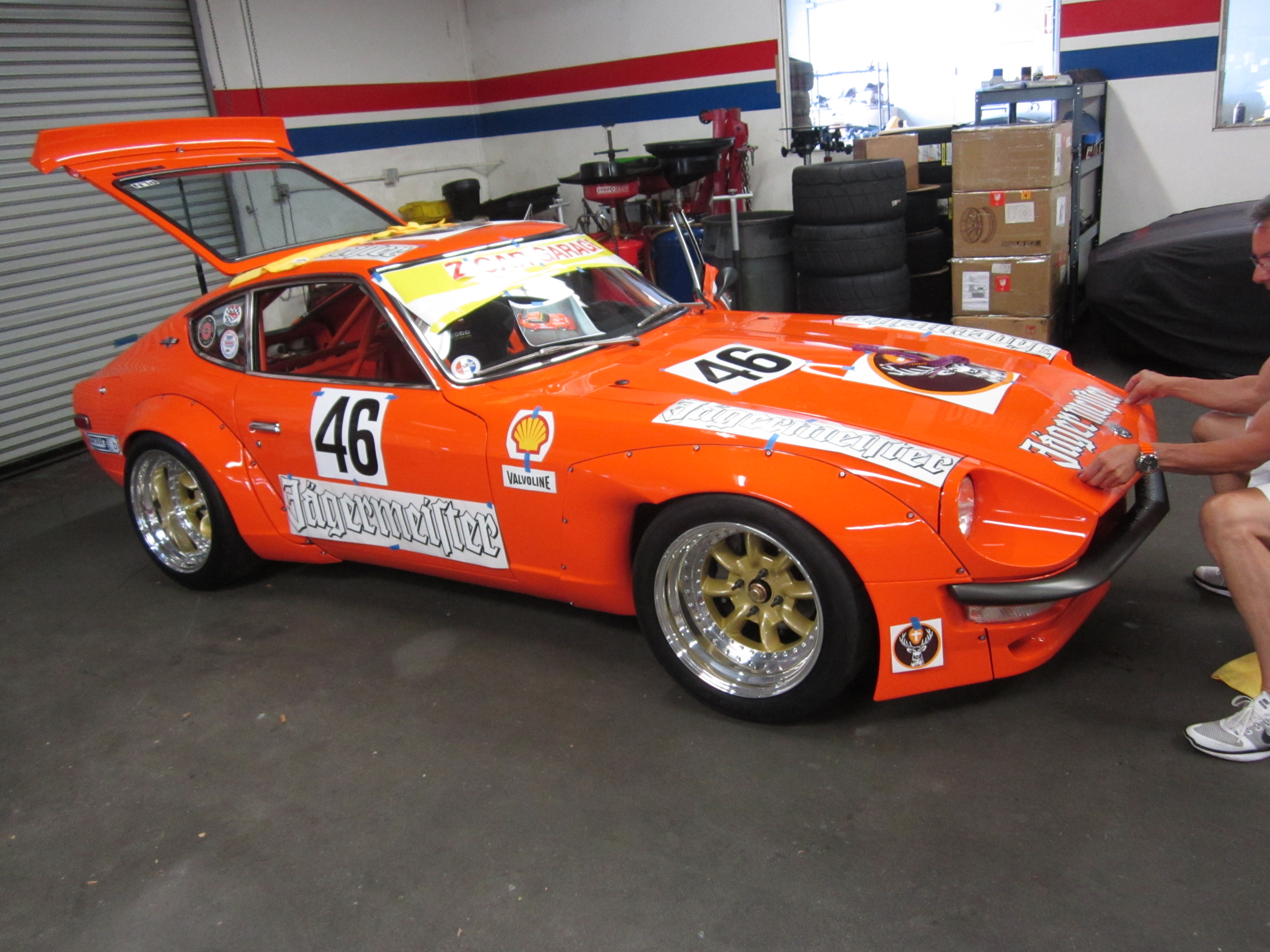

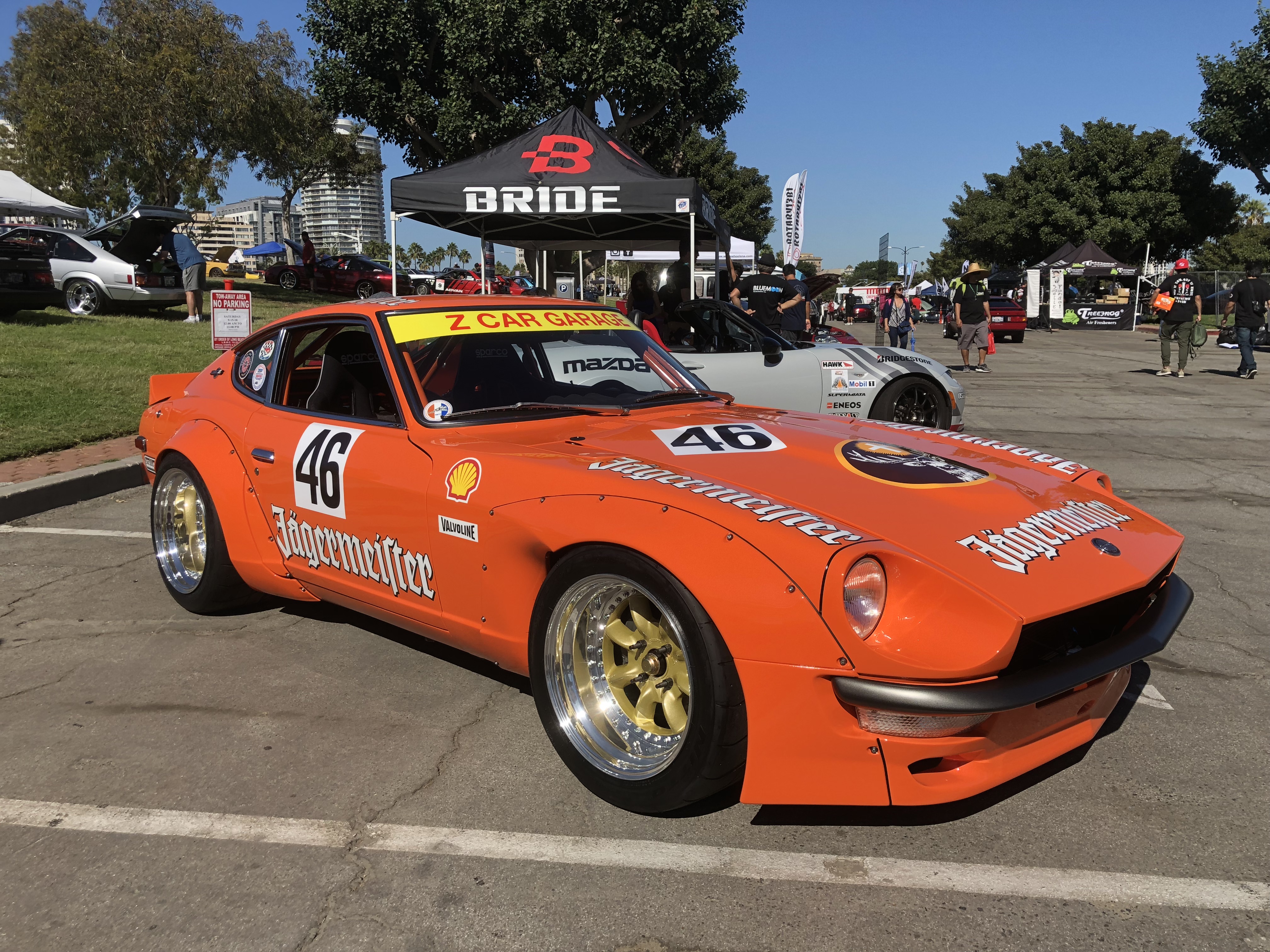

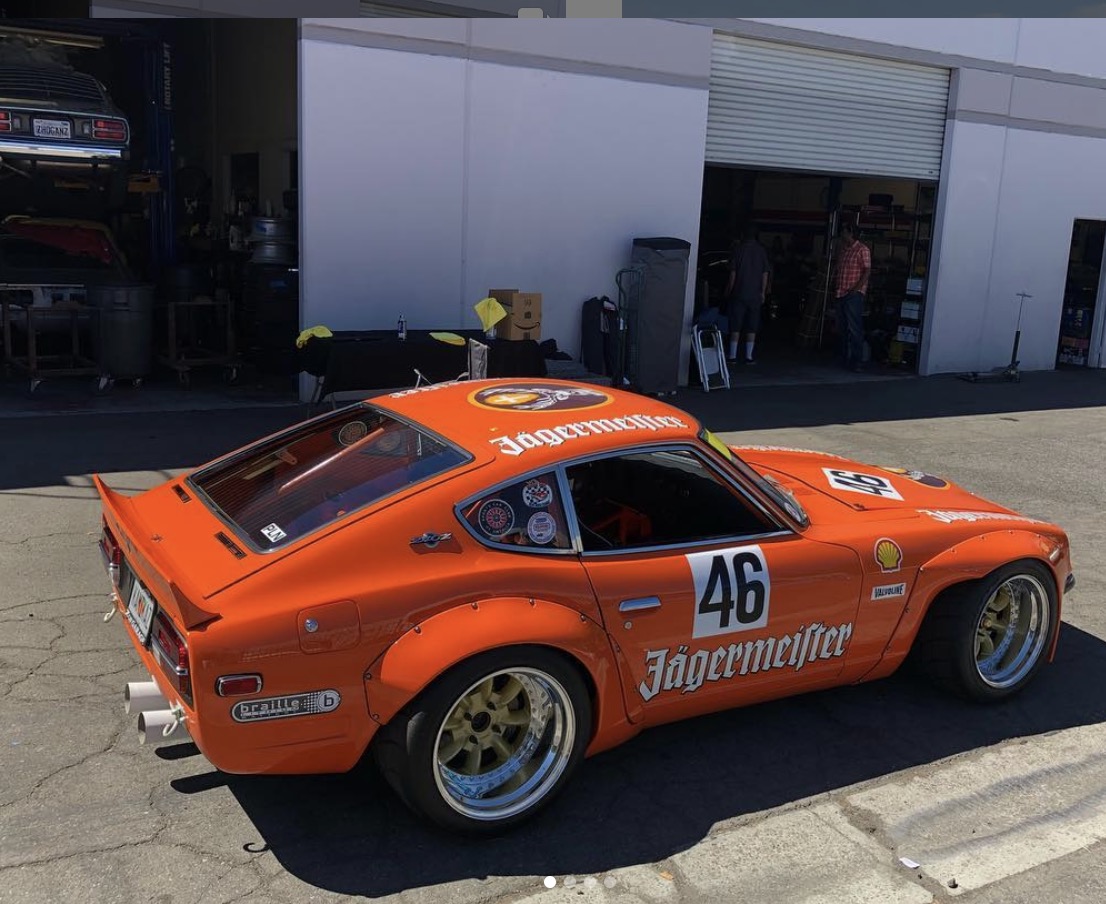

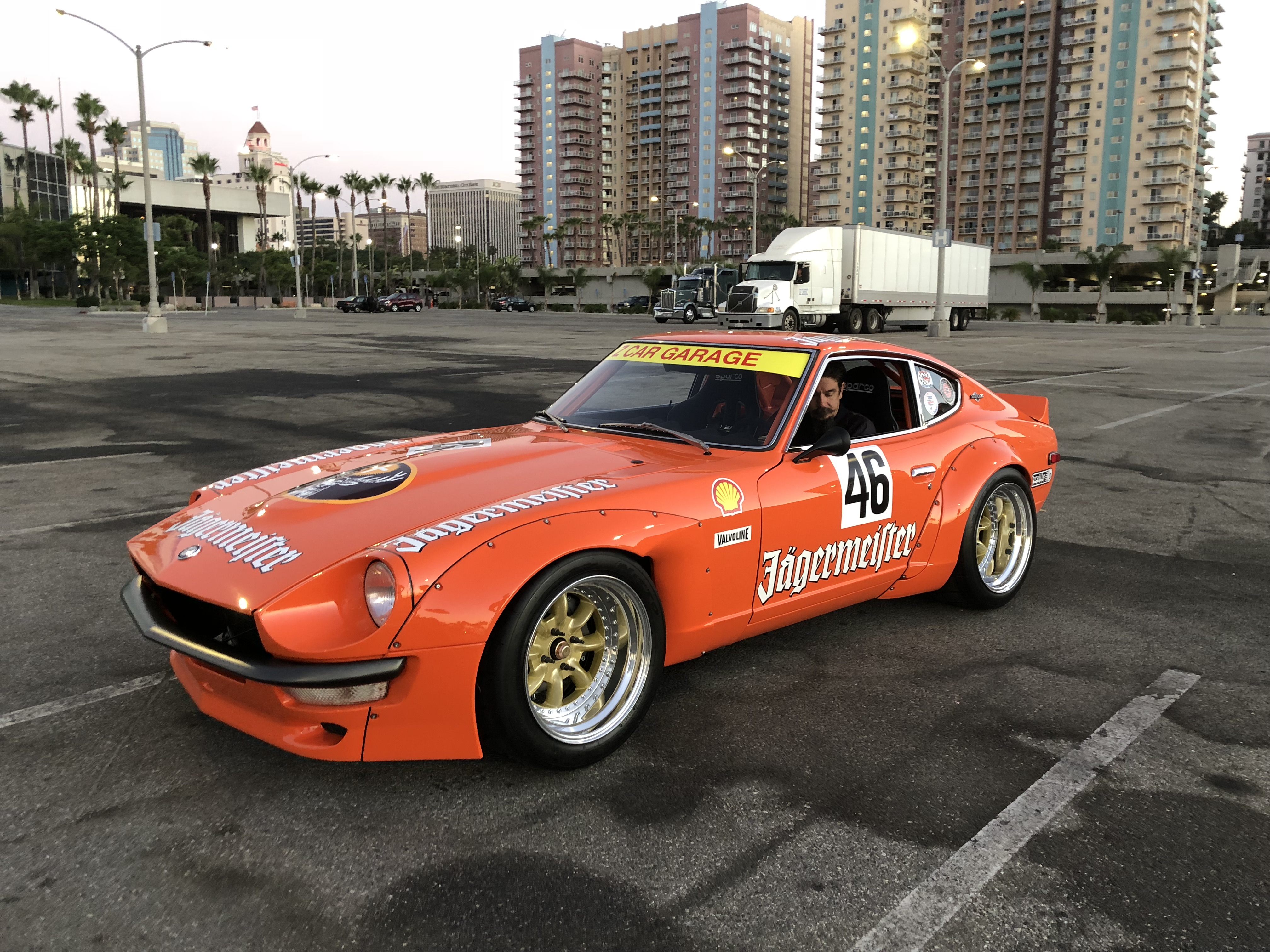

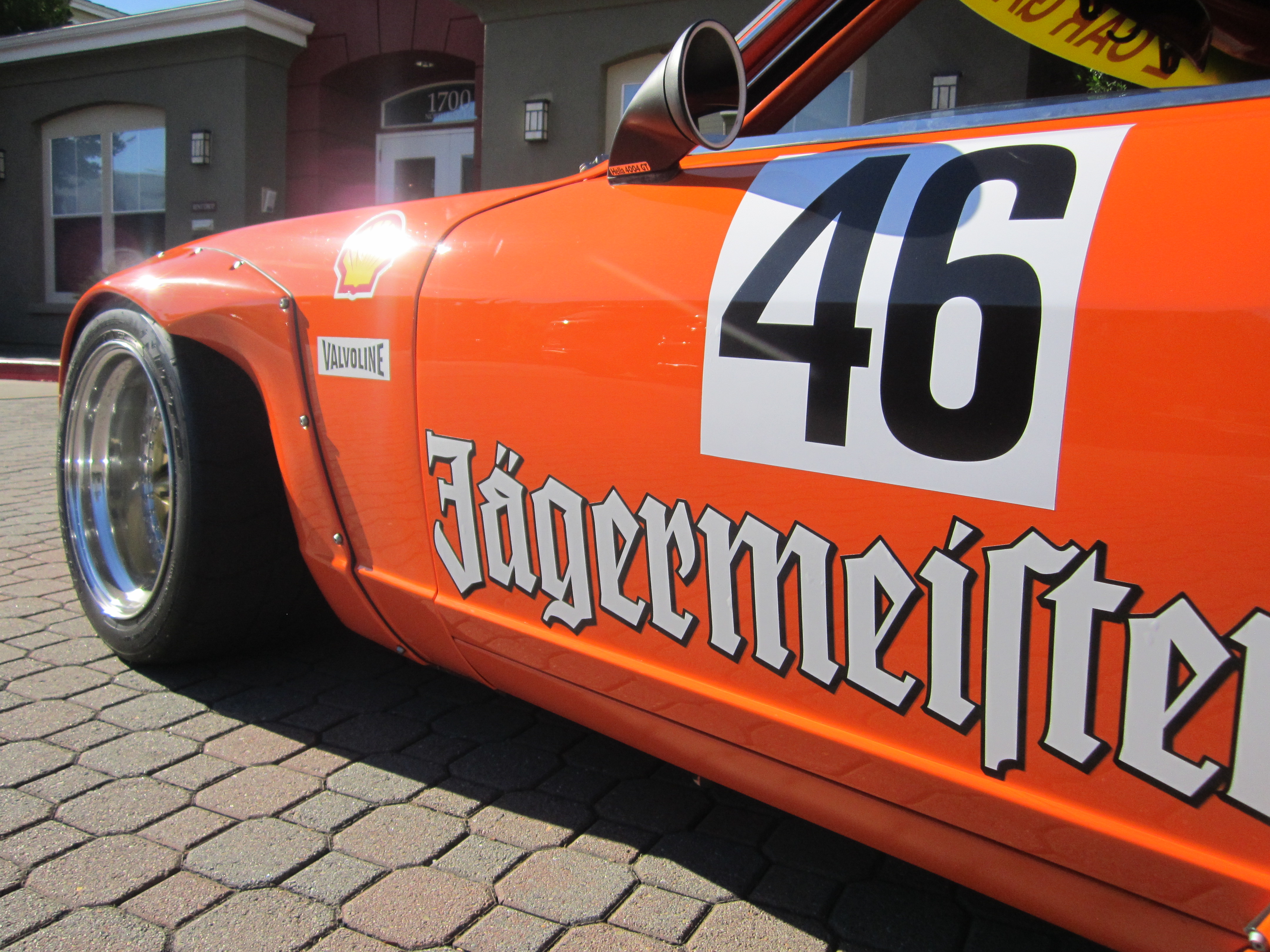

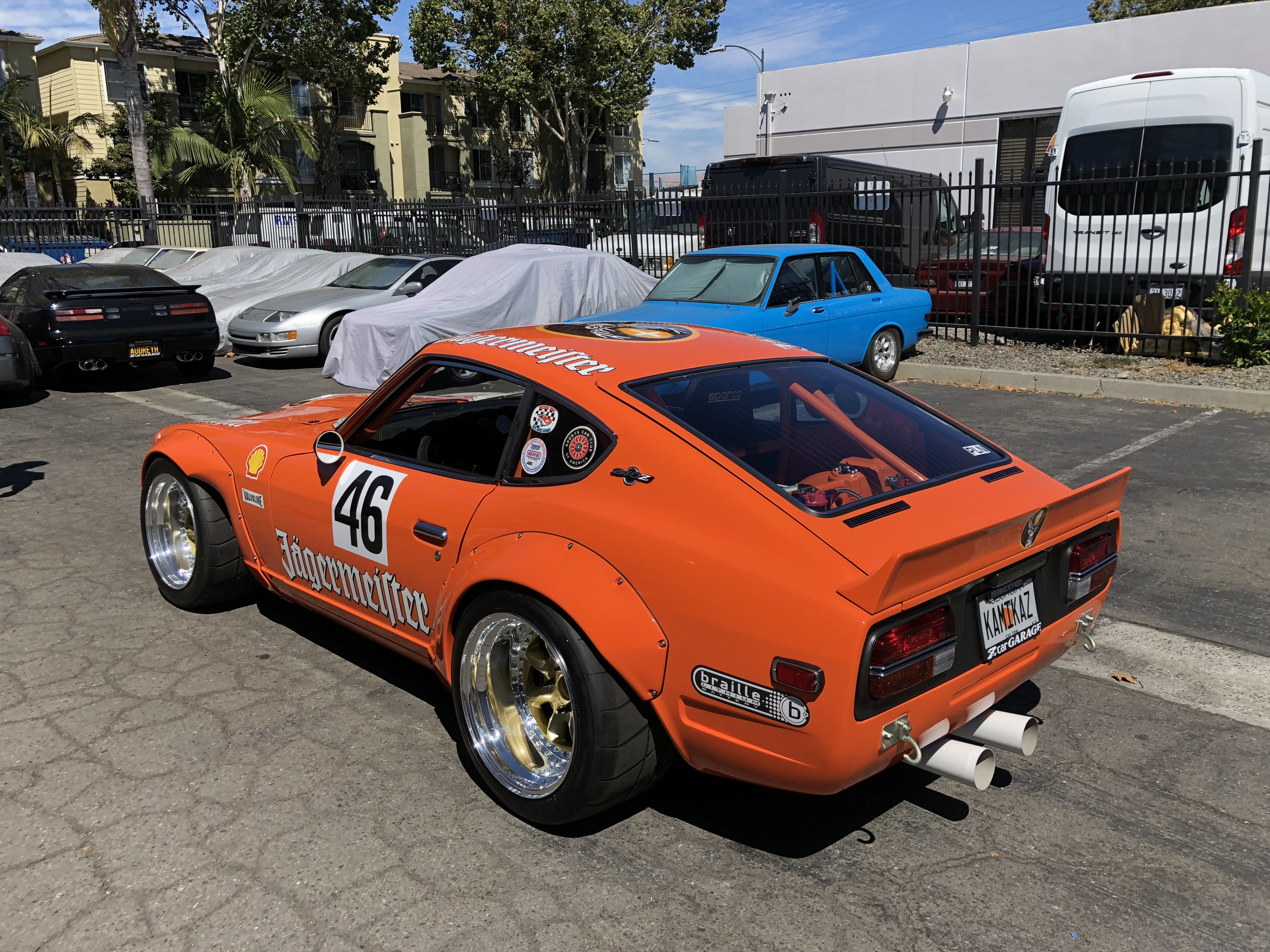

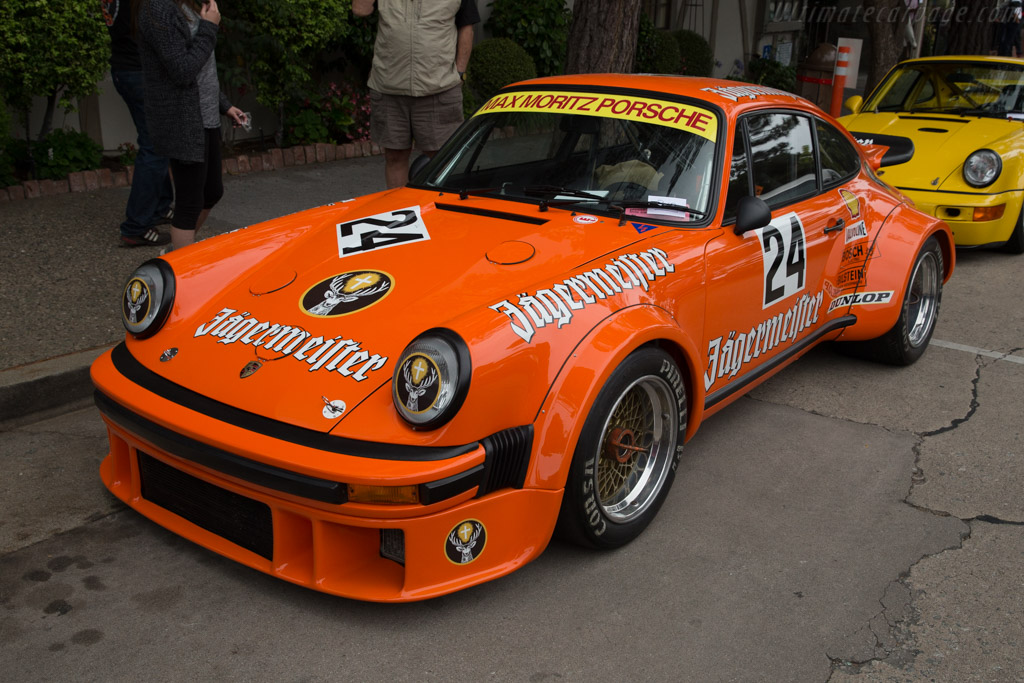

This was our quickest build to date so we could make a debut at the 2018 Japanese Classic Car Show in Long Beach, CA. The night before our roadtrip down to SoCal we applied a Jagermeister livery to the car. Randy’s inspiration came from his obsession with Porsche, and the Max Moritz Racing Porsche 934:



“I love race liveries and told the guys at the car garage I wanted to do the Jagermeister racing package on this car and they were not really hip to it but Bryson and I discussed it several times and we both thought it would take the car to the next level.  However I stuck with my gut and flew out to San Jose with the livery kit a few days before JCCS and after the first hood decal Rob and his guys were scratching their head thinking hmmm – This may not be a bad idea LOL.”

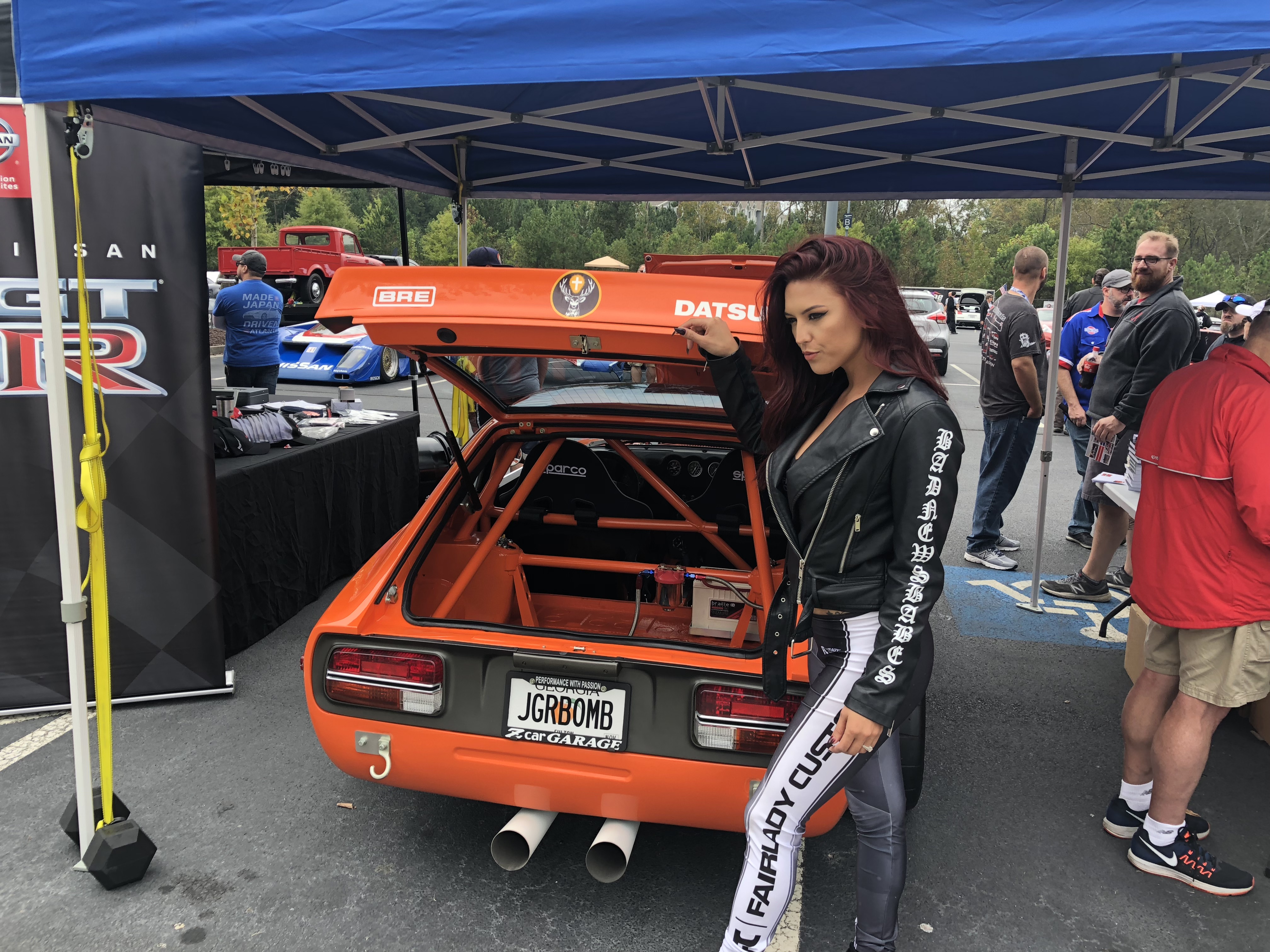

Rob and I finished applying the decals late in the night before going to Long Beach and we received a lot of positive feedback at that show and then the car came back to ZCon in Atlanta and won a Gold Cup award. The car was also shown at SEMA in 2018 where again the car received an immense amount of positive feedback.”

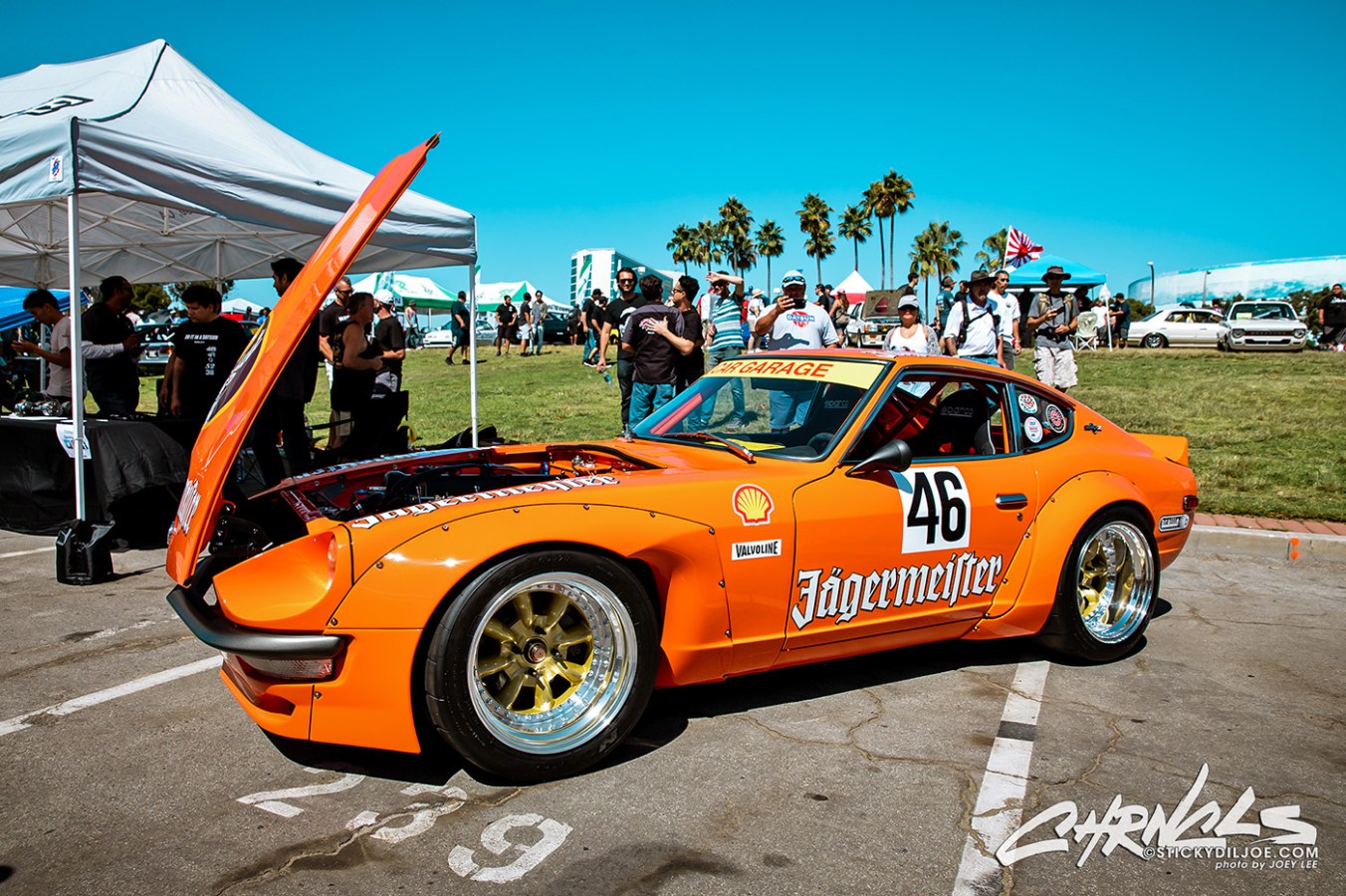

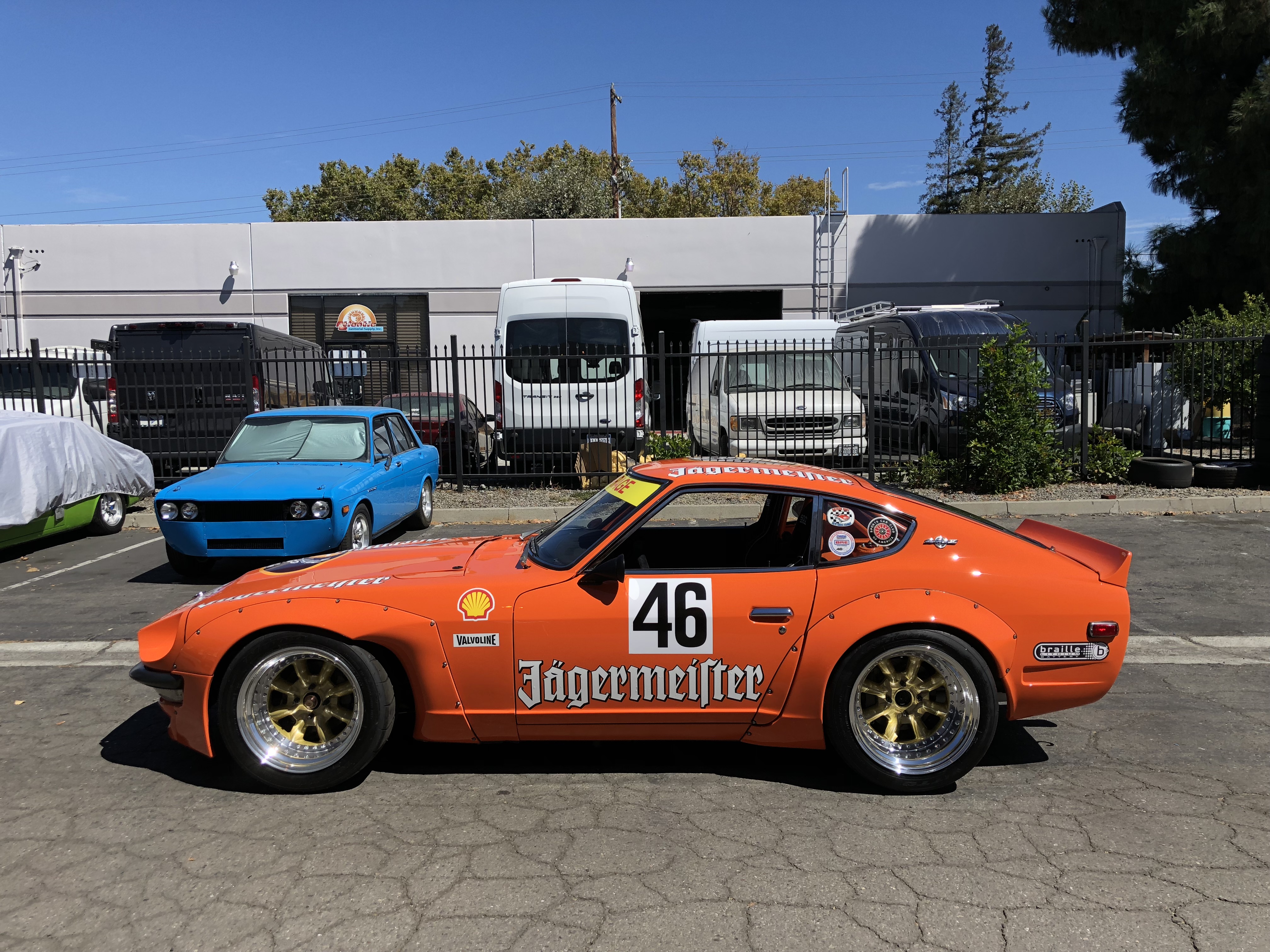

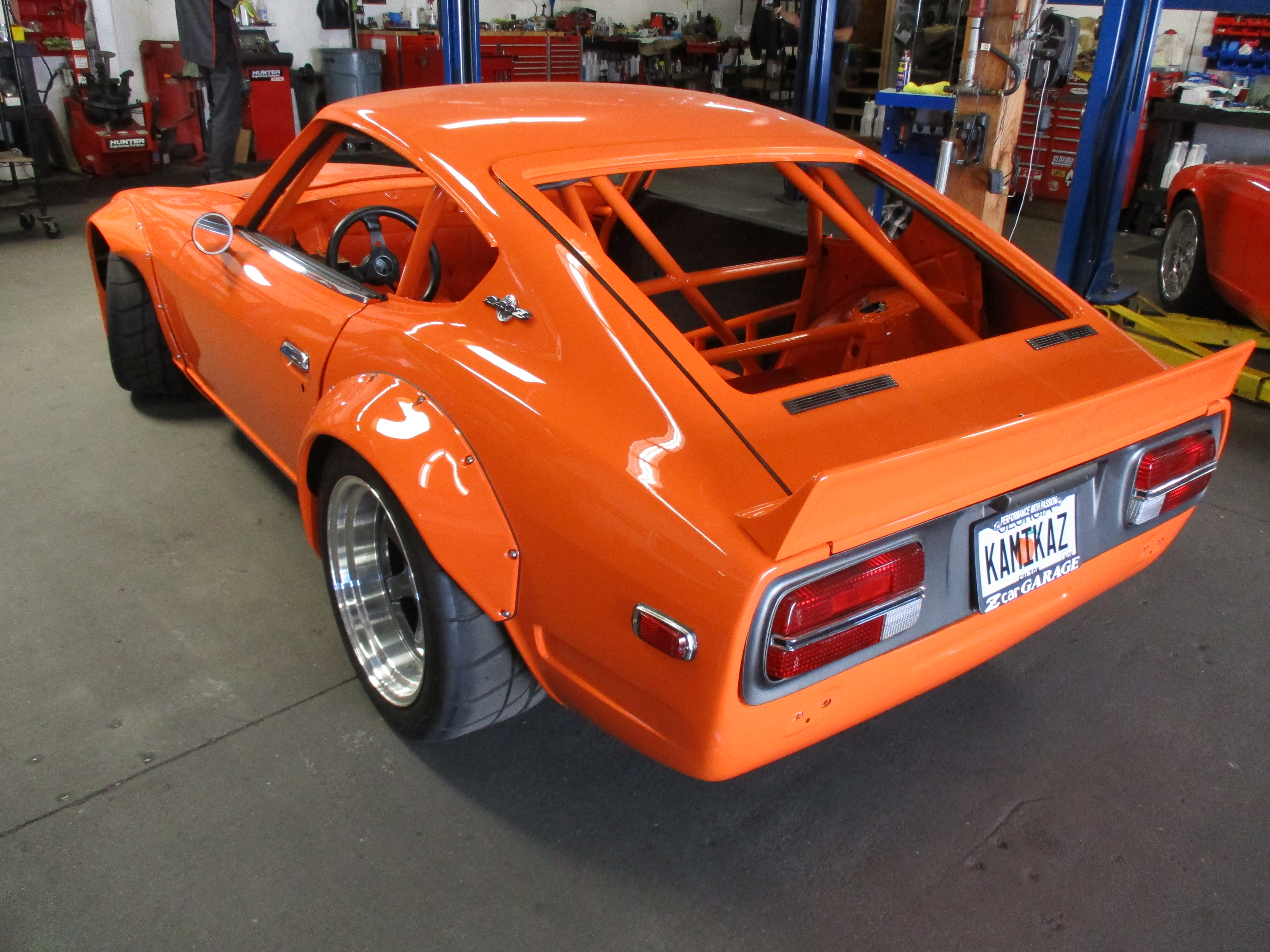

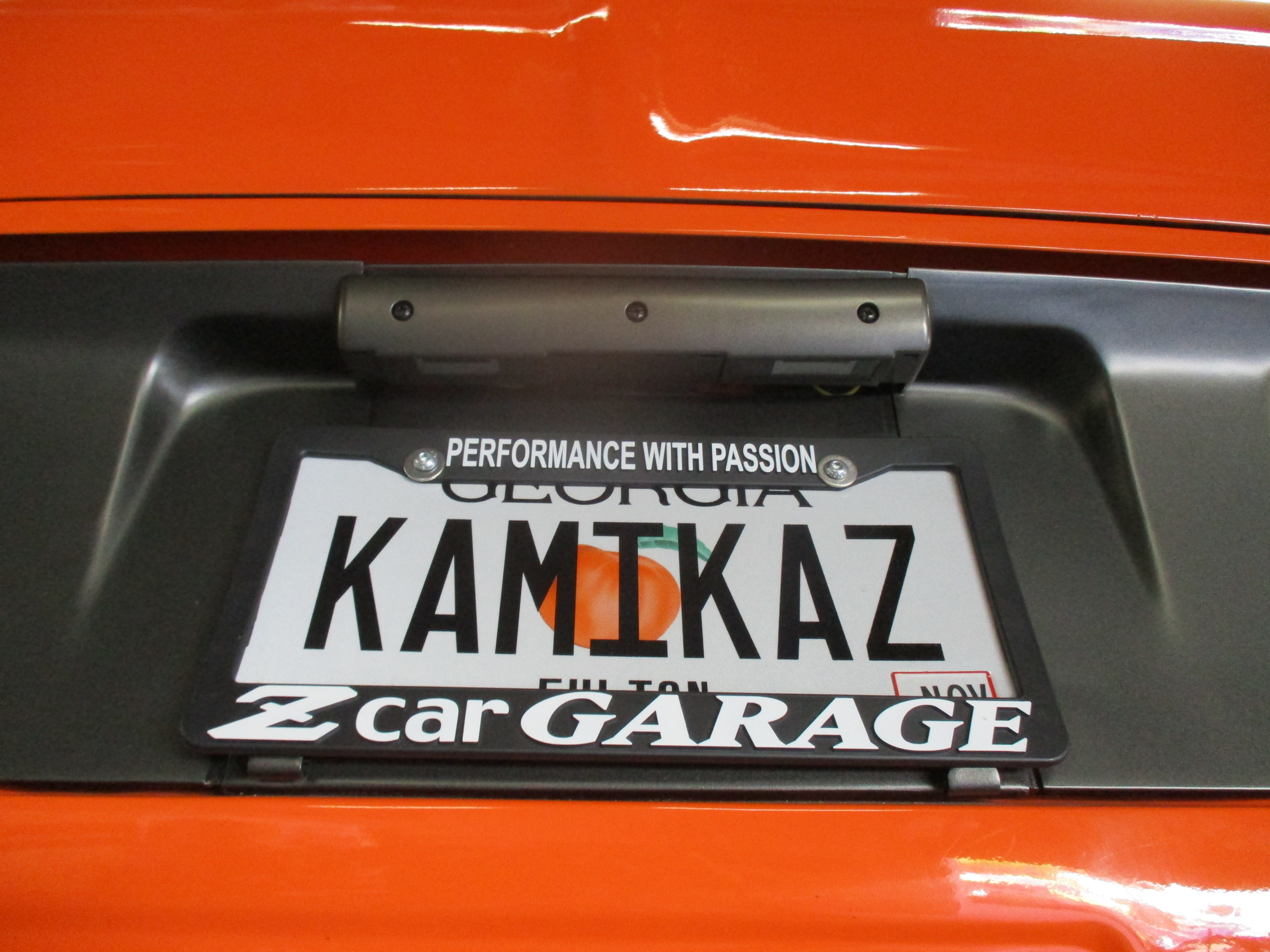

Indeed, the livery on the Rocketbunny (KAMIKAZ) Z looked fantastic and Randy eventually affixed the JGRBOMB license plate to match. We are happy to report that while at JCCS  Randy’s Z won 1st place, Best 240z in a class filled with incredible Z cars!

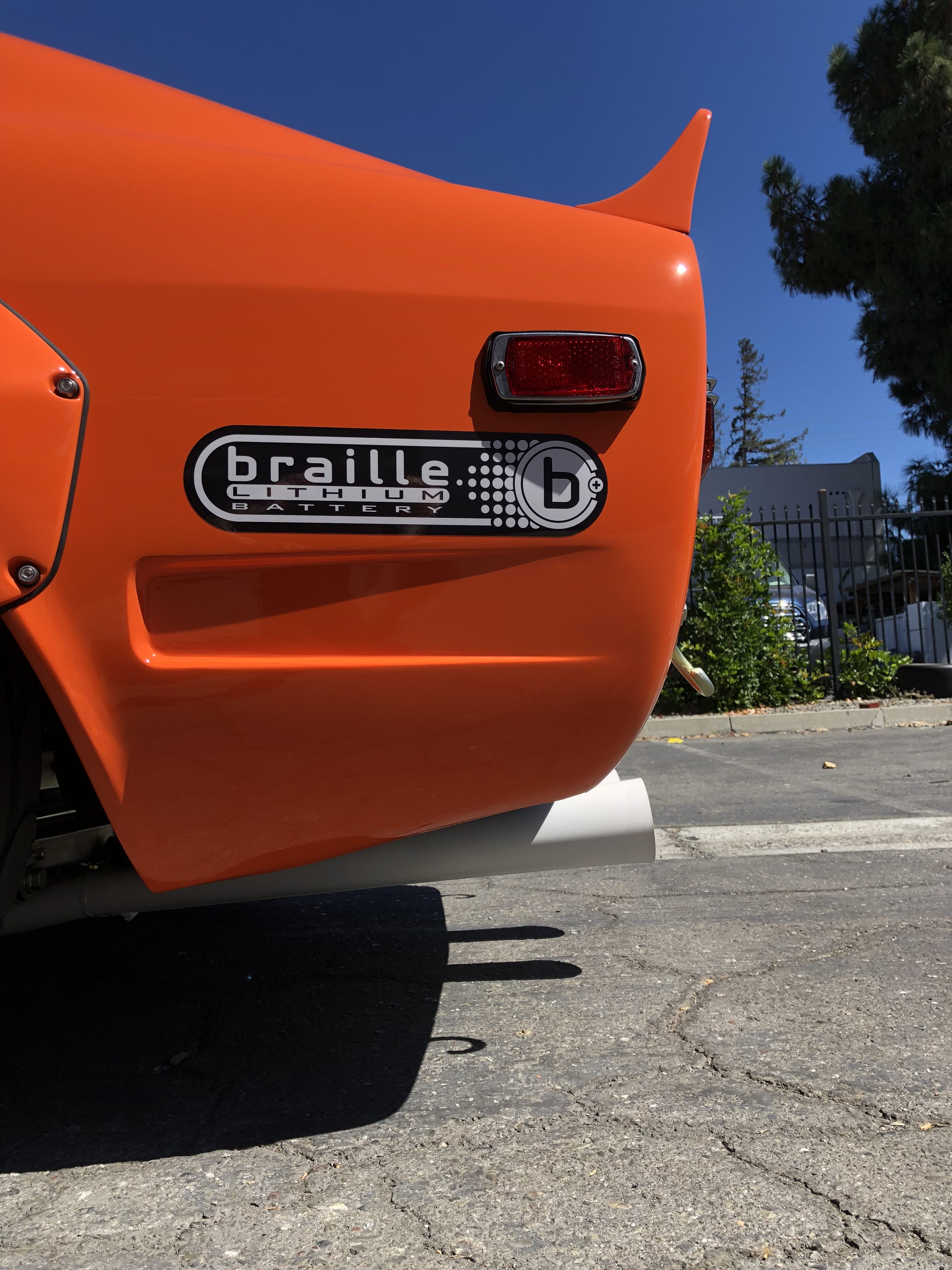

It was also well-received at Z Con and the SEMA show (thanks to Gary and Braille!). That’s BRE front-man Peter Brock and the designer of the Rocketbunny body kit, Kei Miura both signing the Z:

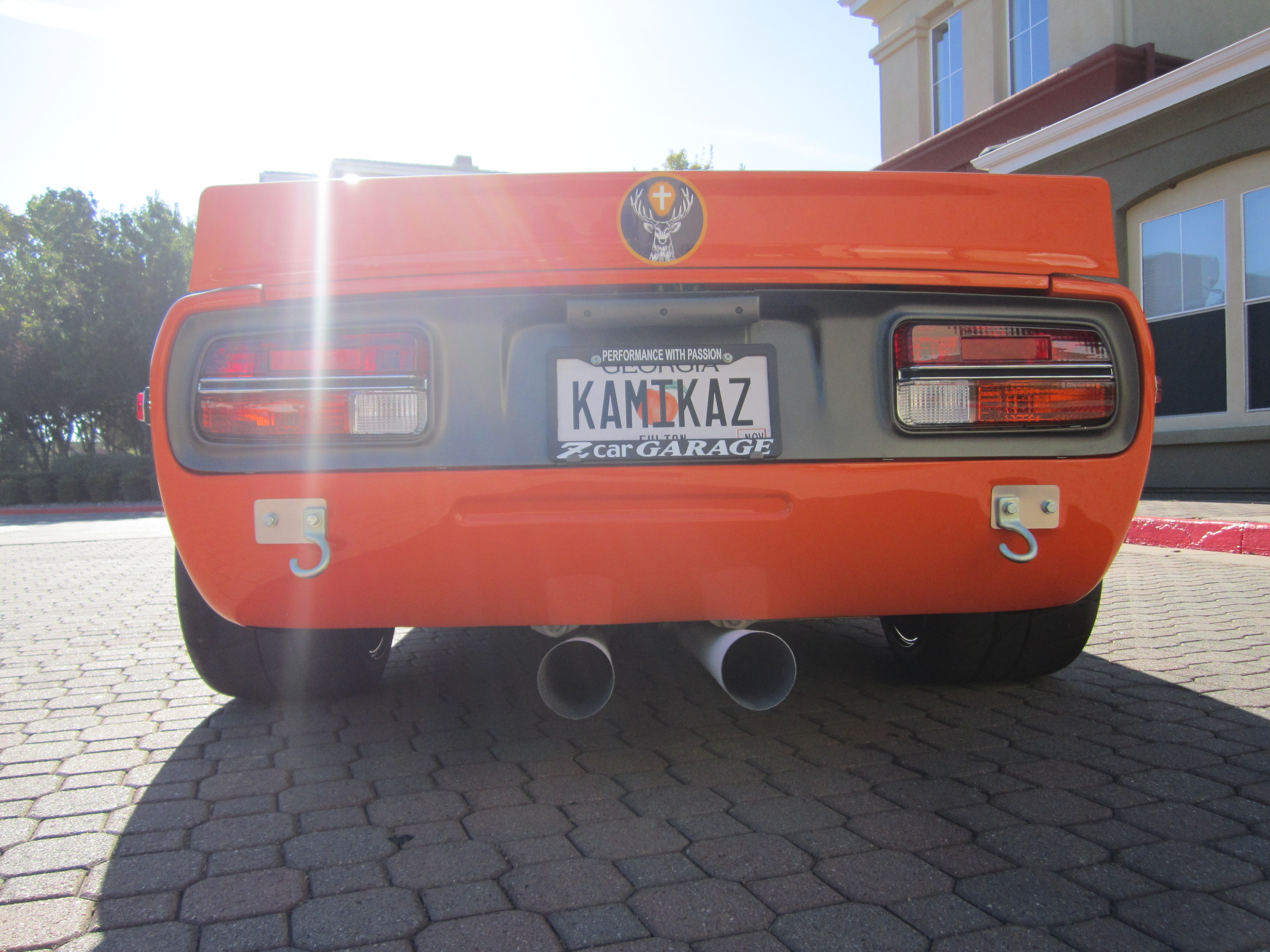

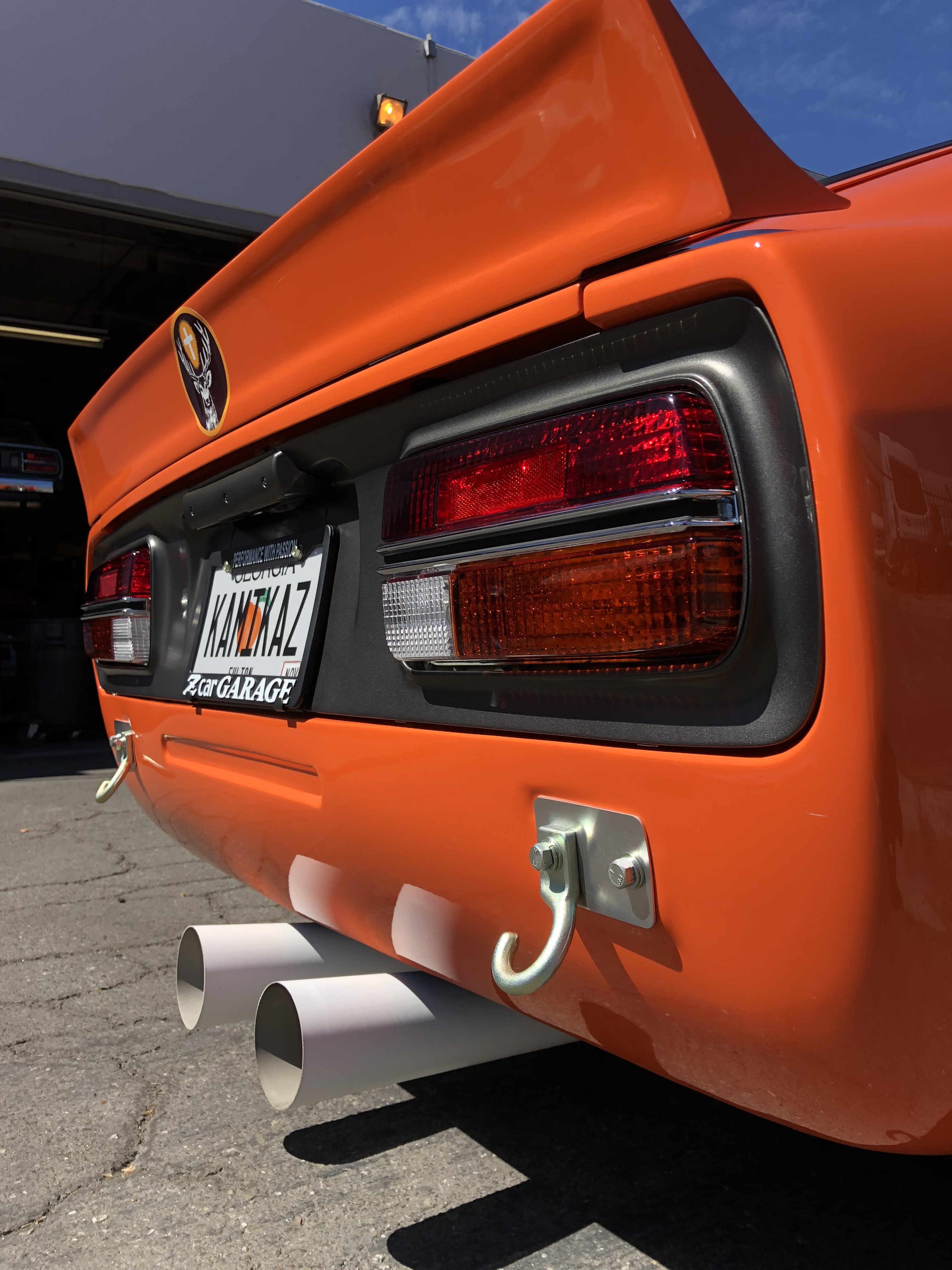

That BRE Exhaust

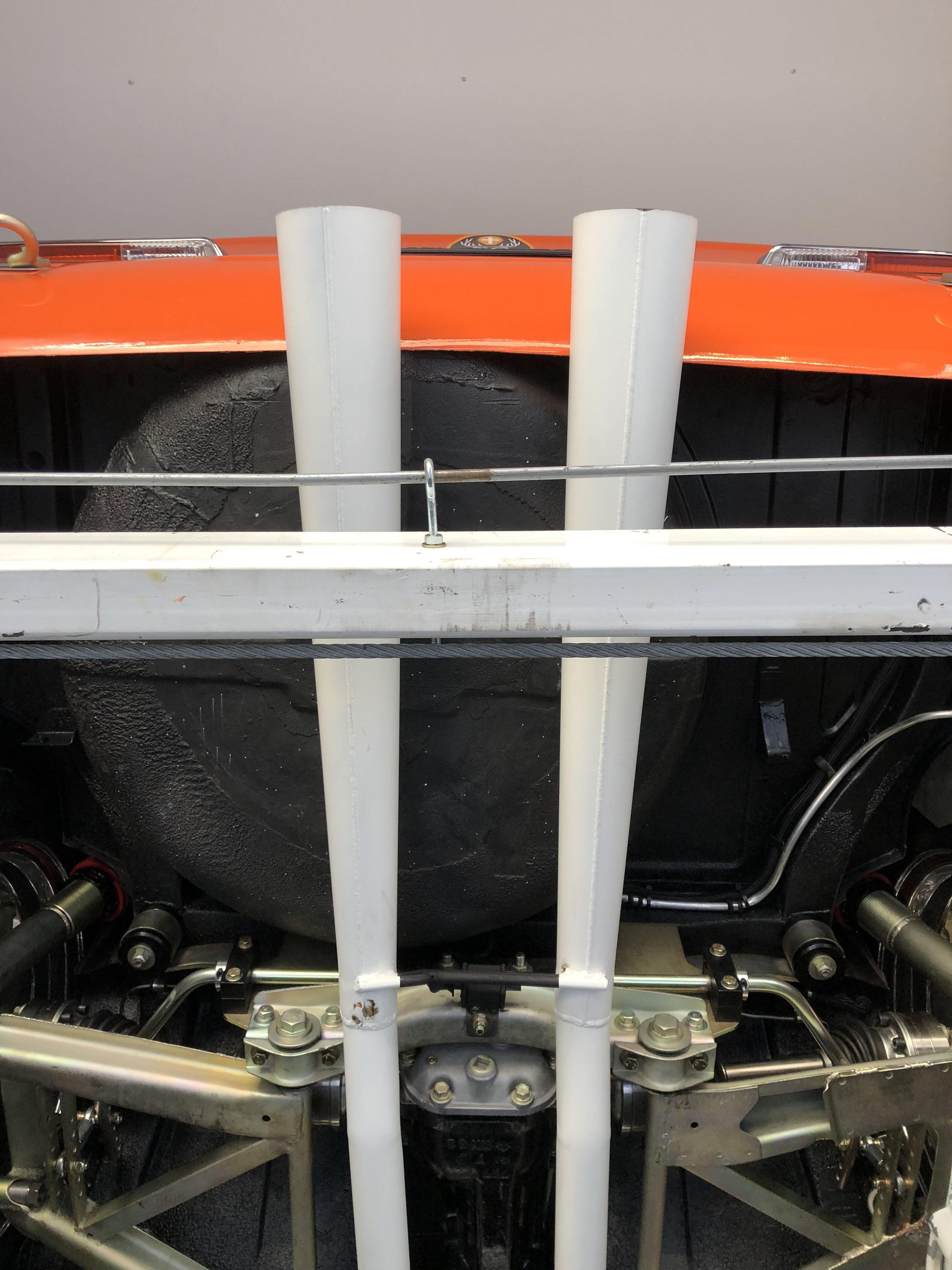

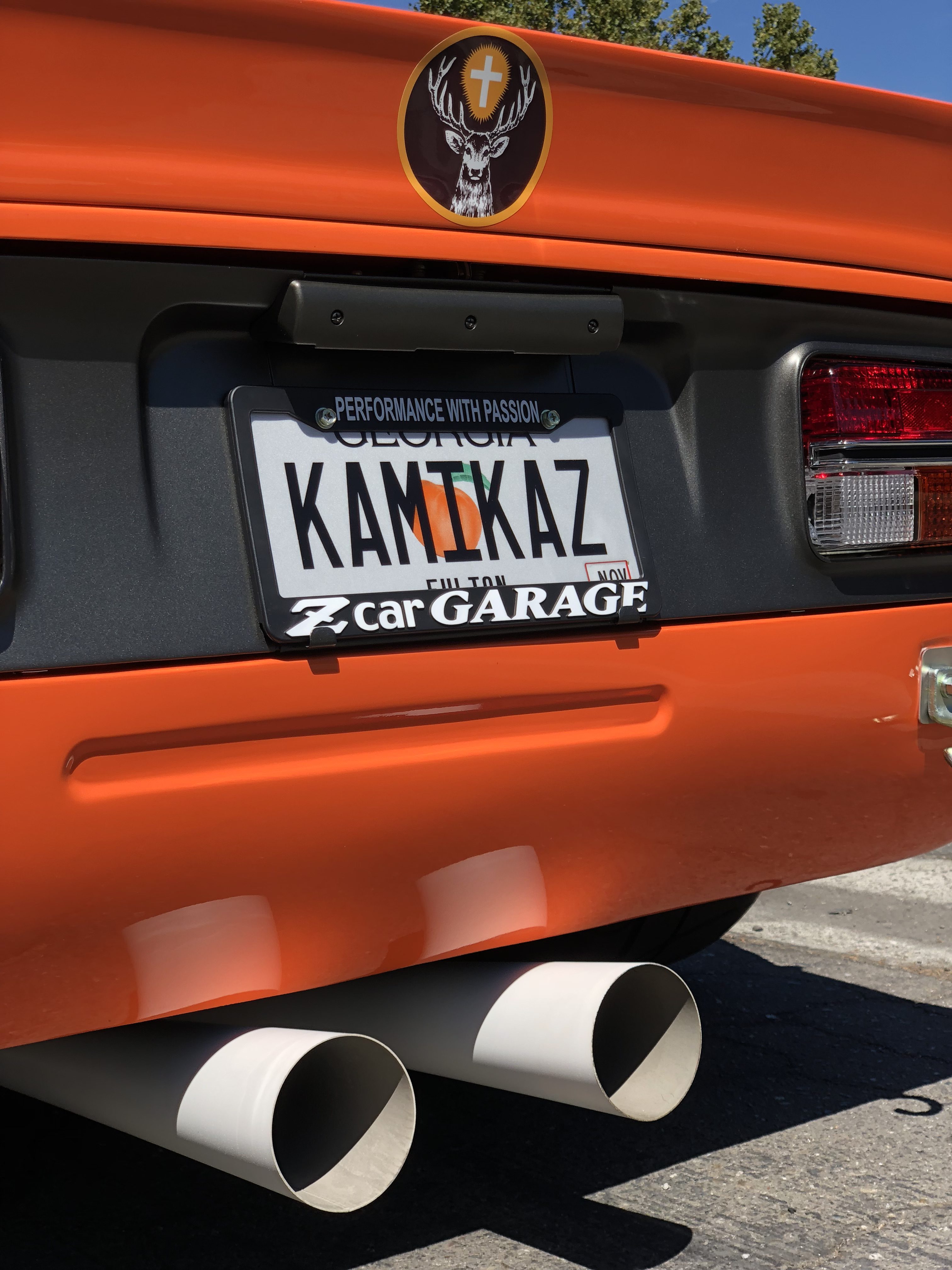

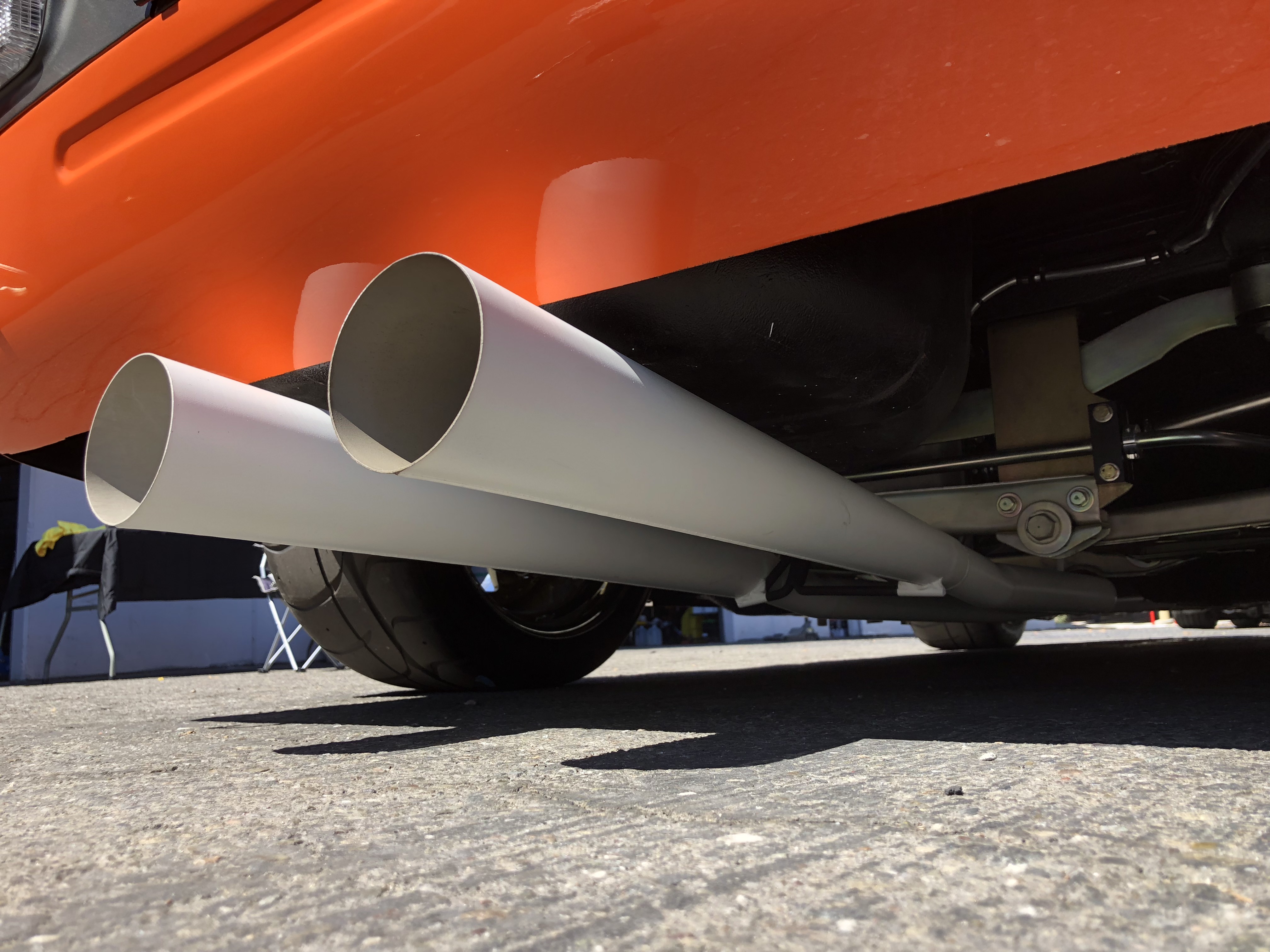

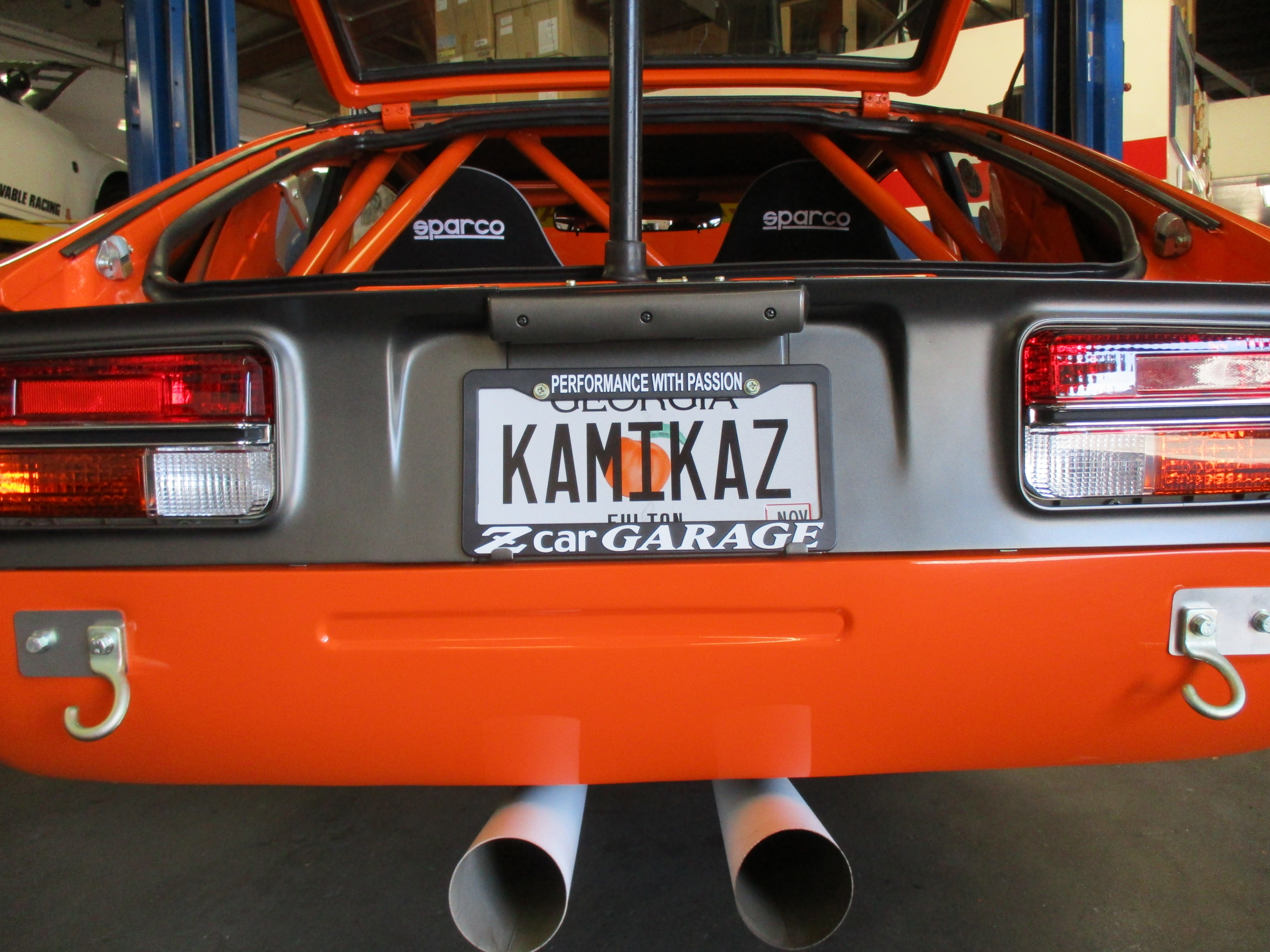

We wanted to do a BRE exhaust so we used the Fujitsubo headers and a straight twin-exit with megaphones exactly like the BRE original set up, Randy notes the white color:



“Of course BRE had theirs painted yellow from day one and still are but I wanted to do the rocket bunny exhaust megaphones in white to play off the livery. Many vintage race cars have white headers and exhaust so it made sense to me. So the audio level is the same as the 46Z and will wake up the dead.”




How does it sound? Check out this short video with a dyno run, enjoy!





Details

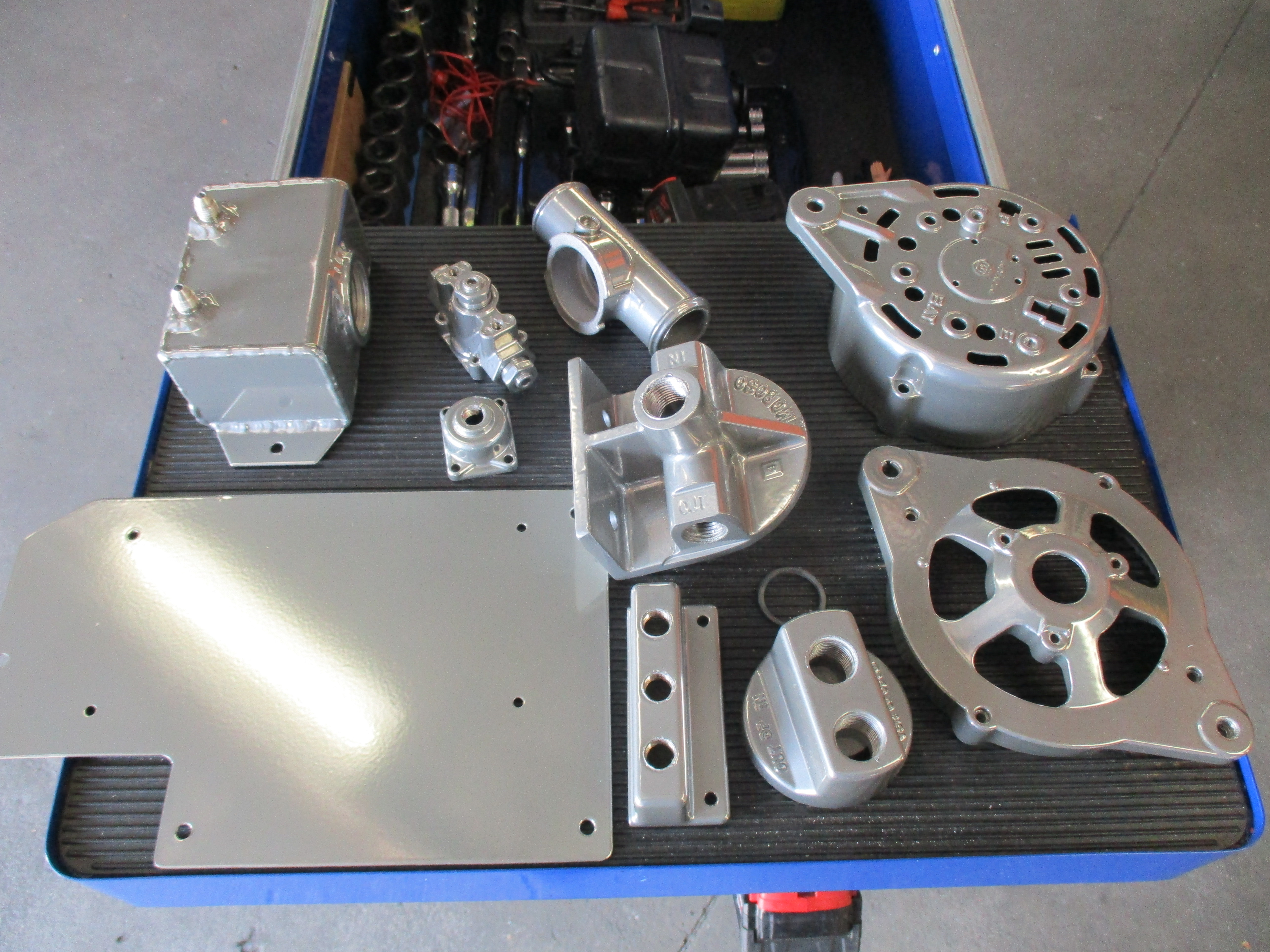

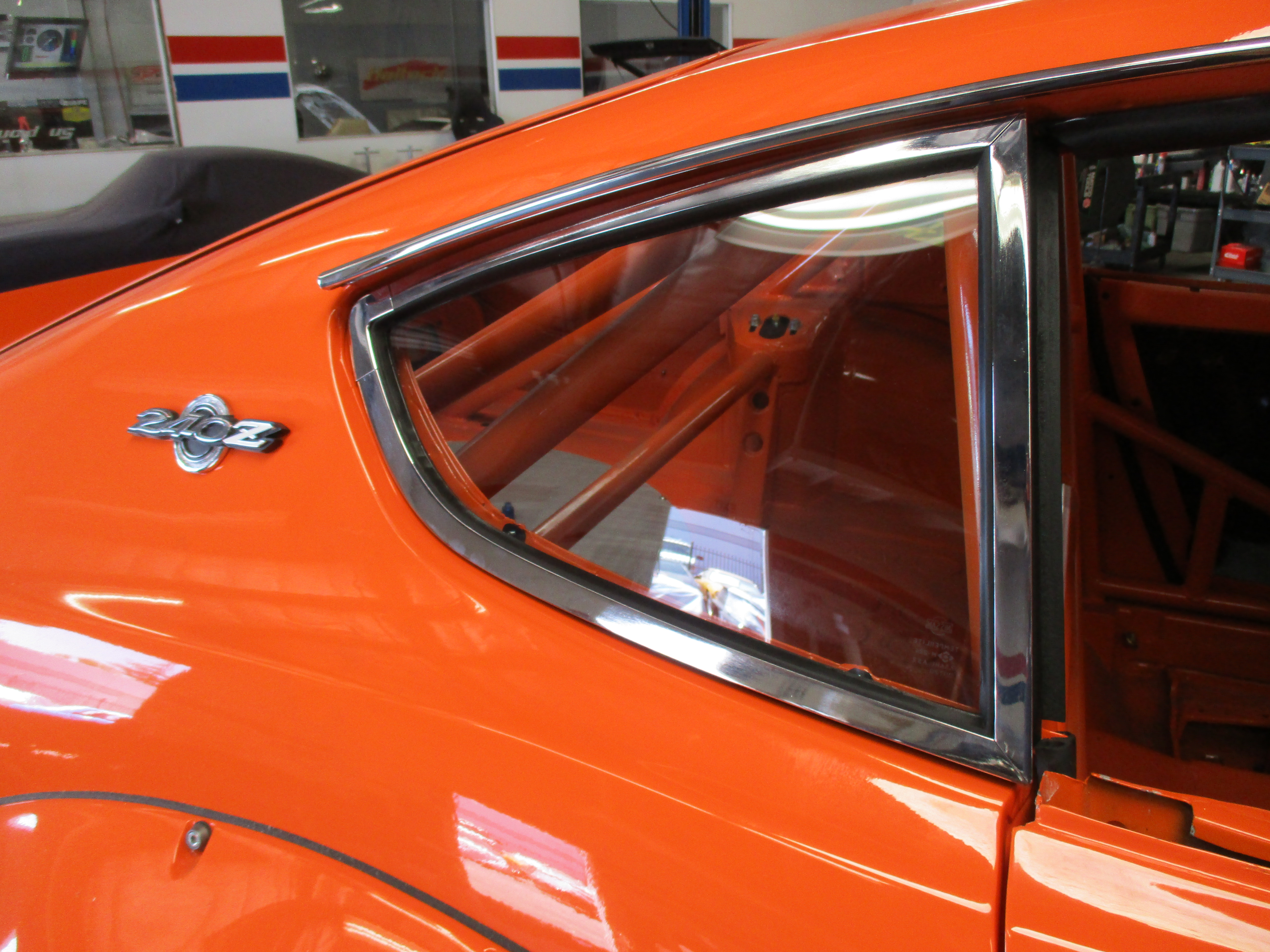

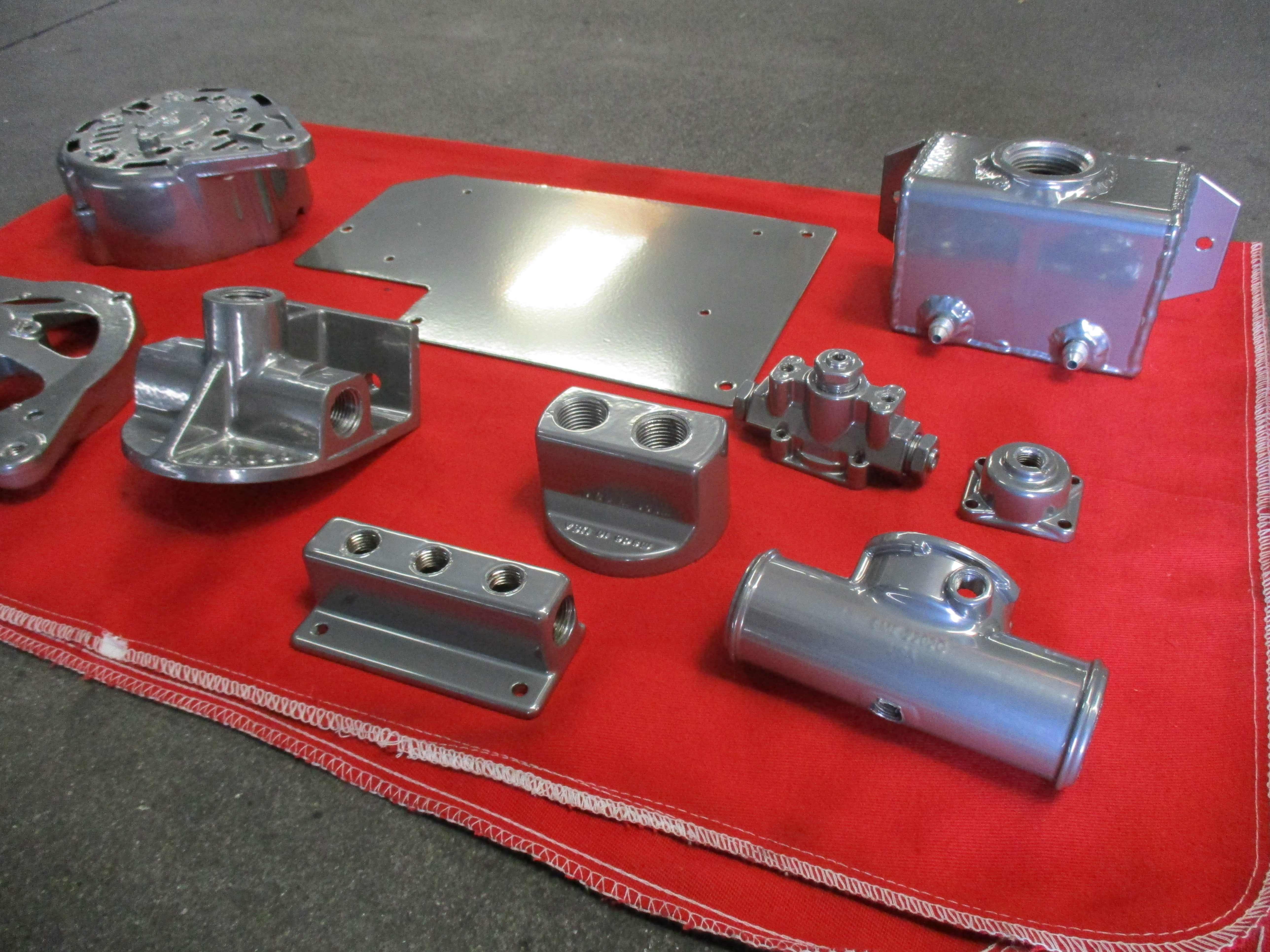

It would take multiple blog posts to cover all the special details throughout this build. Some highlights include fully polishing all trim pieces like quarters, drip rails, etc. Re-keying locks. Even the mirror was done to Randy’s liking.

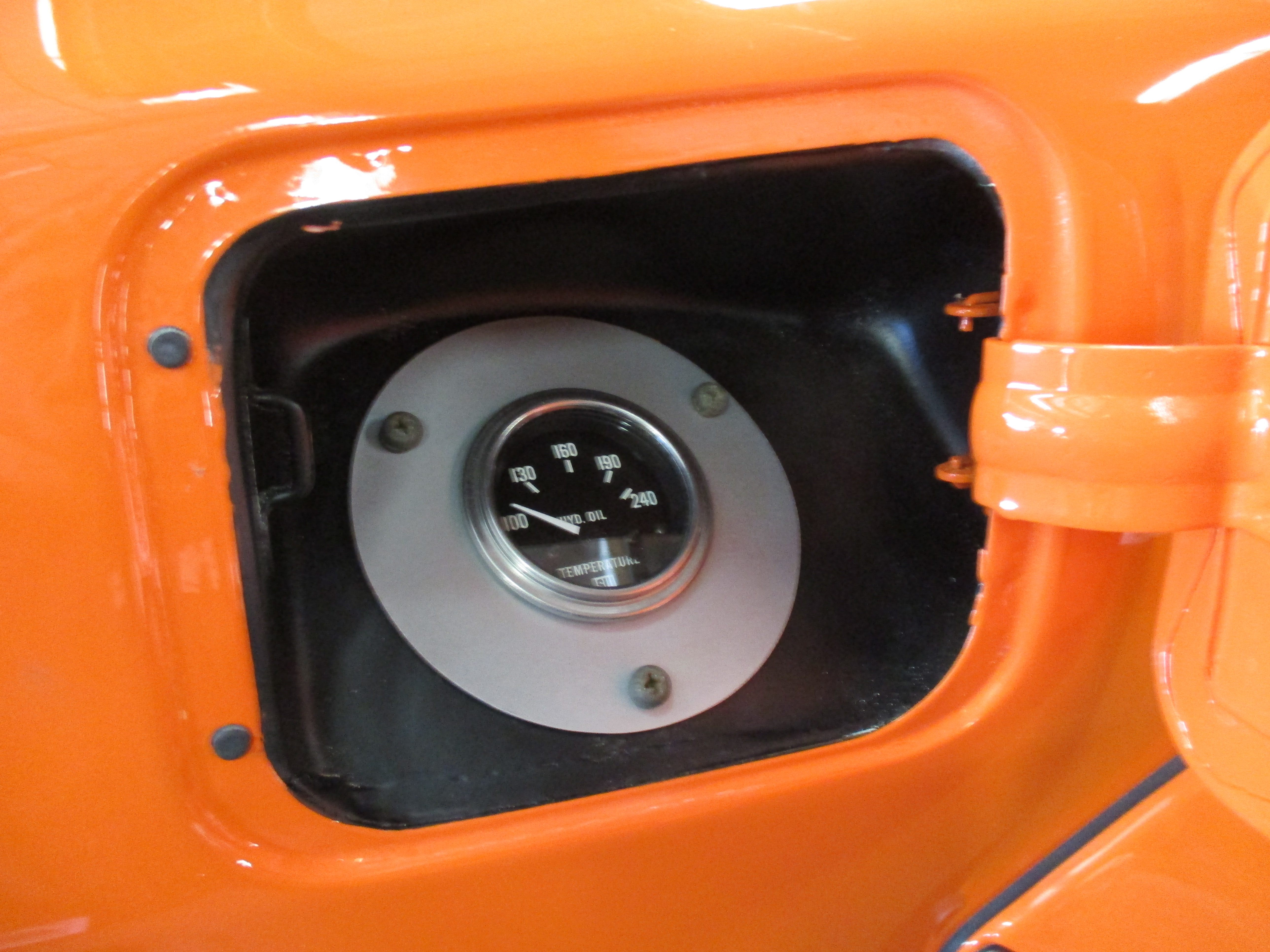

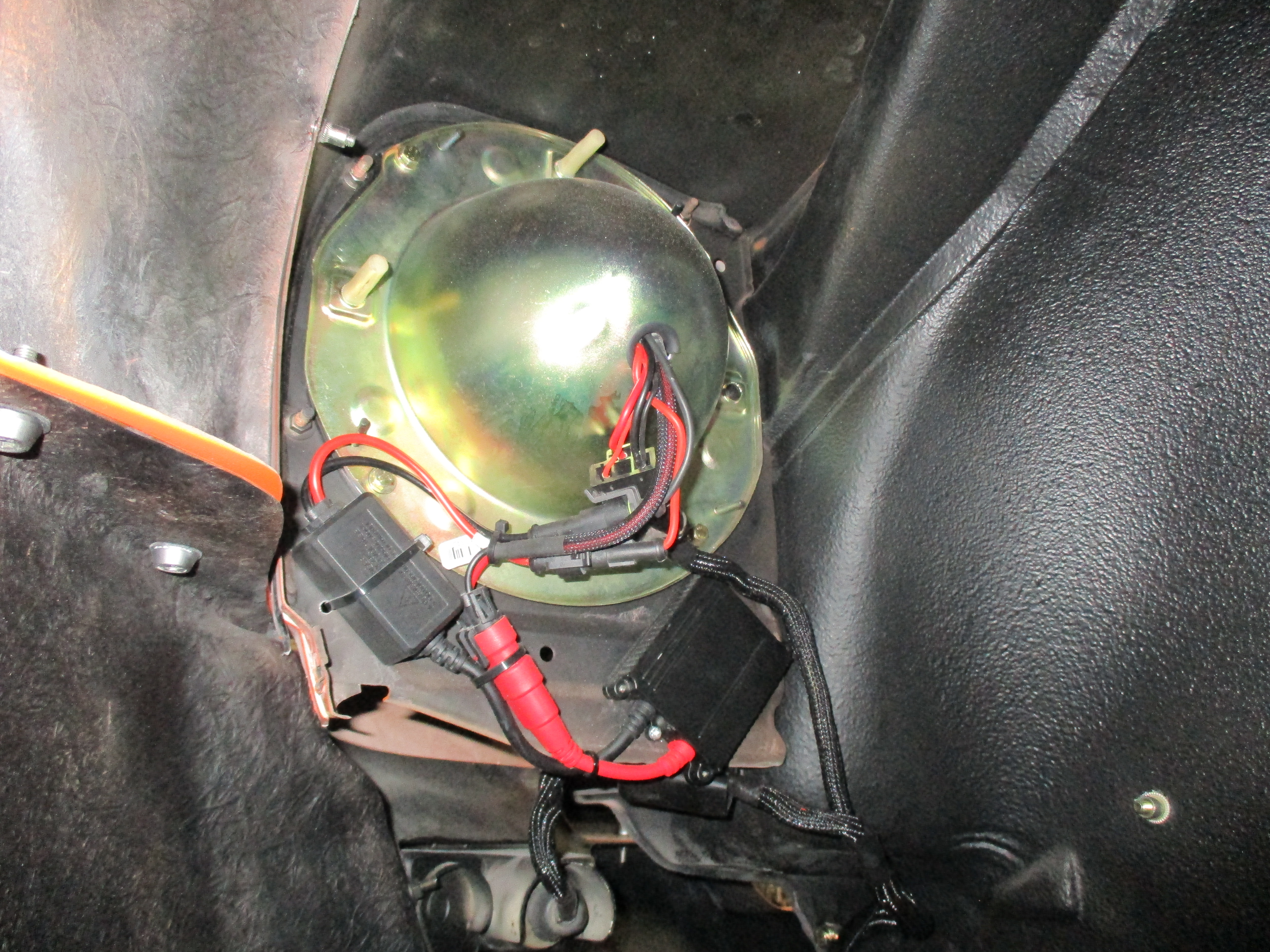

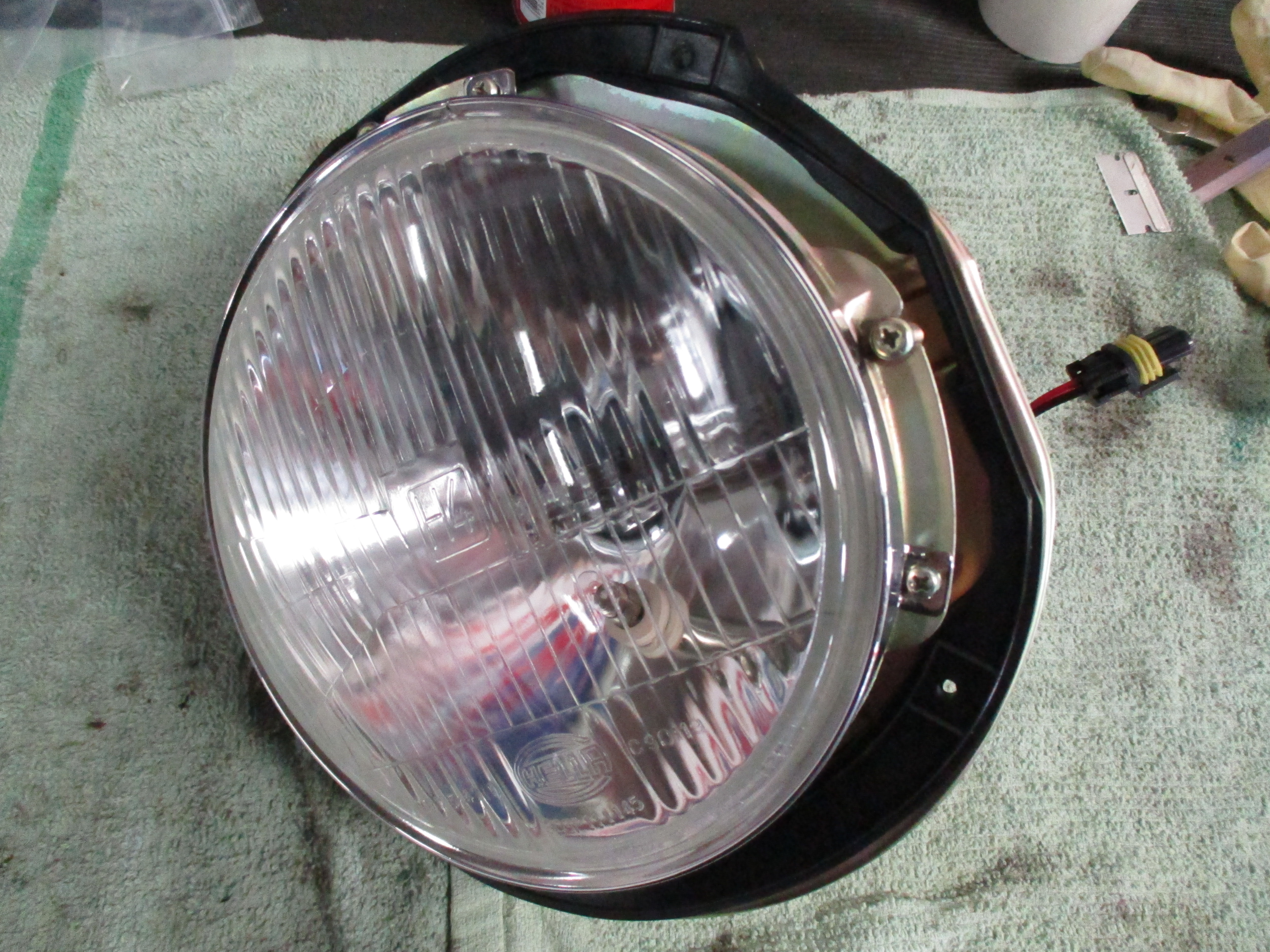

Things like the differential temperature gauge behind the old gas fill door have a purpose and pay homage to the Datsun vintage race cars. Contrastingly, there are small modern updates like vintage H4 headlights retrofitted with HID units.


We asked Randy what’s it like to drive:

“To me there’s no difference in driving this and the 46Z it’s almost the same build except more rubber on this one!”

To us that is a great compliment because we set out to finish Randy’s vision of the ultimate street/track BRE-flavored Z.

I find myself several nights a week just walking around the car in my shop and admiring the build that Rob, Josh and the crew at Z Car Garage created.”


We thank Randy for letting us be creative on this Z and it’s been rewarding to see his taste reflected in other builds. This was a fun project and we enjoyed every moment of it. Browse the extensive photo gallery and LONG LIVE THE Z!
