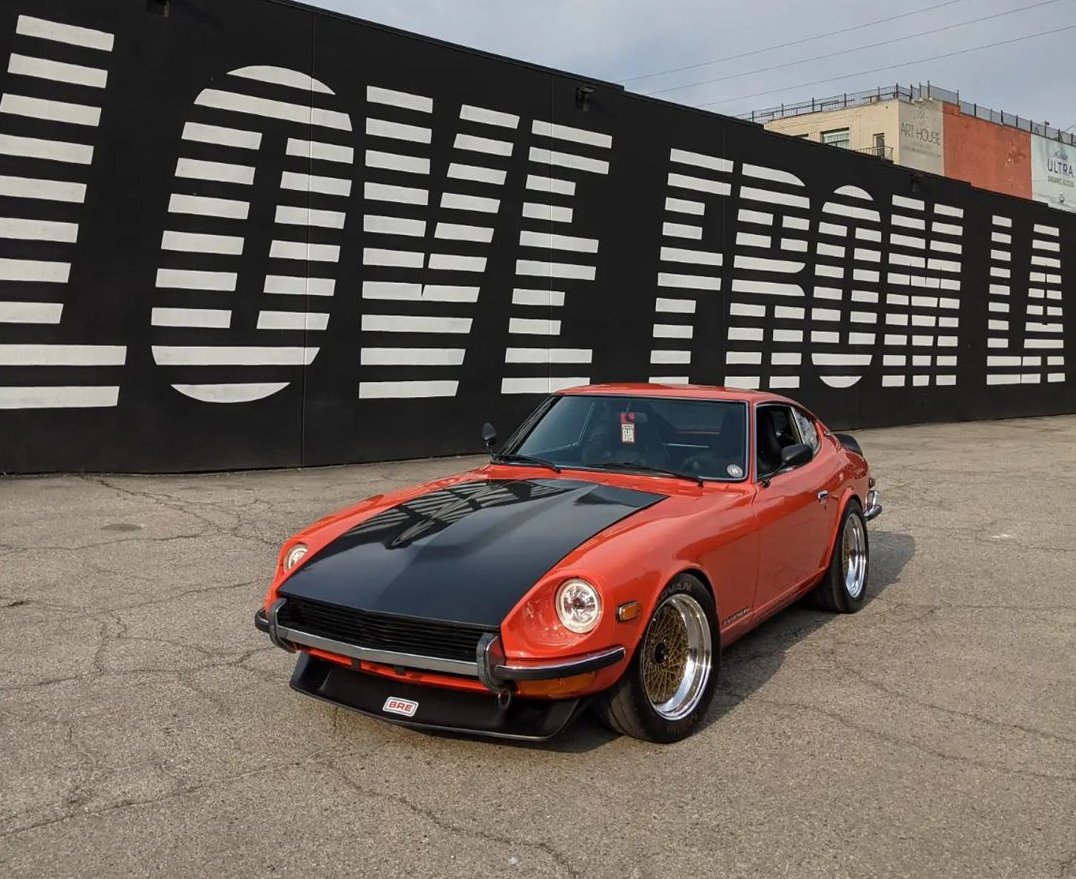

Ole Orange Bang: Larry Chen’s 1970 Datsun 240Z

Filed under: 240z,Featured Cars and Projects,Performance
by Alvin G @ 5:10 pm on December 10, 2021



Performance With Passion”These are words that describe our work at Z Car Garage and we are passionate about making your Z perform as good as it looks. Photographer Larry Chen commissioned ZCG to transform his beloved SR20DET-powered 1970 Datsun 240Z from an “ok driver” to a no-excuses, multi-dimensional sports car with power, handling, braking, comfort, reliability and performance to match its eye-catching beauty.



Join Rob and Larry as they share the story of Larry’s Z, affectionately called “Ole Orange Bang”, featuring our Z Car Garage Big-BrakesZ Car Garage CV Axles, chassis preparation, dyno tuning and more. Enjoy the videos with behind the scenes footage and photo gallery below!



Build History



Car enthusiasts and motorsport fans recognize the name Larry Chen as the greatest automotive photographer. Larry has made a career out of his passion for capturing the right moments in racing. We are huge fans of his work since the days of covering Formula Drift, time at Speedhunters, and recent work with Hoonigan Autofocus. Our favorite Larry Chen moment is his photography of Ken Block’s 1400hp Hoonicorn at Pike’s Peak for the filming of Climbkhana.

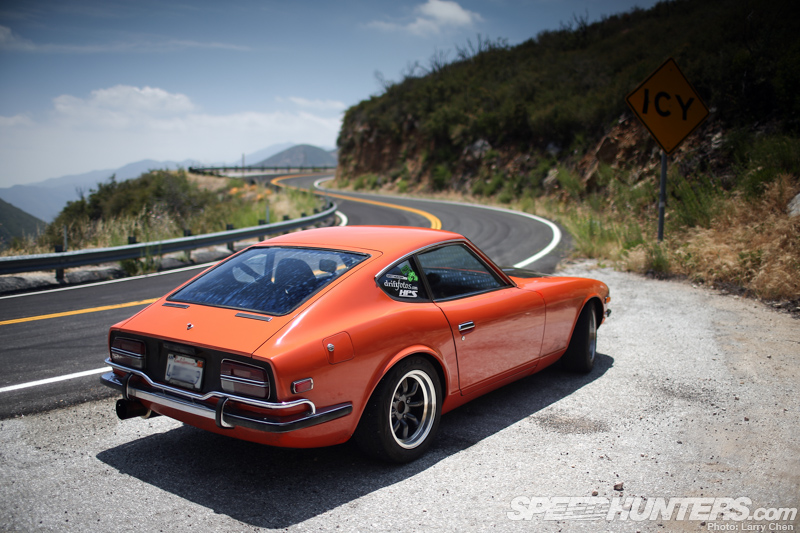

Larry Chen is regularly exposed to some of the coolest builds across the globe, so you can imagine our joy hearing that Larry’s personal car is a Datsun 240Z. Larry’s Z is a Series 1 (VIN# 2868) that he purchased on his 21st birthday for $3000. He started autocrossing immediately with his buddies circa 2006, and it became an integral part of his life:

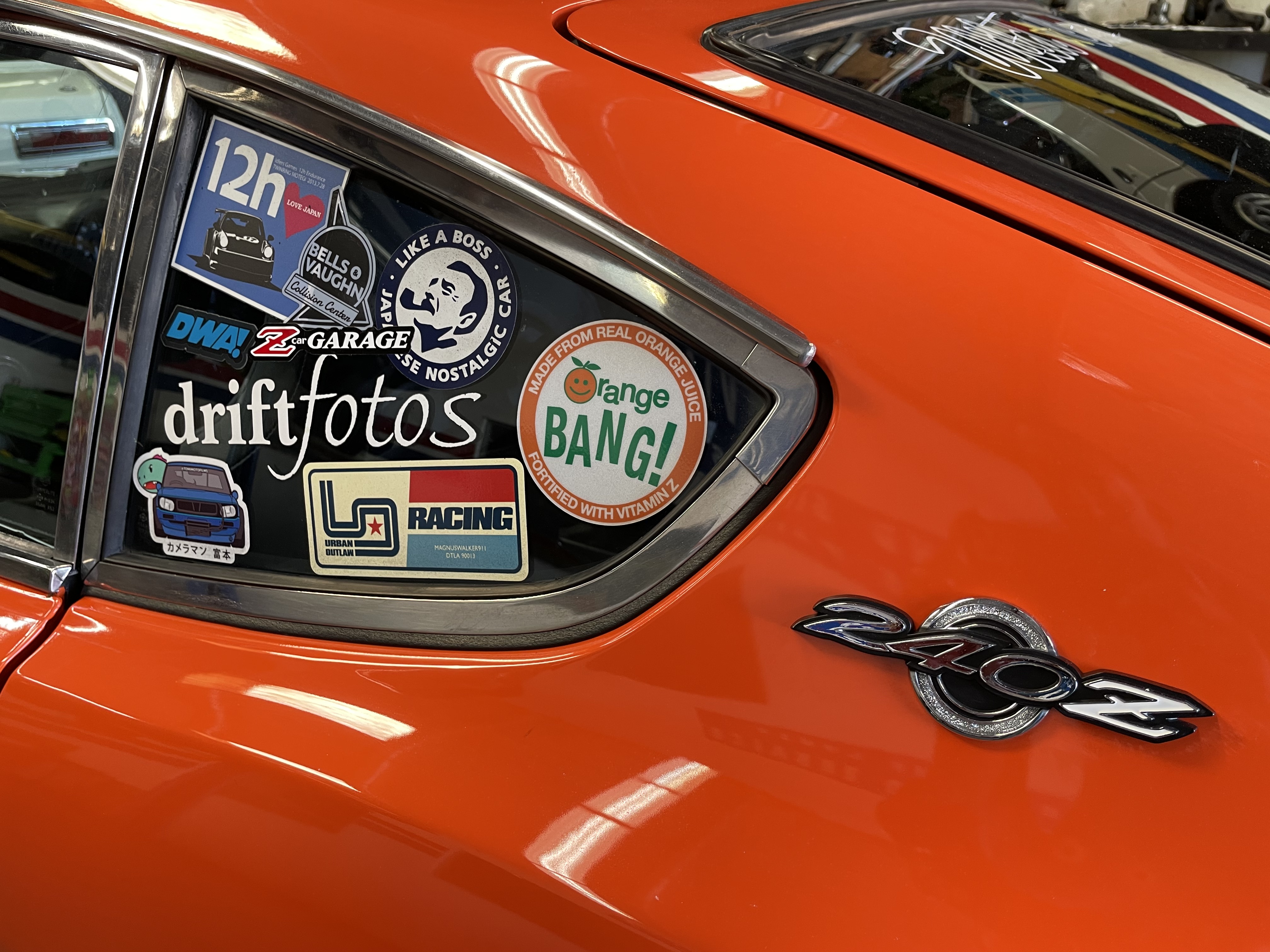

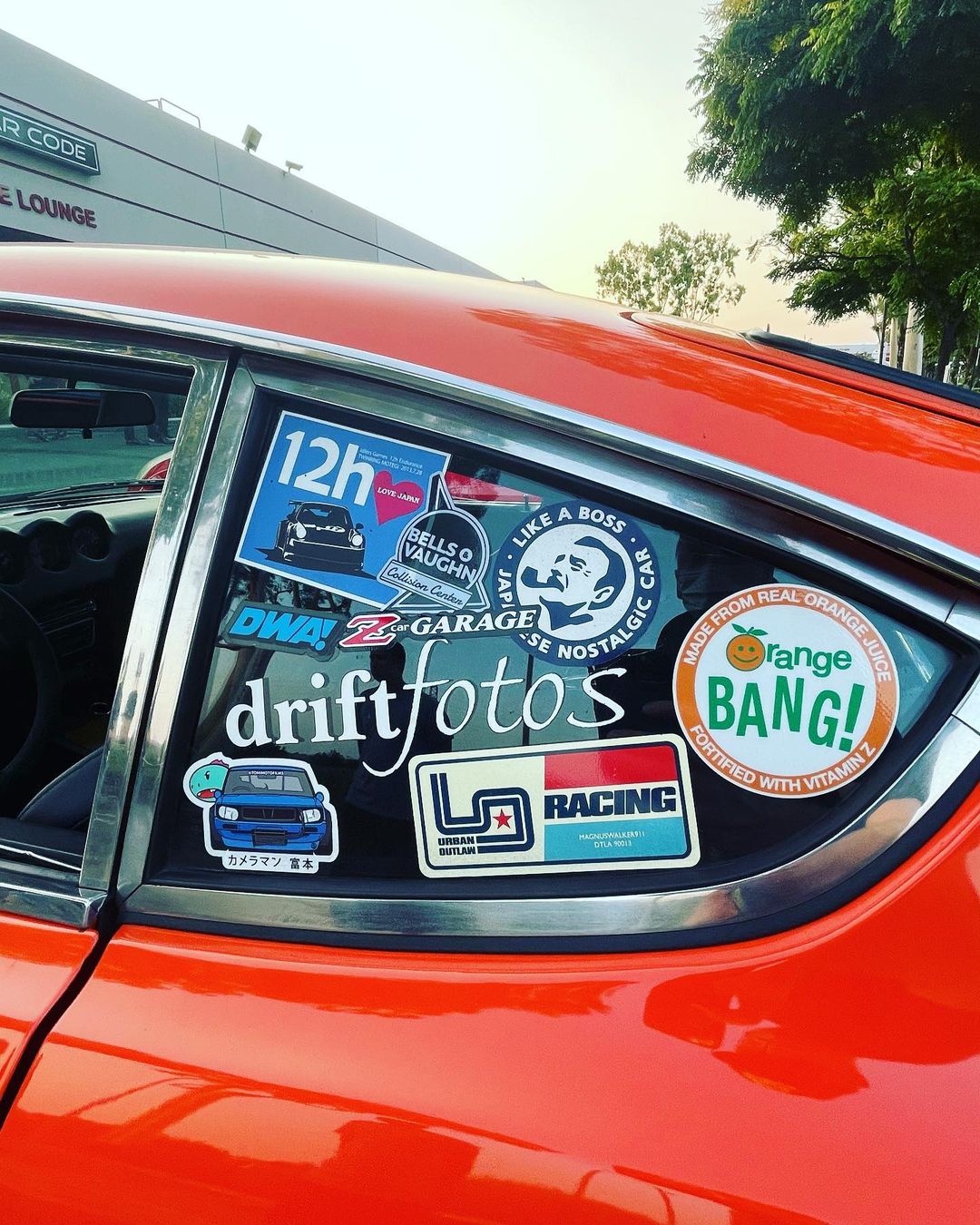

“It’s been such a big part of my adult life, and it will continue to be a part of it for the rest. The name actually came from a Mexican drink that we love in SoCal. My car is Orange and it backfired a lot when I got it especially when I was low on gas. So it was only appropriate to call it Orange Bang. On my wedding night instead of being ferried away in a fancy limousine, I drove my beautiful wife home in the Z, after some wedding burnouts.”

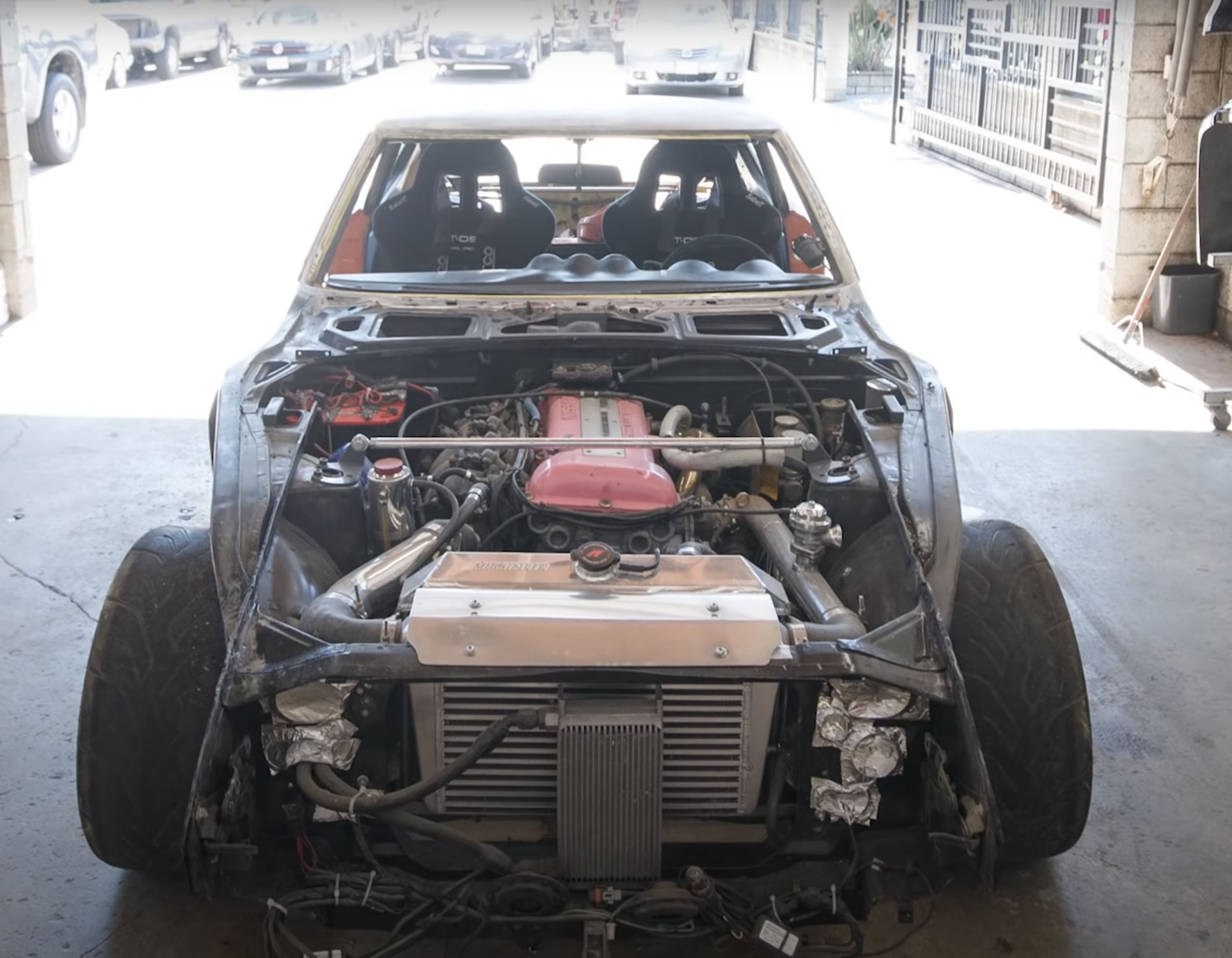

Following years of autocross and track use, in 2013 the tired L28 was replaced with an SR20DET straight out of a former Formula Drift car.

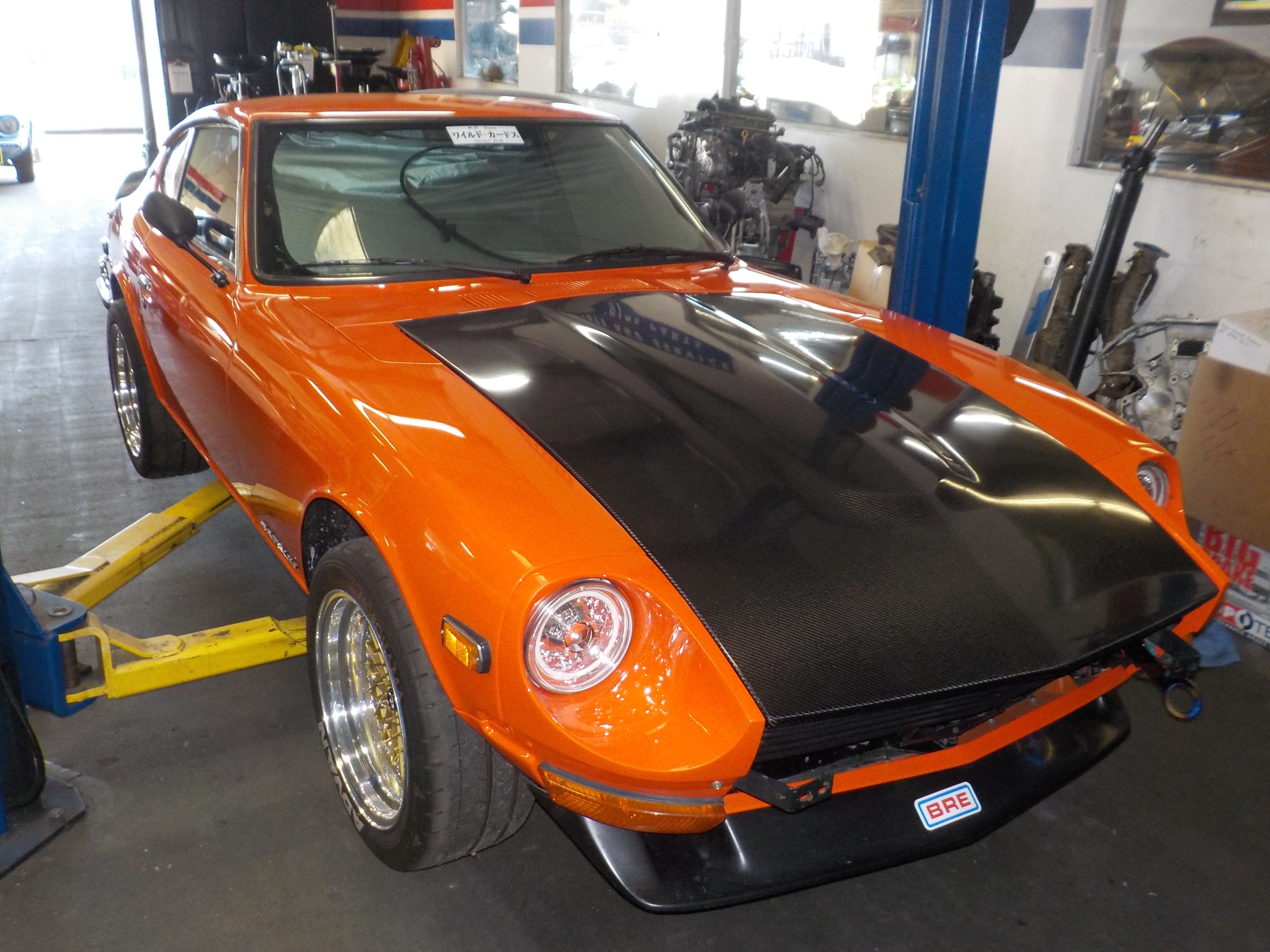

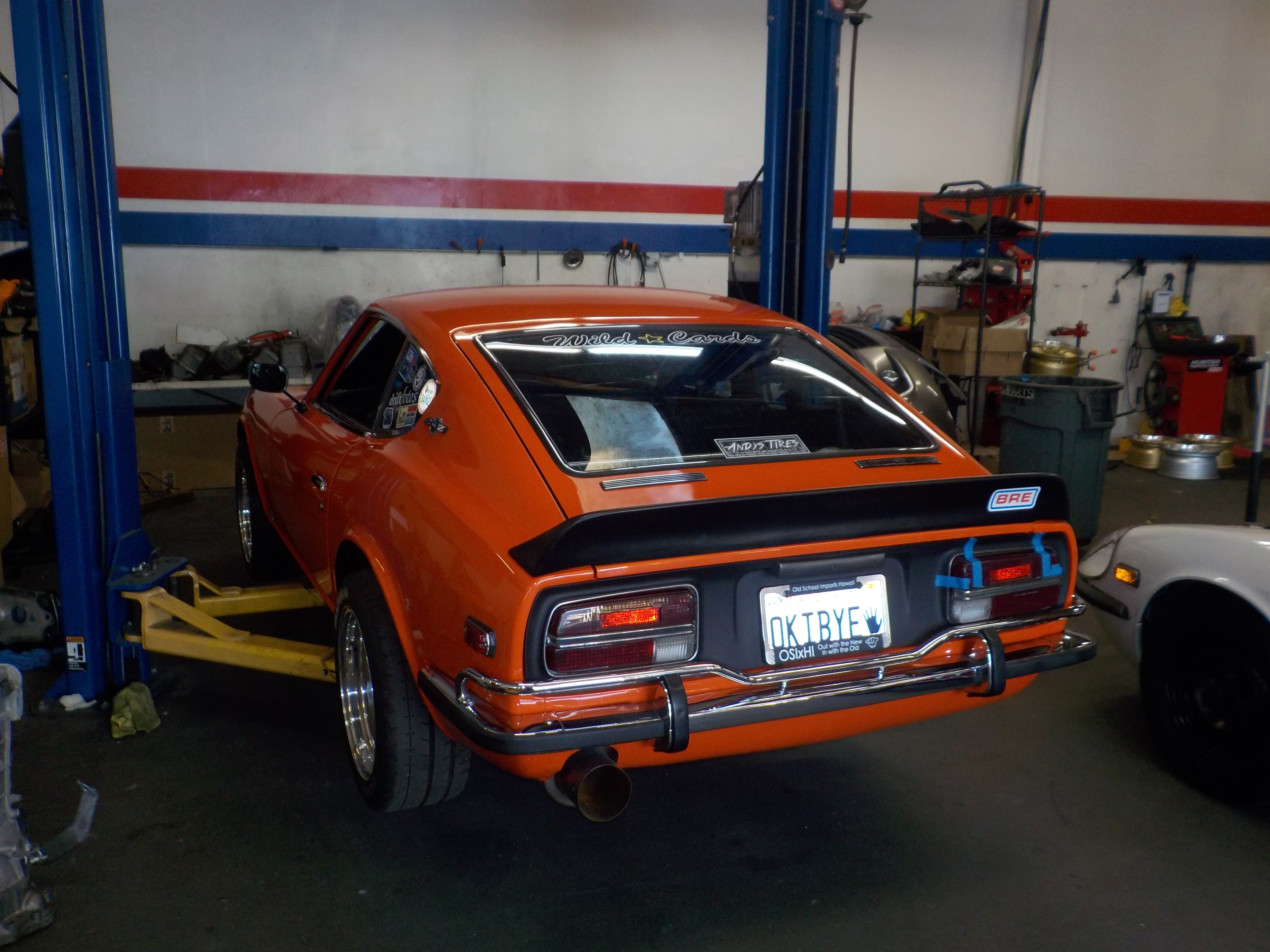

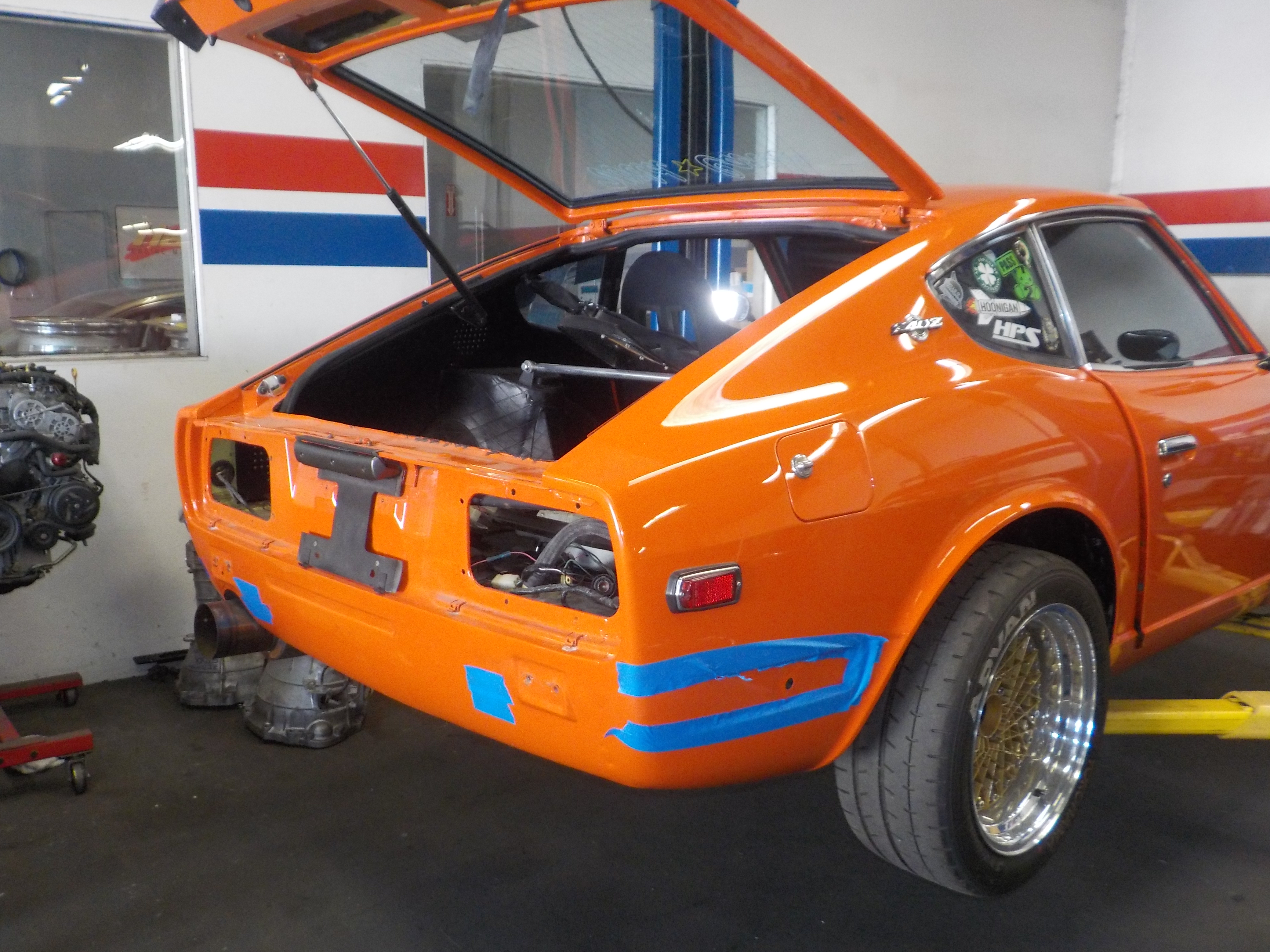

Like many enthusiasts, Larry continued to modify and upgrade the Z to fit his needs…adding A/C, coil-over suspension and creature comforts along the way. We spotted a freshly painted Ole Orange Bang at the 2019 Japanese Classic Car Show:

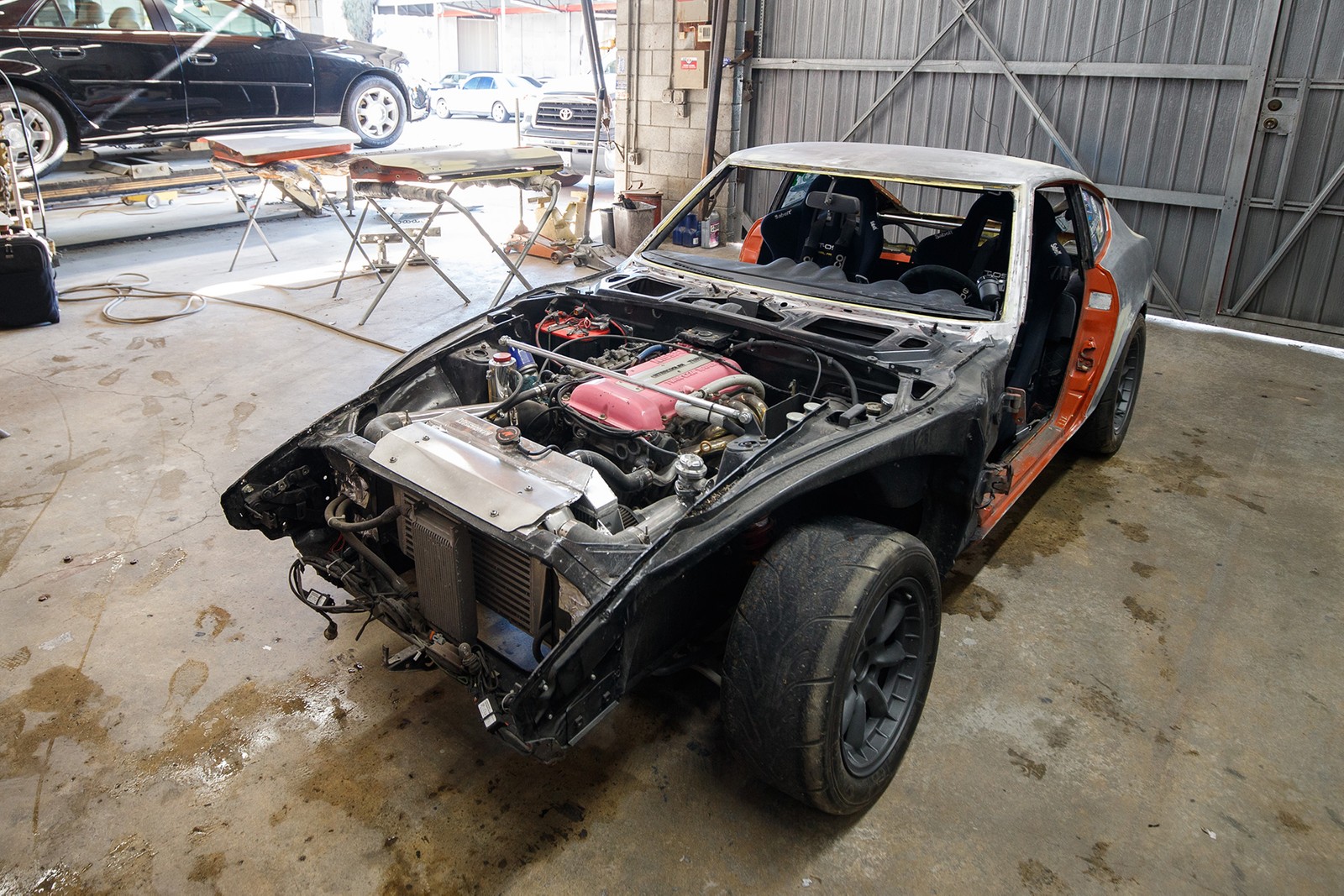

“In 2019 my friends at Bells and Vaughn in Pasadena, California did a full ground up restoration. It has all new paint and it was taken all the way down to the metal. Just this month I picked it up from Z Car Garage in San Jose California. ZCG pretty much went through the entire car and they fixed everything that was mechanically wrong with it.”



When Larry Met Rob: A ZCG Story

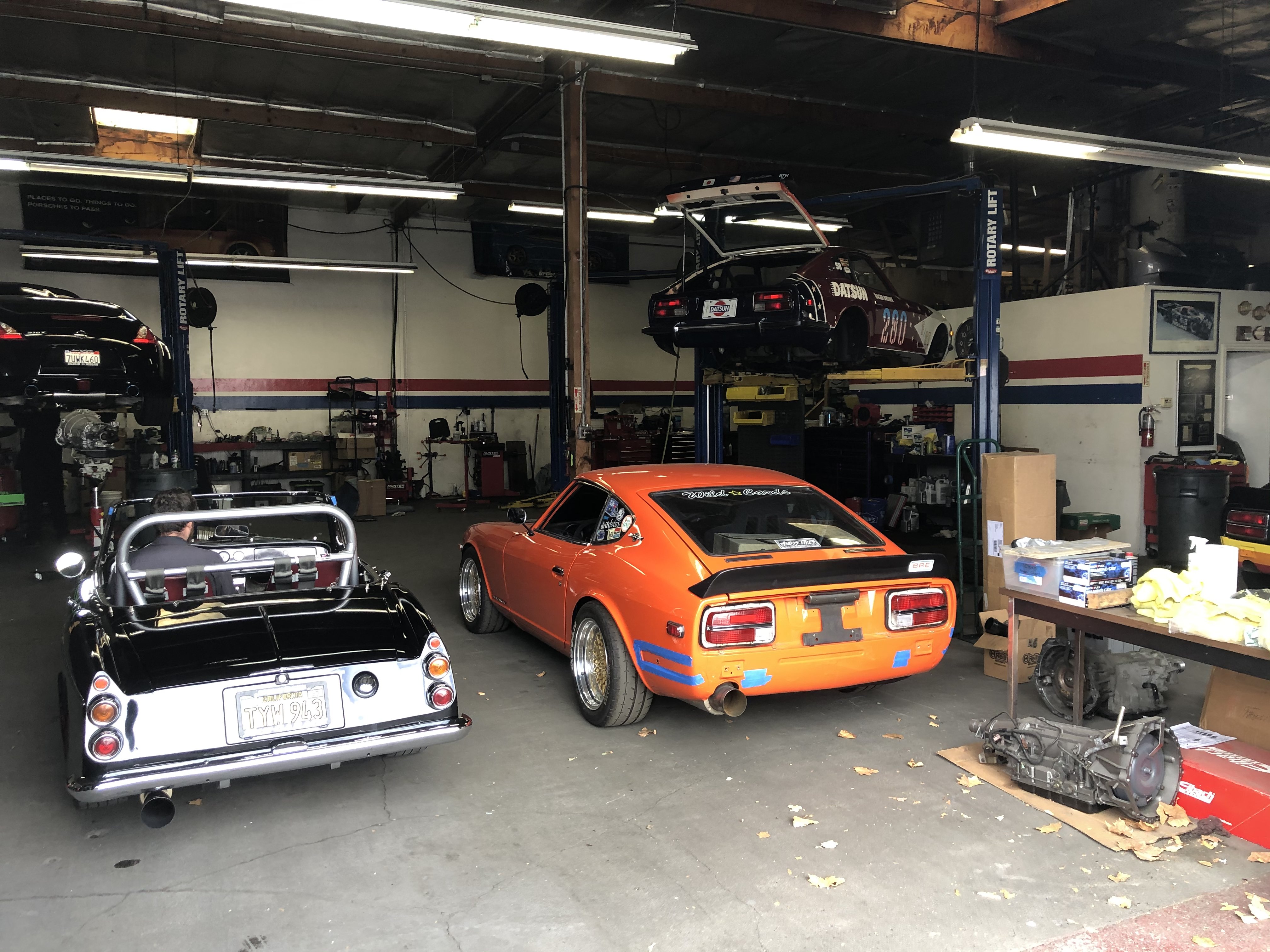

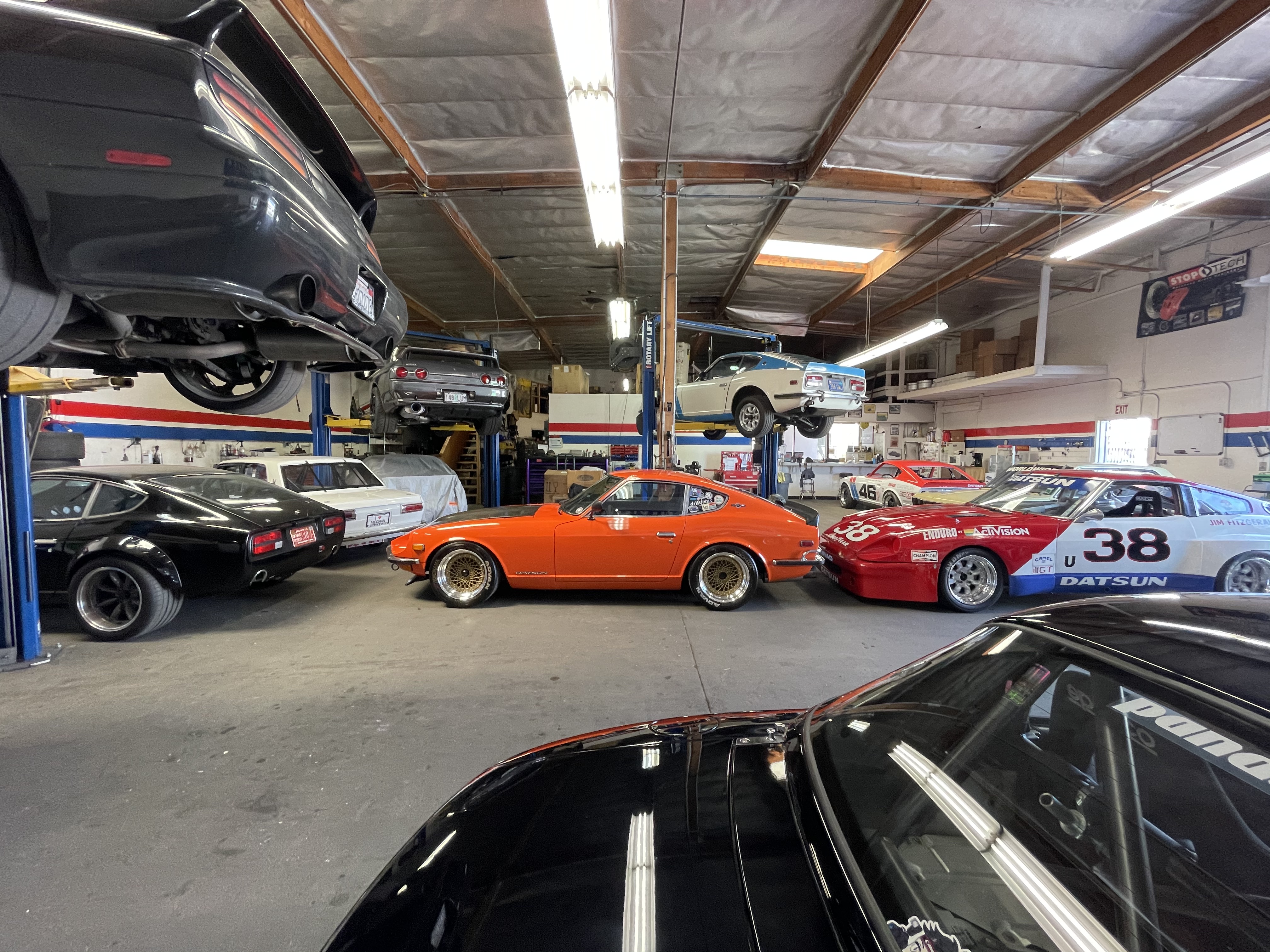

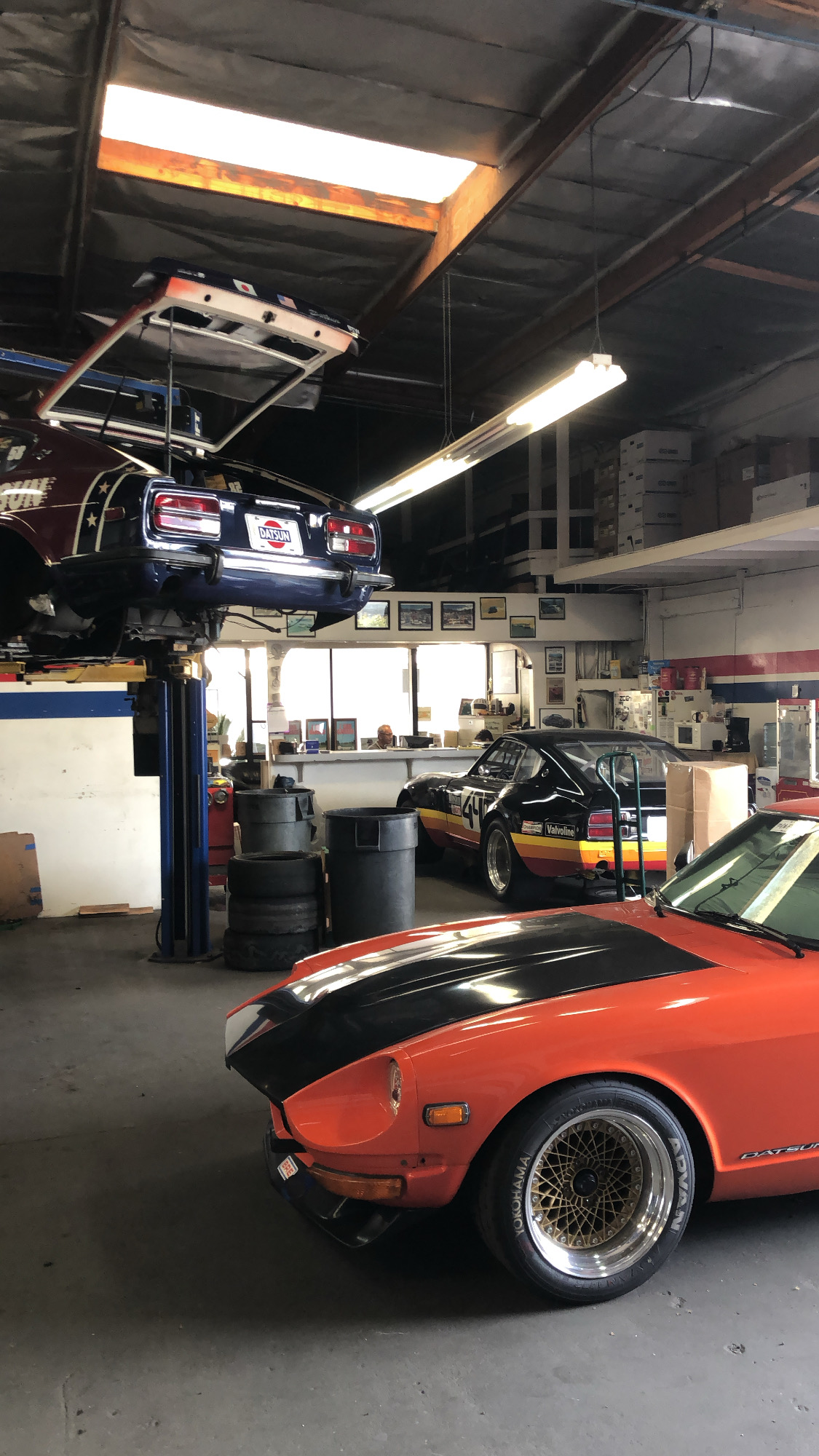

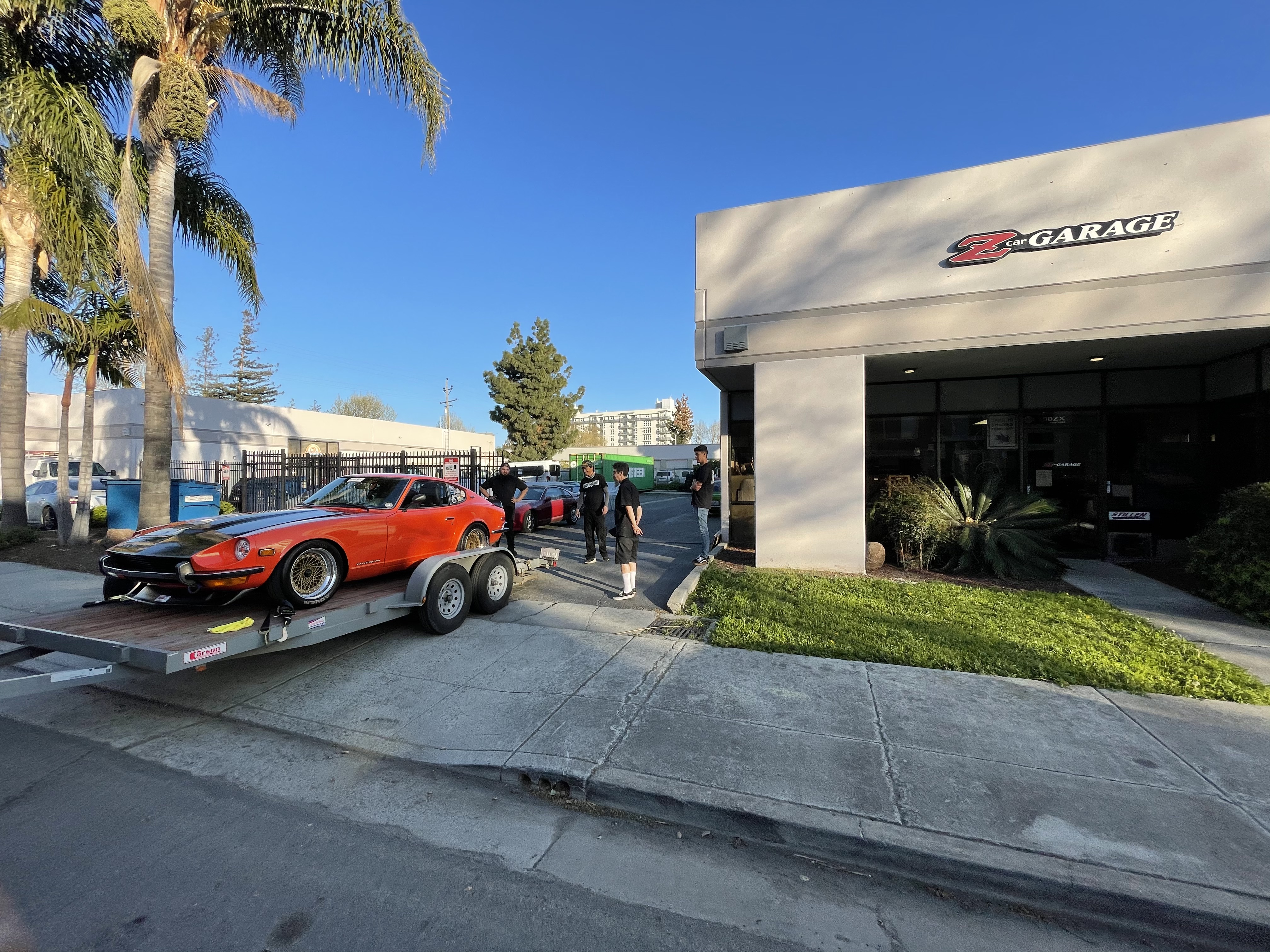

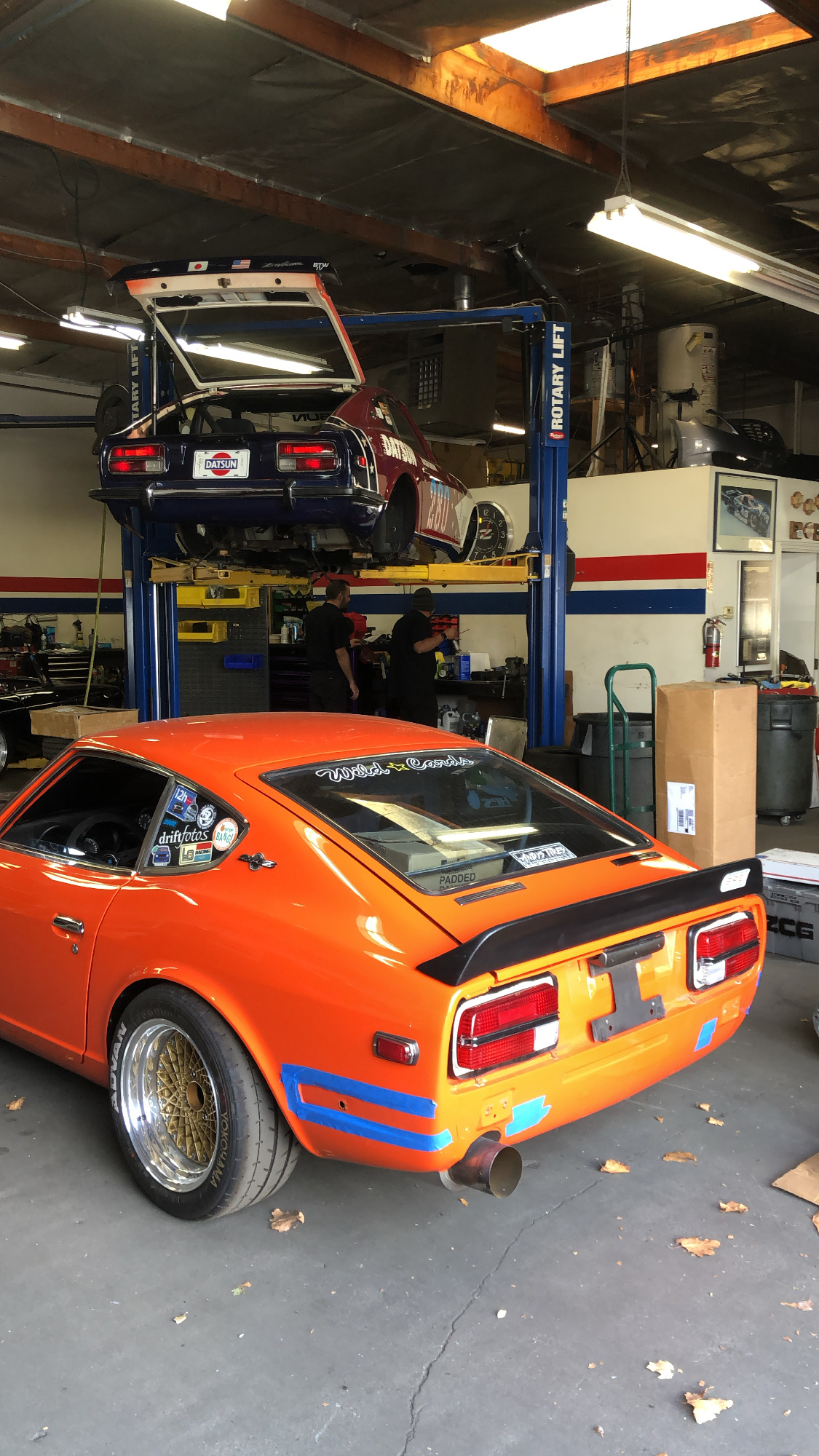

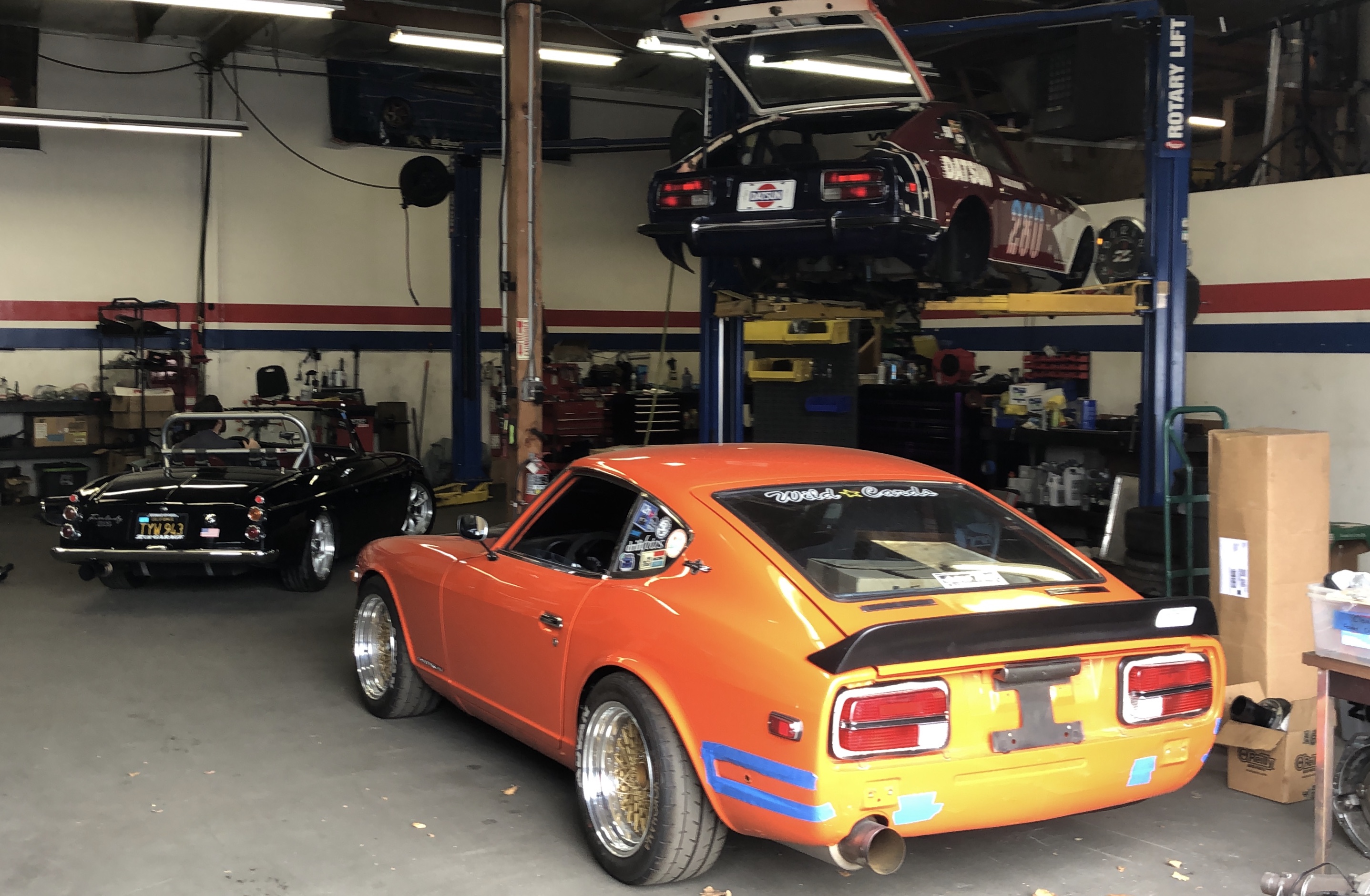

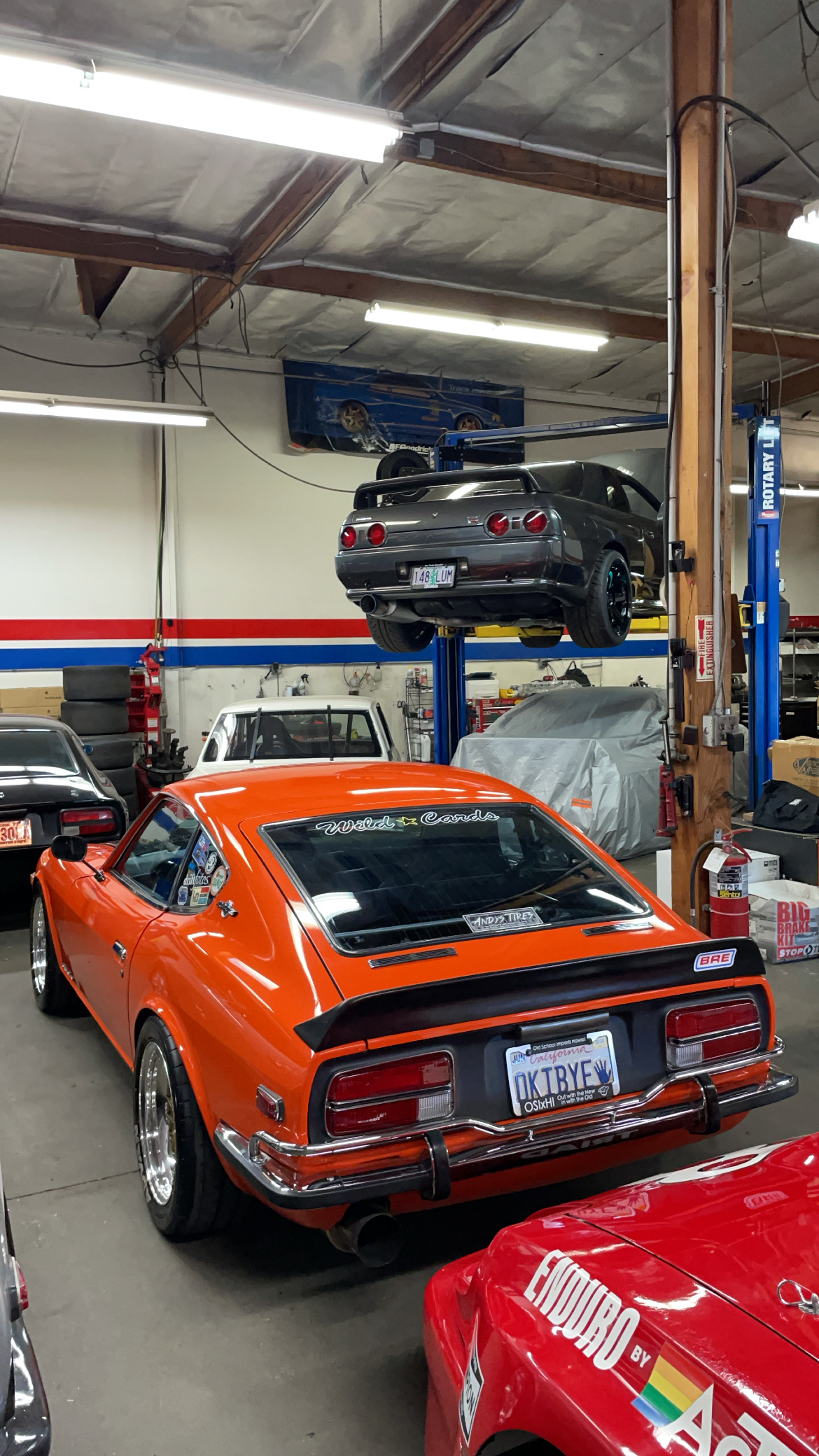

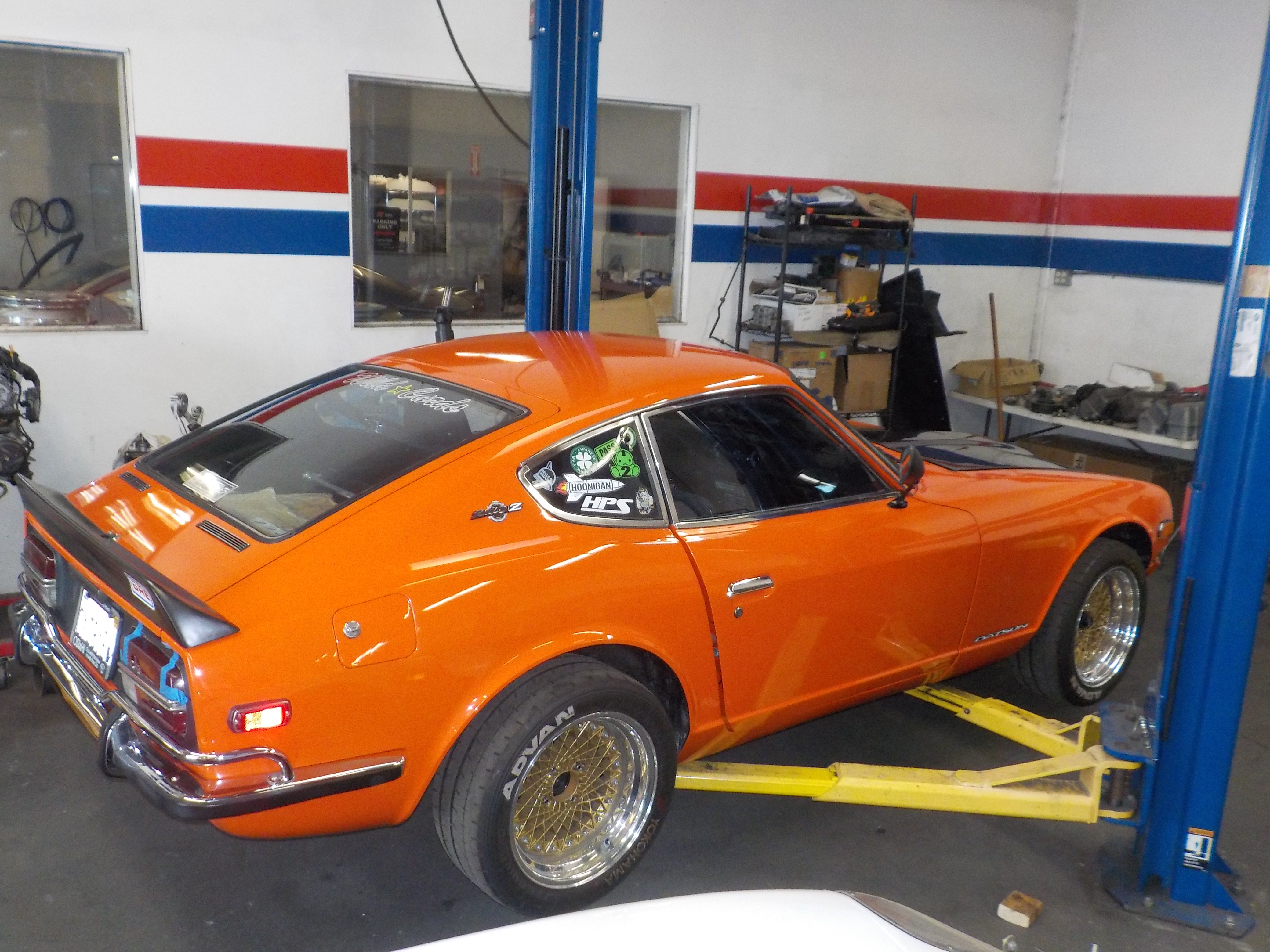

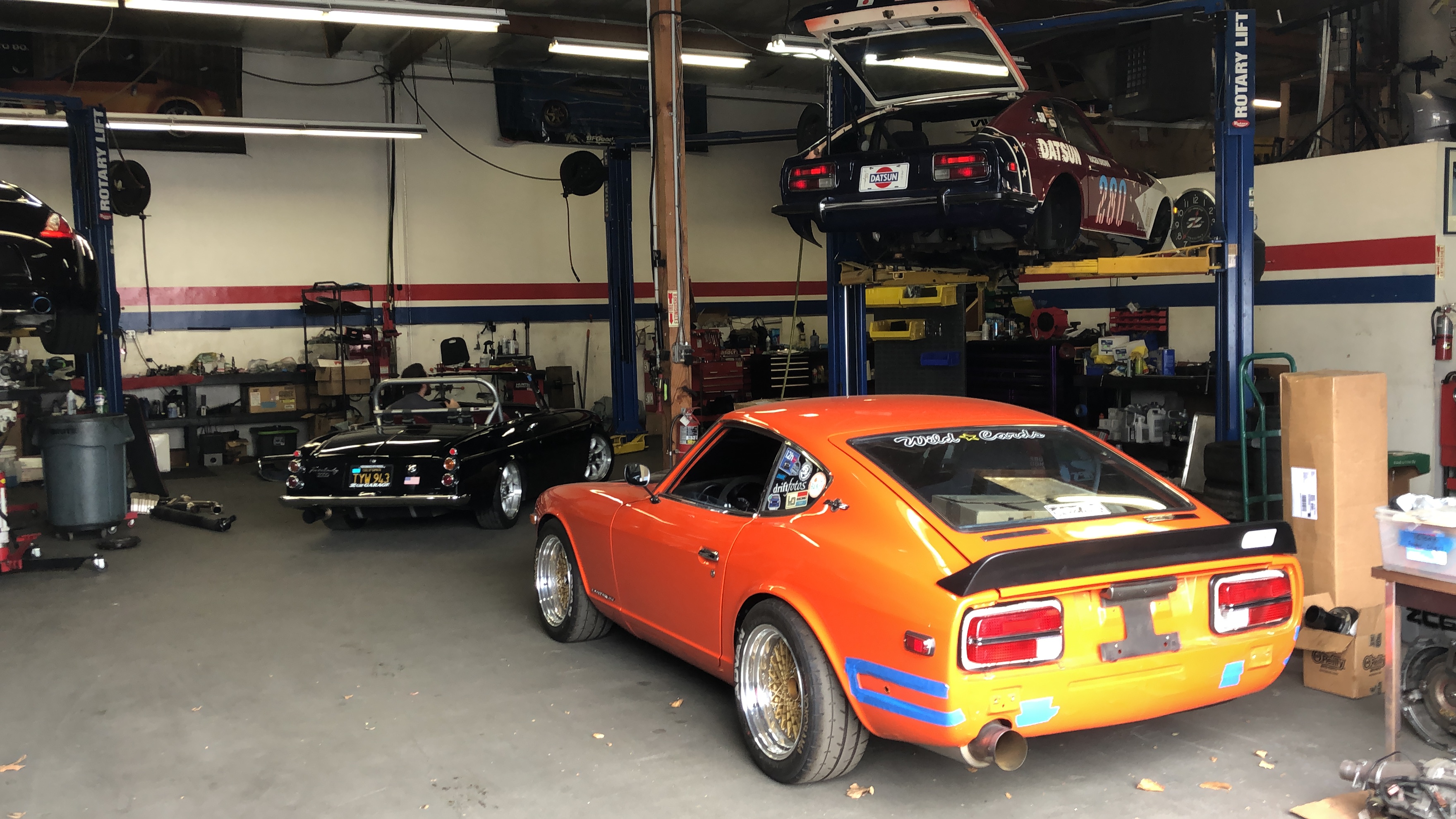

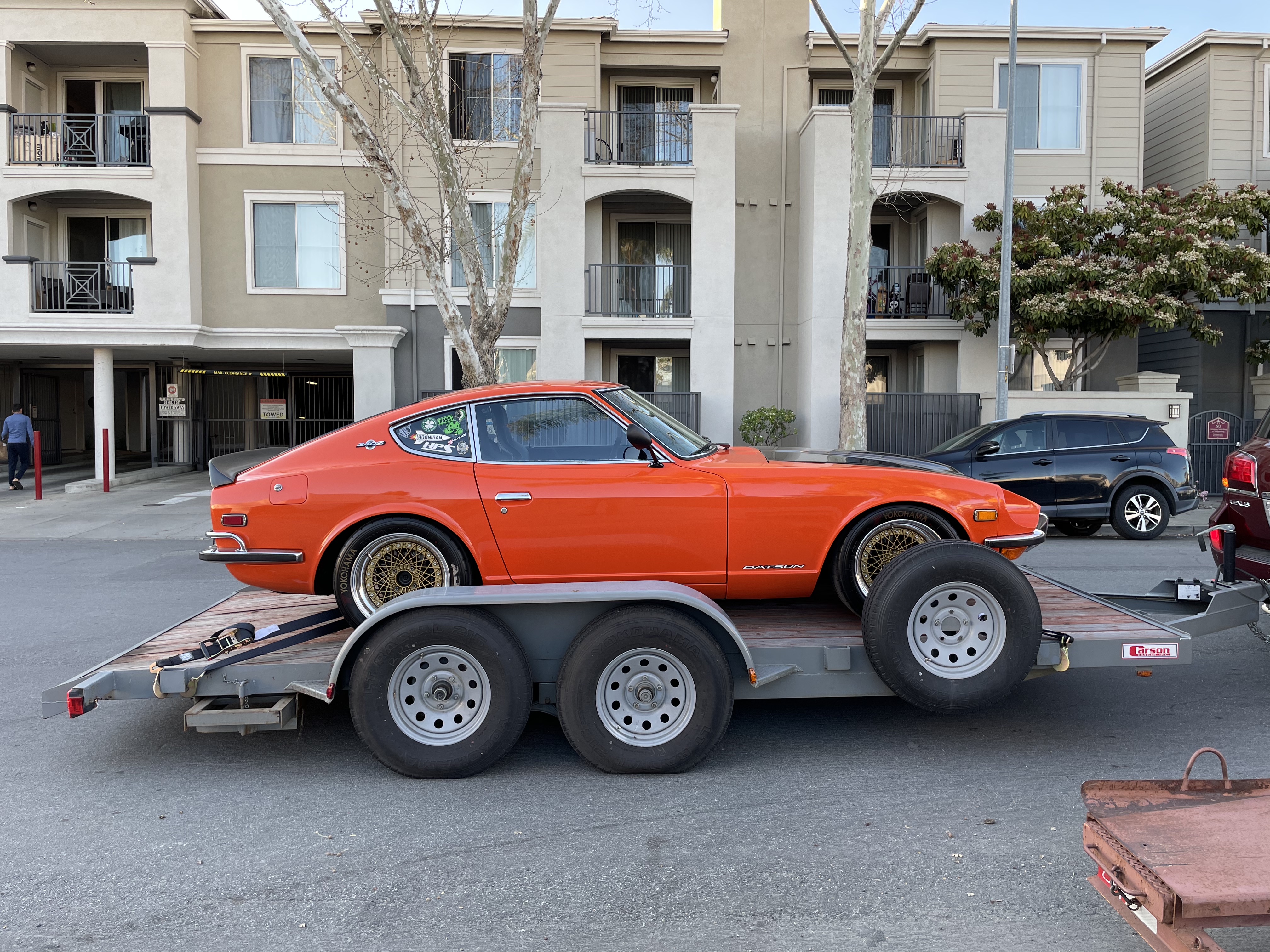

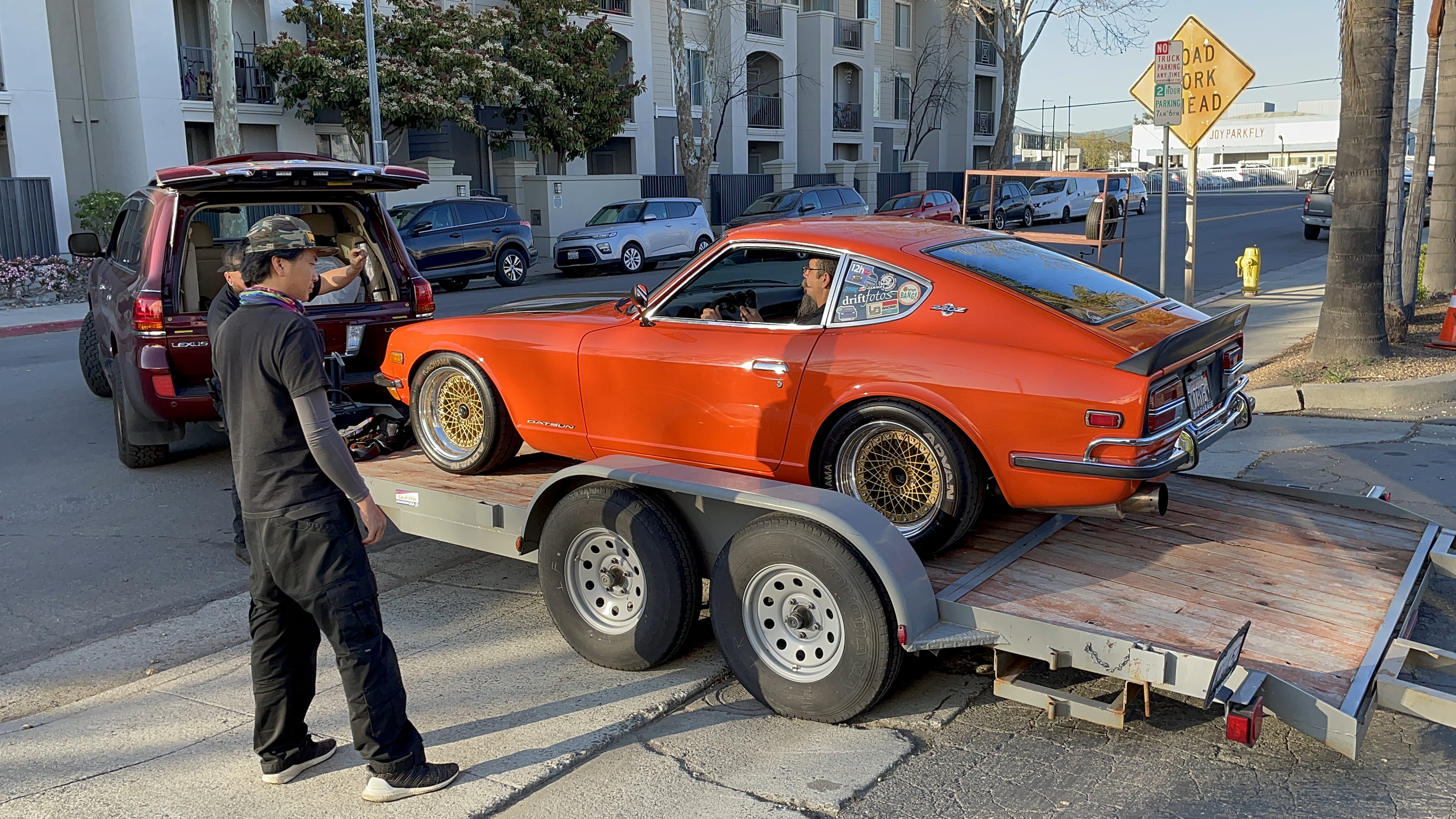

We first met Larry when he visited us at the 2018 Japanese Classic Car Show in Long Beach, CA. We talked about Z cars, and how he really wanted to get our Z Car Garage Big-Brakes and ZCG treatment on his personal Z. In 2020 he trailered his Z up from LA to ZCG in February, literally a few weeks before the pandemic.

“I actually found out about ZCG on Instagram and met Rob for the first time in SoCal at JCCS. I inquired about getting brakes for my car since it couldn’t stop even with a Toyota 4×4 conversion and Nissan Maxima rear disk brakes. They were absolutely horrible. There is a reason why people ship their Z cars across the country to ZCG. The passion is there and you can see it on everything they touch.”

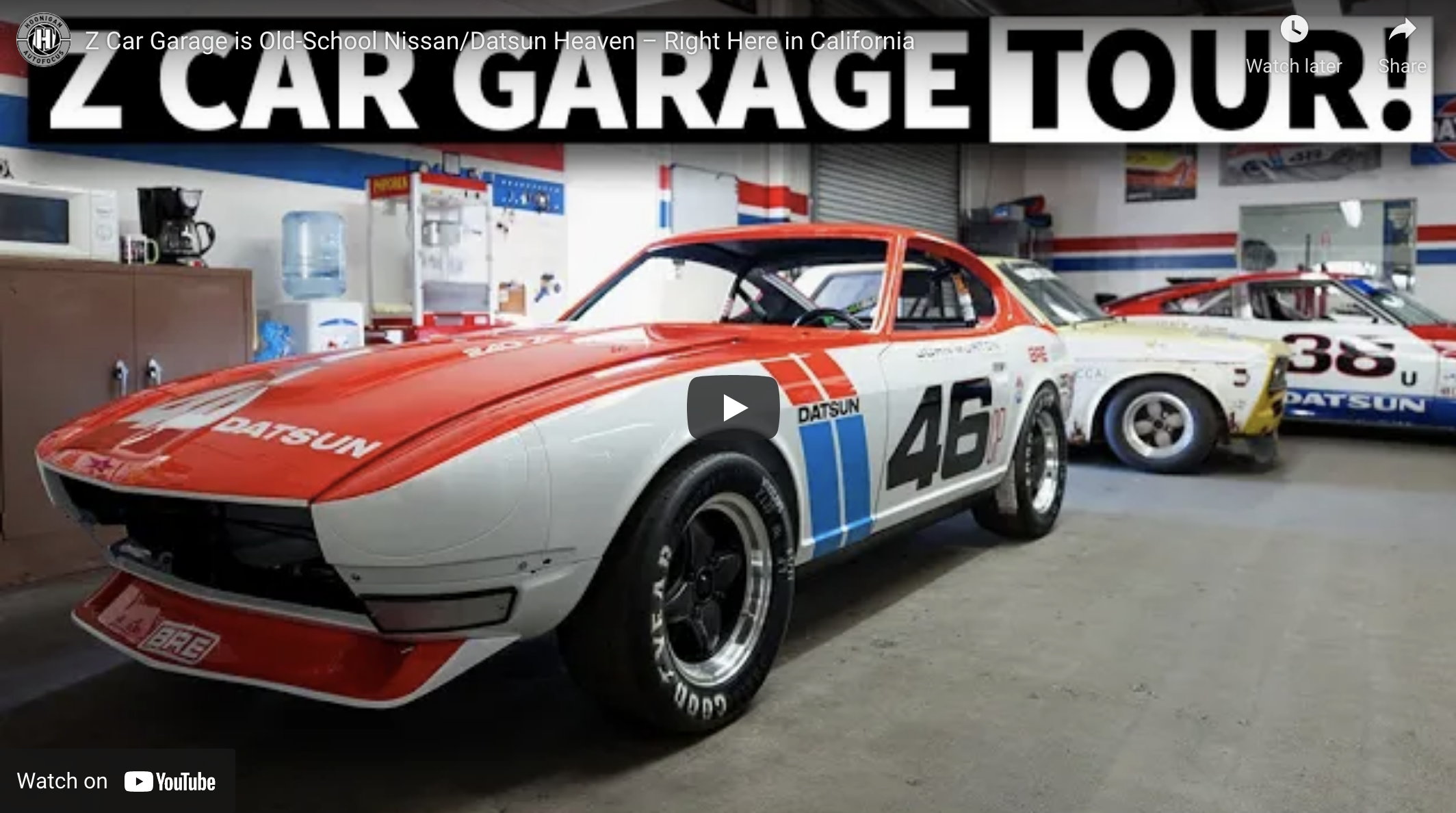

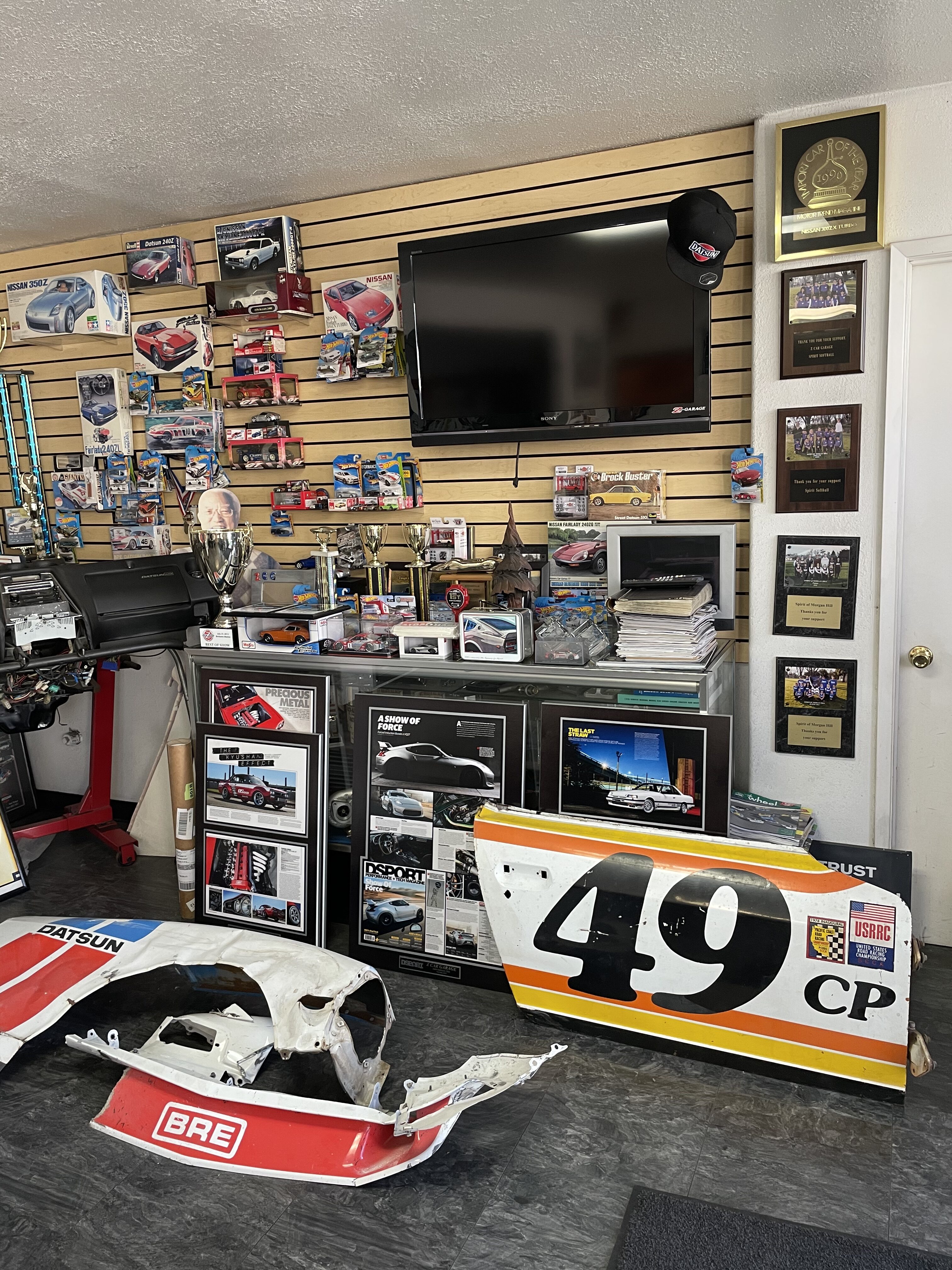

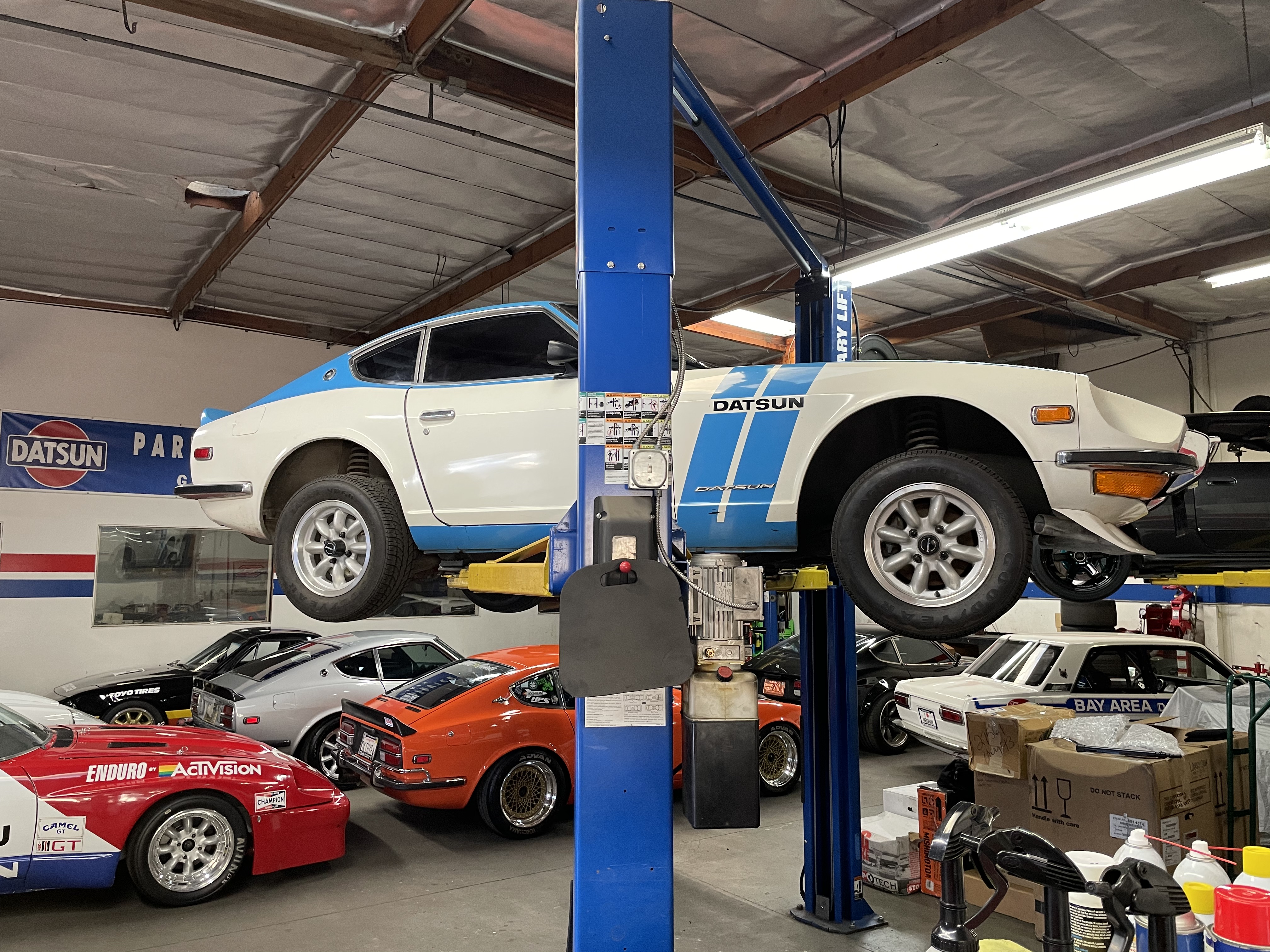

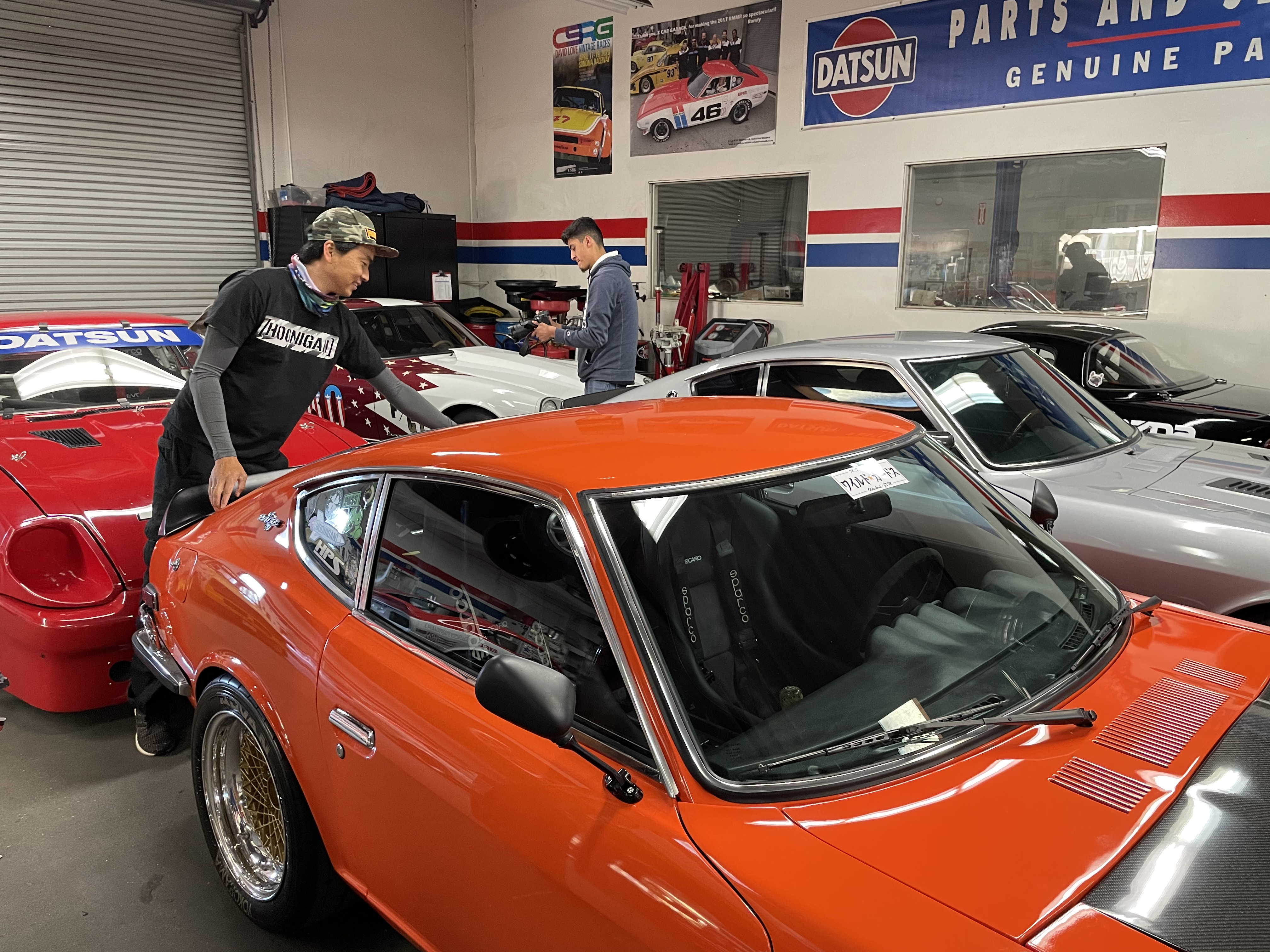

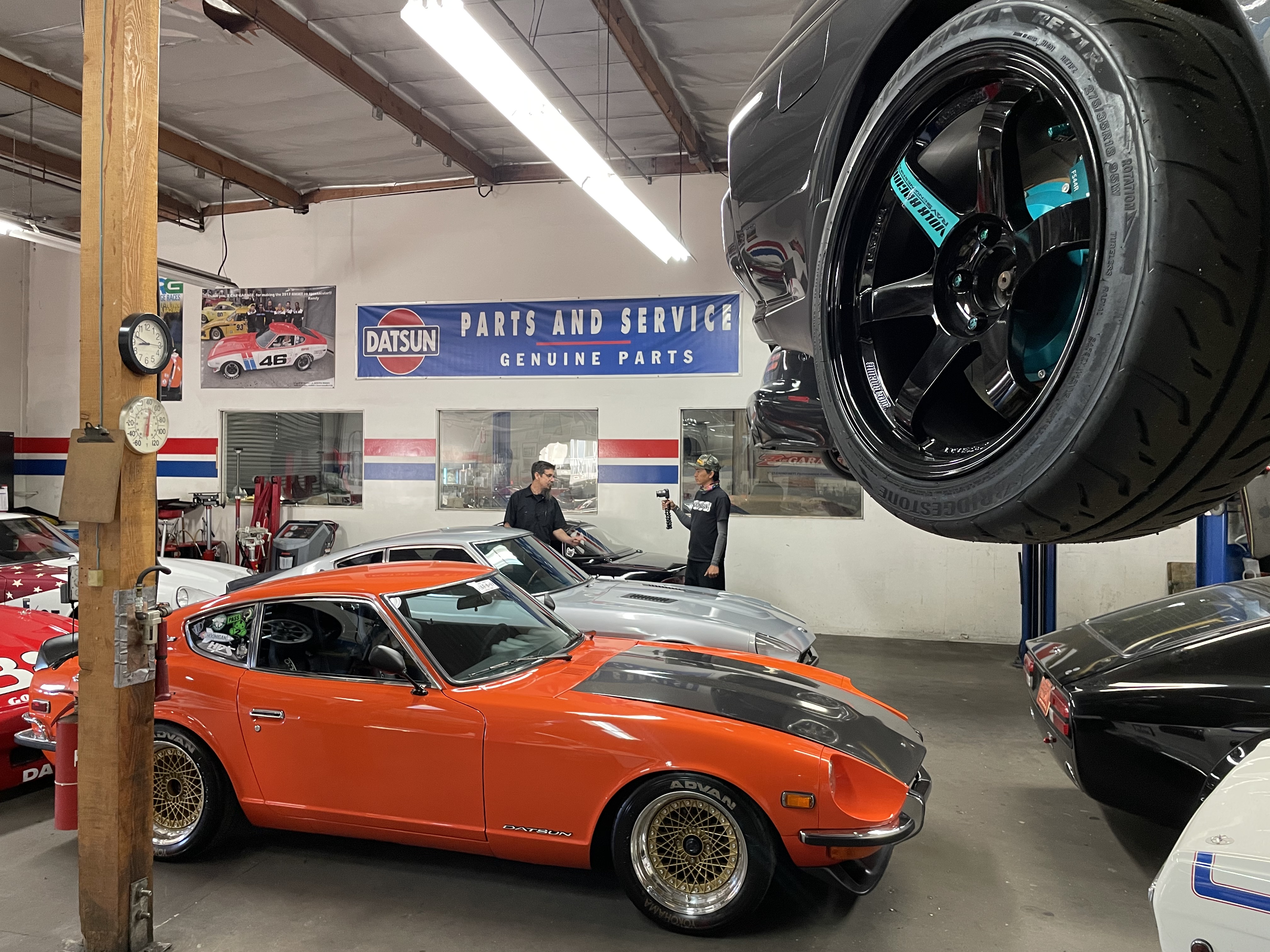

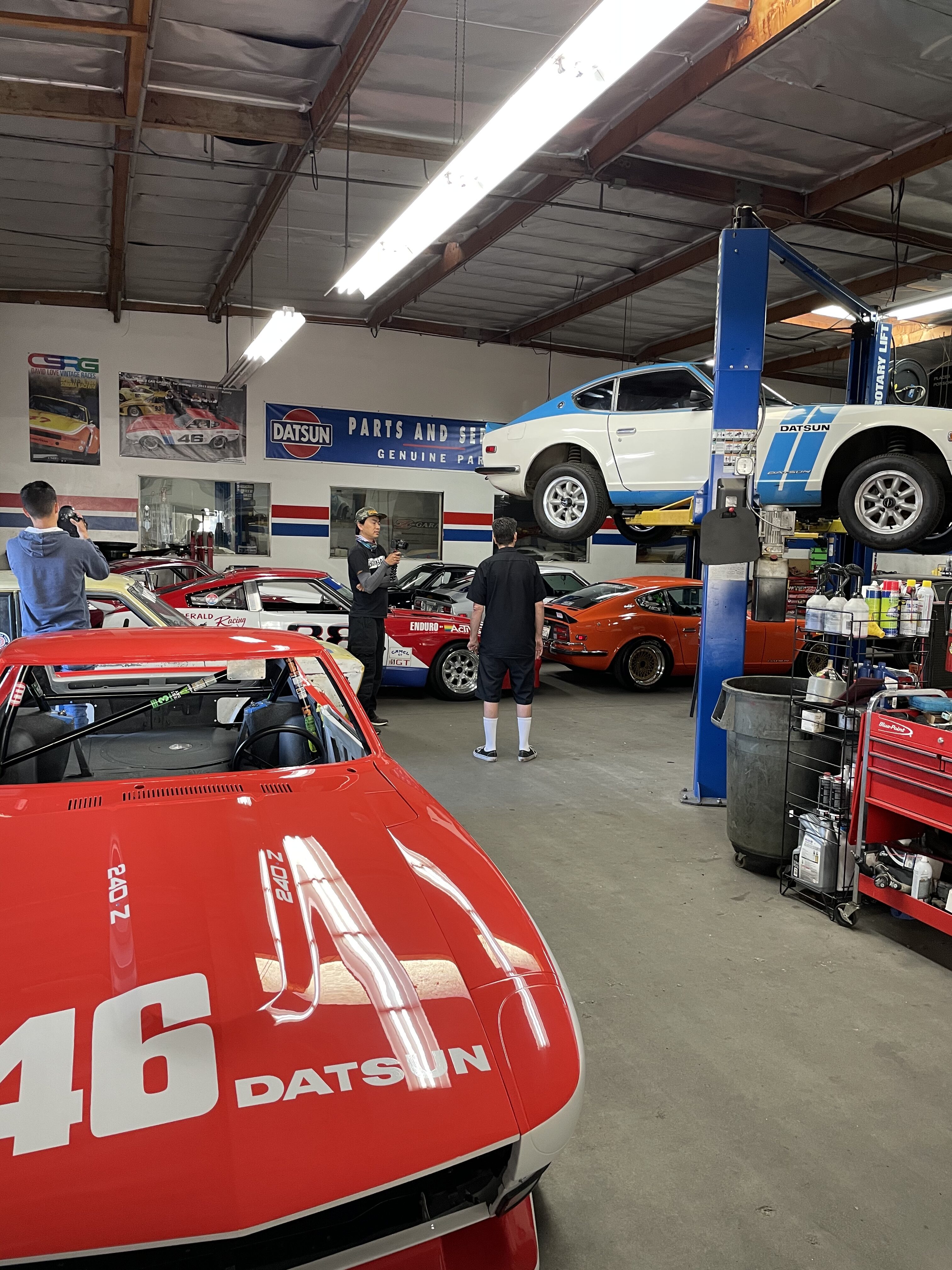

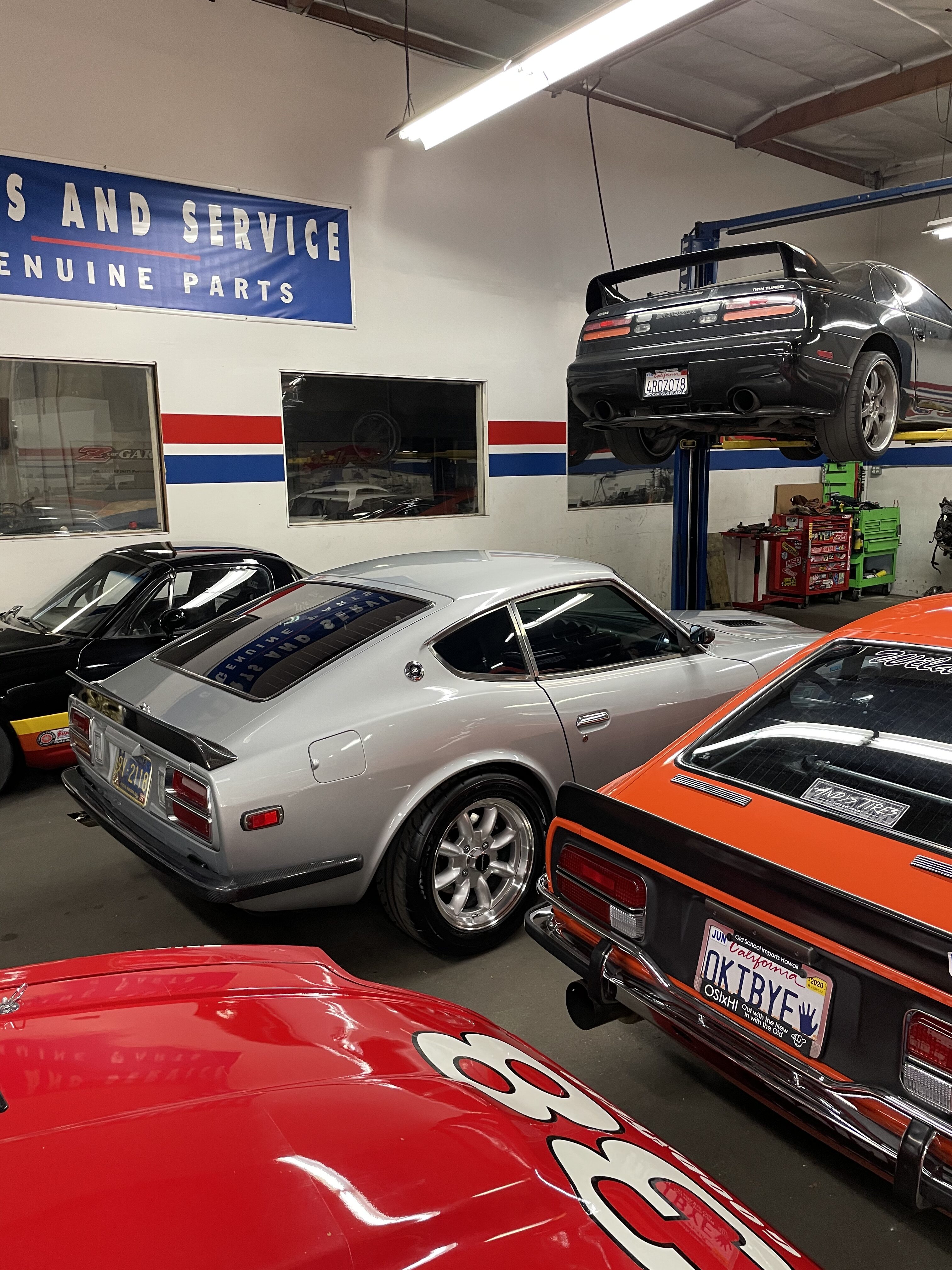

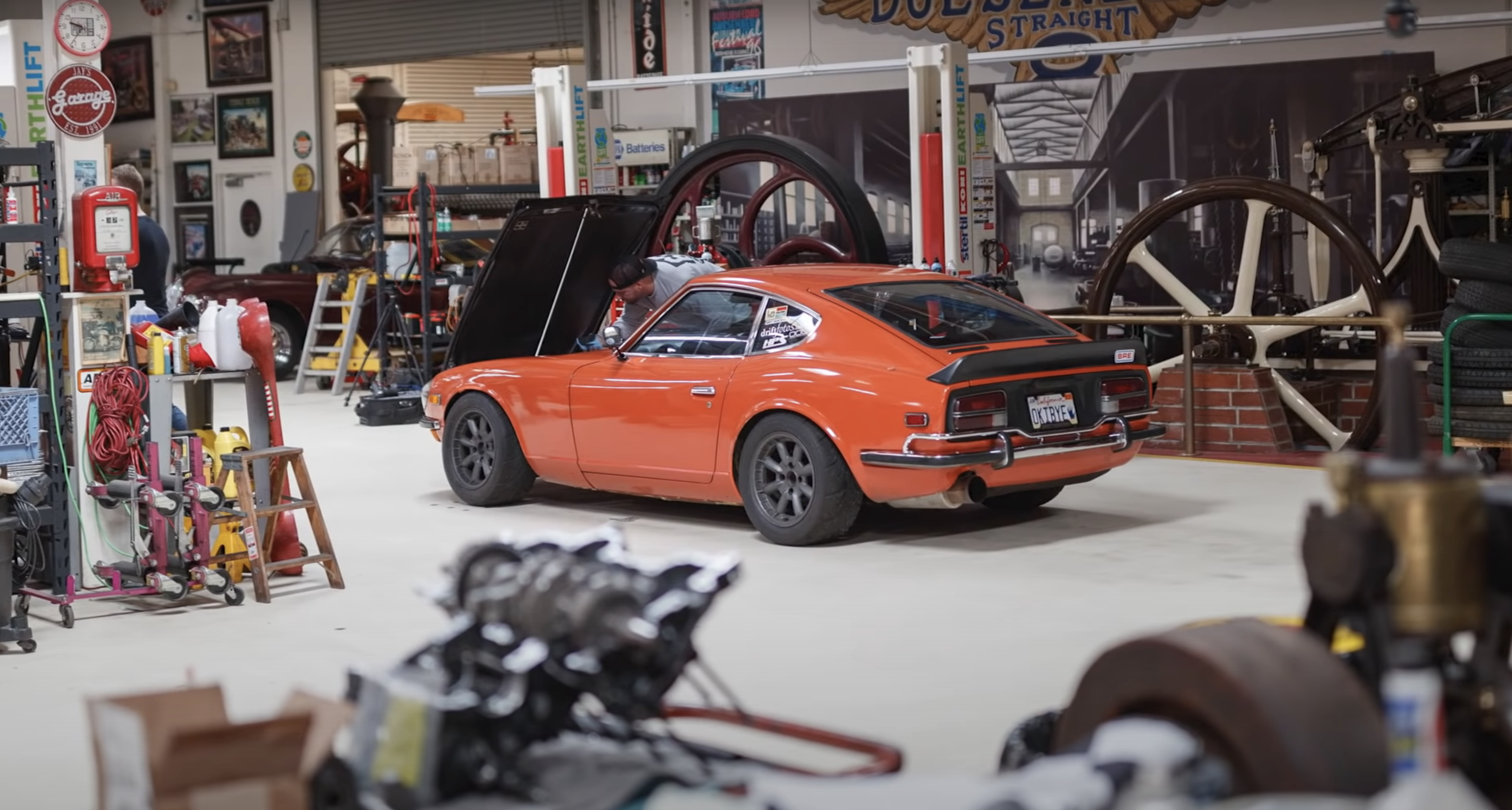

While visiting Z Car Garage Larry featured a few of our client cars and did a shop tour for his YouTube channel Hoonigan AutoFocus. You can click on the thumbnails below to watch the videos:

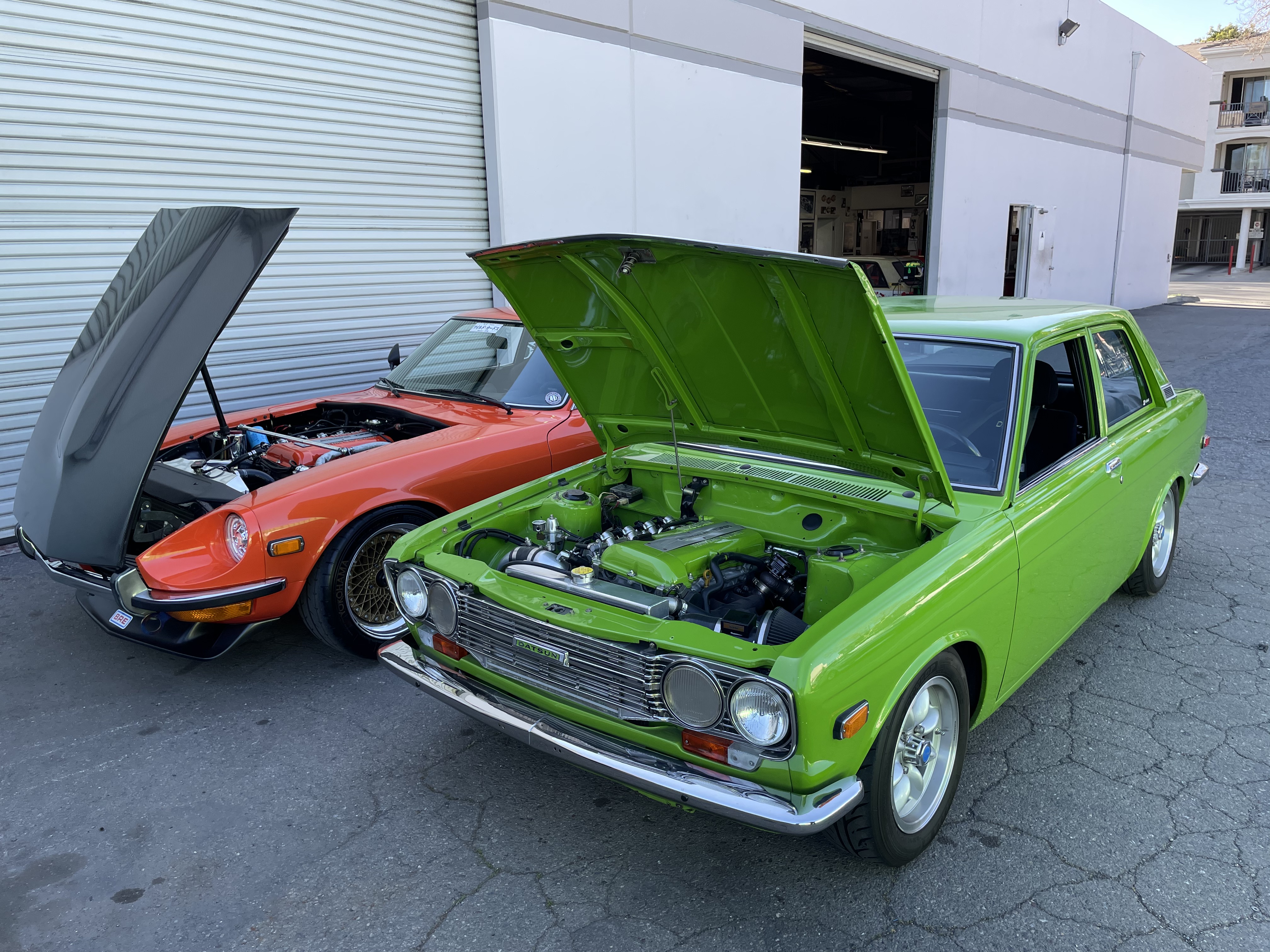

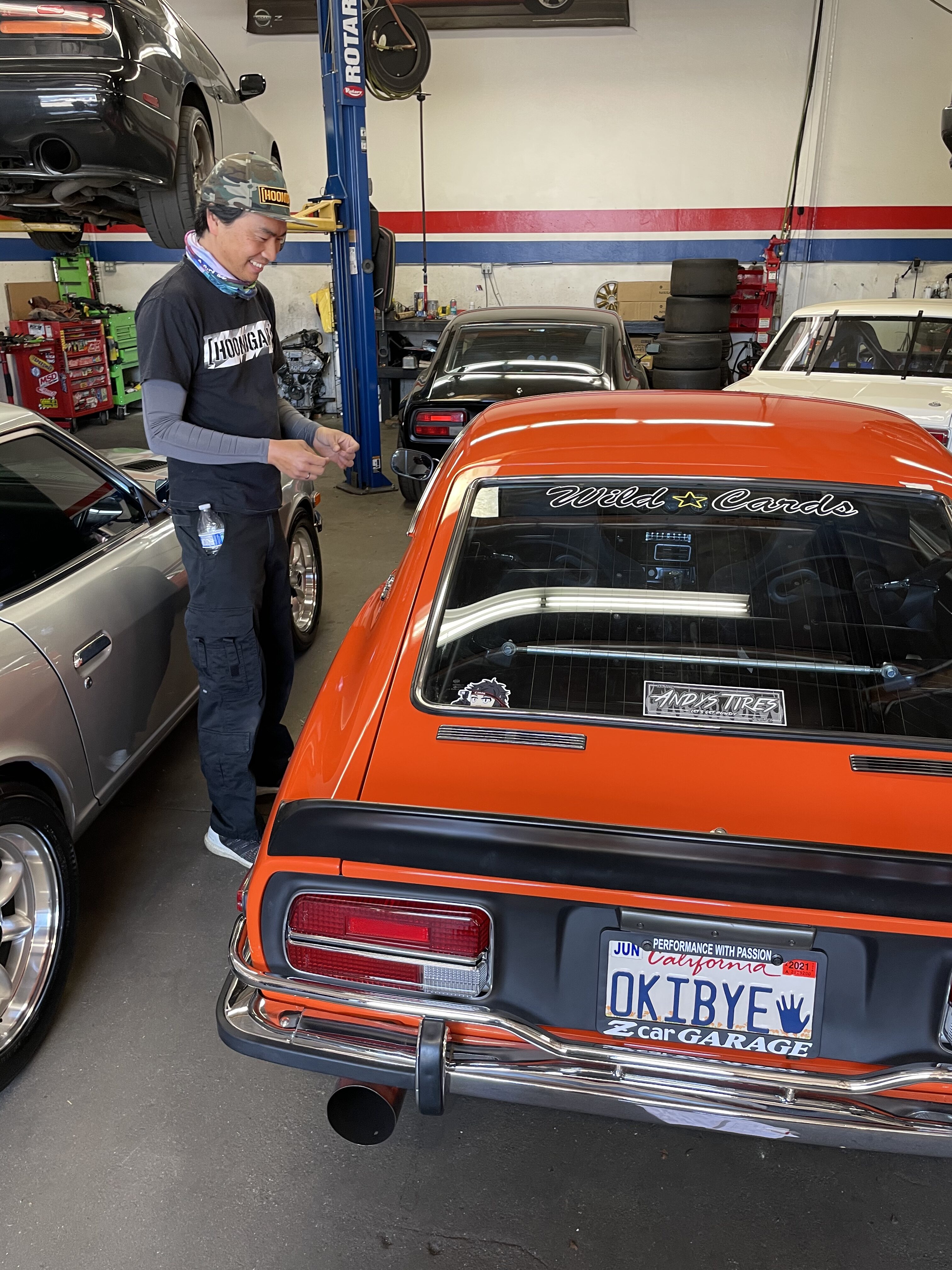

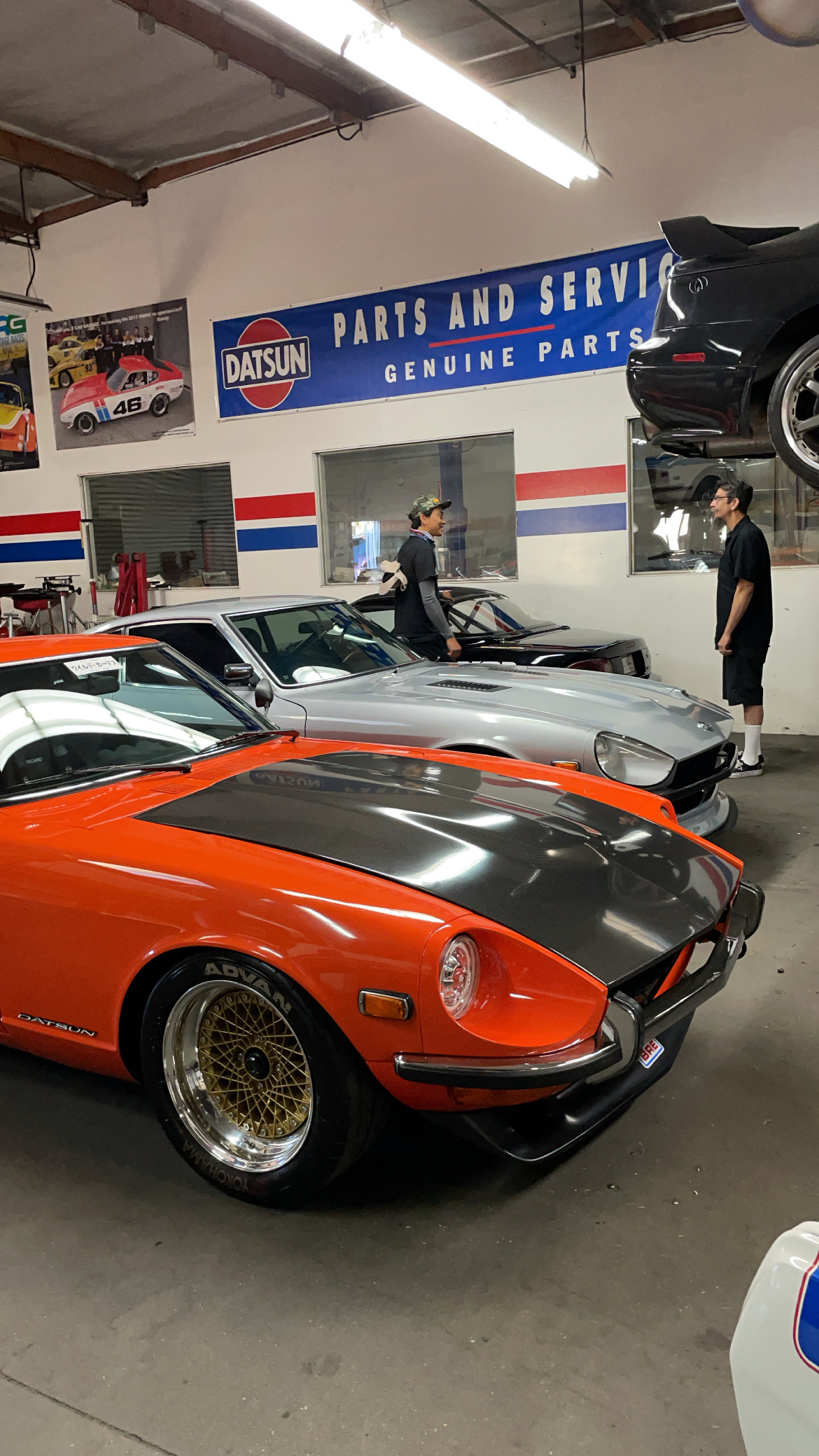

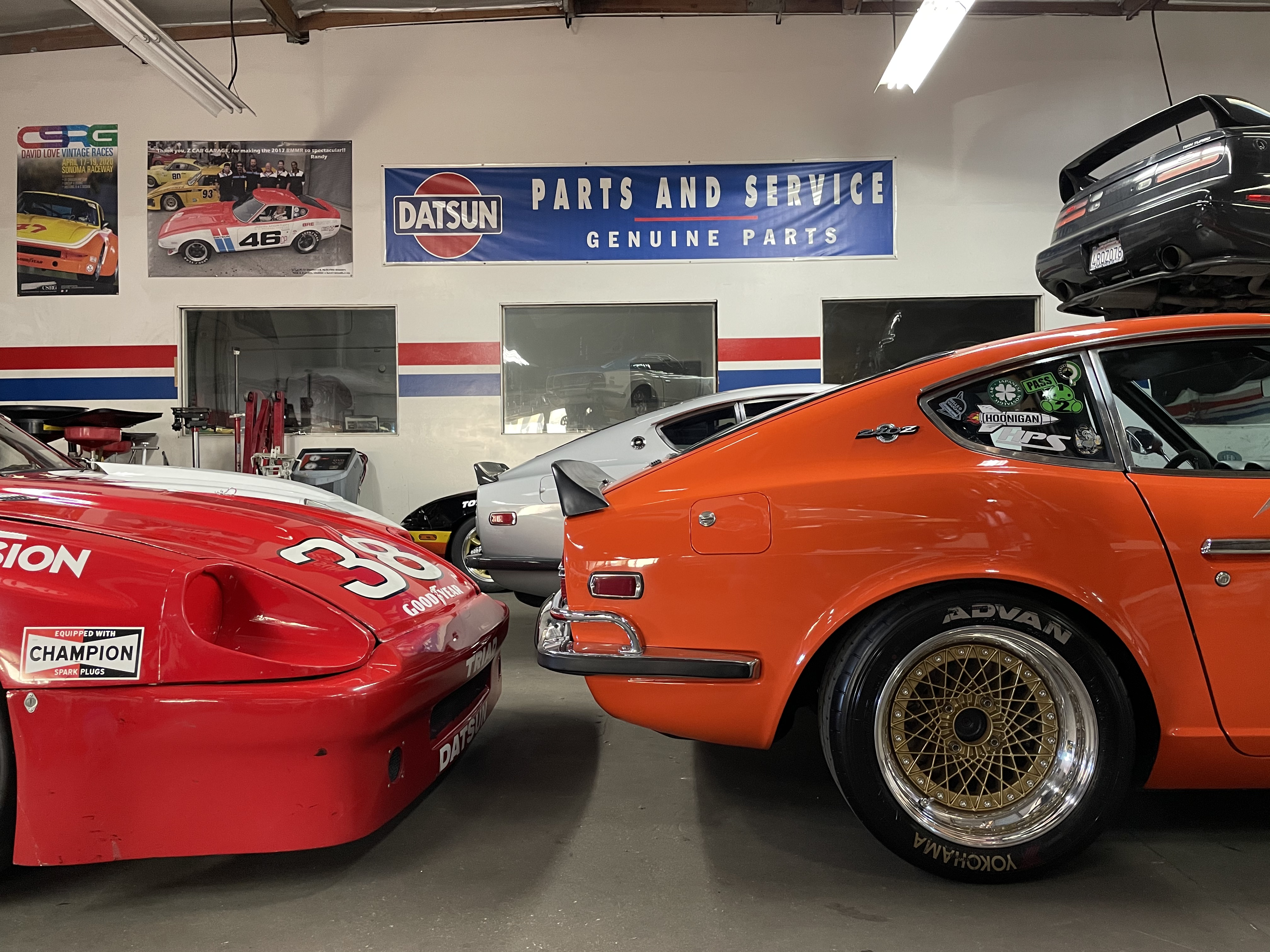

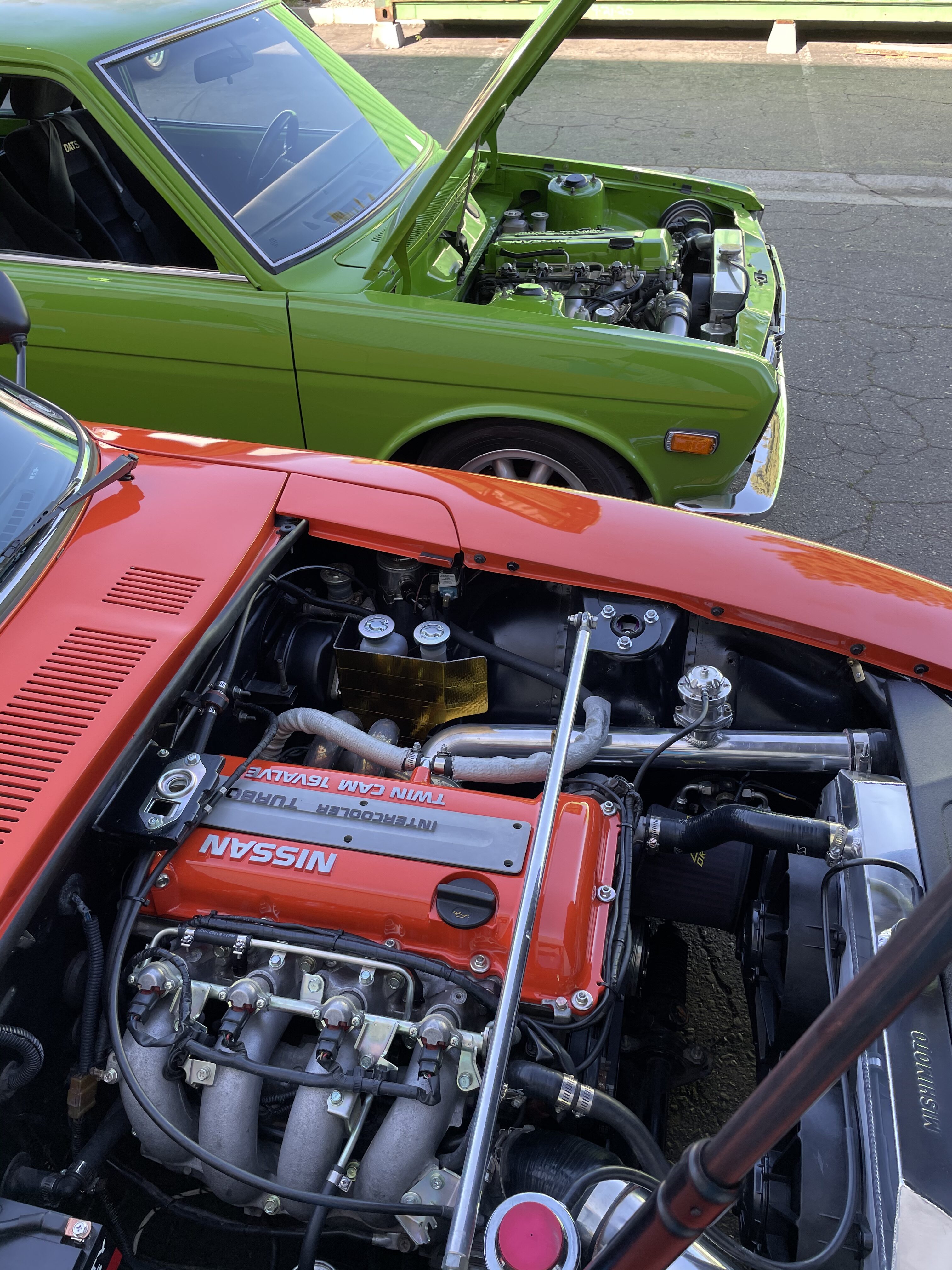

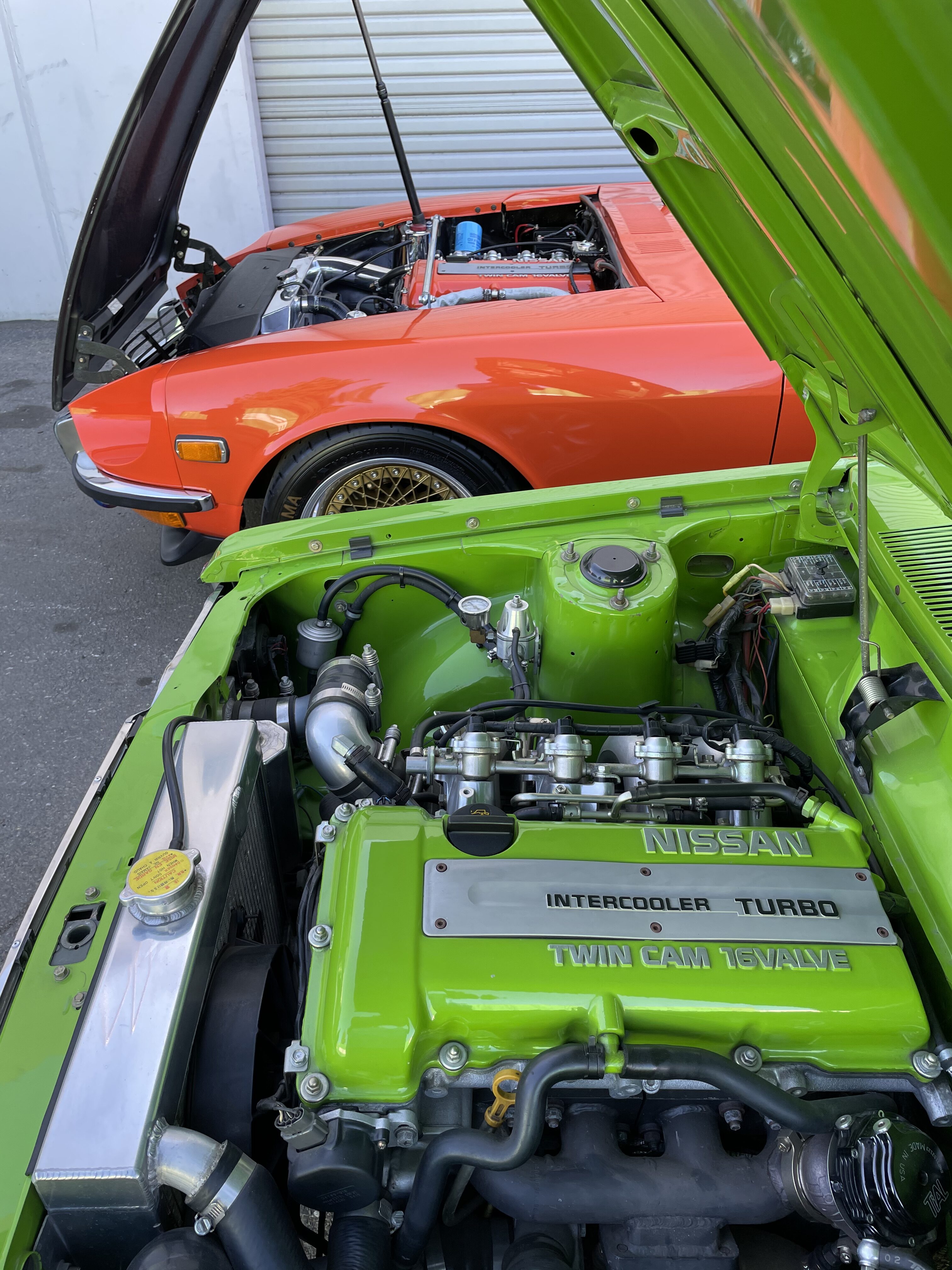

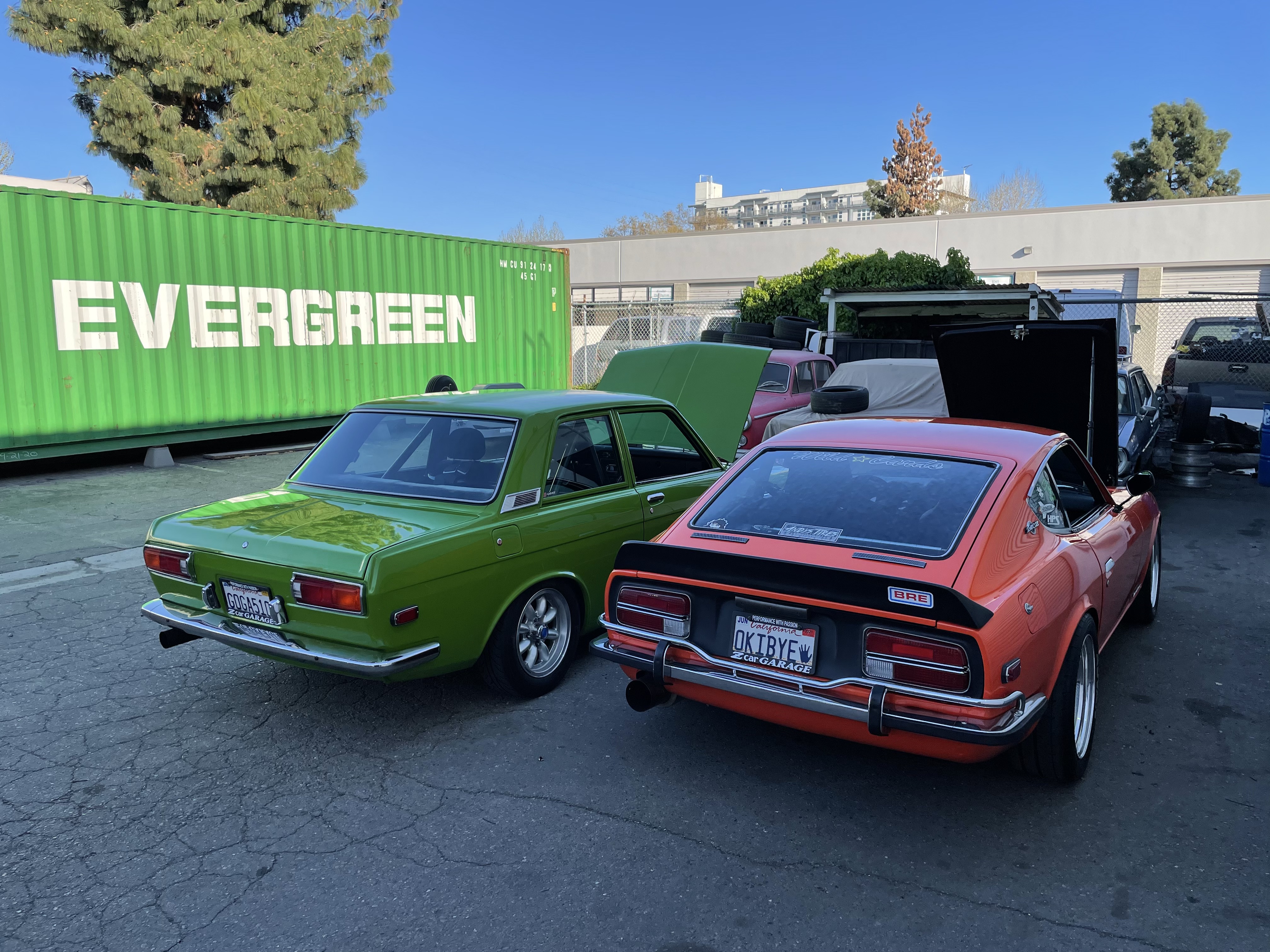

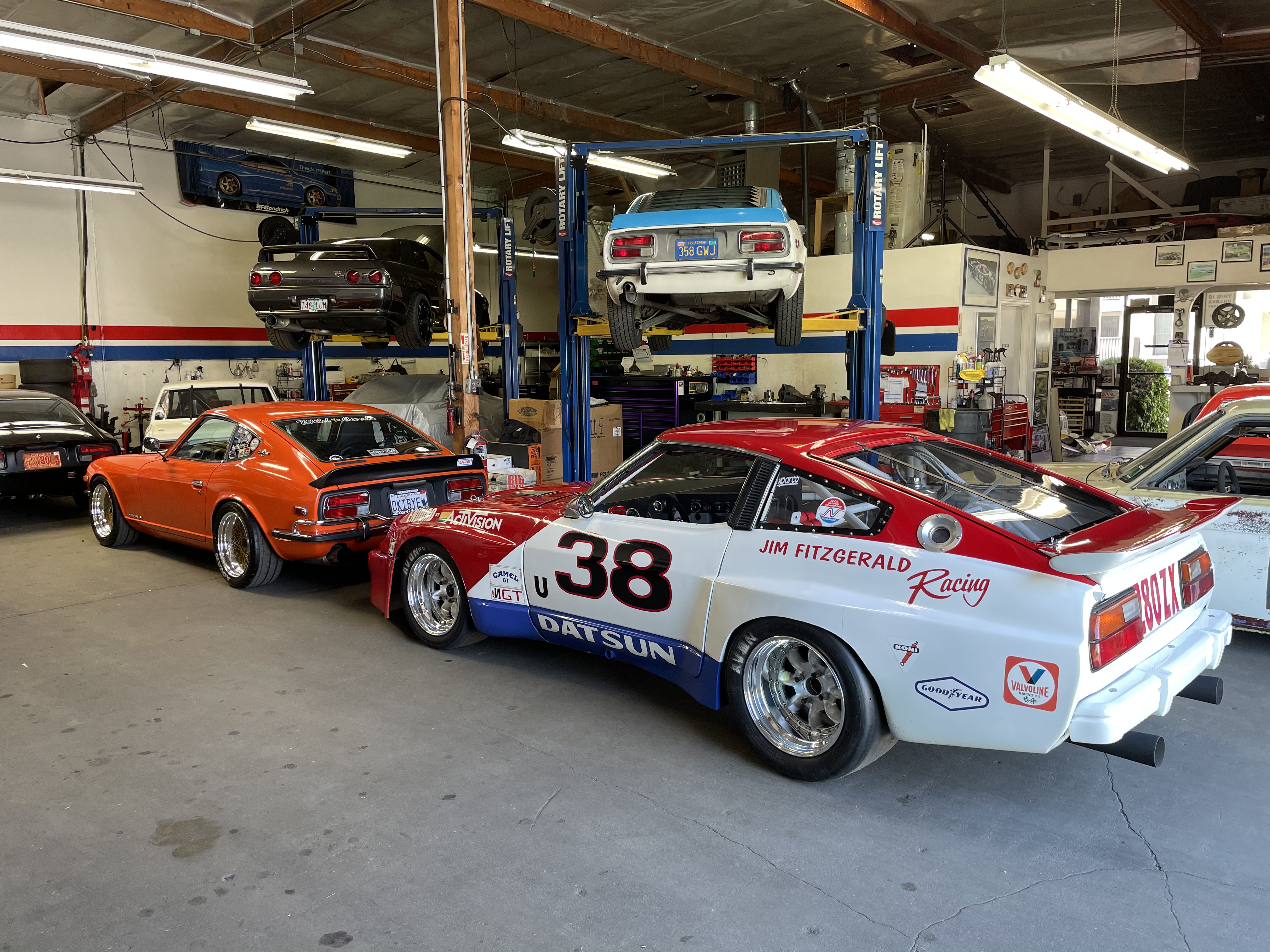

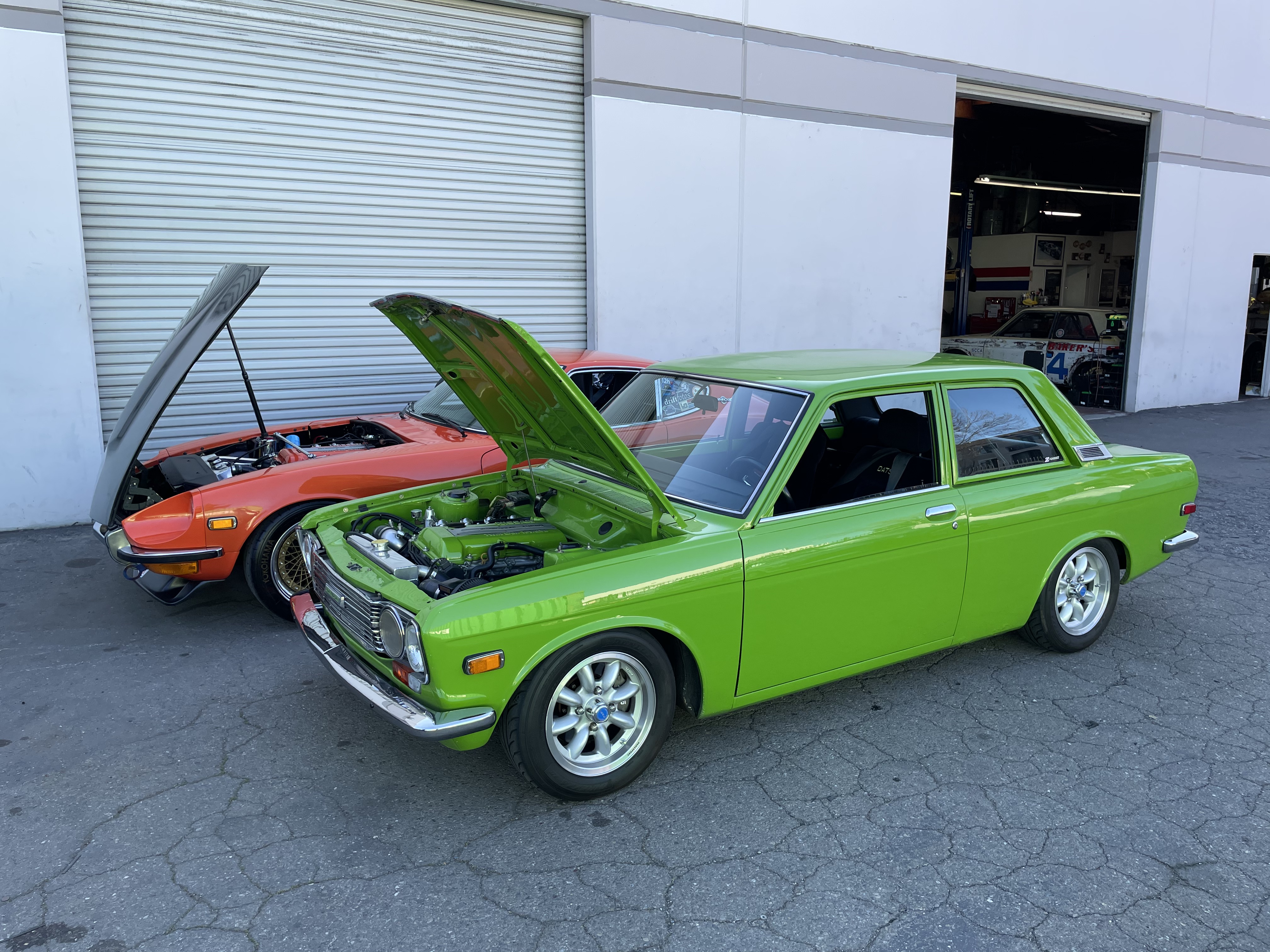

Fast forward a year later and Larry returned to pick up his beloved Z. He shot a few more vehicles like my my 1967 Datsun Roadster and Randy’s 1970 Salt Flat Racer but most importantly Larry finally filmed a 1hr-long Hoonigan Autofocus episode of his own Z, Ole Orange Bang. Larry was so happy with his Z he recorded a separate lock-down video for our friends at Haltech.



We couldn’t leave our readers hanging without our own ZCG-style feature complete with dyno videos and behind the scenes footage, so if you can’t wait any longer here it is below. Turn those speakers up and enjoy, read on for an in-depth look at our work.

The ZCG Touch



Larry and Rob developed a plan for Ole Orange Bang. The Z had past work performed by many folks including Larry’s buddies. We simply wanted his Z to be a multi-dimensional sports car with power, brakes, handling and comfort. Cosmetics were already handled, it just needed some mechanical love with ZCG-products that you will find on many of our ZCG builds. Let’s begin with the chassis upgrades, then go into dyno tuning/engine bay work and final details like the interior and weatherstripping.

ZCG Big-Brakes and CV Axles

We handed Larry the keys to “Mrs. Butters”, our 1971 Series 1 240z shop demo car and he was sold on our Z Car Garage Big-Brakes (for small wheels) and Z Car Garage CV Axles! Butters has a way of doing this to our clients 🙂 Read below for a brief description of these parts:


As fellow S30 owner/racer Glenn C mentioned in his review, on top of braking performance, pedal feel is extremely important and our Big-Brakes deliver. This is a direct result of working with engineers at Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. All fitting behind a 15″ Watanabe or Panasport wheel (and some 14″ wheels) and retaining factory emergency brake lever! A few details below:

Calipers: Stoptech ST42 4-piston front & rear race calipers (Alum 6061 mil-spec Type III anodized)

Rotors: 280mm x 20.6 with Alum 7075 hats

Pads: Stoptech 309 sport street pads

Blog posts documenting all of our customers running the ZCG Big-Brakes can be found HERE.

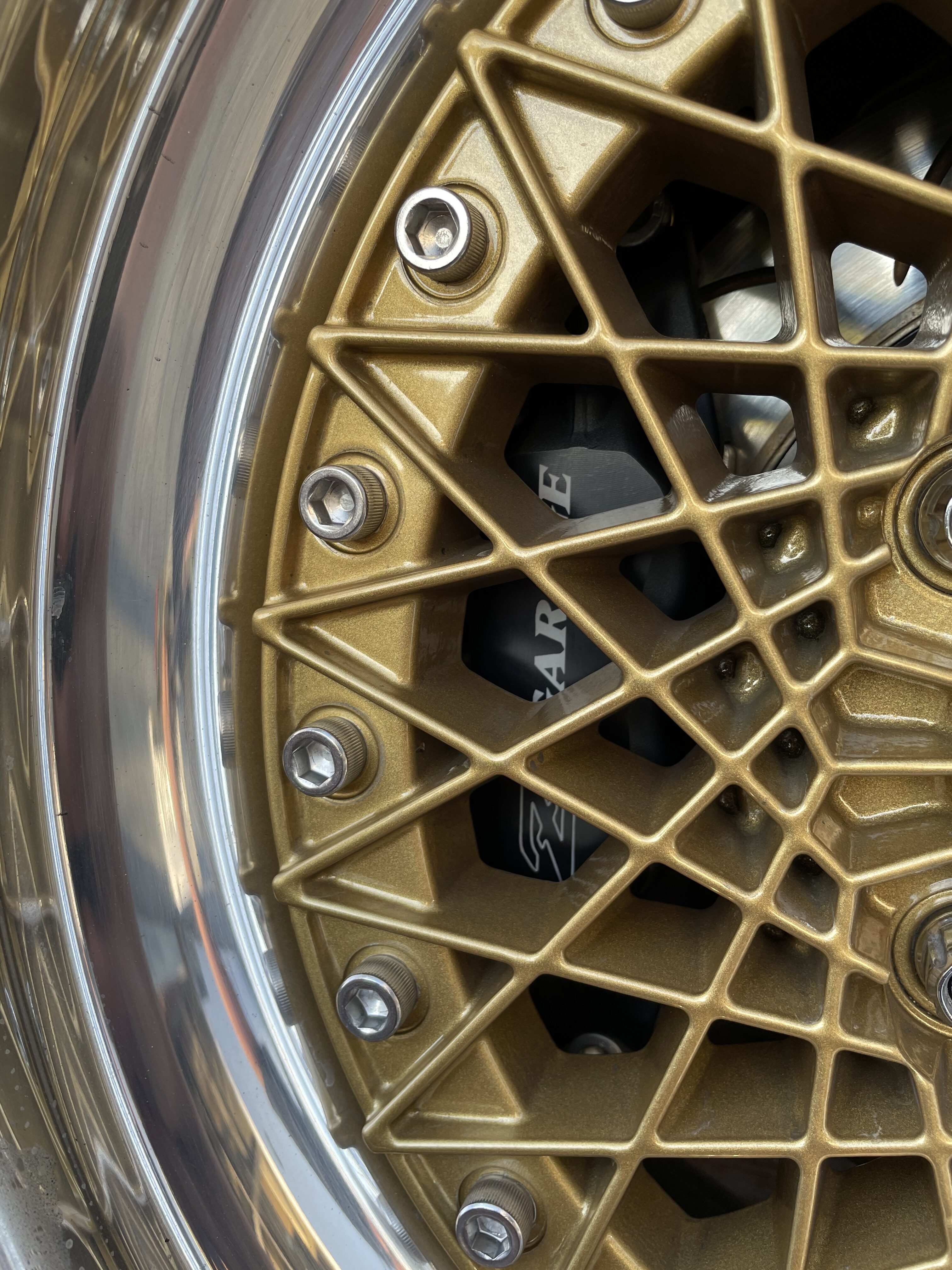

A few closer detail shots of the calipers, rotors and hardware:

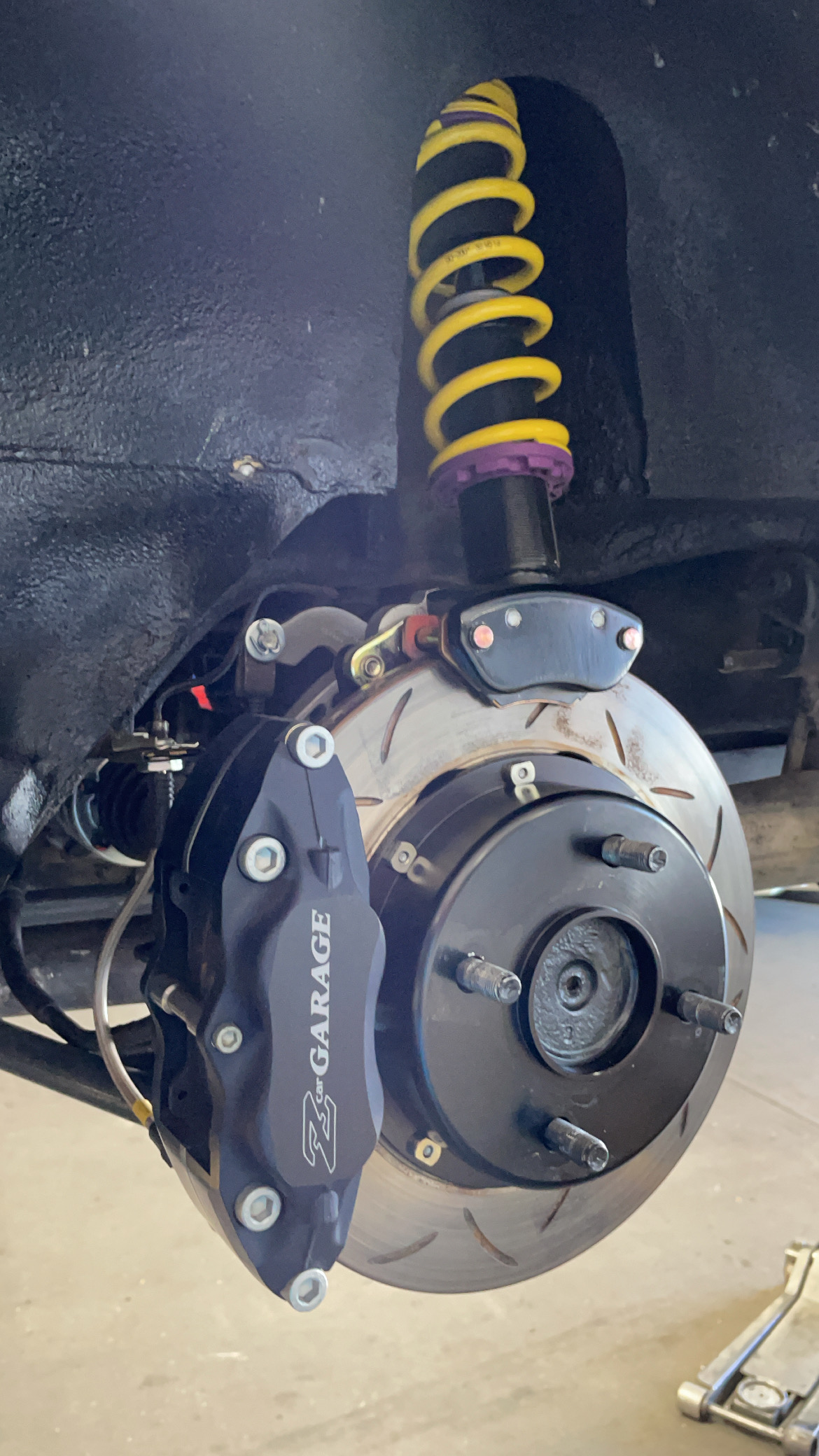

We removed Larry’s existing Toyota 4×4 front calipers and rear Maxima setup and installed our ZCG Big-Brake kit front and rear:



He got a new, OEM brake master cylinder as well:



At the rear, the Maxima setup was replaced with our ZCG Big-Brakes. Factory handbrake functionality IS retained!



Larry was impressed with the braking performance:

“The ZCG brakes and axles really give the 240z an update with modern top of the line performance where the Z badly needs it. These cars are lightweight and easy to make fast, but everything else that goes along with it is very lacking. While the 240z is a great car to drive in stock form, there is nothing like having a lightweight turbo rear wheel drive sports car.”

Z Car Garage CV Axles

Our Z Car Garage CV Axles help transmit power to the ground and ensure smoother operation compared to your standard half shafts. We have over 140 CV axle kits on customer cars and we are stoked with all of the positive feedback.

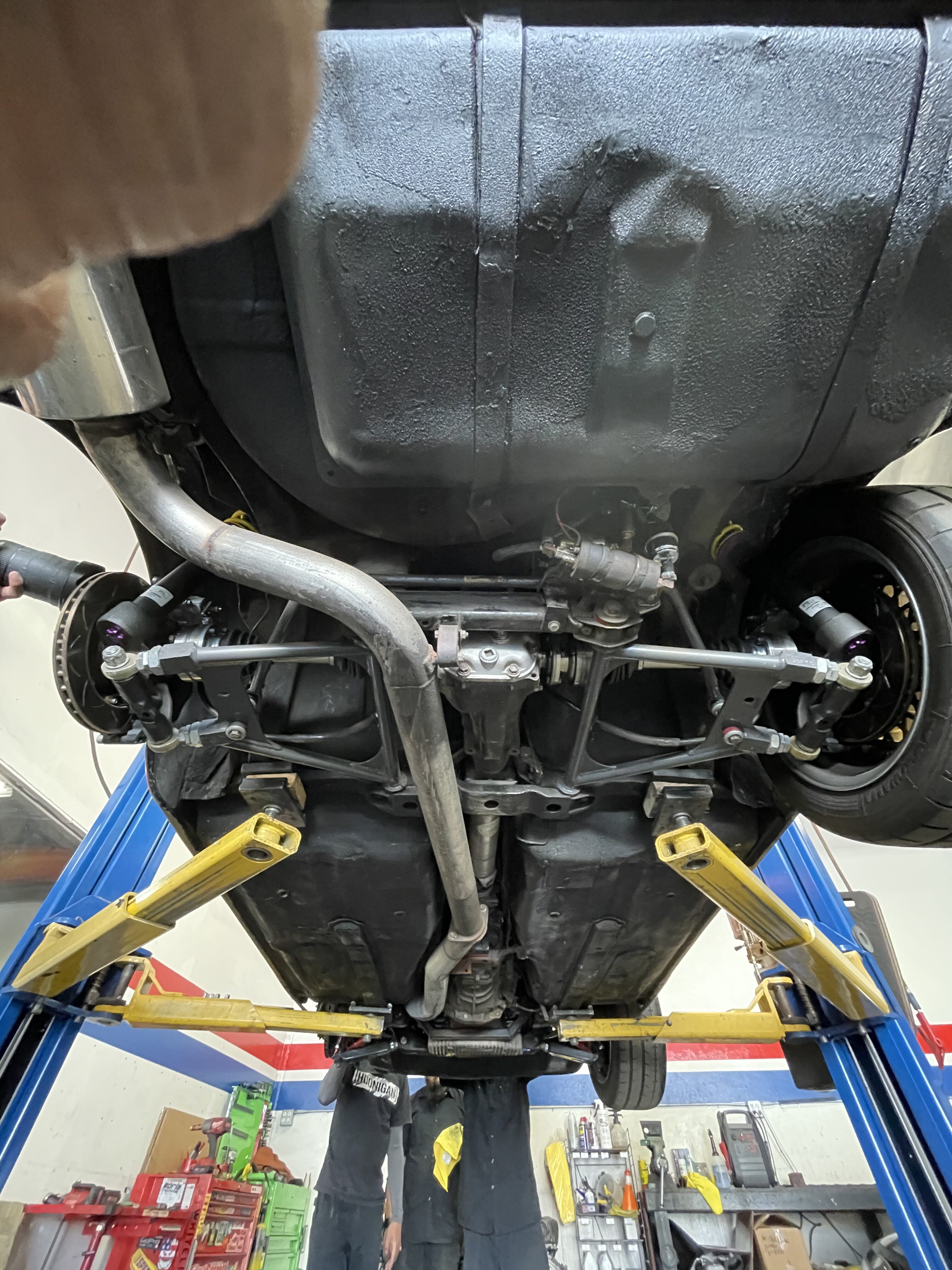

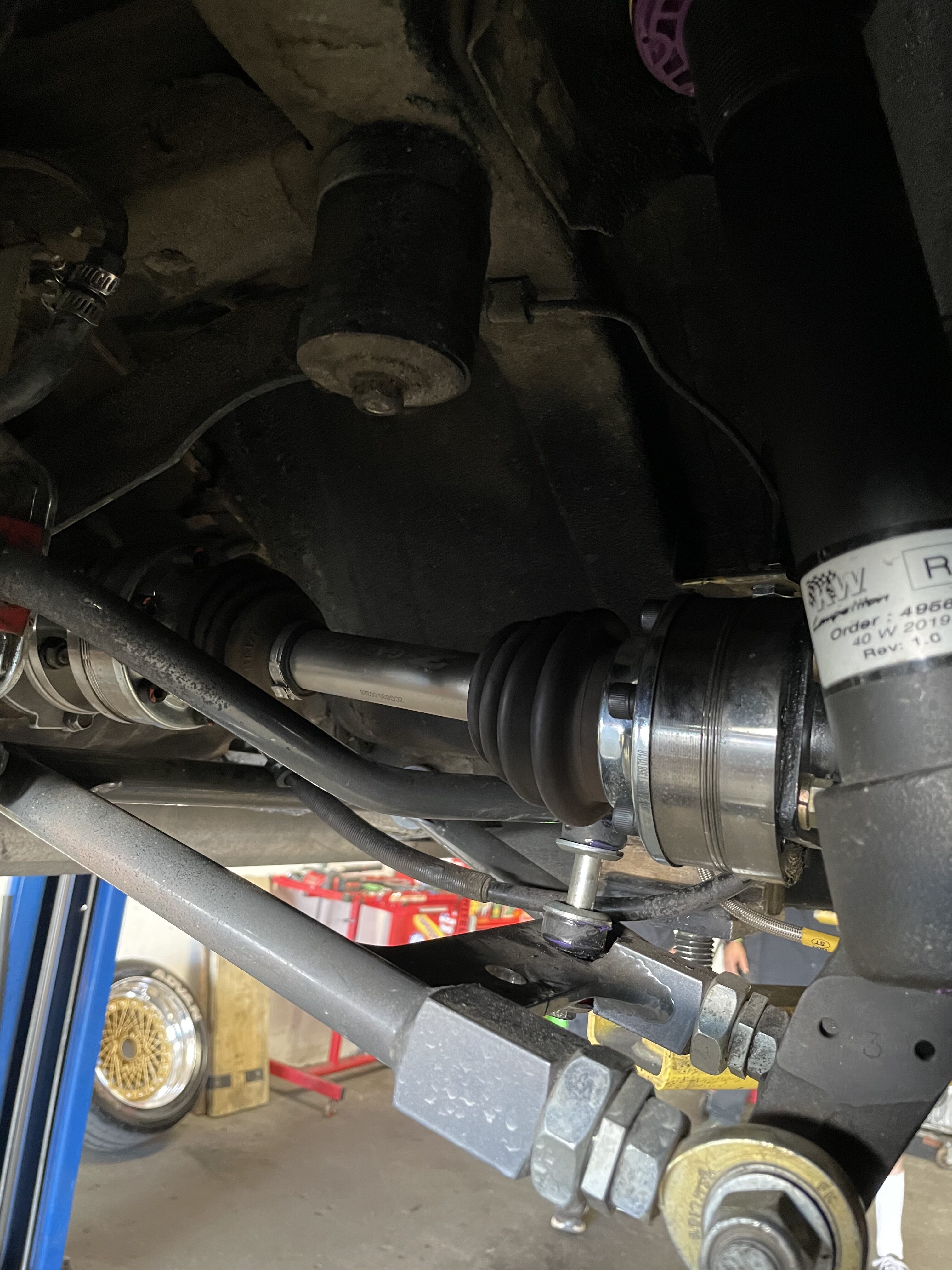

Larry has CV Axle set #328. Stock half shafts (L) and ZCG units bolted in to the Subaru STi LSD diff. The stock suspension parts had been long replaced with Techno Toy Tuning parts. Larry does not have to live with those loose CV axles anymore!




More pictures of the ZCG axles installed, we will discuss the KW coil-overs below:

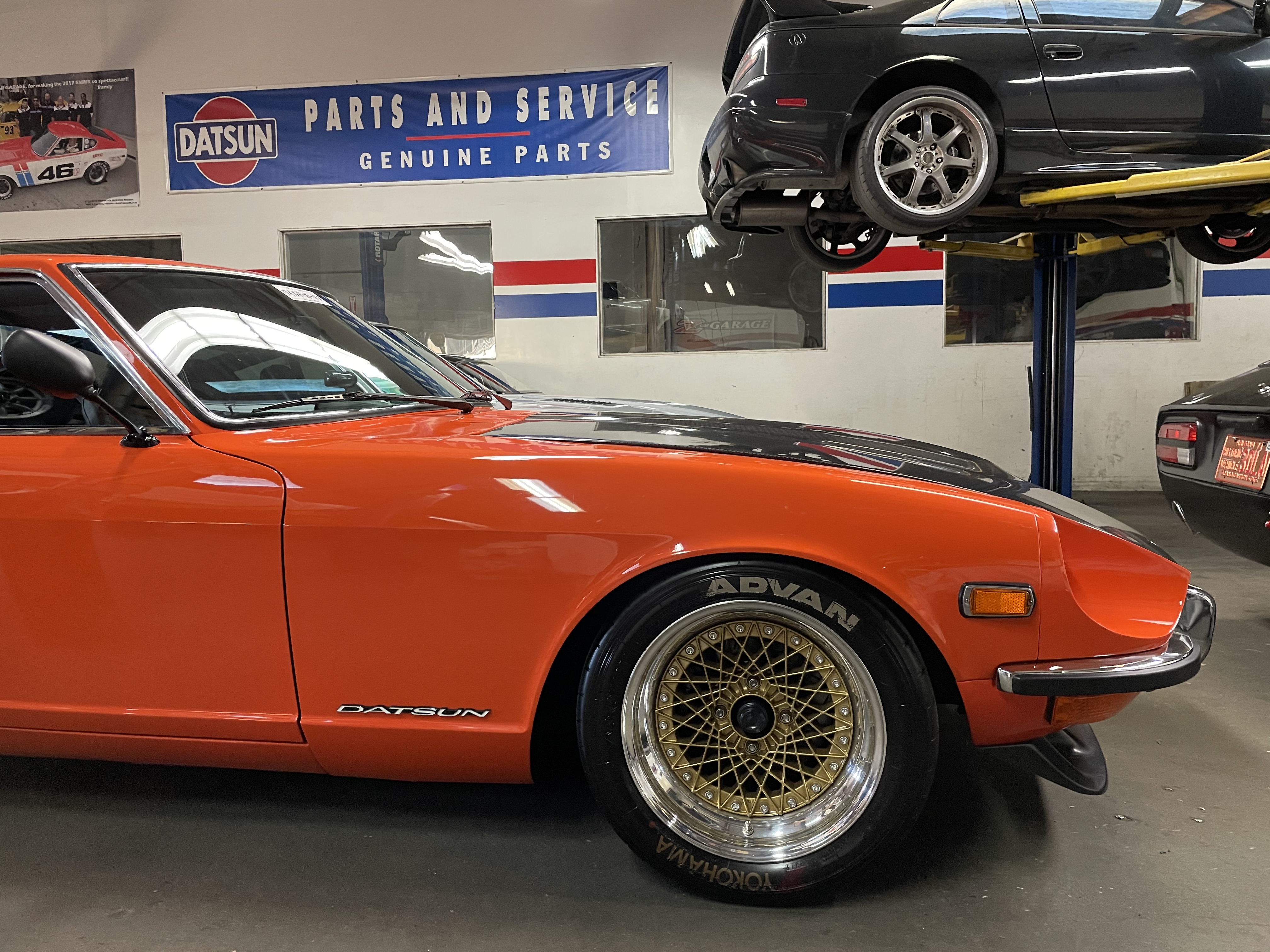

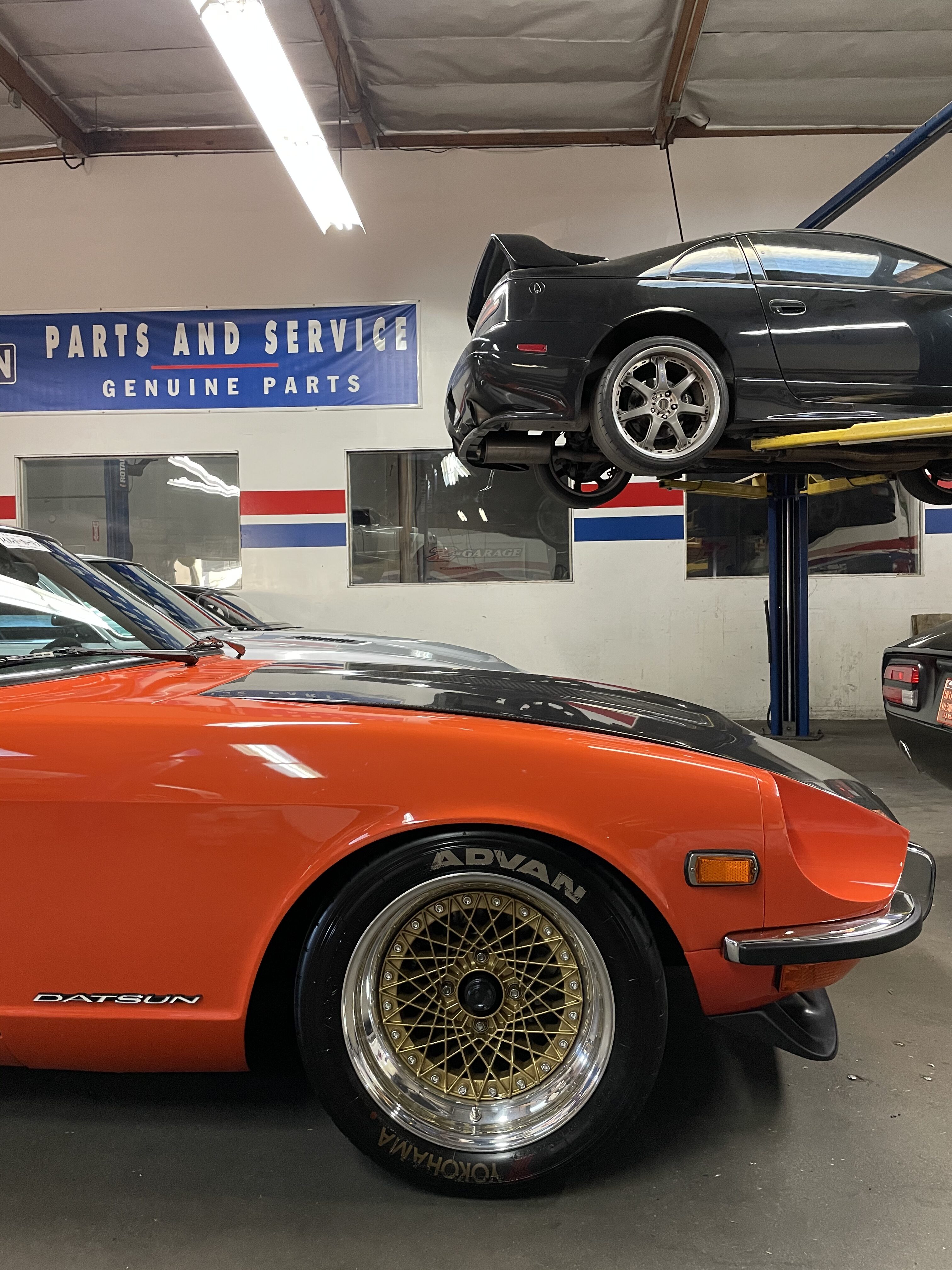

Wheels By Love20bee

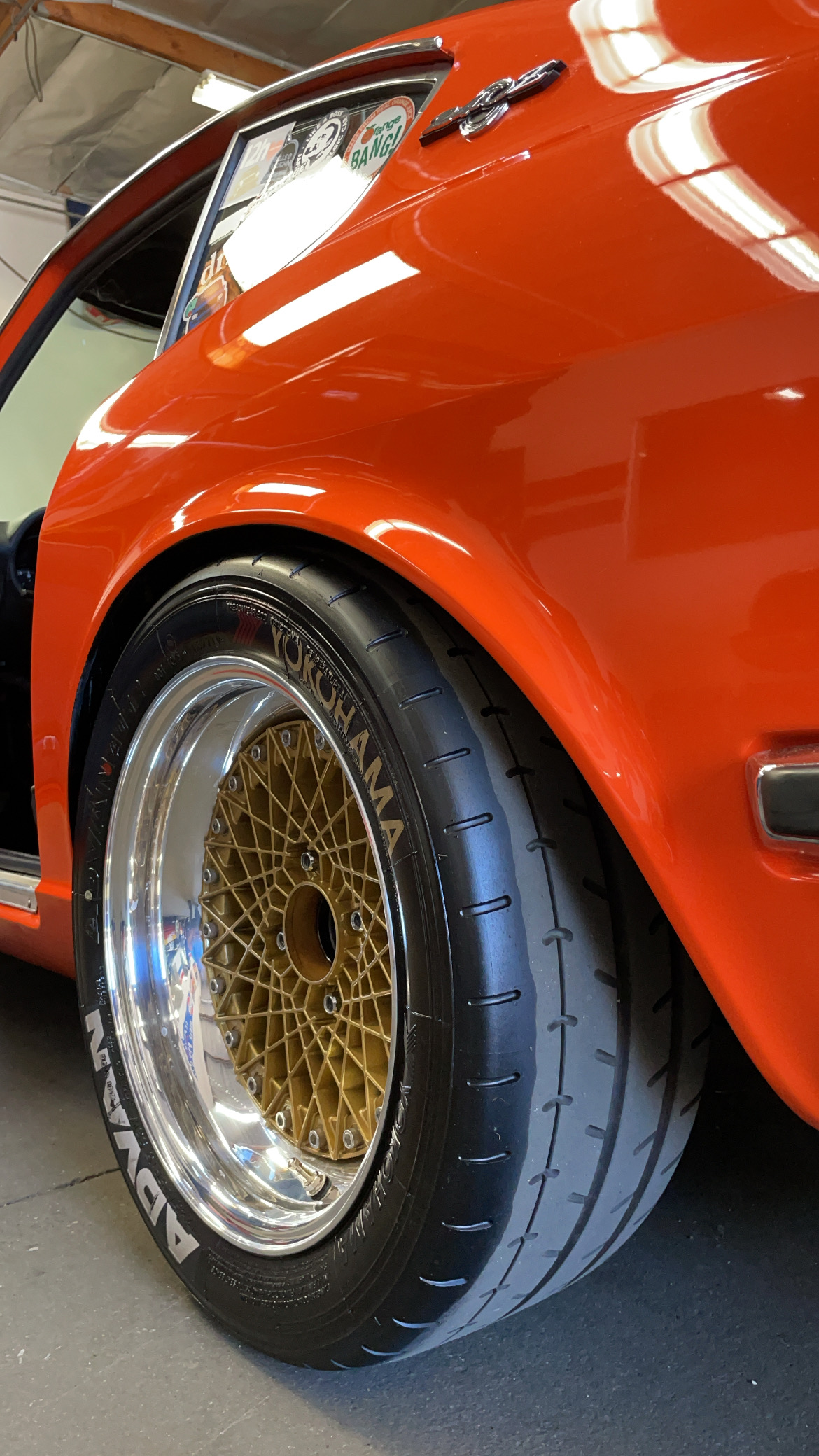

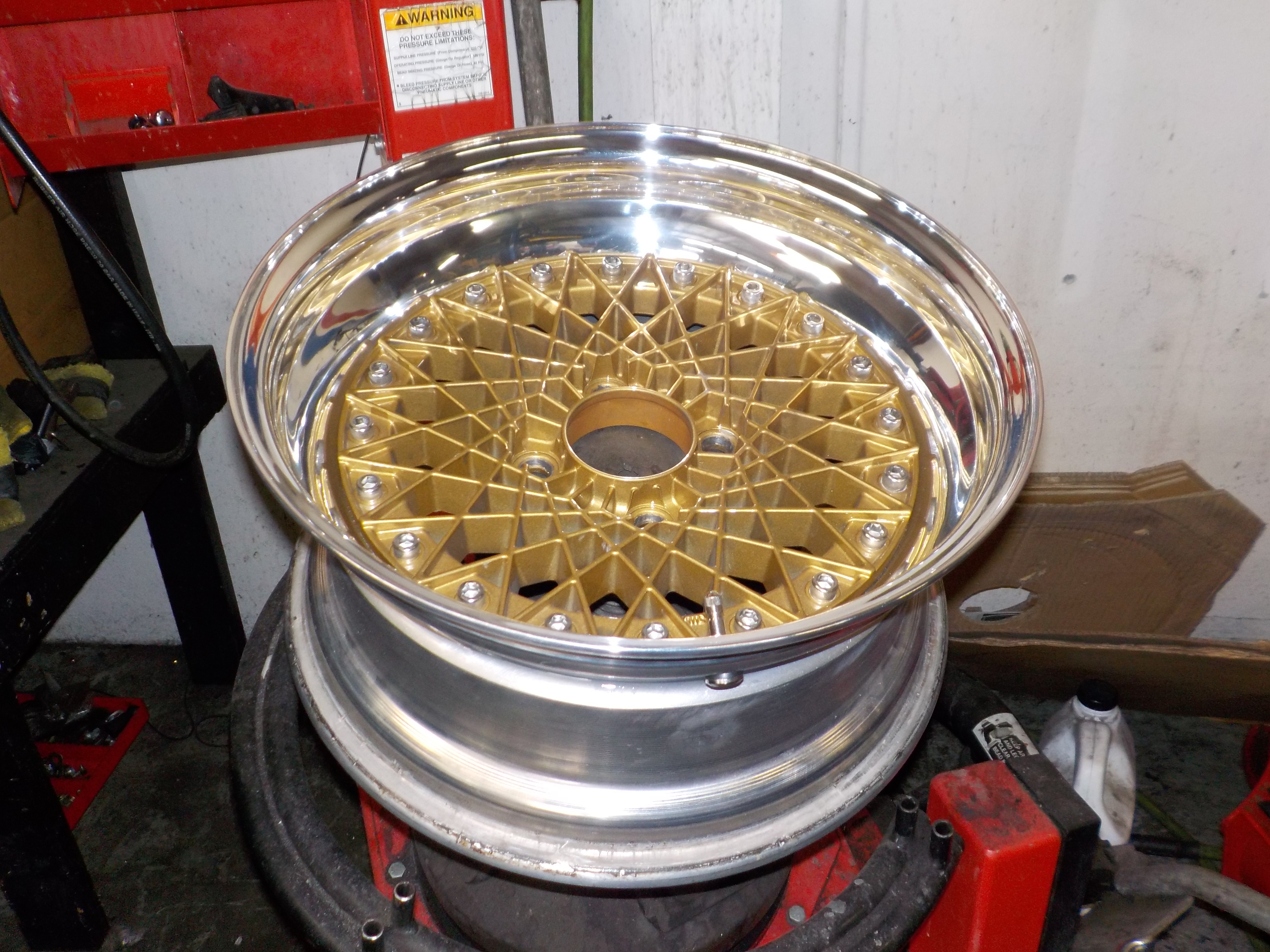

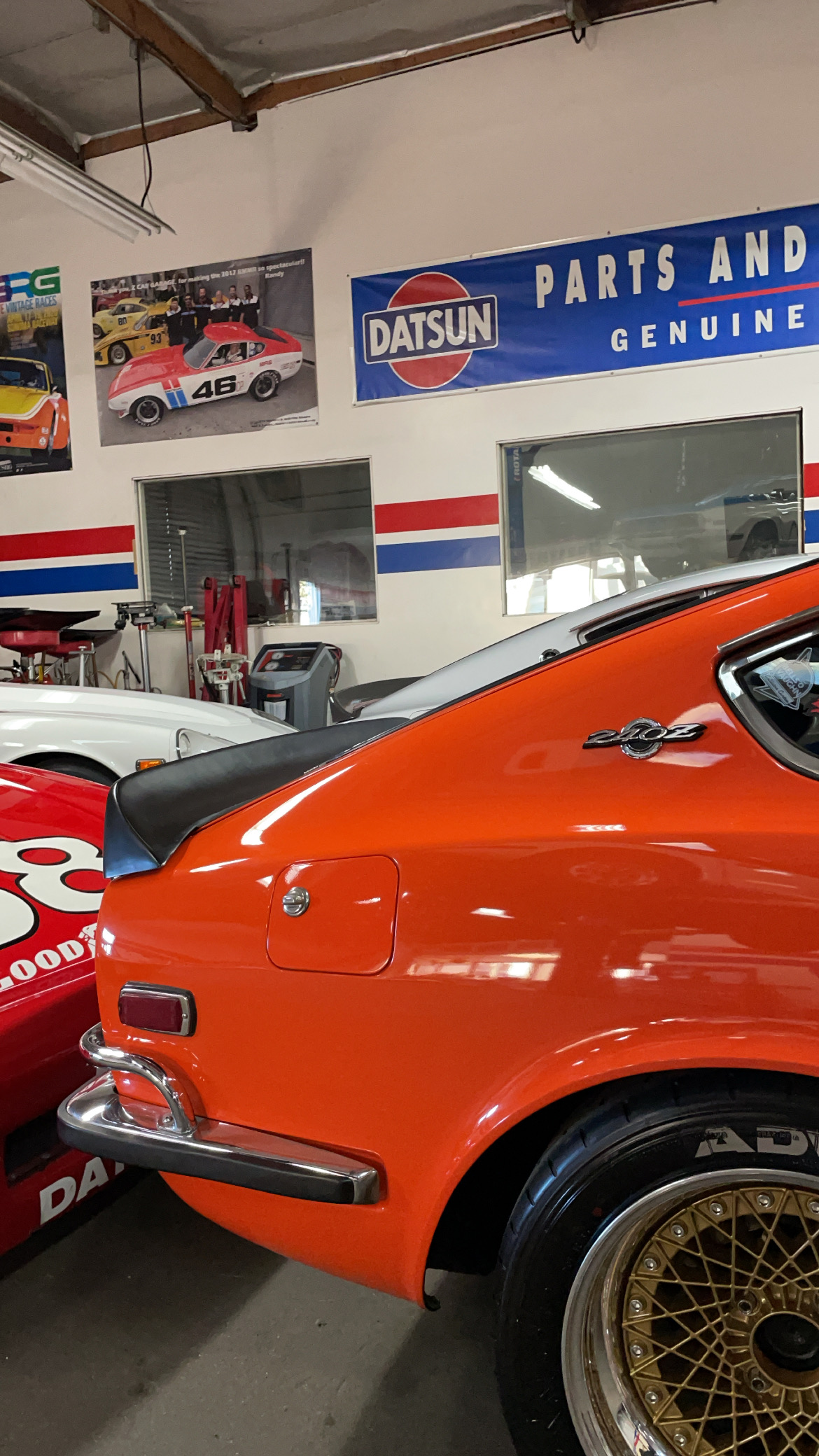

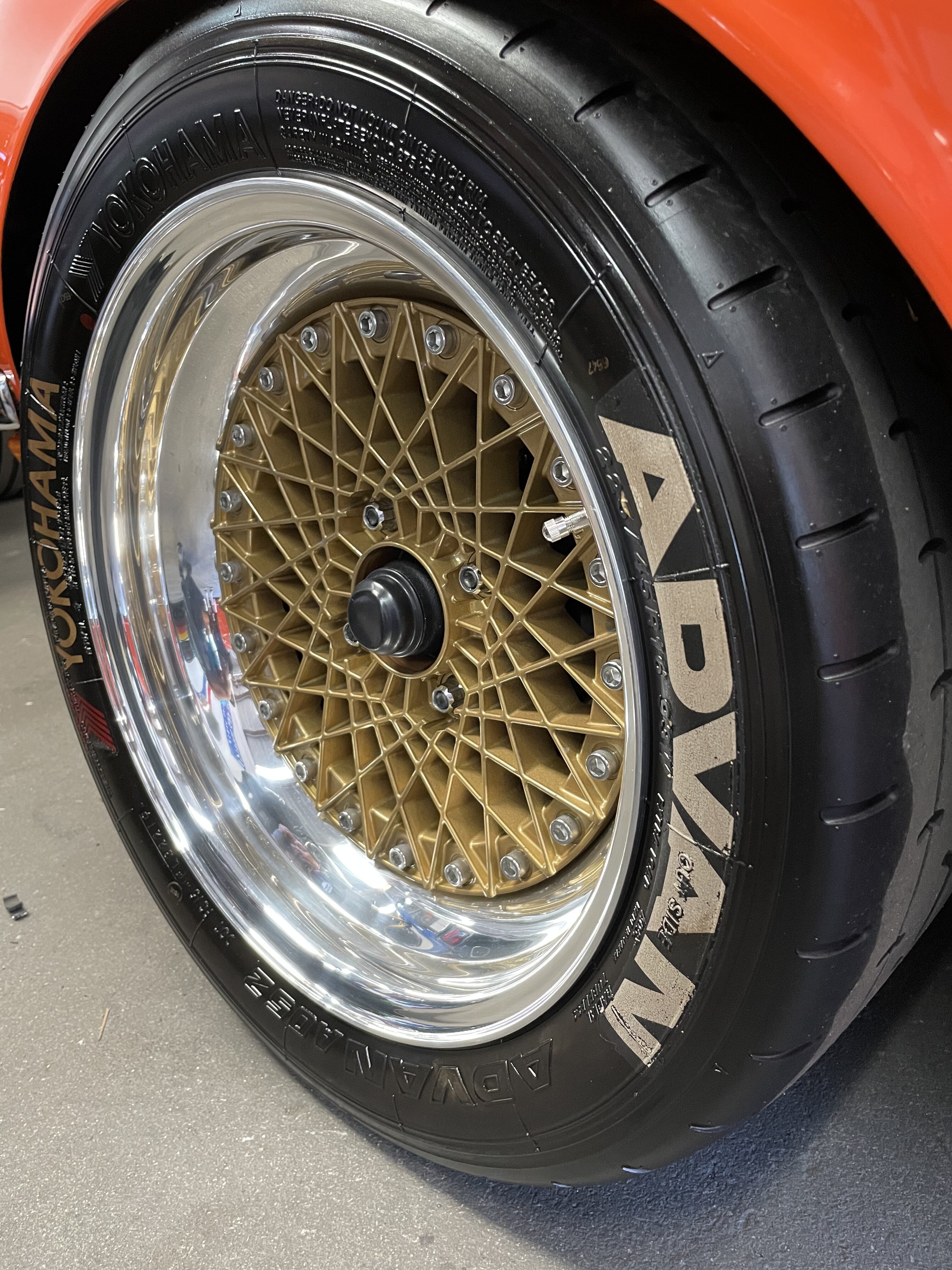

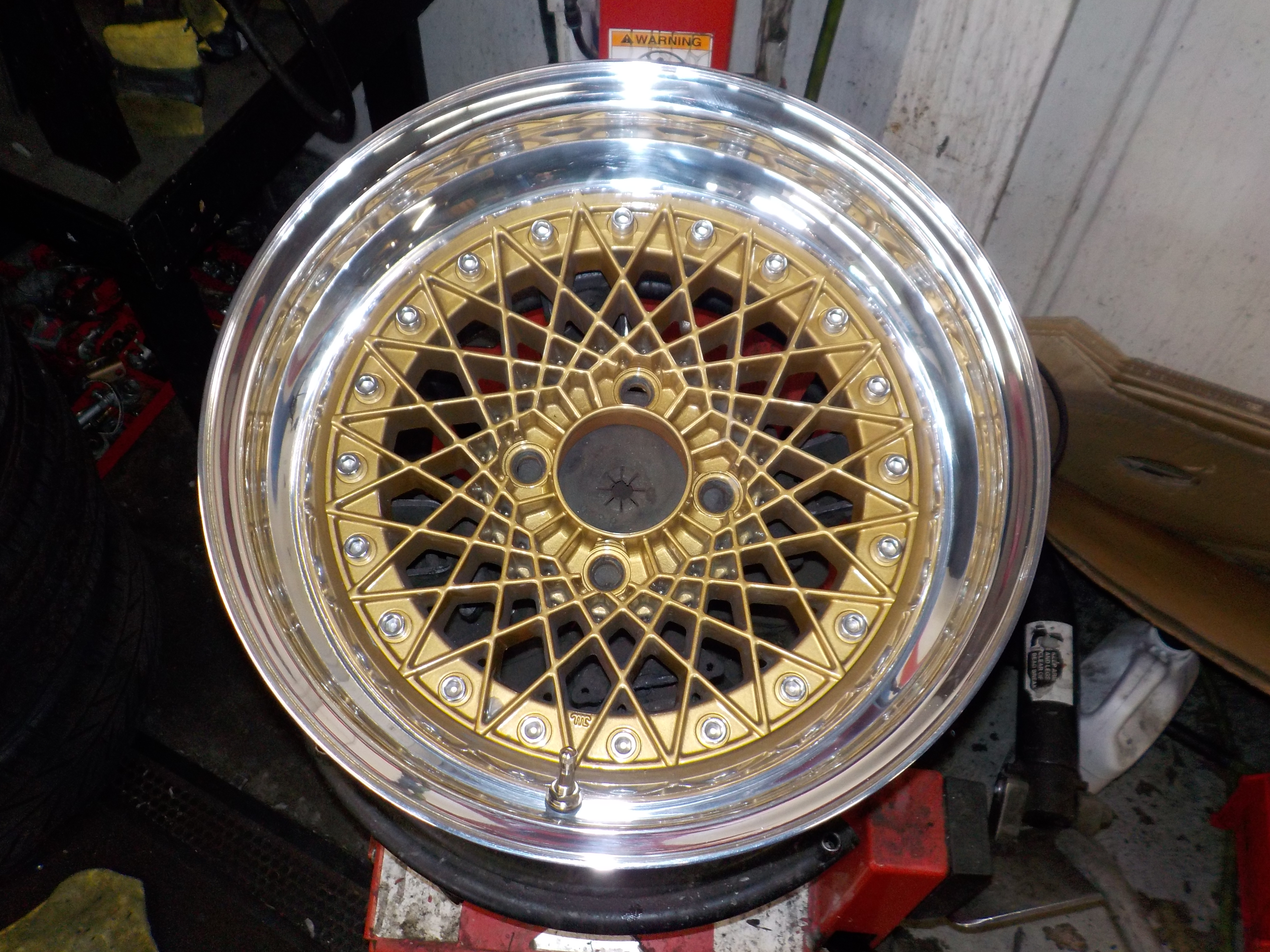

Complementing the new Big-Brakes and suspension on Larry’s Z are a fresh set of Southern Ways Epsilon mesh wheels from Love20bee. It was an absolute pleasure working with owner, Matt K. to adjust the offset on the wheels just before Larry picked his Z up from ZCG.



We wanted Larry to be able to use the KW Suspension and ZCG Big-Brakes to their full potential and put all the power down effectively without clearance issues. The offset was a bit too aggressive causing fender rubbing and excessive camber reducing the contact patch of the sticky Yokohama tires.

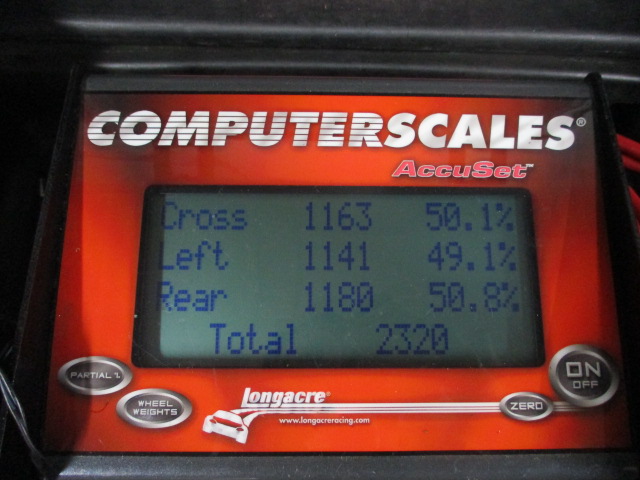

Larry’s Z already had a set of KW Coil-overs. Not to be confused with our ZCG-labeled KW Suspension with adjustable rebound and dampening that we’ve developed over several years (releasing soon). We adjusted Larry’s KW’s for best ride and corner-balanced the car using his weight. With the wheel barrels adjusted and suspension aligned Larry can now throw this Z into any corner with confidence. No rubbing, no excuses.

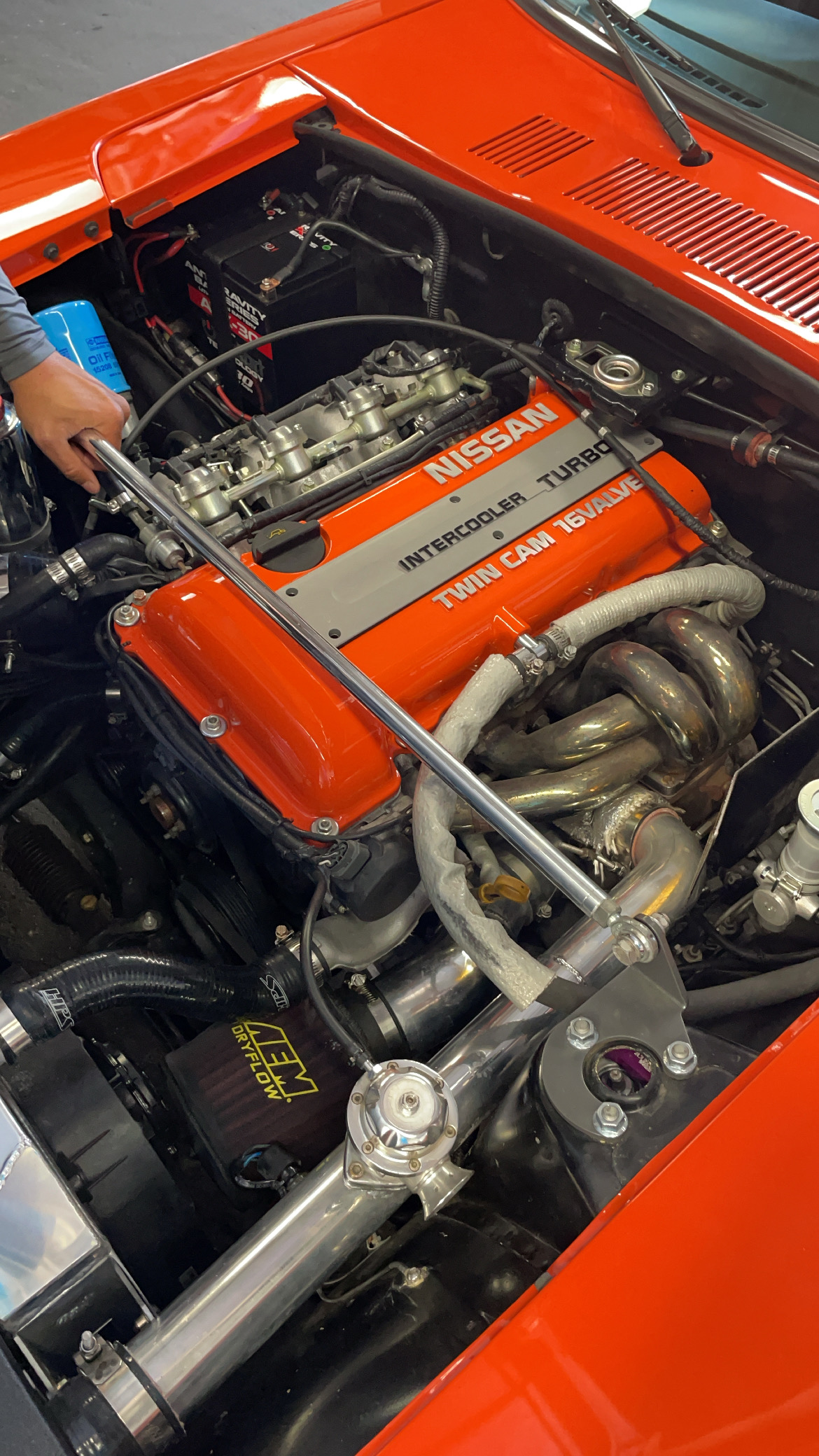

Engine

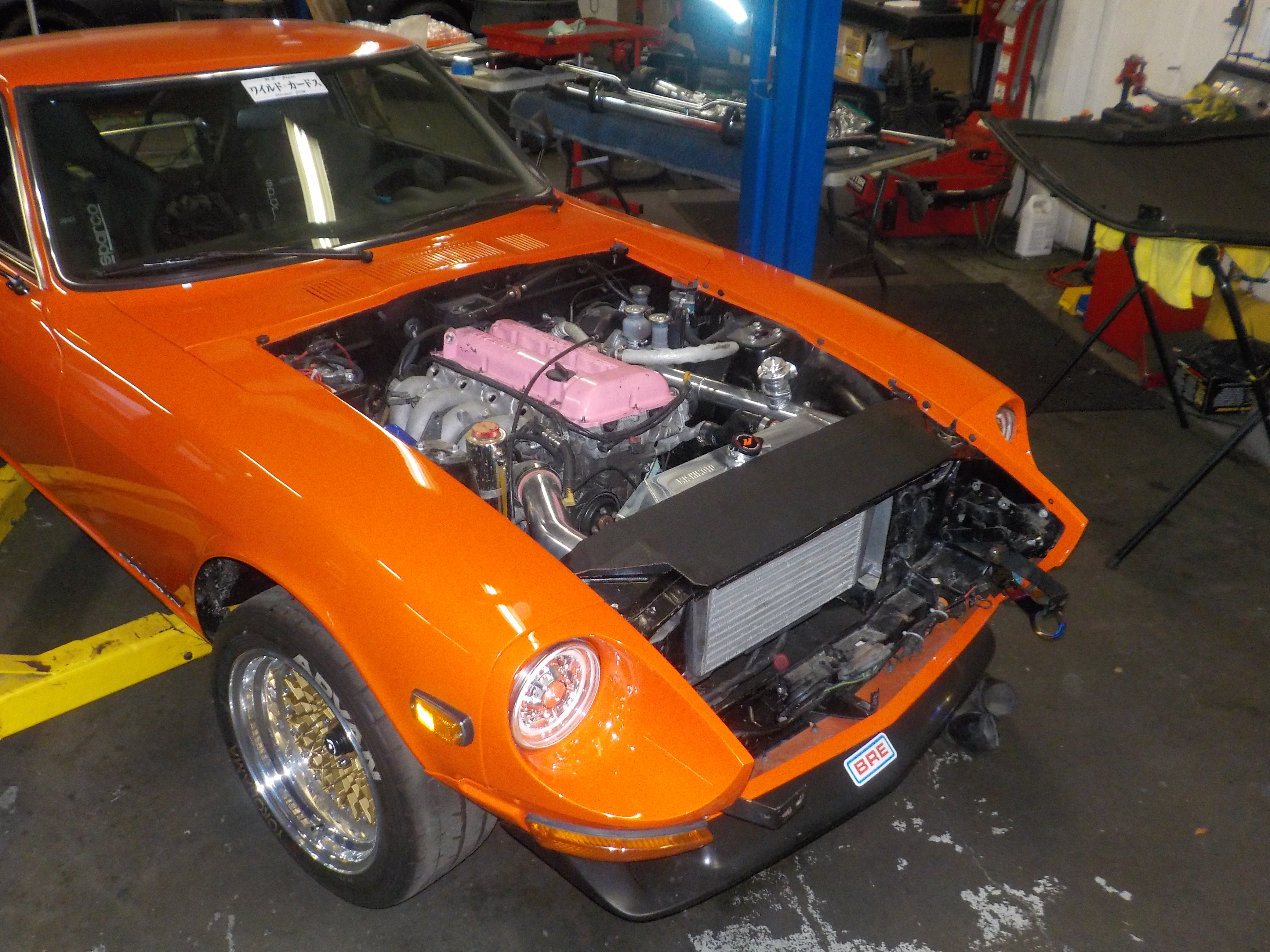

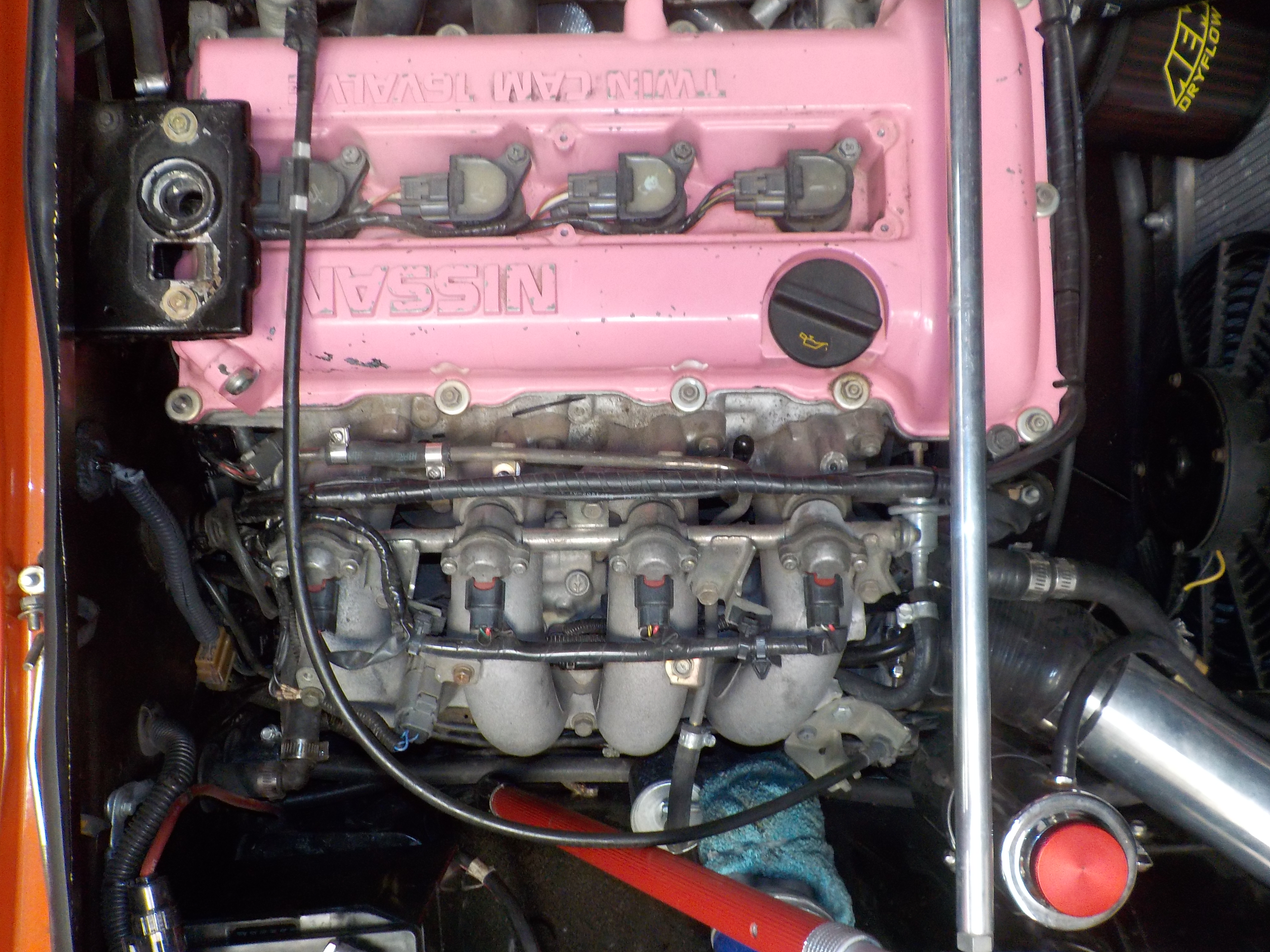

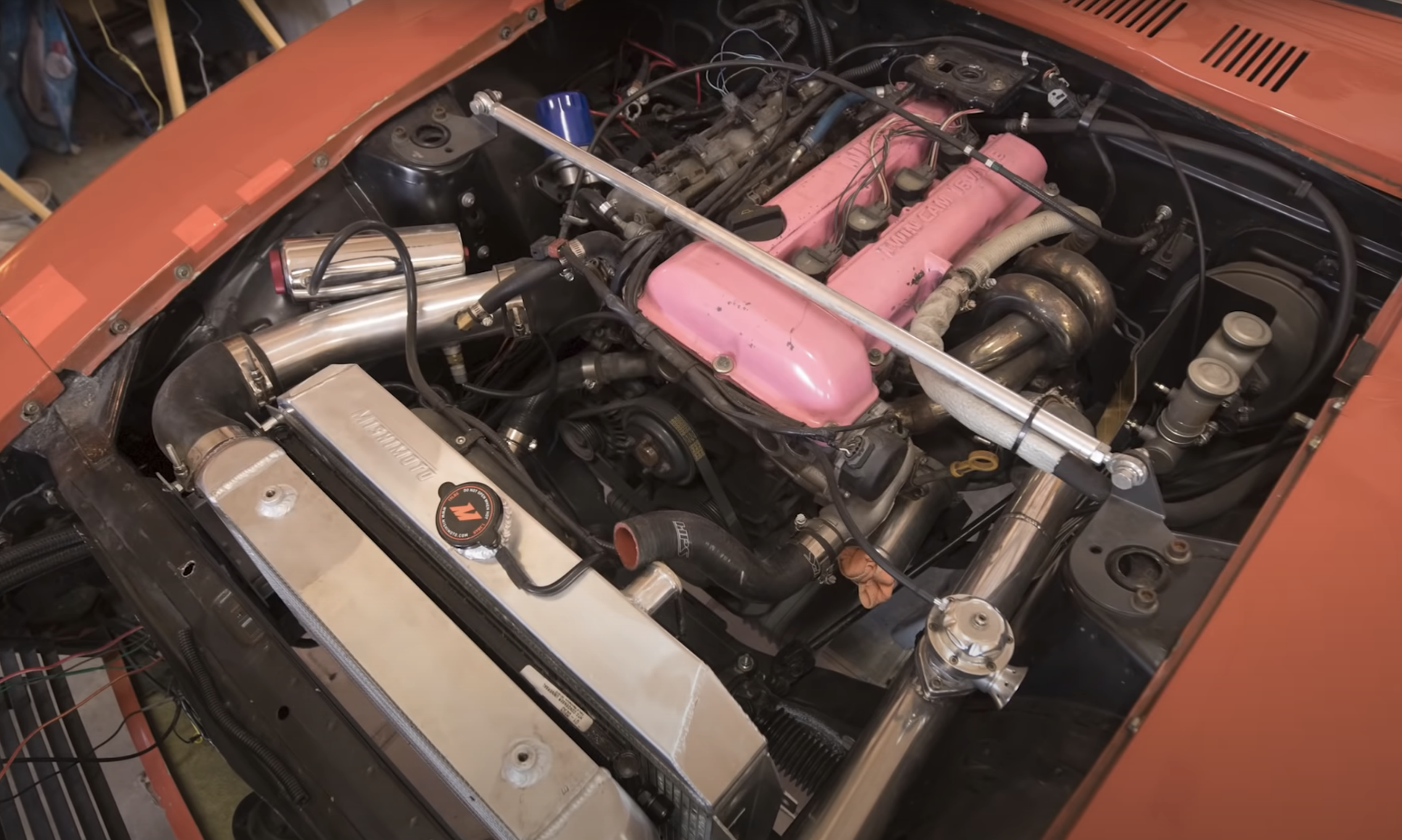

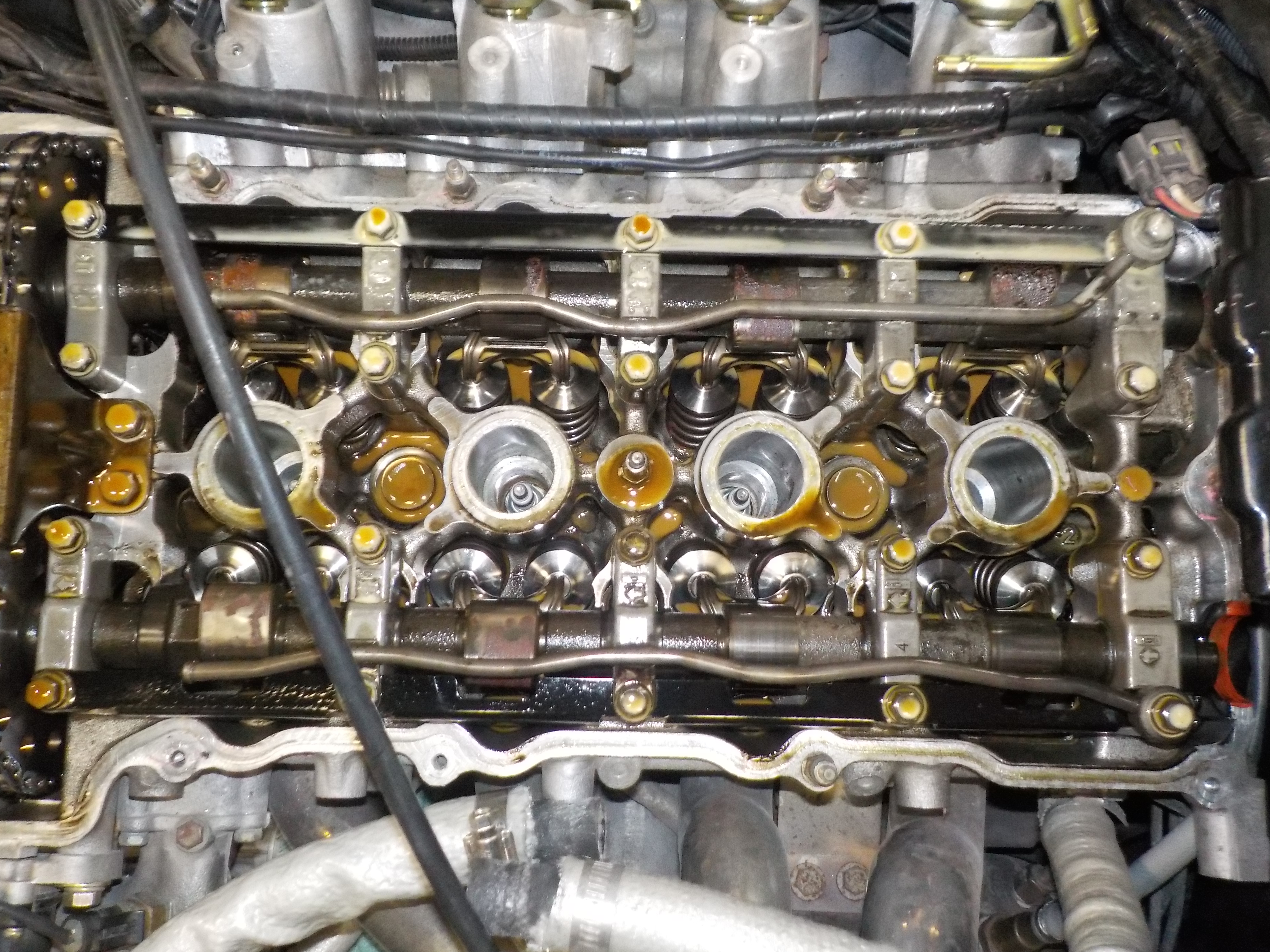

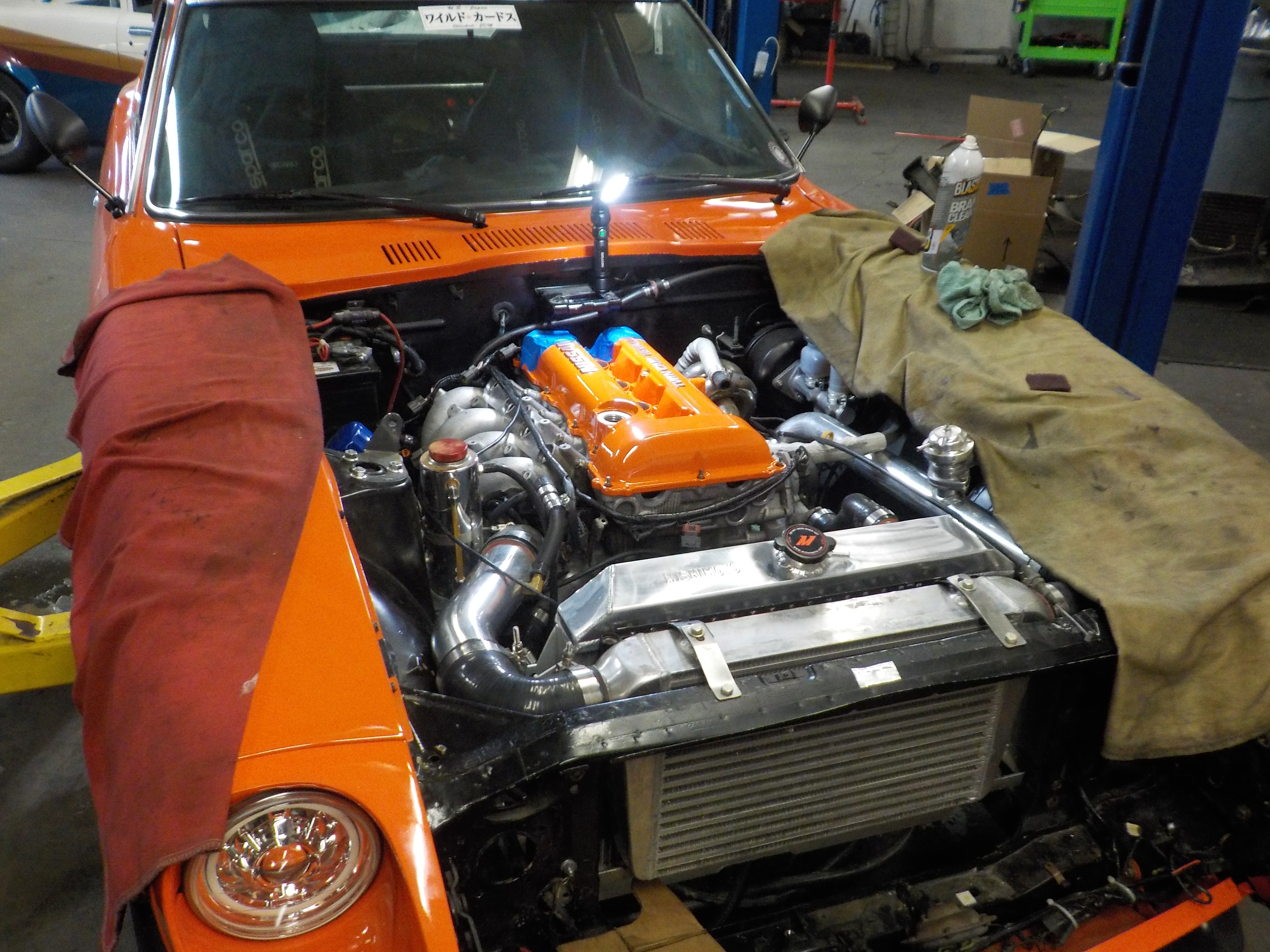

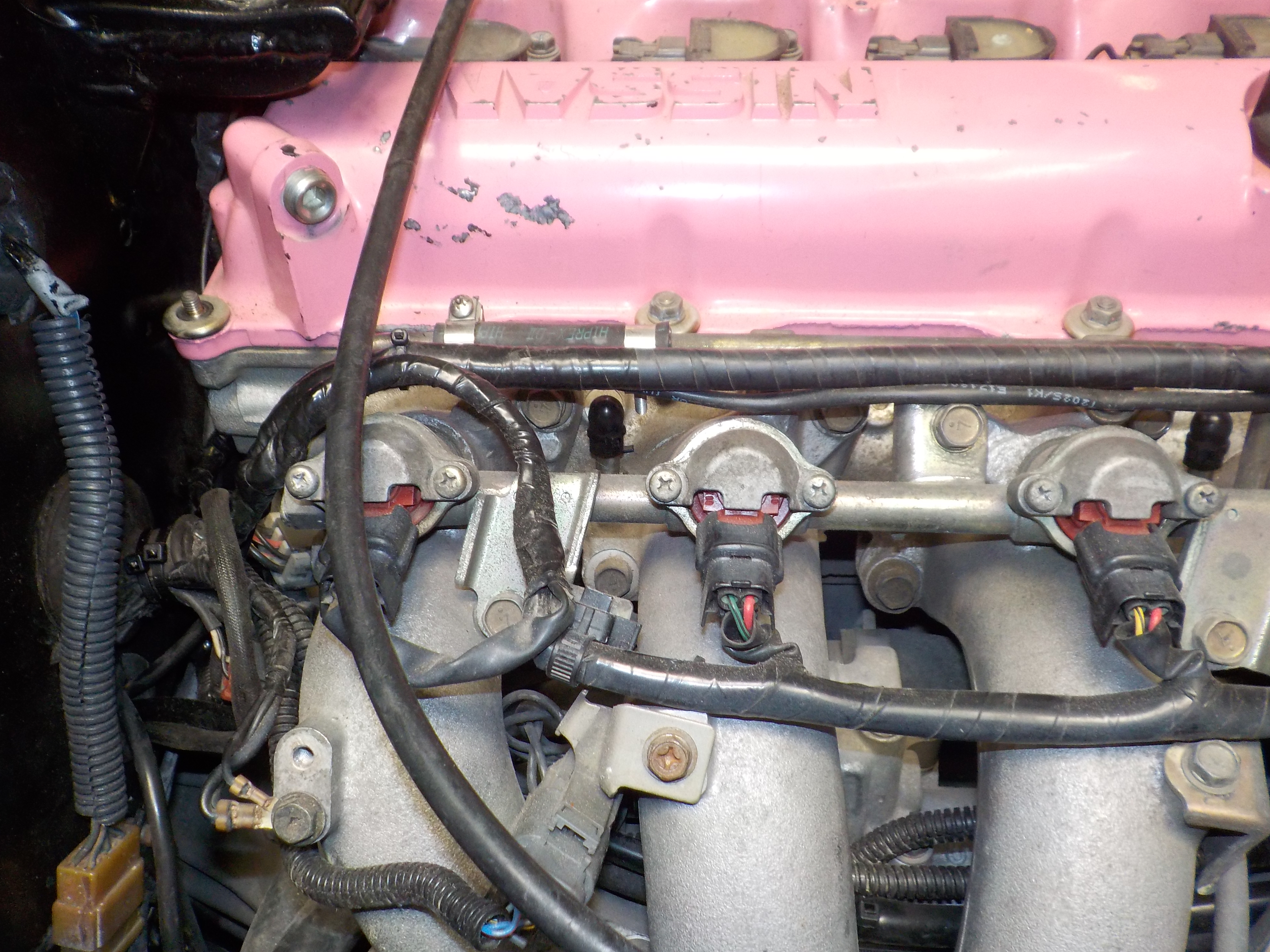

Larry had a long list of problems he needed resolved with the drivetrain. The SR was running an older AEM standalone setup for racing duty so it would drive roughly on the street: poor cold/hot starting, erratic idling, stalling on deceleration, overheating and the A/C wouldn’t blow cold under hot conditions. Before sorting these issues we cleaned up wiring and hoses in the engine bay. Here is what the cooling setup looked like before:

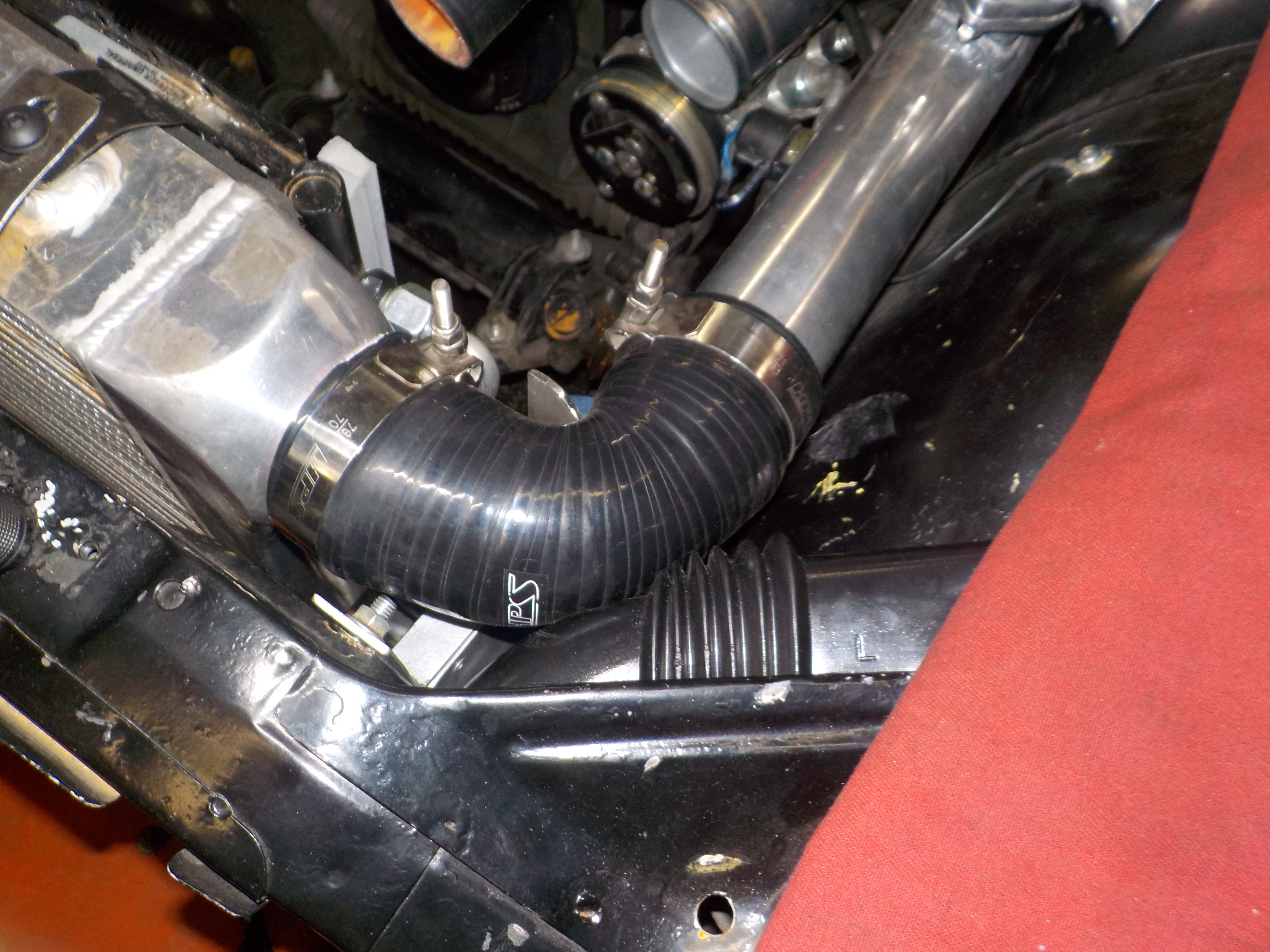

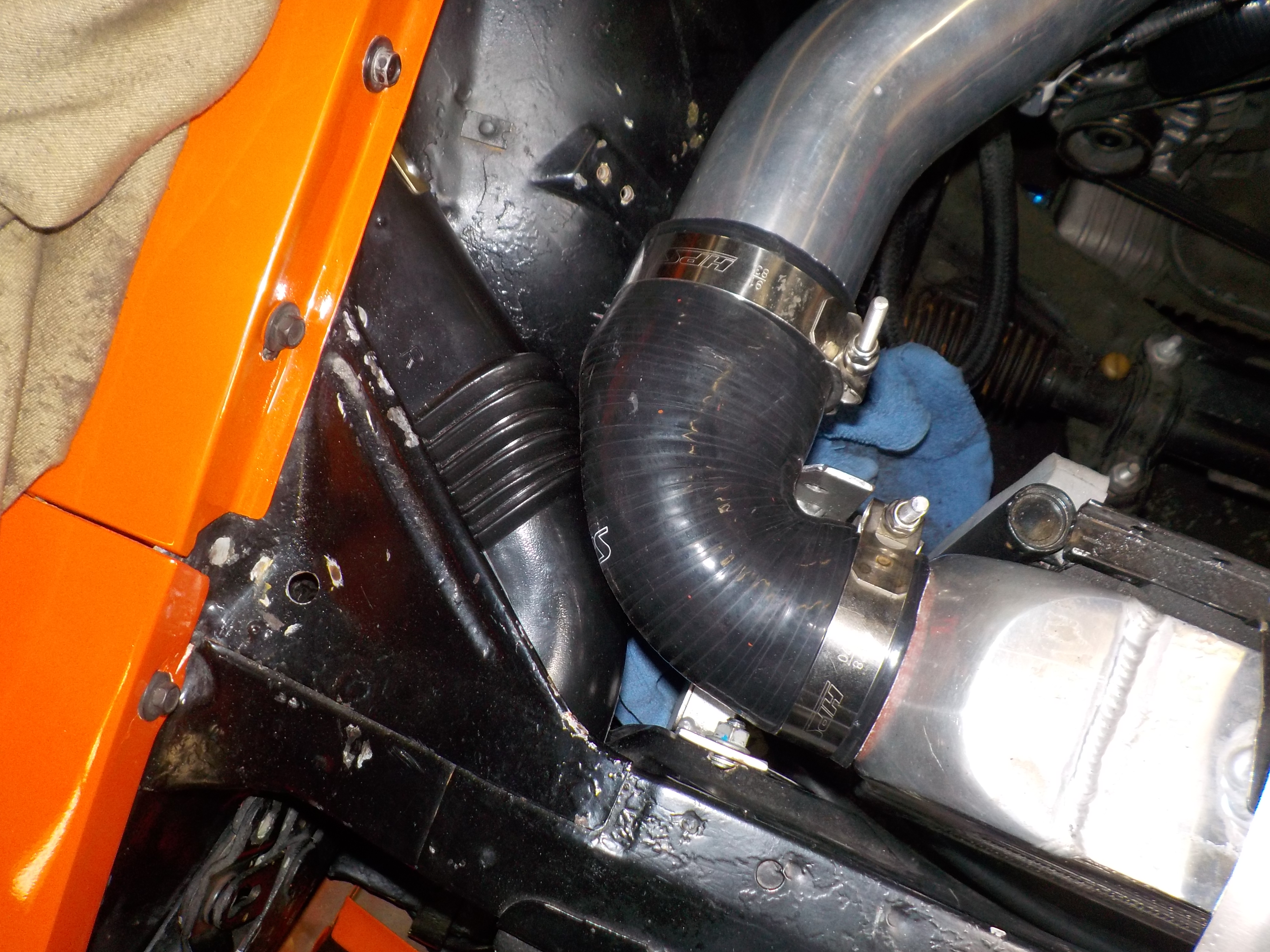

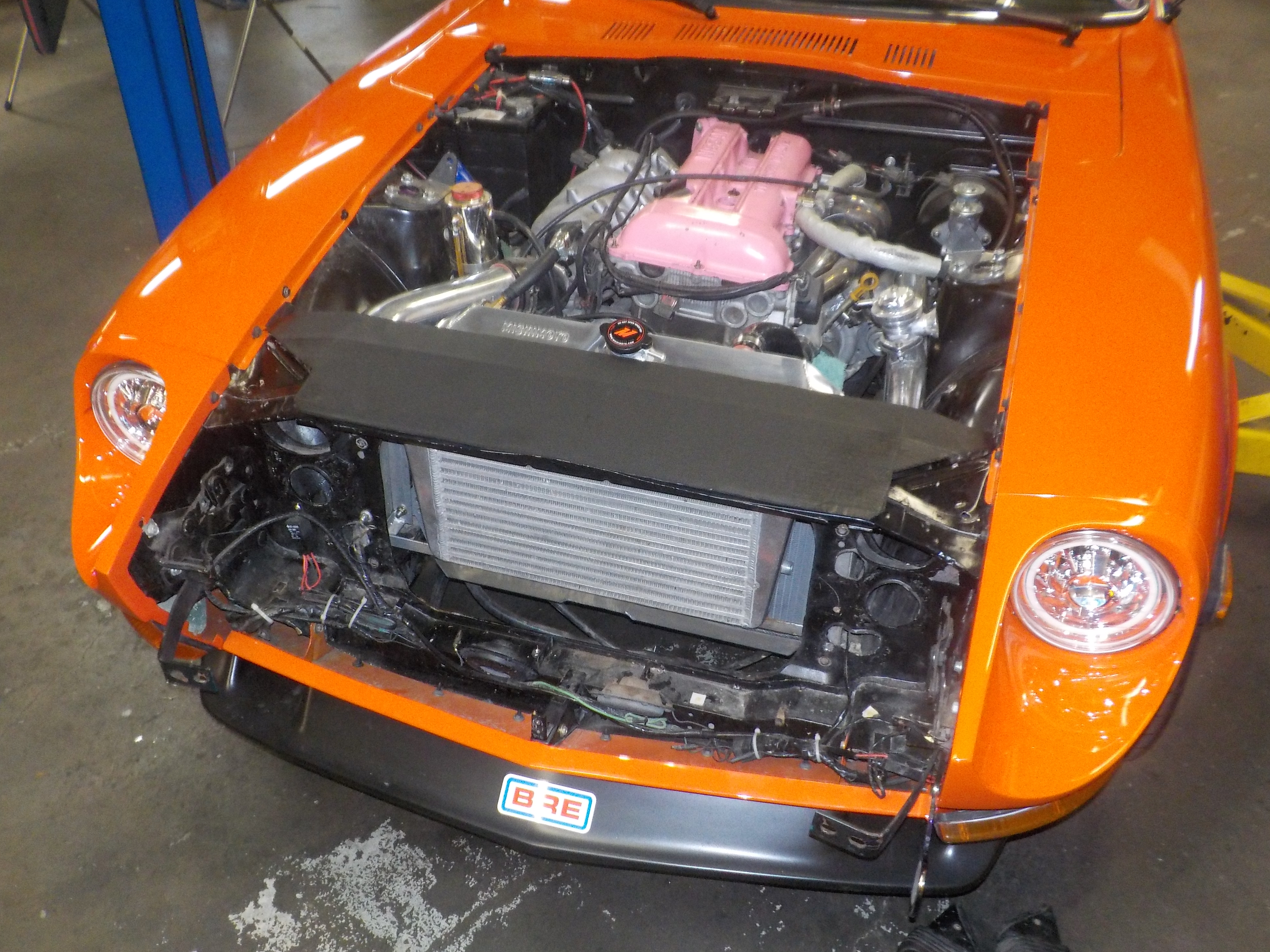

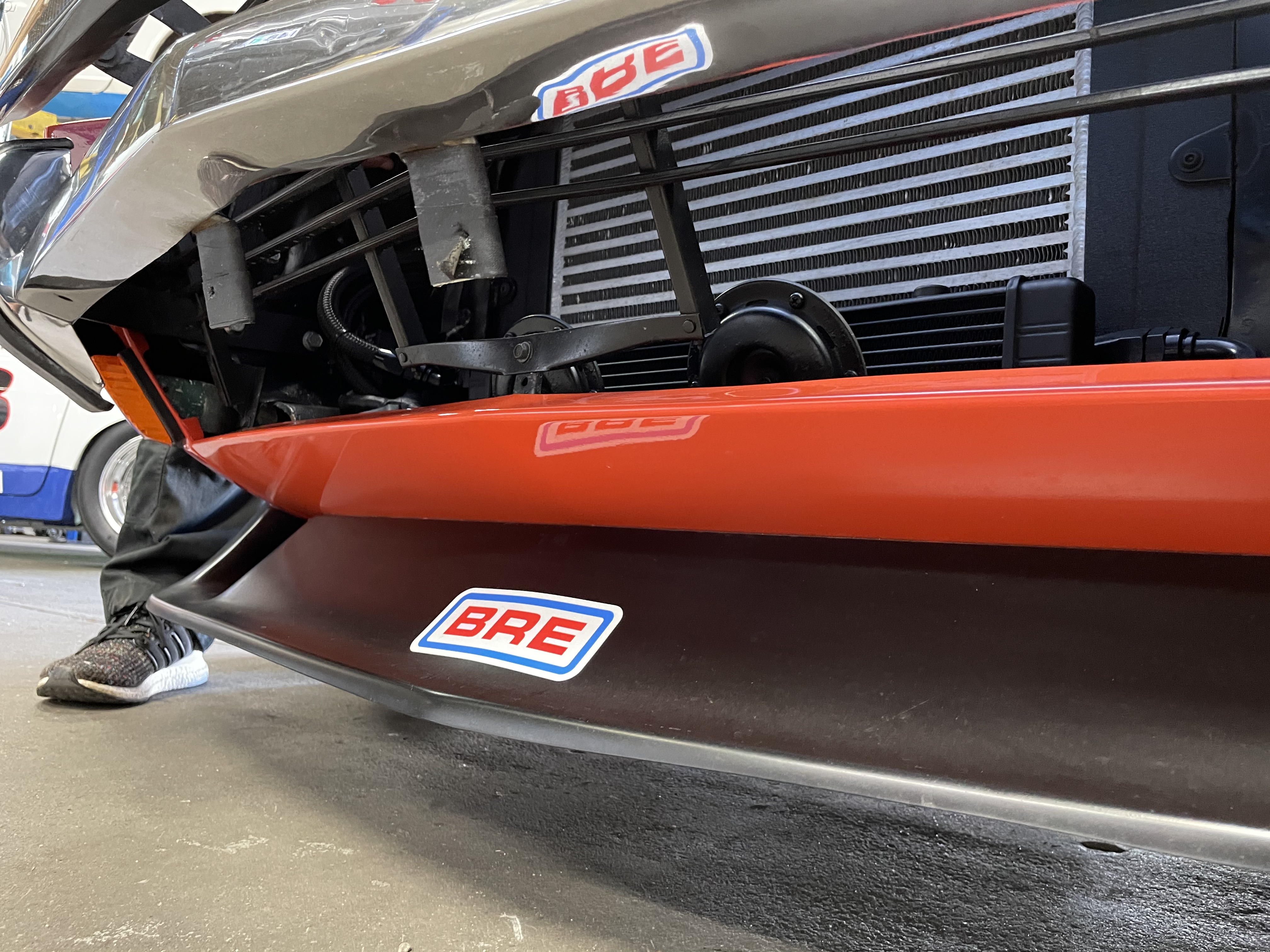

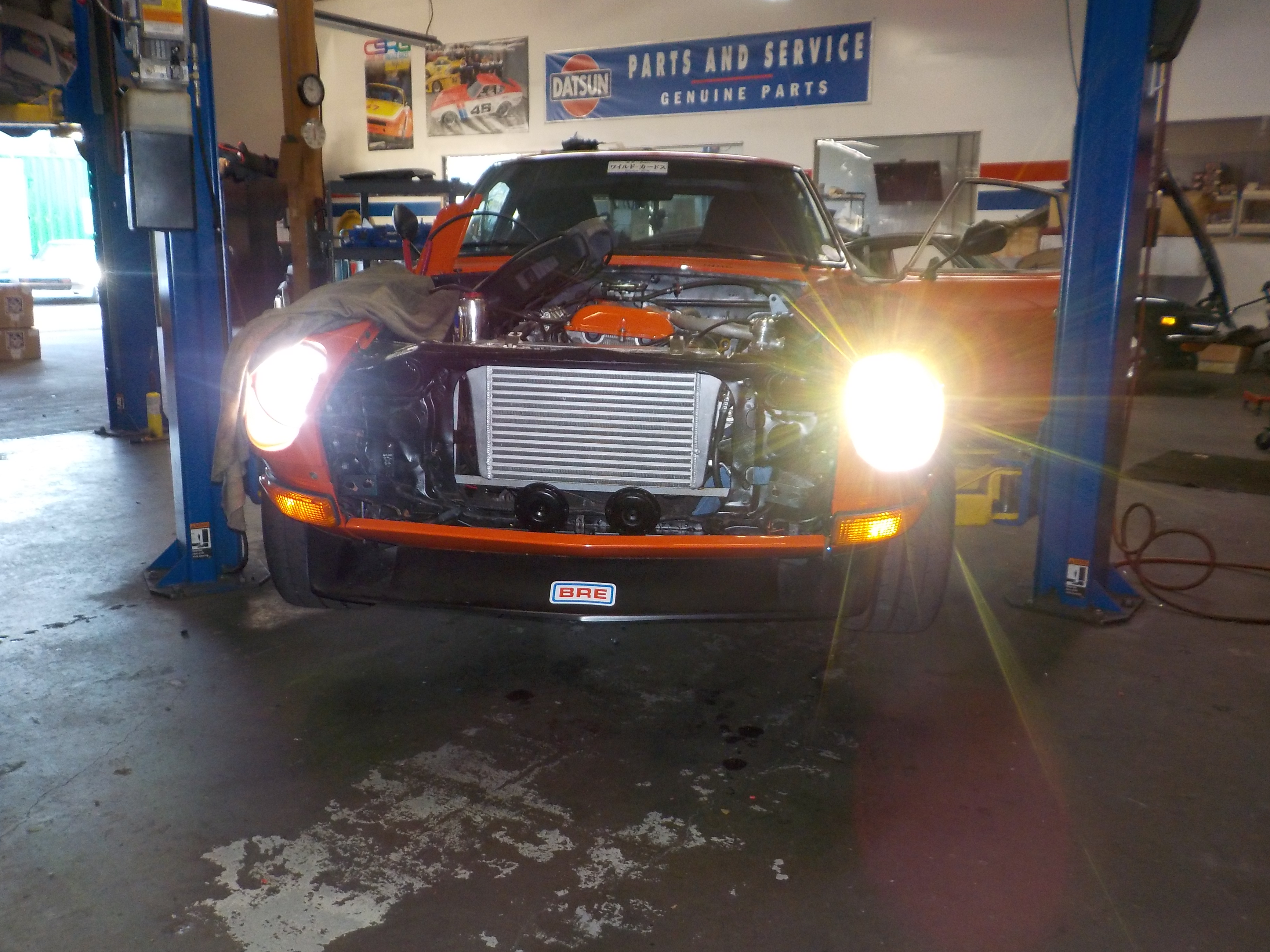

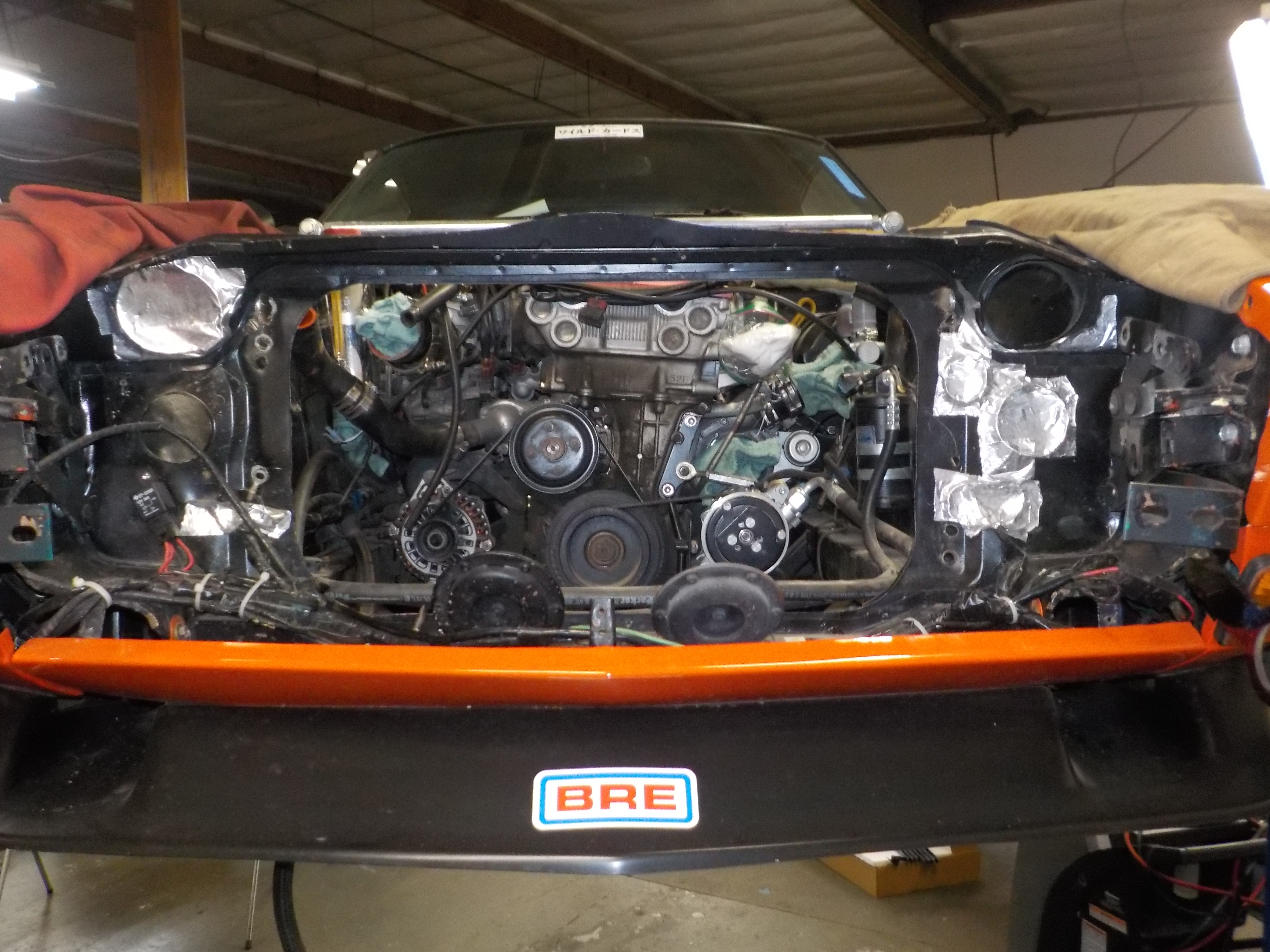

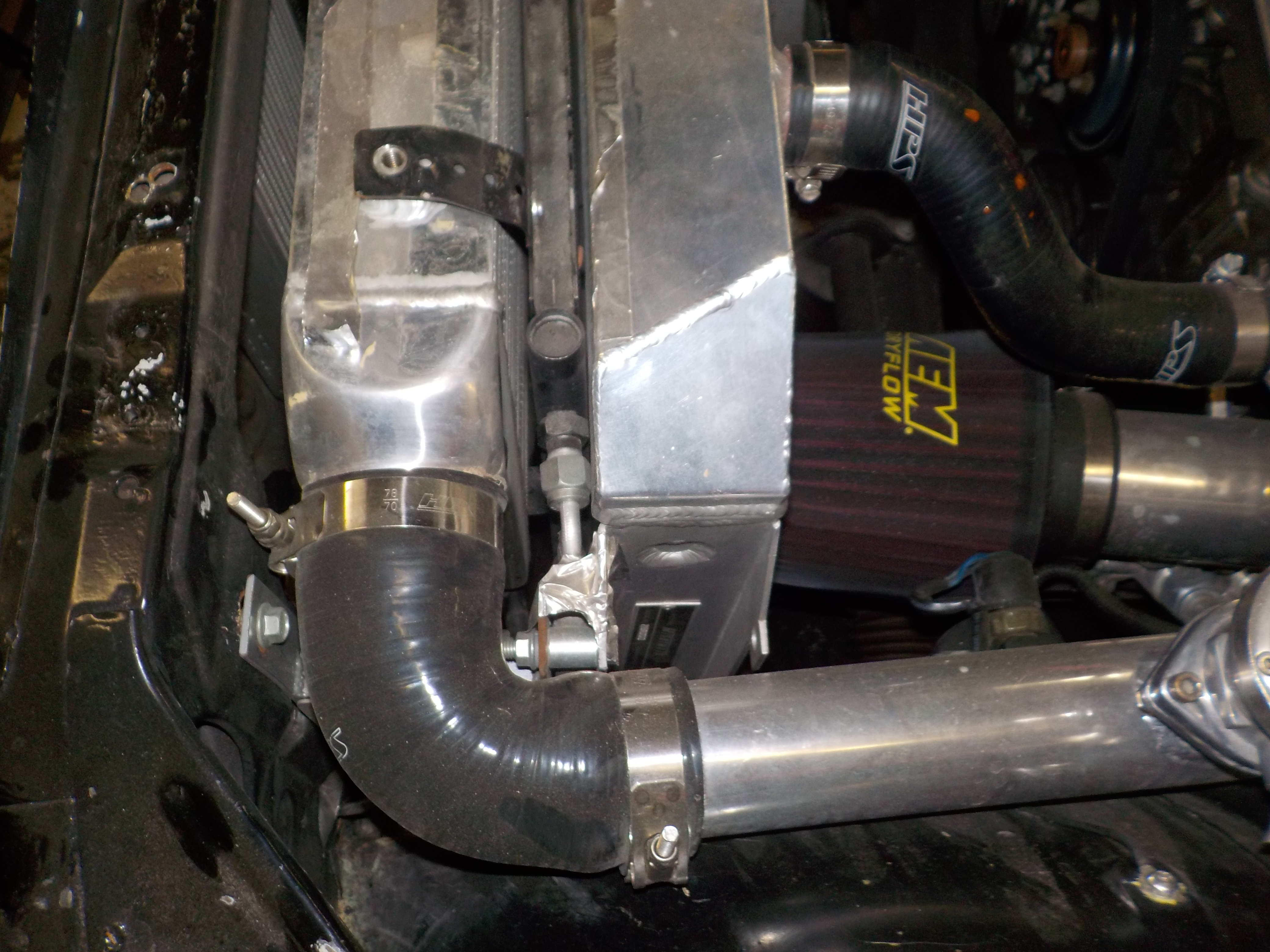

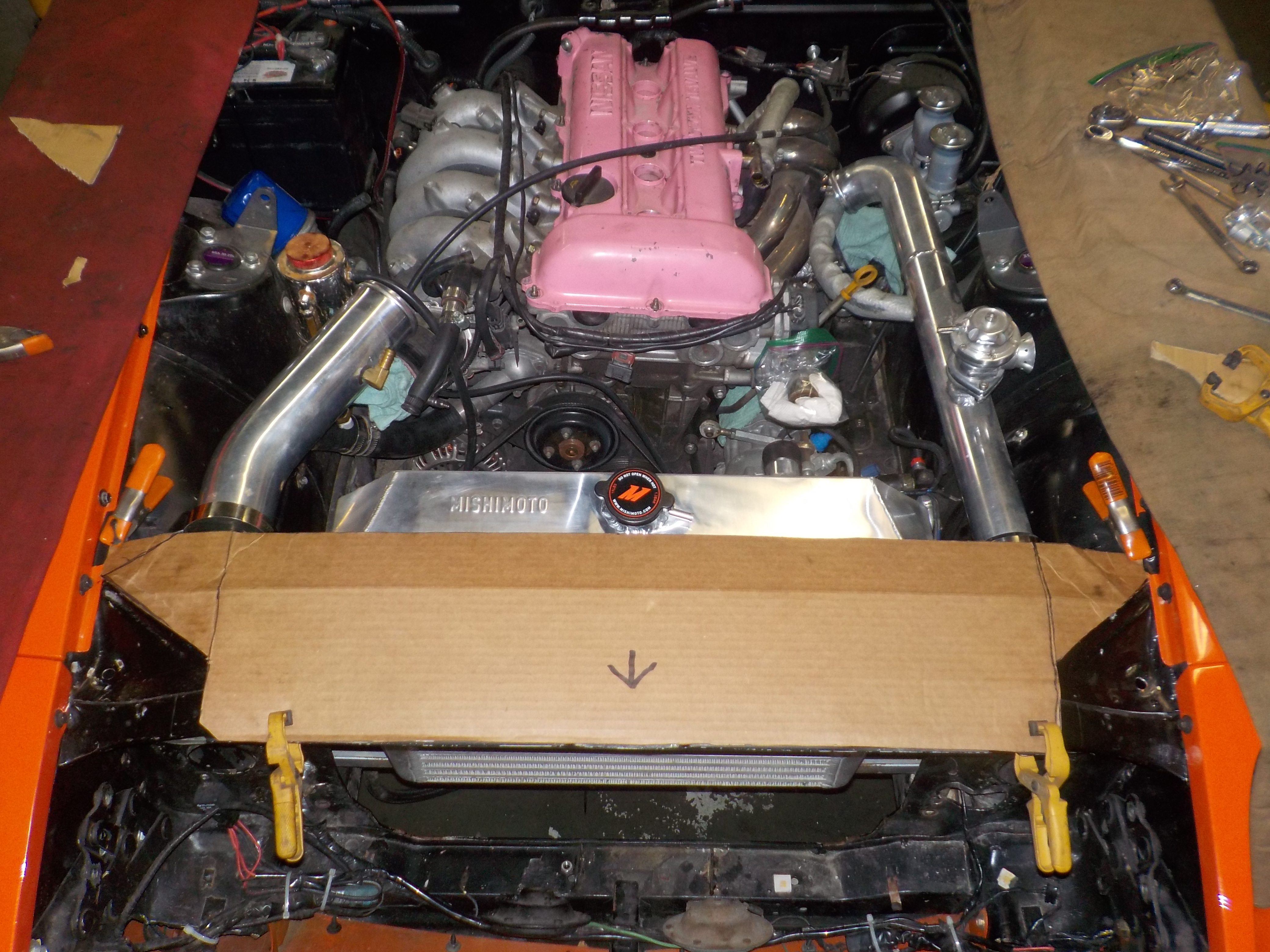

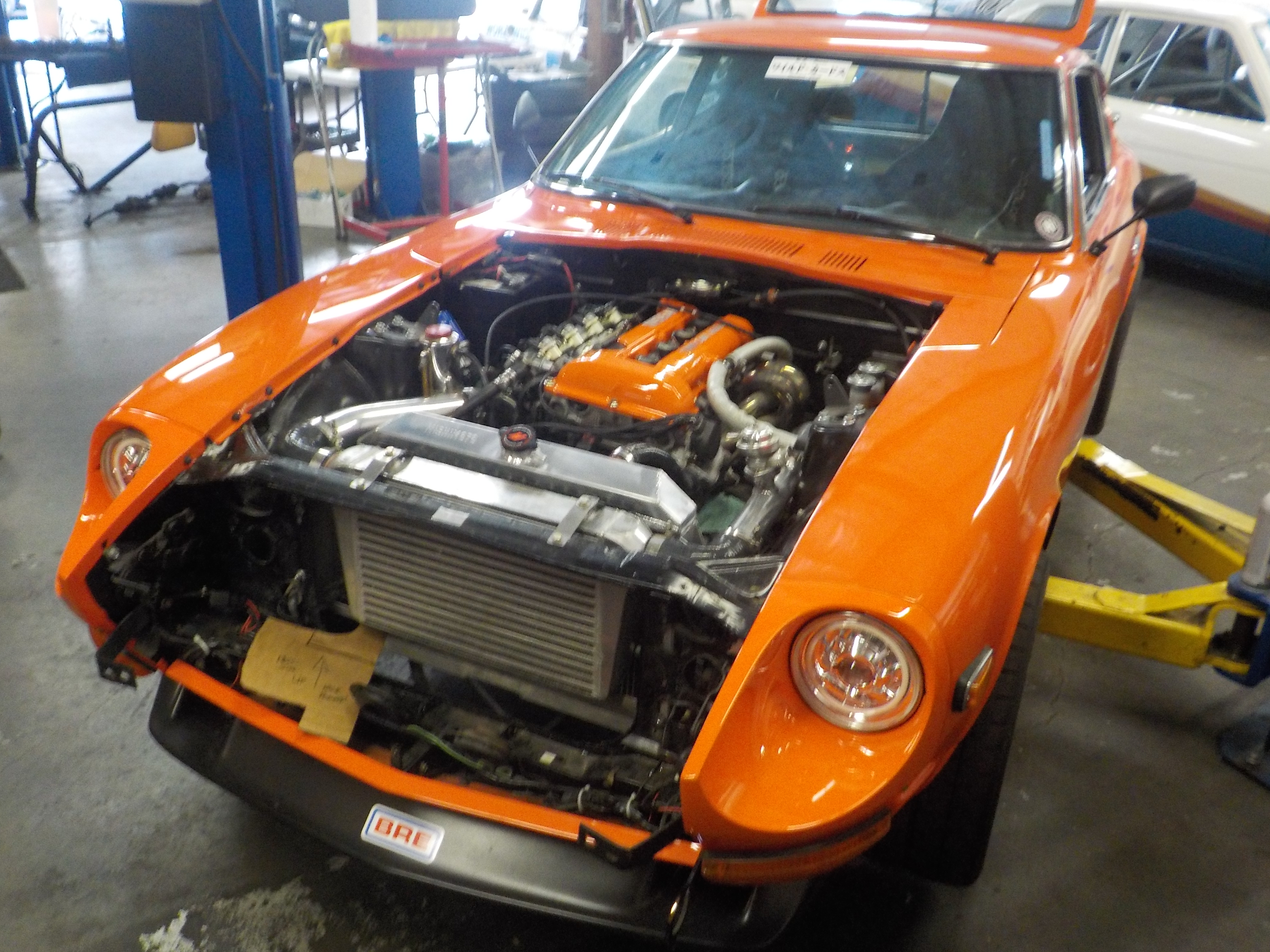

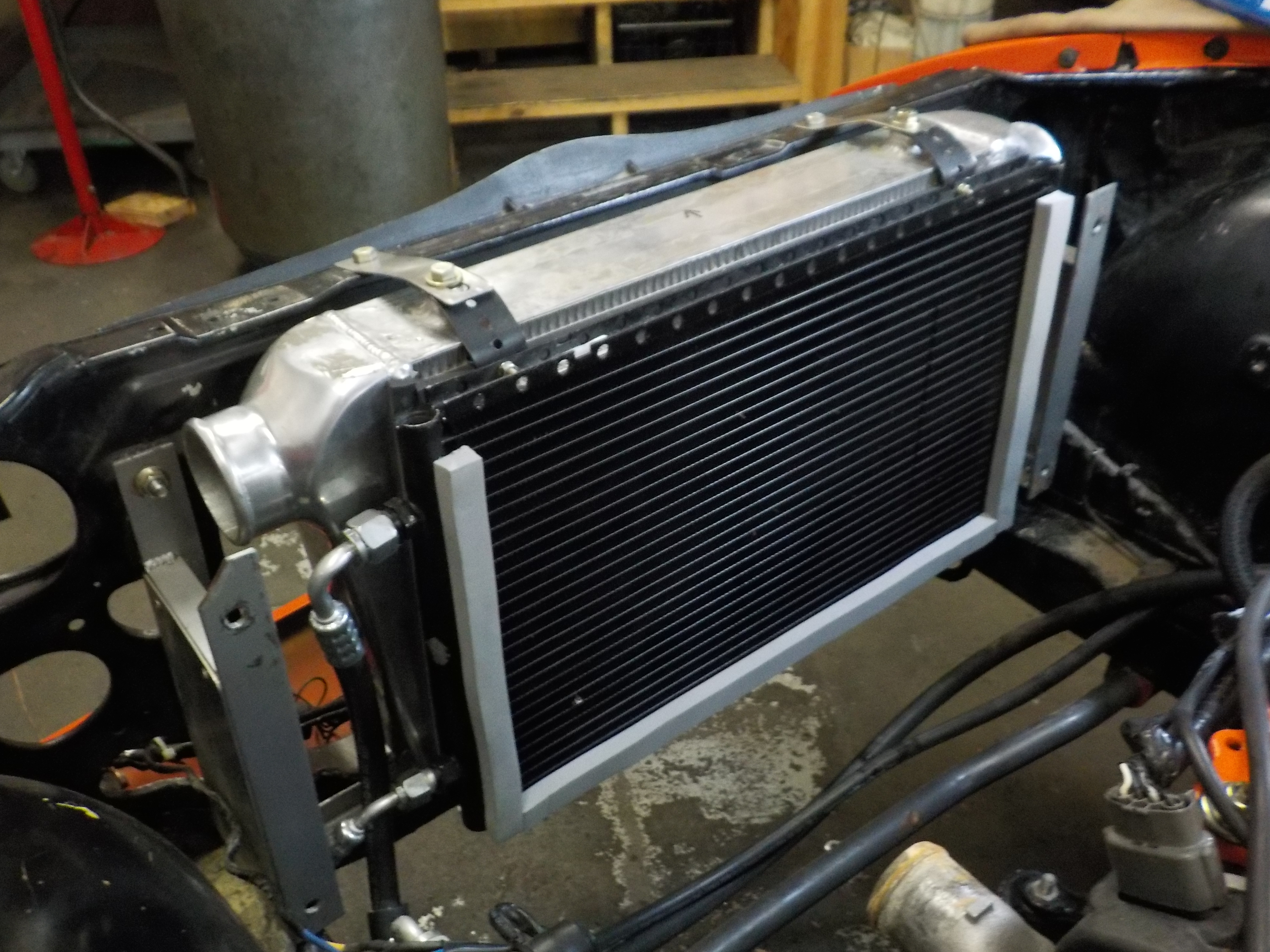

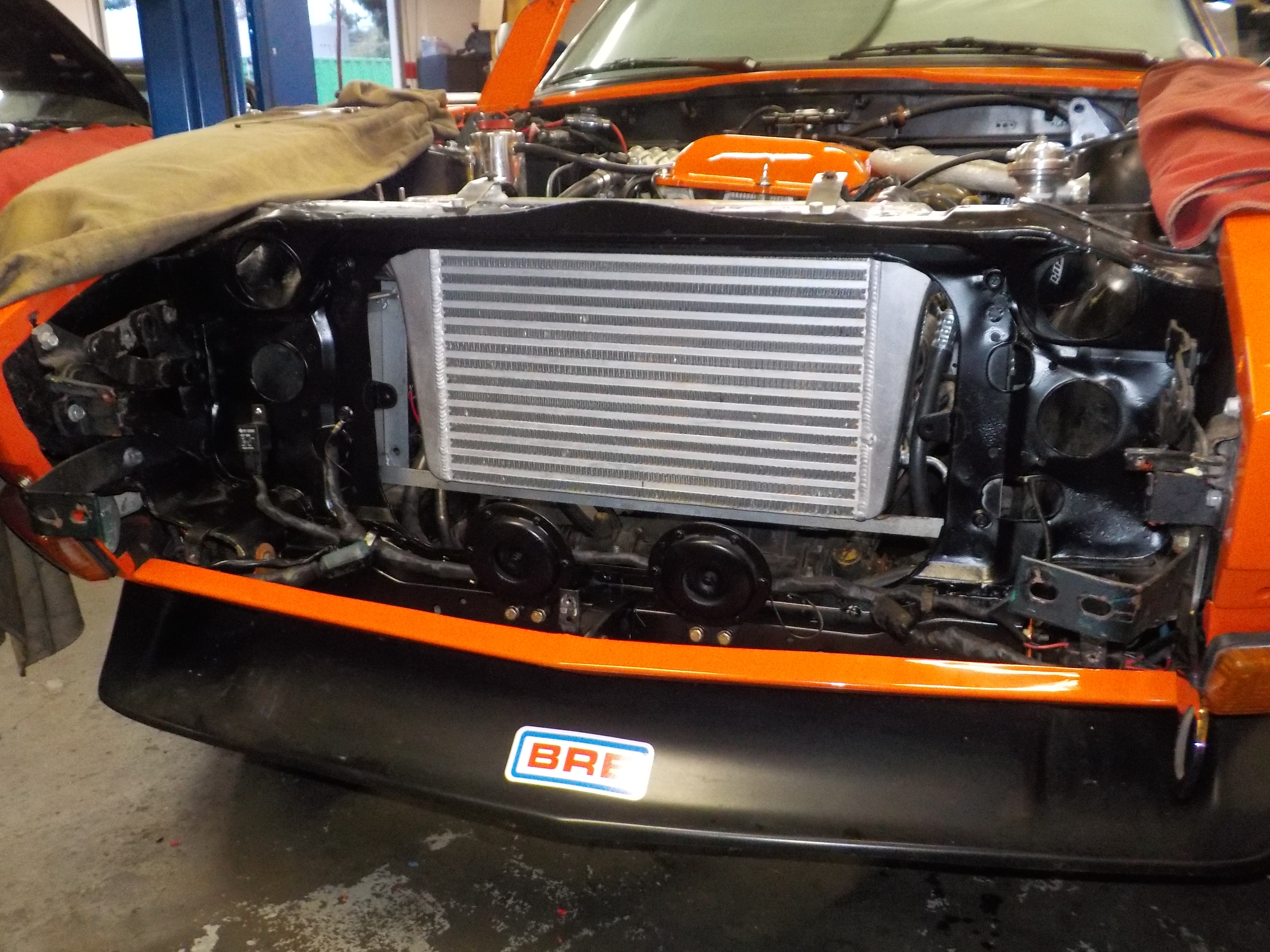

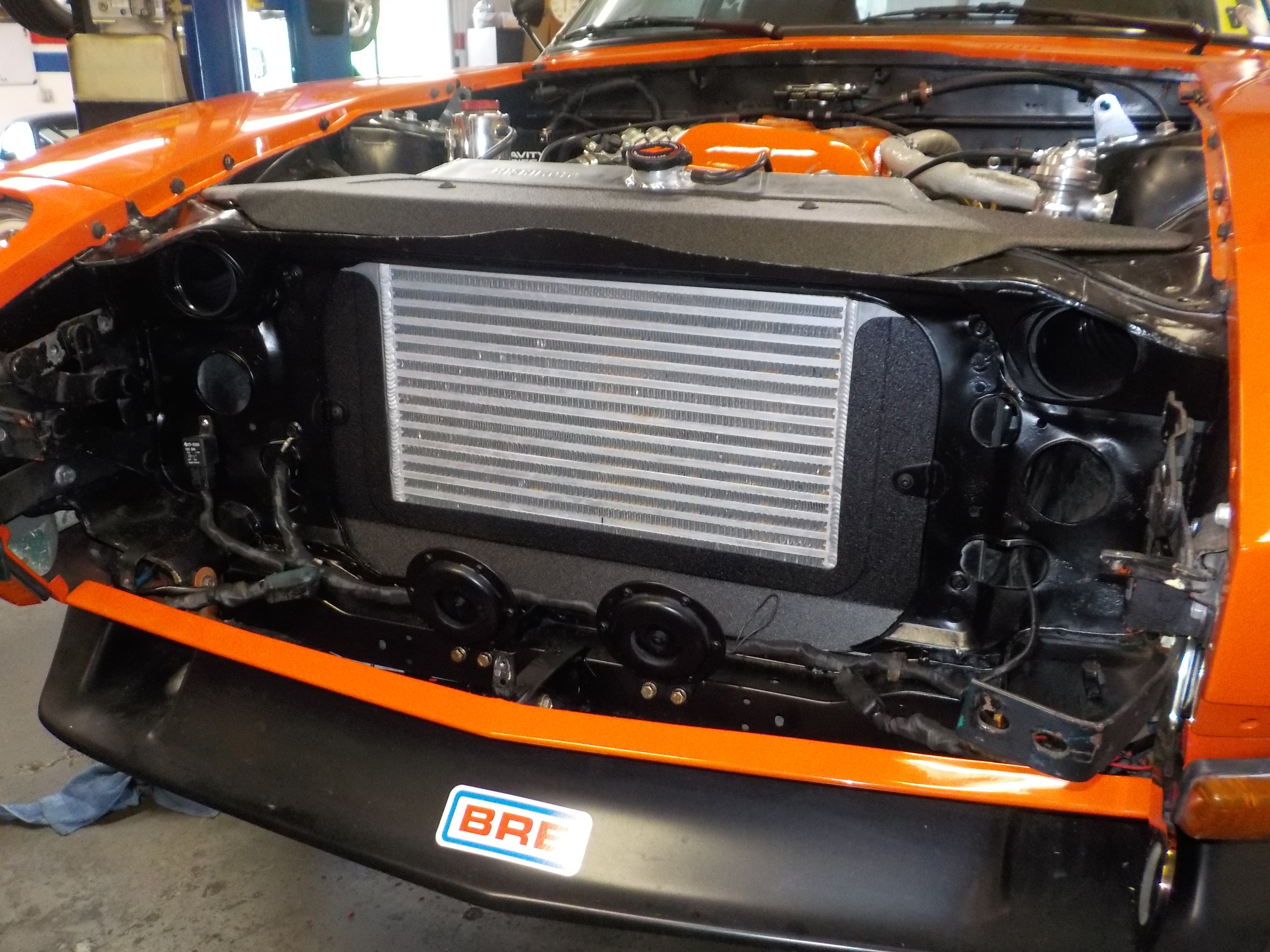

The oil cooler was mounted in front of the intercooler and there was a small deflector plate placed across all heat exchangers. We re-designed the ductwork with help from TCDesignFab to seal the intercooler/AC condenser/radiator to direct air flow and eliminate heat soak. Serious SPAL fans were added to a new Mishimoto rad:

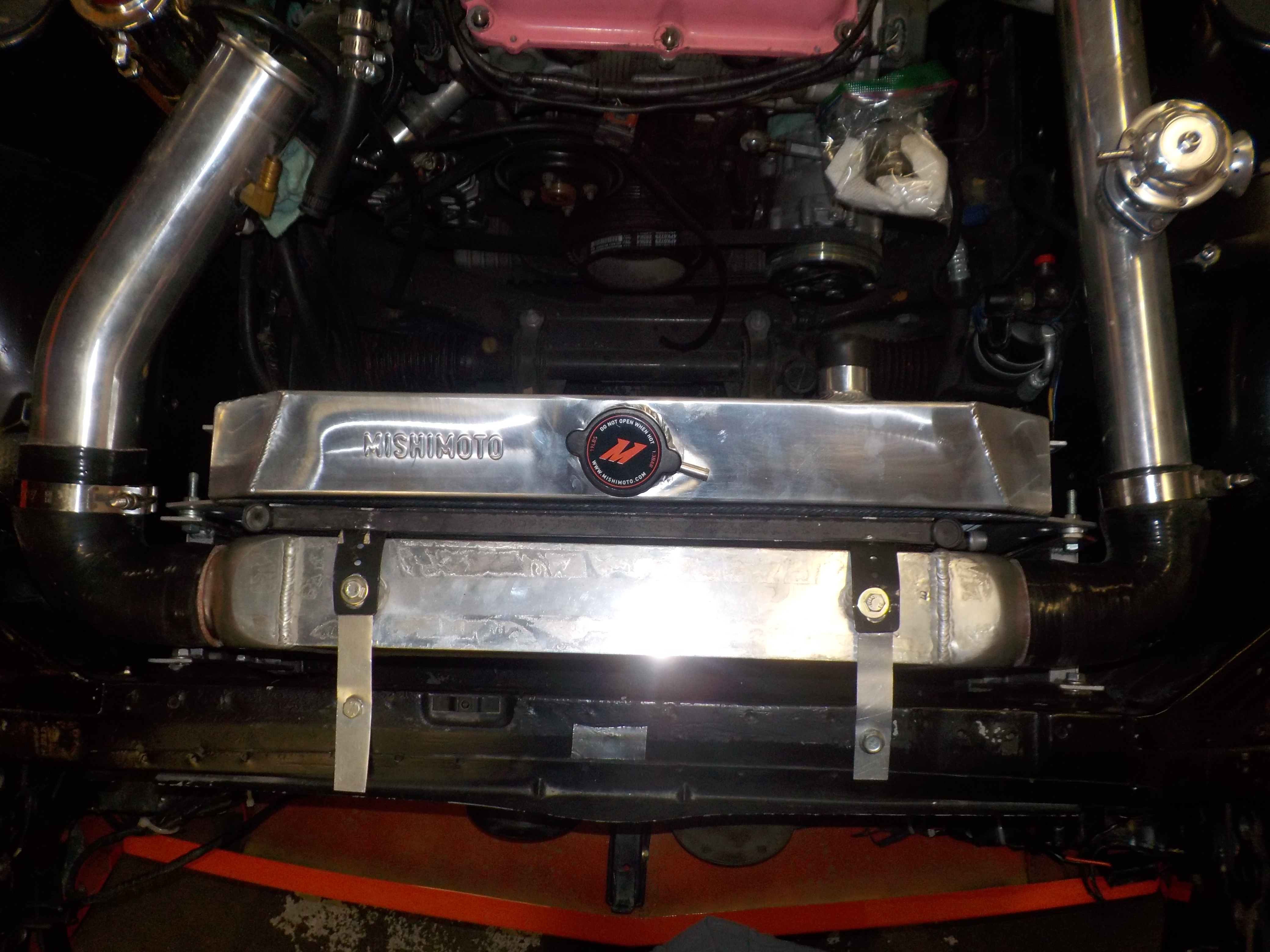

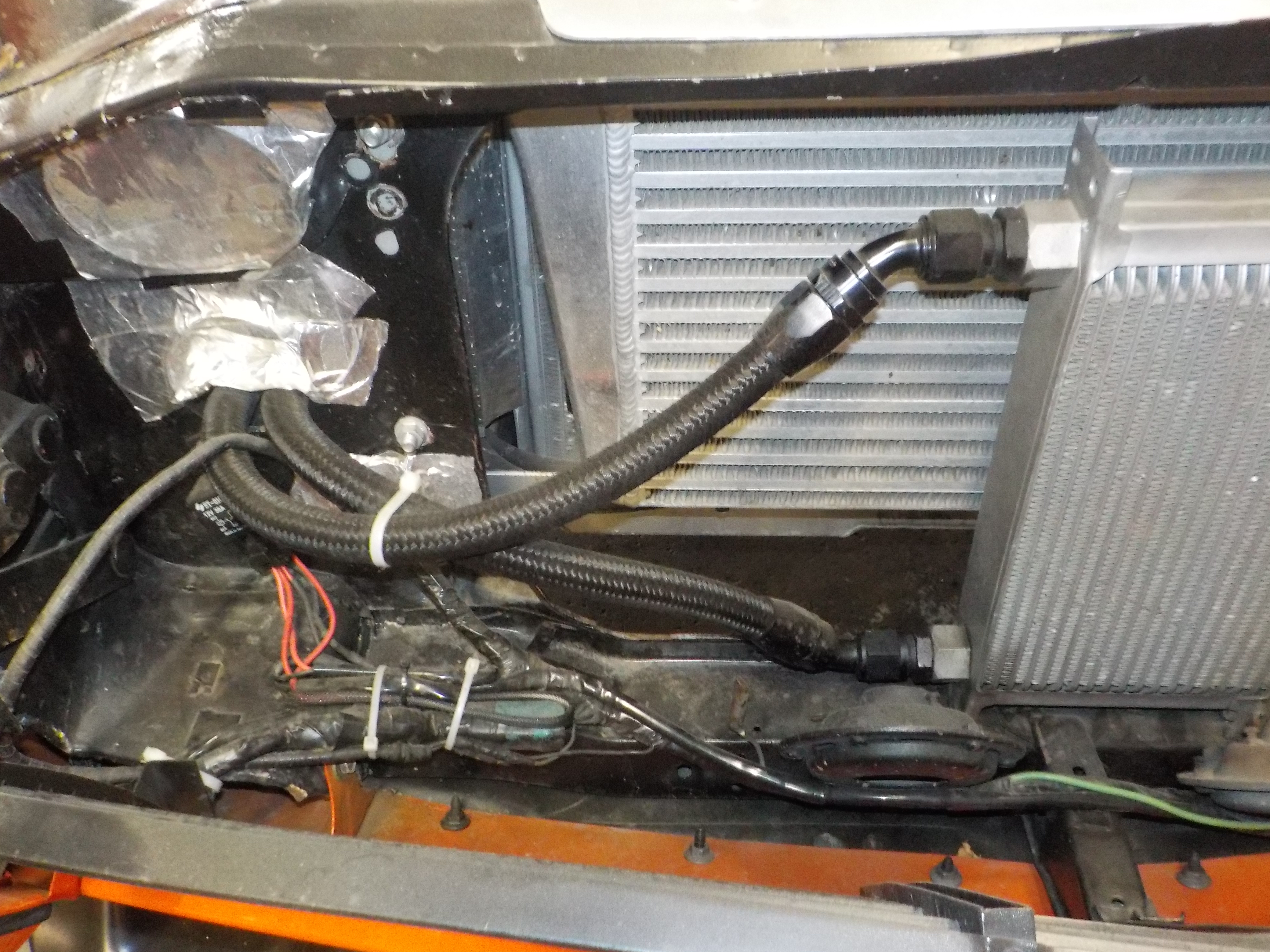

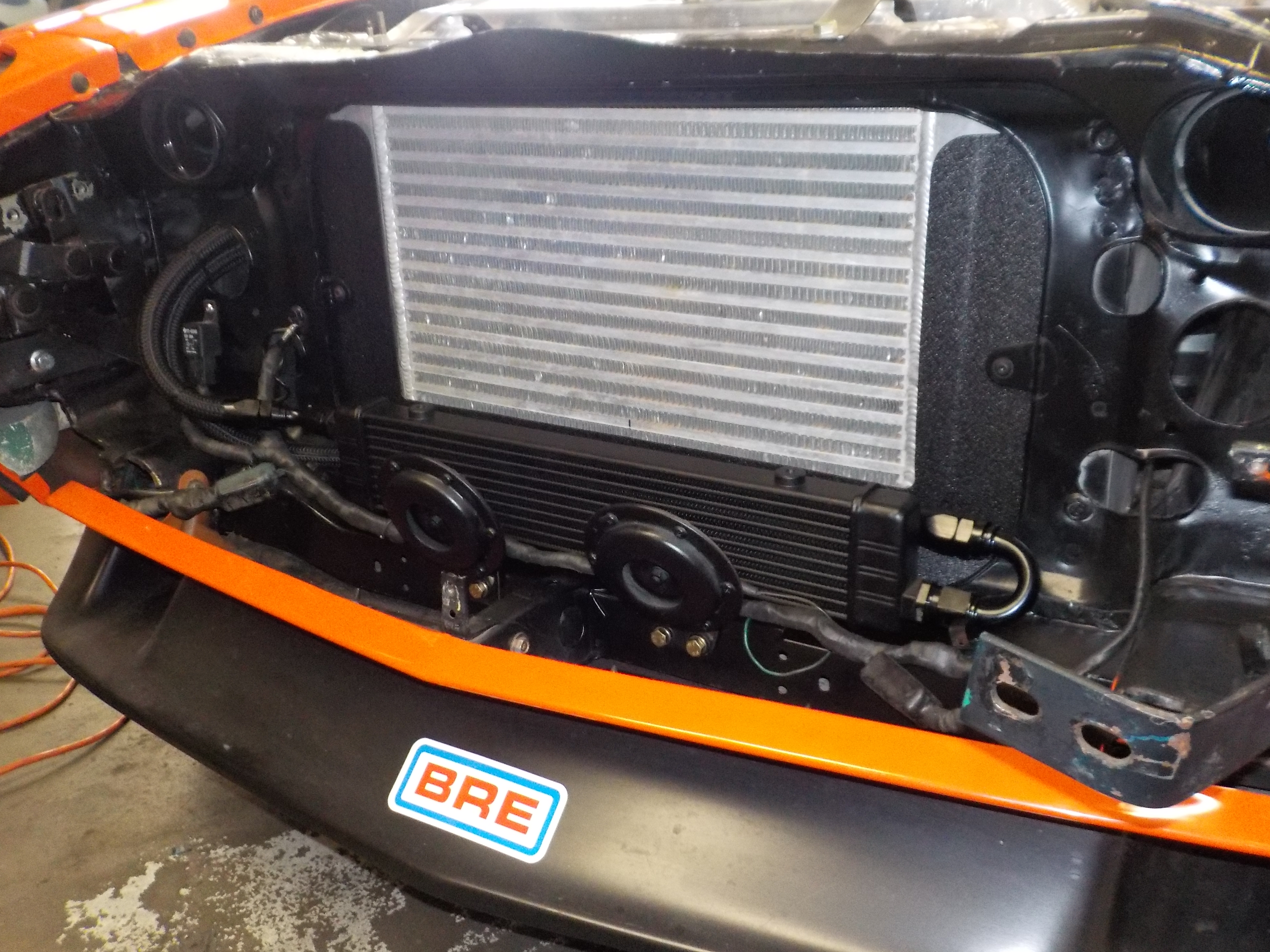

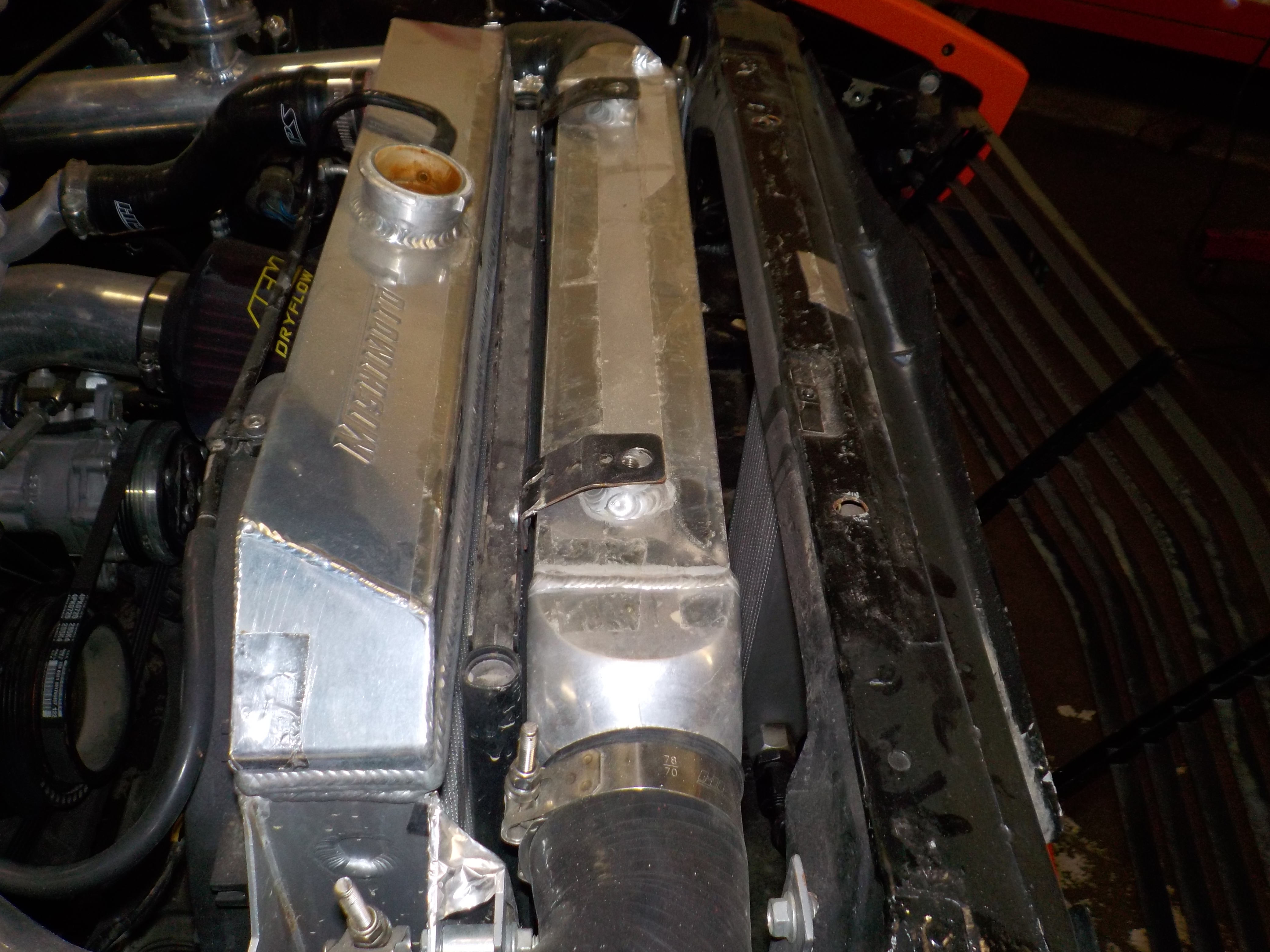

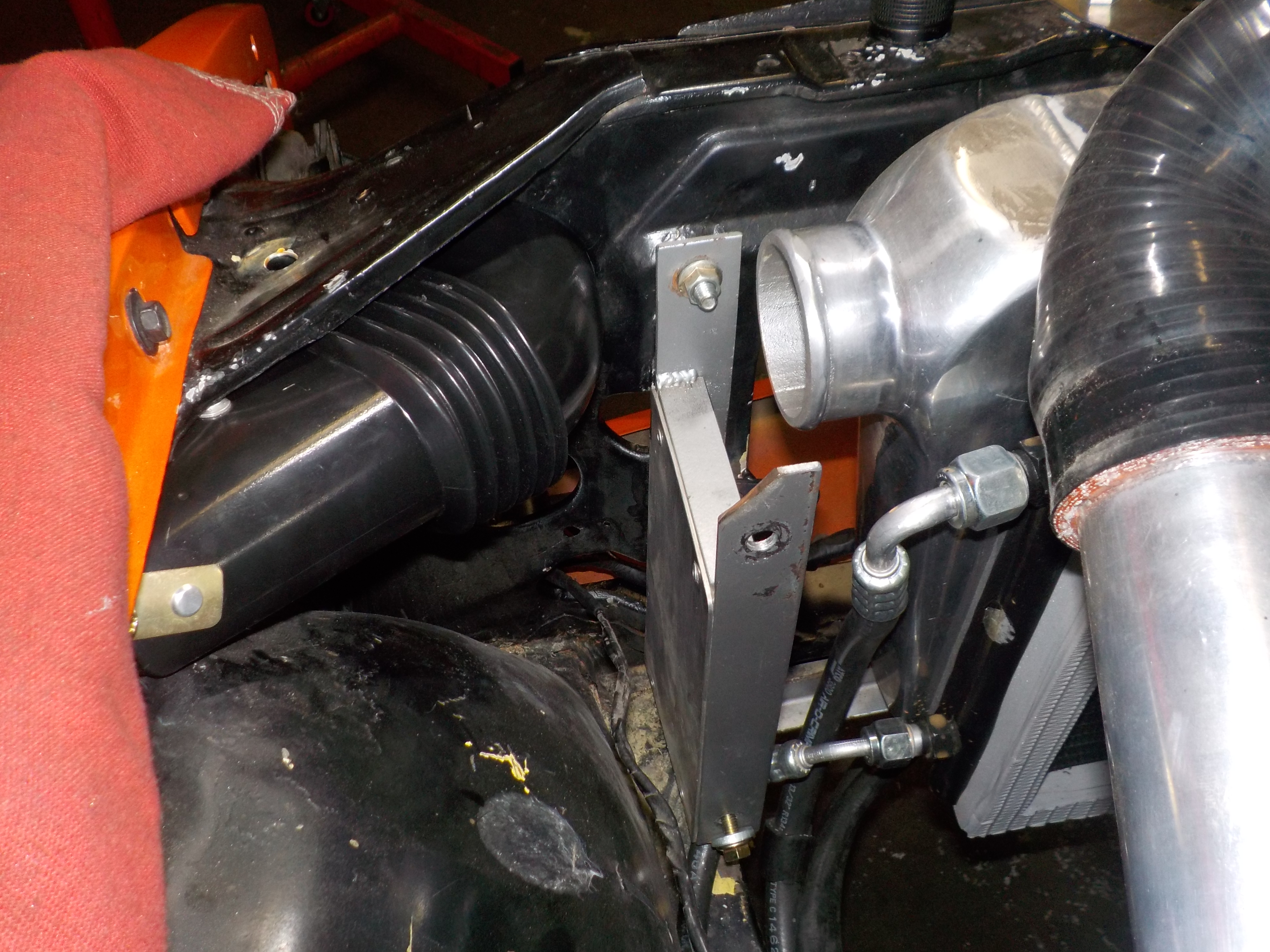

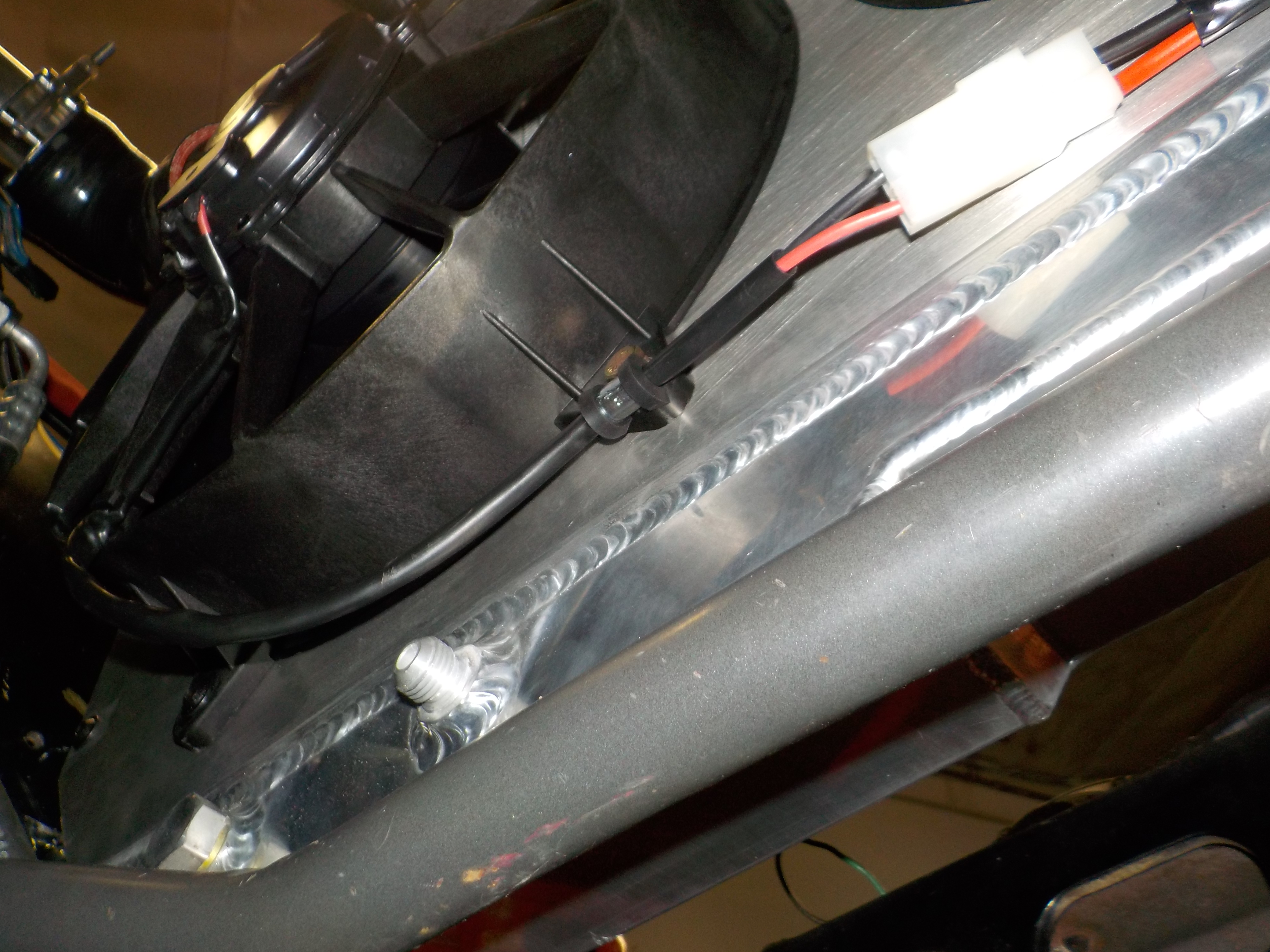

The oil cooler was relocated below the FMIC:

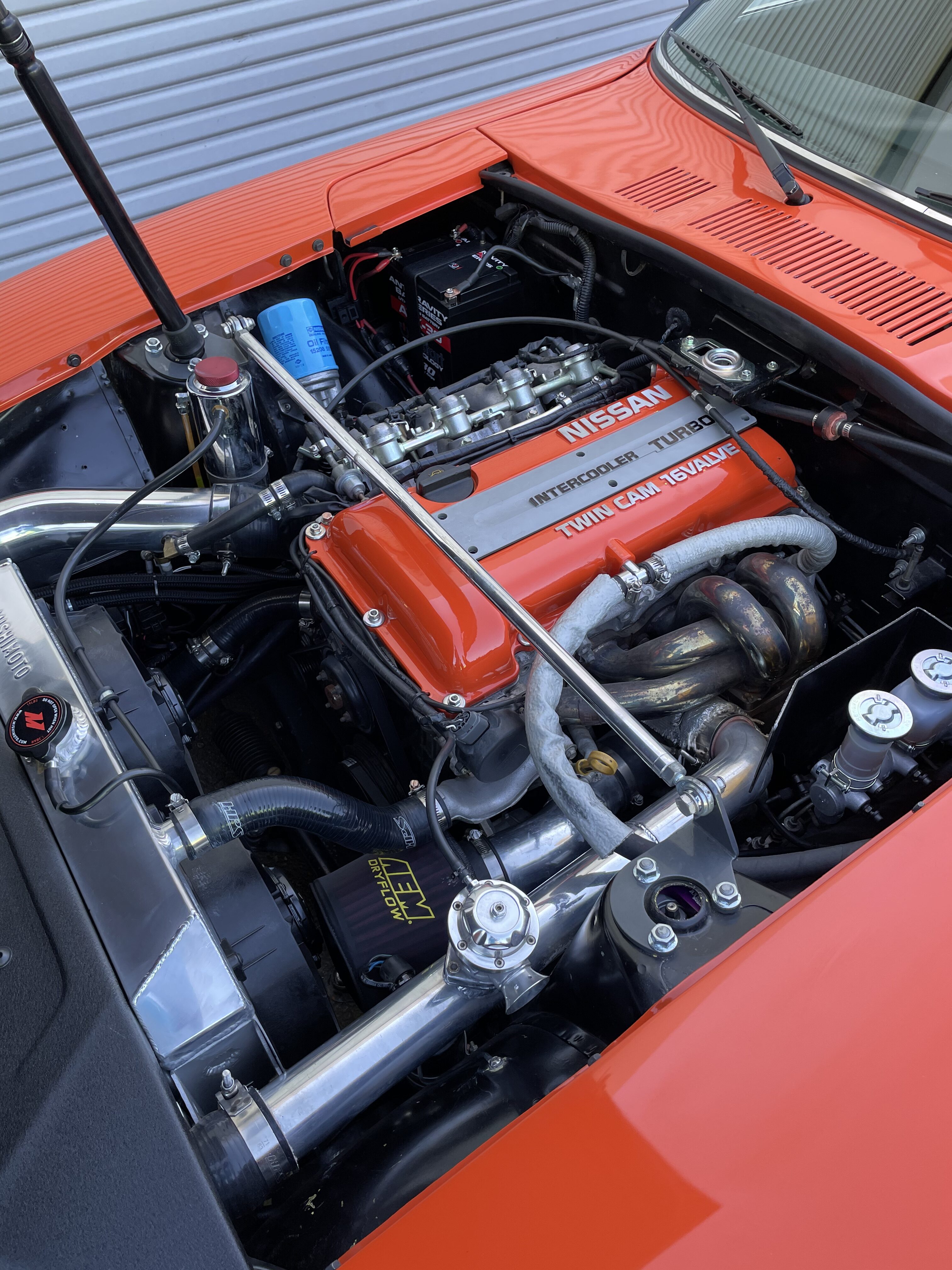

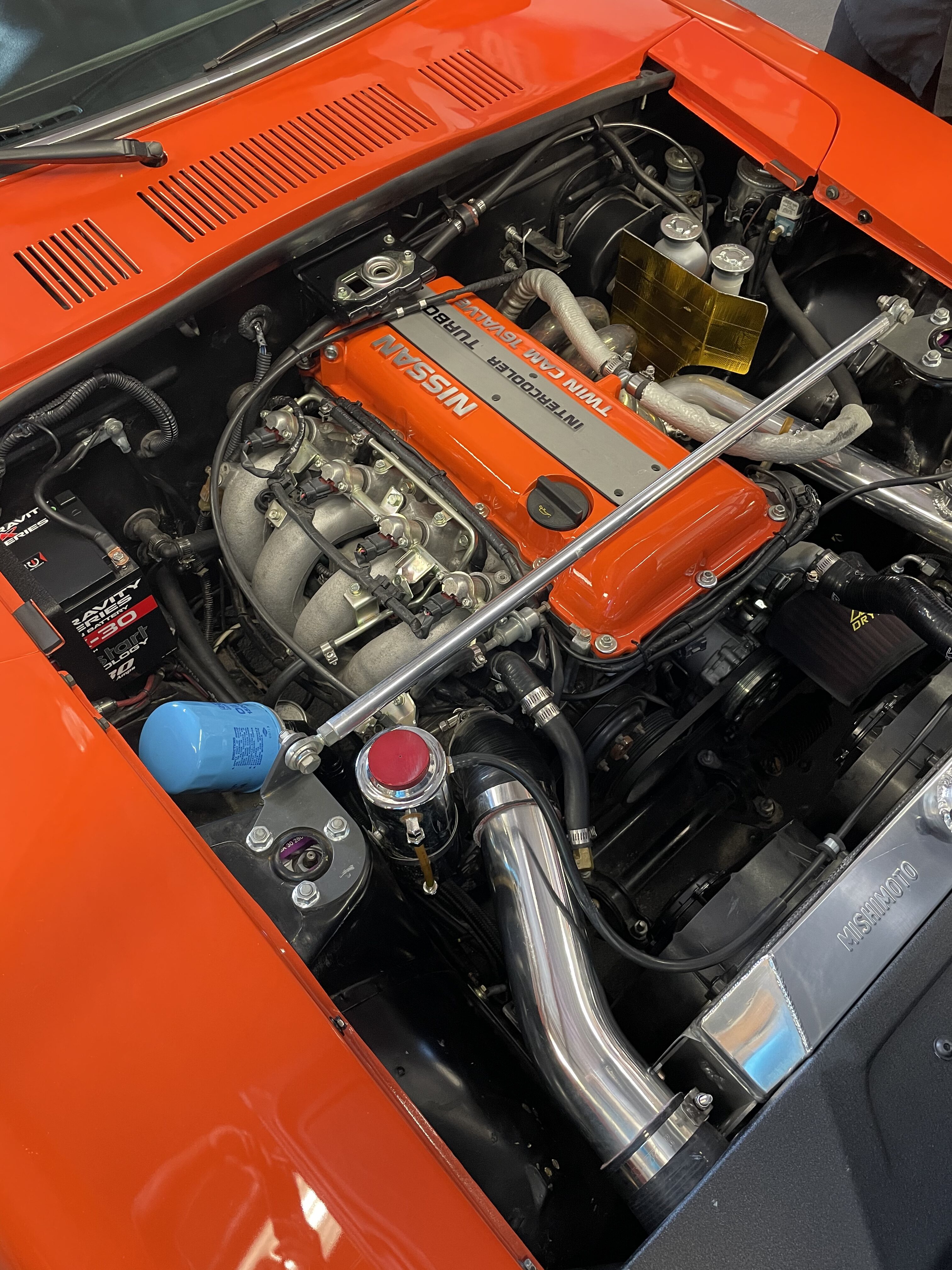

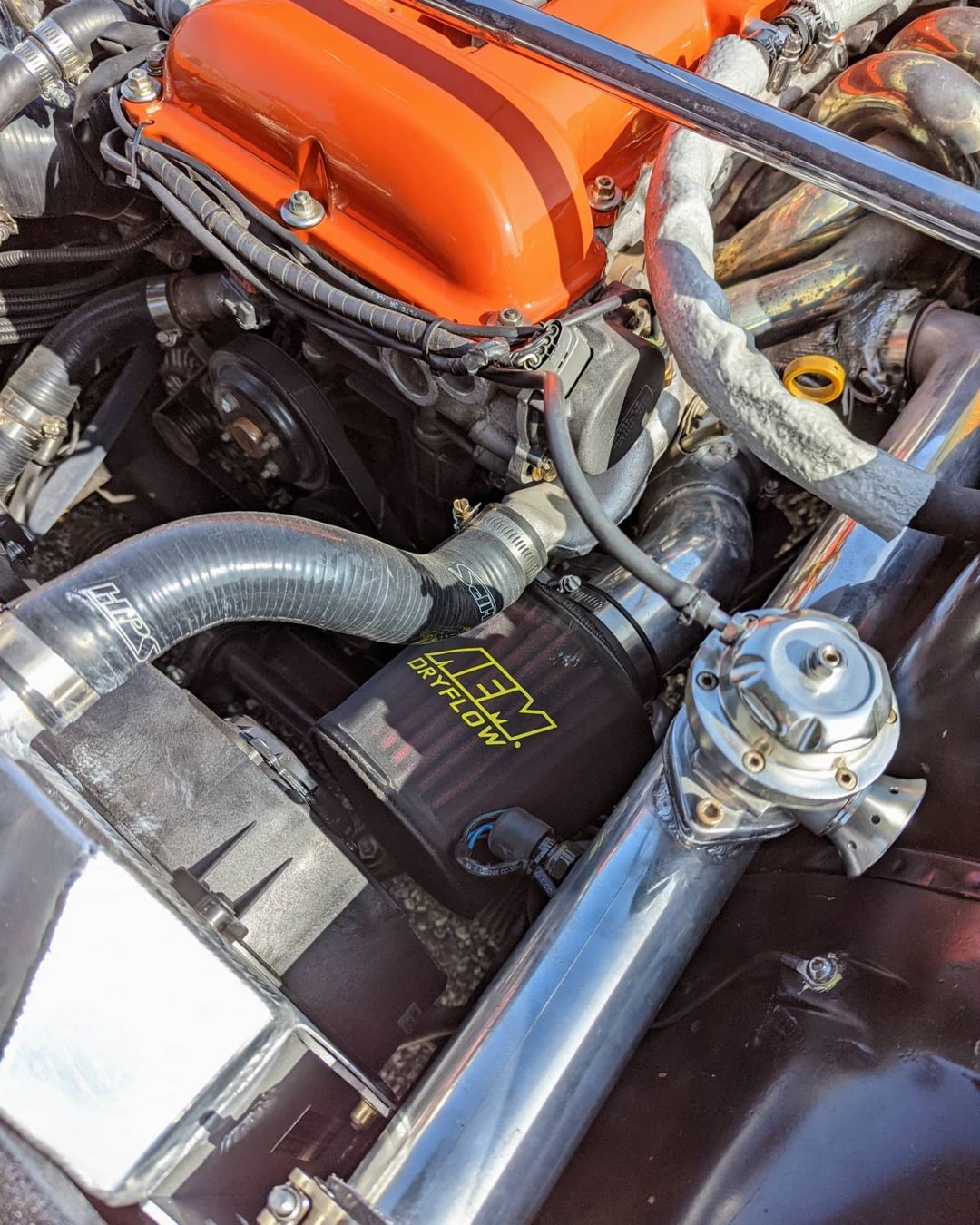

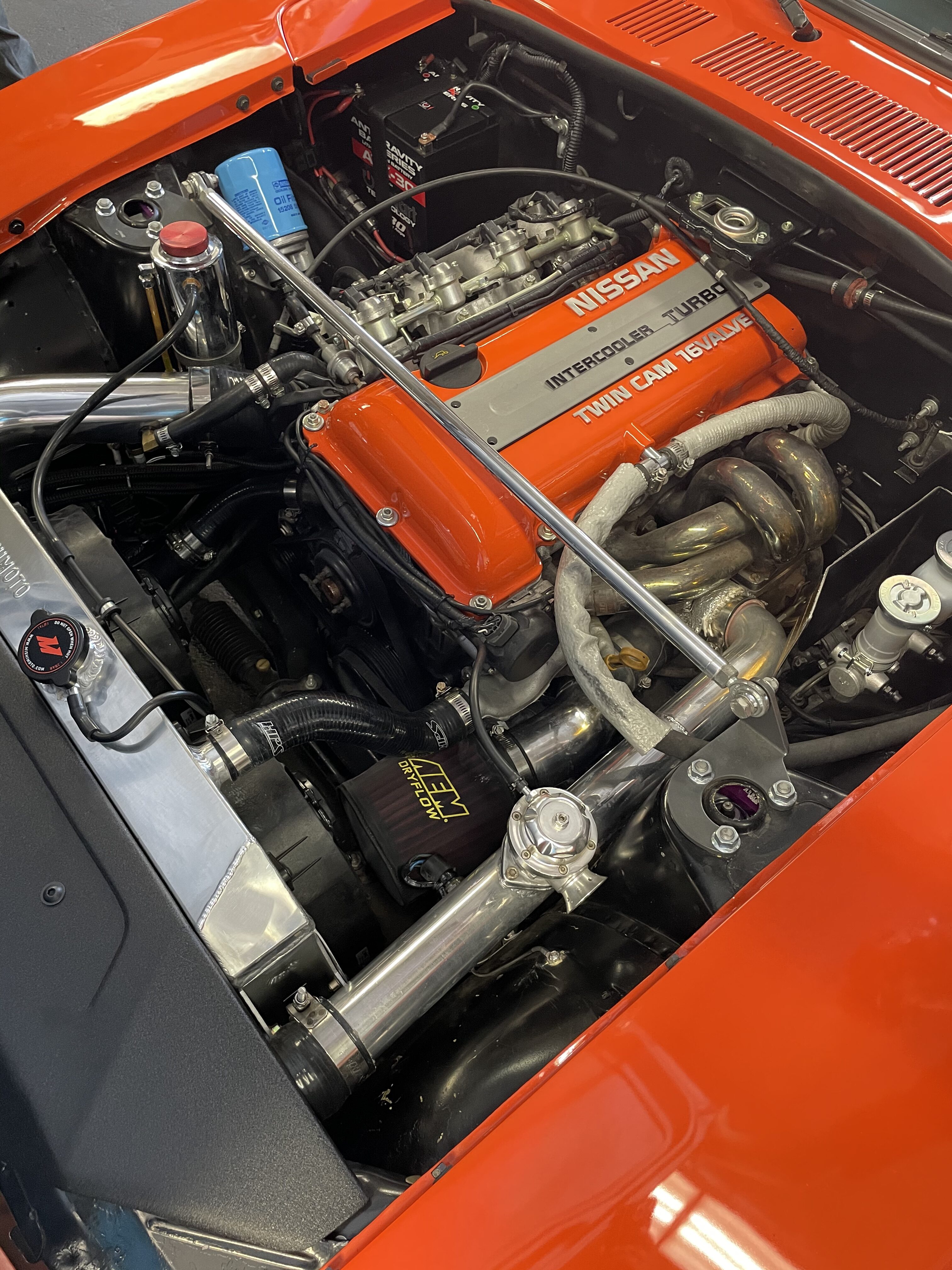

With air now directed through the heat exchangers the SR operates well under heat soak conditions, even with the A/C on and blowing cold. Even though the SR20 isn’t Rob’s first choice of engine swap it works really well, looks awesome and makes great power. Speaking of looks, we couldn’t resist adding our body-color matching valve cover (like Rob’s 510 and Rb-powered Z cars):

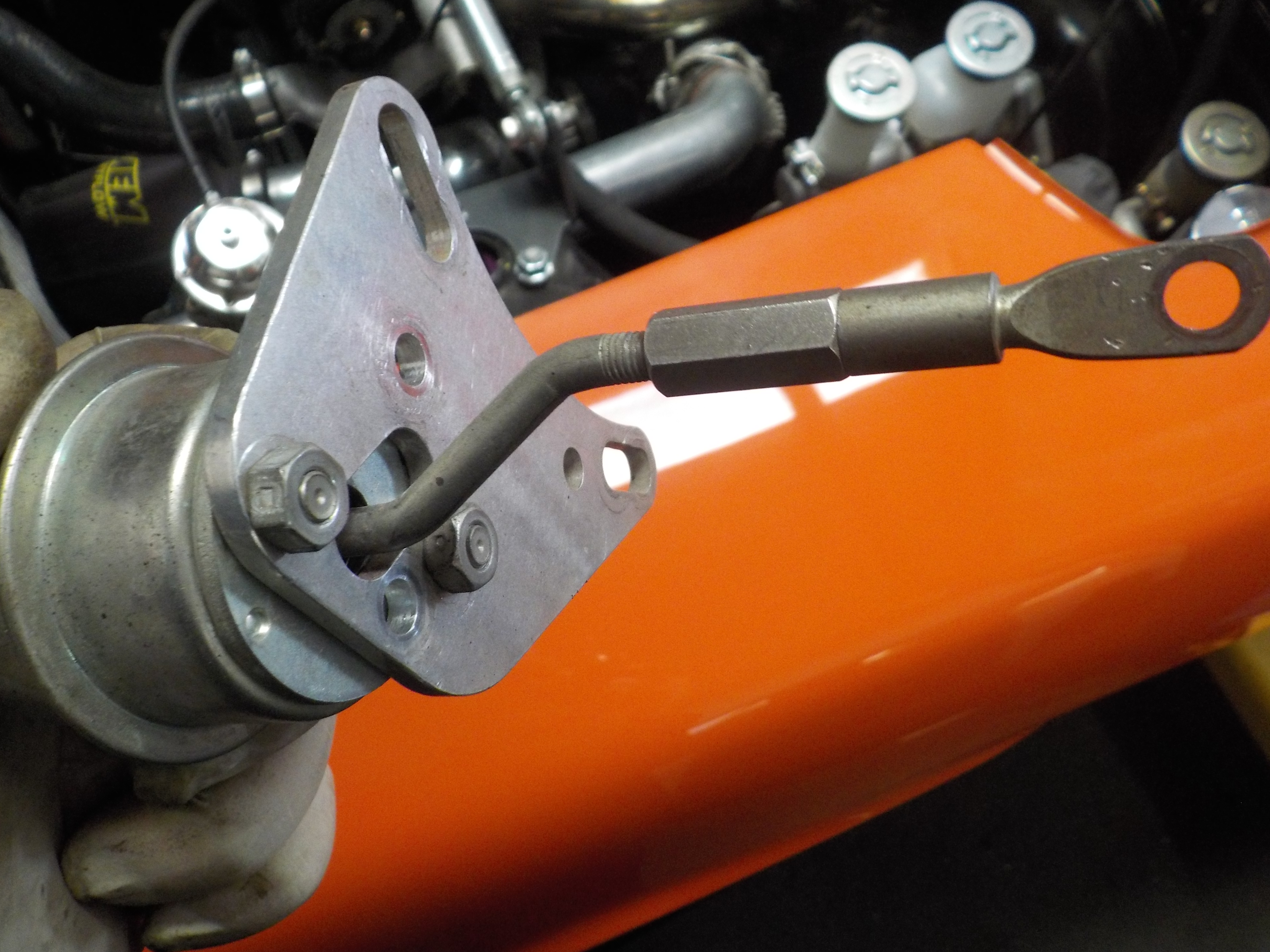

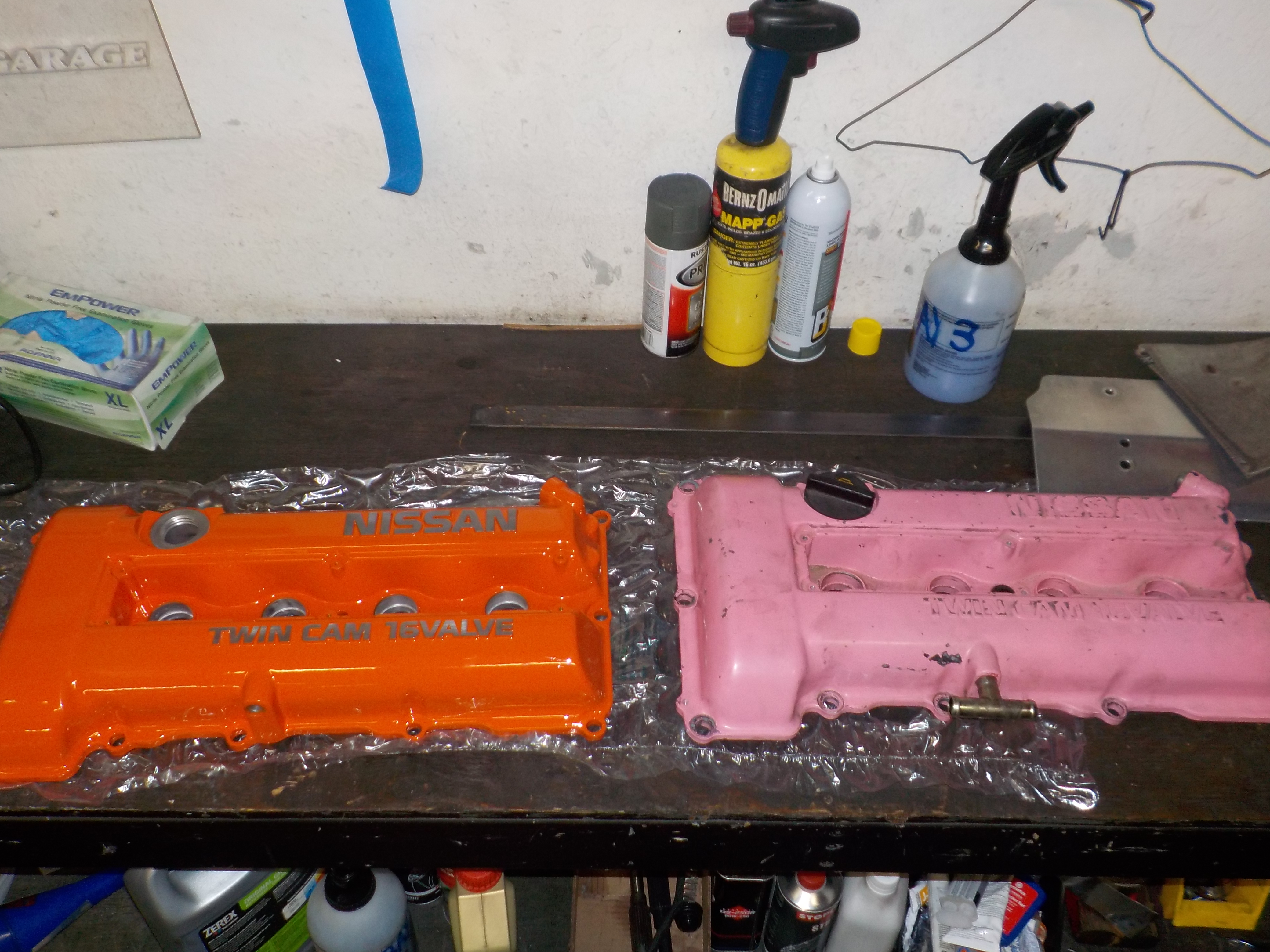

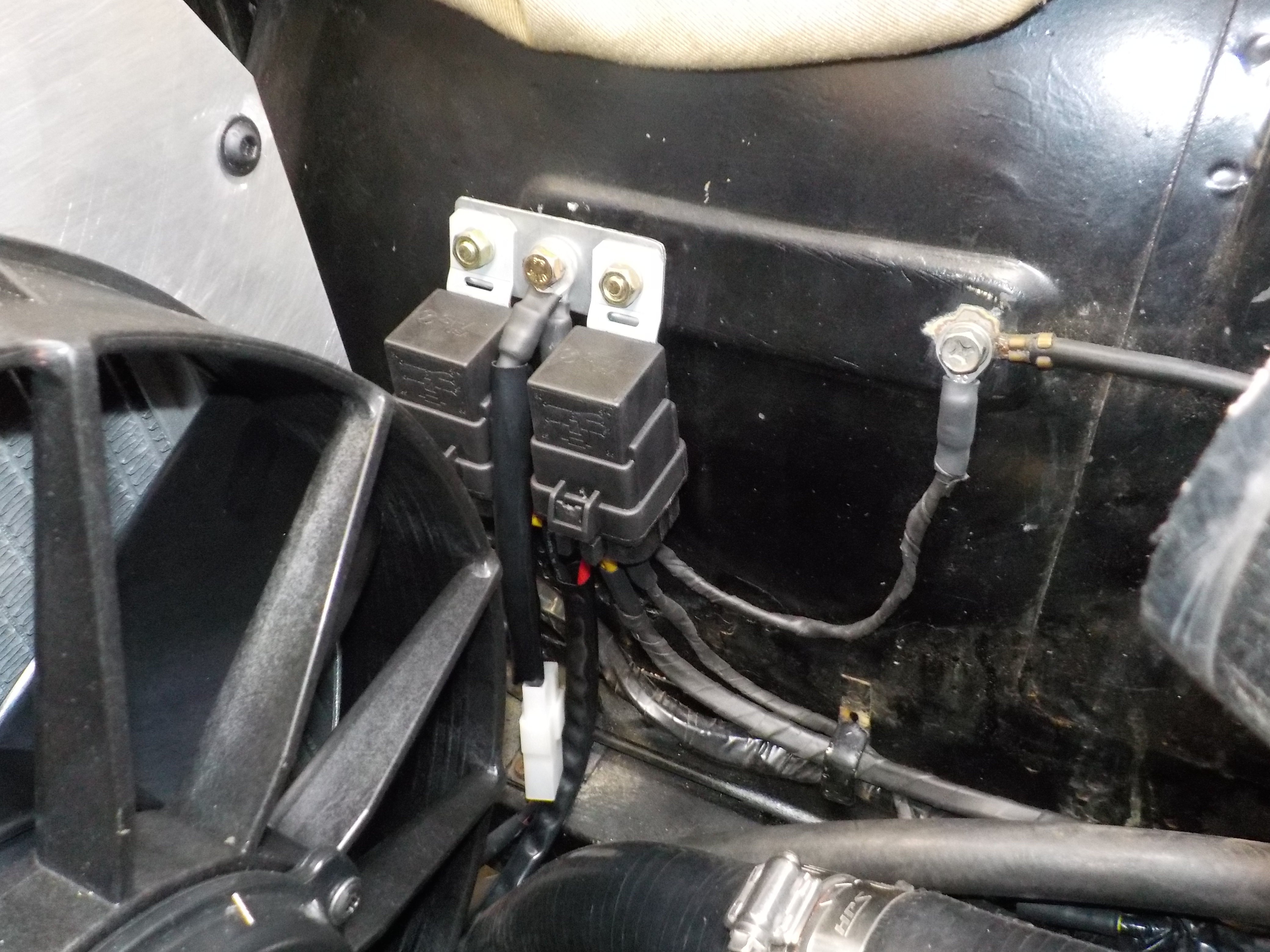

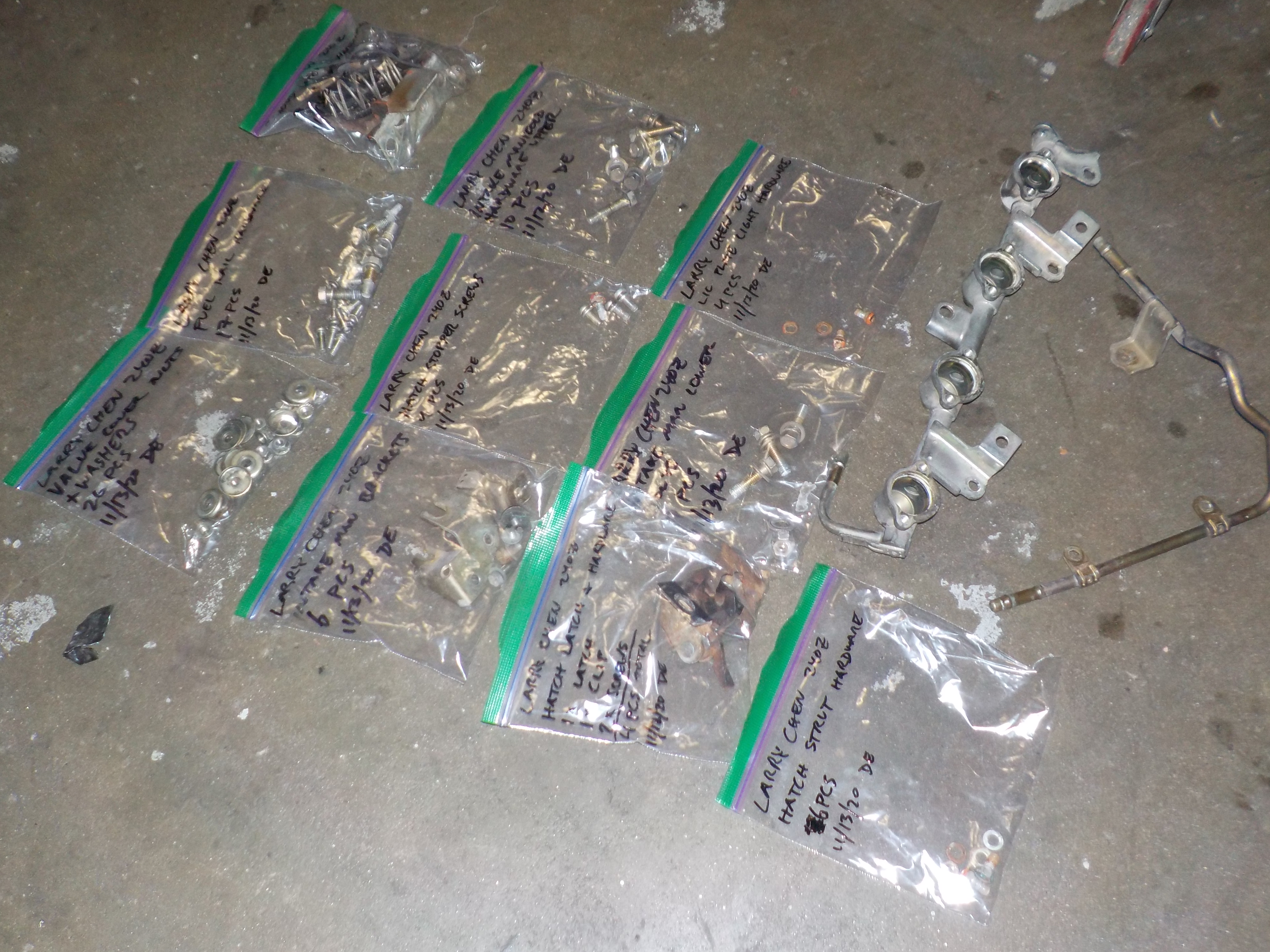

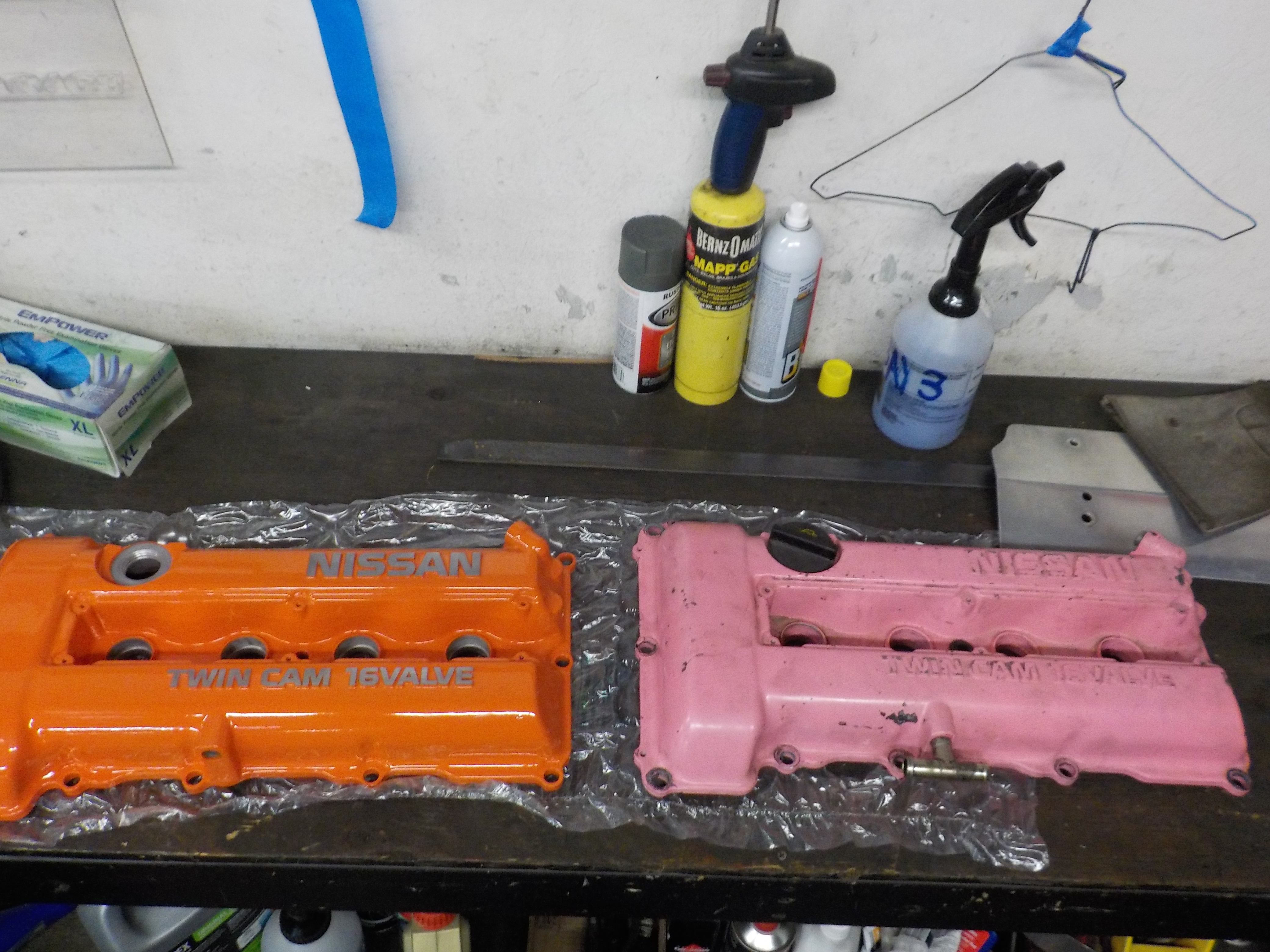

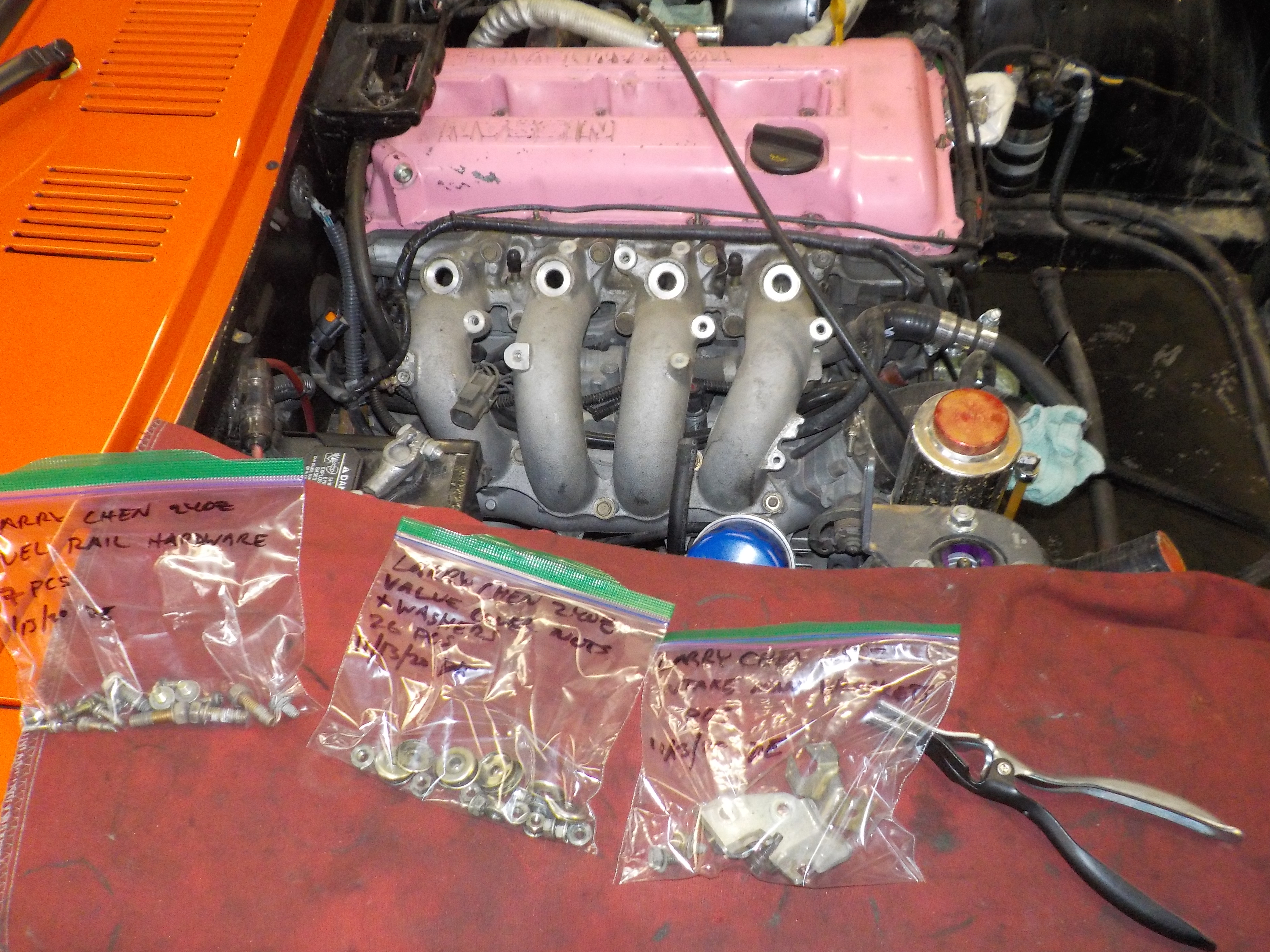

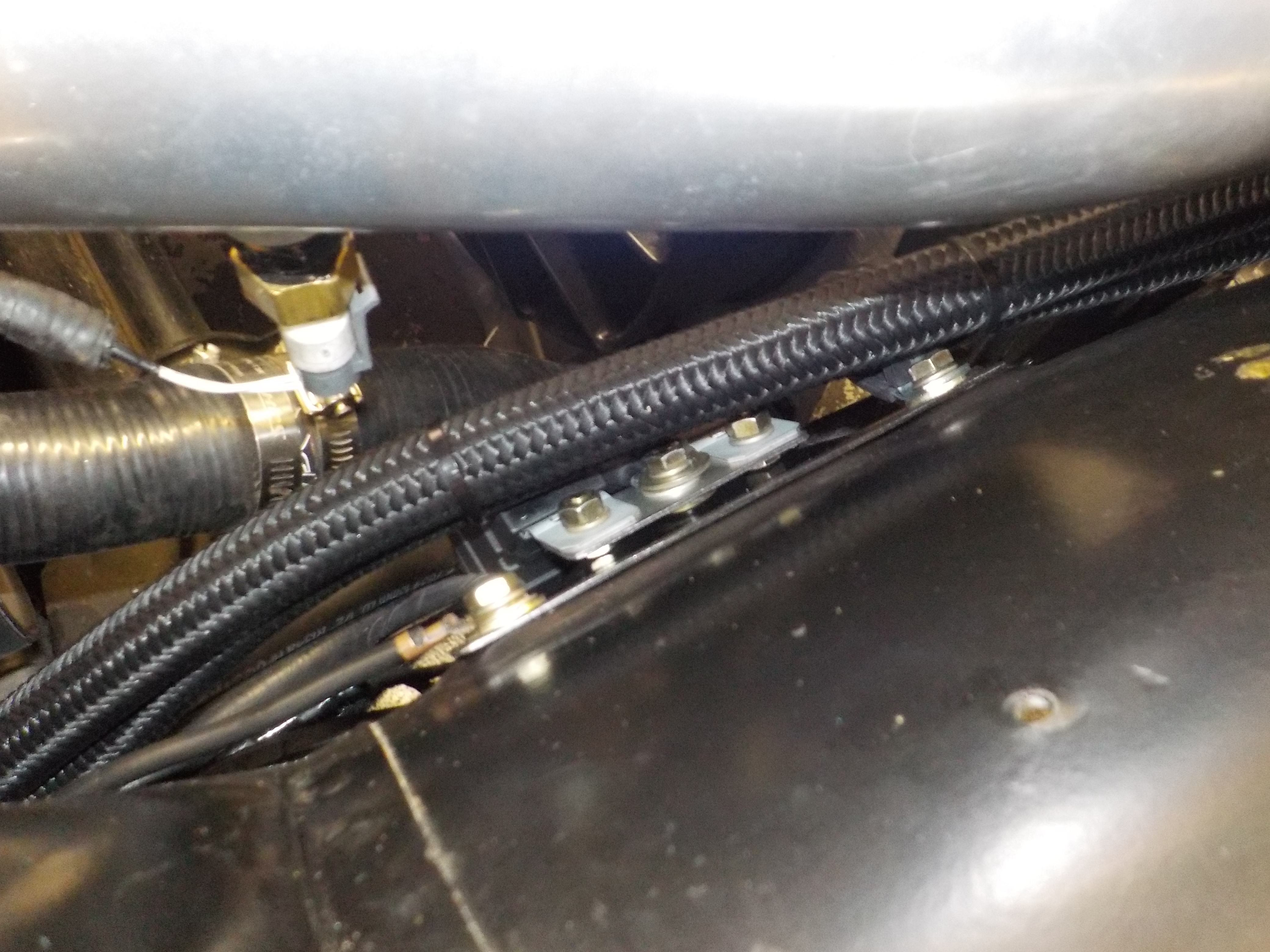

Hardware was removed and re-plated throughout, more pics in the gallery!

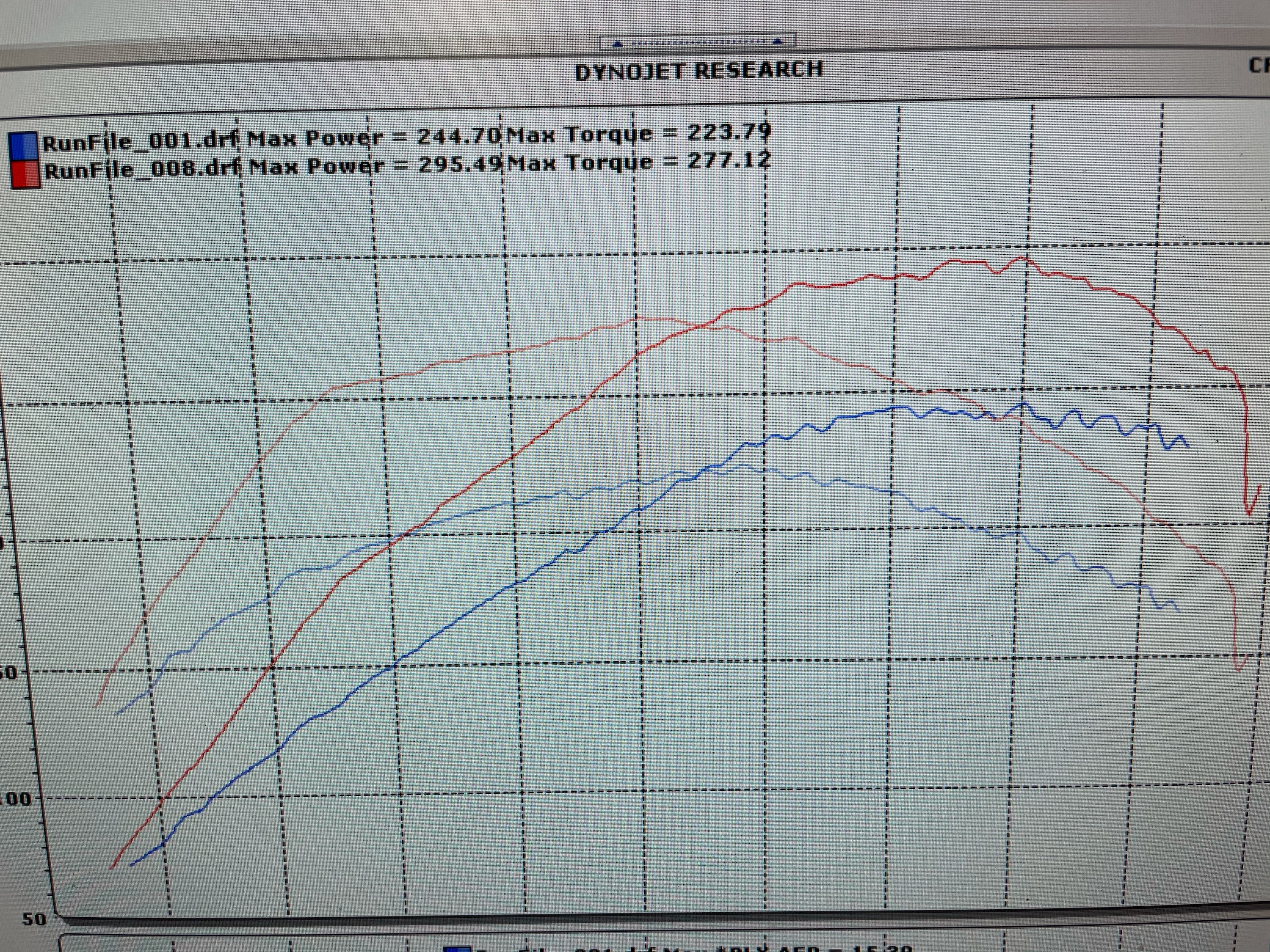

Dyno Tuning

We are huge fans of Haltech engine management. We use their Elite line of ECUs exclusively on our EFI engine builds and Larry’s SR received an Elite 1000 unit, mounted on the passenger foot well. Rob dyno tuned the SR20DET using Haltech. Baseline was 245hp/223tq and with Rob’s tuning it made 295hp/277tq at the wheels:



Larry was absolutely blown away by the performance, response and night/day improvement in drivability. Beyond peak gains of 50hp/54tq at the wheels, much of the increased response can be seen in the huge area under the curve from proper wastegate operation. Haltech is so user friendly and the benefits are priceless. You can see the dyno runs and road testing with Larry and Rob in this this video.



Interior

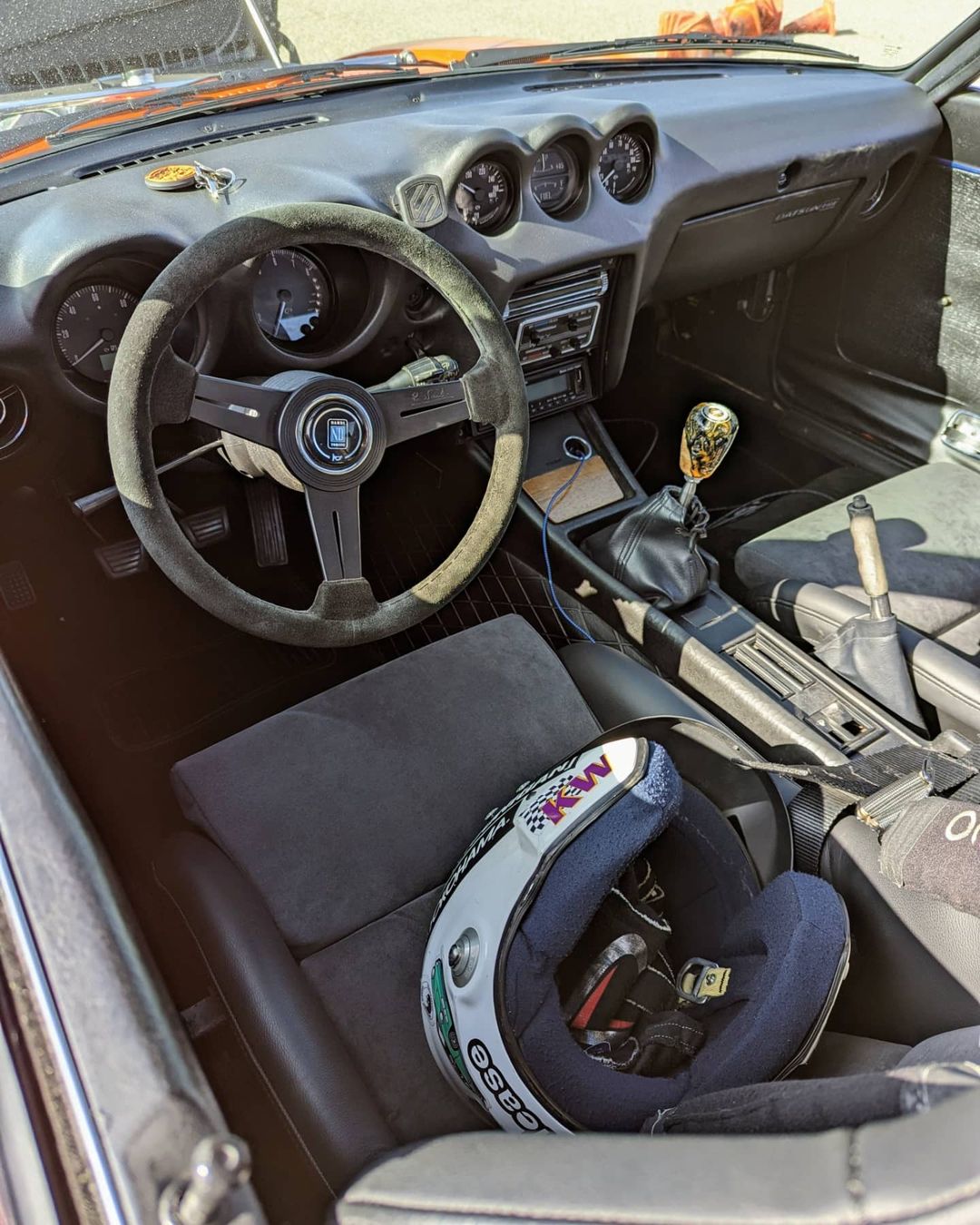

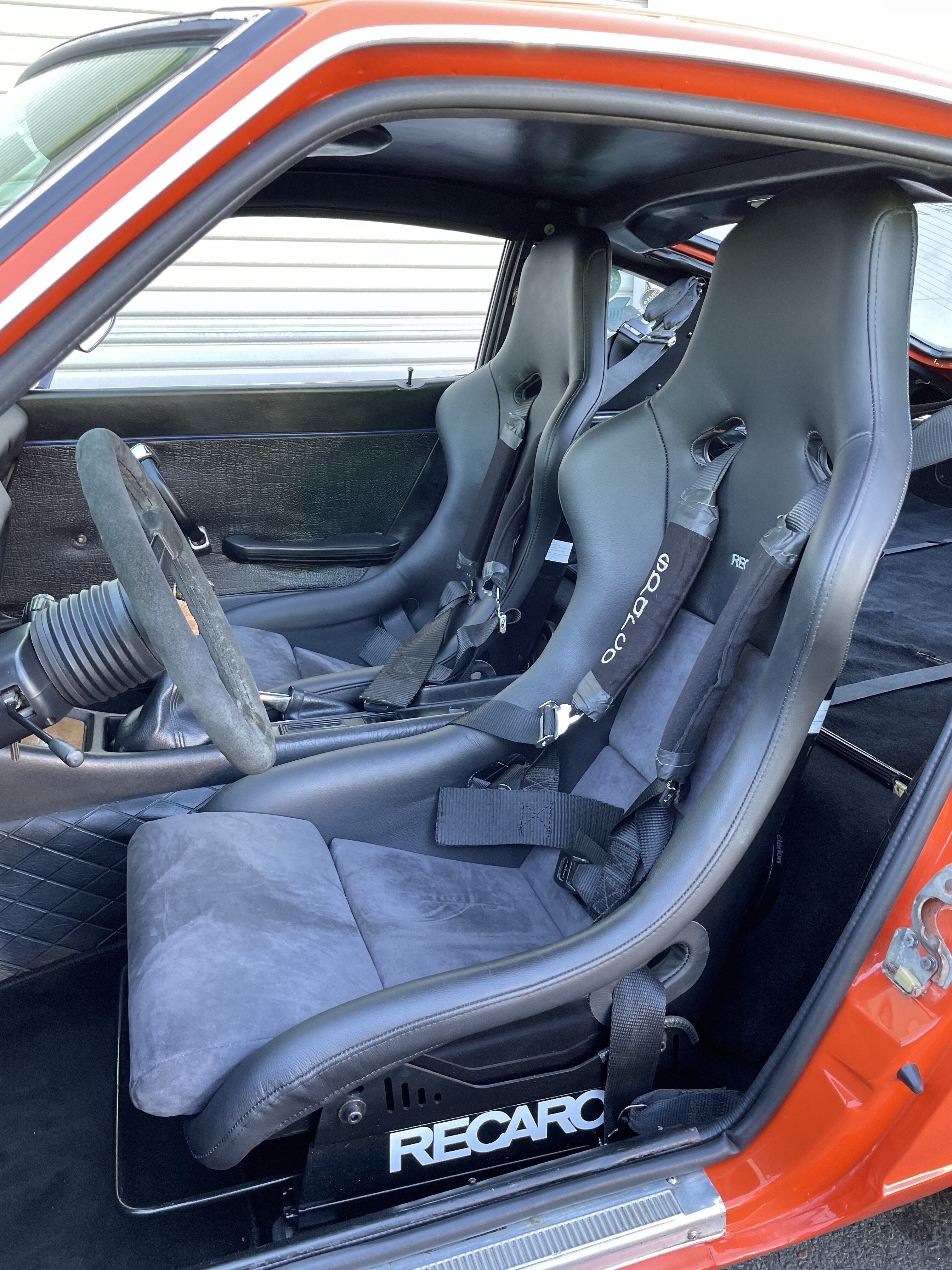

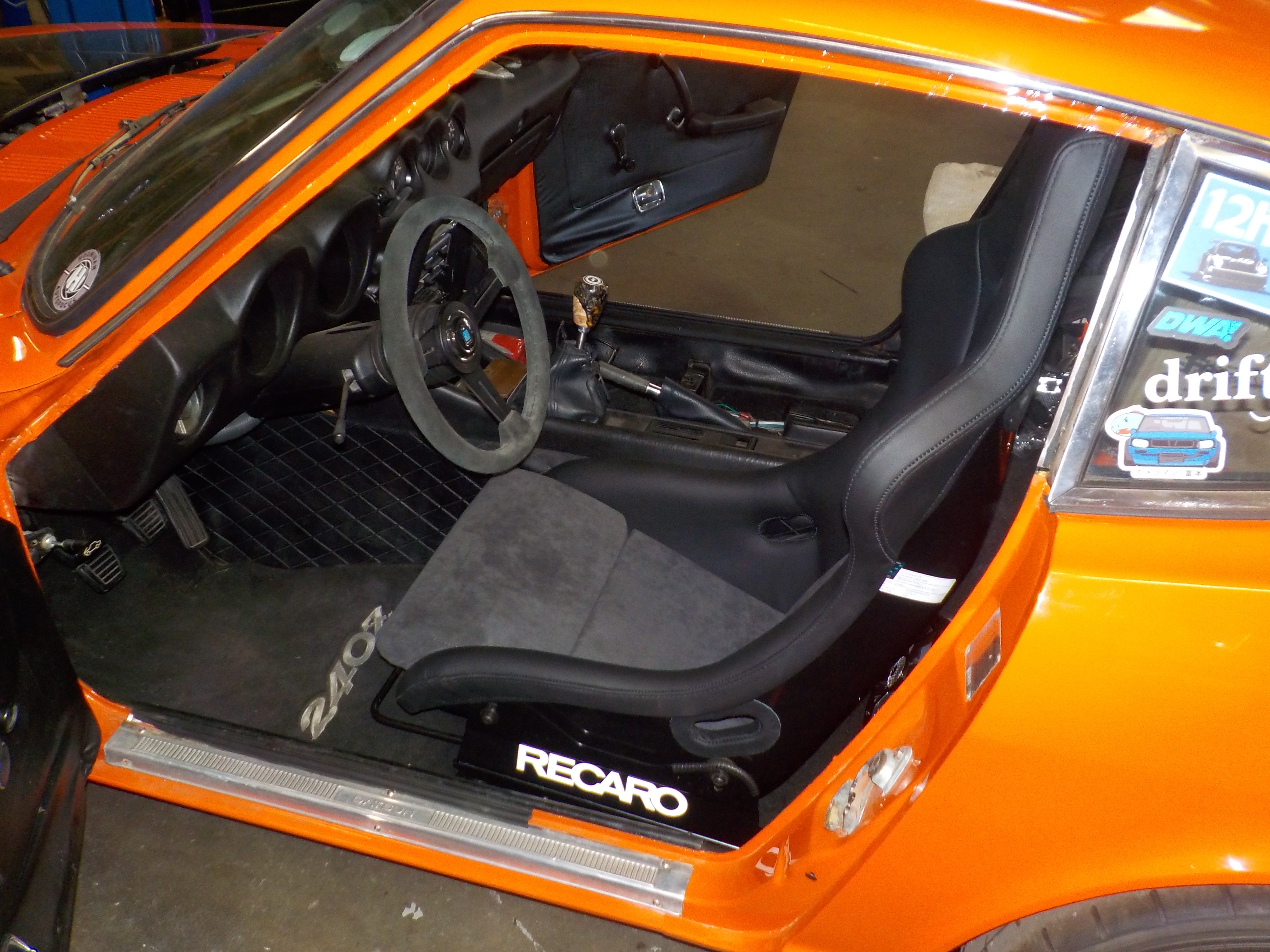

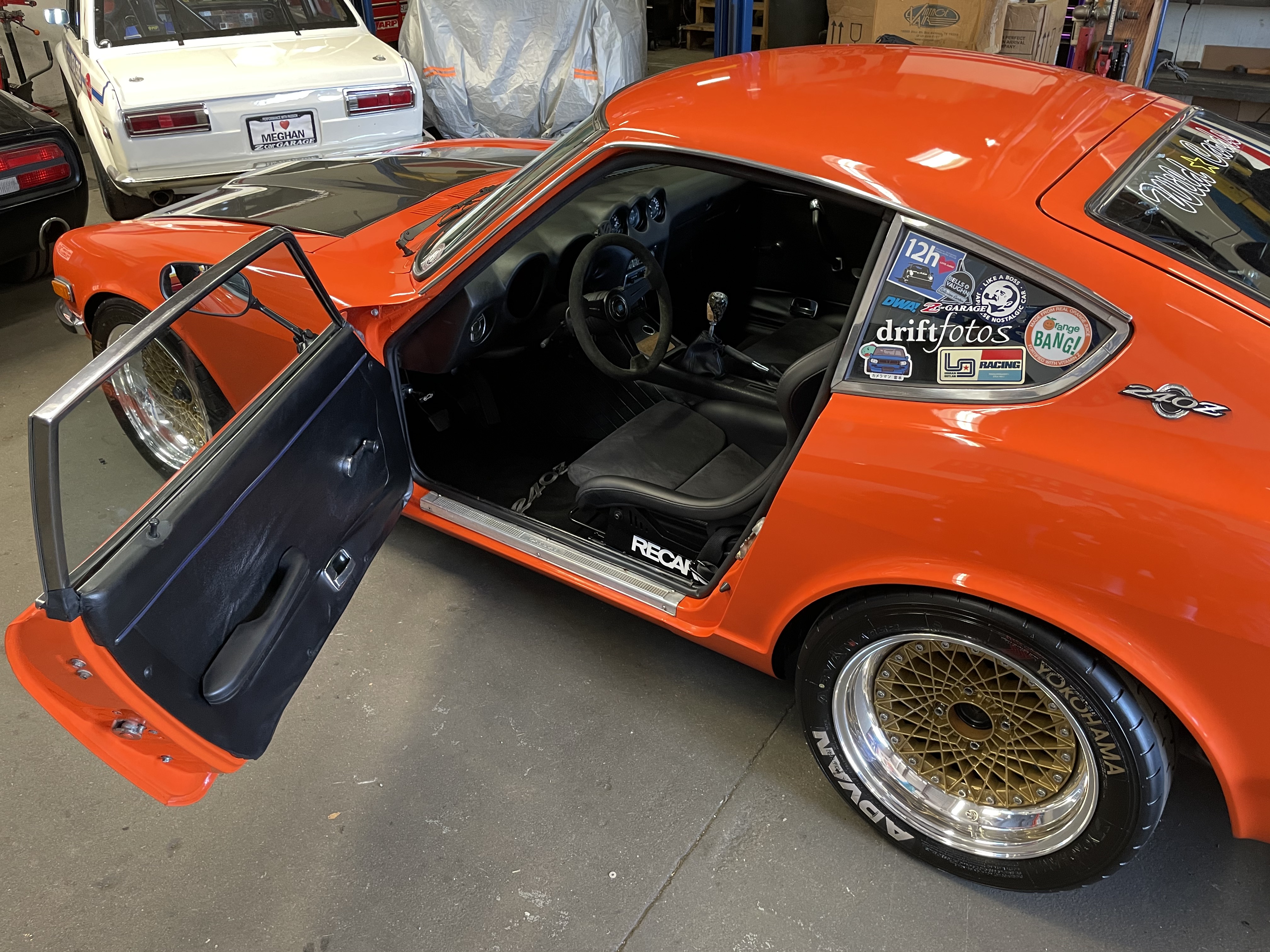

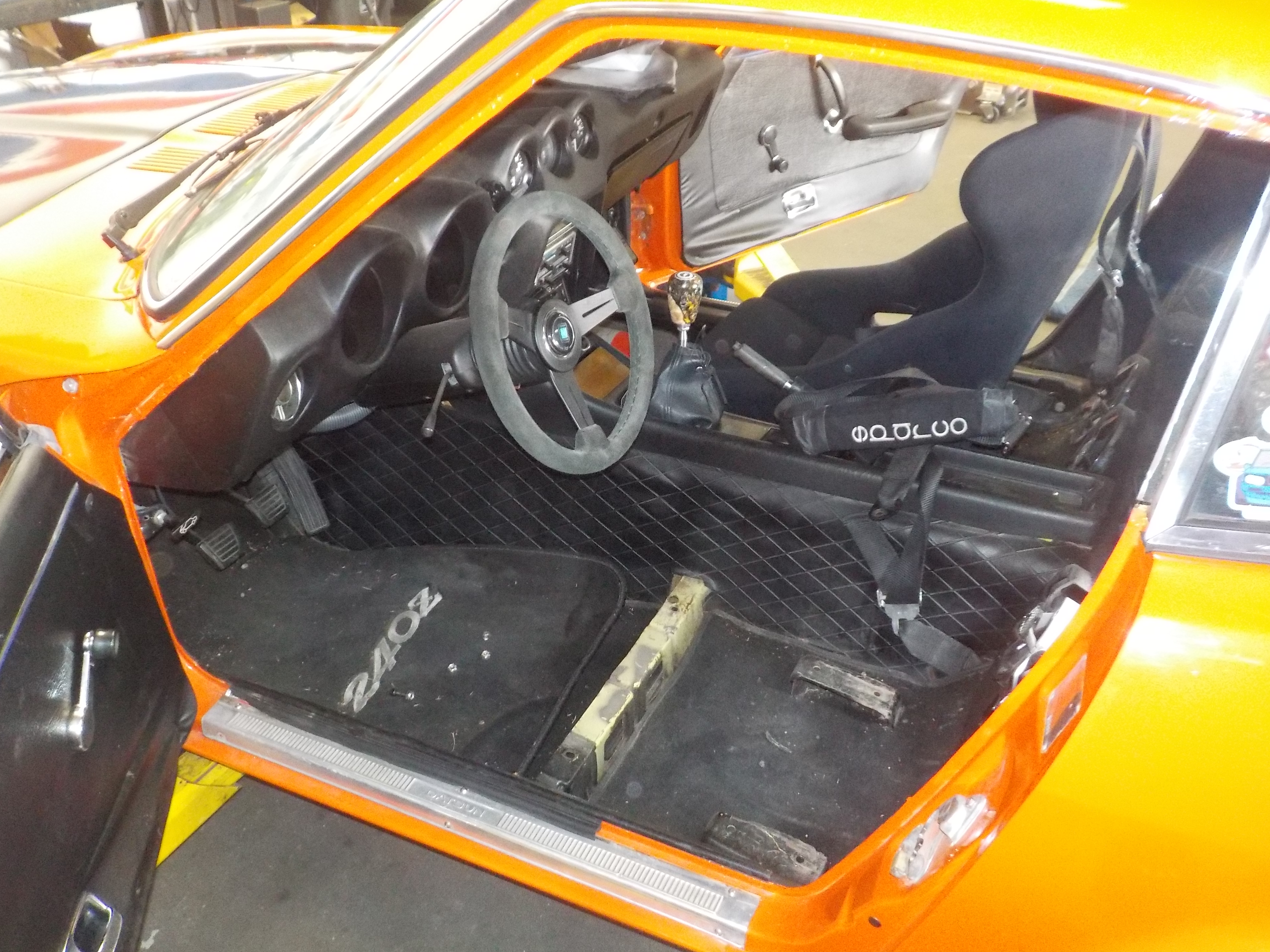

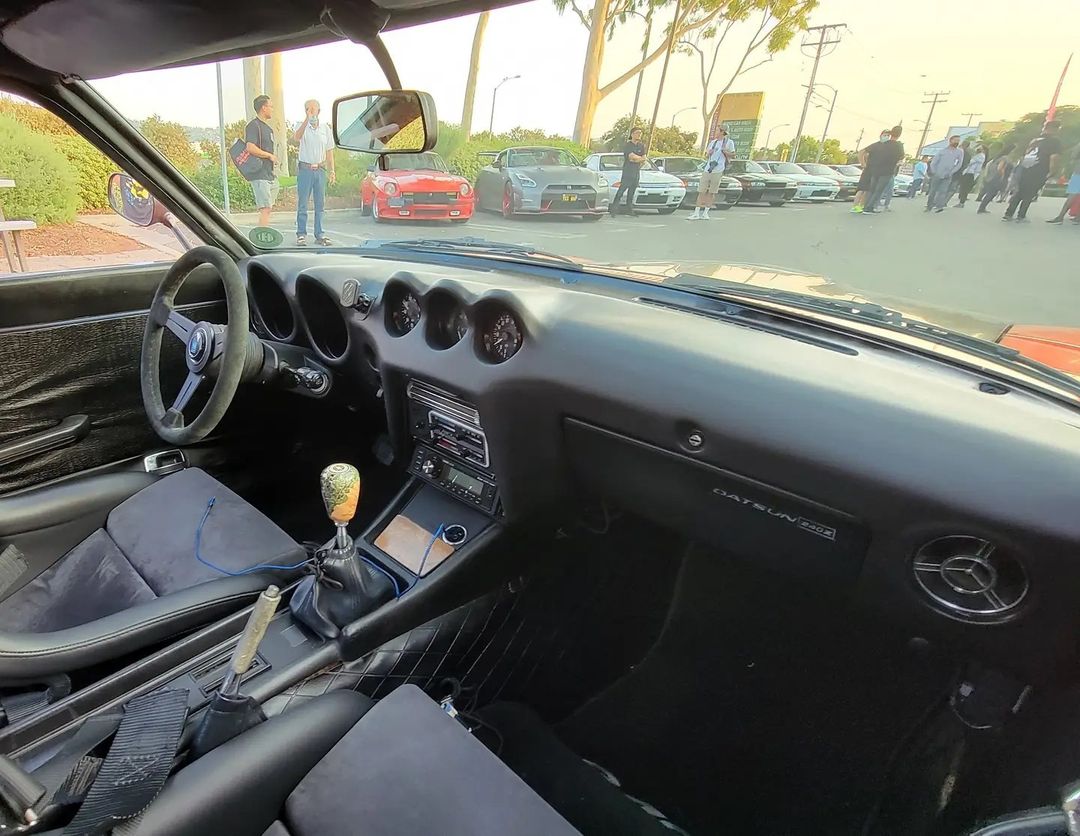

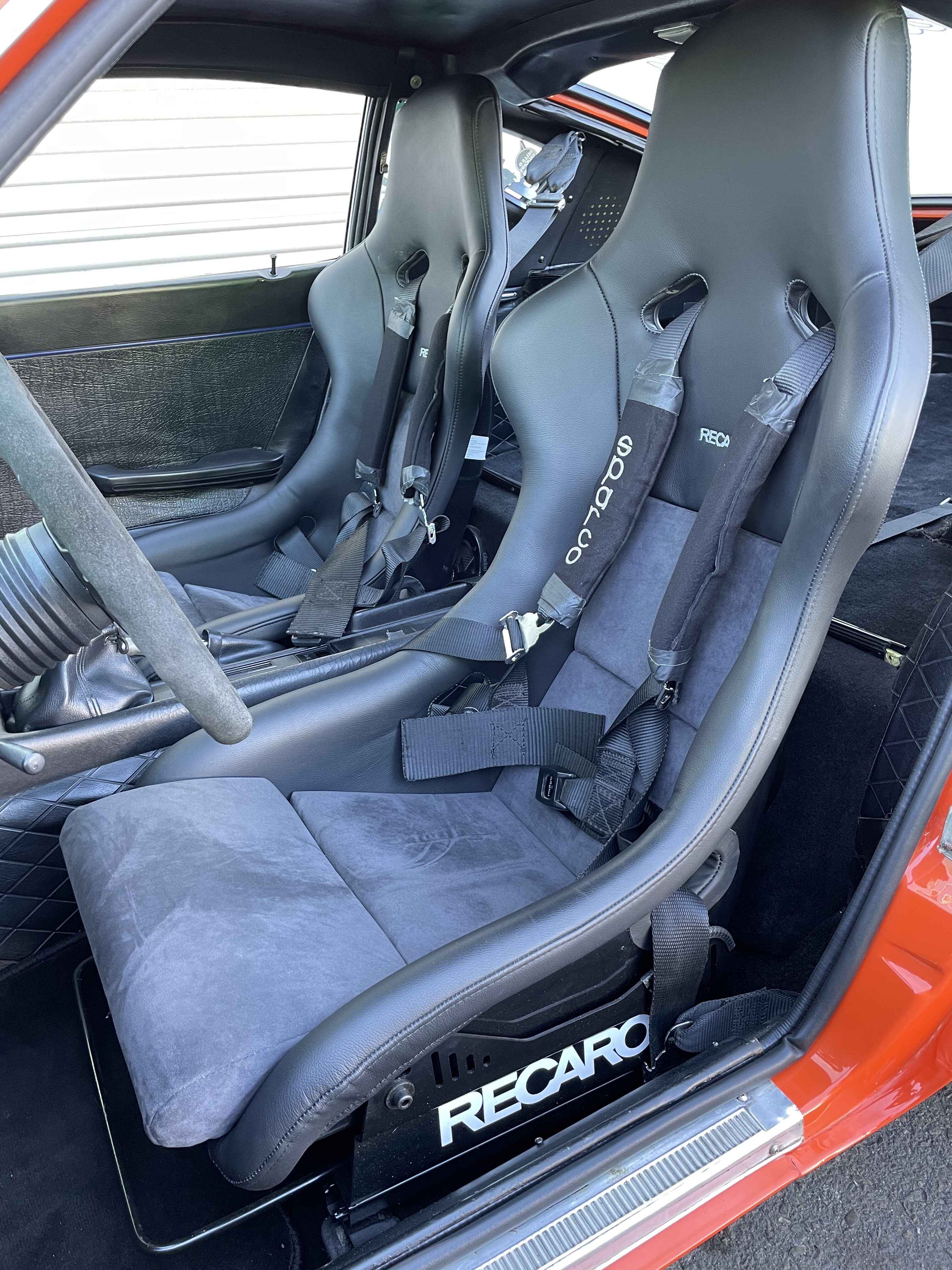

After driving our client James Stephens’ turbocharged 1972 Datsun 240z for an episode of Hoonigan Autofocus, Larry knew right then he had to have a set of Recaro seats for Ole Orange Bang. We removed his old seats and installed a new set of Recaro Pole-Position seats. He loves them:



Any bodyshop can install weatherstripping but Larry really wanted ZCG do tackle it and we happily obliged. One of our favorite upgrades to the interior of an S30 is our ZCG sound deadening package. Usually found in our full-blown ZCG restorations, the result is a less tinny sound and almost Germanic-like “clunk” when you shut the doors. We also refurbished his window tracks to ensure smooth operation:



We are really proud of the HVAC system in this Z. Larry mentioned the A/C wouldn’t blow cold..we tested Larry’s A/C after our ducting upgrades and it blows cold even after full throttle applications and heat soak.

Details

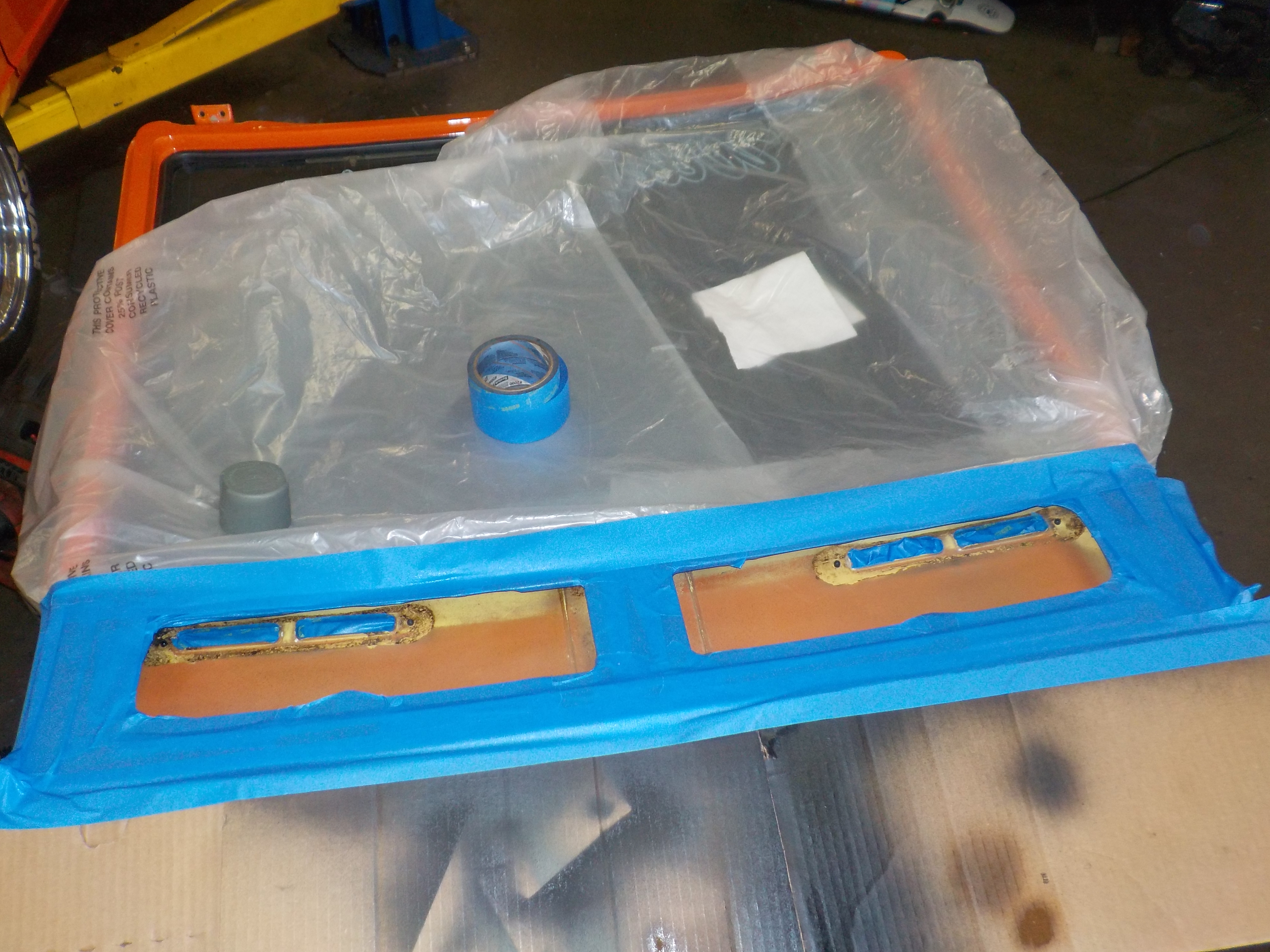

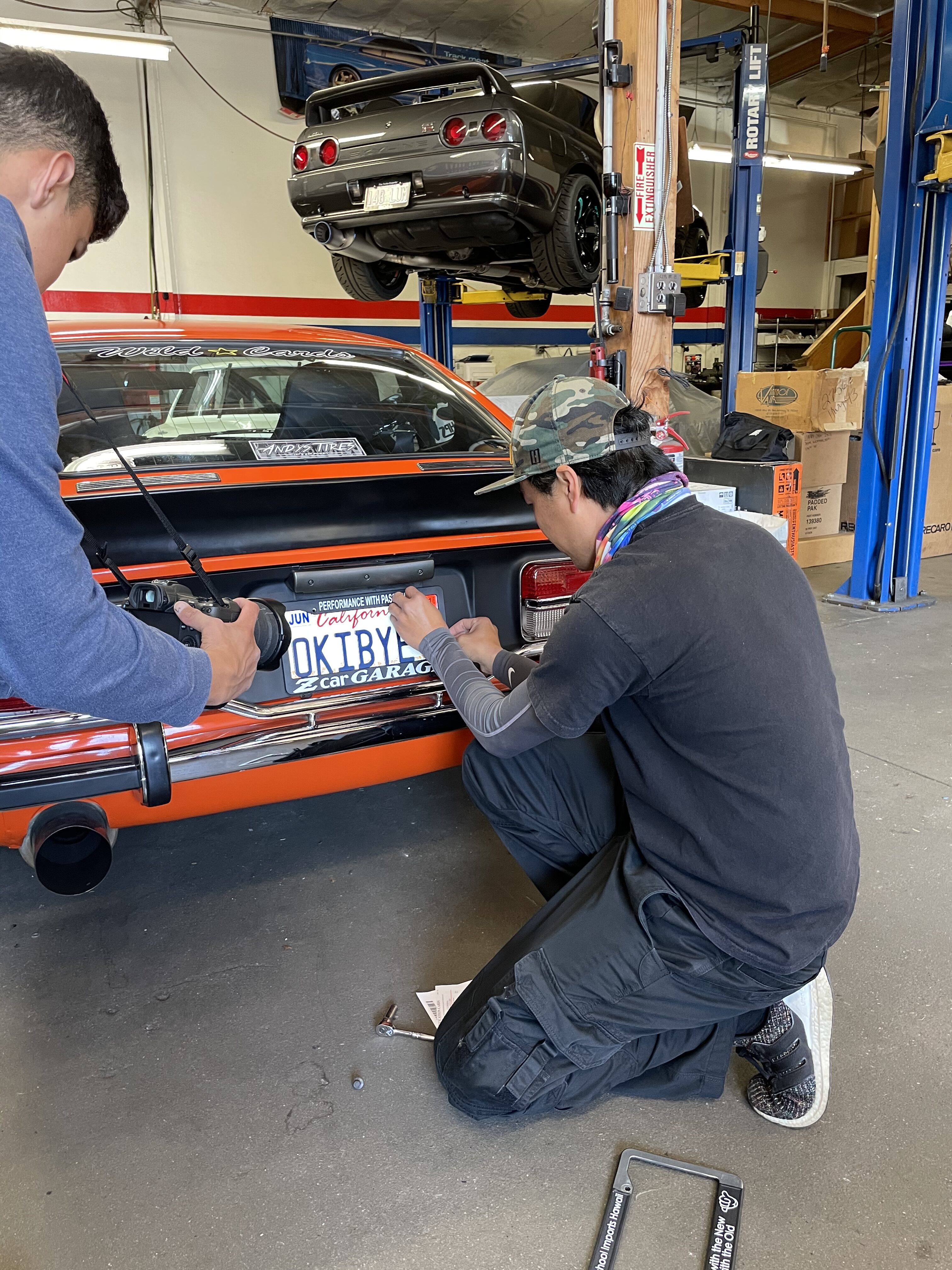

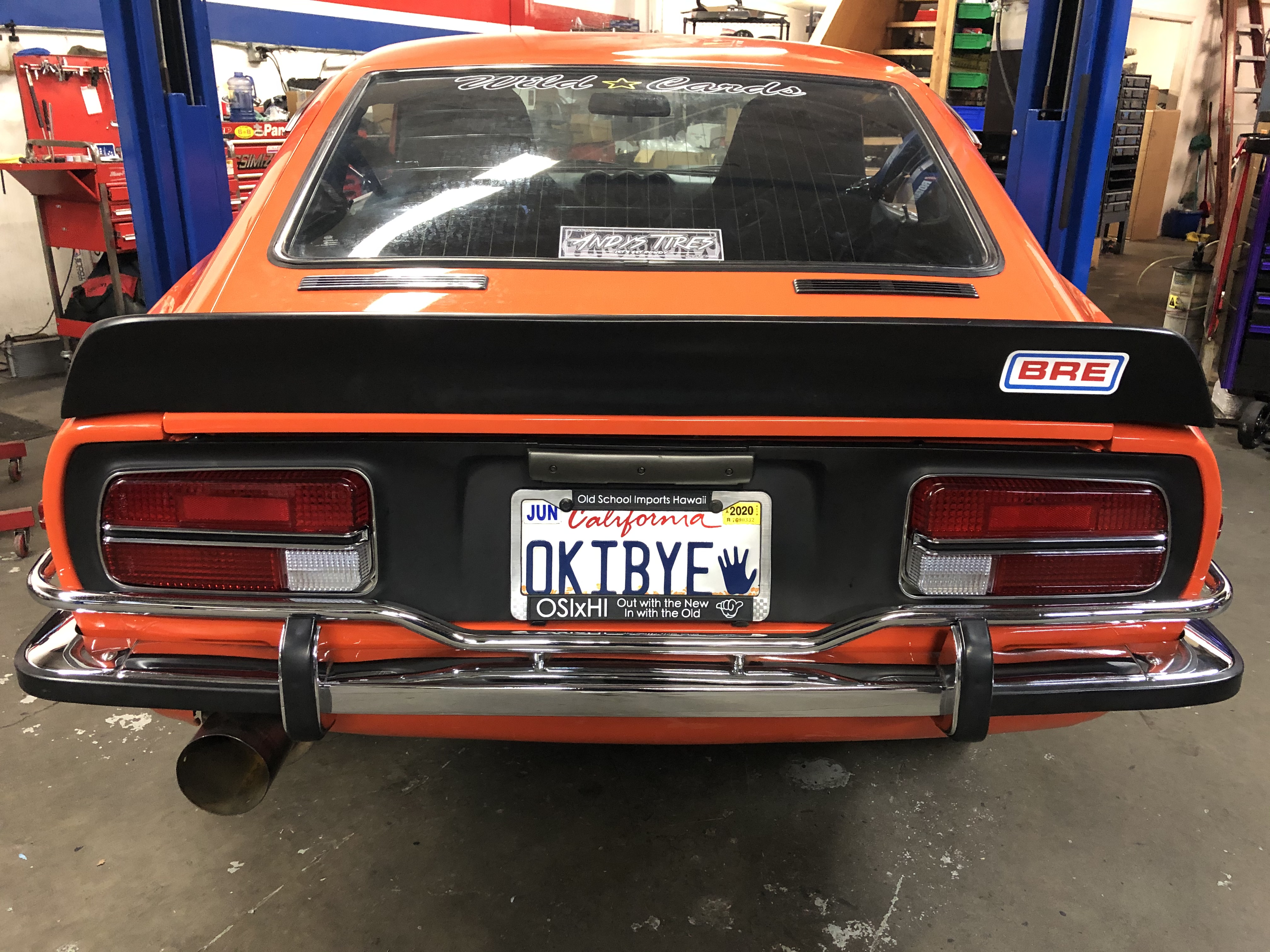

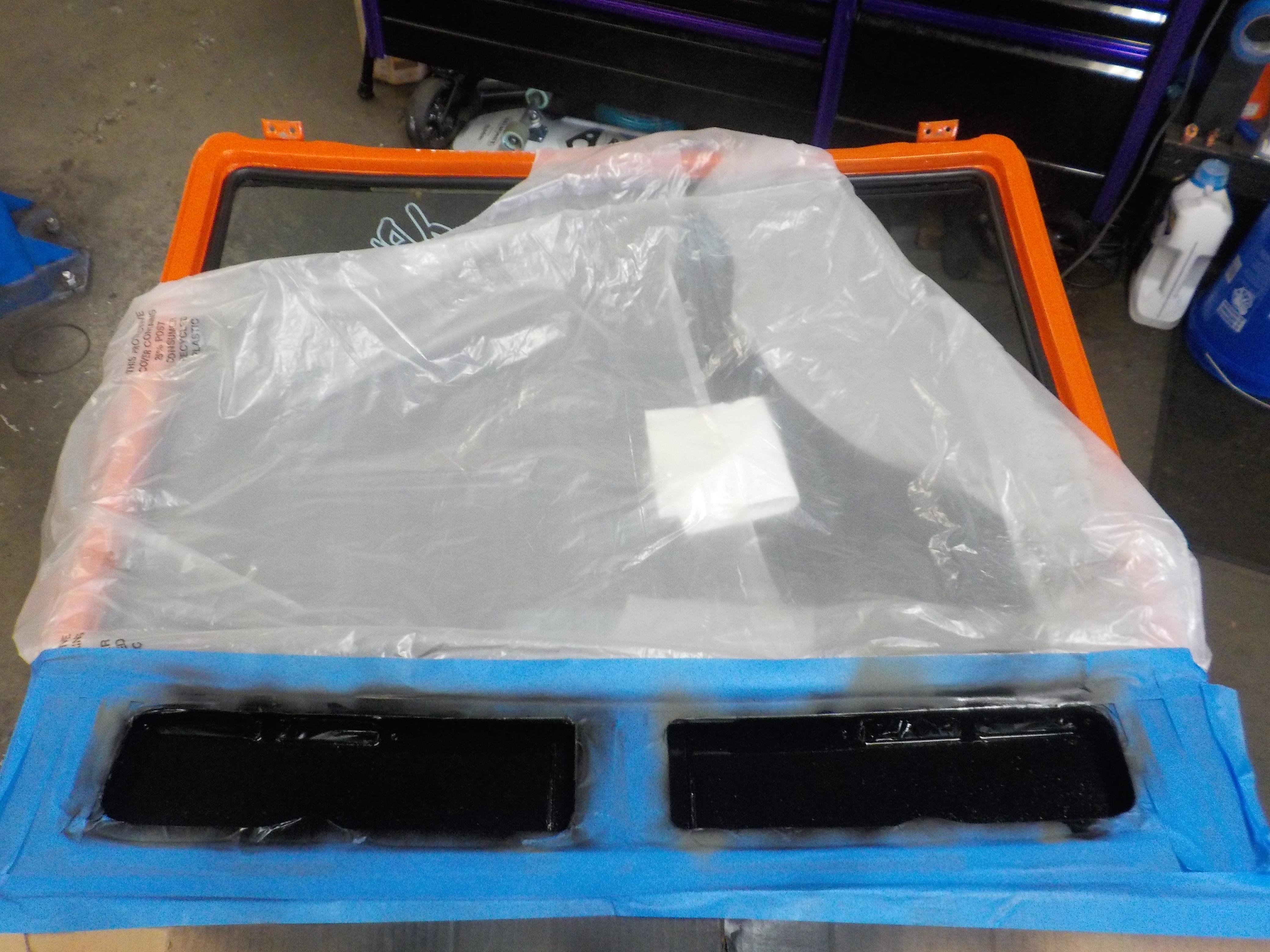

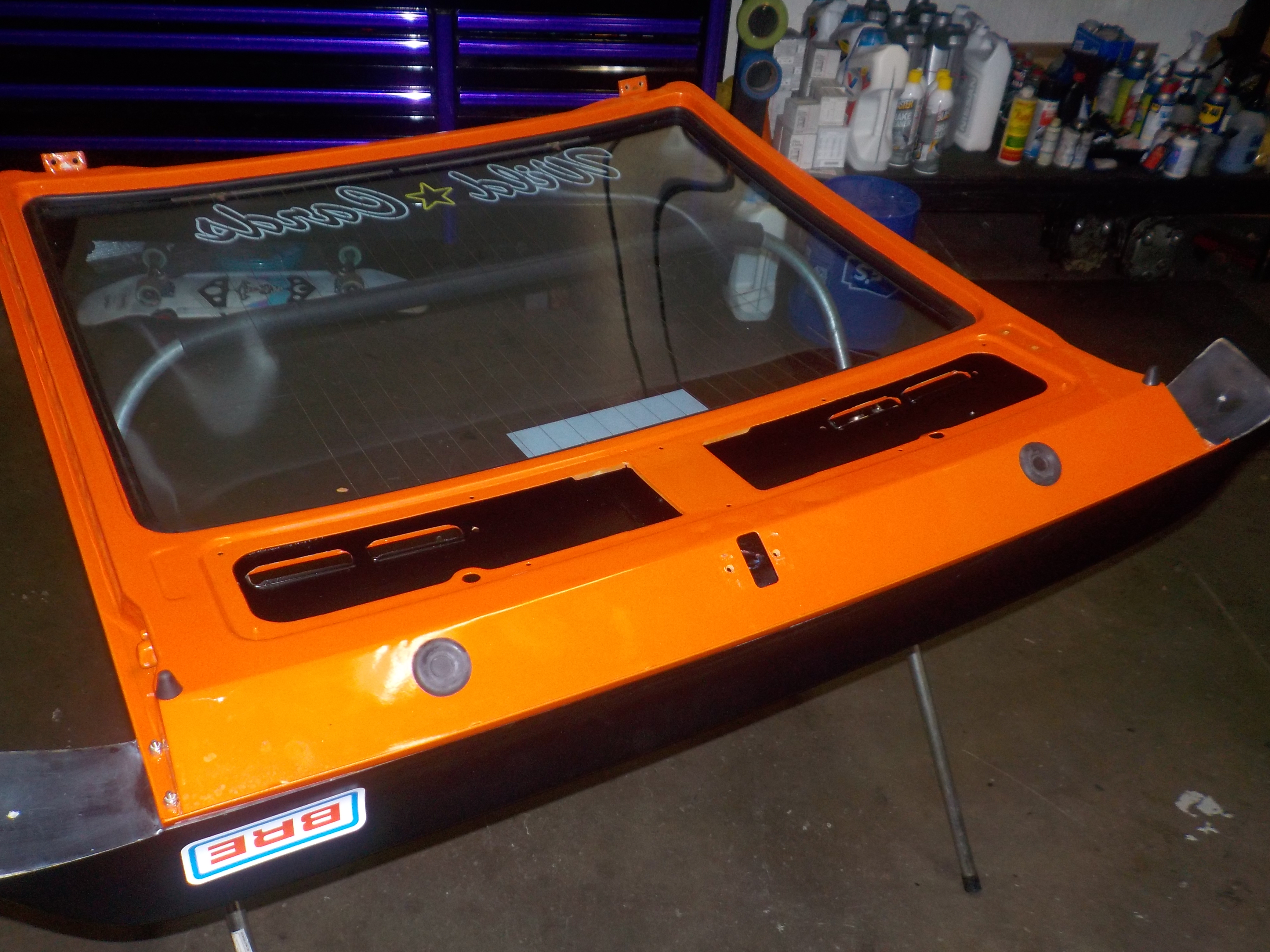

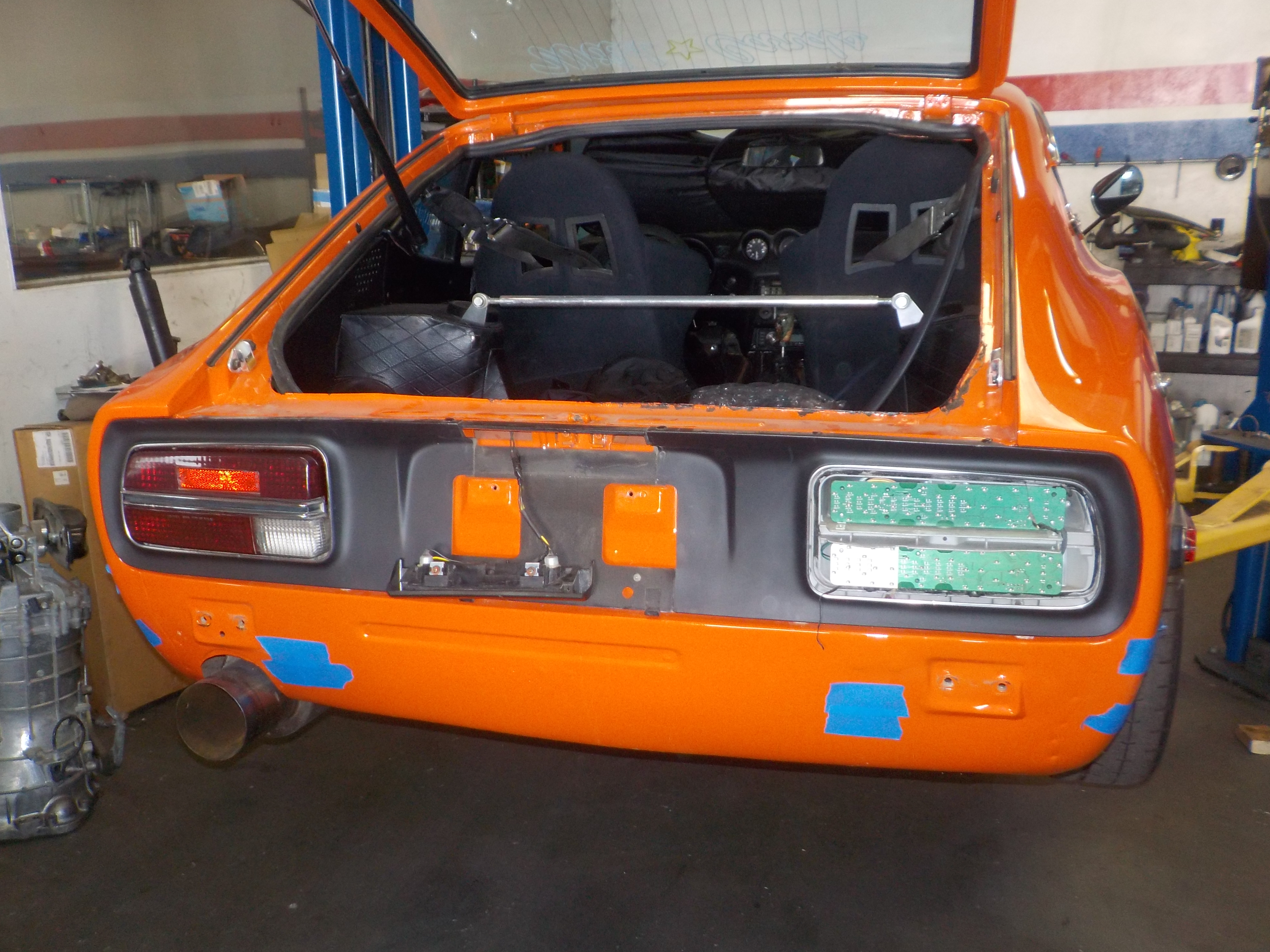

The little things are what we excel at. A common problem with Series 1 cars is exhaust fumes entering the car through the hatch vents and tail lights. We replaced the hatch and tail light seals and sealed the hatch vents. No exhaust smell in the cabin. (below) It made us happy when Larry called out these little details while filming…an OEM Nissan oil filter and re-plated hood latch hardware:



Please check the gallery below for more detail shots, there are too many to list in this blog post!

Enjoying The Ride

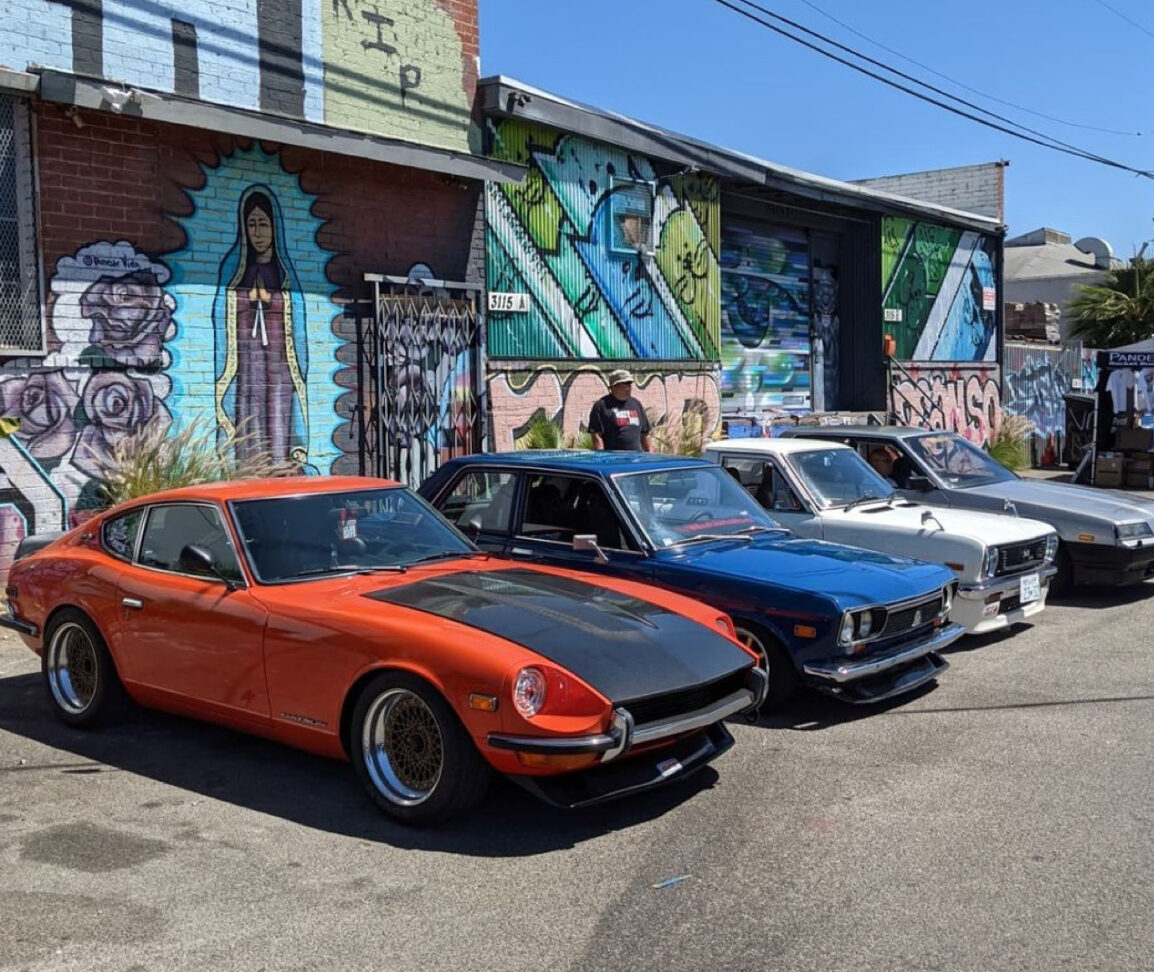

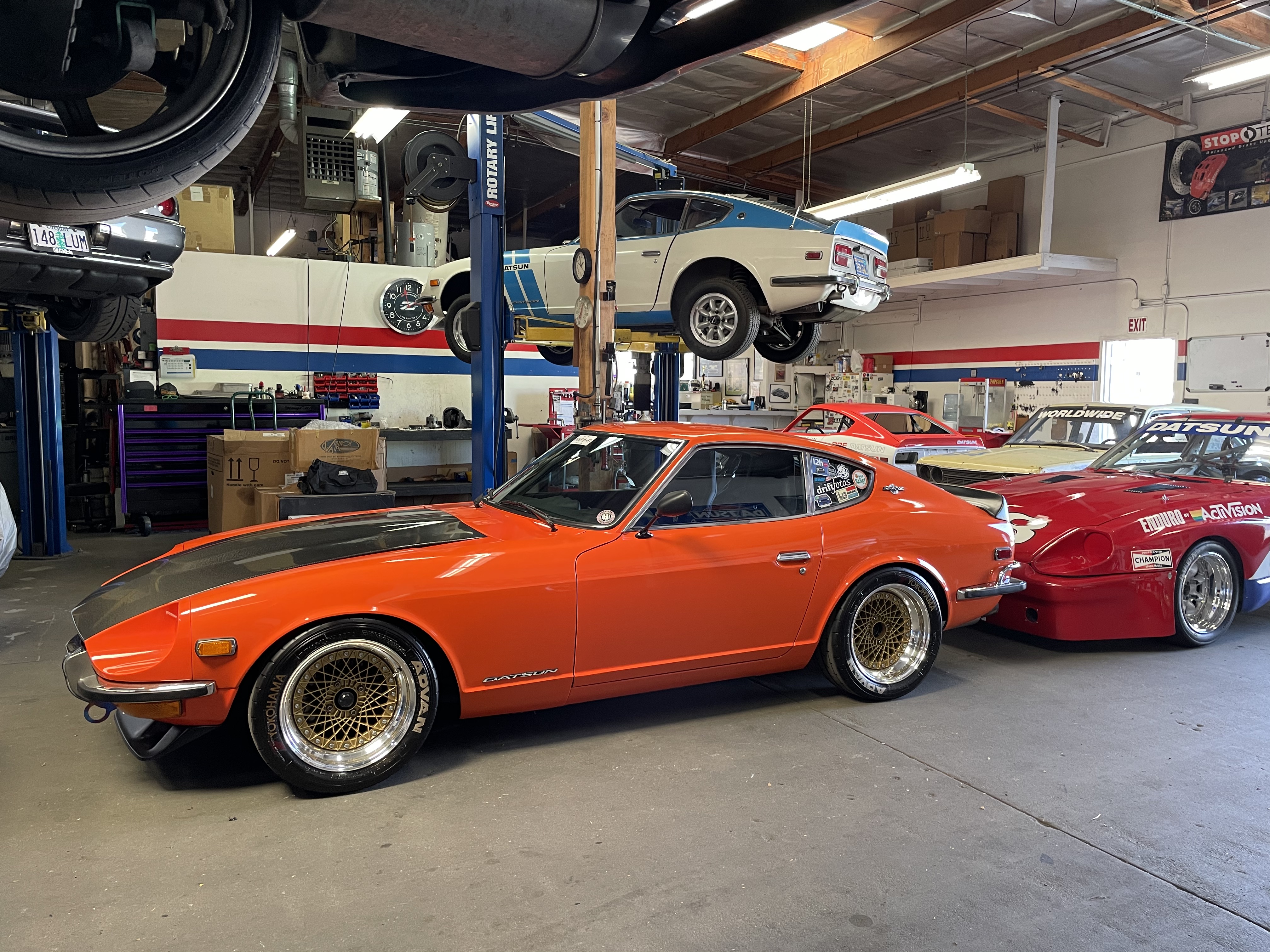

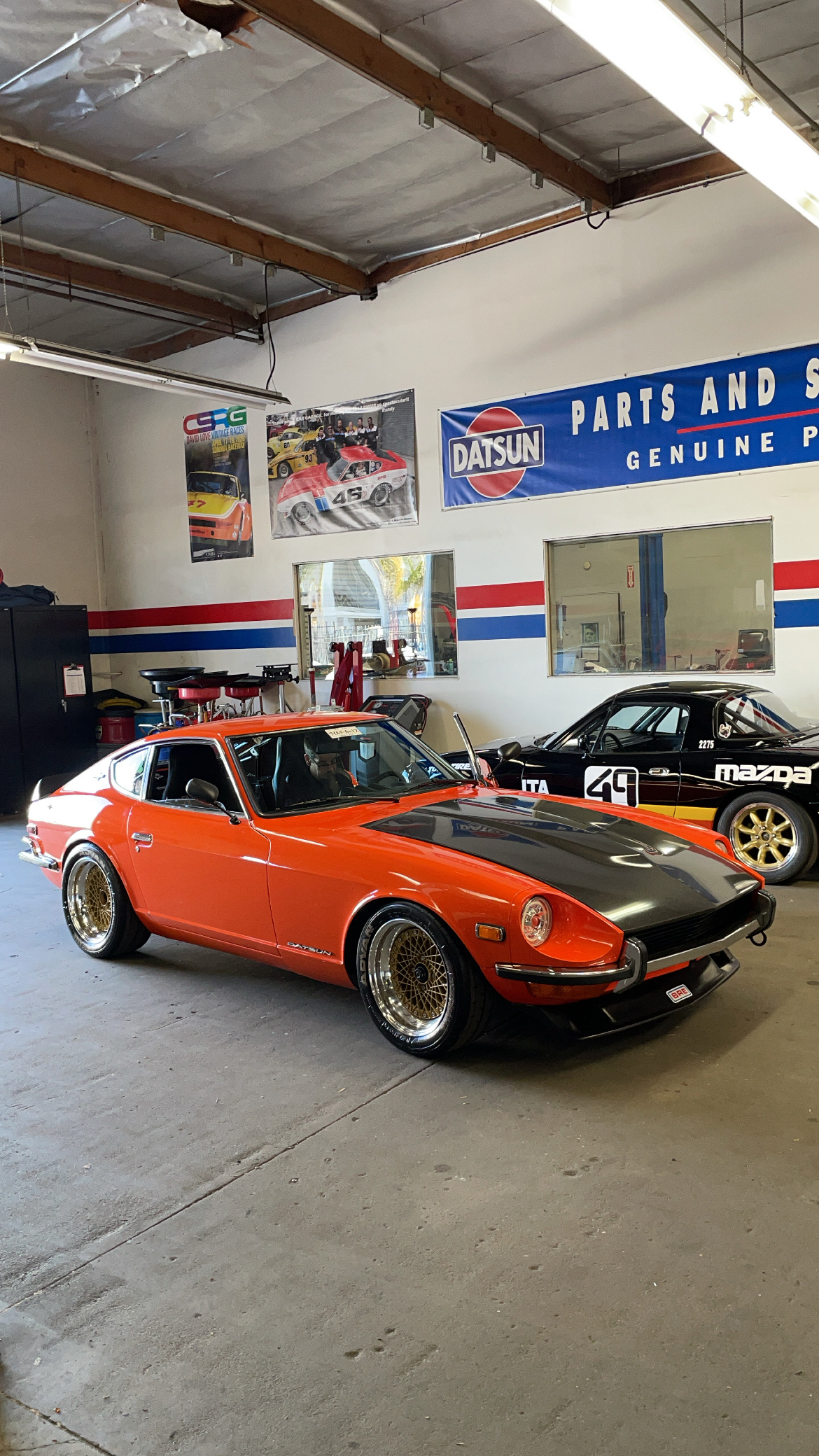

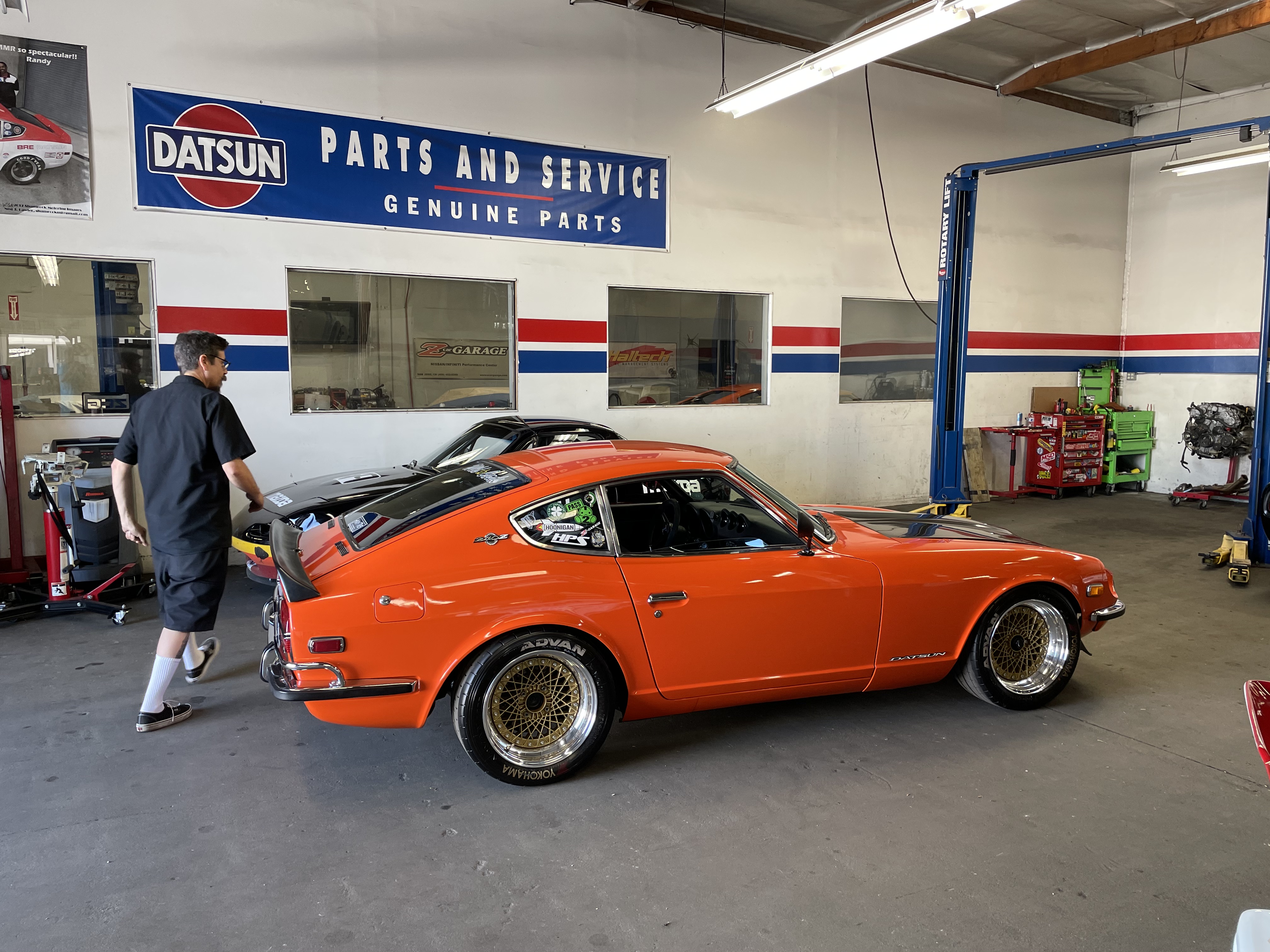

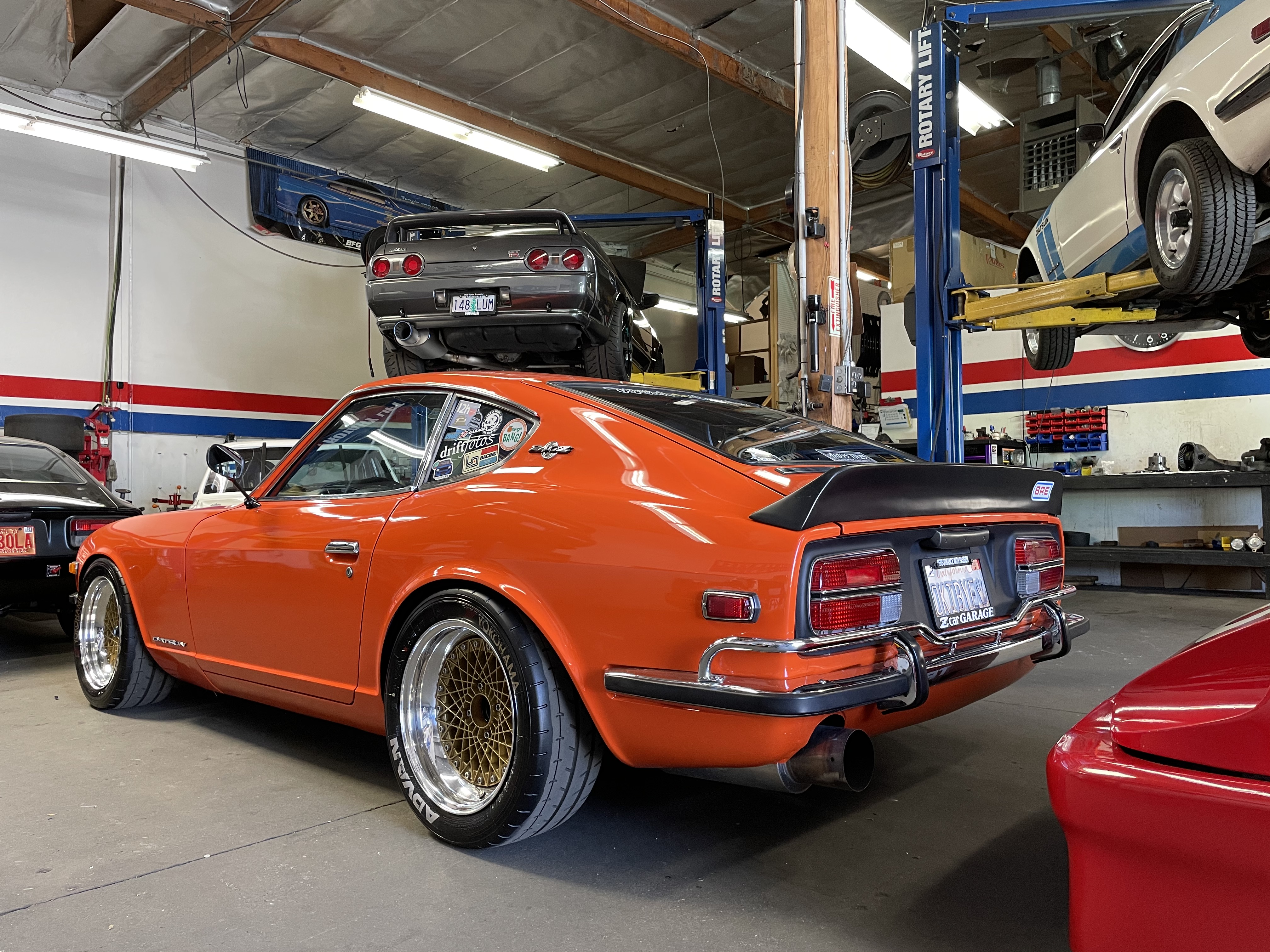

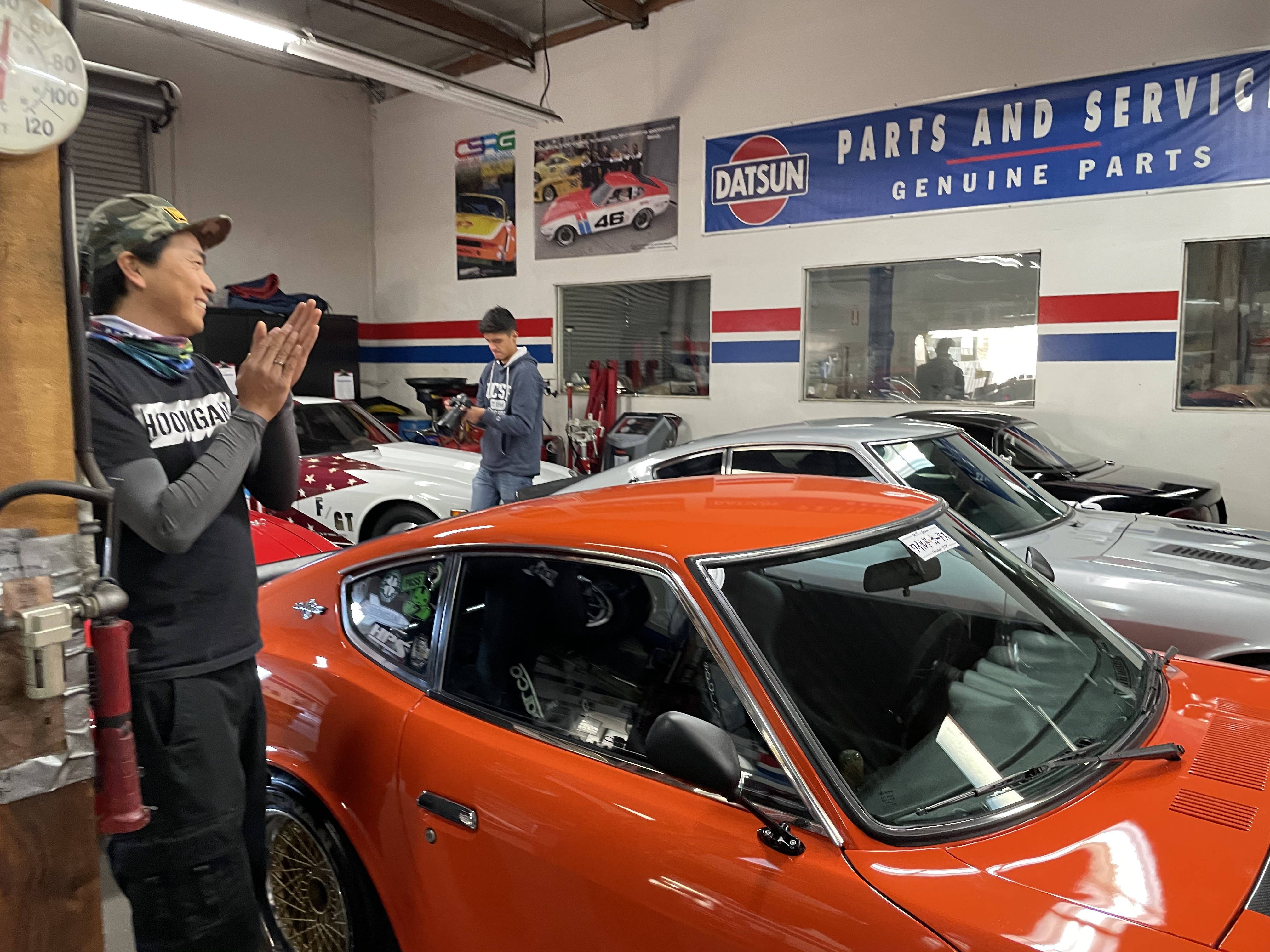

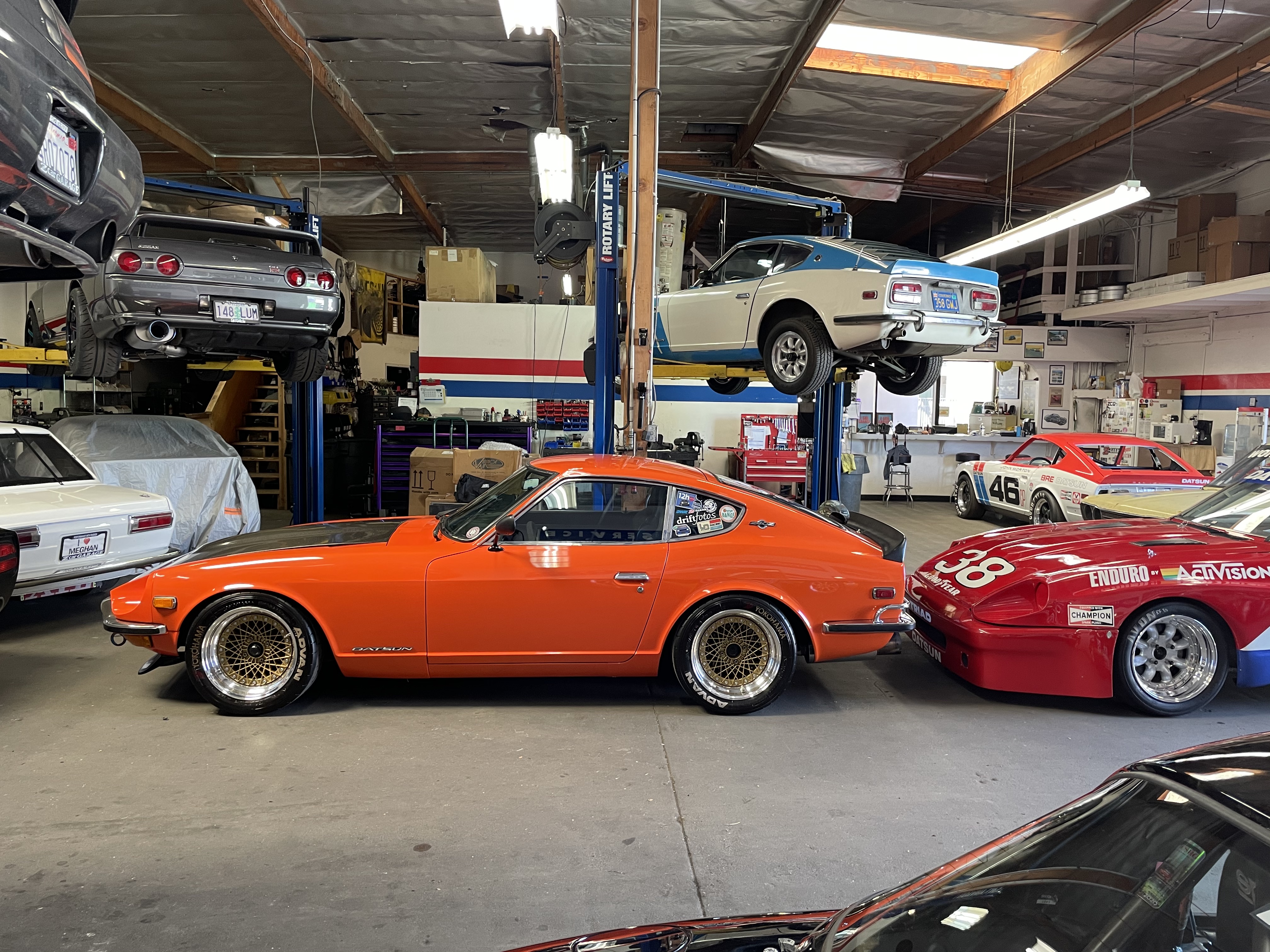

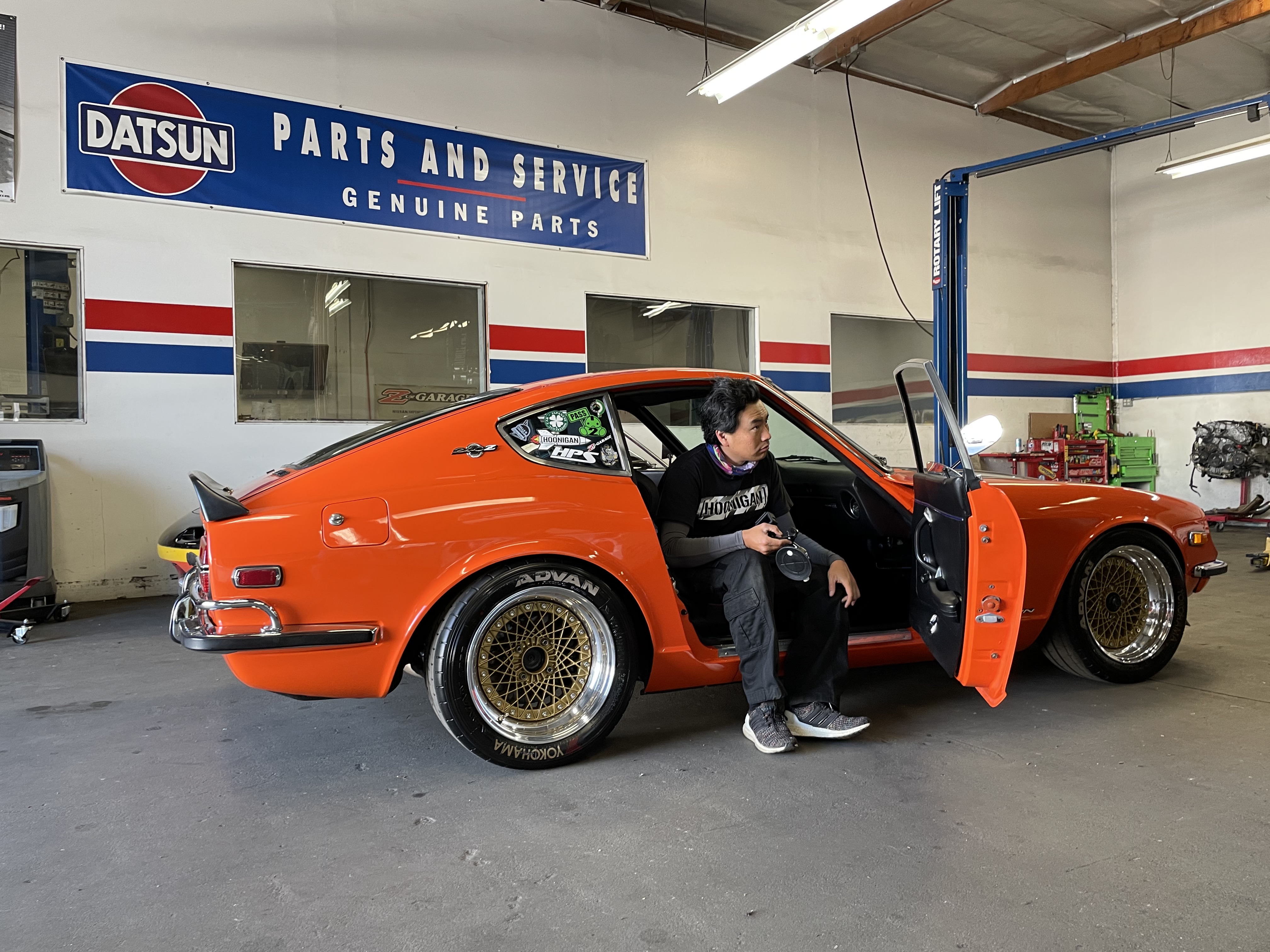

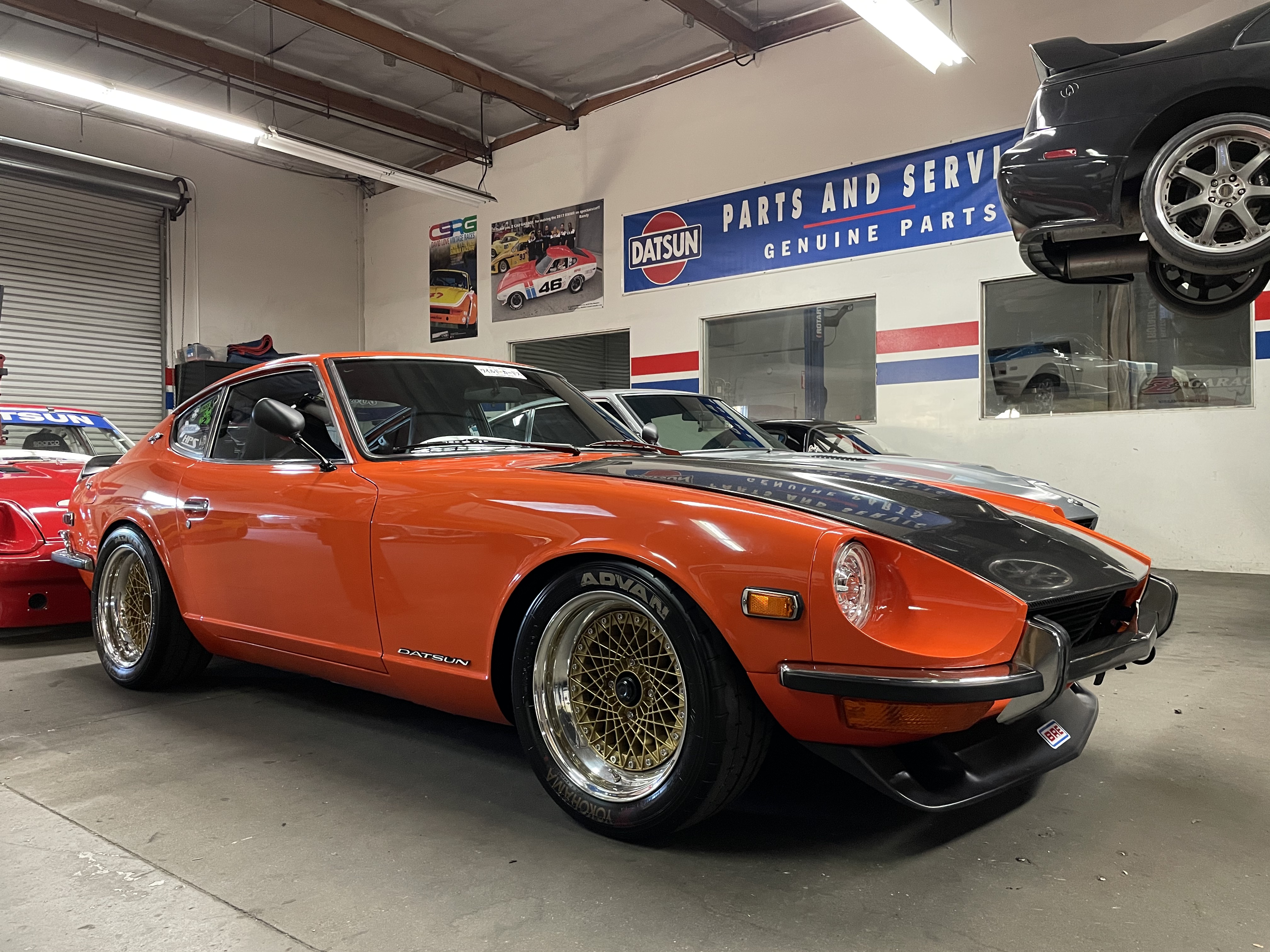

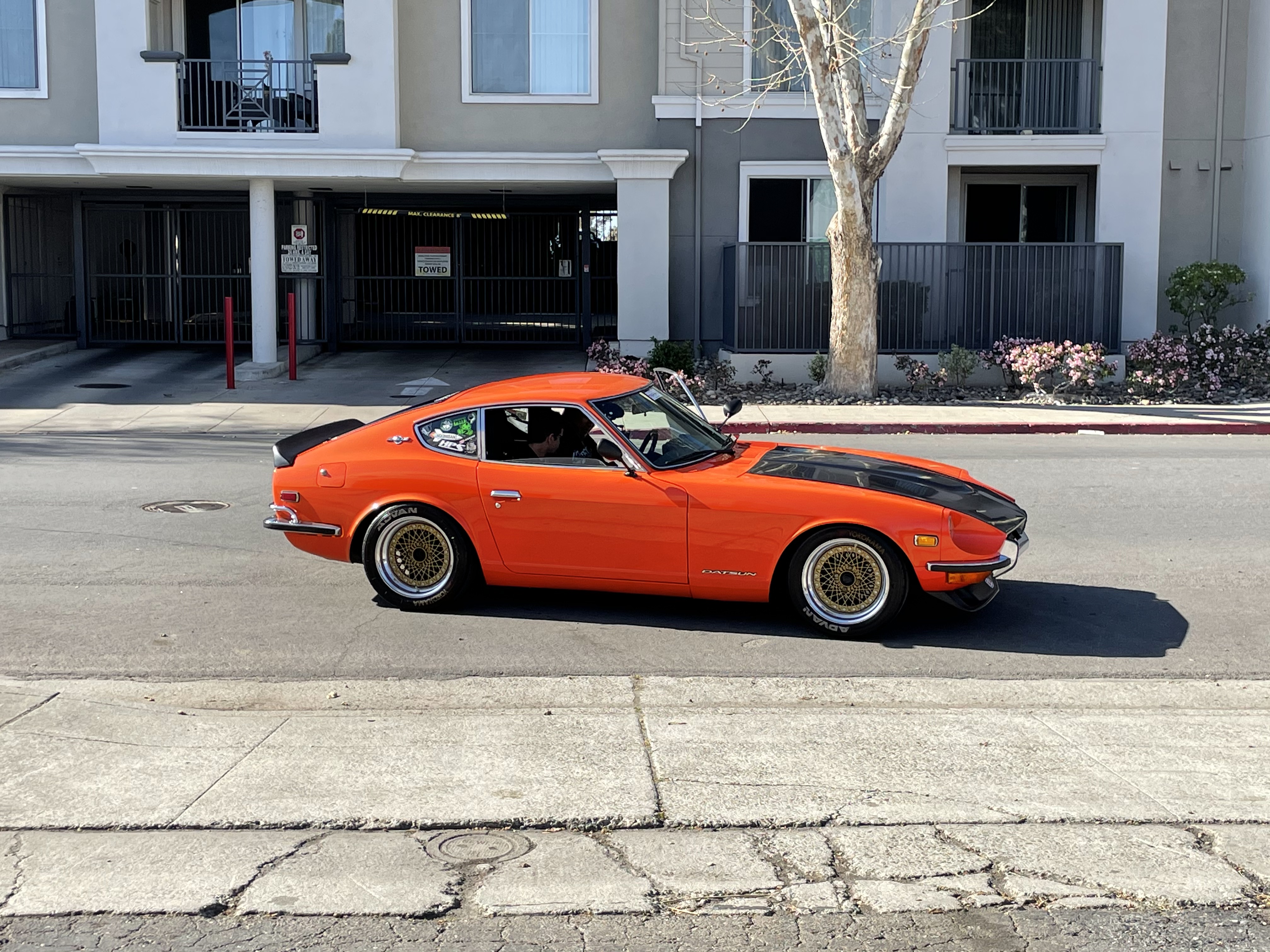

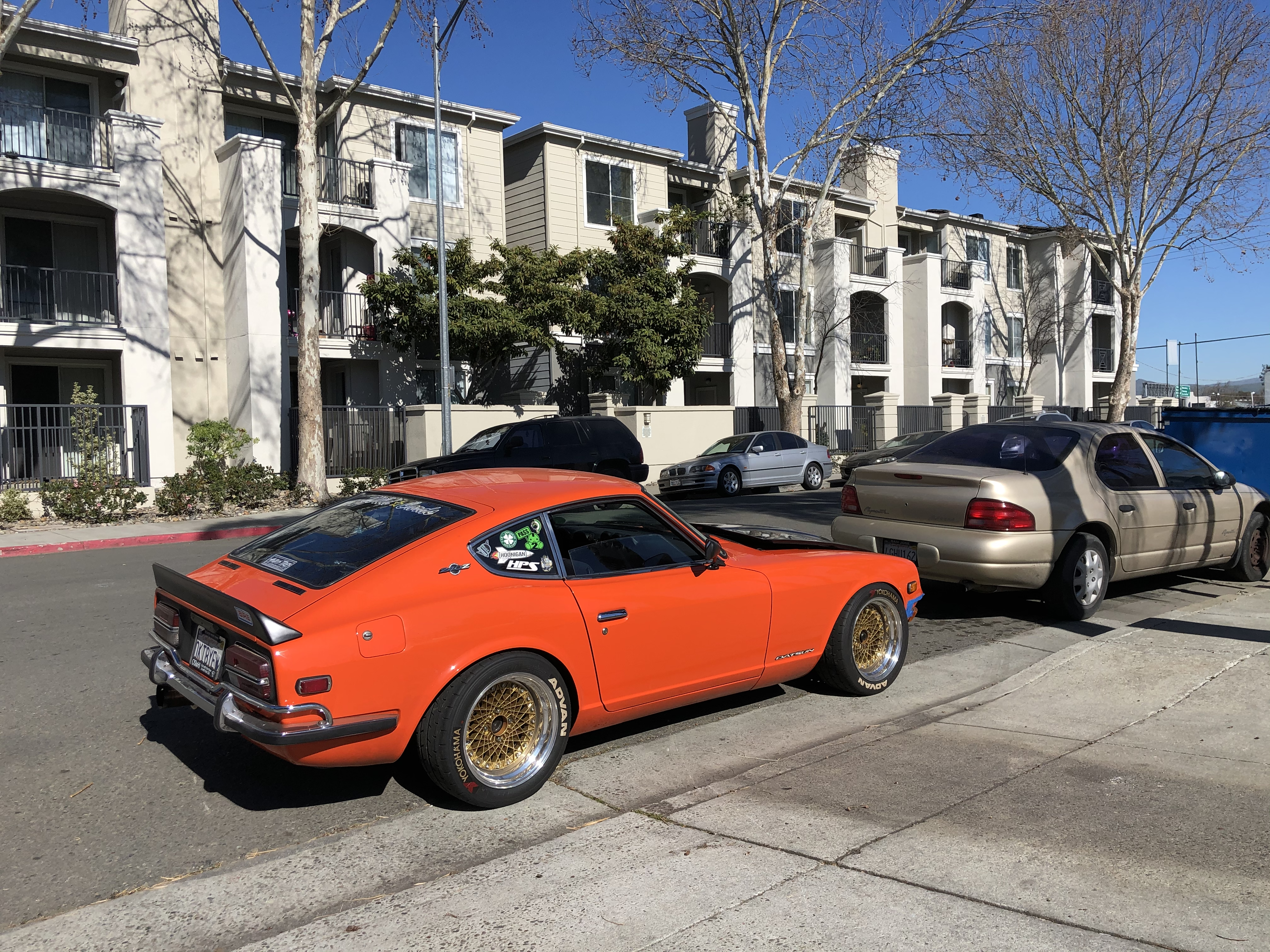

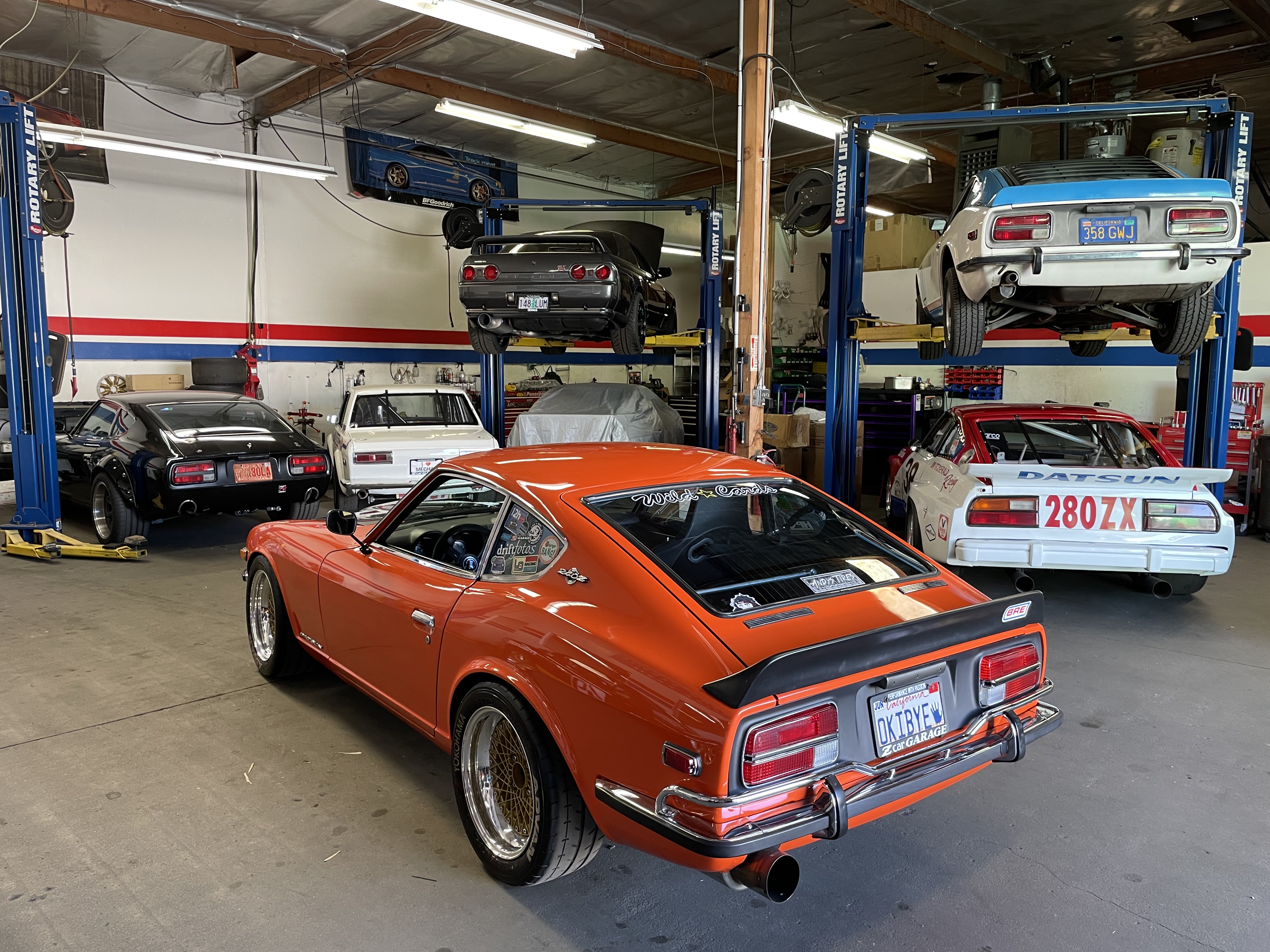

Larry picked his Z up from Z Car Garage in February of 2021. He immediately started enjoying Ole Orange Bang by driving to various events and gatherings in SoCal. We were so stoked to see him happy with his Z again.



Getting updates from Larry was rad:
“It finally performs as good as it looks! Rob and the team are so detail oriented. They know these cars inside and out and my car has never driven so well in its lifetime. I can’t wait to bring it back for some more goodies.”

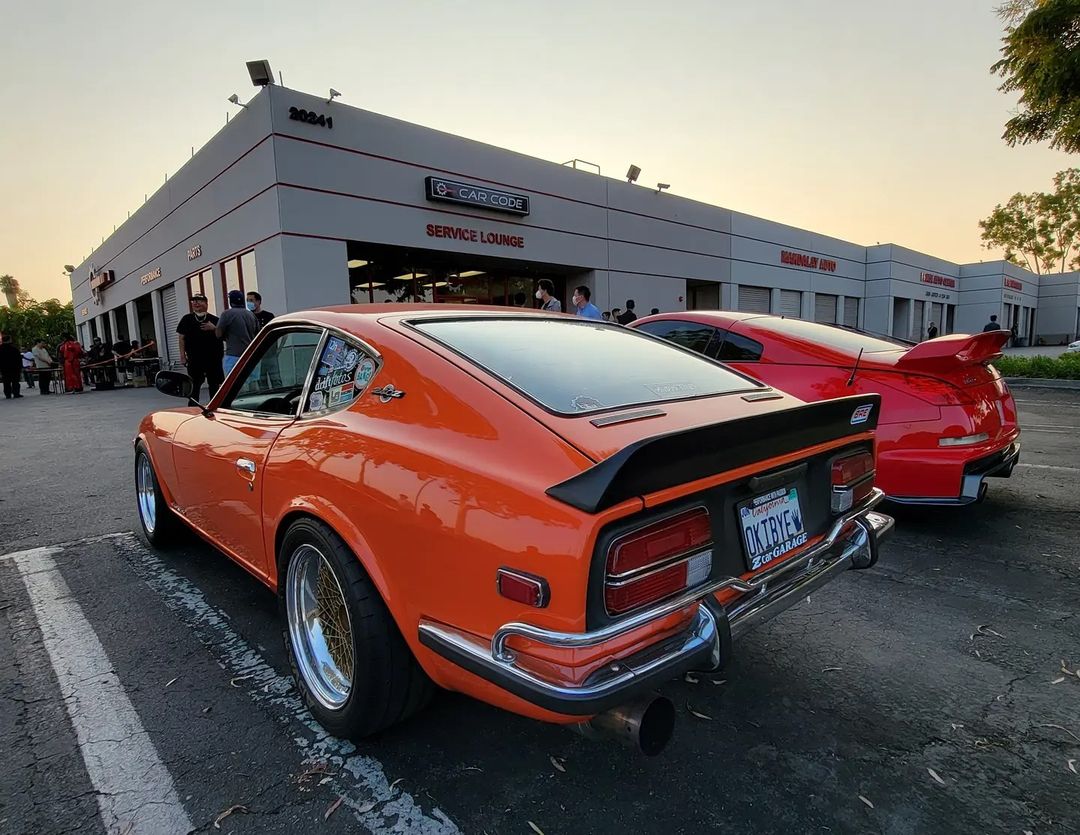

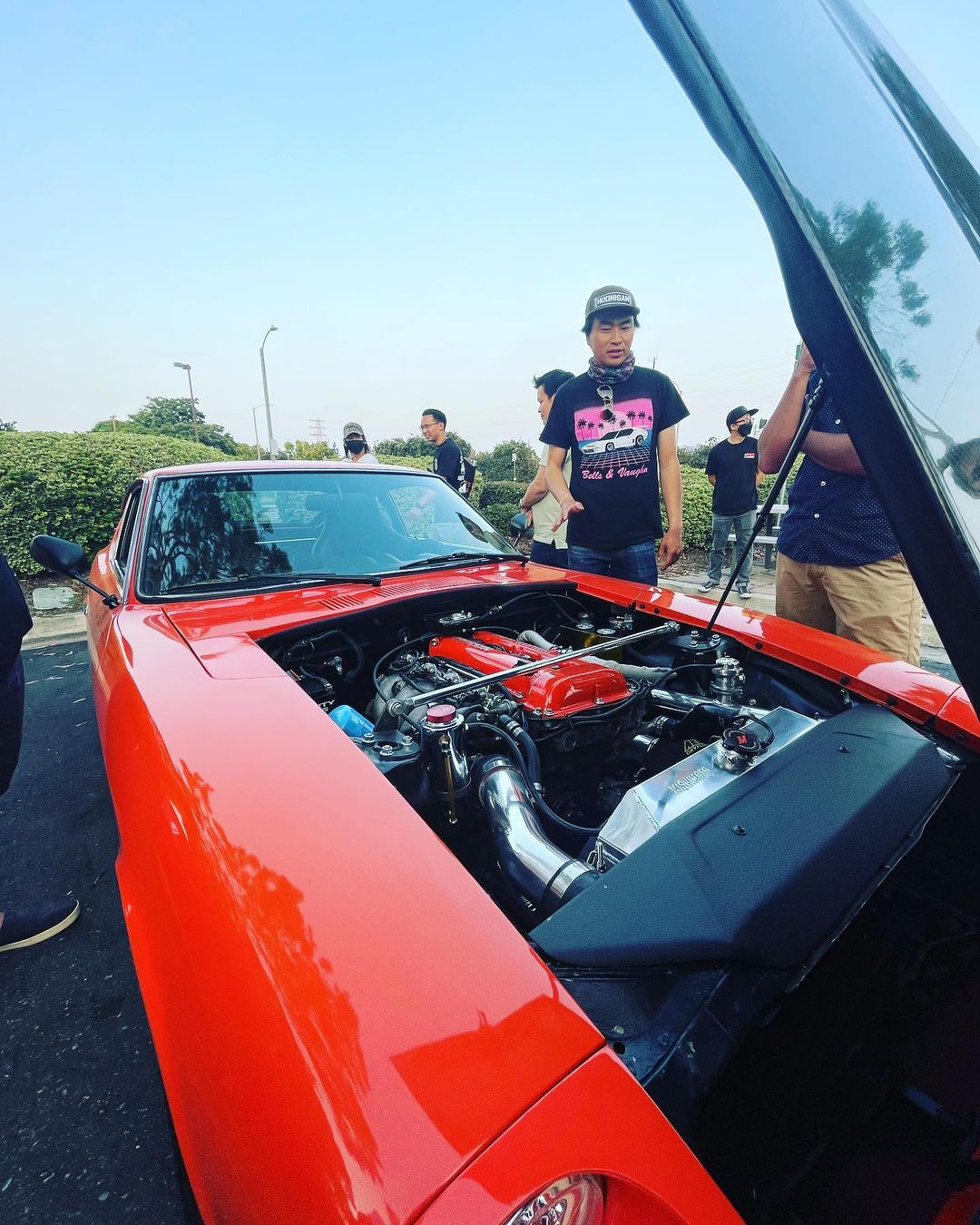

We were reunited with Larry and his Z at this year’s Japanese Classic Car Show at the Anaheim Stadium. The Z was on display in the Leen Customs booth where fans could get his autograph:




Orange Bang with FuguZ and Medusa. We are beyond happy to have our Z Car Garage chassis parts on these high-profile Z cars.

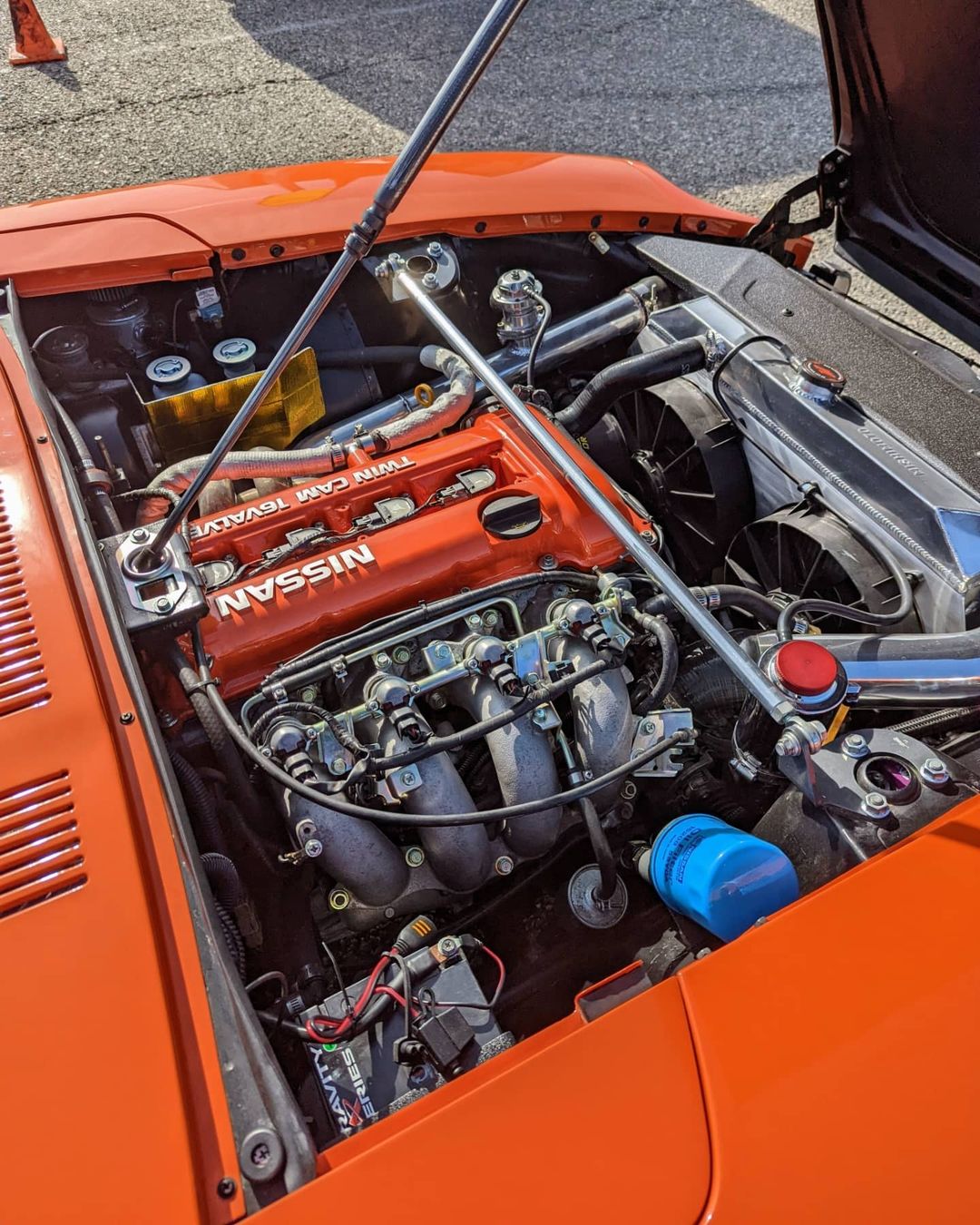

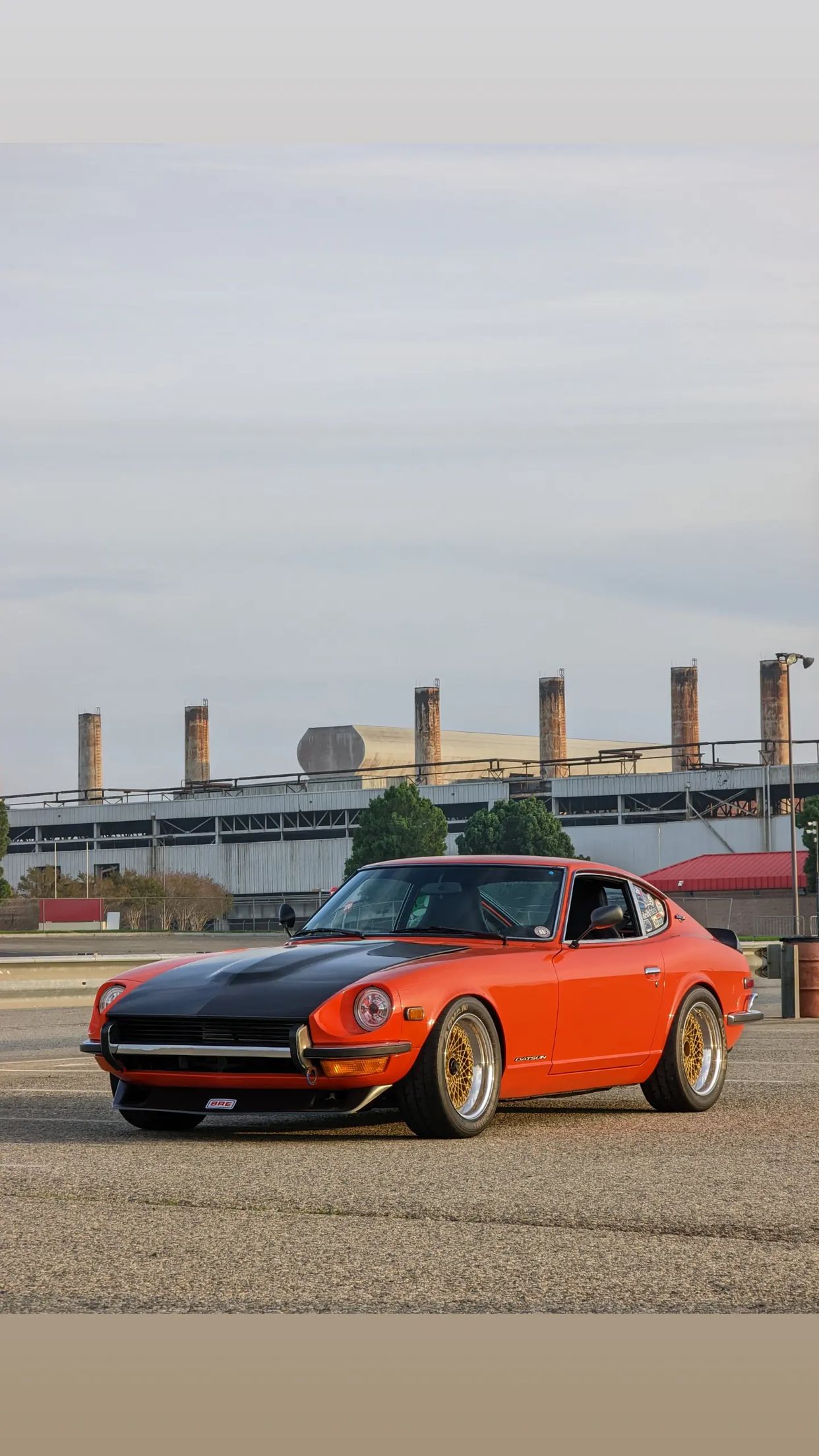

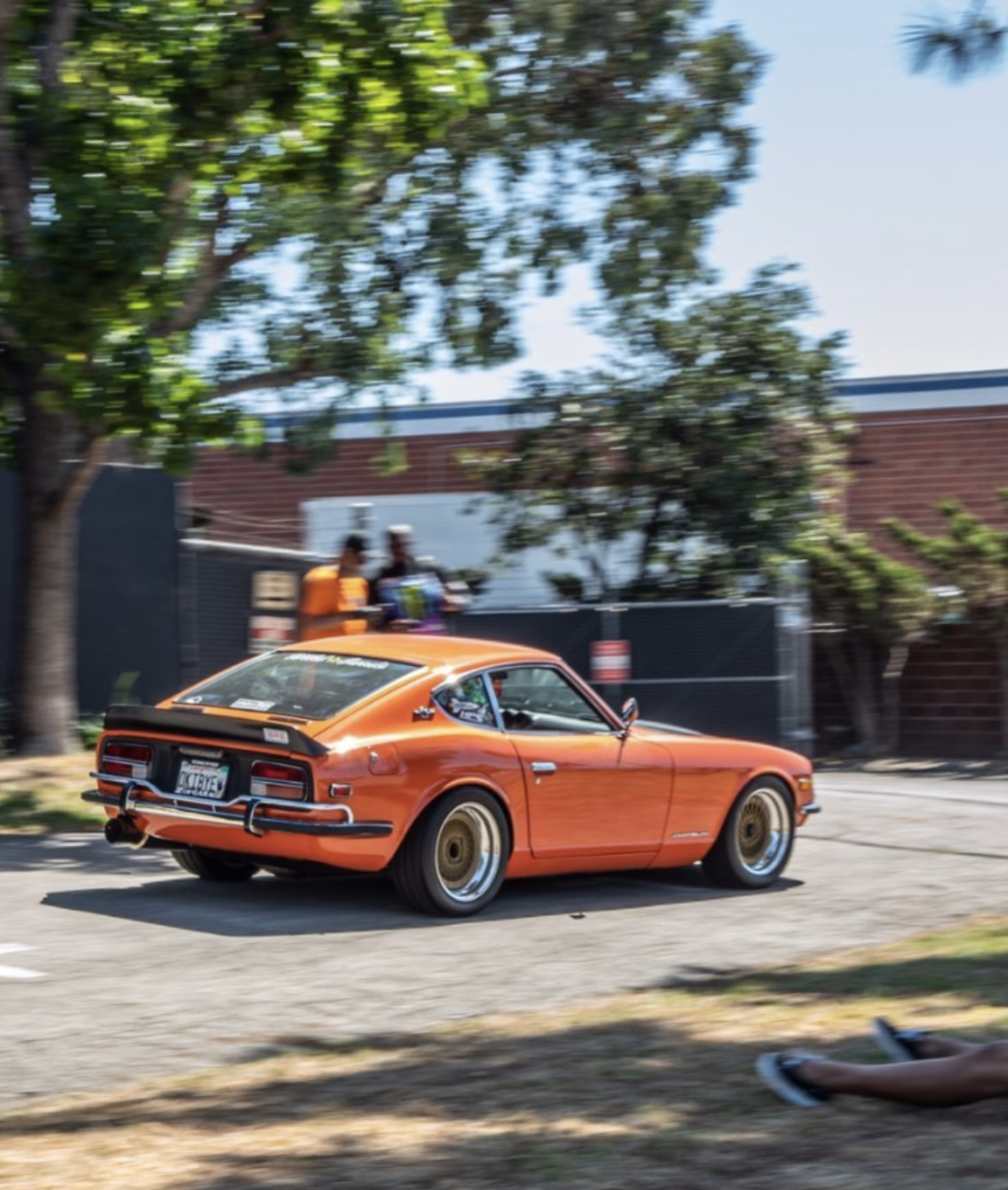

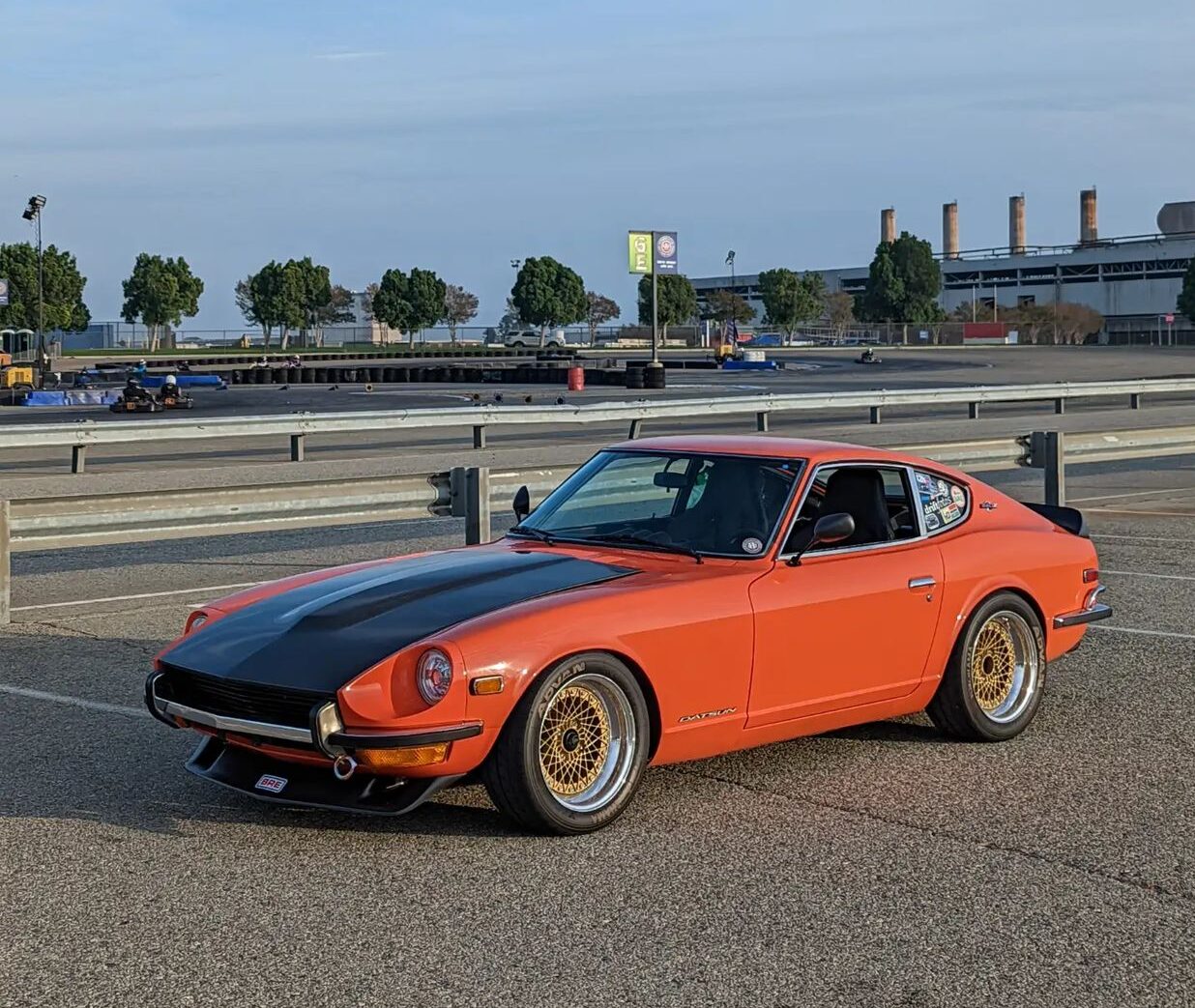

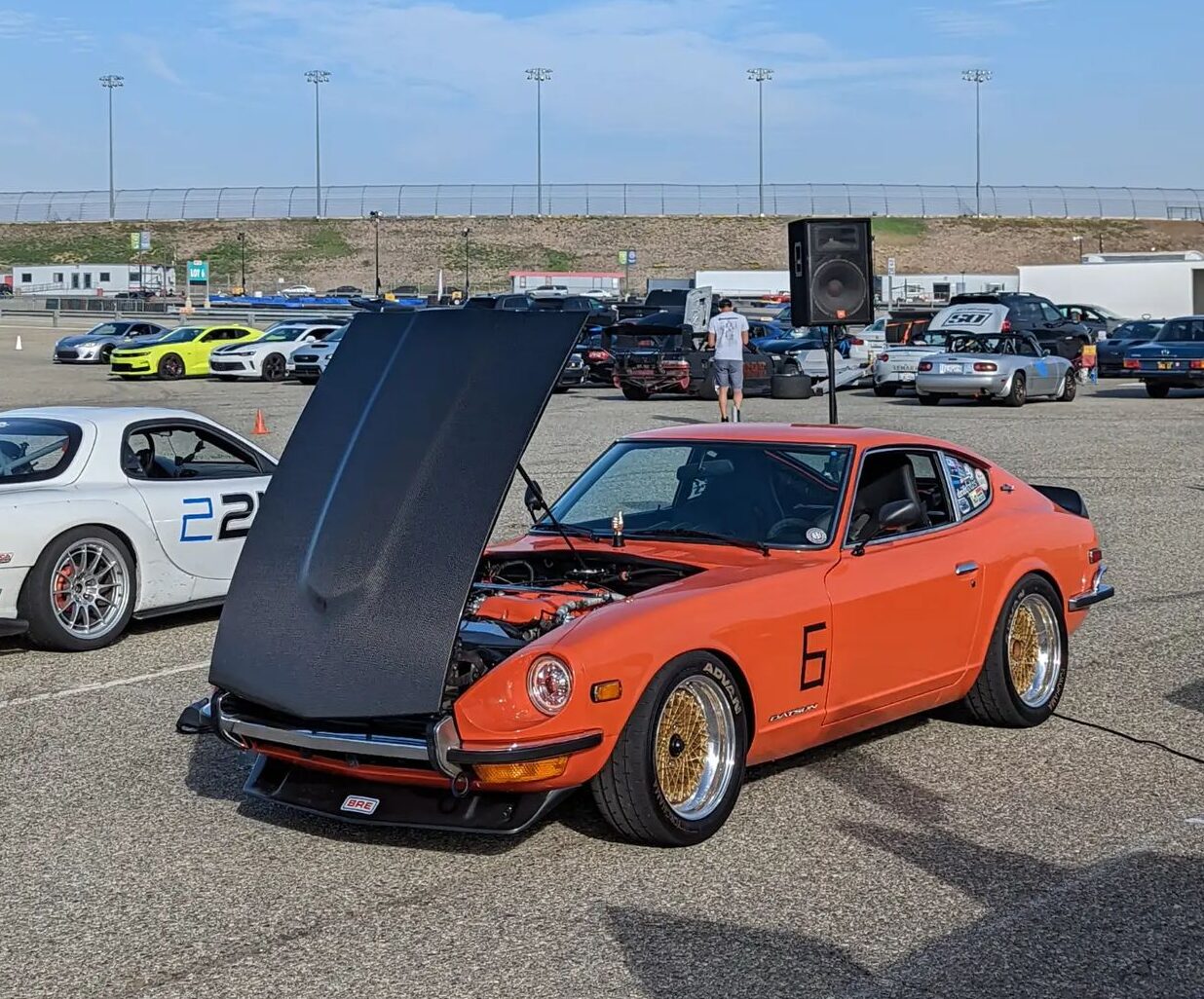

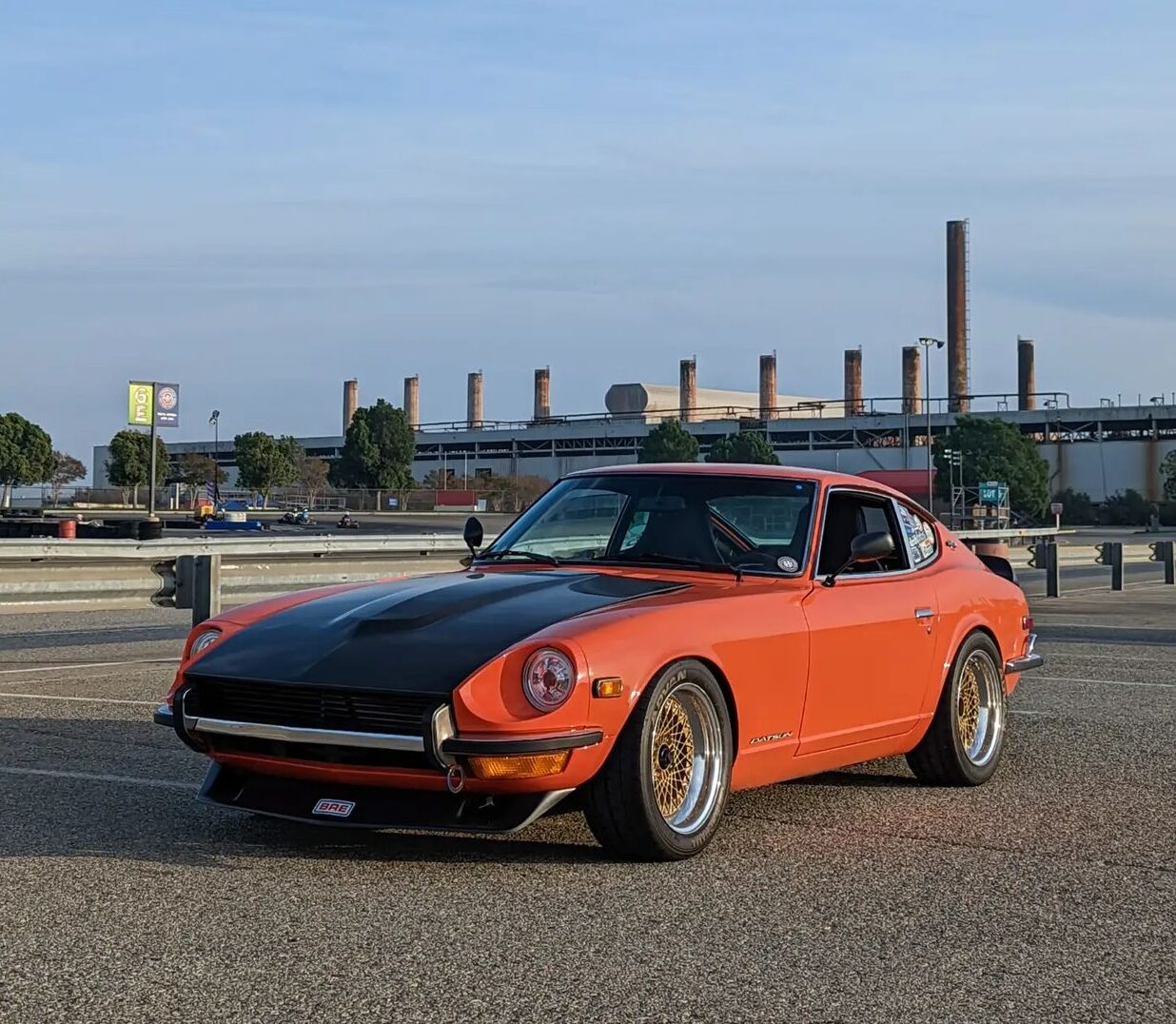

As happy as we were to see Larry driving around SoCal what really made our day was seeing him drive Ole Orange Bang in anger at a local autocross event! He put our Z Car Garage Big-BrakesZ Car Garage CV Axles, suspension and dyno tuning to work:

“I decided to take a personal day and do a bit of driving for fun. I haven’t auto crossed in almost 15 years. I went to the CornerExit auto-x at California Speedway and it was an absolute blast. Orange Bang held up amazing, and everything @zcargarage did to it paid off. I ended up getting 2nd place in mod class!”



We will have video of Larry ripping through the autocross on our Instagram story. For now, don’t miss the video we made of the Z in action here:

UPDATE 6.30.23

Larry just dropped an amazing video about his Z including its history and canyon driving, enjoy!

Thank You Larry!

Our journey with Larry is just beginning. Thanks for entrusting Z Car Garage with your Z and believing in us. We appreciate all that you do for automotive culture and your work is inspiring. Always Do It In A Datsun and LONG LIVE THE Z!


More pictures in the gallery below:
