The slick black paint on Gary R’s 280z makes me drool. Then my eyes widen when I see the gigantic ZCG BigBrakeKit AND new Panasport wheels.  This is just a mock-up, but I can’t help but feel excited! The restoration moves forward with all of the newly plated parts and suspension being installed by Josh C. Hydraulic/fuel lines were beautifully plated in gold(brake) and silver(fuel):

The engine bay is glossy and the firewall is gleaming!

In our last update the interior and entire underbody was stripped and treated with POR-15, seen HERE. After drying, the front and rear suspension is in place with struts/coil overs mocked up. Note additional plated hardware:

Here are some shots of the coilovers and ZCG Big Brake Kit in all its all glory. Wheels/tires are 17″ Panasport C8s with black spokes and 255/40/17 tires under stock flares:

Stay tuned for our next update as Gary’s 280z gets a drivetrain!

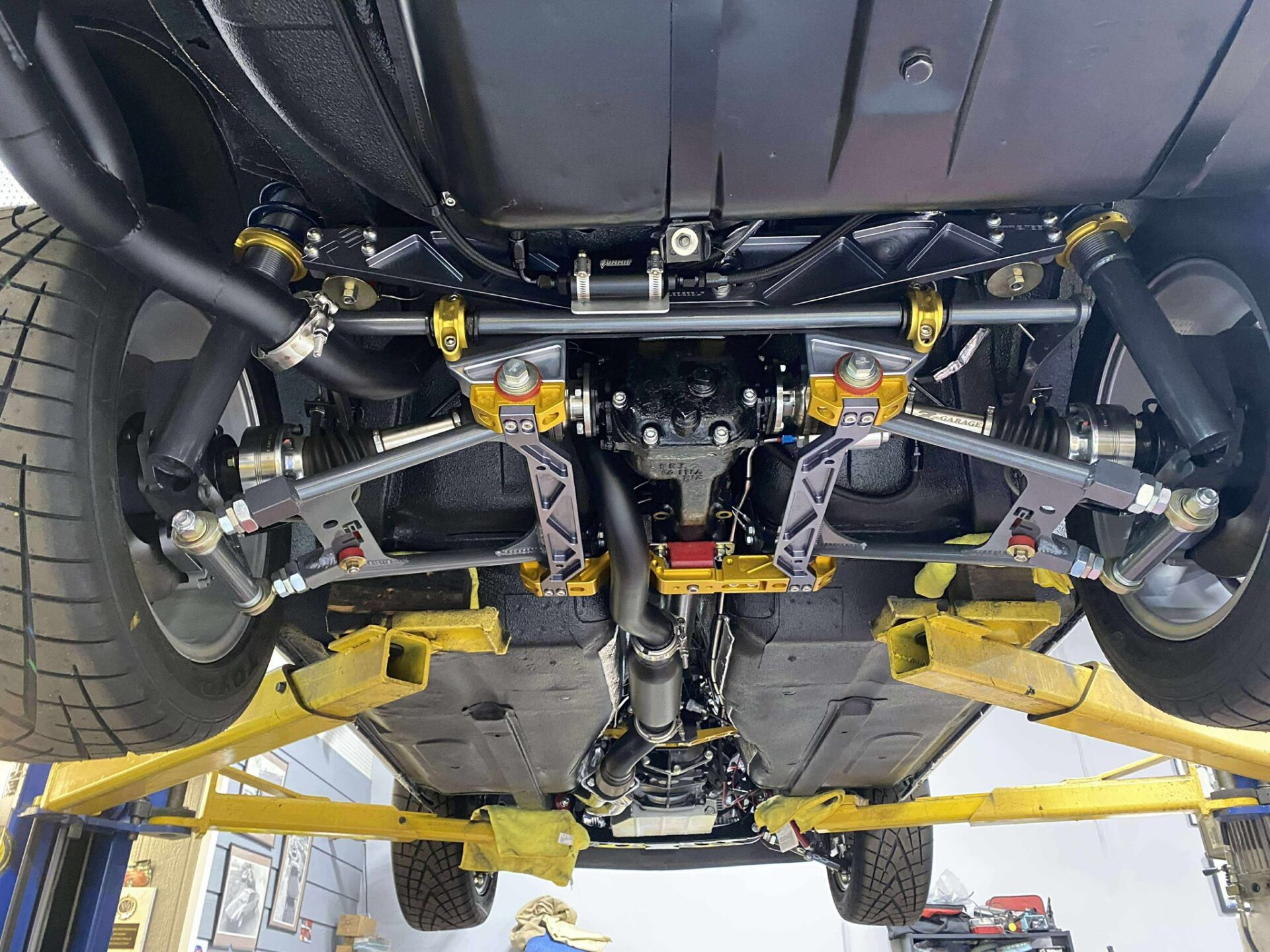

That is what the license plate reads on this 240z that belongs to Mark and Michelle G. Although the Z may have ate money it has been loved and fully supported by the family for about 10years. The Z is at ZCarGarage getting a full mechanical restoration before going to Williams Auto Body for body/paint. It is being built for the street with occasional track use, so brakes and suspension had to be upgraded. ZCG installed a full Arizona Z Car suspension from front to rear including robust control arms, sway bars, and bushings.  The entire underbody was also prepped and undercoated:

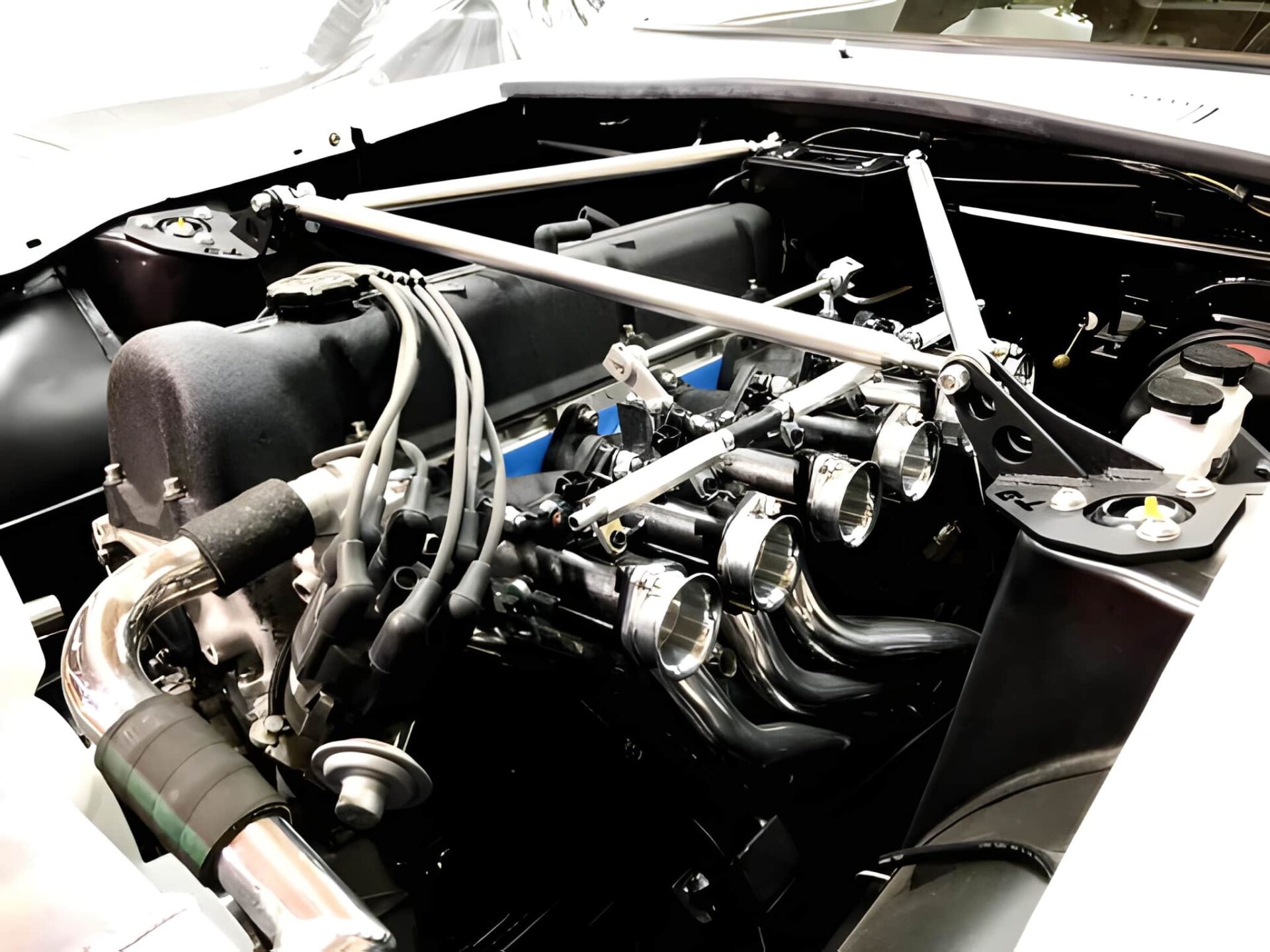

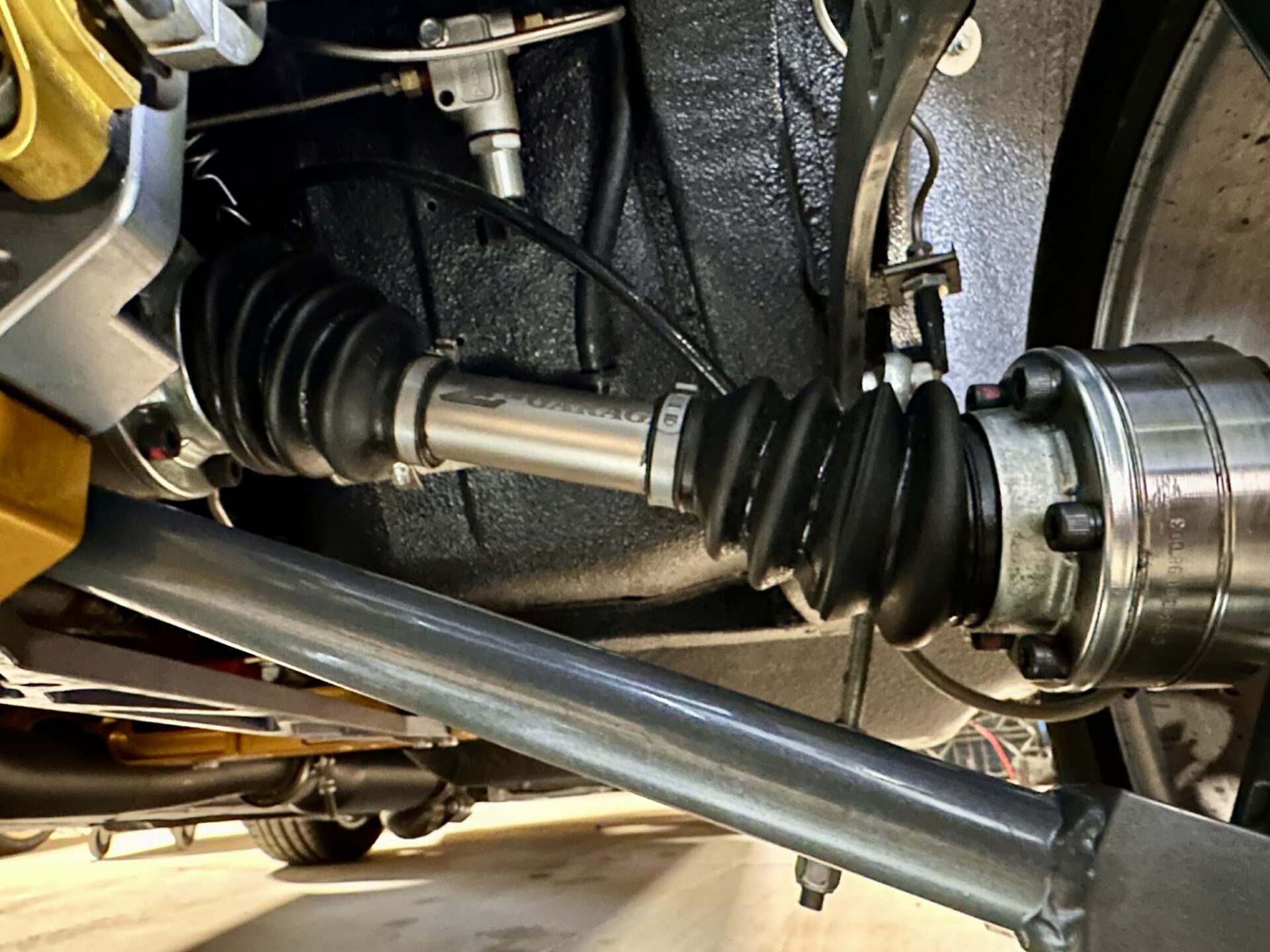

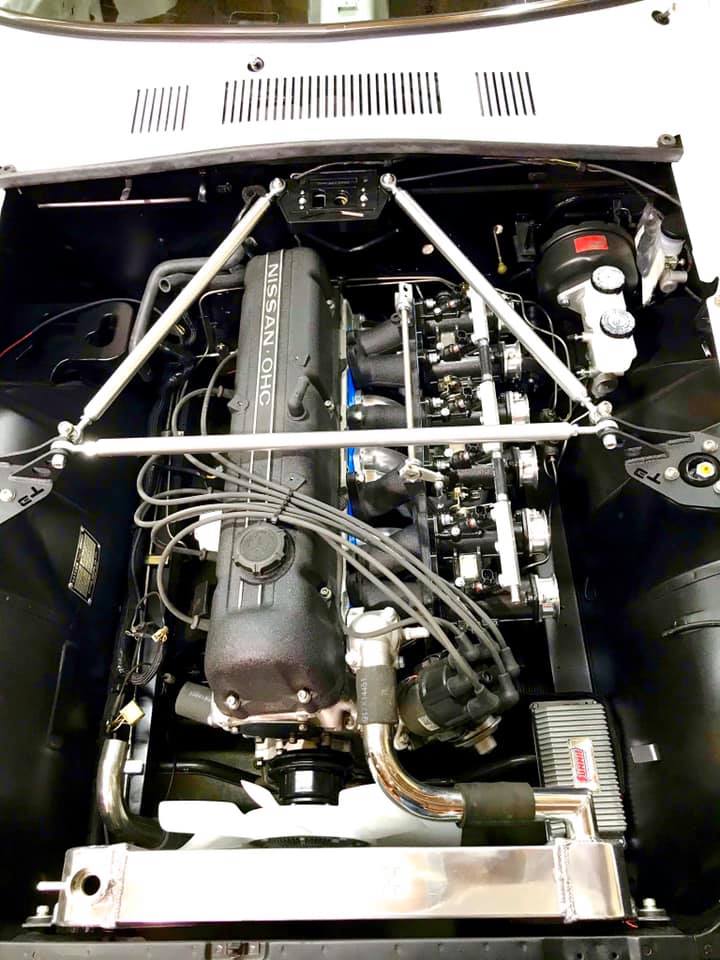

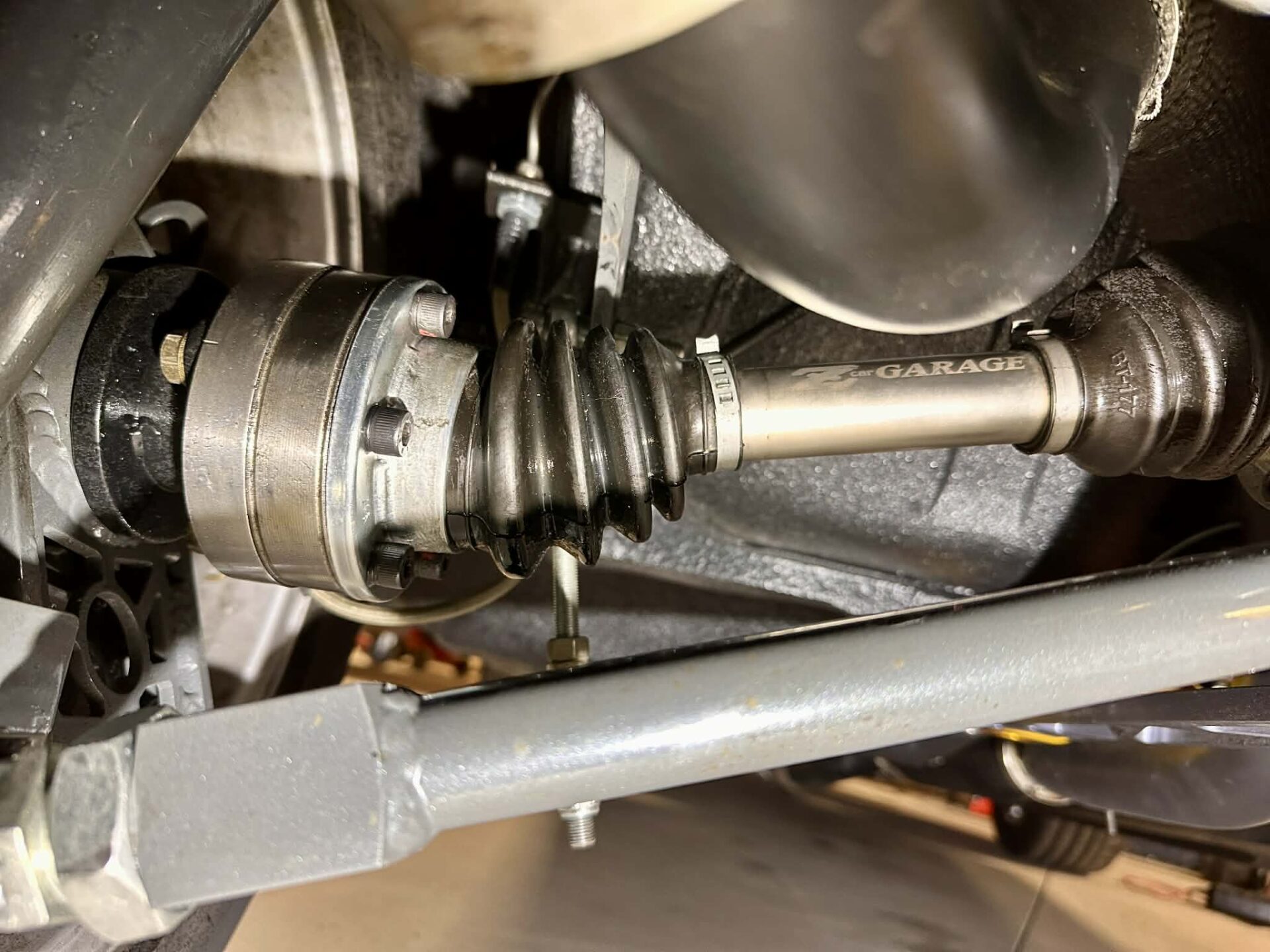

The 200rwhp L31 engine features triple Mikuni 44 carbs, a rare Clifford 6-2 exhaust header, and a ZCG triple-carb heat shield. The stock transmission was replaced with a 240sx gearbox with a JWT flywheel and heavy duty clutch. In back an R200 LSD diff along with a Porsche 930 CV conversion round out the drivetrain modifications:

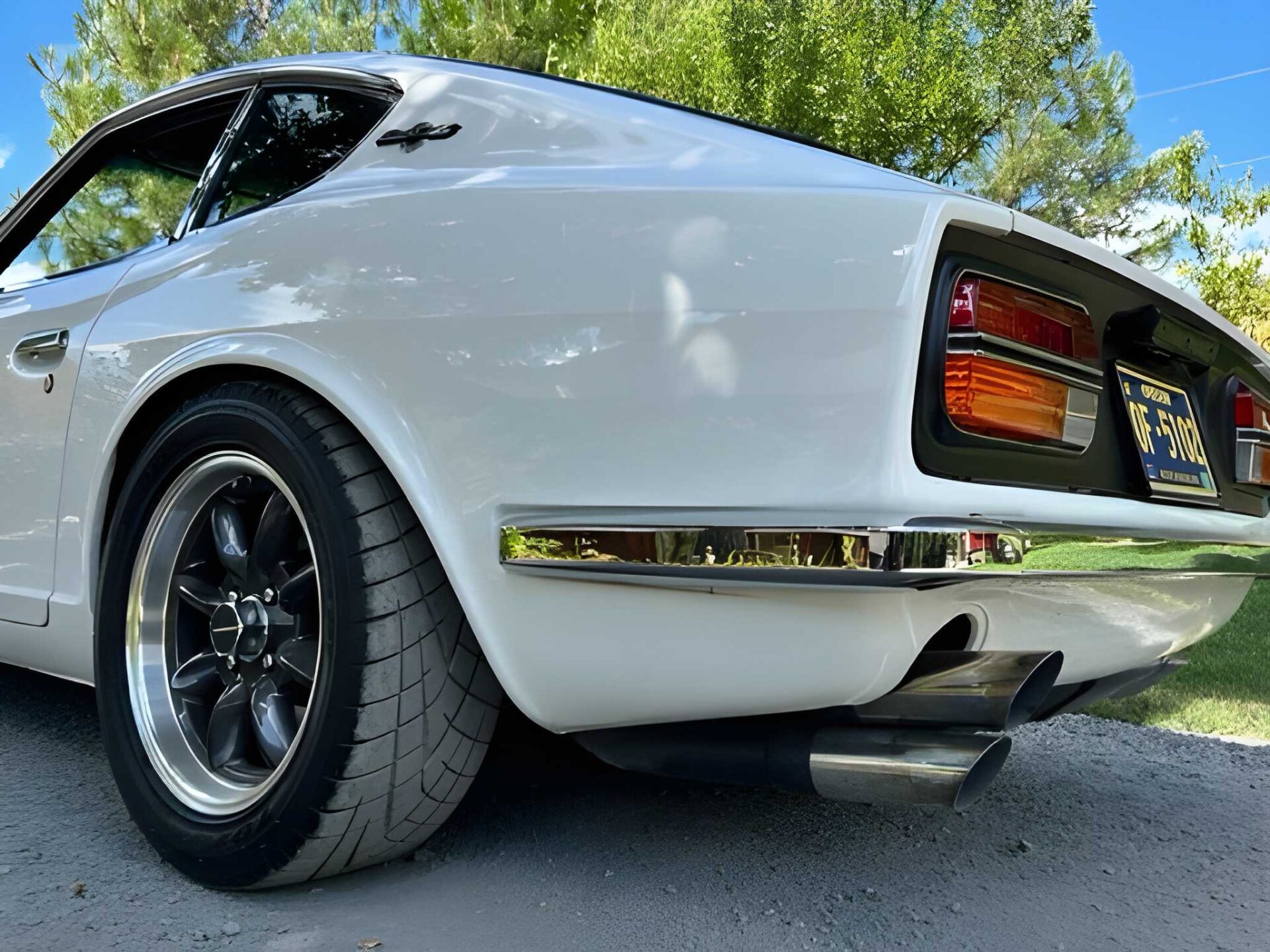

The rear portion of the exhaust was made to be removeable making adjustments/work easier:



The Z featured Porsche 993 Twin-Turbo calipers at all four-corners and though it is an incredible braking system it needed some work/proportioning so ZCG did some fine tuning.



Soon these gorgeous brakes will be encased by shiny new custom made 17″ Panasport C8 wheels!

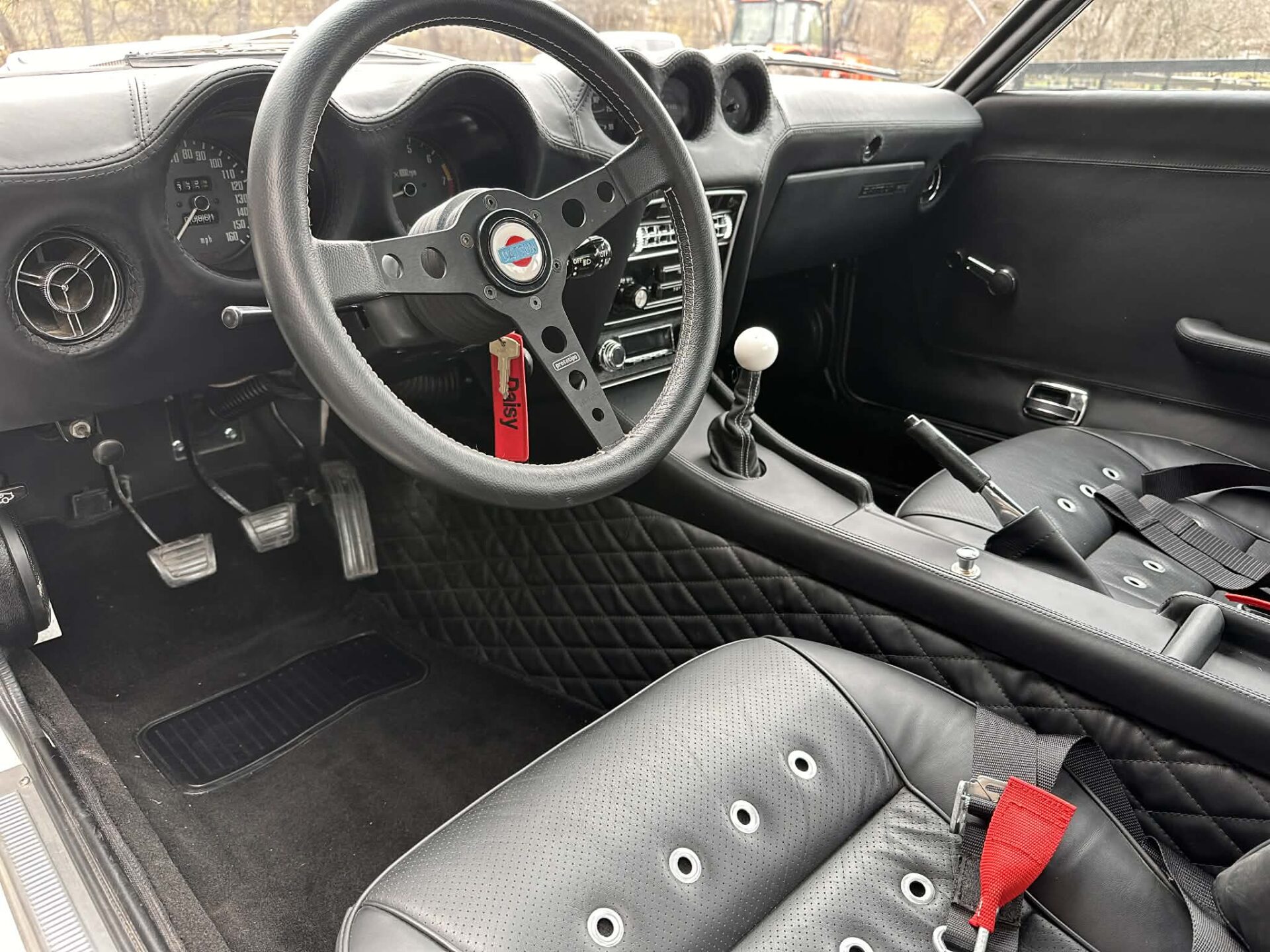

Finally, a nice touch that is both functional and good-looking are some new pedals. Let the Heel/Toe boogie begin!



Stay tuned for more updates after the Z comes back from Williams with fresh body and paint!

Lots of detailed pictures of the suspension below:
…[read more]

This 1973 240z belongs to a friend of the shop, Lou S.  It is a rare sight to see this Japanese-spec, Right-Hand-Drive (RHD) model with appropriate “FairladyZ” badging/lighting. The Z recently got new 3-piece, custom offset 17″ Panasport wheels. You might remember these beauties from the multiple sets ordered for the RB-240z builds.

These wheels allow the use of massive 255/40/17(Bridgestone RE050a) tires without major fender mods/flares. To take advantage of the larger footwork a complete Arizona Zcar suspension upgrade was installed.

The rear controls arms offer multiple points of adjustment. Struts were shortened and a Ground Control coilover kit with custom spring rates can be dialed in for any condition. Sway bars and new bushings throughout. The result is a car that stays absolutely planted in corners. It is almost begging for more power now. Triple Mikuni’s Lou?

The new stance makes this “RightLady” look awesome, and the black center spokes with polished lip complements the paint really well. Here is a short video clip of the car rolling on the freeway, enjoy!

Just wanted to share these pictures of a newly transformed 240z.  Panasports have been the obvious wheel choice for the iconic Z car for years for a good reason, THEY LOOK GREAT!!

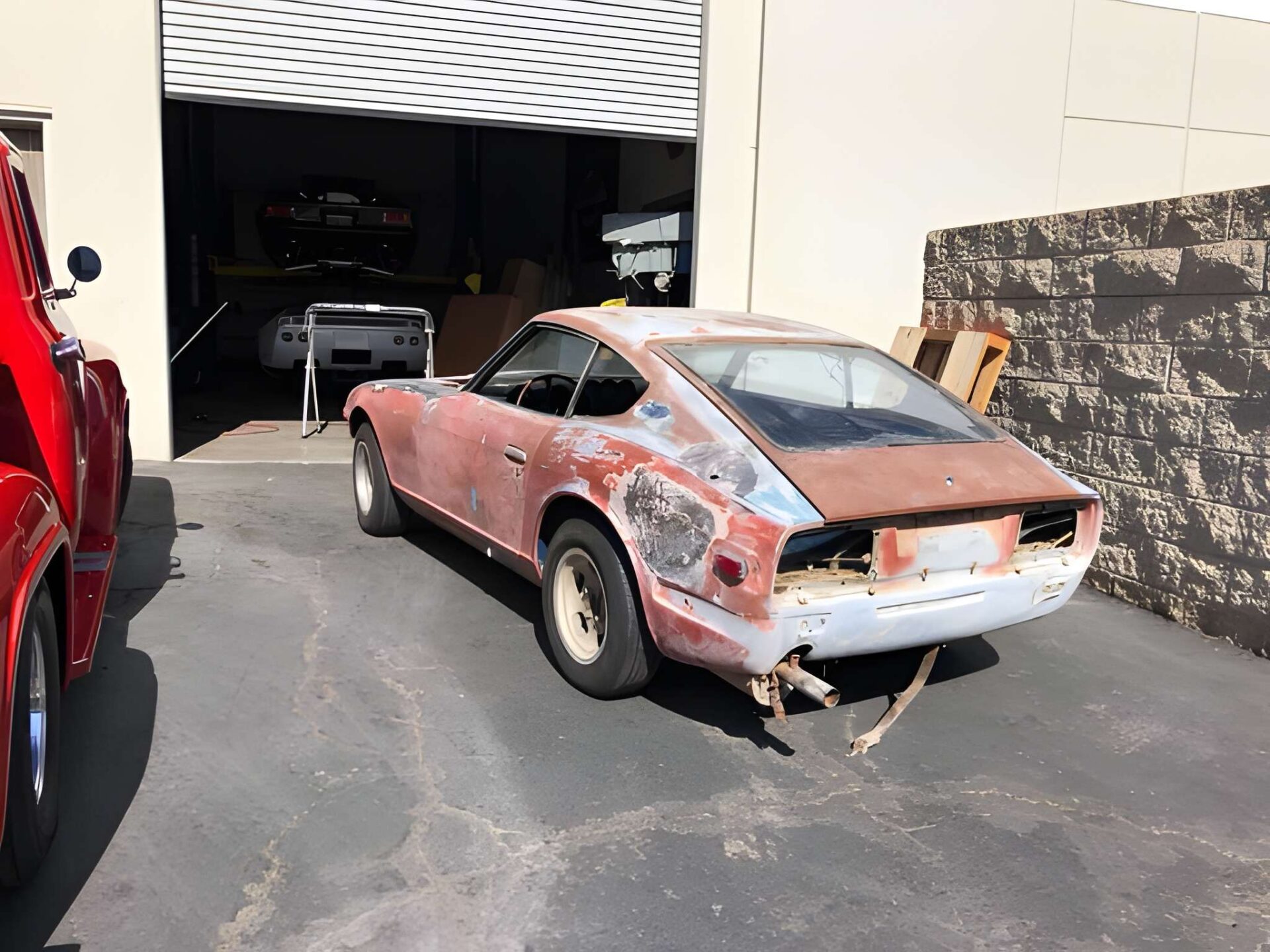

Before:

Z Car Garage is currently building 3 RB powered Datsuns for some very lucky customers, two 240Zs and one RHD Fairlady Z.  Many of you know Rob Fuller’s “Go Green” RB25 240z from being at Z Car Garage, various car shows, and from the cover of Turbo magazine earlier this year; these customer cars are going to be all that and more!!

Here are a few pictures of Rob’s car to refresh your memory.

Parts have been coming in like crazy recently so I figured it was time to share the goodies with all of you.  First off, GReddy has sent us a few new intake manifolds to abuse in these cars (these pictures are of the stock pieces before our modifications.)

We also had CUSTOM intercoolers made just for this application.  Flow and efficiency were our main concerns in the design and they do not disappoint.   These are extremely trick and are made to the same high standards as all of our cars and will be right at home in the RB engine bay.

Tomei will be supplying the camshafts for all the engines, but they will all be a more aggressive grind than the Tomei pieces in Rob’s 240.  The turbo choice is going to be key with these builds and we will be testing a few different variations before we make a final choice.  This will be extremely critical for the car that will be getting the stroked RB28.  This engine is nearly assembled and should be a monster when completed.

The three current cars are in various stages of completion:

Kurtzee:

This beautiful car was just featured in the November issue of Sport Compact Car.  It was torn apart a few weeks ago just as the article was released.  The struts were shortened and modified to accept coilovers and then sent out to be powder coated.  It is also being prepped for the ZCG Big Brake Kit so that it will be able to stop once the car gets going with all that new found horsepower.

This car is the most complete but the engine is still in the early stages so it is expected to be finished around the same time as the black car.

The Behemoth:

This is the car that will be receiving the RB28.  The plan is for the car to be black on black with the engine bay paint matching the quality of the of all of the exterior paint.  This is a show car that will be built to take all the abuse one can throw at it.  There has been a custom roll cage installed to brace the chassis which will be painted to match the exterior.

The car is currently at paint where we are making sure that all of the body lines are perfect before the black is sprayed, it will be as smooth as glass.  The stroked 2.8L RB is assembled and waiting only on the camshafts before it is buttoned up for the final time.  As I stated earlier this engine will be getting a slightly larger turbo to take full advantage of the added displacement.  The ZCG Big Brake Kit is standard issue.

The Silver Fairlady:

This car is also set to be something really special.  It is a true JDM RHD Fairlady Z that is being restored from the ground up to be the highlight of the owners collection.  While the engine will be built to the same specs as the Kurtzee build, the rest of the car is going to be a true labor of love due to the difficulty of sourcing the rare Fairlady parts.

This car will also be receiving the ZCG brake kit as it will see regular track duty when it isn’t winning every show it enters.  The entire suspension of the car has already been modified to accept coilovers and has been powder coated in a metallic silver just like the Skyline GT-Rs of the past, truly a thing of beauty.

All of the cars will be receiving a custom designed stand-alone ECU, the Hydra Nemesis EMS 2.6.  It will be fully integrated into our custom designed harnesses with a factory fit and finish.  This system has already been installed on our green RB 240 with excellent results.

Another addition to the cars is the 3 piece, custom offset, Panasport wheel set.  These wheels are a beautiful addition to an already amazing package.  They were chosen because they have the strength to handle the power and track use that all of these cars will see.

Look for another installment in these builds with in the next week when the suspension and engine developments mature a bit further.  Long Live The RB Z!
